1. Triple Pattern Fragments
Ruben Taelman - @rubensworks
imec - Ghent University
1

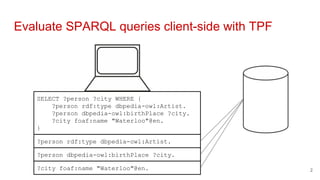

2. Evaluate SPARQL queries client-side with TPF
SELECT ?person ?city WHERE {
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en.
}
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en. 2

3. Publishing with Triple Pattern Fragments
Server
Client
Evaluations
3

4. Publishing with Triple Pattern Fragments
Server
Client
Evaluations
4

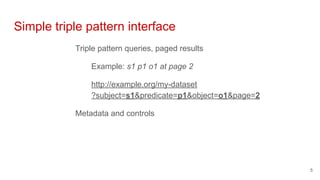

5. Simple triple pattern interface
Triple pattern queries, paged results
Example: s1 p1 o1 at page 2
http://example.org/my-dataset
?subject=s1&predicate=p1&object=o1&page=2
Metadata and controls
5

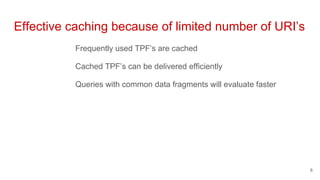

6. Effective caching because of limited number of URI’s
Frequently used TPF’s are cached
Cached TPF’s can be delivered efficiently
Queries with common data fragments will evaluate faster
6

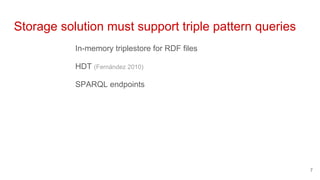

7. Storage solution must support triple pattern queries
In-memory triplestore for RDF files
HDT (Fernández 2010)
SPARQL endpoints
7

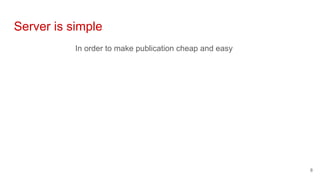

8. Server is simple
In order to make publication cheap and easy
8

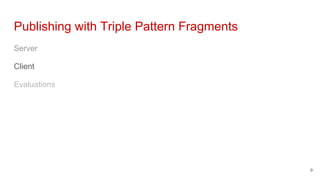

9. Publishing with Triple Pattern Fragments
Server
Client
Evaluations
9

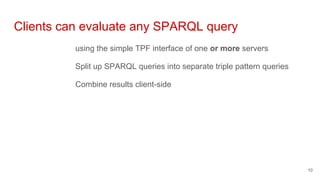

10. Clients can evaluate any SPARQL query
using the simple TPF interface of one or more servers
Split up SPARQL queries into separate triple pattern queries
Combine results client-side
10

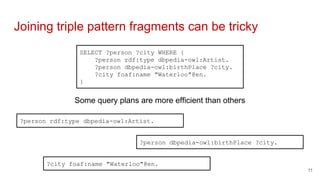

11. Joining triple pattern fragments can be tricky
SELECT ?person ?city WHERE {
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en.
}
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en.
Some query plans are more efficient than others
11

12. Number of triples as metadata in TPF’s
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en. 26
96 000
12 000 000
12

13. Select most selective triple pattern
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en. 26
96 000
12 000 000
Most selective!
13

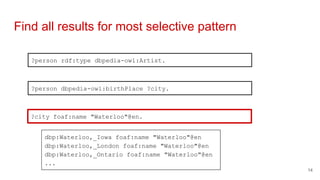

14. Find all results for most selective pattern
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace ?city.
?city foaf:name "Waterloo"@en.
dbp:Waterloo,_Iowa foaf:name "Waterloo"@en
dbp:Waterloo,_London foaf:name "Waterloo"@en
dbp:Waterloo,_Ontario foaf:name "Waterloo"@en
...
14

15. Fill in results in other patterns
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace dbp:Waterloo,_Iowa.
?city foaf:name "Waterloo"@en.
dbp:Waterloo,_Iowa foaf:name "Waterloo"@en
dbp:Waterloo,_London foaf:name "Waterloo"@en
dbp:Waterloo,_Ontario foaf:name "Waterloo"@en
...
15

16. Recursively repeat for remaining patterns
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace dbp:Waterloo,_Iowa .
96 000
45
16

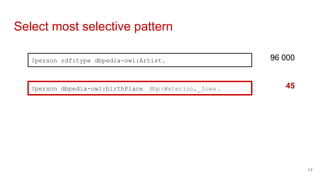

17. Select most selective pattern
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace dbp:Waterloo,_Iowa .
96 000
45
17

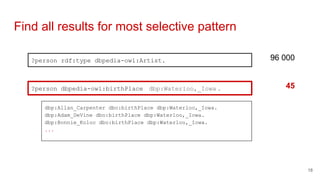

18. Find all results for most selective pattern
?person rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace dbp:Waterloo,_Iowa .
96 000
45
dbp:Allan_Carpenter dbo:birthPlace dbp:Waterloo,_Iowa.
dbp:Adam_DeVine dbo:birthPlace dbp:Waterloo,_Iowa.
dbp:Bonnie_Koloc dbo:birthPlace dbp:Waterloo,_Iowa.
...
18

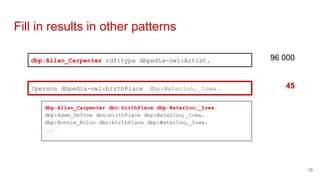

19. Fill in results in other patterns
dbp:Allan_Carpenter rdf:type dbpedia-owl:Artist.
?person dbpedia-owl:birthPlace dbp:Waterloo,_Iowa .
96 000
45
dbp:Allan_Carpenter dbo:birthPlace dbp:Waterloo,_Iowa.
dbp:Adam_DeVine dbo:birthPlace dbp:Waterloo,_Iowa.
dbp:Bonnie_Koloc dbo:birthPlace dbp:Waterloo,_Iowa.
...
19

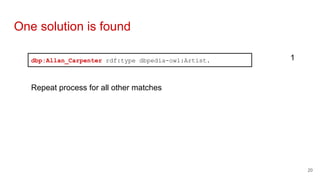

20. One solution is found
dbp:Allan_Carpenter rdf:type dbpedia-owl:Artist. 1
Repeat process for all other matches
20

21. Joining algorithm is not always optimal
Other algorithms are possible
Improved algorithm minimizes #requests (Van Herwegen 2015)
Additional metadata may improve query plans
21

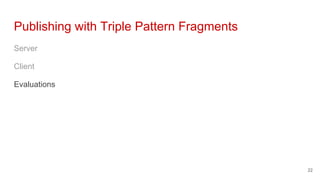

22. Publishing with Triple Pattern Fragments
Server
Client
Evaluations
22

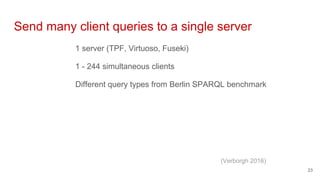

23. Send many client queries to a single server
1 server (TPF, Virtuoso, Fuseki)
1 - 244 simultaneous clients
Different query types from Berlin SPARQL benchmark
23
(Verborgh 2016)

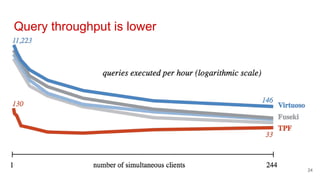

24. Query throughput is lower
24

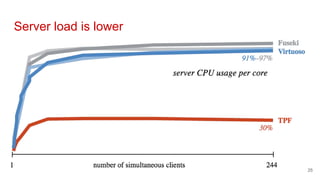

25. Server load is lower
25

26. TPF is just one possible trade-off
Reduce client load:
Additional metadata for membership search (Vander Sande 2015)
Substring filtering (Van Herwegen 2015)
Dynamic data publication and querying (Taelman 2016)
Reduce server load:
Decentralized caching (Folz 2016)
26

27. Conclusions
TPF servers have a simple low-cost interface
TPF clients evaluate SPARQL queries locally, using this
interface
27

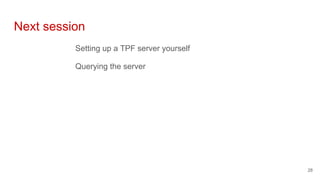

28. Next session
Setting up a TPF server yourself
Querying the server
28

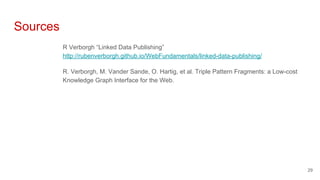

29. Sources
R Verborgh “Linked Data Publishing”
http://rubenverborgh.github.io/WebFundamentals/linked-data-publishing/
R. Verborgh, M. Vander Sande, O. Hartig, et al. Triple Pattern Fragments: a Low-cost
Knowledge Graph Interface for the Web.
29
