The EHA Sensor is a sensor that measures illuminance and correlated color temperature in tunable white luminaires using energy harvesting from a photovoltaic cell, requiring no power supply. It communicates measurement data via Bluetooth to a BlueBridge control unit. The sensor works by automatically measuring data and sending it to the BlueBridge, which controls the luminaires accordingly. Key advantages include energy savings, environmental friendliness, wireless operation, and accurate measurements.

1. Energy harvesting
ambient sensor

2. Content
EHA Sensor | Content
• Functionality of EHA Sensor
• How does it work?
• Advantages
• Video presentation
• Technical parameters
• Accessories for installation
• About us

3. Functionality of
EHA sensor
EHA Sensor | Functionality of EHA Sensor
• Sensor of illuminance and correlated colour temperature of
Tunable White luminaires in DALI network
• Uses energy harvesting from photovoltaic cell for biasing
(Sol Chip), no power supply needed
• Communication through Bluetooth 4, provides data for
BlueBridge (control unit)

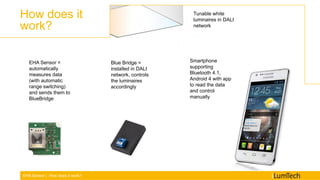

4. EHA Sensor | How does it work?
How does it
work?
Tunable white
luminaires in DALI
network
EHA Sensor =
automatically
measures data
(with automatic
range switching)
and sends them to
BlueBridge
Blue Bridge =
installed in DALI
network, controls
the luminaires
accordingly
Smartphone
supporting
Bluetooth 4.1,
Android 4 with app
to read the data
and control
manually

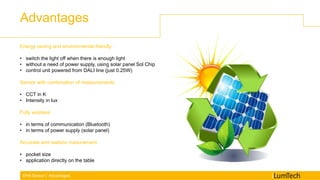

5. Advantages
EHA Sensor | Advantages
Energy saving and environmental friendly:
• switch the light off when there is enough light
• without a need of power supply, using solar panel Sol Chip
• control unit powered from DALI line (just 0.25W)
Sensor with combination of measurements:
• CCT in K
• Intensity in lux
Fully wireless:
• in terms of communication (Bluetooth)
• in terms of power supply (solar panel)
Accurate and realistic mesurement:
• pocket size
• application directly on the table

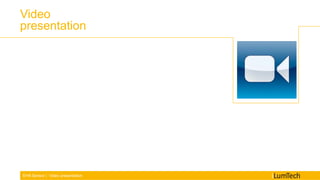

6. EHA Sensor | Video presentation
Video
presentation

7. EHA Sensor | Technical parameters
Technical
parameters
Range of CCT measurement: 2500 K - 8000 K
Range of measured illuminance: 100 lx – 12 000 lx
Input parameters / wiring: no extra biasing / no wiring
Dimensions: 40 x 40 x 20 mm
Weight: 150 g
IP coverage: IP 20
Temperature range: 0 °C - 40 °C
Storage temperature range: 0 °C – 70 °C

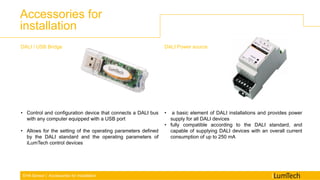

8. EHA Sensor | Accessories for installation
Accessories for
installation
DALI / USB Bridge
• Control and configuration device that connects a DALI bus
with any computer equipped with a USB port
• Allows for the setting of the operating parameters defined
by the DALI standard and the operating parameters of
iLumTech control devices
DALI Power source
• a basic element of DALI installations and provides power
supply for all DALI devices
• fully compatible according to the DALI standard, and
capable of supplying DALI devices with an overall current
consumption of up to 250 mA

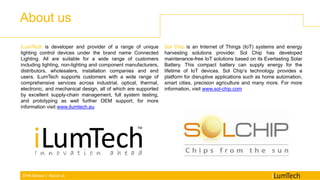

9. EHA Sensor | About us
About us
iLumTech is developer and provider of a range of unique
lighting control devices under the brand name Connected
Lighting. All are suitable for a wide range of customers
including lighting, non-lighting and component manufacturers,
distributors, wholesalers, installation companies and end
users. iLumTech supports customers with a wide range of
comprehensive services across industrial, optical, thermal,
electronic, and mechanical design, all of which are supported
by excellent supply-chain management, full system testing,
and prototyping as well further OEM support, for more
information visit www.ilumtech.eu
Sol Chip is an Internet of Things (IoT) systems and energy
harvesting solutions provider. Sol Chip has developed
maintenance-free IoT solutions based on its Everlasting Solar
Battery. This compact battery can supply energy for the
lifetime of IoT devices. Sol Chip’s technology provides a
platform for disruptive applications such as home automation,
smart cities, precision agriculture and many more. For more
information, visit www.sol-chip.com
