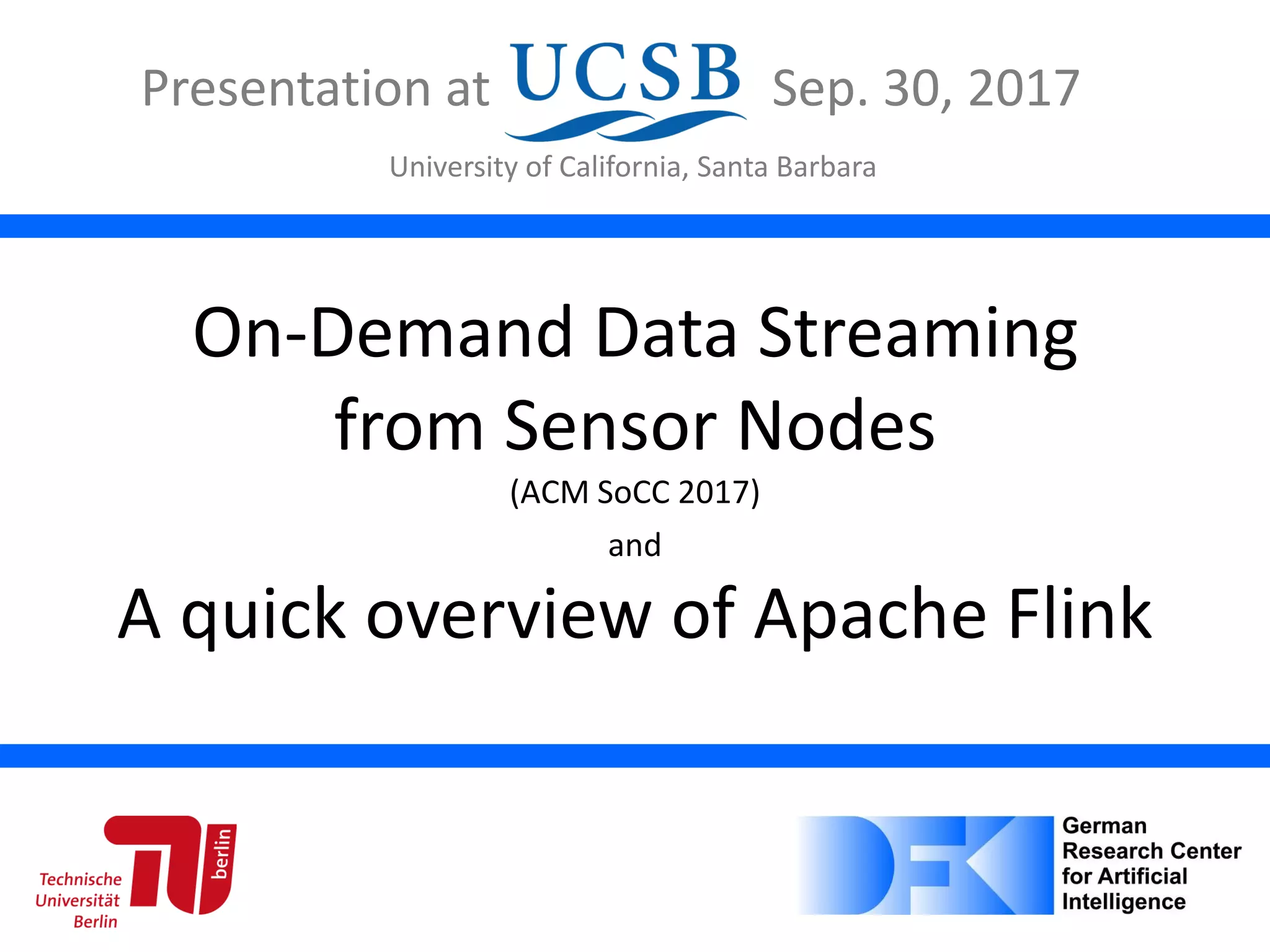

This slide set was presented at UCSB on Sep. 30, 2017. The talk covers an extended version of the slides from SoCC 2017 plus a quick overview of Apache Flink.

1. On-Demand Data Streaming
from Sensor Nodes
(ACM SoCC 2017)
and
A quick overview of Apache Flink
Presentation at Sep. 30, 2017
University of California, Santa Barbara

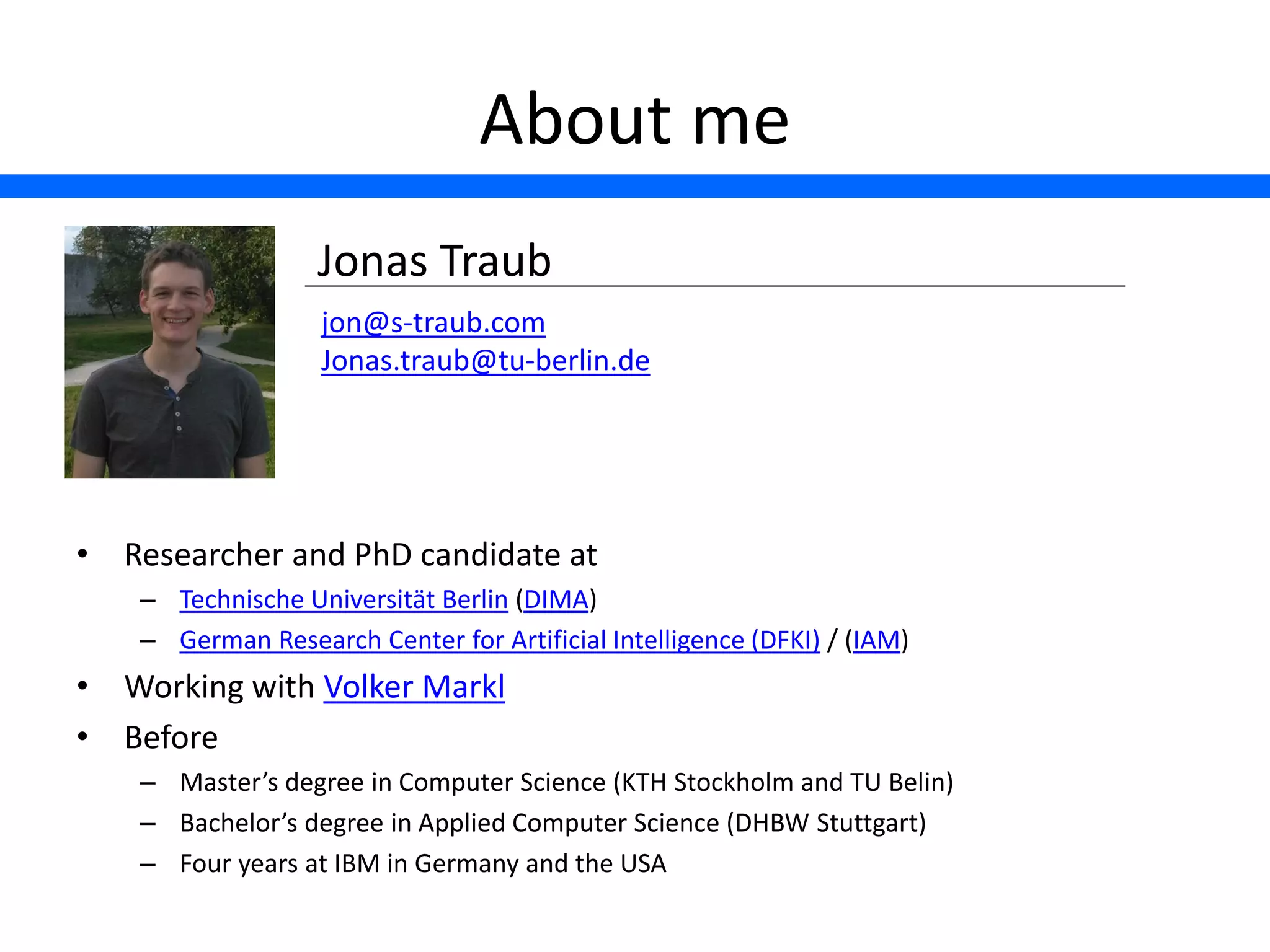

2. About me
• Researcher and PhD candidate at
– Technische Universität Berlin (DIMA)
– German Research Center for Artificial Intelligence (DFKI) / (IAM)
• Working with Volker Markl
• Before
– Master’s degree in Computer Science (KTH Stockholm and TU Belin)
– Bachelor’s degree in Applied Computer Science (DHBW Stuttgart)
– Four years at IBM in Germany and the USA
Jonas Traub
jon@s-traub.com
Jonas.traub@tu-berlin.de

3. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Optimized On-Demand Data
Streaming from Sensor Nodes
Jonas Traub, Sebastian Breß, Asterios Katsifodimos, Tilmann Rabl, Volker Markl
Extended Talk for . .
Santa Clara, California,
September 25-27, 2017

4. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud
Real-time
insights
4

5. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud
Real-time
insights
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.
5

6. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud
Real-time
insights
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.
6

7. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud
Real-time
insights
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.
7

8. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud
Real-time
insights
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.
8

9. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Problems
Real-time
insights
9
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.

10. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Problems
Real-time
insights
Streaming all data from billions
of sensors to all applications
with maximal frequencies is impossible
10
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.

11. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Problems
Real-time
insights
Streaming all data from billions
of sensors to all applications
with maximal frequencies is impossible
Increasing data rates
require expensive
system scale-out.
11
Billions of sensor nodes form a sensor cloud
and provide data streams to analysis systems.

12. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Solutions
12
Tailor Data Streams to the Demand of Applications

13. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Solutions
13
Tailor Data Streams to the Demand of Applications
• Provide an abstraction to define the data demand of applications.
User-Defined Sampling Functions (UDSFs)

14. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Solutions
14
Tailor Data Streams to the Demand of Applications
• Provide an abstraction to define the data demand of applications.
• Optimize communication costs while maintaining the result accuracy.
User-Defined Sampling Functions (UDSFs)
Read-Time Optimization

15. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
The Sensor Cloud – Solutions
15
Tailor Data Streams to the Demand of Applications
• Provide an abstraction to define the data demand of applications.
• Optimize communication costs while maintaining the result accuracy.
• Share sensor reads and data transfer among users and queries.
User-Defined Sampling Functions (UDSFs)
Read-Time Optimization
Multi-Query / Multi-User Optimization

16. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
16

17. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
17

18. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
18
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.

19. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
19
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.

20. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
20
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.
• Query 2 requires a sample at least every 20 meters

21. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
21
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.
• Query 2 requires a sample at least every 20 meters

22. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
22
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.
• Query 2 requires a sample at least every 20 meters
• Query 3 requires a sample at least every 0.3s.

23. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
23
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.
• Query 2 requires a sample at least every 20 meters
• Query 3 requires a sample at least every 0.3s.

24. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example
24
Different Data Data Demands:
• Query 1 adaptively increases sampling rates when accelerating or braking.
• Query 2 requires a sample at least every 20 meters
• Query 3 requires a sample at least every 0.3s.

25. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example - Evaluation
25

26. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example - Evaluation
26
-57%

27. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example - Evaluation
27
-57%
-72%

28. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A Motivating Example - Evaluation
28
1/3 because 3 values per tuple
-57%
-72%

29. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Architecture Overview
29

30. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Architecture Overview
30

31. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Architecture Overview
31

32. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Architecture Overview
32

33. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Architecture Overview
33

34. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Sensor Read Scheduling
34

35. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
User-Defined Sampling Functions
35
Input:
Sensor read time and value
Output:
Next Sensor Read Request

36. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
User-Defined Sampling Functions
36
Input:
Sensor read time and value

37. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
User-Defined Sampling Functions
37
Enable adaptive sampling techniques to reduce data transmission
e.g., Adam [Trihinas ‘15], FAST [Fan ‘14], L-SIP [Gaura ’13]

38. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
User-Defined Sampling Functions - Examples
38

39. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
User-Defined Sampling Functions - Examples
39

40. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
User-Defined Sampling Functions - Examples
40

41. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Sensor Read Fusion
41

42. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Sensor Read Fusion
42
1) Minimize Sensor Reads and Data Transfer:
Latest possible read time

43. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Read Time Optimization
43
2) Optimize Sensor Read Times:
● Minimize penalty while executing the minimum number of sensor reads only
● Challenge: assign read requests to sensor reads

44. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Assigning Read Requests to Sensor Reads
44
PostponeAssign to next Read

45. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Assigning Read Requests to Sensor Reads
45
PostponeAssign to next Read

46. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Assigning Read Requests to Sensor Reads
46
PostponeAssign to next Read

47. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Assigning Read Requests to Sensor Reads
47
PostponeAssign to next Read

48. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Local Filtering
48

49. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Local Filtering
49
● Enable adaptive filtering in combination with adaptive sampling
● Enable model-driven data acquisition

50. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Local Filtering
50

51. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Evaluation
●Replay sensor data
- from a football match [DEBS Grand Challenge ’13]
- formula 1 telementry data
●Random UDSFs:
- Read in a poisson process (also simulate load peaks)
- In average 1 read per query per second
- Exponentially distributed read time tolerance
- high probability for small tolerances
- small probability for large tolerances
- In average 0.04s read time tolerance
51

52. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 52
Increasing the number of concurrent queries
• On-Demand scheduling reduces sensor reads and data transfer by up to 87%.
• The # of reads and transfers increases sub-linearly with the # of queries.

53. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 53
Increasing the number of concurrent queries
• Our read-time optimizer reduces the deviation from desired read times
by up to 69% (preserving the min. # of reads and transfers).

54. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 54
Increasing read time tolerances

55. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 55
Increasing read time tolerances

56. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 56
Query Prioritization (1/2)

57. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 57
Query Prioritization (2/2)

58. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17 58
Slack Robustness of Adaptive Sampling

59. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
Optimized On-Demand Data
Streaming from Sensor Nodes
Wrap-Up:
Tailor Data Streams to the Demand of Applications
• Define data demand: User-Defined Sampling Functions
• Schedule sensor reads and data transfer on-demand
• Optimize read times globally - for all users and queries
Jonas Traub, Sebastian Breß, Asterios Katsifodimos, Tilmann Rabl, Volker Markl

60. Traub et al., Optimized On-Demand Data Streaming from Sensor Nodes, SoCC ‘17
A quick overview of Apache Flink
- research summary -
Jonas Traub visiting September 30, 2017

61. Outline
Apache Flink Primer
• Stratosphere – The origin of Apache Flink
• What is Apache Flink? – Basic System Internals
• The Flink Community
An Apache Flink Research Summary
61

62. 62 © Volker Markl
• Relational Algebra
• Declarativity
• Query Optimization
• Robust Out-of-core
• Scalability
• User-defined
Functions
• Complex Data Types
• Schema on Read
62
Draws on
Database Technology
Draws on
MapReduce Technology
Stratosphere: General Purpose
Programming + Database Execution

63. 63 © Volker Markl
• Relational Algebra
• Declarativity
• Query Optimization
• Robust Out-of-core
• Scalability
• User-defined
Functions
• Complex Data Types
• Schema on Read
• Iterations
• Advanced Dataflows
• General APIs
• Native Streaming
63
Draws on
Database Technology
Draws on
MapReduce Technology
Adds
Stratosphere: General Purpose
Programming + Database Execution

64. 64 © Volker Markl
64
64 © Volker Markl
Apache Flink is an open source platform for scalable batch and stream
data processing.
What is Apache Flink?
http://flink.apache.org
A distributed system that you can use to
process data
Like a DBMS but not exactly a DBMS
What kind of data?
Data that comes in the form of streams
What kind of processing
Quite flexible. You can use Java/Scala APIs
similar to programming with Java
collections, the new SQL API, etc
Distributed: runs on many (1000s) of machines
and hides this complexity from the user
64

65. 65 © Volker Markl
65
65 © Volker Markl
Basic application architecture
app state
app state
app state
event log
Query
service
Sources of data
(e.g., sensors,
logs, …)
A replayable log of
events with pub/sub
functionality
Processing of
events
Storage and query systems
By courtesy of Kostas Tzoumas
65

66. 66 © Volker Markl
66 © 2013 Berlin Big Data Center • All Rights Reserved
66 © Volker Markl
Technology inside Flink
case class Path (from: Long, to:
Long)
val tc = edges.iterate(10) {
paths: DataSet[Path] =>
val next = paths
.join(edges)
.where("to")
.equalTo("from") {
(path, edge) =>
Path(path.from, edge.to)
}
.union(paths)
.distinct()
next
}
Program

67. 67 © Volker Markl
67 © 2013 Berlin Big Data Center • All Rights Reserved
67 © Volker Markl
Technology inside Flink
case class Path (from: Long, to:
Long)
val tc = edges.iterate(10) {
paths: DataSet[Path] =>
val next = paths
.join(edges)
.where("to")
.equalTo("from") {
(path, edge) =>
Path(path.from, edge.to)
}
.union(paths)
.distinct()
next
}
Cost-based
optimizer
Type extraction
stack
Pre-flight (Client)
Program

68. 68 © Volker Markl
68 © 2013 Berlin Big Data Center • All Rights Reserved
68 © Volker Markl
Technology inside Flink
case class Path (from: Long, to:
Long)
val tc = edges.iterate(10) {
paths: DataSet[Path] =>
val next = paths
.join(edges)
.where("to")
.equalTo("from") {
(path, edge) =>
Path(path.from, edge.to)
}
.union(paths)
.distinct()
next
}
Cost-based
optimizer
Type extraction
stack
Pre-flight (Client)
DataSourc
e
orders.tbl
Filter
Map
DataSourc
e
lineitem.tbl
Join
Hybrid Hash
build
HT
probe
hash-part [0] hash-part [0]
GroupRed
sort
forward
Program
Dataflow
Graph

69. 69 © Volker Markl
69 © 2013 Berlin Big Data Center • All Rights Reserved
69 © Volker Markl
Technology inside Flink
case class Path (from: Long, to:
Long)
val tc = edges.iterate(10) {
paths: DataSet[Path] =>
val next = paths
.join(edges)
.where("to")
.equalTo("from") {
(path, edge) =>
Path(path.from, edge.to)
}
.union(paths)
.distinct()
next
}
Cost-based
optimizer
Type extraction
stack
Task
scheduling
Recovery
metadata
Pre-flight (Client)
Master
Workers
DataSourc
e
orders.tbl
Filter
Map
DataSourc
e
lineitem.tbl
Join
Hybrid Hash
build
HT
probe
hash-part [0] hash-part [0]
GroupRed
sort
forward
Program
Dataflow
Graph
deploy
operators
track
intermediate
results

70. 70 © Volker Markl
70
70 © Volker Markl
Flink community
0
50
100
150
200
250
300
Feb 15 Dec 15 Dec 16
Number of
Contributors
0
200
400
600
800
1000
1200
1400
1600
1800
2000
Feb 15 Dec 15 Dec 16
Stars on GitHub
0
200
400
600
800
1000
1200
1400
Feb 15 Dec 15 Dec 16
Forks on GitHub
By courtesy of Kostas Tzoumas
Project Statistics (Updated: Sep 29, 2017)
70

71. 71 © Volker Markl
71
71 © Volker Markl
Companies Using Flink

72. Apache Flink - Related Publications
System Paper 2015:
System Paper 2014:
72

73. Apache Flink - Related Publications
System Paper 2015:
System Paper 2014:
73

74. Apache Flink - Related Publications
System Paper 2015:
System Paper 2014:
74

75. State Management
VLDB 2017
75

76. Iterative Processing
VLDB 2012
76

77. Iterative Processing
VLDB 2012
SIGMOD 2013 77

78. Fault Tolerance
78

79. Fault Tolerance
79

80. Fault Tolerance
80

81. Fault Tolerance
81

82. Streaming Window Aggregation
82

83. Visualization of Streaming Data
83

84. On-Demand Data Streaming
from Sensor Nodes
(ACM SoCC 2017)
and
A quick overview of Apache Flink
Presentation at Sep. 30, 2017
University of California, Santa Barbara
