Efficient Window Aggregation
with Stream Slicing
Berlin, September 3-5, 2018
Philipp M. Grulich
Research Assistant (DFKI)
Jonas Traub
Research Associate (TU Berlin)
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
2
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

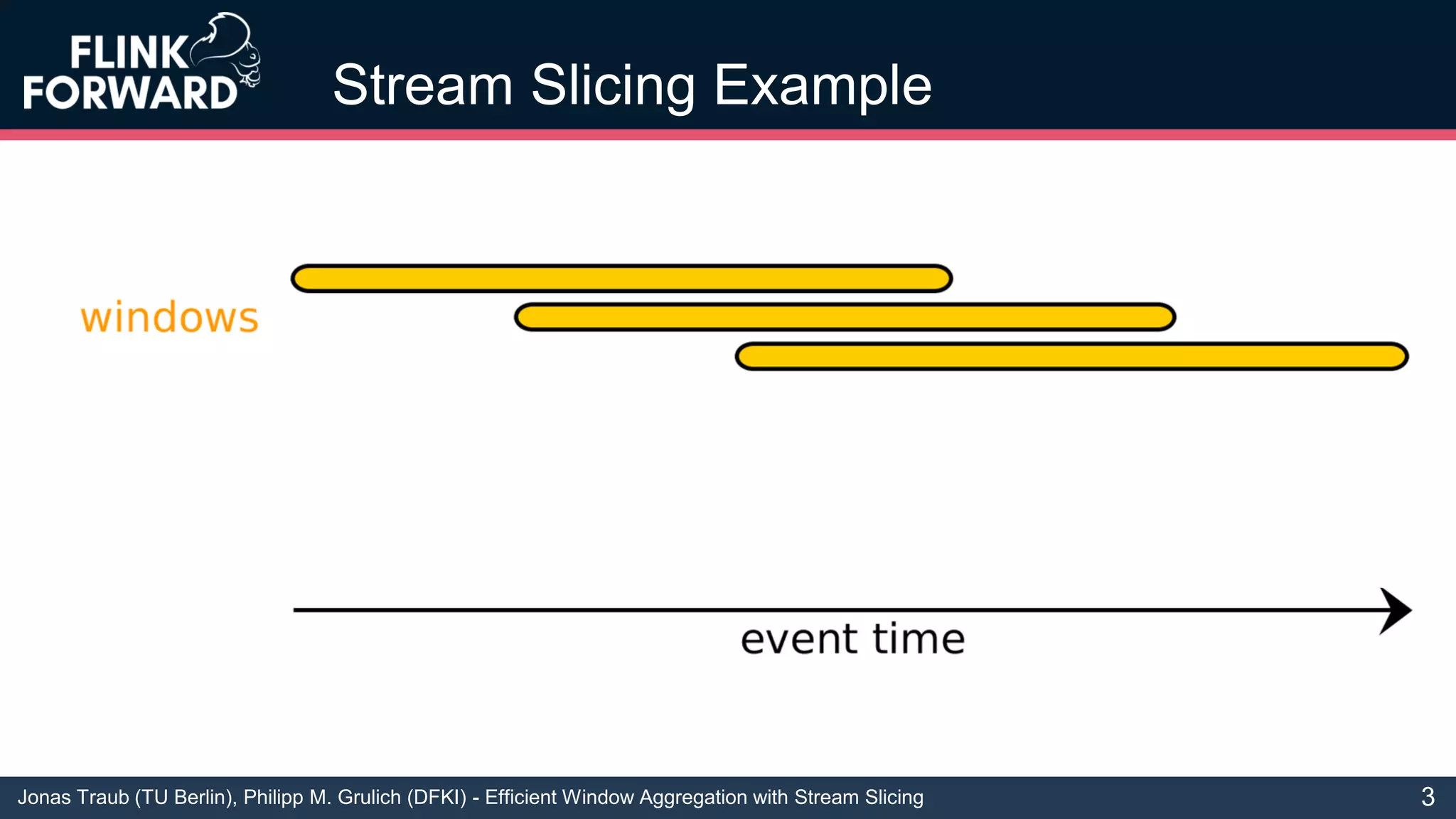

Stream Slicing Example
3
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

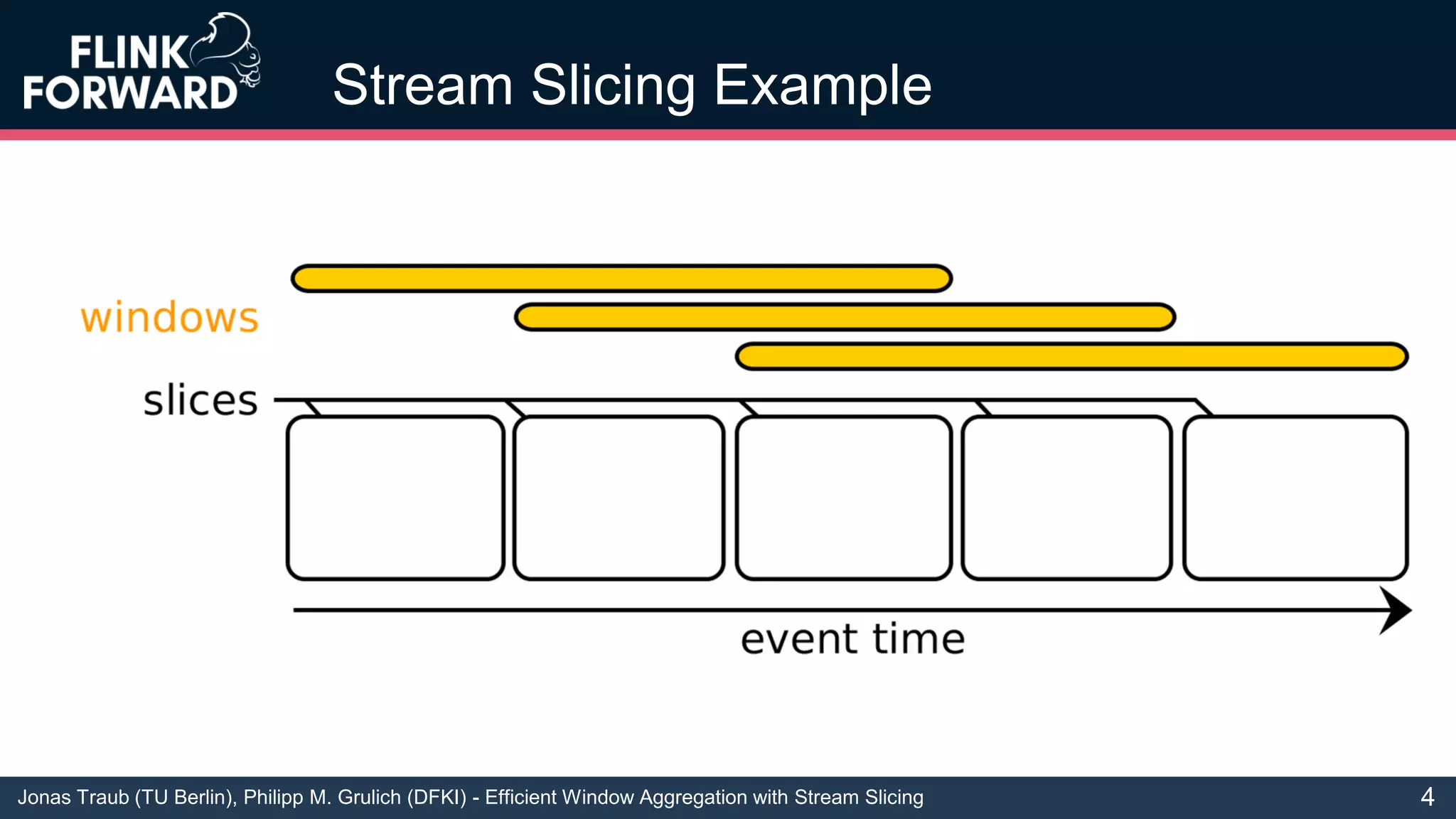

Stream Slicing Example
4
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
5
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

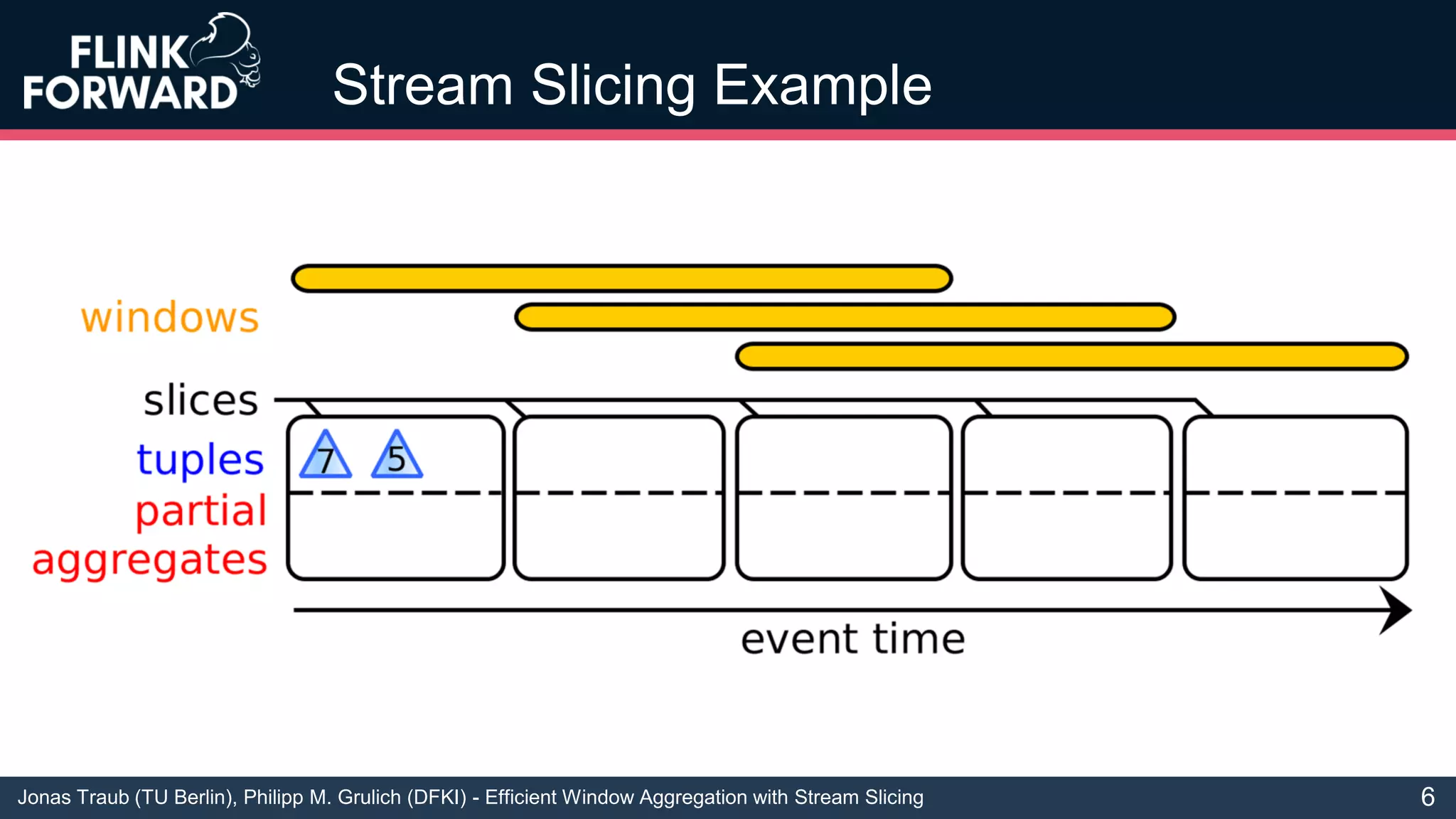

Stream Slicing Example
6
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

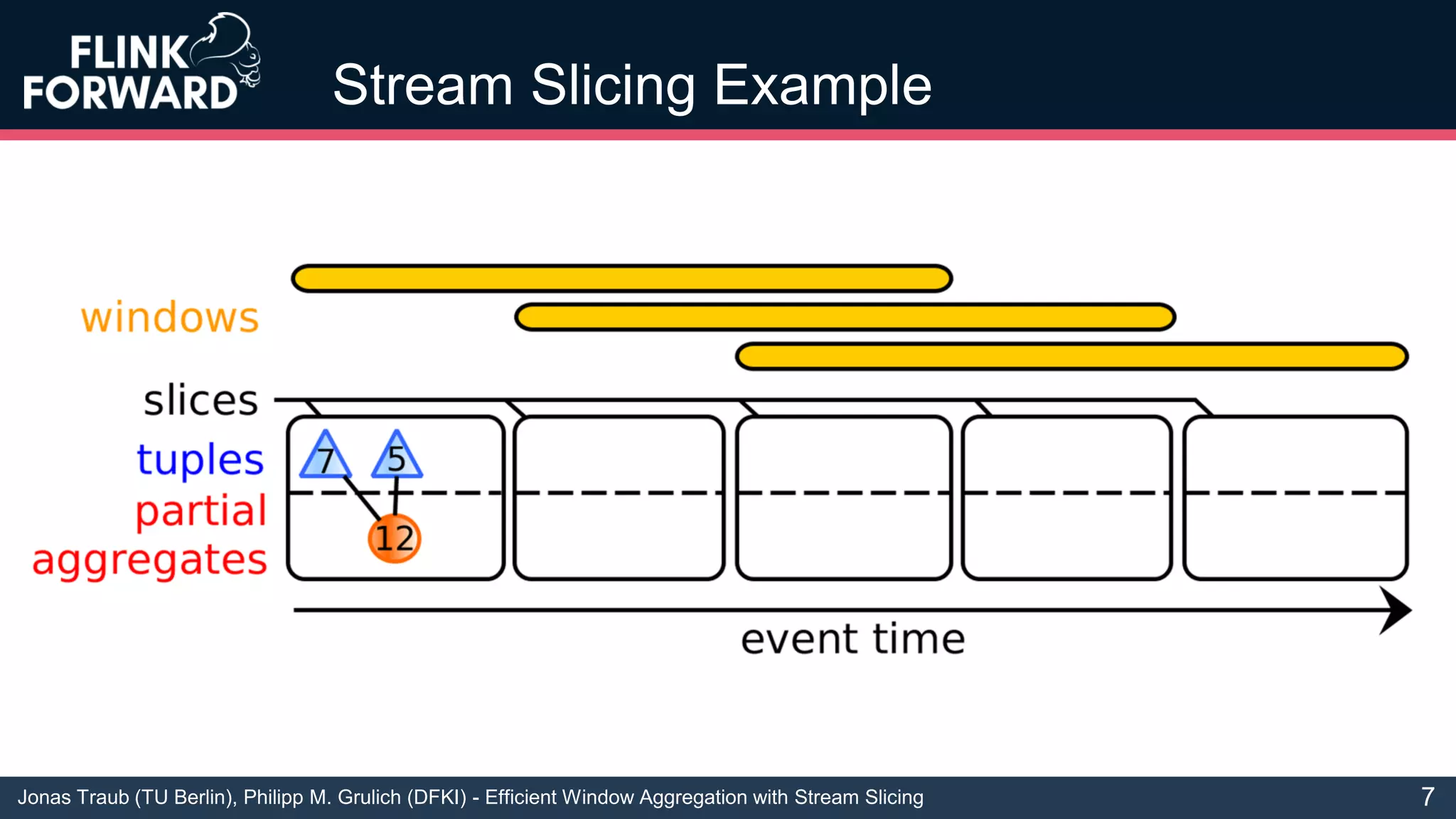

Stream Slicing Example
7
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

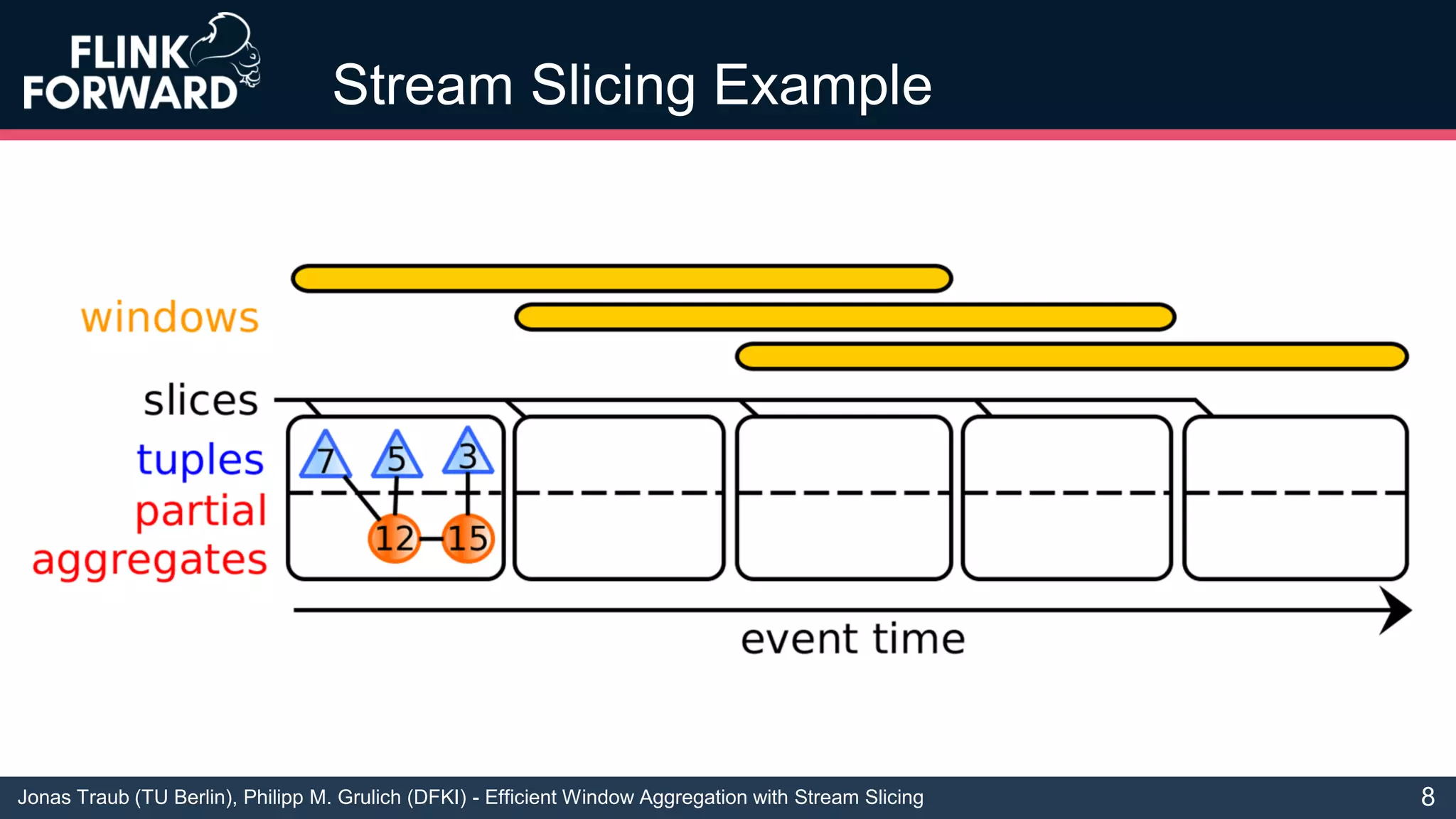

Stream Slicing Example
8
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

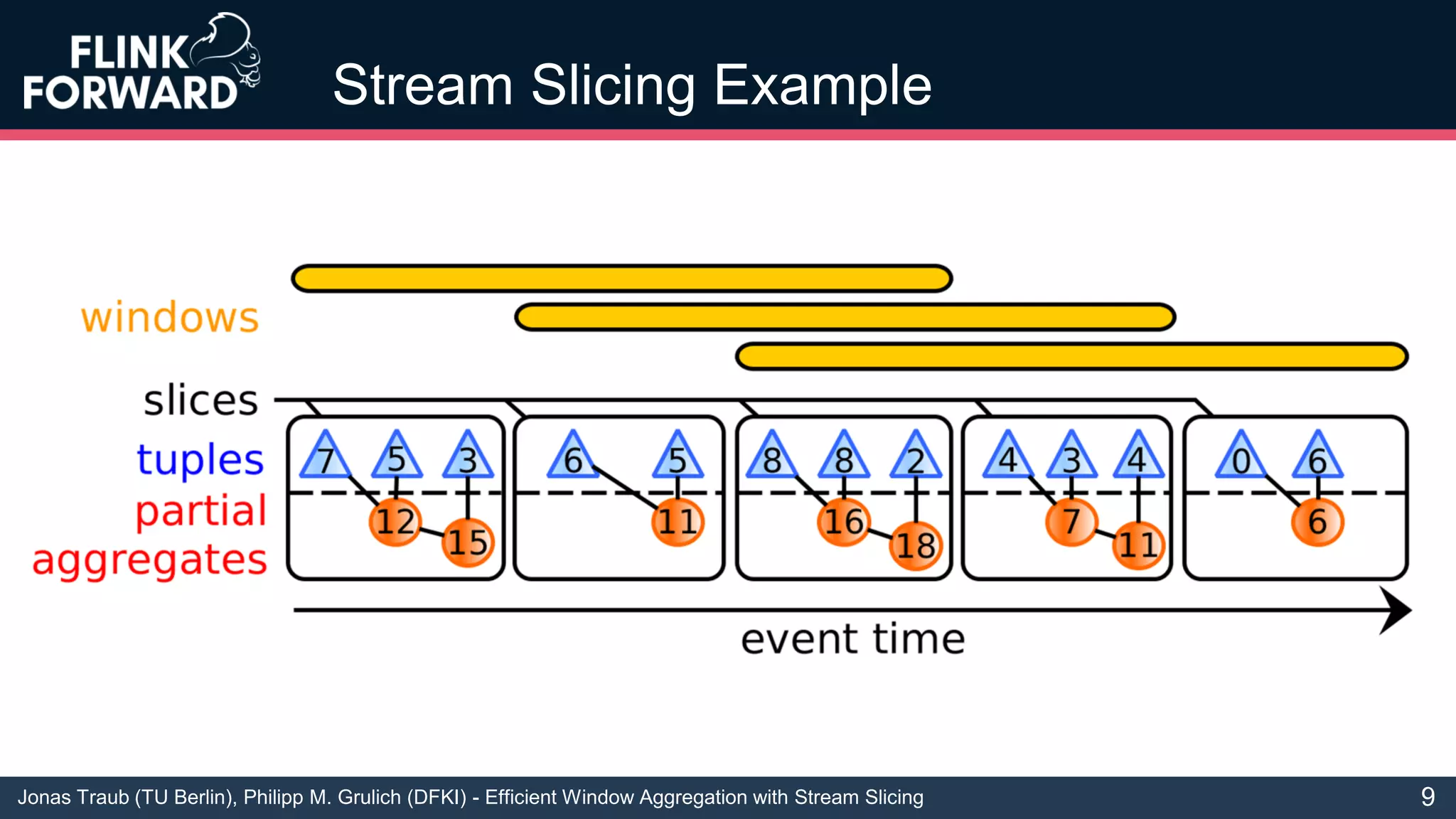

Stream Slicing Example
9
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

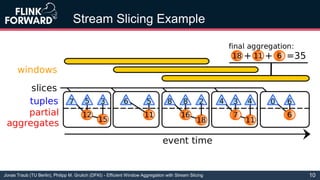

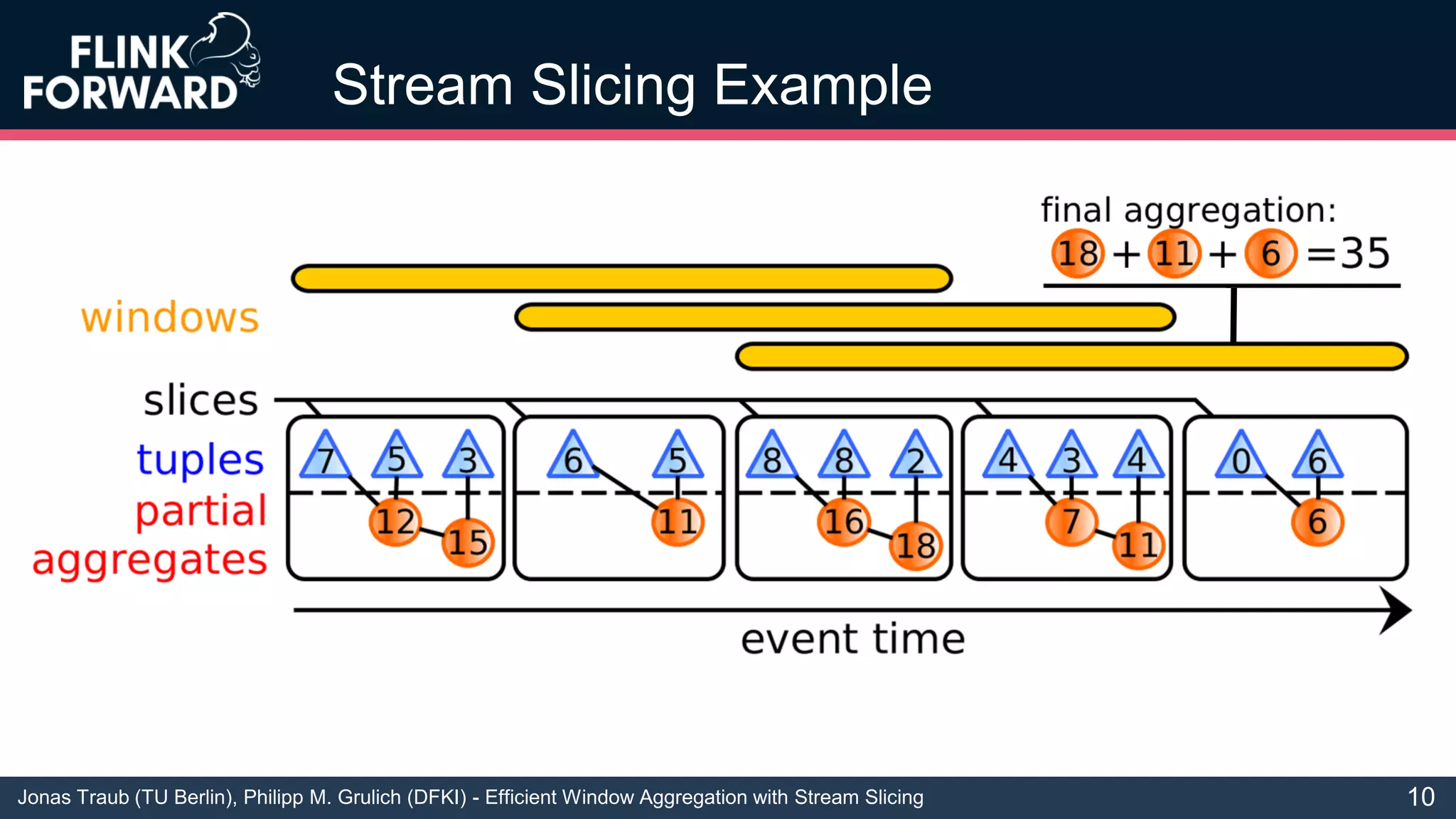

Stream Slicing Example
10
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

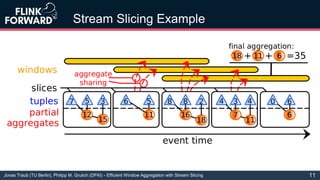

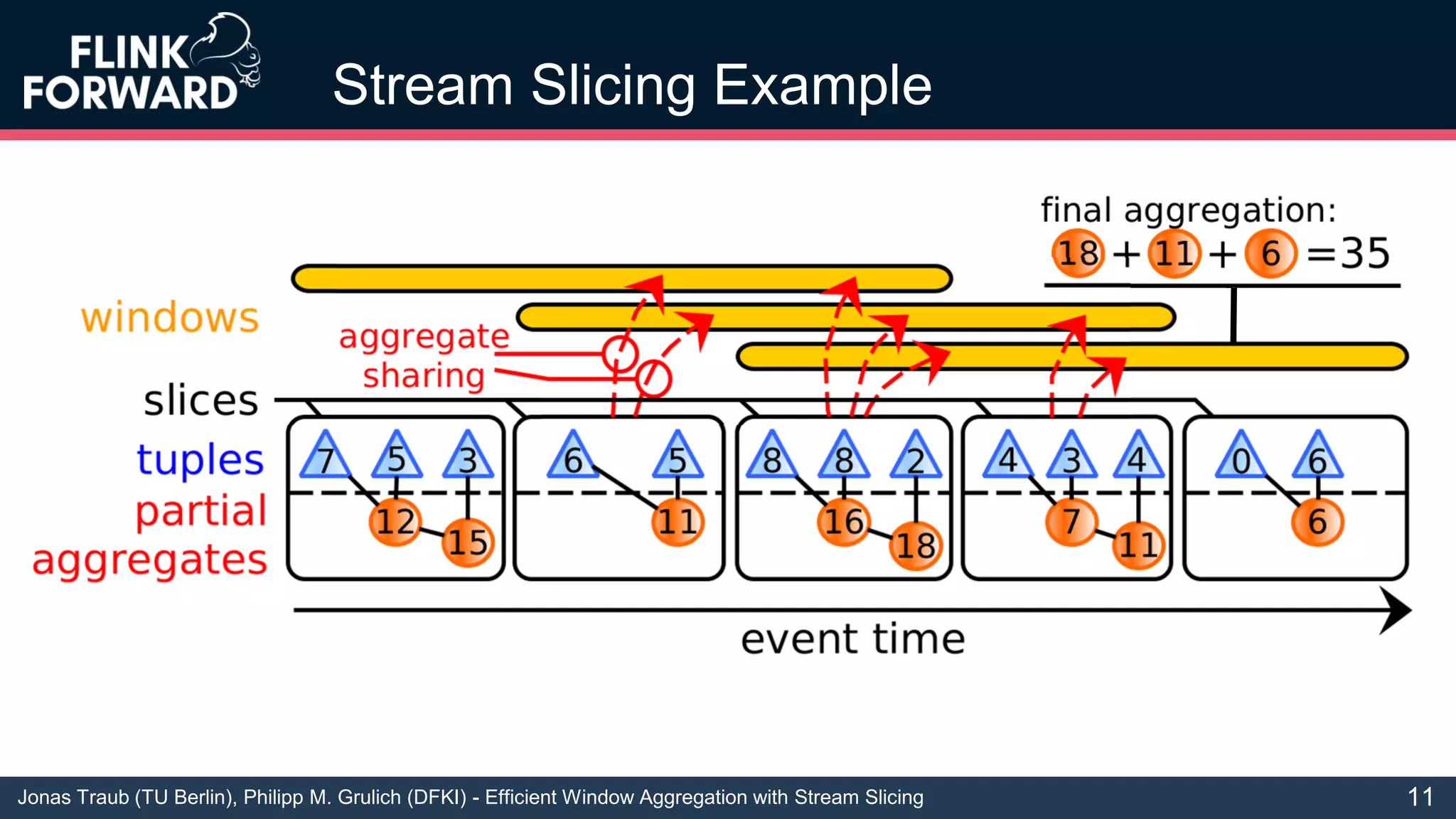

Stream Slicing Example
11
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Research
12
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

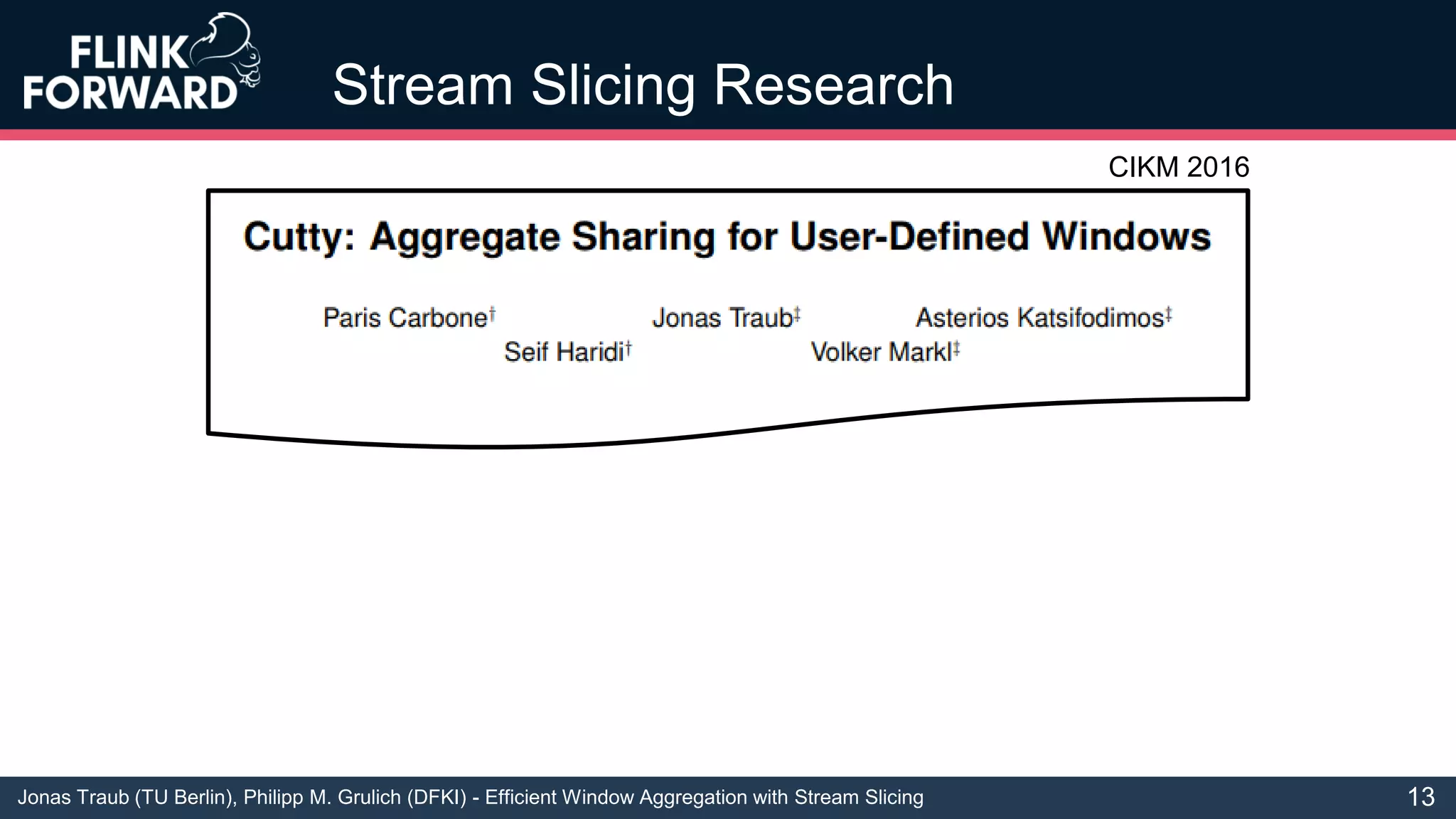

Stream Slicing Research
13
CIKM 2016

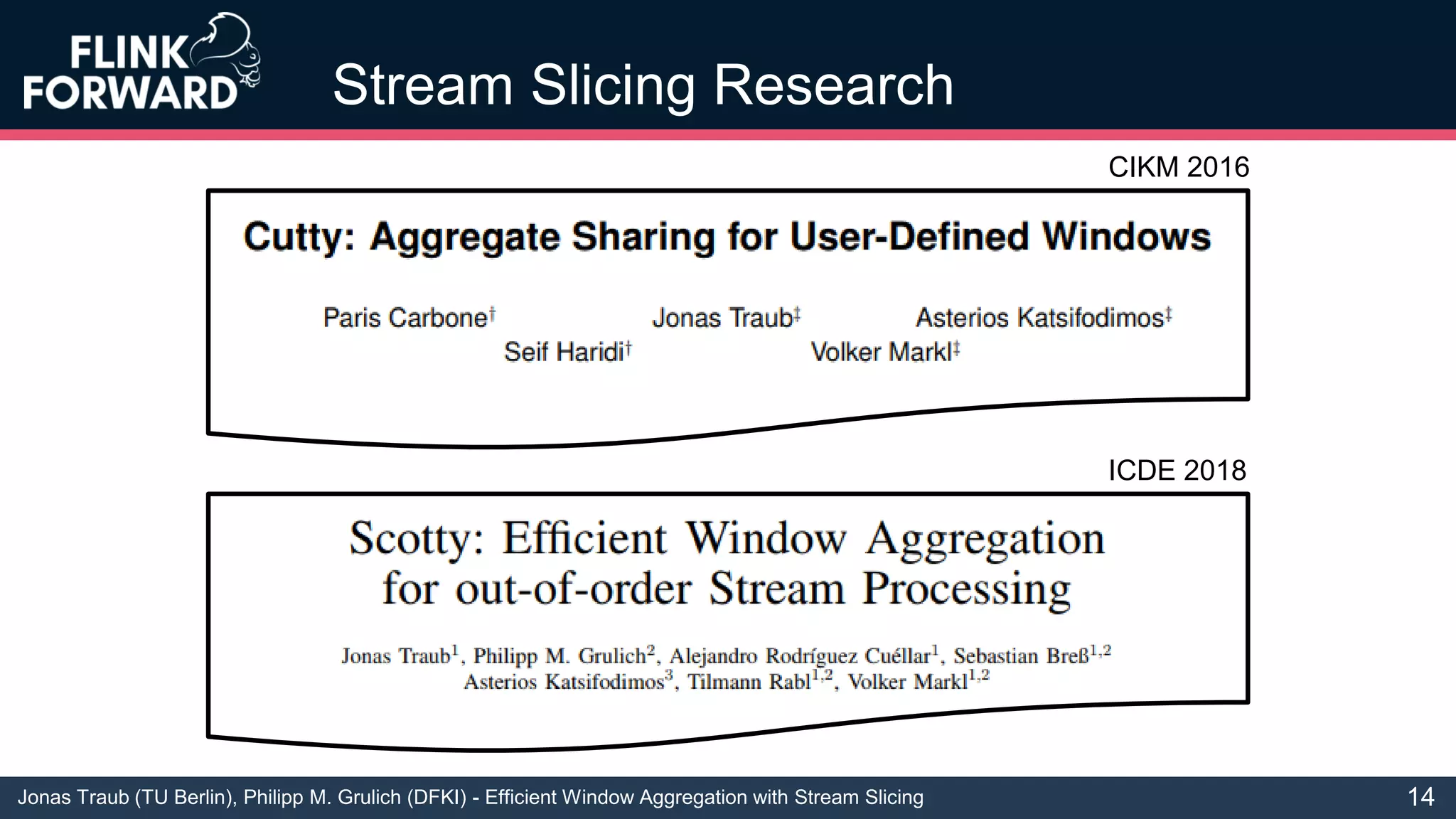

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Research
14
ICDE 2018
CIKM 2016
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

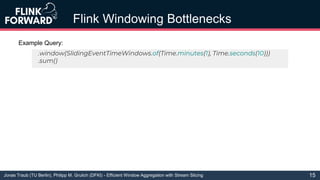

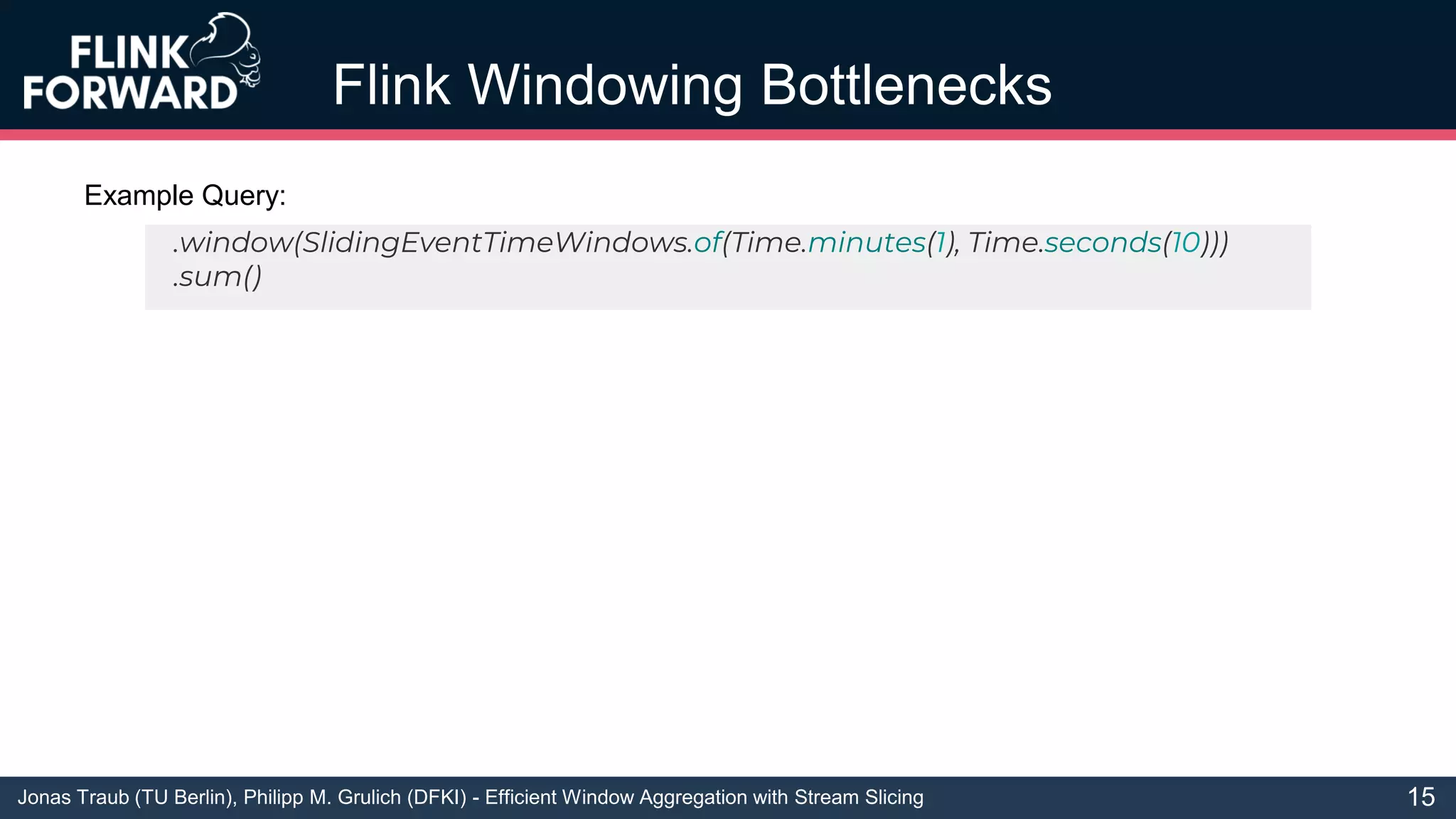

Flink Windowing Bottlenecks
15
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:

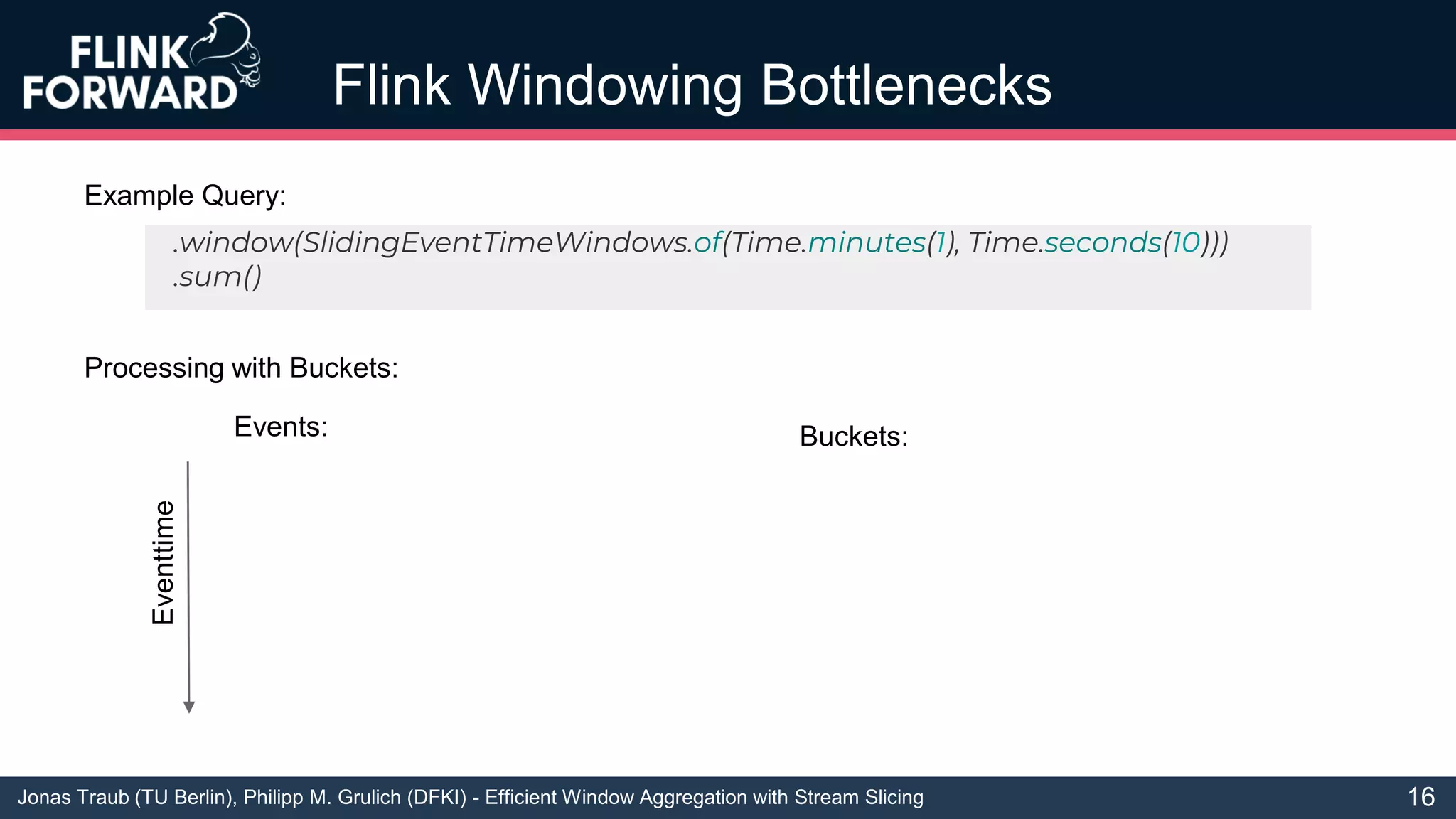

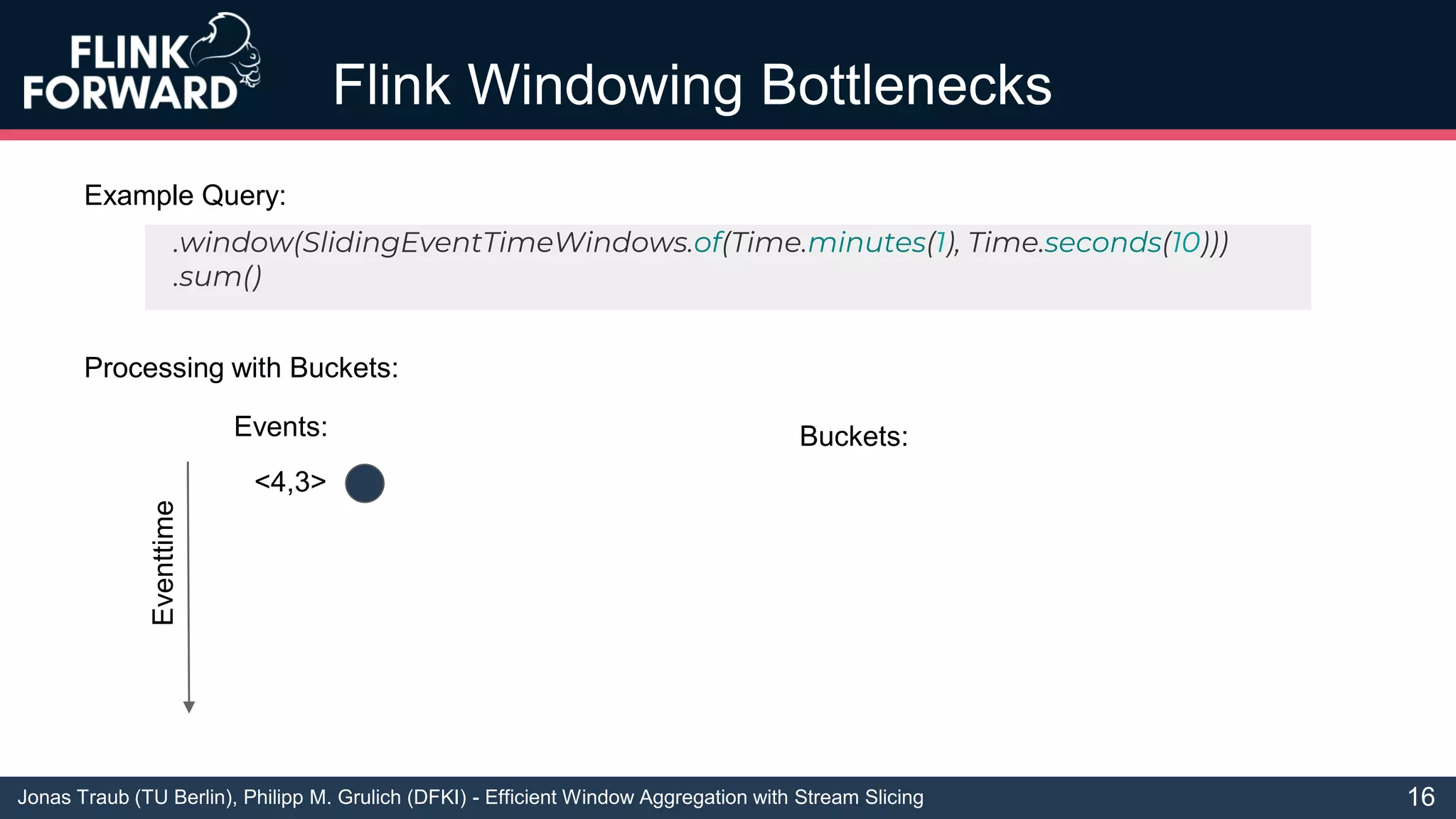

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
Events: Buckets:
Eventtime

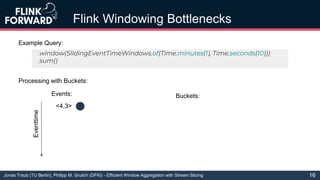

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<4,3>
Events: Buckets:
Eventtime

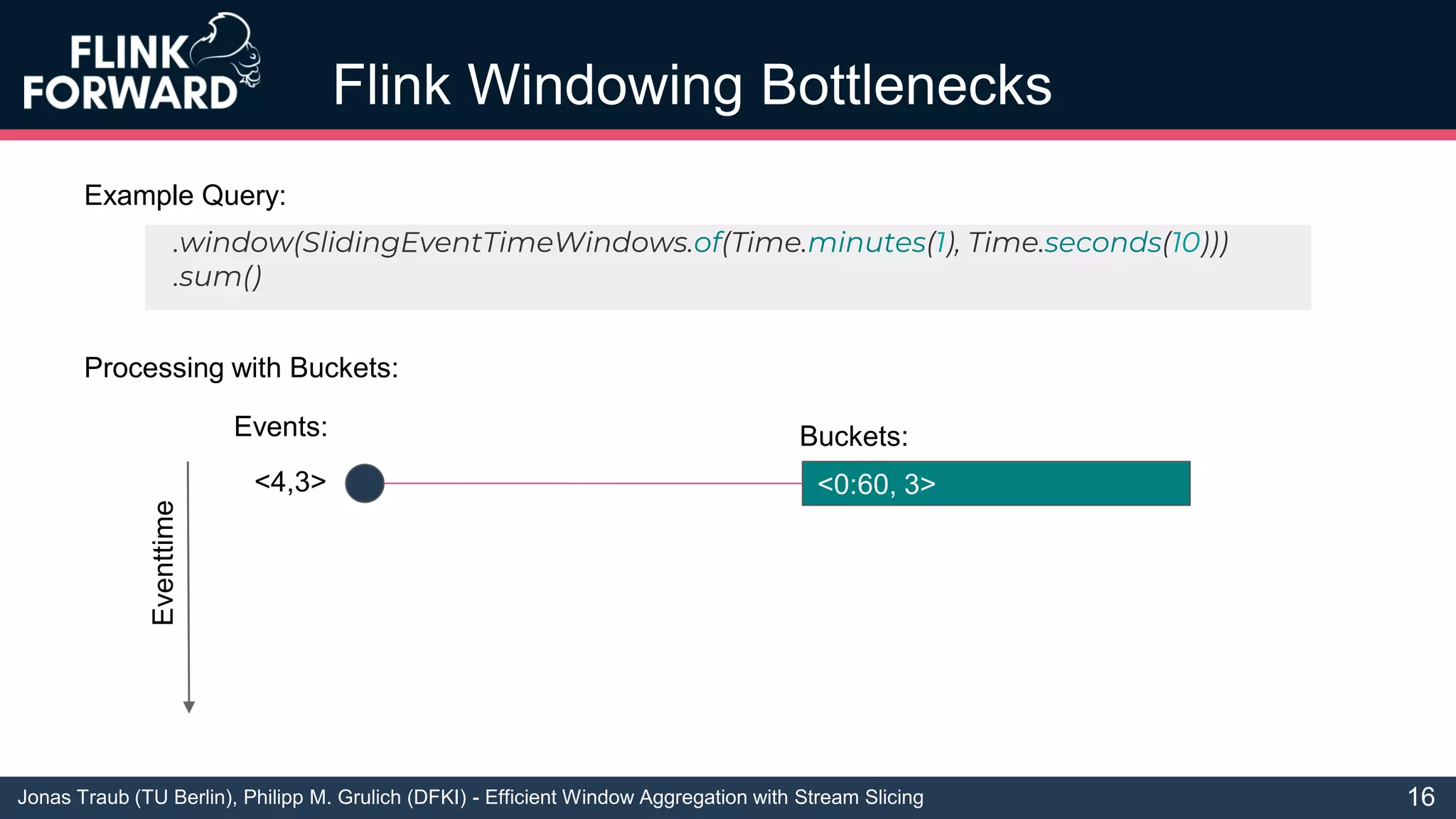

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3><4,3>
Events: Buckets:
Eventtime
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

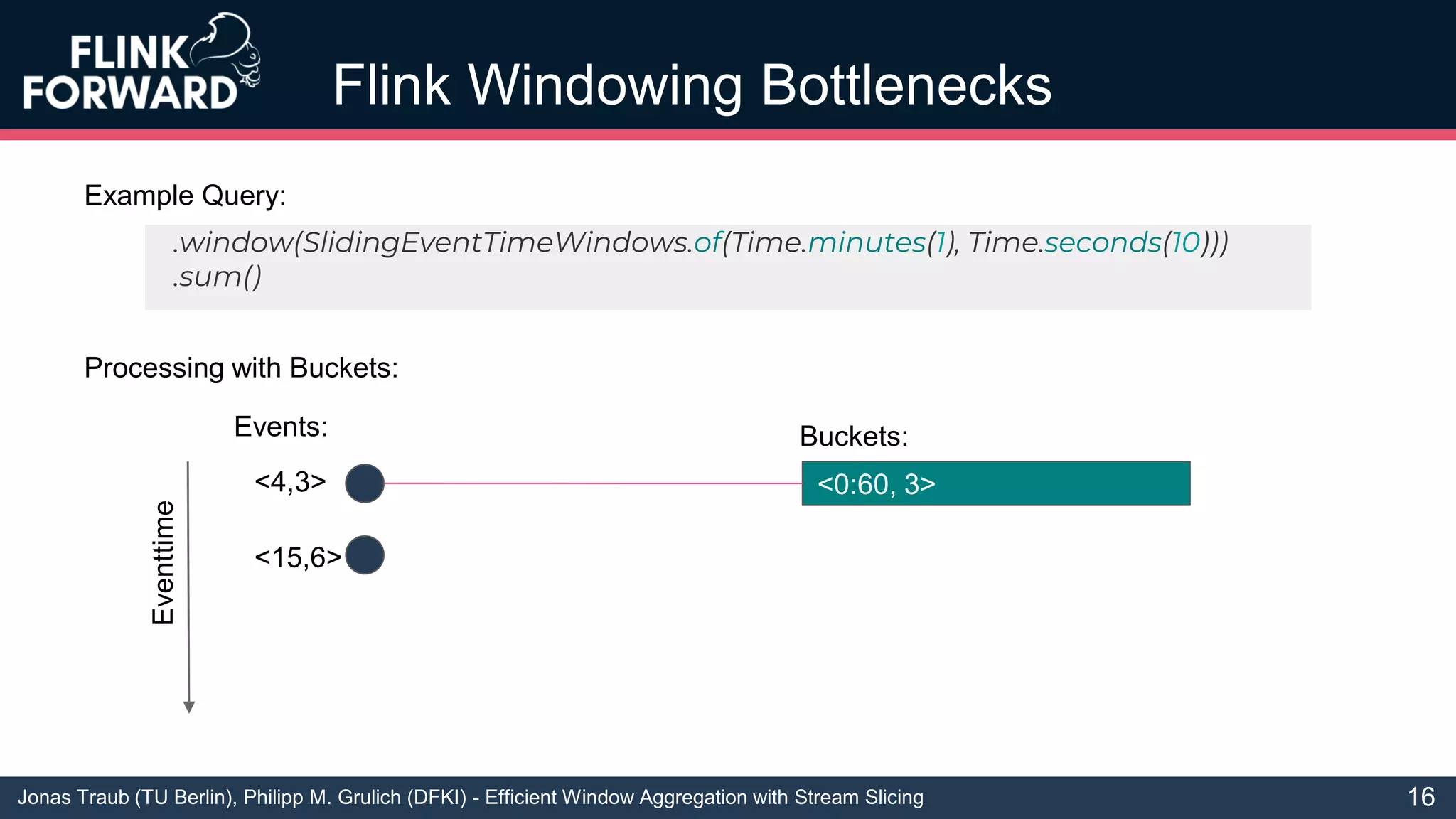

Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3><4,3>
<15,6>
Events: Buckets:
Eventtime

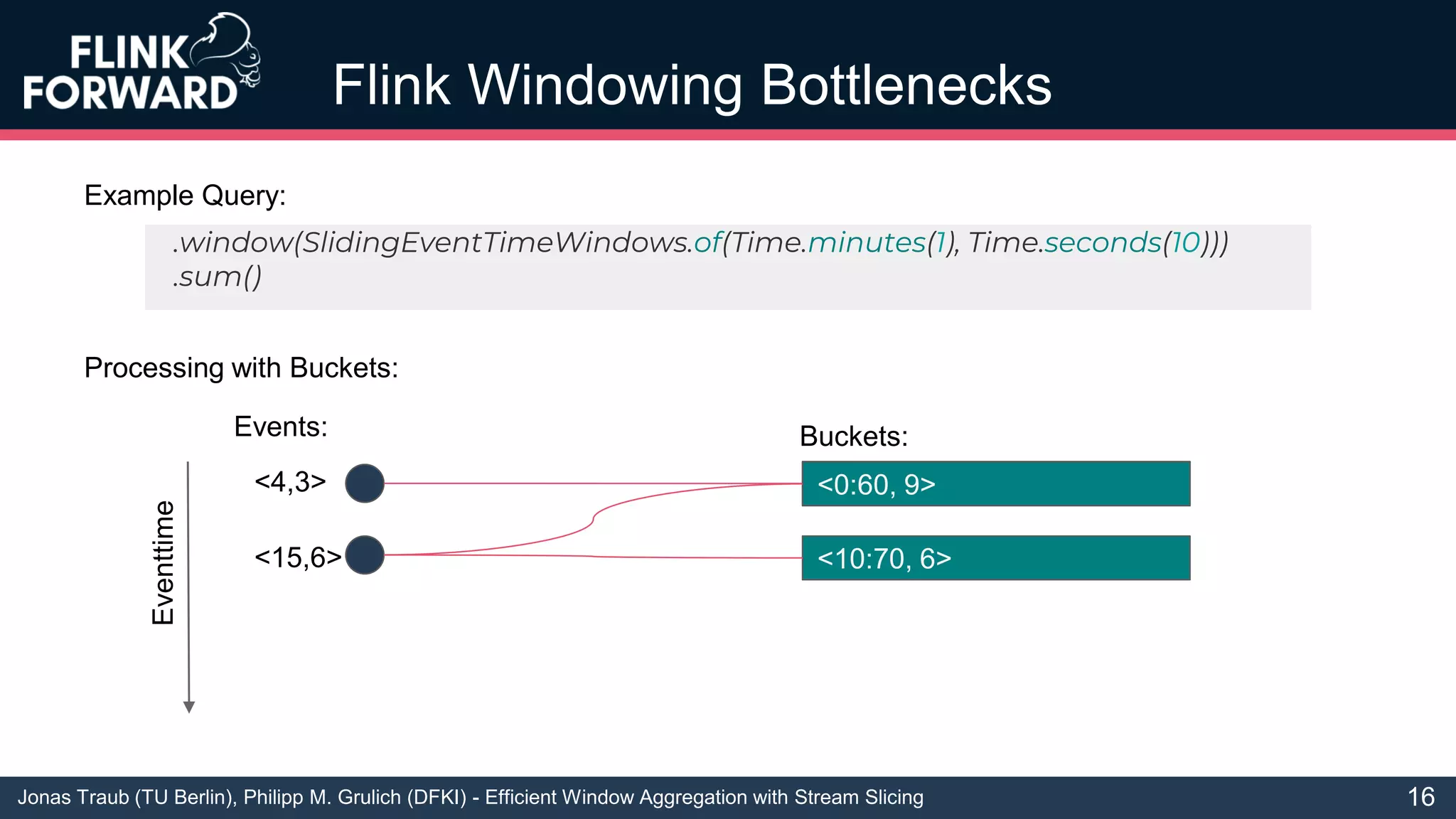

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
<4,3>
<15,6>
<0:60, 9>
Events: Buckets:
Eventtime
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

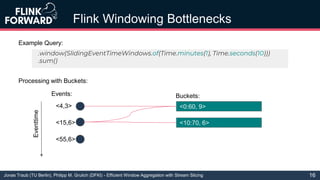

Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
<4,3>
<15,6>
<0:60, 9>
<55,6>
Events: Buckets:
Eventtime
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

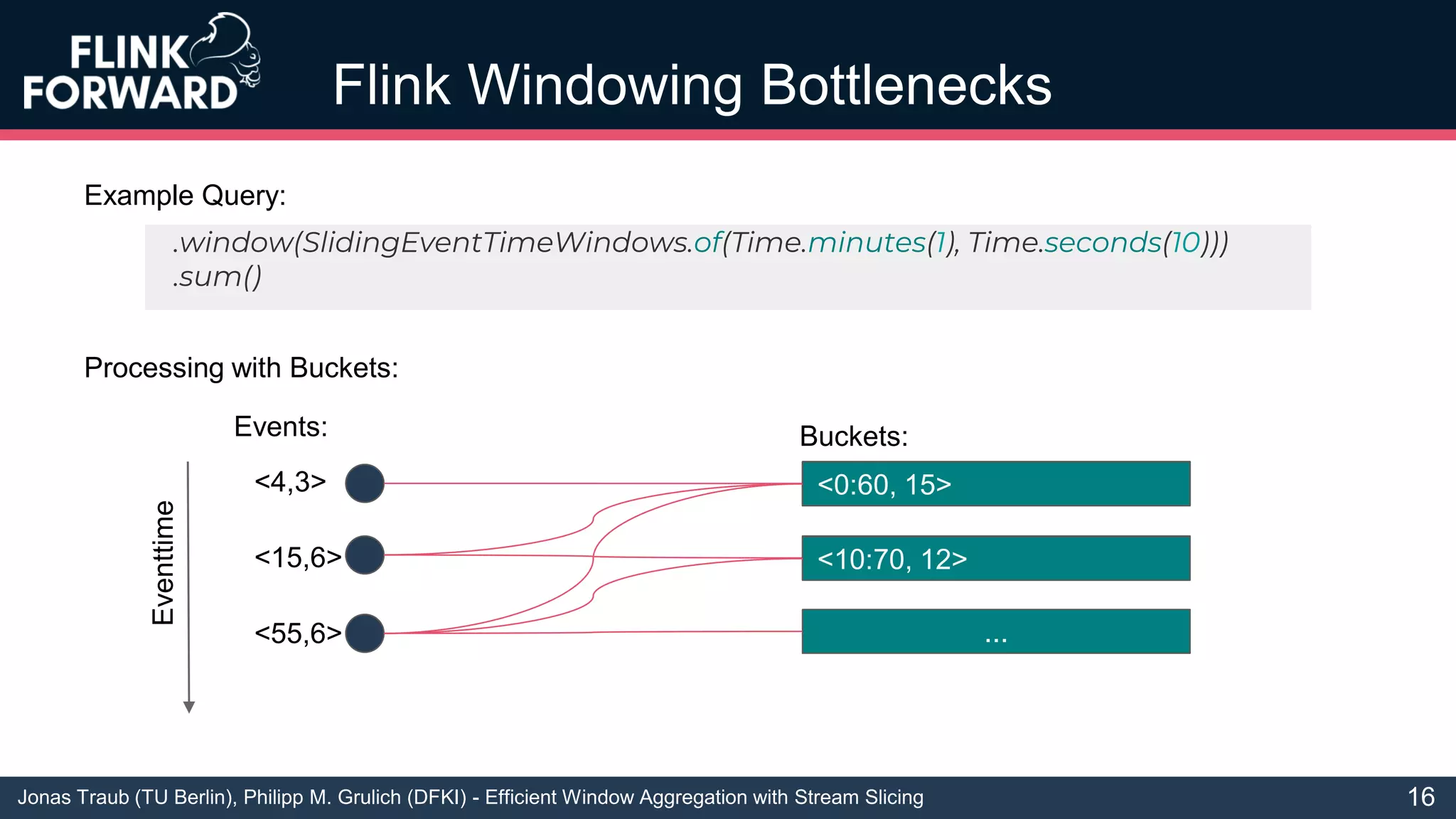

Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
...
<4,3>
<15,6>
<0:60, 9>
<55,6>
<0:60, 15>
<10:70, 12>
Events: Buckets:
Eventtime
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
...
<4,3>
<15,6>
<0:60, 9>
<55,6>
<0:60, 15>
<10:70, 12>
<66,1>
Events: Buckets:
Eventtime

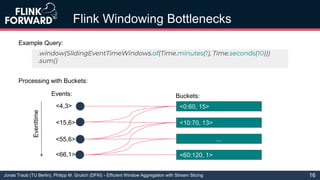

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

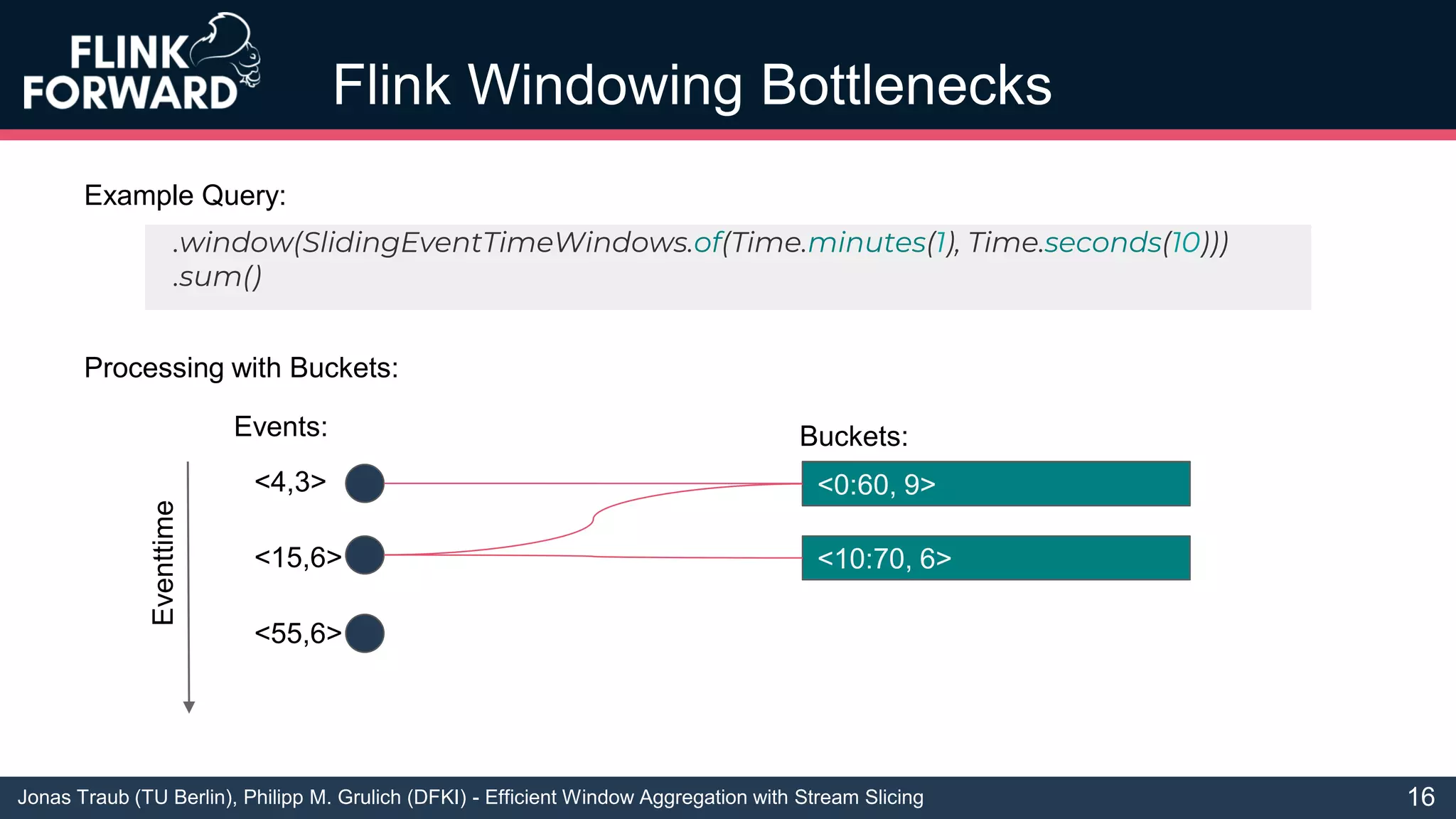

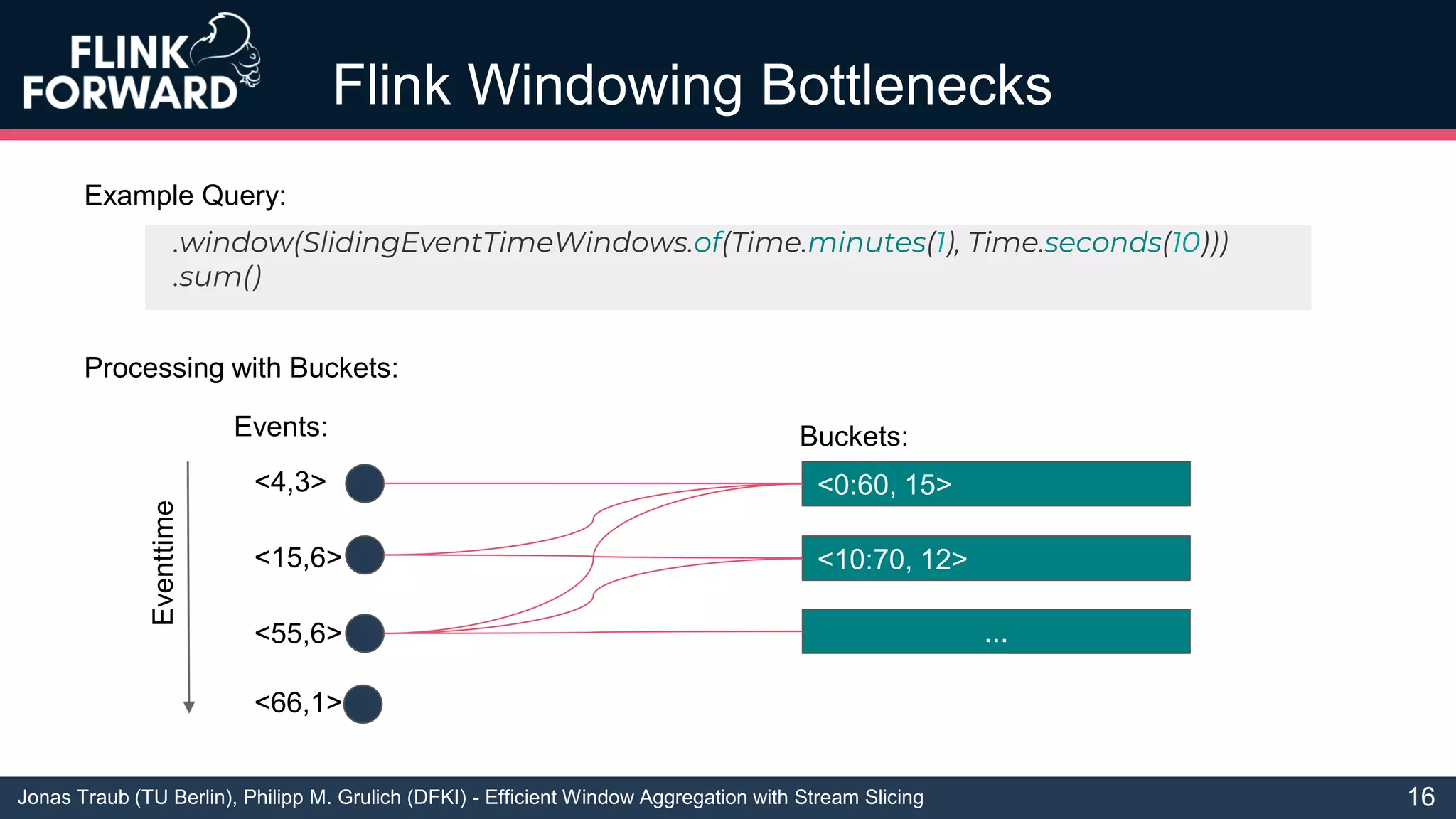

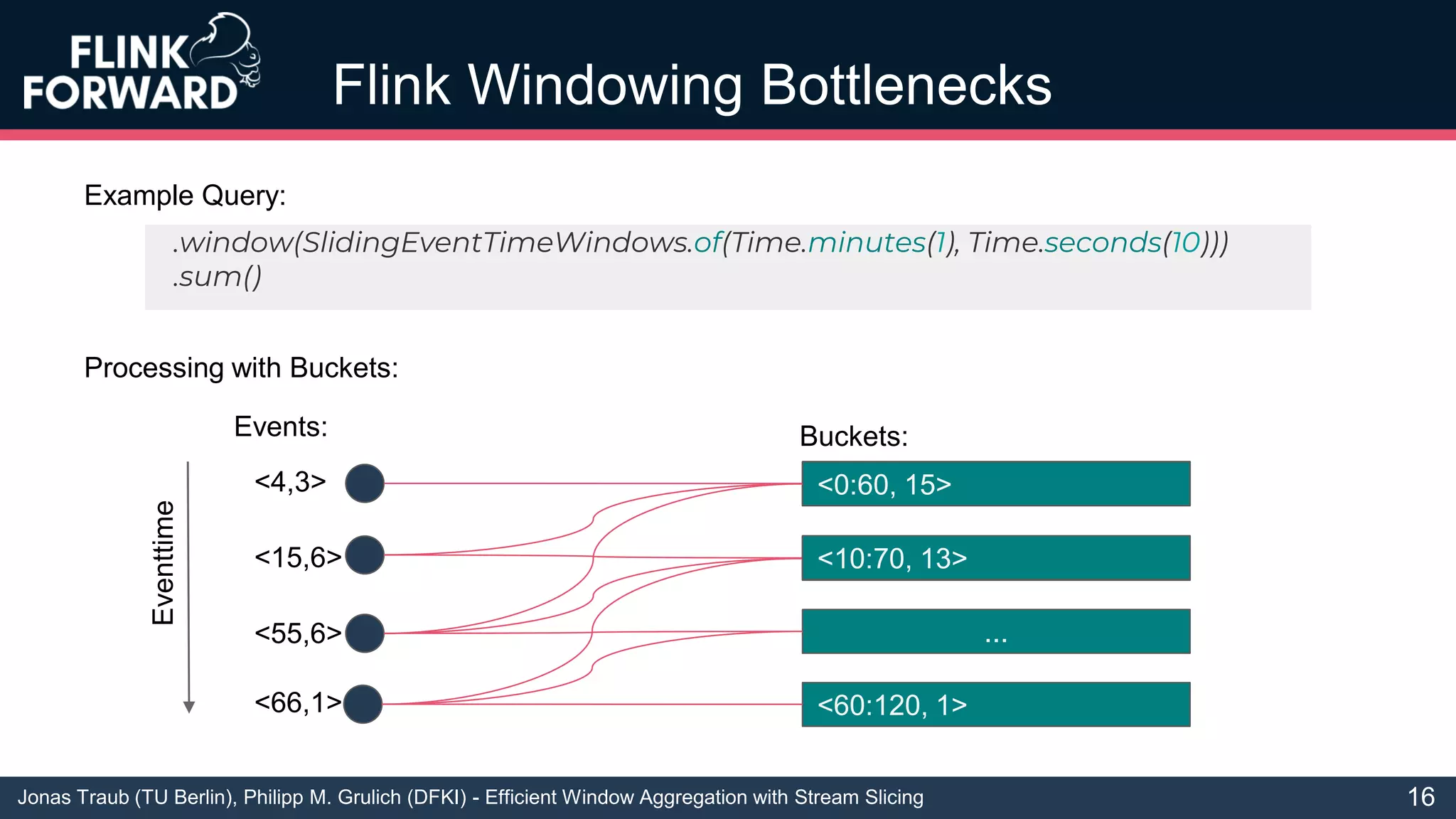

Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
...
<60:120, 1>
<4,3>
<15,6>
<0:60, 9>
<55,6>
<0:60, 15>
<10:70, 12>
<66,1>
<10:70, 13>
Events: Buckets:
Eventtime

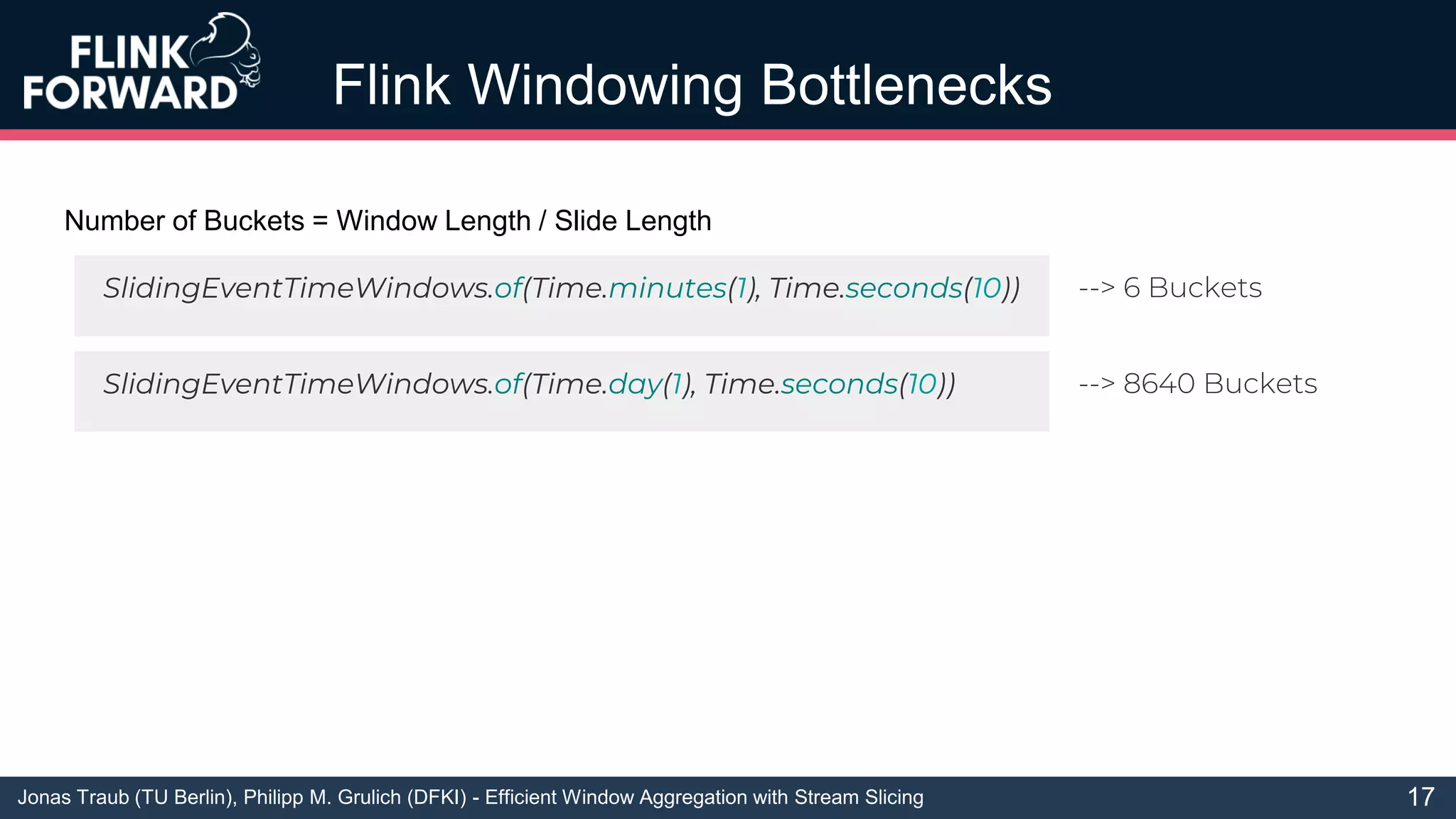

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

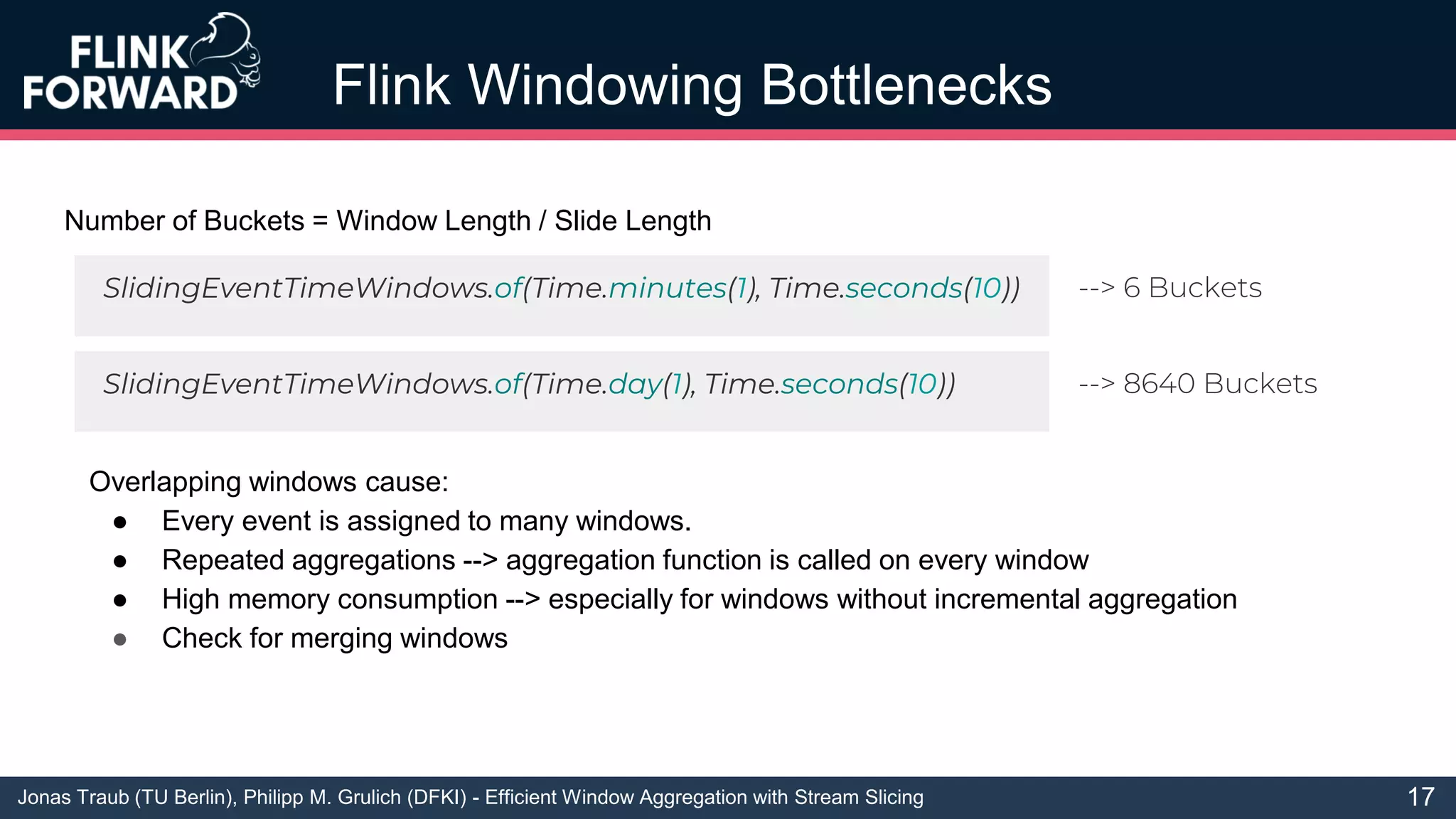

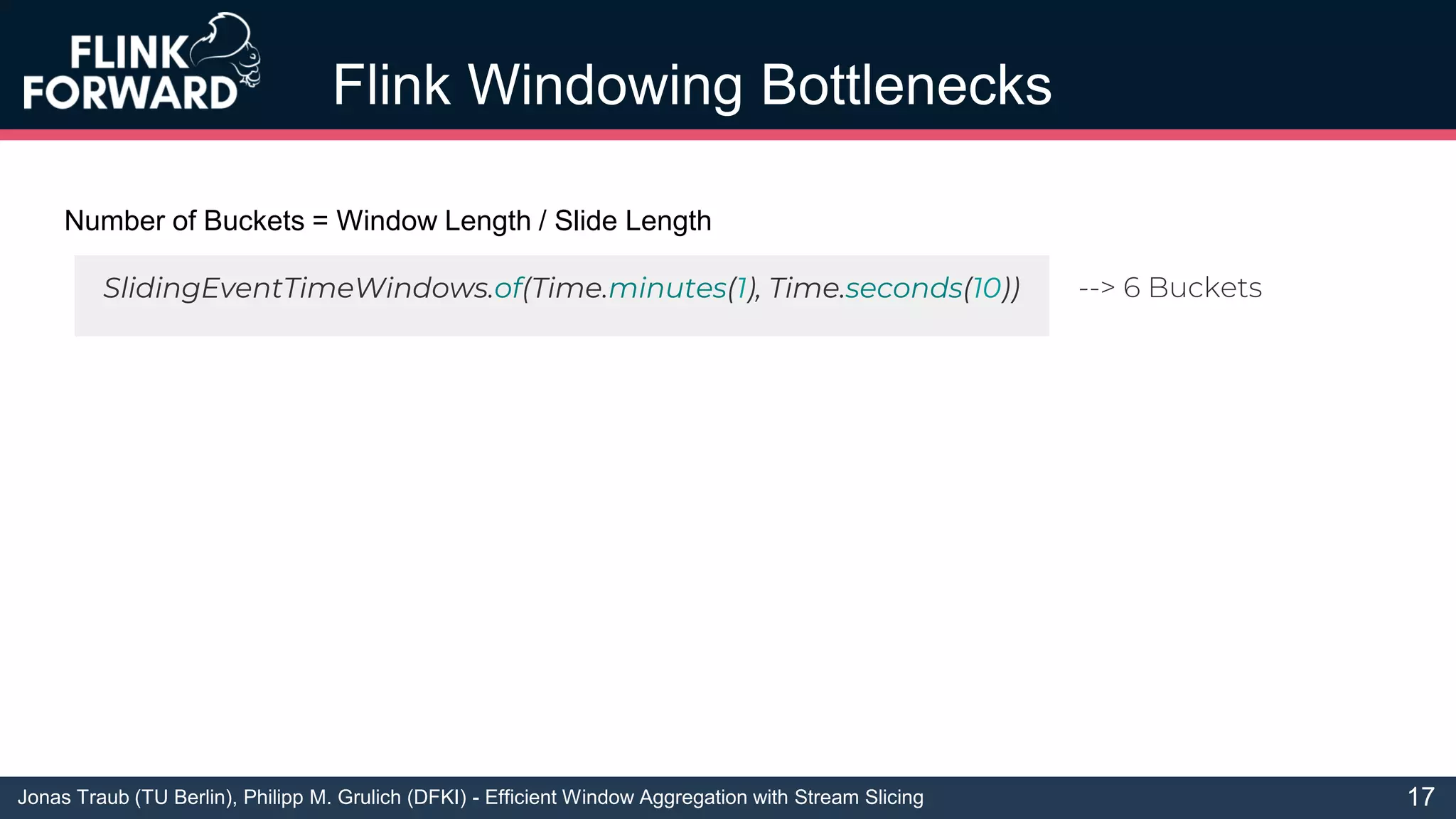

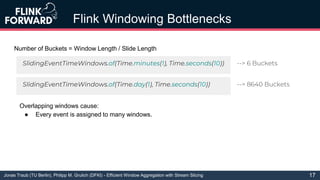

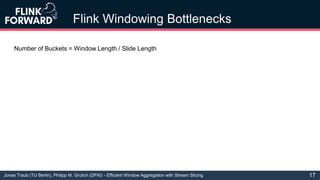

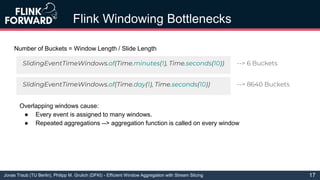

Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length

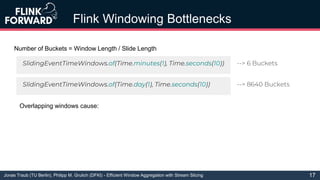

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) --> 6 Buckets
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

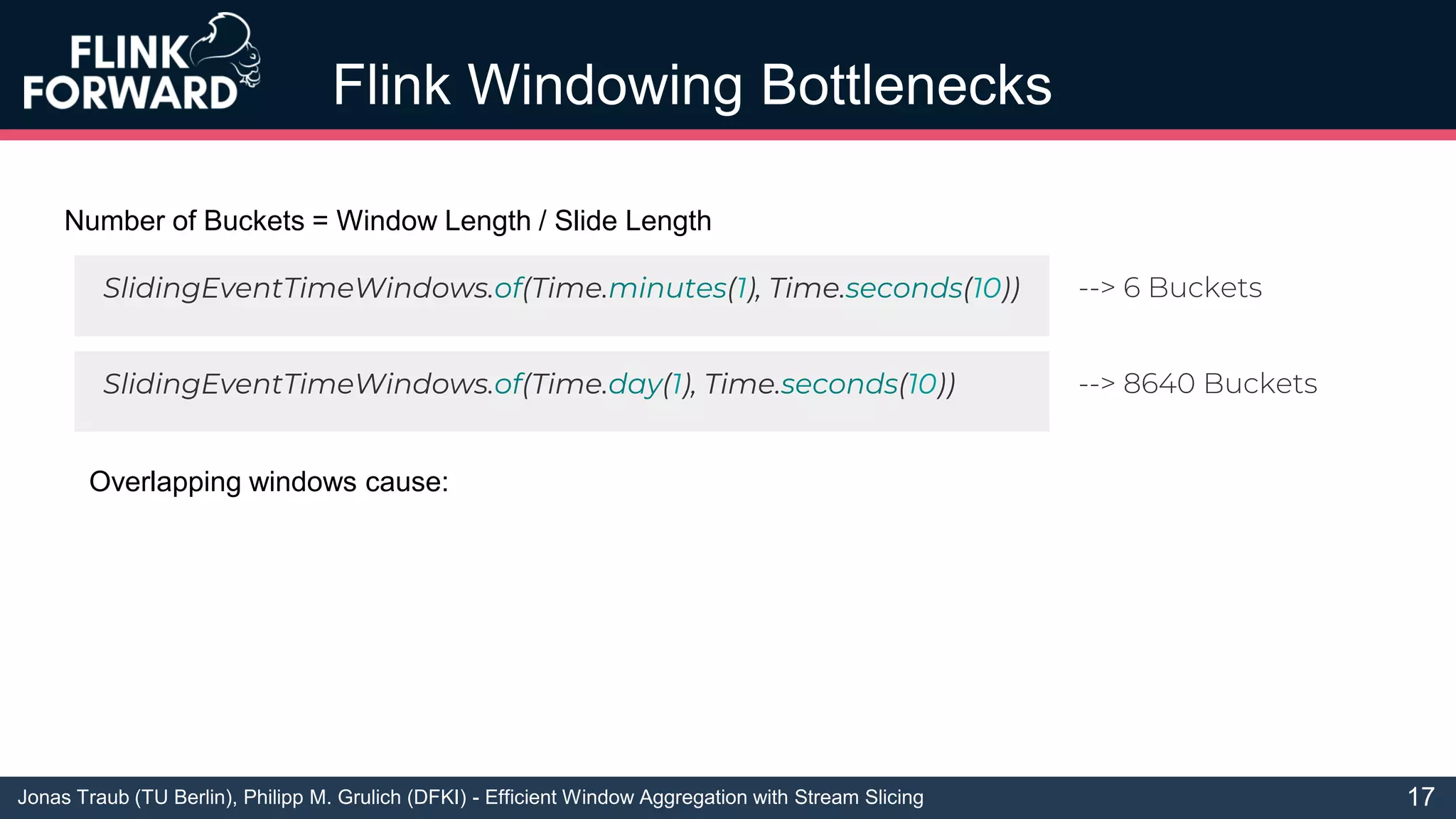

Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
● Repeated aggregations --> aggregation function is called on every window

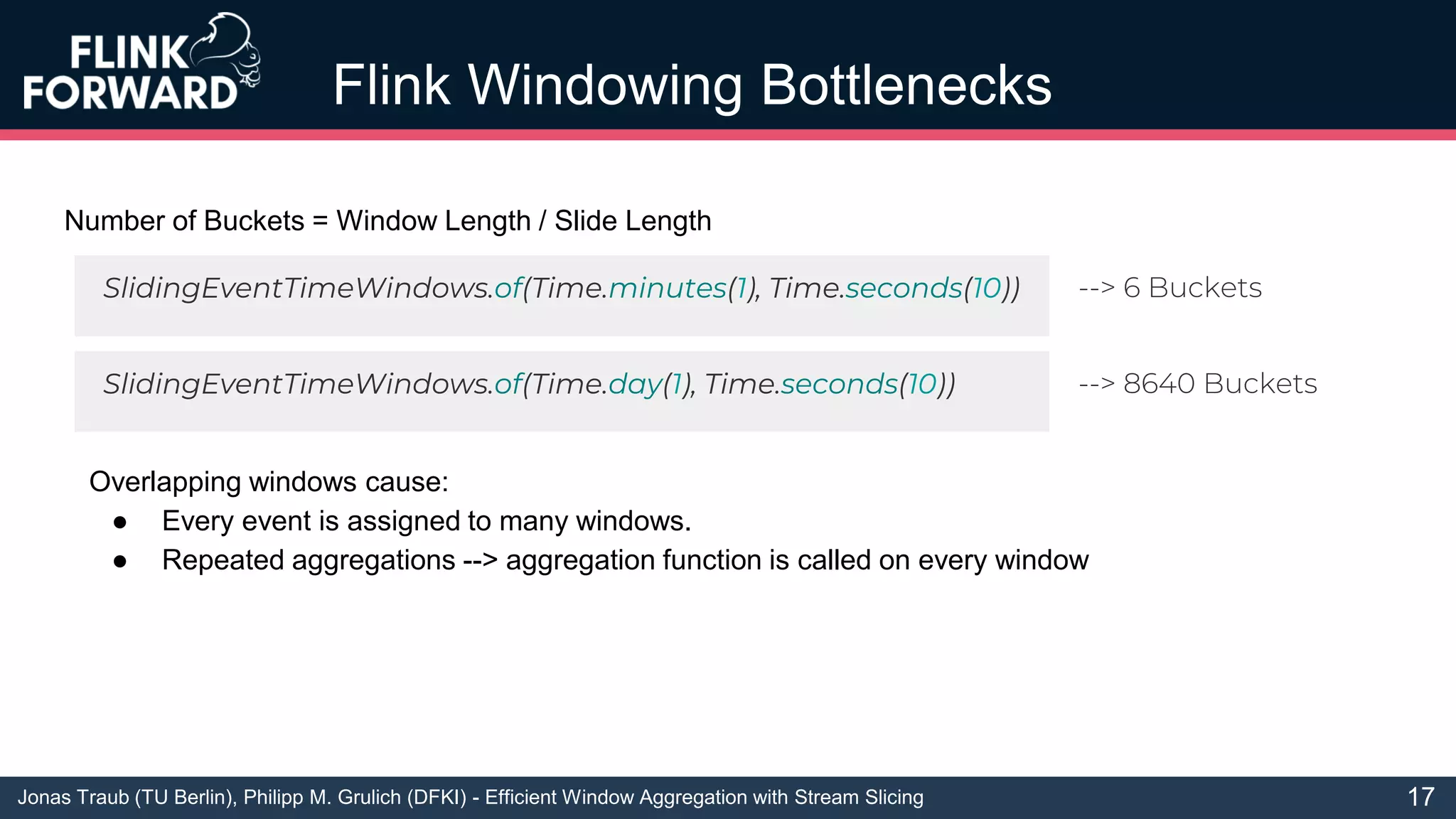

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

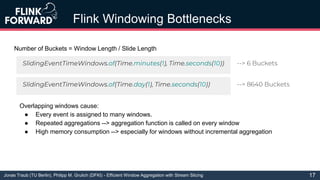

Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
● Repeated aggregations --> aggregation function is called on every window
● High memory consumption --> especially for windows without incremental aggregation
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

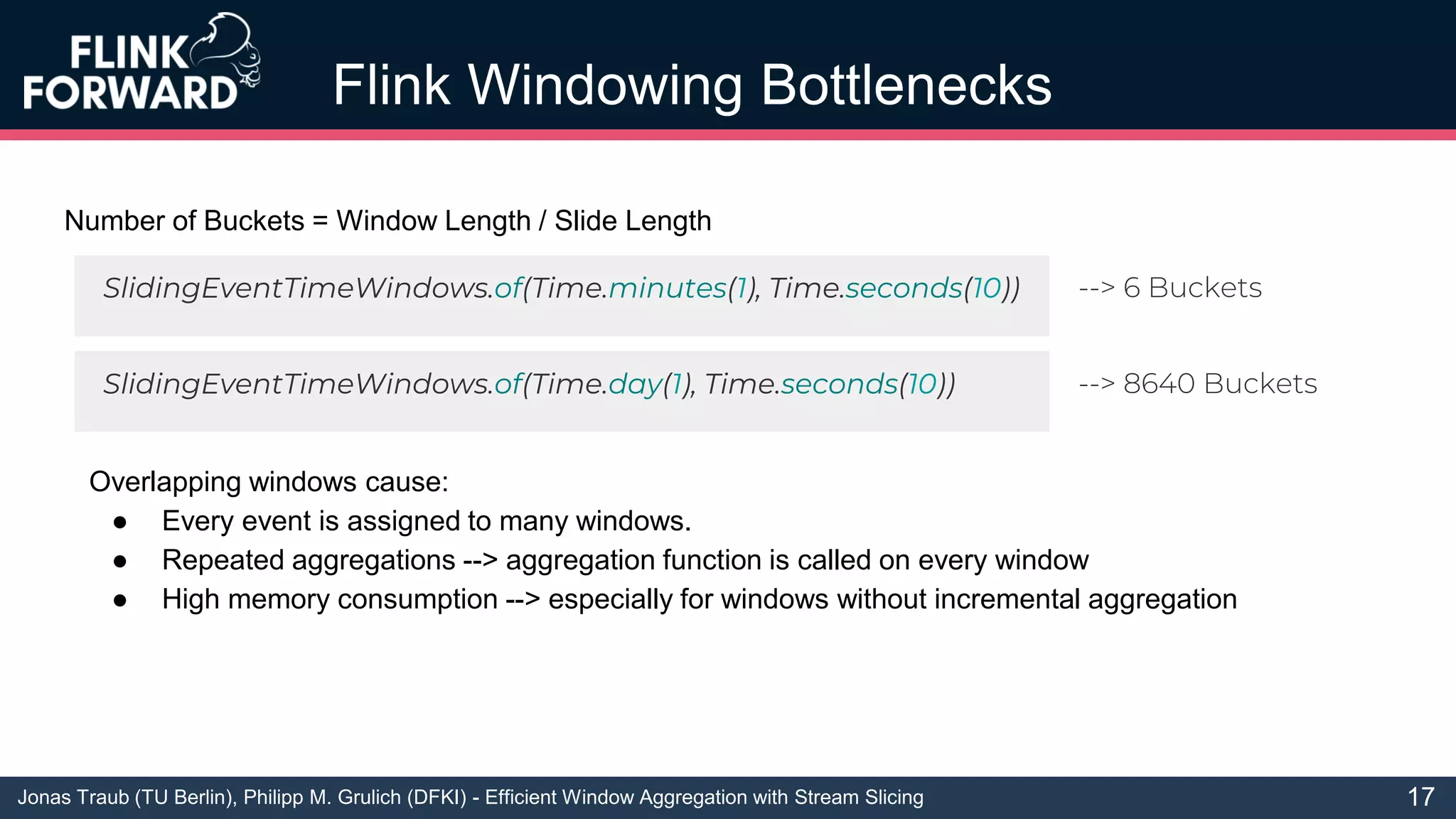

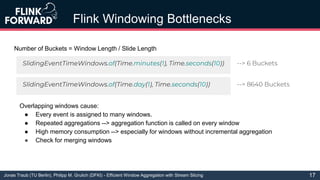

Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
● Repeated aggregations --> aggregation function is called on every window
● High memory consumption --> especially for windows without incremental aggregation
● Check for merging windows
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

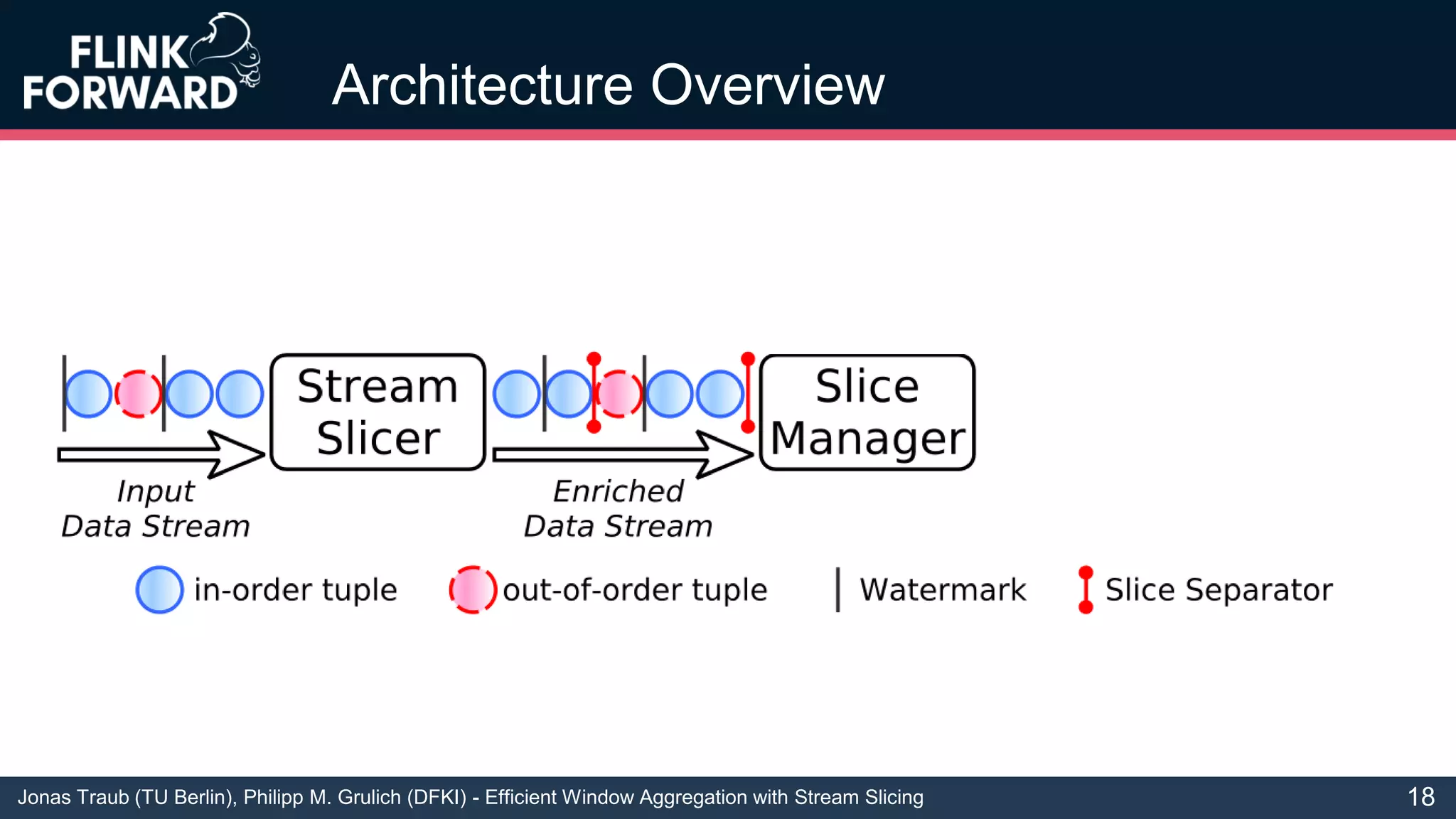

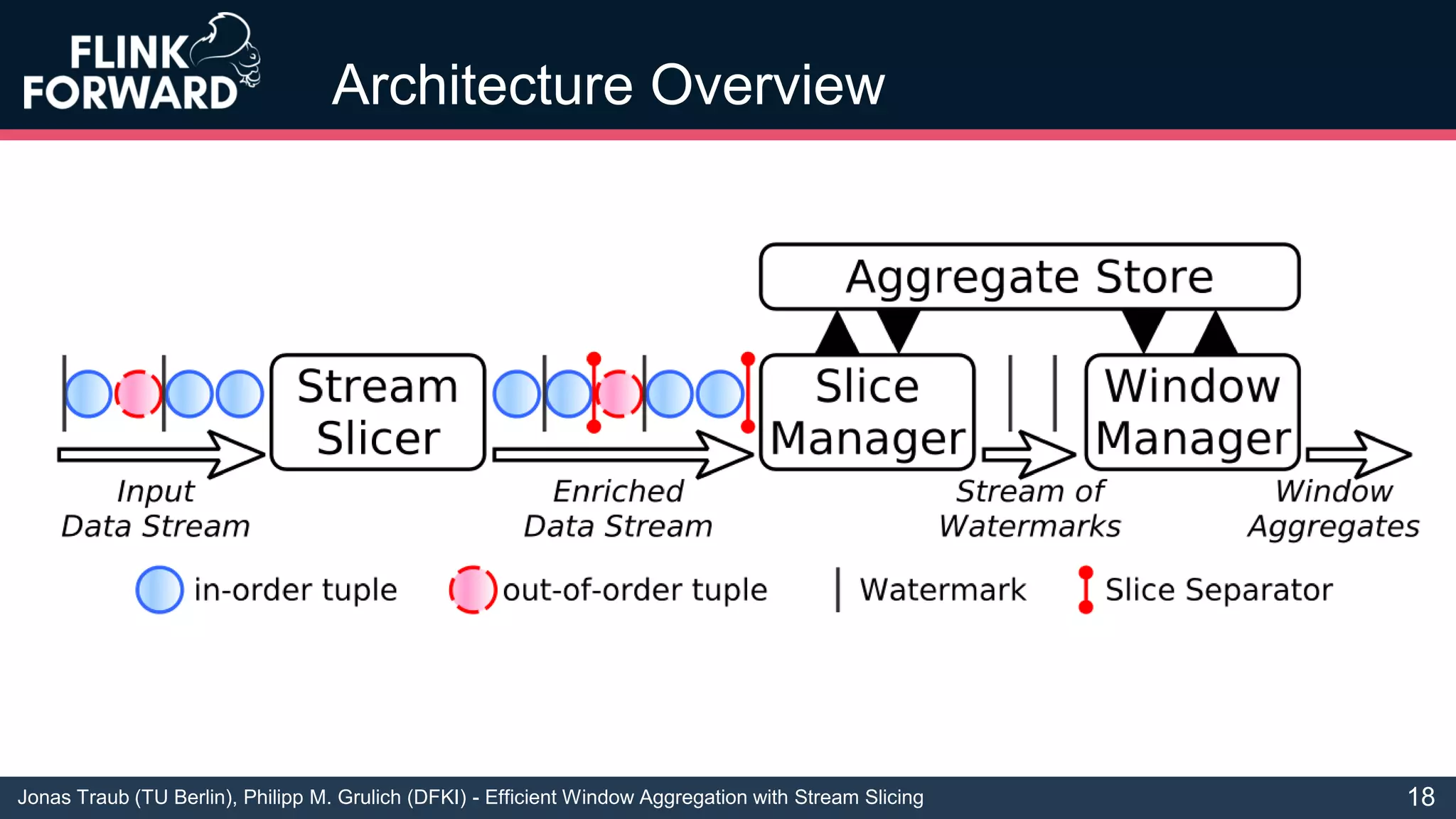

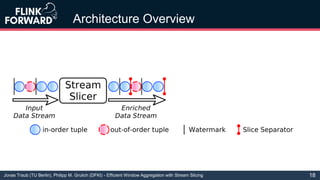

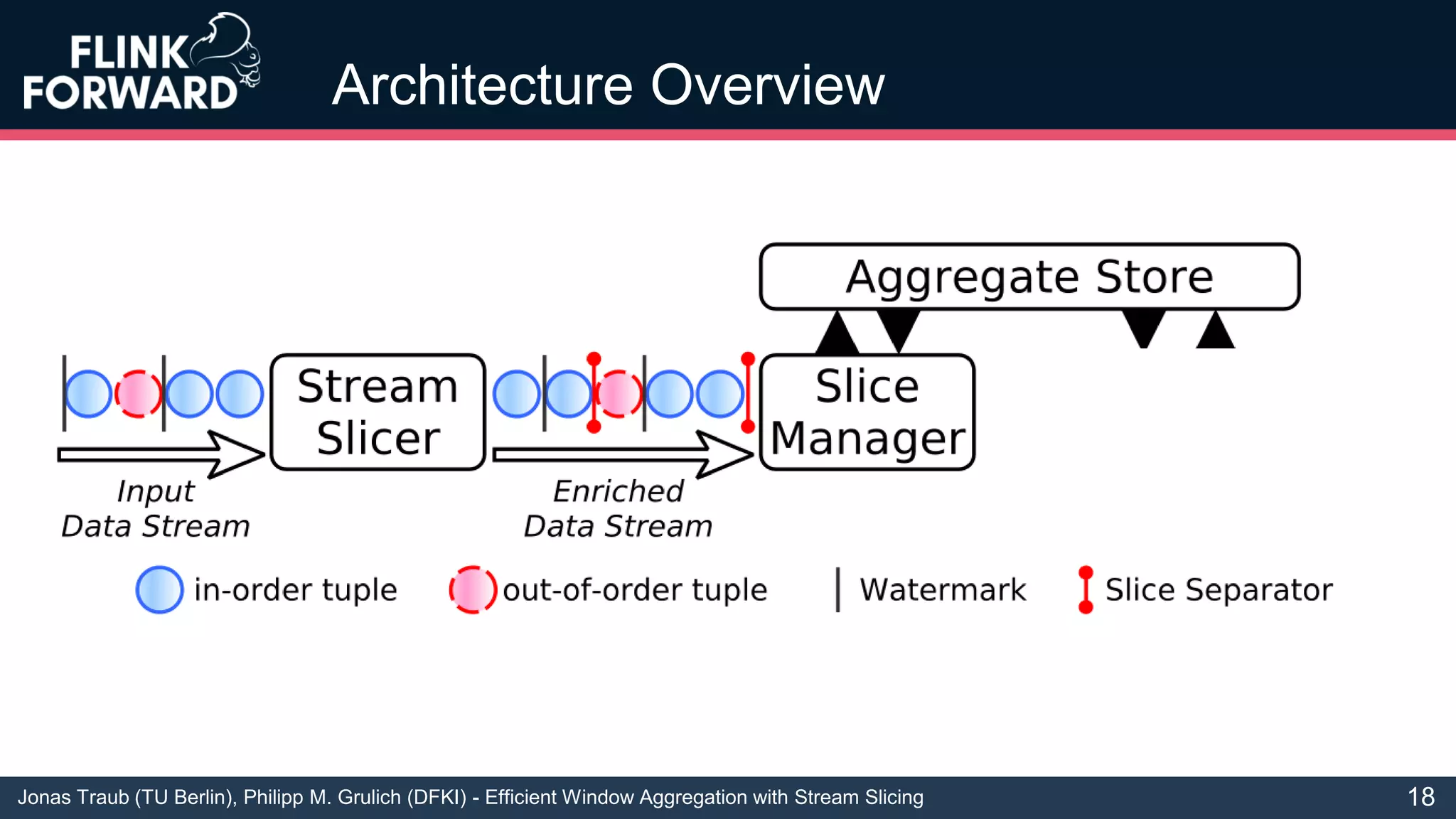

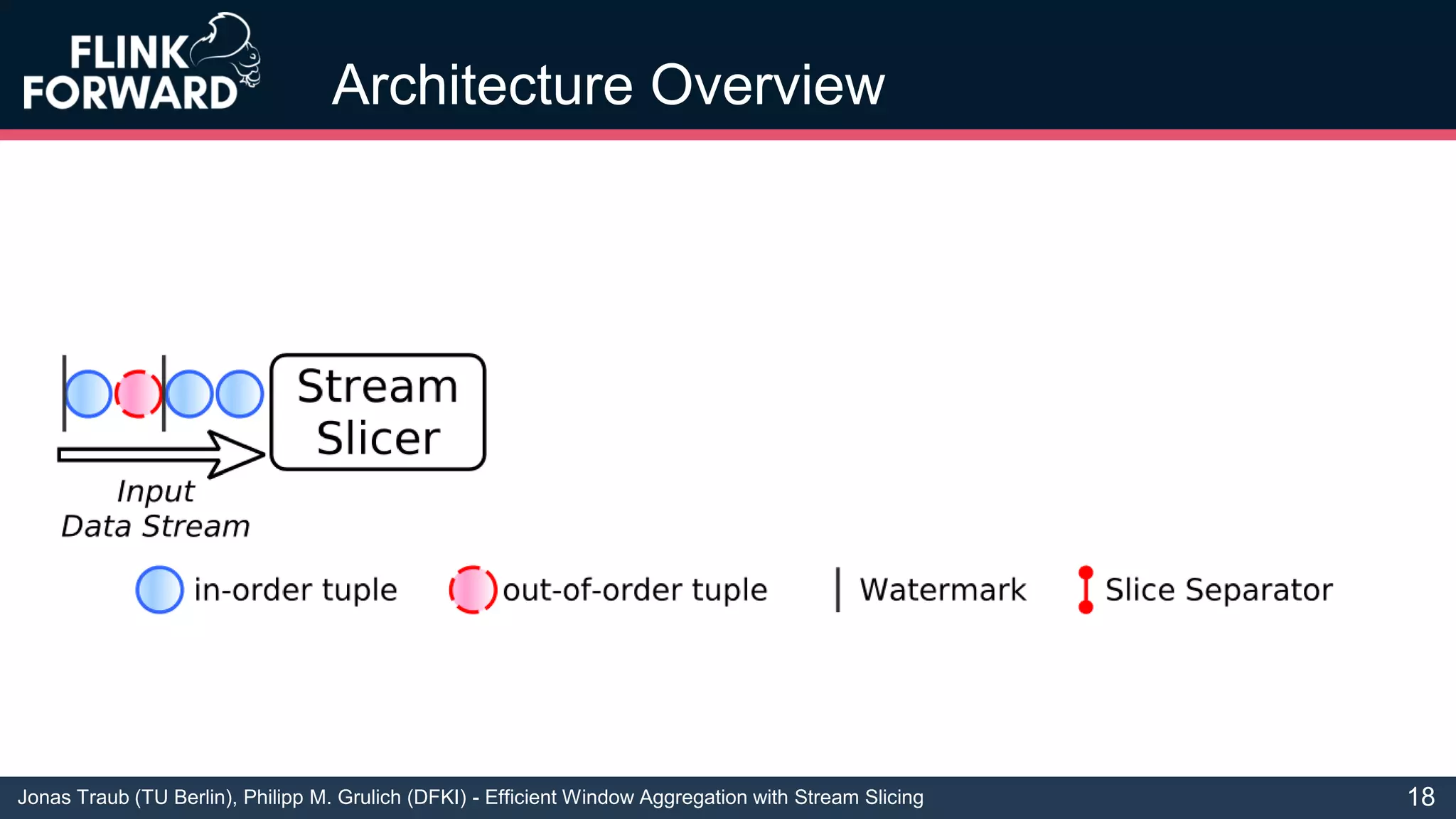

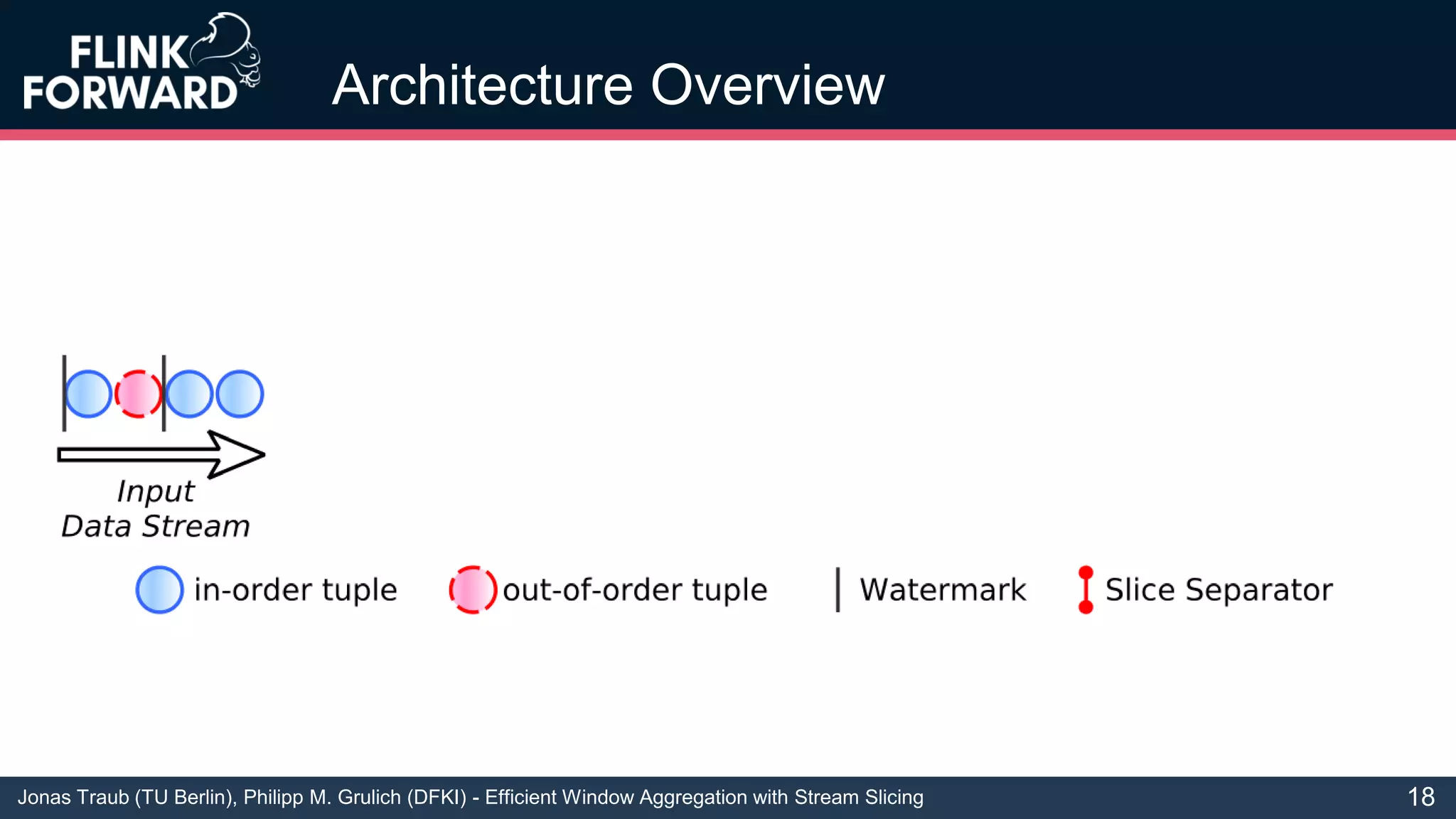

Architecture Overview
18
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18

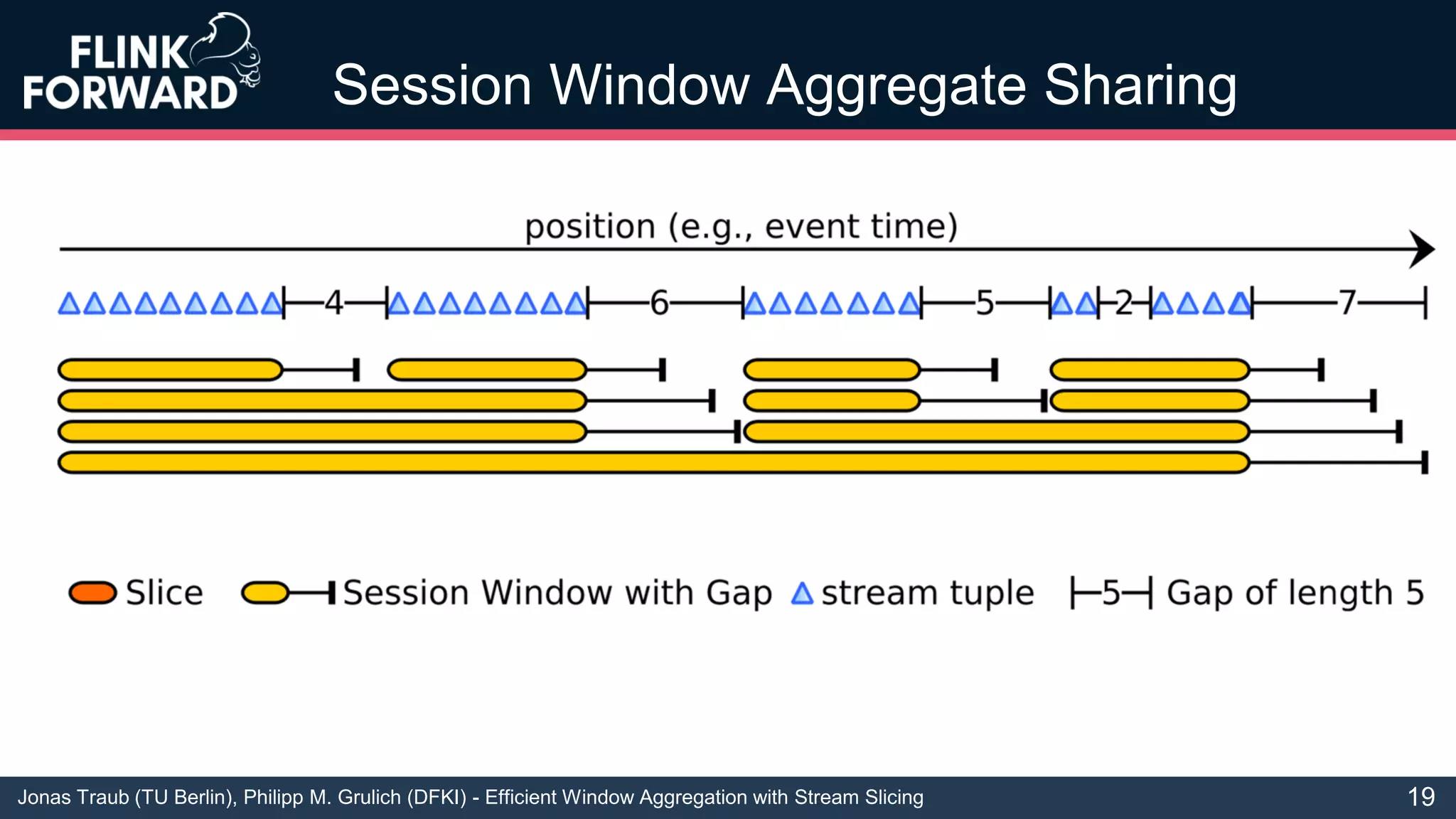

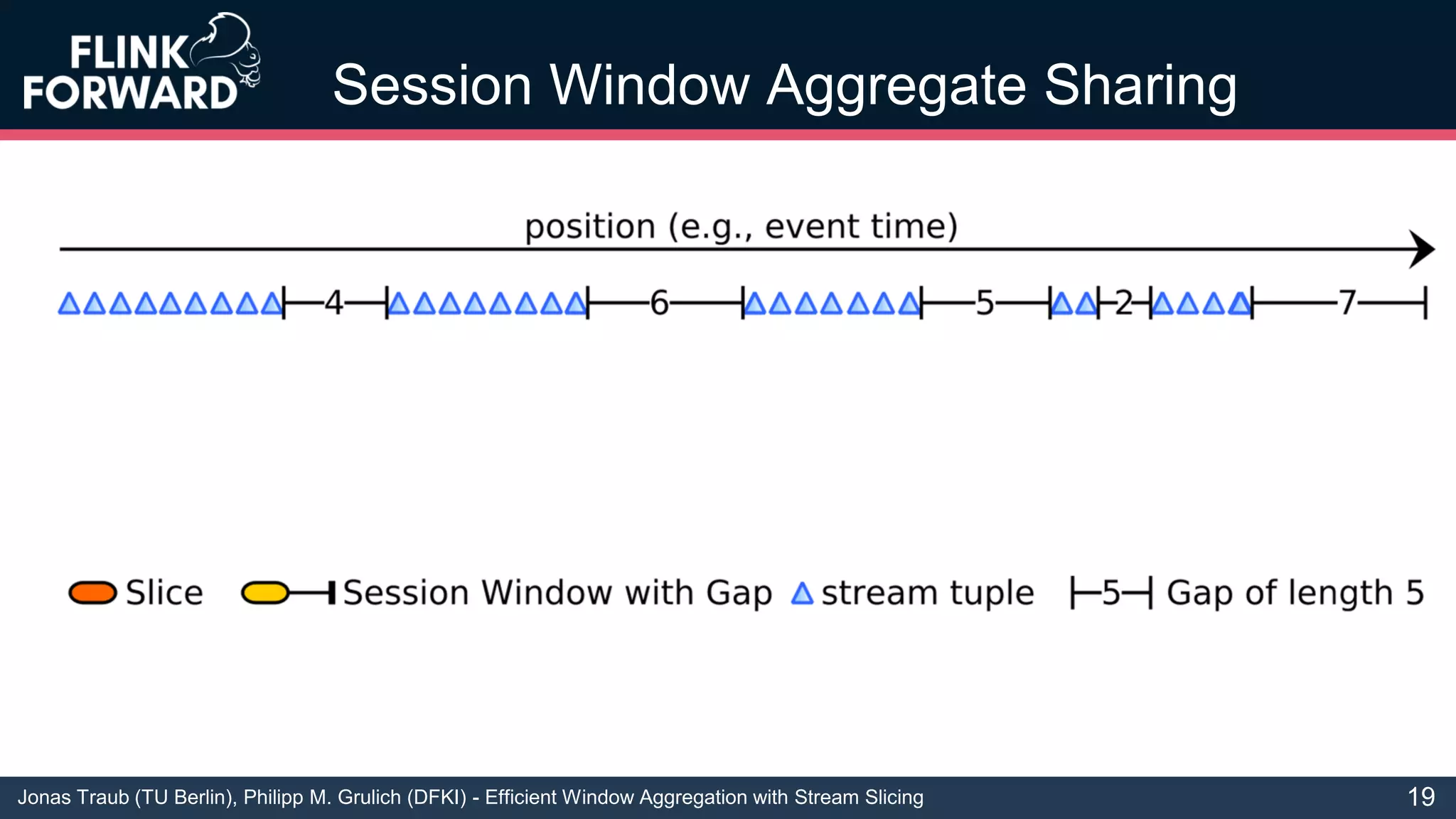

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

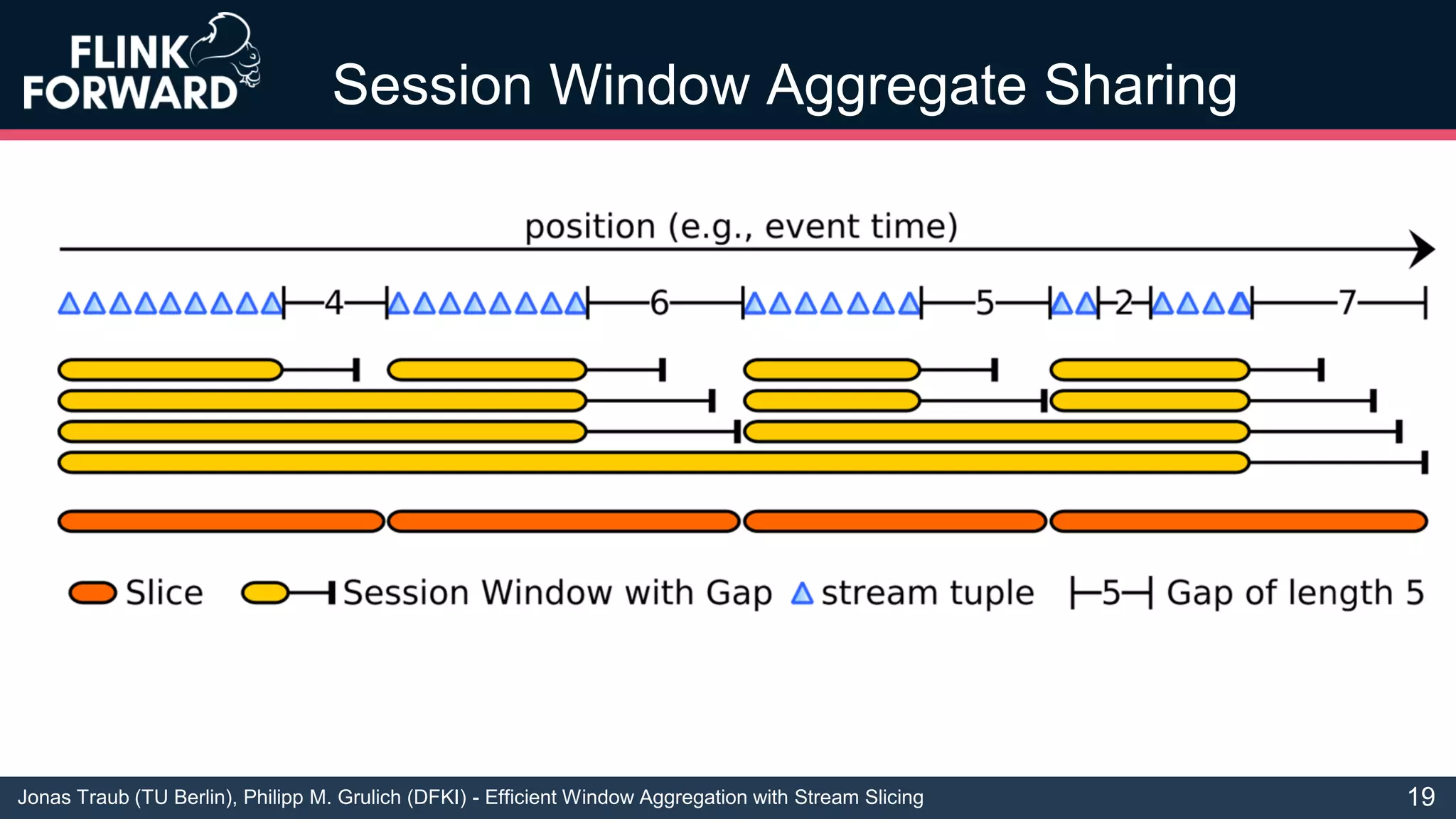

Session Window Aggregate Sharing
19
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Session Window Aggregate Sharing
19
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Session Window Aggregate Sharing
19
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

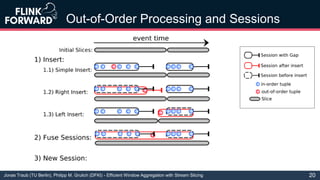

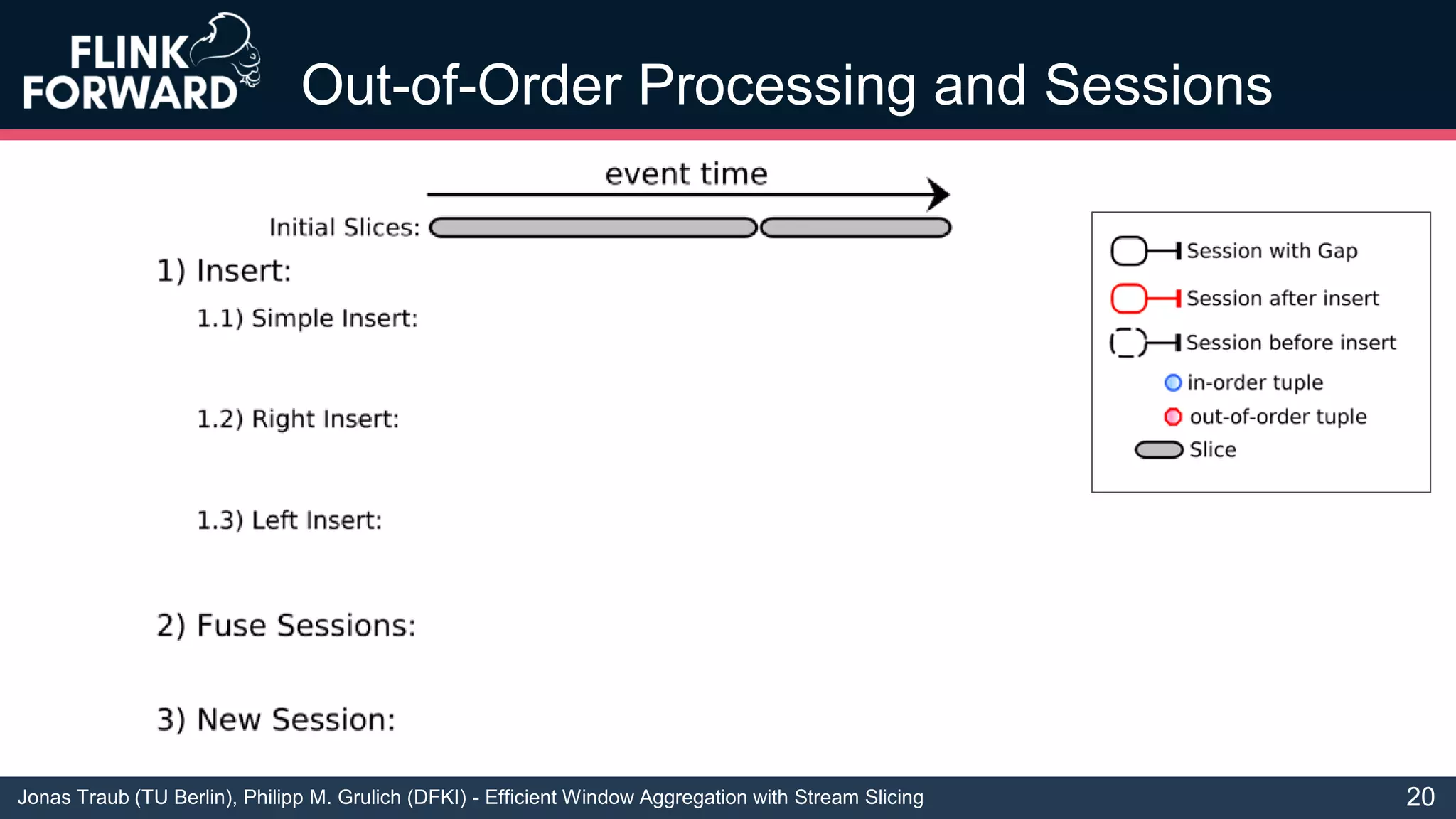

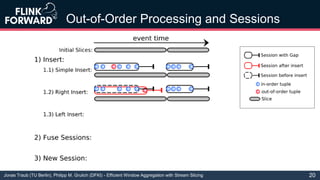

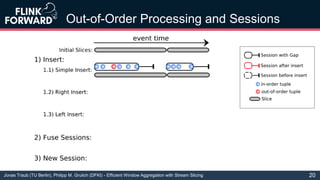

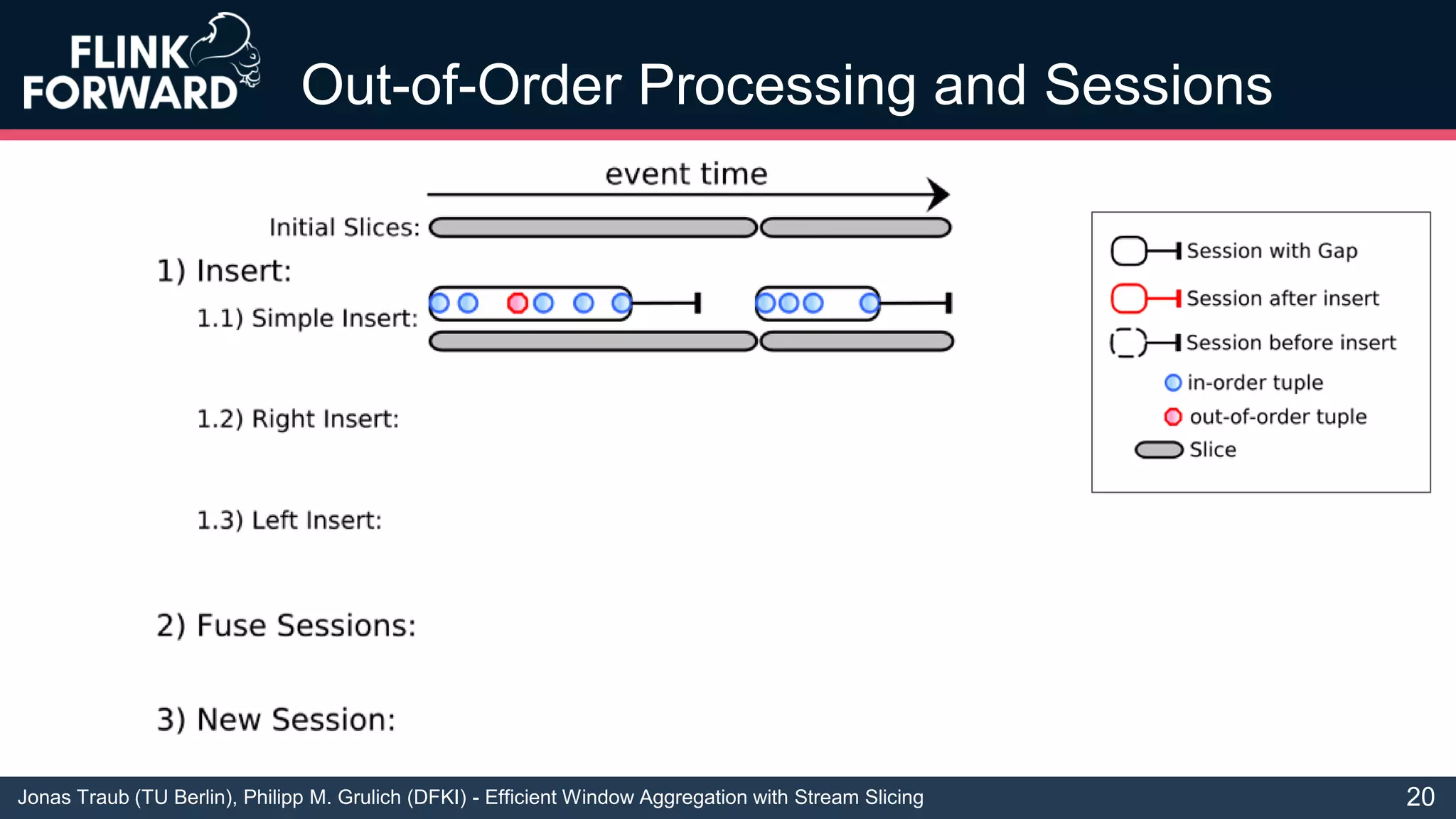

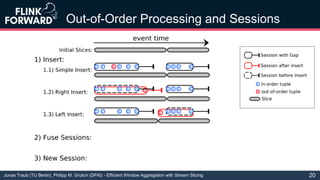

Out-of-Order Processing and Sessions
20
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

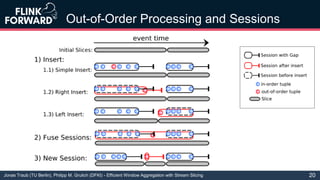

Out-of-Order Processing and Sessions
20
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20

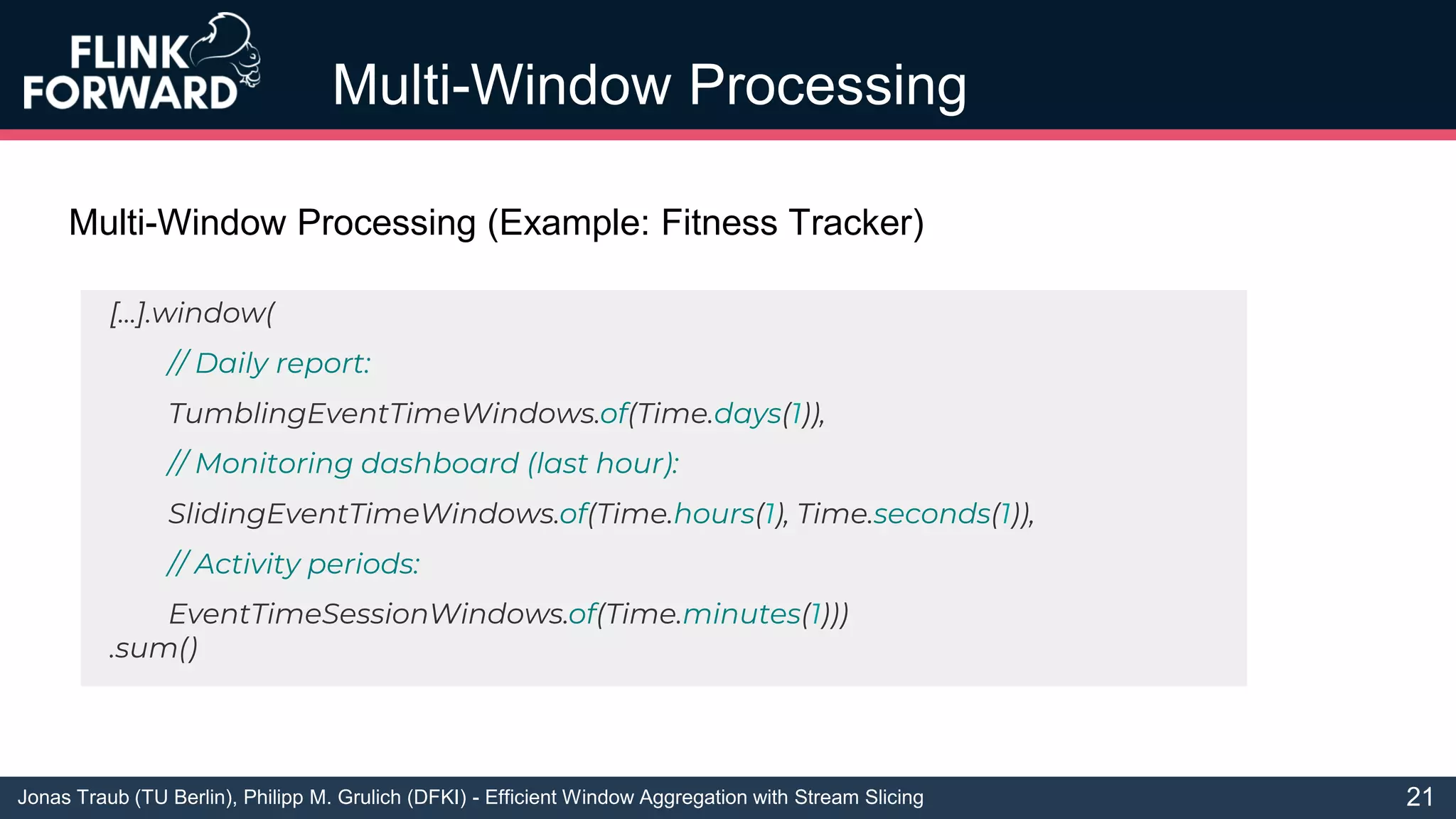

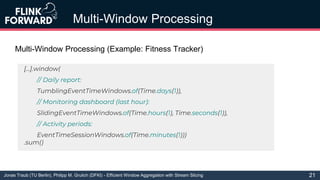

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Multi-Window Processing (Example: Fitness Tracker)
21
[...].window(
// Daily report:
TumblingEventTimeWindows.of(Time.days(1)),
// Monitoring dashboard (last hour):
SlidingEventTimeWindows.of(Time.hours(1), Time.seconds(1)),
// Activity periods:
EventTimeSessionWindows.of(Time.minutes(1)))
.sum()
Multi-Window Processing
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

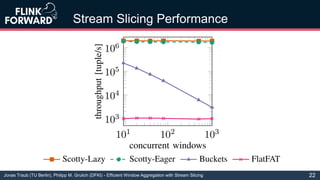

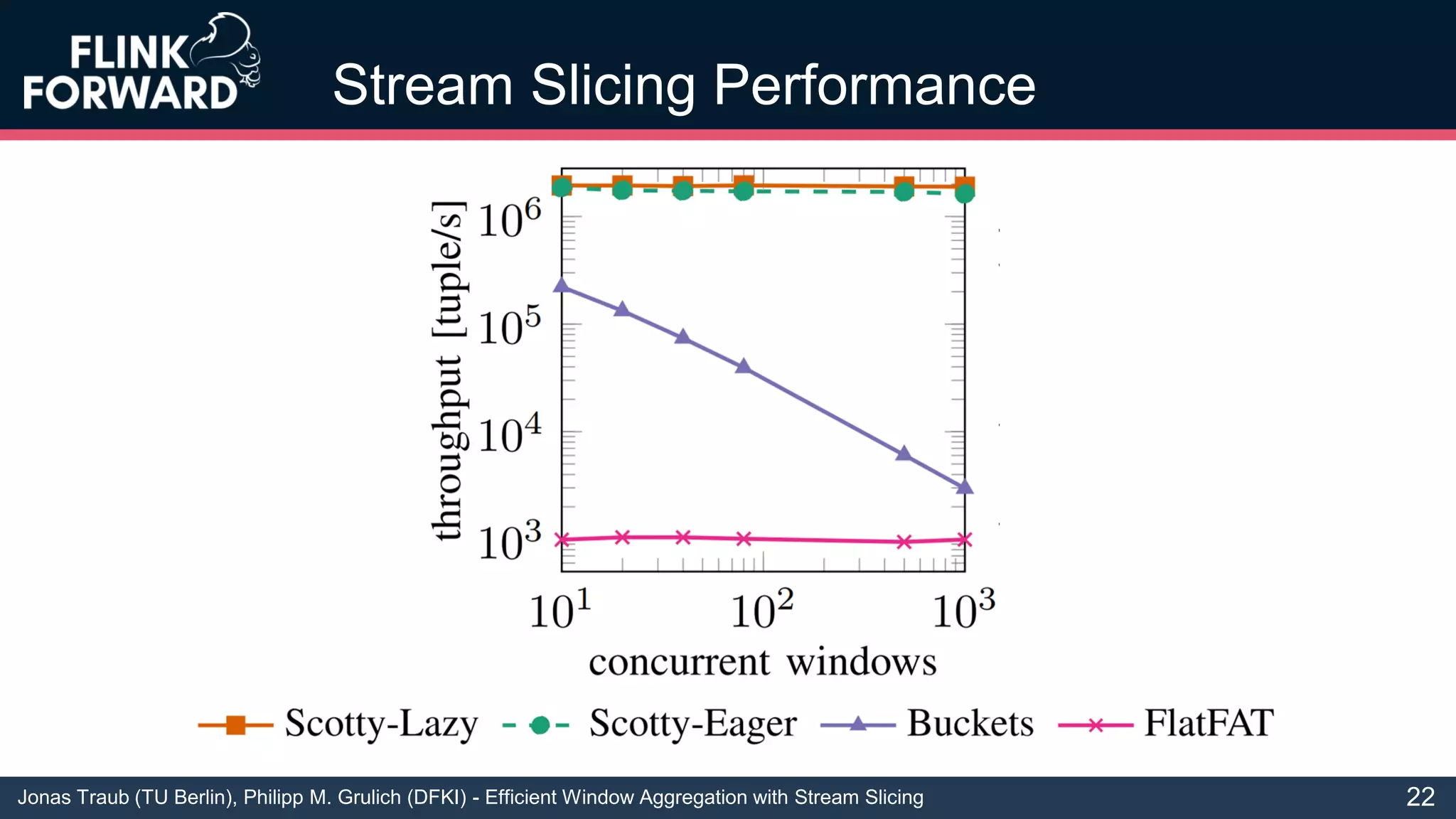

Stream Slicing Performance
22
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

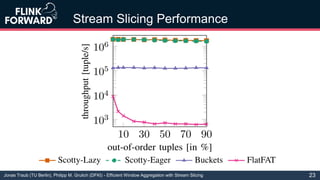

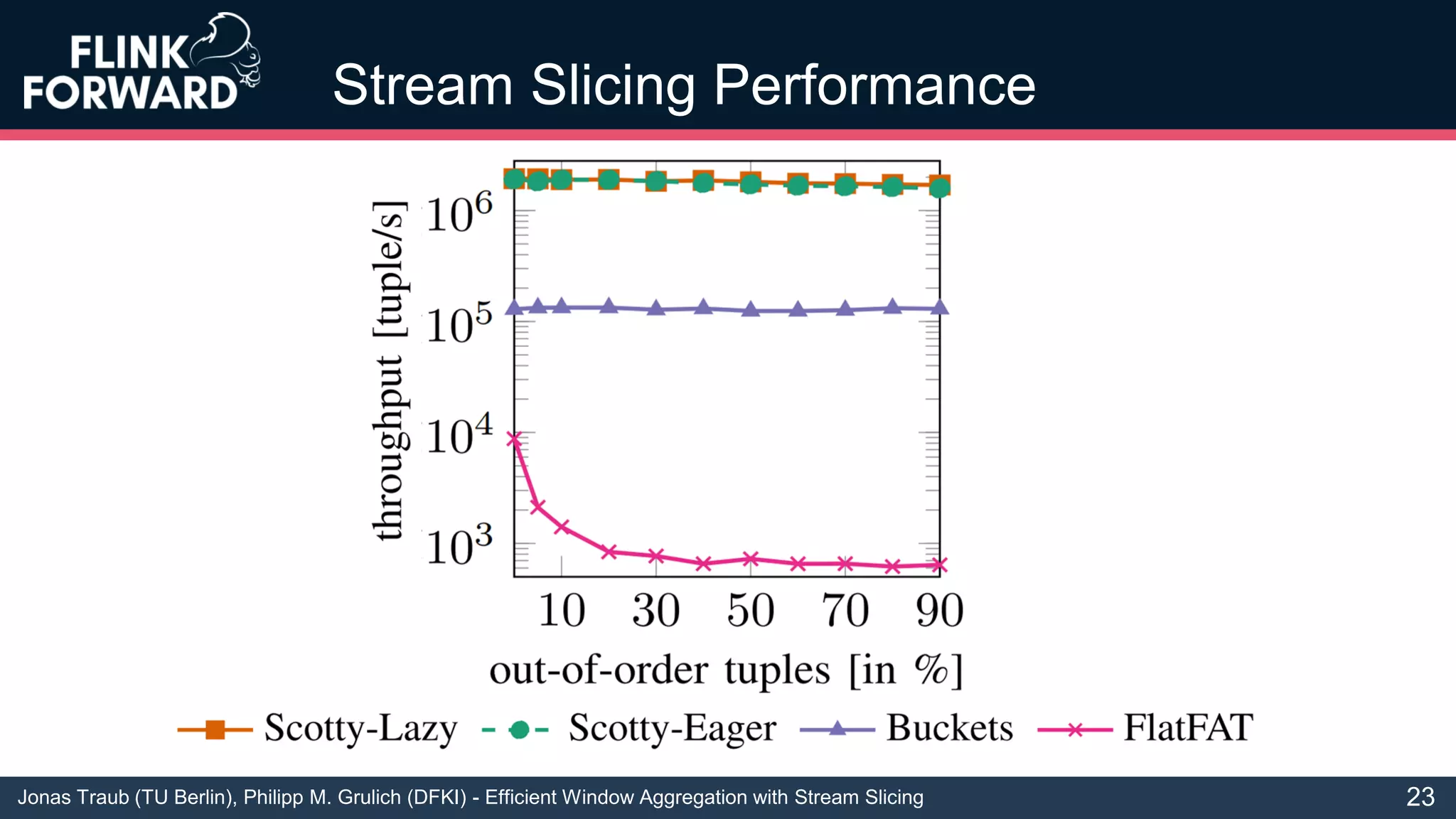

Stream Slicing Performance
23
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

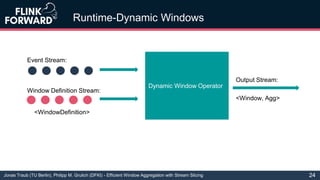

Runtime-Dynamic Windows
24
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

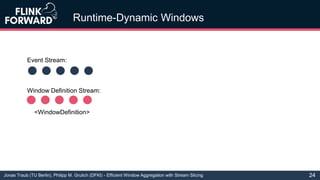

Runtime-Dynamic Windows
24
Event Stream:
Window Definition Stream:
<WindowDefinition>
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

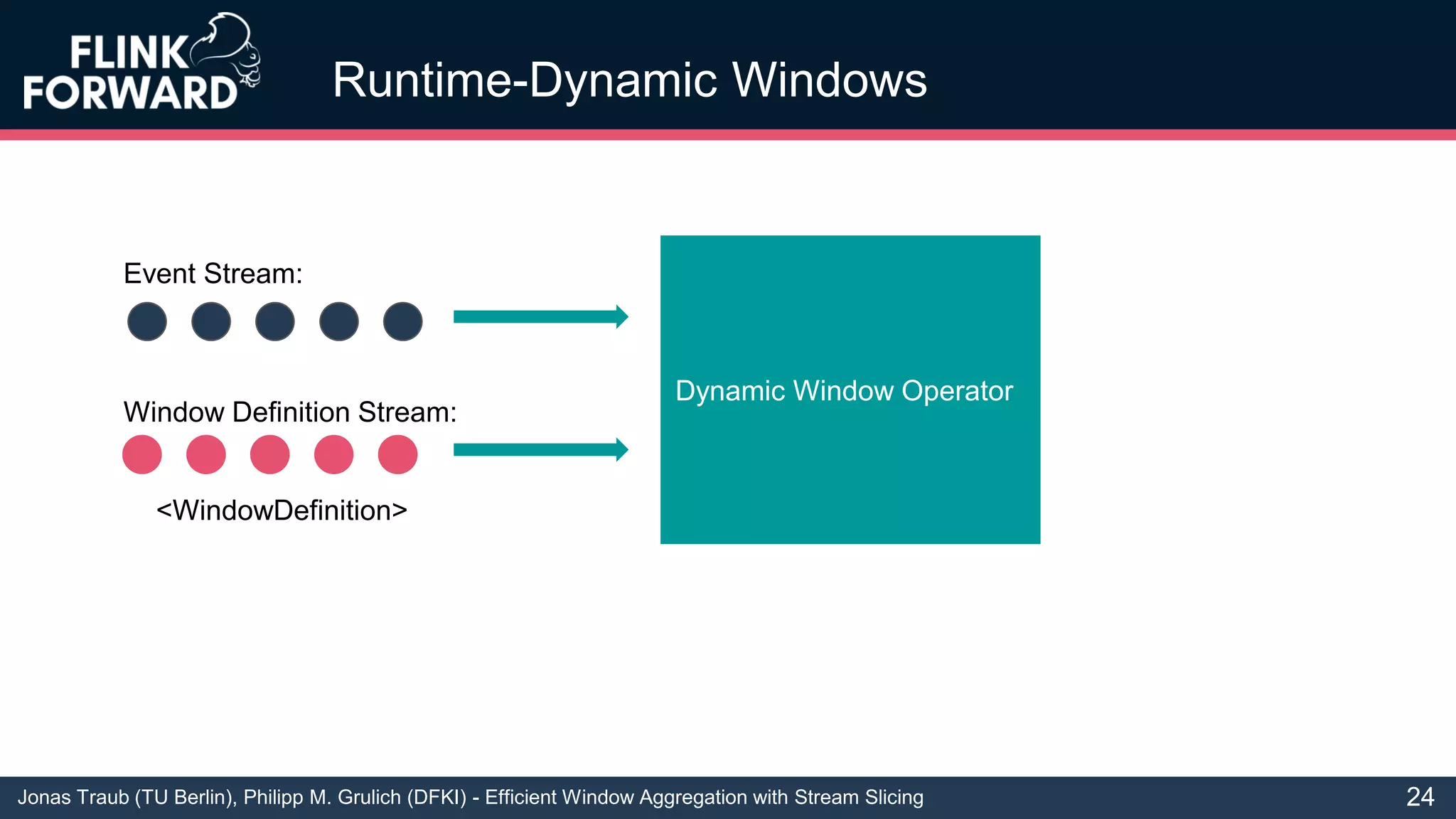

Runtime-Dynamic Windows
24
Event Stream:
Dynamic Window Operator
Window Definition Stream:
<WindowDefinition>
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

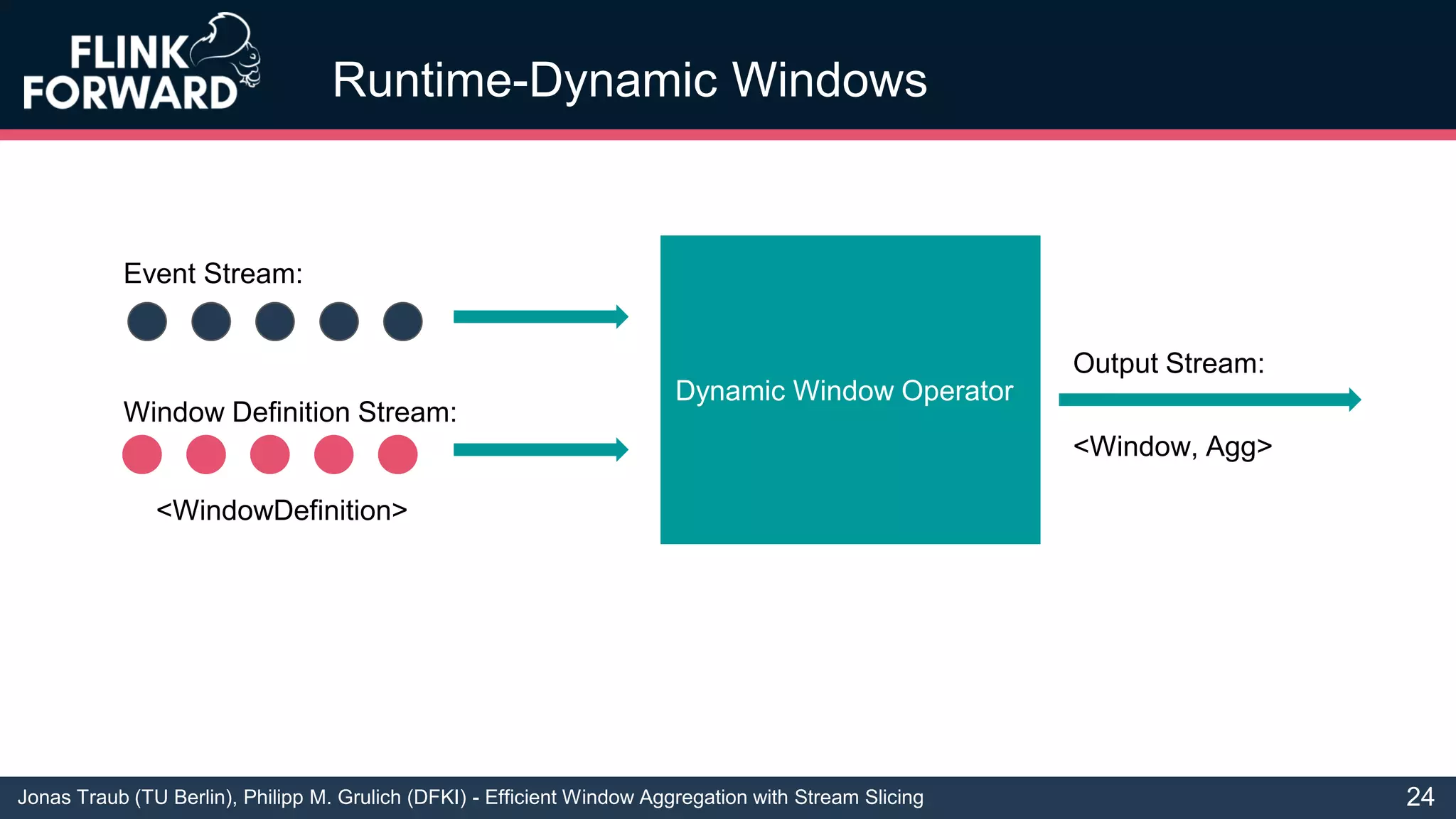

Runtime-Dynamic Windows
24
Event Stream:
Dynamic Window Operator
Output Stream:
<Window, Agg>
Window Definition Stream:
<WindowDefinition>

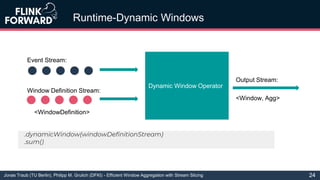

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

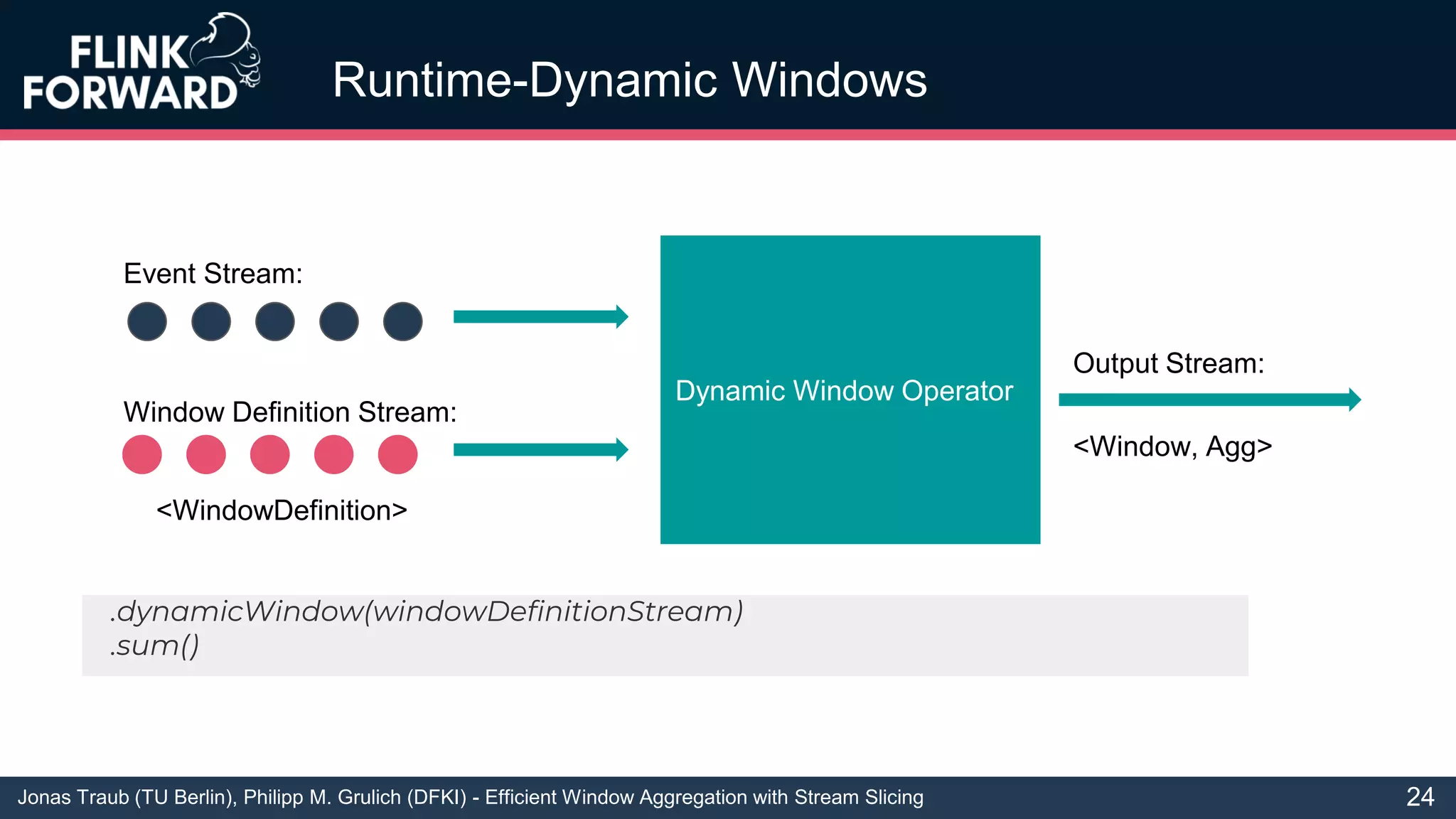

Runtime-Dynamic Windows
24
.dynamicWindow(windowDefinitionStream)
.sum()
Event Stream:
Dynamic Window Operator
Output Stream:
<Window, Agg>
Window Definition Stream:
<WindowDefinition>
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

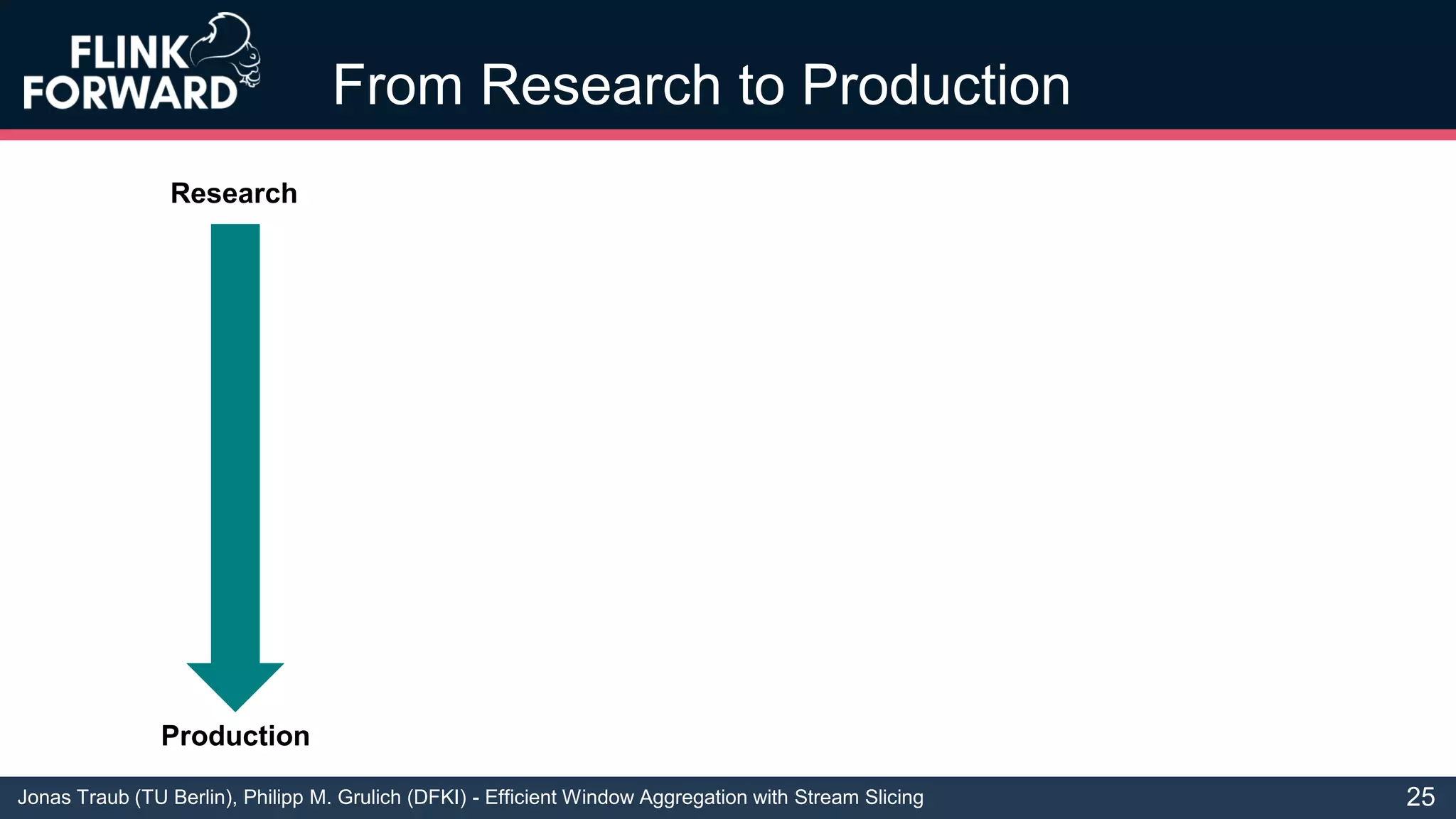

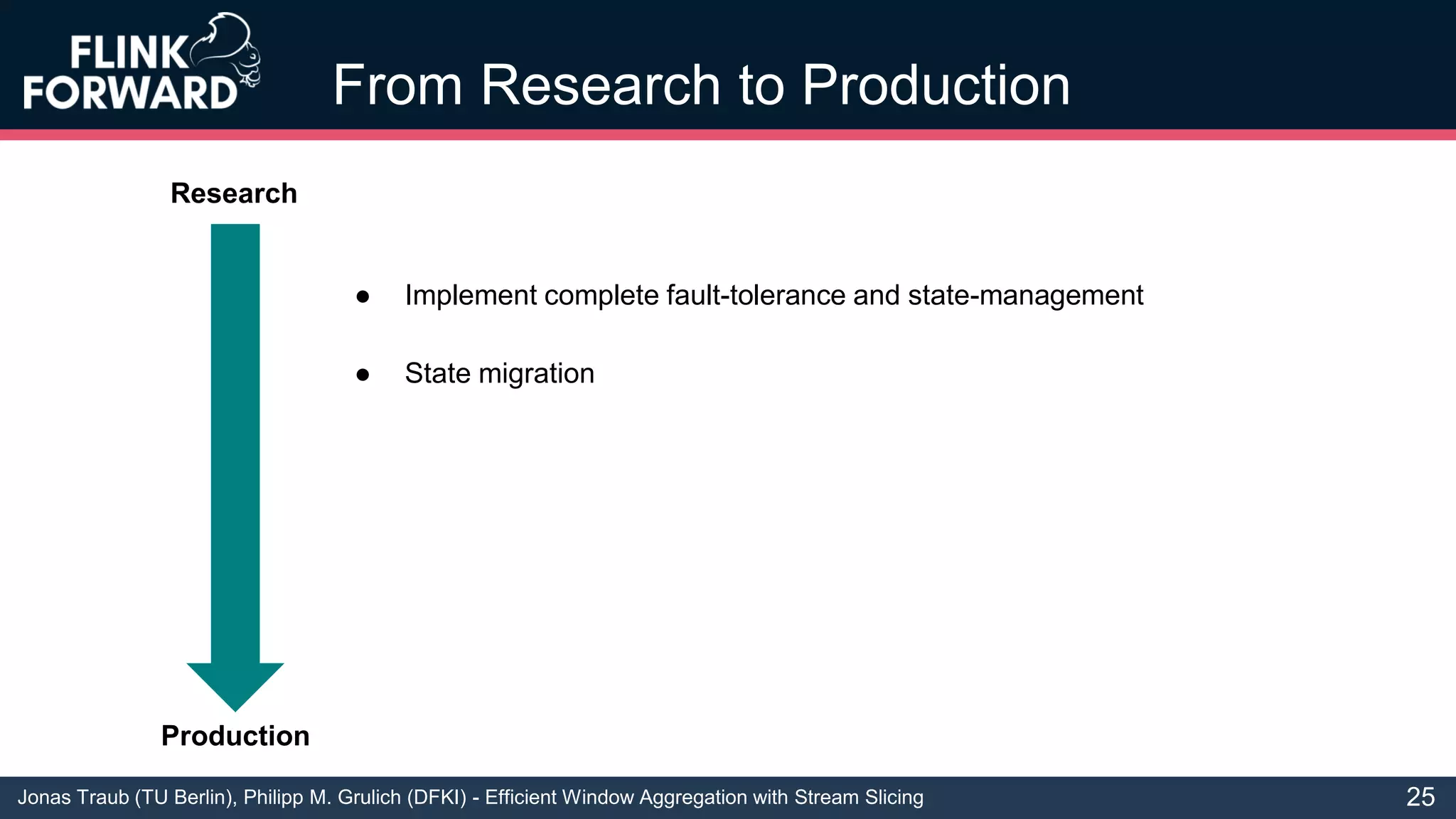

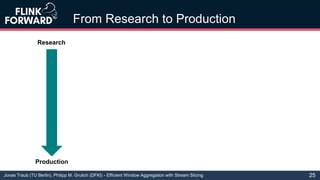

From Research to Production
25
Research
Production

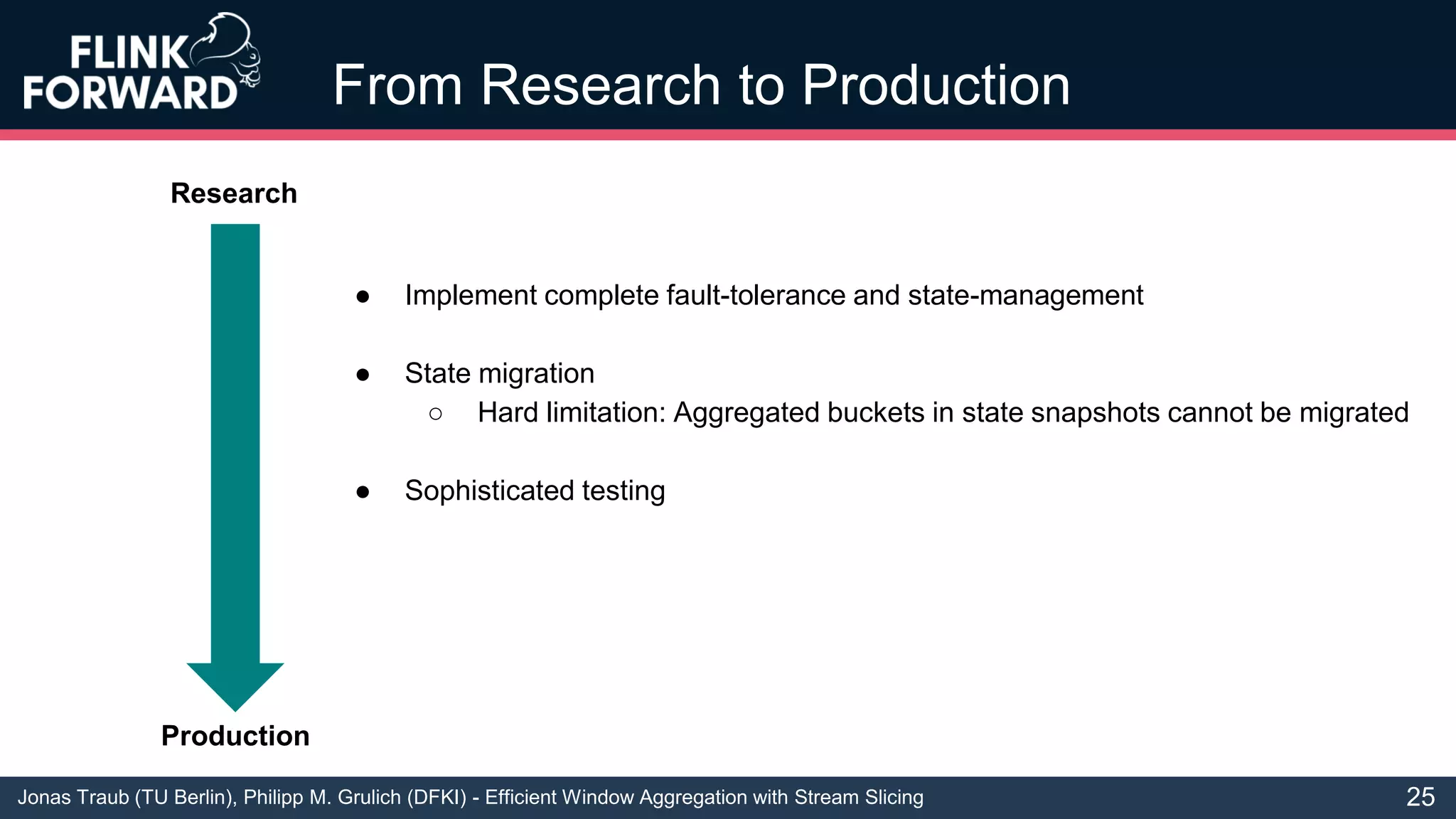

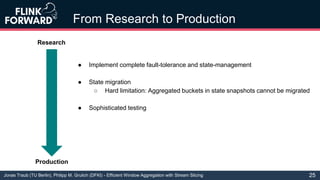

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

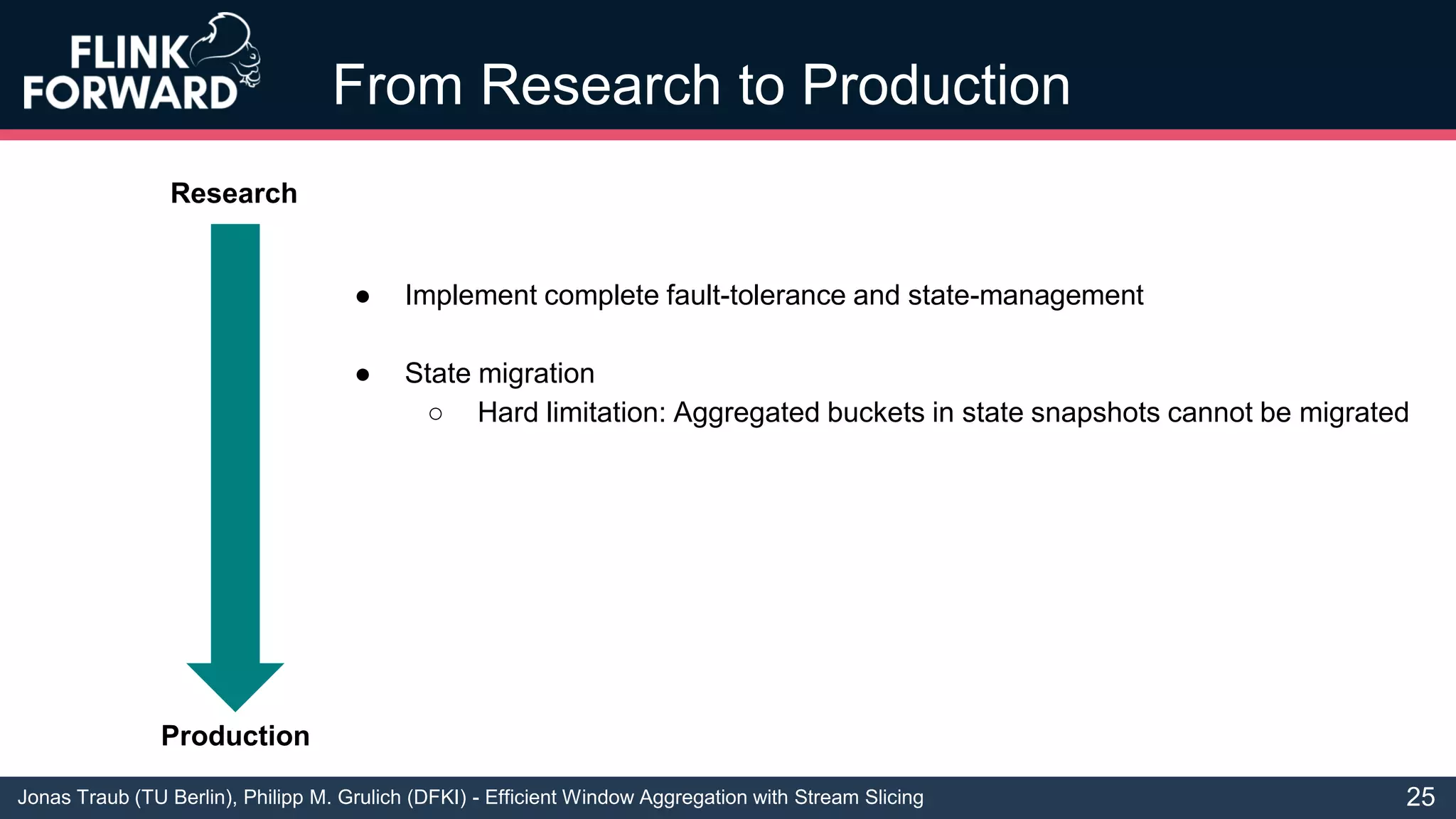

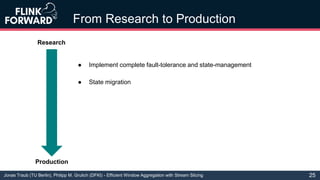

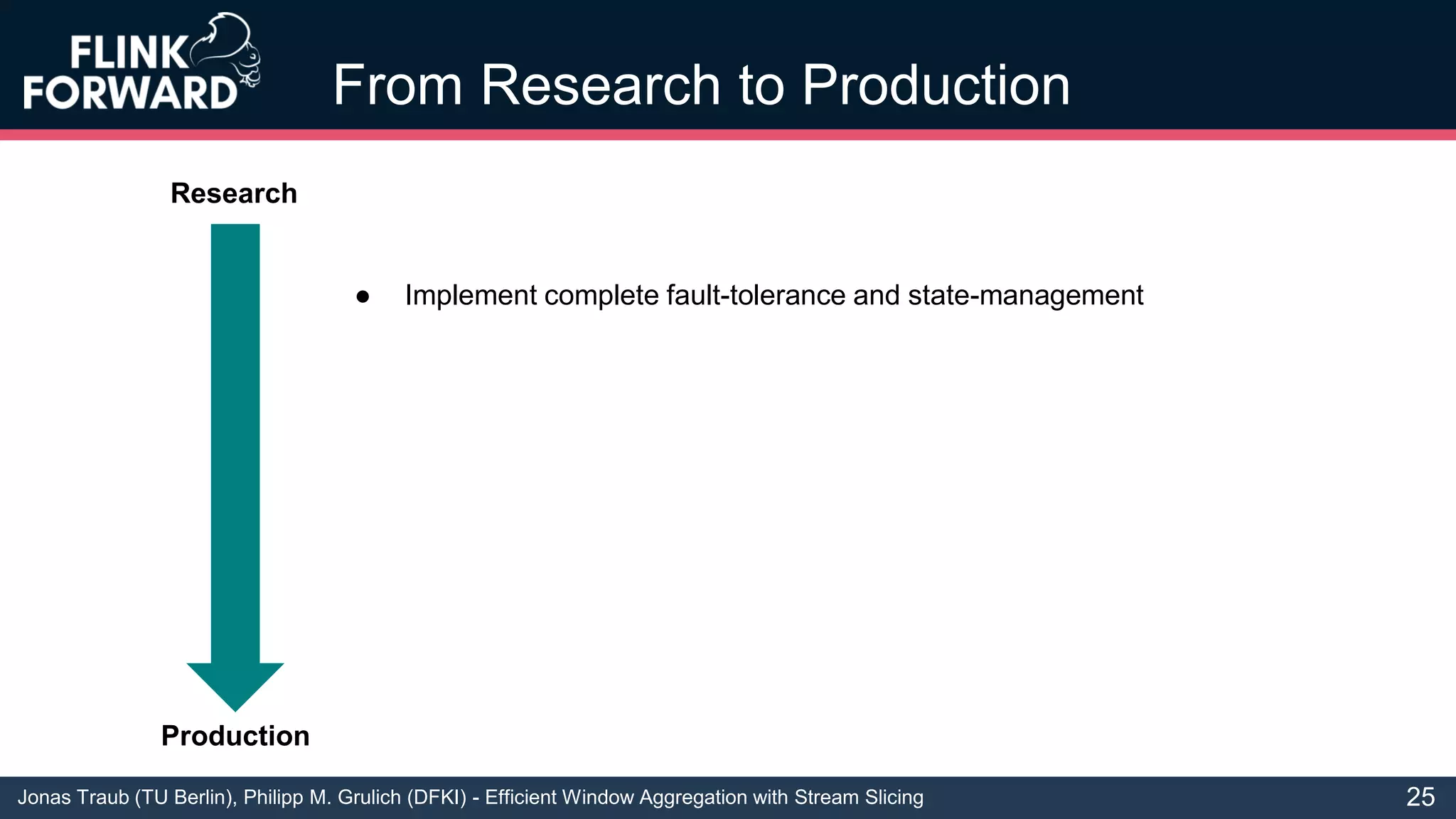

From Research to Production
● Implement complete fault-tolerance and state-management
25
Research
Production

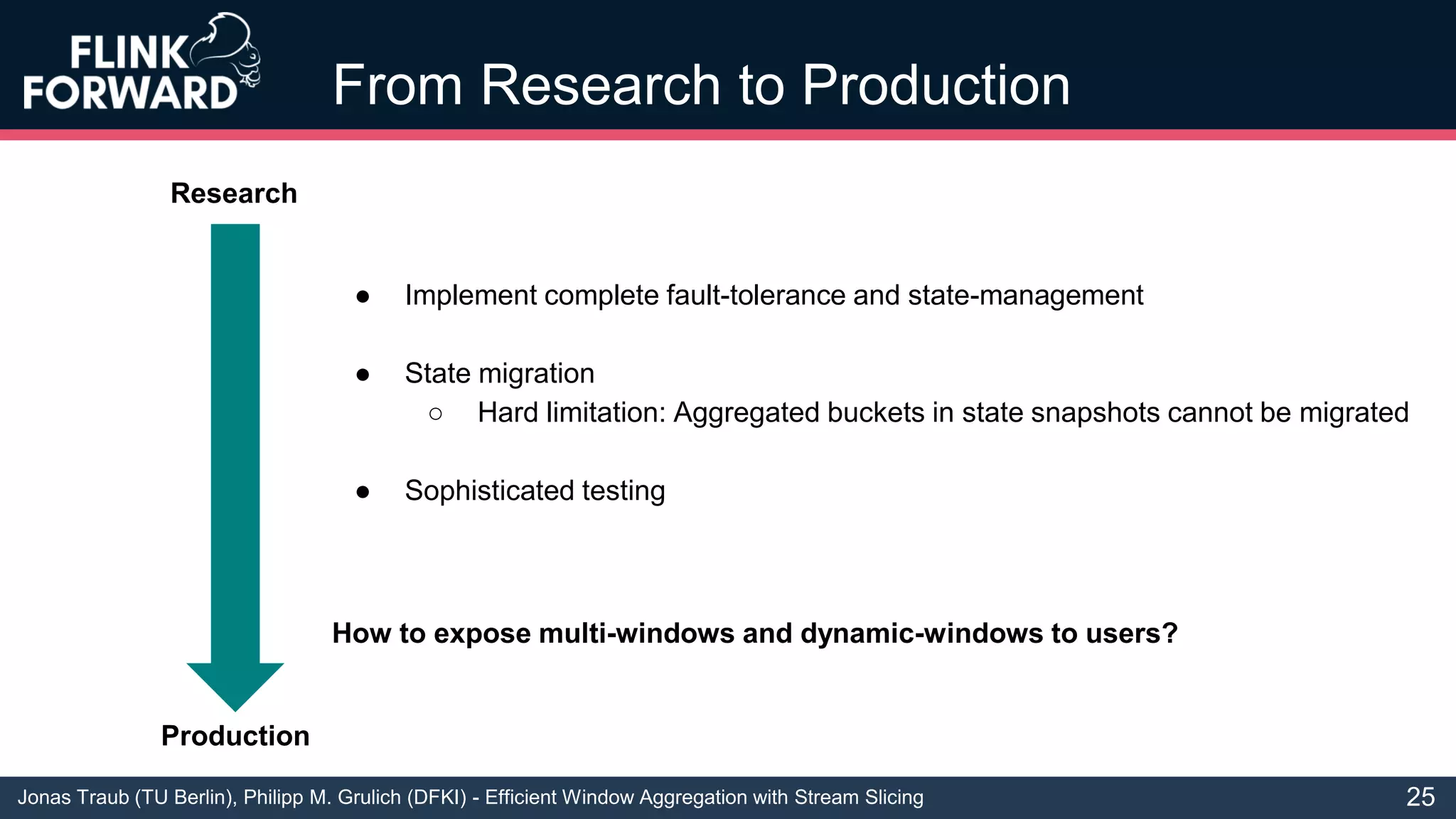

Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
25
Research
Production
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated
25
Research
Production
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated
● Sophisticated testing
25
Research
Production
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated
● Sophisticated testing
How to expose multi-windows and dynamic-windows to users?
25
Research
Production
Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

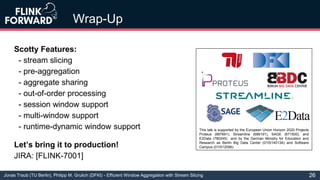

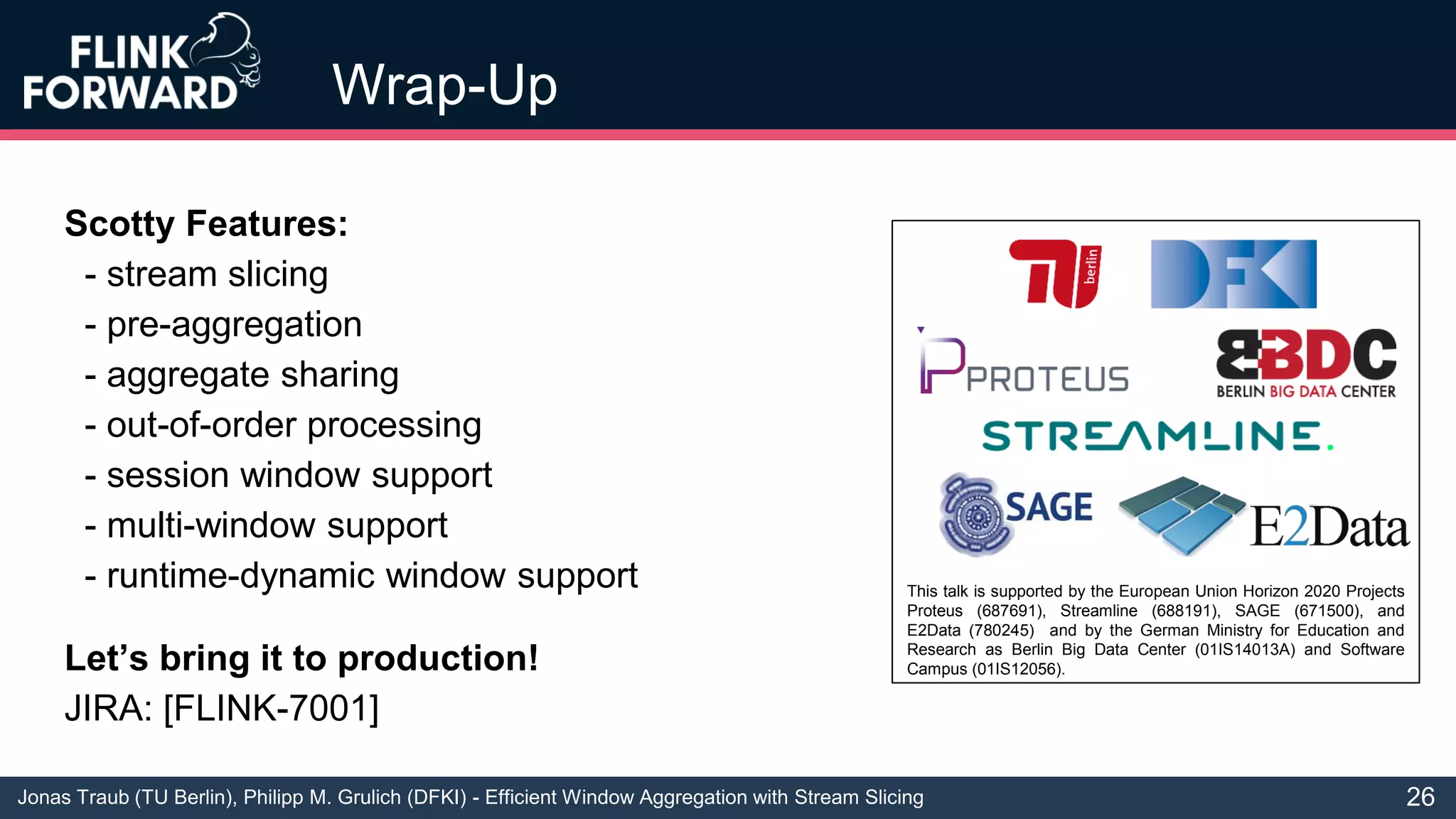

Wrap-Up
Scotty Features:
- stream slicing
- pre-aggregation
- aggregate sharing
- out-of-order processing
- session window support
- multi-window support
- runtime-dynamic window support
Let’s bring it to production!
JIRA: [FLINK-7001]
26
This talk is supported by the European Union Horizon 2020 Projects
Proteus (687691), Streamline (688191), SAGE (671500), and
E2Data (780245) and by the German Ministry for Education and
Research as Berlin Big Data Center (01IS14013A) and Software
Campus (01IS12056).

More Related Content

More from Jonas Traub

Scotty: Efficient Window Aggregation for Out-of-Order Stream Processing
Scotty: Efficient Window Aggregation for Out-of-Order Stream ProcessingScotty: Efficient Window Aggregation for Out-of-Order Stream Processing
Scotty: Efficient Window Aggregation for Out-of-Order Stream ProcessingJonas Traub

Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...
Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...
Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...Jonas Traub

Efficient SIMD Vectorization for Hashing in OpenCL
Efficient SIMD Vectorization for Hashing in OpenCLEfficient SIMD Vectorization for Hashing in OpenCL
Efficient SIMD Vectorization for Hashing in OpenCLJonas Traub

UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...
UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...
UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...Jonas Traub

JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...
JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...
JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...Jonas Traub

I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...
I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...
I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...Jonas Traub

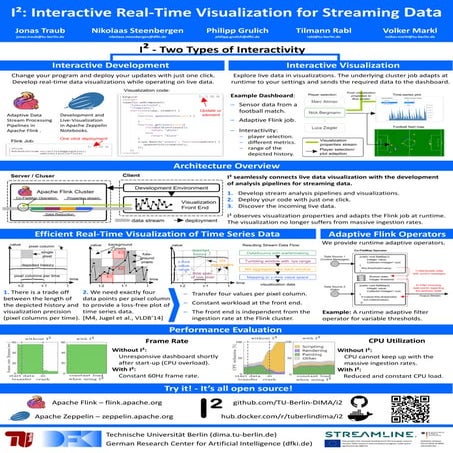

I²: Interactive Real-Time Visualization for Streaming Data
I²: Interactive Real-Time Visualization for Streaming DataI²: Interactive Real-Time Visualization for Streaming Data
I²: Interactive Real-Time Visualization for Streaming DataJonas Traub

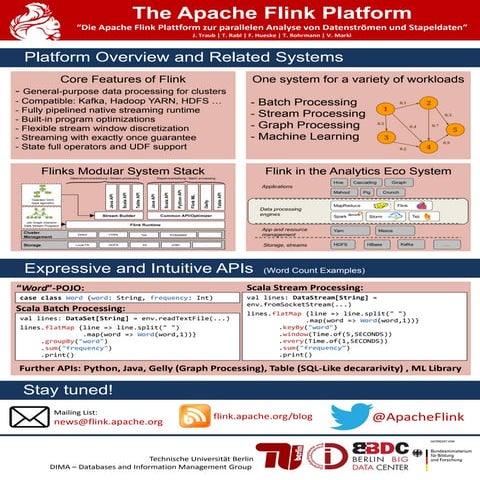

LWA 2015: The Apache Flink Platform (Poster)
LWA 2015: The Apache Flink Platform (Poster)LWA 2015: The Apache Flink Platform (Poster)
LWA 2015: The Apache Flink Platform (Poster)Jonas Traub

LWA 2015: The Apache Flink Platform for Parallel Batch and Stream Analysis
LWA 2015: The Apache Flink Platform for Parallel Batch and Stream AnalysisLWA 2015: The Apache Flink Platform for Parallel Batch and Stream Analysis
LWA 2015: The Apache Flink Platform for Parallel Batch and Stream AnalysisJonas Traub


More from Jonas Traub (9)

Scotty: Efficient Window Aggregation for Out-of-Order Stream Processing
Scotty: Efficient Window Aggregation for Out-of-Order Stream ProcessingScotty: Efficient Window Aggregation for Out-of-Order Stream Processing
Scotty: Efficient Window Aggregation for Out-of-Order Stream Processing

Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...
Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...
Scalable Detection of Concept Drifts on Data Streams with Parallel Adaptive W...

Efficient SIMD Vectorization for Hashing in OpenCL
Efficient SIMD Vectorization for Hashing in OpenCLEfficient SIMD Vectorization for Hashing in OpenCL
Efficient SIMD Vectorization for Hashing in OpenCL

UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...
UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...
UZH Stream Reasoning Workshop 2018: Optimized On-Demand Data Streaming from S...

JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...
JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...
JT@UCSB - On-Demand Data Streaming from Sensor Nodes and A quick overview of ...

I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...
I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...
I²: Interactive Real-Time Visualization for Streaming Data with Apache Flink ...

I²: Interactive Real-Time Visualization for Streaming Data
I²: Interactive Real-Time Visualization for Streaming DataI²: Interactive Real-Time Visualization for Streaming Data
I²: Interactive Real-Time Visualization for Streaming Data

LWA 2015: The Apache Flink Platform (Poster)
LWA 2015: The Apache Flink Platform (Poster)LWA 2015: The Apache Flink Platform (Poster)
LWA 2015: The Apache Flink Platform (Poster)

LWA 2015: The Apache Flink Platform for Parallel Batch and Stream Analysis
LWA 2015: The Apache Flink Platform for Parallel Batch and Stream AnalysisLWA 2015: The Apache Flink Platform for Parallel Batch and Stream Analysis
LWA 2015: The Apache Flink Platform for Parallel Batch and Stream Analysis


Recently uploaded

NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...Amil baba

How I opened a fake bank account and didn't go to prison
How I opened a fake bank account and didn't go to prisonHow I opened a fake bank account and didn't go to prison
How I opened a fake bank account and didn't go to prisonPayment Village

一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理
一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理
一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理pyhepag

Fuzzy Sets decision making under information of uncertainty
Fuzzy Sets decision making under information of uncertaintyFuzzy Sets decision making under information of uncertainty
Fuzzy Sets decision making under information of uncertaintyRafigAliyev2

Formulas dax para power bI de microsoft.pdf
Formulas dax para power bI de microsoft.pdfFormulas dax para power bI de microsoft.pdf
Formulas dax para power bI de microsoft.pdfRobertoOcampo24

社内勉強会資料  Mamba - A new era or ephemeral
社内勉強会資料   Mamba - A new era or ephemeral社内勉強会資料   Mamba - A new era or ephemeral
社内勉強会資料  Mamba - A new era or ephemeralNABLAS株式会社

Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...
Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...
Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...ssuserf63bd7

一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理pyhepag

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理cyebo

The Significance of Transliteration Enhancing
The Significance of Transliteration EnhancingThe Significance of Transliteration Enhancing
The Significance of Transliteration Enhancingmohamed Elzalabany

2024 Q2 Orange County (CA) Tableau User Group Meeting
2024 Q2 Orange County (CA) Tableau User Group Meeting2024 Q2 Orange County (CA) Tableau User Group Meeting
2024 Q2 Orange County (CA) Tableau User Group MeetingAlison Pitt

Atlantic Grupa Case Study (Mintec Data AI)
Atlantic Grupa Case Study (Mintec Data AI)Atlantic Grupa Case Study (Mintec Data AI)
Atlantic Grupa Case Study (Mintec Data AI)Jon Hansen

一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理pyhepag

Easy and simple project file on mp online
Easy and simple project file on mp onlineEasy and simple project file on mp online
Easy and simple project file on mp onlinebalibahu1313

Pre-ProductionImproveddsfjgndflghtgg.pptx
Pre-ProductionImproveddsfjgndflghtgg.pptxPre-ProductionImproveddsfjgndflghtgg.pptx
Pre-ProductionImproveddsfjgndflghtgg.pptxStephen266013

basics of data science with application areas.pdf
basics of data science with application areas.pdfbasics of data science with application areas.pdf
basics of data science with application areas.pdfvyankatesh1

AI Imagen for data-storytelling Infographics.pdf
AI Imagen for data-storytelling Infographics.pdfAI Imagen for data-storytelling Infographics.pdf
AI Imagen for data-storytelling Infographics.pdfMichaelSenkow

一比一原版纽卡斯尔大学毕业证成绩单如何办理
一比一原版纽卡斯尔大学毕业证成绩单如何办理一比一原版纽卡斯尔大学毕业证成绩单如何办理
一比一原版纽卡斯尔大学毕业证成绩单如何办理cyebo


Recently uploaded (20)

NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...

How I opened a fake bank account and didn't go to prison
How I opened a fake bank account and didn't go to prisonHow I opened a fake bank account and didn't go to prison
How I opened a fake bank account and didn't go to prison

一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理
一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理
一比一原版加利福尼亚大学尔湾分校毕业证成绩单如何办理

Fuzzy Sets decision making under information of uncertainty
Fuzzy Sets decision making under information of uncertaintyFuzzy Sets decision making under information of uncertainty
Fuzzy Sets decision making under information of uncertainty

Formulas dax para power bI de microsoft.pdf
Formulas dax para power bI de microsoft.pdfFormulas dax para power bI de microsoft.pdf
Formulas dax para power bI de microsoft.pdf

Abortion pills in Dammam Saudi Arabia// +966572737505 // buy cytotec
Abortion pills in Dammam Saudi Arabia// +966572737505 // buy cytotecAbortion pills in Dammam Saudi Arabia// +966572737505 // buy cytotec
Abortion pills in Dammam Saudi Arabia// +966572737505 // buy cytotec

社内勉強会資料  Mamba - A new era or ephemeral
社内勉強会資料   Mamba - A new era or ephemeral社内勉強会資料   Mamba - A new era or ephemeral
社内勉強会資料  Mamba - A new era or ephemeral

Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...
Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...
Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...

一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理

The Significance of Transliteration Enhancing
The Significance of Transliteration EnhancingThe Significance of Transliteration Enhancing
The Significance of Transliteration Enhancing

2024 Q2 Orange County (CA) Tableau User Group Meeting
2024 Q2 Orange County (CA) Tableau User Group Meeting2024 Q2 Orange County (CA) Tableau User Group Meeting
2024 Q2 Orange County (CA) Tableau User Group Meeting

Atlantic Grupa Case Study (Mintec Data AI)
Atlantic Grupa Case Study (Mintec Data AI)Atlantic Grupa Case Study (Mintec Data AI)
Atlantic Grupa Case Study (Mintec Data AI)

一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理

Easy and simple project file on mp online
Easy and simple project file on mp onlineEasy and simple project file on mp online
Easy and simple project file on mp online

Pre-ProductionImproveddsfjgndflghtgg.pptx
Pre-ProductionImproveddsfjgndflghtgg.pptxPre-ProductionImproveddsfjgndflghtgg.pptx
Pre-ProductionImproveddsfjgndflghtgg.pptx

basics of data science with application areas.pdf
basics of data science with application areas.pdfbasics of data science with application areas.pdf
basics of data science with application areas.pdf

AI Imagen for data-storytelling Infographics.pdf
AI Imagen for data-storytelling Infographics.pdfAI Imagen for data-storytelling Infographics.pdf
AI Imagen for data-storytelling Infographics.pdf

Slip-and-fall Injuries: Top Workers' Comp Claims
Slip-and-fall Injuries: Top Workers' Comp ClaimsSlip-and-fall Injuries: Top Workers' Comp Claims
Slip-and-fall Injuries: Top Workers' Comp Claims

一比一原版纽卡斯尔大学毕业证成绩单如何办理
一比一原版纽卡斯尔大学毕业证成绩单如何办理一比一原版纽卡斯尔大学毕业证成绩单如何办理
一比一原版纽卡斯尔大学毕业证成绩单如何办理


Flink Forward 2018: Efficient Window Aggregation with Stream Slicing

  • 1. Efficient Window Aggregation with Stream Slicing Berlin, September 3-5, 2018 Philipp M. Grulich Research Assistant (DFKI) Jonas Traub Research Associate (TU Berlin)
  • 2. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 2
  • 3. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 3
  • 4. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 4
  • 5. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 5
  • 6. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 6
  • 7. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 7
  • 8. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 8
  • 9. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 9
  • 10. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 10
  • 11. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Example 11
  • 12. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Research 12
  • 13. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Research 13 CIKM 2016
  • 14. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Research 14 ICDE 2018 CIKM 2016
  • 15. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 15 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query:
  • 16. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: Events: Buckets: Eventtime
  • 17. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <4,3> Events: Buckets: Eventtime
  • 18. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3><4,3> Events: Buckets: Eventtime
  • 19. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3><4,3> <15,6> Events: Buckets: Eventtime
  • 20. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3> <10:70, 6> <4,3> <15,6> <0:60, 9> Events: Buckets: Eventtime
  • 21. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3> <10:70, 6> <4,3> <15,6> <0:60, 9> <55,6> Events: Buckets: Eventtime
  • 22. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3> <10:70, 6> ... <4,3> <15,6> <0:60, 9> <55,6> <0:60, 15> <10:70, 12> Events: Buckets: Eventtime
  • 23. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3> <10:70, 6> ... <4,3> <15,6> <0:60, 9> <55,6> <0:60, 15> <10:70, 12> <66,1> Events: Buckets: Eventtime
  • 24. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 16 .window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))) .sum() Example Query: Processing with Buckets: <0:60, 3> <10:70, 6> ... <60:120, 1> <4,3> <15,6> <0:60, 9> <55,6> <0:60, 15> <10:70, 12> <66,1> <10:70, 13> Events: Buckets: Eventtime
  • 25. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length
  • 26. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) --> 6 Buckets
  • 27. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10)) --> 6 Buckets --> 8640 Buckets
  • 28. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10)) --> 6 Buckets --> 8640 Buckets Overlapping windows cause:
  • 29. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10)) --> 6 Buckets --> 8640 Buckets Overlapping windows cause: ● Every event is assigned to many windows.
  • 30. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10)) --> 6 Buckets --> 8640 Buckets Overlapping windows cause: ● Every event is assigned to many windows. ● Repeated aggregations --> aggregation function is called on every window
  • 31. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10)) --> 6 Buckets --> 8640 Buckets Overlapping windows cause: ● Every event is assigned to many windows. ● Repeated aggregations --> aggregation function is called on every window ● High memory consumption --> especially for windows without incremental aggregation
  • 32. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Flink Windowing Bottlenecks 17 Number of Buckets = Window Length / Slide Length SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10)) --> 6 Buckets --> 8640 Buckets Overlapping windows cause: ● Every event is assigned to many windows. ● Repeated aggregations --> aggregation function is called on every window ● High memory consumption --> especially for windows without incremental aggregation ● Check for merging windows
  • 33. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Architecture Overview 18
  • 34. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Architecture Overview 18
  • 35. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Architecture Overview 18
  • 36. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Architecture Overview 18
  • 37. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Architecture Overview 18
  • 38. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Architecture Overview 18
  • 39. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Session Window Aggregate Sharing 19
  • 40. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Session Window Aggregate Sharing 19
  • 41. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Session Window Aggregate Sharing 19
  • 42. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Out-of-Order Processing and Sessions 20
  • 43. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Out-of-Order Processing and Sessions 20
  • 44. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Out-of-Order Processing and Sessions 20
  • 45. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Out-of-Order Processing and Sessions 20
  • 46. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Out-of-Order Processing and Sessions 20
  • 47. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Out-of-Order Processing and Sessions 20
  • 48. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Multi-Window Processing (Example: Fitness Tracker) 21 [...].window( // Daily report: TumblingEventTimeWindows.of(Time.days(1)), // Monitoring dashboard (last hour): SlidingEventTimeWindows.of(Time.hours(1), Time.seconds(1)), // Activity periods: EventTimeSessionWindows.of(Time.minutes(1))) .sum() Multi-Window Processing
  • 49. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Performance 22
  • 50. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Stream Slicing Performance 23
  • 51. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Runtime-Dynamic Windows 24
  • 52. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Runtime-Dynamic Windows 24 Event Stream: Window Definition Stream: <WindowDefinition>
  • 53. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Runtime-Dynamic Windows 24 Event Stream: Dynamic Window Operator Window Definition Stream: <WindowDefinition>
  • 54. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Runtime-Dynamic Windows 24 Event Stream: Dynamic Window Operator Output Stream: <Window, Agg> Window Definition Stream: <WindowDefinition>
  • 55. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Runtime-Dynamic Windows 24 .dynamicWindow(windowDefinitionStream) .sum() Event Stream: Dynamic Window Operator Output Stream: <Window, Agg> Window Definition Stream: <WindowDefinition>
  • 56. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing From Research to Production 25 Research Production
  • 57. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing From Research to Production ● Implement complete fault-tolerance and state-management 25 Research Production
  • 58. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing From Research to Production ● Implement complete fault-tolerance and state-management ● State migration 25 Research Production
  • 59. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing From Research to Production ● Implement complete fault-tolerance and state-management ● State migration ○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated 25 Research Production
  • 60. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing From Research to Production ● Implement complete fault-tolerance and state-management ● State migration ○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated ● Sophisticated testing 25 Research Production
  • 61. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing From Research to Production ● Implement complete fault-tolerance and state-management ● State migration ○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated ● Sophisticated testing How to expose multi-windows and dynamic-windows to users? 25 Research Production
  • 62. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing Wrap-Up Scotty Features: - stream slicing - pre-aggregation - aggregate sharing - out-of-order processing - session window support - multi-window support - runtime-dynamic window support Let’s bring it to production! JIRA: [FLINK-7001] 26 This talk is supported by the European Union Horizon 2020 Projects Proteus (687691), Streamline (688191), SAGE (671500), and E2Data (780245) and by the German Ministry for Education and Research as Berlin Big Data Center (01IS14013A) and Software Campus (01IS12056).
