Patch and upgrade databases for Oracle Databases

Patch and Upgrade Your
Database Like a Hero
Internals, Secrets, and More
Oracle CloudWorld Copyright© 2024, Oracle and/or its affiliates
1

The following is intended to outline our general product direction. It is
intended for information purposes only, and may not be incorporated
into any contract. It is not a commitment to deliver any material, code,
or functionality, and should not be relied upon in making purchasing
decisions. The development, release, timing, and pricing of any
features or functionality described for Oracle’s products may change
and remains at the sole discretion of Oracle Corporation.
The materials in this presentation pertain to Oracle Health,Oracle,OracleCerner,and Cerner Enviza which are all wholly owned subsidiaries of Oracle Corporation. Nothing in this presentation should be taken as indicating
that any decisions regarding the integration of any EMEA Cerner and/orEnviza entities have been made where an integration has not already occurred.
Oracle CloudWorld Copyright © 2024, Oracle and/or its affiliates
2
Safe harbor statement

Alex Zaballa
Oracle
Distinguished Product Manager
Cloud Migration, Upgrades and Patching
Rodrigo Jorge
Oracle
Distinguished Product Manager
Cloud Migration, Upgrades and Patching
Kamil Stawiarski
Database Whisperers
CEO
3
Speakers

4 Oracle CloudWorld Copyright© 2024, Oracle and/or its affiliates
Connect with us
alexzaballa
@alexzaballa
https://alexzaballa.com
rodrigoaraujorge
@rodrigojorgedba
https://dbarj.com.br
kamilstawiarski
@ora600pl
https://ora-600.pl

5

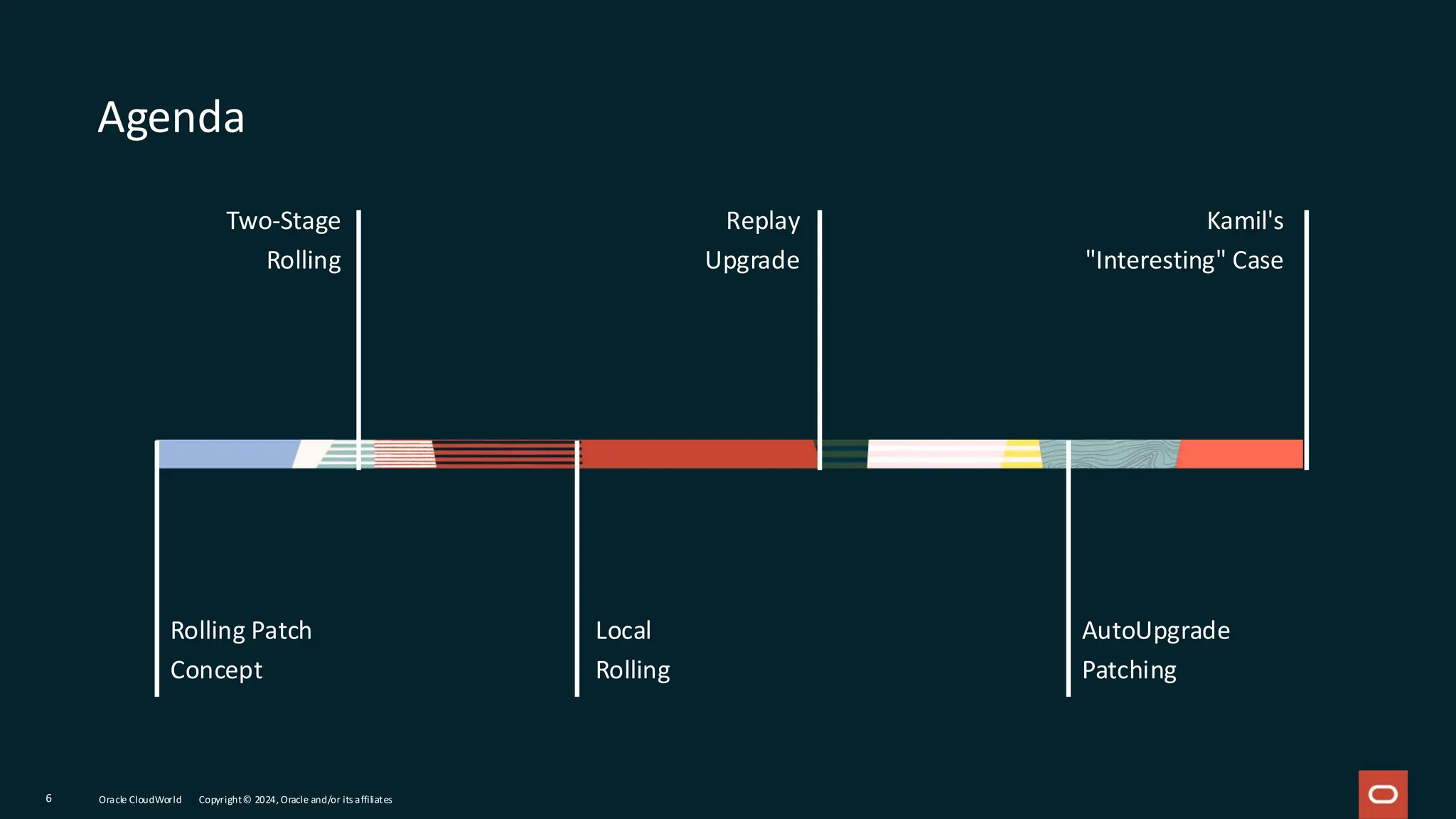

DBAs
run the world
Oracle

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching
Agenda

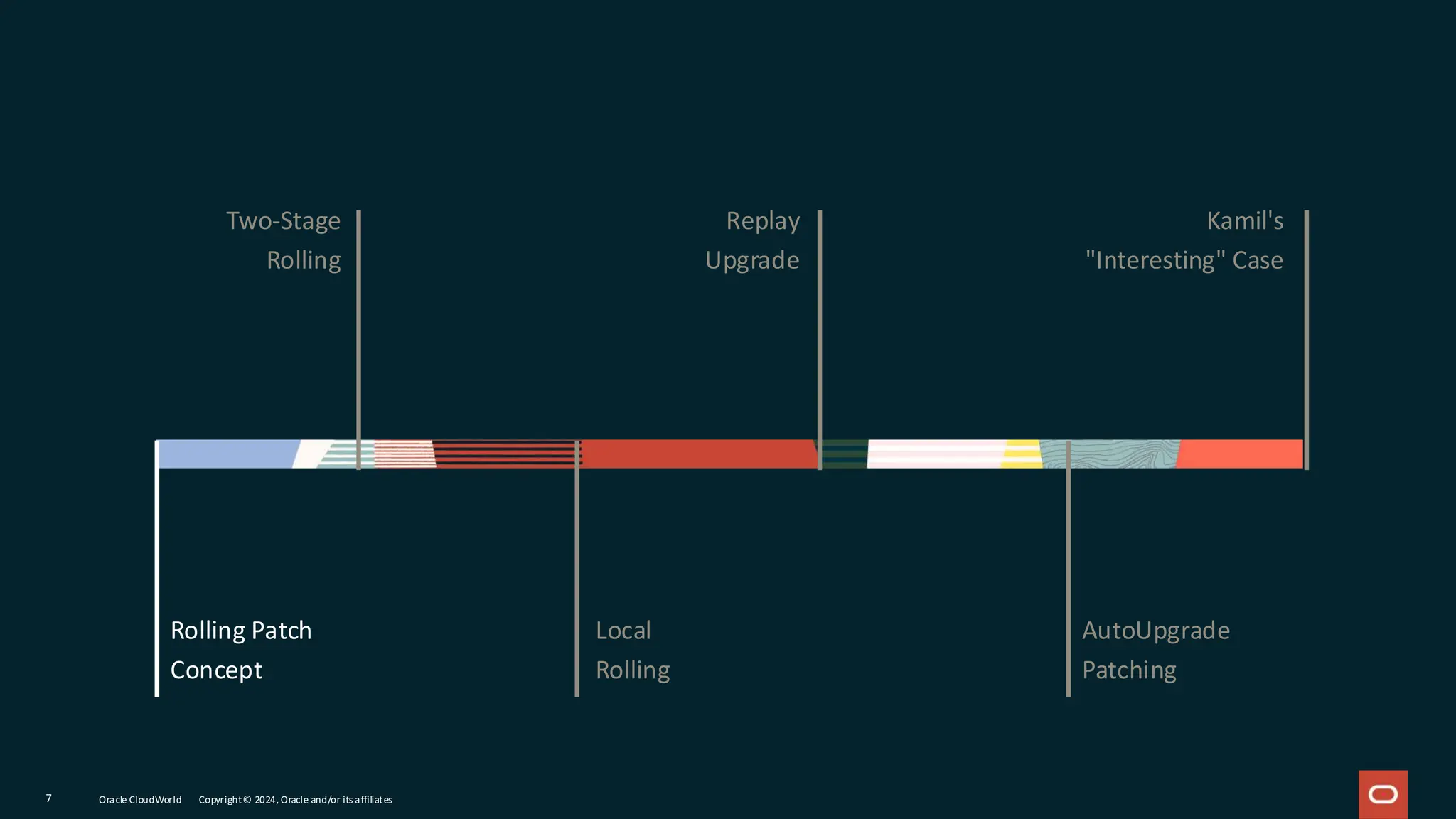

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching

Concept
8
Methods
• In-Place Patching
• Out-of-Place Patching
Types
• Single Instance Patching
• Standby-First Patching
• RAC Rolling Patching

Always patch Out-of-Place
9

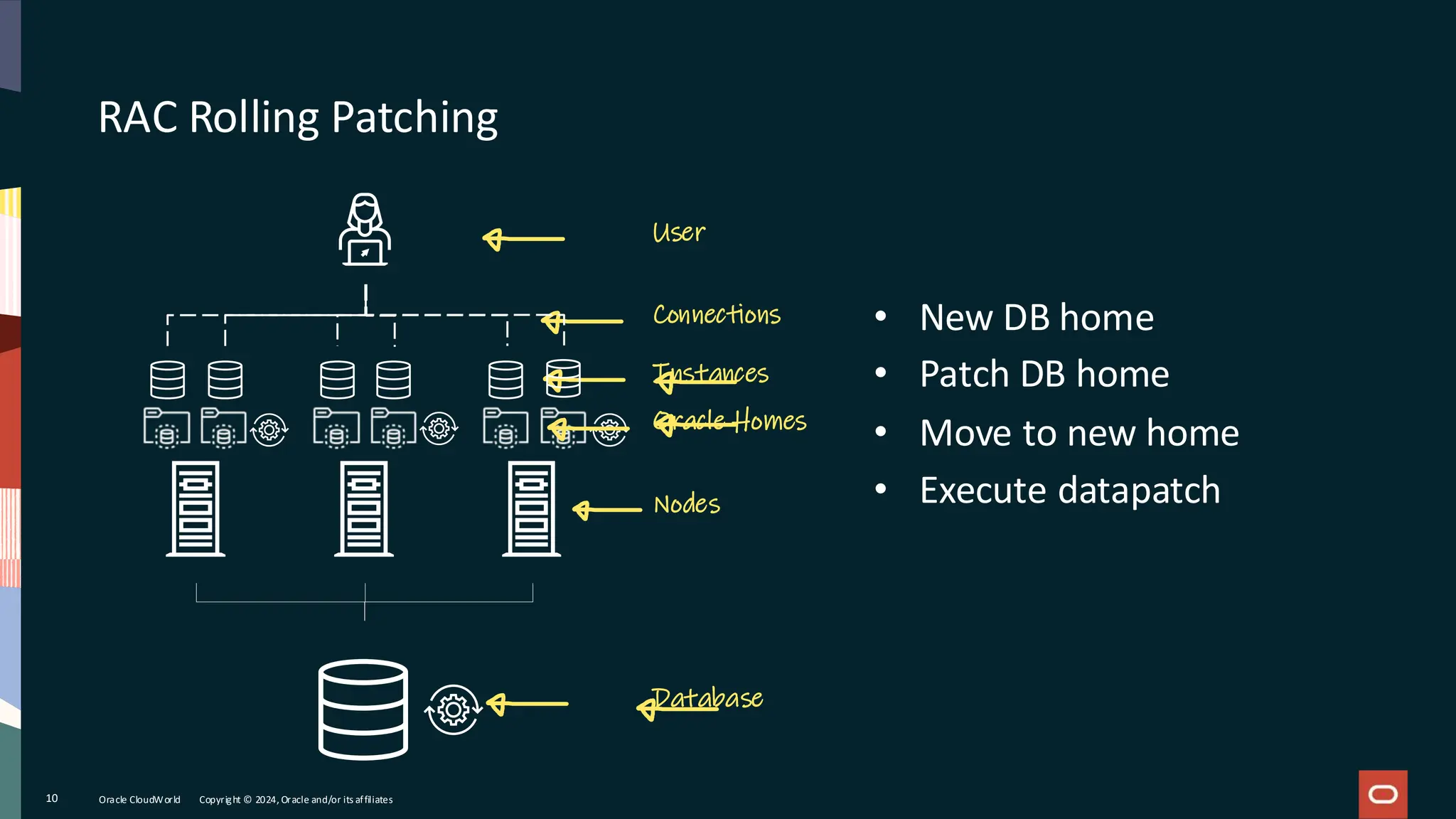

RAC Rolling Patching
10
User
Connections
Instances
Oracle Homes
Nodes
Database
• New DB home
• Patch DB home
• Move to new home
• Execute datapatch

RAC nodes must function with mixed binaries
11
Requirement for RAC Rolling patching

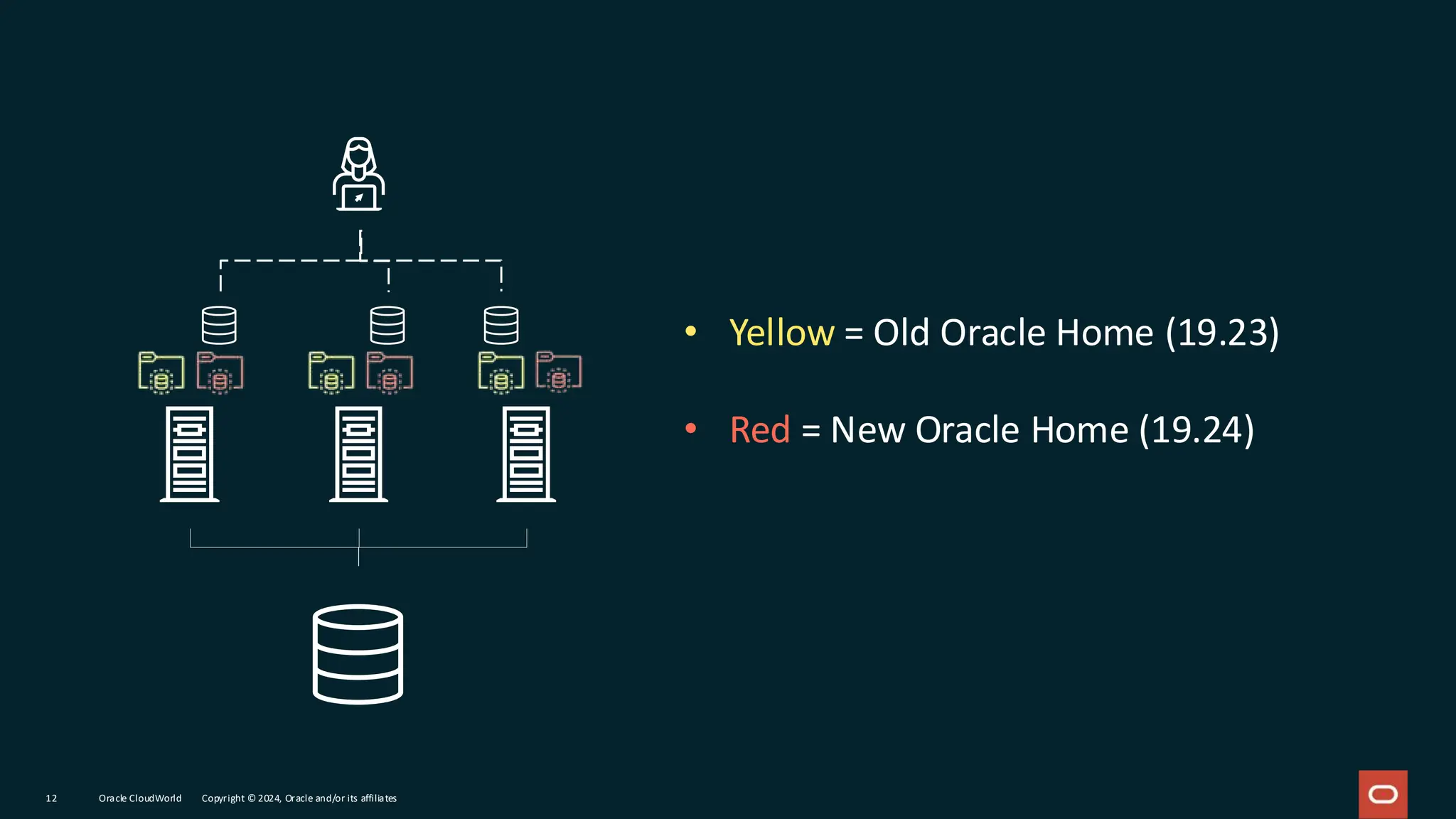

• Yellow = Old Oracle Home (19.23)
• Red = New Oracle Home (19.24)
12

Standby-First installable
Release updates are always:
RAC Rolling installable

• Possible to include in Release Updates
Most patches are RAC Rolling Installable
14

What about the non-RAC Rolling patches
15

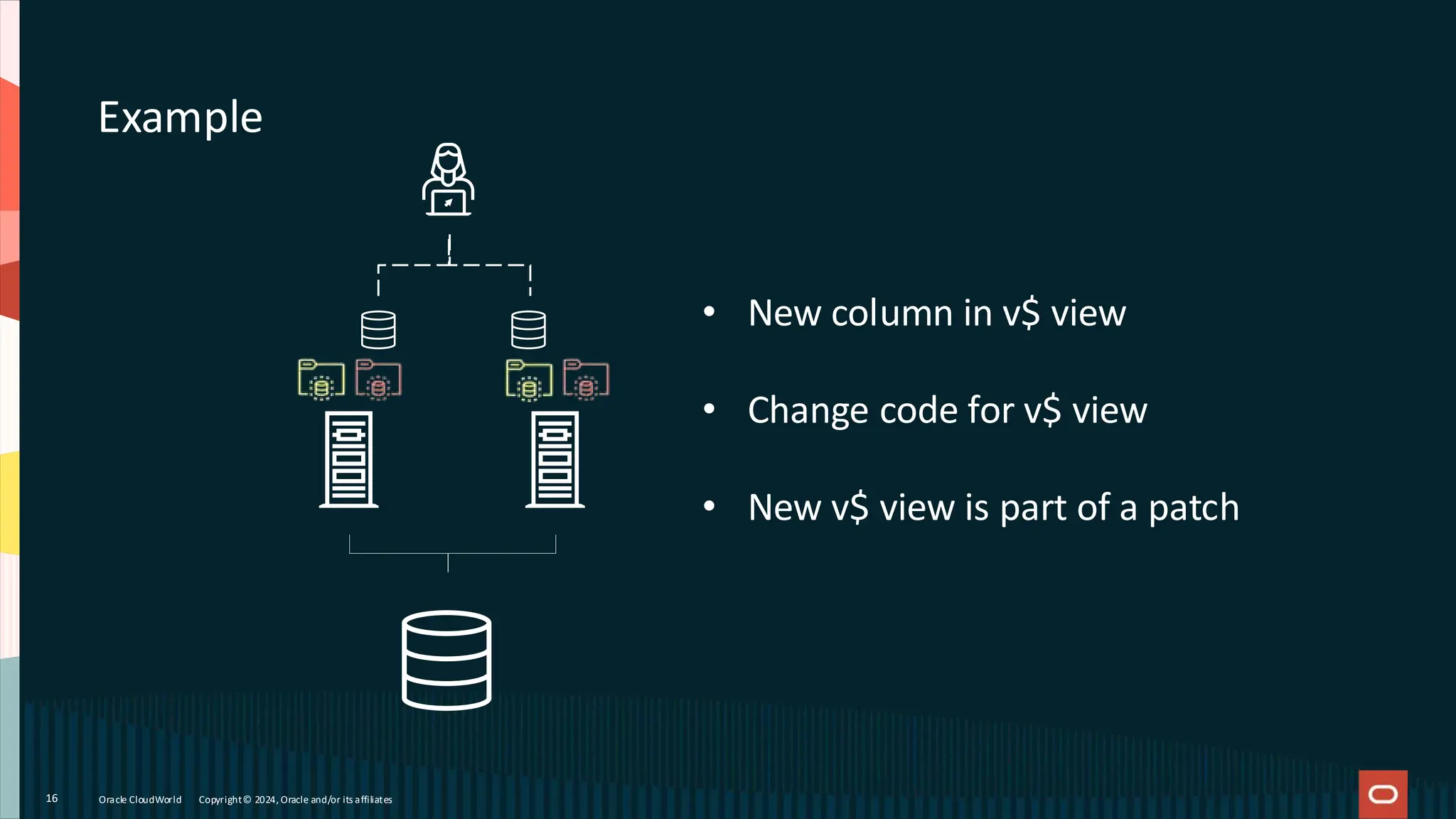

Example
16
• New column in v$ view
• Change code for v$ view
• New v$ view is part of a patch

17

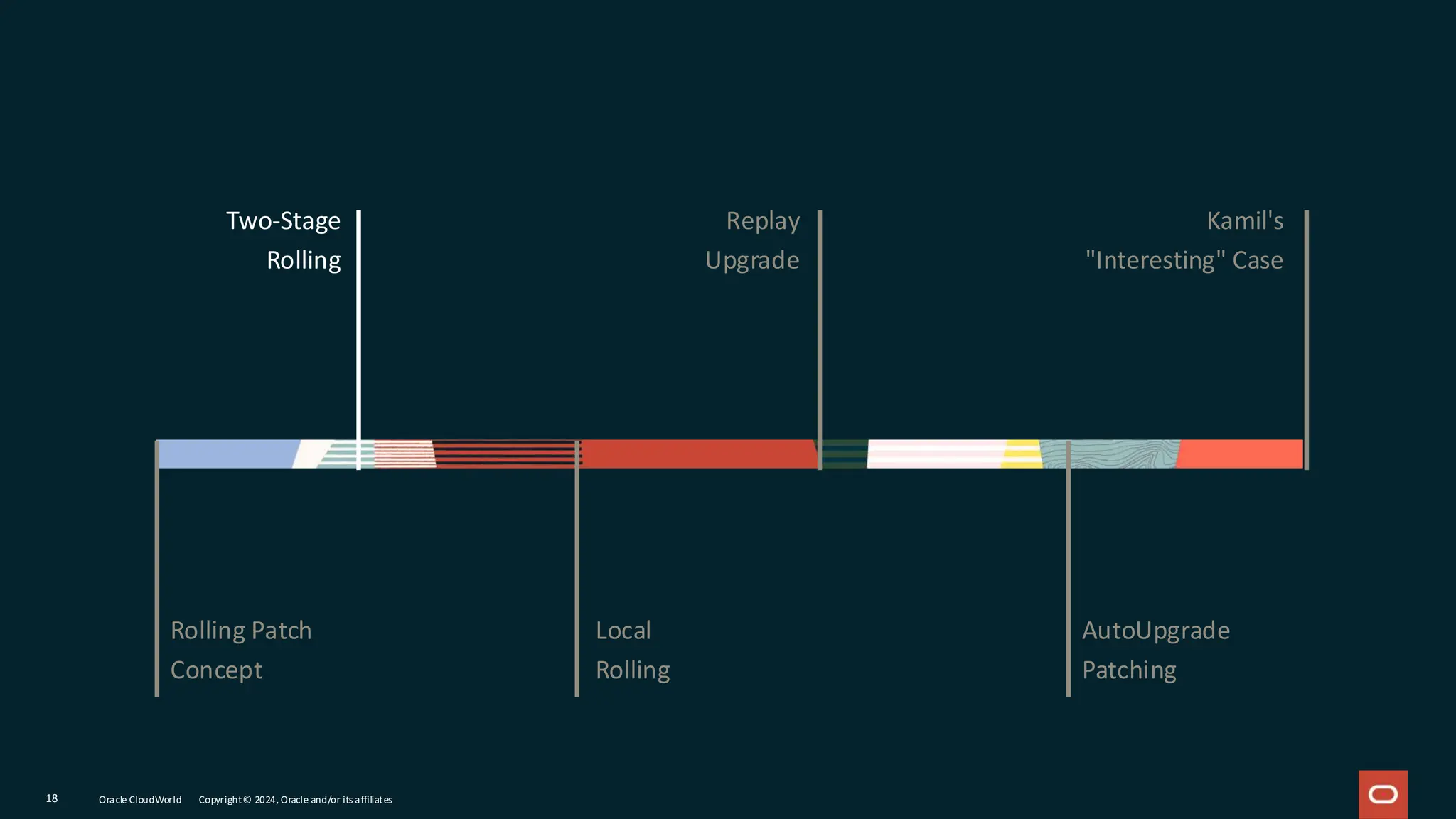

Solution?

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching

19
Online
Rolling
Non-Rolling
Two Stage Rolling
Patch Apply Methods

Allow non-Rolling patches to be applied
rolling to an RAC environment
Two Stage Rolling

21

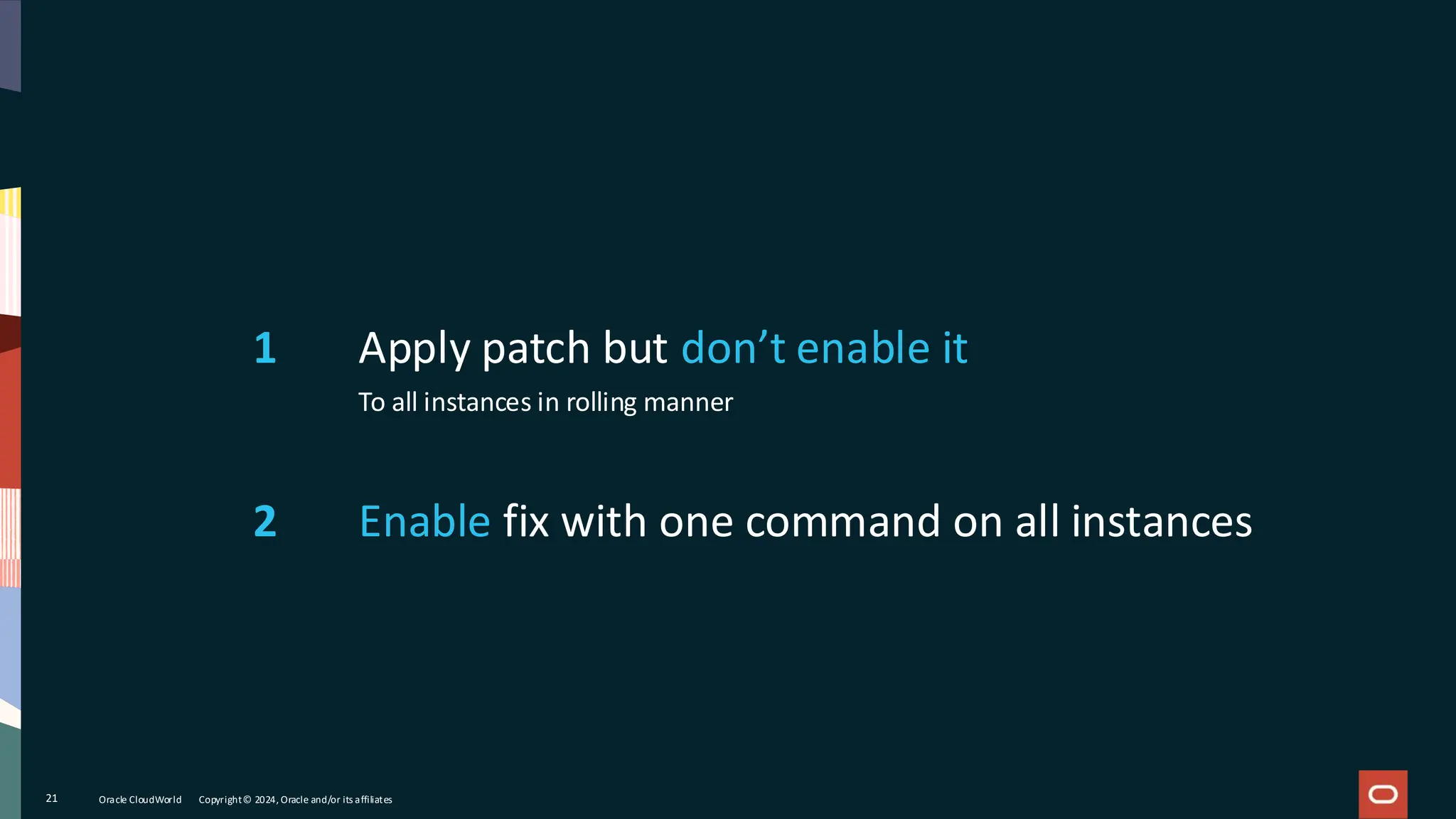

1 Apply patch but don’t enable it
2 Enable fix with one command on all instances
To all instances in rolling manner

alter system enable rac two_stage rolling updates all;
22

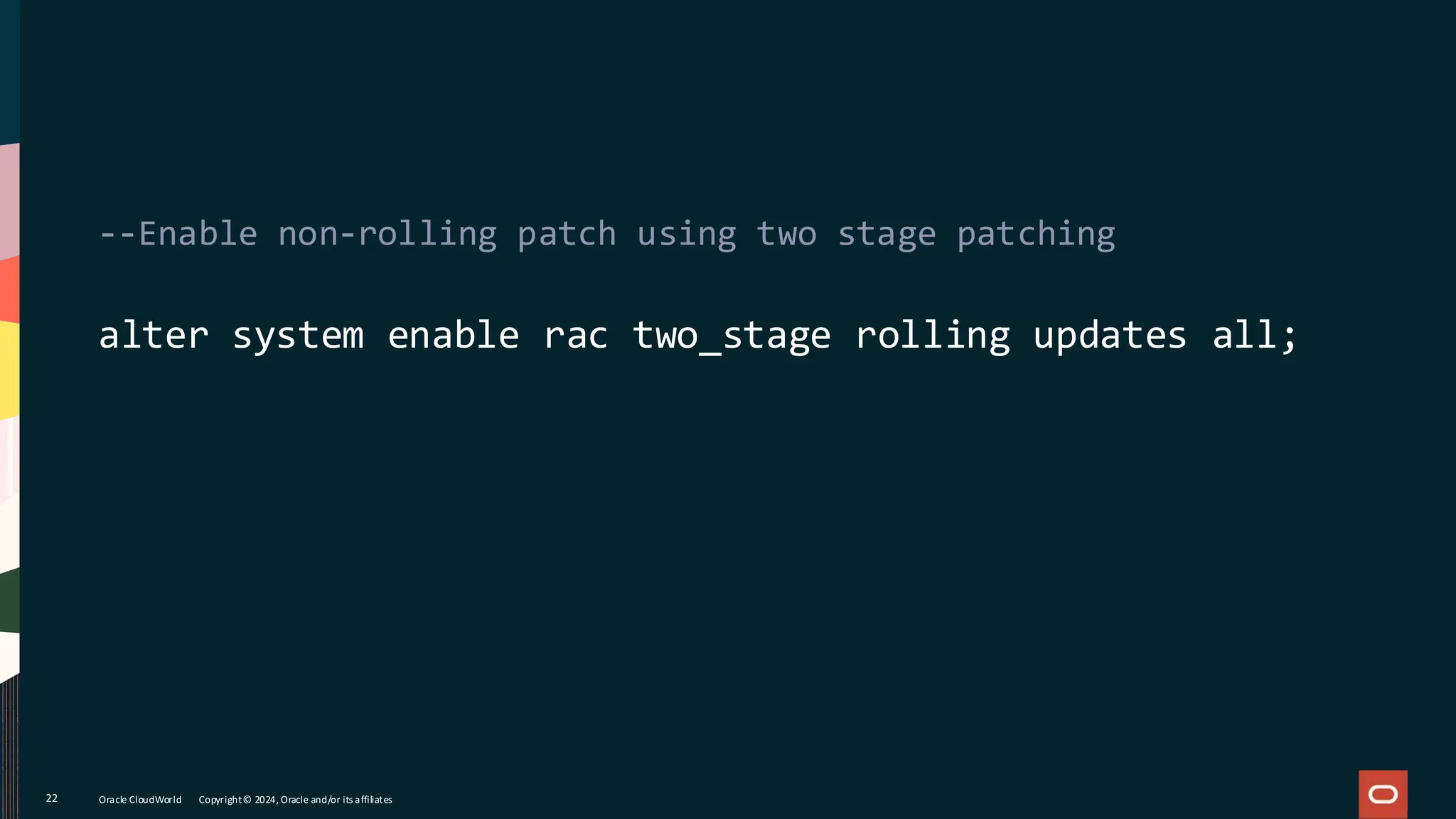

--Enable non-rolling patch using two stage patching

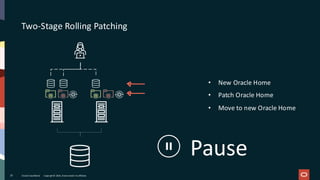

Two-Stage Rolling Patching
23
• New Oracle Home
• Patch Oracle Home
• Move to new Oracle Home
Pause

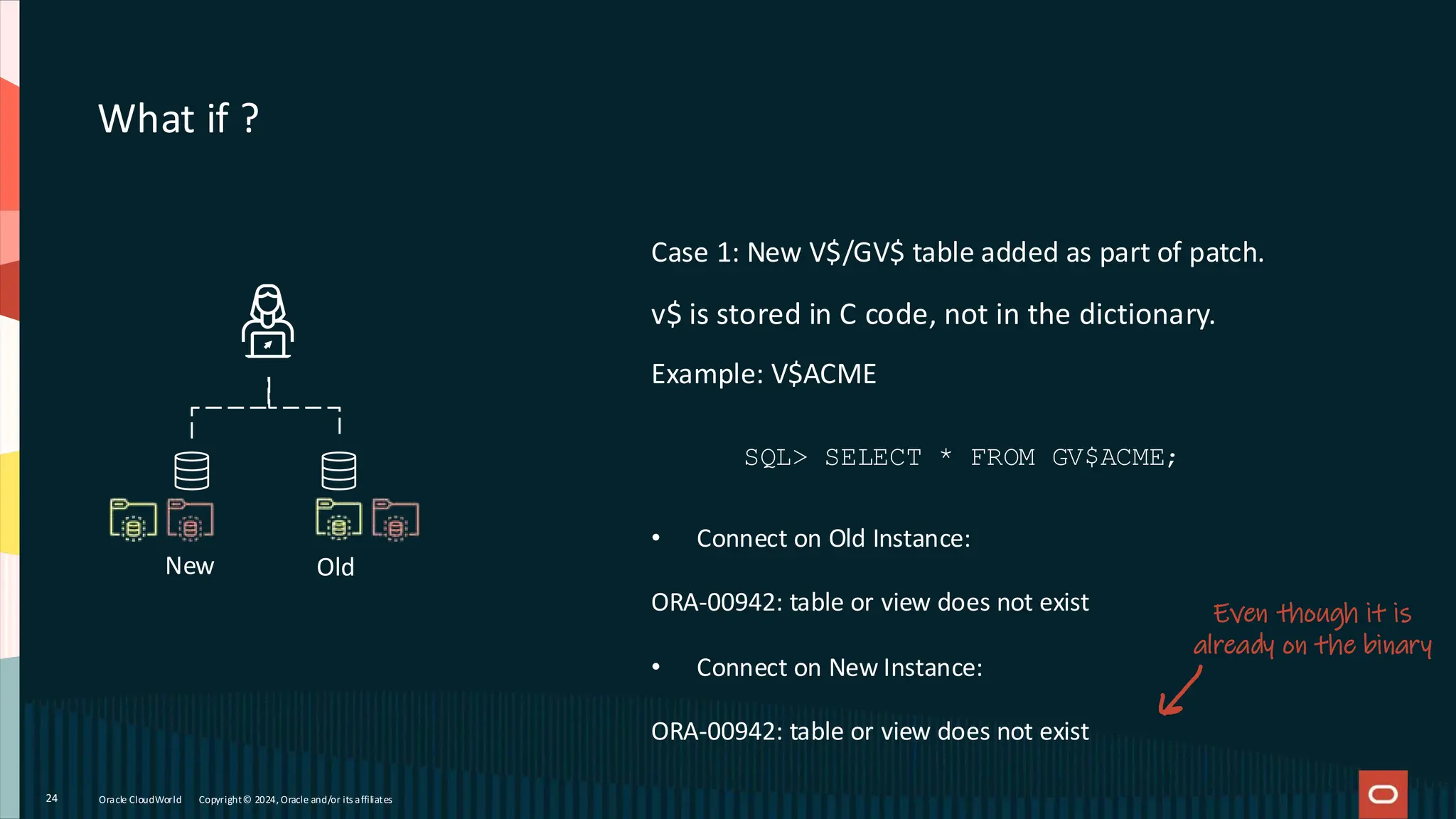

Case 1: New V$/GV$ table added as part of patch.
v$ is stored in C code, not in the dictionary.
Example: V$ACME
What if ?
24
New Old
SQL> SELECT * FROM GV$ACME;
• Connect on Old Instance:
ORA-00942: table or view does not exist
• Connect on New Instance:
Even though it is
already on the binary

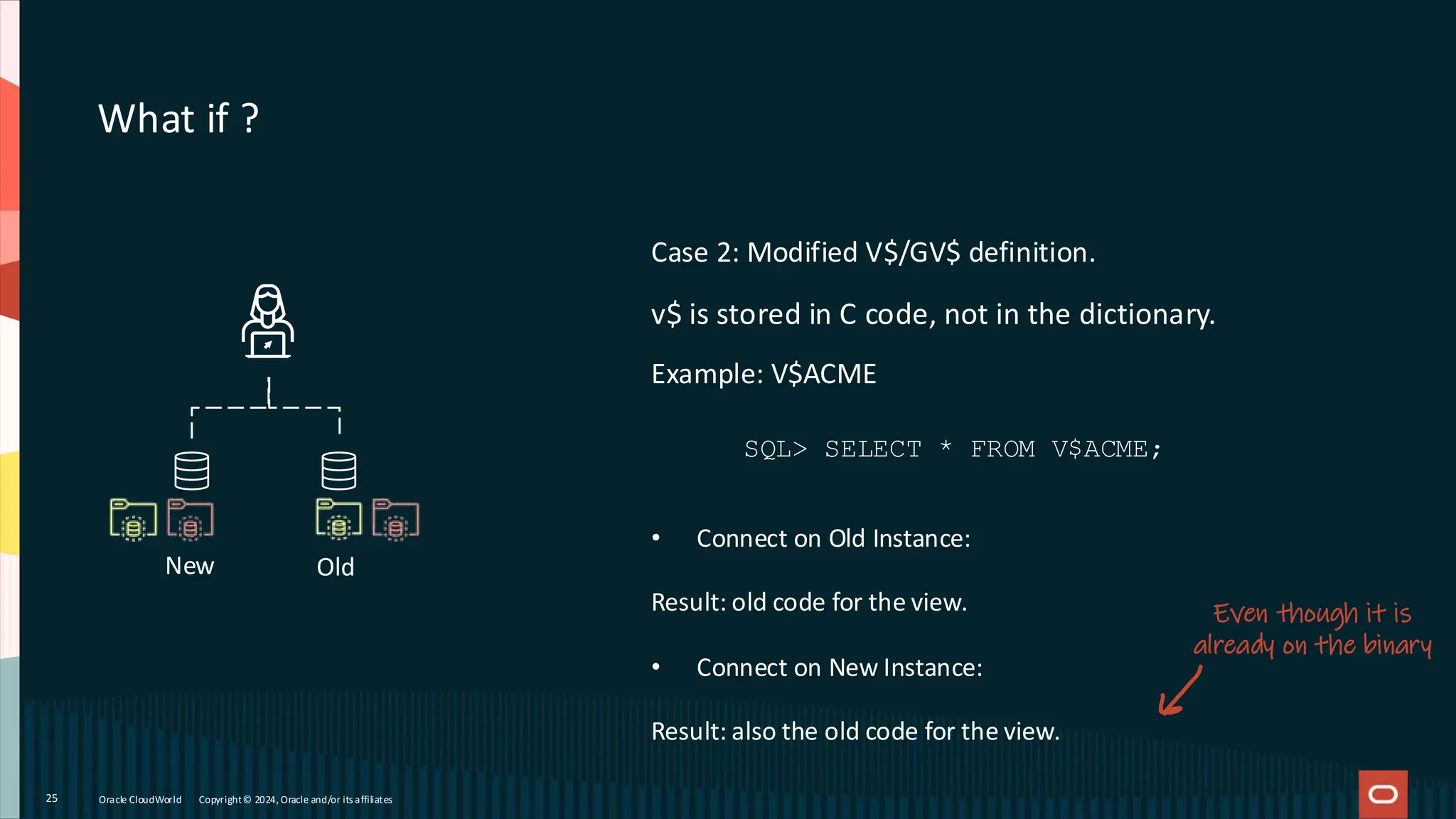

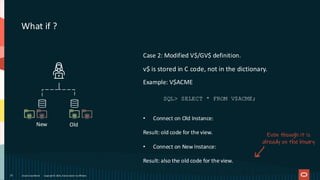

Case 2: Modified V$/GV$ definition.
v$ is stored in C code, not in the dictionary.
Example: V$ACME
What if ?
25
New Old
SQL> SELECT * FROM V$ACME;
• Connect on Old Instance:
Result: old code for the view.
• Connect on New Instance:
Result: also the old code for the view.
Even though it is
already on the binary

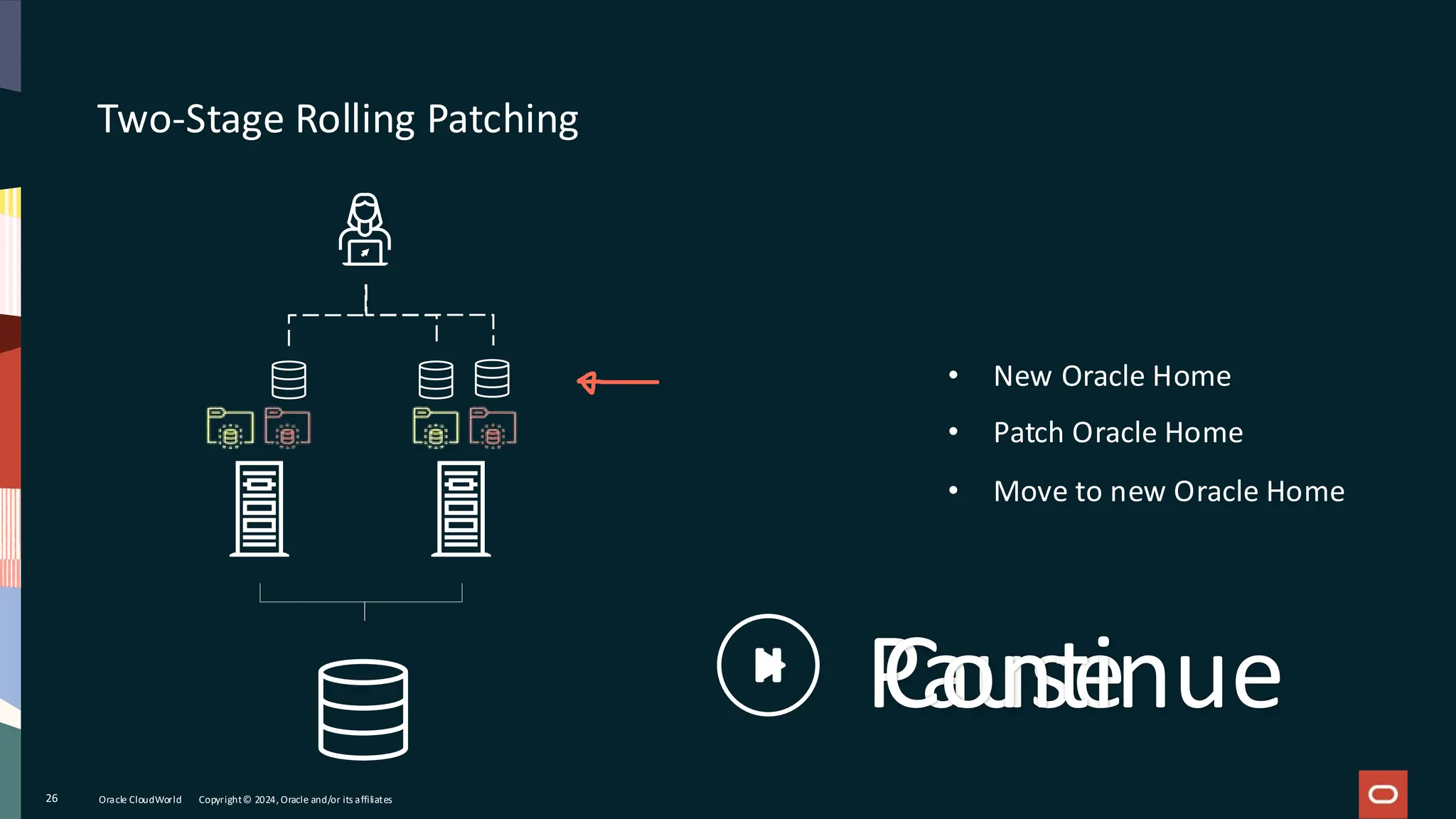

26
• New Oracle Home
Pause
Continue

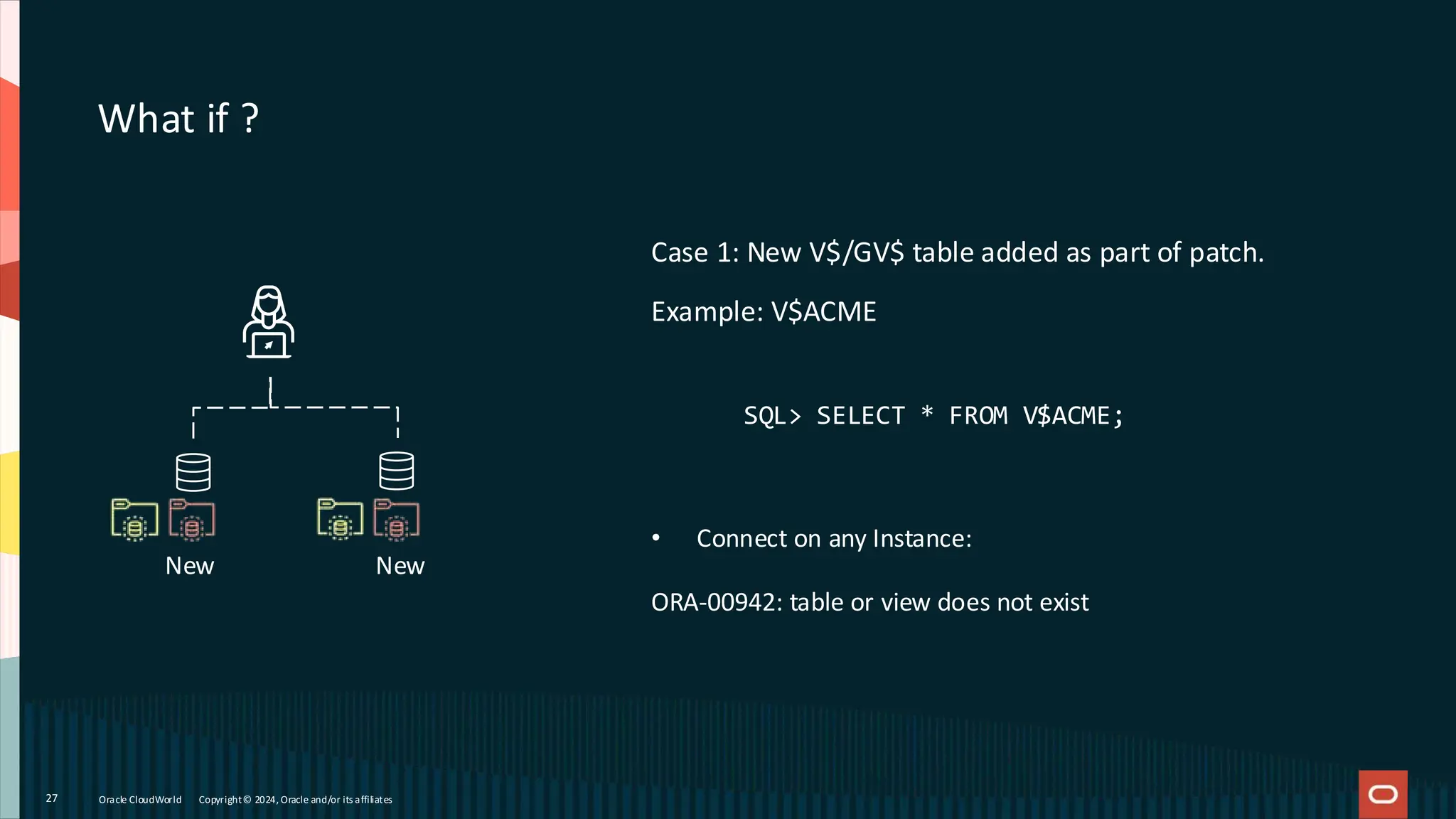

What if ?
27
New New
Case 1: New V$/GV$ table added as part of patch.
Example: V$ACME
SQL> SELECT * FROM V$ACME;
• Connect on any Instance:

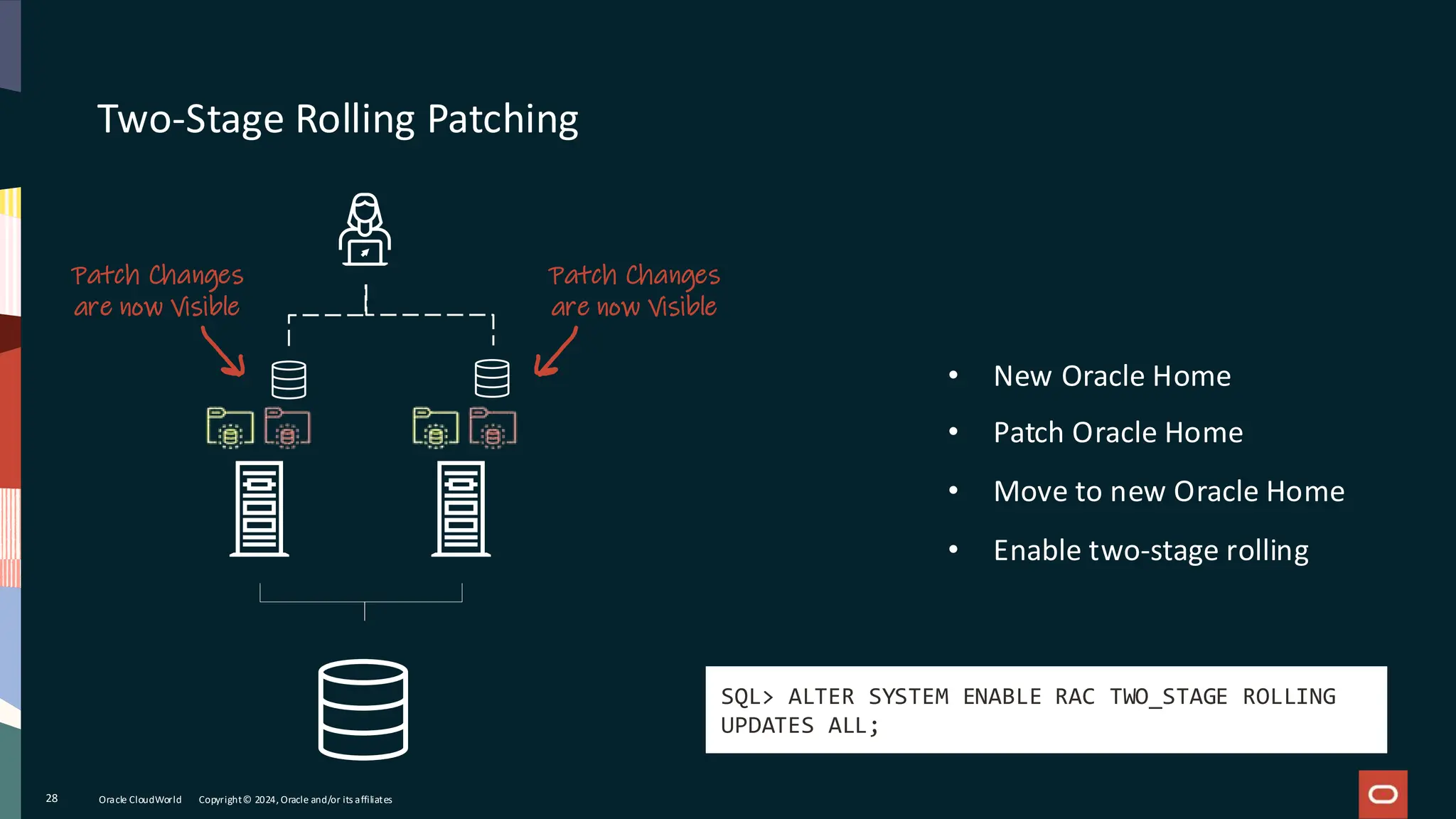

28
• New Oracle Home
• Enable two-stage rolling
Patch Changes
are now Visible
Patch Changes
are now Visible
SQL> ALTER SYSTEM ENABLE RAC TWO_STAGE ROLLING
UPDATES ALL;

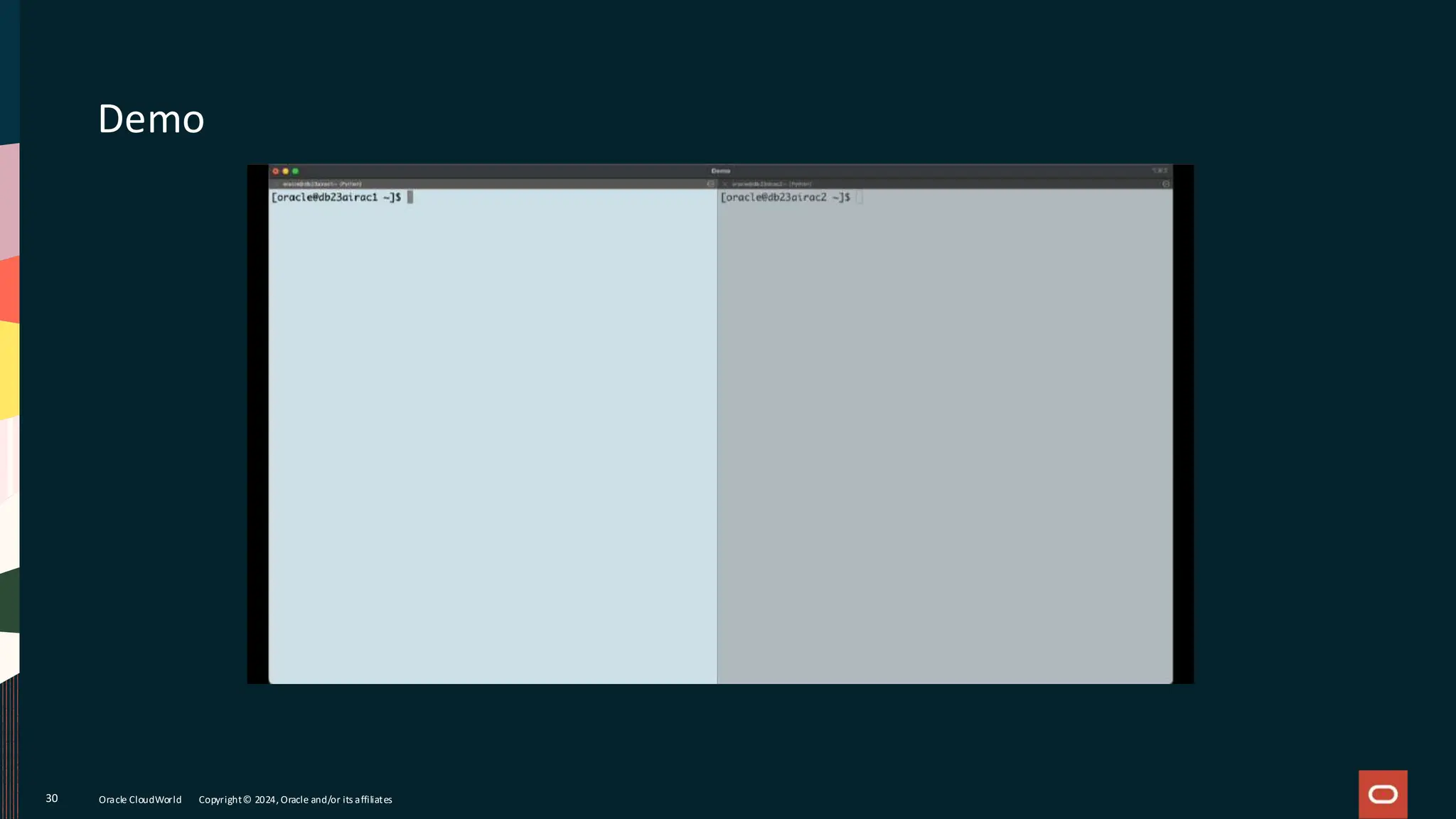

Demo
30

... but I don't have RAC
31

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching

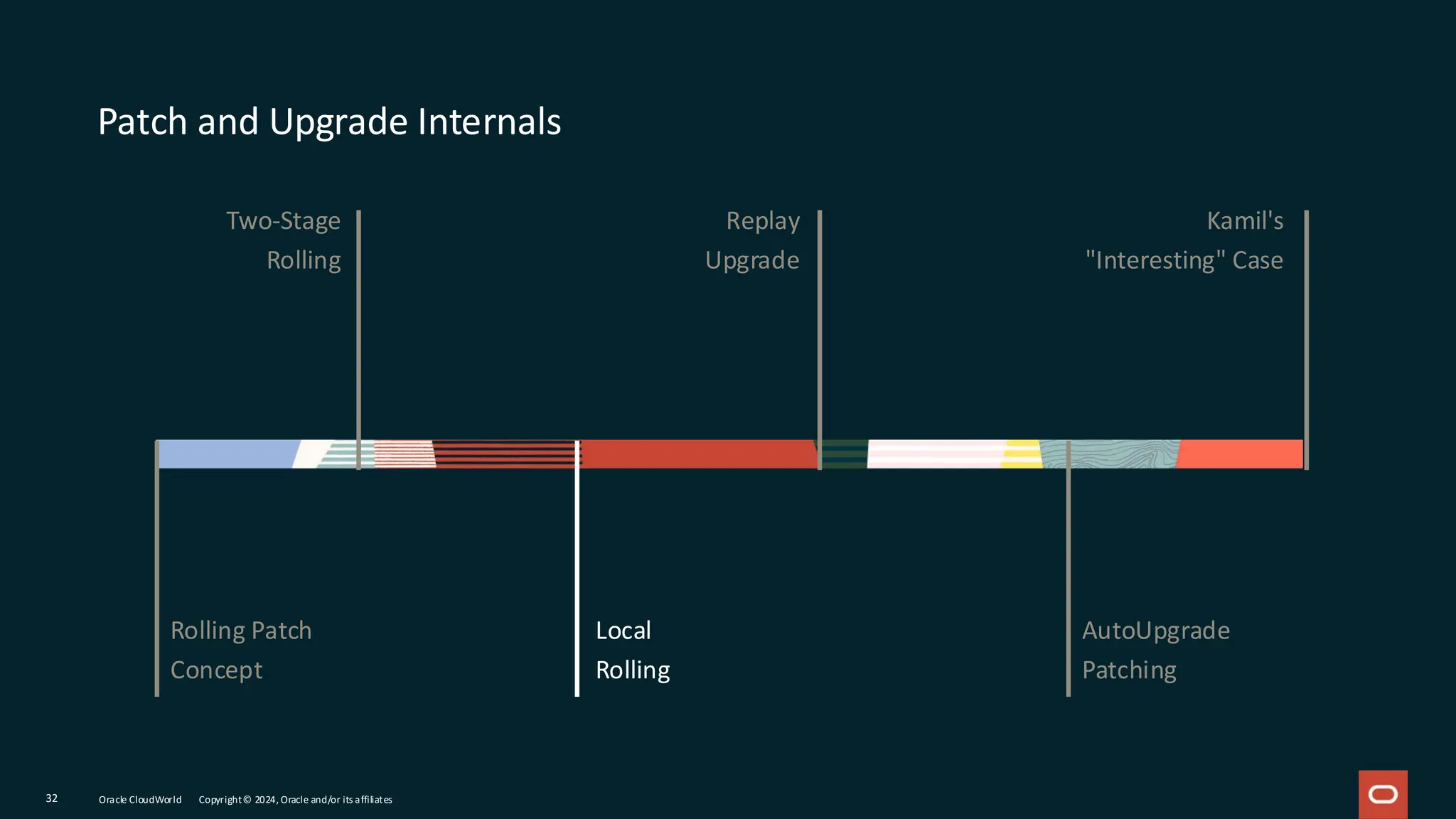

Patch and Upgrade Internals

Starts another instance on the same node
and relocates sessions to the new instance
34
Local Rolling

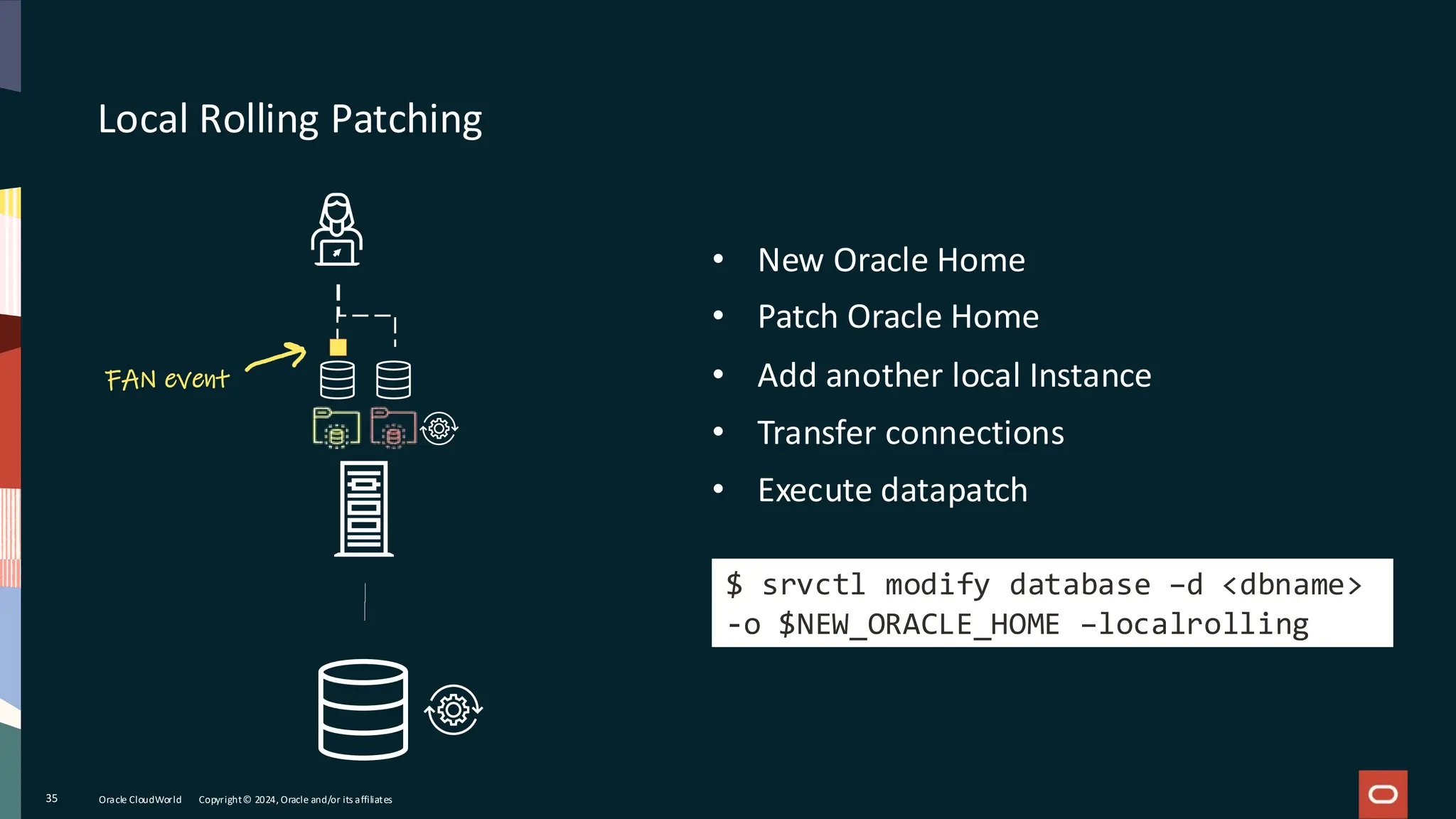

Local Rolling Patching
35
• New Oracle Home
• Add another local Instance
• Transfer connections
$ srvctl modify database –d <dbname>
-o $NEW_ORACLE_HOME –localrolling
• Execute datapatch
FAN event

You must have enough additional CPU and
memory to run a second instance on the
same host
36

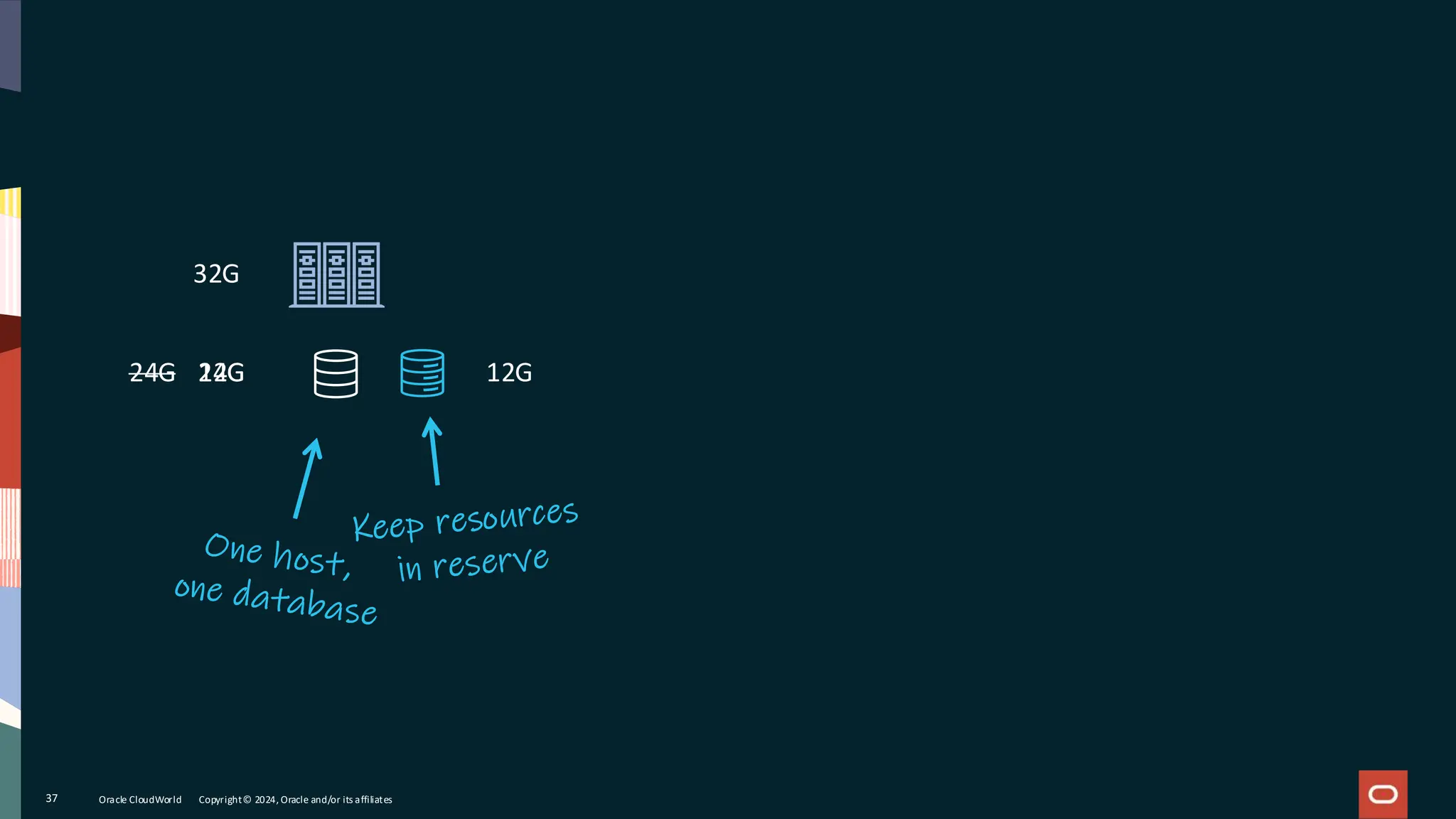

12G
24G
37
32G
12G
24G

38

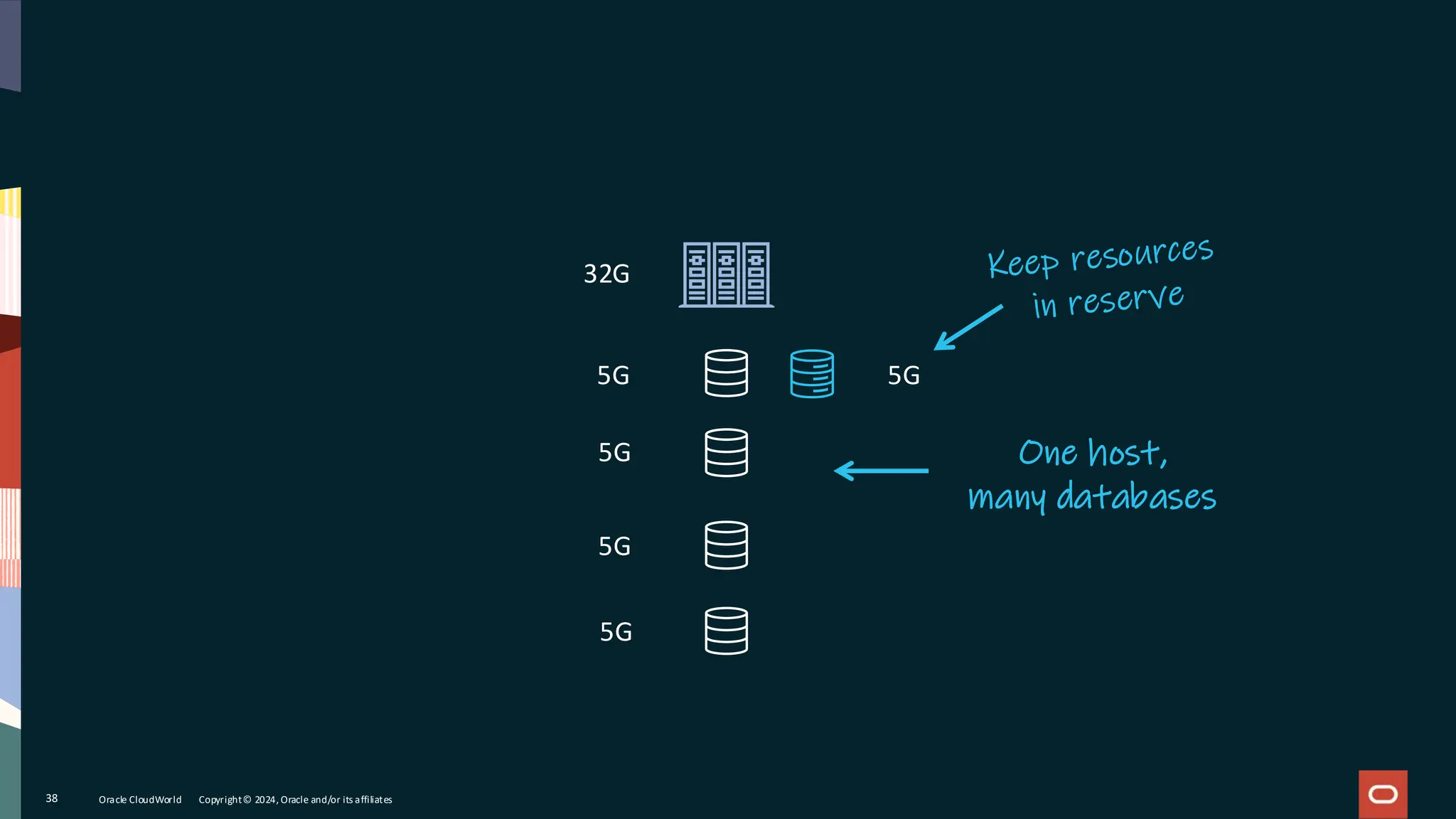

One host,
many databases
32G
5G
5G
5G
5G
5G

• Requires RAC or RAC Node instance
Uses RAC functionality to enable
two instances simultaneously
39

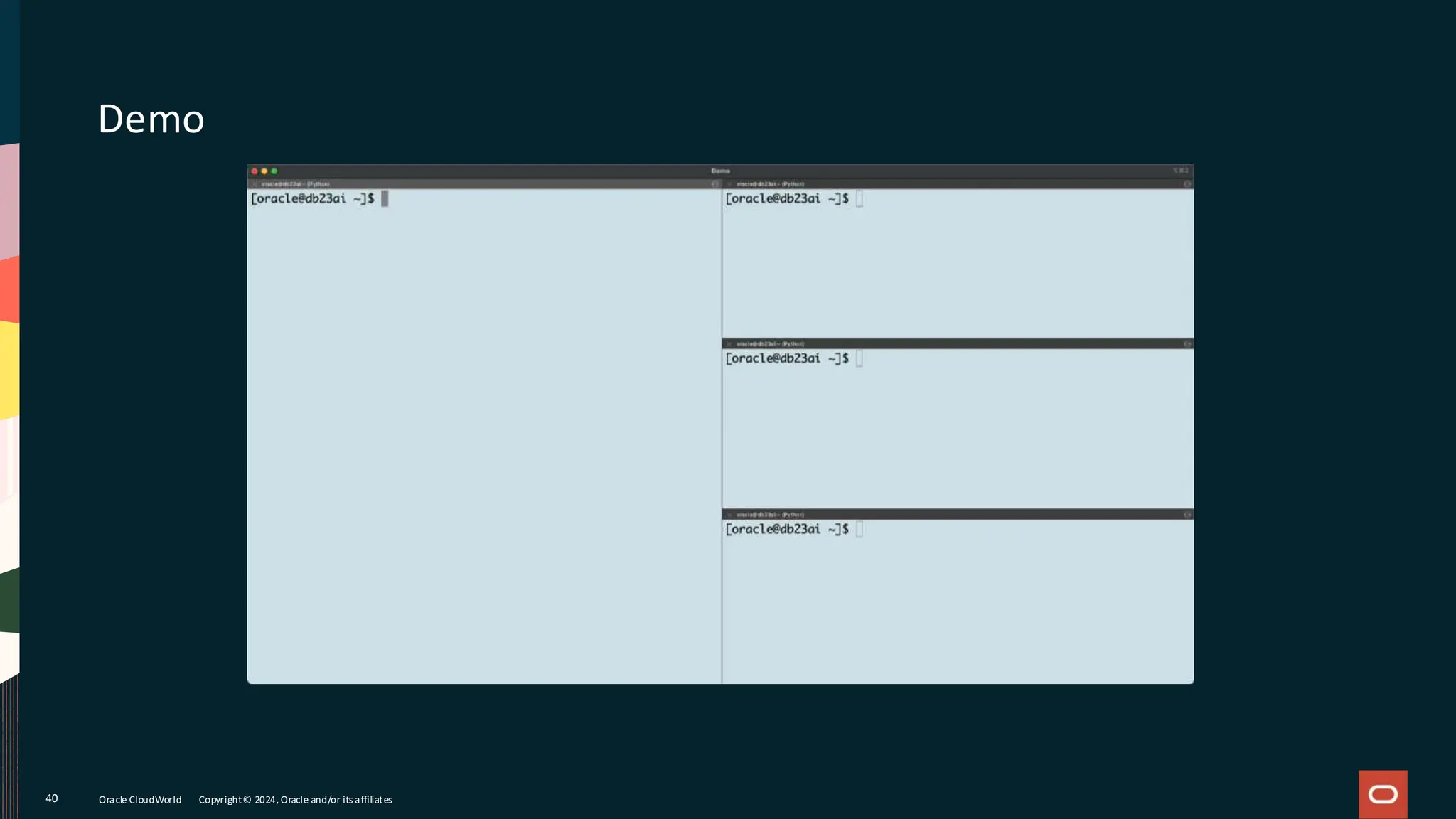

Demo
40

Oracle Real Application Clusters 23ai
Smart Features Tips and Tricks
41
PAN2949 - Thursday, 10:15
Titian 2302, The Venetian, Level 2

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching

• Available since Oracle Database 21c
Replay Upgrade is a usability feature
used to upgrade a single PDB
43

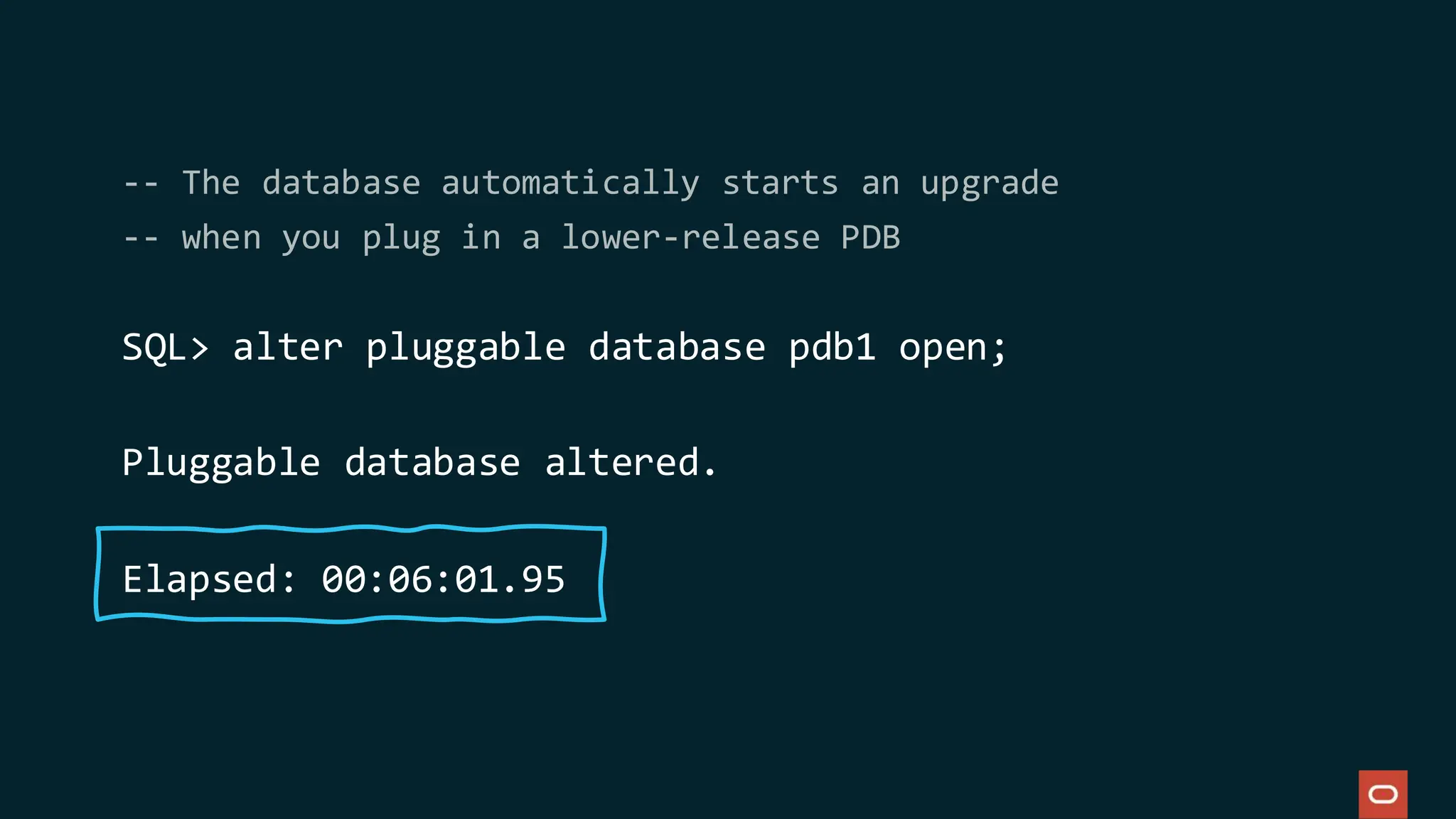

SQL> alter pluggable database pdb1 open;
Pluggable database altered.
Elapsed: 00:06:01.95
-- The database automatically starts an upgrade
-- when you plug in a lower-release PDB

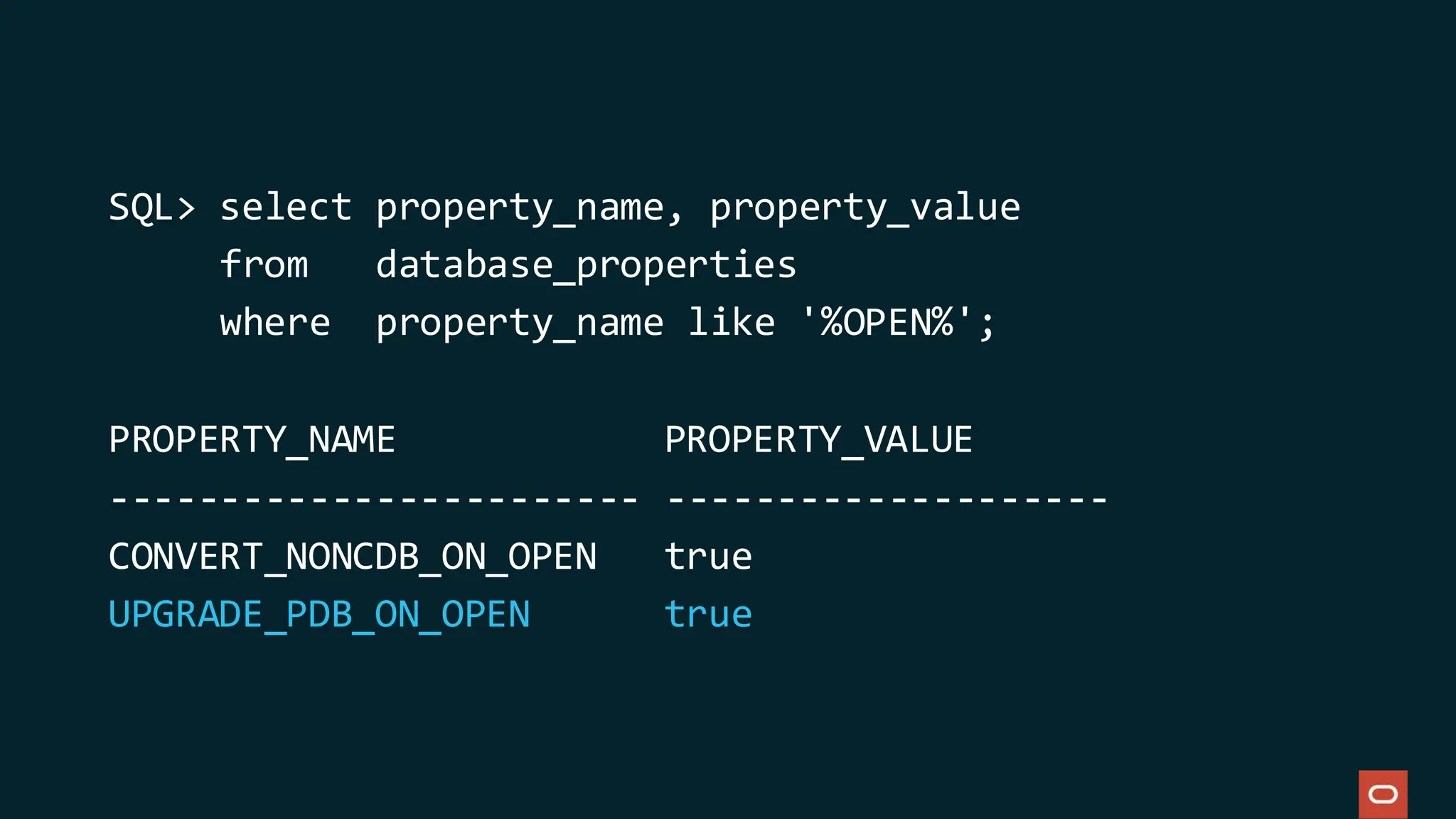

SQL> select property_name, property_value
from database_properties
where property_name like '%OPEN%';
PROPERTY_NAME PROPERTY_VALUE
------------------------ --------------------
CONVERT_NONCDB_ON_OPEN true
UPGRADE_PDB_ON_OPEN true

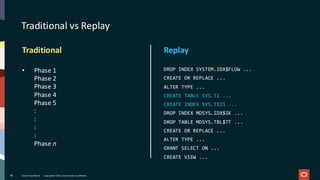

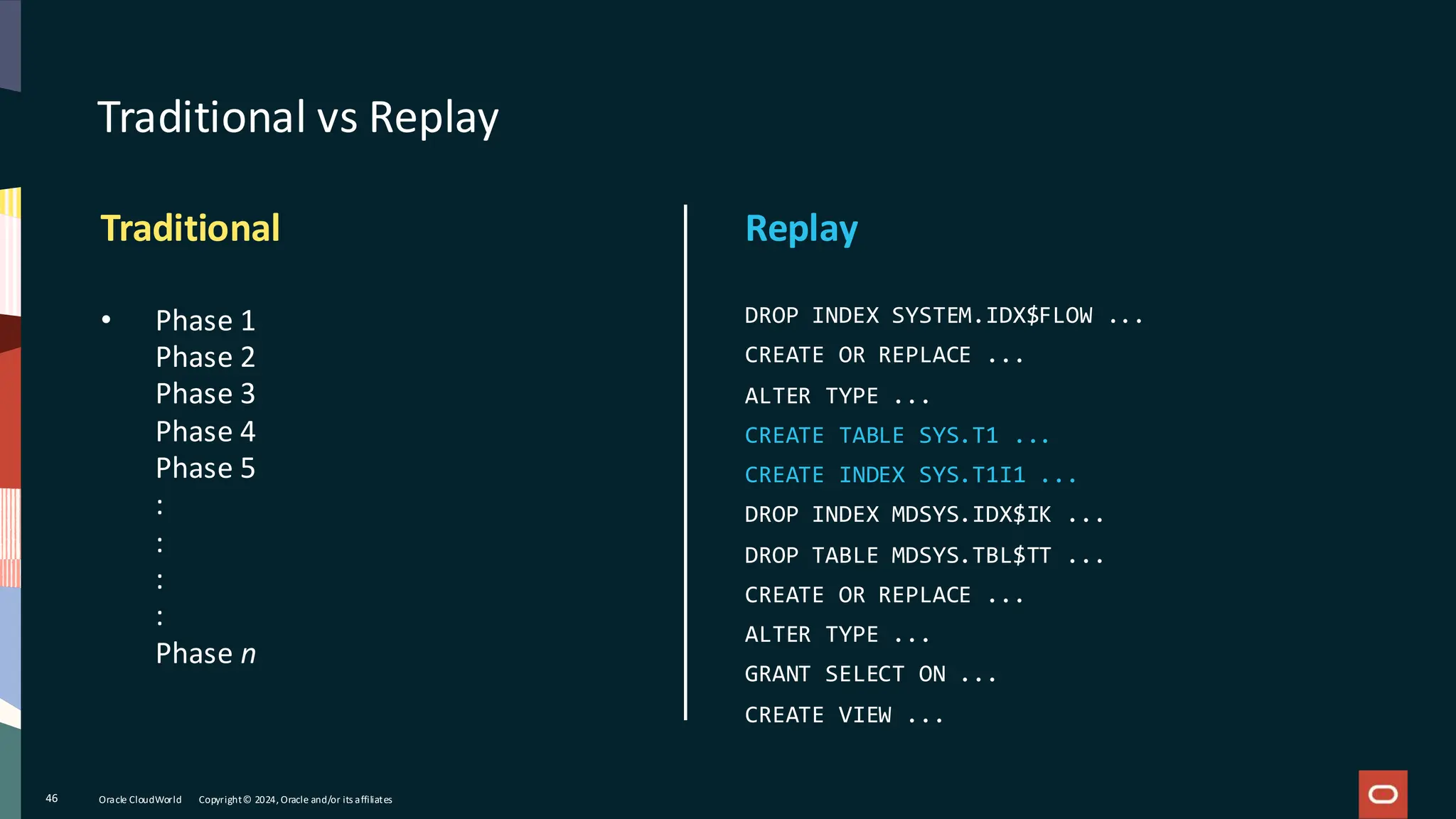

Traditional vs Replay
46
Traditional
• Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
:
:
:
:
Phase n
Replay
DROP INDEX SYSTEM.IDX$FLOW ...
CREATE OR REPLACE ...
ALTER TYPE ...
CREATE TABLE SYS.T1 ...
CREATE INDEX SYS.T1I1 ...
DROP INDEX MDSYS.IDX$IK ...
DROP TABLE MDSYS.TBL$TT ...
CREATE OR REPLACE ...
ALTER TYPE ...
GRANT SELECT ON ...
CREATE VIEW ...

Traditional vs Replay
47
Traditional
• Triggered by AutoUpgrade
• Runs catalog.sql / catproc.sql
• Many CREATE OR REPLACE
statements for objects that didn’t
change
• Customizable
• Logs everything allowing complete
diagnosability
Replay
• Triggered by OPEN command
• Runs captured statements
• Only statements that actually do some change
• Automated
• Basic logging only
• Requires manual datapatch invocation

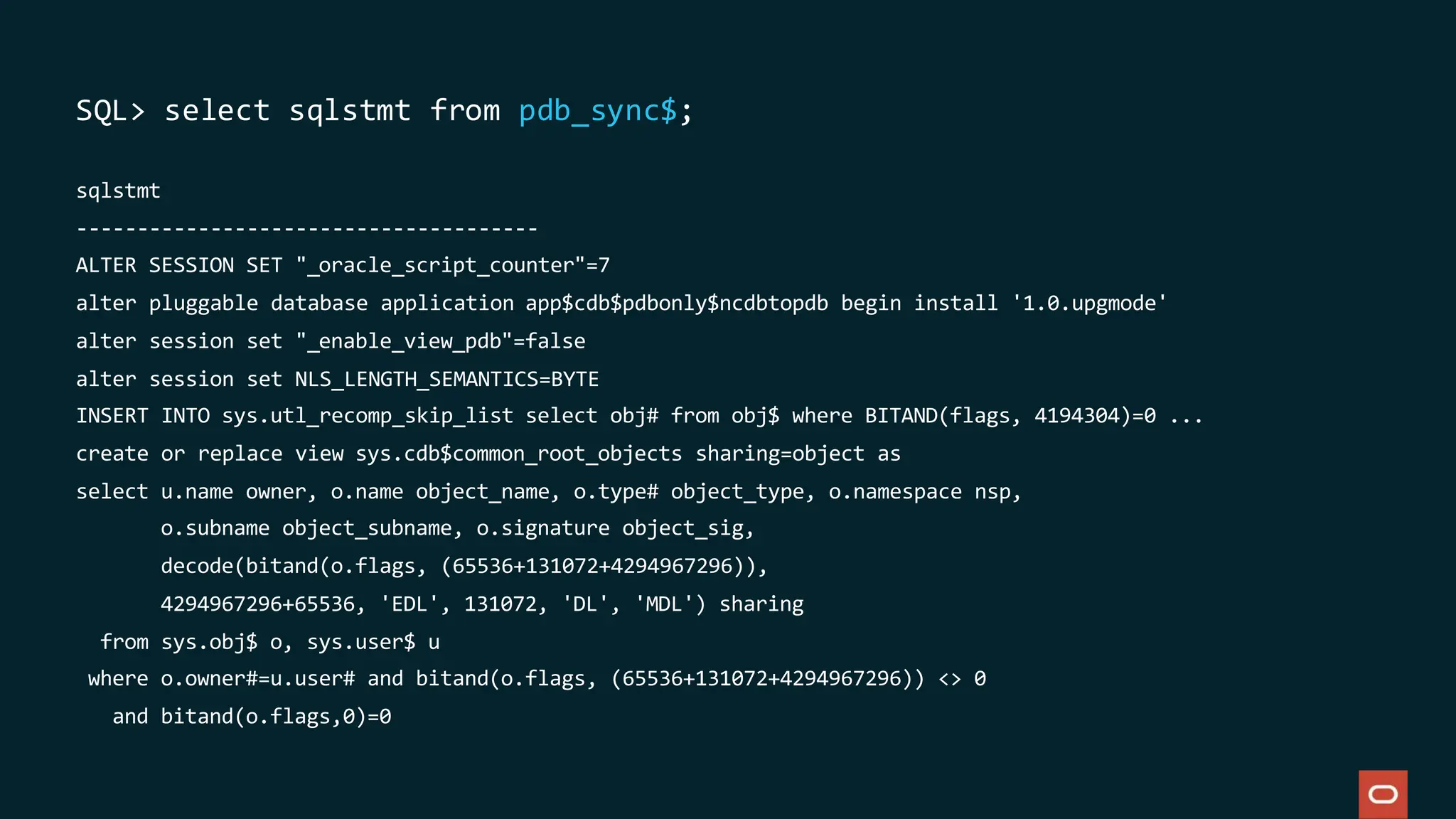

SQL> select sqlstmt from pdb_sync$;
sqlstmt
--------------------------------------
ALTER SESSION SET "_oracle_script_counter"=7
alter pluggable database application app$cdb$pdbonly$ncdbtopdb begin install '1.0.upgmode'
alter session set "_enable_view_pdb"=false
alter session set NLS_LENGTH_SEMANTICS=BYTE
INSERT INTO sys.utl_recomp_skip_list select obj# from obj$ where BITAND(flags, 4194304)=0 ...
create or replace view sys.cdb$common_root_objects sharing=object as
select u.name owner, o.name object_name, o.type# object_type, o.namespace nsp,
o.subname object_subname, o.signature object_sig,
decode(bitand(o.flags, (65536+131072+4294967296)),
4294967296+65536, 'EDL', 131072, 'DL', 'MDL') sharing
from sys.obj$ o, sys.user$ u
where o.owner#=u.user# and bitand(o.flags, (65536+131072+4294967296)) <> 0
and bitand(o.flags,0)=0

53

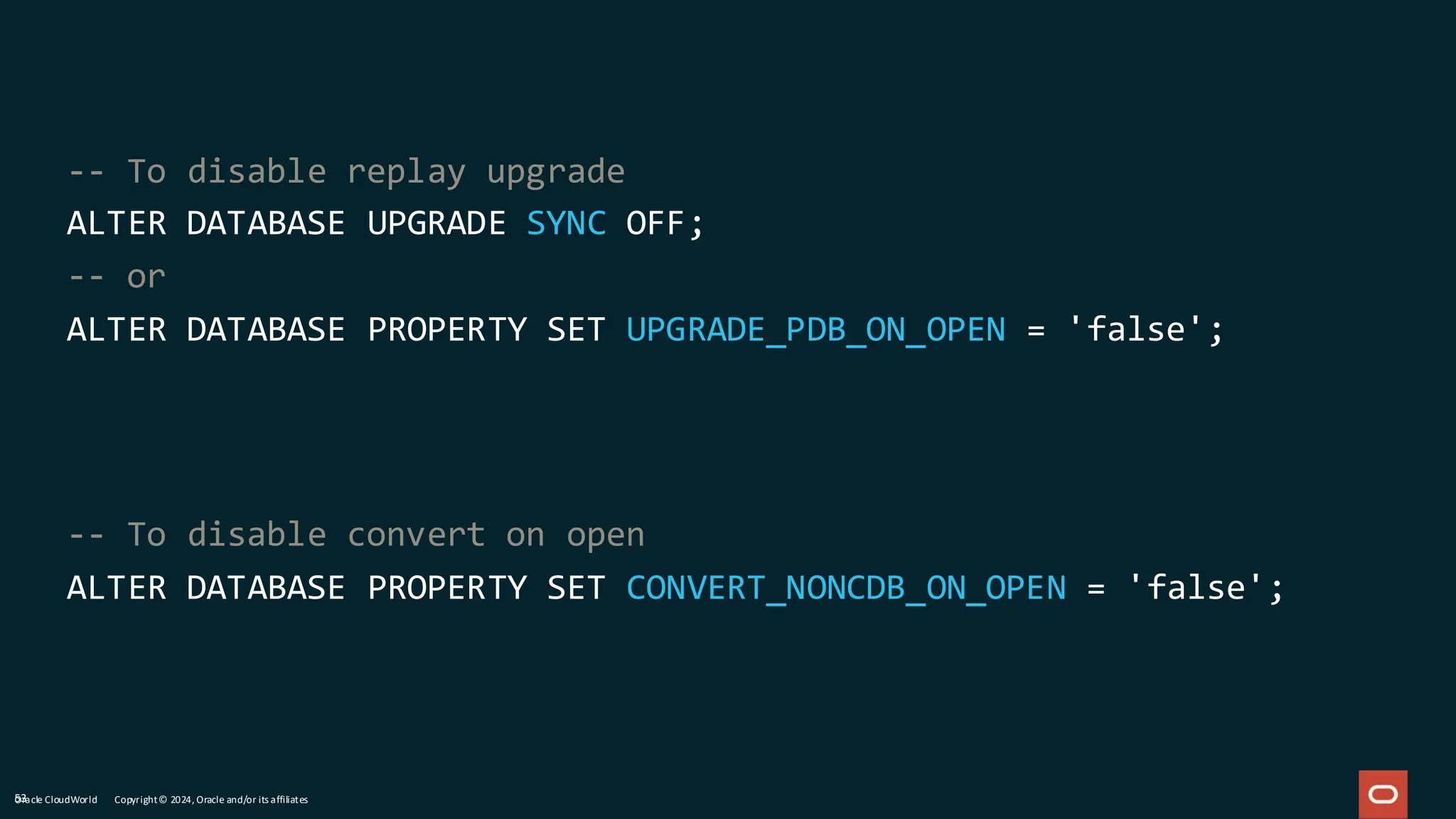

-- To disable replay upgrade
ALTER DATABASE UPGRADE SYNC OFF;
-- or
ALTER DATABASE PROPERTY SET UPGRADE_PDB_ON_OPEN = 'false';
-- To disable convert on open
ALTER DATABASE PROPERTY SET CONVERT_NONCDB_ON_OPEN = 'false';

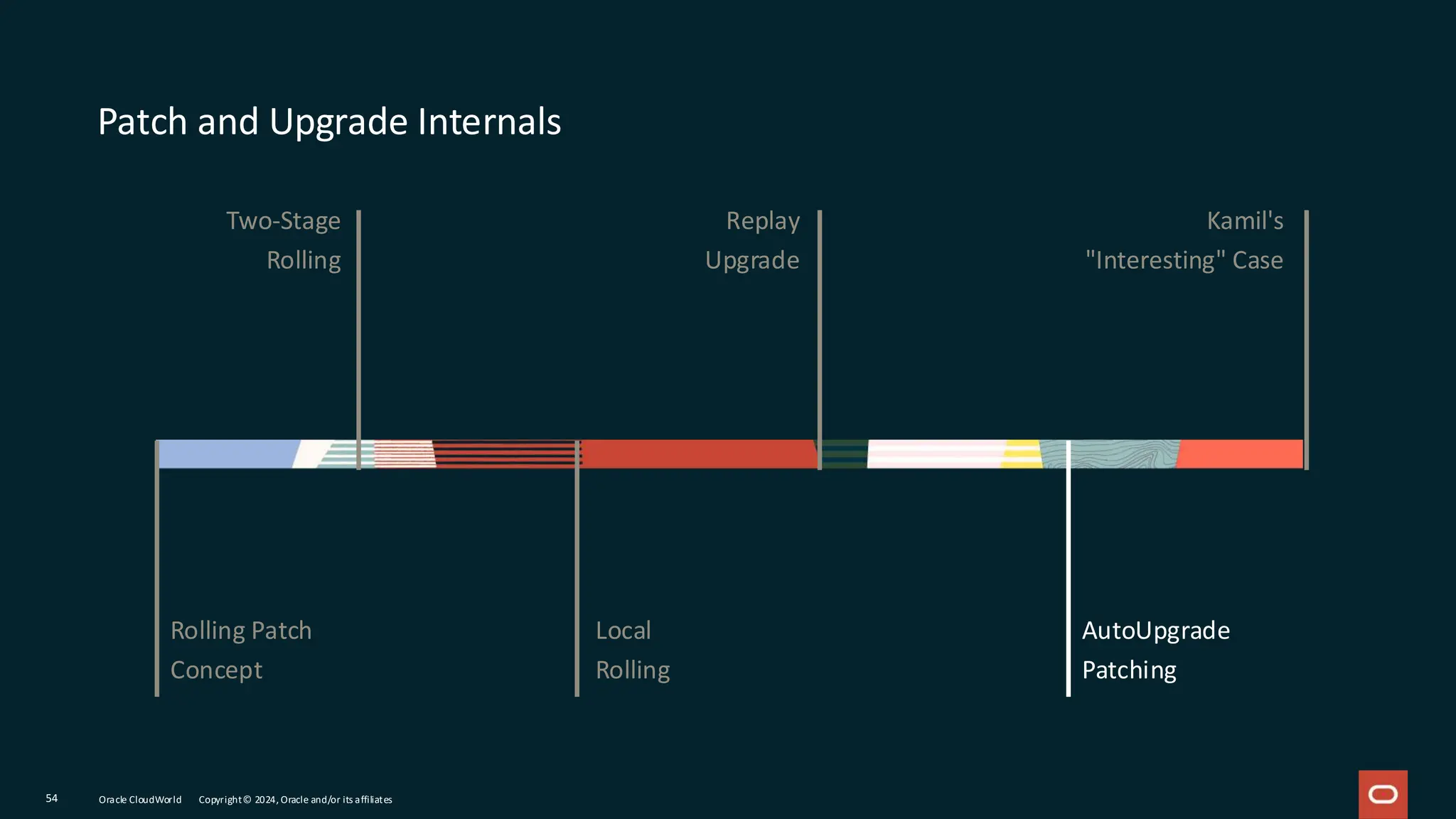

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching

55
We made upgrading easy.
Now we make patching just as easy.
AutoUpgrade functionality extended to patching

56

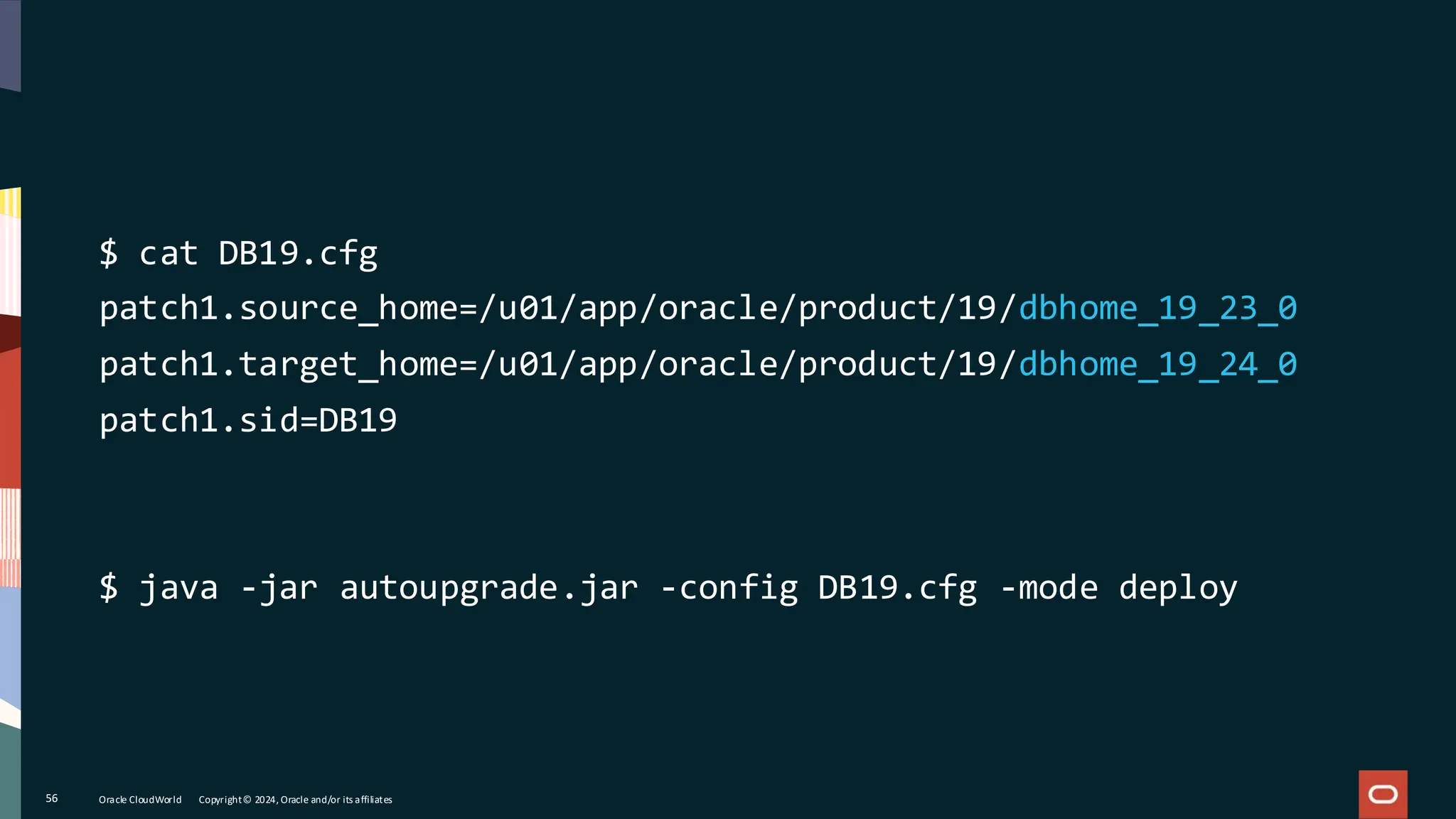

$ cat DB19.cfg
patch1.source_home=/u01/app/oracle/product/19/dbhome_19_23_0
patch1.target_home=/u01/app/oracle/product/19/dbhome_19_24_0
patch1.sid=DB19
$ java -jar autoupgrade.jar -config DB19.cfg -mode deploy

57
But we always want more…

AutoUpgrade can download and build your patched
home, and then patch your database
58

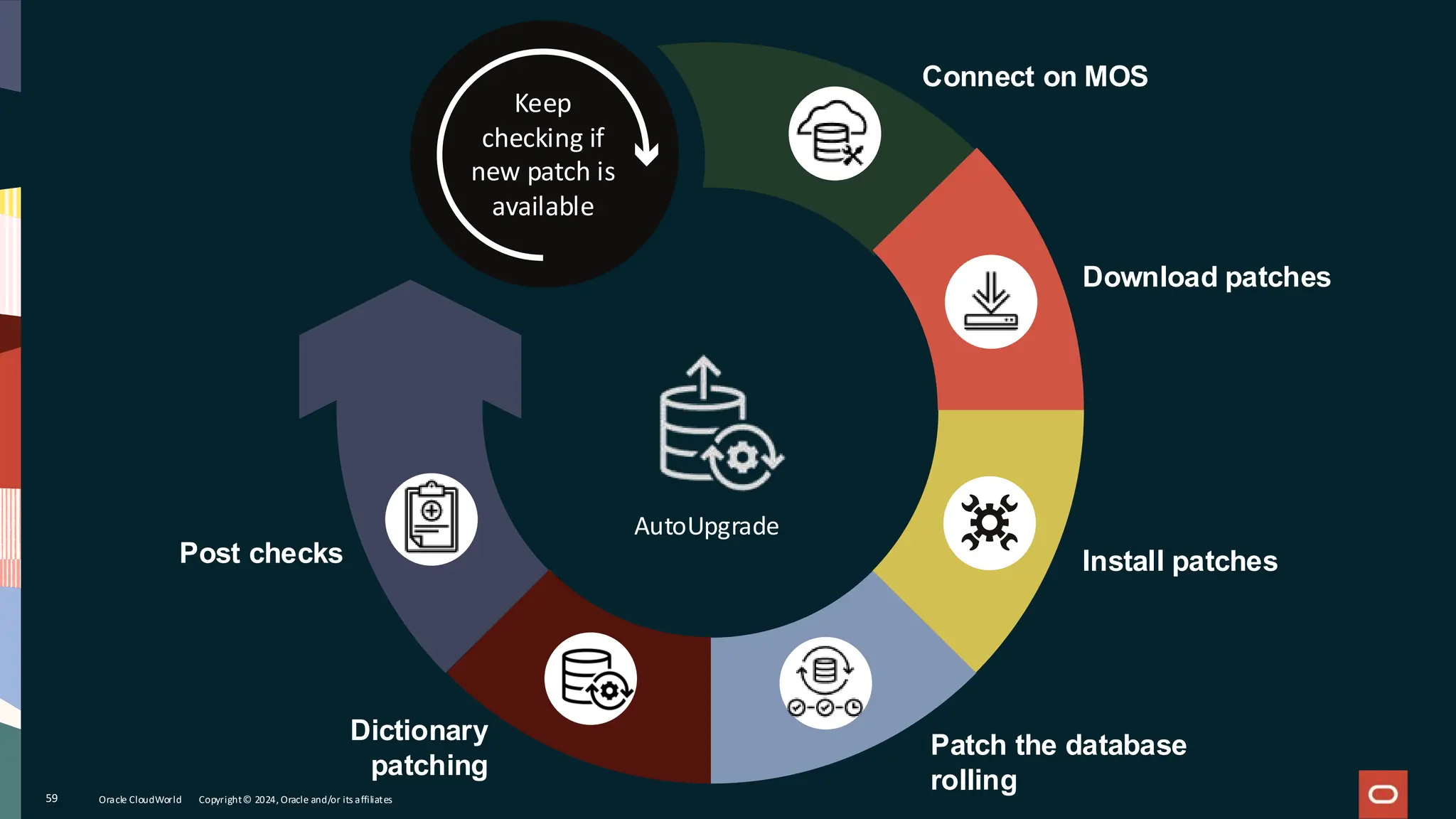

AutoUpgrade Patching

59
Connect on MOS
Download patches
Install patches
Patch the database
rolling
Dictionary
patching
Post checks
Keep
checking if
new patch is
available
AutoUpgrade

60

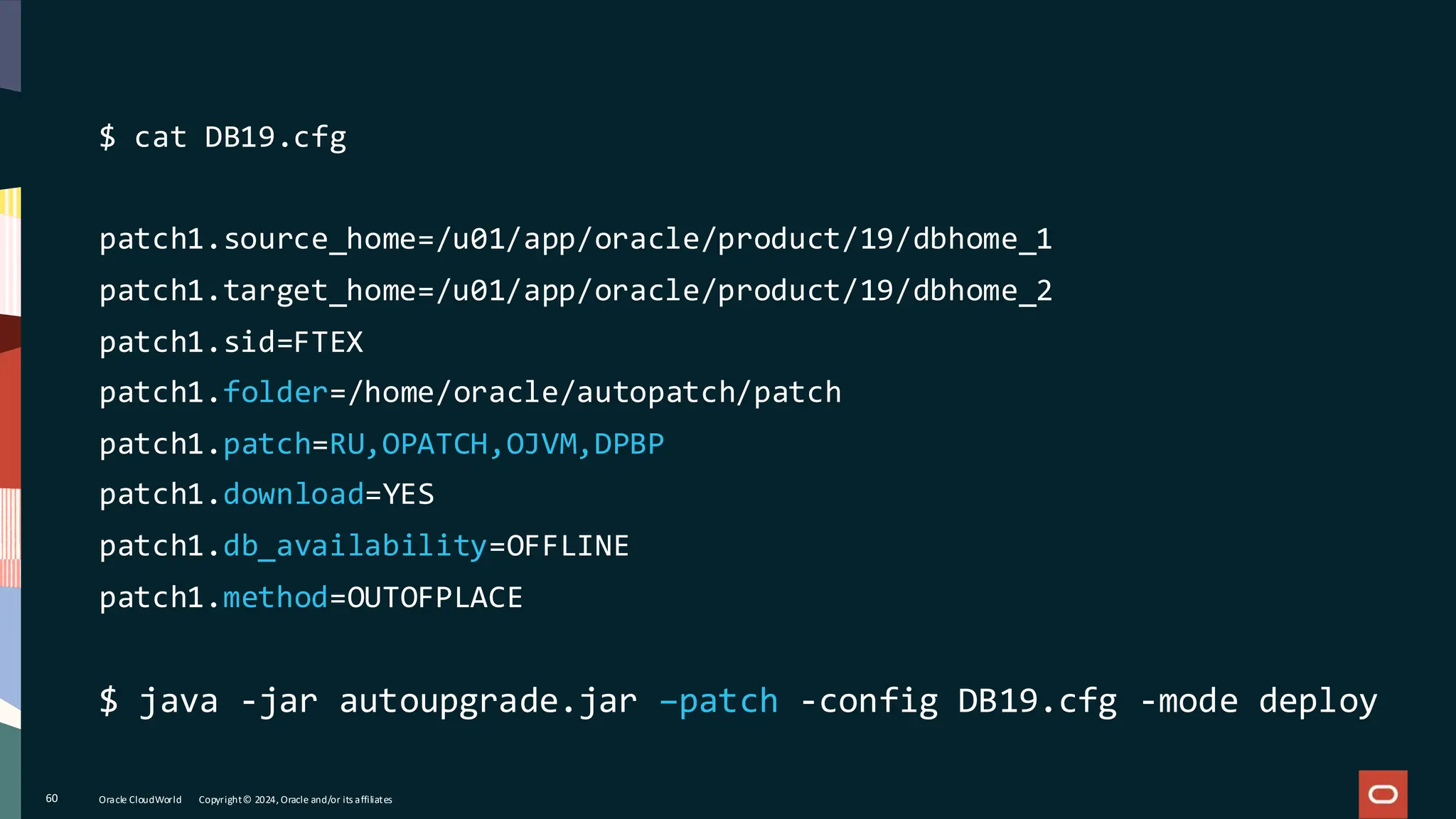

$ cat DB19.cfg
patch1.source_home=/u01/app/oracle/product/19/dbhome_1
patch1.target_home=/u01/app/oracle/product/19/dbhome_2
patch1.sid=FTEX
patch1.folder=/home/oracle/autopatch/patch
patch1.patch=RU,OPATCH,OJVM,DPBP
patch1.download=YES
patch1.db_availability=OFFLINE
patch1.method=OUTOFPLACE
$ java -jar autoupgrade.jar –patch -config DB19.cfg -mode deploy

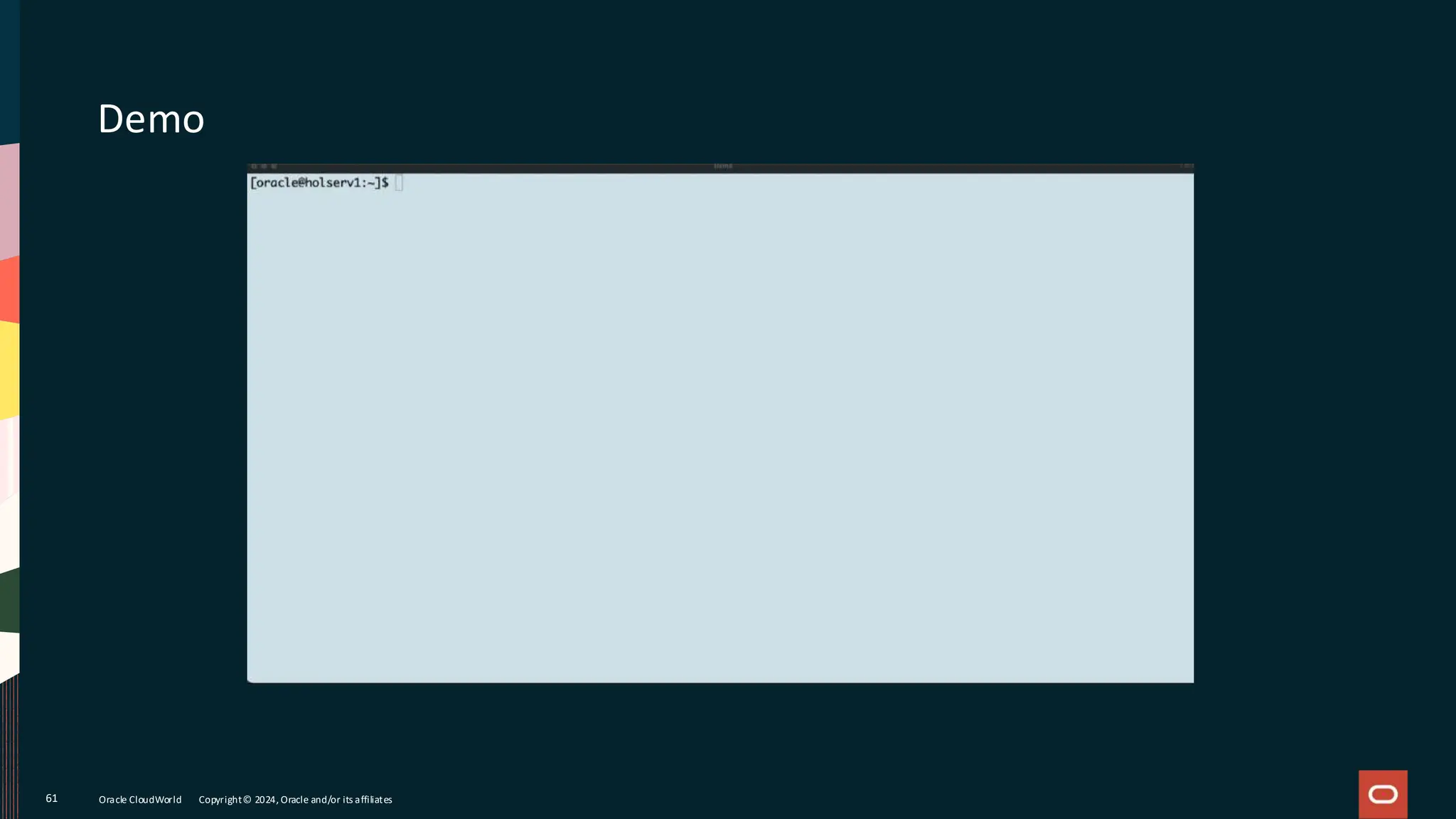

Demo
61

62
My Oracle Support Doc ID 2485457.1
It is available already
Try it out NOW!

63
Check out our blogs NOW!
And give us feedback, please …

64
Btw, this works for
Oracle Database 19c
already …

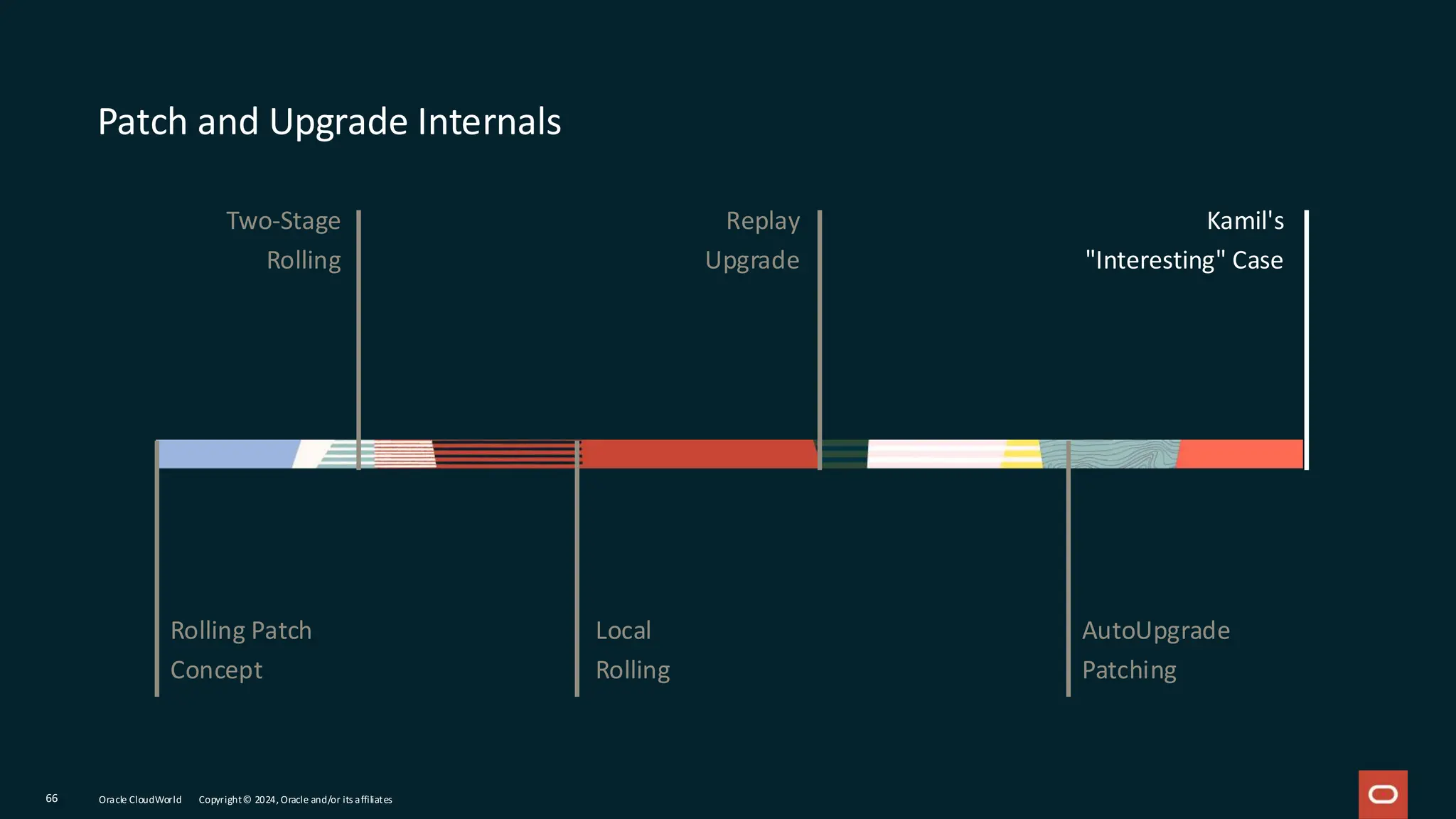

Two-Stage
Rolling
Replay
Upgrade
Kamil's
"Interesting" Case
Rolling Patch
Concept
Local
Rolling
AutoUpgrade
Patching

Thank You
68

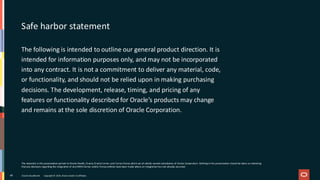

The following is intended to outline our general product direction. It is
