![© OPITZ CONSULTING 2023 / Öffentlich

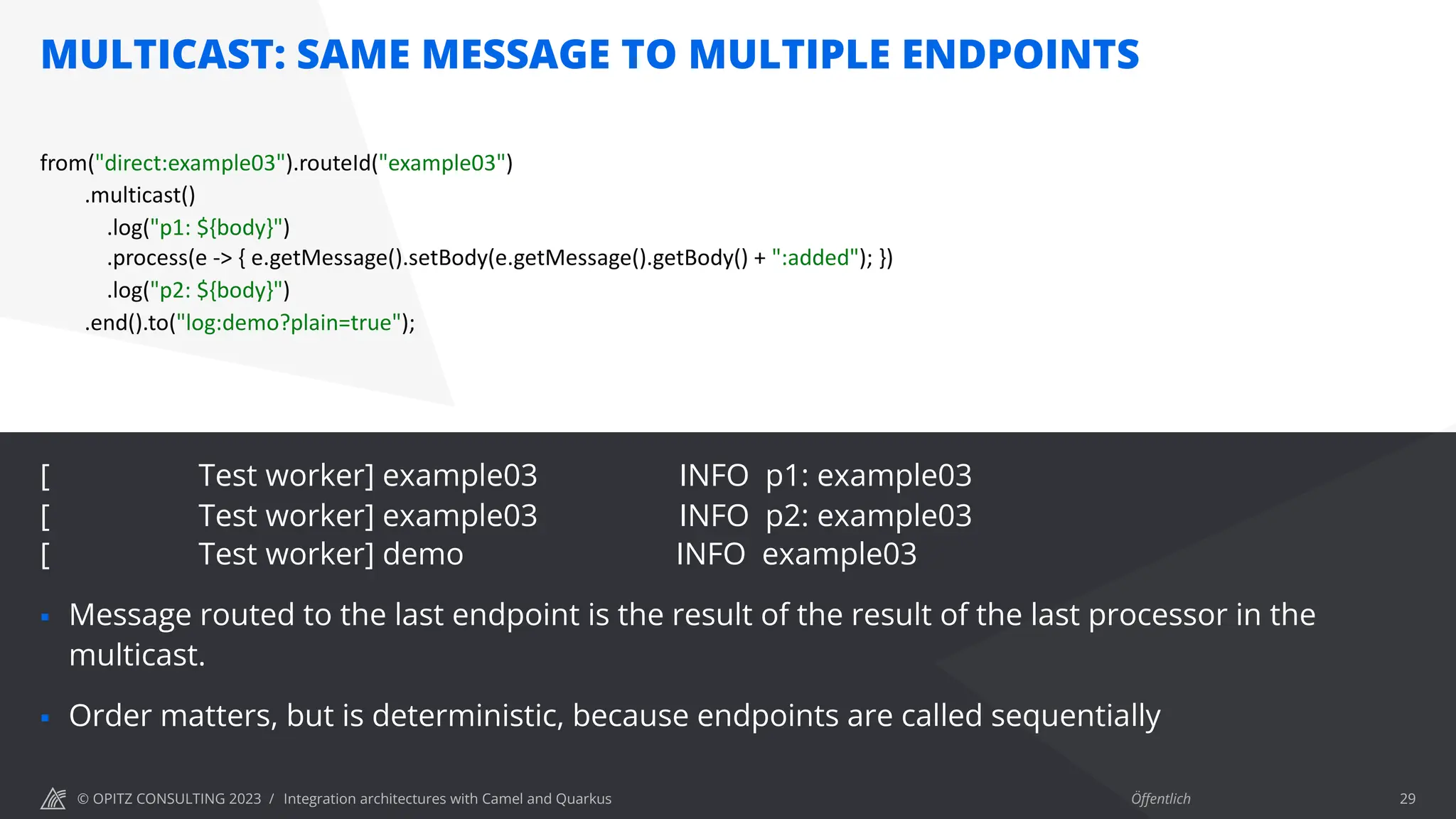

MULTICAST: SAME MESSAGE TO MULTIPLE ENDPOINTS
Integration architectures with Camel and Quarkus 29
[ Test worker] example03 INFO p1: example03
[ Test worker] example03 INFO p2: example03
[ Test worker] demo INFO example03
§ Message routed to the last endpoint is the result of the result of the last processor in the
multicast.
§ Order matters, but is deterministic, because endpoints are called sequentially
from("direct:example03").routeId("example03")
.multicast()
.log("p1: ${body}")
.process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); })
.log("p2: ${body}")
.end().to("log:demo?plain=true");](https://image.slidesharecdn.com/20231123integrationarchitectureswithcamelandquarkus-231215140453-522e7d9f/85/Effective-and-simple-integration-architectures-with-Apache-Camel-and-Quarkus-29-320.jpg)

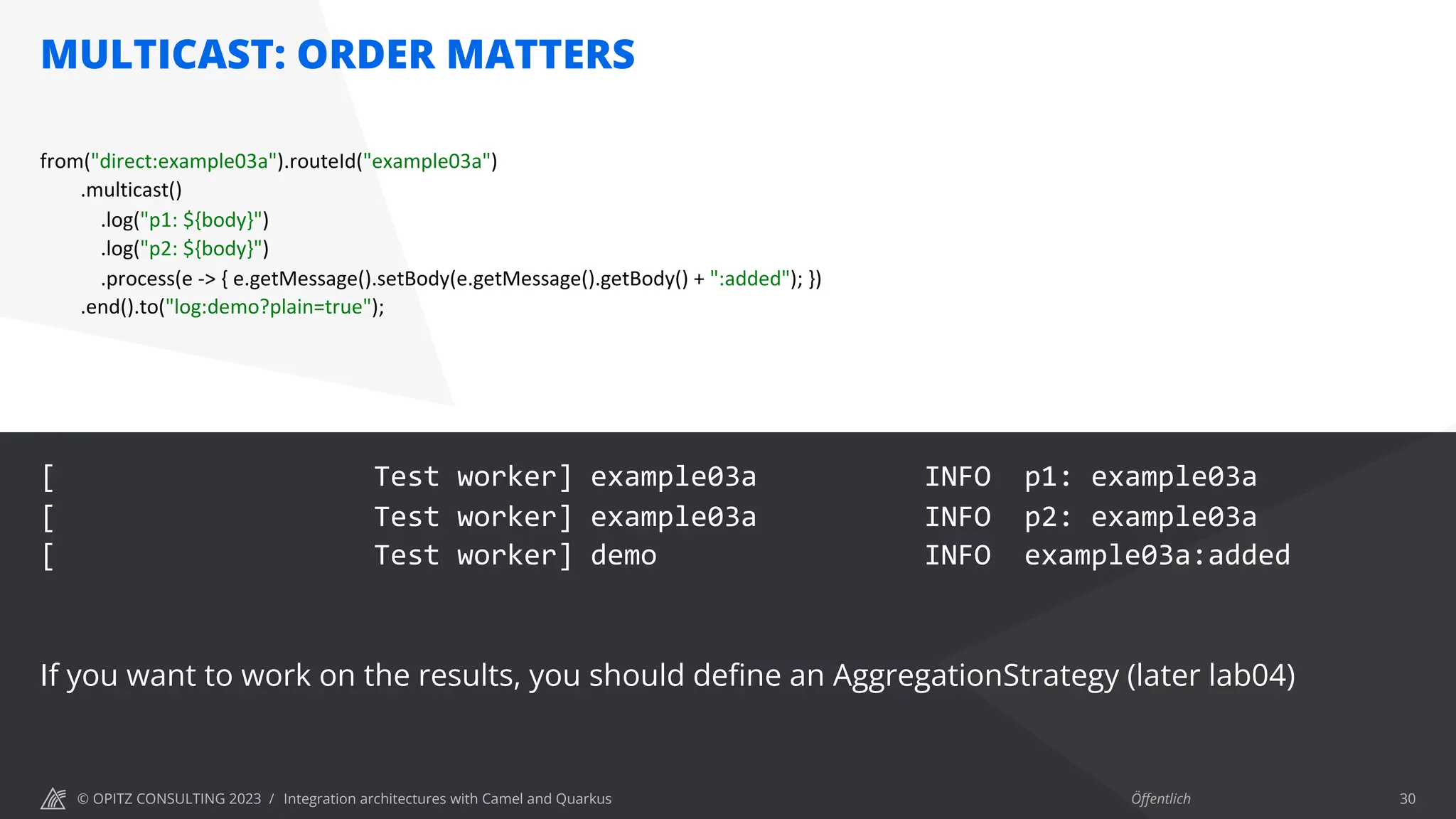

![© OPITZ CONSULTING 2023 / Öffentlich
MULTICAST: ORDER MATTERS
Integration architectures with Camel and Quarkus 30
[ Test worker] example03a INFO p1: example03a
[ Test worker] example03a INFO p2: example03a
[ Test worker] demo INFO example03a:added
If you want to work on the results, you should define an AggregationStrategy (later lab04)
from("direct:example03a").routeId("example03a")
.multicast()
.log("p1: ${body}")
.log("p2: ${body}")
.process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); })
.end().to("log:demo?plain=true");](https://image.slidesharecdn.com/20231123integrationarchitectureswithcamelandquarkus-231215140453-522e7d9f/85/Effective-and-simple-integration-architectures-with-Apache-Camel-and-Quarkus-30-320.jpg)
![© OPITZ CONSULTING 2023 / Öffentlich

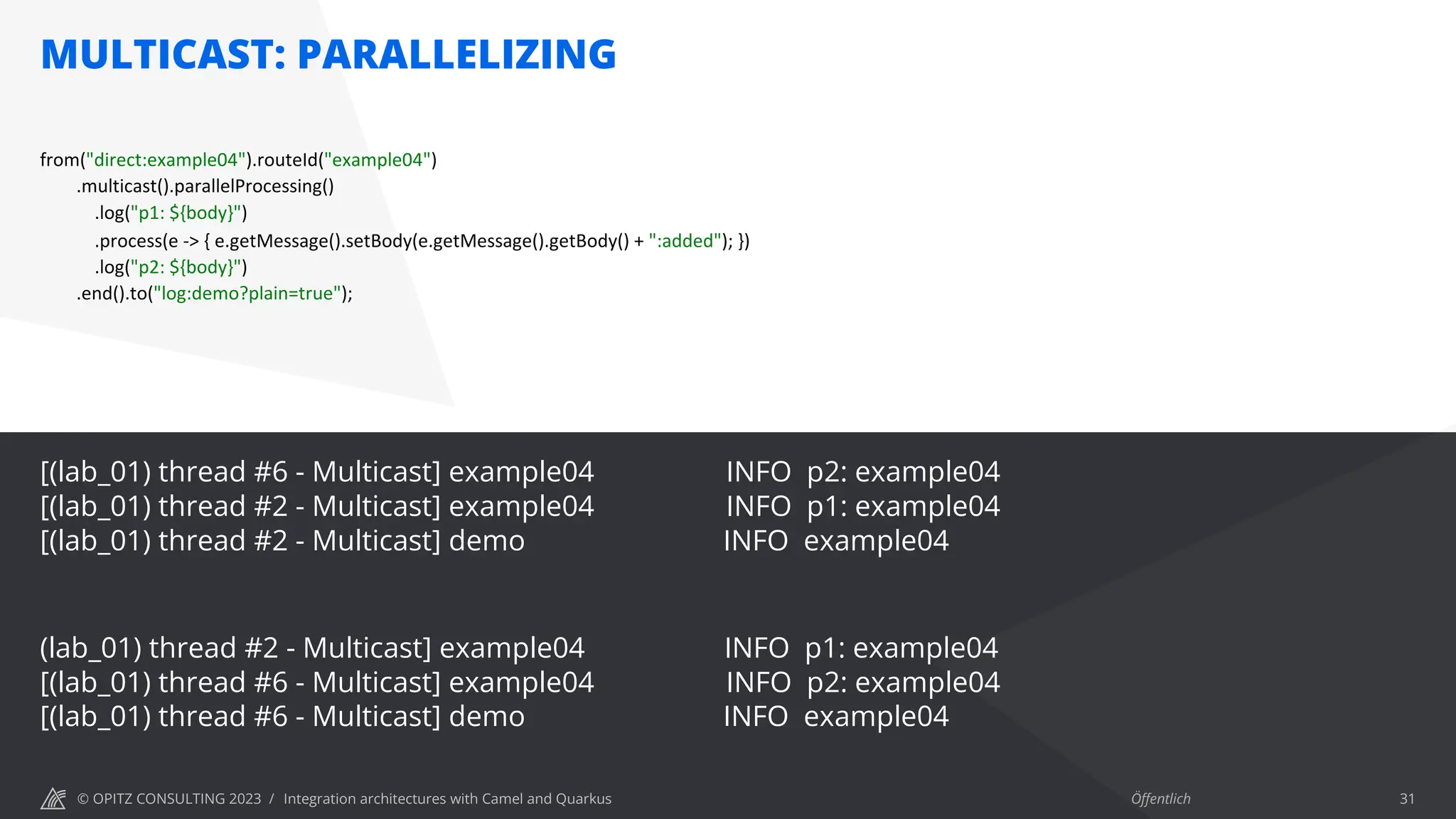

MULTICAST: PARALLELIZING
Integration architectures with Camel and Quarkus 31
[(lab_01) thread #6 - Multicast] example04 INFO p2: example04
[(lab_01) thread #2 - Multicast] example04 INFO p1: example04
[(lab_01) thread #2 - Multicast] demo INFO example04
(lab_01) thread #2 - Multicast] example04 INFO p1: example04
[(lab_01) thread #6 - Multicast] example04 INFO p2: example04
[(lab_01) thread #6 - Multicast] demo INFO example04
from("direct:example04").routeId("example04")
.multicast().parallelProcessing()
.log("p1: ${body}")
.process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); })
.log("p2: ${body}")
.end().to("log:demo?plain=true");](https://image.slidesharecdn.com/20231123integrationarchitectureswithcamelandquarkus-231215140453-522e7d9f/85/Effective-and-simple-integration-architectures-with-Apache-Camel-and-Quarkus-31-320.jpg)
Uploaded bySven Bernhardt
Effective and simple - integration architectures with Apache Camel and Quarkus
The document discusses integration architectures using Apache Camel and Quarkus, highlighting their relevance in modern enterprise settings. It covers integration challenges, patterns, and the benefits of utilizing Camel for efficient message routing and transformation. The synergy between Quarkus and Camel is emphasized as a powerful solution for building cloud-native integration systems.
More Related Content
Similar to Effective and simple - integration architectures with Apache Camel and Quarkus
![[jvmmeetup] next-gen integration with apache camel and quarkus.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/jvmmeetupnext-genintegrationwithapachecamelandquarkus-250822032223-c05a088e-thumbnail.jpg?width=640&height=640&fit=bounds)
Effective and simple - integration architectures with Apache Camel and Quarkus

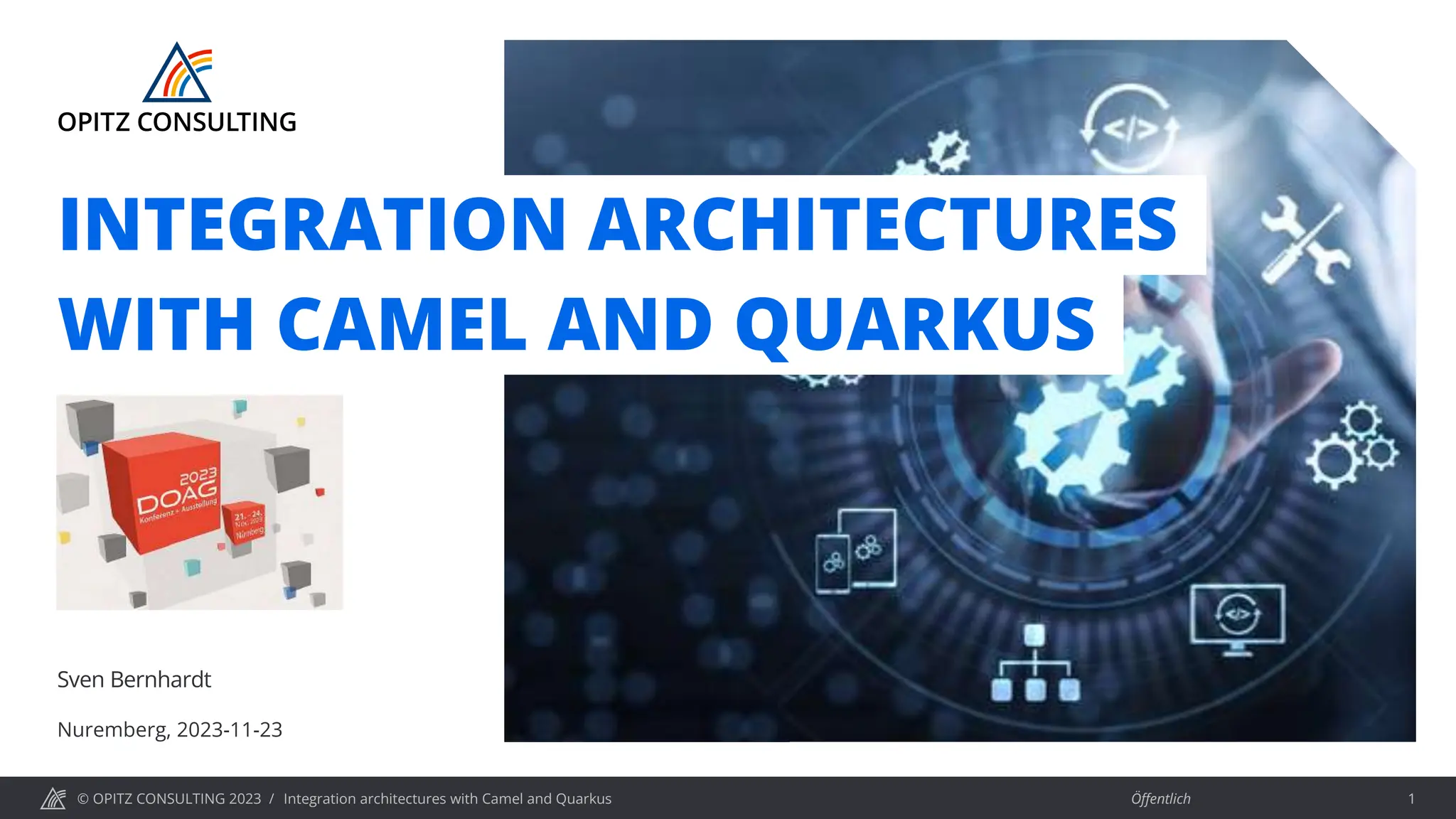

- 1. © OPITZ CONSULTING2023 / Öffentlich Integration architectures with Camel and Quarkus 1 Nuremberg, 2023-11-23 Sven Bernhardt INTEGRATION ARCHITECTURES WITH CAMEL AND QUARKUS

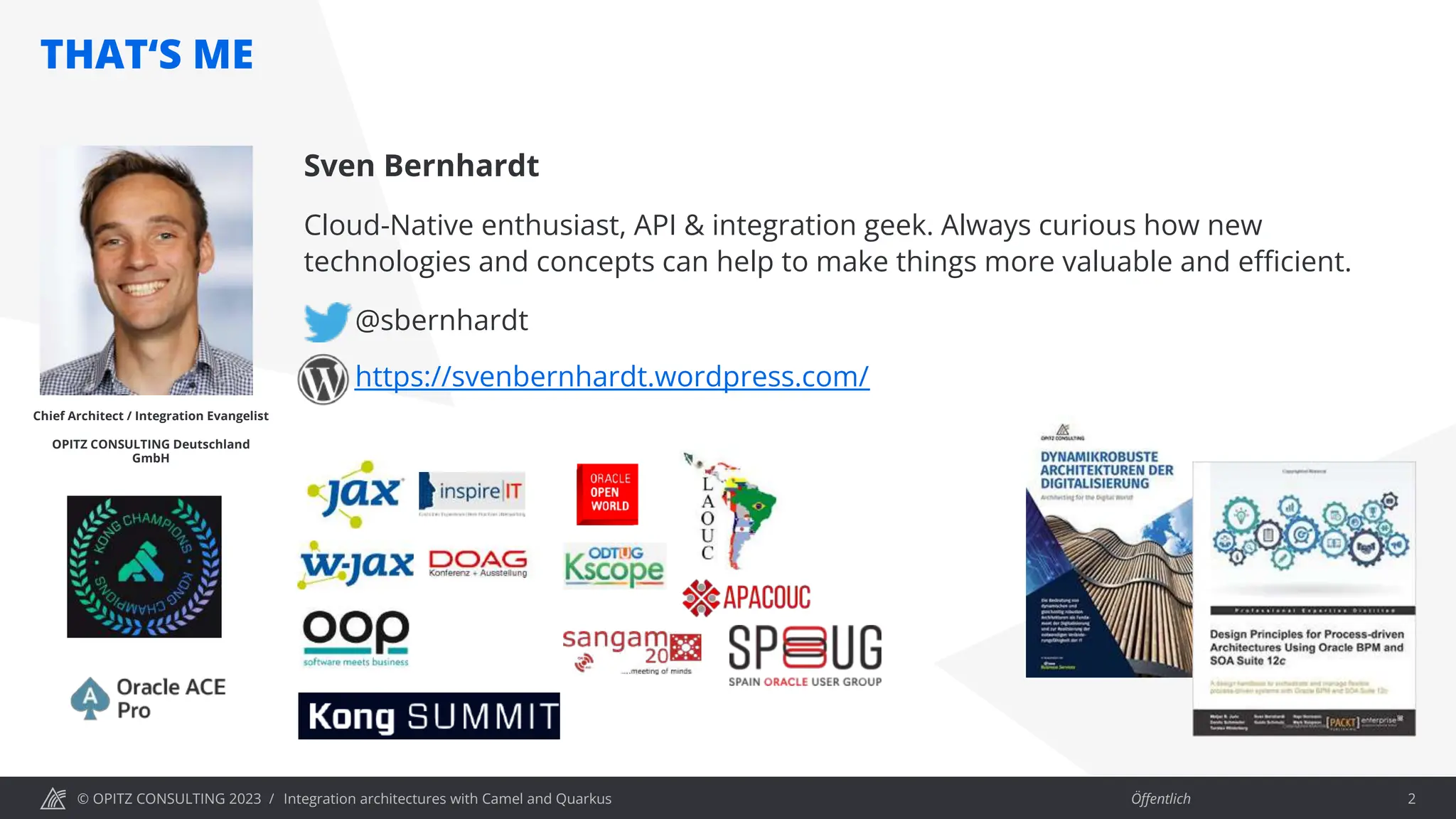

- 2. © OPITZ CONSULTING2023 / Öffentlich THAT‘S ME Integration architectures with Camel and Quarkus 2 Sven Bernhardt Cloud-Native enthusiast, API & integration geek. Always curious how new technologies and concepts can help to make things more valuable and efficient. @sbernhardt https://svenbernhardt.wordpress.com/ Chief Architect / Integration Evangelist OPITZ CONSULTING Deutschland GmbH
- 3. © OPITZ CONSULTING2023 / Öffentlich Integration architectures with Camel and Quarkus 3 INTEGRATION – WHY AND WHAT? 01 ENTERPRISE INTEGRATION PATTERNS 02 QUARKUS & APACHE CAMEL 04 APACHE CAMEL 03 CONCLUSION 05

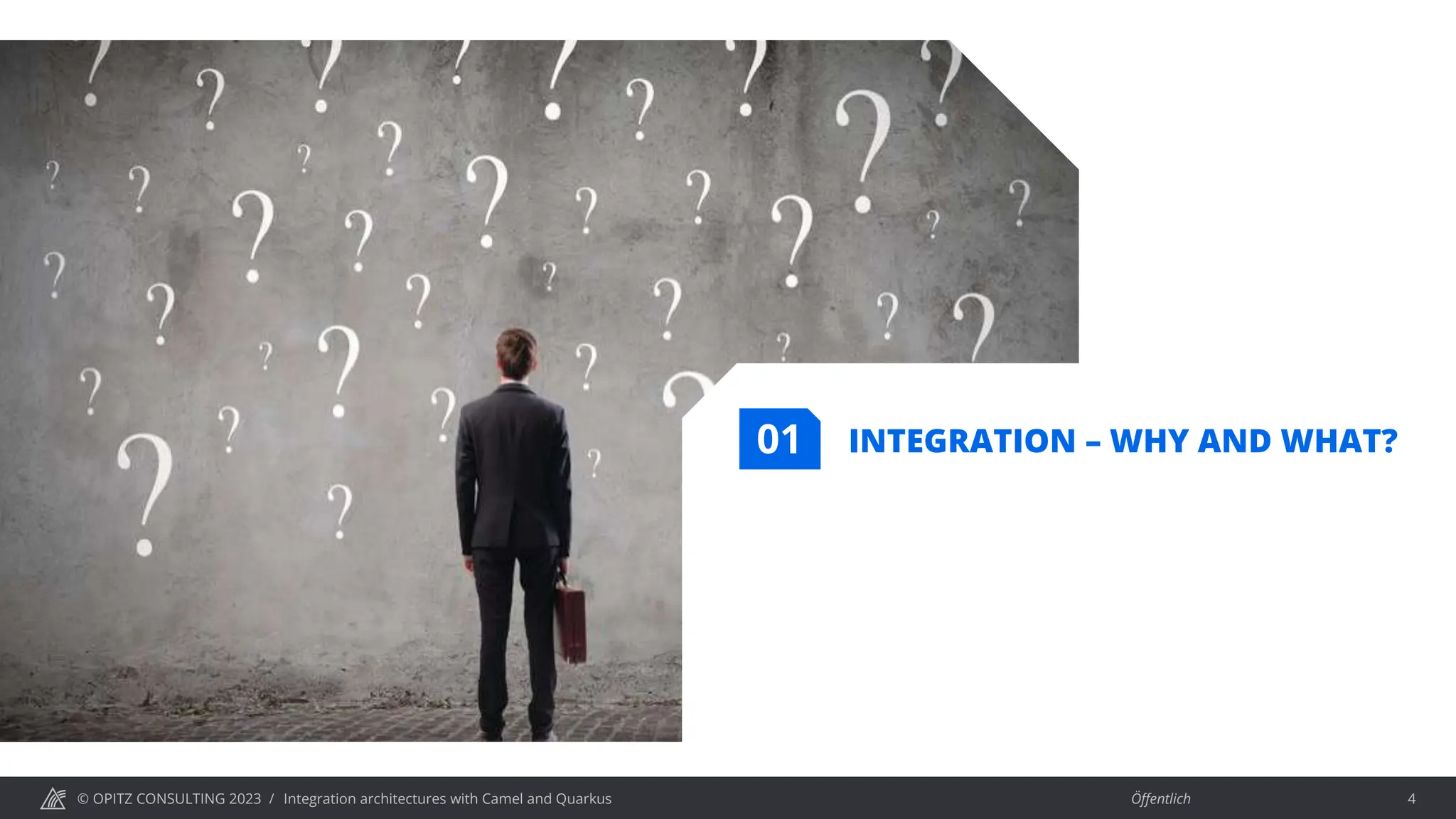

- 4. © OPITZ CONSULTING2023 / Öffentlich Integration architectures with Camel and Quarkus 4 INTEGRATION – WHY AND WHAT? 01
- 5. © OPITZ CONSULTING2023 / Öffentlich This is what it looks like sometimes/often/always in application landscapes... https://www.youtube.com/watch?v=iXaw70X7wb4&t=2s Integration architectures with Camel and Quarkus Seite 5

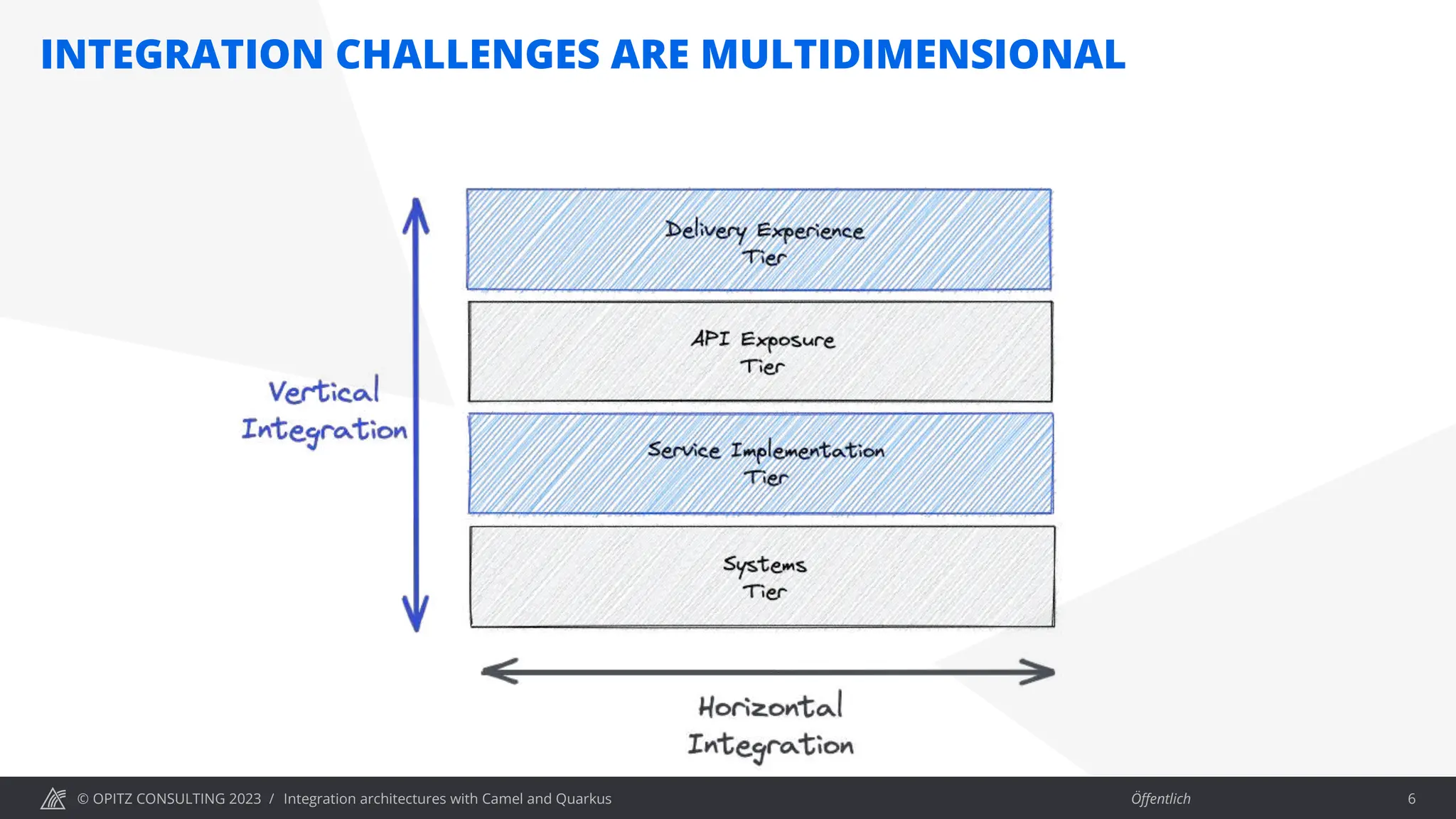

- 6. © OPITZ CONSULTING2023 / Öffentlich INTEGRATION CHALLENGES ARE MULTIDIMENSIONAL Integration architectures with Camel and Quarkus 6

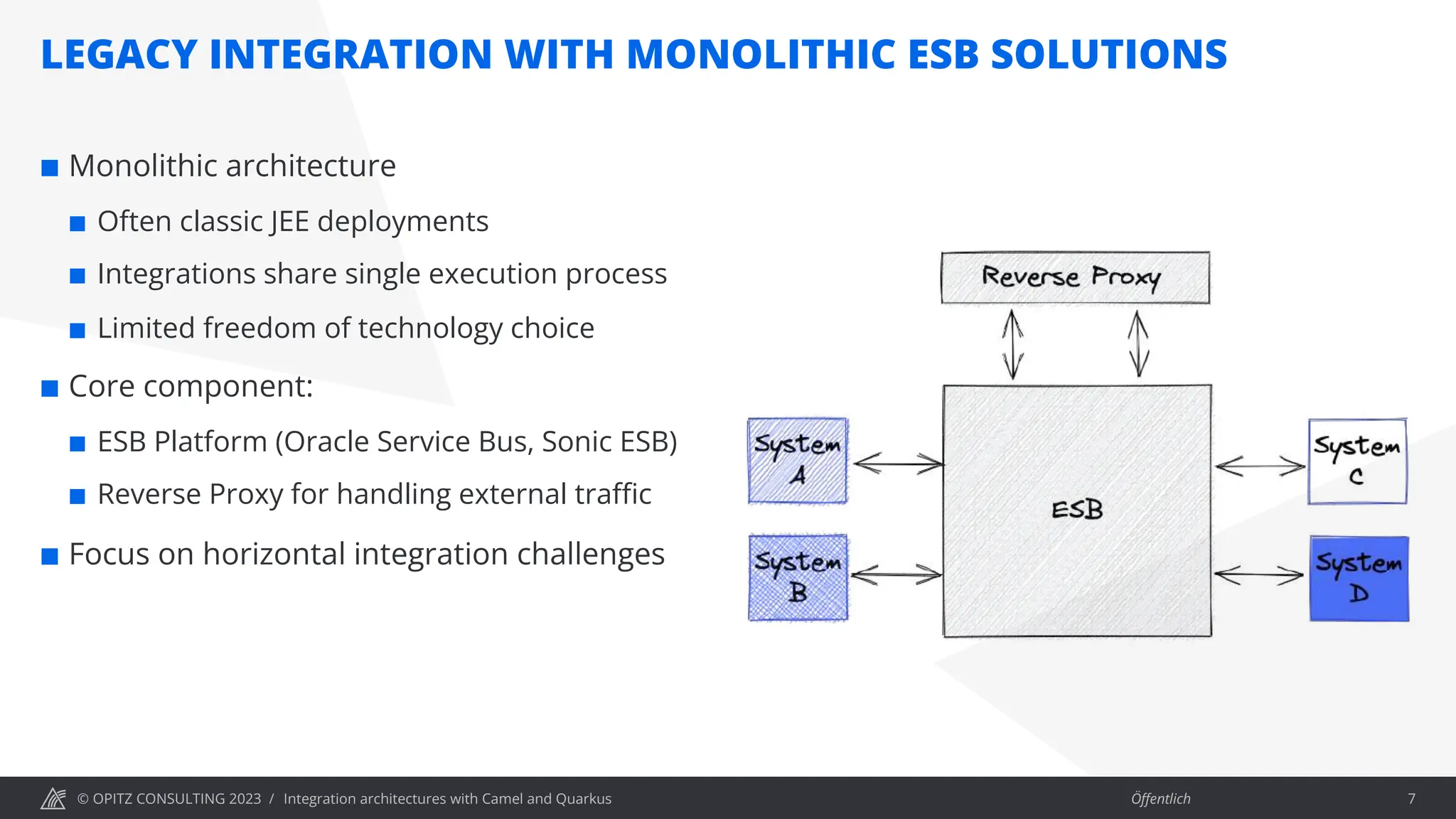

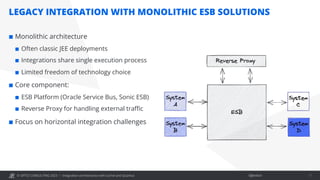

- 7. © OPITZ CONSULTING2023 / Öffentlich LEGACY INTEGRATION WITH MONOLITHIC ESB SOLUTIONS ¢ Monolithic architecture ¢ Often classic JEE deployments ¢ Integrations share single execution process ¢ Limited freedom of technology choice ¢ Core component: ¢ ESB Platform (Oracle Service Bus, Sonic ESB) ¢ Reverse Proxy for handling external traffic ¢ Focus on horizontal integration challenges Integration architectures with Camel and Quarkus 7

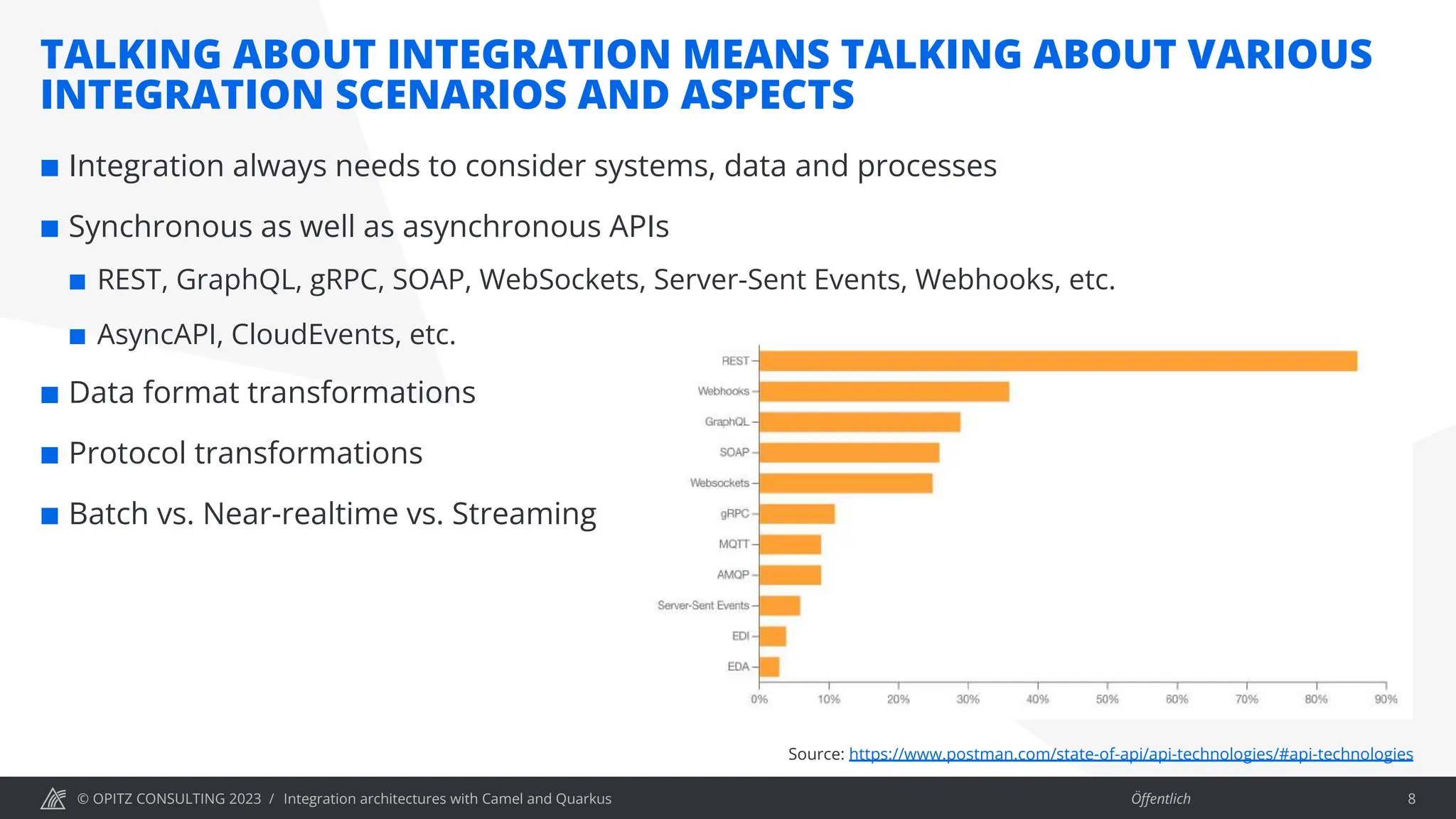

- 8. © OPITZ CONSULTING2023 / Öffentlich TALKING ABOUT INTEGRATION MEANS TALKING ABOUT VARIOUS INTEGRATION SCENARIOS AND ASPECTS Integration architectures with Camel and Quarkus 8 ¢ Integration always needs to consider systems, data and processes ¢ Synchronous as well as asynchronous APIs ¢ REST, GraphQL, gRPC, SOAP, WebSockets, Server-Sent Events, Webhooks, etc. ¢ AsyncAPI, CloudEvents, etc. ¢ Data format transformations ¢ Protocol transformations ¢ Batch vs. Near-realtime vs. Streaming Source: https://www.postman.com/state-of-api/api-technologies/#api-technologies

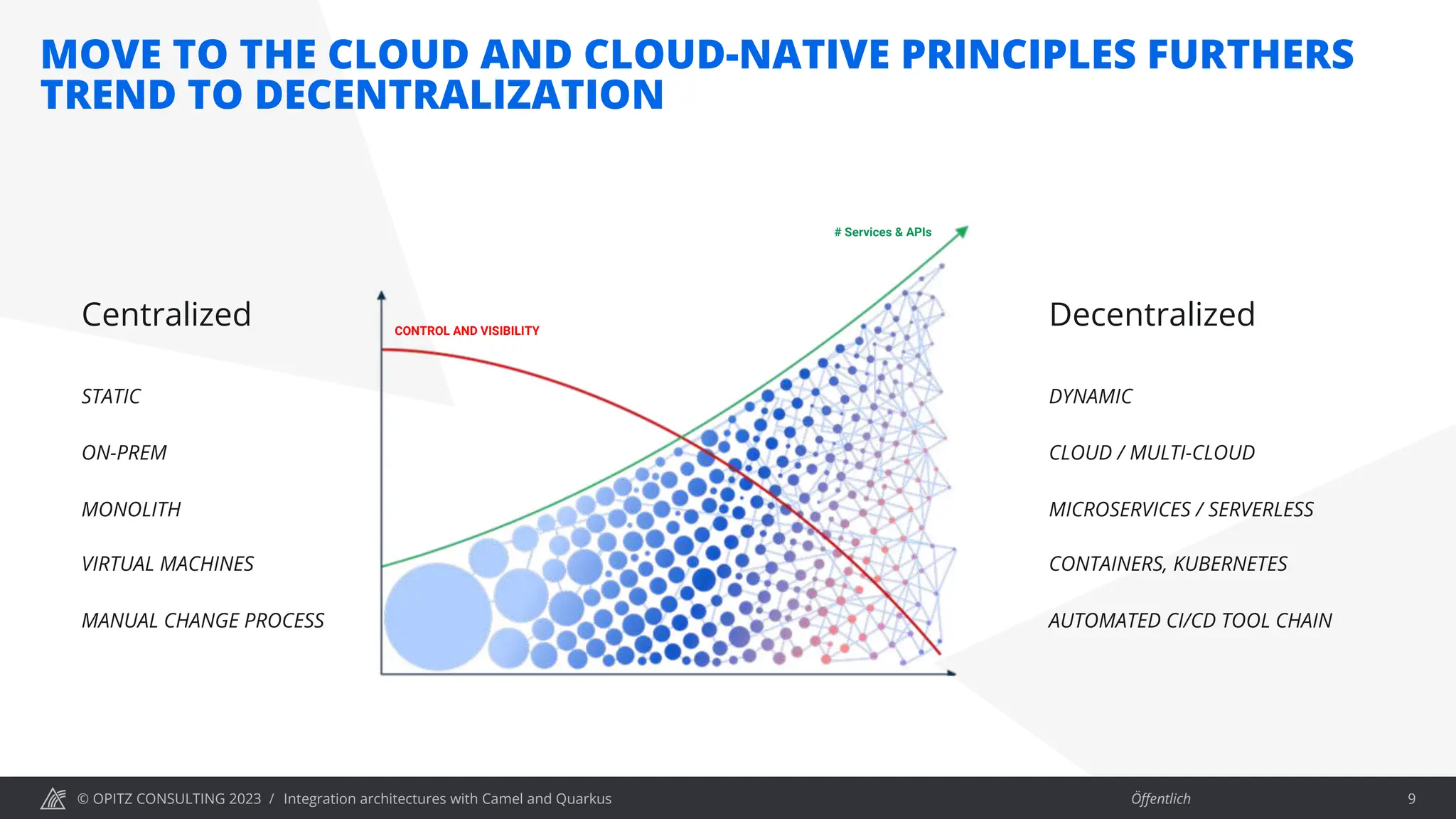

- 9. © OPITZ CONSULTING2023 / Öffentlich MOVE TO THE CLOUD AND CLOUD-NATIVE PRINCIPLES FURTHERS TREND TO DECENTRALIZATION Integration architectures with Camel and Quarkus 9 Centralized STATIC ON-PREM MONOLITH VIRTUAL MACHINES MANUAL CHANGE PROCESS Decentralized DYNAMIC CLOUD / MULTI-CLOUD MICROSERVICES / SERVERLESS CONTAINERS, KUBERNETES AUTOMATED CI/CD TOOL CHAIN # Services & APIs CONTROL AND VISIBILITY

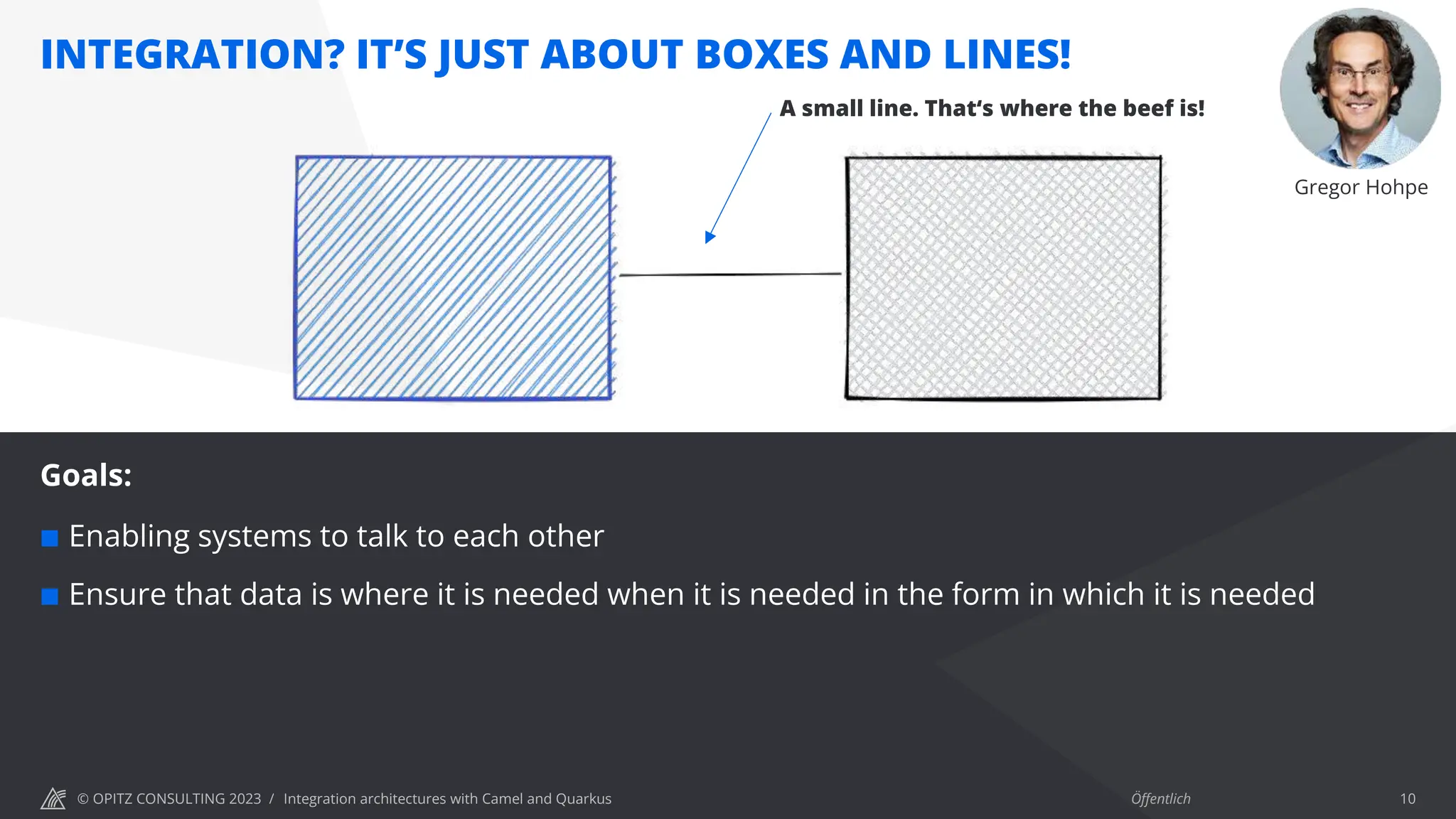

- 10. © OPITZ CONSULTING2023 / Öffentlich INTEGRATION? IT’S JUST ABOUT BOXES AND LINES! Goals: ¢ Enabling systems to talk to each other ¢ Ensure that data is where it is needed when it is needed in the form in which it is needed Gregor Hohpe A small line. That‘s where the beef is! Integration architectures with Camel and Quarkus 10

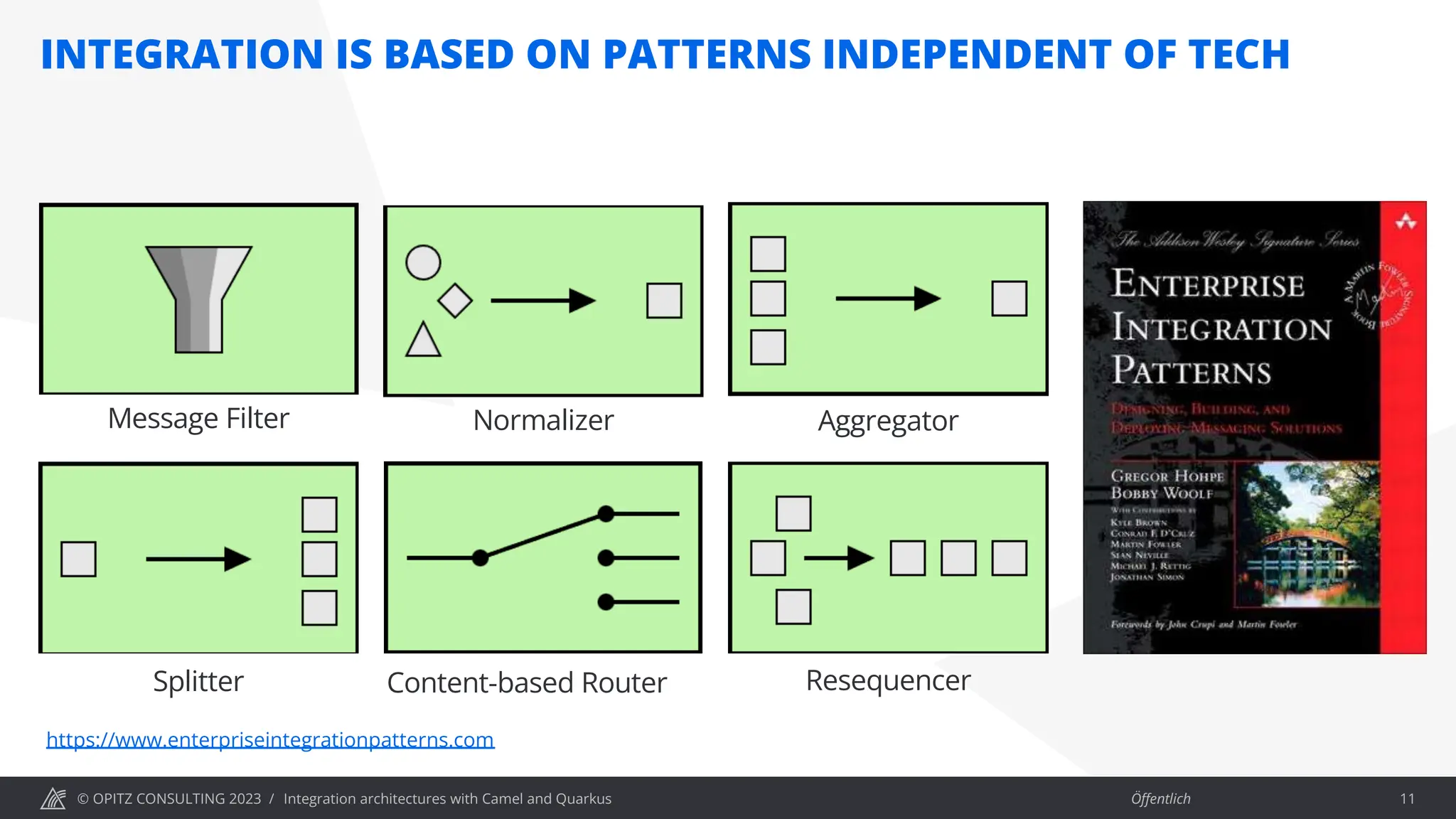

- 11. © OPITZ CONSULTING2023 / Öffentlich INTEGRATION IS BASED ON PATTERNS INDEPENDENT OF TECH Content-based Router Message Filter Splitter Aggregator Normalizer Resequencer https://www.enterpriseintegrationpatterns.com Integration architectures with Camel and Quarkus 11
- 12. © OPITZ CONSULTING2023 / Öffentlich Integration architectures with Camel and Quarkus 12 ENTERPRISE INTEGRATION PATTERNS 02
- 13. © OPITZ CONSULTING2023 / Öffentlich INTEGRATION IS BASED ON PATTERNS STABLE FOR DECADES Content-based Router Message Filter Splitter Aggregator Normalizer Resequencer https://www.enterpriseintegrationpatterns.com Integration architectures with Camel and Quarkus 13

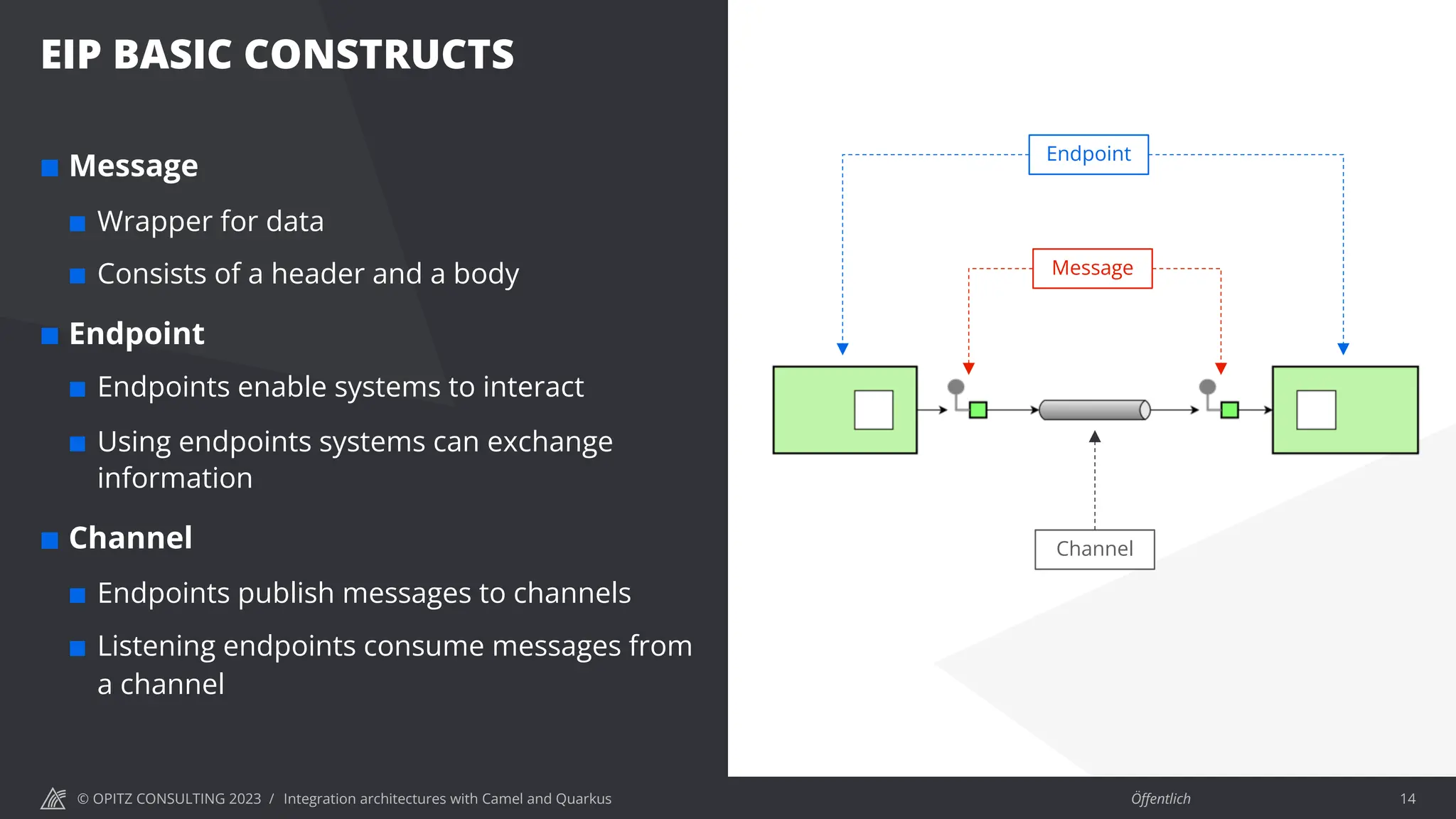

- 14. © OPITZ CONSULTING2023 / Öffentlich EIP BASIC CONSTRUCTS Integration architectures with Camel and Quarkus 14 ¢ Message ¢ Wrapper for data ¢ Consists of a header and a body ¢ Endpoint ¢ Endpoints enable systems to interact ¢ Using endpoints systems can exchange information ¢ Channel ¢ Endpoints publish messages to channels ¢ Listening endpoints consume messages from a channel Message Endpoint Channel

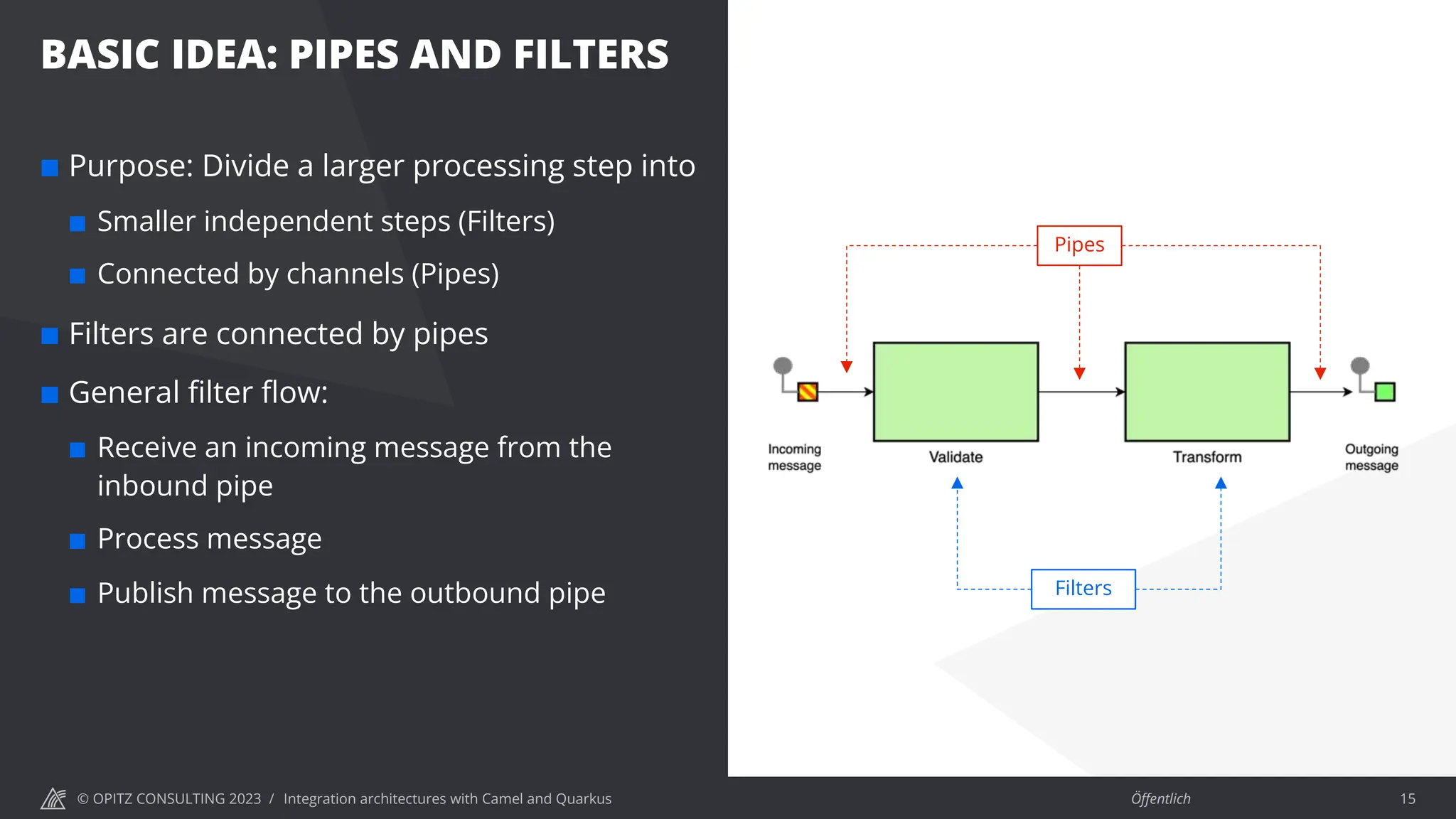

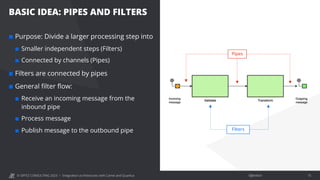

- 15. © OPITZ CONSULTING2023 / Öffentlich BASIC IDEA: PIPES AND FILTERS Integration architectures with Camel and Quarkus 15 ¢ Purpose: Divide a larger processing step into ¢ Smaller independent steps (Filters) ¢ Connected by channels (Pipes) ¢ Filters are connected by pipes ¢ General filter flow: ¢ Receive an incoming message from the inbound pipe ¢ Process message ¢ Publish message to the outbound pipe Pipes Filters

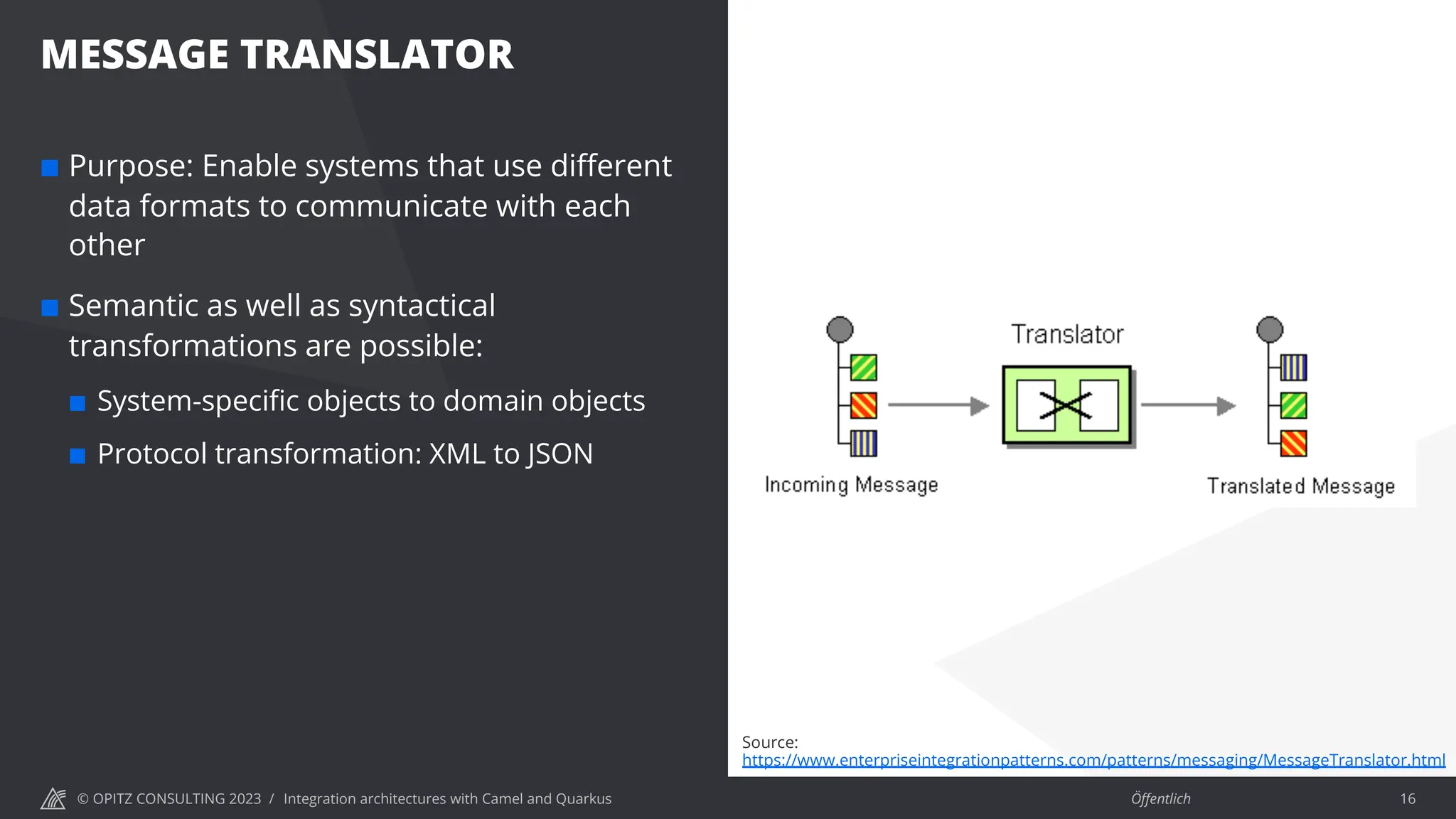

- 16. © OPITZ CONSULTING2023 / Öffentlich MESSAGE TRANSLATOR Integration architectures with Camel and Quarkus 16 ¢ Purpose: Enable systems that use different data formats to communicate with each other ¢ Semantic as well as syntactical transformations are possible: ¢ System-specific objects to domain objects ¢ Protocol transformation: XML to JSON Source: https://www.enterpriseintegrationpatterns.com/patterns/messaging/MessageTranslator.html

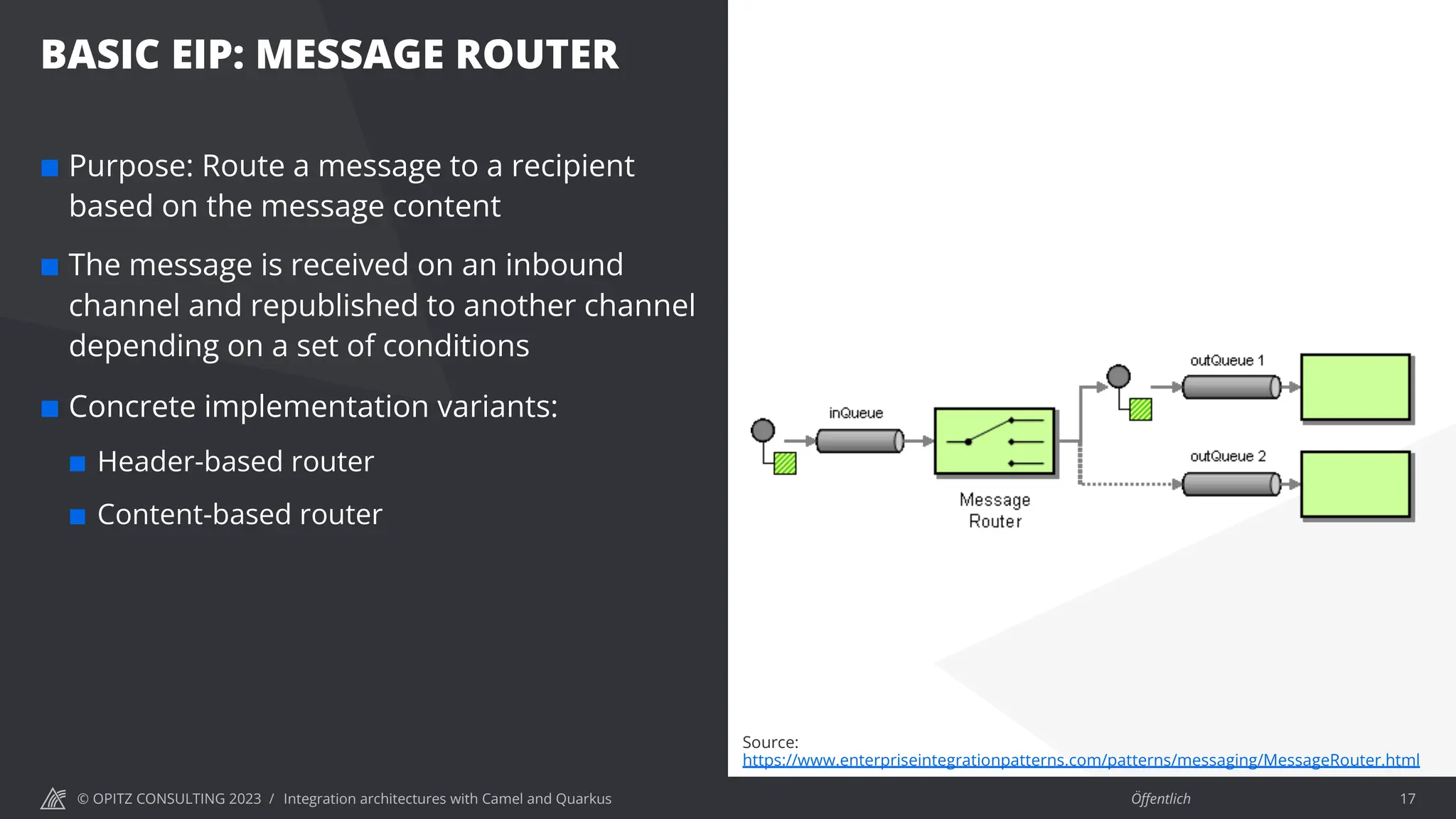

- 17. © OPITZ CONSULTING2023 / Öffentlich BASIC EIP: MESSAGE ROUTER Integration architectures with Camel and Quarkus 17 ¢ Purpose: Route a message to a recipient based on the message content ¢ The message is received on an inbound channel and republished to another channel depending on a set of conditions ¢ Concrete implementation variants: ¢ Header-based router ¢ Content-based router Source: https://www.enterpriseintegrationpatterns.com/patterns/messaging/MessageRouter.html

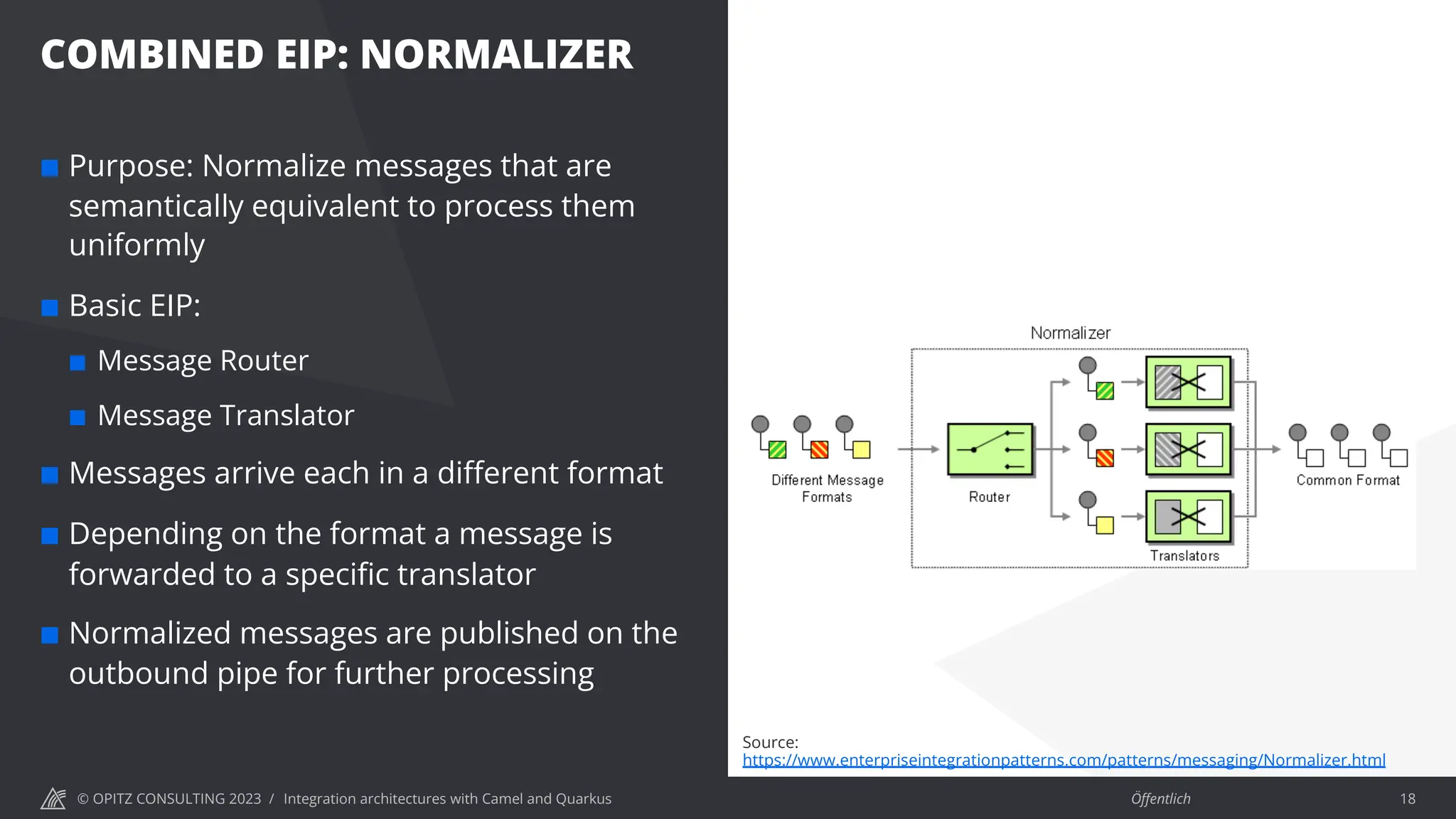

- 18. © OPITZ CONSULTING2023 / Öffentlich COMBINED EIP: NORMALIZER Integration architectures with Camel and Quarkus 18 ¢ Purpose: Normalize messages that are semantically equivalent to process them uniformly ¢ Basic EIP: ¢ Message Router ¢ Message Translator ¢ Messages arrive each in a different format ¢ Depending on the format a message is forwarded to a specific translator ¢ Normalized messages are published on the outbound pipe for further processing Source: https://www.enterpriseintegrationpatterns.com/patterns/messaging/Normalizer.html
- 19. © OPITZ CONSULTING2023 / Öffentlich Integration architectures with Camel and Quarkus 19 APACHE CAMEL 03
- 20. © OPITZ CONSULTING2023 / Öffentlich WHAT IS CAMEL? Integration architectures with Camel and Quarkus 20 Apache Camel is a powerful Open Source Integration Framework based on Enterprise Integration Patterns.

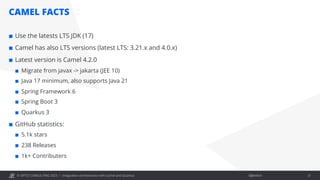

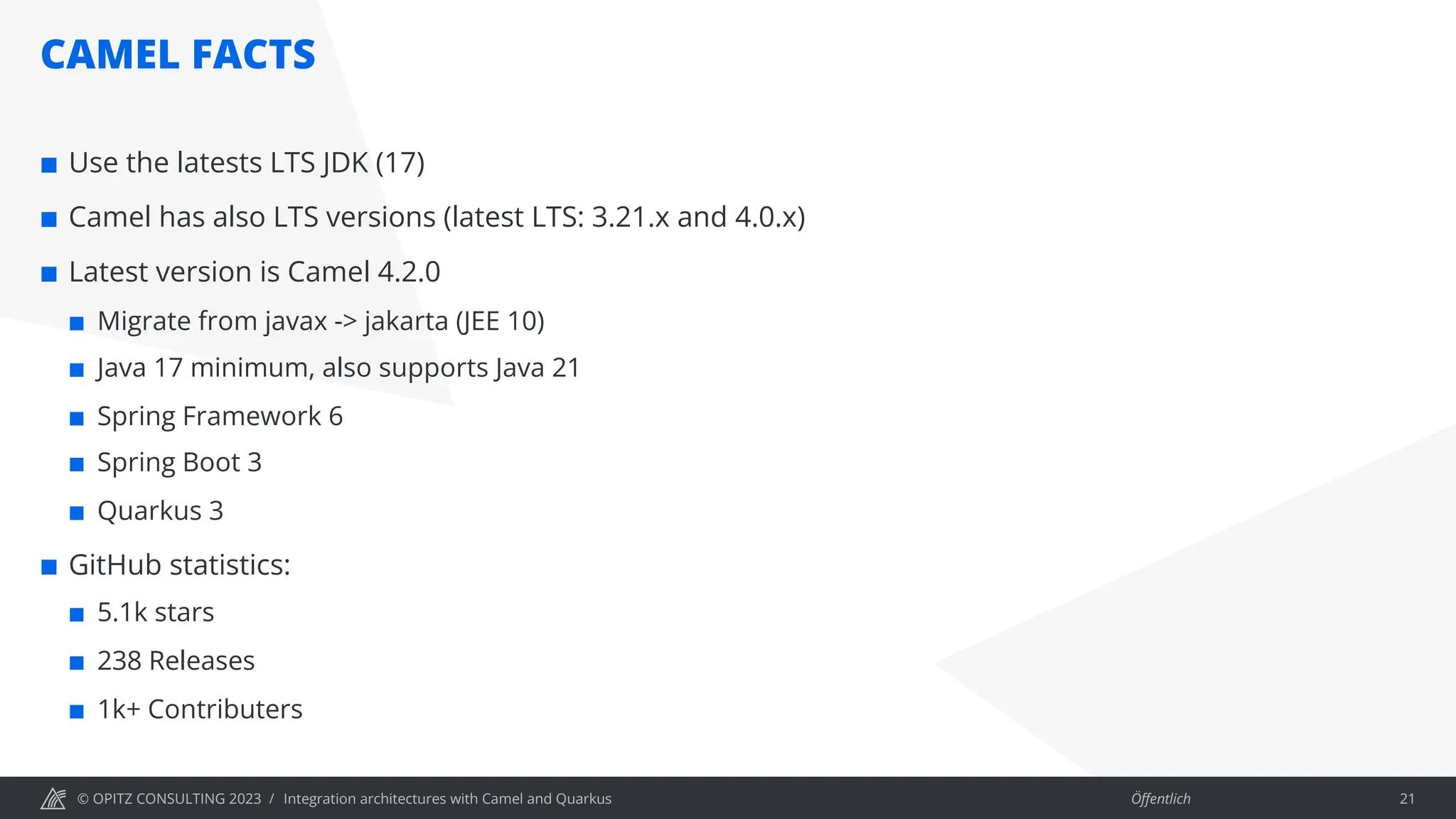

- 21. © OPITZ CONSULTING2023 / Öffentlich CAMEL FACTS Integration architectures with Camel and Quarkus 21 ¢ Use the latests LTS JDK (17) ¢ Camel has also LTS versions (latest LTS: 3.21.x and 4.0.x) ¢ Latest version is Camel 4.2.0 ¢ Migrate from javax -> jakarta (JEE 10) ¢ Java 17 minimum, also supports Java 21 ¢ Spring Framework 6 ¢ Spring Boot 3 ¢ Quarkus 3 ¢ GitHub statistics: ¢ 5.1k stars ¢ 238 Releases ¢ 1k+ Contributers

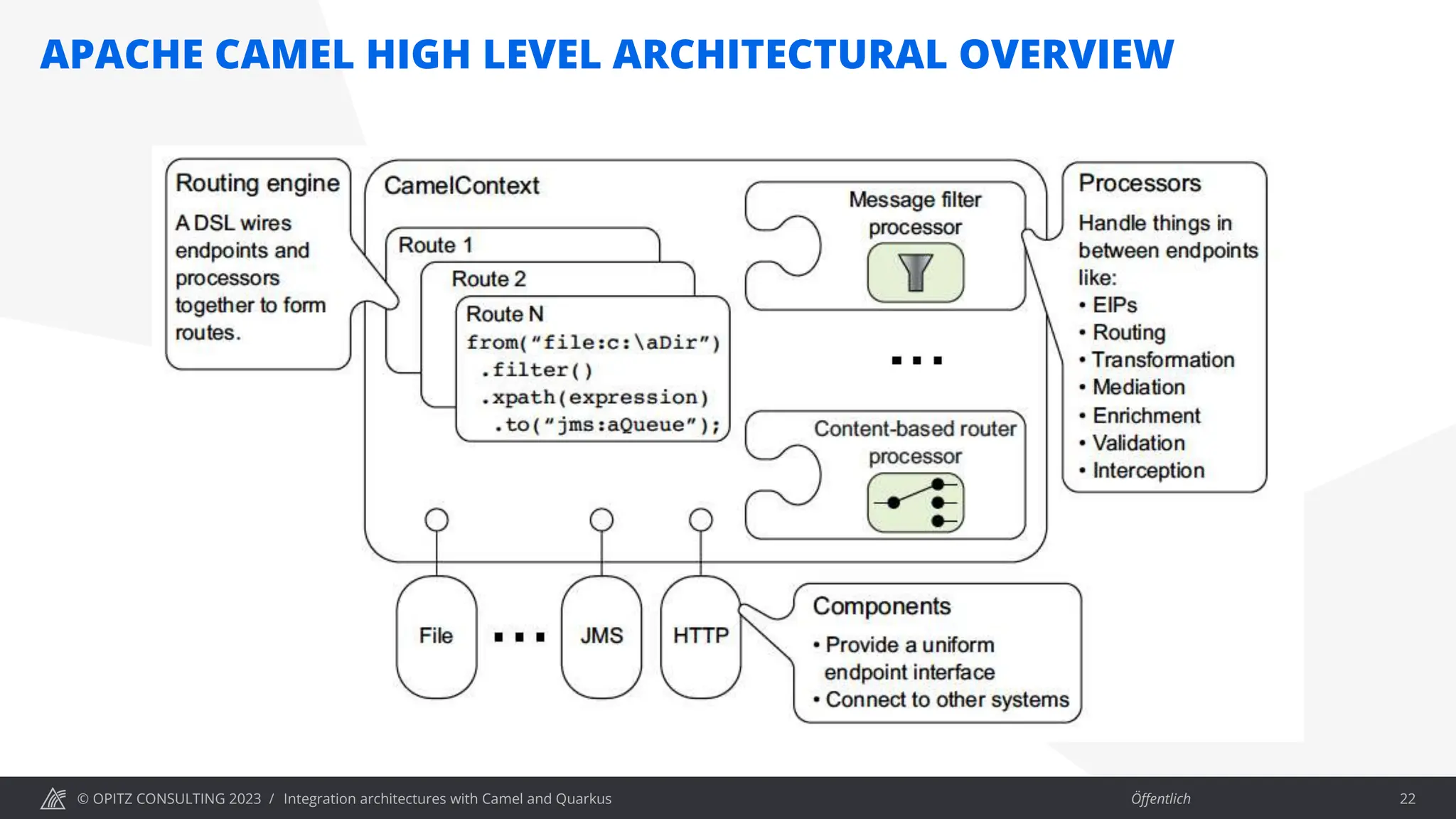

- 22. © OPITZ CONSULTING2023 / Öffentlich APACHE CAMEL HIGH LEVEL ARCHITECTURAL OVERVIEW Integration architectures with Camel and Quarkus 22

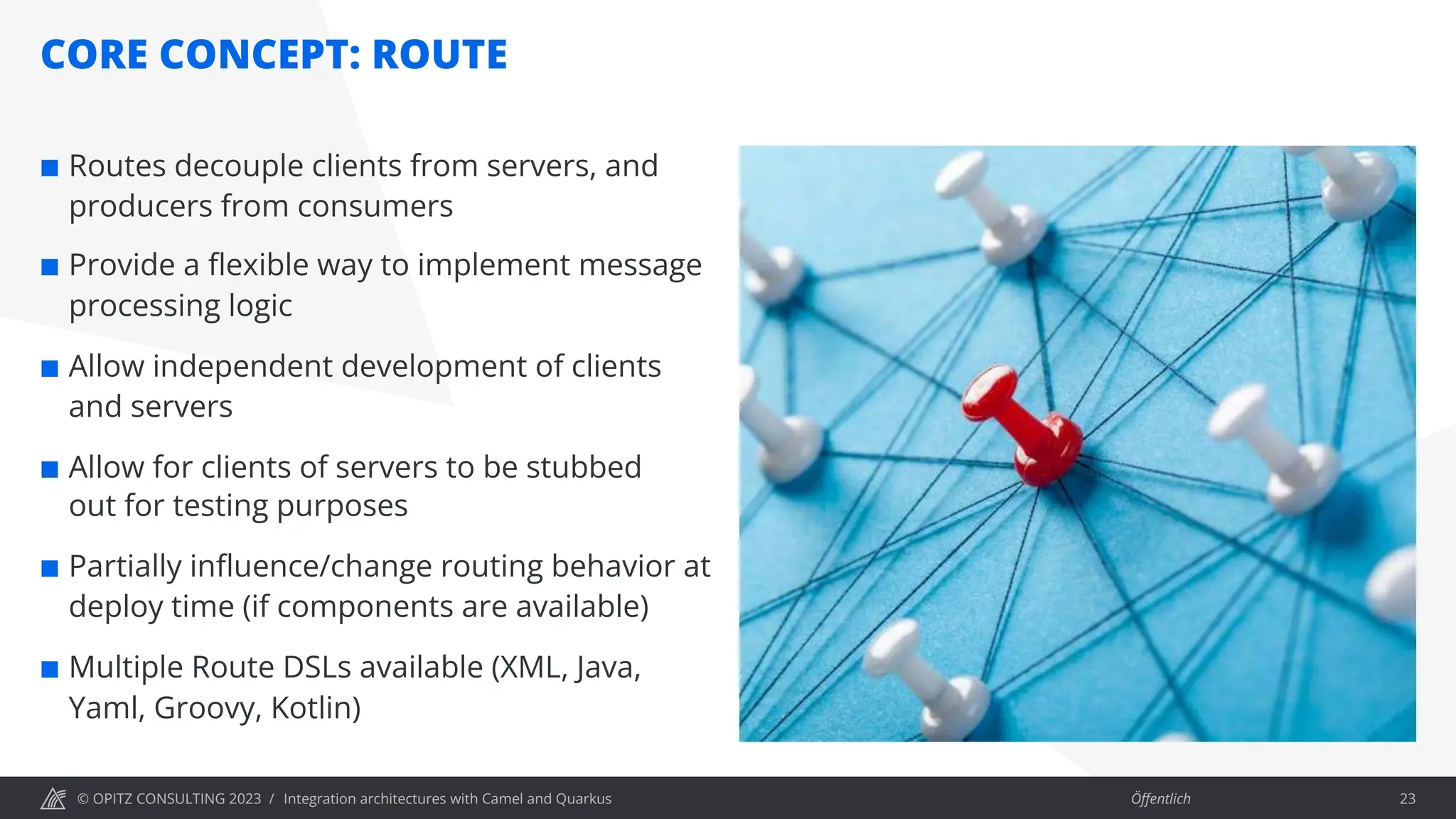

- 23. © OPITZ CONSULTING2023 / Öffentlich CORE CONCEPT: ROUTE Integration architectures with Camel and Quarkus 23 ¢ Routes decouple clients from servers, and producers from consumers ¢ Provide a flexible way to implement message processing logic ¢ Allow independent development of clients and servers ¢ Allow for clients of servers to be stubbed out for testing purposes ¢ Partially influence/change routing behavior at deploy time (if components are available) ¢ Multiple Route DSLs available (XML, Java, Yaml, Groovy, Kotlin)

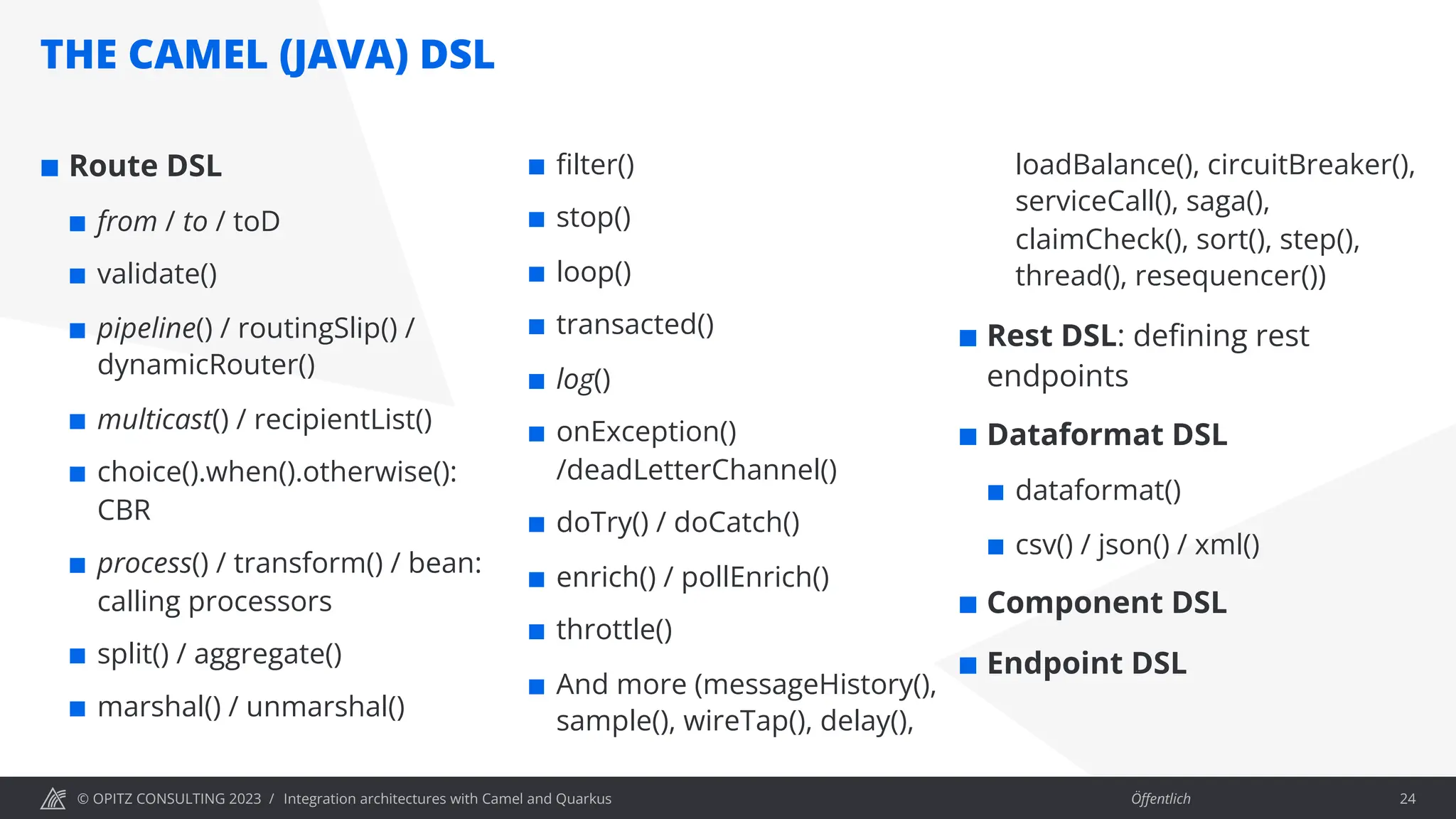

- 24. © OPITZ CONSULTING2023 / Öffentlich THE CAMEL (JAVA) DSL Integration architectures with Camel and Quarkus 24 ¢ Route DSL ¢ from / to / toD ¢ validate() ¢ pipeline() / routingSlip() / dynamicRouter() ¢ multicast() / recipientList() ¢ choice().when().otherwise(): CBR ¢ process() / transform() / bean: calling processors ¢ split() / aggregate() ¢ marshal() / unmarshal() ¢ filter() ¢ stop() ¢ loop() ¢ transacted() ¢ log() ¢ onException() /deadLetterChannel() ¢ doTry() / doCatch() ¢ enrich() / pollEnrich() ¢ throttle() ¢ And more (messageHistory(), sample(), wireTap(), delay(), loadBalance(), circuitBreaker(), serviceCall(), saga(), claimCheck(), sort(), step(), thread(), resequencer()) ¢ Rest DSL: defining rest endpoints ¢ Dataformat DSL ¢ dataformat() ¢ csv() / json() / xml() ¢ Component DSL ¢ Endpoint DSL

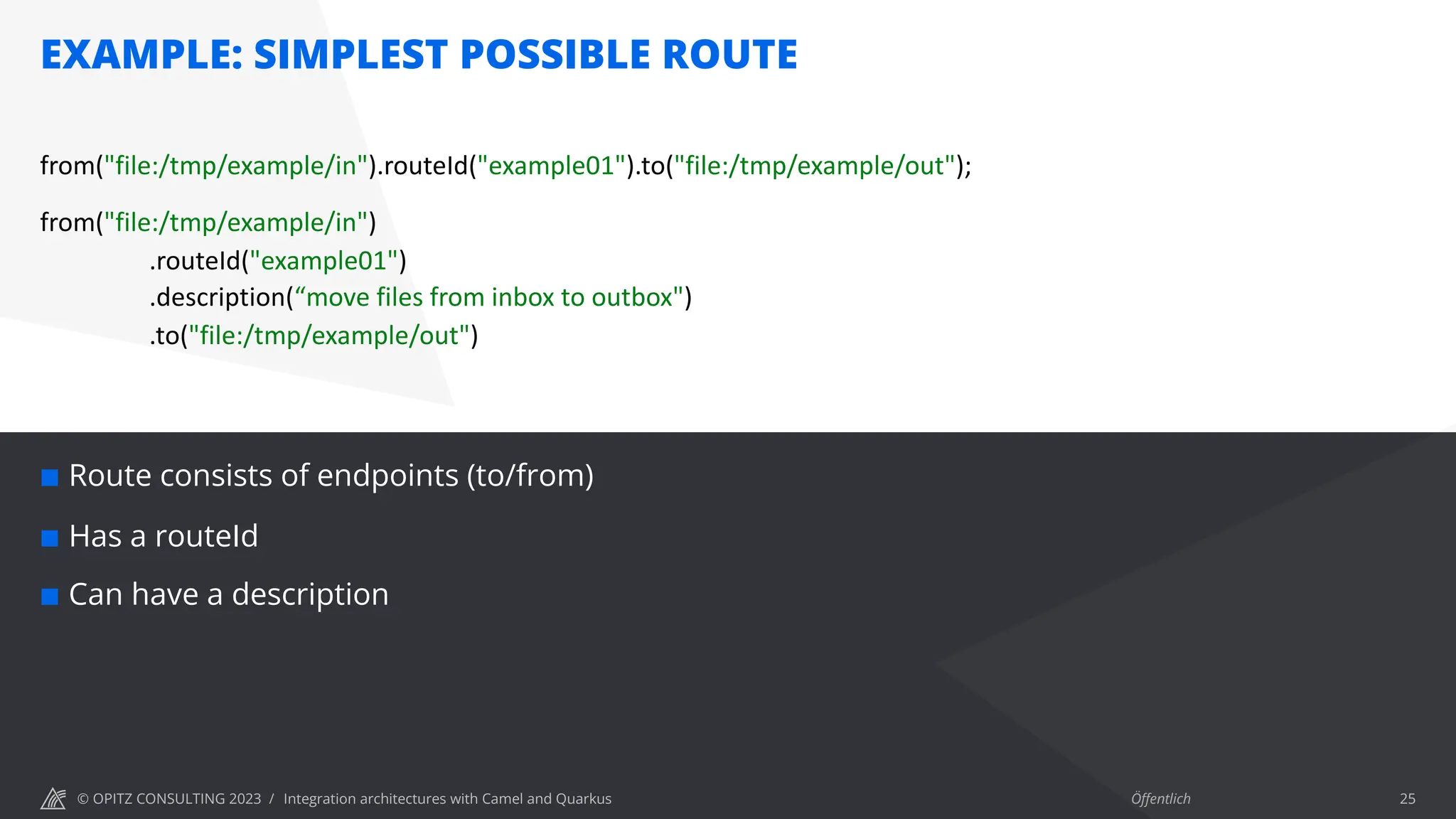

- 25. © OPITZ CONSULTING2023 / Öffentlich EXAMPLE: SIMPLEST POSSIBLE ROUTE Integration architectures with Camel and Quarkus 25 ¢ Route consists of endpoints (to/from) ¢ Has a routeId ¢ Can have a description from("file:/tmp/example/in").routeId("example01").to("file:/tmp/example/out"); from("file:/tmp/example/in") .routeId("example01") .description(“move files from inbox to outbox") .to("file:/tmp/example/out")

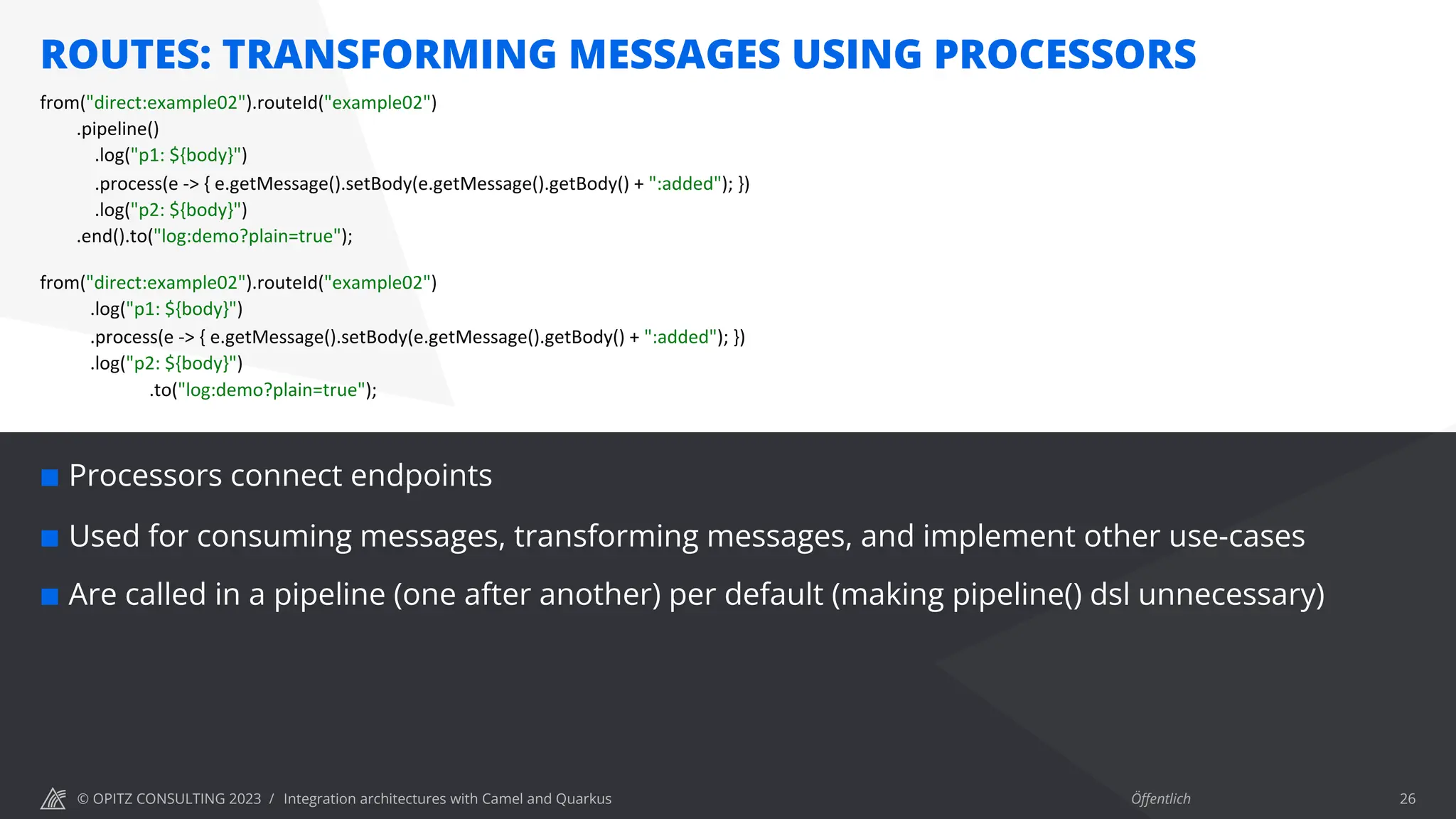

- 26. © OPITZ CONSULTING2023 / Öffentlich ROUTES: TRANSFORMING MESSAGES USING PROCESSORS Integration architectures with Camel and Quarkus 26 ¢ Processors connect endpoints ¢ Used for consuming messages, transforming messages, and implement other use-cases ¢ Are called in a pipeline (one after another) per default (making pipeline() dsl unnecessary) from("direct:example02").routeId("example02") .pipeline() .log("p1: ${body}") .process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); }) .log("p2: ${body}") .end().to("log:demo?plain=true"); from("direct:example02").routeId("example02") .log("p1: ${body}") .process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); }) .log("p2: ${body}") .to("log:demo?plain=true");

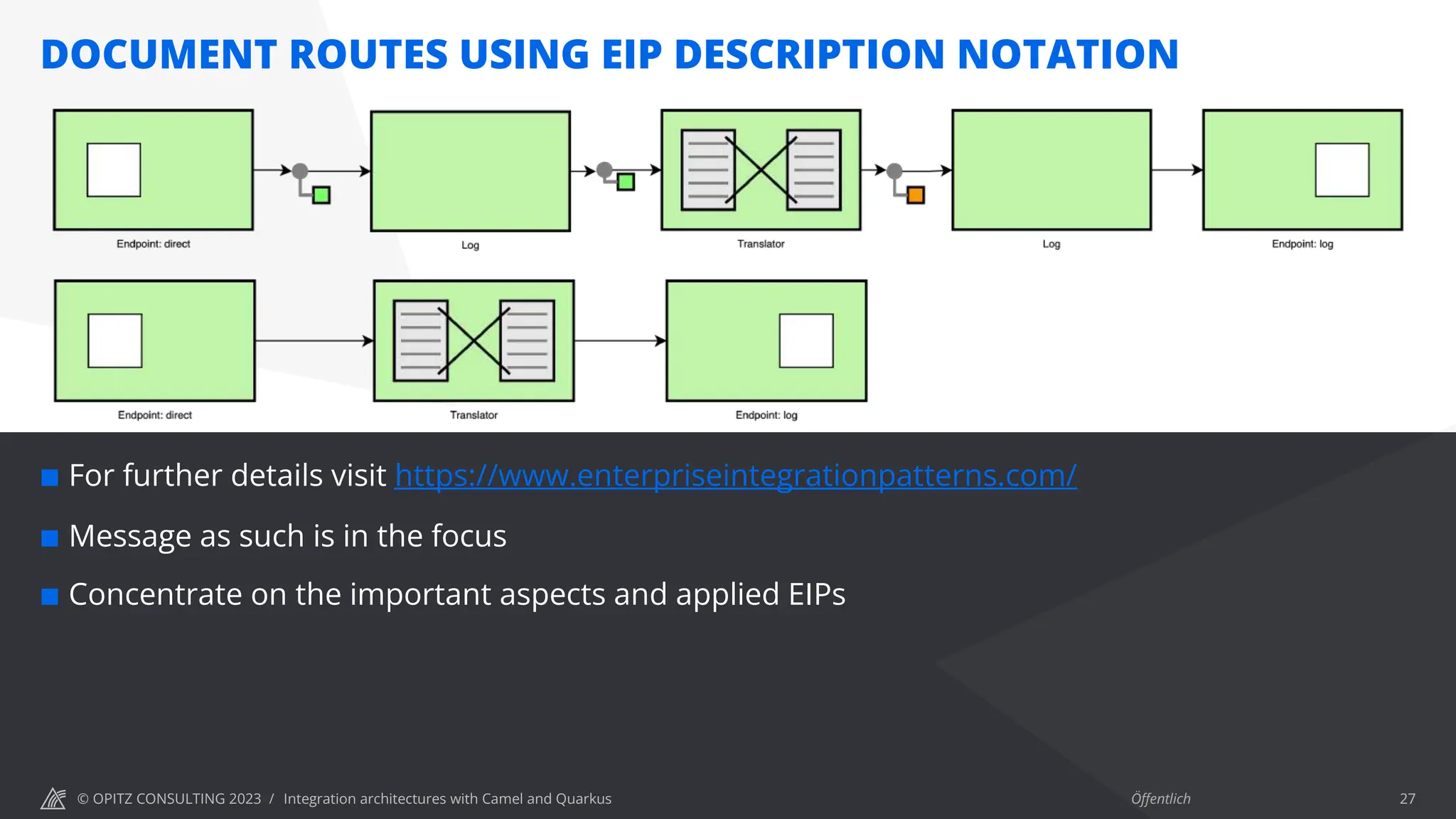

- 27. © OPITZ CONSULTING2023 / Öffentlich DOCUMENT ROUTES USING EIP DESCRIPTION NOTATION Integration architectures with Camel and Quarkus 27 ¢ For further details visit https://www.enterpriseintegrationpatterns.com/ ¢ Message as such is in the focus ¢ Concentrate on the important aspects and applied EIPs

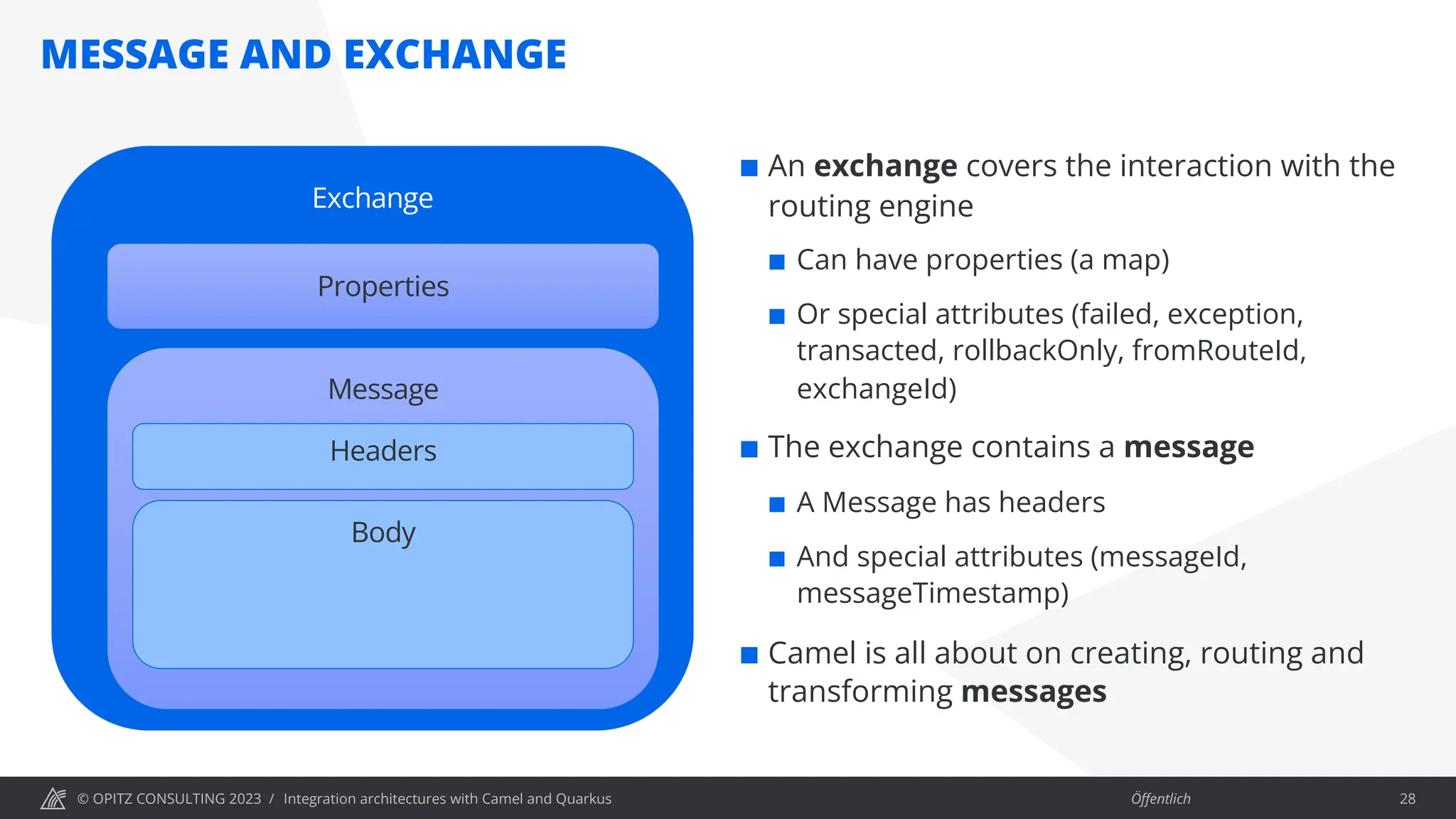

- 28. © OPITZ CONSULTING2023 / Öffentlich MESSAGE AND EXCHANGE Integration architectures with Camel and Quarkus 28 ¢ An exchange covers the interaction with the routing engine ¢ Can have properties (a map) ¢ Or special attributes (failed, exception, transacted, rollbackOnly, fromRouteId, exchangeId) ¢ The exchange contains a message ¢ A Message has headers ¢ And special attributes (messageId, messageTimestamp) ¢ Camel is all about on creating, routing and transforming messages Exchange Properties Message Headers Body
- 29. © OPITZ CONSULTING2023 / Öffentlich MULTICAST: SAME MESSAGE TO MULTIPLE ENDPOINTS Integration architectures with Camel and Quarkus 29 [ Test worker] example03 INFO p1: example03 [ Test worker] example03 INFO p2: example03 [ Test worker] demo INFO example03 § Message routed to the last endpoint is the result of the result of the last processor in the multicast. § Order matters, but is deterministic, because endpoints are called sequentially from("direct:example03").routeId("example03") .multicast() .log("p1: ${body}") .process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); }) .log("p2: ${body}") .end().to("log:demo?plain=true");
- 30. © OPITZ CONSULTING2023 / Öffentlich MULTICAST: ORDER MATTERS Integration architectures with Camel and Quarkus 30 [ Test worker] example03a INFO p1: example03a [ Test worker] example03a INFO p2: example03a [ Test worker] demo INFO example03a:added If you want to work on the results, you should define an AggregationStrategy (later lab04) from("direct:example03a").routeId("example03a") .multicast() .log("p1: ${body}") .log("p2: ${body}") .process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); }) .end().to("log:demo?plain=true");
- 31. © OPITZ CONSULTING2023 / Öffentlich MULTICAST: PARALLELIZING Integration architectures with Camel and Quarkus 31 [(lab_01) thread #6 - Multicast] example04 INFO p2: example04 [(lab_01) thread #2 - Multicast] example04 INFO p1: example04 [(lab_01) thread #2 - Multicast] demo INFO example04 (lab_01) thread #2 - Multicast] example04 INFO p1: example04 [(lab_01) thread #6 - Multicast] example04 INFO p2: example04 [(lab_01) thread #6 - Multicast] demo INFO example04 from("direct:example04").routeId("example04") .multicast().parallelProcessing() .log("p1: ${body}") .process(e -> { e.getMessage().setBody(e.getMessage().getBody() + ":added"); }) .log("p2: ${body}") .end().to("log:demo?plain=true");

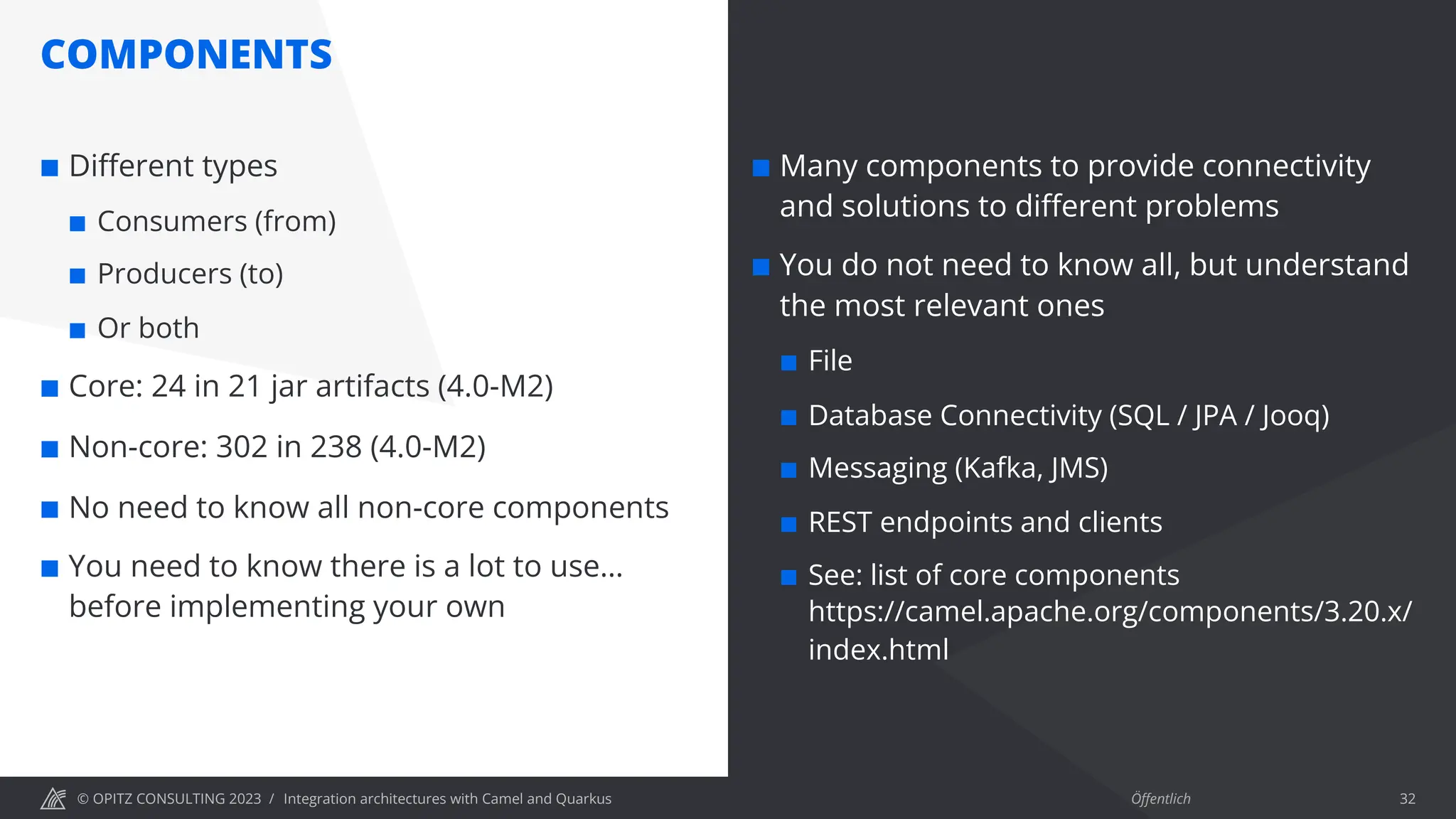

- 32. © OPITZ CONSULTING2023 / Öffentlich COMPONENTS Integration architectures with Camel and Quarkus 32 ¢ Different types ¢ Consumers (from) ¢ Producers (to) ¢ Or both ¢ Core: 24 in 21 jar artifacts (4.0-M2) ¢ Non-core: 302 in 238 (4.0-M2) ¢ No need to know all non-core components ¢ You need to know there is a lot to use… before implementing your own ¢ Many components to provide connectivity and solutions to different problems ¢ You do not need to know all, but understand the most relevant ones ¢ File ¢ Database Connectivity (SQL / JPA / Jooq) ¢ Messaging (Kafka, JMS) ¢ REST endpoints and clients ¢ See: list of core components https://camel.apache.org/components/3.20.x/ index.html
- 33. © OPITZ CONSULTING2023 / Öffentlich Integration architectures with Camel and Quarkus 33 QUARKUS & APACHE CAMEL 04

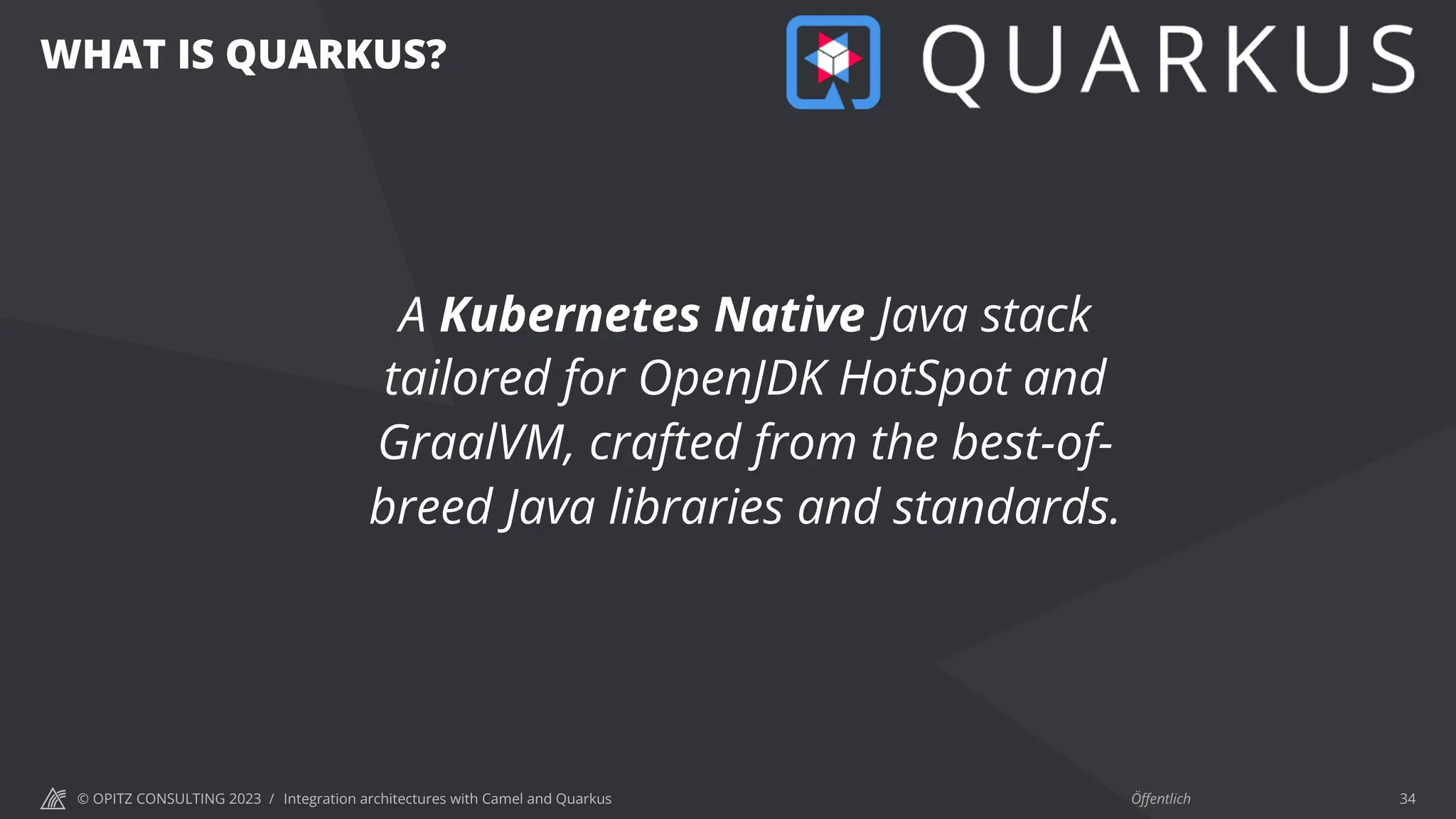

- 34. © OPITZ CONSULTING2023 / Öffentlich WHAT IS QUARKUS? Integration architectures with Camel and Quarkus 34 A Kubernetes Native Java stack tailored for OpenJDK HotSpot and GraalVM, crafted from the best-of- breed Java libraries and standards.

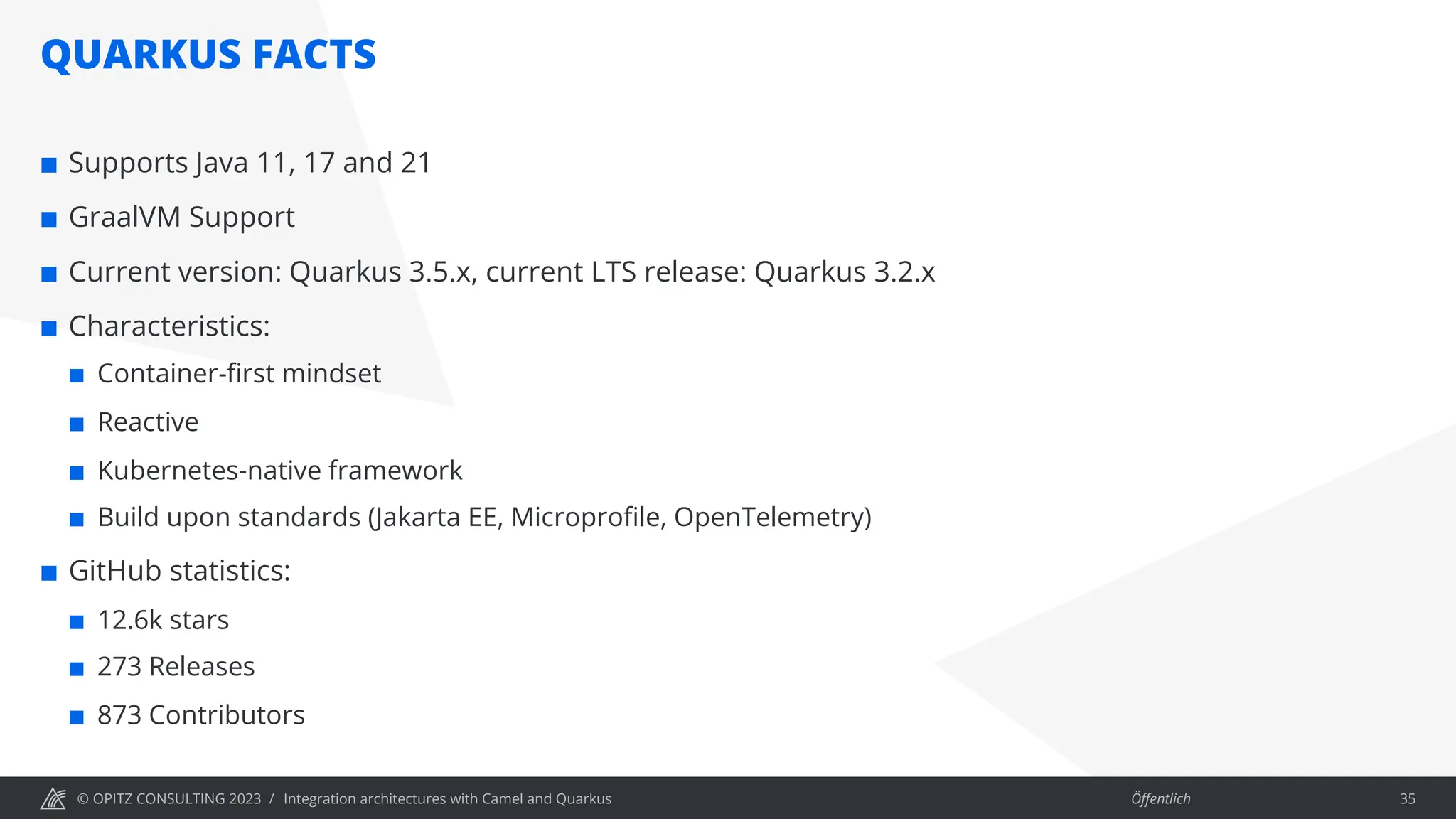

- 35. © OPITZ CONSULTING2023 / Öffentlich QUARKUS FACTS Integration architectures with Camel and Quarkus 35 ¢ Supports Java 11, 17 and 21 ¢ GraalVM Support ¢ Current version: Quarkus 3.5.x, current LTS release: Quarkus 3.2.x ¢ Characteristics: ¢ Container-first mindset ¢ Reactive ¢ Kubernetes-native framework ¢ Build upon standards (Jakarta EE, Microprofile, OpenTelemetry) ¢ GitHub statistics: ¢ 12.6k stars ¢ 273 Releases ¢ 873 Contributors

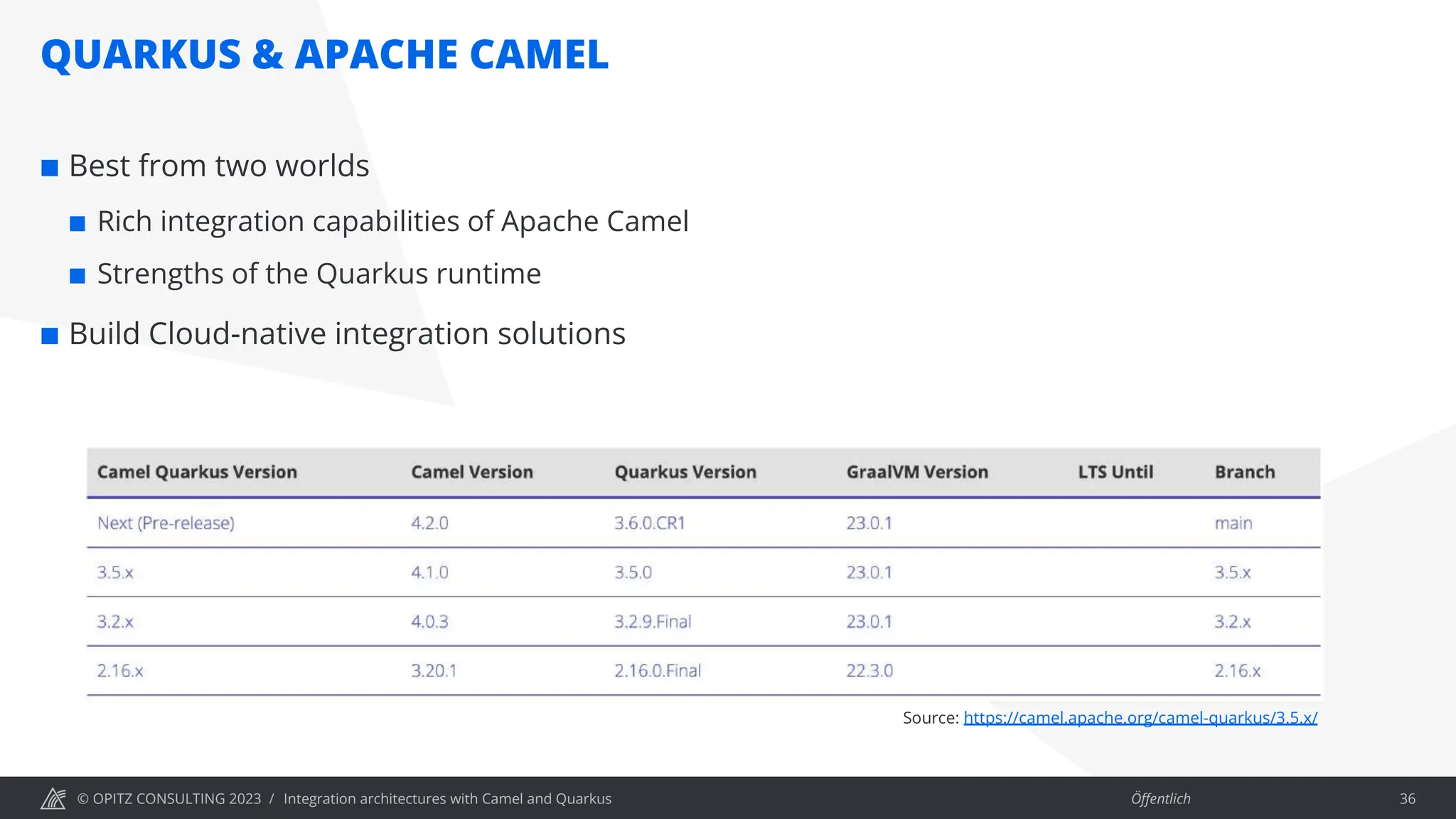

- 36. © OPITZ CONSULTING2023 / Öffentlich QUARKUS & APACHE CAMEL Integration architectures with Camel and Quarkus 36 ¢ Best from two worlds ¢ Rich integration capabilities of Apache Camel ¢ Strengths of the Quarkus runtime ¢ Build Cloud-native integration solutions Source: https://camel.apache.org/camel-quarkus/3.5.x/
