1. EEGDIGITRACK
AEEG/CFM
Devices for Long-term Neurophysiological
Monitoring
Elmiko Biosignals Ltd.

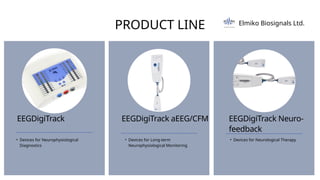

2. PRODUCT LINE
EEGDigiTrack
• Devices for Neurophysiological
Diagnostics
EEGDigiTrack aEEG/CFM
• Devices for Long-term
Neurophysiological Monitoring
EEGDigiTrack Neuro-
feedback
• Devices for Neurological Therapy
Elmiko Biosignals Ltd.

3. • Amplitude-Integrated EEG (aEEG) is long-term
monitoring of the brain's electrical activity in a
compressed form of conventional real-time EEG.
• Displays the EEG signal as a CFM/aEEG trend.
• Primarily used in intensive care units (ICU) and
neonatal intensive care units (NICU).
• Identifies seizure patterns and monitors
neurological conditions.
What is CFM/aEEG

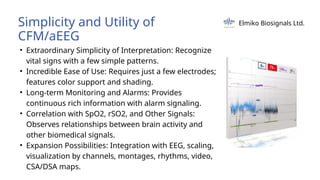

4. Simplicity and Utility of
CFM/aEEG
• Extraordinary Simplicity of Interpretation: Recognize
vital signs with a few simple patterns.
• Incredible Ease of Use: Requires just a few electrodes;
features color support and shading.
• Long-term Monitoring and Alarms: Provides
continuous rich information with alarm signaling.
• Correlation with SpO2, rSO2, and Other Signals:
Observes relationships between brain activity and
other biomedical signals.
• Expansion Possibilities: Integration with EEG, scaling,
visualization by channels, montages, rhythms, video,
CSA/DSA maps.
Elmiko Biosignals Ltd.

5. • Circulatory and respiratory failure.
• Hypoxic-ischemic encephalopathy.
• Seizures.
• Neuroinfections.
• Sepsis.
• Hydrocephalus.
• Metabolic disorders.
• Monitoring drug therapy.
Recommended Uses of
CFM/aEEG

6. • Typically uses simplified layout with two or four
electrodes for neonates.
• Electrodes placed in frontal, central, and parietal
areas.
• Common placement: F3, F4, C3, C4, P3, P4, with
reference at Fpz, Cz, A1, or A2.
Electrode Placement for
CFM/aEEG
Elmiko Biosignals Ltd.

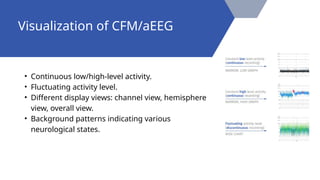

7. • Continuous low/high-level activity.
• Fluctuating activity level.
• Different display views: channel view, hemisphere
view, overall view.
• Background patterns indicating various
neurological states.
Visualization of CFM/aEEG

8. • Rapid bedside neurological interpretation.
• Cost-effective compared to continuous EEG
monitoring.
• Colored CFM (CCFM) for easy observation.
• Predicts pathologies and acute conditions before
clinical symptoms appear.
Advantages of aEEG
Monitoring
Elmiko Biosignals Ltd.

9. • Normal Continuous Recording: Indicates cyclic
sleep-wake patterns in full-term newborns.
• Continuous Recording without Variability: Suggests
pathology; no visible sleep-wake cycle.
• Discontinuous Recording: Normal in preterm
infants, broader fragment in the sleep-wake cycle.
Background Pattern Interpretation

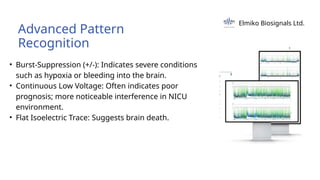

10. • Burst-Suppression (+/-): Indicates severe conditions
such as hypoxia or bleeding into the brain.
• Continuous Low Voltage: Often indicates poor
prognosis; more noticeable interference in NICU
environment.
• Flat Isoelectric Trace: Suggests brain death.
Advanced Pattern
Recognition
Elmiko Biosignals Ltd.

11. • Displays SpO2 and rSO2 values alongside
CFM trend graph.
• Assists in determining whether brain
activity depression is due to hypoxia or
respiratory failure.
Correlation with Other Signals

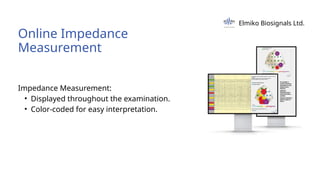

12. Impedance Measurement:
• Displayed throughout the examination.
• Color-coded for easy interpretation.
Online Impedance
Measurement
Elmiko Biosignals Ltd.

13. • Integrates spectral analysis of EEG.
• Color-coded graph showing dominant
frequencies over time.
• Enhances interpretation by comparing
amplitude and frequency trends.
Frequency Trend Visualization

14. • Identifies EEG signal fragments indicating seizure
activity.
• Correlates CFM with EEG to detect epileptic
episodes.
Seizure Detection
Elmiko Biosignals Ltd.

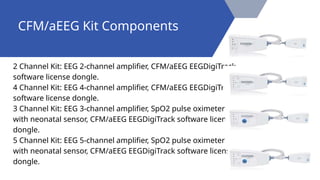

15. 2 Channel Kit: EEG 2-channel amplifier, CFM/aEEG EEGDigiTrack
software license dongle.
4 Channel Kit: EEG 4-channel amplifier, CFM/aEEG EEGDigiTrack
software license dongle.
3 Channel Kit: EEG 3-channel amplifier, SpO2 pulse oximeter
with neonatal sensor, CFM/aEEG EEGDigiTrack software license
dongle.
5 Channel Kit: EEG 5-channel amplifier, SpO2 pulse oximeter
with neonatal sensor, CFM/aEEG EEGDigiTrack software license
dongle.
CFM/aEEG Kit Components

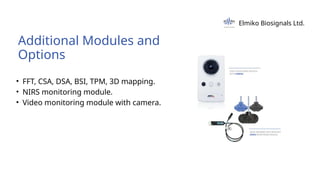

16. • FFT, CSA, DSA, BSI, TPM, 3D mapping.
• NIRS monitoring module.
• Video monitoring module with camera.
Additional Modules and
Options
Elmiko Biosignals Ltd.

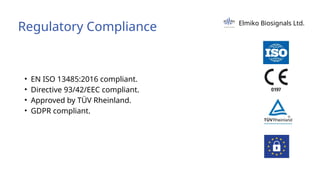

17. Regulatory Compliance Elmiko Biosignals Ltd.
• EN ISO 13485:2016 compliant.
• Directive 93/42/EEC compliant.
• Approved by TÜV Rheinland.
• GDPR compliant.
