1. Serverworks Lightning Talks Tournament, 29th July, 2016
Easy way to begin
Computational Fluid Dynamics (CFD)
on Cloud
Takahisa Shiratori
@takashiratori
Dept. Tech. 2
Serverworks Co., Ltd.
Demonstration on YouTube: https://youtu.be/ft6hIxjFQKk?t=12m33s

3. Computational Fluid Dynamics (CFD)

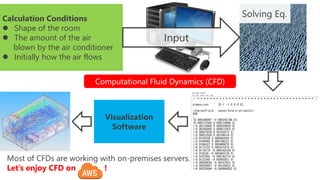

4. Calculation Conditions
- Shape of the room
- etc…
CalculationInput
Output
Visualization
Most of CFDs are working with on-premises servers.
Let’s enjoy CFD on !

5. Why on AWS?
What is the benefit?

6. Low Initial Cost
Easy Backup
Elastic Computing Resource

7. Low Initial Cost
On-premises
Cost
Time

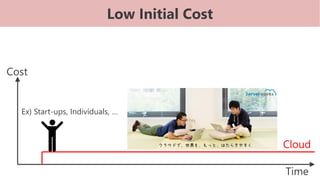

8. Low Initial Cost
Cost
Time
Cloud
Ex) Start-ups, Individuals, …

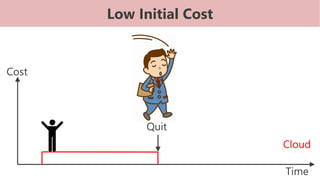

9. Low Initial Cost
Cost
Time
Cloud
Quit

10. Easy Backup
On-premises

11. Easy Backup
On-premises

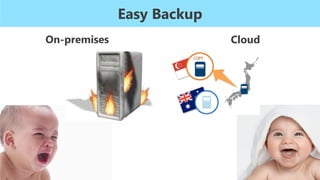

12. Easy Backup
On-premises Cloud

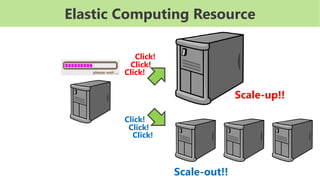

13. Elastic Computing Resource

14. Elastic Computing Resource
Click!
Click!
Click!
Click!
Click!
Click!
Scale-up!!
Scale-out!!

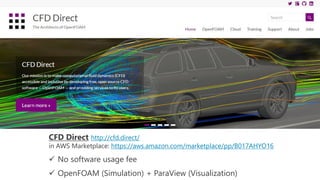

15. CFD Direct http://cfd.direct/
in AWS Marketplace: https://aws.amazon.com/marketplace/pp/B017AHYO16
✓ No software usage fee
✓ OpenFOAM (Simulation) + ParaView (Visualization)

16. Calculation Conditions
- Shape of the room
- etc…
OpenFOAM
(Calculation)Input
Output
ParaView
(Visualization)

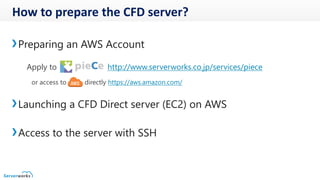

17. How to prepare the CFD server?
Preparing an AWS Account
Apply to http://www.serverworks.co.jp/services/piece
or access to directly https://aws.amazon.com/
Launching a CFD Direct server (EC2) on AWS
Access to the server with SSH

18. 1. Choose your region
2. Click “EC2”

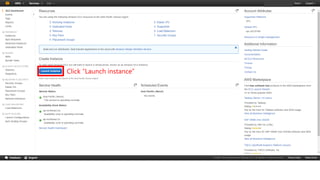

19. Click “Launch instance”

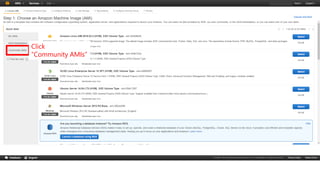

20. Click
“Community AMIs”

21. Input “CFD Direct”, and press Enter

22. Click “Select” of “CFD Direct From the Cloud”

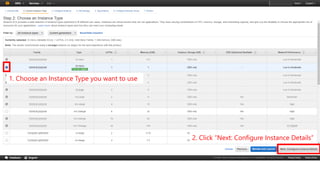

23. 1. Choose an Instance Type you want to use
2. Click “Next: Configure Instance Details”

24. The default parameter is enough to just use CFD Direct.
Click “Next: Add Storage”

25. 1. Input the size of the Storage
2. Click “Add New Volume”
if you want two or more volumes
3. Click “Next: Tag Instance”

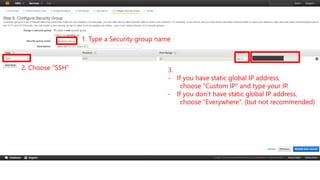

26. 1. Type a Security group name
2. Choose “SSH” 3.
- If you have static global IP address,
choose “Custom IP” and type your IP.
- If you don’t have static global IP address,
choose “Everywhere”. (but not recommended)

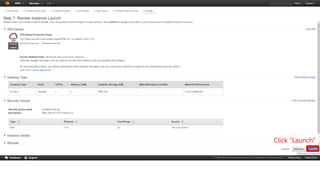

27. Click “Launch”

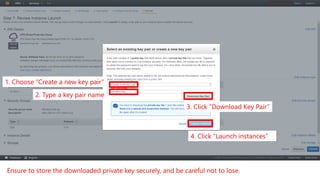

28. 1. Choose “Create a new key pair”
2. Type a key pair name
Ensure to store the downloaded private key securely, and be careful not to lose.
3. Click “Download Key Pair”
4. Click “Launch instances”

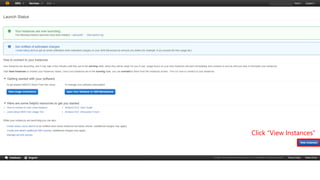

29. Click “View Instances”

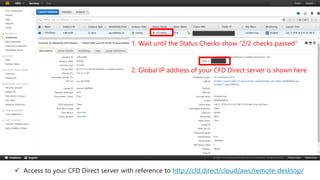

30. 1. Wait until the Status Checks show “2/2 checks passed”
2. Global IP address of your CFD Direct server is shown here
✓ Access to your CFD Direct server with reference to http://cfd.direct/cloud/aws/remote-desktop/

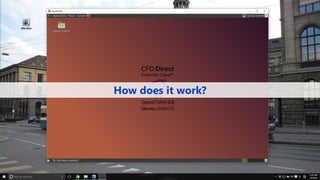

31. How does it work?

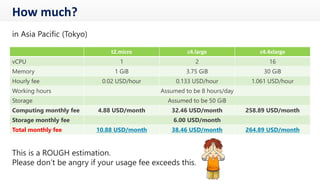

32. How much?
t2.micro c4.large c4.4xlarge
vCPU 1 2 16
Memory 1 GiB 3.75 GiB 30 GiB
Hourly fee 0.02 USD/hour 0.133 USD/hour 1.061 USD/hour
Working hours Assumed to be 8 hours/day
Storage Assumed to be 50 GiB
Computing monthly fee 4.88 USD/month 32.46 USD/month 258.89 USD/month
Storage monthly fee 6.00 USD/month
Total monthly fee 10.88 USD/month 38.46 USD/month 264.89 USD/month
in Asia Pacific (Tokyo)
This is a ROUGH estimation.
Please don’t be angry if your usage fee exceeds this.

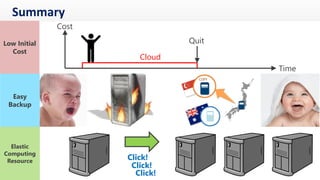

33. Summary
Low Initial
Cost
Easy
Backup
Elastic
Computing
Resource Click!
Click!
Click!
Cost
Time
Cloud
Quit

34. Thank you for your kind attention!
Contact Us
Serverworks Co., Ltd.
sales@serverworks.co.jp
+81-(0)3-5579-8029
日本語 http://www.serverworks.co.jp
English http://www.serverworks.co.jp/en
