1. CASCADING STYLE SHEETS
By
Lakshmi R
Asst. Professor
Dept. of ISE

2. CSS
 HTML should not describe the formatting or
presentation of HTML documents
 CSS- standard for describing the appearance
of HTML documents.
Benefits:
 Improved control over formatting.
 Improved site maintainability
 Improved accessibility
 Improved page download speed
 Improved output flexibility
Lakshmi R, Asst. Professor, Dept. of ISE

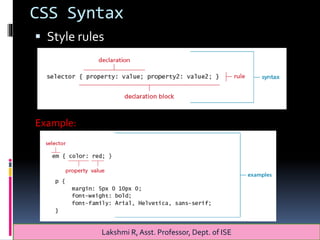

3. CSS Syntax
 Style rules
Example:
Lakshmi R, Asst. Professor, Dept. of ISE

4. Properties
Lakshmi R, Asst. Professor, Dept. of ISE

5. Lakshmi R, Asst. Professor, Dept. of ISE

6. Properties
Lakshmi R, Asst. Professor, Dept. of ISE
text-align: center | left | right | justify
text-decoration: overline | line-through | underline | none
text-indent: 50px

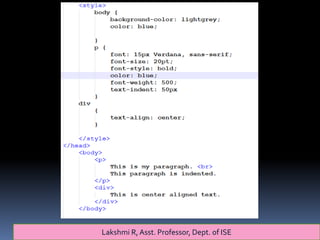

7. Lakshmi R, Asst. Professor, Dept. of ISE

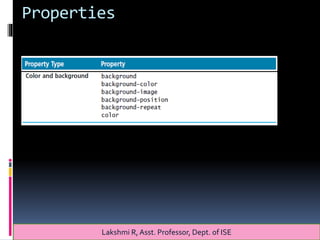

8. Properties
Lakshmi R, Asst. Professor, Dept. of ISE

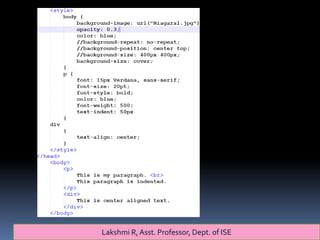

9. Lakshmi R, Asst. Professor, Dept. of ISE

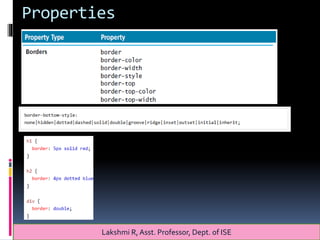

10. Properties
Lakshmi R, Asst. Professor, Dept. of ISE

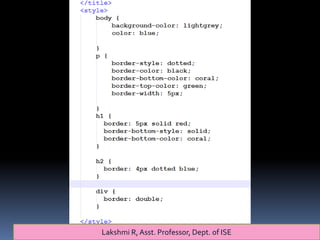

11. Lakshmi R, Asst. Professor, Dept. of ISE

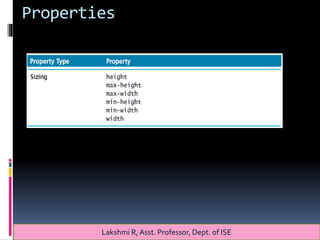

12. Properties
Lakshmi R, Asst. Professor, Dept. of ISE

13. Lakshmi R, Asst. Professor, Dept. of ISE

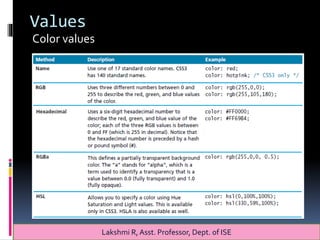

14. Values
Color values
Lakshmi R, Asst. Professor, Dept. of ISE

15. Lakshmi R, Asst. Professor, Dept. of ISE

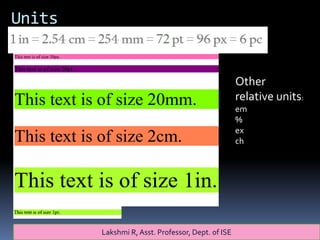

Units
Other
relative units:
em
%
ex
ch

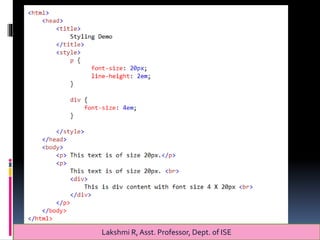

16. Lakshmi R, Asst. Professor, Dept. of ISE

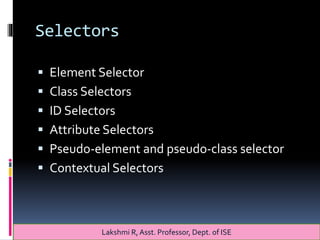

17. Selectors
 Element Selector
 Class Selectors
 ID Selectors
 Attribute Selectors
 Pseudo-element and pseudo-class selector
 Contextual Selectors
Lakshmi R, Asst. Professor, Dept. of ISE

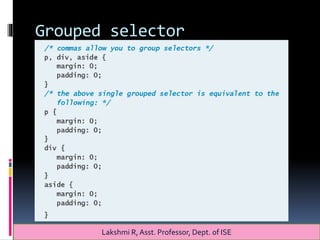

18. Grouped selector
Lakshmi R, Asst. Professor, Dept. of ISE

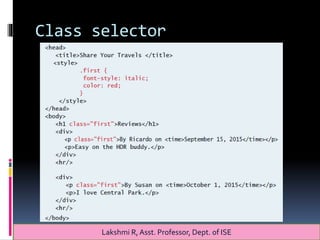

19. Class selector
Lakshmi R, Asst. Professor, Dept. of ISE

20. Id selector
Lakshmi R, Asst. Professor, Dept. of ISE

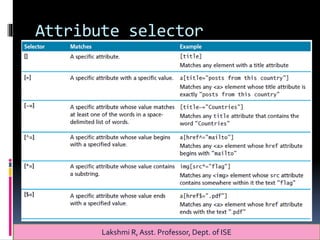

21. Attribute selector
Lakshmi R, Asst. Professor, Dept. of ISE

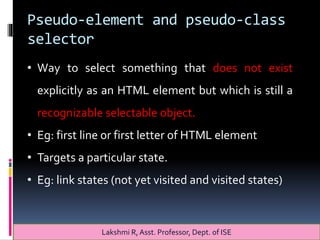

22. Pseudo-element and pseudo-class
selector
Lakshmi R, Asst. Professor, Dept. of ISE
• Way to select something that does not exist
explicitly as an HTML element but which is still a
recognizable selectable object.
• Eg: first line or first letter of HTML element
• Targets a particular state.
• Eg: link states (not yet visited and visited states)

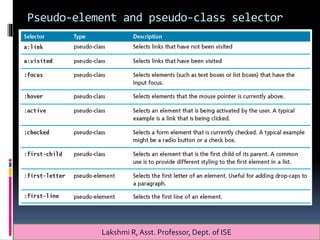

23. Pseudo-element and pseudo-class selector
Lakshmi R, Asst. Professor, Dept. of ISE

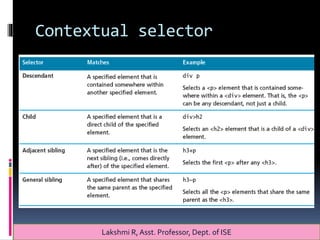

24. Contextual selector
Lakshmi R, Asst. Professor, Dept. of ISE

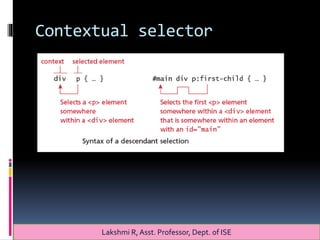

25. Contextual selector
Lakshmi R, Asst. Professor, Dept. of ISE

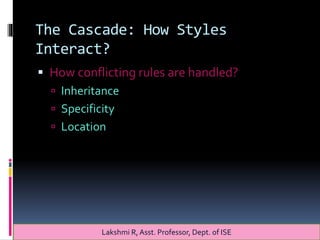

26. The Cascade: How Styles
Interact?
 How conflicting rules are handled?
 Inheritance
 Specificity
 Location
Lakshmi R, Asst. Professor, Dept. of ISE

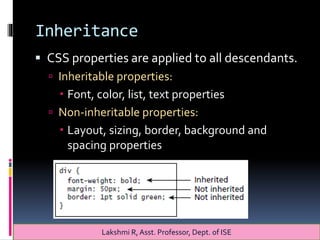

27. Inheritance
 CSS properties are applied to all descendants.
 Inheritable properties:
 Font, color, list, text properties
 Non-inheritable properties:
 Layout, sizing, border, background and
spacing properties
Lakshmi R, Asst. Professor, Dept. of ISE

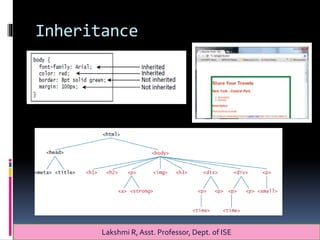

28. Inheritance
Lakshmi R, Asst. Professor, Dept. of ISE

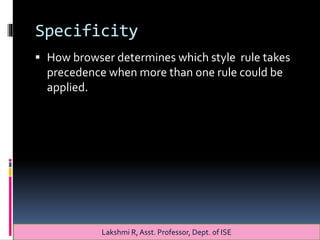

29. Specificity
 How browser determines which style rule takes
precedence when more than one rule could be
applied.
Lakshmi R, Asst. Professor, Dept. of ISE

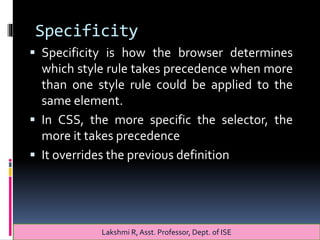

30. Specificity
 Specificity is how the browser determines
which style rule takes precedence when more
than one style rule could be applied to the
same element.
 In CSS, the more specific the selector, the
more it takes precedence
 It overrides the previous definition
Lakshmi R, Asst. Professor, Dept. of ISE

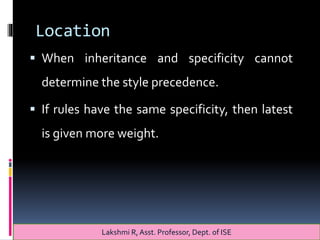

31. Location
 When inheritance and specificity cannot
determine the style precedence.
 If rules have the same specificity, then latest
is given more weight.
Lakshmi R, Asst. Professor, Dept. of ISE

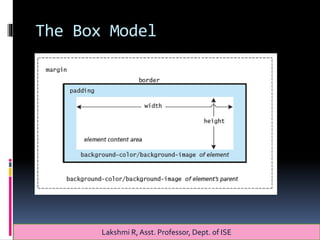

32. The Box Model
Lakshmi R, Asst. Professor, Dept. of ISE

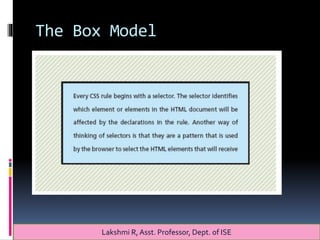

33. The Box Model
Lakshmi R, Asst. Professor, Dept. of ISE

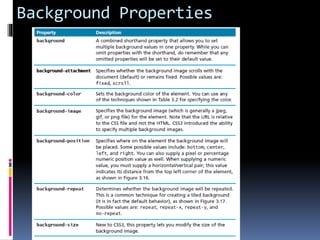

34. Background Properties

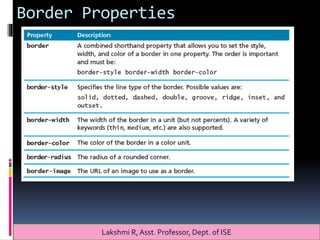

35. Border Properties
Lakshmi R, Asst. Professor, Dept. of ISE

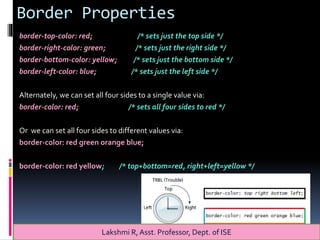

36. Border Properties
border-top-color: red; /* sets just the top side */
border-right-color: green; /* sets just the right side */
border-bottom-color: yellow; /* sets just the bottom side */
border-left-color: blue; /* sets just the left side */
Alternately, we can set all four sides to a single value via:
border-color: red; /* sets all four sides to red */
Or we can set all four sides to different values via:
border-color: red green orange blue;
border-color: red yellow; /* top+bottom=red, right+left=yellow */
Lakshmi R, Asst. Professor, Dept. of ISE

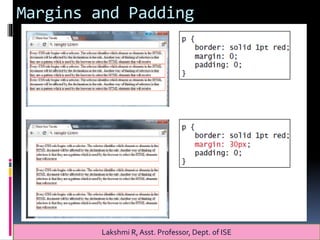

37. Margins and Padding
Lakshmi R, Asst. Professor, Dept. of ISE

38. Margins and Padding
Observe collapsed margin
The adjoining margins of two or more boxes can combine to form a single
margin.
Lakshmi R, Asst. Professor, Dept. of ISE

39. Box Dimensions
Width and the height only refer to the size of the content area
The total size of an element is equal to the size of its content area plus the sum
of its padding, borders, and margins.
Lakshmi R, Asst. Professor, Dept. of ISE

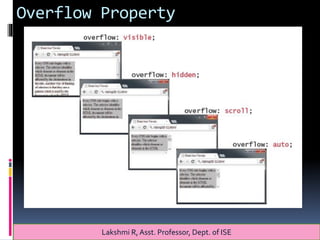

40. Overflow Property
Lakshmi R, Asst. Professor, Dept. of ISE

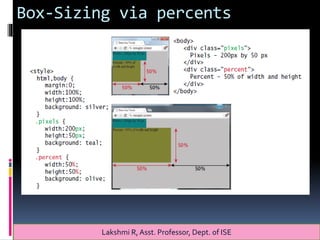

41. Box-Sizing via percents
Lakshmi R, Asst. Professor, Dept. of ISE

42. Box-Sizing via percents
Lakshmi R, Asst. Professor, Dept. of ISE

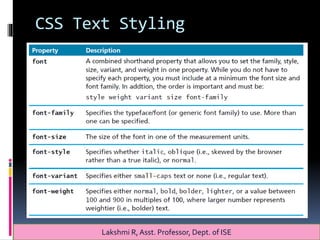

43. CSS Text Styling
Lakshmi R, Asst. Professor, Dept. of ISE

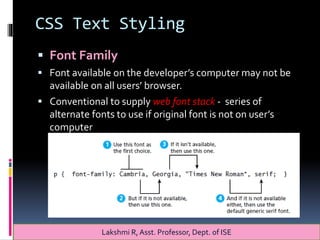

44. CSS Text Styling
 Font Family
 Font available on the developer’s computer may not be
available on all users’ browser.
 Conventional to supply web font stack - series of
alternate fonts to use if original font is not on user’s
computer
Lakshmi R, Asst. Professor, Dept. of ISE

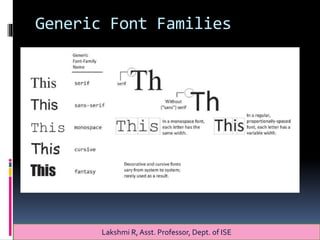

45. Generic Font Families
Lakshmi R, Asst. Professor, Dept. of ISE

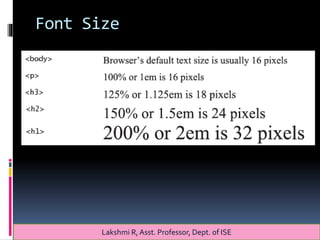

46. Font Size
Lakshmi R, Asst. Professor, Dept. of ISE

47. References:
[1] Randy Connolly, Ricardo Hoar,
"Fundamentals ofWeb Development”,
1stEdition,Pearson Education India.
(ISBN:978-9332575271)
[2] https://www.w3schools.com/
Lakshmi R, Asst. Professor, Dept. of ISE
