Dutton Initial Packet

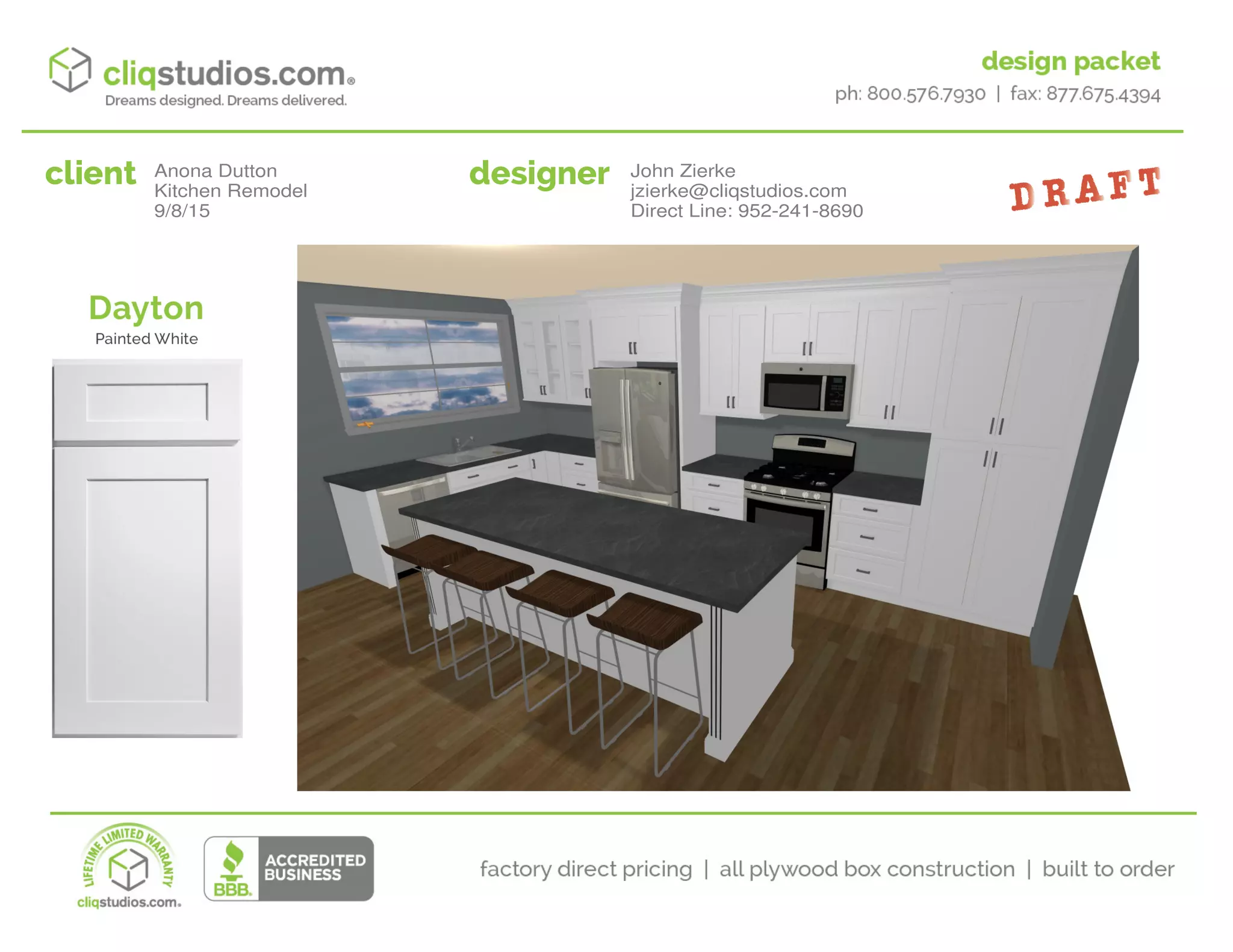

- 1. Anona Dutton Kitchen Remodel 9/8/15 JohnZierke jzierke@cliqstudios.com Direct Line: 952-241-8690
- 2.
- 3.
- 4. UF336 W2736 W2736 UF336 UF336 W2436 W3018 W2436 UF336 WR361824 UF390 U309024-ROT-4 UF330 DB24DB24 UF330 RR96L DB24BER33-SSR RR96R TCM8 OGP8 CTM8 CTM8 30"Range BTK8 BTK8 30" Microhood 18" BTK8 Fridge opening 36" x 72" 2 Wood Lazy Susans 210"11 2" 96" 161 2"54"6" 4RollOutsTrays Glass NOT Provided Glass NOT Provided
- 5.
- 6.
- 12. Refrigerator RR96 PanelInstall This diagram depicts how to enclose the side(s) of a refrigerator with standard RR96 panels. Refrigerator will extend out beyond RR96 & the countertop at least 4"- 6". Dimensions will vary based on plumbness of wall construction. Installer will provide wood blocking and the means to properly secure panels and WR cabinet to wall and floor. Wall WR Cabinet RR96L RR96R Applied TEFP or BTEFP (trimmed to fit all the way to wall) Applied TEFP or BTEFP (trimmed to fit all the way to wall)Refrigerator View: Top, looking down =TEFP or BTEFP =RR96L & RR96R =UF filler (optional) = Wood Blocking (not provided) WR Cabinet adjacent wall cabinet adjacent base cabinet WR Cabinet adjacent base cabinet adjacent wall cabinet Refrigerator Return Standard Depth 24" ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com CliqStudios.com® , LLC reserves the right to change, modify or discontinue policy and products at any time. All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.
- 13. cabinetfaceframe cabinetdoor Cabinet Side wood blocking (notprovided) 3½" ceiling TCM8 OGP8 4¾" ¼" crown molding moves up/down along ceiling Crown Molding TCM8 | OGP8 ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com CliqStudios.com® , LLC reserves the right to change, modify or discontinue policy and products at any time. All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.
- 14. CTM8 1½" CabinetFaceFrame CabinetDoor ¾" Light Rail CTM8 |Horizontal ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com CliqStudios.com® , LLC reserves the right to change, modify or discontinue policy and products at any time. All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation. Cabinet Side
- 15. CabinetFaceFrame CabinetDoor Base Cabinet Side OGP8 wood blocking (not provided) Floor Void ToeKick Area ¼" 4¾" Floor 3½" 4½" Decorative Toekick OGP8 ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com CliqStudios.com® , LLC reserves the right to change, modify or discontinue policy and products at any time. All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.
- 16. CliqStudios.com, LLC reservesthe right to change, modify or discontinue programs at any time v 1-2015 Because walls are usually not straight, level, square, flush or plumb we recommend the following accessories to accommodate constrution space imperfections for the floor, wall or ceiling and may have included them in your order to finish your space. Attention: recommended accessories for your designDreams designed. Dreams delivered. 96" 4½" UF1.542 1½" 42" UF1.596 1½" 96" UF342 3" 42" UF336 3" 36" UF330 3" 30" UF396 3" 96" UF642 6" 42" UF696 6" 96" A B A B ¾" 96" ¾" ¾" IQR8 ƒ Solid hardwood ƒ Bold line represents finished edge ¾" 96" ¼" SM8 ƒ Solid hardwood ƒ Bold line represents finished edge ƒ Solid hardwood ƒ Front & sides finished back wall floor side wall back wall floor gap created by filler between cabinet & wall Inside Quarter Round is more than a decorative accent. It is installed after the flooring and is primarily used to cover the gapping resulting from shims to level cabinets. Quarter Round can also help cover up gaps in the floor - especially with tile. side wall back wall floor cabinet side floor back wallside wall cabinet side FILLERS Fillers are used to “fill” the gap between a wall and the end run of cabinets, and sometimes between cabinets. Fillers can also be used horizontally for decorative molding applications. Field install and trim to width/height. Note: Fillers also are used to provide space between cabinet and wall for proper door swing operation to provide cabinet access, especially with decorative hardware and roll out trays BTK8 ƒ Plywood veneer w/ engineered core ƒ Bold line represents finished edge Base ‘Toe Kick’ is used as a panel to cover up the gapping created by the placement of cabinets. It is applied to the recessed area where the cabinet meets the floor. SM8, or Scribe molding, is used along the wall when cabinets/fillers meet a non-plumb wall to hide gapping between the cabinet and the wall. cabinet side
- 17. Wood is aproduct of nature with different grain patterns, color variations, aging patterns, and mineral streaks which add to the beauty and distinction of natural hardwood products. These wood variations are not considered a defect and will not be subject to warranty replacement. Painted Cabinets may require additional maintenance. Over time, painted finishes will develop hairline cracks from the results of natural expansion and contraction of the wood. Visit our website for more information on finish characteristics Do not begin demolition of space or existing cabinetry prior to receipt and inspection of your new cabinets, as missing or damaged parts may delay your installation. Any install delays, trip charges, contractor fees, etc. due to pre-scheduling your installer are your responsibility. CliqStudios.com is not liable for these costs, and has recommended against installation prior to inspection and receipt of all original and replacement orders. measurements installation wood & finish characteristics You have provided, and are responsible for, all measurements. Please verify all dimensions prior to the purchase of your cabinets: Any changes made after the order has been placed will be subject to a 25% restocking fee and additional shipping charges. Visit our website for more information on our Return Policy At CliqStudios.com, we understand that remodeling projects can be stressful, time consuming, and may disrupt areas of your home that your rely on. In our experience, making sure that you are aware of what to expect is the most effective way to navigate the process as smoothly as possible. Thank you for choosing CliqStudios.com for your cabinetry project! • Appliances • Window/Door dimensions and location • Ceiling and/or soffit heights • Special considerations & obstructions • All drawings, renderings and design information provided by designer Please read the following carefully prior to the purchase of your order: what to expect order confirmation page 1 of 2 Dreams designed. Dreams delivered. ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com CliqStudios.com® , LLC reserves the right to change, modify or discontinue policy and products at any time. All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.
- 18. terms & conditions _____________________________________________ Customer Signature Date _________________________________ Customer Printed Name In placing your order with Cliqstudios.com, you agree that you have read and understand this documentation, and that you agree to the terms and conditions of Cliqstudios.com. I have read and I understand the above Cliqstudios.com Final Steps and have verified and approved all of the conditions, including any drawings, renderings or pictures of design plan, that were included with the final design packet with designer. order receipt & inspection Once order has been received promptly inspect for any damaged or missing items. If you have any damaged items you will need to contact Customer Service as soon as possible. Replacement orders usually ship in less than one week. • phone: 800.576.7930 ext. 561 • email: customerservice@cliqstudios.com Standard Home Delivery order will be shipped to a location accessible by a pallet jack to the first secure, dry area (usually a garage), on the same level as the truck tires. If Standard Home Delivery cannot be accommodated please contact your designer before purchase to arrange for Limited or Restricted delivery; additional charges will apply. Cliqstudios.com will notify you once the order has left our facility via email. You will be contacted to schedule an eight (8) hour delivery window directly by the delivery carrier. Shipments may be delayed due to weather, mechanical issues, holidays, or other situations relating to delivery coordination. standard delivery If you haven’t already please take the time to view our video which outlines what to expect and easy things that you can do to make the delivery and receipt of your cabinet order go as smoothly as possible. Visit our website to view deilvery video To send signature back to designer you may: 1. Scan & email to your designer 2. Fax to 877-675-4394 attention your designer 3. Or reply back via email confirming your agreement to the Terms & Conditions what to expect order confirmation page 2 of 2 Dreams designed. Dreams delivered. ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com CliqStudios.com® , LLC reserves the right to change, modify or discontinue policy and products at any time. All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.
