This document provides details for a kitchen renovation project, including a list of cabinetry, appliances, and other items being ordered. It also includes dimensions for the layout and instructions for installation. The client is notified that wood variations and minor cracks in painted finishes are normal over time. The document outlines terms, conditions, delivery and inspection procedures for the order.

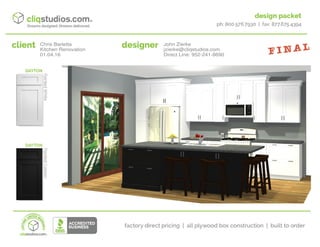

1. Chris Barletta
Kitchen Renovation
01.04.16
John Zierke
jzierke@cliqstudios.com
Direct Line: 952-241-8690

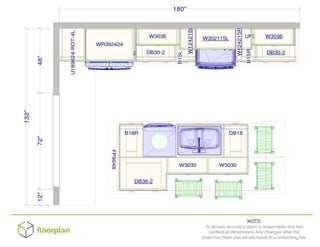

2. U189624-ROT-4L
DB18SB36B18R
FP9648
DB36-2
RR96R DB30-2
B15L
B15R
DB30-2
UF336WR362424
W3030 W3030
W3036
W124215L
W302115L
W124215R
UF336 W3036
132"
180"
48"12"72"

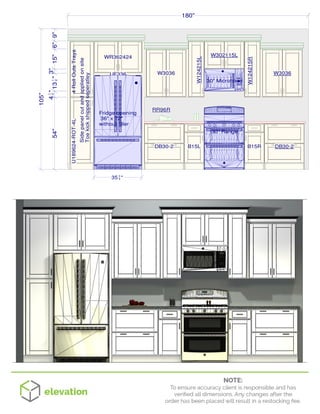

3. W3036W3036
W302115L
W124215L
W124215R
U189624-ROT-4L
RR96R
DB30-2 B15L DB30-2
WR362424
UF336
B15R
54"131
2"9"
180"
105"
35 5
8 "
Sidepanelcutandappliedonsite
Toekickshippedseperatley
3"
4RollOutsTrays
Fridge opening
36" x 72"
without filler
30" Range
30" Microhood
15"6"
41
2"

4. DB18 SB36 B18R
13011
16"
24"Dishwasher
BTK8
Cut both island
side panels from
FP9648 on site

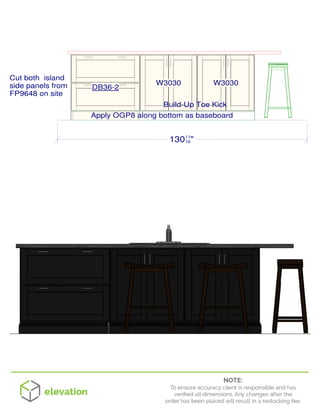

5. W3030 W3030
DB36-2
13011
16"
Build-Up Toe Kick
Apply OGP8 along bottom as baseboard
Cut both island
side panels from
FP9648 on site

8. cabinetfaceframe
cabinetdoor
Cabinet Side
wood blocking
(not provided)
ceiling
crown molding
moves up/down
along ceiling
2"
AC
M
8
CTM8
UF396
¾"
3"
Crown Molding
ACM8 | CTM8 | UF396
ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com
CliqStudios.com®
, LLC reserves the right to change, modify or discontinue policy and products at any time.
All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.

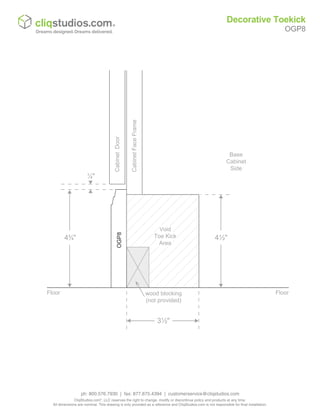

9. CabinetFaceFrame
CabinetDoor
Base
Cabinet
Side
OGP8
wood blocking
(not provided)
Floor
Void
Toe Kick
Area
¼"
4¾"
Floor
3½"
4½"
Decorative Toekick
OGP8
ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com
CliqStudios.com®
, LLC reserves the right to change, modify or discontinue policy and products at any time.
All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.

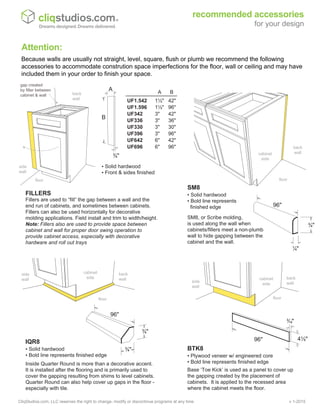

10. CliqStudios.com, LLC reserves the right to change, modify or discontinue programs at any time v 1-2015
Because walls are usually not straight, level, square, flush or plumb we recommend the following
accessories to accommodate constrution space imperfections for the floor, wall or ceiling and may have
included them in your order to finish your space.
Attention:
recommended accessories
for your designDreams designed. Dreams delivered.
96" 4½"
UF1.542 1½" 42"
UF1.596 1½" 96"
UF342 3" 42"
UF336 3" 36"
UF330 3" 30"
UF396 3" 96"
UF642 6" 42"
UF696 6" 96"
A B
A
B
¾"
96"
¾"
¾"
IQR8
ƒ Solid hardwood
ƒ Bold line represents finished edge
¾"
96"
¼"
SM8
ƒ Solid hardwood
ƒ Bold line represents
finished edge
ƒ Solid hardwood
ƒ Front & sides finished
back
wall
floor
side
wall
back
wall
floor
gap created
by filler between
cabinet & wall
Inside Quarter Round is more than a decorative accent.
It is installed after the flooring and is primarily used to
cover the gapping resulting from shims to level cabinets.
Quarter Round can also help cover up gaps in the floor -
especially with tile.
side
wall
back
wall
floor
cabinet
side
floor
back
wallside
wall
cabinet
side
FILLERS
Fillers are used to “fill” the gap between a wall and the
end run of cabinets, and sometimes between cabinets.
Fillers can also be used horizontally for decorative
molding applications. Field install and trim to width/height.
Note: Fillers also are used to provide space between
cabinet and wall for proper door swing operation to
provide cabinet access, especially with decorative
hardware and roll out trays
BTK8
ƒ Plywood veneer w/ engineered core
ƒ Bold line represents finished edge
Base ‘Toe Kick’ is used as a panel to cover up
the gapping created by the placement of
cabinets. It is applied to the recessed area
where the cabinet meets the floor.
SM8, or Scribe molding,
is used along the wall when
cabinets/fillers meet a non-plumb
wall to hide gapping between the
cabinet and the wall.
cabinet
side

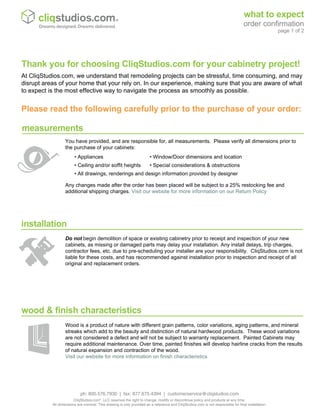

11. Wood is a product of nature with different grain patterns, color variations, aging patterns, and mineral
streaks which add to the beauty and distinction of natural hardwood products. These wood variations
are not considered a defect and will not be subject to warranty replacement. Painted Cabinets may
require additional maintenance. Over time, painted finishes will develop hairline cracks from the results
of natural expansion and contraction of the wood.
Visit our website for more information on finish characteristics
Do not begin demolition of space or existing cabinetry prior to receipt and inspection of your new
cabinets, as missing or damaged parts may delay your installation. Any install delays, trip charges,
contractor fees, etc. due to pre-scheduling your installer are your responsibility. CliqStudios.com is not
liable for these costs, and has recommended against installation prior to inspection and receipt of all
original and replacement orders.
measurements
installation
wood & finish characteristics
You have provided, and are responsible for, all measurements. Please verify all dimensions prior to
the purchase of your cabinets:
Any changes made after the order has been placed will be subject to a 25% restocking fee and
additional shipping charges. Visit our website for more information on our Return Policy
At CliqStudios.com, we understand that remodeling projects can be stressful, time consuming, and may
disrupt areas of your home that your rely on. In our experience, making sure that you are aware of what
to expect is the most effective way to navigate the process as smoothly as possible.
Thank you for choosing CliqStudios.com for your cabinetry project!
• Appliances • Window/Door dimensions and location
• Ceiling and/or soffit heights • Special considerations & obstructions
• All drawings, renderings and design information provided by designer
Please read the following carefully prior to the purchase of your order:
what to expect
order confirmation
page 1 of 2
Dreams designed. Dreams delivered.
ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com
CliqStudios.com®
, LLC reserves the right to change, modify or discontinue policy and products at any time.
All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.

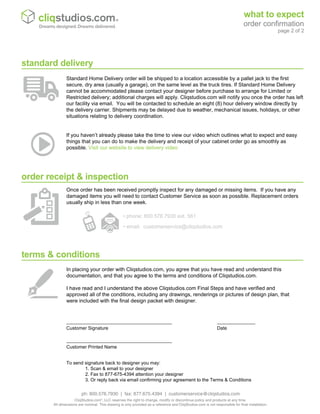

12. terms & conditions
_________________________________ ____________
Customer Signature Date
_________________________________
Customer Printed Name
In placing your order with Cliqstudios.com, you agree that you have read and understand this
documentation, and that you agree to the terms and conditions of Cliqstudios.com.
I have read and I understand the above Cliqstudios.com Final Steps and have verified and
approved all of the conditions, including any drawings, renderings or pictures of design plan, that
were included with the final design packet with designer.
order receipt & inspection
Once order has been received promptly inspect for any damaged or missing items. If you have any
damaged items you will need to contact Customer Service as soon as possible. Replacement orders
usually ship in less than one week.
• phone: 800.576.7930 ext. 561
• email: customerservice@cliqstudios.com
Standard Home Delivery order will be shipped to a location accessible by a pallet jack to the first
secure, dry area (usually a garage), on the same level as the truck tires. If Standard Home Delivery
cannot be accommodated please contact your designer before purchase to arrange for Limited or
Restricted delivery; additional charges will apply. Cliqstudios.com will notify you once the order has left
our facility via email. You will be contacted to schedule an eight (8) hour delivery window directly by
the delivery carrier. Shipments may be delayed due to weather, mechanical issues, holidays, or other
situations relating to delivery coordination.
standard delivery
If you haven’t already please take the time to view our video which outlines what to expect and easy
things that you can do to make the delivery and receipt of your cabinet order go as smoothly as
possible. Visit our website to view deilvery video
To send signature back to designer you may:
1. Scan & email to your designer
2. Fax to 877-675-4394 attention your designer
3. Or reply back via email confirming your agreement to the Terms & Conditions
what to expect
order confirmation
page 2 of 2
Dreams designed. Dreams delivered.
ph: 800.576.7930 | fax: 877.675.4394 | customerservice@cliqstudios.com
CliqStudios.com®
, LLC reserves the right to change, modify or discontinue policy and products at any time.
All dimensions are nominal. This drawing is only provided as a reference and CliqStudios.com is not responsible for final installation.
