The RD-140 is a fully automatic biochemistry analyzer that can perform up to 140 tests per hour. It uses end point, kinetic, fixed time, and biocromatic testing methods with 1-2 reagent assays. The analyzer has a sample capacity of 64, reagent capacity of 20 with refrigeration, and stores over 200 test programs and 1 million test results. It has an intelligent multi-task software and open system to work with various test kits.

1. ReiGed
Diagnostics

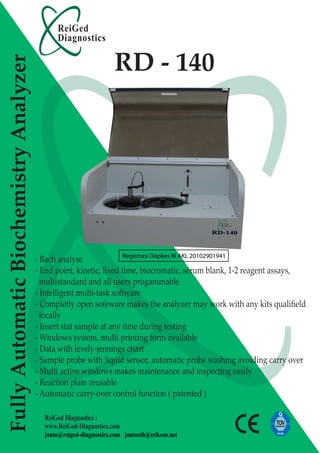

RD - 140
Fully Automatic Biochemistry Analyzer
- Bach analyse Registrasi Depkes RI AKL 20102901941
- End point, kinetic, fixed time, biocromatic, serum blank, 1-2 reagent assays,
multistandard and all users progammable
- Intelligent multi-task software
- Completly open sofeware makes the analyzer may work with any kits qualifield
locally
- Insert stat sample at any time during testing
- Windows system, multi printing form available
- Data with levely-jennings chart
- Sample probe with liquid sensor, automatic probe washing avoiding carry over
- Multi active windows makes maintenance and inspecting easily
- Reaction plate reusable
- Automatic carry-over control function ( patented )
ReiGed Diagnostics :
www.ReiGed-Diagnostics.com
janto@reiged-diagnostics.com jantosth@telkom.net

2. ReiGed
Diagnostics
Fully Automatic Biochemistry Analyzer

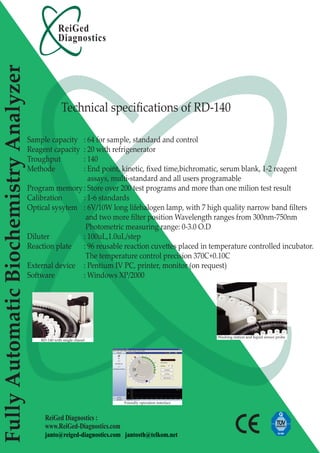

Technical specifications of RD-140
Sample capacity : 64 for sample, standard and control
Reagent capacity: 20 with refrigenerator
Troughput : 140
Methode : End point, kinetic, fixed time,bichromatic, serum blank, 1-2 reagent
assays, multi-standard and all users programable
Program memory : Store over 200 test programs and more than one milion test result
Calibration : 1-6 standards
Optical sysytem : 6V/10W long lifehalogen lamp, with 7 high quality narrow band filters
and two more filter position Wavelength ranges from 300nm-750nm
Photometric measuring range: 0-3.0 O.D
Diluter : 100uL,1.0uL/step
Reaction plate : 96 reusable reaction cuvettes placed in temperature controlled incubator.
The temperature control precision 370C+0.10C
External device : Pentium IV PC, printer, monitor (on request)
Software : Windows XP/2000
Washing station and liquid sensor probe
RD-140 with single chanel
Friendly operation interface
