Ex.No 2
Working with Numpy arrays
Date:
AIM:
To write a Numpy arrays program to demonstrate basic array concepts in Jupyter Notebook.
PROGRAM:
1. Creating Arrays from Python Lists:
In[1]: import numpy as np
In[2]: # integer array:
np.array([1, 4, 2, 5, 3])
Out[2]: array([1, 4, 2, 5, 3])
#NumPy is constrained to arrays that all contain the same type. If types do not match, NumPy will
upcast ifpossible (here, integers are upcast to floating point):
In[3]: np.array([3.14, 4, 2, 3])
Out[3]: array([ 3.14, 4. , 2. , 3. ])
#If we want to explicitly set the data type of the resulting array, we can use the dtype keyword:
In[4]: np.array([1, 2, 3, 4], dtype='float32')
Out[4]: array([ 1., 2., 3., 4.], dtype=float32)
In[5]: # nested lists result in multidimensional arrays
np.array([range(i, i + 3) for i in [2, 4, 6]])
Out[5]: array([[2, 3, 4],
[4, 5, 6],
[6, 7, 8]])
2. NumPy Array Attributes:
In[1]: import numpy as np
np.random.seed(0) # seed for reproducibility
x1 = np.random.randint(10, size=6) # One-dimensional array
x2 = np.random.randint(10, size=(3, 4)) # Two-dimensional array
x3 = np.random.randint(10, size=(3, 4, 5)) # Three-dimensional array](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-17-2048.jpg)
![15
Each array has attributes ndim (the number of dimensions), shape (the size of each dimension), and
size (thetotal size of the array):
In[2]: print("x3 ndim: ",
x3.ndim) print("x3 shape:",
x3.shape)print("x3 size: ",
x3.size)
Out[2]:x3 ndim: 3
x3 shape: (3, 4, 5)
x3 size: 60
In[3]: print("dtype:", x3.dtype)# data type of the array
Out[3]:dtype: int64
In[4]: print("itemsize:", x3.itemsize,
"bytes")print("nbytes:", x3.nbytes,
"bytes")
Out[4]:itemsize: 8 bytes
Out[4]:nbytes: 480 bytes
3. Array Indexing: Accessing Single Elements:
In[5]: x1
Out[5]: array([5, 0, 3, 3, 7, 9])
In[6]:
x1[0]
Out[6
]: 5
In[7]:
x1[4]
Out[7]: 7
#To index from the end of the array, you can use negative indices
In[8]:
x1[-1]
Out[8]
: 9
In[9]:
x1[-2]
Out[9]: 7](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-18-2048.jpg)

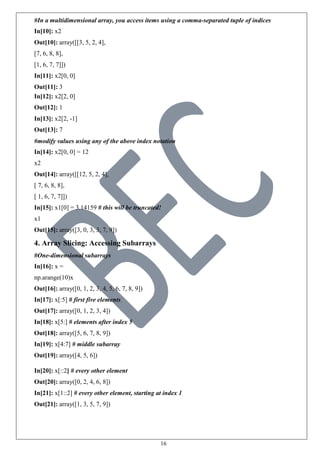

![16
#In a multidimensional array, you access items using a comma-separated tuple of indices
In[10]: x2
Out[10]: array([[3, 5, 2, 4],
[7, 6, 8, 8],
[1, 6, 7, 7]])
In[11]: x2[0, 0]
Out[11]: 3
In[12]: x2[2, 0]
Out[12]: 1
In[13]: x2[2, -1]
Out[13]: 7
#modify values using any of the above index notation
In[14]: x2[0, 0] = 12
x2
Out[14]: array([[12, 5, 2, 4],
[ 7, 6, 8, 8],
[ 1, 6, 7, 7]])
In[15]: x1[0] = 3.14159 # this will be truncated!
x1
Out[15]: array([3, 0, 3, 3, 7, 9])
4. Array Slicing: Accessing Subarrays
#One-dimensional subarrays
In[16]: x =
np.arange(10)x
Out[16]: array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])
In[17]: x[:5] # first five elements
Out[17]: array([0, 1, 2, 3, 4])
In[18]: x[5:] # elements after index 5
Out[18]: array([5, 6, 7, 8, 9])
In[19]: x[4:7] # middle subarray
Out[19]: array([4, 5, 6])
In[20]: x[::2] # every other element
Out[20]: array([0, 2, 4, 6, 8])
In[21]: x[1::2] # every other element, starting at index 1
Out[21]: array([1, 3, 5, 7, 9])](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-19-2048.jpg)
![17

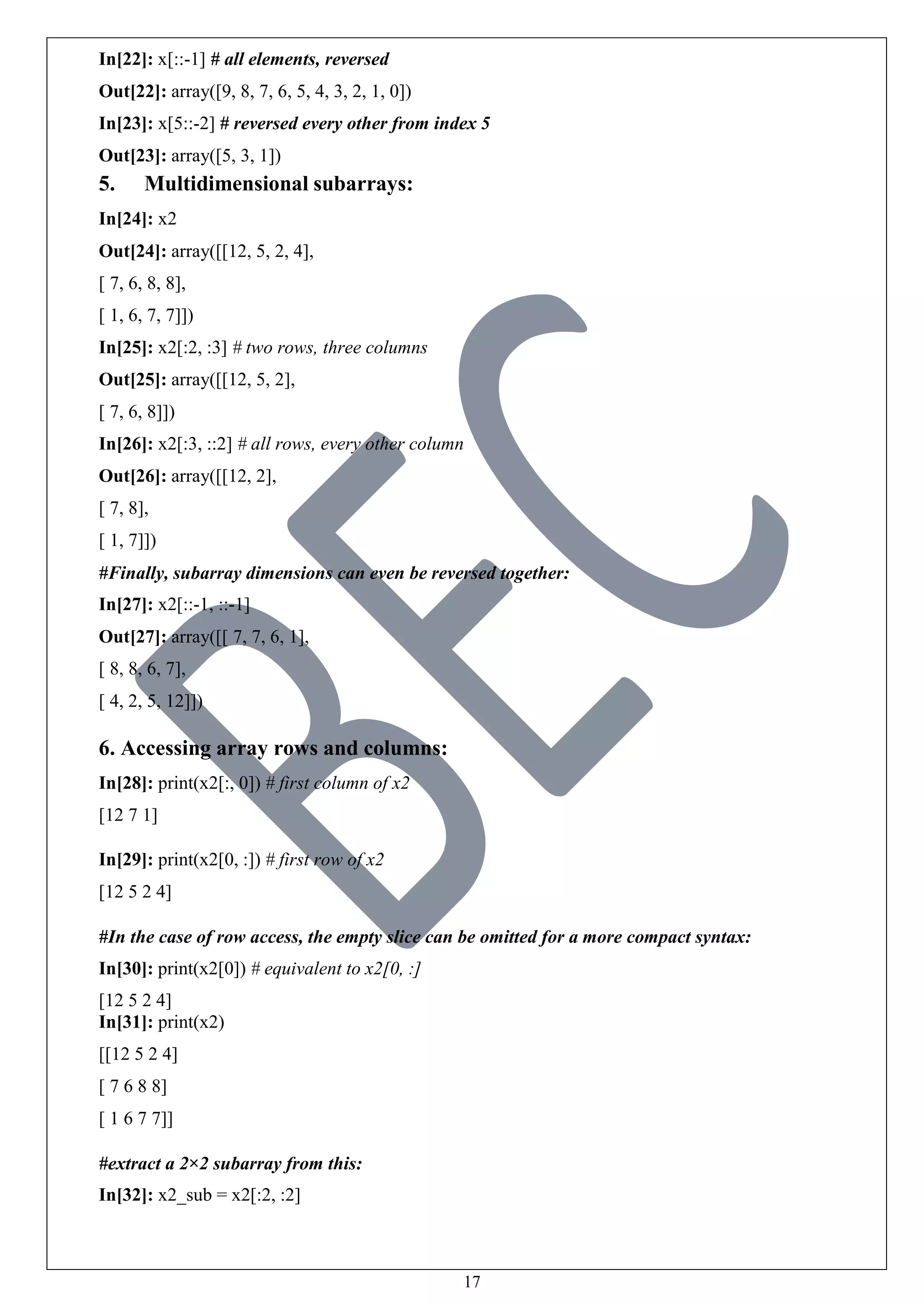

In[22]: x[::-1] # all elements, reversed
Out[22]: array([9, 8, 7, 6, 5, 4, 3, 2, 1, 0])
In[23]: x[5::-2] # reversed every other from index 5
Out[23]: array([5, 3, 1])
5. Multidimensional subarrays:
In[24]: x2
Out[24]: array([[12, 5, 2, 4],
[ 7, 6, 8, 8],
[ 1, 6, 7, 7]])
In[25]: x2[:2, :3] # two rows, three columns
Out[25]: array([[12, 5, 2],
[ 7, 6, 8]])
In[26]: x2[:3, ::2] # all rows, every other column
Out[26]: array([[12, 2],
[ 7, 8],
[ 1, 7]])
#Finally, subarray dimensions can even be reversed together:
In[27]: x2[::-1, ::-1]
Out[27]: array([[ 7, 7, 6, 1],
[ 8, 8, 6, 7],
[ 4, 2, 5, 12]])
6. Accessing array rows and columns:
In[28]: print(x2[:, 0]) # first column of x2
[12 7 1]
In[29]: print(x2[0, :]) # first row of x2
[12 5 2 4]
#In the case of row access, the empty slice can be omitted for a more compact syntax:
In[30]: print(x2[0]) # equivalent to x2[0, :]
[12 5 2 4]
In[31]: print(x2)
[[12 5 2 4]
[ 7 6 8 8]
[ 1 6 7 7]]
#extract a 2×2 subarray from this:
In[32]: x2_sub = x2[:2, :2]](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-20-2048.jpg)

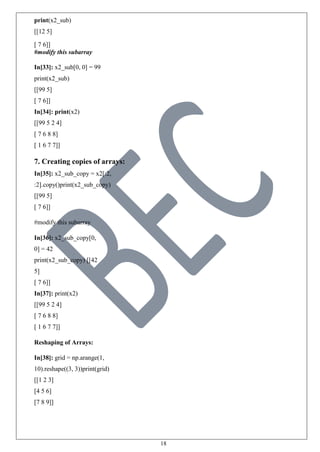

![18
print(x2_sub)
[[12 5]
[ 7 6]]
#modify this subarray
In[33]: x2_sub[0, 0] = 99
print(x2_sub)
[[99 5]
[ 7 6]]
In[34]: print(x2)
[[99 5 2 4]
[ 7 6 8 8]
[ 1 6 7 7]]
7. Creating copies of arrays:
In[35]: x2_sub_copy = x2[:2,
:2].copy()print(x2_sub_copy)
[[99 5]
[ 7 6]]
#modify this subarray
In[36]: x2_sub_copy[0,
0] = 42
print(x2_sub_copy) [[42
5]
[ 7 6]]
In[37]: print(x2)
[[99 5 2 4]
[ 7 6 8 8]
[ 1 6 7 7]]
Reshaping of Arrays:
In[38]: grid = np.arange(1,
10).reshape((3, 3))print(grid)
[[1 2 3]
[4 5 6]
[7 8 9]]](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-21-2048.jpg)
![19

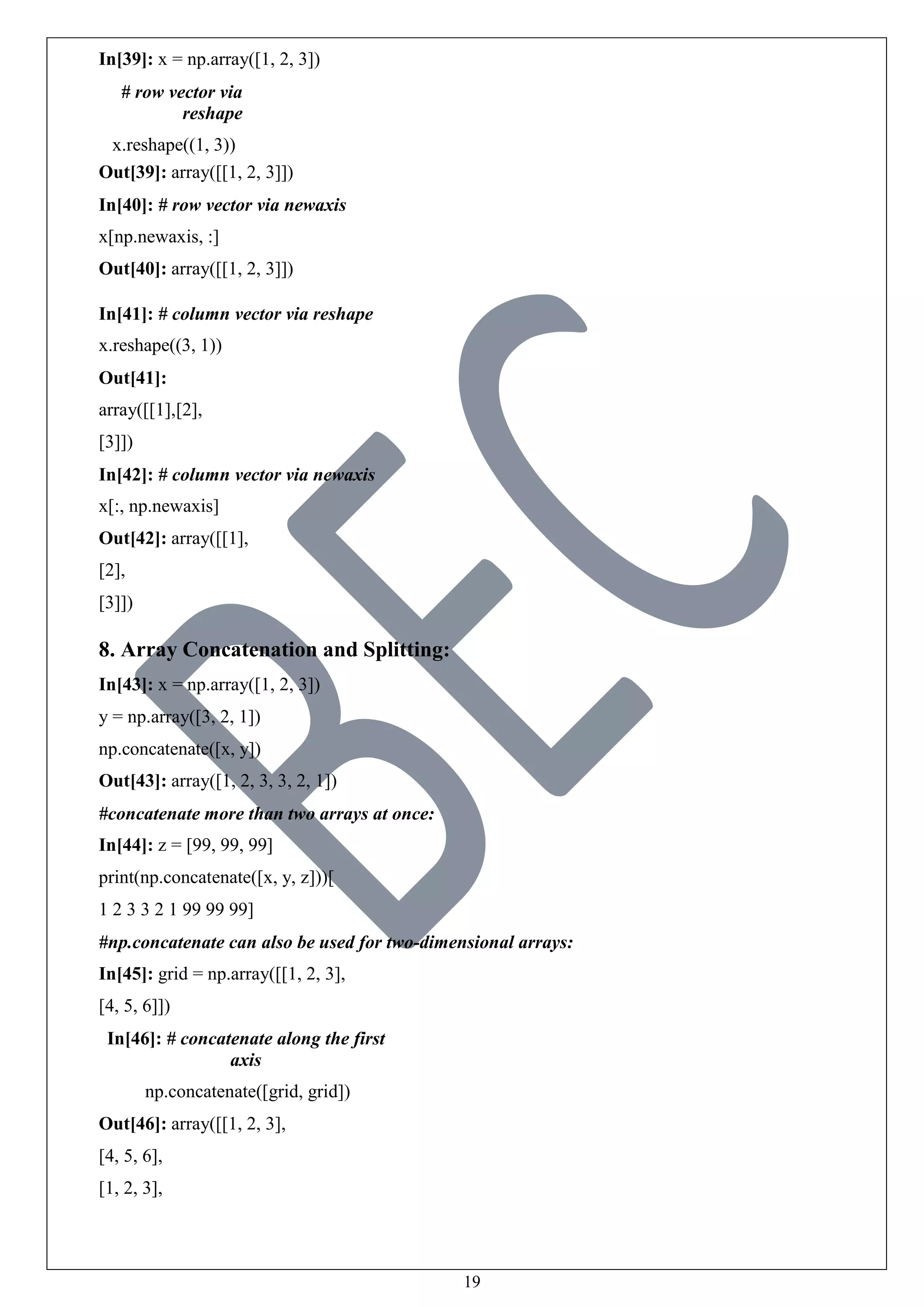

In[39]: x = np.array([1, 2, 3])
# row vector via
reshape
x.reshape((1, 3))
Out[39]: array([[1, 2, 3]])
In[40]: # row vector via newaxis
x[np.newaxis, :]
Out[40]: array([[1, 2, 3]])
In[41]: # column vector via reshape
x.reshape((3, 1))
Out[41]:
array([[1],[2],
[3]])
In[42]: # column vector via newaxis
x[:, np.newaxis]
Out[42]: array([[1],
[2],
[3]])
8. Array Concatenation and Splitting:
In[43]: x = np.array([1, 2, 3])
y = np.array([3, 2, 1])
np.concatenate([x, y])
Out[43]: array([1, 2, 3, 3, 2, 1])
#concatenate more than two arrays at once:
In[44]: z = [99, 99, 99]
print(np.concatenate([x, y, z]))[
1 2 3 3 2 1 99 99 99]
#np.concatenate can also be used for two-dimensional arrays:
In[45]: grid = np.array([[1, 2, 3],
[4, 5, 6]])
In[46]: # concatenate along the first
axis
np.concatenate([grid, grid])
Out[46]: array([[1, 2, 3],
[4, 5, 6],
[1, 2, 3],](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-22-2048.jpg)

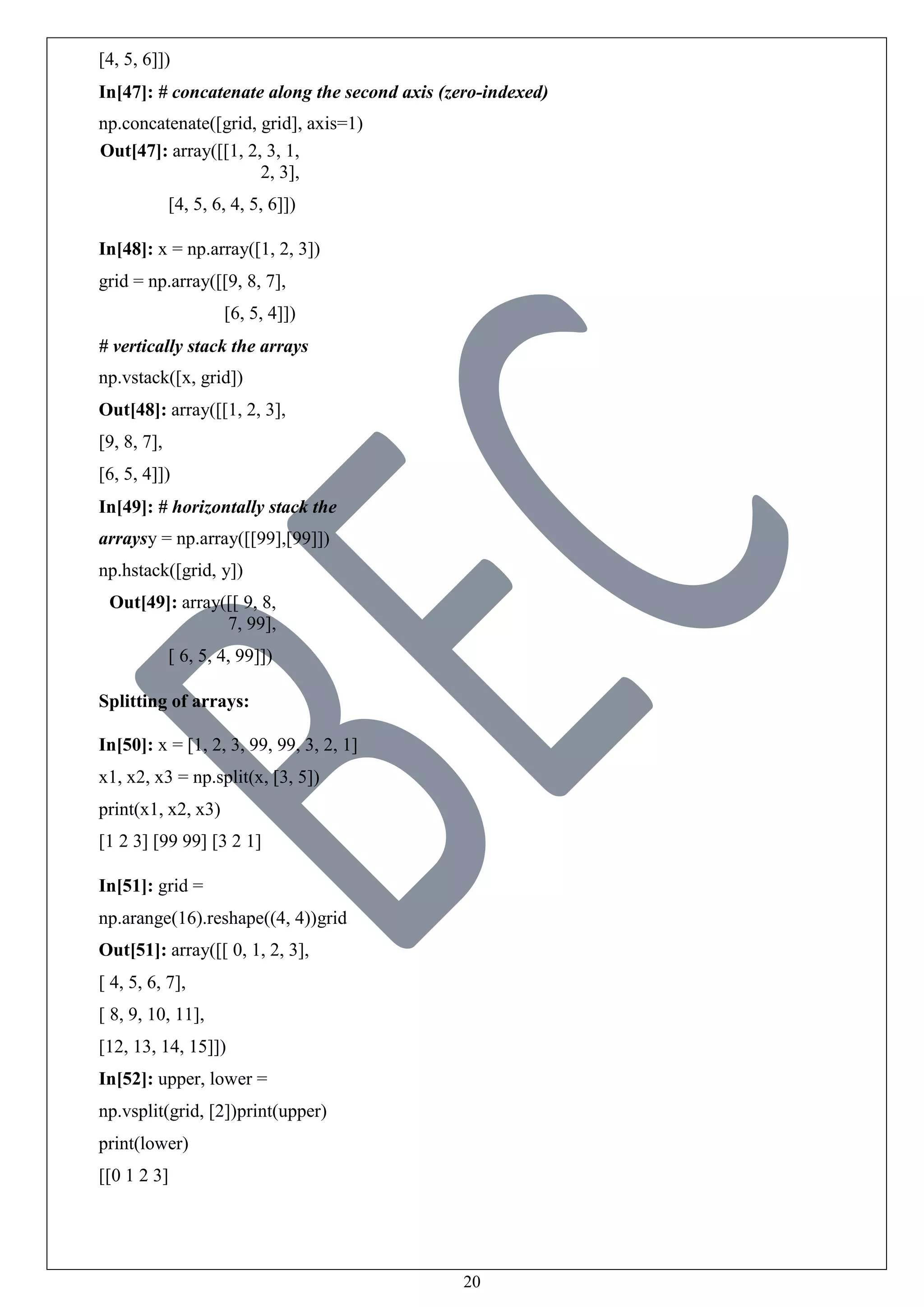

![20
[4, 5, 6]])
In[47]: # concatenate along the second axis (zero-indexed)
np.concatenate([grid, grid], axis=1)
Out[47]: array([[1, 2, 3, 1,
2, 3],
[4, 5, 6, 4, 5, 6]])
In[48]: x = np.array([1, 2, 3])
grid = np.array([[9, 8, 7],
[6, 5, 4]])
# vertically stack the arrays
np.vstack([x, grid])
Out[48]: array([[1, 2, 3],
[9, 8, 7],
[6, 5, 4]])
In[49]: # horizontally stack the
arraysy = np.array([[99],[99]])
np.hstack([grid, y])
Out[49]: array([[ 9, 8,
7, 99],
[ 6, 5, 4, 99]])
Splitting of arrays:
In[50]: x = [1, 2, 3, 99, 99, 3, 2, 1]
x1, x2, x3 = np.split(x, [3, 5])
print(x1, x2, x3)
[1 2 3] [99 99] [3 2 1]
In[51]: grid =
np.arange(16).reshape((4, 4))grid
Out[51]: array([[ 0, 1, 2, 3],
[ 4, 5, 6, 7],
[ 8, 9, 10, 11],
[12, 13, 14, 15]])
In[52]: upper, lower =
np.vsplit(grid, [2])print(upper)
print(lower)
[[0 1 2 3]](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-23-2048.jpg)
![21

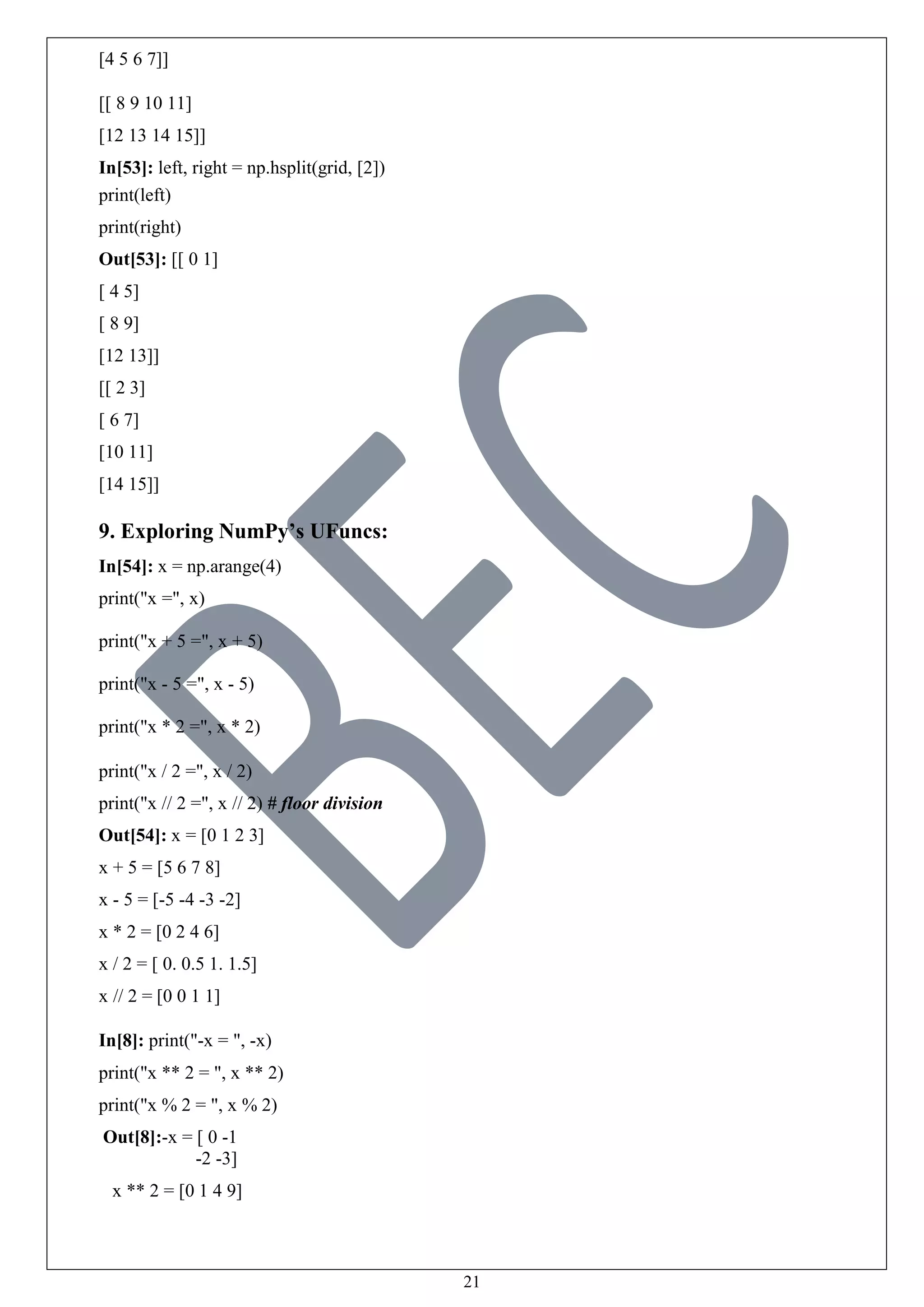

[4 5 6 7]]
[[ 8 9 10 11]
[12 13 14 15]]
In[53]: left, right = np.hsplit(grid, [2])
print(left)
print(right)
Out[53]: [[ 0 1]
[ 4 5]
[ 8 9]
[12 13]]
[[ 2 3]
[ 6 7]
[10 11]
[14 15]]
9. Exploring NumPy’s UFuncs:
In[54]: x = np.arange(4)
print("x =", x)
print("x + 5 =", x + 5)
print("x - 5 =", x - 5)
print("x * 2 =", x * 2)
print("x / 2 =", x / 2)
print("x // 2 =", x // 2) # floor division
Out[54]: x = [0 1 2 3]
x + 5 = [5 6 7 8]
x - 5 = [-5 -4 -3 -2]
x * 2 = [0 2 4 6]
x / 2 = [ 0. 0.5 1. 1.5]
x // 2 = [0 0 1 1]
In[8]: print("-x = ", -x)
print("x ** 2 = ", x ** 2)
print("x % 2 = ", x % 2)
Out[8]:-x = [ 0 -1
-2 -3]
x ** 2 = [0 1 4 9]](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-24-2048.jpg)

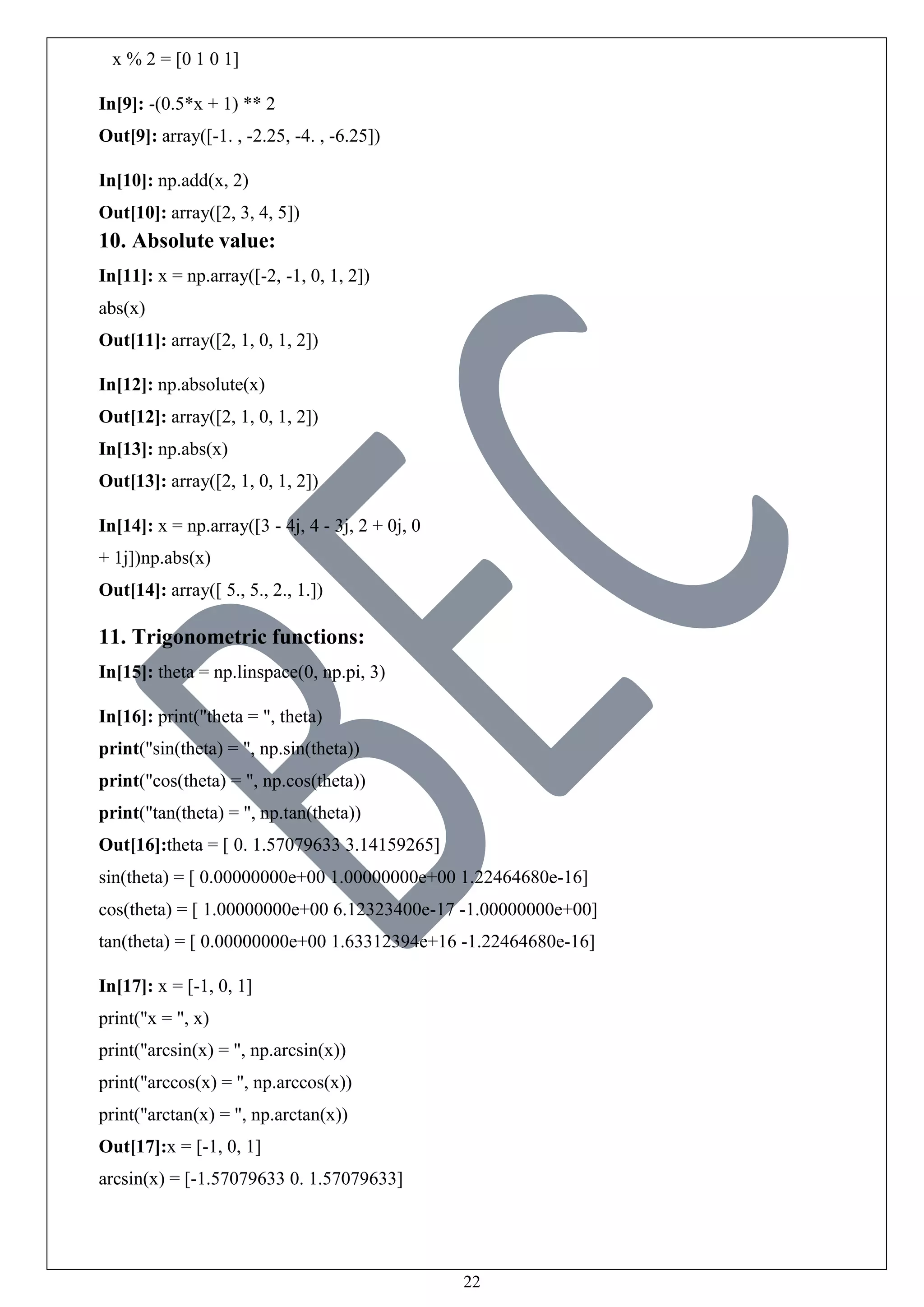

![22
x % 2 = [0 1 0 1]
In[9]: -(0.5*x + 1) ** 2
Out[9]: array([-1. , -2.25, -4. , -6.25])
In[10]: np.add(x, 2)
Out[10]: array([2, 3, 4, 5])
10. Absolute value:
In[11]: x = np.array([-2, -1, 0, 1, 2])
abs(x)
Out[11]: array([2, 1, 0, 1, 2])
In[12]: np.absolute(x)
Out[12]: array([2, 1, 0, 1, 2])
In[13]: np.abs(x)
Out[13]: array([2, 1, 0, 1, 2])
In[14]: x = np.array([3 - 4j, 4 - 3j, 2 + 0j, 0
+ 1j])np.abs(x)
Out[14]: array([ 5., 5., 2., 1.])
11. Trigonometric functions:
In[15]: theta = np.linspace(0, np.pi, 3)
In[16]: print("theta = ", theta)
print("sin(theta) = ", np.sin(theta))
print("cos(theta) = ", np.cos(theta))
print("tan(theta) = ", np.tan(theta))
Out[16]:theta = [ 0. 1.57079633 3.14159265]
sin(theta) = [ 0.00000000e+00 1.00000000e+00 1.22464680e-16]
cos(theta) = [ 1.00000000e+00 6.12323400e-17 -1.00000000e+00]
tan(theta) = [ 0.00000000e+00 1.63312394e+16 -1.22464680e-16]
In[17]: x = [-1, 0, 1]
print("x = ", x)
print("arcsin(x) = ", np.arcsin(x))
print("arccos(x) = ", np.arccos(x))
print("arctan(x) = ", np.arctan(x))
Out[17]:x = [-1, 0, 1]
arcsin(x) = [-1.57079633 0. 1.57079633]](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-25-2048.jpg)

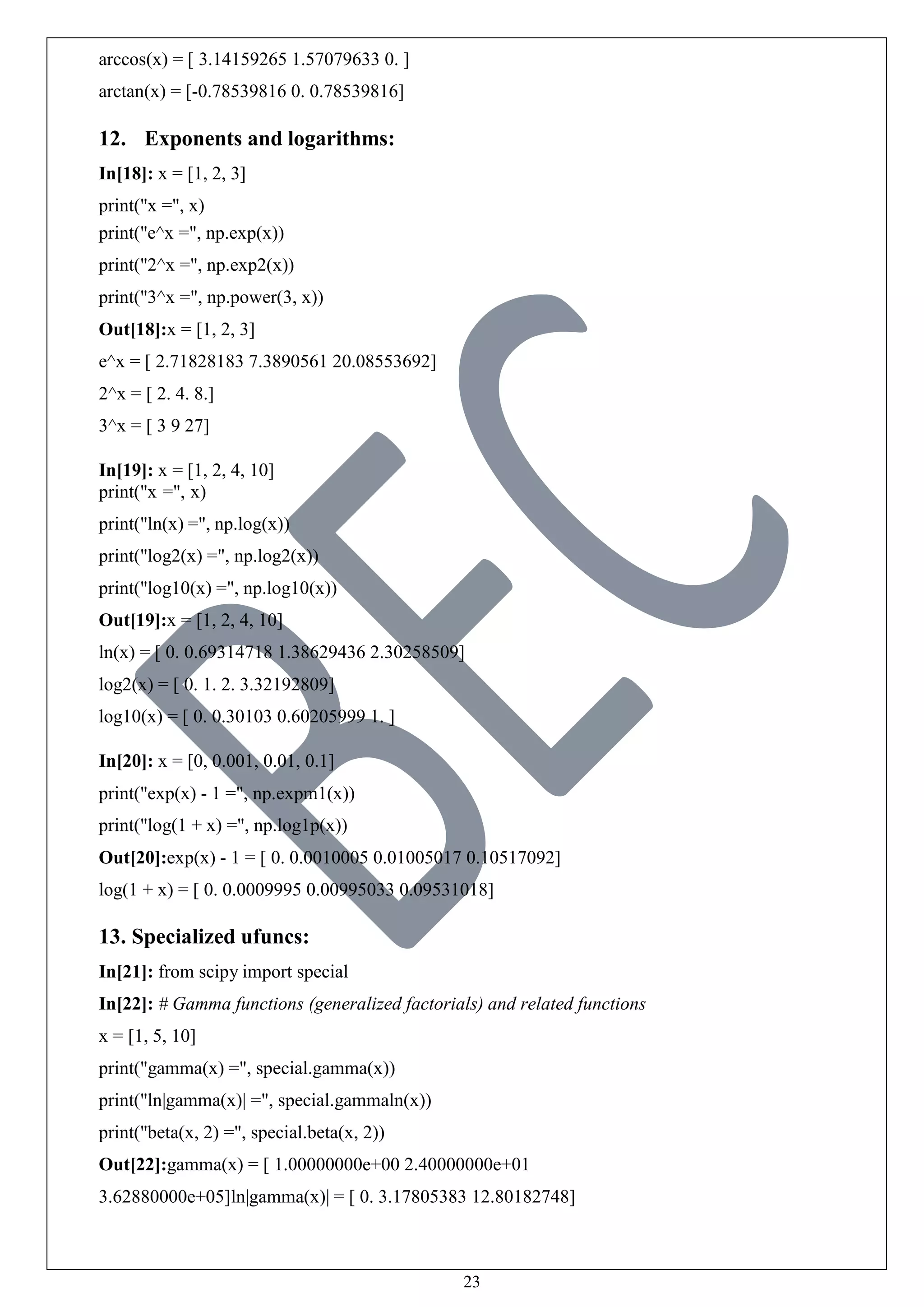

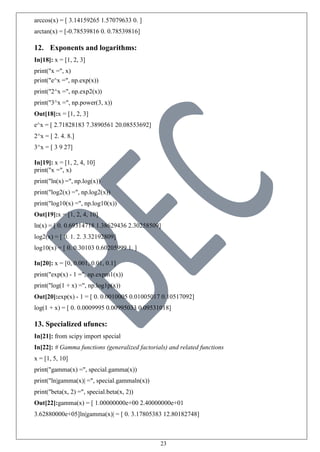

![23
arccos(x) = [ 3.14159265 1.57079633 0. ]
arctan(x) = [-0.78539816 0. 0.78539816]
12. Exponents and logarithms:
In[18]: x = [1, 2, 3]
print("x =", x)
print("e^x =", np.exp(x))
print("2^x =", np.exp2(x))
print("3^x =", np.power(3, x))
Out[18]:x = [1, 2, 3]
e^x = [ 2.71828183 7.3890561 20.08553692]
2^x = [ 2. 4. 8.]
3^x = [ 3 9 27]
In[19]: x = [1, 2, 4, 10]
print("x =", x)
print("ln(x) =", np.log(x))
print("log2(x) =", np.log2(x))
print("log10(x) =", np.log10(x))
Out[19]:x = [1, 2, 4, 10]
ln(x) = [ 0. 0.69314718 1.38629436 2.30258509]
log2(x) = [ 0. 1. 2. 3.32192809]
log10(x) = [ 0. 0.30103 0.60205999 1. ]
In[20]: x = [0, 0.001, 0.01, 0.1]
print("exp(x) - 1 =", np.expm1(x))
print("log(1 + x) =", np.log1p(x))
Out[20]:exp(x) - 1 = [ 0. 0.0010005 0.01005017 0.10517092]
log(1 + x) = [ 0. 0.0009995 0.00995033 0.09531018]
13. Specialized ufuncs:
In[21]: from scipy import special
In[22]: # Gamma functions (generalized factorials) and related functions
x = [1, 5, 10]
print("gamma(x) =", special.gamma(x))
print("ln|gamma(x)| =", special.gammaln(x))
print("beta(x, 2) =", special.beta(x, 2))
Out[22]:gamma(x) = [ 1.00000000e+00 2.40000000e+01
3.62880000e+05]ln|gamma(x)| = [ 0. 3.17805383 12.80182748]](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-26-2048.jpg)
![24
beta(x, 2) = [ 0.5 0.03333333 0.00909091]
In[23]: # Error function (integral of Gaussian) its complement, and its inverse
x = np.array([0, 0.3, 0.7, 1.0])
print("erf(x) =", special.erf(x))
print("erfc(x) =", special.erfc(x))
print("erfinv(x) =", special.erfinv(x))
Out[23]:erf(x) = [ 0. 0.32862676 0.67780119 0.84270079]
erfc(x) = [ 1. 0.67137324 0.32219881 0.15729921]
erfinv(x) = [ 0. 0.27246271 0.73286908 inf]
14. Aggregates:
In[26]: x = np.arange(1, 6)
np.add.reduce(x)
In[27]: np.multiply.reduce(x)
Out[27]: 120
In[28]: np.add.accumulate(x)
Out[28]: array([ 1, 3, 6, 10, 15])
In[29]: np.multiply.accumulate(x)
Out[29]: array([ 1, 2, 6, 24, 120])
15. Outer products:
In[30]: x = np.arange(1, 6)
np.multiply.outer(x, x)
Out[30]: array([[ 1, 2, 3, 4, 5],
[ 2, 4, 6, 8, 10],
[ 3, 6, 9, 12, 15],
[ 4, 8, 12, 16, 20],
[ 5, 10, 15, 20, 25]])
RESULT:
Thus, the Numpy array program was successfully executed and verified.](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-27-2048.jpg)

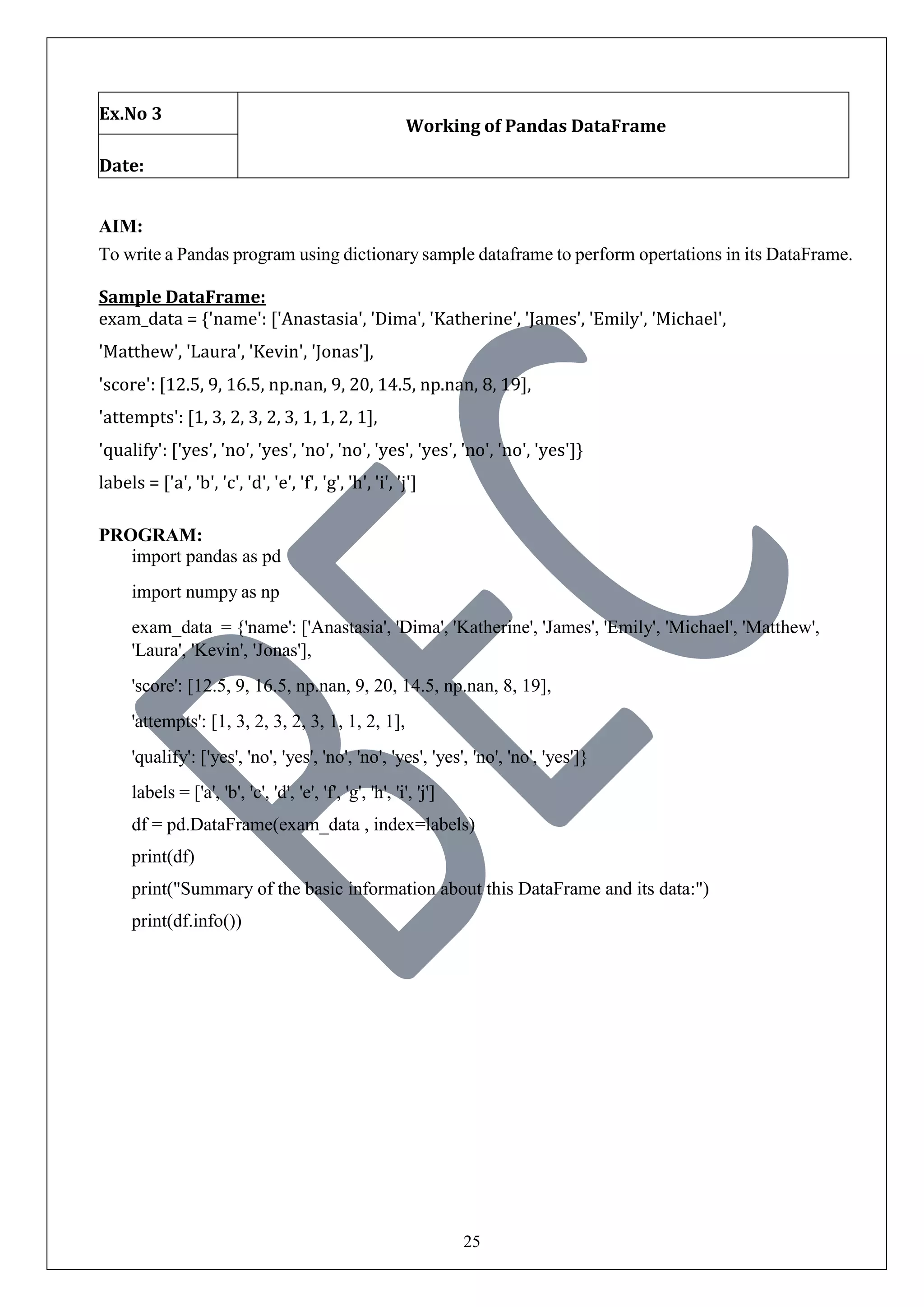

![25
Ex.No 3
Working of Pandas DataFrame
Date:
AIM:
To write a Pandas program using dictionary sample dataframe to perform opertations in its DataFrame.
Sample DataFrame:
exam_data = {'name': ['Anastasia', 'Dima', 'Katherine', 'James', 'Emily', 'Michael',
'Matthew', 'Laura', 'Kevin', 'Jonas'],
'score': [12.5, 9, 16.5, np.nan, 9, 20, 14.5, np.nan, 8, 19],
'attempts': [1, 3, 2, 3, 2, 3, 1, 1, 2, 1],
'qualify': ['yes', 'no', 'yes', 'no', 'no', 'yes', 'yes', 'no', 'no', 'yes']}
labels = ['a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j']
PROGRAM:
import pandas as pd
import numpy as np
exam_data = {'name': ['Anastasia', 'Dima', 'Katherine', 'James', 'Emily', 'Michael', 'Matthew',
'Laura', 'Kevin', 'Jonas'],
'score': [12.5, 9, 16.5, np.nan, 9, 20, 14.5, np.nan, 8, 19],
'attempts': [1, 3, 2, 3, 2, 3, 1, 1, 2, 1],
'qualify': ['yes', 'no', 'yes', 'no', 'no', 'yes', 'yes', 'no', 'no', 'yes']}
labels = ['a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j']
df = pd.DataFrame(exam_data , index=labels)
print(df)
print("Summary of the basic information about this DataFrame and its data:")
print(df.info())](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-28-2048.jpg)
![26

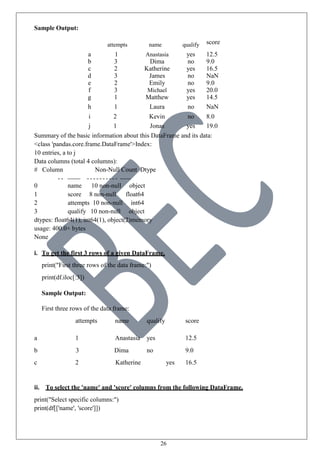

Sample Output:
attempts name qualify score
a 1 Anastasia yes 12.5
b 3 Dima no 9.0
c 2 Katherine yes 16.5
d 3 James no NaN
e 2 Emily no 9.0
f 3 Michael yes 20.0
g 1 Matthew yes 14.5
h 1 Laura no NaN
i 2 Kevin no 8.0
j 1 Jonas yes 19.0
Summary of the basic information about this DataFrame and its data:
<class 'pandas.core.frame.DataFrame'>Index:
10 entries, a to j
Data columns (total 4 columns):
# Column Non-Null Count Dtype
0 name 10 non-null object
1 score 8 non-null float64
2 attempts 10 non-null int64
3 qualify 10 non-null object
dtypes: float64(1), int64(1), object(2)memory
usage: 400.0+ bytes
None
i. To get the first 3 rows of a given DataFrame.
print("First three rows of the data frame:")
print(df.iloc[:3])
Sample Output:
First three rows of the data frame:
attempts name qualify score
a 1 Anastasia yes 12.5
b 3 Dima no 9.0
c 2 Katherine yes 16.5
ii. To select the 'name' and 'score' columns from the following DataFrame.
print("Select specific columns:")
print(df[['name', 'score']])](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-29-2048.jpg)

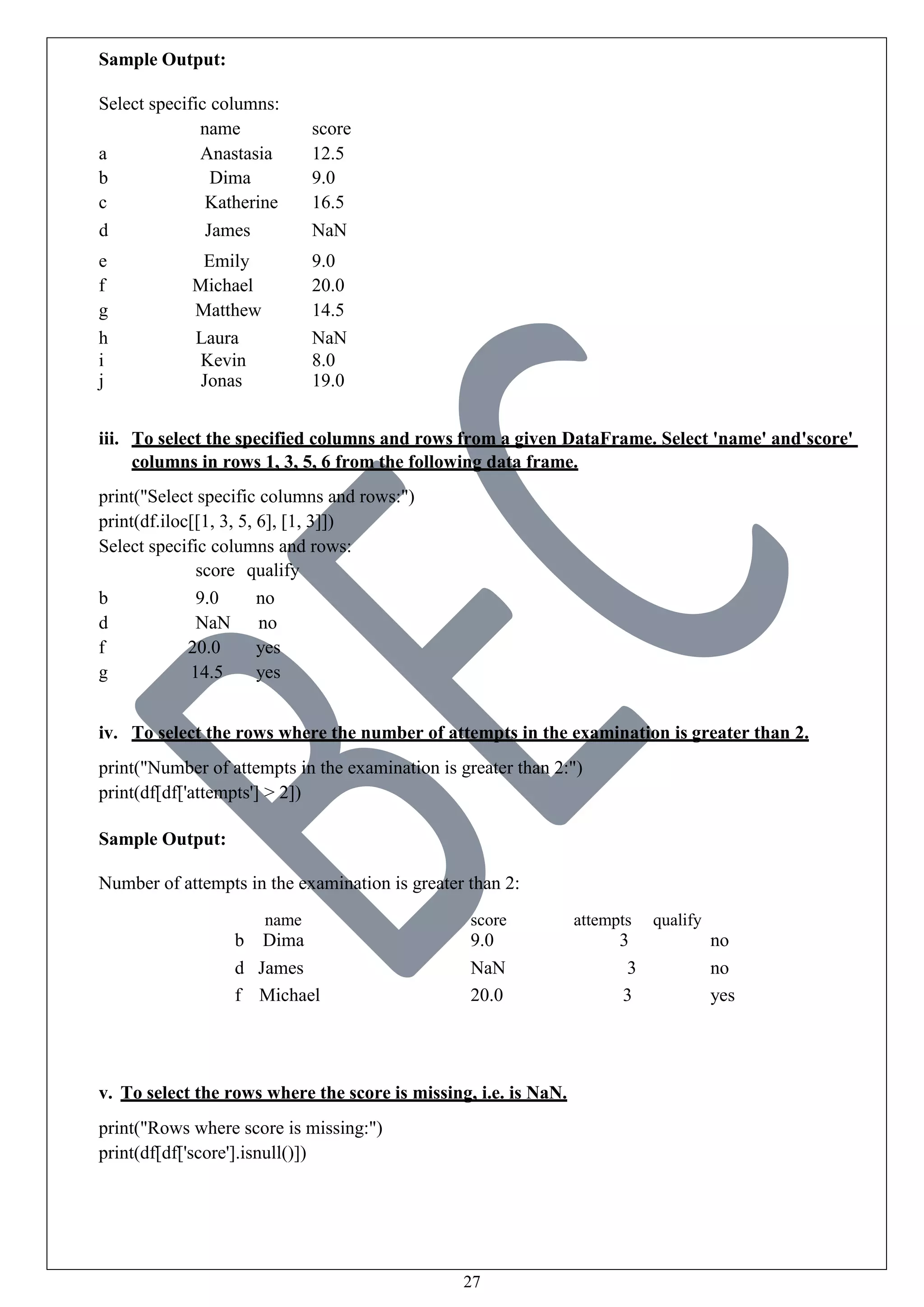

![27
Sample Output:
Select specific columns:
name score
a Anastasia 12.5
b Dima 9.0
c Katherine 16.5
d James NaN
e Emily 9.0
f Michael 20.0
g Matthew 14.5
h Laura NaN
i Kevin 8.0
j Jonas 19.0
iii. To select the specified columns and rows from a given DataFrame. Select 'name' and'score'
columns in rows 1, 3, 5, 6 from the following data frame.
print("Select specific columns and rows:")
print(df.iloc[[1, 3, 5, 6], [1, 3]])
Select specific columns and rows:
score qualify
b 9.0 no
d NaN no
f 20.0 yes
g 14.5 yes
iv. To select the rows where the number of attempts in the examination is greater than 2.
print("Number of attempts in the examination is greater than 2:")
print(df[df['attempts'] > 2])
Sample Output:
Number of attempts in the examination is greater than 2:
name score attempts qualify
b Dima 9.0 3 no
d James NaN 3 no
f Michael 20.0 3 yes
v. To select the rows where the score is missing, i.e. is NaN.
print("Rows where score is missing:")
print(df[df['score'].isnull()])](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-30-2048.jpg)
![28

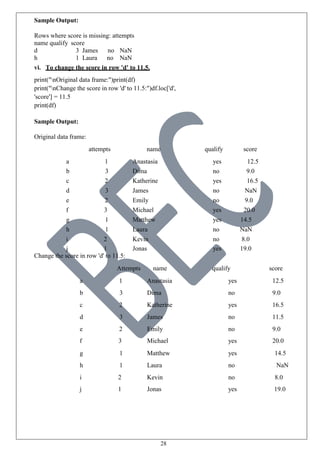

Sample Output:
Rows where score is missing: attempts
name qualify score
d 3 James no NaN
h 1 Laura no NaN
vi. To change the score in row 'd' to 11.5.
print("nOriginal data frame:")print(df)
print("nChange the score in row 'd' to 11.5:")df.loc['d',
'score'] = 11.5
print(df)
Sample Output:
Original data frame:
attempts name qualify score
a 1 Anastasia yes 12.5
b 3 Dima no 9.0
c 2 Katherine yes 16.5
d 3 James no NaN
e 2 Emily no 9.0
f 3 Michael yes 20.0
g 1 Matthew yes 14.5
h 1 Laura no NaN
i 2 Kevin no 8.0
j 1 Jonas yes 19.0
Change the score in row 'd' to 11.5:
Attempts name qualify score
a 1 Anastasia yes 12.5
b 3 Dima no 9.0
c 2 Katherine yes 16.5
d 3 James no 11.5
e 2 Emily no 9.0
f 3 Michael yes 20.0
g 1 Matthew yes 14.5
h 1 Laura no NaN
i 2 Kevin no 8.0
j 1 Jonas yes 19.0](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-31-2048.jpg)
![29

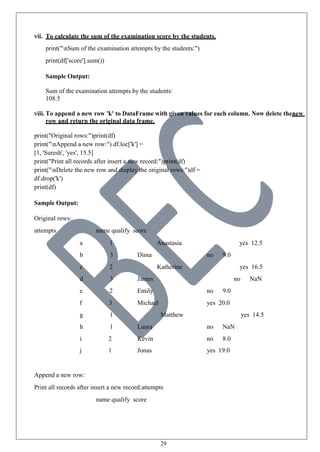

vii. To calculate the sum of the examination score by the students.
print("nSum of the examination attempts by the students:")
print(df['score'].sum())
Sample Output:
Sum of the examination attempts by the students:
108.5
viii. To append a new row 'k' to DataFrame with given values for each column. Now delete thenew
row and return the original data frame.
print("Original rows:")print(df)
print("nAppend a new row:") df.loc['k'] =
[1, 'Suresh', 'yes', 15.5]
print("Print all records after insert a new record:")print(df)
print("nDelete the new row and display the original rows:")df =
df.drop('k')
print(df)
Sample Output:
Original rows:
attempts name qualify score
a 1 Anastasia yes 12.5
b 3 Dima no 9.0
c 2 Katherine yes 16.5
d 3 James no NaN
e 2 Emily no 9.0
f 3 Michael yes 20.0
g 1 Matthew yes 14.5
h 1 Laura no NaN
i 2 Kevin no 8.0
j 1 Jonas yes 19.0
Append a new row:
Print all records after insert a new record:attempts
name qualify score](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-32-2048.jpg)
![31

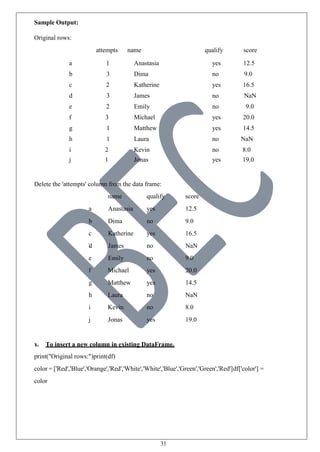

Sample Output:
Original rows:
attempts name qualify score
a 1 Anastasia yes 12.5
b 3 Dima no 9.0
c 2 Katherine yes 16.5
d 3 James no NaN
e 2 Emily no 9.0
f 3 Michael yes 20.0
g 1 Matthew yes 14.5
h 1 Laura no NaN
i 2 Kevin no 8.0
j 1 Jonas yes 19.0
Delete the 'attempts' column from the data frame:
name qualify score
a Anastasia yes 12.5
b Dima no 9.0
c Katherine yes 16.5
d James no NaN
e Emily no 9.0
f Michael yes 20.0
g Matthew yes 14.5
h Laura no NaN
i Kevin no 8.0
j Jonas yes 19.0
x. To insert a new column in existing DataFrame.
print("Original rows:")print(df)
color = ['Red','Blue','Orange','Red','White','White','Blue','Green','Green','Red']df['color'] =
color](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-34-2048.jpg)
![34
.. ...

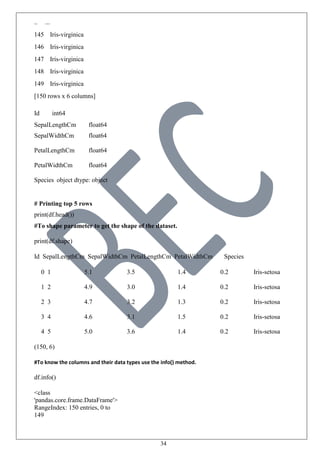

145 Iris-virginica
146 Iris-virginica
147 Iris-virginica
148 Iris-virginica
149 Iris-virginica
[150 rows x 6 columns]
Id int64
SepalLengthCm float64
SepalWidthCm float64
PetalLengthCm float64
PetalWidthCm float64
Species object dtype: object
# Printing top 5 rows
print(df.head())
#To shape parameter to get the shape of the dataset.
print(df.shape)
Id SepalLengthCm SepalWidthCm PetalLengthCm PetalWidthCm Species
0 1 5.1 3.5 1.4 0.2 Iris-setosa
1 2 4.9 3.0 1.4 0.2 Iris-setosa
2 3 4.7 3.2 1.3 0.2 Iris-setosa
3 4 4.6 3.1 1.5 0.2 Iris-setosa
4 5 5.0 3.6 1.4 0.2 Iris-setosa
(150, 6)
#To know the columns and their data types use the info() method.
df.info()
<class
'pandas.core.frame.DataFrame'>
RangeIndex: 150 entries, 0 to
149](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-37-2048.jpg)
![37
#matplotlib
import matplotlib.pyplot as plt
%matplotlib inline
#seaborn
import seaborn as sns
#plot the variable ‘sepal.width’
plt.scatter(df.index,df['SepalWidthCm'])plt.show()
#visualize the same plot by considering its variety using the sns.scatterplot() function of the
seaborn library.
sns.scatterplot(x=df.index,y=df['SepalWidthCm'],hue=df['Species'])](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-40-2048.jpg)
![38
#visualizes data by connecting the data points via line segments.
plt.figure(figsize=(6,6))
plt.title("line plot for petal length")
plt.xlabel('index',fontsize=20)
plt.ylabel('PetalLengthCm',fontsize=20)
plt.plot(df.index,df['PetalLengthCm'],markevery=1,marker='d') for name,group in
df.groupby('Species'):
plt.plot(group.index,group['PetalLengthCm'],label=name,markevery=1,marker='d')
plt.legend()
plt.show()
#Plotting histogram using the matplotlib plt.hist() function :
plt.hist(df["PetalWidthCm"])](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-41-2048.jpg)
![39

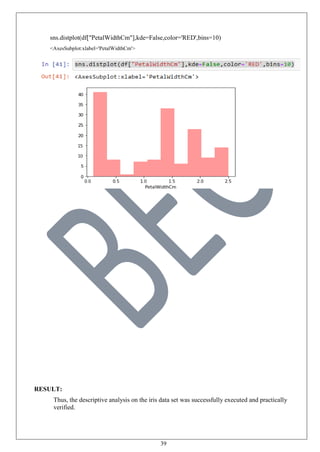

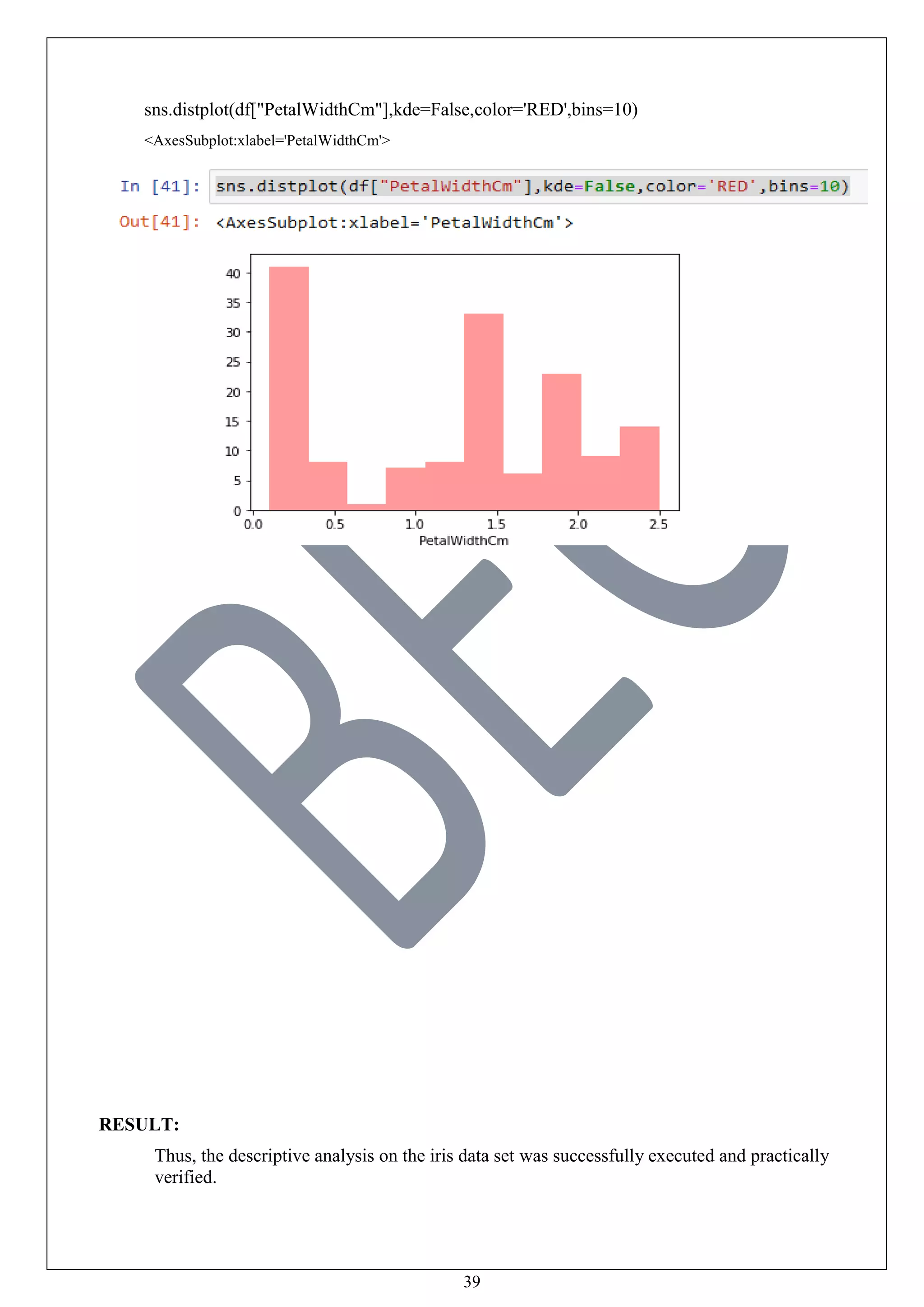

sns.distplot(df["PetalWidthCm"],kde=False,color='RED',bins=10)
<AxesSubplot:xlabel='PetalWidthCm'>
RESULT:
Thus, the descriptive analysis on the iris data set was successfully executed and practically
verified.](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-42-2048.jpg)

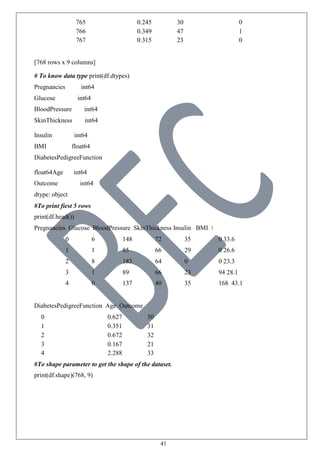

![41
765 0.245 30 0
766 0.349 47 1
767 0.315 23 0
[768 rows x 9 columns]
# To know data type print(df.dtypes)
Pregnancies int64
Glucose int64
BloodPressure int64
SkinThickness int64
Insulin int64
BMI float64
DiabetesPedigreeFunction
float64Age int64
Outcome int64
dtype: object
#To print fiest 5 rows
print(df.head())
Pregnancies Glucose BloodPressure SkinThickness Insulin BMI
0 6 148 72 35 0 33.6
1 1 85 66 29 0 26.6
2 8 183 64 0 0 23.3
3 1 89 66 23 94 28.1
4 0 137 40 35 168 43.1
DiabetesPedigreeFunction Age Outcome
0 0.627 50 1
1 0.351 31 0
2 0.672 32 1
3 0.167 21 0
4 2.288 33 1
#To shape parameter to get the shape of the dataset.
print(df.shape)(768, 9)](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-44-2048.jpg)
![42

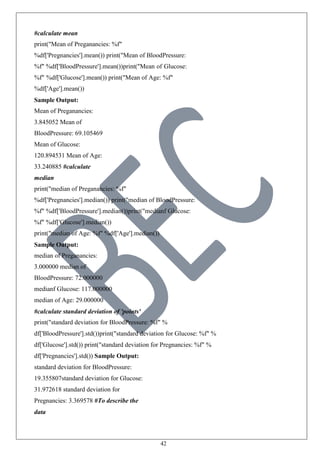

#calculate mean
print("Mean of Preganancies: %f"
%df['Pregnancies'].mean()) print("Mean of BloodPressure:
%f" %df['BloodPressure'].mean())print("Mean of Glucose:
%f" %df['Glucose'].mean()) print("Mean of Age: %f"
%df['Age'].mean())
Sample Output:
Mean of Preganancies:
3.845052 Mean of
BloodPressure: 69.105469
Mean of Glucose:
120.894531 Mean of Age:
33.240885 #calculate
median
print("median of Preganancies: %f"
%df['Pregnancies'].median()) print("median of BloodPressure:
%f" %df['BloodPressure'].median())print("medianf Glucose:
%f" %df['Glucose'].median())
print("median of Age: %f" %df['Age'].median())
Sample Output:
median of Preganancies:
3.000000 median of
BloodPressure: 72.000000
medianf Glucose: 117.000000
median of Age: 29.000000
#calculate standard deviation of 'points'
print("standard deviation for BloodPressure: %f" %
df['BloodPressure'].std())print("standard deviation for Glucose: %f" %
df['Glucose'].std()) print("standard deviation for Pregnancies: %f" %
df['Pregnancies'].std()) Sample Output:
standard deviation for BloodPressure:
19.355807standard deviation for Glucose:
31.972618 standard deviation for
Pregnancies: 3.369578 #To describe the
data](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-45-2048.jpg)
![43

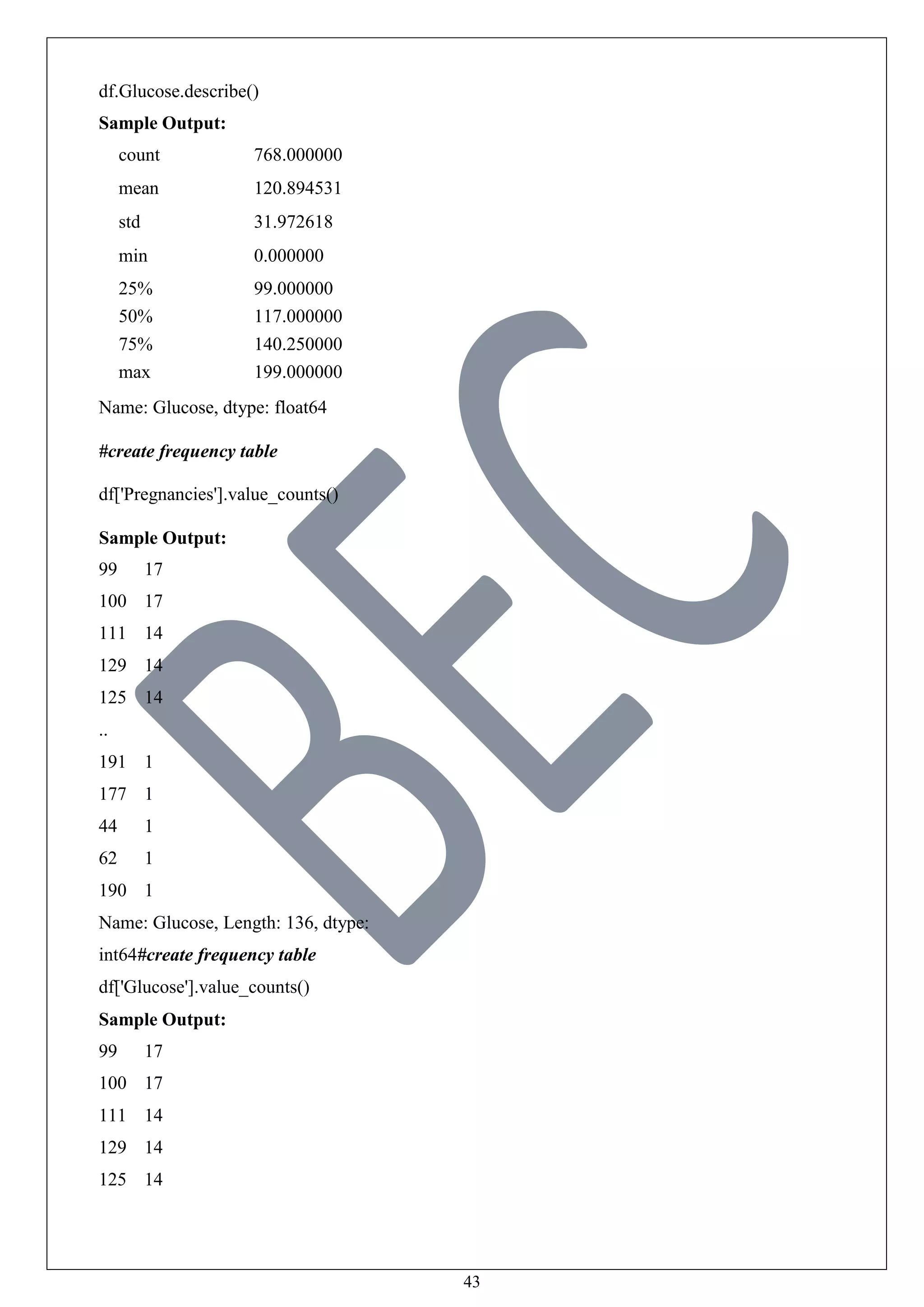

df.Glucose.describe()
Sample Output:
count 768.000000
mean 120.894531
std 31.972618
min 0.000000
25% 99.000000
50% 117.000000
75% 140.250000
max 199.000000
Name: Glucose, dtype: float64
#create frequency table
df['Pregnancies'].value_counts()
Sample Output:
99 17
100 17
111 14
129 14
125 14
..
191 1
177 1
44 1
62 1
190 1
Name: Glucose, Length: 136, dtype:
int64#create frequency table
df['Glucose'].value_counts()
Sample Output:
99 17
100 17
111 14
129 14
125 14](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-46-2048.jpg)
![44
..

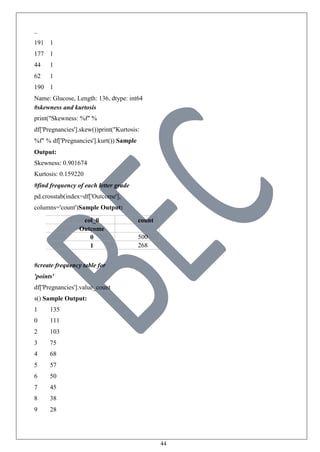

191 1
177 1
44 1
62 1
190 1
Name: Glucose, Length: 136, dtype: int64
#skewness and kurtosis
print("Skewness: %f" %
df['Pregnancies'].skew())print("Kurtosis:
%f" % df['Pregnancies'].kurt()) Sample
Output:
Skewness: 0.901674
Kurtosis: 0.159220
#find frequency of each letter grade
pd.crosstab(index=df['Outcome'],
columns='count')Sample Output:
col_0 count
Outcome
0 500
1 268
#create frequency table for
'points'
df['Pregnancies'].value_count
s() Sample Output:
1 135
0 111
2 103
3 75
4 68
5 57
6 50
7 45
8 38
9 28](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-47-2048.jpg)
![45

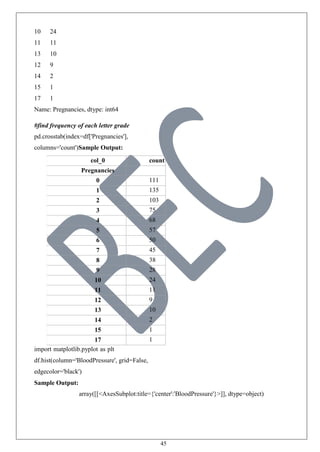

10 24
11 11
13 10
12 9
14 2
15 1
17 1
Name: Pregnancies, dtype: int64
#find frequency of each letter grade
pd.crosstab(index=df['Pregnancies'],
columns='count')Sample Output:
col_0 count
Pregnancies
0 111
1 135
2 103
3 75
4 68
5 57
6 50
7 45
8 38
9 28
10 24
11 11
12 9
13 10
14 2
15 1
17 1
import matplotlib.pyplot as plt
df.hist(column='BloodPressure', grid=False,
edgecolor='black')
Sample Output:
array([[<AxesSubplot:title={'center':'BloodPressure'}>]], dtype=object)](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-48-2048.jpg)
![46

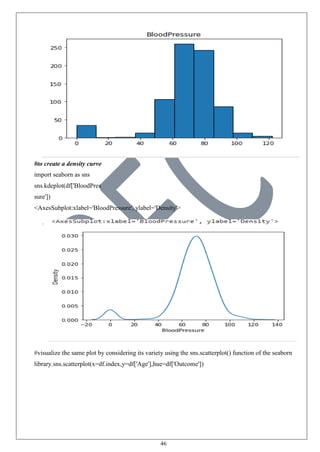

#to create a density curve
import seaborn as sns
sns.kdeplot(df['BloodPres
sure'])
<AxesSubplot:xlabel='BloodPressure', ylabel='Density'>
#visualize the same plot by considering its variety using the sns.scatterplot() function of the seaborn
library.sns.scatterplot(x=df.index,y=df['Age'],hue=df['Outcome'])](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-49-2048.jpg)

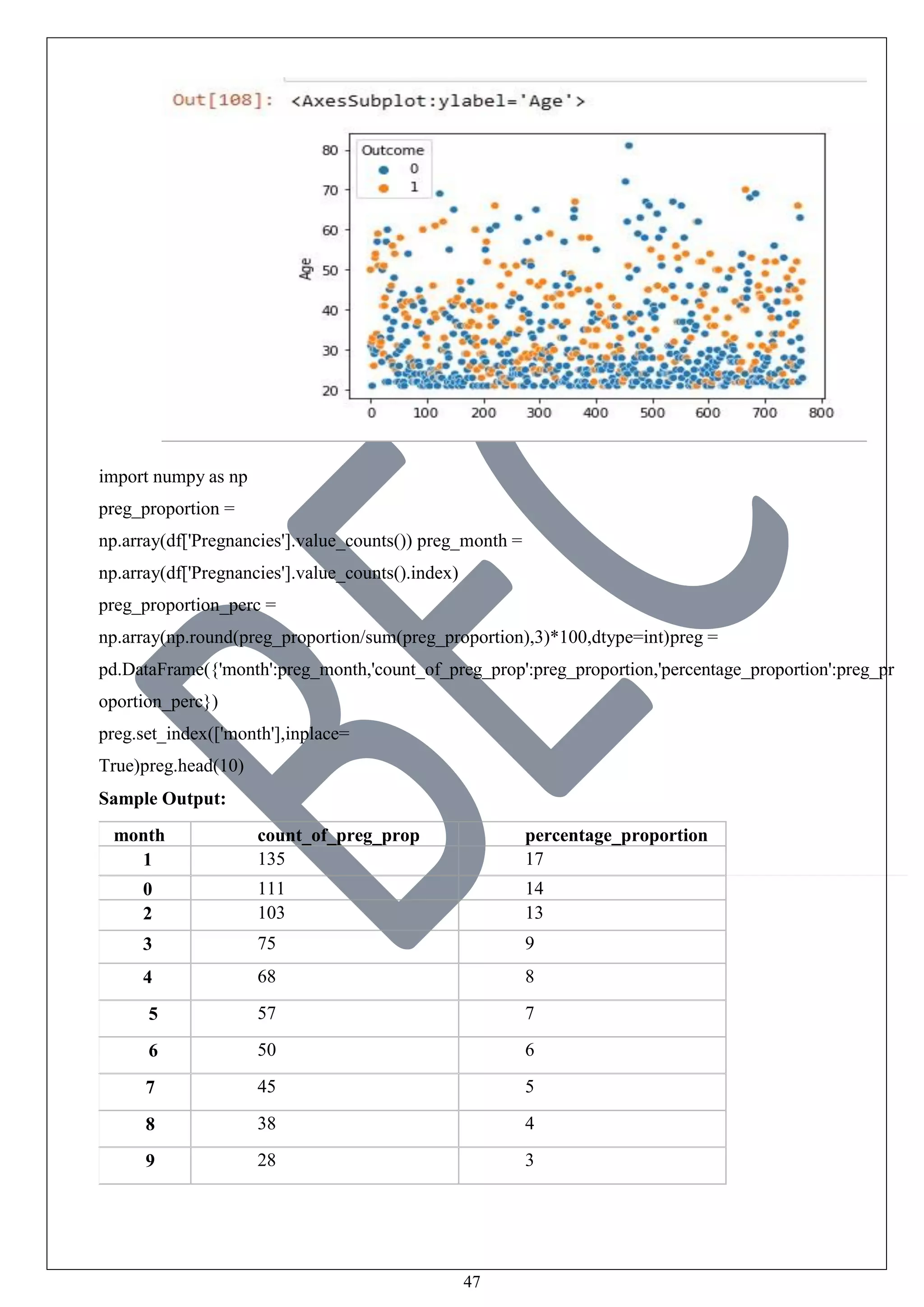

![47

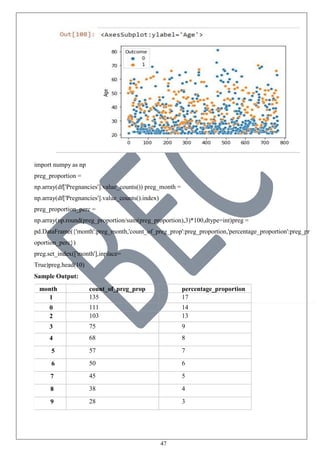

import numpy as np
preg_proportion =
np.array(df['Pregnancies'].value_counts()) preg_month =
np.array(df['Pregnancies'].value_counts().index)
preg_proportion_perc =
np.array(np.round(preg_proportion/sum(preg_proportion),3)*100,dtype=int)preg =
pd.DataFrame({'month':preg_month,'count_of_preg_prop':preg_proportion,'percentage_proportion':preg_pr
oportion_perc})
preg.set_index(['month'],inplace=
True)preg.head(10)
Sample Output:
month count_of_preg_prop percentage_proportion
1 135 17
0 111 14
2 103 13
3 75 9
4 68 8
5 57 7
6 50 6
7 45 5
8 38 4
9 28 3](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-50-2048.jpg)

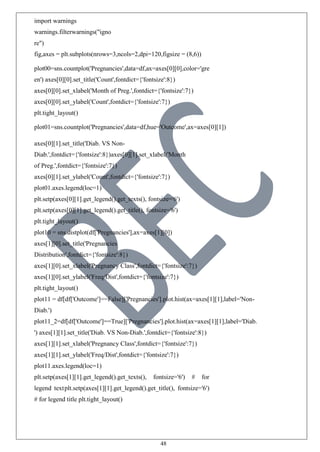

![48

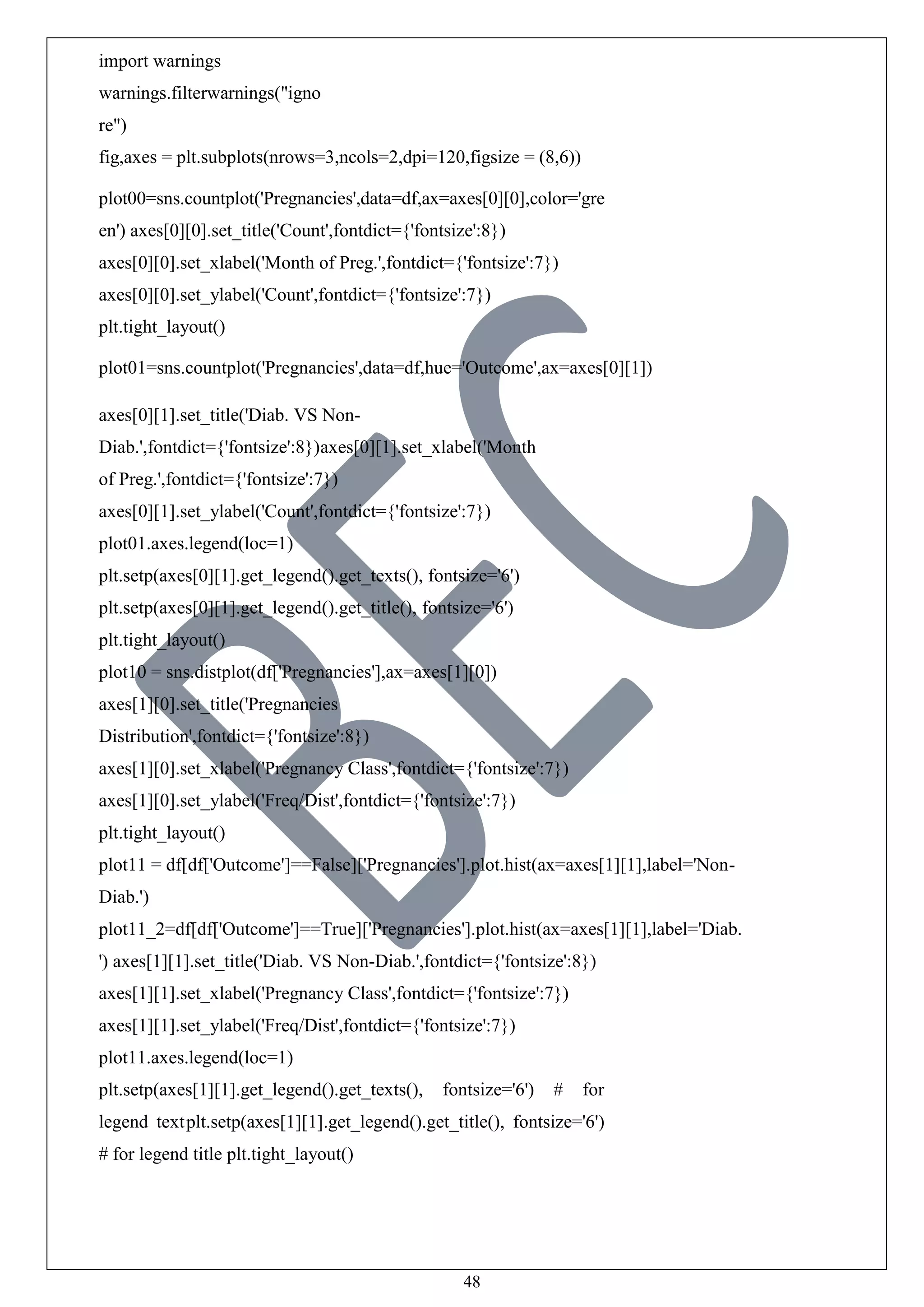

import warnings
warnings.filterwarnings("igno
re")
fig,axes = plt.subplots(nrows=3,ncols=2,dpi=120,figsize = (8,6))
plot00=sns.countplot('Pregnancies',data=df,ax=axes[0][0],color='gre
en') axes[0][0].set_title('Count',fontdict={'fontsize':8})
axes[0][0].set_xlabel('Month of Preg.',fontdict={'fontsize':7})
axes[0][0].set_ylabel('Count',fontdict={'fontsize':7})
plt.tight_layout()
plot01=sns.countplot('Pregnancies',data=df,hue='Outcome',ax=axes[0][1])
axes[0][1].set_title('Diab. VS Non-
Diab.',fontdict={'fontsize':8})axes[0][1].set_xlabel('Month
of Preg.',fontdict={'fontsize':7})
axes[0][1].set_ylabel('Count',fontdict={'fontsize':7})
plot01.axes.legend(loc=1)
plt.setp(axes[0][1].get_legend().get_texts(), fontsize='6')
plt.setp(axes[0][1].get_legend().get_title(), fontsize='6')
plt.tight_layout()
plot10 = sns.distplot(df['Pregnancies'],ax=axes[1][0])
axes[1][0].set_title('Pregnancies
Distribution',fontdict={'fontsize':8})
axes[1][0].set_xlabel('Pregnancy Class',fontdict={'fontsize':7})
axes[1][0].set_ylabel('Freq/Dist',fontdict={'fontsize':7})
plt.tight_layout()
plot11 = df[df['Outcome']==False]['Pregnancies'].plot.hist(ax=axes[1][1],label='Non-
Diab.')
plot11_2=df[df['Outcome']==True]['Pregnancies'].plot.hist(ax=axes[1][1],label='Diab.
') axes[1][1].set_title('Diab. VS Non-Diab.',fontdict={'fontsize':8})
axes[1][1].set_xlabel('Pregnancy Class',fontdict={'fontsize':7})
axes[1][1].set_ylabel('Freq/Dist',fontdict={'fontsize':7})
plot11.axes.legend(loc=1)
plt.setp(axes[1][1].get_legend().get_texts(), fontsize='6') # for
legend textplt.setp(axes[1][1].get_legend().get_title(), fontsize='6')
# for legend title plt.tight_layout()](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-51-2048.jpg)
![49

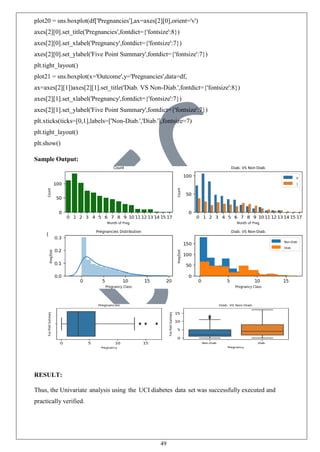

plot20 = sns.boxplot(df['Pregnancies'],ax=axes[2][0],orient='v')
axes[2][0].set_title('Pregnancies',fontdict={'fontsize':8})
axes[2][0].set_xlabel('Pregnancy',fontdict={'fontsize':7})
axes[2][0].set_ylabel('Five Point Summary',fontdict={'fontsize':7})
plt.tight_layout()
plot21 = sns.boxplot(x='Outcome',y='Pregnancies',data=df,
ax=axes[2][1])axes[2][1].set_title('Diab. VS Non-Diab.',fontdict={'fontsize':8})
axes[2][1].set_xlabel('Pregnancy',fontdict={'fontsize':7})
axes[2][1].set_ylabel('Five Point Summary',fontdict={'fontsize':7})
plt.xticks(ticks=[0,1],labels=['Non-Diab.','Diab.'],fontsize=7)
plt.tight_layout()
plt.show()
Sample Output:
RESULT:
Thus, the Univariate analysis using the UCI diabetes data set was successfully executed and
practically verified.](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-52-2048.jpg)

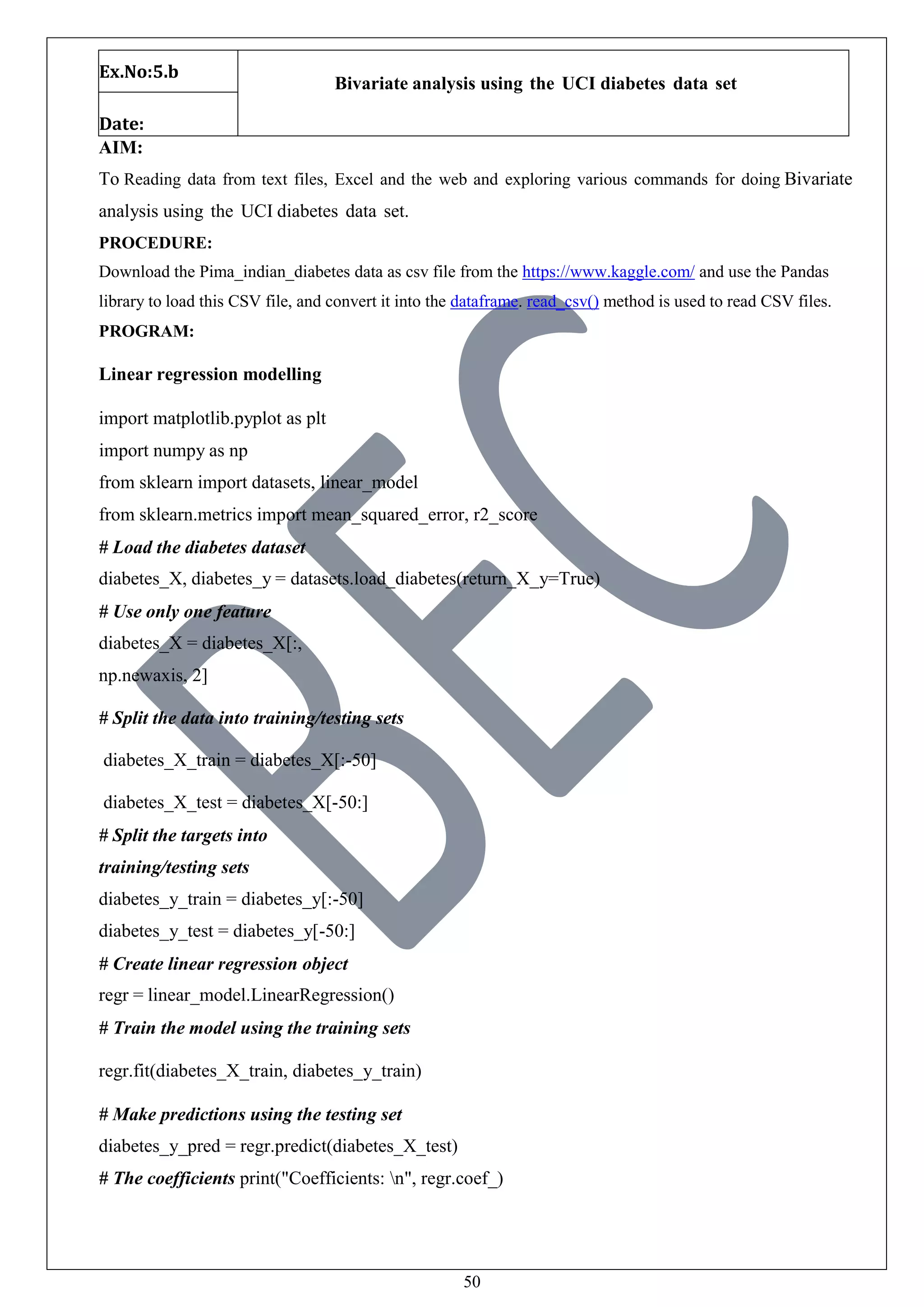

![50

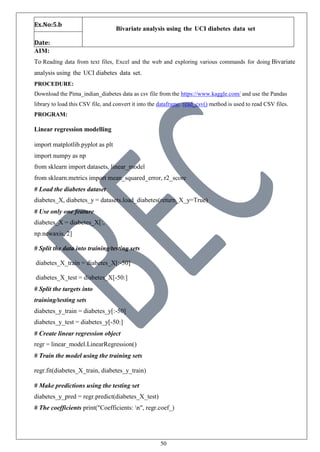

Ex.No:5.b
Bivariate analysis using the UCI diabetes data set
Date:
AIM:
To Reading data from text files, Excel and the web and exploring various commands for doing Bivariate
analysis using the UCI diabetes data set.
PROCEDURE:
Download the Pima_indian_diabetes data as csv file from the https://www.kaggle.com/ and use the Pandas
library to load this CSV file, and convert it into the dataframe. read_csv() method is used to read CSV files.
PROGRAM:
Linear regression modelling
import matplotlib.pyplot as plt
import numpy as np
from sklearn import datasets, linear_model
from sklearn.metrics import mean_squared_error, r2_score
# Load the diabetes dataset
diabetes_X, diabetes_y = datasets.load_diabetes(return_X_y=True)
# Use only one feature
diabetes_X = diabetes_X[:,
np.newaxis, 2]
# Split the data into training/testing sets
diabetes_X_train = diabetes_X[:-50]
diabetes_X_test = diabetes_X[-50:]
# Split the targets into
training/testing sets
diabetes_y_train = diabetes_y[:-50]
diabetes_y_test = diabetes_y[-50:]
# Create linear regression object
regr = linear_model.LinearRegression()
# Train the model using the training sets
regr.fit(diabetes_X_train, diabetes_y_train)
# Make predictions using the testing set
diabetes_y_pred = regr.predict(diabetes_X_test)
# The coefficients print("Coefficients: n", regr.coef_)](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-53-2048.jpg)
![51

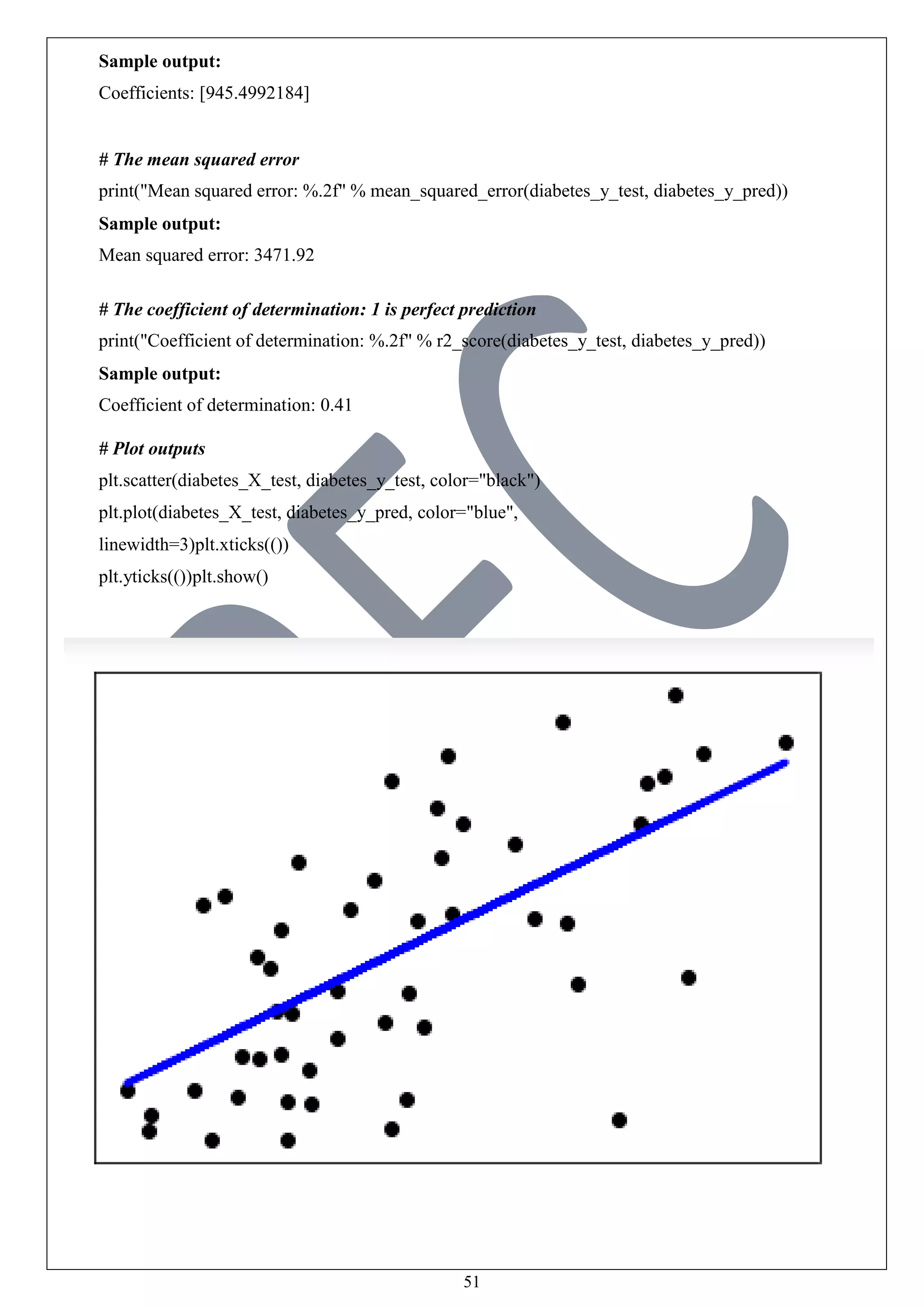

Sample output:
Coefficients: [945.4992184]
# The mean squared error
print("Mean squared error: %.2f" % mean_squared_error(diabetes_y_test, diabetes_y_pred))
Sample output:
Mean squared error: 3471.92
# The coefficient of determination: 1 is perfect prediction
print("Coefficient of determination: %.2f" % r2_score(diabetes_y_test, diabetes_y_pred))
Sample output:
Coefficient of determination: 0.41
# Plot outputs
plt.scatter(diabetes_X_test, diabetes_y_test, color="black")
plt.plot(diabetes_X_test, diabetes_y_pred, color="blue",
linewidth=3)plt.xticks(())
plt.yticks(())plt.show()](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-54-2048.jpg)

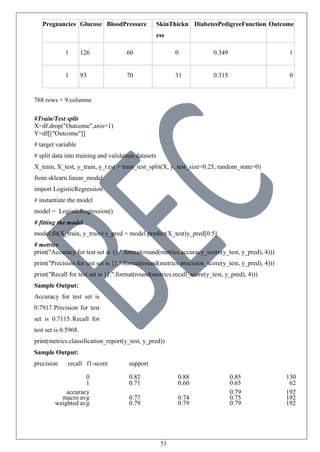

![53

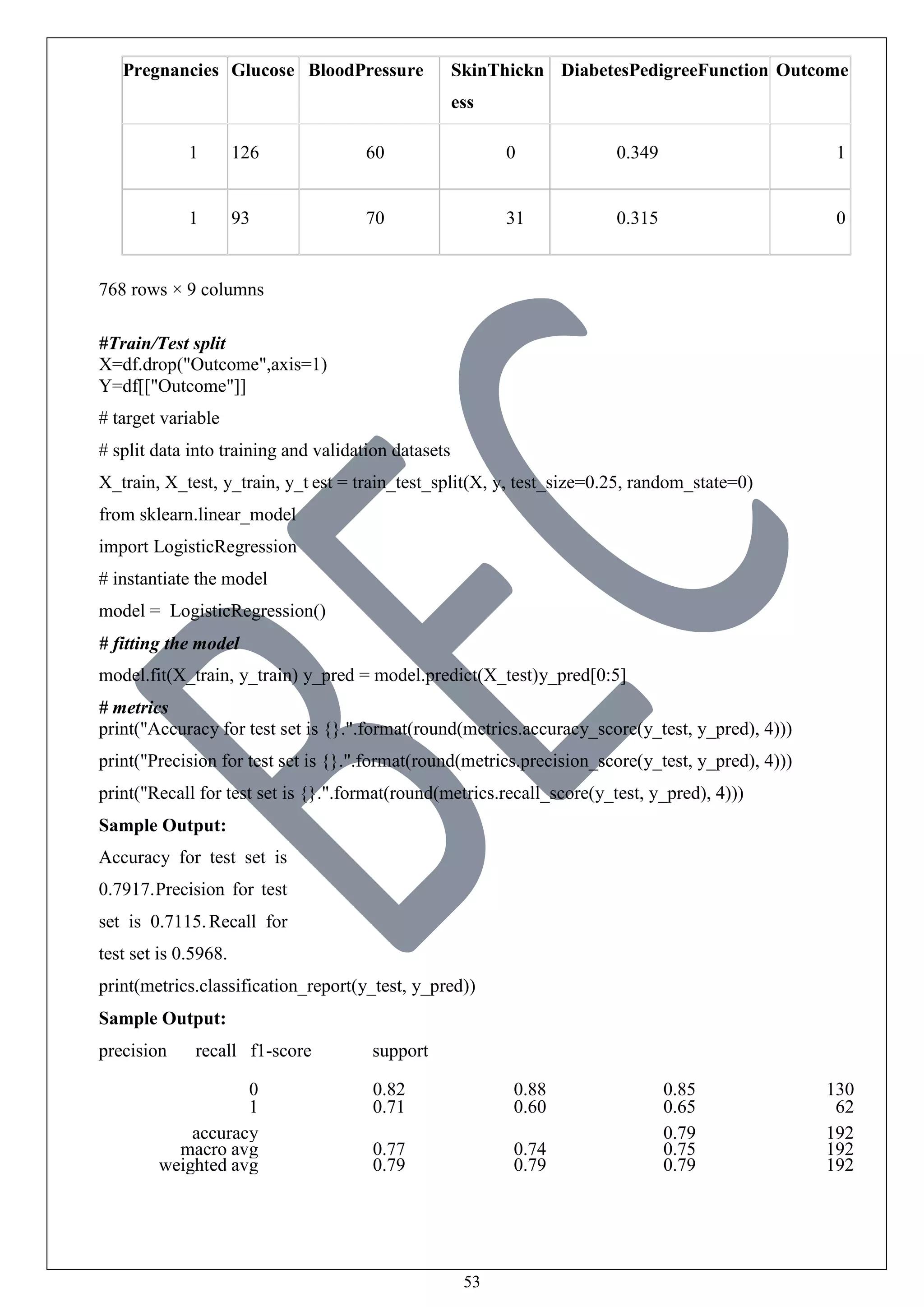

Pregnancies Glucose BloodPressure SkinThickn
ess
DiabetesPedigreeFunction Outcome
1 126 60 0 0.349 1
1 93 70 31 0.315 0
768 rows × 9 columns
#Train/Test split
X=df.drop("Outcome",axis=1)
Y=df[["Outcome"]]
# target variable
# split data into training and validation datasets
X_train, X_test, y_train, y_t est = train_test_split(X, y, test_size=0.25, random_state=0)
from sklearn.linear_model
import LogisticRegression
# instantiate the model
model = LogisticRegression()
# fitting the model
model.fit(X_train, y_train) y_pred = model.predict(X_test)y_pred[0:5]
# metrics
print("Accuracy for test set is {}.".format(round(metrics.accuracy_score(y_test, y_pred), 4)))
print("Precision for test set is {}.".format(round(metrics.precision_score(y_test, y_pred), 4)))
print("Recall for test set is {}.".format(round(metrics.recall_score(y_test, y_pred), 4)))
Sample Output:
Accuracy for test set is
0.7917.Precision for test
set is 0.7115.Recall for
test set is 0.5968.
print(metrics.classification_report(y_test, y_pred))
Sample Output:
precision recall f1-score support
0 0.82 0.88 0.85 130
1 0.71 0.60 0.65 62
accuracy 0.79 192
macro avg 0.77 0.74 0.75 192
weighted avg 0.79 0.79 0.79 192](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-56-2048.jpg)

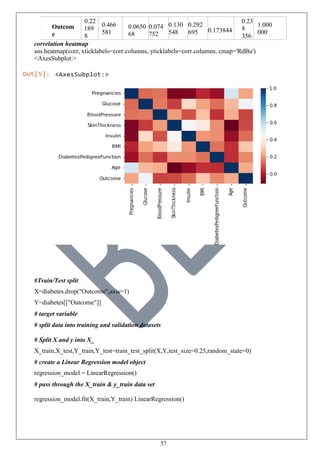

![57

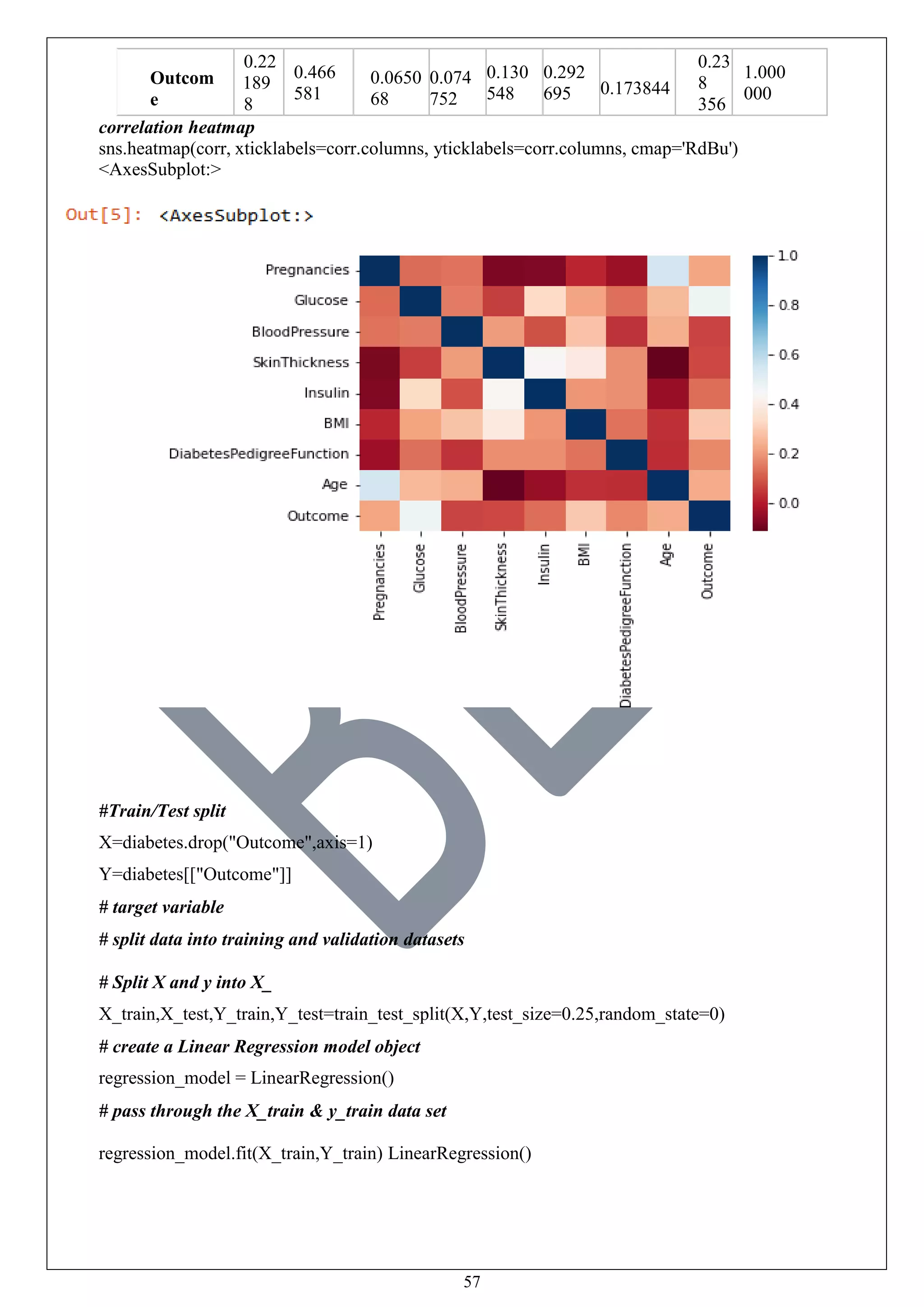

correlation heatmap
sns.heatmap(corr, xticklabels=corr.columns, yticklabels=corr.columns, cmap='RdBu')
<AxesSubplot:>
#Train/Test split
X=diabetes.drop("Outcome",axis=1)
Y=diabetes[["Outcome"]]
# target variable
# split data into training and validation datasets
# Split X and y into X_
X_train,X_test,Y_train,Y_test=train_test_split(X,Y,test_size=0.25,random_state=0)
# create a Linear Regression model object
regression_model = LinearRegression()
# pass through the X_train & y_train data set
regression_model.fit(X_train,Y_train) LinearRegression()
Outcom
e
0.22
189
8
0.466
581
0.0650
68
0.074
752
0.130
548
0.292
695 0.173844
0.23
8
356
1.000
000](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-60-2048.jpg)
![58

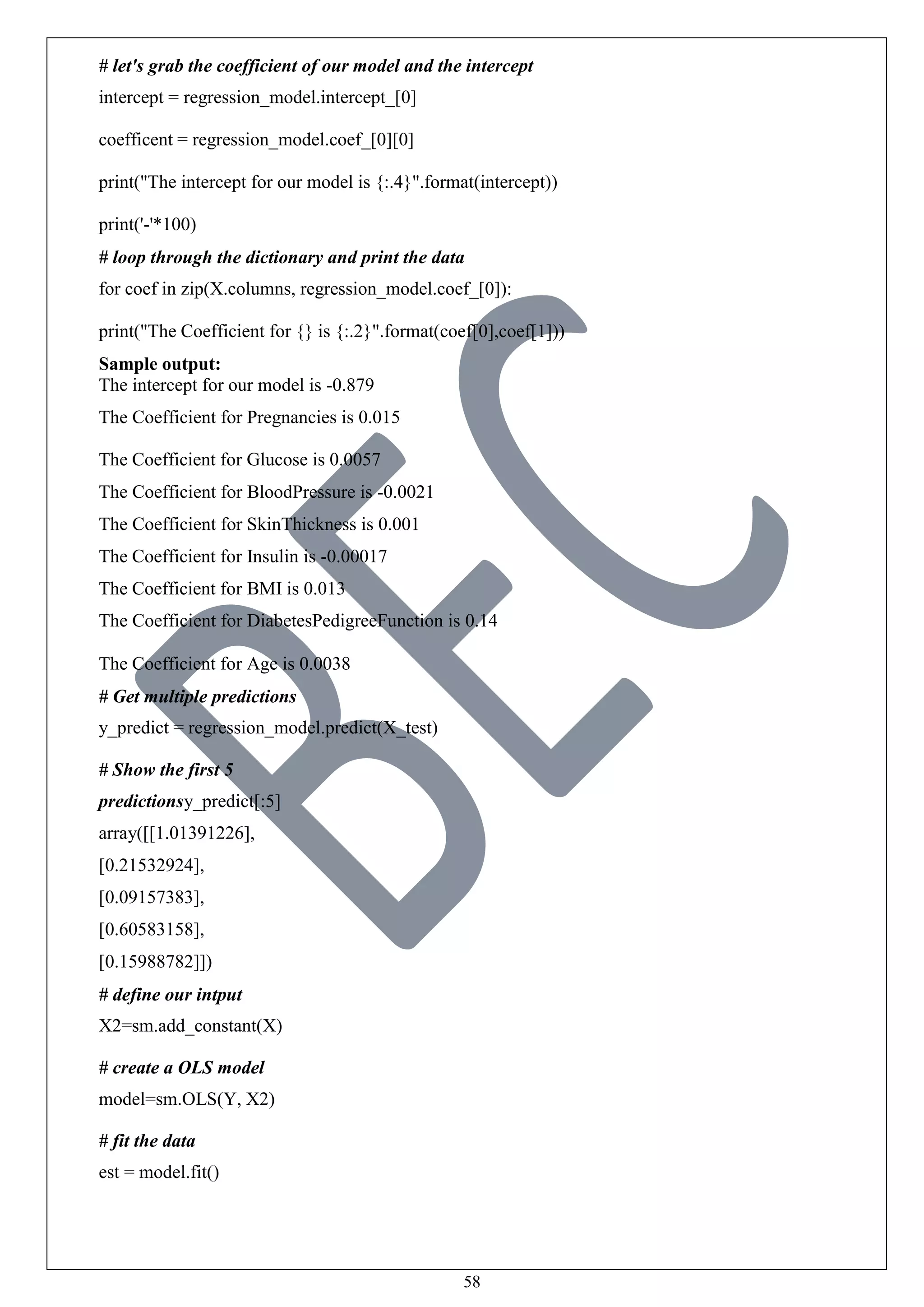

# let's grab the coefficient of our model and the intercept
intercept = regression_model.intercept_[0]
coefficent = regression_model.coef_[0][0]
print("The intercept for our model is {:.4}".format(intercept))
print('-'*100)
# loop through the dictionary and print the data
for coef in zip(X.columns, regression_model.coef_[0]):
print("The Coefficient for {} is {:.2}".format(coef[0],coef[1]))
Sample output:
The intercept for our model is -0.879
The Coefficient for Pregnancies is 0.015
The Coefficient for Glucose is 0.0057
The Coefficient for BloodPressure is -0.0021
The Coefficient for SkinThickness is 0.001
The Coefficient for Insulin is -0.00017
The Coefficient for BMI is 0.013
The Coefficient for DiabetesPedigreeFunction is 0.14
The Coefficient for Age is 0.0038
# Get multiple predictions
y_predict = regression_model.predict(X_test)
# Show the first 5
predictionsy_predict[:5]
array([[1.01391226],
[0.21532924],
[0.09157383],
[0.60583158],
[0.15988782]])
# define our intput
X2=sm.add_constant(X)
# create a OLS model
model=sm.OLS(Y, X2)
# fit the data
est = model.fit()](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-61-2048.jpg)
![59

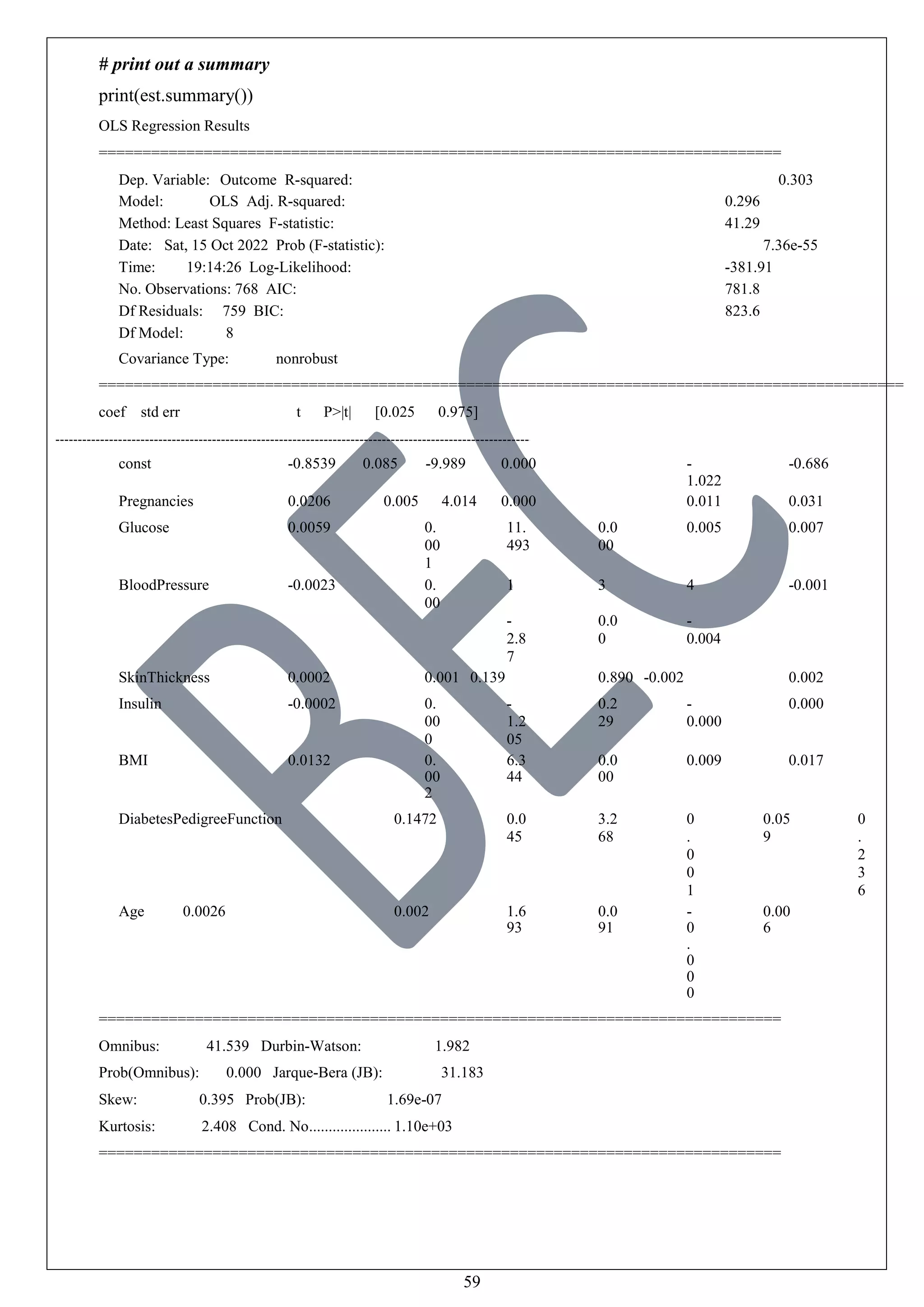

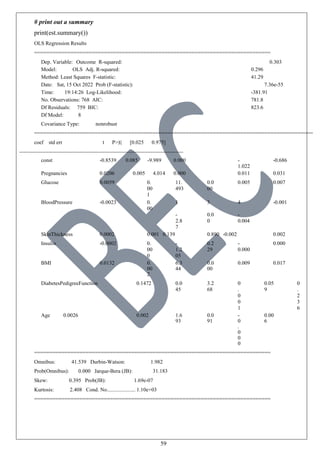

# print out a summary
print(est.summary())
OLS Regression Results
==============================================================================
Dep. Variable: Outcome R-squared: 0.303
Model: OLS Adj. R-squared: 0.296
Method: Least Squares F-statistic: 41.29
Date: Sat, 15 Oct 2022 Prob (F-statistic): 7.36e-55
Time: 19:14:26 Log-Likelihood: -381.91
No. Observations: 768 AIC: 781.8
Df Residuals: 759 BIC: 823.6
Df Model: 8
Covariance Type: nonrobust
============================================================================================
coef std err t P>|t| [0.025 0.975]
const -0.8539 0.085 -9.989 0.000 -
1.022
-0.686
Pregnancies 0.0206 0.005 4.014 0.000 0.011 0.031
Glucose 0.0059 0.
00
1
11.
493
0.0
00
0.005 0.007
BloodPressure -0.0023 0.
00
1
-
2.8
7
3
0.0
0
4
-
0.004
-0.001
SkinThickness 0.0002 0.001 0.139 0.890 -0.002 0.002
Insulin -0.0002 0.
00
0
-
1.2
05
0.2
29
-
0.000
0.000
BMI 0.0132 0.
00
2
6.3
44
0.0
00
0.009 0.017
DiabetesPedigreeFunction 0.1472 0.0
45
3.2
68
0
.
0
0
1
0.05
9
0
.
2
3
6
Age 0.0026 0.002 1.6
93
0.0
91
-
0
.
0
0
0
0.00
6
==============================================================================
Omnibus: 41.539 Durbin-Watson: 1.982
Prob(Omnibus): 0.000 Jarque-Bera (JB): 31.183
Skew: 0.395 Prob(JB): 1.69e-07
Kurtosis: 2.408 Cond. No..................... 1.10e+03
==============================================================================](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-62-2048.jpg)
![60

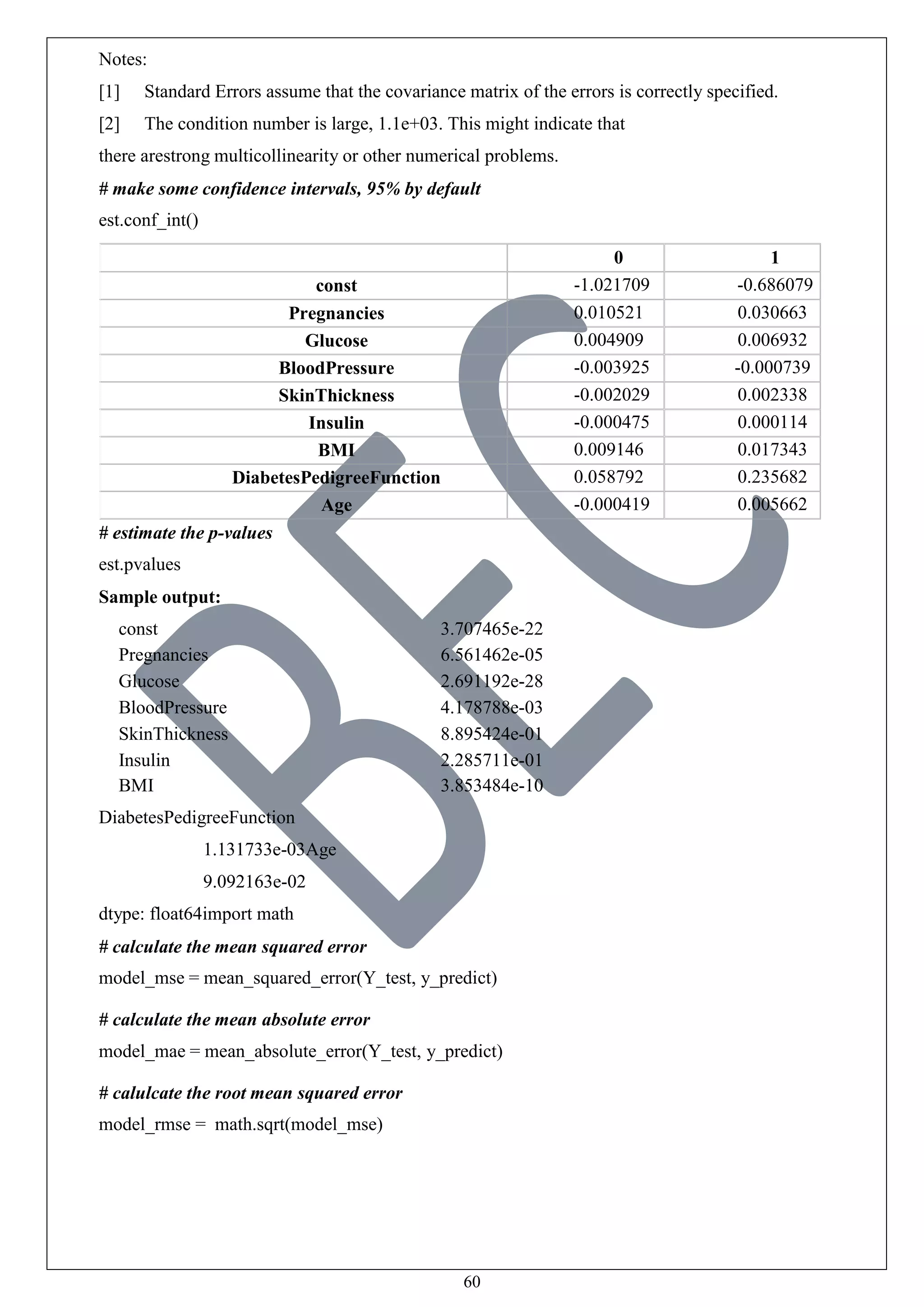

Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 1.1e+03. This might indicate that
there arestrong multicollinearity or other numerical problems.
# make some confidence intervals, 95% by default
est.conf_int()
0 1
const -1.021709 -0.686079
Pregnancies 0.010521 0.030663
Glucose 0.004909 0.006932
BloodPressure -0.003925 -0.000739
SkinThickness -0.002029 0.002338
Insulin -0.000475 0.000114
BMI 0.009146 0.017343
DiabetesPedigreeFunction 0.058792 0.235682
Age -0.000419 0.005662
# estimate the p-values
est.pvalues
Sample output:
const 3.707465e-22
Pregnancies 6.561462e-05
Glucose 2.691192e-28
BloodPressure 4.178788e-03
SkinThickness 8.895424e-01
Insulin 2.285711e-01
BMI 3.853484e-10
DiabetesPedigreeFunction
1.131733e-03Age
9.092163e-02
dtype: float64import math
# calculate the mean squared error
model_mse = mean_squared_error(Y_test, y_predict)
# calculate the mean absolute error
model_mae = mean_absolute_error(Y_test, y_predict)
# calulcate the root mean squared error
model_rmse = math.sqrt(model_mse)](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-63-2048.jpg)

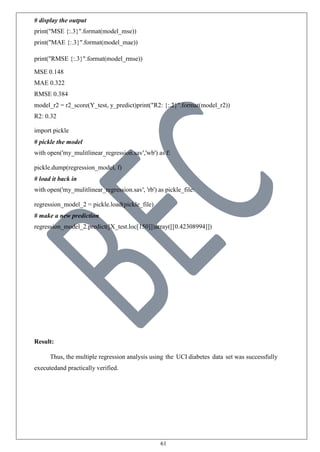

![61

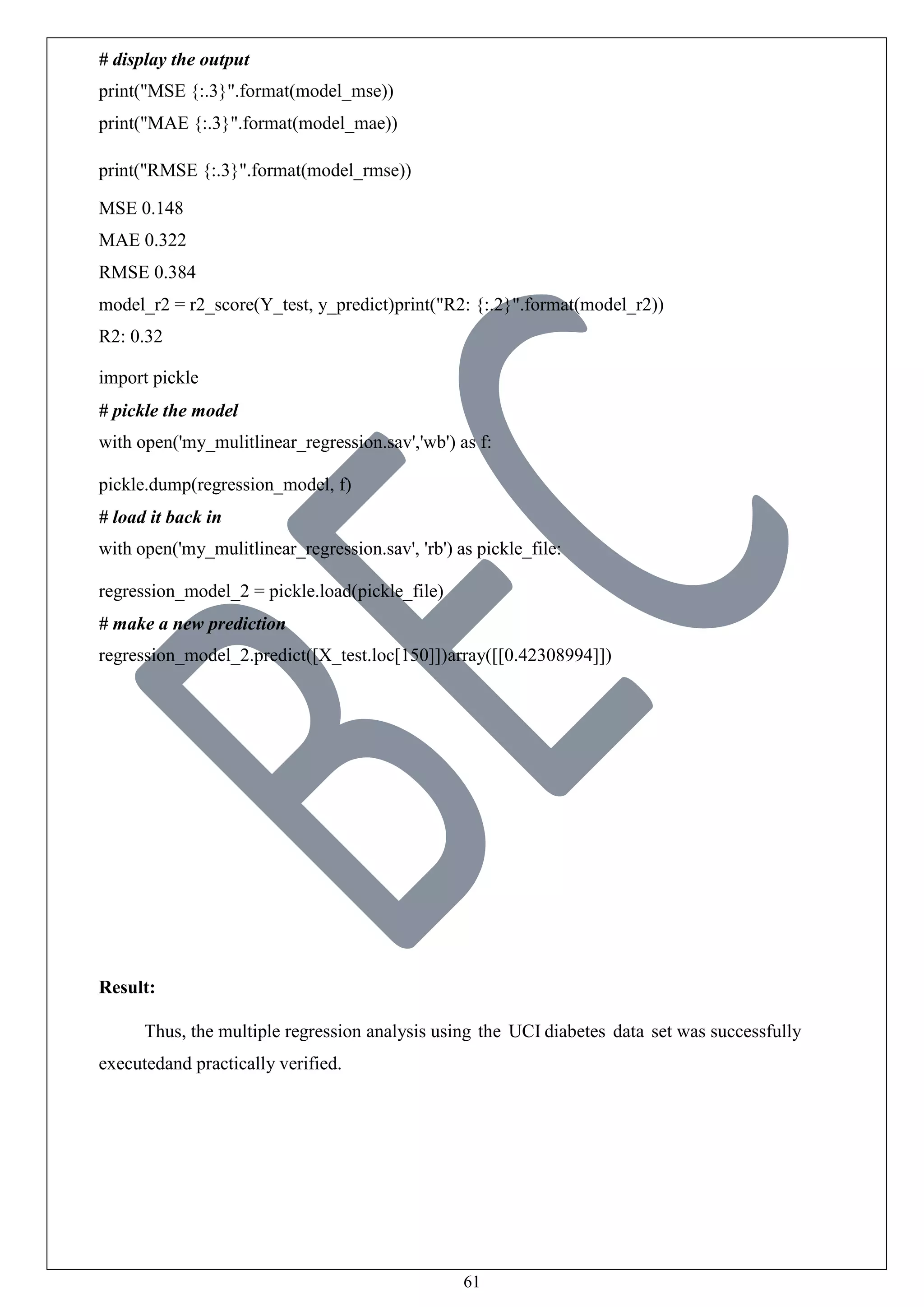

# display the output
print("MSE {:.3}".format(model_mse))
print("MAE {:.3}".format(model_mae))
print("RMSE {:.3}".format(model_rmse))
MSE 0.148
MAE 0.322
RMSE 0.384
model_r2 = r2_score(Y_test, y_predict)print("R2: {:.2}".format(model_r2))
R2: 0.32
import pickle
# pickle the model
with open('my_mulitlinear_regression.sav','wb') as f:
pickle.dump(regression_model, f)
# load it back in
with open('my_mulitlinear_regression.sav', 'rb') as pickle_file:
regression_model_2 = pickle.load(pickle_file)
# make a new prediction
regression_model_2.predict([X_test.loc[150]])array([[0.42308994]])
Result:
Thus, the multiple regression analysis using the UCI diabetes data set was successfully
executedand practically verified.](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-64-2048.jpg)

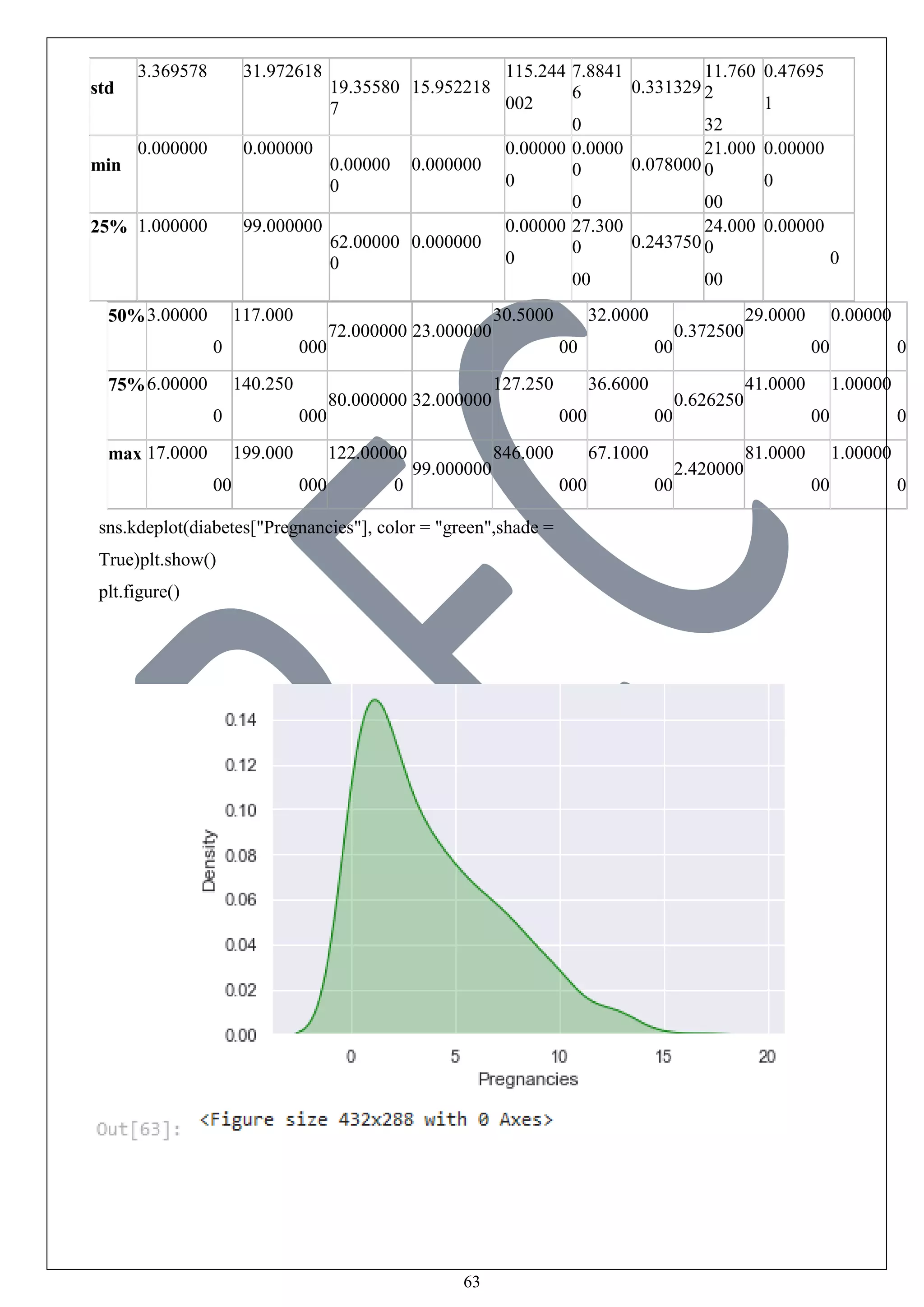

![63
50%3.00000
0
117.000
000
72.000000 23.000000
30.5000
00
32.0000
00
0.372500
29.0000
00
0.00000
0
75%6.00000
0
140.250
000
80.000000 32.000000
127.250
000
36.6000
00
0.626250
41.0000
00
1.00000
0
max 17.0000
00
199.000
000
122.00000
0
99.000000
846.000
000
67.1000
00
2.420000
81.0000
00
1.00000
0
sns.kdeplot(diabetes["Pregnancies"], color = "green",shade =
True)plt.show()
plt.figure()
std
3.369578 31.972618
19.35580
7
15.952218
115.244
002
7.8841
6
0
0.331329
11.760
2
32
0.47695
1
min
0.000000 0.000000
0.00000
0
0.000000
0.00000
0
0.0000
0
0
0.078000
21.000
0
00
0.00000
0
25% 1.000000 99.000000
62.00000
0
0.000000
0.00000
0
27.300
0
00
0.243750
24.000
0
00
0.00000
0](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-66-2048.jpg)

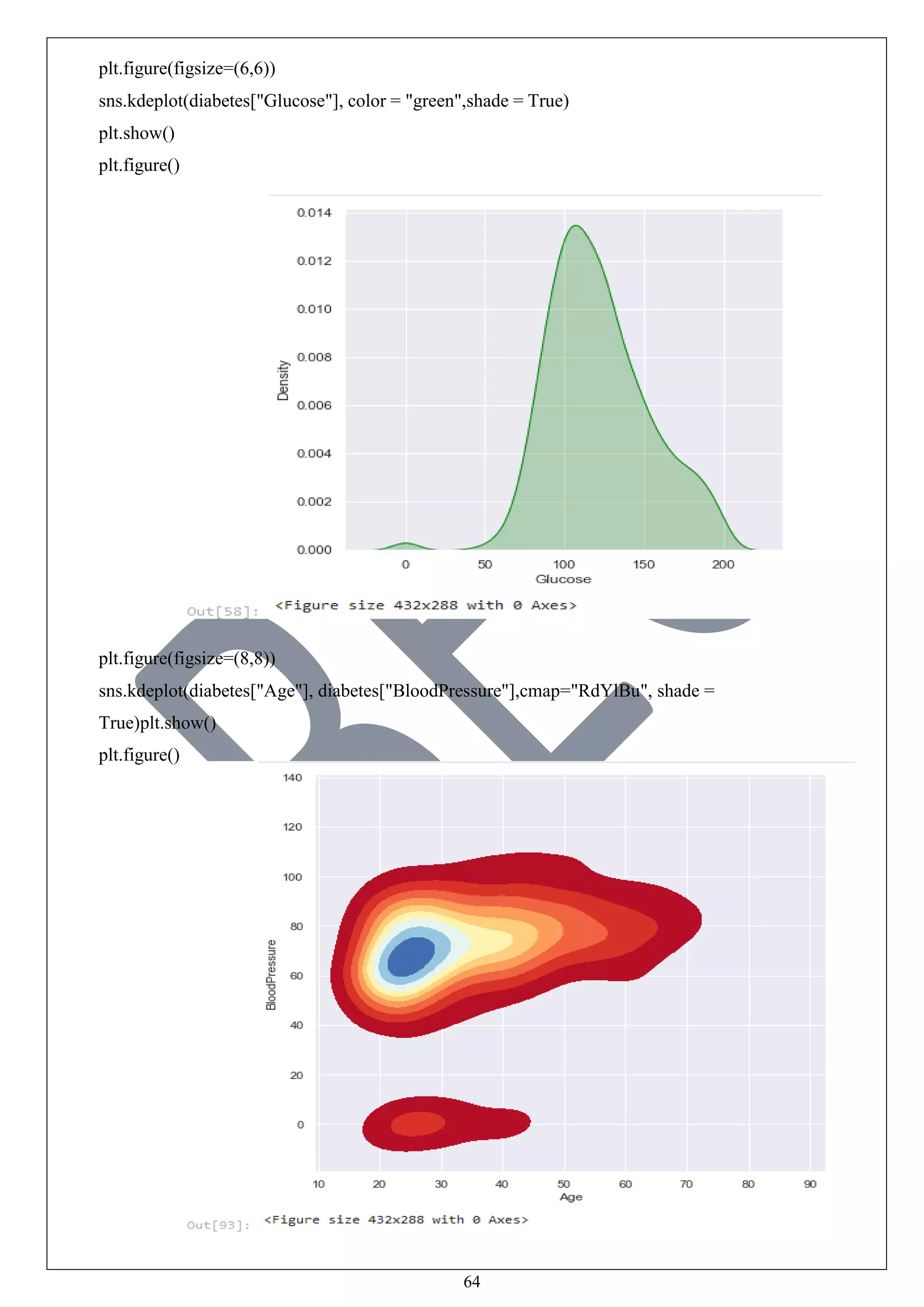

![64
plt.figure(figsize=(6,6))
sns.kdeplot(diabetes["Glucose"], color = "green",shade = True)
plt.show()
plt.figure()
plt.figure(figsize=(8,8))
sns.kdeplot(diabetes["Age"], diabetes["BloodPressure"],cmap="RdYlBu", shade =
True)plt.show()
plt.figure()](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-67-2048.jpg)

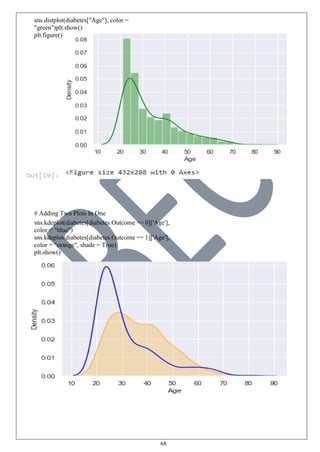

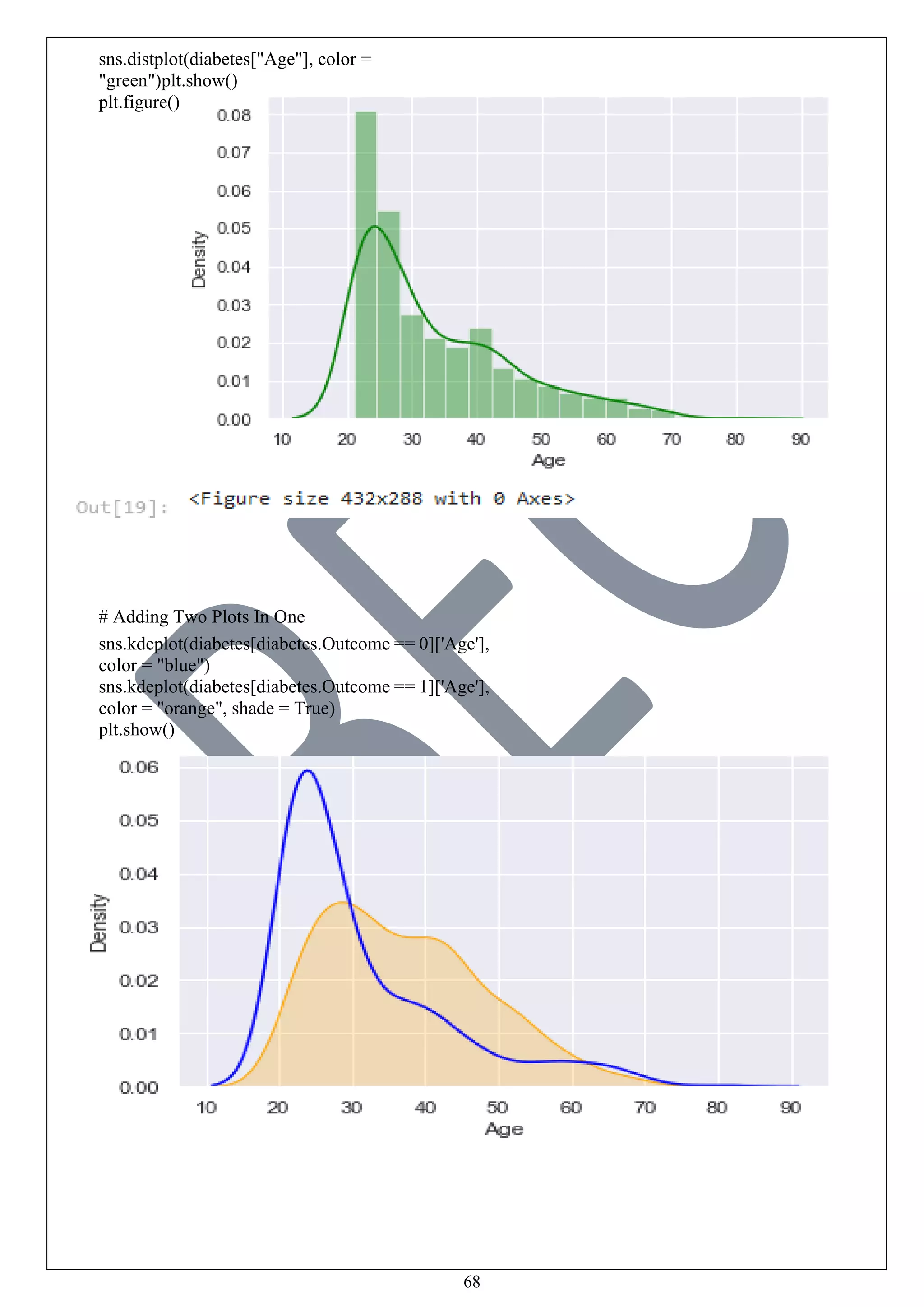

![68
sns.distplot(diabetes["Age"], color =
"green")plt.show()
plt.figure()
# Adding Two Plots In One
sns.kdeplot(diabetes[diabetes.Outcome == 0]['Age'],
color = "blue")
sns.kdeplot(diabetes[diabetes.Outcome == 1]['Age'],
color = "orange", shade = True)
plt.show()](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-71-2048.jpg)

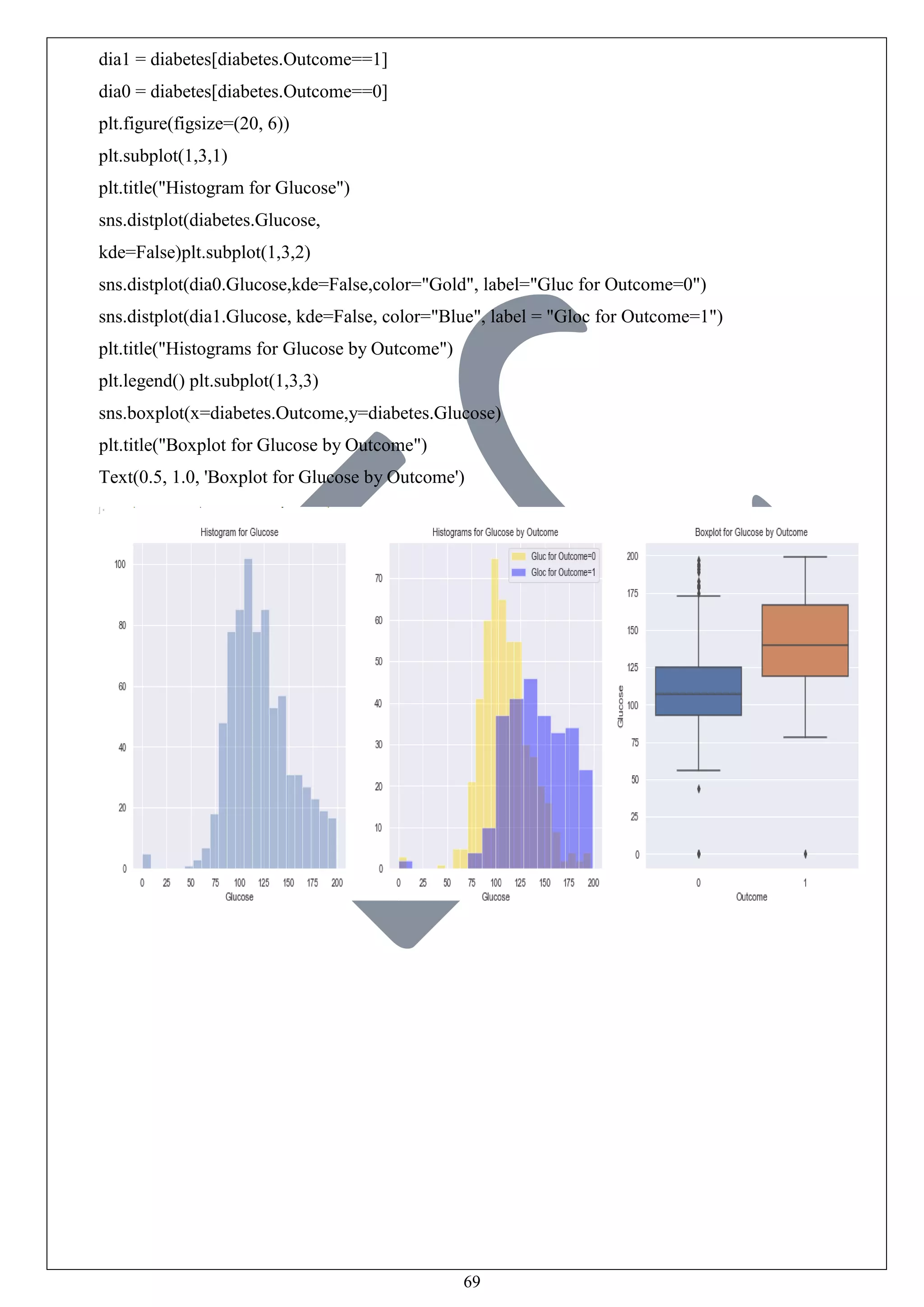

![69
dia1 = diabetes[diabetes.Outcome==1]
dia0 = diabetes[diabetes.Outcome==0]
plt.figure(figsize=(20, 6))
plt.subplot(1,3,1)
plt.title("Histogram for Glucose")
sns.distplot(diabetes.Glucose,
kde=False)plt.subplot(1,3,2)
sns.distplot(dia0.Glucose,kde=False,color="Gold", label="Gluc for Outcome=0")
sns.distplot(dia1.Glucose, kde=False, color="Blue", label = "Gloc for Outcome=1")
plt.title("Histograms for Glucose by Outcome")
plt.legend() plt.subplot(1,3,3)
sns.boxplot(x=diabetes.Outcome,y=diabetes.Glucose)
plt.title("Boxplot for Glucose by Outcome")
Text(0.5, 1.0, 'Boxplot for Glucose by Outcome')](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-72-2048.jpg)
![71

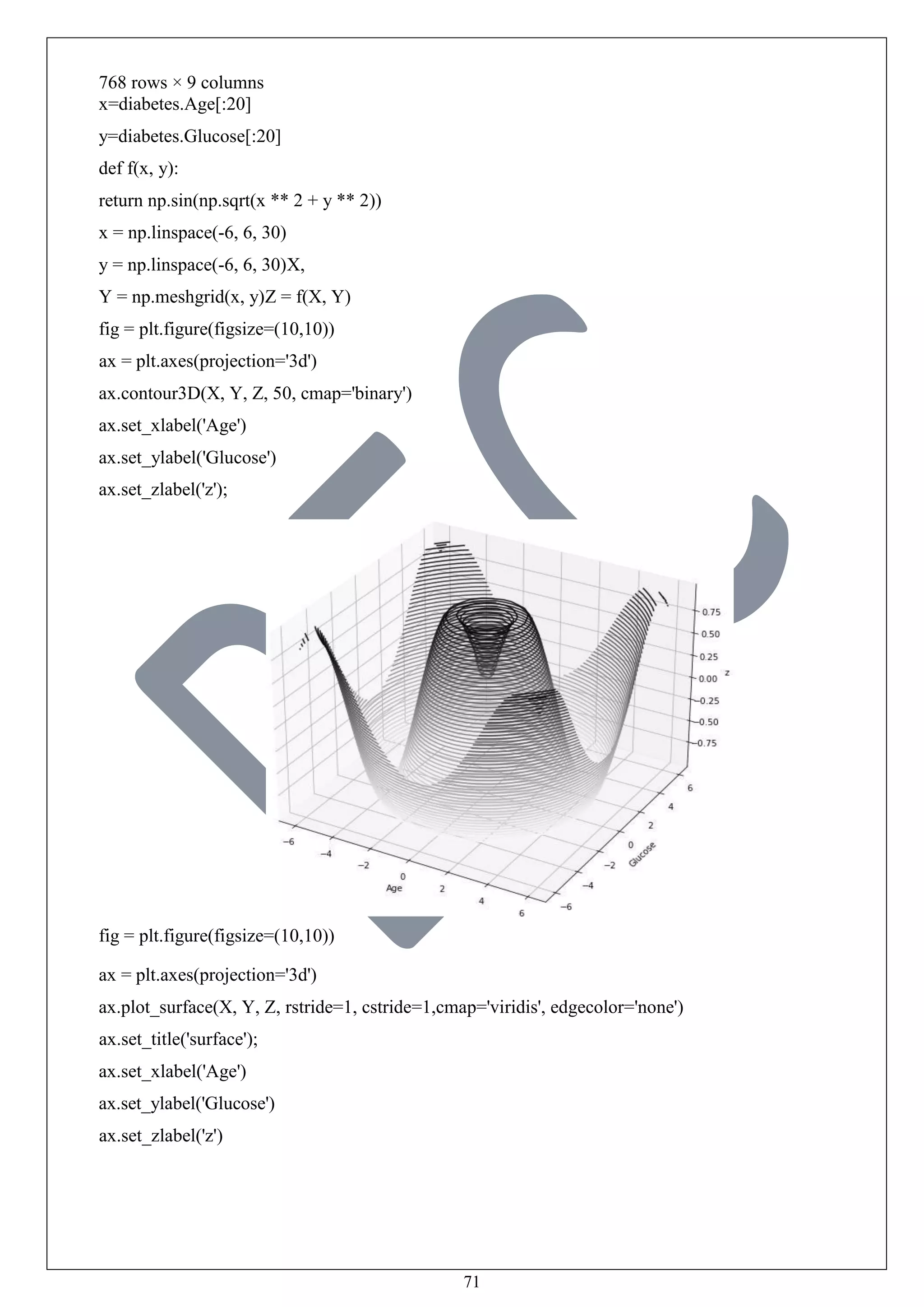

768 rows × 9 columns
x=diabetes.Age[:20]
y=diabetes.Glucose[:20]
def f(x, y):
return np.sin(np.sqrt(x ** 2 + y ** 2))
x = np.linspace(-6, 6, 30)
y = np.linspace(-6, 6, 30)X,
Y = np.meshgrid(x, y)Z = f(X, Y)
fig = plt.figure(figsize=(10,10))
ax = plt.axes(projection='3d')
ax.contour3D(X, Y, Z, 50, cmap='binary')
ax.set_xlabel('Age')
ax.set_ylabel('Glucose')
ax.set_zlabel('z');

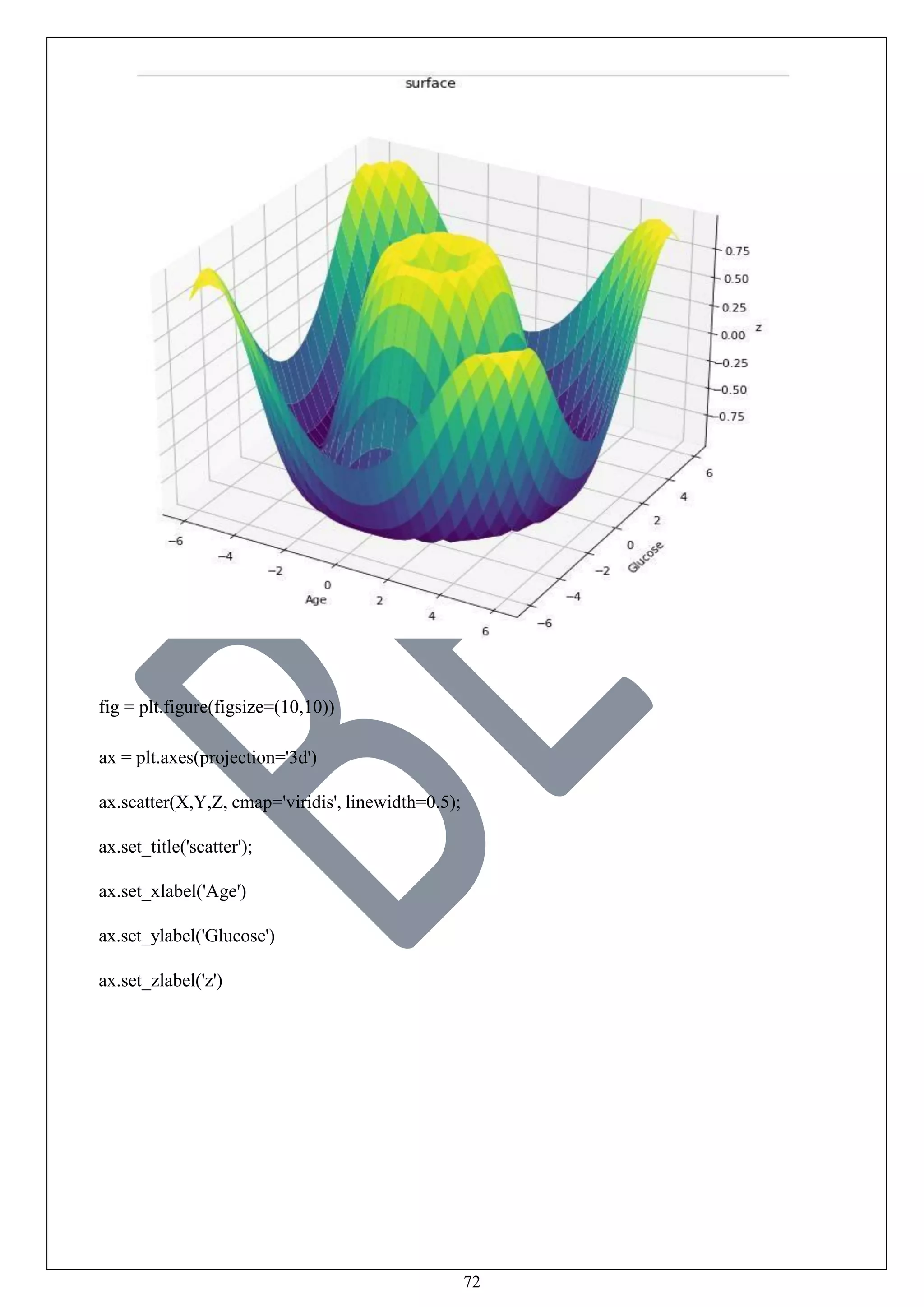

fig = plt.figure(figsize=(10,10))
ax = plt.axes(projection='3d')
ax.plot_surface(X, Y, Z, rstride=1, cstride=1,cmap='viridis', edgecolor='none')
ax.set_title('surface');
ax.set_xlabel('Age')
ax.set_ylabel('Glucose')
ax.set_zlabel('z')](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-74-2048.jpg)
![74

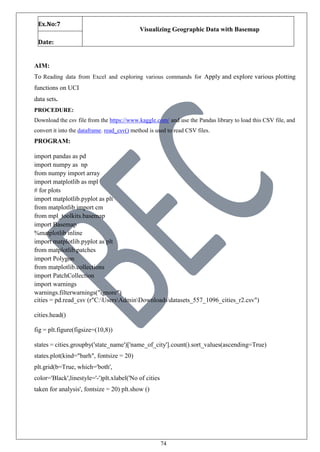

Ex.No:7
Visualizing Geographic Data with Basemap
Date:
AIM:
To Reading data from Excel and exploring various commands for Apply and explore various plotting
functions on UCI
data sets.
PROCEDURE:
Download the csv file from the https://www.kaggle.com/ and use the Pandas library to load this CSV file, and
convert it into the dataframe. read_csv() method is used to read CSV files.
PROGRAM:
import pandas as pd
import numpy as np
from numpy import array
import matplotlib as mpl
# for plots
import matplotlib.pyplot as plt
from matplotlib import cm
from mpl_toolkits.basemap
import Basemap
%matplotlib inline
import matplotlib.pyplot as plt
from matplotlib.patches
import Polygon
from matplotlib.collections
import PatchCollection
import warnings
warnings.filterwarnings("ignore")
cities = pd.read_csv (r"C:UsersAdminDownloadsdatasets_557_1096_cities_r2.csv")
cities.head()
fig = plt.figure(figsize=(10,8))
states = cities.groupby('state_name')['name_of_city'].count().sort_values(ascending=True)
states.plot(kind="barh", fontsize = 20)
plt.grid(b=True, which='both',
color='Black',linestyle='-')plt.xlabel('No of cities
taken for analysis', fontsize = 20) plt.show ()](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-77-2048.jpg)

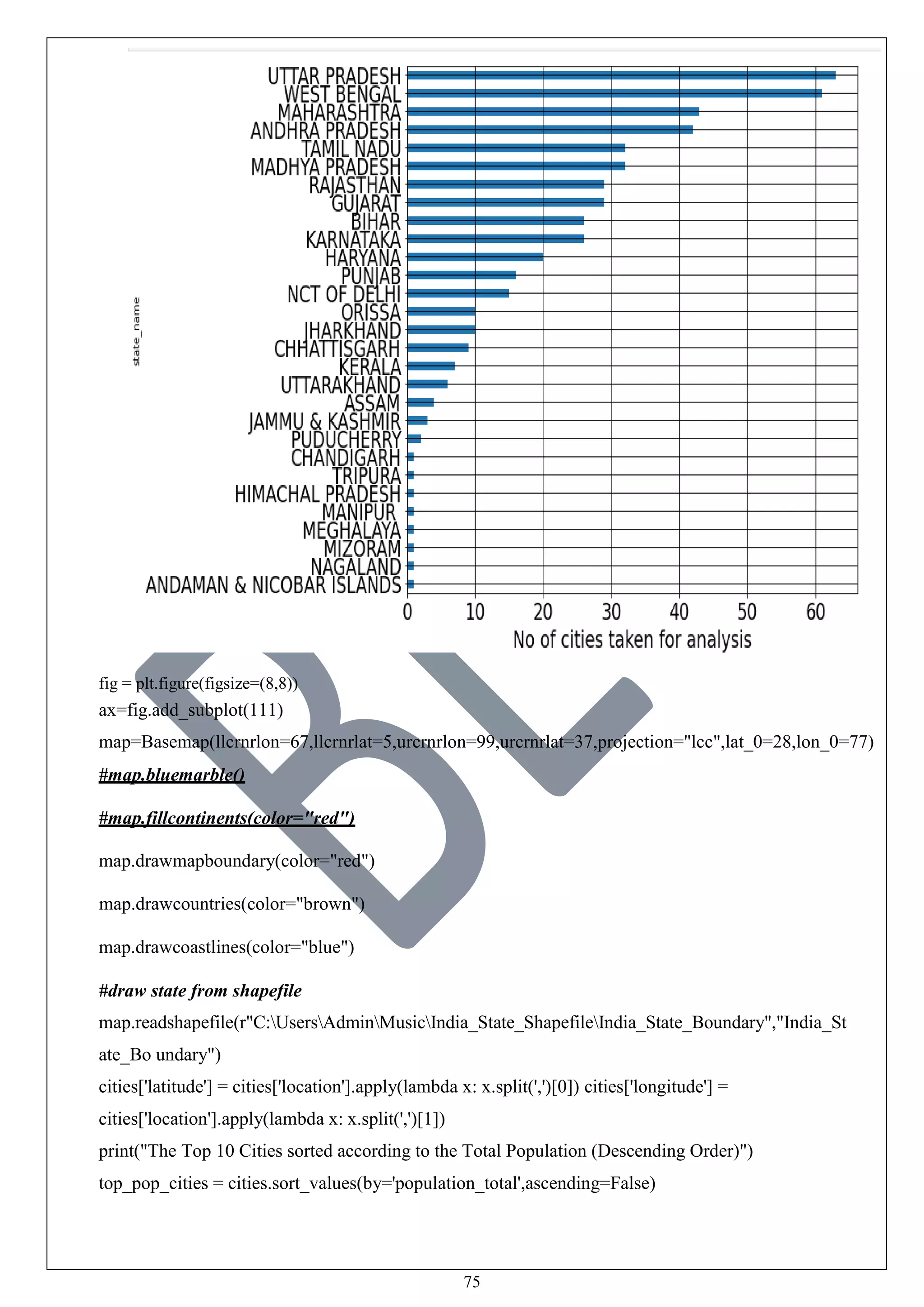

![75
fig = plt.figure(figsize=(8,8))
ax=fig.add_subplot(111)
map=Basemap(llcrnrlon=67,llcrnrlat=5,urcrnrlon=99,urcrnrlat=37,projection="lcc",lat_0=28,lon_0=77)
#map.bluemarble()
#map.fillcontinents(color="red")
map.drawmapboundary(color="red")
map.drawcountries(color="brown")
map.drawcoastlines(color="blue")
#draw state from shapefile
map.readshapefile(r"C:UsersAdminMusicIndia_State_ShapefileIndia_State_Boundary","India_St
ate_Bo undary")
cities['latitude'] = cities['location'].apply(lambda x: x.split(',')[0]) cities['longitude'] =
cities['location'].apply(lambda x: x.split(',')[1])
print("The Top 10 Cities sorted according to the Total Population (Descending Order)")
top_pop_cities = cities.sort_values(by='population_total',ascending=False)](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-78-2048.jpg)

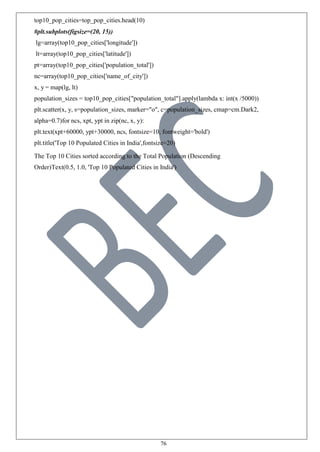

![76

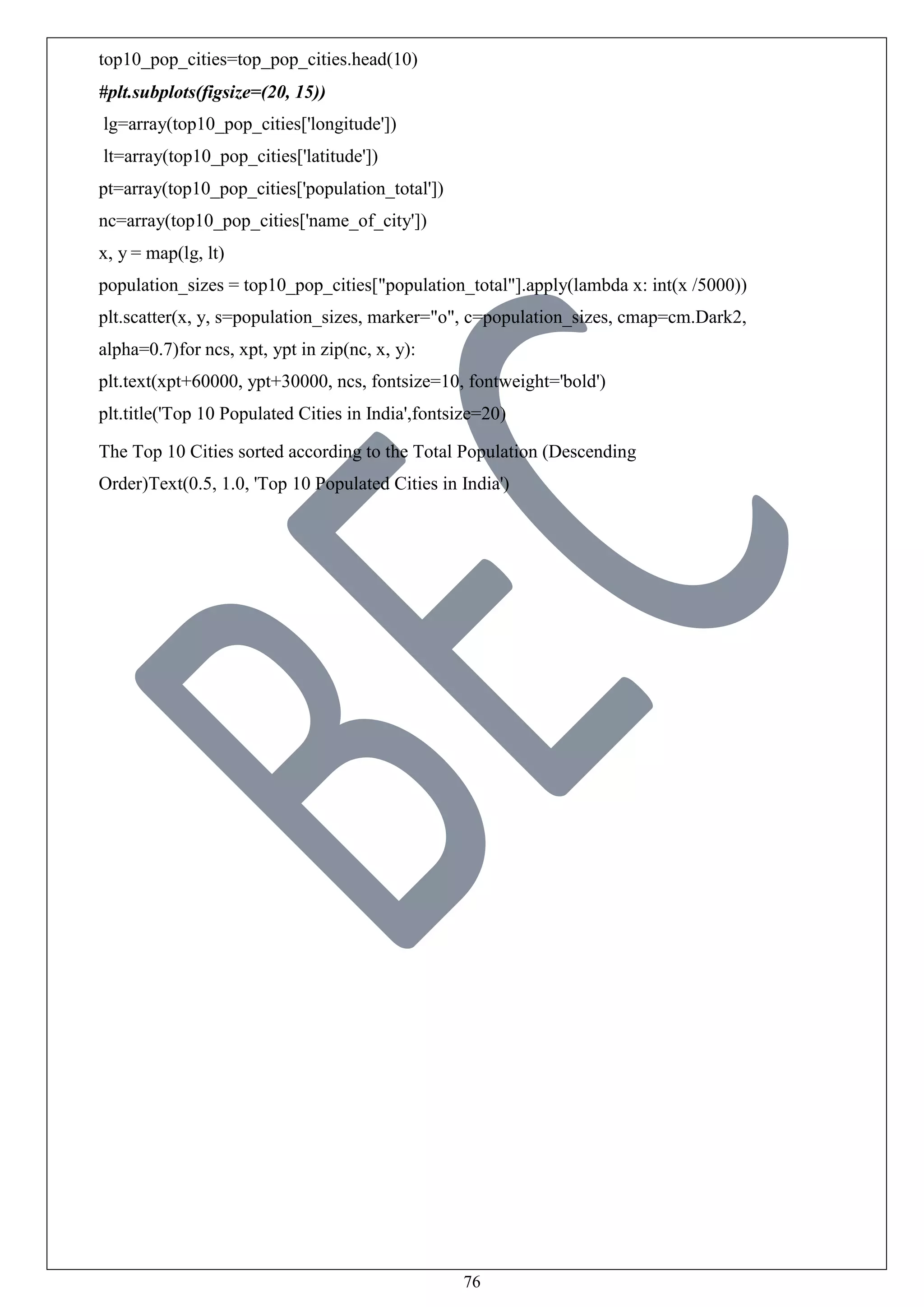

top10_pop_cities=top_pop_cities.head(10)
#plt.subplots(figsize=(20, 15))
lg=array(top10_pop_cities['longitude'])
lt=array(top10_pop_cities['latitude'])
pt=array(top10_pop_cities['population_total'])
nc=array(top10_pop_cities['name_of_city'])
x, y = map(lg, lt)
population_sizes = top10_pop_cities["population_total"].apply(lambda x: int(x /5000))
plt.scatter(x, y, s=population_sizes, marker="o", c=population_sizes, cmap=cm.Dark2,
alpha=0.7)for ncs, xpt, ypt in zip(nc, x, y):
plt.text(xpt+60000, ypt+30000, ncs, fontsize=10, fontweight='bold')

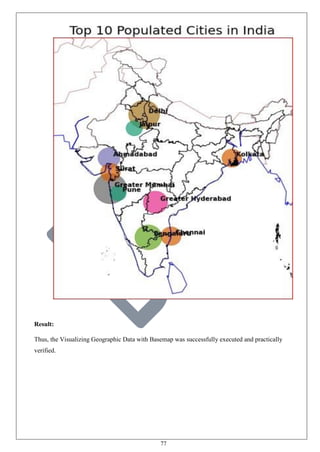

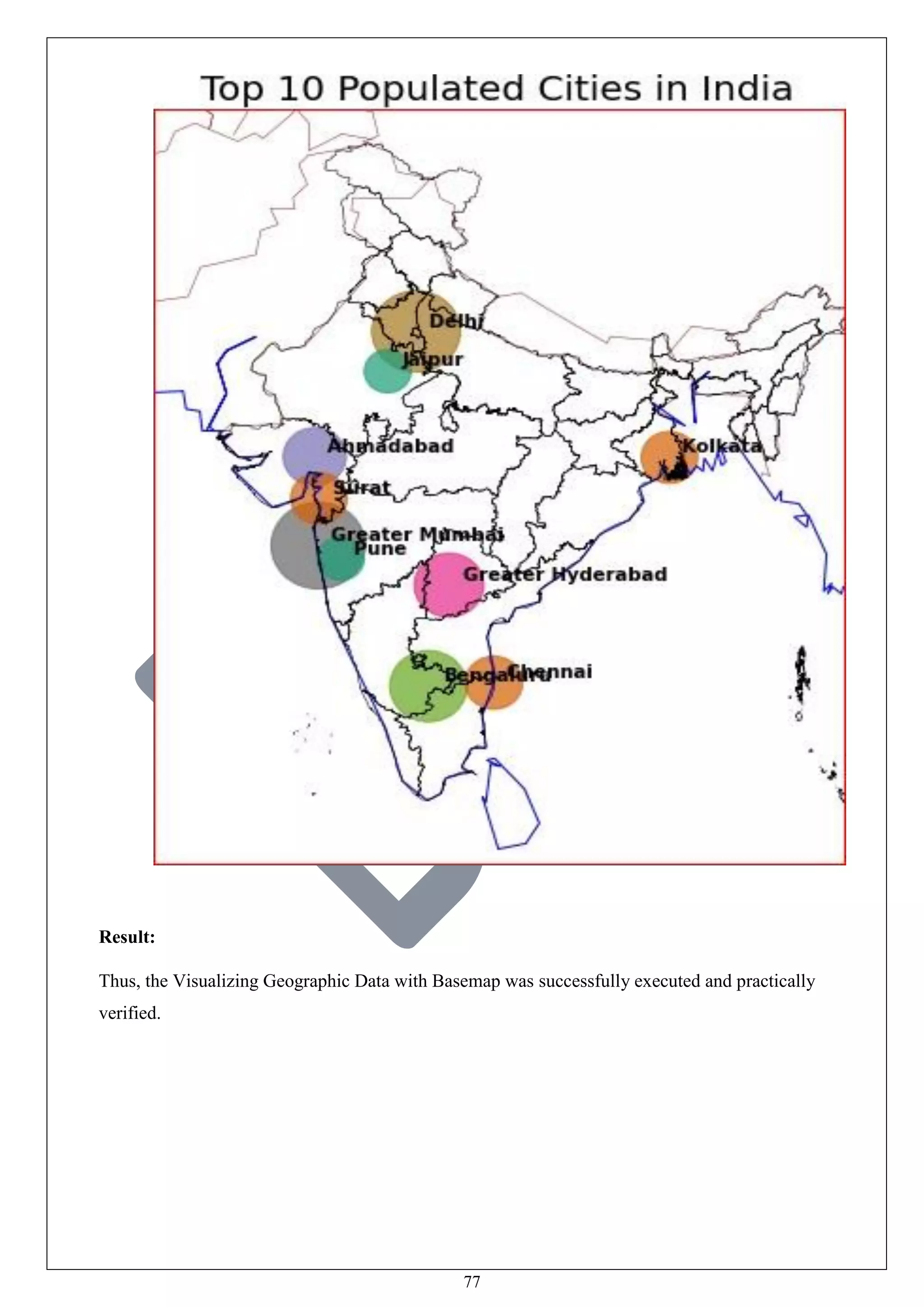

plt.title('Top 10 Populated Cities in India',fontsize=20)
The Top 10 Cities sorted according to the Total Population (Descending
Order)Text(0.5, 1.0, 'Top 10 Populated Cities in India')](https://image.slidesharecdn.com/dslabmanual-221031073006-21522af4/75/DS-LAB-MANUAL-pdf-79-2048.jpg)
More Related Content
Similar to DS LAB MANUAL.pdf
DS LAB MANUAL.pdf
- 1. REGULATION – 2021 CS3361– DATA SCIENCE LABORATORY LAB MANUAL YEAR / SEMESTER: II / III Prepared by P.SANTHIYA Assistant Professor Department of Computer Science and Engineering

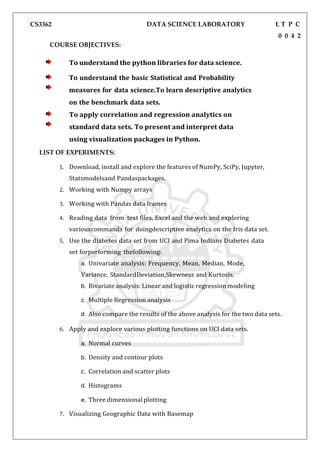

- 2. CS3362 DATA SCIENCELABORATORY L T P C 0 0 4 2 COURSE OBJECTIVES: To understand the python libraries for data science. To understand the basic Statistical and Probability measures for data science.To learn descriptive analytics on the benchmark data sets. To apply correlation and regression analytics on standard data sets. To present and interpret data using visualization packages in Python. LIST OF EXPERIMENTS: 1. Download, install and explore the features of NumPy, SciPy, Jupyter, Statsmodelsand Pandaspackages. 2. Working with Numpy arrays 3. Working with Pandas data frames 4. Reading data from text files, Excel and the web and exploring variouscommands for doingdescriptive analytics on the Iris data set. 5. Use the diabetes data set from UCI and Pima Indians Diabetes data set forperforming thefollowing: a. Univariate analysis: Frequency, Mean, Median, Mode, Variance, StandardDeviation,Skewness and Kurtosis. b. Bivariate analysis: Linear and logistic regression modeling c. Multiple Regression analysis d. Also compare the results of the above analysis for the two data sets. 6. Apply and explore various plotting functions on UCI data sets. a. Normal curves b. Density and contour plots c. Correlation and scatter plots d. Histograms e. Three dimensional plotting 7. Visualizing Geographic Data with Basemap

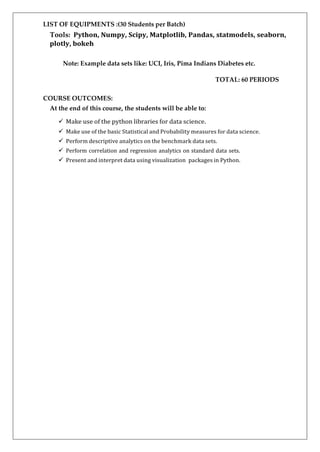

- 3. LIST OF EQUIPMENTS:(30 Students per Batch) Tools: Python, Numpy, Scipy, Matplotlib, Pandas, statmodels, seaborn, plotly, bokeh Note: Example data sets like: UCI, Iris, Pima Indians Diabetes etc. TOTAL: 60 PERIODS COURSE OUTCOMES: At the end of this course, the students will be able to: Make use of the python libraries for data science. Make use of the basic Statistical and Probability measures for data science. Perform descriptive analytics on the benchmark data sets. Perform correlation and regression analytics on standard data sets. Present and interpret data using visualization packages in Python.
- 4. 1 Ex.No 1 Download, installand explore the features of NumPy, SciPy, Jupyter,Statsmodels andpackages Date: AIM: Download, install and explore the features of NumPy, SciPy, Jupyter, Statsmodels and packages. Downloading and Installing Anaconda on Linux: 1. Getting Started: 2. Getting through the License Agreement:

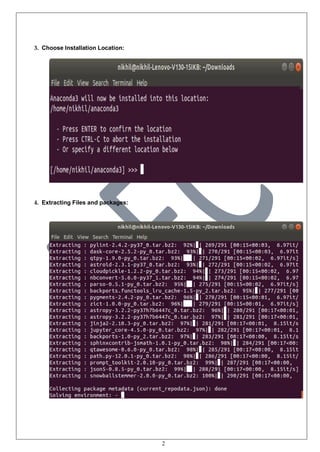

- 5. 2 3. Choose InstallationLocation: 4. Extracting Files and packages:

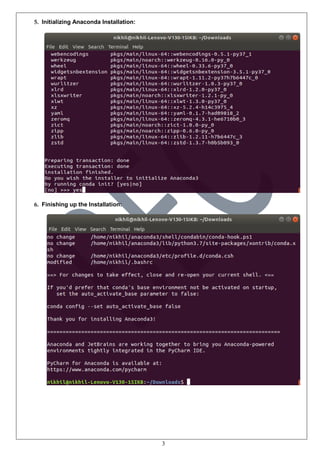

- 6. 3 5. Initializing AnacondaInstallation: 6. Finishing up the Installation:

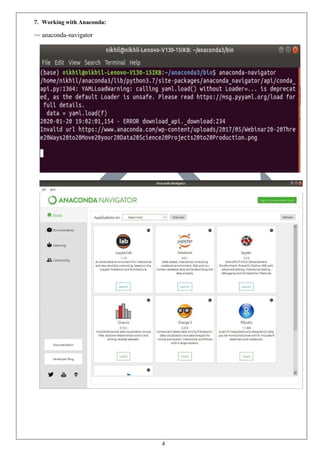

- 7. 4 7. Working withAnaconda: >> anaconda-navigator

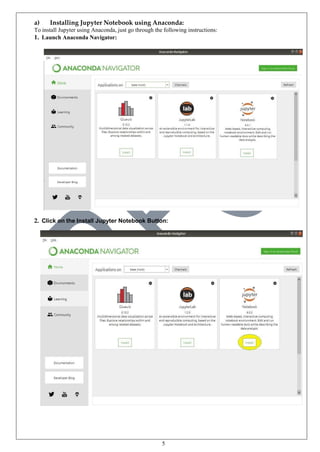

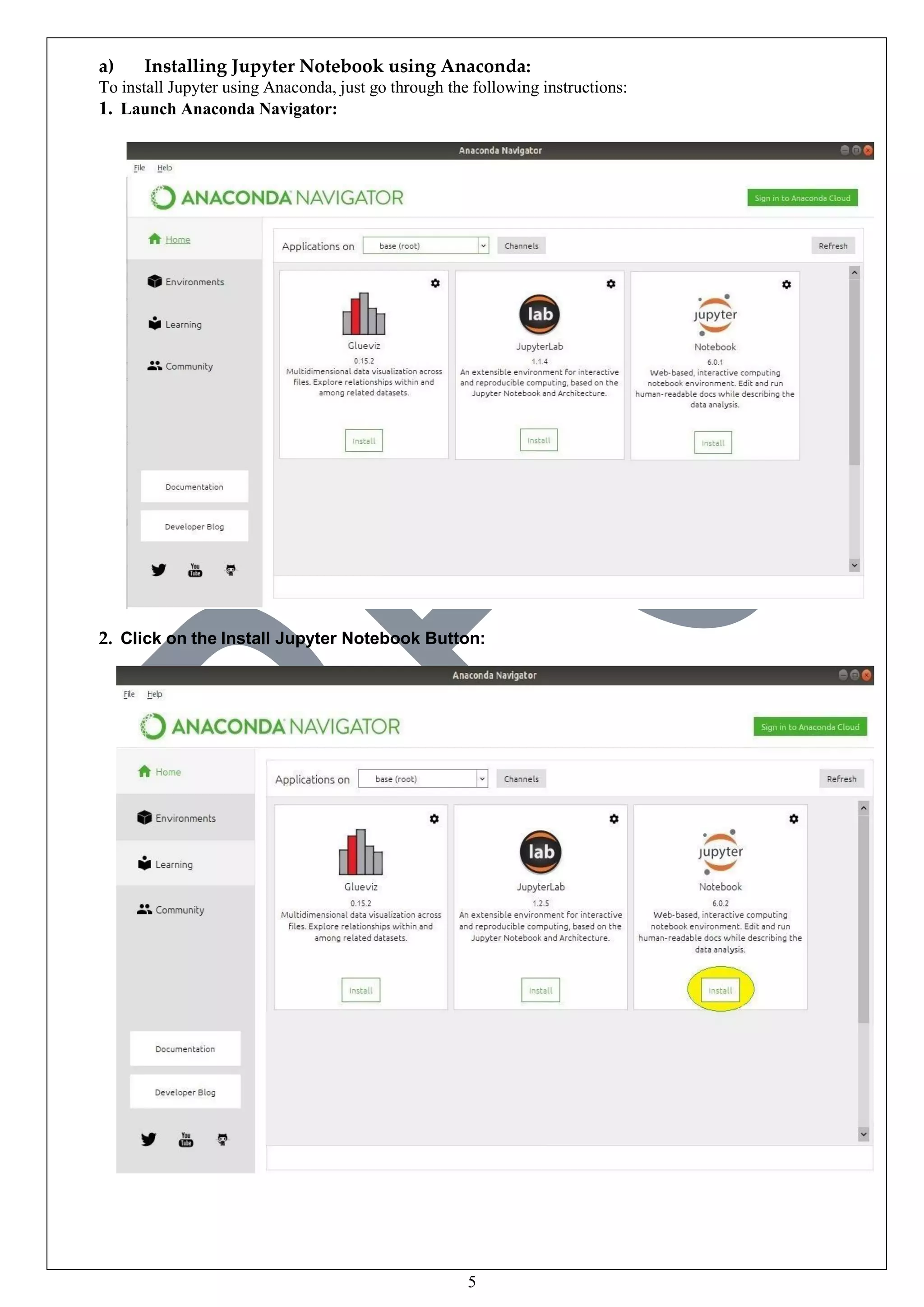

- 8. 5 a) Installing JupyterNotebook using Anaconda: To install Jupyter using Anaconda, just go through the following instructions: 1. Launch Anaconda Navigator: 2. Click on the Install Jupyter Notebook Button:

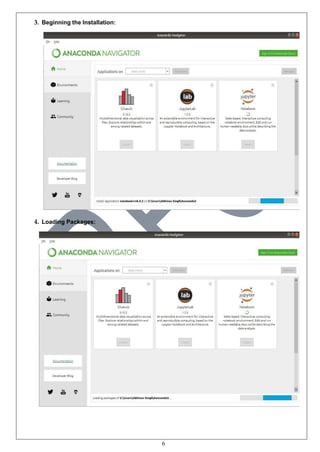

- 9. 6 3. Beginning theInstallation: 4. Loading Packages:

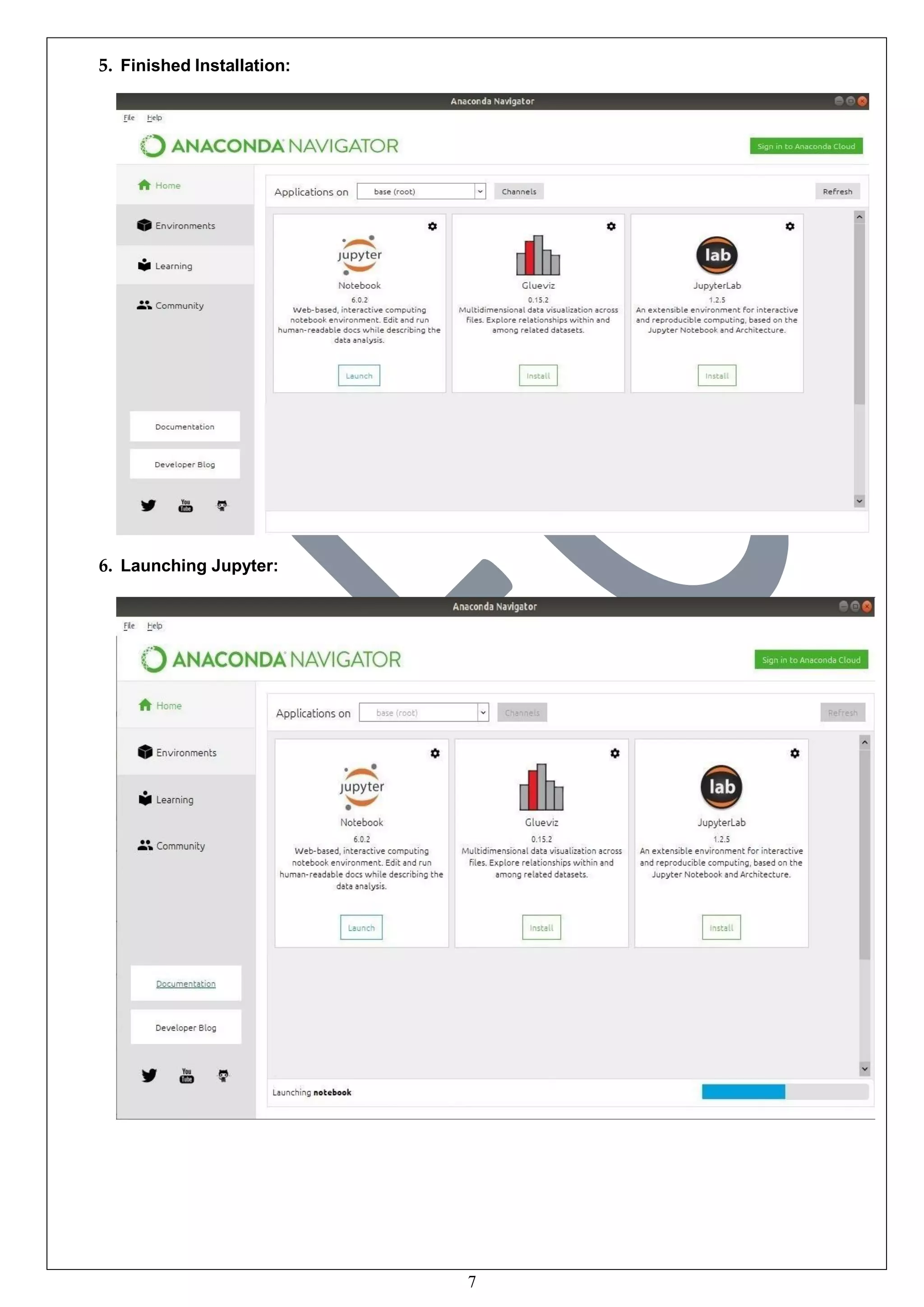

- 10. 7 5. Finished Installation: 6.Launching Jupyter:
- 11. 8 b) Installing JupyterNotebook using pip: To install Jupyter using pip, the following command to update pip: >> python3 -m pip install --upgrade pip After updating the pip version, follow the instructions provided below to install Jupyter: Command to install Jupyter: >>pip3 install Jupyter 1. Beginning Installation:

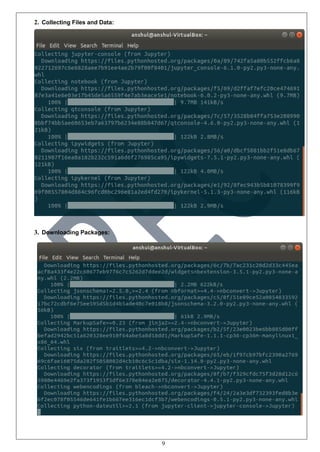

- 12. 9 2. Collecting Filesand Data: 3. Downloading Packages:

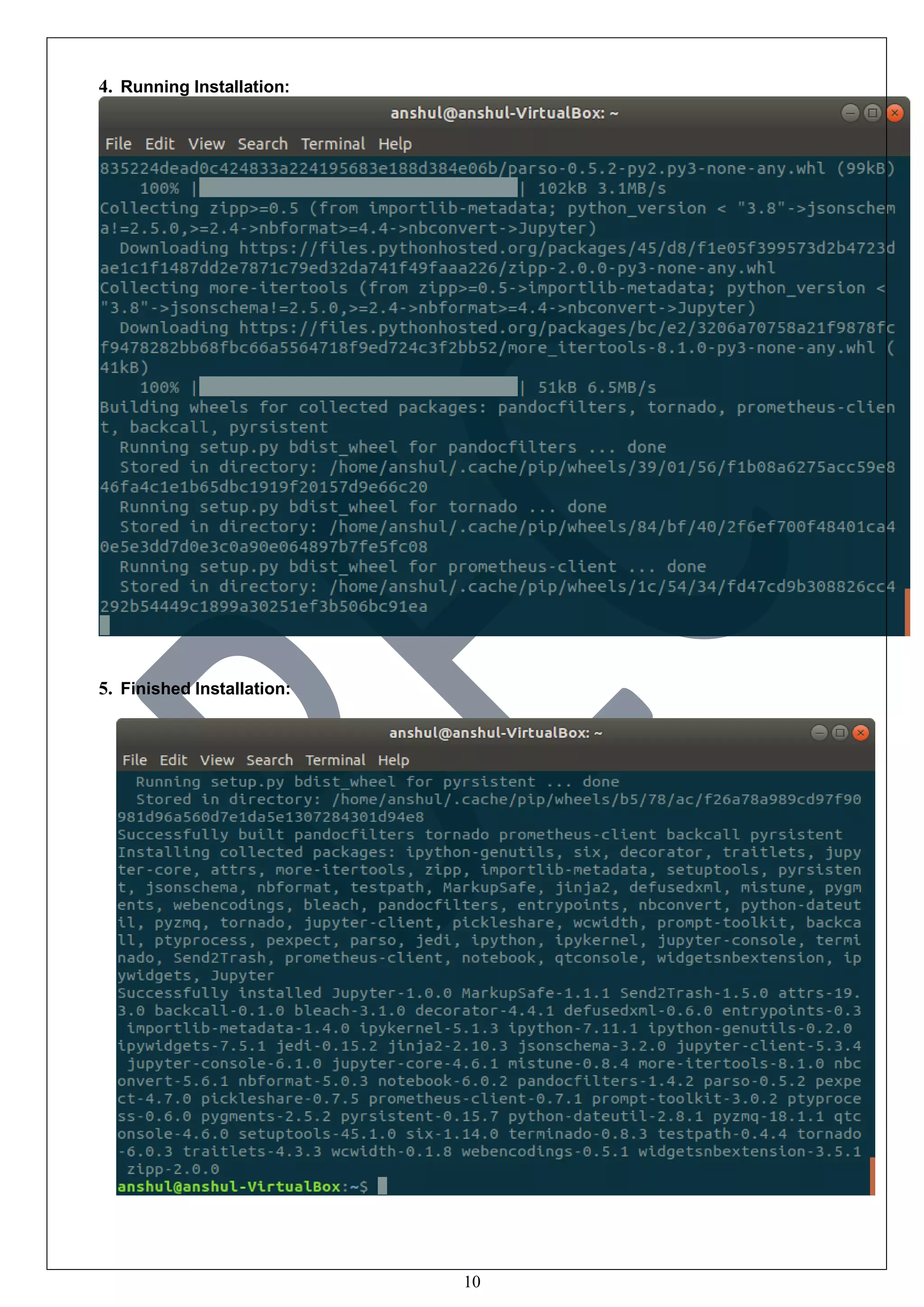

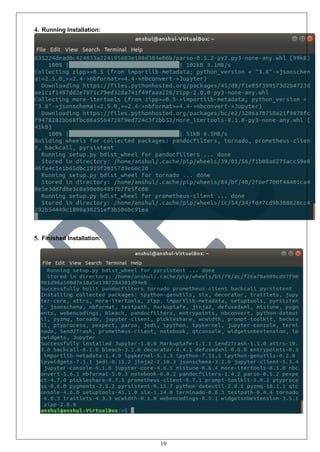

- 13. 10 4. Running Installation: 5.Finished Installation:
- 14. 11 6. Launching Jupyter: Usethe following command to launch Jupyter using command-line: >>jupyter notebook
- 15. 12 Explore the followingfeatures of python packages: 1. NumPy: NumPy stands for Numerical Python.NumPy (Numerical Python) is an open-source library for the Python programming language. It is used for scientific computing and working with arrays. The source code for NumPy is located at this github repository https://github.com/numpy/numpy. Features: 1. High-performance N-dimensional array object. 2. It contains tools for integrating code from C/C++ and Fortran. 3. It contains a multidimensional container for generic data. 4. Additional linear algebra, Fourier transform, and random number capabilities. 5. It consists of broadcasting functions. 6. It had data type definition capability to work with varied databases. 2. SciPy: SciPy stands for Scientific Python. SciPy is a scientific computation library that uses NumPy underneath. The source code for SciPy is located at this github repository https://github.com/scipy/scipy Features: 1. SciPy provides algorithms for optimization, integration, interpolation, eigenvalue problems, algebraic equations, differential equations, statistics and many other classes of problems. 2. It provides more utility functions for optimization, stats and signal processing. Numpy vs. SciPy Numpy and SciPy both are used for mathematical and numerical analysis. Numpy is suitable for basicoperations such as sorting, indexing and many more because it contains array data, whereas SciPy consistsof all the numeric data. Numpy contains many functions that are used to resolve the linear algebra, Fourier transforms, etc. whereas SciPy library contains full featured version of the linear algebra module as well many other numerical algorithms.

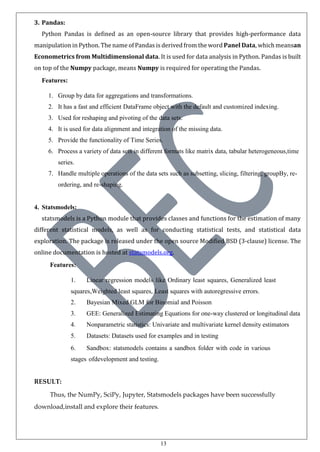

- 16. 13 3. Pandas: Python Pandasis defined as an open-source library that provides high-performance data manipulation in Python. The name ofPandas isderived from the word Panel Data, which meansan Econometrics from Multidimensional data. It is used for data analysis in Python. Pandas is built on top of the Numpy package, means Numpy is required for operating the Pandas. Features: 1. Group by data for aggregations and transformations. 2. It has a fast and efficient DataFrame object with the default and customized indexing. 3. Used for reshaping and pivoting of the data sets. 4. It is used for data alignment and integration of the missing data. 5. Provide the functionality of Time Series. 6. Process a variety of data sets in different formats like matrix data, tabular heterogeneous,time series. 7. Handle multiple operations of the data sets such as subsetting, slicing, filtering, groupBy, re- ordering, and re-shaping. 4. Statsmodels: statsmodels is a Python module that provides classes and functions for the estimation of many different statistical models, as well as for conducting statistical tests, and statistical data exploration. The package is released under the open source Modified BSD (3-clause) license. The online documentation is hosted at statsmodels.org. Features: 1. Linear regression models like Ordinary least squares, Generalized least squares,Weighted least squares, Least squares with autoregressive errors. 2. Bayesian Mixed GLM for Binomial and Poisson 3. GEE: Generalized Estimating Equations for one-way clustered or longitudinal data 4. Nonparametric statistics: Univariate and multivariate kernel density estimators 5. Datasets: Datasets used for examples and in testing 6. Sandbox: statsmodels contains a sandbox folder with code in various stages ofdevelopment and testing. RESULT: Thus, the NumPy, SciPy, Jupyter, Statsmodels packages have been successfully download,install and explore their features.
- 17. 14 Ex.No 2 Working withNumpy arrays Date: AIM: To write a Numpy arrays program to demonstrate basic array concepts in Jupyter Notebook. PROGRAM: 1. Creating Arrays from Python Lists: In[1]: import numpy as np In[2]: # integer array: np.array([1, 4, 2, 5, 3]) Out[2]: array([1, 4, 2, 5, 3]) #NumPy is constrained to arrays that all contain the same type. If types do not match, NumPy will upcast ifpossible (here, integers are upcast to floating point): In[3]: np.array([3.14, 4, 2, 3]) Out[3]: array([ 3.14, 4. , 2. , 3. ]) #If we want to explicitly set the data type of the resulting array, we can use the dtype keyword: In[4]: np.array([1, 2, 3, 4], dtype='float32') Out[4]: array([ 1., 2., 3., 4.], dtype=float32) In[5]: # nested lists result in multidimensional arrays np.array([range(i, i + 3) for i in [2, 4, 6]]) Out[5]: array([[2, 3, 4], [4, 5, 6], [6, 7, 8]]) 2. NumPy Array Attributes: In[1]: import numpy as np np.random.seed(0) # seed for reproducibility x1 = np.random.randint(10, size=6) # One-dimensional array x2 = np.random.randint(10, size=(3, 4)) # Two-dimensional array x3 = np.random.randint(10, size=(3, 4, 5)) # Three-dimensional array
- 18. 15 Each array hasattributes ndim (the number of dimensions), shape (the size of each dimension), and size (thetotal size of the array): In[2]: print("x3 ndim: ", x3.ndim) print("x3 shape:", x3.shape)print("x3 size: ", x3.size) Out[2]:x3 ndim: 3 x3 shape: (3, 4, 5) x3 size: 60 In[3]: print("dtype:", x3.dtype)# data type of the array Out[3]:dtype: int64 In[4]: print("itemsize:", x3.itemsize, "bytes")print("nbytes:", x3.nbytes, "bytes") Out[4]:itemsize: 8 bytes Out[4]:nbytes: 480 bytes 3. Array Indexing: Accessing Single Elements: In[5]: x1 Out[5]: array([5, 0, 3, 3, 7, 9]) In[6]: x1[0] Out[6 ]: 5 In[7]: x1[4] Out[7]: 7 #To index from the end of the array, you can use negative indices In[8]: x1[-1] Out[8] : 9 In[9]: x1[-2] Out[9]: 7
- 19. 16 #In a multidimensionalarray, you access items using a comma-separated tuple of indices In[10]: x2 Out[10]: array([[3, 5, 2, 4], [7, 6, 8, 8], [1, 6, 7, 7]]) In[11]: x2[0, 0] Out[11]: 3 In[12]: x2[2, 0] Out[12]: 1 In[13]: x2[2, -1] Out[13]: 7 #modify values using any of the above index notation In[14]: x2[0, 0] = 12 x2 Out[14]: array([[12, 5, 2, 4], [ 7, 6, 8, 8], [ 1, 6, 7, 7]]) In[15]: x1[0] = 3.14159 # this will be truncated! x1 Out[15]: array([3, 0, 3, 3, 7, 9]) 4. Array Slicing: Accessing Subarrays #One-dimensional subarrays In[16]: x = np.arange(10)x Out[16]: array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9]) In[17]: x[:5] # first five elements Out[17]: array([0, 1, 2, 3, 4]) In[18]: x[5:] # elements after index 5 Out[18]: array([5, 6, 7, 8, 9]) In[19]: x[4:7] # middle subarray Out[19]: array([4, 5, 6]) In[20]: x[::2] # every other element Out[20]: array([0, 2, 4, 6, 8]) In[21]: x[1::2] # every other element, starting at index 1 Out[21]: array([1, 3, 5, 7, 9])
- 20. 17 In[22]: x[::-1] #all elements, reversed Out[22]: array([9, 8, 7, 6, 5, 4, 3, 2, 1, 0]) In[23]: x[5::-2] # reversed every other from index 5 Out[23]: array([5, 3, 1]) 5. Multidimensional subarrays: In[24]: x2 Out[24]: array([[12, 5, 2, 4], [ 7, 6, 8, 8], [ 1, 6, 7, 7]]) In[25]: x2[:2, :3] # two rows, three columns Out[25]: array([[12, 5, 2], [ 7, 6, 8]]) In[26]: x2[:3, ::2] # all rows, every other column Out[26]: array([[12, 2], [ 7, 8], [ 1, 7]]) #Finally, subarray dimensions can even be reversed together: In[27]: x2[::-1, ::-1] Out[27]: array([[ 7, 7, 6, 1], [ 8, 8, 6, 7], [ 4, 2, 5, 12]]) 6. Accessing array rows and columns: In[28]: print(x2[:, 0]) # first column of x2 [12 7 1] In[29]: print(x2[0, :]) # first row of x2 [12 5 2 4] #In the case of row access, the empty slice can be omitted for a more compact syntax: In[30]: print(x2[0]) # equivalent to x2[0, :] [12 5 2 4] In[31]: print(x2) [[12 5 2 4] [ 7 6 8 8] [ 1 6 7 7]] #extract a 2×2 subarray from this: In[32]: x2_sub = x2[:2, :2]
- 21. 18 print(x2_sub) [[12 5] [ 76]] #modify this subarray In[33]: x2_sub[0, 0] = 99 print(x2_sub) [[99 5] [ 7 6]] In[34]: print(x2) [[99 5 2 4] [ 7 6 8 8] [ 1 6 7 7]] 7. Creating copies of arrays: In[35]: x2_sub_copy = x2[:2, :2].copy()print(x2_sub_copy) [[99 5] [ 7 6]] #modify this subarray In[36]: x2_sub_copy[0, 0] = 42 print(x2_sub_copy) [[42 5] [ 7 6]] In[37]: print(x2) [[99 5 2 4] [ 7 6 8 8] [ 1 6 7 7]] Reshaping of Arrays: In[38]: grid = np.arange(1, 10).reshape((3, 3))print(grid) [[1 2 3] [4 5 6] [7 8 9]]
- 22. 19 In[39]: x =np.array([1, 2, 3]) # row vector via reshape x.reshape((1, 3)) Out[39]: array([[1, 2, 3]]) In[40]: # row vector via newaxis x[np.newaxis, :] Out[40]: array([[1, 2, 3]]) In[41]: # column vector via reshape x.reshape((3, 1)) Out[41]: array([[1],[2], [3]]) In[42]: # column vector via newaxis x[:, np.newaxis] Out[42]: array([[1], [2], [3]]) 8. Array Concatenation and Splitting: In[43]: x = np.array([1, 2, 3]) y = np.array([3, 2, 1]) np.concatenate([x, y]) Out[43]: array([1, 2, 3, 3, 2, 1]) #concatenate more than two arrays at once: In[44]: z = [99, 99, 99] print(np.concatenate([x, y, z]))[ 1 2 3 3 2 1 99 99 99] #np.concatenate can also be used for two-dimensional arrays: In[45]: grid = np.array([[1, 2, 3], [4, 5, 6]]) In[46]: # concatenate along the first axis np.concatenate([grid, grid]) Out[46]: array([[1, 2, 3], [4, 5, 6], [1, 2, 3],
- 23. 20 [4, 5, 6]]) In[47]:# concatenate along the second axis (zero-indexed) np.concatenate([grid, grid], axis=1) Out[47]: array([[1, 2, 3, 1, 2, 3], [4, 5, 6, 4, 5, 6]]) In[48]: x = np.array([1, 2, 3]) grid = np.array([[9, 8, 7], [6, 5, 4]]) # vertically stack the arrays np.vstack([x, grid]) Out[48]: array([[1, 2, 3], [9, 8, 7], [6, 5, 4]]) In[49]: # horizontally stack the arraysy = np.array([[99],[99]]) np.hstack([grid, y]) Out[49]: array([[ 9, 8, 7, 99], [ 6, 5, 4, 99]]) Splitting of arrays: In[50]: x = [1, 2, 3, 99, 99, 3, 2, 1] x1, x2, x3 = np.split(x, [3, 5]) print(x1, x2, x3) [1 2 3] [99 99] [3 2 1] In[51]: grid = np.arange(16).reshape((4, 4))grid Out[51]: array([[ 0, 1, 2, 3], [ 4, 5, 6, 7], [ 8, 9, 10, 11], [12, 13, 14, 15]]) In[52]: upper, lower = np.vsplit(grid, [2])print(upper) print(lower) [[0 1 2 3]
- 24. 21 [4 5 67]] [[ 8 9 10 11] [12 13 14 15]] In[53]: left, right = np.hsplit(grid, [2]) print(left) print(right) Out[53]: [[ 0 1] [ 4 5] [ 8 9] [12 13]] [[ 2 3] [ 6 7] [10 11] [14 15]] 9. Exploring NumPy’s UFuncs: In[54]: x = np.arange(4) print("x =", x) print("x + 5 =", x + 5) print("x - 5 =", x - 5) print("x * 2 =", x * 2) print("x / 2 =", x / 2) print("x // 2 =", x // 2) # floor division Out[54]: x = [0 1 2 3] x + 5 = [5 6 7 8] x - 5 = [-5 -4 -3 -2] x * 2 = [0 2 4 6] x / 2 = [ 0. 0.5 1. 1.5] x // 2 = [0 0 1 1] In[8]: print("-x = ", -x) print("x ** 2 = ", x ** 2) print("x % 2 = ", x % 2) Out[8]:-x = [ 0 -1 -2 -3] x ** 2 = [0 1 4 9]
- 25. 22 x % 2= [0 1 0 1] In[9]: -(0.5*x + 1) ** 2 Out[9]: array([-1. , -2.25, -4. , -6.25]) In[10]: np.add(x, 2) Out[10]: array([2, 3, 4, 5]) 10. Absolute value: In[11]: x = np.array([-2, -1, 0, 1, 2]) abs(x) Out[11]: array([2, 1, 0, 1, 2]) In[12]: np.absolute(x) Out[12]: array([2, 1, 0, 1, 2]) In[13]: np.abs(x) Out[13]: array([2, 1, 0, 1, 2]) In[14]: x = np.array([3 - 4j, 4 - 3j, 2 + 0j, 0 + 1j])np.abs(x) Out[14]: array([ 5., 5., 2., 1.]) 11. Trigonometric functions: In[15]: theta = np.linspace(0, np.pi, 3) In[16]: print("theta = ", theta) print("sin(theta) = ", np.sin(theta)) print("cos(theta) = ", np.cos(theta)) print("tan(theta) = ", np.tan(theta)) Out[16]:theta = [ 0. 1.57079633 3.14159265] sin(theta) = [ 0.00000000e+00 1.00000000e+00 1.22464680e-16] cos(theta) = [ 1.00000000e+00 6.12323400e-17 -1.00000000e+00] tan(theta) = [ 0.00000000e+00 1.63312394e+16 -1.22464680e-16] In[17]: x = [-1, 0, 1] print("x = ", x) print("arcsin(x) = ", np.arcsin(x)) print("arccos(x) = ", np.arccos(x)) print("arctan(x) = ", np.arctan(x)) Out[17]:x = [-1, 0, 1] arcsin(x) = [-1.57079633 0. 1.57079633]
- 26. 23 arccos(x) = [3.14159265 1.57079633 0. ] arctan(x) = [-0.78539816 0. 0.78539816] 12. Exponents and logarithms: In[18]: x = [1, 2, 3] print("x =", x) print("e^x =", np.exp(x)) print("2^x =", np.exp2(x)) print("3^x =", np.power(3, x)) Out[18]:x = [1, 2, 3] e^x = [ 2.71828183 7.3890561 20.08553692] 2^x = [ 2. 4. 8.] 3^x = [ 3 9 27] In[19]: x = [1, 2, 4, 10] print("x =", x) print("ln(x) =", np.log(x)) print("log2(x) =", np.log2(x)) print("log10(x) =", np.log10(x)) Out[19]:x = [1, 2, 4, 10] ln(x) = [ 0. 0.69314718 1.38629436 2.30258509] log2(x) = [ 0. 1. 2. 3.32192809] log10(x) = [ 0. 0.30103 0.60205999 1. ] In[20]: x = [0, 0.001, 0.01, 0.1] print("exp(x) - 1 =", np.expm1(x)) print("log(1 + x) =", np.log1p(x)) Out[20]:exp(x) - 1 = [ 0. 0.0010005 0.01005017 0.10517092] log(1 + x) = [ 0. 0.0009995 0.00995033 0.09531018] 13. Specialized ufuncs: In[21]: from scipy import special In[22]: # Gamma functions (generalized factorials) and related functions x = [1, 5, 10] print("gamma(x) =", special.gamma(x)) print("ln|gamma(x)| =", special.gammaln(x)) print("beta(x, 2) =", special.beta(x, 2)) Out[22]:gamma(x) = [ 1.00000000e+00 2.40000000e+01 3.62880000e+05]ln|gamma(x)| = [ 0. 3.17805383 12.80182748]
- 27. 24 beta(x, 2) =[ 0.5 0.03333333 0.00909091] In[23]: # Error function (integral of Gaussian) its complement, and its inverse x = np.array([0, 0.3, 0.7, 1.0]) print("erf(x) =", special.erf(x)) print("erfc(x) =", special.erfc(x)) print("erfinv(x) =", special.erfinv(x)) Out[23]:erf(x) = [ 0. 0.32862676 0.67780119 0.84270079] erfc(x) = [ 1. 0.67137324 0.32219881 0.15729921] erfinv(x) = [ 0. 0.27246271 0.73286908 inf] 14. Aggregates: In[26]: x = np.arange(1, 6) np.add.reduce(x) In[27]: np.multiply.reduce(x) Out[27]: 120 In[28]: np.add.accumulate(x) Out[28]: array([ 1, 3, 6, 10, 15]) In[29]: np.multiply.accumulate(x) Out[29]: array([ 1, 2, 6, 24, 120]) 15. Outer products: In[30]: x = np.arange(1, 6) np.multiply.outer(x, x) Out[30]: array([[ 1, 2, 3, 4, 5], [ 2, 4, 6, 8, 10], [ 3, 6, 9, 12, 15], [ 4, 8, 12, 16, 20], [ 5, 10, 15, 20, 25]]) RESULT: Thus, the Numpy array program was successfully executed and verified.
- 28. 25 Ex.No 3 Working ofPandas DataFrame Date: AIM: To write a Pandas program using dictionary sample dataframe to perform opertations in its DataFrame. Sample DataFrame: exam_data = {'name': ['Anastasia', 'Dima', 'Katherine', 'James', 'Emily', 'Michael', 'Matthew', 'Laura', 'Kevin', 'Jonas'], 'score': [12.5, 9, 16.5, np.nan, 9, 20, 14.5, np.nan, 8, 19], 'attempts': [1, 3, 2, 3, 2, 3, 1, 1, 2, 1], 'qualify': ['yes', 'no', 'yes', 'no', 'no', 'yes', 'yes', 'no', 'no', 'yes']} labels = ['a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j'] PROGRAM: import pandas as pd import numpy as np exam_data = {'name': ['Anastasia', 'Dima', 'Katherine', 'James', 'Emily', 'Michael', 'Matthew', 'Laura', 'Kevin', 'Jonas'], 'score': [12.5, 9, 16.5, np.nan, 9, 20, 14.5, np.nan, 8, 19], 'attempts': [1, 3, 2, 3, 2, 3, 1, 1, 2, 1], 'qualify': ['yes', 'no', 'yes', 'no', 'no', 'yes', 'yes', 'no', 'no', 'yes']} labels = ['a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j'] df = pd.DataFrame(exam_data , index=labels) print(df) print("Summary of the basic information about this DataFrame and its data:") print(df.info())
- 29. 26 Sample Output: attempts namequalify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 Summary of the basic information about this DataFrame and its data: <class 'pandas.core.frame.DataFrame'>Index: 10 entries, a to j Data columns (total 4 columns): # Column Non-Null Count Dtype 0 name 10 non-null object 1 score 8 non-null float64 2 attempts 10 non-null int64 3 qualify 10 non-null object dtypes: float64(1), int64(1), object(2)memory usage: 400.0+ bytes None i. To get the first 3 rows of a given DataFrame. print("First three rows of the data frame:") print(df.iloc[:3]) Sample Output: First three rows of the data frame: attempts name qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 ii. To select the 'name' and 'score' columns from the following DataFrame. print("Select specific columns:") print(df[['name', 'score']])
- 30. 27 Sample Output: Select specificcolumns: name score a Anastasia 12.5 b Dima 9.0 c Katherine 16.5 d James NaN e Emily 9.0 f Michael 20.0 g Matthew 14.5 h Laura NaN i Kevin 8.0 j Jonas 19.0 iii. To select the specified columns and rows from a given DataFrame. Select 'name' and'score' columns in rows 1, 3, 5, 6 from the following data frame. print("Select specific columns and rows:") print(df.iloc[[1, 3, 5, 6], [1, 3]]) Select specific columns and rows: score qualify b 9.0 no d NaN no f 20.0 yes g 14.5 yes iv. To select the rows where the number of attempts in the examination is greater than 2. print("Number of attempts in the examination is greater than 2:") print(df[df['attempts'] > 2]) Sample Output: Number of attempts in the examination is greater than 2: name score attempts qualify b Dima 9.0 3 no d James NaN 3 no f Michael 20.0 3 yes v. To select the rows where the score is missing, i.e. is NaN. print("Rows where score is missing:") print(df[df['score'].isnull()])
- 31. 28 Sample Output: Rows wherescore is missing: attempts name qualify score d 3 James no NaN h 1 Laura no NaN vi. To change the score in row 'd' to 11.5. print("nOriginal data frame:")print(df) print("nChange the score in row 'd' to 11.5:")df.loc['d', 'score'] = 11.5 print(df) Sample Output: Original data frame: attempts name qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 Change the score in row 'd' to 11.5: Attempts name qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no 11.5 e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0
- 32. 29 vii. To calculatethe sum of the examination score by the students. print("nSum of the examination attempts by the students:") print(df['score'].sum()) Sample Output: Sum of the examination attempts by the students: 108.5 viii. To append a new row 'k' to DataFrame with given values for each column. Now delete thenew row and return the original data frame. print("Original rows:")print(df) print("nAppend a new row:") df.loc['k'] = [1, 'Suresh', 'yes', 15.5] print("Print all records after insert a new record:")print(df) print("nDelete the new row and display the original rows:")df = df.drop('k') print(df) Sample Output: Original rows: attempts name qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 Append a new row: Print all records after insert a new record:attempts name qualify score
- 33. 30 a 1 Anastasiayes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 k 1 Suresh yes 15.5 Delete the new row and display the original rows:attempts name qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 ix. To delete the 'attempts' column from the DataFrame. print("Original rows:")print(df) print("nDelete the 'attempts' column from the data frame:") df.pop('attempts') print(df)
- 34. 31 Sample Output: Original rows: attemptsname qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 Delete the 'attempts' column from the data frame: name qualify score a Anastasia yes 12.5 b Dima no 9.0 c Katherine yes 16.5 d James no NaN e Emily no 9.0 f Michael yes 20.0 g Matthew yes 14.5 h Laura no NaN i Kevin no 8.0 j Jonas yes 19.0 x. To insert a new column in existing DataFrame. print("Original rows:")print(df) color = ['Red','Blue','Orange','Red','White','White','Blue','Green','Green','Red']df['color'] = color
- 35. 32 print("nNew DataFrame afterinserting the 'color' column")print(df) Sample Output Original rows: attempts name qualify score a 1 Anastasia yes 12.5 b 3 Dima no 9.0 c 2 Katherine yes 16.5 d 3 James no NaN e 2 Emily no 9.0 f 3 Michael yes 20.0 g 1 Matthew yes 14.5 h 1 Laura no NaN i 2 Kevin no 8.0 j 1 Jonas yes 19.0 New DataFrame after inserting the 'color' column Attempts name qualify score color a 1 Anastasia yes 12.5 Red b 3 Dima no 9.0 Blue c 2 Katherine yes 16.5 Orange d 3 James no NaN Red e 2 Emily no 9.0 White f 3 Michael yes 20.0 White g 1 Matthew yes 14.5 Blue h 1 Laura no NaN Green i 2 Kevin no 8.0 Green j 1 Jonas yes 19.0 Red RESULT: Thus, the working of Pandas Dataframe using Dictionary was executed and verified successfully.

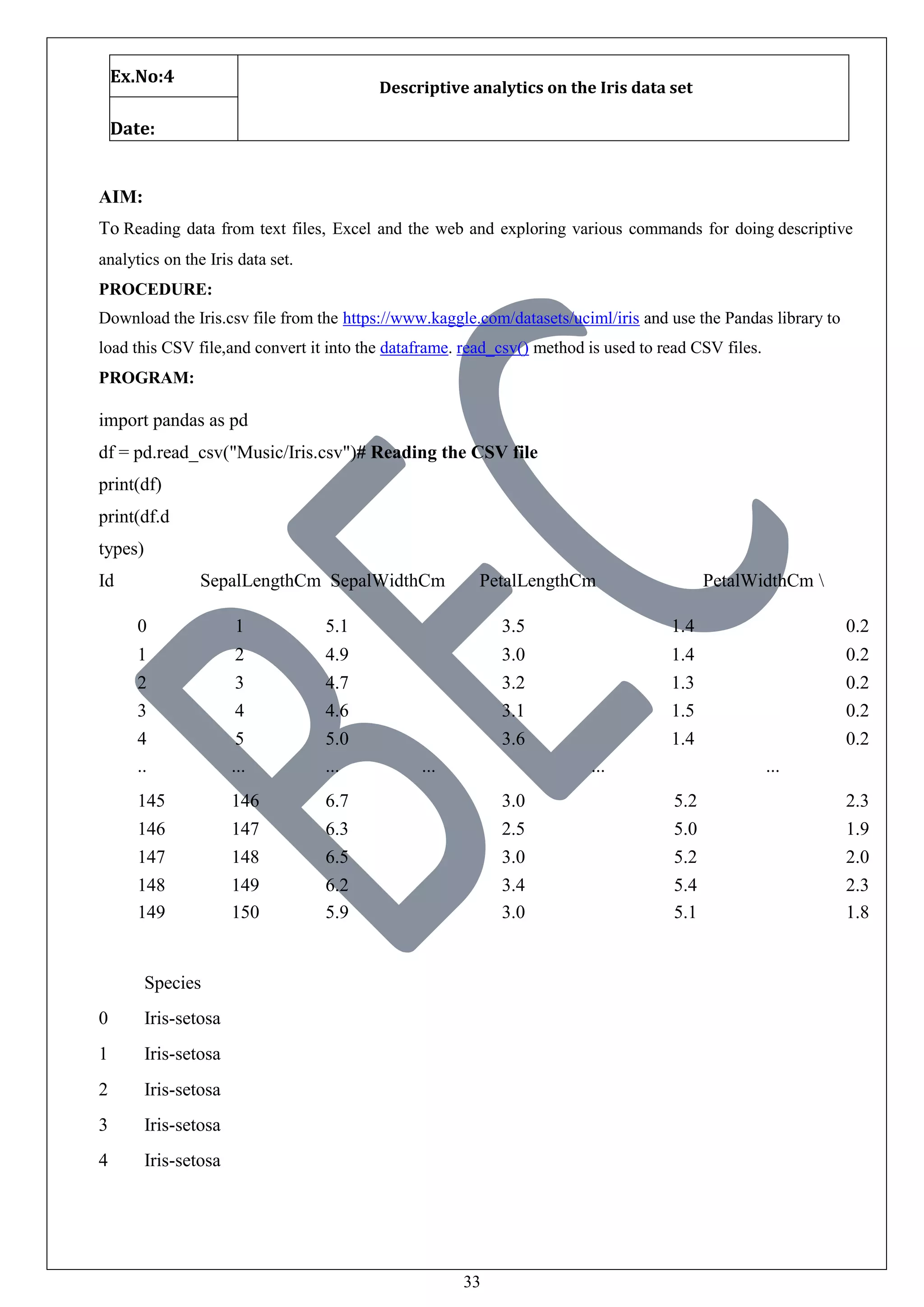

- 36. 33 Ex.No:4 Descriptive analytics onthe Iris data set Date: AIM: To Reading data from text files, Excel and the web and exploring various commands for doing descriptive analytics on the Iris data set. PROCEDURE: Download the Iris.csv file from the https://www.kaggle.com/datasets/uciml/iris and use the Pandas library to load this CSV file,and convert it into the dataframe. read_csv() method is used to read CSV files. PROGRAM: import pandas as pd df = pd.read_csv("Music/Iris.csv")# Reading the CSV file print(df) print(df.d types) Id SepalLengthCm SepalWidthCm PetalLengthCm PetalWidthCm 0 1 5.1 3.5 1.4 0.2 1 2 4.9 3.0 1.4 0.2 2 3 4.7 3.2 1.3 0.2 3 4 4.6 3.1 1.5 0.2 4 5 5.0 3.6 1.4 0.2 .. ... ... ... ... ... 145 146 6.7 3.0 5.2 2.3 146 147 6.3 2.5 5.0 1.9 147 148 6.5 3.0 5.2 2.0 148 149 6.2 3.4 5.4 2.3 149 150 5.9 3.0 5.1 1.8 Species 0 Iris-setosa 1 Iris-setosa 2 Iris-setosa 3 Iris-setosa 4 Iris-setosa
- 37. 34 .. ... 145 Iris-virginica 146Iris-virginica 147 Iris-virginica 148 Iris-virginica 149 Iris-virginica [150 rows x 6 columns] Id int64 SepalLengthCm float64 SepalWidthCm float64 PetalLengthCm float64 PetalWidthCm float64 Species object dtype: object # Printing top 5 rows print(df.head()) #To shape parameter to get the shape of the dataset. print(df.shape) Id SepalLengthCm SepalWidthCm PetalLengthCm PetalWidthCm Species 0 1 5.1 3.5 1.4 0.2 Iris-setosa 1 2 4.9 3.0 1.4 0.2 Iris-setosa 2 3 4.7 3.2 1.3 0.2 Iris-setosa 3 4 4.6 3.1 1.5 0.2 Iris-setosa 4 5 5.0 3.6 1.4 0.2 Iris-setosa (150, 6) #To know the columns and their data types use the info() method. df.info() <class 'pandas.core.frame.DataFrame'> RangeIndex: 150 entries, 0 to 149
- 38. 35 Data columns (total6 columns): # Column Non-Null Count Dtype 0 Id 150 non-null int64 1 SepalLengthCm 150 non-null float64 2 SepalWidthCm 150 non-null float64 3 PetalLengthCm 150 non-null float64 4 PetalWidthCm 150 non-null float64 Species 150 non-null object dtypes: float64(4), int64(1), object(1) memory usage: 7.2+ KB print(df.describe()) Id SepalLengthCm SepalWidthCm PetalLengthCm PetalWidthCm count 150.000000 150.000000 150.000000 150.000000 150.000000 m e a n 75.500000 5.843333 3.054000 3.758667 1.198667 s t d 43.445368 0.828066 0.433594 1.764420 0.763161 m i n 1.000000 4.300000 2.000000 1.000000 0.100000 2 5 % 38.250000 5.100000 2.800000 1.600000 0.300000 5 0 % 75.500000 5.800000 3.000000 4.350000 1.300000 7 5 % 112.750000 6.400000 3.300000 5.100000 1.800000 m a x 150.0000 00 7.900000 4.40000 0 6.90000 0 2.500000
- 39. 36 # Missing valuescan occur when no information is provided print(df.isnull().sum()) Id 0 SepalLengthCm 0 SepalWidthCm 0 PetalLengthCm 0 PetalWidthCm 0 Species 0 dtype: int64 # To check dataset contains any duplicates or notdata = df.drop_duplicates(subset ="Species",) print(data) Id SepalLengthCm SepalWidthCm PetalLengthCm PetalWidthCm 0 1 5.1 3.5 1.4 0.2 5 0 5 1 7.0 3. 2 4.7 1.4 1 0 0 1 0 1 6.3 3.3 6.0 2.5 Species 0 Iris- setosa 50 Iris-versicolor 100 Iris-virginica #To find unique species from the given dataset print(df.value_counts("Species")) Species Iris-setosa50 Iris-versicolor 50 Iris-virginica 50 dtype: int64
- 40. 37 #matplotlib import matplotlib.pyplot asplt %matplotlib inline #seaborn import seaborn as sns #plot the variable ‘sepal.width’ plt.scatter(df.index,df['SepalWidthCm'])plt.show() #visualize the same plot by considering its variety using the sns.scatterplot() function of the seaborn library. sns.scatterplot(x=df.index,y=df['SepalWidthCm'],hue=df['Species'])
- 41. 38 #visualizes data byconnecting the data points via line segments. plt.figure(figsize=(6,6)) plt.title("line plot for petal length") plt.xlabel('index',fontsize=20) plt.ylabel('PetalLengthCm',fontsize=20) plt.plot(df.index,df['PetalLengthCm'],markevery=1,marker='d') for name,group in df.groupby('Species'): plt.plot(group.index,group['PetalLengthCm'],label=name,markevery=1,marker='d') plt.legend() plt.show() #Plotting histogram using the matplotlib plt.hist() function : plt.hist(df["PetalWidthCm"])
- 42. 39 sns.distplot(df["PetalWidthCm"],kde=False,color='RED',bins=10) <AxesSubplot:xlabel='PetalWidthCm'> RESULT: Thus, the descriptiveanalysis on the iris data set was successfully executed and practically verified.
- 43. 40 Ex.No:5.a Univariate analysis usingthe UCI diabetes data set Date: AIM: To Reading data from csv files exploring various commands for doing Univariate analysis using the UCI diabetes data set. PROCEDURE: Download the Pima_indian_diabetes data as csv file from the https://www.kaggle.com/datasets/uciml/pima- indians-diabetes-database and use the Pandaslibrary to load this CSV file, and convert it into the dataframe. read_csv() method is used to read CSV files. PROGRAM: import pandas as pd df = pd.read_csv("E:DATA SCIENCEPima_indian_diabetesdiabetes.CSV")print(df) Pregnancies Glucose BloodPressure SkinThickness Insulin BMI 0 6 148 72 35 0 33.6 1 1 85 66 29 0 26.6 2 8 183 64 0 0 23.3 3 1 89 66 23 94 28.1 4 0 137 40 35 168 43.1 .. ... ... . . . . . . .. . ... 763 10 101 76 48 180 32.9 764 2 122 70 27 0 36.8 765 5 121 72 23 112 26.2 766 1 126 60 0 0 30.1 767 1 93 70 31 0 30.4 DiabetesPedigreeFunction Age Outcome 0 0.627 50 1 1 0.351 31 0 2 0.672 32 1 3 0.167 21 0 4 2.288 33 1 .. ... ... ... 763 0.171 63 0 764 0.340 27 0
- 44. 41 765 0.245 300 766 0.349 47 1 767 0.315 23 0 [768 rows x 9 columns] # To know data type print(df.dtypes) Pregnancies int64 Glucose int64 BloodPressure int64 SkinThickness int64 Insulin int64 BMI float64 DiabetesPedigreeFunction float64Age int64 Outcome int64 dtype: object #To print fiest 5 rows print(df.head()) Pregnancies Glucose BloodPressure SkinThickness Insulin BMI 0 6 148 72 35 0 33.6 1 1 85 66 29 0 26.6 2 8 183 64 0 0 23.3 3 1 89 66 23 94 28.1 4 0 137 40 35 168 43.1 DiabetesPedigreeFunction Age Outcome 0 0.627 50 1 1 0.351 31 0 2 0.672 32 1 3 0.167 21 0 4 2.288 33 1 #To shape parameter to get the shape of the dataset. print(df.shape)(768, 9)
- 45. 42 #calculate mean print("Mean ofPreganancies: %f" %df['Pregnancies'].mean()) print("Mean of BloodPressure: %f" %df['BloodPressure'].mean())print("Mean of Glucose: %f" %df['Glucose'].mean()) print("Mean of Age: %f" %df['Age'].mean()) Sample Output: Mean of Preganancies: 3.845052 Mean of BloodPressure: 69.105469 Mean of Glucose: 120.894531 Mean of Age: 33.240885 #calculate median print("median of Preganancies: %f" %df['Pregnancies'].median()) print("median of BloodPressure: %f" %df['BloodPressure'].median())print("medianf Glucose: %f" %df['Glucose'].median()) print("median of Age: %f" %df['Age'].median()) Sample Output: median of Preganancies: 3.000000 median of BloodPressure: 72.000000 medianf Glucose: 117.000000 median of Age: 29.000000 #calculate standard deviation of 'points' print("standard deviation for BloodPressure: %f" % df['BloodPressure'].std())print("standard deviation for Glucose: %f" % df['Glucose'].std()) print("standard deviation for Pregnancies: %f" % df['Pregnancies'].std()) Sample Output: standard deviation for BloodPressure: 19.355807standard deviation for Glucose: 31.972618 standard deviation for Pregnancies: 3.369578 #To describe the data
- 46. 43 df.Glucose.describe() Sample Output: count 768.000000 mean120.894531 std 31.972618 min 0.000000 25% 99.000000 50% 117.000000 75% 140.250000 max 199.000000 Name: Glucose, dtype: float64 #create frequency table df['Pregnancies'].value_counts() Sample Output: 99 17 100 17 111 14 129 14 125 14 .. 191 1 177 1 44 1 62 1 190 1 Name: Glucose, Length: 136, dtype: int64#create frequency table df['Glucose'].value_counts() Sample Output: 99 17 100 17 111 14 129 14 125 14
- 47. 44 .. 191 1 177 1 441 62 1 190 1 Name: Glucose, Length: 136, dtype: int64 #skewness and kurtosis print("Skewness: %f" % df['Pregnancies'].skew())print("Kurtosis: %f" % df['Pregnancies'].kurt()) Sample Output: Skewness: 0.901674 Kurtosis: 0.159220 #find frequency of each letter grade pd.crosstab(index=df['Outcome'], columns='count')Sample Output: col_0 count Outcome 0 500 1 268 #create frequency table for 'points' df['Pregnancies'].value_count s() Sample Output: 1 135 0 111 2 103 3 75 4 68 5 57 6 50 7 45 8 38 9 28
- 48. 45 10 24 11 11 1310 12 9 14 2 15 1 17 1 Name: Pregnancies, dtype: int64 #find frequency of each letter grade pd.crosstab(index=df['Pregnancies'], columns='count')Sample Output: col_0 count Pregnancies 0 111 1 135 2 103 3 75 4 68 5 57 6 50 7 45 8 38 9 28 10 24 11 11 12 9 13 10 14 2 15 1 17 1 import matplotlib.pyplot as plt df.hist(column='BloodPressure', grid=False, edgecolor='black') Sample Output: array([[<AxesSubplot:title={'center':'BloodPressure'}>]], dtype=object)
- 49. 46 #to create adensity curve import seaborn as sns sns.kdeplot(df['BloodPres sure']) <AxesSubplot:xlabel='BloodPressure', ylabel='Density'> #visualize the same plot by considering its variety using the sns.scatterplot() function of the seaborn library.sns.scatterplot(x=df.index,y=df['Age'],hue=df['Outcome'])
- 50. 47 import numpy asnp preg_proportion = np.array(df['Pregnancies'].value_counts()) preg_month = np.array(df['Pregnancies'].value_counts().index) preg_proportion_perc = np.array(np.round(preg_proportion/sum(preg_proportion),3)*100,dtype=int)preg = pd.DataFrame({'month':preg_month,'count_of_preg_prop':preg_proportion,'percentage_proportion':preg_pr oportion_perc}) preg.set_index(['month'],inplace= True)preg.head(10) Sample Output: month count_of_preg_prop percentage_proportion 1 135 17 0 111 14 2 103 13 3 75 9 4 68 8 5 57 7 6 50 6 7 45 5 8 38 4 9 28 3
- 51. 48 import warnings warnings.filterwarnings("igno re") fig,axes =plt.subplots(nrows=3,ncols=2,dpi=120,figsize = (8,6)) plot00=sns.countplot('Pregnancies',data=df,ax=axes[0][0],color='gre en') axes[0][0].set_title('Count',fontdict={'fontsize':8}) axes[0][0].set_xlabel('Month of Preg.',fontdict={'fontsize':7}) axes[0][0].set_ylabel('Count',fontdict={'fontsize':7}) plt.tight_layout() plot01=sns.countplot('Pregnancies',data=df,hue='Outcome',ax=axes[0][1]) axes[0][1].set_title('Diab. VS Non- Diab.',fontdict={'fontsize':8})axes[0][1].set_xlabel('Month of Preg.',fontdict={'fontsize':7}) axes[0][1].set_ylabel('Count',fontdict={'fontsize':7}) plot01.axes.legend(loc=1) plt.setp(axes[0][1].get_legend().get_texts(), fontsize='6') plt.setp(axes[0][1].get_legend().get_title(), fontsize='6') plt.tight_layout() plot10 = sns.distplot(df['Pregnancies'],ax=axes[1][0]) axes[1][0].set_title('Pregnancies Distribution',fontdict={'fontsize':8}) axes[1][0].set_xlabel('Pregnancy Class',fontdict={'fontsize':7}) axes[1][0].set_ylabel('Freq/Dist',fontdict={'fontsize':7}) plt.tight_layout() plot11 = df[df['Outcome']==False]['Pregnancies'].plot.hist(ax=axes[1][1],label='Non- Diab.') plot11_2=df[df['Outcome']==True]['Pregnancies'].plot.hist(ax=axes[1][1],label='Diab. ') axes[1][1].set_title('Diab. VS Non-Diab.',fontdict={'fontsize':8}) axes[1][1].set_xlabel('Pregnancy Class',fontdict={'fontsize':7}) axes[1][1].set_ylabel('Freq/Dist',fontdict={'fontsize':7}) plot11.axes.legend(loc=1) plt.setp(axes[1][1].get_legend().get_texts(), fontsize='6') # for legend textplt.setp(axes[1][1].get_legend().get_title(), fontsize='6') # for legend title plt.tight_layout()
- 52. 49 plot20 = sns.boxplot(df['Pregnancies'],ax=axes[2][0],orient='v') axes[2][0].set_title('Pregnancies',fontdict={'fontsize':8}) axes[2][0].set_xlabel('Pregnancy',fontdict={'fontsize':7}) axes[2][0].set_ylabel('FivePoint Summary',fontdict={'fontsize':7}) plt.tight_layout() plot21 = sns.boxplot(x='Outcome',y='Pregnancies',data=df, ax=axes[2][1])axes[2][1].set_title('Diab. VS Non-Diab.',fontdict={'fontsize':8}) axes[2][1].set_xlabel('Pregnancy',fontdict={'fontsize':7}) axes[2][1].set_ylabel('Five Point Summary',fontdict={'fontsize':7}) plt.xticks(ticks=[0,1],labels=['Non-Diab.','Diab.'],fontsize=7) plt.tight_layout() plt.show() Sample Output: RESULT: Thus, the Univariate analysis using the UCI diabetes data set was successfully executed and practically verified.
- 53. 50 Ex.No:5.b Bivariate analysis usingthe UCI diabetes data set Date: AIM: To Reading data from text files, Excel and the web and exploring various commands for doing Bivariate analysis using the UCI diabetes data set. PROCEDURE: Download the Pima_indian_diabetes data as csv file from the https://www.kaggle.com/ and use the Pandas library to load this CSV file, and convert it into the dataframe. read_csv() method is used to read CSV files. PROGRAM: Linear regression modelling import matplotlib.pyplot as plt import numpy as np from sklearn import datasets, linear_model from sklearn.metrics import mean_squared_error, r2_score # Load the diabetes dataset diabetes_X, diabetes_y = datasets.load_diabetes(return_X_y=True) # Use only one feature diabetes_X = diabetes_X[:, np.newaxis, 2] # Split the data into training/testing sets diabetes_X_train = diabetes_X[:-50] diabetes_X_test = diabetes_X[-50:] # Split the targets into training/testing sets diabetes_y_train = diabetes_y[:-50] diabetes_y_test = diabetes_y[-50:] # Create linear regression object regr = linear_model.LinearRegression() # Train the model using the training sets regr.fit(diabetes_X_train, diabetes_y_train) # Make predictions using the testing set diabetes_y_pred = regr.predict(diabetes_X_test) # The coefficients print("Coefficients: n", regr.coef_)
- 54. 51 Sample output: Coefficients: [945.4992184] #The mean squared error print("Mean squared error: %.2f" % mean_squared_error(diabetes_y_test, diabetes_y_pred)) Sample output: Mean squared error: 3471.92 # The coefficient of determination: 1 is perfect prediction print("Coefficient of determination: %.2f" % r2_score(diabetes_y_test, diabetes_y_pred)) Sample output: Coefficient of determination: 0.41 # Plot outputs plt.scatter(diabetes_X_test, diabetes_y_test, color="black") plt.plot(diabetes_X_test, diabetes_y_pred, color="blue", linewidth=3)plt.xticks(()) plt.yticks(())plt.show()
- 55. 52 Logistic regression modelling #ImportSklearn Packages import numpy as np import pandas as pd from sklearn.linear_model import LogisticRegressionfrom sklearn.model_selection import train_test_split #to create plot_bar,histogram,boxplot etc import seaborn as sns import matplotlib.pyplot as plt #calculate accurancy measure and confusion matrix from sklearn import metrics import warnings warnings.filterwarnings("ignore") #Loading Data diabetes=pd.read_csv("E:DATA SCIENCEPima_indian_diabetesdiabetes.csv") diabetes Preg nanci es Glucose Blood Pressure Skin Thickness Insulin DiabetesPedigree Function Outcome 6 14 8 72 35 0 0.627 1 1 85 66 29 0 0.351 0 8 18 3 64 0 0 0.672 1 1 89 66 23 94 0.167 0 0 13 7 40 35 168 2.288 1 . . . ... ... ... ... ... ... 1 0 10 1 76 48 180 0.171 0 2 12 2 70 27 0 0.340 0 5 12 1 72 23 112 0.245 0
- 56. 53 Pregnancies Glucose BloodPressureSkinThickn ess DiabetesPedigreeFunction Outcome 1 126 60 0 0.349 1 1 93 70 31 0.315 0 768 rows × 9 columns #Train/Test split X=df.drop("Outcome",axis=1) Y=df[["Outcome"]] # target variable # split data into training and validation datasets X_train, X_test, y_train, y_t est = train_test_split(X, y, test_size=0.25, random_state=0) from sklearn.linear_model import LogisticRegression # instantiate the model model = LogisticRegression() # fitting the model model.fit(X_train, y_train) y_pred = model.predict(X_test)y_pred[0:5] # metrics print("Accuracy for test set is {}.".format(round(metrics.accuracy_score(y_test, y_pred), 4))) print("Precision for test set is {}.".format(round(metrics.precision_score(y_test, y_pred), 4))) print("Recall for test set is {}.".format(round(metrics.recall_score(y_test, y_pred), 4))) Sample Output: Accuracy for test set is 0.7917.Precision for test set is 0.7115.Recall for test set is 0.5968. print(metrics.classification_report(y_test, y_pred)) Sample Output: precision recall f1-score support 0 0.82 0.88 0.85 130 1 0.71 0.60 0.65 62 accuracy 0.79 192 macro avg 0.77 0.74 0.75 192 weighted avg 0.79 0.79 0.79 192
- 57. 54 #Visualization f,ax = plt.subplots(figsize=(8,6)) sns.heatmap(df.corr(),cmap="GnBu", annot=True, linewidths=0.5, fmt= '.1f',ax=ax)plt.show() Result: Thus, the Bivariate analysis using the UCI diabetes data set was successfully executed and practically verified.

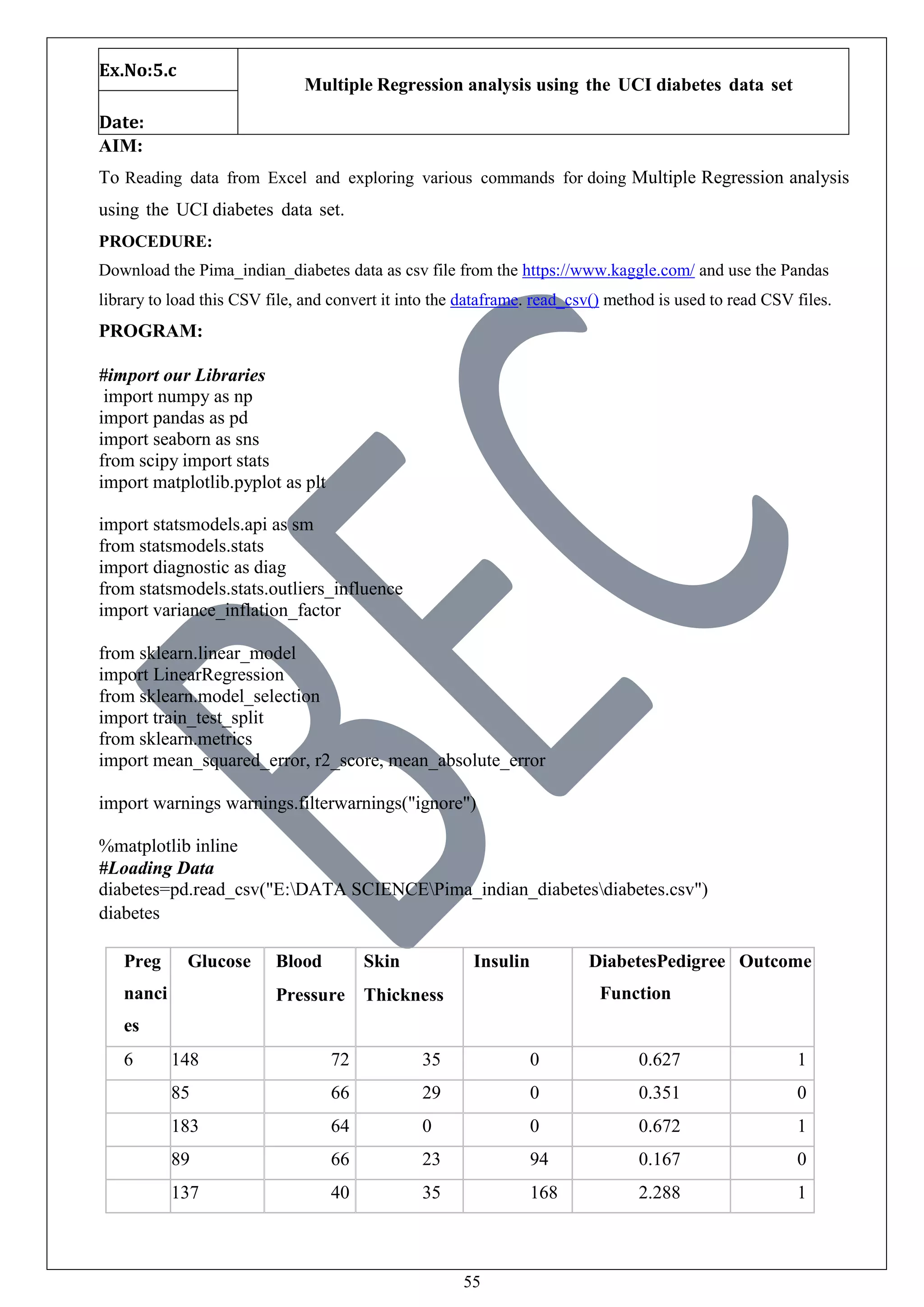

- 58. 55 Ex.No:5.c Multiple Regression analysisusing the UCI diabetes data set Date: AIM: To Reading data from Excel and exploring various commands for doing Multiple Regression analysis using the UCI diabetes data set. PROCEDURE: Download the Pima_indian_diabetes data as csv file from the https://www.kaggle.com/ and use the Pandas library to load this CSV file, and convert it into the dataframe. read_csv() method is used to read CSV files. PROGRAM: #import our Libraries import numpy as np import pandas as pd import seaborn as sns from scipy import stats import matplotlib.pyplot as plt import statsmodels.api as sm from statsmodels.stats import diagnostic as diag from statsmodels.stats.outliers_influence import variance_inflation_factor from sklearn.linear_model import LinearRegression from sklearn.model_selection import train_test_split from sklearn.metrics import mean_squared_error, r2_score, mean_absolute_error import warnings warnings.filterwarnings("ignore") %matplotlib inline #Loading Data diabetes=pd.read_csv("E:DATA SCIENCEPima_indian_diabetesdiabetes.csv") diabetes Preg nanci es Glucose Blood Pressure Skin Thickness Insulin DiabetesPedigree Function Outcome 6 148 72 35 0 0.627 1 1 85 66 29 0 0.351 0 8 183 64 0 0 0.672 1 1 89 66 23 94 0.167 0 0 137 40 35 168 2.288 1
- 59. 56 . . . ... ... ...... ... ... 1 0 101 76 48 180 0.171 0 2 122 70 27 0 0.340 0 5 121 72 23 112 0.245 0 768 rows × 9 columns # calculate the correlation matrix corr=diabetes.corr() # display the correlation matrix display(corr) # plot the Pre gna ncie s Glucose BloodPr essure SkinT hic kness Insuli n BMI Diabetes Pedigree Function Age Outcome Pregnan cies 1.00 000 0 0.129 459 0.1412 82 - 0.0816 72 - 0.073 535 0.017 683 - 0.033523 0.54 4 341 0.221 898 Glucose 0.12 945 9 1.000 000 0.1525 90 0.057 328 0.331 357 0.221 071 0.137337 0.26 3 514 0.466 581 BloodPr essure 0.14 128 2 0.152 590 1.0000 00 0.207 371 0.088 933 0.281 805 0.041265 0.23 9 528 0.065 068 SkinThi ckness - 0.08 167 2 0.057 328 0.2073 71 1.000 000 0.436 783 0.392 573 0.183928 - 0.1 13 970 0.074 752 Insulin - 0.07 353 5 0.331 357 0.0889 33 0.436 783 1.000 000 0.197 859 0.185071 - 0.0 42 163 0.130 548 BMI 0.01 768 3 0.221 071 0.2818 05 0.392 573 0.197 859 1.000 000 0.140647 0.03 6 242 0.292 695 DiabetesP edigree Function - 0.03 352 3 0.137 337 0.0412 65 0.183 928 0.185 071 0.140 647 1.000000 0.03 3 561 0.173 844 Age 0.54 434 1 0.263 514 0.2395 28 - 0.1139 70 - 0.042 163 0.036 242 0.033561 1.00 0 000 0.238 356
- 60. 57 correlation heatmap sns.heatmap(corr, xticklabels=corr.columns,yticklabels=corr.columns, cmap='RdBu') <AxesSubplot:> #Train/Test split X=diabetes.drop("Outcome",axis=1) Y=diabetes[["Outcome"]] # target variable # split data into training and validation datasets # Split X and y into X_ X_train,X_test,Y_train,Y_test=train_test_split(X,Y,test_size=0.25,random_state=0) # create a Linear Regression model object regression_model = LinearRegression() # pass through the X_train & y_train data set regression_model.fit(X_train,Y_train) LinearRegression() Outcom e 0.22 189 8 0.466 581 0.0650 68 0.074 752 0.130 548 0.292 695 0.173844 0.23 8 356 1.000 000
- 61. 58 # let's grabthe coefficient of our model and the intercept intercept = regression_model.intercept_[0] coefficent = regression_model.coef_[0][0] print("The intercept for our model is {:.4}".format(intercept)) print('-'*100) # loop through the dictionary and print the data for coef in zip(X.columns, regression_model.coef_[0]): print("The Coefficient for {} is {:.2}".format(coef[0],coef[1])) Sample output: The intercept for our model is -0.879 The Coefficient for Pregnancies is 0.015 The Coefficient for Glucose is 0.0057 The Coefficient for BloodPressure is -0.0021 The Coefficient for SkinThickness is 0.001 The Coefficient for Insulin is -0.00017 The Coefficient for BMI is 0.013 The Coefficient for DiabetesPedigreeFunction is 0.14 The Coefficient for Age is 0.0038 # Get multiple predictions y_predict = regression_model.predict(X_test) # Show the first 5 predictionsy_predict[:5] array([[1.01391226], [0.21532924], [0.09157383], [0.60583158], [0.15988782]]) # define our intput X2=sm.add_constant(X) # create a OLS model model=sm.OLS(Y, X2) # fit the data est = model.fit()
- 62. 59 # print outa summary print(est.summary()) OLS Regression Results ============================================================================== Dep. Variable: Outcome R-squared: 0.303 Model: OLS Adj. R-squared: 0.296 Method: Least Squares F-statistic: 41.29 Date: Sat, 15 Oct 2022 Prob (F-statistic): 7.36e-55 Time: 19:14:26 Log-Likelihood: -381.91 No. Observations: 768 AIC: 781.8 Df Residuals: 759 BIC: 823.6 Df Model: 8 Covariance Type: nonrobust ============================================================================================ coef std err t P>|t| [0.025 0.975] const -0.8539 0.085 -9.989 0.000 - 1.022 -0.686 Pregnancies 0.0206 0.005 4.014 0.000 0.011 0.031 Glucose 0.0059 0. 00 1 11. 493 0.0 00 0.005 0.007 BloodPressure -0.0023 0. 00 1 - 2.8 7 3 0.0 0 4 - 0.004 -0.001 SkinThickness 0.0002 0.001 0.139 0.890 -0.002 0.002 Insulin -0.0002 0. 00 0 - 1.2 05 0.2 29 - 0.000 0.000 BMI 0.0132 0. 00 2 6.3 44 0.0 00 0.009 0.017 DiabetesPedigreeFunction 0.1472 0.0 45 3.2 68 0 . 0 0 1 0.05 9 0 . 2 3 6 Age 0.0026 0.002 1.6 93 0.0 91 - 0 . 0 0 0 0.00 6 ============================================================================== Omnibus: 41.539 Durbin-Watson: 1.982 Prob(Omnibus): 0.000 Jarque-Bera (JB): 31.183 Skew: 0.395 Prob(JB): 1.69e-07 Kurtosis: 2.408 Cond. No..................... 1.10e+03 ==============================================================================
- 63. 60 Notes: [1] Standard Errorsassume that the covariance matrix of the errors is correctly specified. [2] The condition number is large, 1.1e+03. This might indicate that there arestrong multicollinearity or other numerical problems. # make some confidence intervals, 95% by default est.conf_int() 0 1 const -1.021709 -0.686079 Pregnancies 0.010521 0.030663 Glucose 0.004909 0.006932 BloodPressure -0.003925 -0.000739 SkinThickness -0.002029 0.002338 Insulin -0.000475 0.000114 BMI 0.009146 0.017343 DiabetesPedigreeFunction 0.058792 0.235682 Age -0.000419 0.005662 # estimate the p-values est.pvalues Sample output: const 3.707465e-22 Pregnancies 6.561462e-05 Glucose 2.691192e-28 BloodPressure 4.178788e-03 SkinThickness 8.895424e-01 Insulin 2.285711e-01 BMI 3.853484e-10 DiabetesPedigreeFunction 1.131733e-03Age 9.092163e-02 dtype: float64import math # calculate the mean squared error model_mse = mean_squared_error(Y_test, y_predict) # calculate the mean absolute error model_mae = mean_absolute_error(Y_test, y_predict) # calulcate the root mean squared error model_rmse = math.sqrt(model_mse)
- 64. 61 # display theoutput print("MSE {:.3}".format(model_mse)) print("MAE {:.3}".format(model_mae)) print("RMSE {:.3}".format(model_rmse)) MSE 0.148 MAE 0.322 RMSE 0.384 model_r2 = r2_score(Y_test, y_predict)print("R2: {:.2}".format(model_r2)) R2: 0.32 import pickle # pickle the model with open('my_mulitlinear_regression.sav','wb') as f: pickle.dump(regression_model, f) # load it back in with open('my_mulitlinear_regression.sav', 'rb') as pickle_file: regression_model_2 = pickle.load(pickle_file) # make a new prediction regression_model_2.predict([X_test.loc[150]])array([[0.42308994]]) Result: Thus, the multiple regression analysis using the UCI diabetes data set was successfully executedand practically verified.
- 65. 62 Ex.No:6 Apply and explorevarious plotting functions on UCI data sets Date: AIM: To Reading data from Excel and exploring various commands for Apply and explore various plotting functions on UCI data sets. PROCEDURE: Download the Pima_indian_diabetes data as csv file from the https://www.kaggle.com/ and use the Pandas library to load this CSV file, and convert it into the dataframe. read_csv() method is used to read CSV files. PROGRAM: import numpy as np import pandas as pd import seaborn as sns import matplotlib.pyplot as plt sns.set(color_codes =True) %matplotlib inline import warnings warnings.filterwarnings("ignore") #To run numerical descriptive stats for the data set diabetes.describe() Pregnan cies Glucose Blood Pressure Skin Thick ness Insuli n BMI Diabet es Pedigr ee F unct ion Age Outcome cou nt 768.000000 768.00000 0 768.00000 0 768.00000 0 768.000 000 768.00 0 000 768.0000 00 768.00 0 000 768.000 000 me an 3.845052 120.89453 1 69.10546 9 20.536458 79.7994 79 31.992 5 78 0.471876 33.240 8 85 0.34895 8
- 66. 63 50%3.00000 0 117.000 000 72.000000 23.000000 30.5000 00 32.0000 00 0.372500 29.0000 00 0.00000 0 75%6.00000 0 140.250 000 80.000000 32.000000 127.250 000 36.6000 00 0.626250 41.0000 00 1.00000 0 max17.0000 00 199.000 000 122.00000 0 99.000000 846.000 000 67.1000 00 2.420000 81.0000 00 1.00000 0 sns.kdeplot(diabetes["Pregnancies"], color = "green",shade = True)plt.show() plt.figure() std 3.369578 31.972618 19.35580 7 15.952218 115.244 002 7.8841 6 0 0.331329 11.760 2 32 0.47695 1 min 0.000000 0.000000 0.00000 0 0.000000 0.00000 0 0.0000 0 0 0.078000 21.000 0 00 0.00000 0 25% 1.000000 99.000000 62.00000 0 0.000000 0.00000 0 27.300 0 00 0.243750 24.000 0 00 0.00000 0
- 67. 64 plt.figure(figsize=(6,6)) sns.kdeplot(diabetes["Glucose"], color ="green",shade = True) plt.show() plt.figure() plt.figure(figsize=(8,8)) sns.kdeplot(diabetes["Age"], diabetes["BloodPressure"],cmap="RdYlBu", shade = True)plt.show() plt.figure()
- 68. 65 plt.figure(figsize=(6,6)) sns.kdeplot(x=diabetes.Age, y=diabetes.Glucose, cmap="PRGn",shade=True, bw_adjust=1)plt.show() # calculate the correlation matrixcorr=diabetes.corr() # display the correlation matrixdisplay(corr) Pregna ncies Gluc ose BloodPre ssure SkinThic kness Insuli n BMI Diabetes Pedigree Function Age Outco me Pregnancies 1.00000 0 0.129 459 0.141282 0.081672 0.073 535 0.017 683 0.033523 0.544 341 0.221 898 Glucose 0.12945 9 1.000 000 0.152590 0.057328 0.331 357 0.221 071 0.137337 0.263 514 0.466 581
- 69. 66 Pregna ncies Glu cose BloodPre ssure SkinThic kness Insulin BMI DiabetesP edigree Function Age Outtco me BloodPre ssure 0.14128 2 0.152 590 1.000000 0.207371 0.088 933 0.281 805 0.041265 0.239 528 0.065 068 SkinThic kness - 0.08167 2 0.057 328 0.207371 1.000000 0.436 783 0.392 573 0.1839280.113 9 7 0 0.074 752 Insulin 0.07353 5 0 . 3 3 1 3 5 7 0.088933 0.436783 1.000 000 0.197 859 0.185071 0.042 163 0.130 548 BMI 0.01768 3 0 . 2 2 1 0 7 1 0.281805 0.392573 0.197 859 1.000 000 0.140647 0.036 242 0.292 695 DiabetesP edigree Function 0.03352 3 0 . 1 3 7 3 3 7 0.041265 0.183928 0.185 071 0.140 647 1.000000 0.033 561 0.173 844 Age 0.54434 1 0 . 2 6 3 5 1 4 0.239528 0.113970 0.042 163 0.036 242 0.033561 1.000 000 0.238 356 Outcome 0.22189 8 0 . 4 6 6 5 8 1 0.065068 0.074752 0.130 548 0.292 695 0.173844 0.238 356 1.000 000
- 70. 67 import seaborn assns sns.scatterplot(x="Pregnancies", y="Glucose", data=corr); sns.lmplot(x="Pregnancies", y="Glucose", hue="Outcome", data=corr); # Histogram+Density Plot
- 71. 68 sns.distplot(diabetes["Age"], color = "green")plt.show() plt.figure() #Adding Two Plots In One sns.kdeplot(diabetes[diabetes.Outcome == 0]['Age'], color = "blue") sns.kdeplot(diabetes[diabetes.Outcome == 1]['Age'], color = "orange", shade = True) plt.show()
- 72. 69 dia1 = diabetes[diabetes.Outcome==1] dia0= diabetes[diabetes.Outcome==0] plt.figure(figsize=(20, 6)) plt.subplot(1,3,1) plt.title("Histogram for Glucose") sns.distplot(diabetes.Glucose, kde=False)plt.subplot(1,3,2) sns.distplot(dia0.Glucose,kde=False,color="Gold", label="Gluc for Outcome=0") sns.distplot(dia1.Glucose, kde=False, color="Blue", label = "Gloc for Outcome=1") plt.title("Histograms for Glucose by Outcome") plt.legend() plt.subplot(1,3,3) sns.boxplot(x=diabetes.Outcome,y=diabetes.Glucose) plt.title("Boxplot for Glucose by Outcome") Text(0.5, 1.0, 'Boxplot for Glucose by Outcome')
- 73. 70 Three dimensional plotting: importnumpy as np # linear algebra import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv) from mpl_toolkits import mplot3d import matplotlib.pyplot as plt import matplotlib import functools import plotly.express as px import plotly.graph_objects as go %matplotlib inline import warnings warnings.filterwarnings("ignore") #Loading Data diabetes=pd.read_csv("E:DATA SCIENCEPima_indian_diabetesdiabetes.csv") diabetes Pregnan cies Glucose Blood Pressure Skin Thickness Insulin BMI Diabetes Pedigree Function Age Outcome 0 6 148 72 35 0 33.6 0.627 50 1 1 1 85 66 29 0 26.6 0.351 31 0 Pregnanci es ucos e Blood Pressu re Skin Thickne ss Insuli n BM I Diabetes Pedigree Funct ion Ag e Outcom e 2 8 183 4 0 0 23.3 0.672 32 1 3 1 89 66 23 94 28.1 0.167 21 0 4 0 137 0 35 168 43.1 2.288 33 1 ... ... ... ... ... ... ... ... ... ... 76 3 10 101 76 48 180 32.9 0.171 63 0 76 4 2 122 70 27 0 36.8 0.340 27 0 76 5 5 121 72 23 112 26.2 0.245 30 0 76 6 1 126 60 0 0 30.1 0.349 47 1 76 7 1 93 70 31 0 30.4 0.315 23 0
- 74. 71 768 rows ×9 columns x=diabetes.Age[:20] y=diabetes.Glucose[:20] def f(x, y): return np.sin(np.sqrt(x ** 2 + y ** 2)) x = np.linspace(-6, 6, 30) y = np.linspace(-6, 6, 30)X, Y = np.meshgrid(x, y)Z = f(X, Y) fig = plt.figure(figsize=(10,10)) ax = plt.axes(projection='3d') ax.contour3D(X, Y, Z, 50, cmap='binary') ax.set_xlabel('Age') ax.set_ylabel('Glucose') ax.set_zlabel('z'); fig = plt.figure(figsize=(10,10)) ax = plt.axes(projection='3d') ax.plot_surface(X, Y, Z, rstride=1, cstride=1,cmap='viridis', edgecolor='none') ax.set_title('surface'); ax.set_xlabel('Age') ax.set_ylabel('Glucose') ax.set_zlabel('z')
- 75. 72 fig = plt.figure(figsize=(10,10)) ax= plt.axes(projection='3d') ax.scatter(X,Y,Z, cmap='viridis', linewidth=0.5); ax.set_title('scatter'); ax.set_xlabel('Age') ax.set_ylabel('Glucose') ax.set_zlabel('z')
- 76. 73 Result: Thus, the Threedimensional plotting using the UCI diabetes data set was successfully executed and practically verified.
- 77. 74 Ex.No:7 Visualizing Geographic Datawith Basemap Date: AIM: To Reading data from Excel and exploring various commands for Apply and explore various plotting functions on UCI data sets. PROCEDURE: Download the csv file from the https://www.kaggle.com/ and use the Pandas library to load this CSV file, and convert it into the dataframe. read_csv() method is used to read CSV files. PROGRAM: import pandas as pd import numpy as np from numpy import array import matplotlib as mpl # for plots import matplotlib.pyplot as plt from matplotlib import cm from mpl_toolkits.basemap import Basemap %matplotlib inline import matplotlib.pyplot as plt from matplotlib.patches import Polygon from matplotlib.collections import PatchCollection import warnings warnings.filterwarnings("ignore") cities = pd.read_csv (r"C:UsersAdminDownloadsdatasets_557_1096_cities_r2.csv") cities.head() fig = plt.figure(figsize=(10,8)) states = cities.groupby('state_name')['name_of_city'].count().sort_values(ascending=True) states.plot(kind="barh", fontsize = 20) plt.grid(b=True, which='both', color='Black',linestyle='-')plt.xlabel('No of cities taken for analysis', fontsize = 20) plt.show ()
- 78. 75 fig = plt.figure(figsize=(8,8)) ax=fig.add_subplot(111) map=Basemap(llcrnrlon=67,llcrnrlat=5,urcrnrlon=99,urcrnrlat=37,projection="lcc",lat_0=28,lon_0=77) #map.bluemarble() #map.fillcontinents(color="red") map.drawmapboundary(color="red") map.drawcountries(color="brown") map.drawcoastlines(color="blue") #drawstate from shapefile map.readshapefile(r"C:UsersAdminMusicIndia_State_ShapefileIndia_State_Boundary","India_St ate_Bo undary") cities['latitude'] = cities['location'].apply(lambda x: x.split(',')[0]) cities['longitude'] = cities['location'].apply(lambda x: x.split(',')[1]) print("The Top 10 Cities sorted according to the Total Population (Descending Order)") top_pop_cities = cities.sort_values(by='population_total',ascending=False)
- 79. 76 top10_pop_cities=top_pop_cities.head(10) #plt.subplots(figsize=(20, 15)) lg=array(top10_pop_cities['longitude']) lt=array(top10_pop_cities['latitude']) pt=array(top10_pop_cities['population_total']) nc=array(top10_pop_cities['name_of_city']) x, y= map(lg, lt) population_sizes = top10_pop_cities["population_total"].apply(lambda x: int(x /5000)) plt.scatter(x, y, s=population_sizes, marker="o", c=population_sizes, cmap=cm.Dark2, alpha=0.7)for ncs, xpt, ypt in zip(nc, x, y): plt.text(xpt+60000, ypt+30000, ncs, fontsize=10, fontweight='bold') plt.title('Top 10 Populated Cities in India',fontsize=20) The Top 10 Cities sorted according to the Total Population (Descending Order)Text(0.5, 1.0, 'Top 10 Populated Cities in India')
- 80. 77 Result: Thus, the VisualizingGeographic Data with Basemap was successfully executed and practically verified.
- 81. 78 VIVA QUESTIONS NumPy 1. Whatis Numpy? Ans: NumPy is a general-purpose array-processing package. It provides a high-performance multidimensional array object, and tools for working with these arrays. It is the fundamental package for scientific computing with Python. … A powerful N-dimensional array object. Sophisticated (broadcasting)functions. 2. Why NumPy is used in Python? Ans: NumPy is a package in Python used for Scientific Computing. NumPy package is used to perform different operations. The ndarray (NumPy Array) is a multidimensional array used to store values of samedatatype. These arrays are indexed just like Sequences, starts with zero. 3. What does NumPy mean in Python? Ans: NumPy (pronounced /ˈnʌmpaɪ/ (NUM-py) or sometimes /ˈnʌmpi/ (NUM-pee)) is a library for the Python programming language, adding support for large, multi-dimensional arrays and matrices, alongwith a large collection of high-level mathematical functions to operate on these arrays. 4. Where is NumPy used? Ans: NumPy is an open source numerical Python library. NumPy contains a multi-dimentional array andmatrix data structures. It can be utilised to perform a number of mathematical operations on arrays such astrigonometric, statistical and algebraic routines. NumPy is an extension of Numeric and Numarray.
- 82. 79 Pandas 1. What isPandas? Ans: Pandas is a Python package providing fast, flexible, and expressive data structures designed to make working with “relational” or “labeled” data both easy and intuitive. It aims to be the fundamental high-levelbuilding block for doing practical, real world data analysis in Python. 2. What is Python pandas used for? Ans: Pandas is a software library written for the Python programming language for data manipulation andanalysis. In particular, it offers data structures and operations for manipulating numerical tables and time series. pandas is free software released under the three-clause BSD license. 3. What is a Series in Pandas? Ans: Pandas Series is a one-dimensional labelled array capable of holding data of any type (integer, string,float, python objects, etc.). The axis labels are collectively called index. Pandas Series is nothing but a column in an excel sheet. 4. Mention the different Types of Data structures in pandas?? Ans: There are two data structures supported by pandas library, Series and DataFrames. Both of the data structures are built on top of Numpy. Series is a one-dimensional data structure in pandas and DataFrame isthe two-dimensional data structure in pandas. There is one more axis label known as Panel which is a three- dimensional data structure and it includes items, major_axis, and minor_axis. 5. Explain Reindexing in pandas? Ans: Re-indexing means to conform DataFrame to a new index with optional filling logic, placing NA/NaNin locations having no value in the previous index. It changes the row labels and column labels of a DataFrame. 6. What are the key features of pandas library ? Ans: There are various features in pandas library and some of them are mentioned below Data Alignment Memory Efficient Reshaping Merge and join Time Series 7. What is pandas Used For ? Ans: This library is written for the Python programming language for performing operations like data manipulation, data analysis, etc. The library provides various operations as well as data structures to manipulate time series and numerical tables.
- 83. 80 8. How canwe create copy of series in Pandas? Ans: pandas.Series.copy Series.copy(deep=True) pandas.Series.copy. Make a deep copy, including a copy of the data and the indices. With deep=False neither the indices or the data are copied. Note that when deep=True data is copied, actual python objectswill not be copied recursively, only the reference to the object. 9. What is Time Series in pandas? Ans: A time series is an ordered sequence of data which basically represents how some quantity changesover time. pandas contains extensive capabilities and features for working with time series data for all domains. pandas supports: Parsing time series information from various sources and formats Generate sequences of fixed-frequency dates and time spans Manipulating and converting date time with timezone information Resampling or converting a time series to a particular frequency Performing date and time arithmetic with absolute or relative time increments 10. What is pylab? Ans: PyLab is a package that contains NumPy, SciPy, and Matplotlib into a single namespace. Jupyter Notebook 1. What is Jupyter Notebook? Jupyter Notebook is a web-based interactive computing platform that allows users to create and share code,equations, visualizations, and narrative text. Jupyter Notebook is popular among data scientists and engineers as it allows for rapid prototyping and iteration. 2. What are the main features of Jupyter Notebook? Jupyter Notebook is a web-based interactive computing platform that allows users to create and share code,equations, visualizations, and narrative text. Jupyter Notebook is popular among data scientists and engineers as it provides an easy way to mix code, output, and explanatory text all in one place. Jupyter Notebook is also used by educators to teach programming and data science concepts. 3. How can you create a new notebook in Jupyter? You can create a new notebook in Jupyter by clicking on the “New” button in the upper right corner andselecting “Notebook” from the drop-down menu. 4. Can you explain what the data science workflow involves? The data science workflow generally involves four main steps: data wrangling, exploratory data analysis,modeling, and evaluation. Data wrangling is the process of cleaning and preparing data for
- 84. 81 analysis. Exploratory data analysisis the process of exploring data to find patterns and relationships. Modeling is the process of building models to make predictions or recommendations based on data. Evaluation is the processof assessing the accuracy of models and using them to make decisions. 5. What are some common use cases for Jupyter Notebook? Jupyter Notebook is a popular tool for data scientists and analysts because it allows for an interactive Coding experience. Jupyter Notebook is often used for exploratory data analysis and for visualizing data. *******
