Drvg_HB_LED_HP Ind_Light Fix
- 1. 1 Driving HB-LEDs inHigh-Power Industrial Lighting Fixtures Steve Mappus
- 2. 2 Agenda • High-brightness LEDcharacteristics • LED system requirements • LED driver topologies - Single-stage vs. two-stage • LED load control - Parallel LED strings • 100 W industrial LED design example - Power stage calculations - Test results • Summary
- 3. 3 High-Power Industrial LEDFixtures TypicalApplications LEDAdvantages Highway Light Parking Lot Streetlight Tunnel Lighting High & Low Bay Airports Bridges Manufacturing Efficiency Reliability Maintenance Instant-on Dimming Light Quality UV-Free Mercury Free Typical Power, 50 W<PLED<200 W Before After
- 4. 4 HB-LED Characteristics VF, ForwardVoltage (V) IF,ForwardCurrent(mA) 0 0.5 1.5 2 2.5 3 3.5 4 4.5 100 200 300 400 500 600 700 800 900 0 200mA (50%) 100 °C 25 °C 200mV (6%) • PN junction devices - Negative temperature coefficient - T↑, VF↓, IF↑, T↑ - Not easily paralleled • Steep IF vs. VF curve • Small ΔVF→Large ΔIF - LED color shift - Thermal imbalance - Decreased reliability • VF varies with temperature • VF can vary by 20%~30% • Operate best from a Constant Current (CC), Constant Voltage (CV) power source (Typical I-V curve for 1 A, HB-LED)
- 5. 5 CC-CV Characteristic Curve (TypicalCC-CV Curve for 75 W LED Driver) • Constant Current = 1.5 A • Constant Voltage = 50 V • Overvoltage Protection = 60 V • CC-CV LED Driver Provides: - Signal Conditioning (PFC) - Power Conversion - Load Control (75 W CC-CV LED Driver) CC-CV LED DRIVER OUT GND VLED=50V 500 mA VF VF VF VF VF VF VF VF VF VF VF VF 500 mA ILED=1.5A 500 mA ILED, LED Current (A) VLED,LEDVoltage(V) 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 20 30 40 50 60 70 0 10 Current Foldback OVP
- 6. 6 HB-LED System Requirements AC-DCDC-DC CC-CV LOAD CONTROL AC ANALOG DIM PWM DIM LED DRIVER PFC EMI BIAS (OPTIONAL) • Input voltage range of 85 VRMS<VAC<308 VRMS possible • 50 W<POUT<200 W • ILED<2 A per string • PFC required • THD: EN61000-3-2, Class C (Lighting equipment >25 W) • LED driver - Single-stage or two-stage (shown) - DC-DC - CC-CV load control - Dimming requirements - Safety and electrical protection requirements • Various LED driver topology choices (Typical Industrial LED System Block Diagram)
- 7. 7 Single-Stage: CC-CV PFCFlyback Advantages • Best for simple, low-cost fixtures where POUT<75 W • Can handle wide VIN range • Simple “familiar” design Disadvantages • High MOSFET VDS stress • High output voltage ripple • RCD clamp losses • Difficult to meet: high PF, low THD, high efficiency, high VIN with single-stage N N VVV S P OUTINDS • Typical VDS for 308 VRMS: VVVVDS 6754602308 800 V-900 V MOSFET Required AC-DC AC EMI PFC FL7930B/C CC CVFB 30VDC<VLED<60VDC
- 8. 8 Two-Stage: PFC andCC-CV LLC Advantages • Best for any power level 50 W<POUT<1 kW • Highest overall efficiency • VDS = VIN Disadvantages • Complex power stage design • Precise gate drive timing is critical • Less efficient at low-line for 460 V PFC output • Can’t use LLC when operating PFC in “boost-follower” mode (NOTE: VBULK = 460 V to boost from 308 VRMS)AC-DC AC EMI PFC FL7930B/C FAN7621S or FLS Series CC CVFB VBULK=460VDC 30VDC<VLED<60VDC
- 9. 9 Two-Stage: PFC andTwo-Switch Flyback Advantages • Best for 50 W<POUT<150 W • High overall efficiency • Quasi-resonant (QR) flyback offers valley switching • Can handle wide VIN range • Good choice for boost follower PFC • Gate drive timing less critical • Simple “familiar” design • VDS = VIN Disadvantages • High-side gate drive required • Less efficient compared to PFC+LLC at high input (NOTE: VBULK varies (Boost-Follower) according to VAC) FLYBACK FAN6300 HVIC FAN7382 CC CVFB 250VDC<VBULK<460VDC 30VDC<VLED<60VDC AC-DC AC EMI PFC FL7930B/C
- 10. 10 LED Load Control SingleSeries String Control VCS VBUS IF VF VF VF VF CC LED DRIVER OUT FB GND Advantages • Can drive 100s of series LEDs • IF is same for every LED - No current sharing necessary • Easy to control in CC or CV Disadvantages • HIGH STRING VOLTAGE • Efficiency impact due to high voltage power stage components • LED shunts needed to account for open LED failure • UL 1310 safety→VBUS<60 V The greater the number of required LEDs, the more thought should be given to a series-parallel configuration
- 11. 11 LED Load Control LinearRegulator Control VOLTAGE PRE-REG OUT FB GND VBUSIF1 VF VF VF VF VF VF VF VF VF VF VF VF IF2 IFN ILED CC REG CC REG CC REG Disadvantages • VBUS> ∑VF +VREG • Additional VBUS margin voltage is dropped across linear regulator • Increase in regulator voltage→increase power dissipation→lower efficiency • Max current and power dissipation limit the use of linear regulators for high-power industrial LED lighting • Matched VF (Binning) can increase efficiency but increase LED cost Advantages • Driver operates in CV • Each string independently regulated • Single string can fail while remaining strings regulate in CC • Low EMI
- 12. 12 LED Load Control SwitchingBuck Regulator Control VOLTAGE PRE-REG OUT FB GND VBUS IF1 VF VF VF VF ILED SW CS VIN GND RCS1 CC BUCK IF2 VF VF VF VF SW CS VIN GND RCS2 CC BUCK IFN VF VF VF VF SW CS VIN GND RCSN CC BUCK Advantages • Driver operates in CV • Each string independently regulated • Single string can fail while remaining strings regulate in CC • Typical 20%-30% efficiency improvement over linear regulators Disadvantages • High component count • Must operate at high frequency to minimize inductor size - EMI impact • Current sharing accuracy tolerances→5% considered good
- 13. 13 LED Load Control FAN7346,4-Channel LED Controller FAN7346 CURRENT BALANCE OVR FB1 GND VCS1 VBUS IF1 VF VF VF VF VF VF VF VF VF VF VF VF IF2 IFN ILED VCS2 VCSN FB2 FBN CC-CV LED DRIVER OUT GND FB FB OUT1 OUT2 OUTN CH1 CH2 CHN ADIM PWMN FO Q1 Q2 QN Advantages • Driver operates in CC-CV • VLED minimized→higher efficiency • Each string independently regulated • Single string can fail while remaining strings regulate in CC • Low EMI • Analog and PWM dimming • Used with any LED driver topology • Master/slave configurable for additional LED channels • Secondary (shown) or primary (opto) side control • Fault output (FO) • ±1.5% current sharing accuracy
- 14. 14 100 W, LEDDesign Specification Two-Stage, BCM PFC and Two-Switch Flyback Parameter Min. Typ. Max. BCM PFC Stage VAC 85VRMS 308VRMS fVIN(AC_ 50Hz 60Hz 65Hz VOUT_PFC Fixed Regulation 440V 450V 465V VOUT_PFC Boost Follower 245V VIN(PK)+30V 465V POUT_PFC 120W tSOFT_START 50ms tON_OVERSHOOT 10V η_PFC 0.9 0.95 Two-Switch Flyback DC-DC LED Stage VIN 250V 460V VOUT_LED 30V 60V IOUT_LED Single Channel 2A IOUT_LED 4-Channel (Per Channel) 350mA POUT_LED 100W fSW_LED 50kHz 150kHz η_LED 0.9 0.95 Total System η_120V 0.90 η_230V 0.90 PF_120V 0.95 0.99 PF_230V 0.95 Mechanical and Thermal Height 30mm TJ 60⁰C Primary Design Goals 1. Wide input 85 VRMS<VAC<308 VRMS 2. Maximize wide range efficiency 3. Configurable for single-channel or 4-channel LED operation 4. Compatible with 0 V-10 V analog dimming and 0%-100% PWM dimming 5. Lowest possible design profile Intended Applications 1. Streetlight, parking lot & highway lighting 2. Industrial high-bay & low-bay lighting
- 15. 15 BCM, PFC Design FL7930C 1 2 3 45 6 7 8 OUT VCC GND ZCDCS COMP RDY INV PBIAS ZCD ZCD AC EMI FILTER RDY (TO FLYBACK) BF ON OFF VOUT (TO FLYBACK) 1 2 3 R5 R6 C4 C5 R7 R8 R9 R10 R11 D6 D7 Q3 Q4 Q5 L1 D8 C6 C7 NB NAUX VIN RZCD RCS J1 0V VDS tREStOFF tON TS 0V VAUX 0V VZCD 0.65V 0A IL 0V VGS VIN VOUT 2x(VIN – VOUT) 1.4V t ZCD Delay (150ns) NAUX NB x (VOUT – VIN) NAUX NB x VIN 1.5V IL(PK) • Constant on-time, variable frequency • Switching period, TS = tOFF + tRES + tON • Inductor current switches from 0A (ZCS) • VDS - ZVS→VOUT<2×VIN - Valley switch→otherwise • Boost follower modes set by J1
- 16. 16 BCM, PFC Design BoostFollower Operation Time (ms) Voltage(V) 0 20 40 60 80 100 120 140 160 50 100 150 200 250 300 350 400 450 0 500 180 200 VOUT=465V 250V<VOUT<475V 85VRMS<VAC<308VRMS • Rectified AC shown for 85 VRMS<VAC<308 VRMS • J1 boost follower setting: - ON: 250 V<VOUT<460 V - OFF: VOUT = 465 V - OPEN: VOUT = 250 V • Flyback DC-DC handles ~2:1 input range instead of ~4:1
- 17. 17 BCM, PFC Design BoostFollower Design Procedure 1. Set VOUT divider: 𝑅5 = 𝑉𝑅𝐸𝐹 𝐼2 = 2.5𝑉 150𝜇𝐴 = 16.7𝑘Ω 𝑅4 = 𝑅5 × 𝑉𝑂1 − 𝑉𝑅𝐸𝐹 𝑉𝑅𝐸𝐹 = 16.7𝑘Ω × 250𝑉 − 2.5𝑉 2.5𝑉 = 1.65𝑀Ω 2. Boost follower ON for VAC >150 VRMS: 𝐼1 = 0𝐴, 𝑓𝑜𝑟 𝑉𝐴𝐶 < 150𝑉𝑅𝑀𝑆 3. Set Vb≈2 V when VAC =308 VRMS: 𝑉𝑐𝑡𝑟𝑙 = 𝑉𝑏 − 𝑉𝑏𝑒 = 2𝑉 − 0.7𝑉 = 1.3𝑉 5. Set VAC divider: R1 R2 Vf Vbe R3 R4 R5 1 3 COMP INV VREF (2.5V) FL7930C 85VRMS<VAC<308VRMS VO1=250VDC VO2=475VDC Vctrl Vb I1 I2 R6 C1 I3 I4 4. Set I4≈1 mA@√2 × 308 VRMS, solve R2: 𝑅2 = 𝑉𝑏 + 𝑉𝑓 𝐼4 = 2𝑉 + 0.5𝑉 1𝑚𝐴 = 2.5𝑘Ω 𝑅1 = 𝑅2 × 2 × 𝑉𝐴𝐶(𝑀𝐴𝑋) − 𝑉𝑏 + 𝑉𝑓 𝑉𝑏 + 𝑉𝑓 = 2.5𝑘Ω × 2 × 308𝑉𝑅𝑀𝑆 − 2𝑉 + 0.5𝑉 2𝑉 + 0.5𝑉 = 433𝑘Ω 𝐼1 = 𝐼2 × 𝑉𝑂2 𝑉𝑂1 − 1 = 150µA × 475V 250V − 1 = 135μA, 𝑓𝑜𝑟 𝑉𝐴𝐶 = 308𝑉𝑅𝑀𝑆 𝑅3 = 𝑉𝑐𝑡𝑟𝑙 𝐼1 = 1.3𝑉 135𝜇𝐴 = 9.53𝑘Ω
- 18. 18 BCM, PFC Design BoostFollower Design Procedure (Cont.) 6. Verify Vctrl over 85 VRMS<VAC<308 VRMS: R1 R2 Vf Vbe R3 R4 R5 1 3 COMP INV VREF (2.5V) FL7930C 85VRMS<VAC<308VRMS VO1=250VDC VO2=475VDC Vctrl Vb I1 I2 R6 C1 I3 I4 𝑉𝑐𝑡𝑟𝑙 𝑉𝐴𝐶 = 𝑅2 𝑅1 + 𝑅2 × 2 × 𝑉𝐴𝐶 − 𝑉𝑓 + 𝑉𝑏𝑒 VAC (VRMS) Vctrl (mV) I1 (µA) I2 (µA) 85 0 0 150 150 19 2 150 160 95 10 150 308 1287 135 150
- 19. 19 𝐼𝐿(𝑃𝐾) = 4 ×𝑃𝑂𝑈𝑇 𝜂 × 2 × 𝑉𝐴𝐶(𝑀𝐼𝑁) = 4 × 144𝑊 0.95 × 2 × 85𝑉𝑅𝑀𝑆 = 5𝐴 𝑃𝐾 𝐿 = 𝜂 × 2 × 𝑉𝐴𝐶(𝑀𝐼𝑁) 2 4 × 𝐹 𝑀𝐼𝑁 × 𝑃𝑂𝑈𝑇 × 1 + 2 × 𝑉𝐴𝐶(𝑀𝐼𝑁) 𝑉𝑂𝑈𝑇 − 2 × 𝑉𝐴𝐶(𝑀𝐼𝑁) = 0.9 × 2 × 160𝑉𝑅𝑀𝑆 2 4 × 45𝑘𝐻𝑧 × 144𝑊 × 1 + 2 × 160𝑉𝑅𝑀𝑆 250𝑉 − 2 × 160𝑉𝑅𝑀𝑆 = 168𝜇𝐻 ≅ 170𝜇𝐻 1. Peak inductor current: 2. Inductor value (POUT Max +20% Margin = 144 W): 3. Maximum on-time: 𝑡 𝑂𝑁(𝑀𝐴𝑋) = 𝐿 × 𝐼𝐿(𝑃𝐾) 2 × 𝑉𝐴𝐶(𝑀𝐼𝑁) = 170𝜇𝐻 × 5𝐴 𝑃𝐾 2 × 85𝑉𝑅𝑀𝑆 = 7𝜇𝑠 < 35𝜇𝑠 (𝐹𝐿7930 𝑡 𝑂𝑁 𝑀𝐴𝑋 ) (6) (1) NB=41 NA=3 (10) (9) Core: EFD30, Wurth Custom PN 750313579 Winding Pins (S→F) Wire Layers Turns Boost 6→1 40/38, Served Litz 2 41 AUX 9→10 2/38, Bifilar 1 3 BCM, PFC Design Power Stage, Inductor Calculation
- 20. 20 4. Output capacitor: ≥ 144𝑊 250𝑉× 2 × π × 50𝐻𝑧 × (0.05 × 250𝑉) = 150𝜇𝐹 • Holdup not typically required for LED • COUT calculated based upon maximum allowable output ripple voltage, ΔVOUT = 5%×VOUT(MIN) • VOUT(MAX)= 460 V→need COUT rated for 500 V • To maintain low-profile: - COUT = 2 x 330 µF, 250 V aluminum radial leaded capacitors in series BCM, PFC Design Power Stage, Capacitor Calculation 𝐶 𝑂𝑈𝑇 ≥ 𝑃𝑂𝑈𝑇 𝑉𝑂𝑈𝑇(𝑀𝐼𝑁) × 2𝜋 × 𝐹𝐿(𝑀𝐼𝑁) × ΔV 𝑂𝑈𝑇
- 21. 21 Two-Switch Flyback Design CC CVFB FAN6300H 1 2 3 45 6 7 8 NC HV VDD GATEGND CS FB DET FAN7382 1 2 3 4 5 6 7 8 HO VB VS LOCOM LIN HIN VCCPBIAS VIN R1 R2 R3 Q1 Q2 D1 D2 D3 D4D5 ACIN R4 C1 VA VLED VHS C2 C3 (FROM PFC) (FROM PFC) RDY PBIAS
- 22. 22 0V VDS 0A IDS tftOFF tON TS 0A ID VAVA 0V 0V VDET 0V VIN PBIAS VIN+VHS VGS(HS) VGS(LS) 0.7V 5µs 2.5V VO OVP IDET(SOURCE)>30µA tDELAY=200ns VRO 2 VRO 2 VIN 2 VIN 2 • Quasi-resonant,variable frequency • HS and LS MOSFETs switch synchronously • Switching period, TS = tOFF + tf + tON • Inductor current switches from 0 A (ZCS) every switching cycle • VDS - Valley switching - Extended valley switching • Gate turn-on - IDET>30 µA→delay 200 ns→turn-on • VDET>2.5 V→OVP (latching) Two-Switch Flyback Design Key Switching Waveforms
- 23. 23 FAN7382 1 2 3 4 5 6 7 8 HO VB VS LOCOM LIN HIN VCCPBIAS VIN R1 R2 R3 Q1 Q2 D1 D2 D4D5 VA VHS C2 C3 DETPWM (FROM PFC) 0V 0V 0V PBIAS VHS UVLO VGS(HS) VGS(LS) •FAN7382 HVIC • HIN and LIN shorted • Q1 and Q2 MOSFETs switch synchronously…but • During start-up - HO not switching - LO switching charges C2 only when HO not switching • During steady-state - C2 charged from VHS Two-Switch Flyback Design Gate Drive Operation
- 24. 24 1. Transformer turnsratio: 2. Primary magnetizing inductance: 3. Primary current: 𝑛 = 𝑉𝐼𝑁 𝑀𝐼𝑁 × 𝐷 𝑀𝐴𝑋 1 − 𝐹 𝑀𝐼𝑁 × 𝑡𝑓 − 𝐷 𝑀𝐴𝑋 × 1 𝑉𝑂 + 𝑉𝑓 = 250𝑉 × 0.45 1 − 50𝑘𝐻𝑧 × 600𝑛𝑠 − 0.45 × 1 60𝑉 + 2𝑉 = 3.48 𝐿 𝑀 = 𝑉𝐼𝑁(𝑀𝐼𝑁) × 𝐷 𝑀𝐴𝑋 2 2 × 𝑃𝑂 𝑛 × 𝐹 𝑀𝐼𝑁 = 250𝑉 × 0.45 2 2 × 100𝑊 0.9 × 50𝑘𝐻𝑧 = 1.14𝑚𝐻 ≈ 1𝑚𝐻 𝐼 𝐷𝑆(𝑃𝐾) = 𝑉𝐼𝑁(𝑀𝐼𝑁) × 𝐷 𝑀𝐴𝑋 𝐿 𝑀 × 𝐹 𝑀𝐼𝑁 = 250𝑉 × 0.45 1.14𝑚𝐻 × 50𝑘𝐻𝑧 = 2𝐴 𝑃𝐾 𝐼 𝐷𝑆(𝑅𝑀𝑆) = 𝐷 𝑀𝐴𝑋 3 × 𝐼 𝐷𝑆(𝑃𝐾) = 0.45 3 × 2𝐴 𝑝𝑘 = 775𝑚𝐴 𝑅𝑀𝑆 𝑡𝑓 = 𝜋 × 𝐿 𝑀 × 𝐶 𝑂𝑆𝑆 2 tf: • Estimate tf to start • Calculate tf after power stage design complete Two-Switch Flyback Design Transformer Calculations
- 25. 25 4. Area-product coresize estimate: 5. Choose EER28L, calculate primary turns: 6. Secondary turns: 𝐴 𝑒 × 𝐴 𝑤 = 𝑃𝑂 × 108 × 𝐹𝐾 2 × 𝐹 𝑀𝐼𝑁 × 𝐵 𝑃𝐾 × 𝑊𝐹 × 𝐶𝐷 × 𝑈𝐹 = 100𝑊 × 108 × 1 2 × 50𝑘𝐻𝑧 × 3000𝐺 × 0.25 × 350 × 1 = 0.38𝑐𝑚2 𝑐𝑚2 Where: FK = Cooling Factor (1=no cooling, 0.3=100 CFM) BPK = AC Flux Density (Gauss) WF = Window Factor (<1, practical<0.5) CD = Current Density (250<CD<550, CM/A) UF = Magnetization (1=single-end, 2=double-end) Low-profile ferrite core choices 𝑁𝑃 = 𝐿 𝑀 × 𝐼 𝐷𝑆(𝑃𝐾) × 108 𝐵 𝑃𝐾 × 𝐴 𝑒 = 1𝑚𝐻 × 2𝐴 𝑃𝐾 × 108 3000𝐺 × 0.81𝑐𝑚2 = 82𝑇 𝑁𝐿𝐸𝐷 = 𝑁𝑃 𝑛 = 82𝑇 3.7 = 22𝑇 𝑁𝐴 = 𝑁𝐿𝐸𝐷 × 𝑉𝐷𝐸𝑇 𝑉𝑂 + 𝑉𝑓 = 22𝑇 × 12𝑉 60𝑉 + 2𝑉 = 4𝑇 𝑁 𝐻𝑆 = 𝑁𝐿𝐸𝐷 × 𝑉𝐻𝑆 𝑉𝑂 + 𝑉𝑓 = 22𝑇 × 8𝑉 60𝑉 + 2𝑉 = 3𝑇 →Regulated secondary (TDK High Flux Ferrite Materials) Two-Switch Flyback Design Transformer Calculations (Cont.) Core Ae Aw AwAe Height EFD30 0.69 cm2 0.63 cm2 0.44 cm2cm2 14 mm EER28L 0.81 cm2 0.97 cm2 079 cm2cm2 25 mm
- 26. 26 7. EER28L transformerwinding structure: 1 NP(2-3)=38T NLED=22T 4 3 11,12 9,10 NHS(1-2)=3T 2 5 6 NP(3-4)=44T NDET(6-5)=4T Winding Pins (S→F) Wire Layers Turns ½ Primary 2→3 15/38, Served Litz 1 38 Secondary (LED) 9→11 30/38, Served Litz 1 22 Secondary (LED) 10→12 30/38, Served Litz 1 22 ½ Primary 3→4 15/38, Served Litz 1+ 44 Secondary (DET) 6→5 2/38, Bifilar 1 4 Secondary (HS) 2→1 2/38, Bifilar 1 3 EER28L ferrite core Two-Switch Flyback Design Transformer Winding Structure

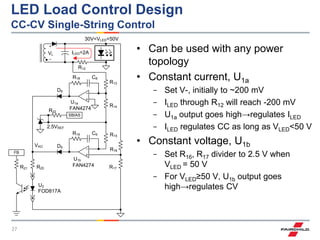

- 27. 27 • Can beused with any power topology • Constant current, U1a - Set V-, initially to ~200 mV - ILED through R12 will reach -200 mV - U1a output goes high→regulates ILED - ILED regulates CC as long as VLED<50 V • Constant voltage, U1b - Set R16, R17 divider to 2.5 V when VLED = 50 V - For VLED≥50 V, U1b output goes high→regulates CV LED Load Control Design CC-CV Single-String Control VL SBIAS 2.5VREF FB R12 R13 R14 R15 R16 R17 R18 R19 R20R21 R22 D8 D9 30V<VLED<50V C8 C9 ILED=2A U1a U1b FAN4274 FAN4274 FOD817A U2 VAO
- 28. 28 FAN7346 1 2 3 4 25 26 27 28GND VMIN CMP FB OVR 21 22 23 24 17 18 19 20 15 16 8 7 6 5 12 11 10 9 14 13 PWM2 PWM3 PWM4 FO SLPR ADIM ENA PWM1 VCC REF FB1 OUT1 CH1 CH3 FB2 OUT2 CH2 OUT4 CH4 FB3 OUT3 FB4 VDD VL SBIAS ADIM ON OFF 1 2 3 SBIAS ADIM PWM1 PWM2 PWM3 PWM4 ADIM FB FOD817A U2 30V<VLED<50V ICH1ICH2 ICH3 ICH4 RS1 RS2 RS3 RS4 R23 R24 R25 R26R27 R28 R29 R30R21 R32 R33 R34 R35 C10 LED Load Control Design CC-CV 4-Channel, Multi-String Control
- 29. 29 • Constant current,ICHx - ICHx sensed by RSx (FBx) - FBx compared to VADIM/10 - 4 V<VADIM<5 V for full brightness - FBx>1 V for 20 µs→OCP (latching) for string x • Constant voltage, VLED - Qx drain sensed by CHx - CHx compared to Gm amplifier, 1 V reference - Gm amplifier output drives FB pin - Regulates VLED to minimum value to maintain Qx drain to 1 V • Over Voltage Regulation (OVR) - Compares VLED to 1.42 V reference - VLED set point>1.42 V→FB proportionally pulled low - ICHx is reduced, VLED clamped to OVR set voltage level RSx VADIM/10 1V Vf VDS VS Gm OVR DCDC OUT FB CMP FB CHx OUTx FBxFAN7346 ICHx 1.42V ILED 50mV<VREF(LED)<400mV Qx VLED VF VF VF VF (NOTE: One of four LED strings shown) LED Load Control Design CC-CV 4-Channel, Control Block Diagram

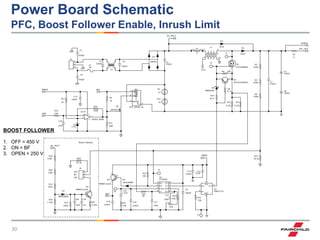

- 30. 30 Power Board Schematic PFC,Boost Follower Enable, Inrush Limit BOOST FOLLOWER 1. OFF = 450 V 2. ON = BF 3. OPEN = 250 V
- 31. 31 Power Board Schematic 2-SwitchFlyback, PWM Dimmers
- 32. 32 Power Board Schematic High-VoltageFlyback Bias Power Supply • 85 VRMS<VAC<308 VRMS • Primary referenced, PBIAS~15 V, 0.5 A • Secondary referenced, SBIAS = 12 V, 0.5 A
- 33. 33 Controller Daughter CardSchematic Single String CC-CV LED Controller • Sources current into optocoupler anode (OPTO_A) • Constant LED current set to 2 A • Constant LED voltage set to 50 V
- 34. 34 Controller Daughter CardSchematic 4-Channel LED Controller • Sinks current through optocoupler cathode (OPTO_C) • Constant LED current set to 350 mA • OVR set to 62 V PDIM 1. OFF = 5 V 2. ON = PWM DIM
- 35. 35 Power Board Dimensions 228.6mm (9 in) 76.2 mm (3 in) 25 mm (0.99 in)
- 36. 36 Power Board Partitioning 12 3 4 5 6 7 1. AC input, EMI filter, inrush current limiting 2. Flyback bias regulator 3. BCM PFC 4. 2-switch, quasi-resonant, flyback converter 5. Removable controller card (4-Channel Controller Shown) 6. PWM dimmer circuits 7. LED output terminal block
- 37. 37 LED CC-CV ControllerCards OR 4-Channel, 50 V, 350 mA per Channel Single Channel, 50 V, 2 A J19 J23
- 38. 38 • VIN =120 VAC • VOUT = 450 V vs. boost follower • POUT = 120 W = 100% • Δη = 1.8%, @ 20% POUT • ηPK = 97%, @ 90% POUT BCM PFC Measured Efficiency & PF • VIN = 120 VAC, 230 VAC • VOUT = 450 V • POUT = 120 W = 100% • PF = 0.994 • LED power is constant so PFC should operate within 50%<POUT<90% Δƞ=1.8%, @20% POUT LED Power Range
- 39. 39 • Measured - 80VRMS<VAC<308 VRMS - POUT = 120 W BCM PFC, Boost Follower Mode Measured vs. Predicted • Predicted - 80 VRMS<VAC<308 VRMS - VOUT(BF) tracks VAC >150 VRMS when boost follower is used - Downstream DC-DC converter designed for 250 V<VIN<460 V time (ms) Voltage(V) 0 20 40 60 80 100 120 140 160 50 100 150 200 250 300 350 400 450 0 500 180 200 VOUT=465V 250V<VOUT<475V 85VRMS<VAC<308VRMS
- 40. 40 • VIN =step 115 VRMS to 300 VRMS • VOUT(BF) = 250 V to 450 V • POUT = 60 W BCM PFC Boost Follower Voltage Tracking CH1 = VIN(AC), CH2 = VOUT(BF) • VIN = step 300 VRMS to 115 VRMS • VOUT(BF) = 450 V to 250 V • POUT = 60 W
- 41. 41 2-Switch Flyback CH1 =VGS(HO), CH2 = VGS(LO), CH3 = V(CBOOT) • Boost Follower Benefit - η = 94.75% peak @ 300 VDC - VIN = VOUT(BF) = 250 V to 470 V - 250 VIN corresponds to 120 VAC - Without boost follower, VIN = 450 V for 85 VRMS<VAC<308 VRMS • FAN7382 Gate Drive Start-Up 94.02%, 250V 93.34%, 450V Δη=0.68% Δη=1.41%
- 42. 42 2-Switch Flyback CH1 =VDS(LO), CH3 = VGS(LO) • Extended valley switching - VIN = VOUT(BF) = 250 V - D = 11% - fS = 68 kHz - POUT = 24 W (Dim, 60 V, 4 x 100 mA) • VDS valley switching on first valley - VIN = VOUT(BF)=250 V - D = 42% - fS = 63kHz - POUT = 85 W (60 V, 4 x 350 mA)
- 43. 43 System Performance CH1 =PBIAS, CH2 = RDY, CH3 = VLED, CH4 = VOUT(PFC) • Shut-Down - RDY LOW, stops PFC and 2-switch flyback - RDY HIGH, starts 2-SW flyback - VLED slowly discharges - POUT = 70 W (LED Load) • Start-Up - PBIAS HIGH, starts PFC - RDY HIGH, starts 2-switch flyback - VLED monotonic soft-start - POUT = 70 W (LED Load)
- 44. 44 System Performance CH1 =VIN(AC), CH2 = IIN(AC) • VIN(AC) = 300 VRMS - PF = 0.915 - POUT = 85 W (LED load) • VIN(AC) = 85 VRMS - PF = 0.994 - POUT = 85 W (LED load)
- 45. 45 • Inrush currentlimiting - NTC R7 and R12 limit inrush to 3.18 A during startup - RDY signal (12 V) applied to U1-3, comparator output is HIGH, relay shorts across R7 + R12 to maintain high efficiency during steady state operation - Relay shorting time can be further adjusted by R16, C10 - Relay short is removed during power supply turn-off System Performance CH1 = VIN(AC), CH2 = IIN(AC), CH3 = VLED
- 46. 46 System Performance CH1 =VIN(AC), CH2 = IIN(AC), CH3 = VLED • Inrush circuit enabled - VIN(AC) = 120 VRMS - POUT = 70 W (LED load) - IPK = 3.18 APK - 79.2% reduction • Inrush circuit disabled - VIN(AC) = 120 VRMS - POUT = 70 W (LED load) - IPK = 15.25 APK
- 47. 47 • PWM Dimming“chops” LED DC current • FPWM = 250 Hz • DCH1 = DCH2 = 50%, DCH3 = 10%, DCH4 = 100% • ILEDCH1 = ILEDCH2 = 35 mA • ILEDCH3 = 176 mA • ILEDCH4 = 350 mA • η = 87.02% • PF =.971 during dimming System Performance CH1=PWMCH3, CH2=PWMCH1_CH2, CH3=ILEDCH3, CH4=ILEDCH1_CH2 • 2,on-board PWM dimmers • PDIM1 controls channels 1, 2 • PDIM2 control channels 3, 4 • FPWM = 250 Hz, 1%<D<99.9% • VPWM = 5 V • Set J17, J21 to “OFF” to disable PWM dimming or apply external PWM dimming signal
- 48. 48 System Performance Dimming • FAN7346analog dimming - All four strings dim simultaneously - 0.5 V<VADIM<4 V - 12% minimum dimming - Cannot dim to 0% (full-off) due to minimum internal analog dimming voltage clamped at 0.5 V • FAN7346 PWM Dimming - PWM dim each LED string independently - 2 V<VDIM(PWM)<5 V - 100 Hz<FPWM<500 Hz - PWM dimming is linear from 0% (barely on) to 100% (full brightness)
- 49. 49 System Performance EN61000-3-2, ClassC (PIN>25 W) • VIN(AC) = 115 VRMS - VOUT(PFC) = 250 V - POUT = 85.41 W (60 V, 4×350 mA) - η = 91.05% - THD = 8.91% - Passes EN61000-3-2,Class C • VIN(AC) = 230 VRMS - VOUT(PFC) = 400 V - POUT = 86.2 W (60 V, 4×350 mA) - η = 91.51% - THD = 21.52% - Passes EN61000-3-2,Class C
- 50. 50 System Performance Efficiency • POUTcomparison - POUT = 70 W vs. 85 W - η>90% over entire range for 85 W<POUT<100 W - Both cases shown operating with PFC boost follower • Boost follower comparison - Greater benefit at low-line - ~1.2% overall efficiency improvement at low-line - 91.8% peak efficiency includes EMI filter and bias supply
