A presentation about how Drupal can be used to control a home automation system build on VSCP.

1. Drupal Home automation
with VSCP
Peter Bosmans

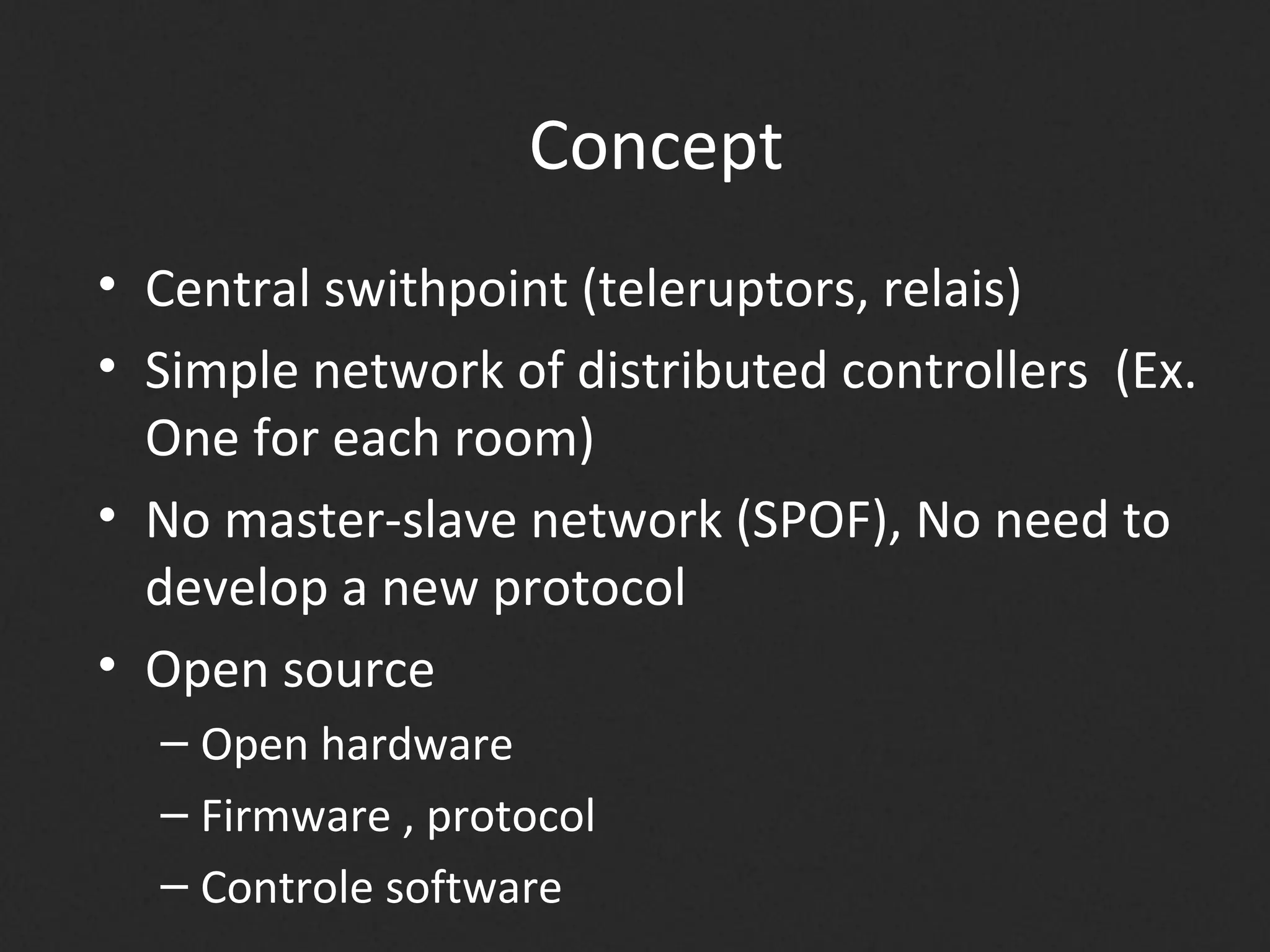

2. Concept
• Central swithpoint (teleruptors, relais)
• Simple network of distributed controllers (Ex.
One for each room)
• No master-slave network (SPOF), No need to
develop a new protocol
• Open source
– Open hardware
– Firmware , protocol
– Controle software

3. Home automation controle software
• Home remote (java – tomcat)
• Linux MCE (based on Ubuntu)
• Misterhouse (Perl – VSCP enabled)
• Drupal
– Webbased, permissions, taxonomy, …
– Connection with a database (logging, views, …)
– Expandable -> VSCP module

4. VSCP
• Very Simple Control Protocol
http://sourceforge.net/projects/m2m/files/VSCP%20Specification/
http://en.wikipedia.org/wiki/Very_Simple_Control_Protocol
• Open source
multiplatform : windows, linux – multicontroller : PIC, AVR, ARM, …
• Runs on different physical layers
–Level I : RS232, RS485, RF, CAN
–Level II : Ethernet
• Event based
• Configurable Modules
–Registers : I/O behavior, I/O zones-subzones
–DM (Decision matrix) : Filter - Action

5. VSCP events
• Class : Collection of event types
– INFORMATION(20) , ALARM(1), MEASUREMENT(10), ….
• Type : Type of event
– CLASS INFORMATION : BUTTON(1), ON(3), OFF(4), BELOW LIMIT(10), …
– CLASS MEASUREMENT : COUNT(1), TEMPERATURE(6), WEIGTH(3), …
• Zone : origination of event class-type
– Basement(1), Ground floor(2), …
• Subzone : sub-origination of event class-type
– Kitchen(1), Living room(2), Storage(3), Hall(4), …

6. Communicatie Drupal <-> VSCP
VSCPD
– Gateway daemon between the CAN-network and IP-network.
– DM for filter – action
•Incomming VSCP events
CANbus -> USB2CAN convertor -> USB -> VSCPD -> DM -> PHPscript ->
XMLPRC
• DM starts PHPscript with an INFORMATION ON/OFF VSCP event
• PHPscript creates an XMLRPC call to drupal
•Outgoing VSCP events
Drupal VSCP module -> VSCPD -> USB -> USB2CAN convertor -> CANbus

7. VSCP module
• Taxonomy
– Level I Events : Already configured within xml-file (Taxonomy import/export module)
– Zones-Subzones : configurable by user
• Hiërarchical
• Synonymous field contains the de zone- of subzonenumber
• Contenttypes
– VSCPevent : Elk VSCPevent heeft een corresponderende Drupal node
• Taxonomy : Determines het VSCP-event (class, type, zone, subzone)
• Byte0 : Needed by specific events
• Data : Needed by specific events
• Node references (sended, received) : Connection between, the sended and received ,
VSCP events
• Logtype : Type of logging ; through revisions of nodes of the contenttype VSCPlog
• Log reference : Reference to the logging-node when using the type of logging through
revisions.
• Button : The corresponding VSCP event of the node will be sended
– VSCPlog
• Class, Type, Byte0, Zone, Subzone, Data : Field for the corresponding values.

8. VSCP module
• Self-learning by every received event
– On Node niveau
• check the VSCP class, type, zone en subzone
• If the node doesn’t exists : create node
• If the node exists :
– update node timestamp
– Indien referentie naar een send event node : update de receive referentie in de send event
node
– On Taxonomie niveau (Zone-Subzone)
• If the zone and/or subzone doesn’t exists : create the new term
• References
To connect the last received VSCP event to his
corresponding sending VSCP event
Ex.:
- Connect ‘on/off events’ on ‘button events’.
- Connect the event of a measured value on the
determination event that sets a temperature.

9. VSCP module
• Rules integration
– Rule trigger :
• After a VSCP event is received
– Rule conditions :
• VSCP event has zone
• VSCP event has subzone
• VSCP event has class
• VSCP event had type
• VSCP event had byte0
• VSCP event had databytes
– Rule action :
• Send a VSCP event
– Rule sets
• Useful for scheduling VSCPevents

10. Demo : Technical structure
• Electrical installation
• Nodes : CAN based modules
Configuration :
IN1, OUT1 => Zone = 1 = ‘Basement’ ; Subzone = 1 = ‘Supply’
IN2, OUT2 => Zone = 2 = ‘Ground floor’ ; Subzone = 1 = ‘Kitchen’
IN3, OUT3 => Zone = 2 = ‘Ground floor’ ; Subzone = 2 = ‘Living room’

11. Demo : Drupal - VSCP
• Configuration :
– Manual setup
• Taxonomy ‘Zone-Subzone’
• Content VSCPevent ‘Information – Button’
– Semi-Automatic with the self-learning mode
• Taxonomy ‘Zone-Subzone’
• Content VSCPevent ‘Information – On/Off’
– Connect the received VSCPevent to the corresponding sended VSCPevent.
• Views :
– Buttons view : List of ‘Information - button’ VSCP events which contains a
relation to the last received ‘Information – On/Off’ event
• Some rules examples :
– ButtonSendEvent : responsible to send the VSCPevent and refresh the page
after a little time delay.
– Basement Supply ON – Email : Sends a mail when someone the on the light o
specific room.
• Rulessets :
– Schedules VSCPevents. Ex. Switch lights every 2 minutes
– …

12. Future developments
• More sensor integration (temperature, light, …)
• More widgets for drupal
• Ajax integration
• Drupal 7 migration
• Integration of MQTT within the VSCP daemon
MQTT (MQ Telemetry Transport) : extremely lightweight
‘publish/subscribe’ messaging transport through a ‘broker’
• Integration of WS within the VSCP daemon (HTML5)
• https://www.thingspeak.com/,
https://pachube.com/, …

13. Questions ??
Useful Links
VSCP :
http://www.vscp.org/
VSCP source :
http://sourceforge.net/projects/m2m/?source=directory
VSCP drupal module :
http://drupal.org/sandbox/pbosmans/1429844
VSCP kiewit hardware module :
https://sourceforge.net/p/vscpmodules/kiewit

15. Feedback & follow-up:
http://drupalcampgent.be/feedback
