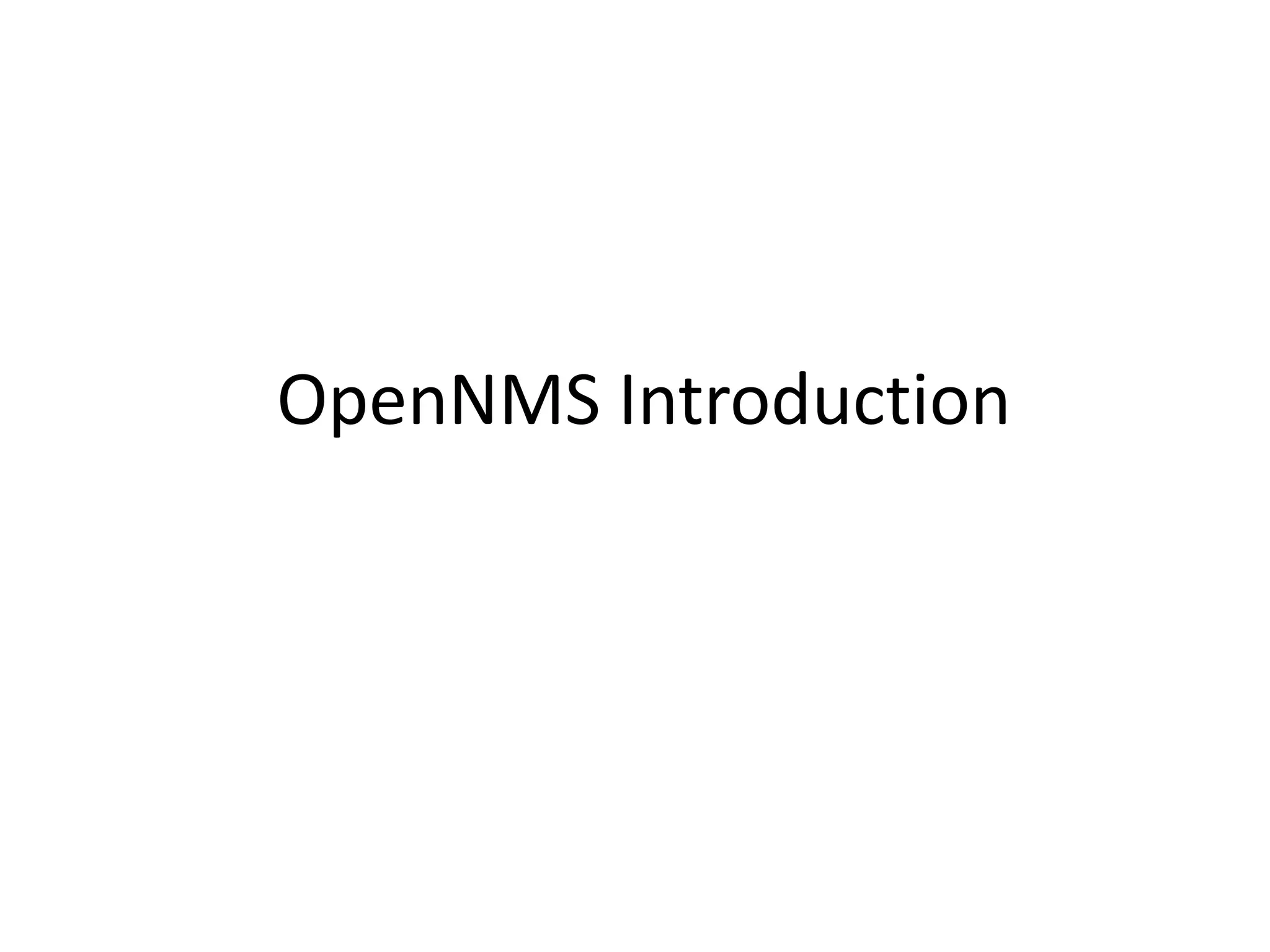

1. OpenNMS Introduction

2. AGENDA
• What is OpenNMS
• How to install OpenNMS
• Discovery & Monitor Process
• GUI Introduction

3. What is OpenNMS
• world’s first enterprise grade network
management application platform developed
under the open source model
– World’s First :
• From 1999/7
– Enterprise Grade :
• monitor tens of thousands to ultimately unlimited devices
– Application Platform
• Design for “out of box” and highly customizable
– Open Source
• Under version 3 of the GNU General Public License (GPL)

4. What is OpenNMS
• Supported OS
– LinuxUnix (rpm, apt), Windows, Mac OS
• Programming Language
–
–
–
–
Java, JSP
jRobin (RRD tool for Java)  Graph
Jasper  Reports
OSGi, SVG, Vaadin and D3.js  Topology Map
• Commercial License
– GPLv3

5. How to install OpenNMS
• JDK (Java SE)
– http://www.oracle.com/technetwork/java/javase/downloa
ds/jdk7u9-downloads-1859576.html
• PostgreSQL
– http://www.postgresql.org/download/windows/
– Not install the newest version
• OpenNMS
–
–
–
–
http://sourceforge.net/projects/opennms/files/OpenNMS/
standalone-'opennms-installer-X.X.X.zip
Run “%OPENNMS_HOME%binopennms.bat start”
http://localhost:8980/opennms

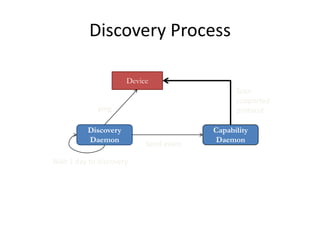

6. Discovery Process
Device
Scan
supported
protocol
ping
Discovery
Daemon
Wait 1 day to discovery
Send event
Capability
Daemon

7. Discovery Process
• Discovery Daemon
– Use “Ping” to find all device
• Re-discovery every 24hr
– /etc/discovery-configuration.xml
• capsd (Capability Daemon)
– Check all service in a device
– etc/ capsd-configuration.xml
• Supported services : HTTP, SNMP, ICMP, FTP, …
– newSuspect event ( send-event.pl )
• Received this event to scan this IP
• Received trap will call this event to scan device

8. Monitor Process

Collected : data collection (/etc/connectd-configuration.xml)
– Collect the data from device
– /etc/connectd-configuration.xml
– SNMP, WMI , OpenNMS-JVM, (NSClient, JMX, HTTP)
• SNMPCollector
– /etc/snmp-config.xml : community string
– /etc/datacollection-config.xml, /datacollection : Supported SNMP MIB
• Monitor : polling daemon
– Every 5 minute to check service is responding correctly
– etc/poller-configuration.xml)
– Supported Service (xxxMonitor)
• ICMP, DNS, SMTP, FTP, SNMP, HTTP, HTTP-8080, HTTP-8000, HTTPS,
HypericAgent, HypericHQ, MySQL, SQL Server, Oracle, Postgres, SSH,
IMAP, POP3, NRPE, NRPE-NoSSL, Windows-Task-Scheduler, OpenNMSJVM

9. GUI introduction
•
•
•
•
•
•
•
•

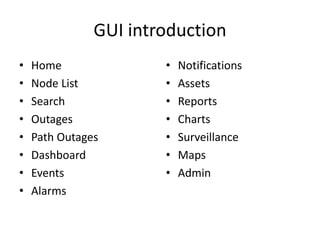

Home
Node List
Search
Outages
Path Outages
Dashboard
Events
Alarms
•
•
•
•
•
•
•
Notifications
Assets
Reports
Charts
Surveillance
Maps
Admin

10. Home
• Node with Outages
• Quick Search
• Available Over the Past 24 Hours
– /etc/categories.xml
– Outages (SurveillanceStatus.java)
• Green : 0 services down
• Yellow : 1 service down
• Red : more than 1 service down
• Notification
• Resource Graphs
• KSC Reports (Key SNMP Customized)

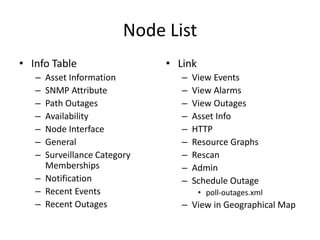

11. Node List
• Info Table
–
–
–
–
–
–
–
Asset Information
SNMP Attribute
Path Outages
Availability
Node Interface
General
Surveillance Category
Memberships
– Notification
– Recent Events
– Recent Outages
• Link
–
–
–
–
–
–
–
–
–
View Events
View Alarms
View Outages
Asset Info
HTTP
Resource Graphs
Rescan
Admin
Schedule Outage
• poll-outages.xml
– View in Geographical Map

12. Node List

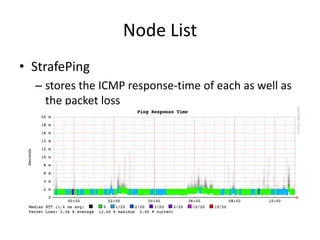

• StrafePing
– stores the ICMP response-time of each as well as
the packet loss
– poller-configuration.xml
• <include-range begin="192.168.6.130"
end="192.168.6.140"/>

13. Search
• Search for Nodes
– Name containing
– TCP/IP Address like
• 192.168.*.*
• 192.168.0-255.0-255
• 192.168.0,1,2,3-255.*
–
–
–
–
ifAlias, ifName, ifDescr + contains, equals
Providing service
MAC Address like
Foreign Source name like
• Search Asset Information
– Category
– Field
– Containing Text

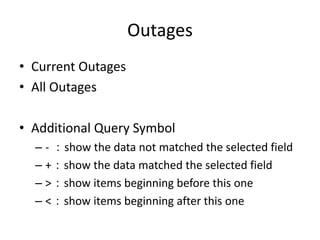

14. Outages
• Current Outages
• All Outages
• Additional Query Symbol
– - ：show the data not matched the selected field
– +：show the data matched the selected field
– >：show items beginning before this one
– <：show items beginning after this one

15. Path Outage
• Setting the child device below the parent device
• Admin/Configure Notifications/Configure Path Outages
– Define the Critical Path
• 10.1.3.254
– Current Rule
• IPADDR IPLIKE 10.1.3.1-3

16. Dashboard
•
•
•
•
Surveillance View: default
Alarms
Notifications
Node Status
– Add to Surveillance
• Resource Graph

17. Events
• Events Type
– outstanding
– acknowledged
• Advanced Search
–
–
–
–
–
–
–
–
Event Text Contains
TCP/IP Address Like
Node Label Contains
Severity
Service
Events After/Before
Sort By
Number of Events Per Page

18. Alarms
• More important Events
– The same events will correlate to one alarms
– /etc/eventconf.xml
• <alarm-data reduction-key="%nodeid%" alarmtype="1" />
– reduction-key : reduce rules
• NCS Alarm List
– Network Communication Services
– Supported by Juniper company (JunosSpace)

19. Notifications
• Your outstanding notices
• All outstanding notices
• All acknowledge notices
• Setting the Notification
1.
2.
3.
4.
Create user
Destination Paths
Event Notifications
Configure Mail
•
etc/javamail-configuration.properties
–
–
org.opennms.core.utils.fromAddress=FROM-EMAIL-ADDRESS
org.opennms.core.utils.mailHost=MAIL-SERVER-IP

20. Create Threshold

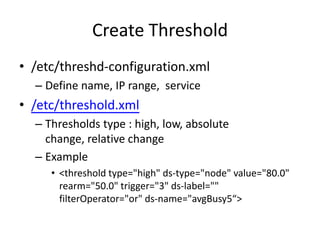

• /etc/threshd-configuration.xml
– Define name, IP range, service
• /etc/threshold.xml
– Thresholds type : high, low, absolute
change, relative change
– Example
• <threshold type="high" ds-type="node" value="80.0"
rearm="50.0" trigger="3" ds-label=""
filterOperator="or" ds-name="avgBusy5“>

21. Assets
• All nodes with asset info

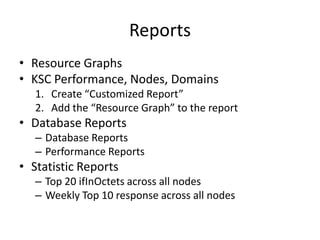

22. Reports
• Resource Graphs
• KSC Performance, Nodes, Domains
1. Create “Customized Report”
2. Add the “Resource Graph” to the report
• Database Reports
– Database Reports
– Performance Reports
• Statistic Reports
– Top 20 ifInOctets across all nodes
– Weekly Top 10 response across all nodes

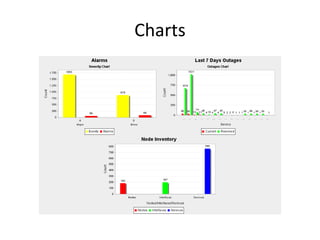

23. Charts

24. Surveillance

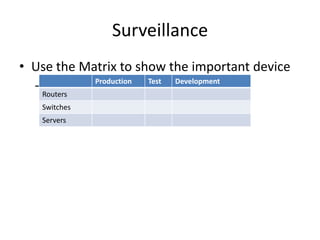

• Use the Matrix to show the important device
Production
Test
Development
– Admin/Manage Surveillance Categories
Routers
Switches
Servers

25. Maps
• Distributed Map
– Remote polling
• Server-Side
• Client-Side : to be a package (RPM, DEB, EXE) or Java WebStart package
• Geographical Map
– Show device node in the real map
• longitude and latitude
• address
• Topology Map
• SVG Map

26. Linkd
• layer 2/3 iso/osi model network topology
discovery daemon
– Bridge Forwarding Table, Spanning Tree Information
and IP Net To Media Table
– IP Routes (Layer 3)
– Cisco Discovery Protocol
– Link Layer Discovery Protocol
– OSPF (Layer 3)
• /etc/linkd-configuration.xml
– Collect SNMP data from node
– Discovery network topology

27. SVG Map
• Map -> Admin Mode
– Map  Open, New, Save, Close, Clear, Background
– Node  Add, Add Range, Add Category, Add Range, Add
Neighs, Add with Neighs, Add Map
– Reload  Maps, Nodes, Config
• The maps Configuration File
– /etc/map.properties
• severity, status, icon, availability visualization properties and
parameters for map elements
• Changing map Style
– Customize Tooltip, Context Menu, Menu, etc..
– /map/svgjavascript/ApplicationVariables

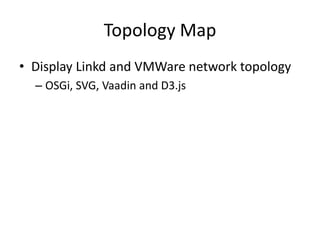

28. Topology Map
• Display Linkd and VMWare network topology
– OSGi, SVG, Vaadin and D3.js

29. Admin
•

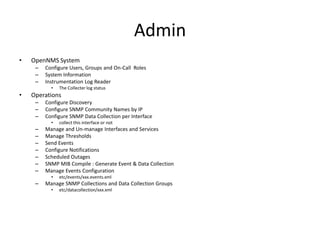

OpenNMS System
–
–
–
Configure Users, Groups and On-Call Roles
System Information
Instrumentation Log Reader
•
•
The Collecter log status
Operations
–
–
–
Configure Discovery
Configure SNMP Community Names by IP
Configure SNMP Data Collection per Interface
•
–
–
–
–
–
–
–
Manage and Un-manage Interfaces and Services
Manage Thresholds
Send Events
Configure Notifications
Scheduled Outages
SNMP MIB Compile : Generate Event & Data Collection
Manage Events Configuration
•
–
collect this interface or not
etc/events/xxx.events.xml
Manage SNMP Collections and Data Collection Groups
•
etc/datacollection/xxx.xml

30. Admin

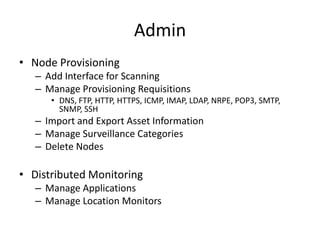

• Node Provisioning
– Add Interface for Scanning
– Manage Provisioning Requisitions
• DNS, FTP, HTTP, HTTPS, ICMP, IMAP, LDAP, NRPE, POP3, SMTP,
SNMP, SSH
– Import and Export Asset Information
– Manage Surveillance Categories
– Delete Nodes
• Distributed Monitoring
– Manage Applications
– Manage Location Monitors
