1. Presented by James Purser // 06-03-2015
Drupal – At the centre of the
web

2. In the beginning...
There was Drupal and it was good

3. Drupal provides all...
A Framework
• Flexible content management system
• Core set of libraries
• User management
• Comprehensive API
• Large third party module set

4. Sometimes Drupal needs to play with
others...

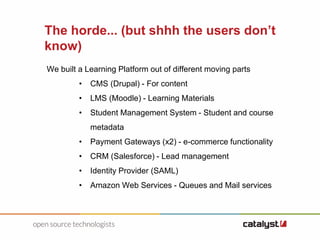

5. The horde... (but shhh the users don’t
know)
We built a Learning Platform out of different moving parts
• CMS (Drupal) - For content
• LMS (Moodle) - Learning Materials
• Student Management System - Student and course
metadata
• Payment Gateways (x2) - e-commerce functionality
• CRM (Salesforce) - Lead management
• Identity Provider (SAML)
• Amazon Web Services - Queues and Mail services

6. The spider at the heart of the web...

7. Why Drupal?
Because of these bits
• Core set of libraries
• User management
• Comprehensive API
• Large third party module set
• Flexible content management system

8. Why Drupal?
And these things:
• Webservices support out of the box
• hooks - ie: module_user_save allows us to ensure that all
systems are updated when a user is updated in drupal.
• PHP is a mature and flexible language and library set.
• Drush is incredibly useful not only for development but
bespoke cli and devops
• Drupal framework features make developing new
functionality easier

9. A Real Time Comms Story...
Creating a User (as part of module_user_save):
• New user registers with Drupal
• Drupal then does the following via real time webservices
– Register the new user with the LMS
– Register the new user with the Student Management System
– Register the new user with the CRM
– Updates its own user information with identifiers from each of
the above.

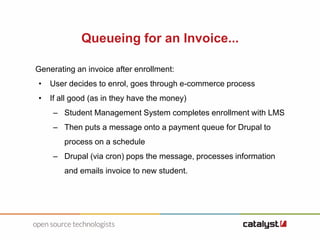

10. Queueing for an Invoice...
Generating an invoice after enrollment:
• User decides to enrol, goes through e-commerce process
• If all good (as in they have the money)
– Student Management System completes enrollment with LMS
– Then puts a message onto a payment queue for Drupal to
process on a schedule
– Drupal (via cron) pops the message, processes information
and emails invoice to new student.

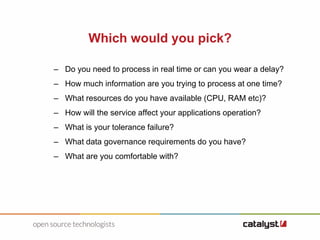

11. Which would you pick?
– Do you need to process in real time or can you wear a delay?
– How much information are you trying to process at one time?
– What resources do you have available (CPU, RAM etc)?
– How will the service affect your applications operation?
– What is your tolerance failure?
– What data governance requirements do you have?
– What are you comfortable with?

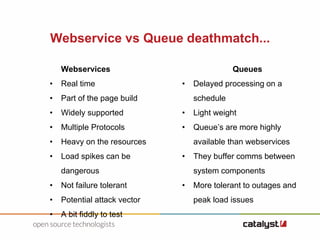

12. Webservice vs Queue deathmatch...
Webservices
• Real time
• Part of the page build
• Widely supported
• Multiple Protocols
• Heavy on the resources
• Load spikes can be
dangerous
• Not failure tolerant
• Potential attack vector
• A bit fiddly to test
Queues
• Delayed processing on a
schedule
• Light weight
• Queue’s are more highly
available than webservices
• They buffer comms between
system components
• More tolerant to outages and
peak load issues

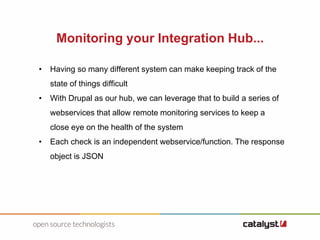

13. Monitoring your Integration Hub...
• Having so many different system can make keeping track of the
state of things difficult
• With Drupal as our hub, we can leverage that to build a series of
webservices that allow remote monitoring services to keep a
close eye on the health of the system
• Each check is an independent webservice/function. The response
object is JSON

14. Some lessons learnt...

15. Where possible go batch...
• The problem with realtime is that if one part of the process goes
down then everything goes down
• Batch processing allows you to schedule how and when you
process the requests, much better management of resources
• Debugging is easier (trying to catch a live webservice call vs
checking a packet on a queue)
