FTTH Drop Cable
www.suntelecom-cn.com • +86-21-60138638 • ics@suntelecom.cn
Cable Structure
Applications
z All types of fiber cables with different structures
z High performance optical network operating in O-E-S-C-L band
z High speed optical routes in buildings (FTTx)
z Application in L band (1565-1625nm)
Features
z Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property
z Two parallel strength members ensuring good performance of crush resistance to protect the fiber
z Simple structure, light weight and high practicability
z Novel flute design, easily strip and splice, simplify the installation and maintenance
z Single steel wire as additional strength member ensuring good performance of tensile strength
Fiber Characteristics
Fiber Count 2
Fiber Type G.657A
Fiber Color Blue and Orange
Mode-field Diameter (um)
8.6±0.4 (1310nm)
9.8±0.4 (1550nm)
Cladding Diameter (um) 125±0.7
Coating Diameter (um) 245±5
Core-Cladding Concentricity (um) ≤0.5
Cladding Non-circularity (%) ≤1.0
Coating-Cladding Concentricity (um) <12
Fiber Attenuation (dB/km)
≤0.35 @ 1310nm
≤0.20 @ 1550nm

2. Fiber O p t i c S o l u t i o n s 2/2

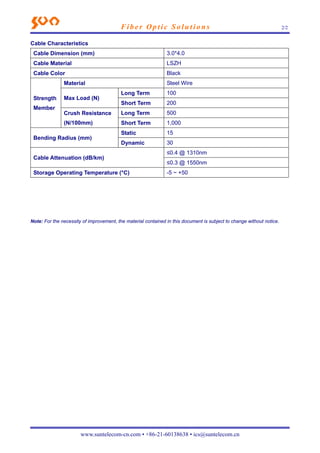

Cable Characteristics
Cable Dimension (mm) 3.0*4.0
Cable Material LSZH
Cable Color Black
www.suntelecom-cn.com • +86-21-60138638 • ics@suntelecom.cn
Strength
Member
Material Steel Wire
Max Load (N)
Long Term 100
Short Term 200
Crush Resistance
(N/100mm)
Long Term 500
Short Term 1,000
Bending Radius (mm)
Static 15
Dynamic 30
Cable Attenuation (dB/km)
≤0.4 @ 1310nm
≤0.3 @ 1550nm
Storage Operating Temperature (°C) -5 ~ +50
Note: For the necessity of improvement, the material contained in this document is subject to change without notice.
