This document discusses techniques for refining domain models, including: - Adding association classes to model relationships between concepts - Modeling whole-part relationships using aggregation - Representing time intervals to capture historical and planned attribute values - Organizing domain model elements using packages and showing dependencies between packages

1. DOMAIN MODEL
REFINEMENT
Presented by:
Anjan Kumar

2. DOMAIN MODEL (RECAP)
WHAT IS DOMAIN MODEL?

3. Why do a domain model?
o Gives a conceptual framework of the things in the problem
space .
o Helps you think-focus on semantics .
o Provides a glossary of terms-noun based.
o It is a static view - meaning it allows us convey time in variant
business rules.
o Foundation for use case/workflow modelling.
o Based on the defined structure, we can describe the state of
the problem domain at any time.

4. A simple domain model

5. Features of a domain model
Domain classes - each domain class denotes a type of object.
Attributes- an attribute is the description of a named slot of a specified
type in a domain class; each instance of the class separately holds a value.
Associations- an association is a relationship between two (or more)
domain classes that describes links between their object instances.
Associations can have roles, describing the multiplicity and participation of
a class in the relationship.
Additional rules - complex rules that cannot be shown with symbology can
be shown with attached notes.

6. DOMAIN MODEL
REFINEMENT

7. o Similar to the concepts in the Object Models
o Generalization and specialization
o Conceptual class hierarchies
o Association classes that capture information
about the association
o Time intervals
o Packages as a means of organization
Things not seen before in the Domain Model

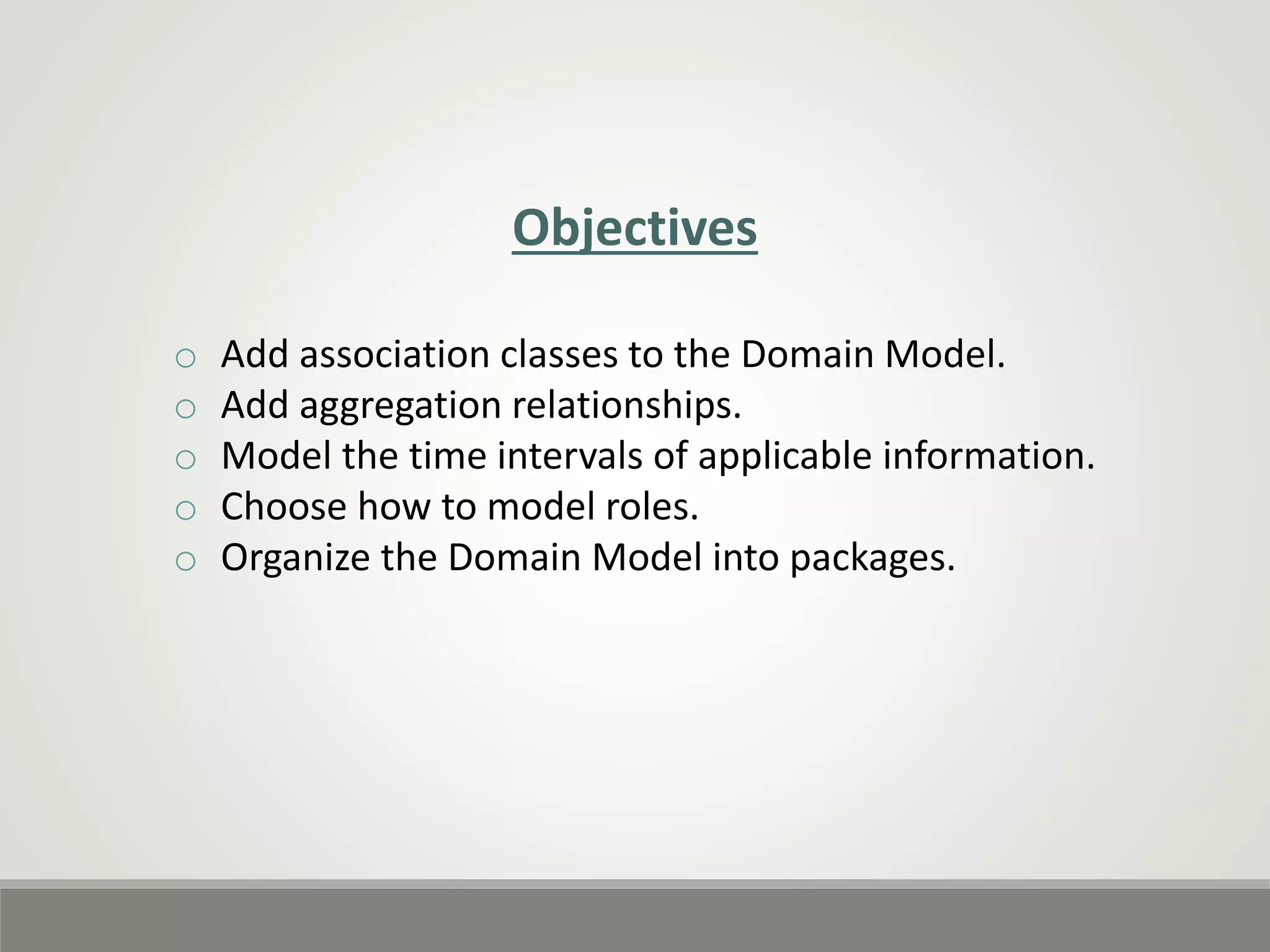

8. Objectives
o Add association classes to the Domain Model.
o Add aggregation relationships.
o Model the time intervals of applicable information.
o Choose how to model roles.
o Organize the Domain Model into packages.

9. Association Classes
First attempt at
modeling the
merchantID problem.
The fact that both Store and AuthorizationService are related to ServiceContract is a clue
that it is dependent on the relationship between the two. The merchantID may be thought
of as an attribute related to the association between Store and AuthorizationService.

10. This leads to The notion of an association class ,in which we can add features to the
association itself.
Service Contract may be modeled as an association class related to the association
between Store and Authorization Service.
In the UML, this is illustrated with a dashed line from the association to the association
class.
It visually communicates the idea that a Service-Contract and its attributes are related
to the association between a Store and Authorization Service, and that the lifetime of
the Service Contract is dependent on the relationship.
Association class

11.  An attribute is related to an association.
 Instances of the association class have a life-time dependency on the association.
 There is a many-to-many association between two concepts, and information
associated with the association itself.
Guidelines For Adding Association Classes
examples of association classe.

12. Aggregation and Composition
Aggregation is a kind of association used to model whole-part relationships
between things.
The whole is called the composite.
Aggregation is shown in the UML with a hollow or filled diamond symbol at the
composite end of a whole-part association.
Aggregation is a property of an association role.
Aggregation
Composite
Aggregation.
Shared
Aggregation

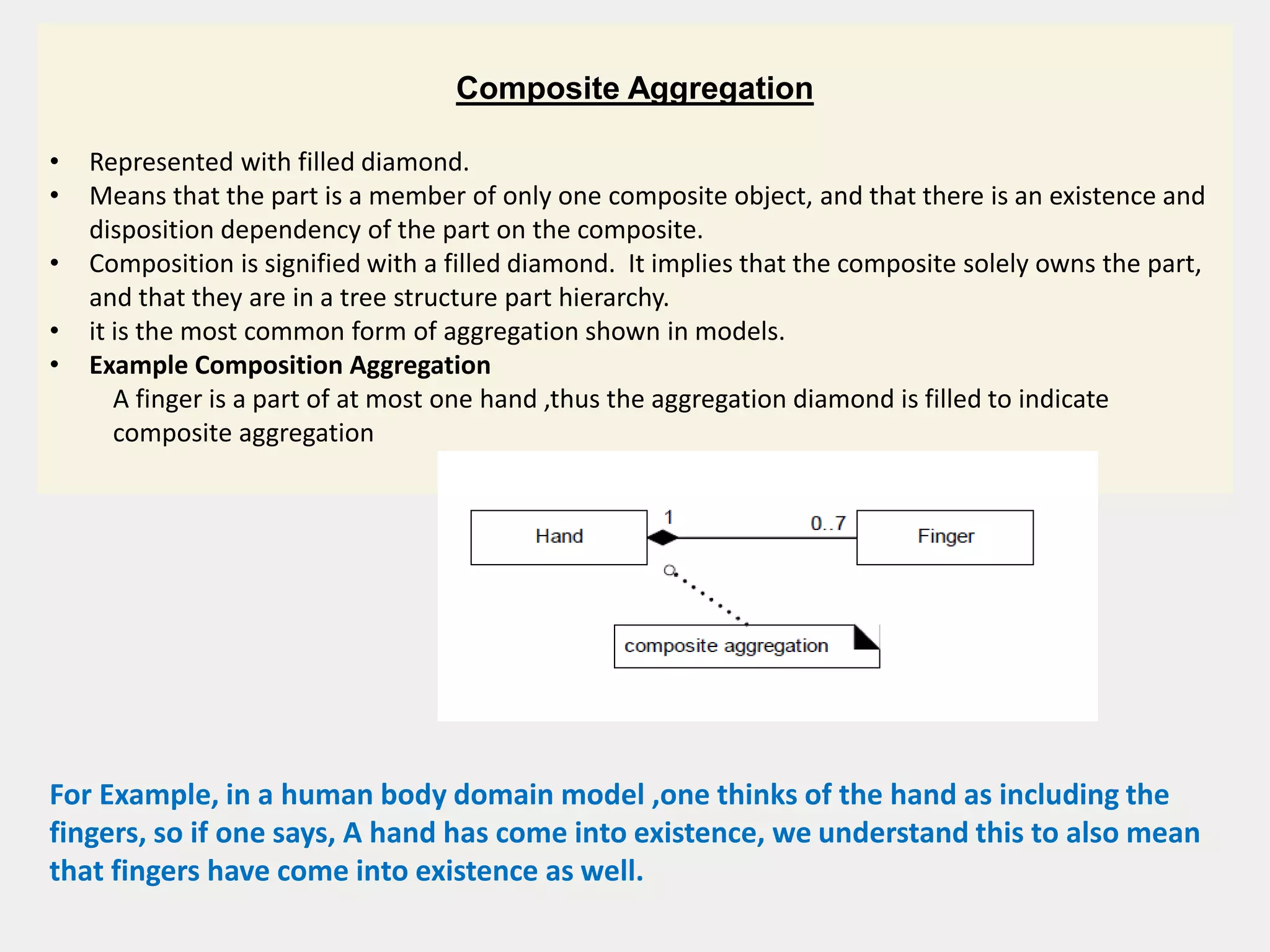

13. Composite Aggregation
• Represented with filled diamond.
• Means that the part is a member of only one composite object, and that there is an existence and
disposition dependency of the part on the composite.
• Composition is signified with a filled diamond. It implies that the composite solely owns the part,
and that they are in a tree structure part hierarchy.
• it is the most common form of aggregation shown in models.
• Example Composition Aggregation
A finger is a part of at most one hand ,thus the aggregation diamond is filled to indicate
composite aggregation
For Example, in a human body domain model ,one thinks of the hand as including the
fingers, so if one says, A hand has come into existence, we understand this to also mean
that fingers have come into existence as well.

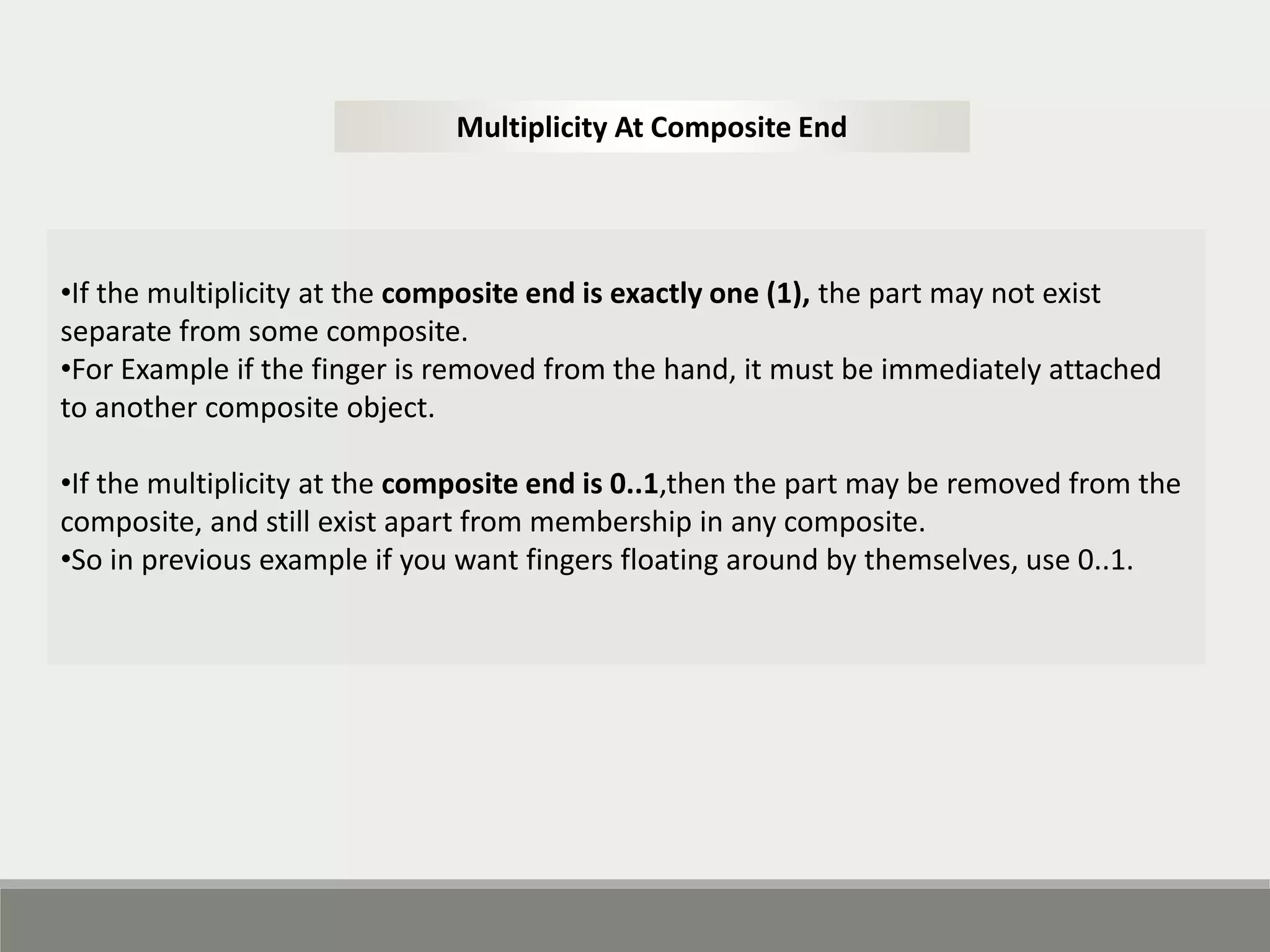

14. •If the multiplicity at the composite end is exactly one (1), the part may not exist
separate from some composite.
•For Example if the finger is removed from the hand, it must be immediately attached
to another composite object.
•If the multiplicity at the composite end is 0..1,then the part may be removed from the
composite, and still exist apart from membership in any composite.
•So in previous example if you want fingers floating around by themselves, use 0..1.
Multiplicity At Composite End

15. Shared Aggregation
• Represented with Hollow diamond.
• Means that the multiplicity at the composite end may be more than one.
• Implies that the part may be simultaneously in many composite instances.
• For instance, a UML package may be considered to aggregate its elements. But
• an element may be referenced in more than one package.

16. Qualified Associations
A qualifier may be used in an association; it distinguishes the set of objects at
the far end of the association based on the qualifier value. An association with a
qualifier is a qualified association.
For example, ProductSpecifications may be distinguished in a ProductCatalog
by their itemID,

17. an association to itself; this is
known as a reflexive association3
Reflexive Association
Aggregation in the POS Domain Model
In the POS domain, the SalesLineItems may be considered a part of a composite Sale;
Similarly ProductCatalog is an aggregate of Product-Specifications.

18. Time Intervals
If a SalesLineItem always retrieved the current price recorded in a
Product-Specification, then when the price was changed in the object, old sales
would refer to new prices, which is incorrect.
So we can use timeinterval class to solve this problem .
This is to associate a collection of ProductPrices with a ProductSpecification, each
with an associated applicable time interval. so that it can record all past prices
and also record future planned prices

19. Two ways to Model Human Roles
Roles in Associations
Roles as Concepts

20. Derived Elements
A derived element can be determined
from others. Attributes and associations
are the most common derived elements.
Association Role Names
Each end of an association is a role, which has various properties, such as:
• name
• multiplicity
A role name identifies an end of an association and ideally describes the role played by
objects in the association.
Role name usually starts with a lowercase letter.

21. Package Notation
• In UML package is shown as a tabbed folder.
• Subordinate packages may be shown within it.
• The package name is within the tab if the package
depicts its elements;
• otherwise, it is centered within the folder itself.
Ownership and References
• An element is owned by the package within it is defined, but may be referenced
in other packages.
• In that case, the element name is qualified by the package name using the
pathname format Package Name Element Name.
• A class shown in a foreign package may be modified with new associations, but
must otherwise remain unchanged.

22. Package Dependencies
• A package dependency indicates that elements of the dependent package in some
way know about or are coupled to elements in the target package.
• If a model element is in some way dependent on another, the dependency shown
with a dependency relationship, depicted with an arrowed line.
For example, if a package references an element owned by another, a dependency
Exists.
