Doing
Horrible Things
to DNS
(in the name of science)

@sh1mmer SF Perf Meetup
Thursday, September 23, 2010

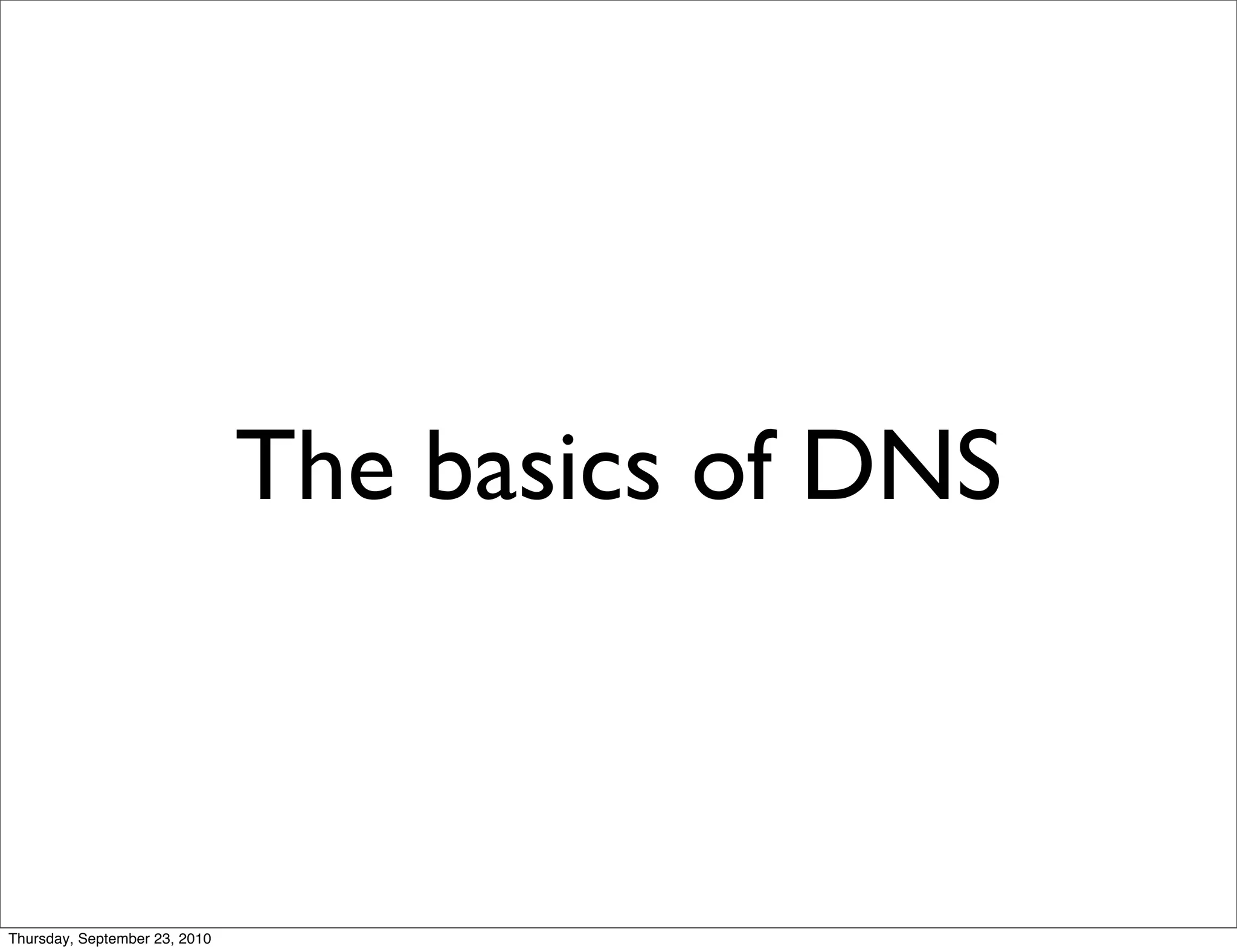

The basics of DNS

Thursday, September 23, 2010

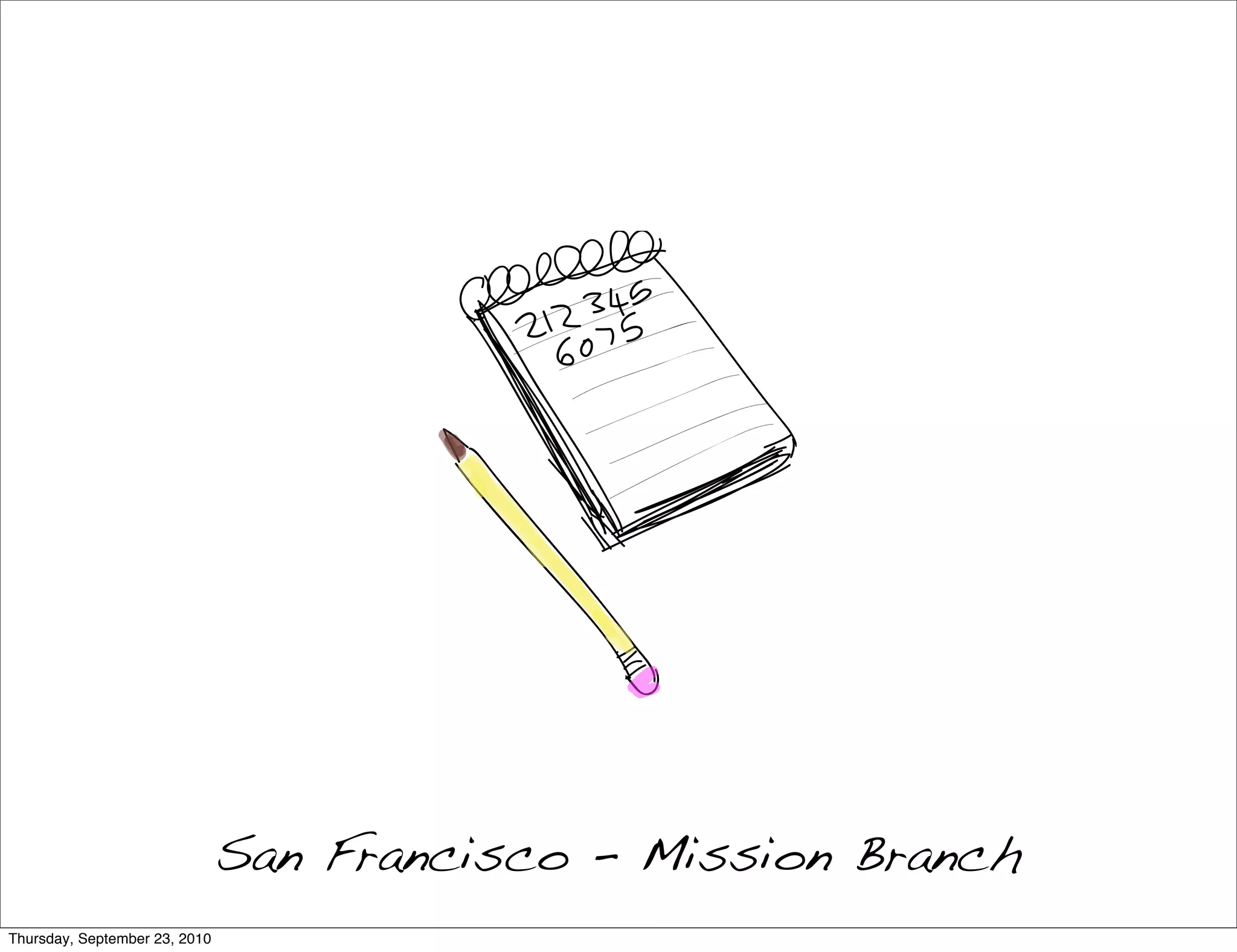

San Francisco - Mission Branch
Thursday, September 23, 2010

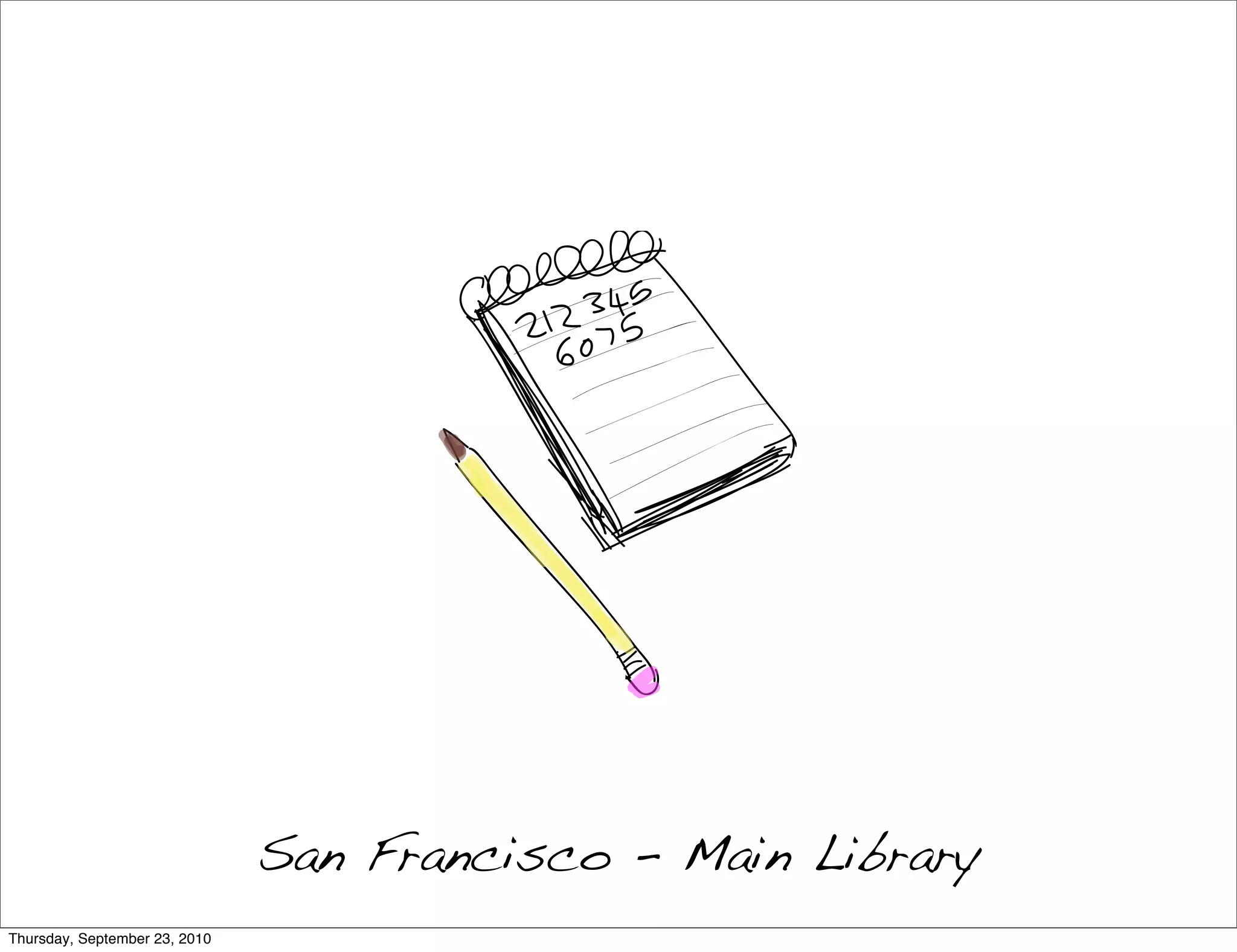

San Francisco - Main Library
Thursday, September 23, 2010

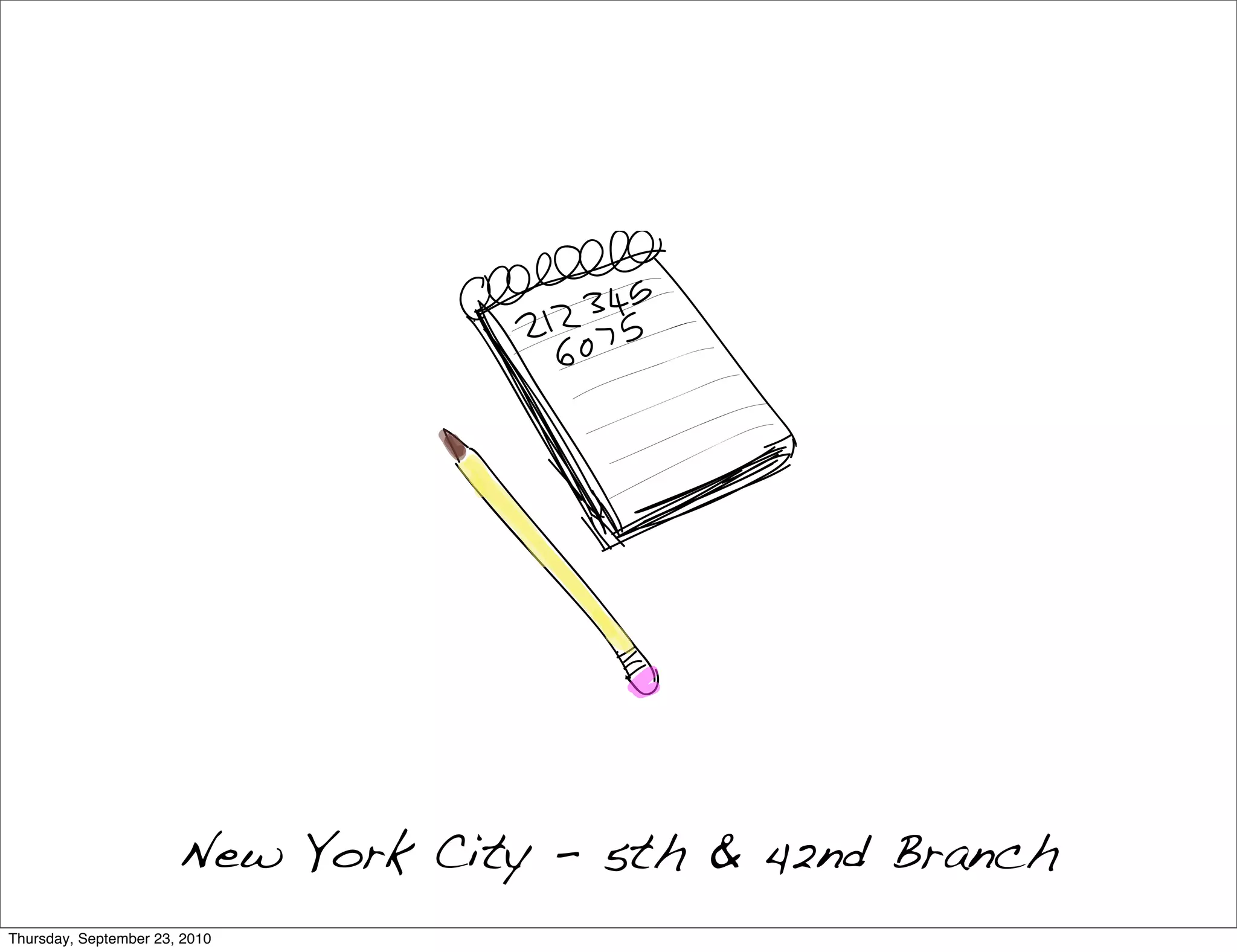

New York City - 5th & 42nd Branch
Thursday, September 23, 2010

DNS for performance

Thursday, September 23, 2010

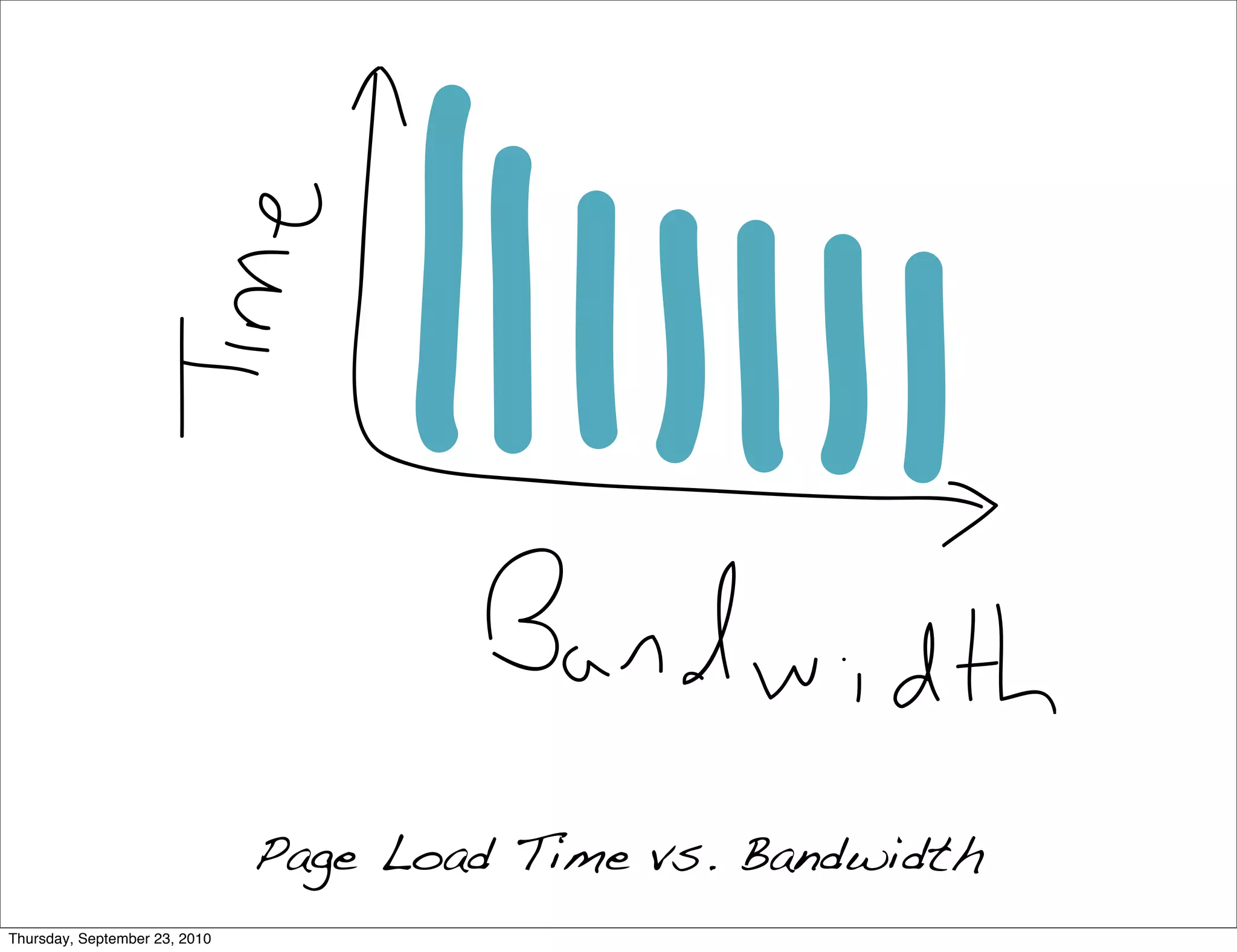

Page Load Time vs. Bandwidth
Thursday, September 23, 2010

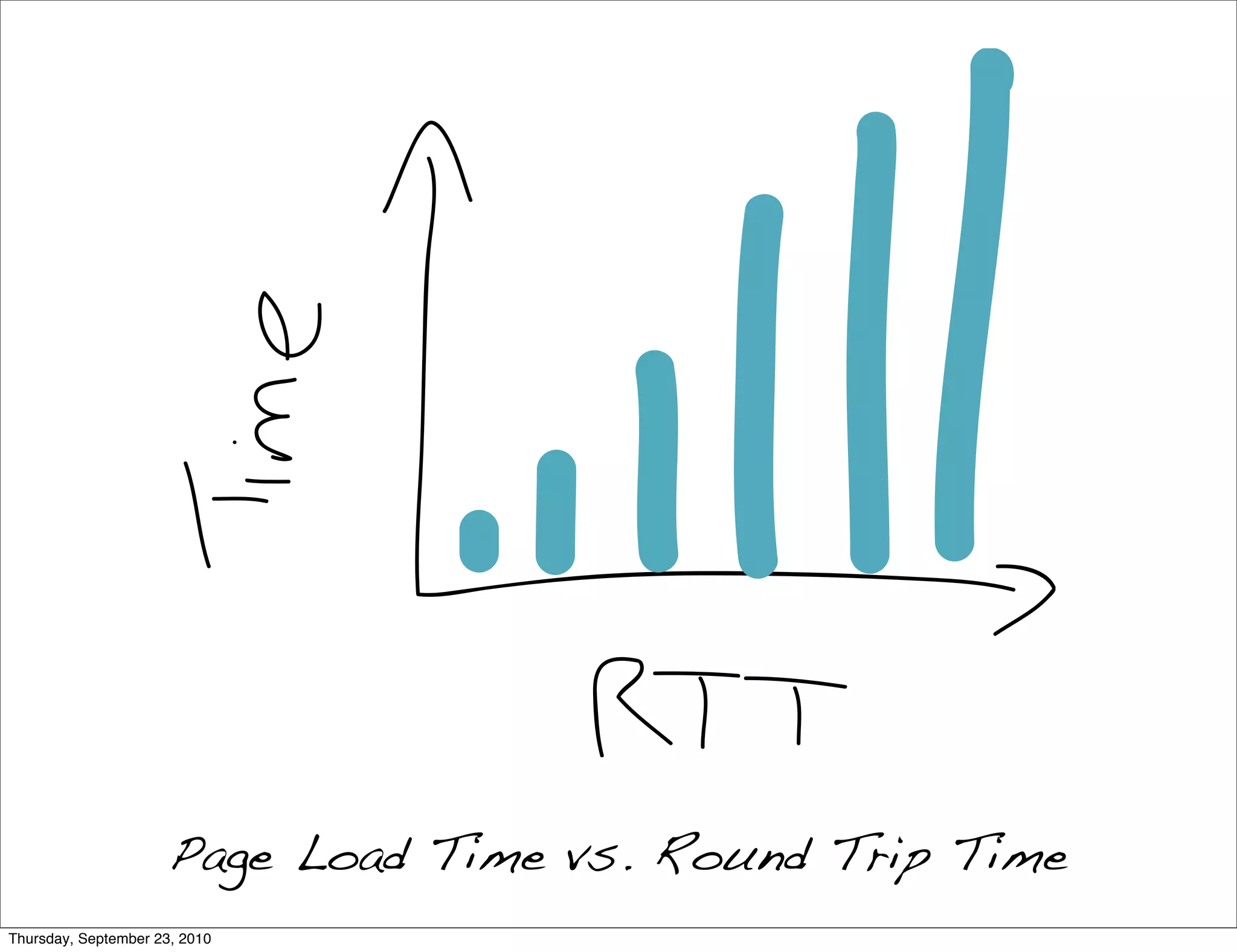

Page Load Time vs. Round Trip Time
Thursday, September 23, 2010

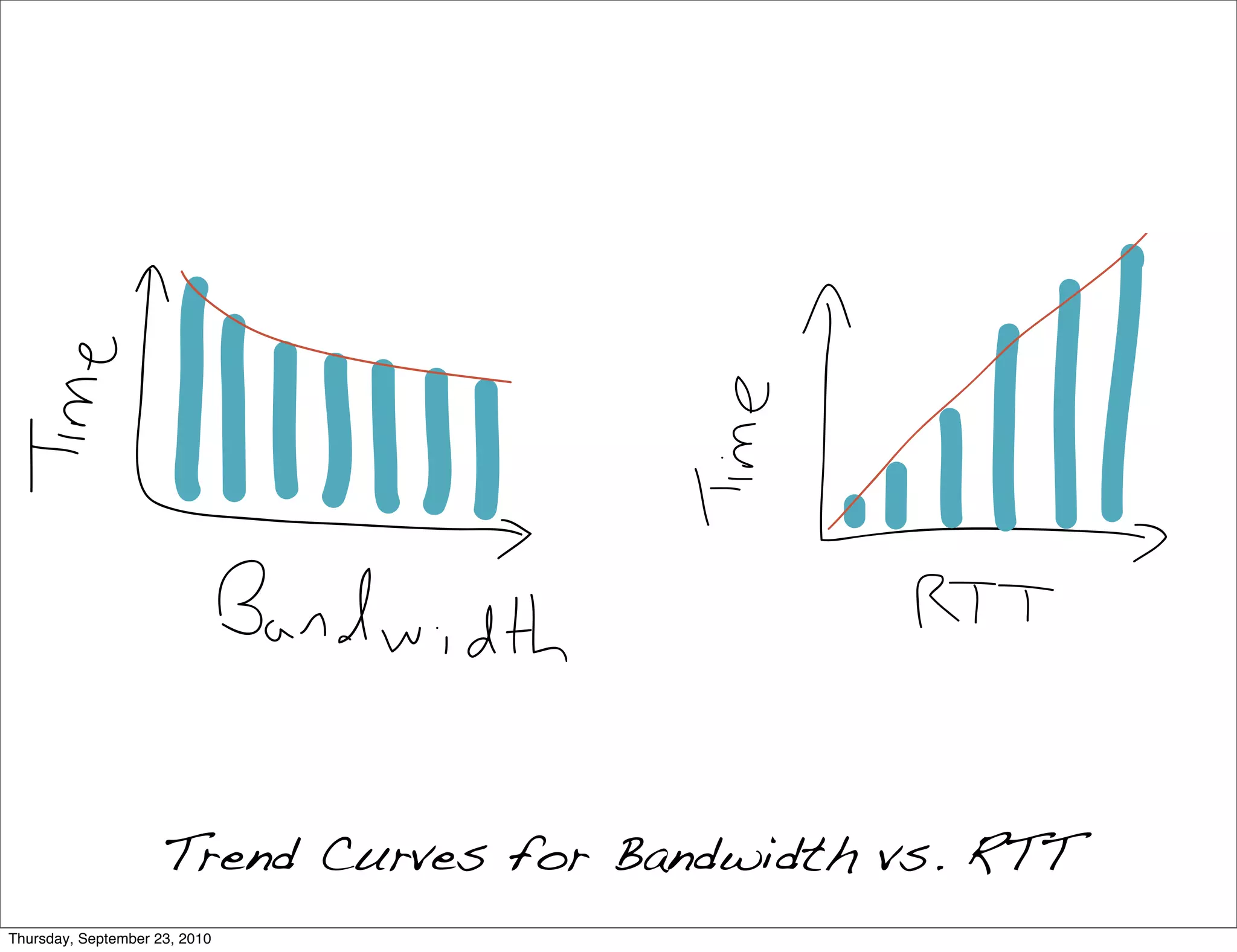

Trend Curves for Bandwidth vs. RTT
Thursday, September 23, 2010

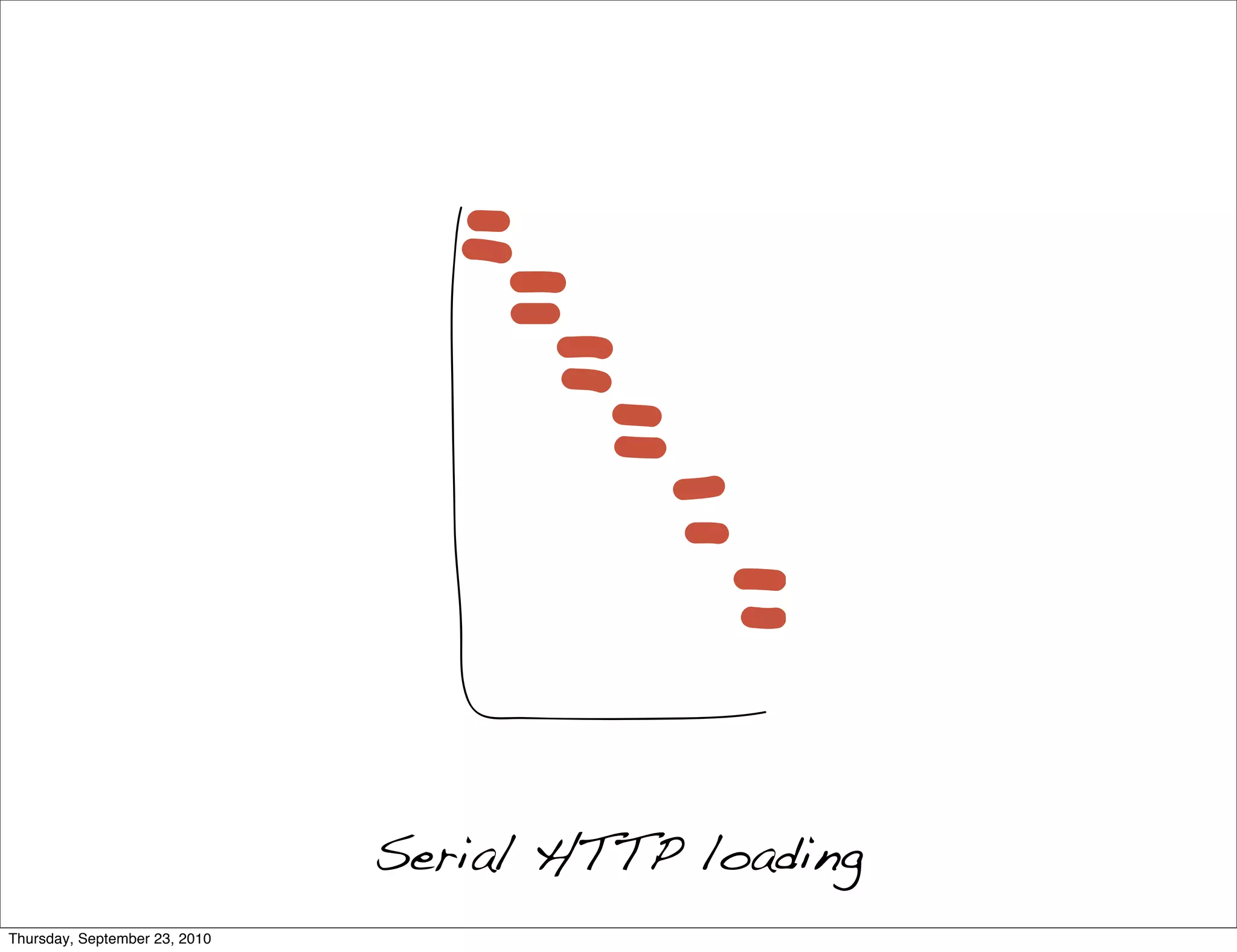

Serial HTTP loading
Thursday, September 23, 2010

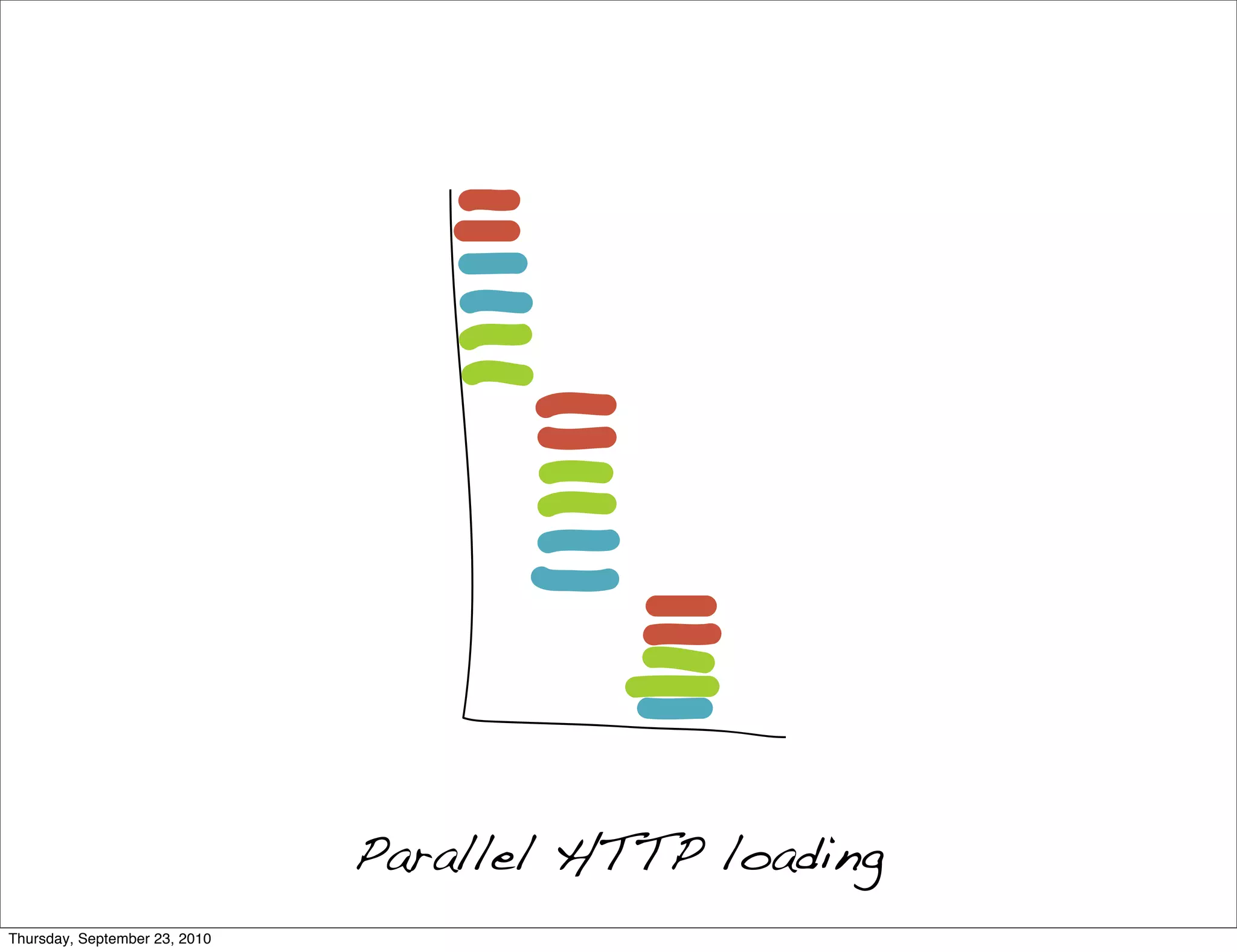

Parallel HTTP loading
Thursday, September 23, 2010

Why not just use a bunch of domains?

Thursday, September 23, 2010

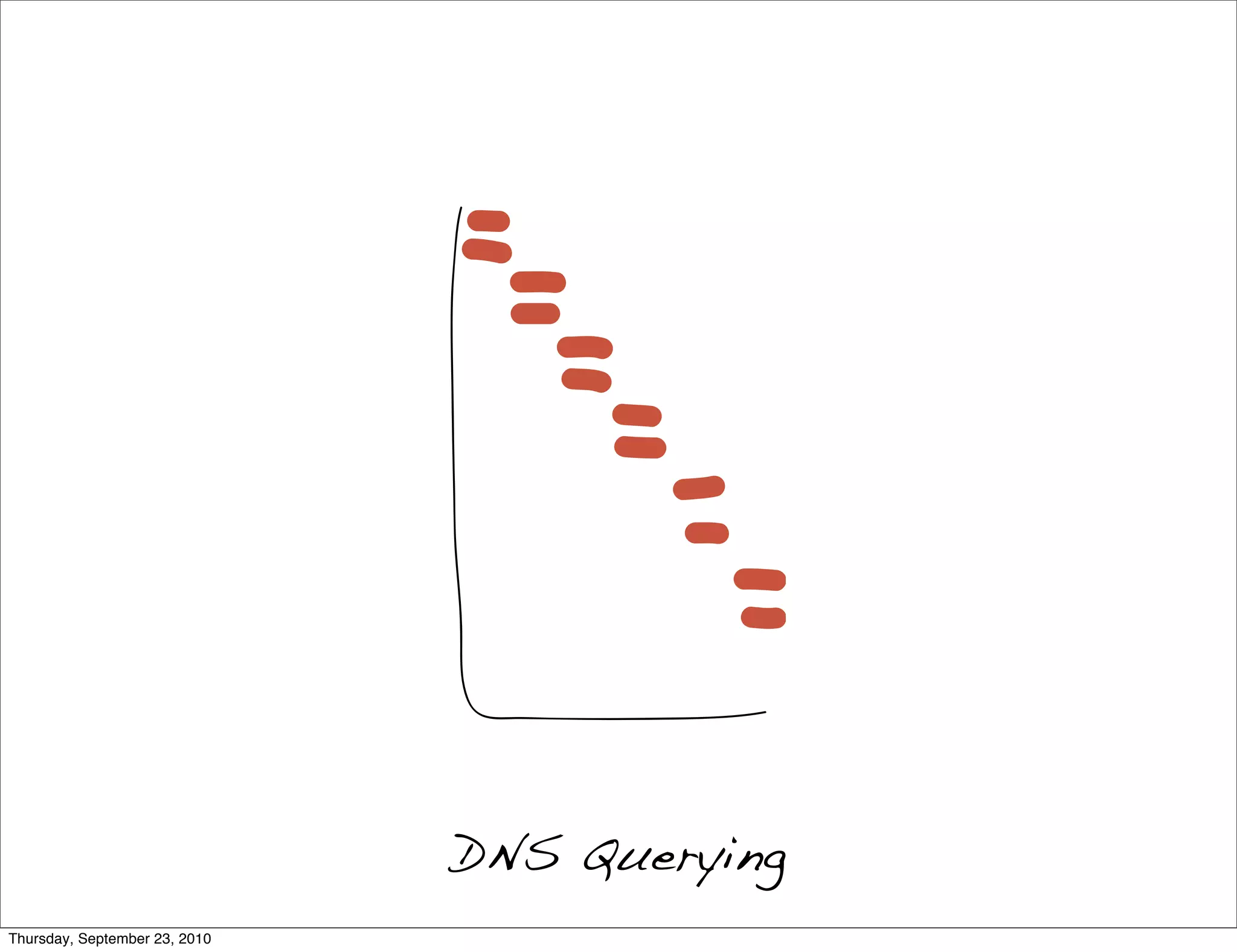

DNS Querying
Thursday, September 23, 2010

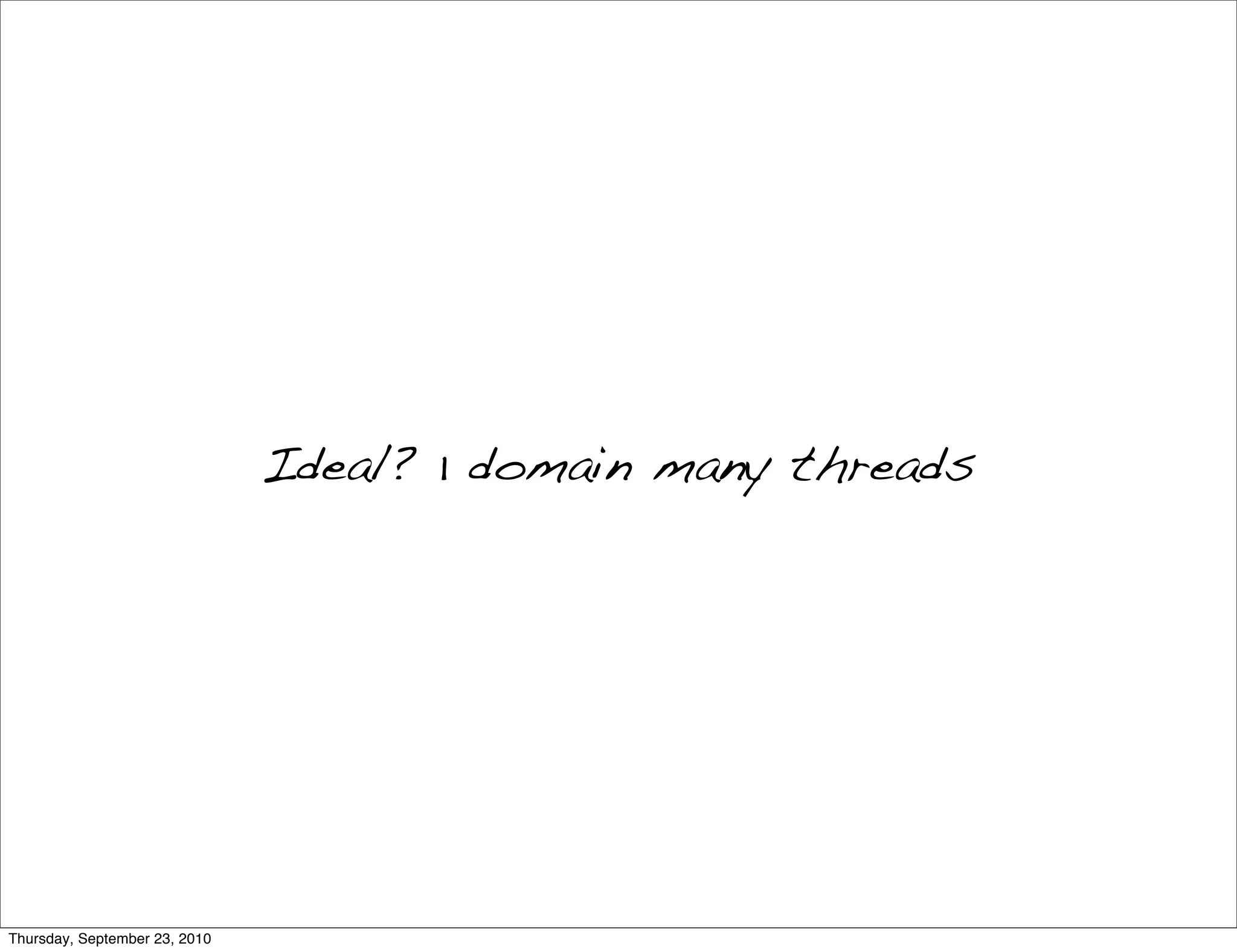

Ideal? 1 domain many threads

Thursday, September 23, 2010

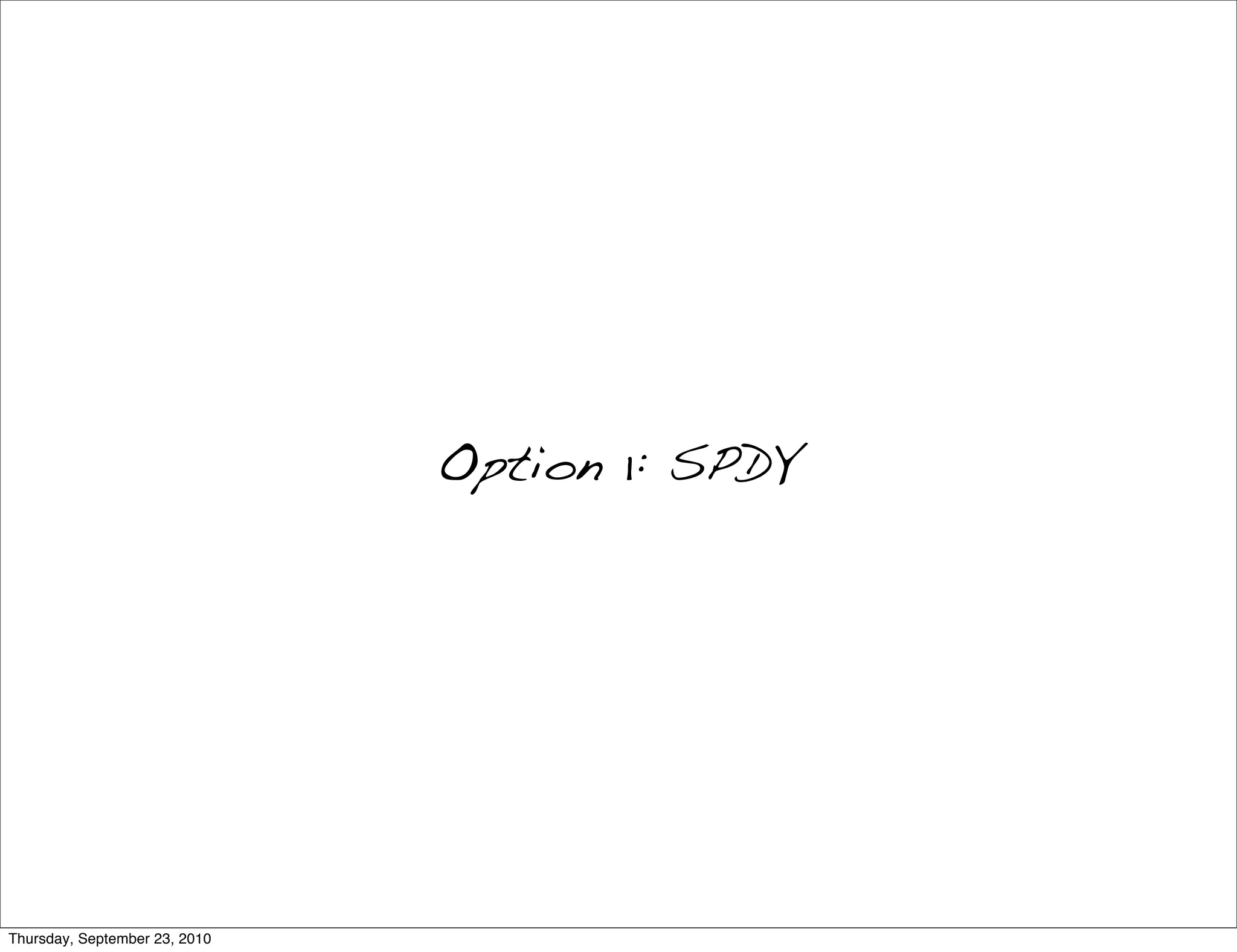

Option 1: SPDY

Thursday, September 23, 2010

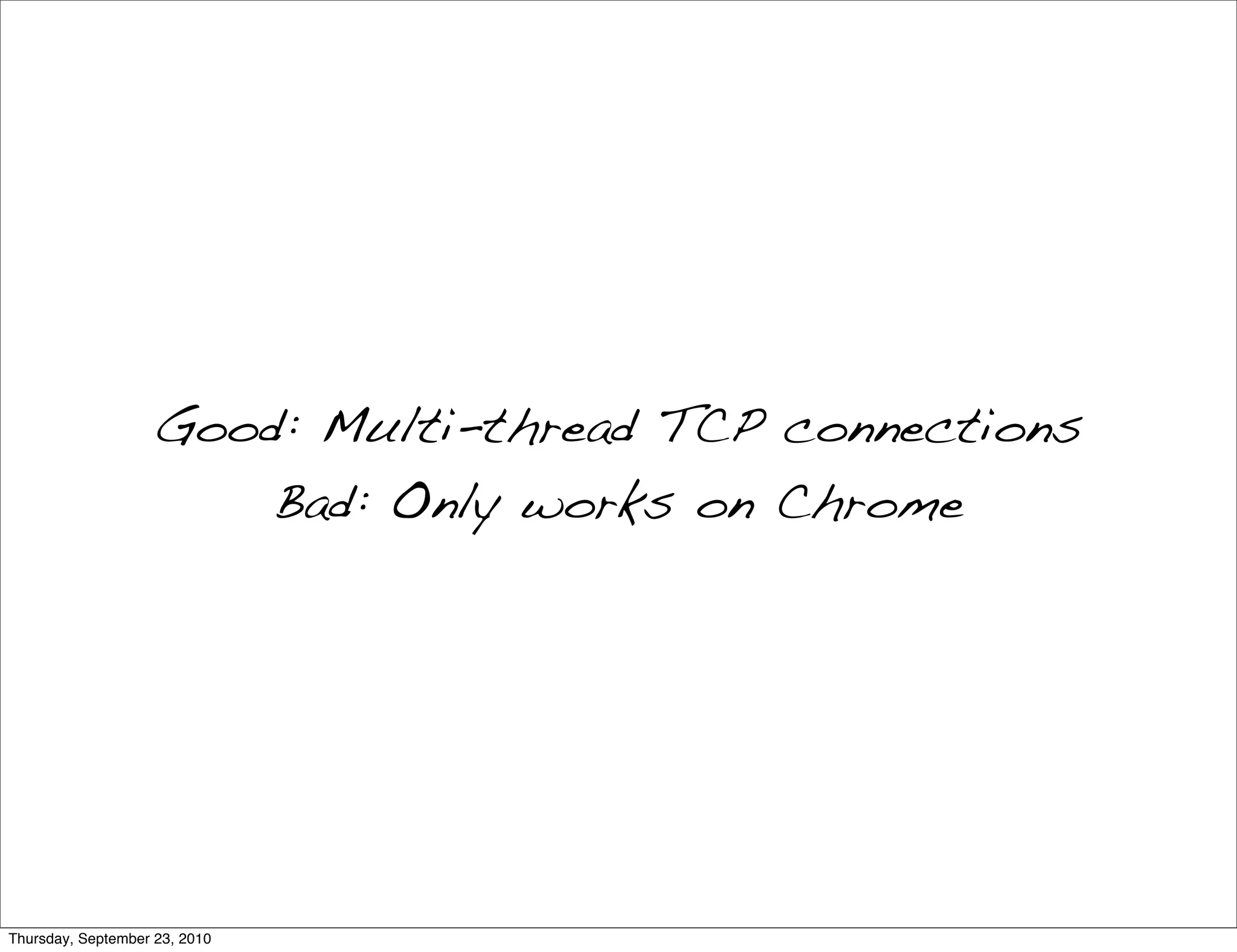

Good: Multi-thread TCP connections
Bad: Only works on Chrome

Thursday, September 23, 2010

Option 2: Do horrible things to DNS

Thursday, September 23, 2010

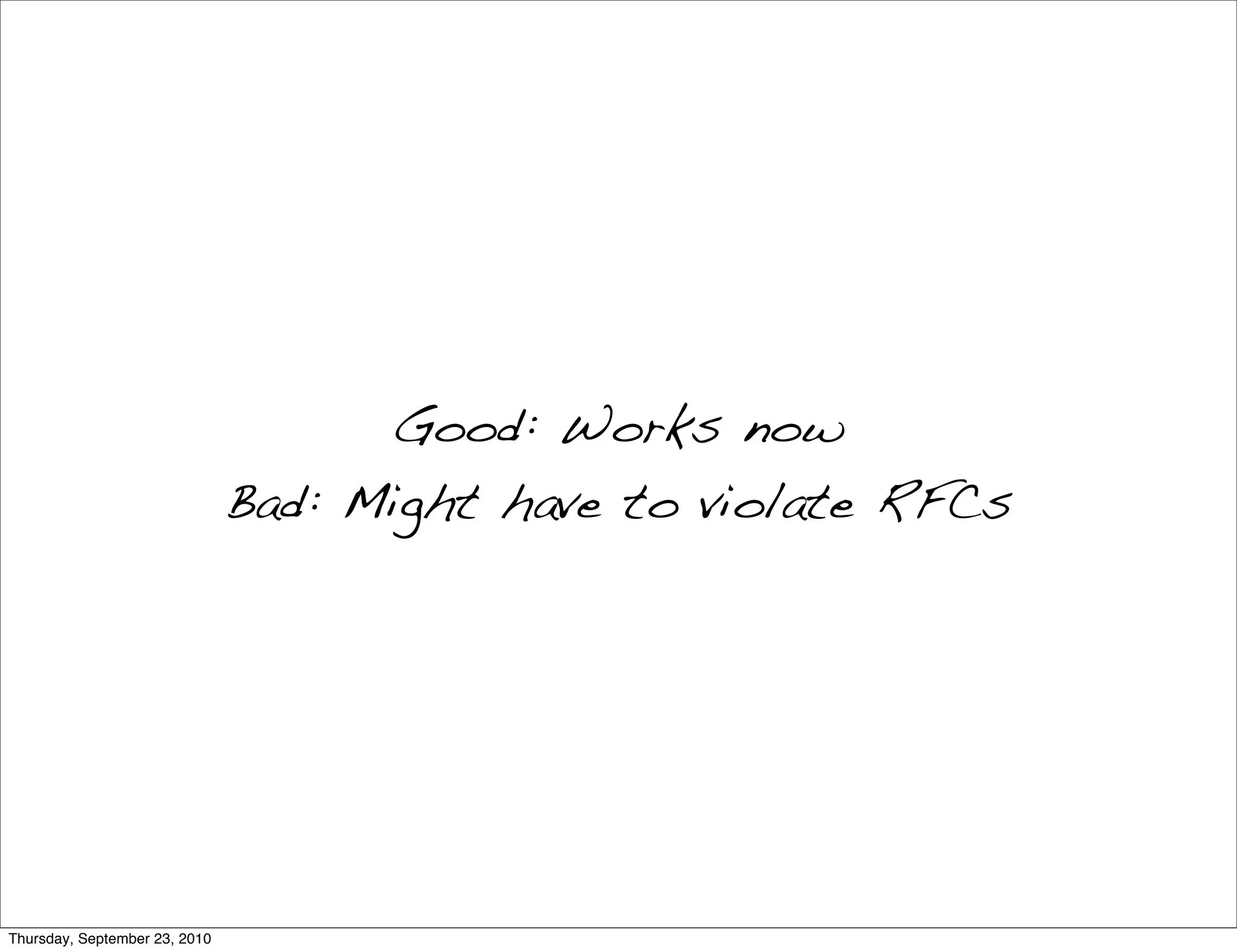

Good: Works now
Bad: Might have to violate RFCs

Thursday, September 23, 2010

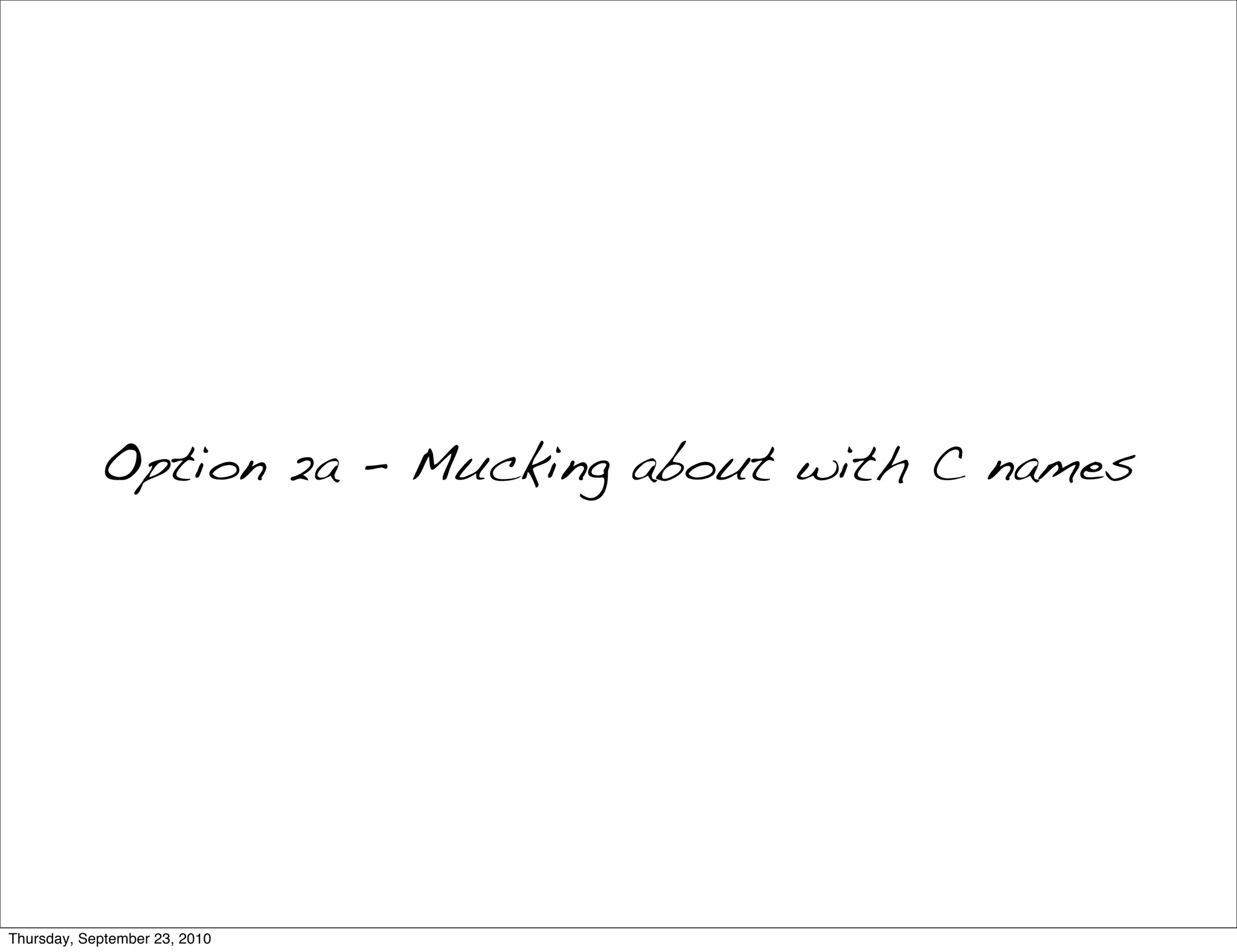

Option 2a - Mucking about with C names

Thursday, September 23, 2010

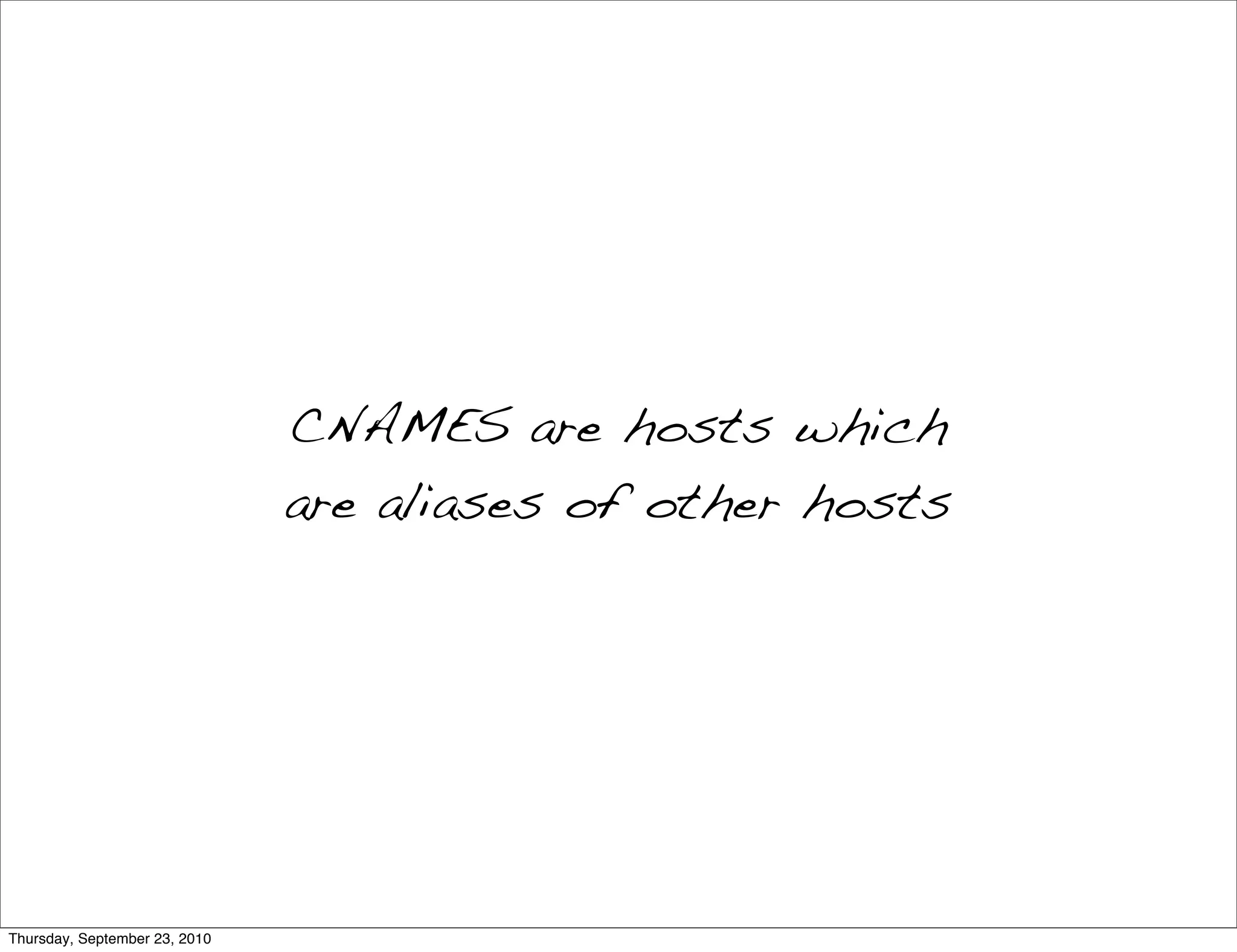

CNAMES are hosts which
are aliases of other hosts

Thursday, September 23, 2010

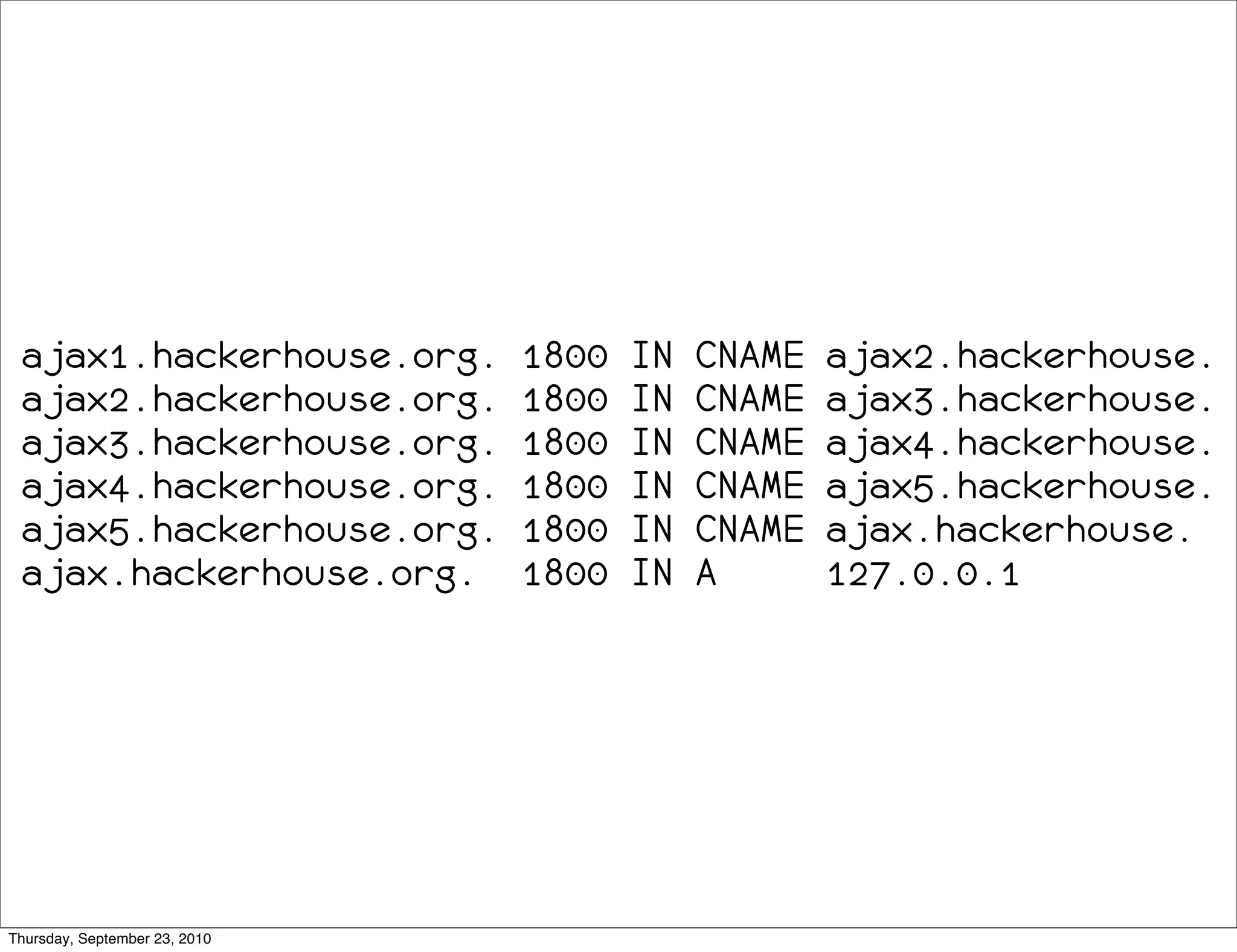

ajax1.hackerhouse.org. 1800 IN CNAME ajax2.hackerhouse.
ajax2.hackerhouse.org. 1800 IN CNAME ajax3.hackerhouse.
ajax3.hackerhouse.org. 1800 IN CNAME ajax4.hackerhouse.
ajax4.hackerhouse.org. 1800 IN CNAME ajax5.hackerhouse.
ajax5.hackerhouse.org. 1800 IN CNAME ajax.hackerhouse.
ajax.hackerhouse.org. 1800 IN A 127.0.0.1

Thursday, September 23, 2010

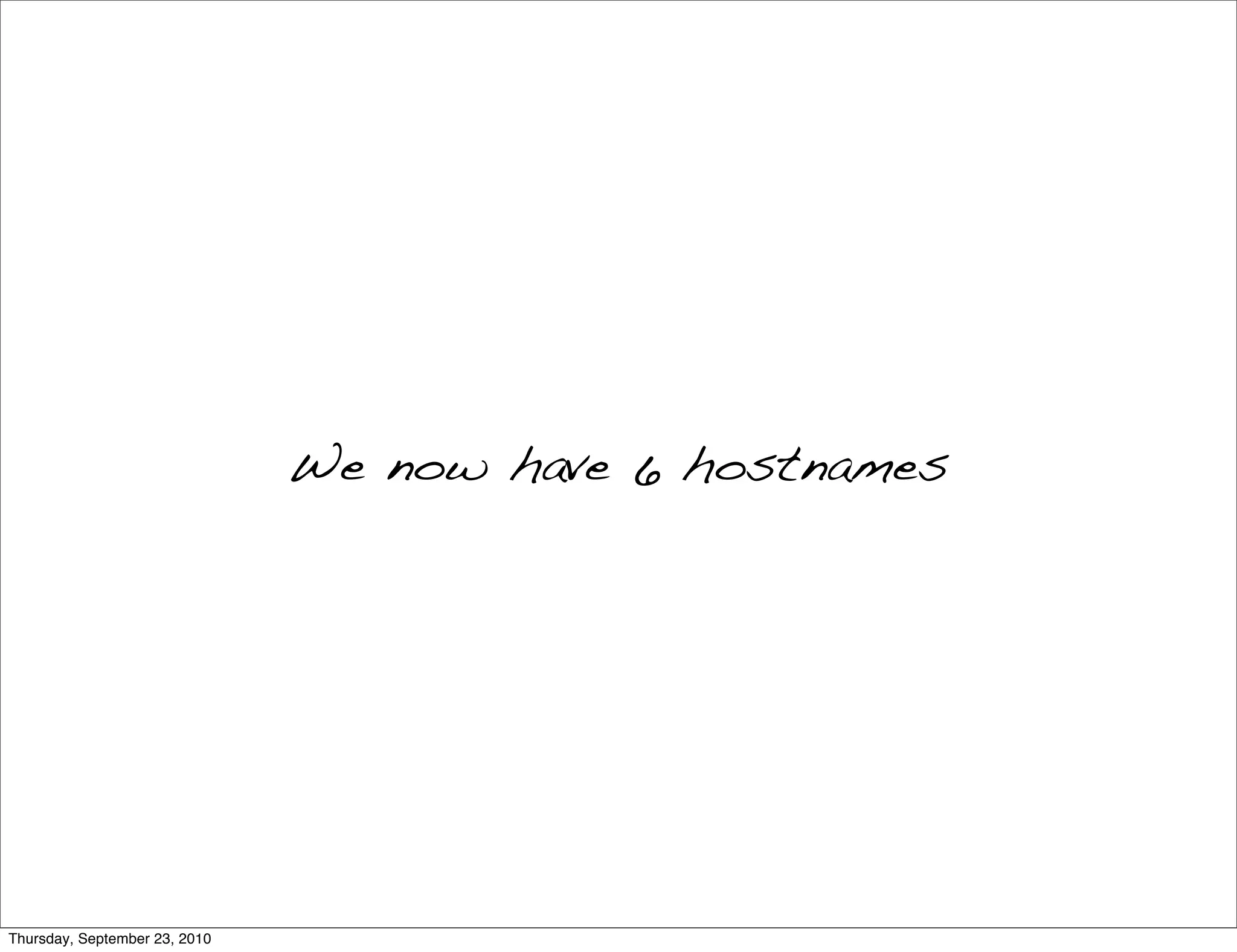

We now have 6 hostnames

Thursday, September 23, 2010

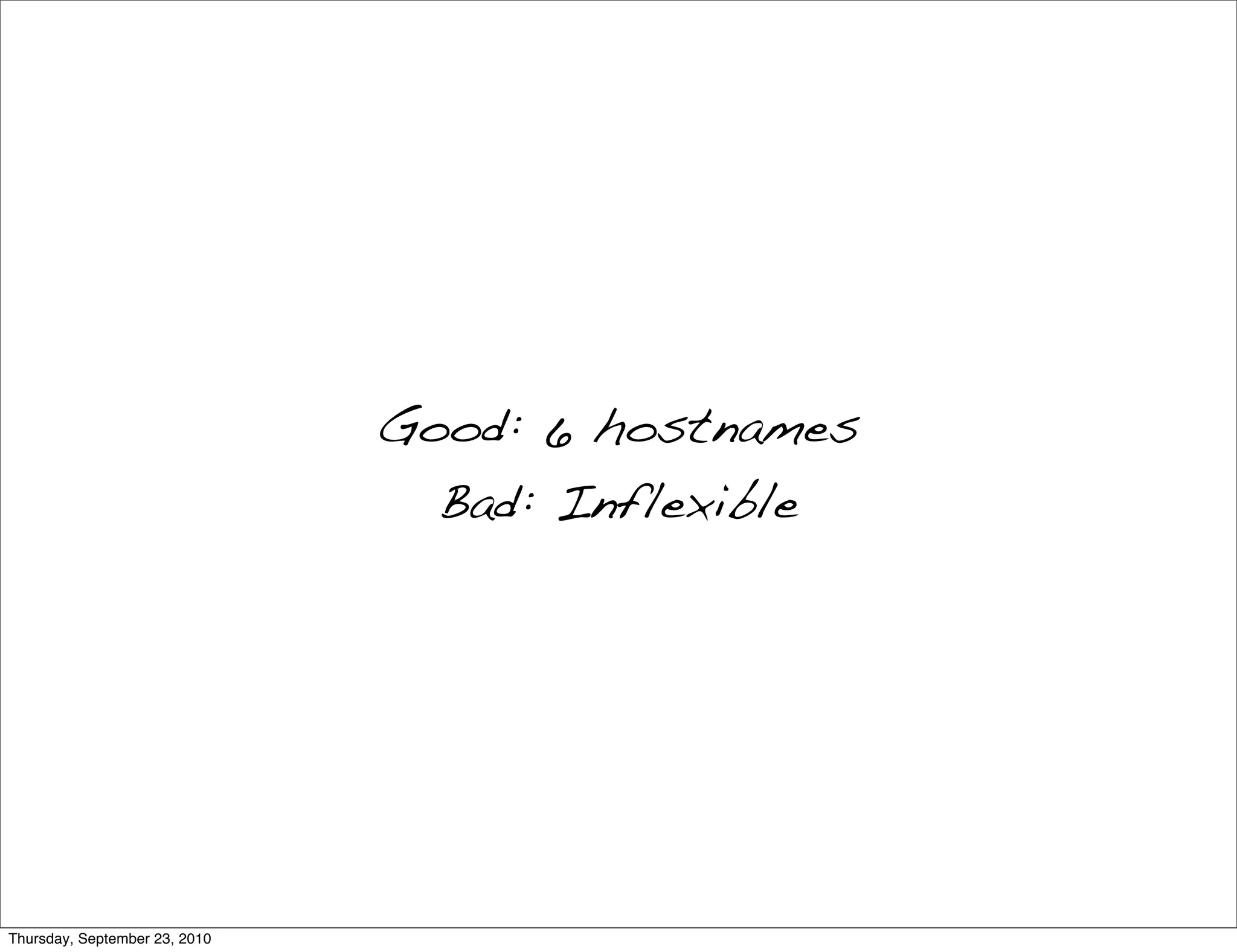

Good: 6 hostnames
Bad: Inflexible

Thursday, September 23, 2010

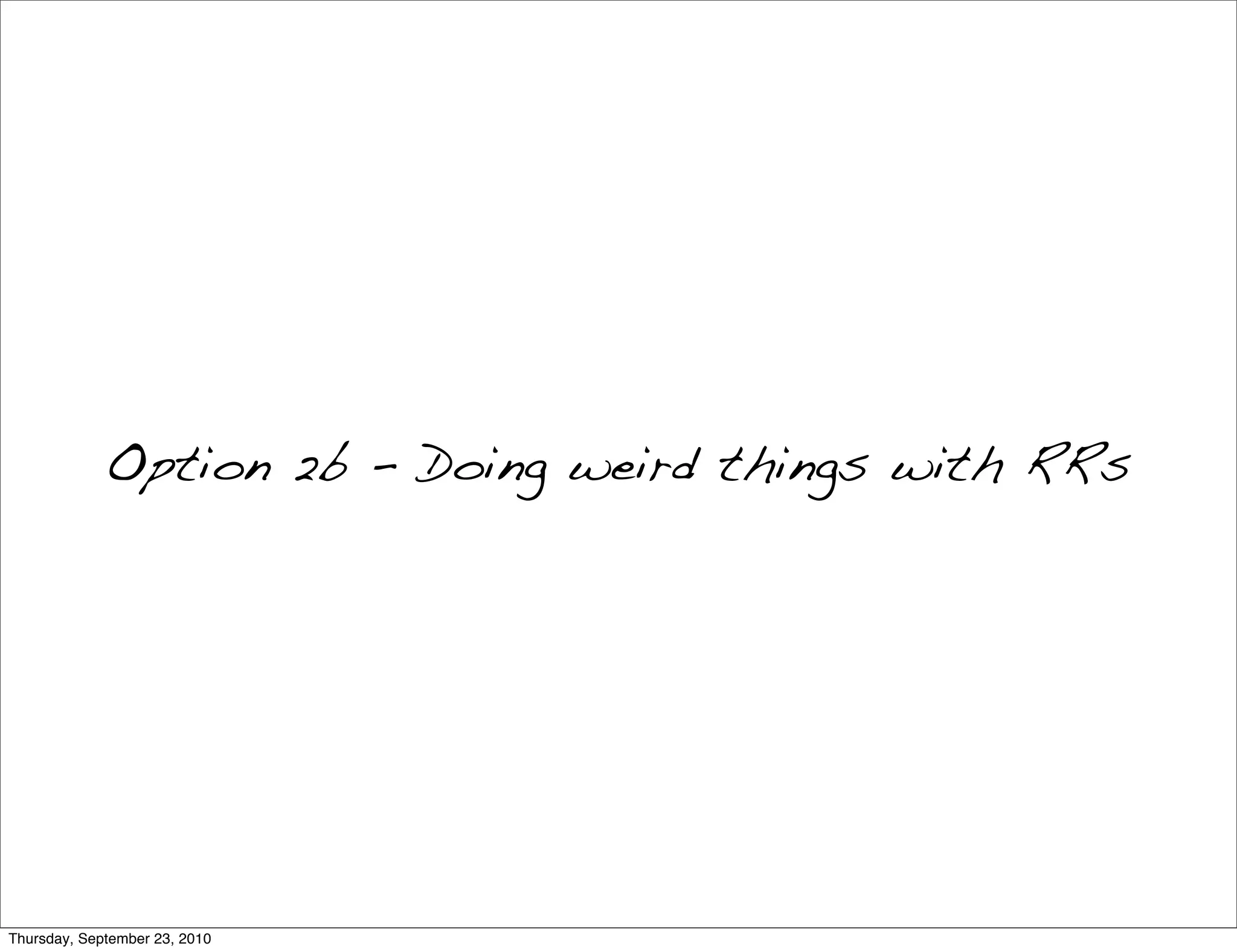

Option 2b - Doing weird things with RRs

Thursday, September 23, 2010

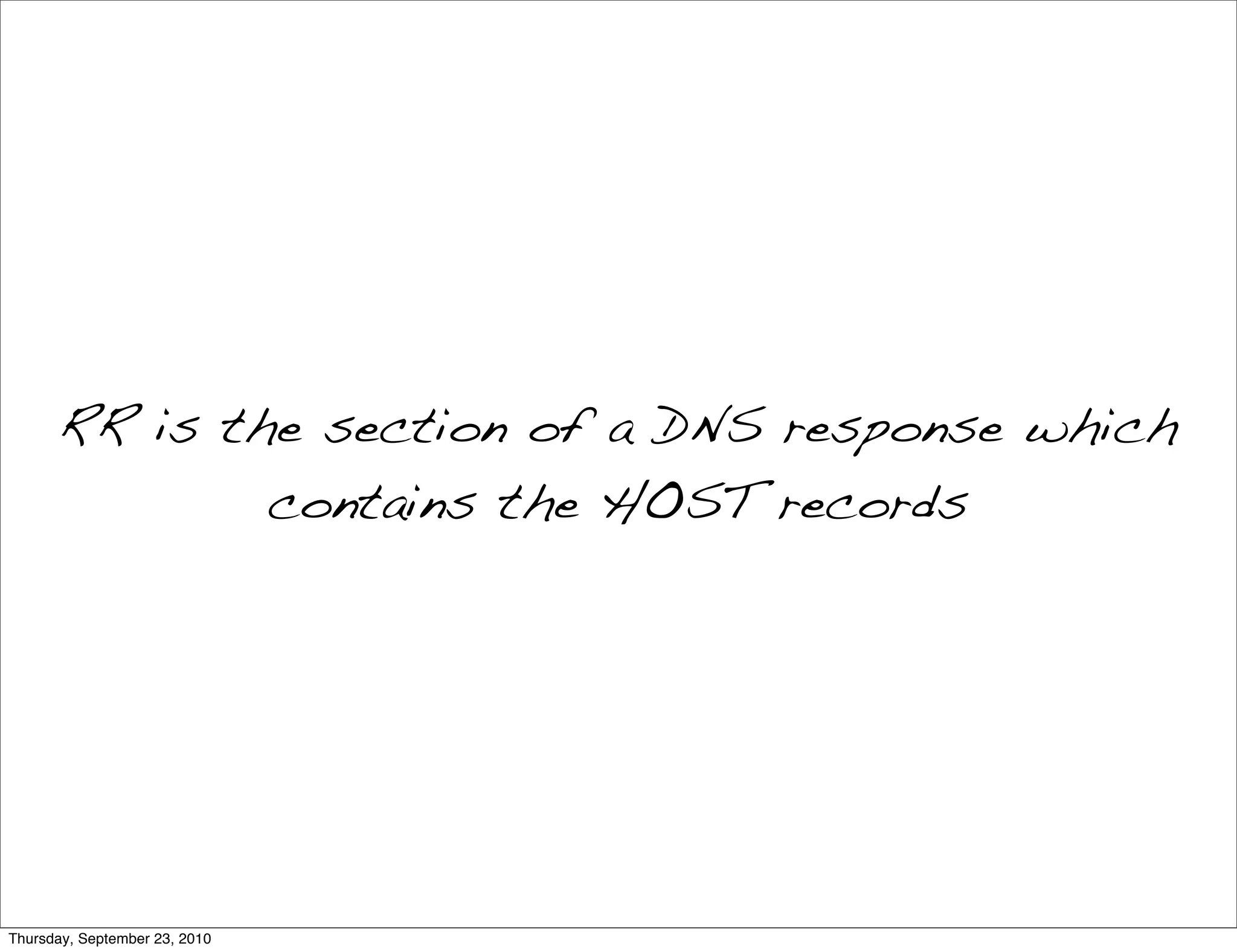

RR is the section of a DNS response which
contains the HOST records

Thursday, September 23, 2010

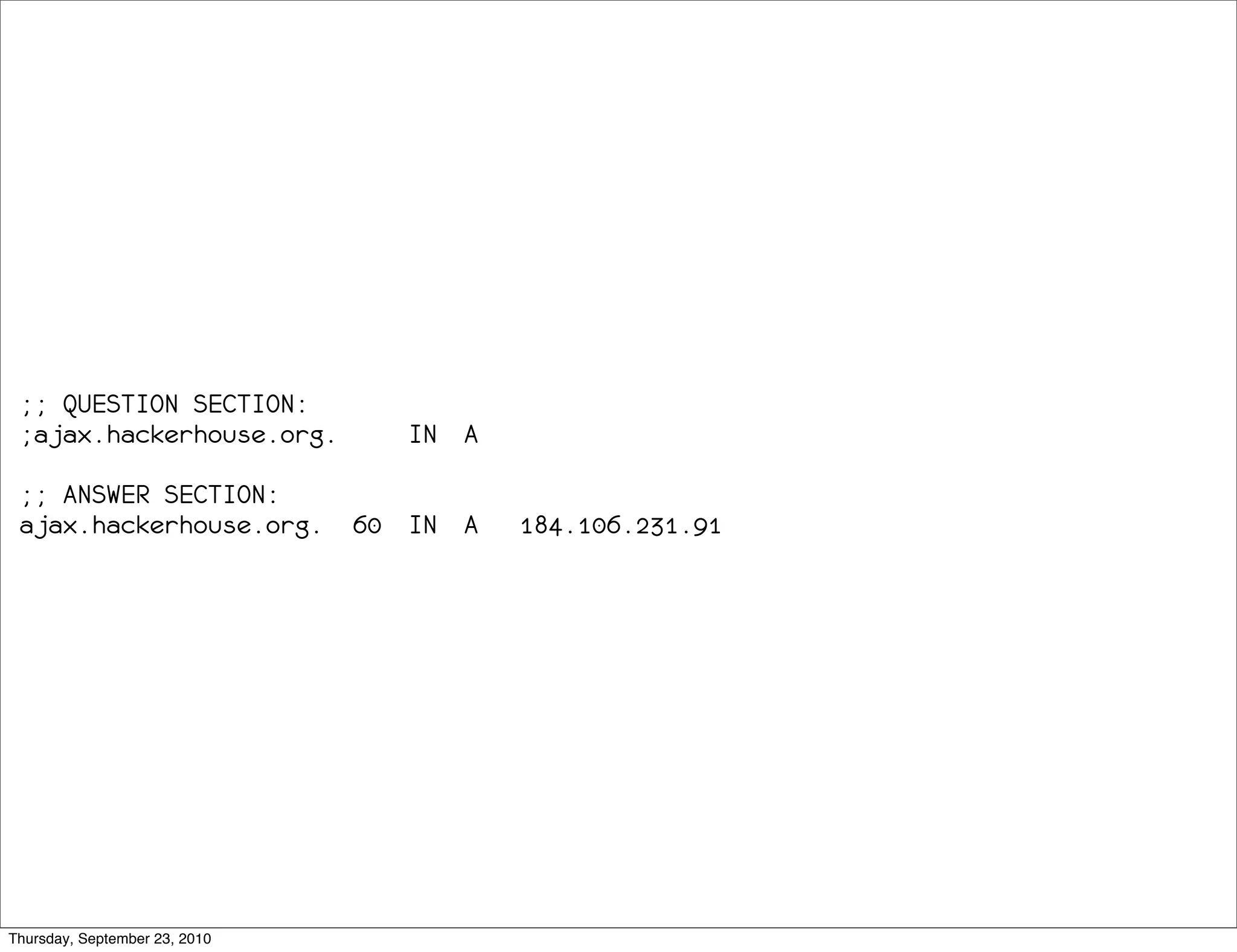

;; QUESTION SECTION:
;ajax.hackerhouse.org. IN A

;; ANSWER SECTION:
ajax.hackerhouse.org. 60 IN A 184.106.231.91

Thursday, September 23, 2010

;; QUESTION SECTION:
;ajax.hackerhouse.org. IN A
;ajax1.hackerhouse.org. IN A
;ajax2.hackerhouse.org. IN A

;; ANSWER SECTION:
ajax.hackerhouse.org. 60 IN A 184.106.231.91
ajax1.hackerhouse.org. 60 IN A 184.106.231.90
ajax2.hackerhouse.org. 60 IN A 184.106.231.89

Thursday, September 23, 2010

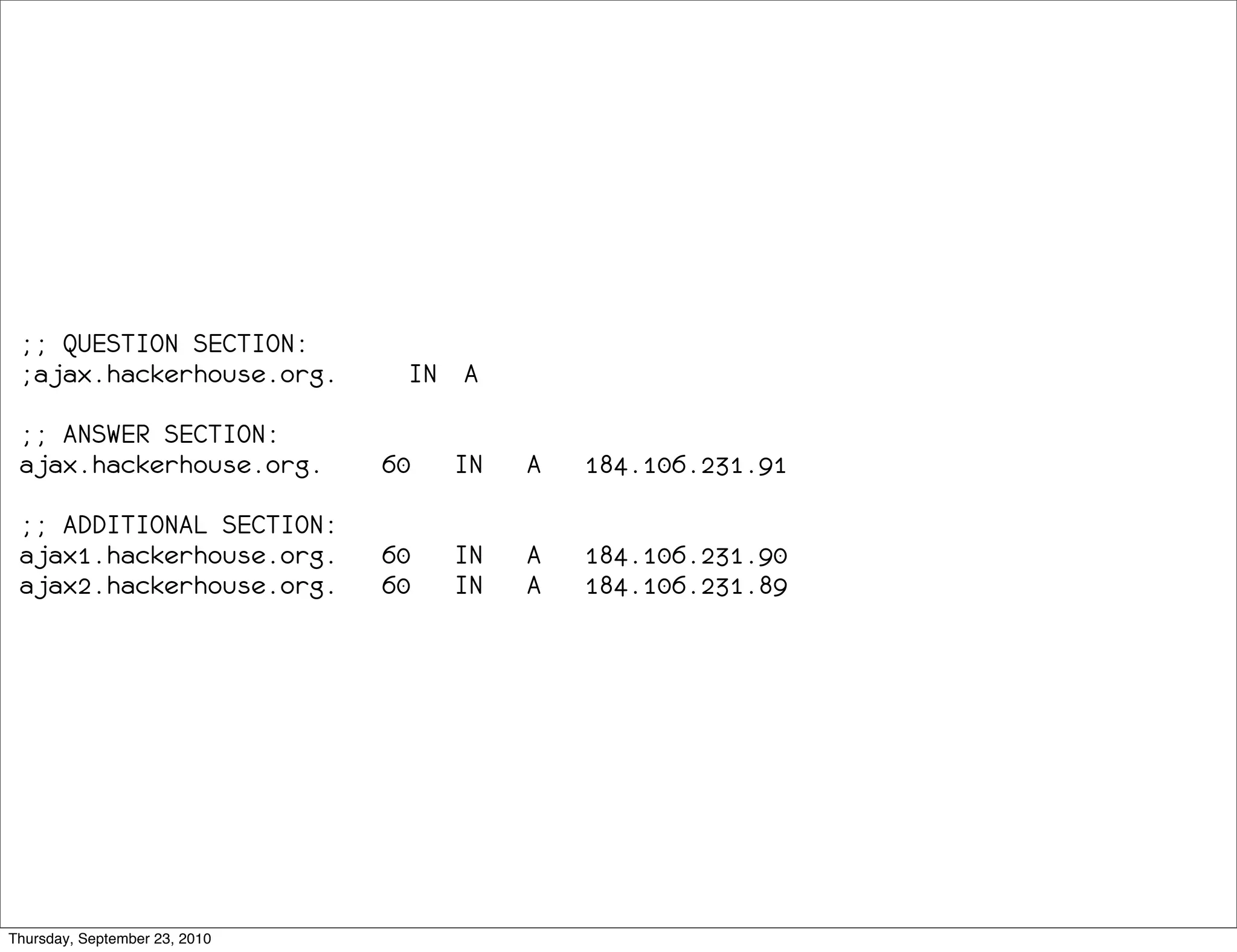

;; QUESTION SECTION:
;ajax.hackerhouse.org. IN A

;; ANSWER SECTION:
ajax.hackerhouse.org. 60 IN A 184.106.231.91

;; ADDITIONAL SECTION:
ajax1.hackerhouse.org. 60 IN A 184.106.231.90
ajax2.hackerhouse.org. 60 IN A 184.106.231.89

Thursday, September 23, 2010

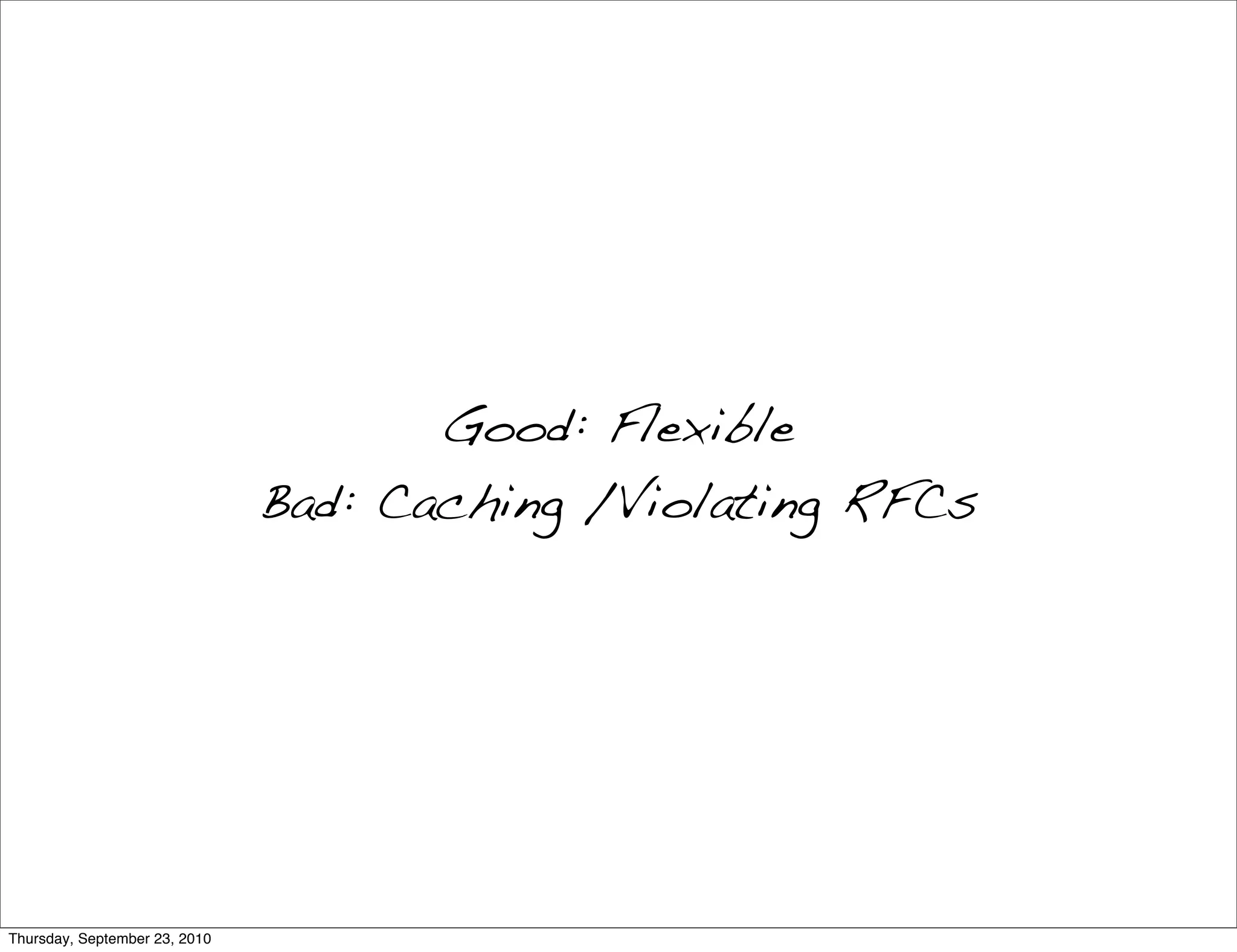

Good: Flexible
Bad: Caching /Violating RFCs
