Using Node.js to make HTML5 work for everyone
- 1. Using Node.js to make HTML5 work for everyone
- 4. Scalable Server-Side Code with JavaScript Node Up and Running Tom Hughes-Croucher http://ofps.oreilly.com/titles/9781449398583/ http://shop.oreilly.com/product/0636920015956.do
- 8. AJAX

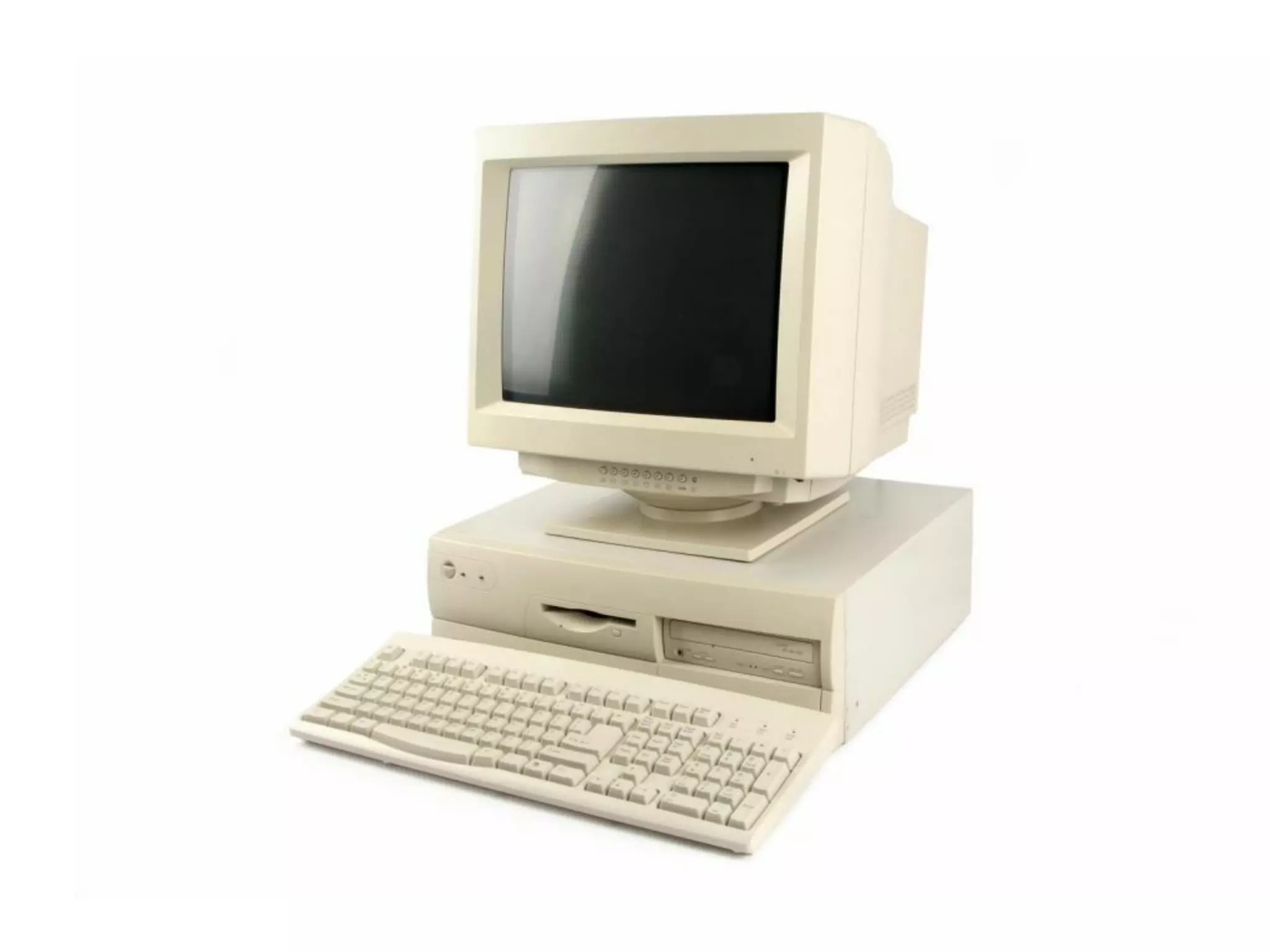

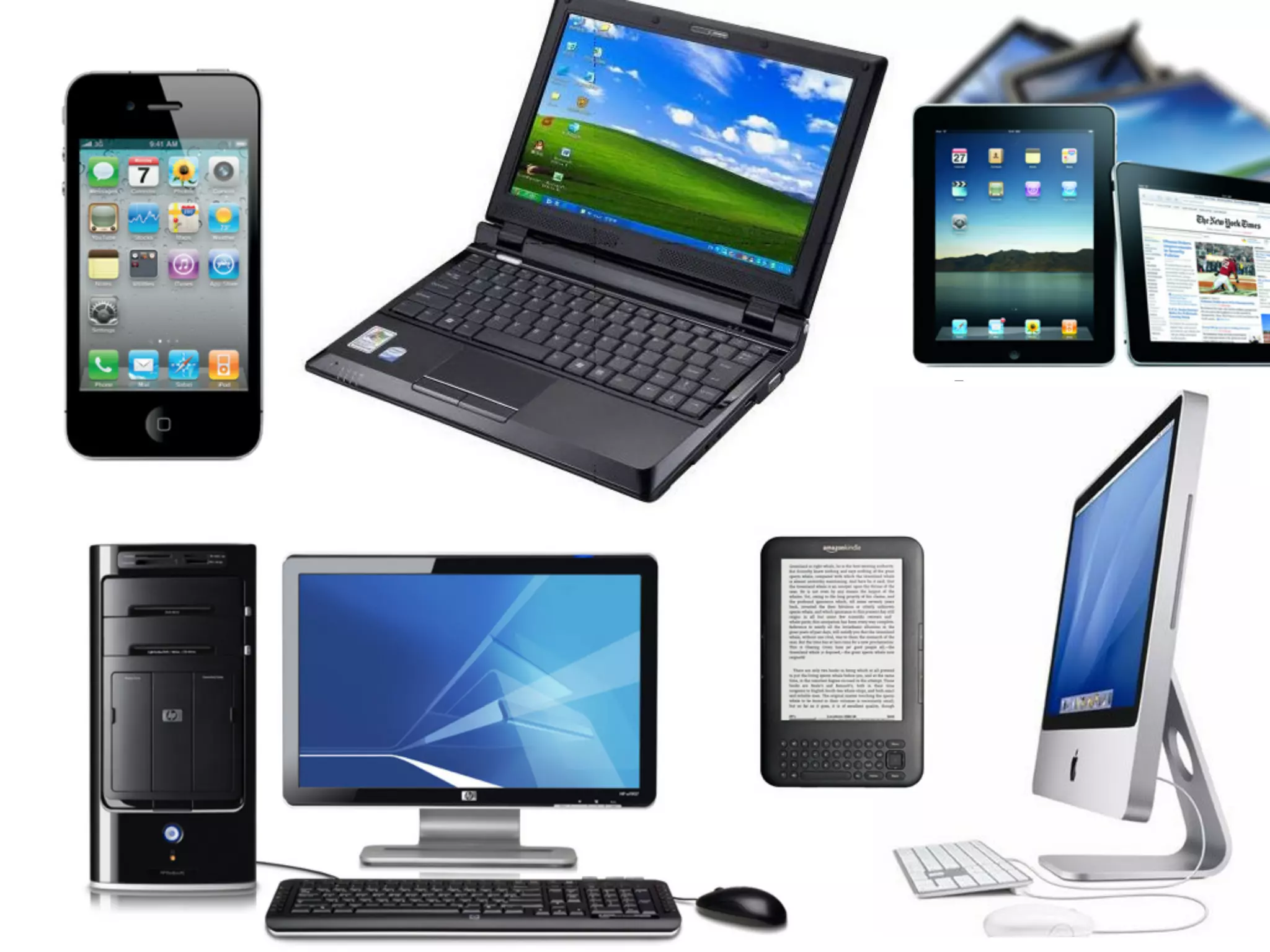

- 10. Mobile phones + computer + desktop
- 11. How do we measure capabilities?

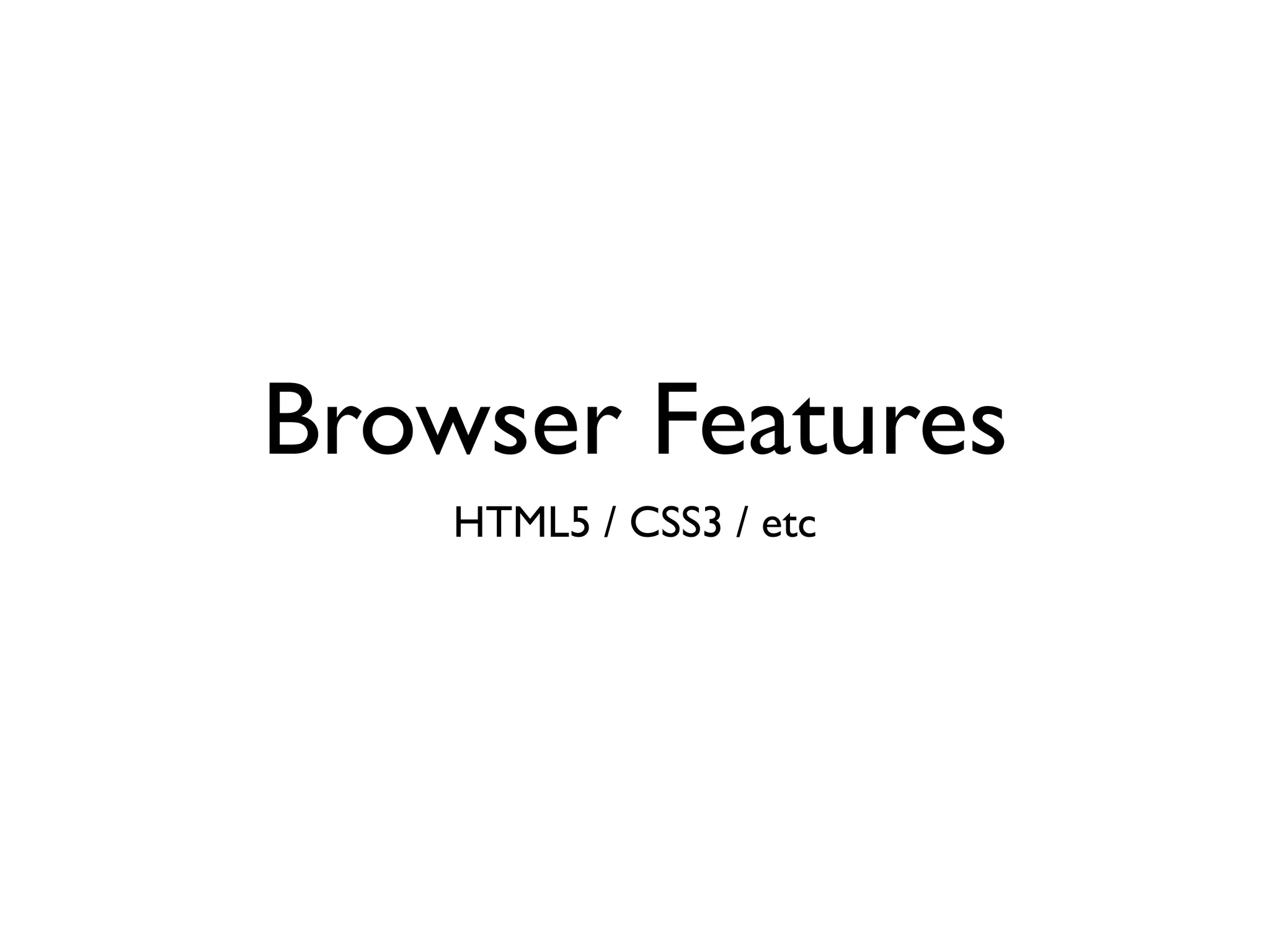

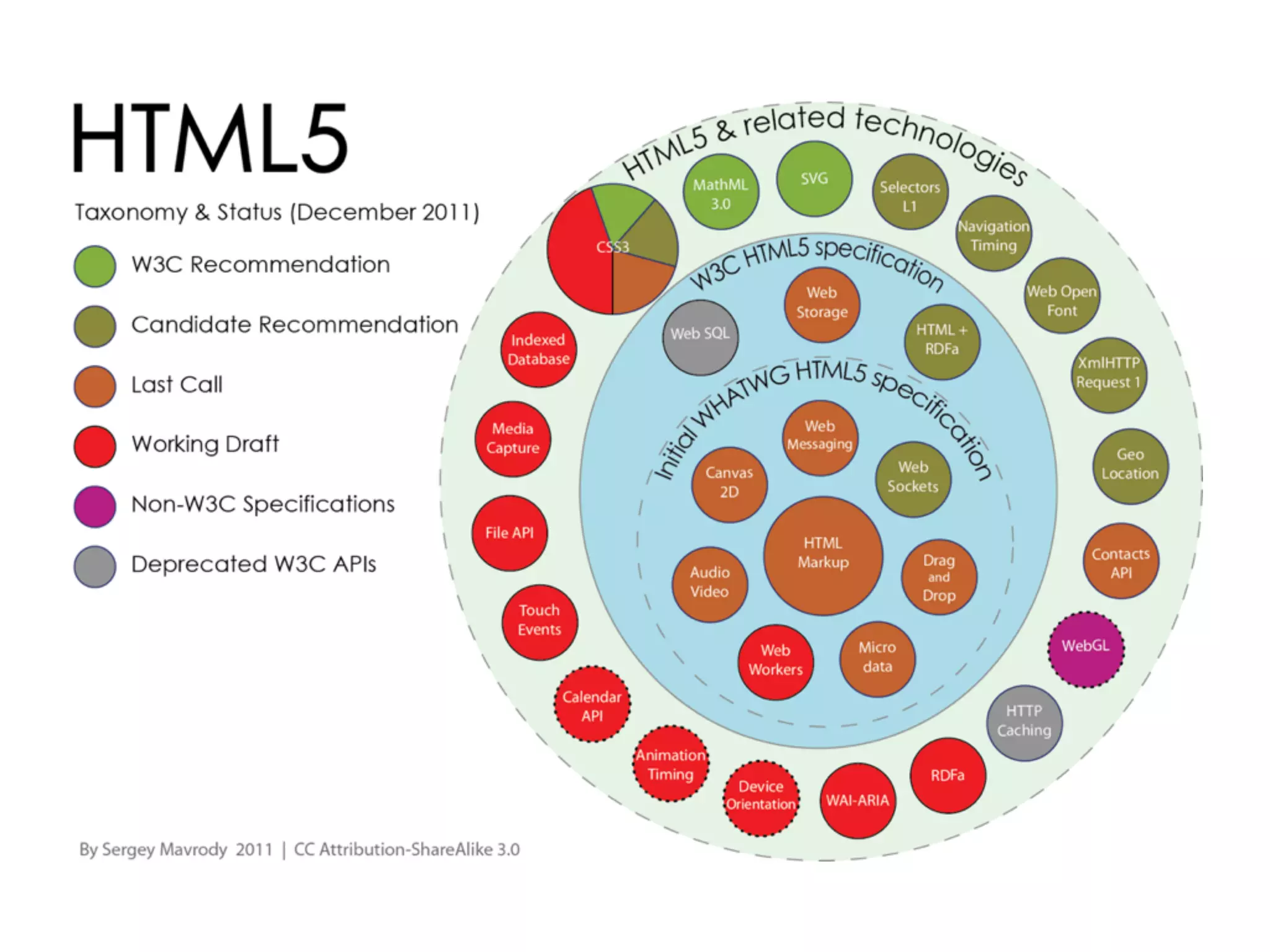

- 12. Browser Features HTML5 / CSS3 / etc

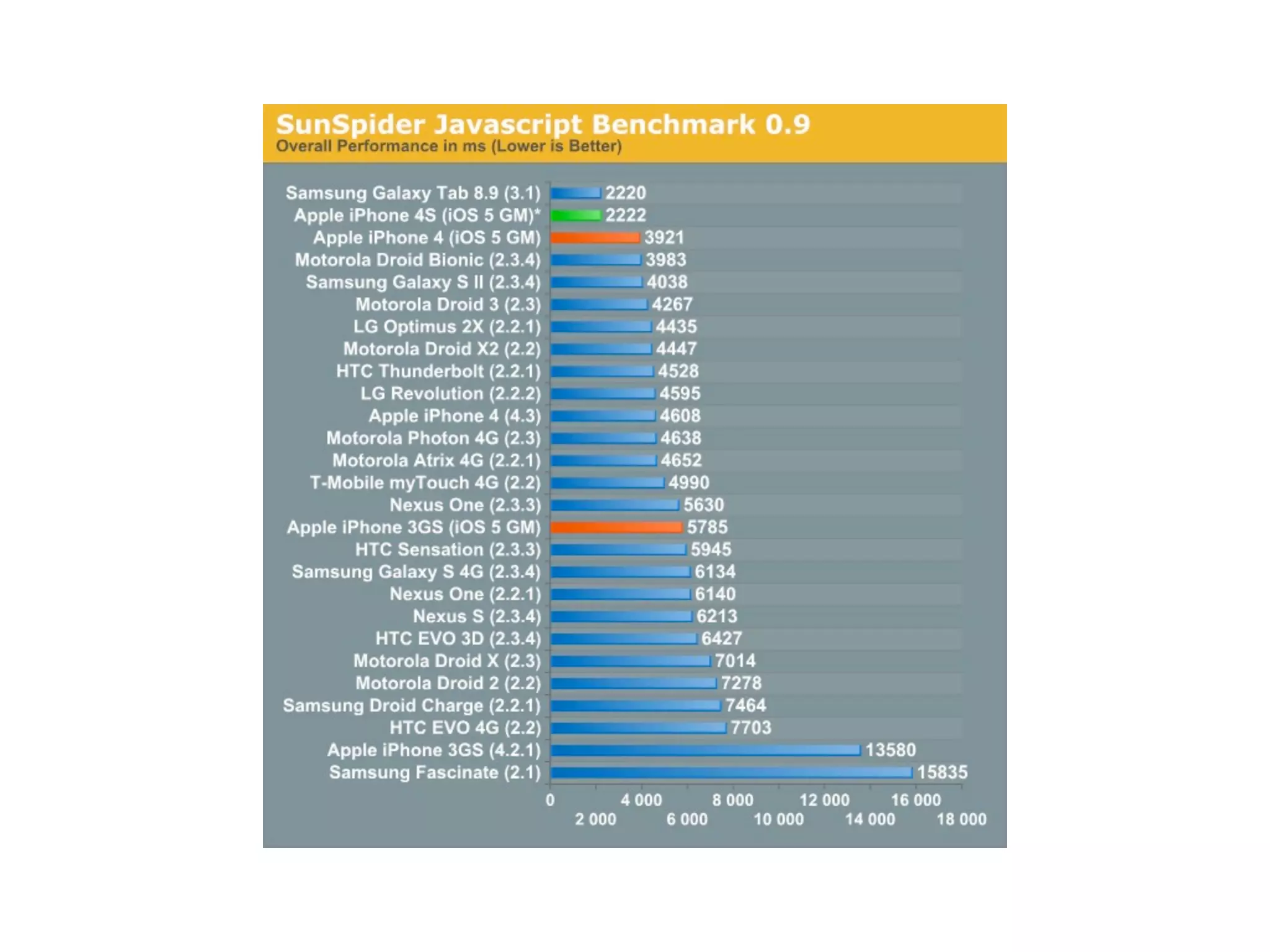

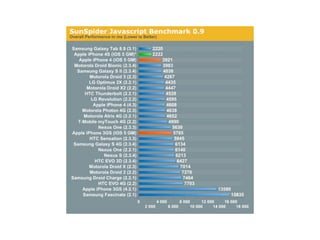

- 14. Processing Power CPU / Browser JS Engine / Battery Life

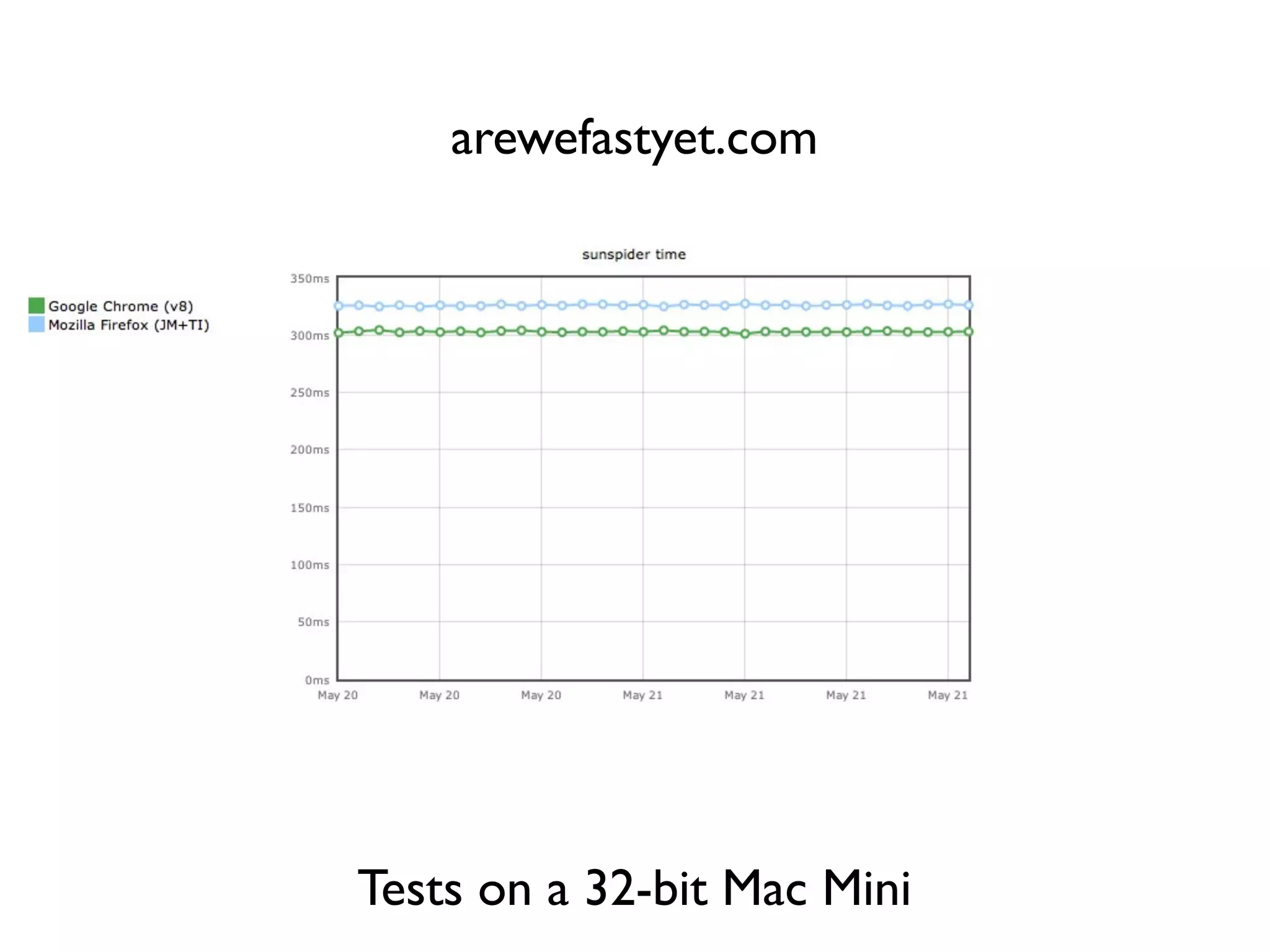

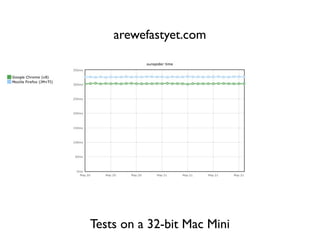

- 16. arewefastyet.com Tests on a 32-bit Mac Mini

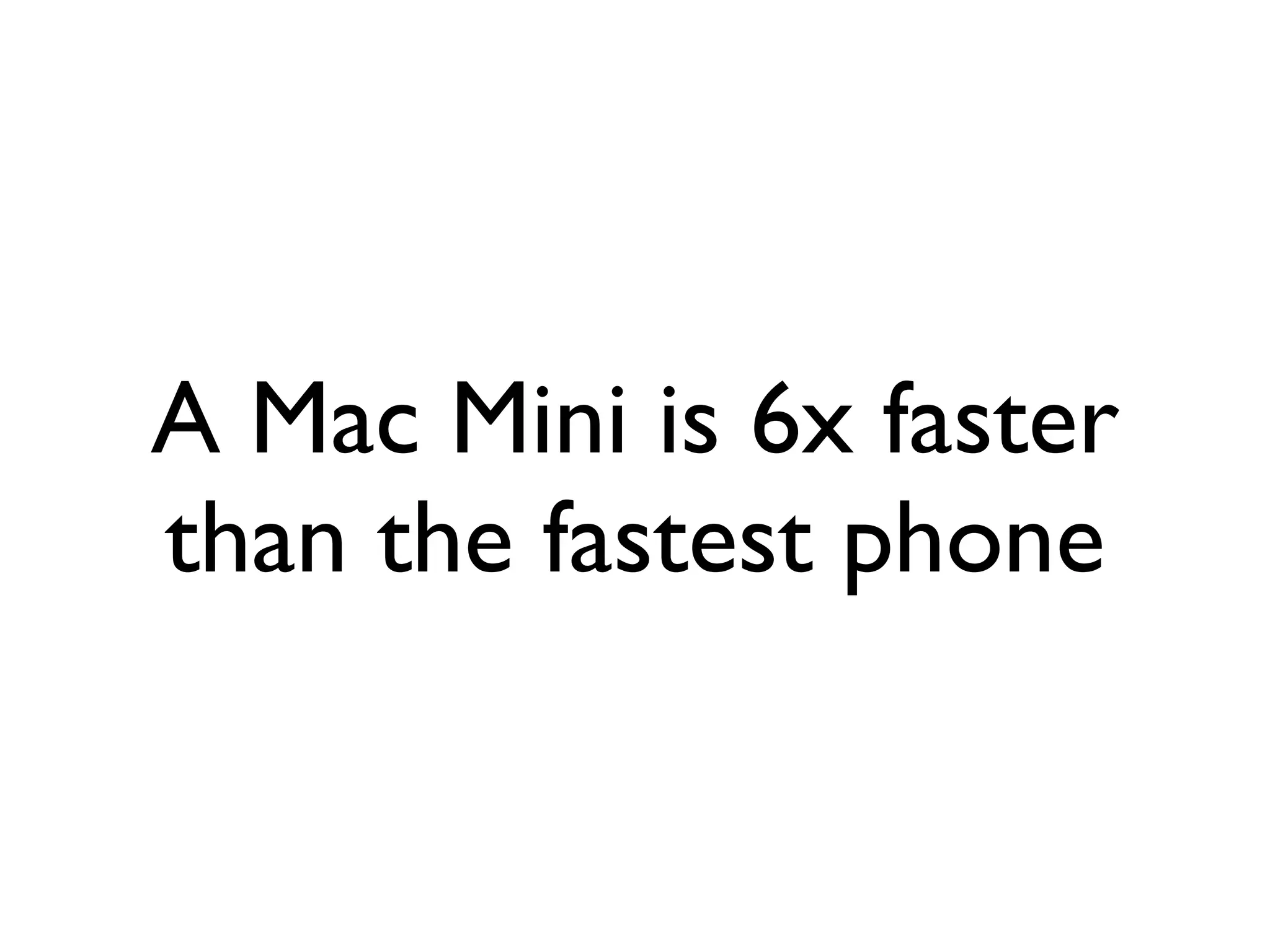

- 17. A Mac Mini is 6x faster than the fastest phone

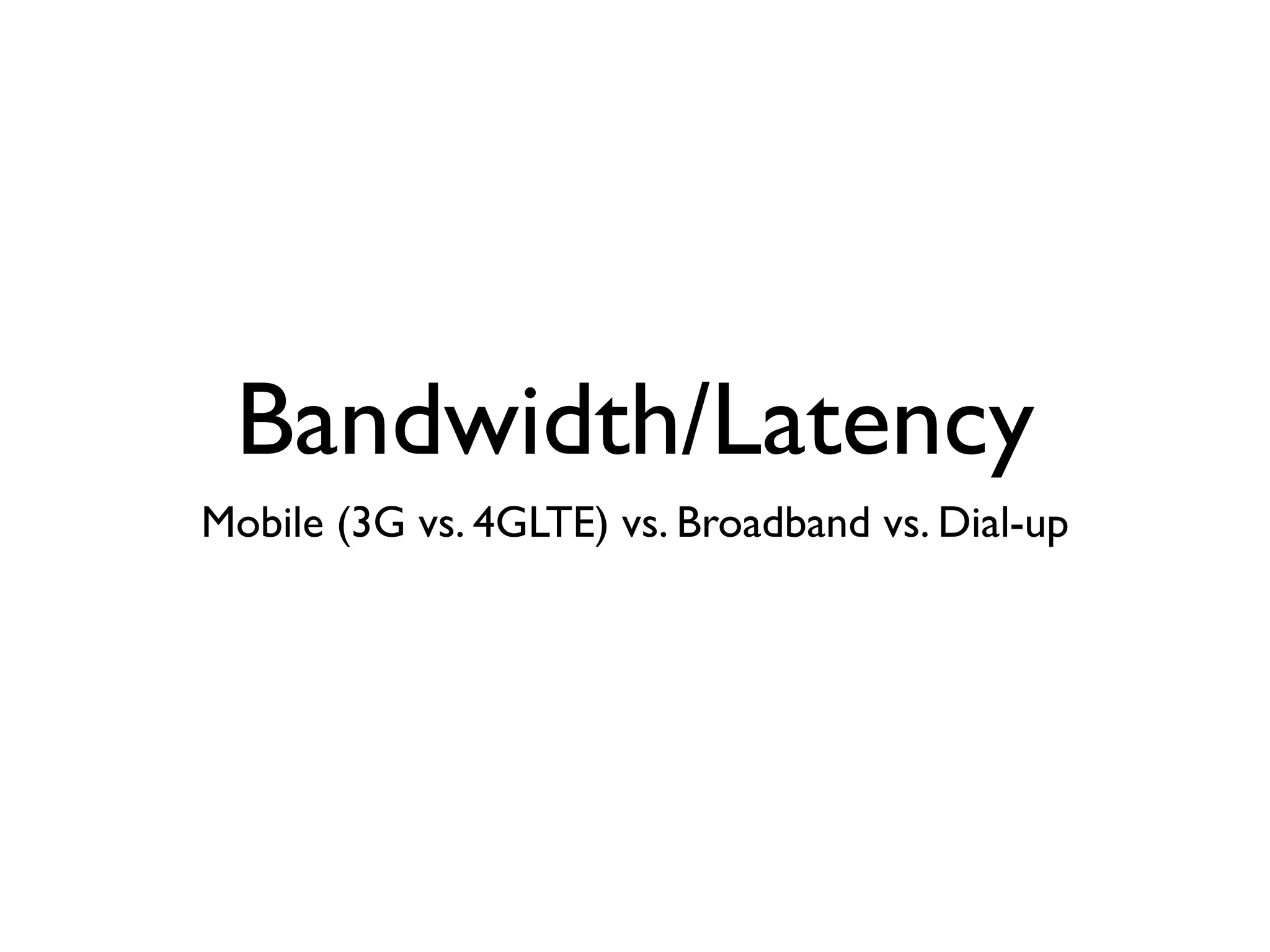

- 18. Bandwidth/Latency Mobile (3G vs. 4GLTE) vs. Broadband vs. Dial-up

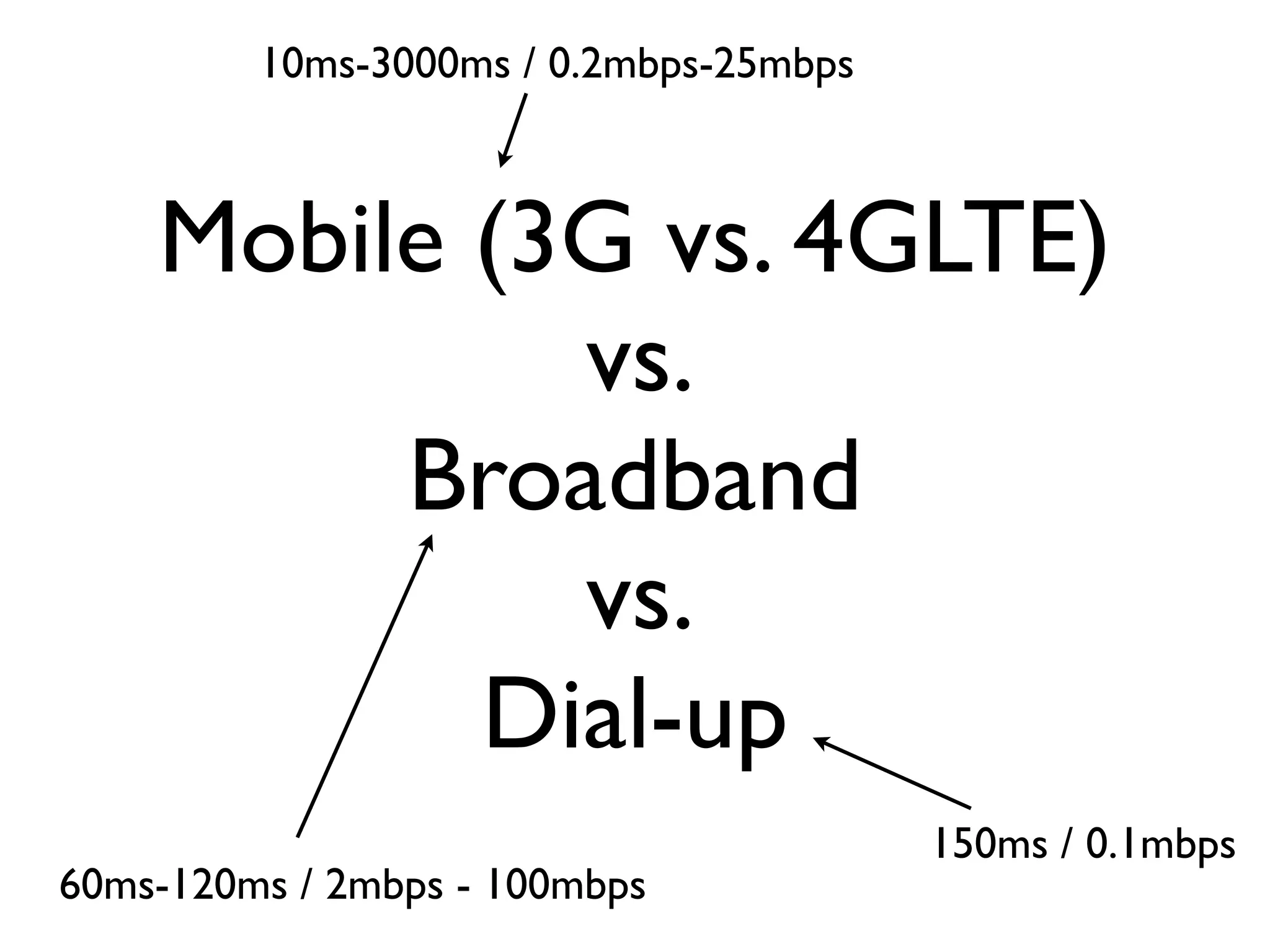

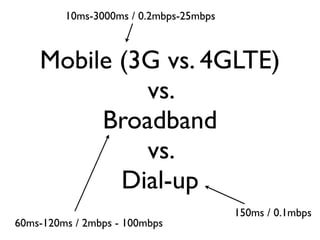

- 19. 10ms-3000ms / 0.2mbps-25mbps Mobile (3G vs. 4GLTE) vs. Broadband vs. Dial-up 150ms / 0.1mbps 60ms-120ms / 2mbps - 100mbps

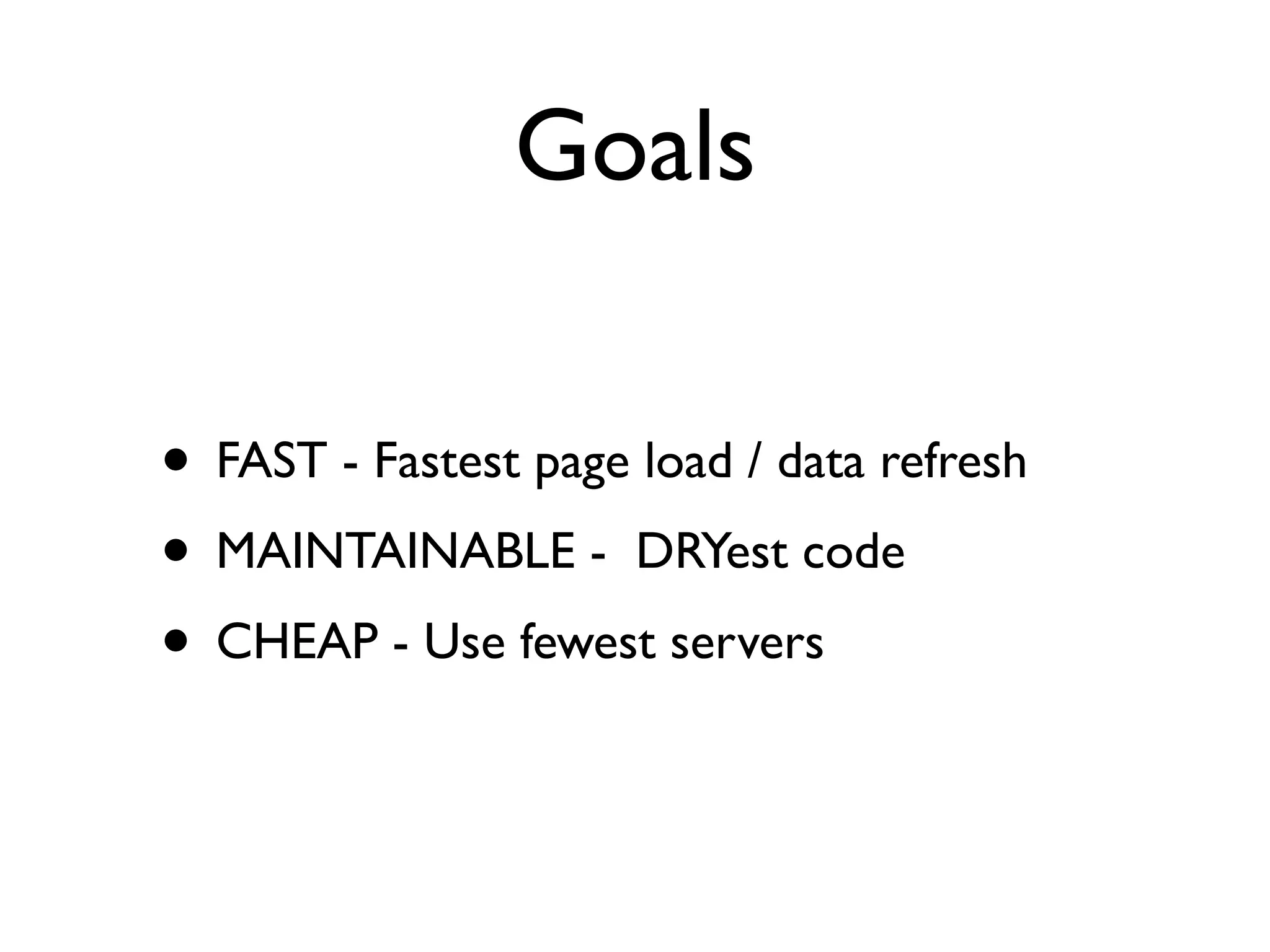

- 20. Goals • FAST - Fastest page load / data refresh • MAINTAINABLE - DRYest code • CHEAP - Use fewest servers

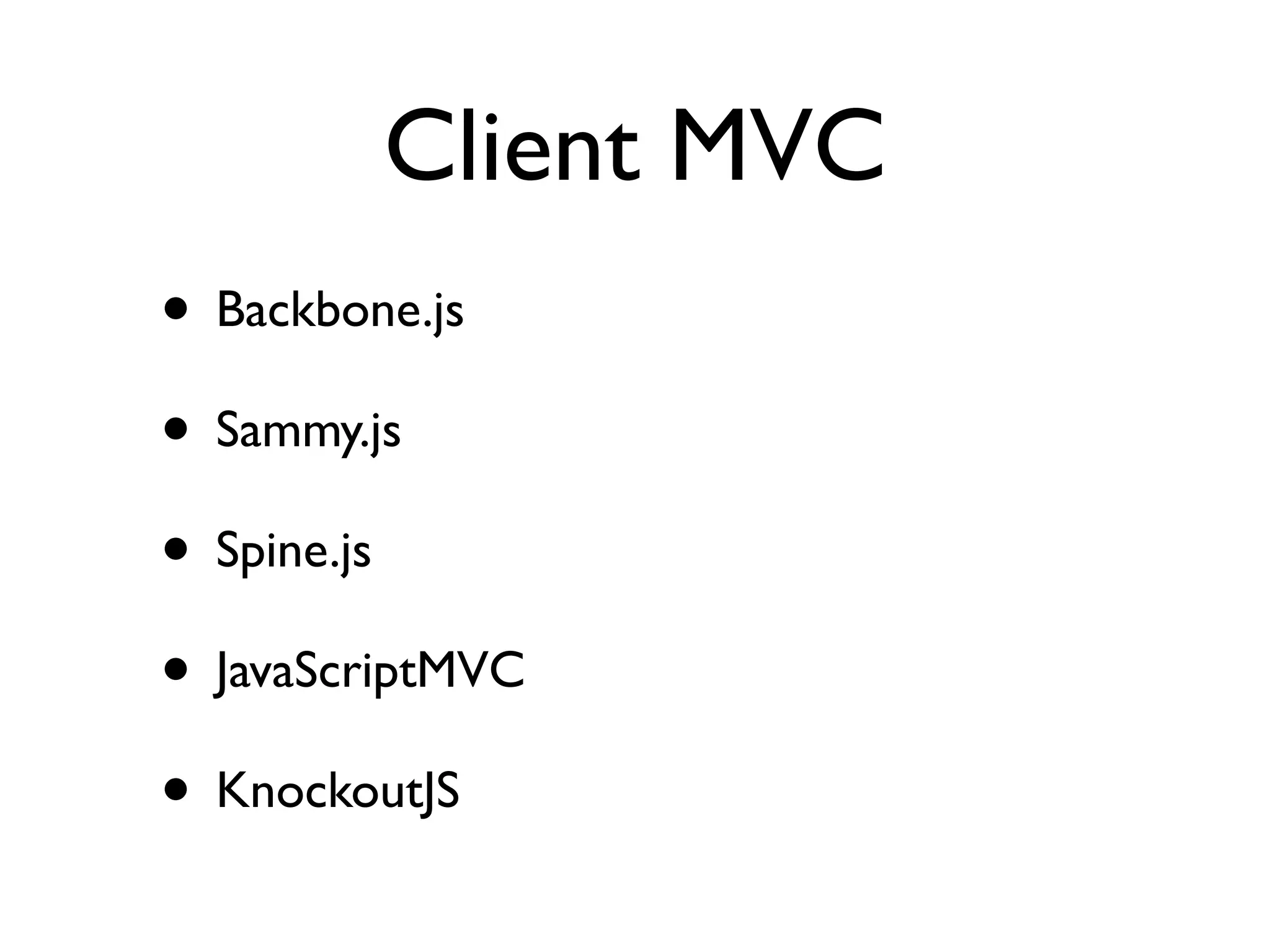

- 21. Client MVC • Backbone.js • Sammy.js • Spine.js • JavaScriptMVC • KnockoutJS

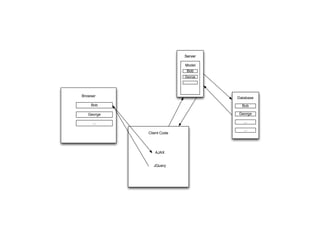

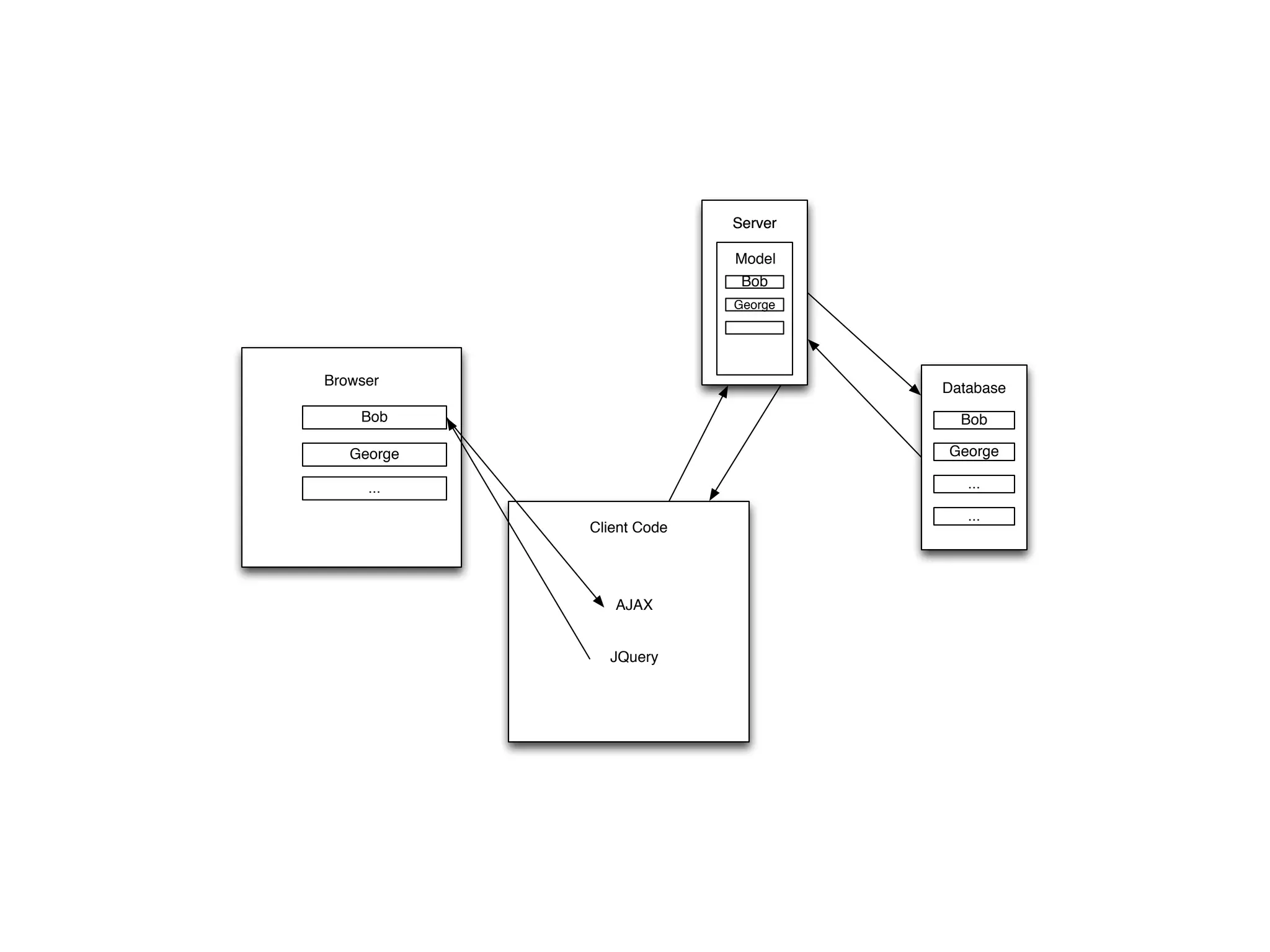

- 22. Server Model Bob George Browser Database Bob Bob George George ... ... ... Client Code AJAX JQuery

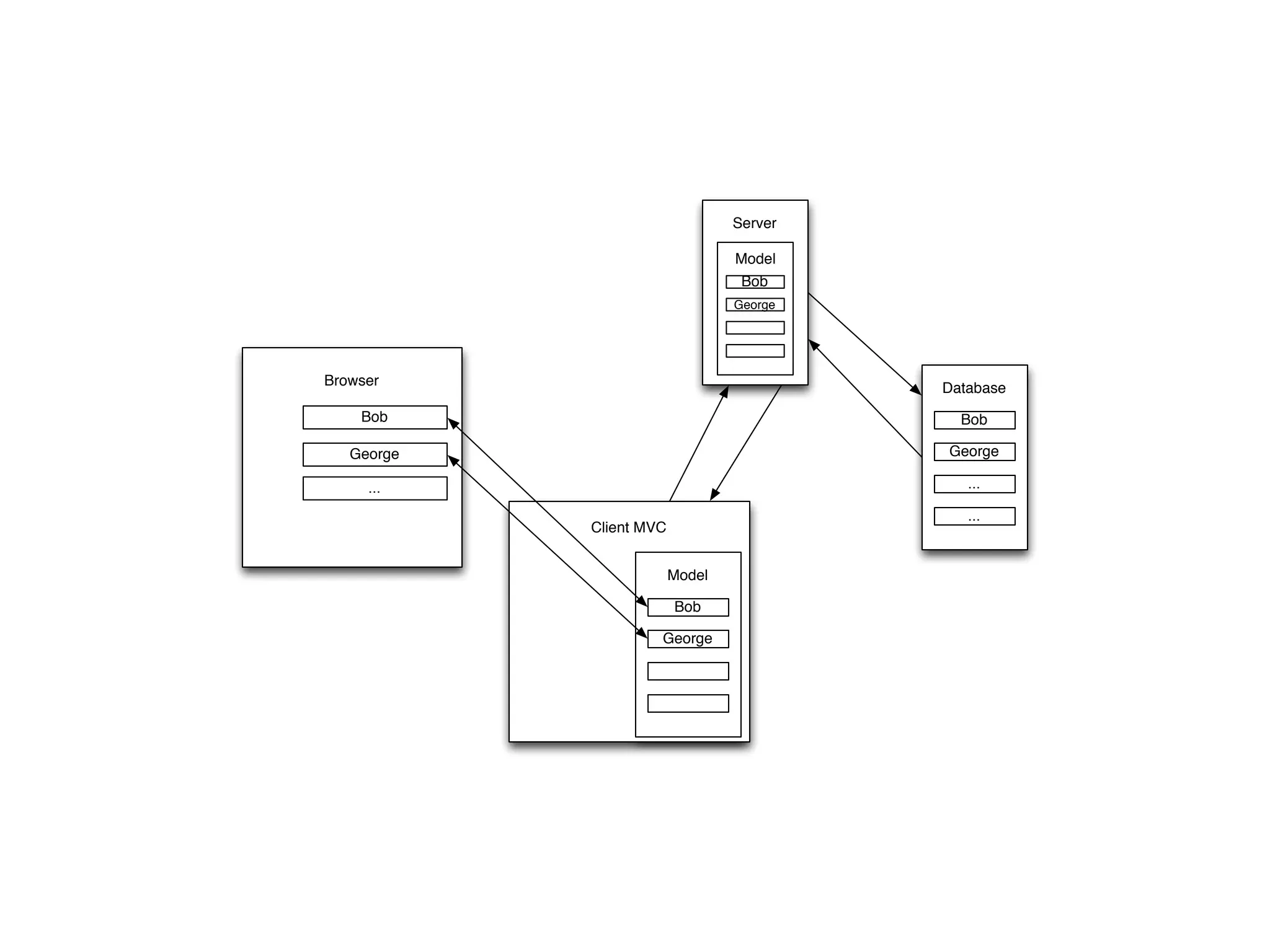

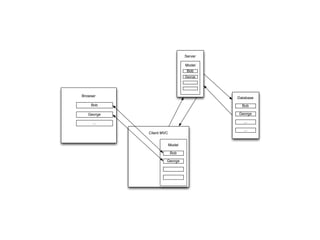

- 23. Server Model Bob George Browser Database Bob Bob George George ... ... ... Client MVC Model Bob George

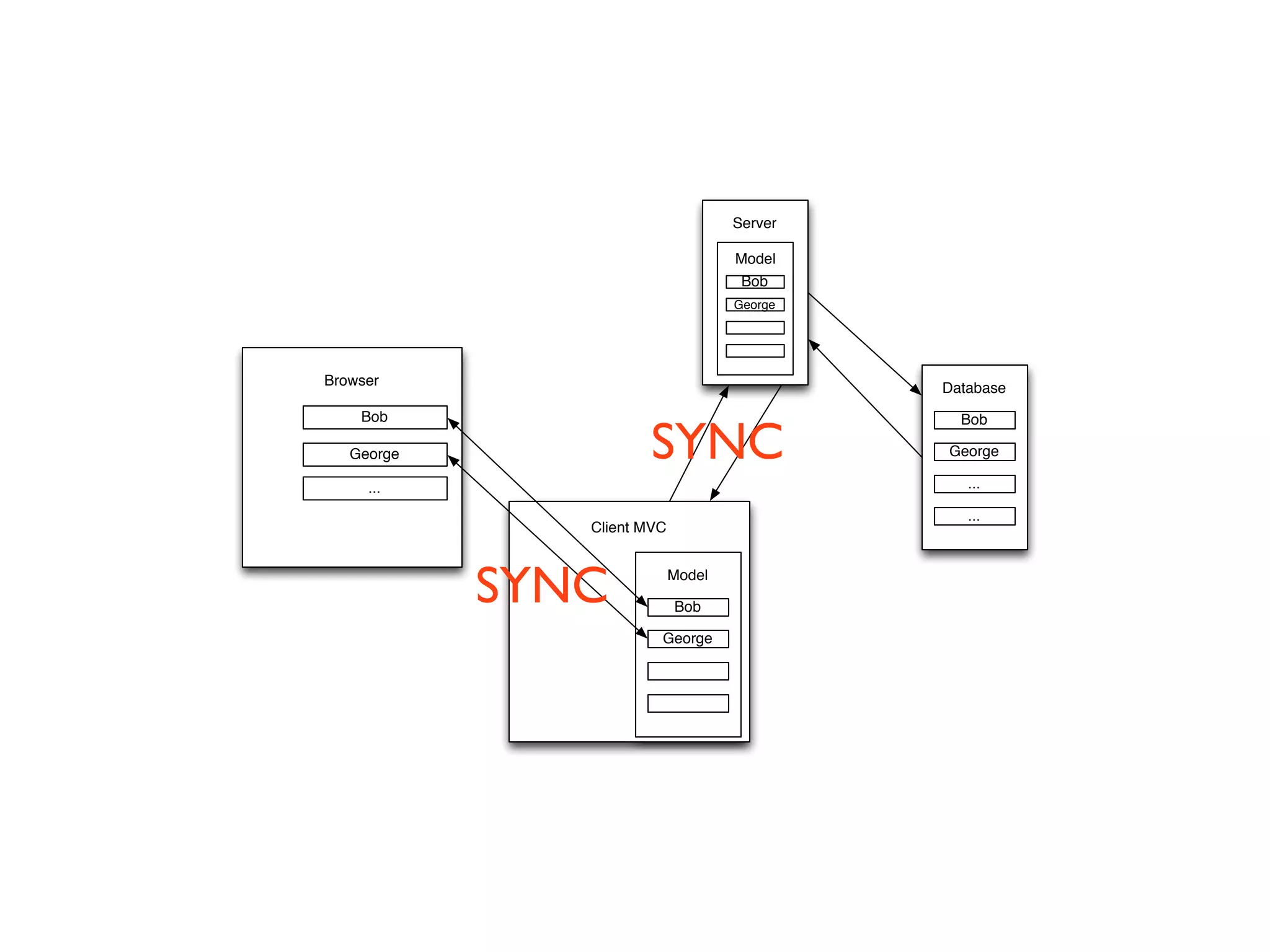

- 24. Server Model Bob George Browser Database Bob SYNC Bob George George ... ... ... Client MVC SYNC Model Bob George

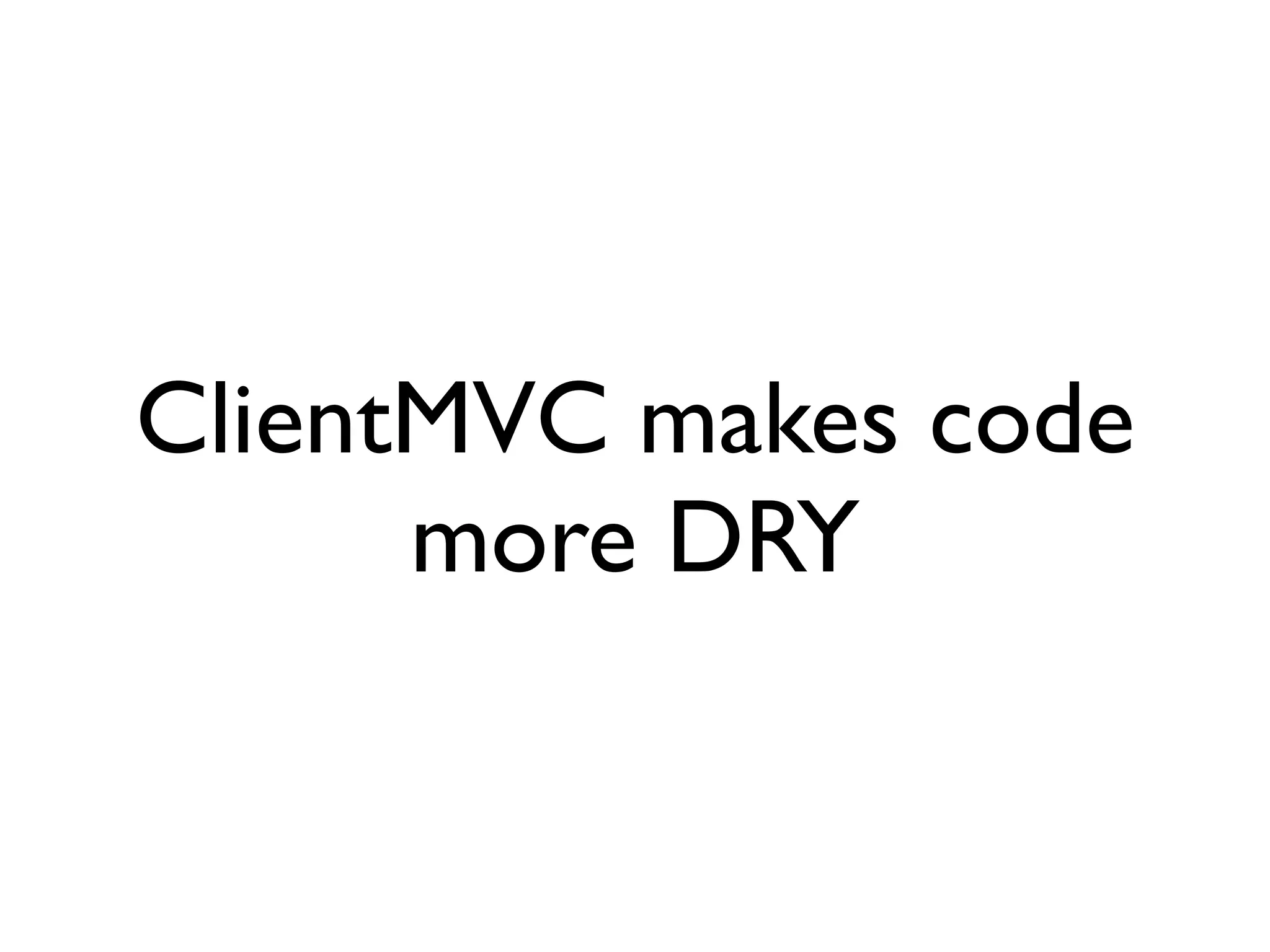

- 25. ClientMVC makes code more DRY

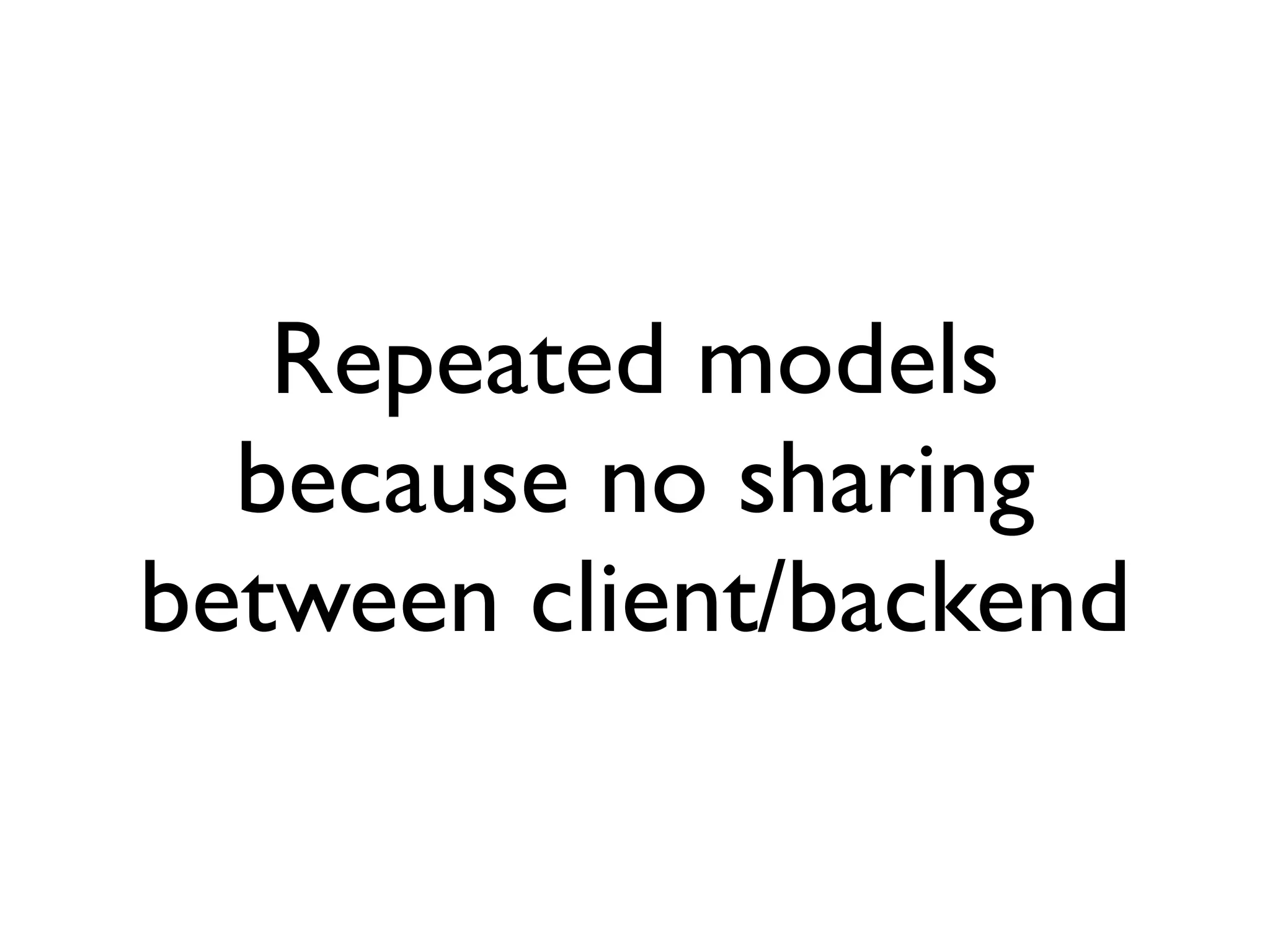

- 26. Repeated models because no sharing between client/backend
- 28. How do we balance between 3 goals?
- 29. Rule #1 Don’t use JS for first page load

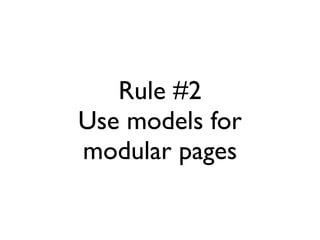

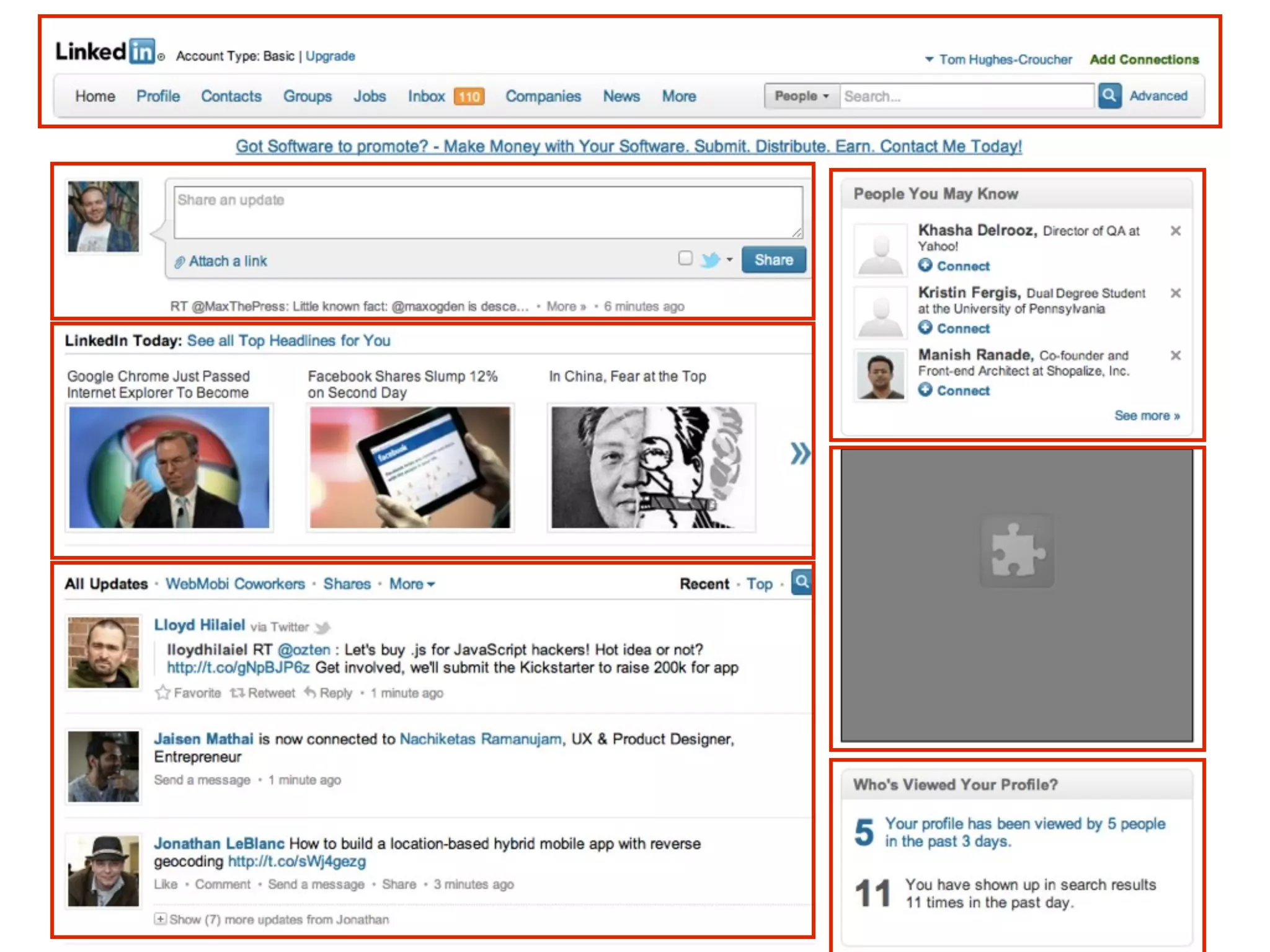

- 31. Rule #2 Use models for modular pages

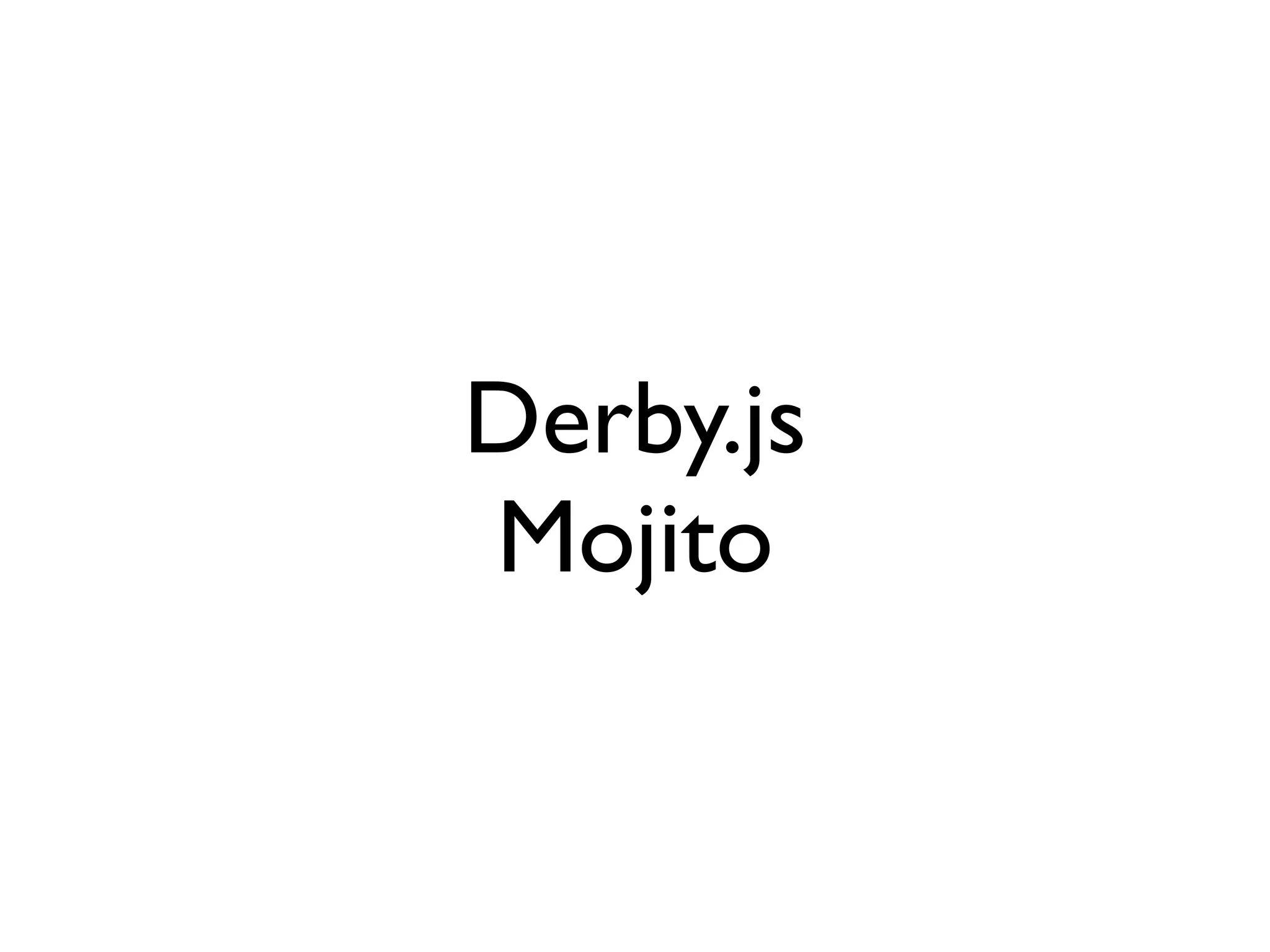

- 32. Derby.js Mojito

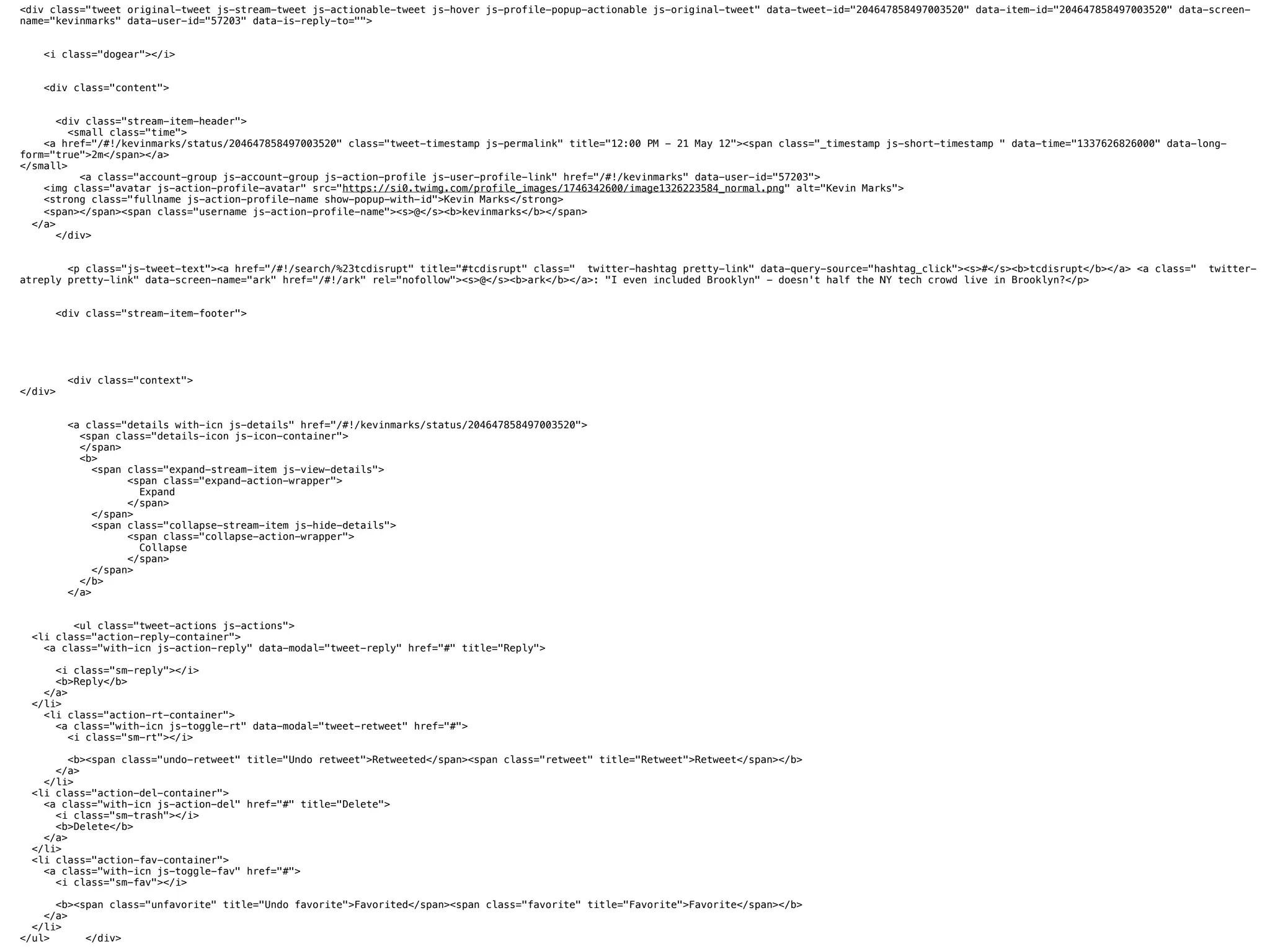

- 36. <div class="tweet original-tweet js-stream-tweet js-actionable-tweet js-hover js-profile-popup-actionable js-original-tweet" data-tweet-id="204647858497003520" data-item-id="204647858497003520" data-screen- name="kevinmarks" data-user-id="57203" data-is-reply-to=""> <i class="dogear"></i> <div class="content"> <div class="stream-item-header"> <small class="time"> <a href="/#!/kevinmarks/status/204647858497003520" class="tweet-timestamp js-permalink" title="12:00 PM - 21 May 12"><span class="_timestamp js-short-timestamp " data-time="1337626826000" data-long- form="true">2m</span></a> </small> <a class="account-group js-account-group js-action-profile js-user-profile-link" href="/#!/kevinmarks" data-user-id="57203"> <img class="avatar js-action-profile-avatar" src="https://si0.twimg.com/profile_images/1746342600/image1326223584_normal.png" alt="Kevin Marks"> <strong class="fullname js-action-profile-name show-popup-with-id">Kevin Marks</strong> <span>/<span><span class="username js-action-profile-name"><s>@</s><b>kevinmarks</b></span> </a> </div> <p class="js-tweet-text"><a href="/#!/search/%23tcdisrupt" title="#tcdisrupt" class=" twitter-hashtag pretty-link" data-query-source="hashtag_click"><s>#</s><b>tcdisrupt</b></a> <a class=" twitter- atreply pretty-link" data-screen-name="ark" href="/#!/ark" rel="nofollow"><s>@</s><b>ark</b></a>: "I even included Brooklyn" - doesn't half the NY tech crowd live in Brooklyn?</p> <div class="stream-item-footer"> <div class="context"> </div> <a class="details with-icn js-details" href="/#!/kevinmarks/status/204647858497003520"> <span class="details-icon js-icon-container"> </span> <b> <span class="expand-stream-item js-view-details"> <span class="expand-action-wrapper"> Expand </span> </span> <span class="collapse-stream-item js-hide-details"> <span class="collapse-action-wrapper"> Collapse </span> </span> </b> </a> <ul class="tweet-actions js-actions"> <li class="action-reply-container"> <a class="with-icn js-action-reply" data-modal="tweet-reply" href="#" title="Reply"> <i class="sm-reply"></i> <b>Reply</b> </a> </li> <li class="action-rt-container"> <a class="with-icn js-toggle-rt" data-modal="tweet-retweet" href="#"> <i class="sm-rt"></i> <b><span class="undo-retweet" title="Undo retweet">Retweeted</span><span class="retweet" title="Retweet">Retweet</span></b> </a> </li> <li class="action-del-container"> <a class="with-icn js-action-del" href="#" title="Delete"> <i class="sm-trash"></i> <b>Delete</b> </a> </li> <li class="action-fav-container"> <a class="with-icn js-toggle-fav" href="#"> <i class="sm-fav"></i> <b><span class="unfavorite" title="Undo favorite">Favorited</span><span class="favorite" title="Favorite">Favorite</span></b> </a> </li> </ul> </div>

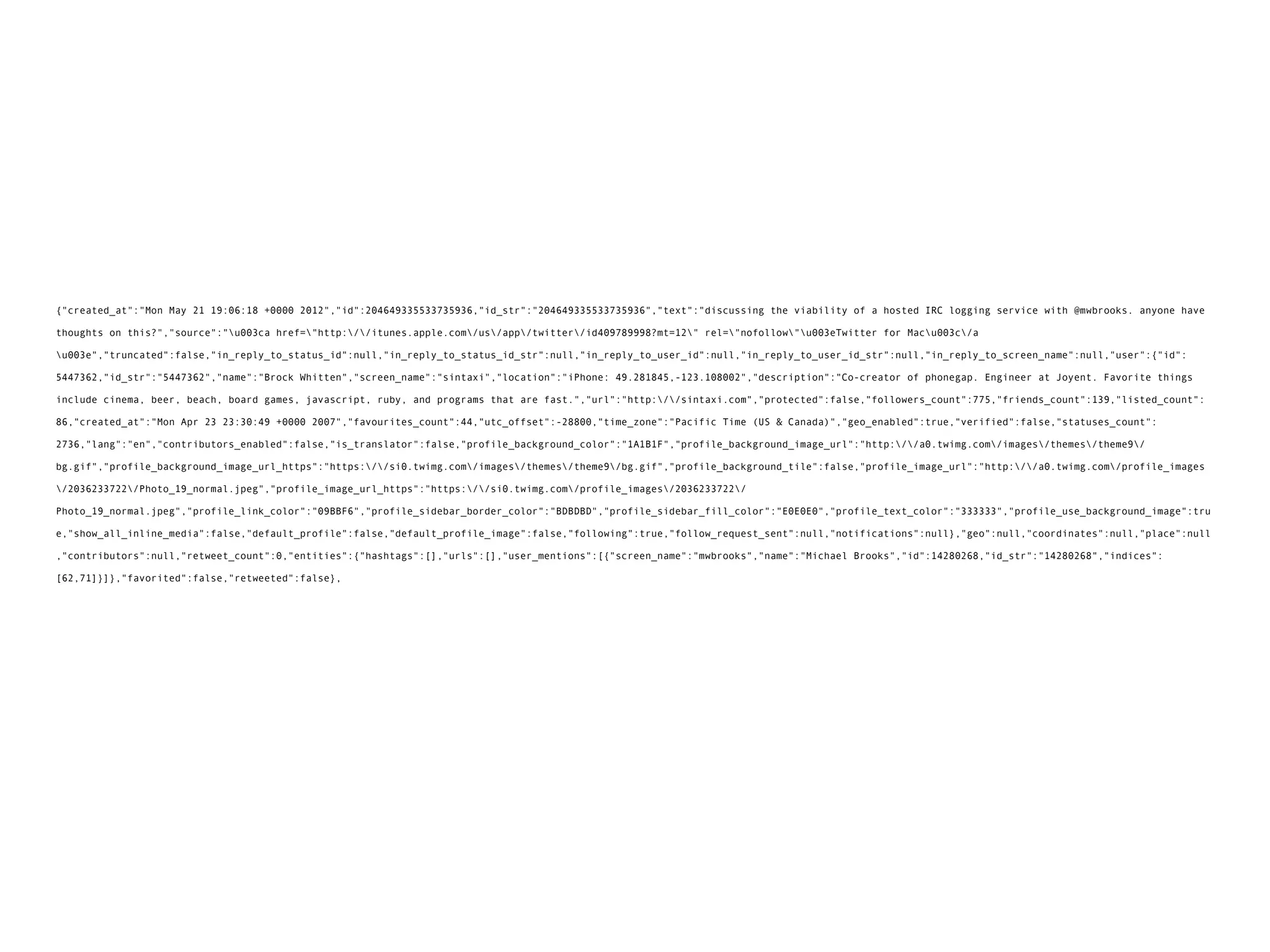

- 37. {"created_at":"Mon May 21 19:06:18 +0000 2012","id":204649335533735936,"id_str":"204649335533735936","text":"discussing the viability of a hosted IRC logging service with @mwbrooks. anyone have thoughts on this?","source":"u003ca href="http://itunes.apple.com/us/app/twitter/id409789998?mt=12" rel="nofollow"u003eTwitter for Macu003c/a u003e","truncated":false,"in_reply_to_status_id":null,"in_reply_to_status_id_str":null,"in_reply_to_user_id":null,"in_reply_to_user_id_str":null,"in_reply_to_screen_name":null,"user":{"id": 5447362,"id_str":"5447362","name":"Brock Whitten","screen_name":"sintaxi","location":"iPhone: 49.281845,-123.108002","description":"Co-creator of phonegap. Engineer at Joyent. Favorite things include cinema, beer, beach, board games, javascript, ruby, and programs that are fast.","url":"http://sintaxi.com","protected":false,"followers_count":775,"friends_count":139,"listed_count": 86,"created_at":"Mon Apr 23 23:30:49 +0000 2007","favourites_count":44,"utc_offset":-28800,"time_zone":"Pacific Time (US & Canada)","geo_enabled":true,"verified":false,"statuses_count": 2736,"lang":"en","contributors_enabled":false,"is_translator":false,"profile_background_color":"1A1B1F","profile_background_image_url":"http://a0.twimg.com/images/themes/theme9/ bg.gif","profile_background_image_url_https":"https://si0.twimg.com/images/themes/theme9/bg.gif","profile_background_tile":false,"profile_image_url":"http://a0.twimg.com/profile_images /2036233722/Photo_19_normal.jpeg","profile_image_url_https":"https://si0.twimg.com/profile_images/2036233722/ Photo_19_normal.jpeg","profile_link_color":"09BBF6","profile_sidebar_border_color":"BDBDBD","profile_sidebar_fill_color":"E0E0E0","profile_text_color":"333333","profile_use_background_image":tru e,"show_all_inline_media":false,"default_profile":false,"default_profile_image":false,"following":true,"follow_request_sent":null,"notifications":null},"geo":null,"coordinates":null,"place":null ,"contributors":null,"retweet_count":0,"entities":{"hashtags":[],"urls":[],"user_mentions":[{"screen_name":"mwbrooks","name":"Michael Brooks","id":14280268,"id_str":"14280268","indices": [62,71]}]},"favorited":false,"retweeted":false},

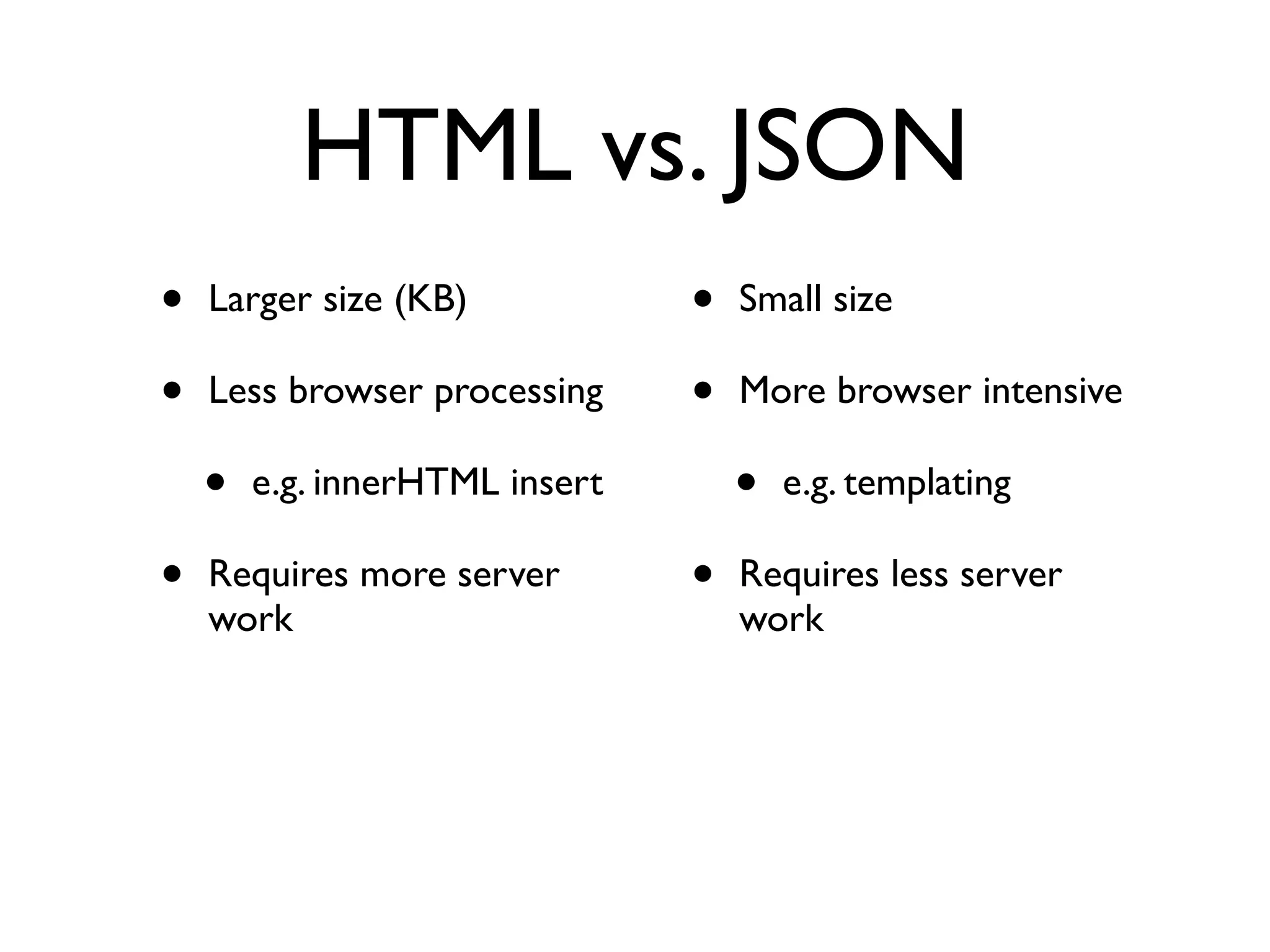

- 38. HTML vs. JSON • Larger size (KB) • Small size • Less browser processing • More browser intensive • e.g. innerHTML insert • e.g. templating • Requires more server • Requires less server work work

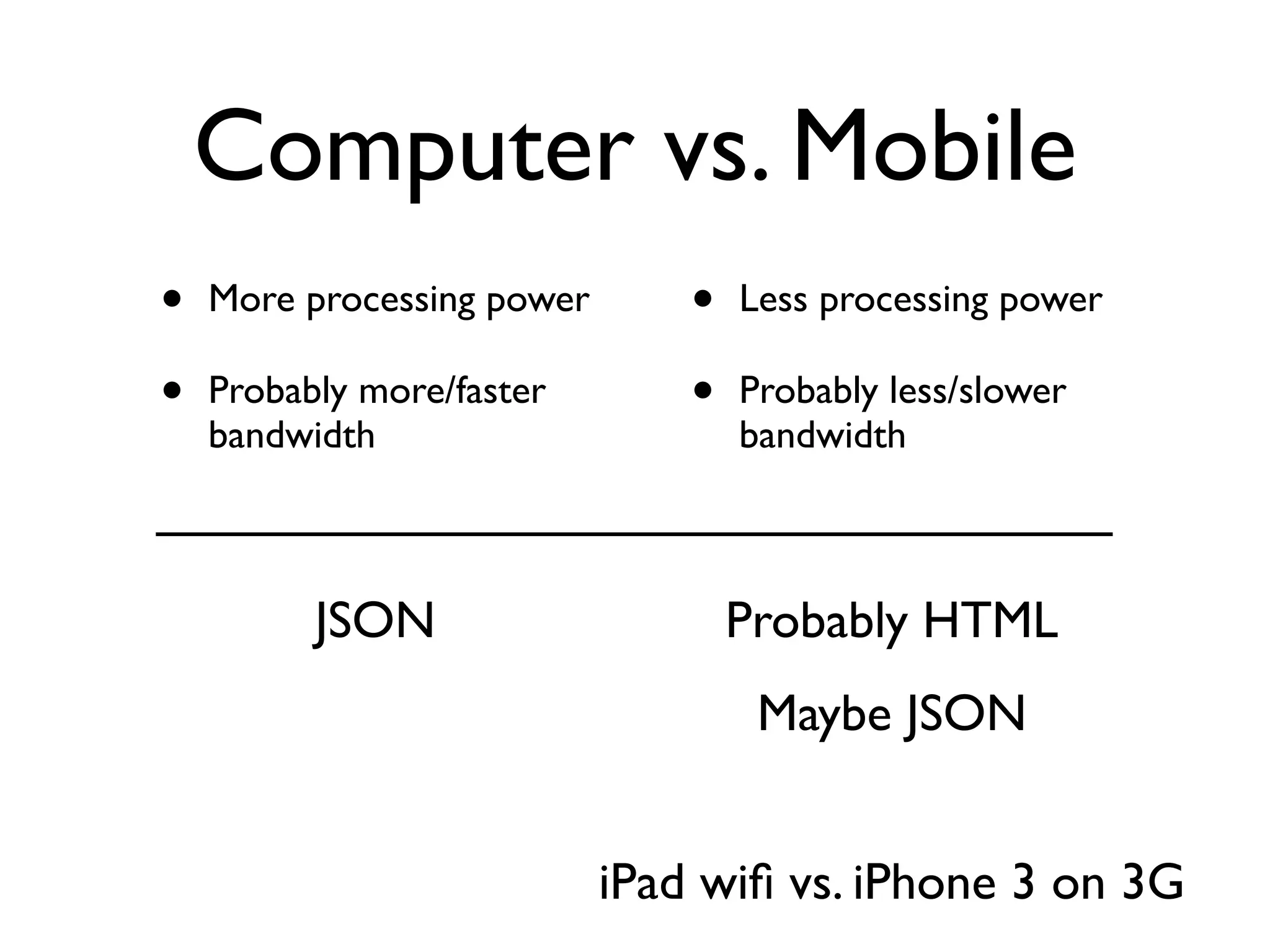

- 39. Computer vs. Mobile • More processing power • Less processing power • Probably more/faster • Probably less/slower bandwidth bandwidth JSON Probably HTML Maybe JSON iPad wifi vs. iPhone 3 on 3G

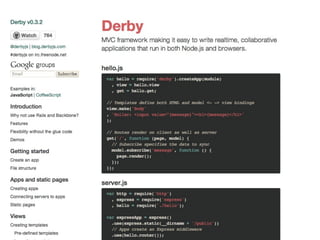

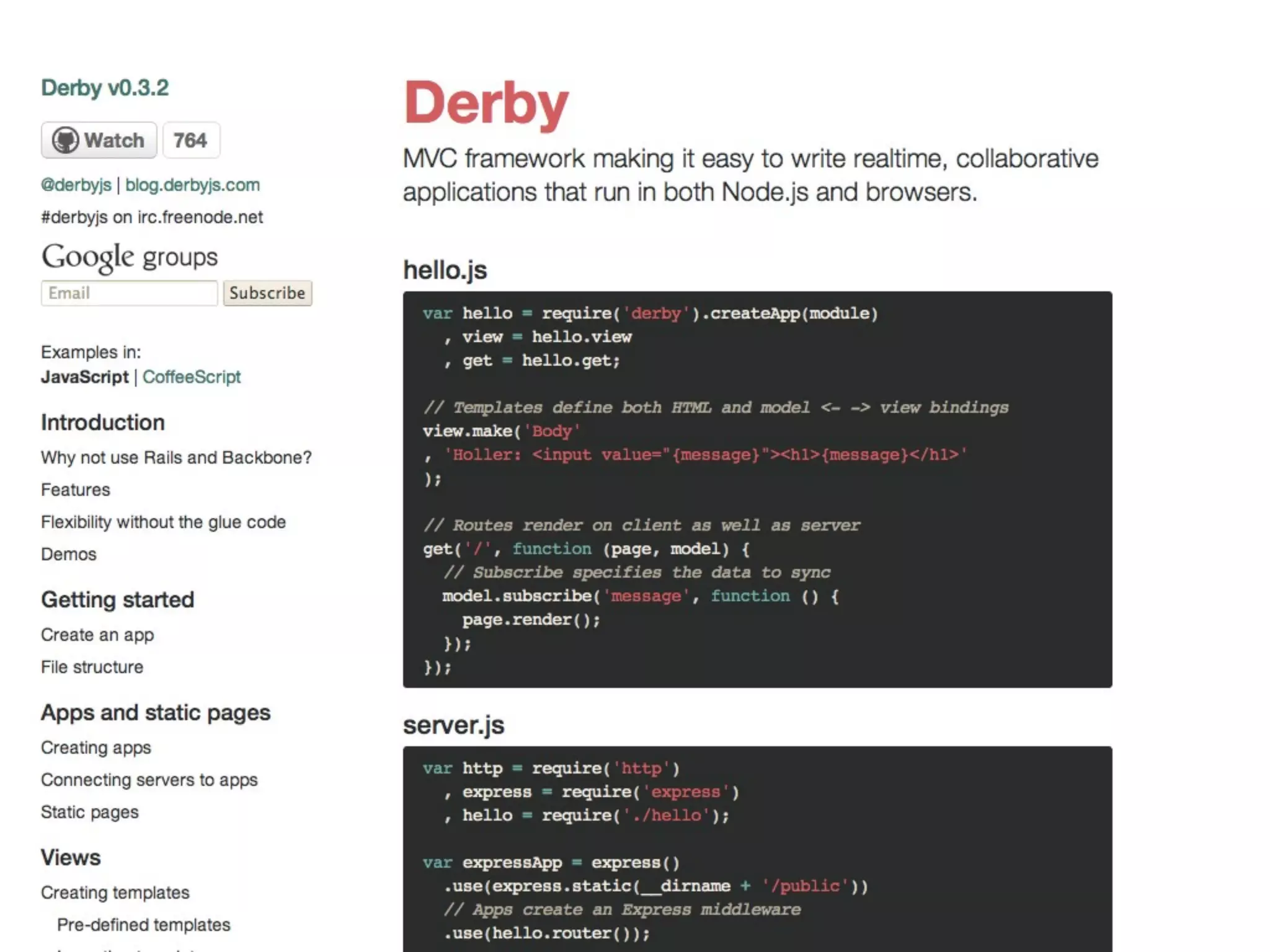

- 40. Derby

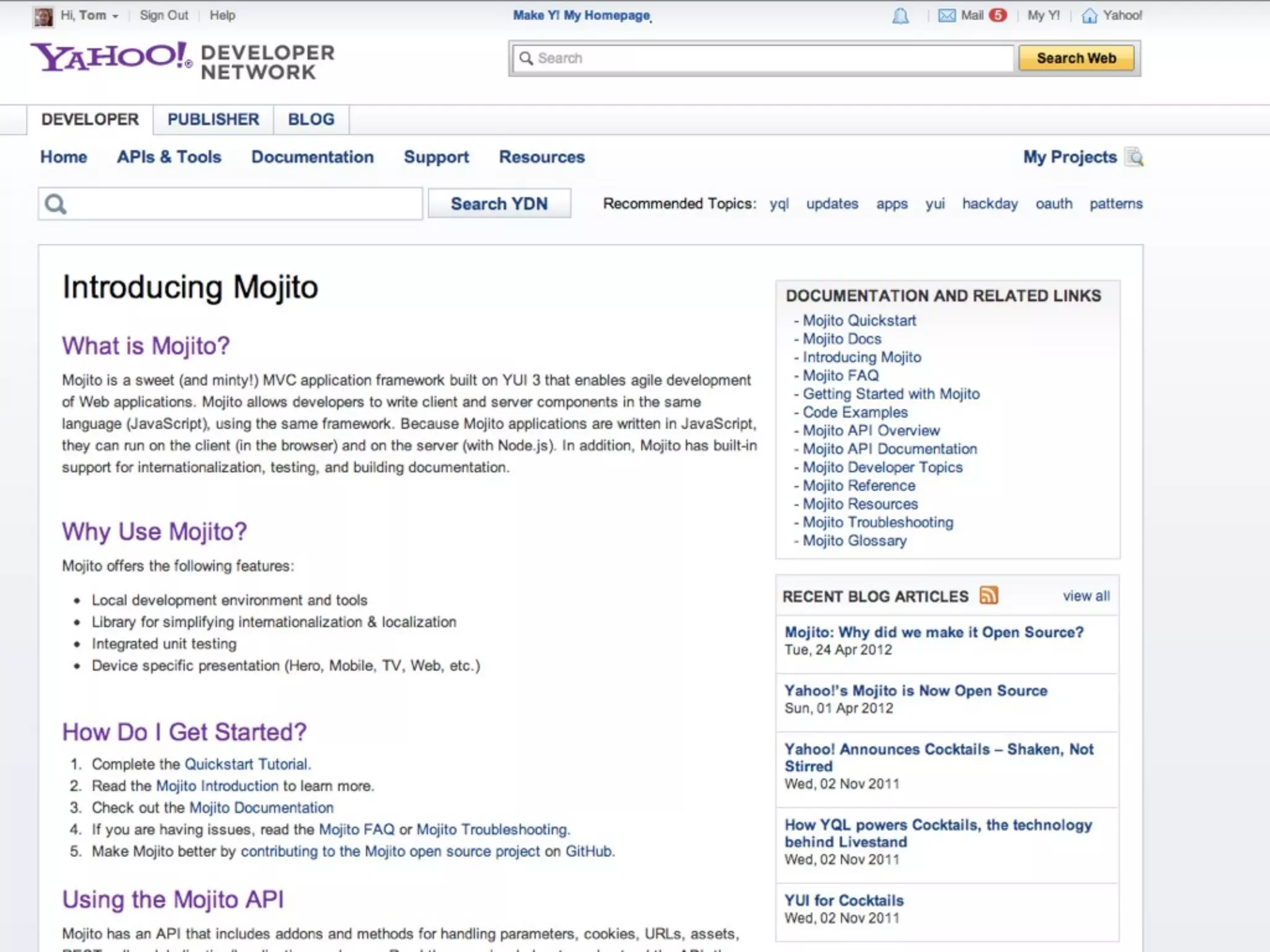

- 41. Mojito
- 42. Rule #3 Have Server-side fallbacks for HTML5

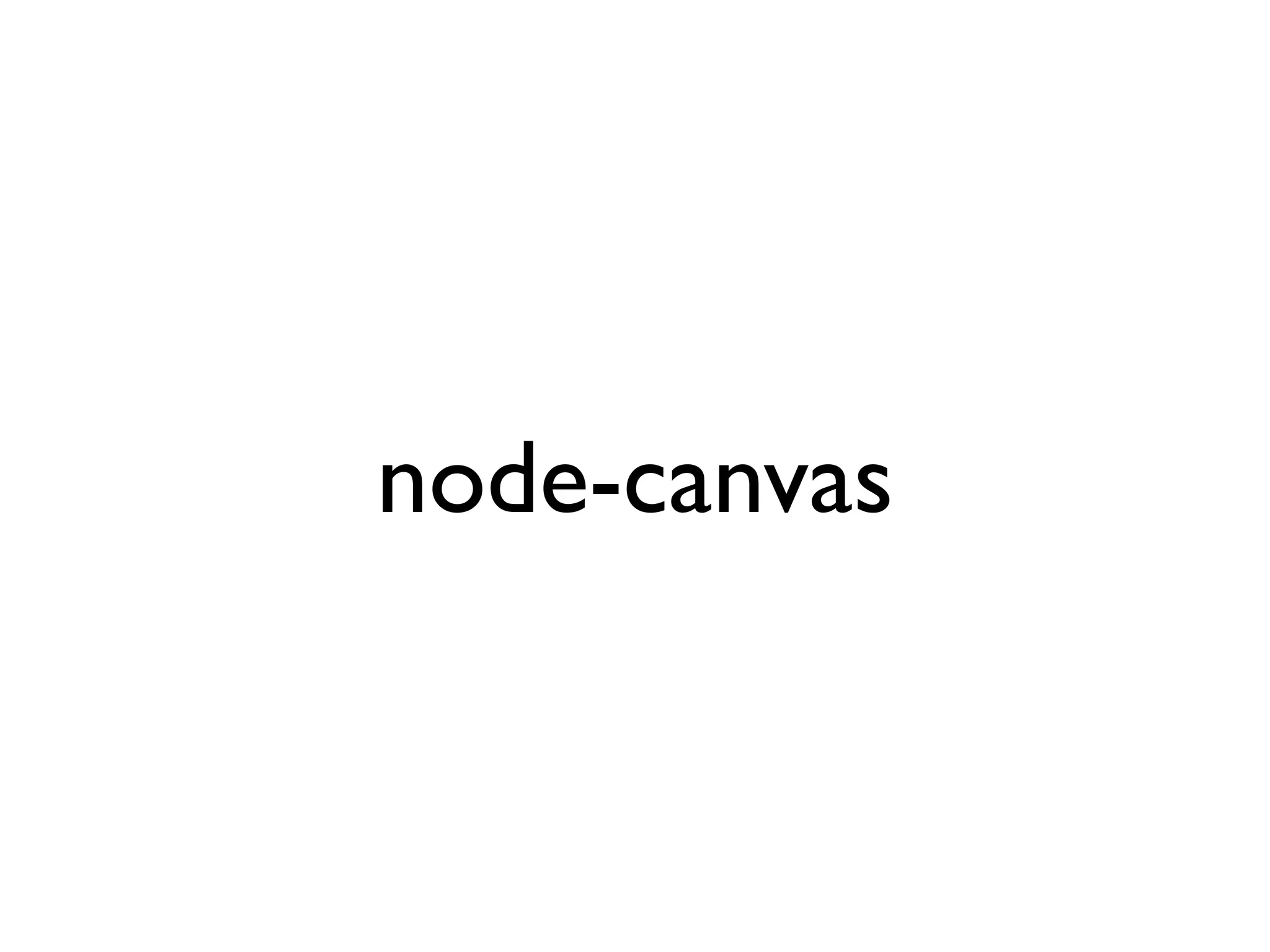

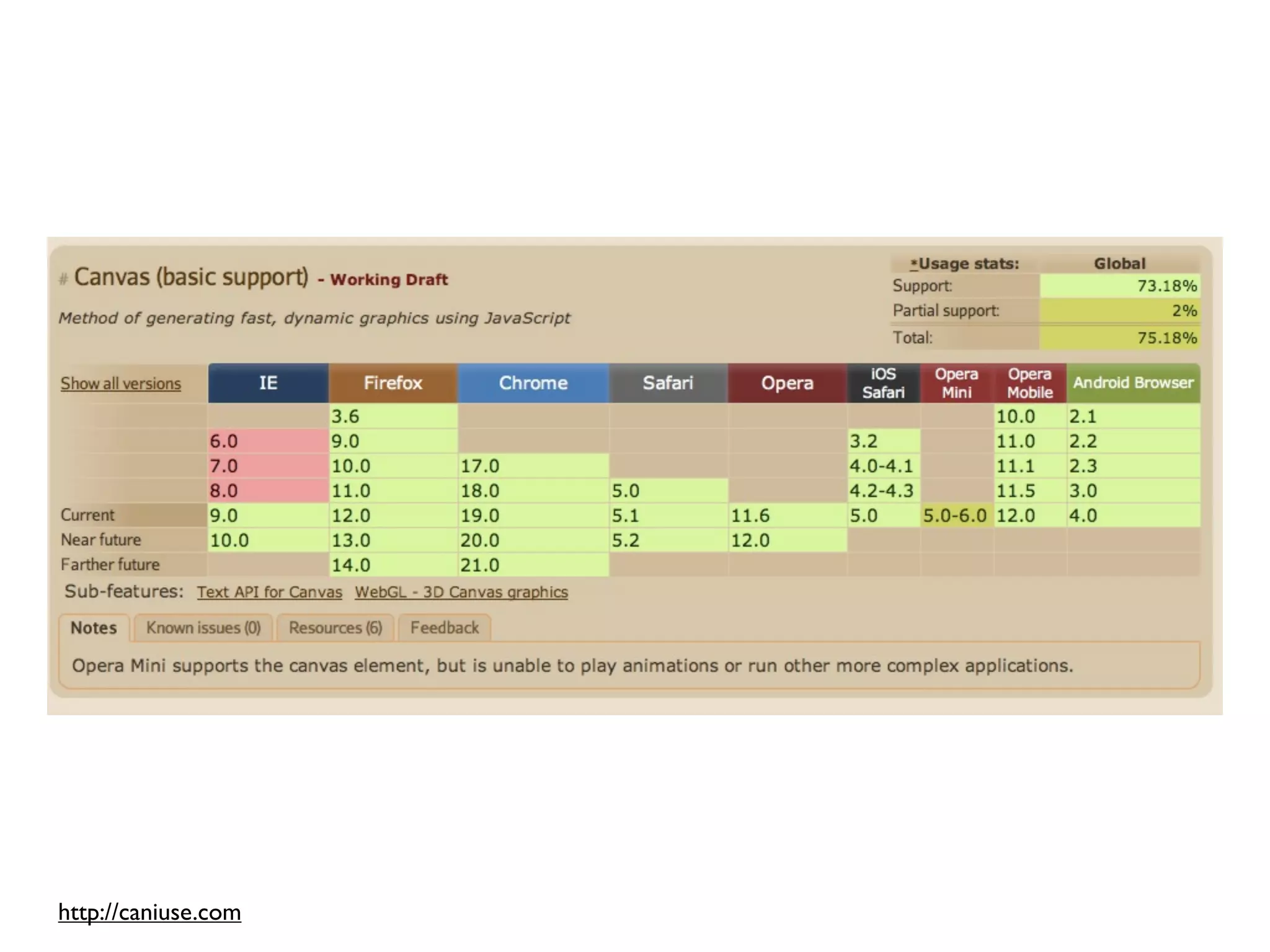

- 44. node-canvas

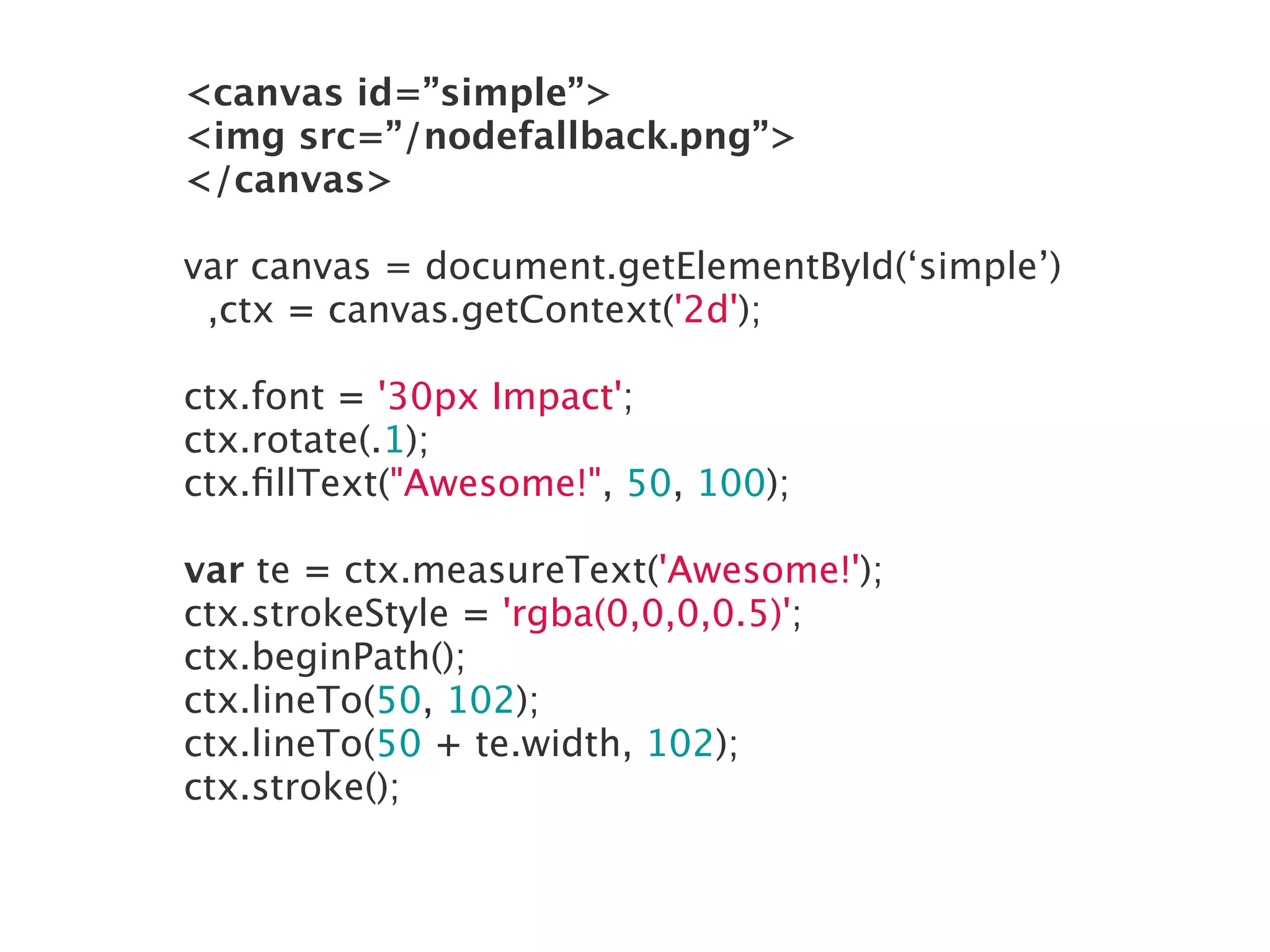

- 45. <canvas id=”simple”> <img src=”/nodefallback.png”> </canvas> var canvas = document.getElementById(‘simple’) ,ctx = canvas.getContext('2d'); ctx.font = '30px Impact'; ctx.rotate(.1); ctx.fillText("Awesome!", 50, 100); var te = ctx.measureText('Awesome!'); ctx.strokeStyle = 'rgba(0,0,0,0.5)'; ctx.beginPath(); ctx.lineTo(50, 102); ctx.lineTo(50 + te.width, 102); ctx.stroke();

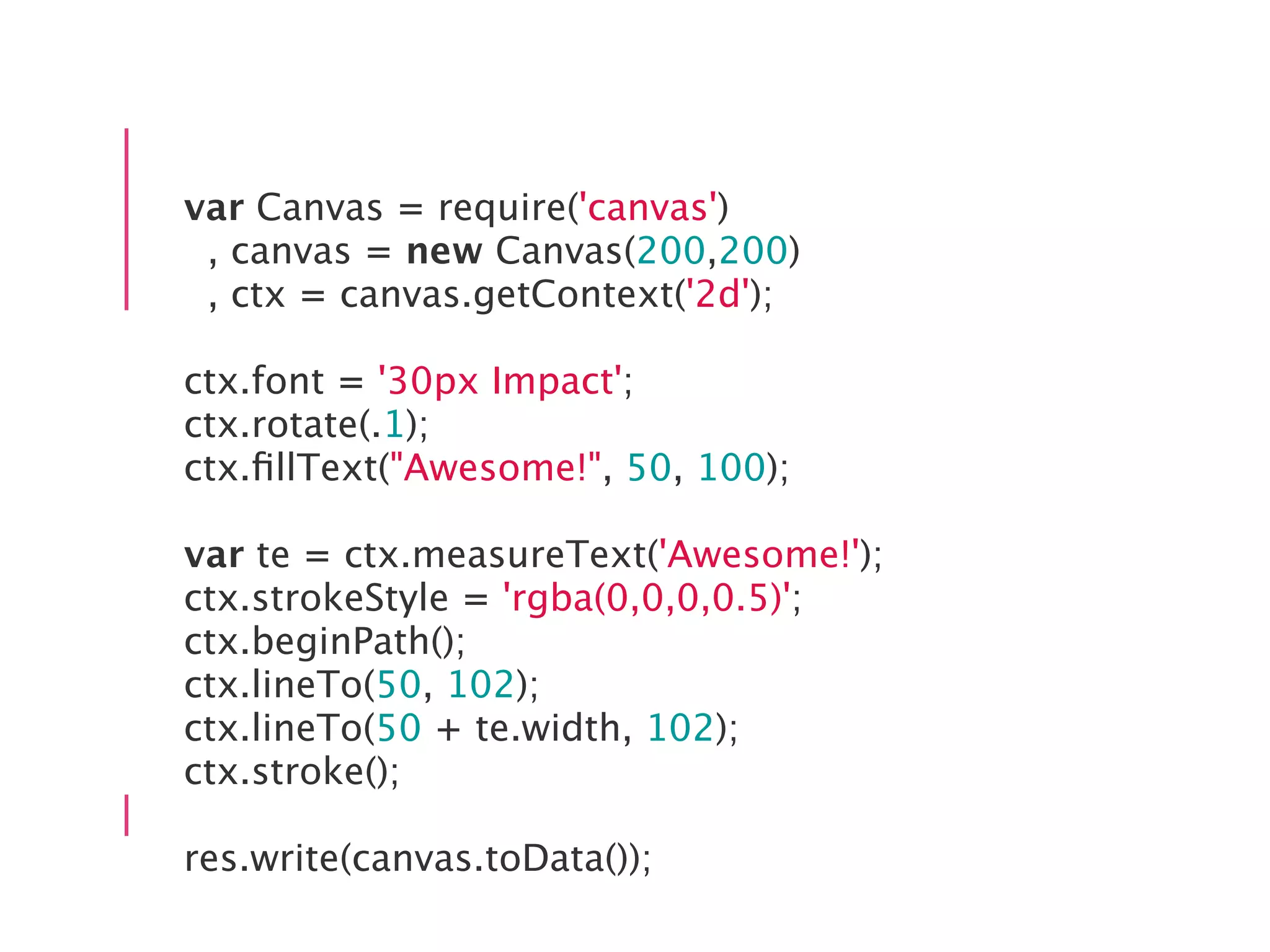

- 46. var Canvas = require('canvas') , canvas = new Canvas(200,200) , ctx = canvas.getContext('2d'); ctx.font = '30px Impact'; ctx.rotate(.1); ctx.fillText("Awesome!", 50, 100); var te = ctx.measureText('Awesome!'); ctx.strokeStyle = 'rgba(0,0,0,0.5)'; ctx.beginPath(); ctx.lineTo(50, 102); ctx.lineTo(50 + te.width, 102); ctx.stroke(); res.write(canvas.toData());

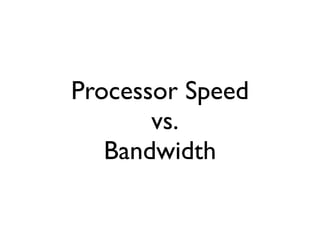

- 47. Processor Speed vs. Bandwidth

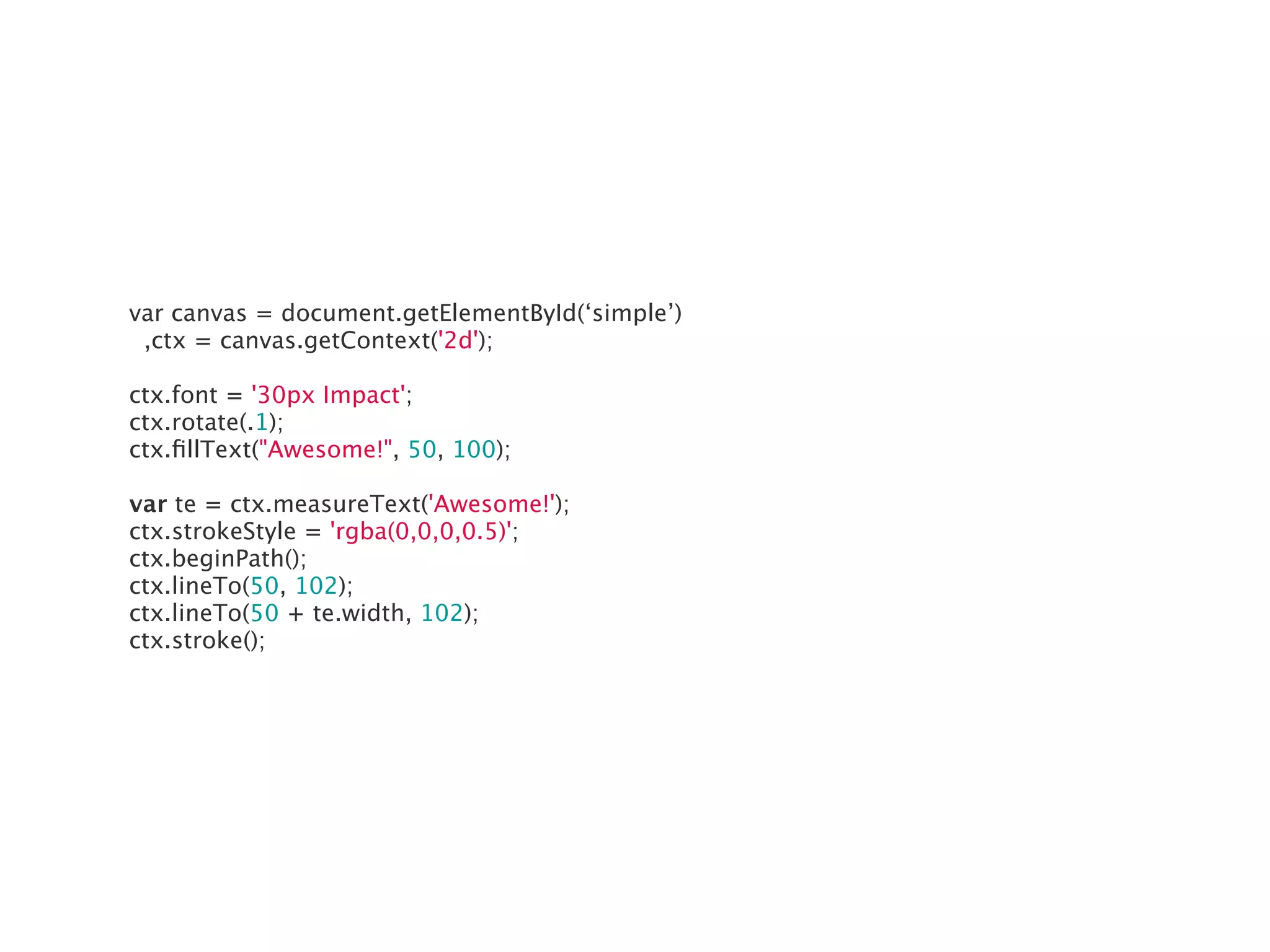

- 49. var canvas = document.getElementById(‘simple’) ,ctx = canvas.getContext('2d'); ctx.font = '30px Impact'; ctx.rotate(.1); ctx.fillText("Awesome!", 50, 100); var te = ctx.measureText('Awesome!'); ctx.strokeStyle = 'rgba(0,0,0,0.5)'; ctx.beginPath(); ctx.lineTo(50, 102); ctx.lineTo(50 + te.width, 102); ctx.stroke();

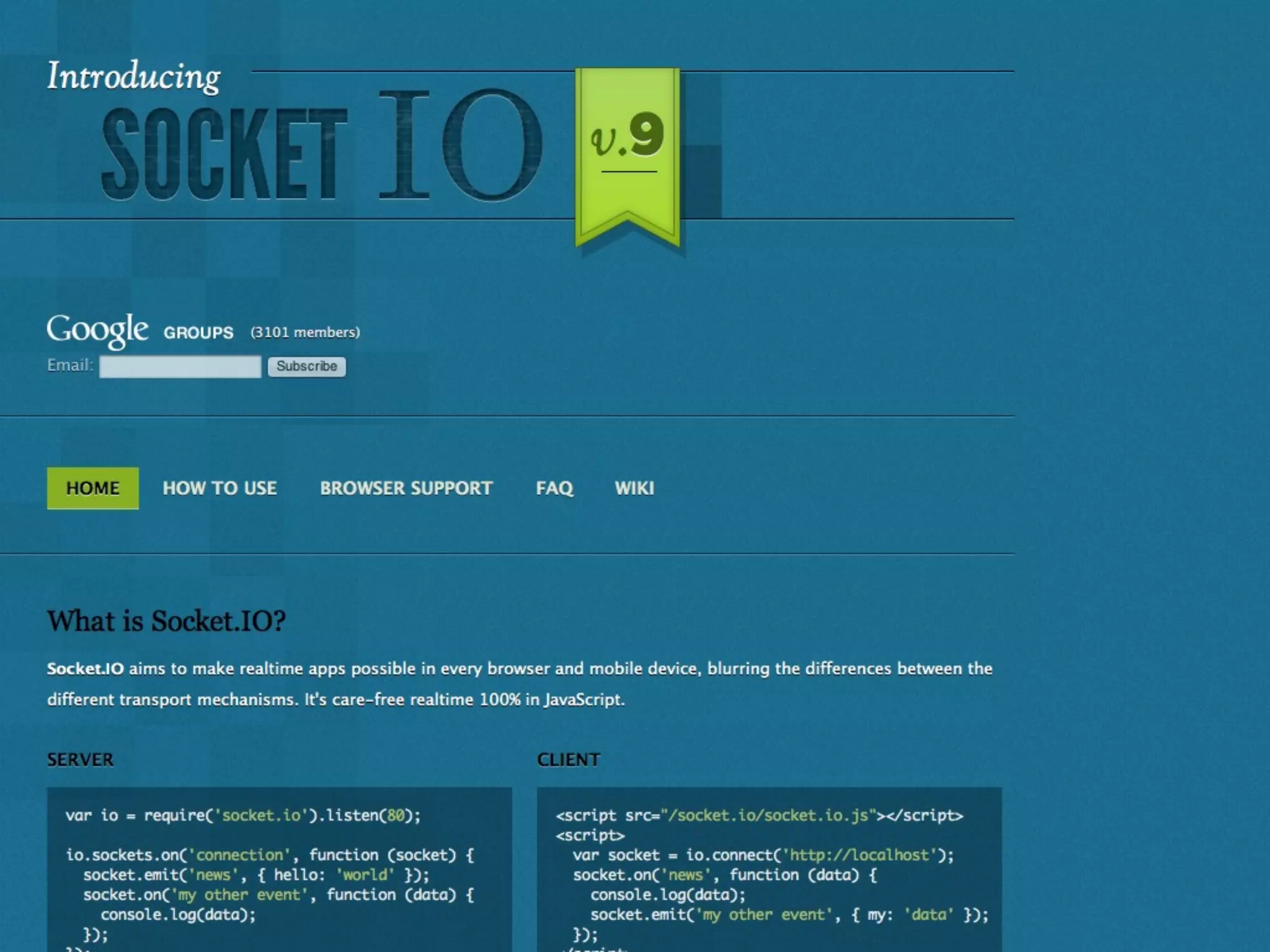

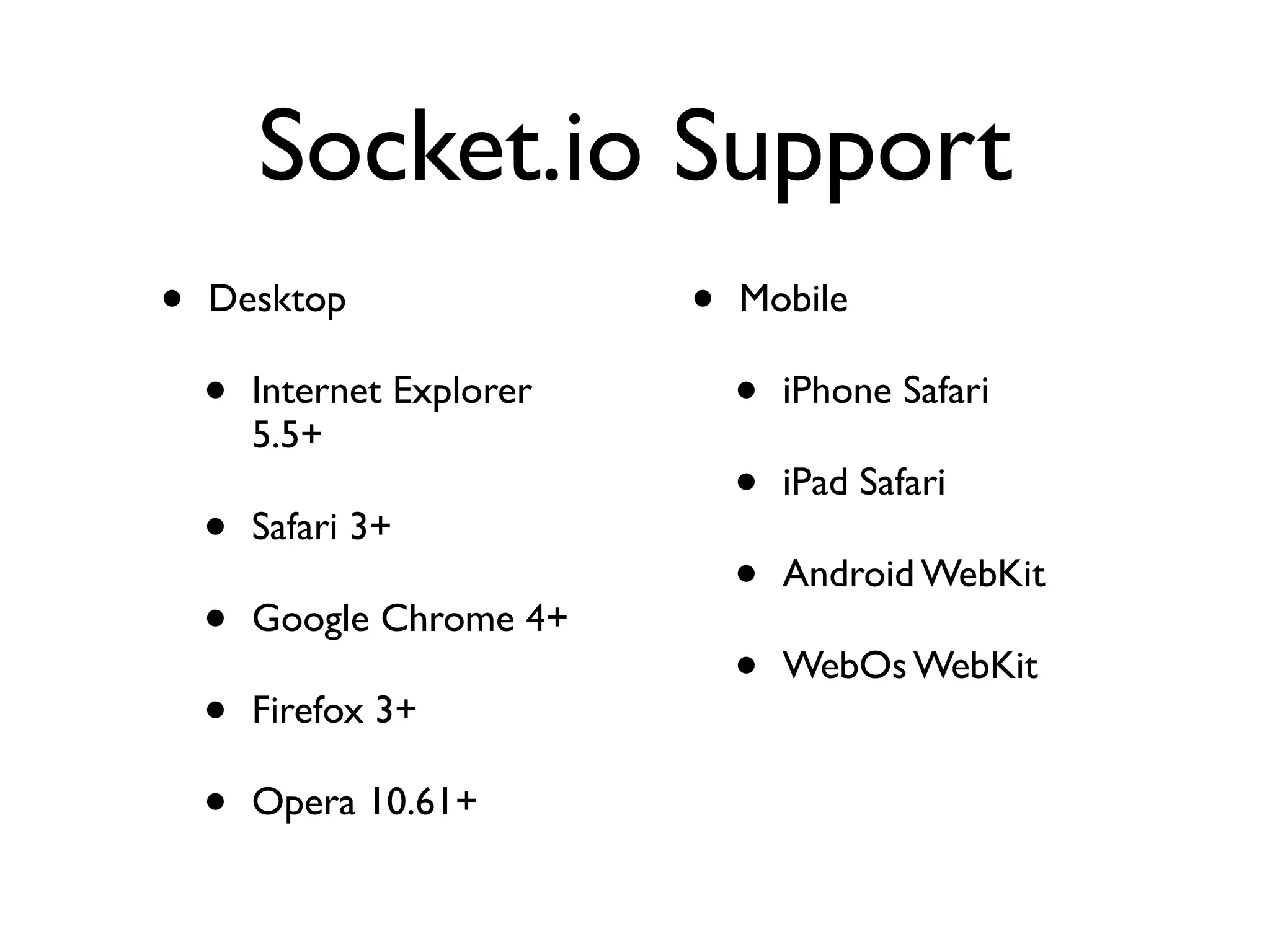

- 53. Socket.io Support • Desktop • Mobile • Internet Explorer • iPhone Safari 5.5+ • iPad Safari • Safari 3+ • Android WebKit • Google Chrome 4+ • WebOs WebKit • Firefox 3+ • Opera 10.61+

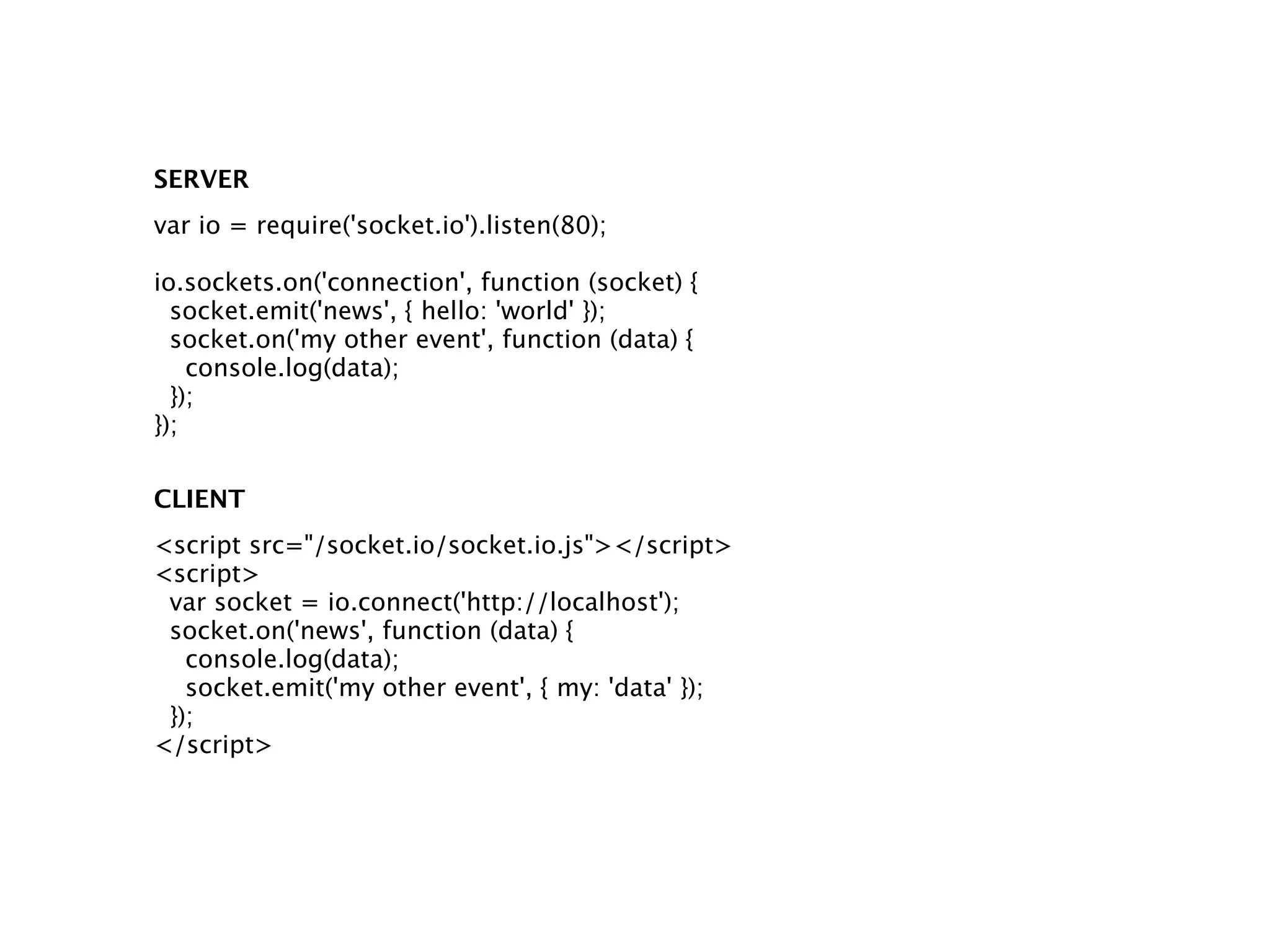

- 54. SERVER var io = require('socket.io').listen(80); io.sockets.on('connection', function (socket) { socket.emit('news', { hello: 'world' }); socket.on('my other event', function (data) { console.log(data); }); }); CLIENT <script src="/socket.io/socket.io.js"></script> <script> var socket = io.connect('http://localhost'); socket.on('news', function (data) { console.log(data); socket.emit('my other event', { my: 'data' }); }); </script>
- 55. Conclusion
- 56. #1 1st load on server #2 Modules with JS-MVC #3 Server-side fallbacks Questions? Follow me at @sh1mmer
