Docker Mentor Week
16-11-16
@walidshaari
#learndocker
Save the date for DockerCon 2017
April 17-20
DHAHRAN
http://katacoda.com/courses/docker/mentor-week
http://katacoda.com/courses/docker/mentor-week-cluster
http://play-with-docker.com
§ 100+ MentorWeek events!
§ 6000+ RSVPs
§ 400+ mentors
§ Big thanks to our global sponsors:

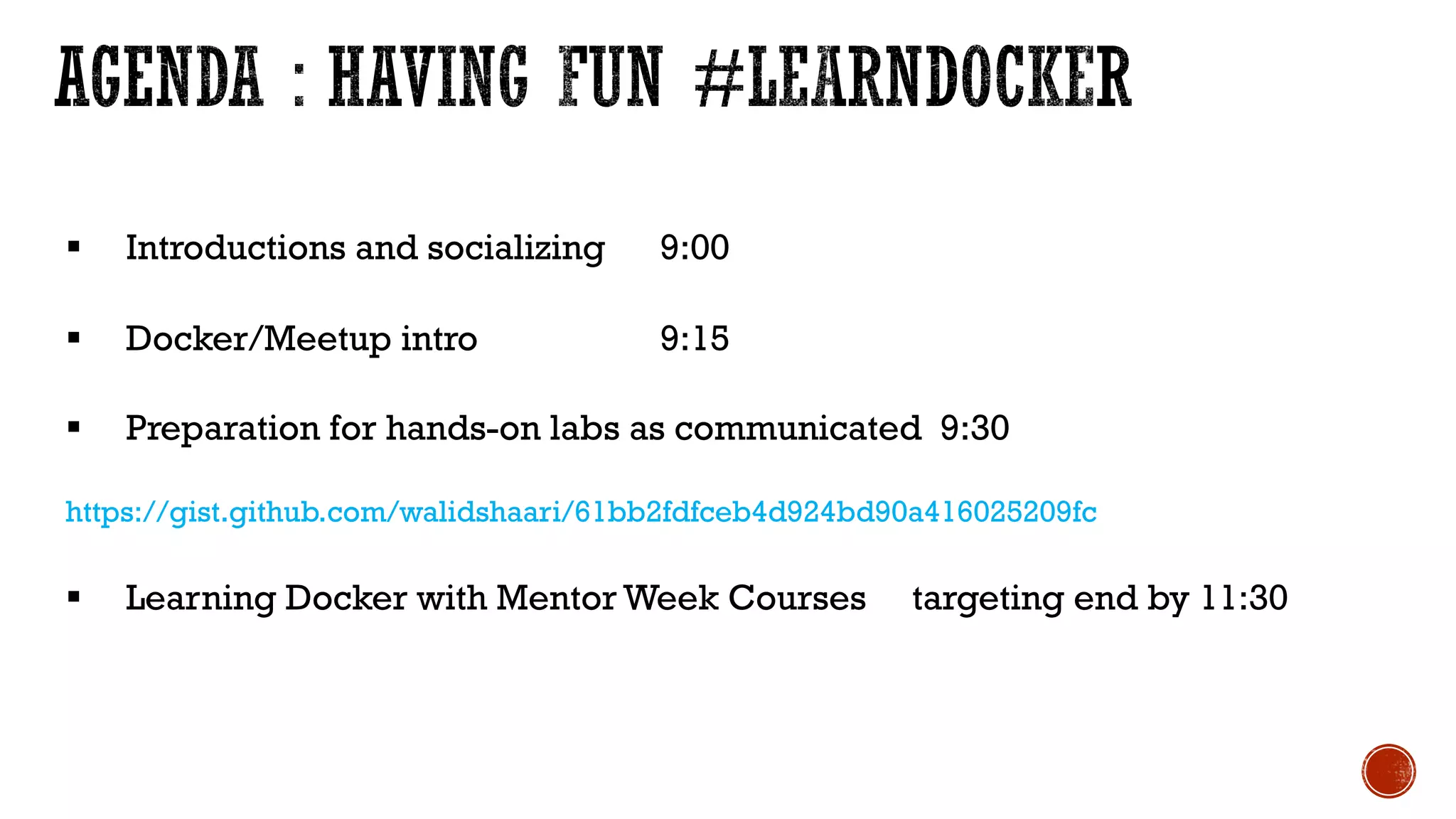

§ Introductions and socializing 9:00
§ Docker/Meetup intro 9:15
§ Preparation for hands-on labs as communicated 9:30
https://gist.github.com/walidshaari/61bb2fdfceb4d924bd90a416025209fc
§ Learning Docker with Mentor Week Courses targeting end by 11:30

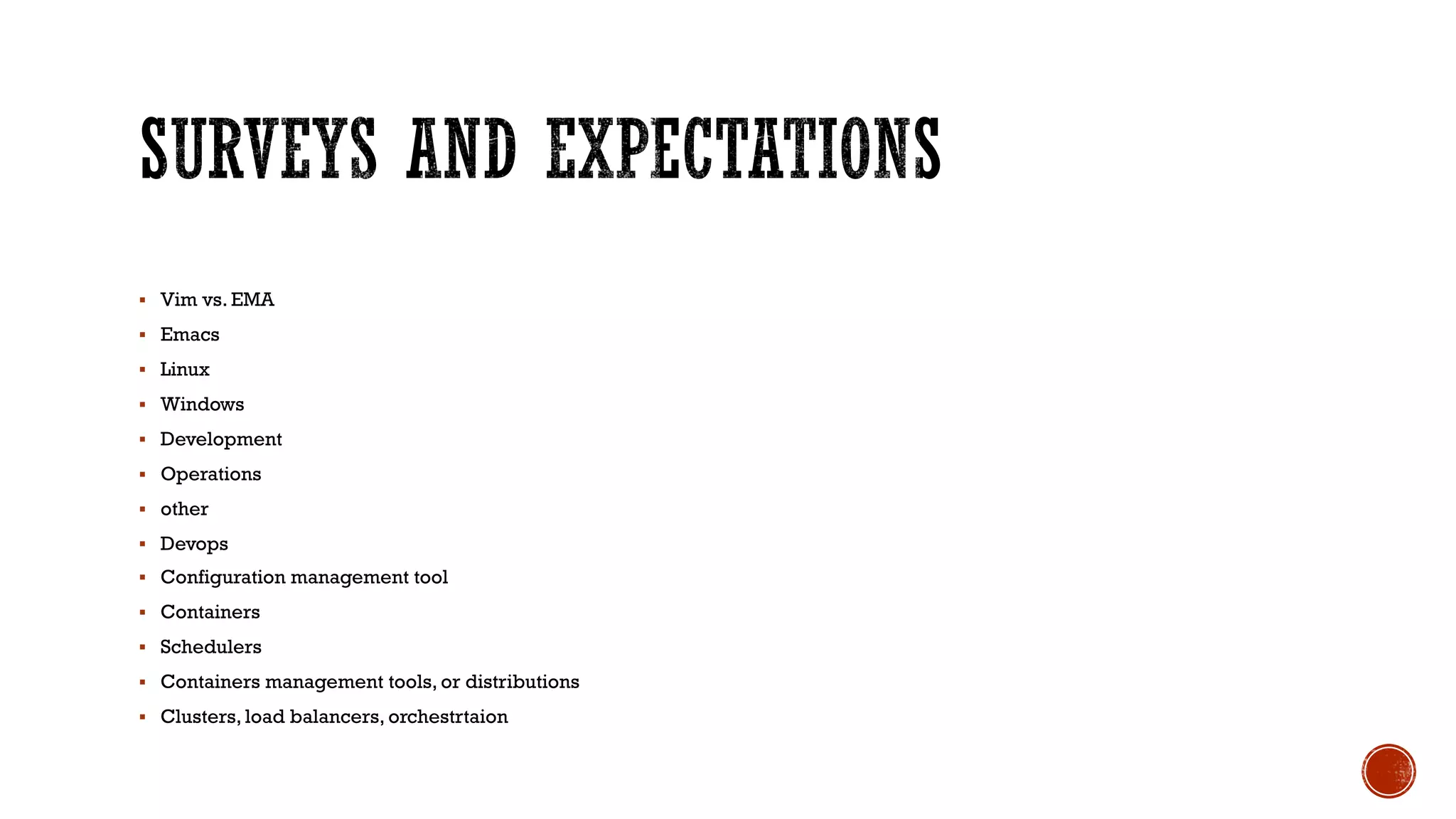

§ Vim vs. EMA
§ Emacs
§ Linux
§ Windows
§ Development
§ Operations
§ other
§ Devops
§ Configuration management tool
§ Containers
§ Schedulers
§ Containers management tools, or distributions
§ Clusters, load balancers, orchestrtaion
© 2013-2016 Docker, Inc. All rights reserved
1. Introduction to Docker

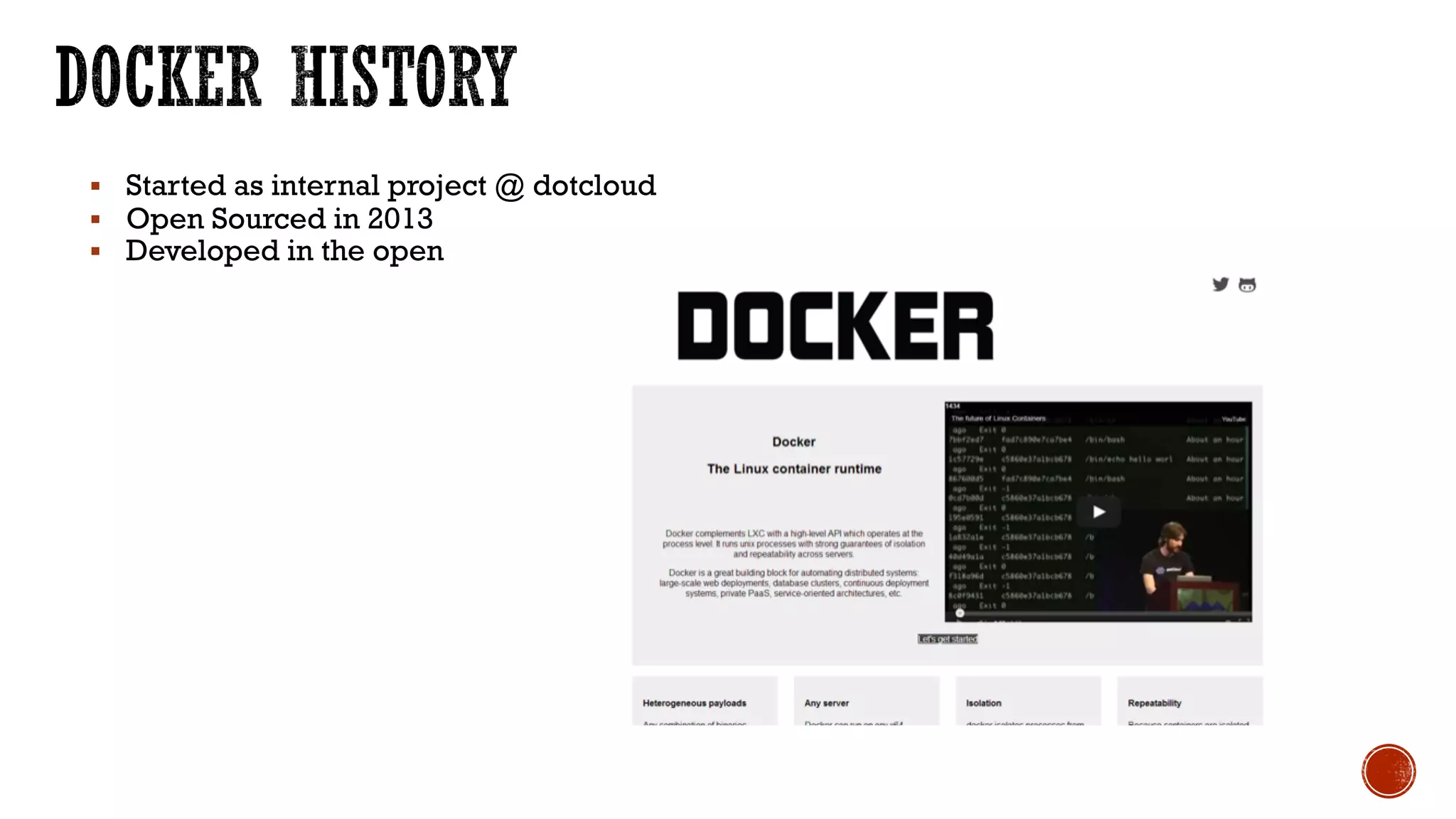

§ Started as internal project @ dotcloud
§ Open Sourced in 2013
§ Developed in the open

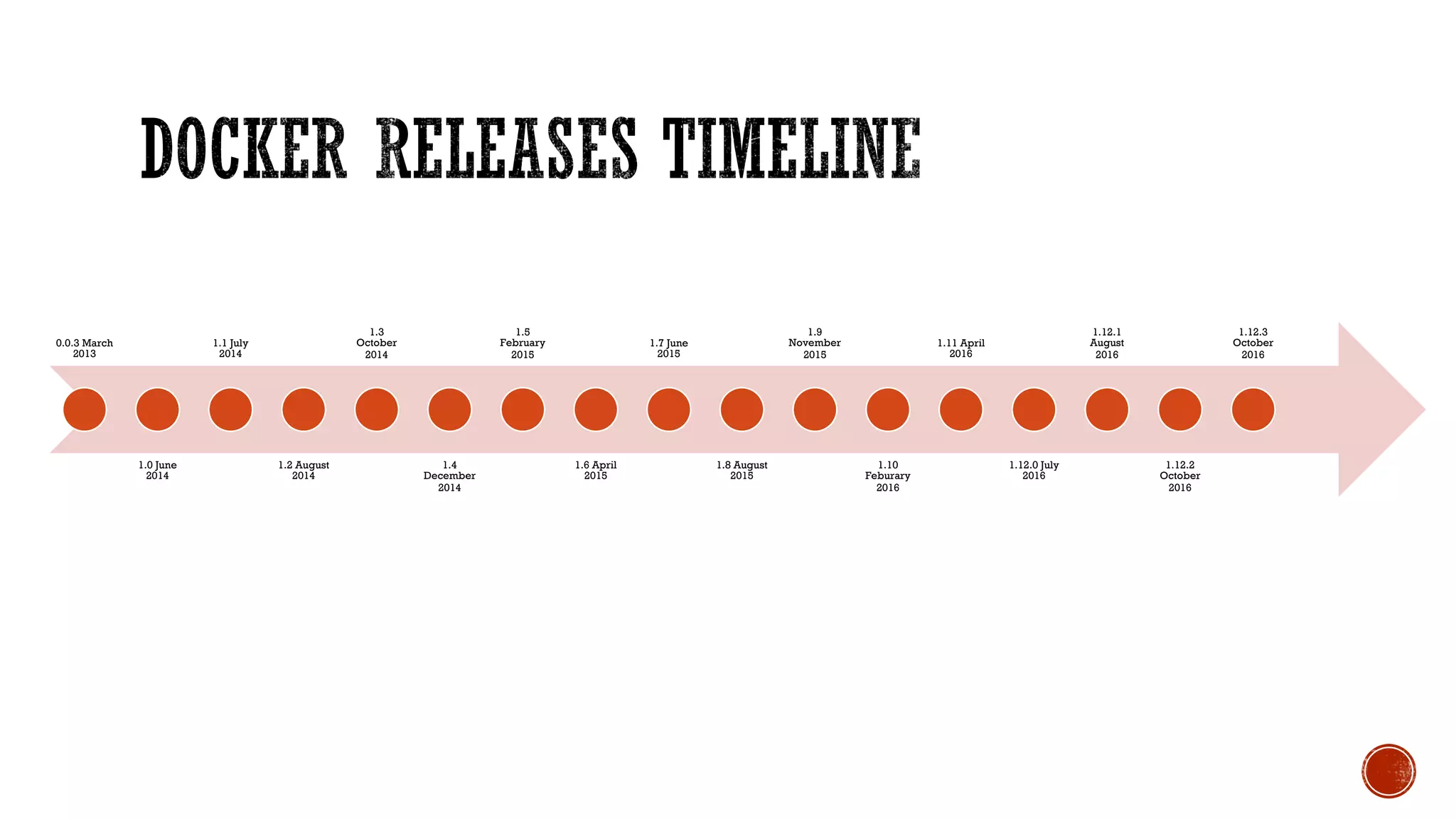

0.0.3 March
2013
1.0 June
2014
1.1 July
2014
1.2 August
2014
1.3
October
2014
1.4
December
2014
1.5
February
2015
1.6 April
2015
1.7 June
2015
1.8 August
2015
1.9
November
2015
1.10
Feburary
2016
1.11 April
2016
1.12.0 July
2016
1.12.1
August
2016
1.12.2
October
2016
1.12.3
October
2016
12

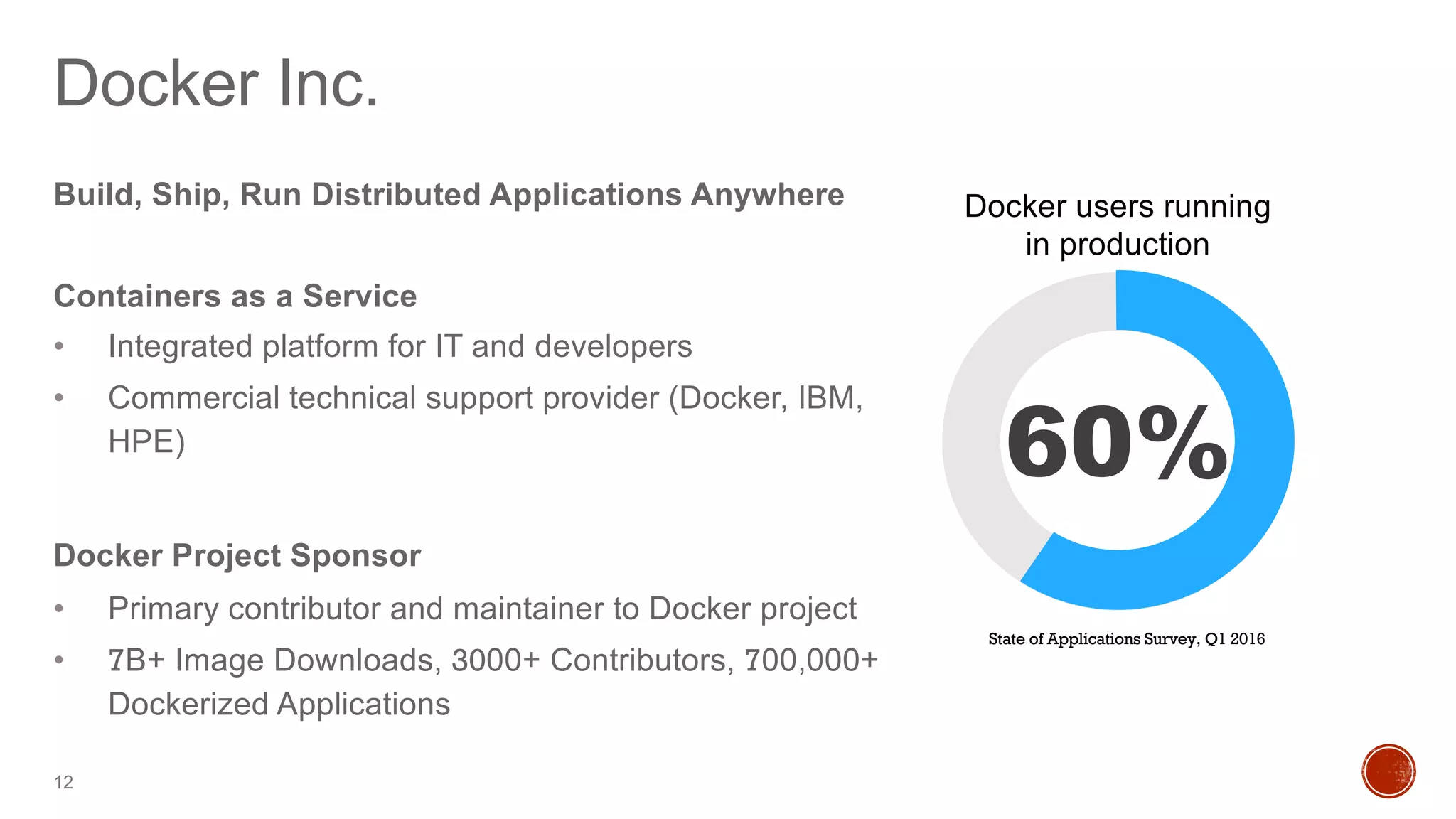

Build, Ship, Run Distributed Applications Anywhere
Containers as a Service
• Integrated platform for IT and developers
• Commercial technical support provider (Docker, IBM,
HPE)
Docker Project Sponsor
• Primary contributor and maintainer to Docker project
• 7B+ Image Downloads, 3000+ Contributors, 700,000+
Dockerized Applications
Docker Inc.
State of Applications Survey, Q1 2016
Docker users running
in production
60%

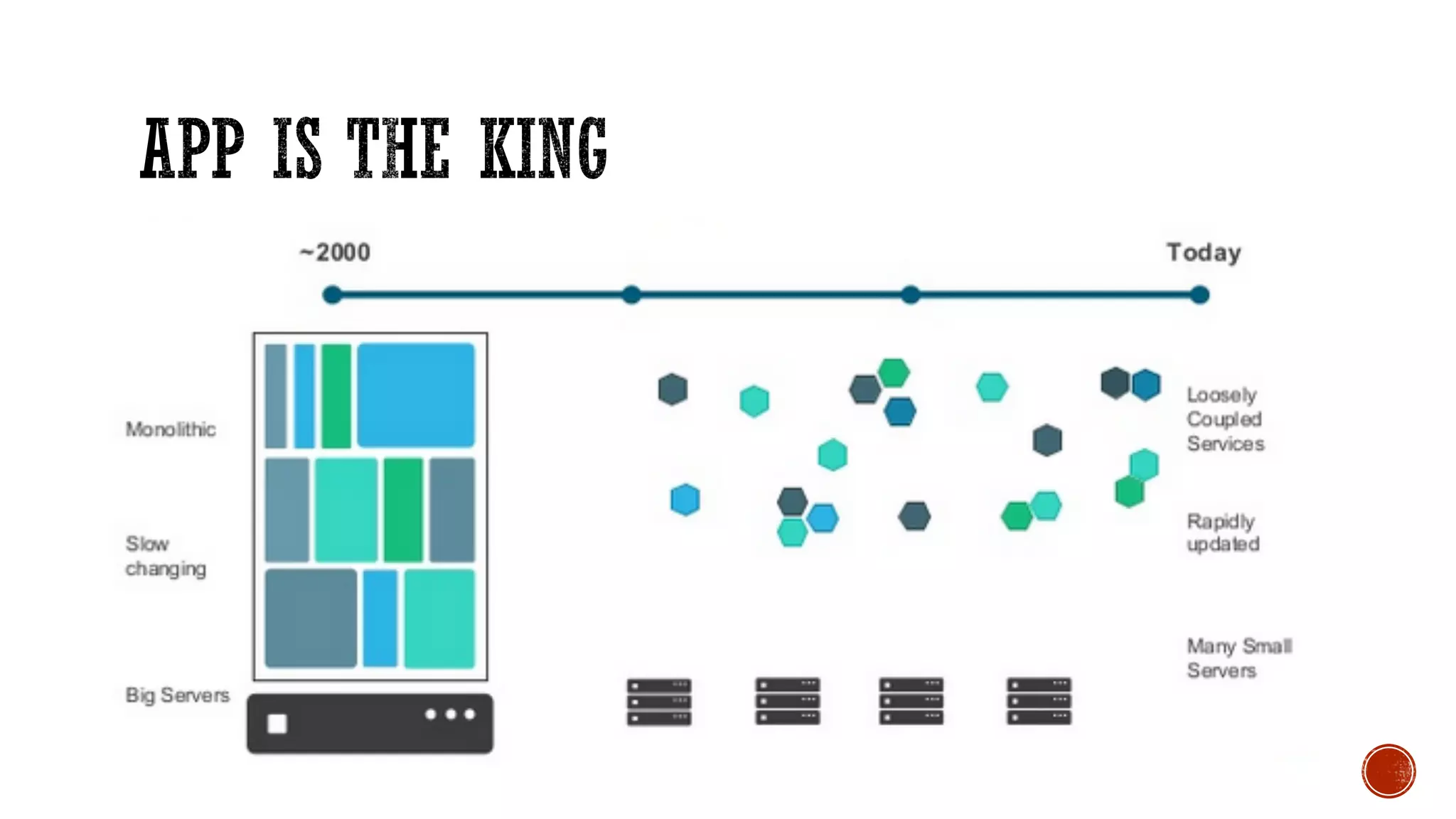

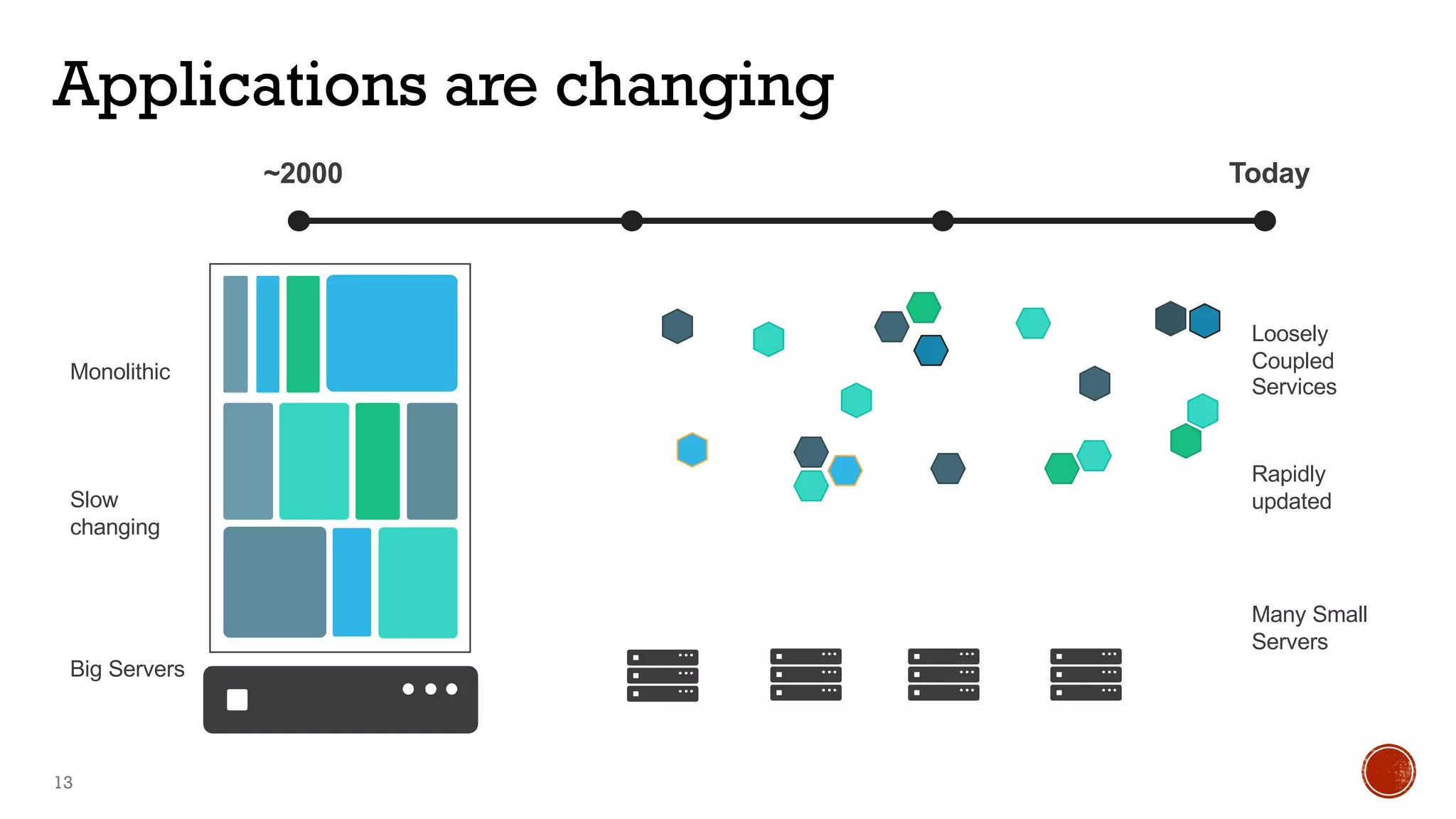

Applications are changing
13
Loosely
Coupled
Services
Many Small
Servers
~2000 Today
Monolithic
Big Servers
Slow
changing
Rapidly
updated

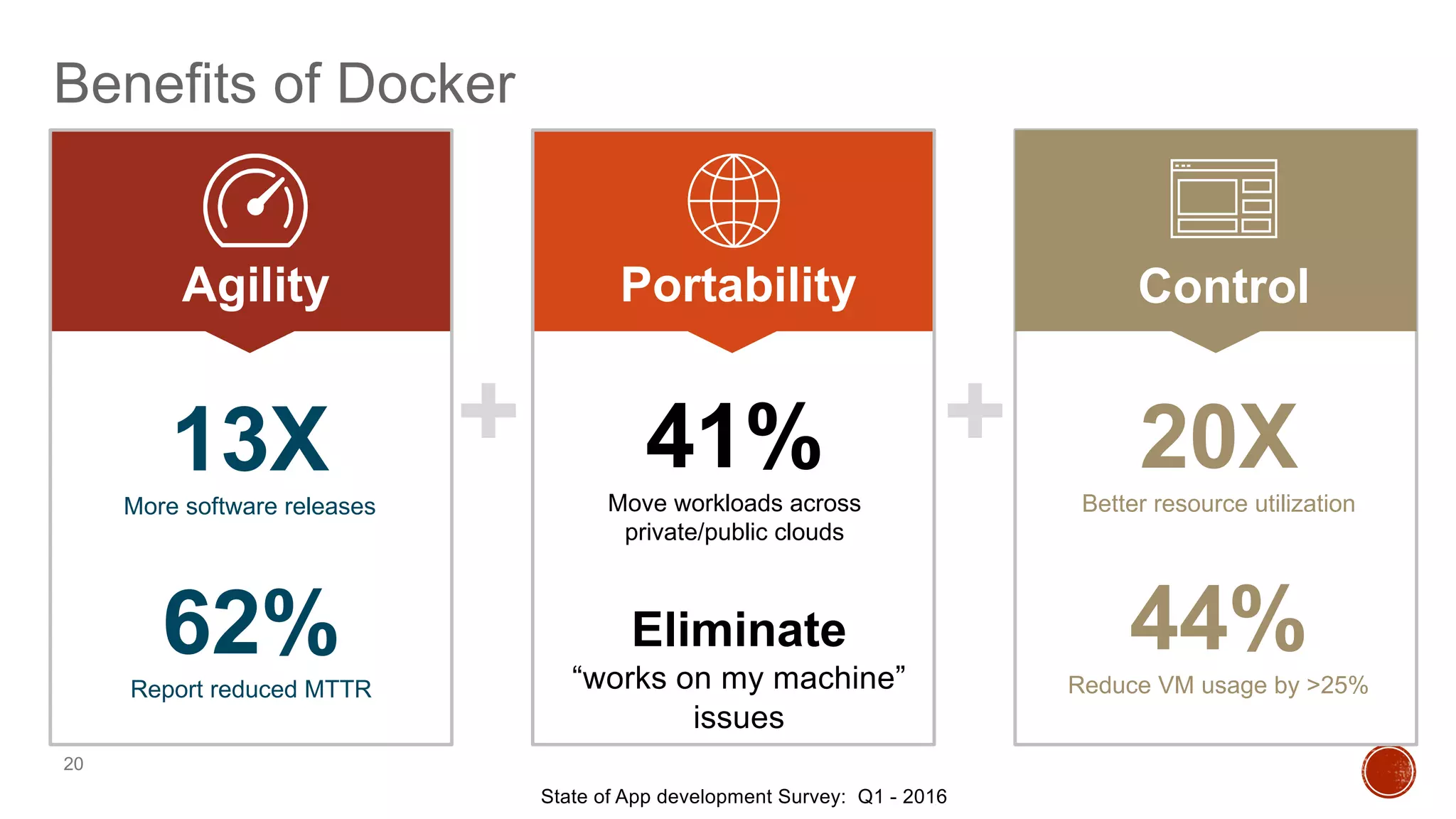

Benefits of Docker
20
+ +
Agility Portability Control
State of App development Survey: Q1 - 2016
13XMore software releases
20XBetter resource utilization
44%Reduce VM usage by >25%
Eliminate
“works on my machine”
issues
41%Move workloads across
private/public clouds
62%Report reduced MTTR
© 2013-2016 Docker, Inc. All rights reserved
2. Learn Docker with Mentor Week Courses

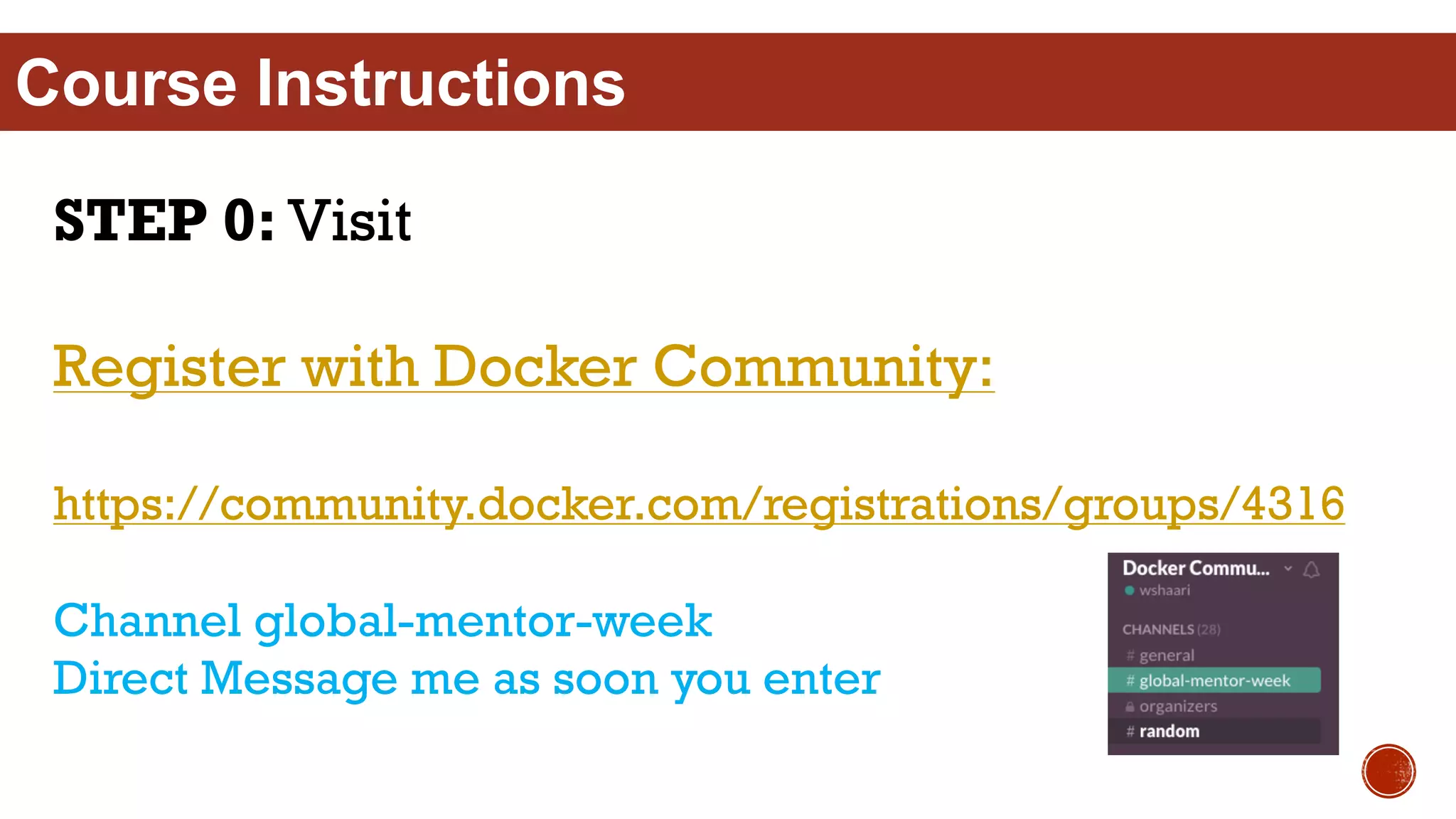

Course Instructions
STEP 0: Visit
Register with Docker Community:
https://community.docker.com/registrations/groups/4316
Channel global-mentor-week
Direct Message me as soon you enter

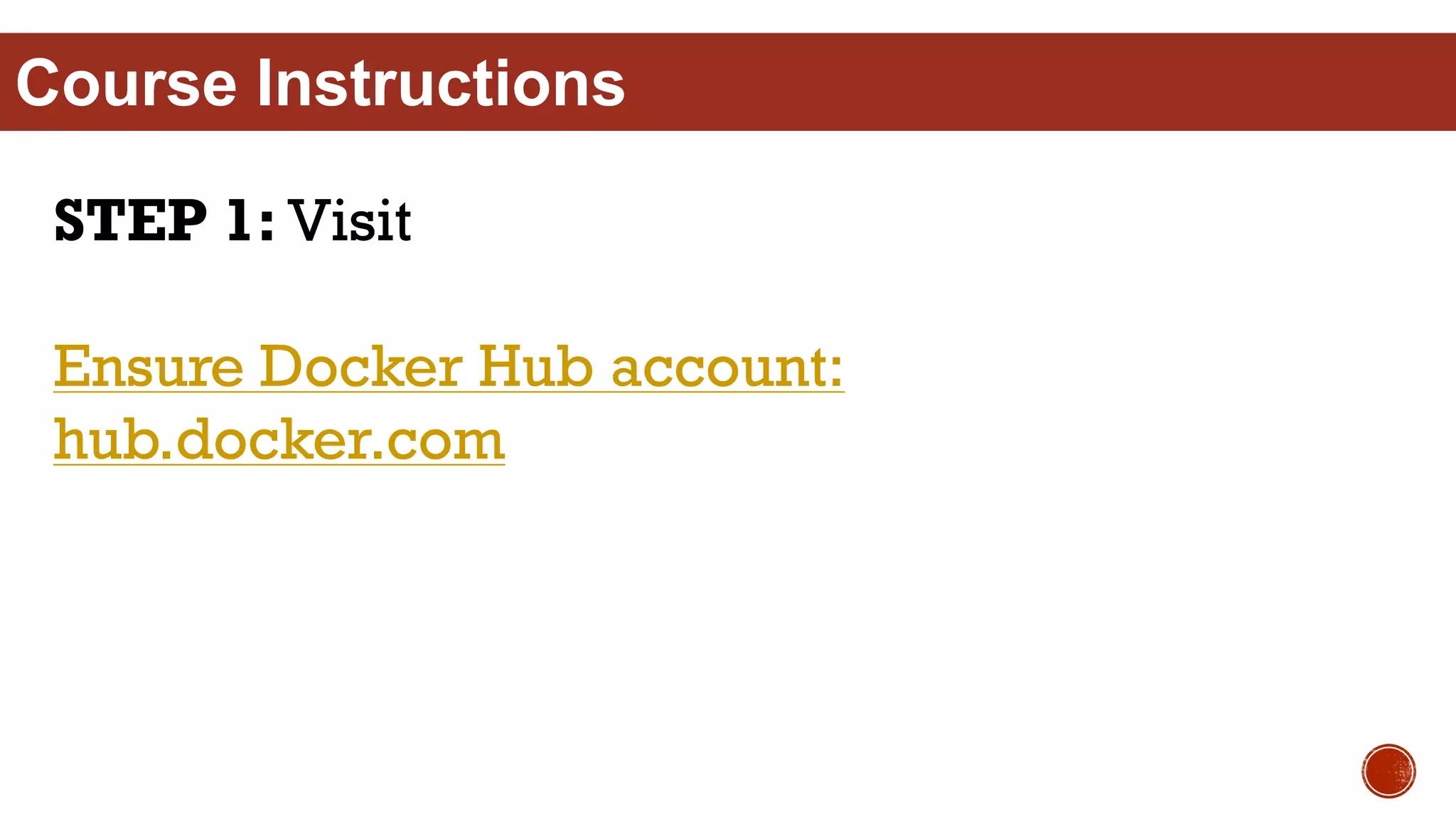

Course Instructions
STEP 1: Visit
Ensure Docker Hub account:
hub.docker.com
Course Instructions

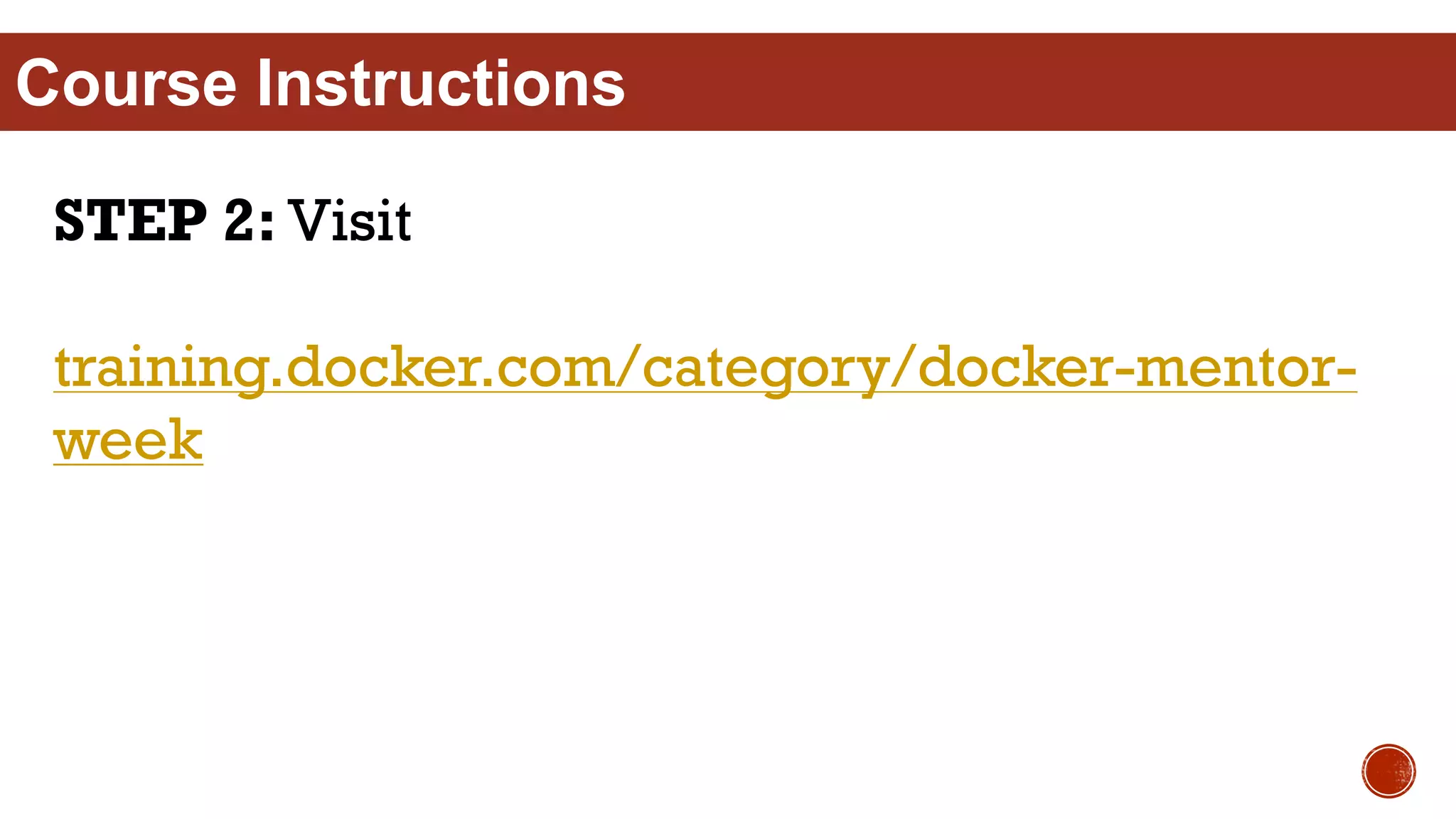

STEP 2: Visit
training.docker.com/category/docker-mentor-
week

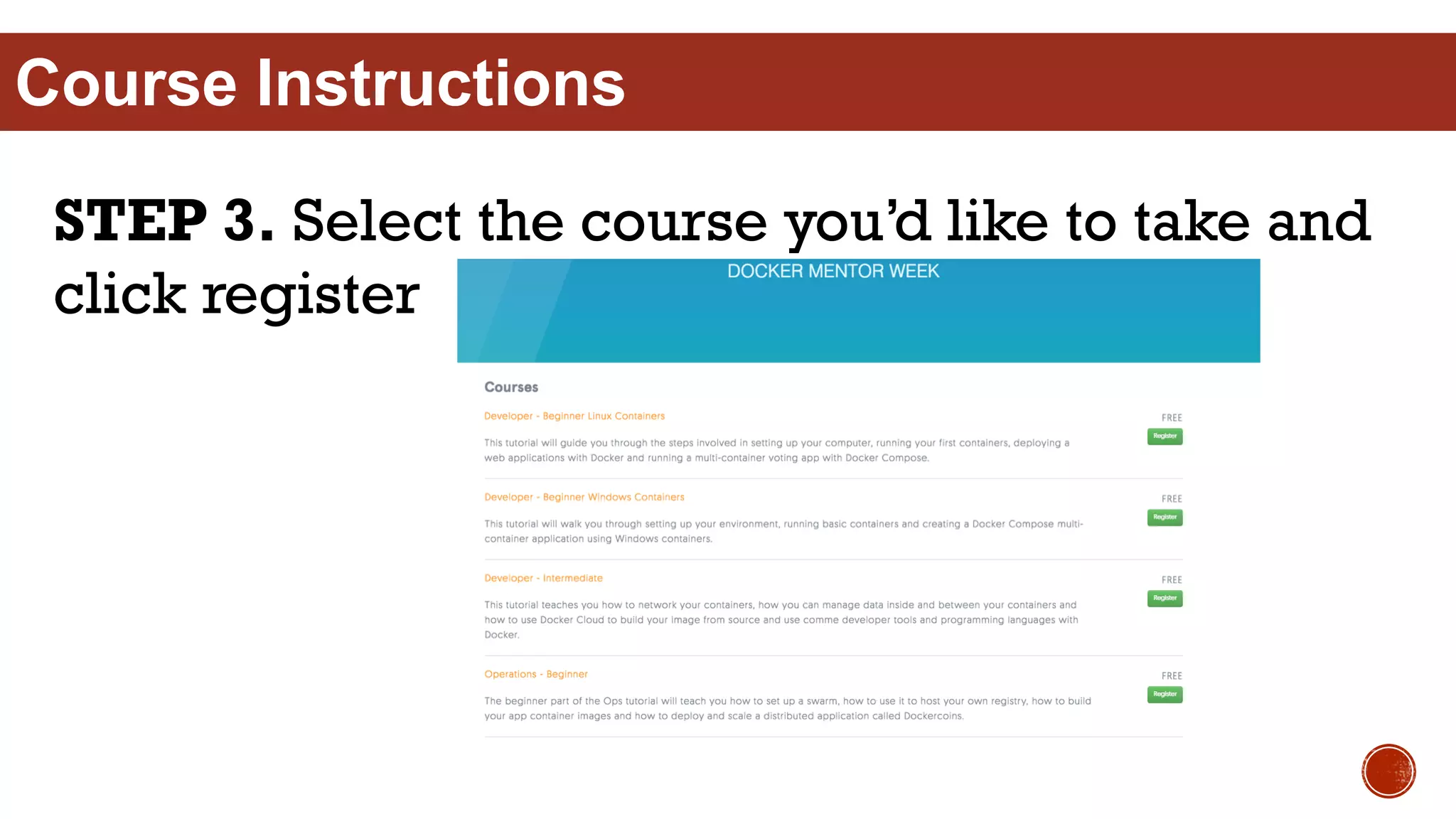

STEP 3. Select the course you’d like to take and
click register
Course Instructions

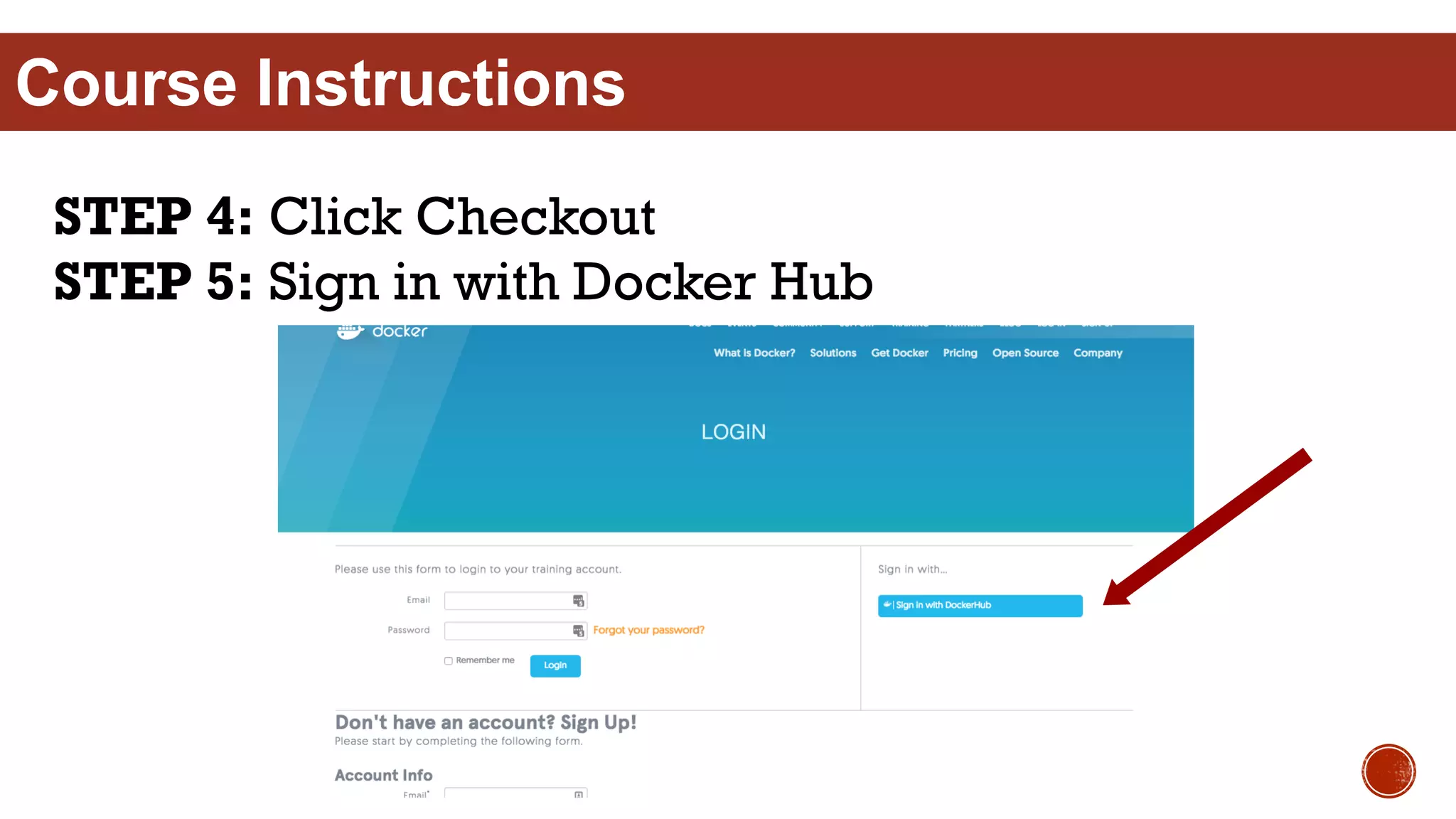

STEP 4: Click Checkout
STEP 5: Sign in with Docker Hub
Course Instructions

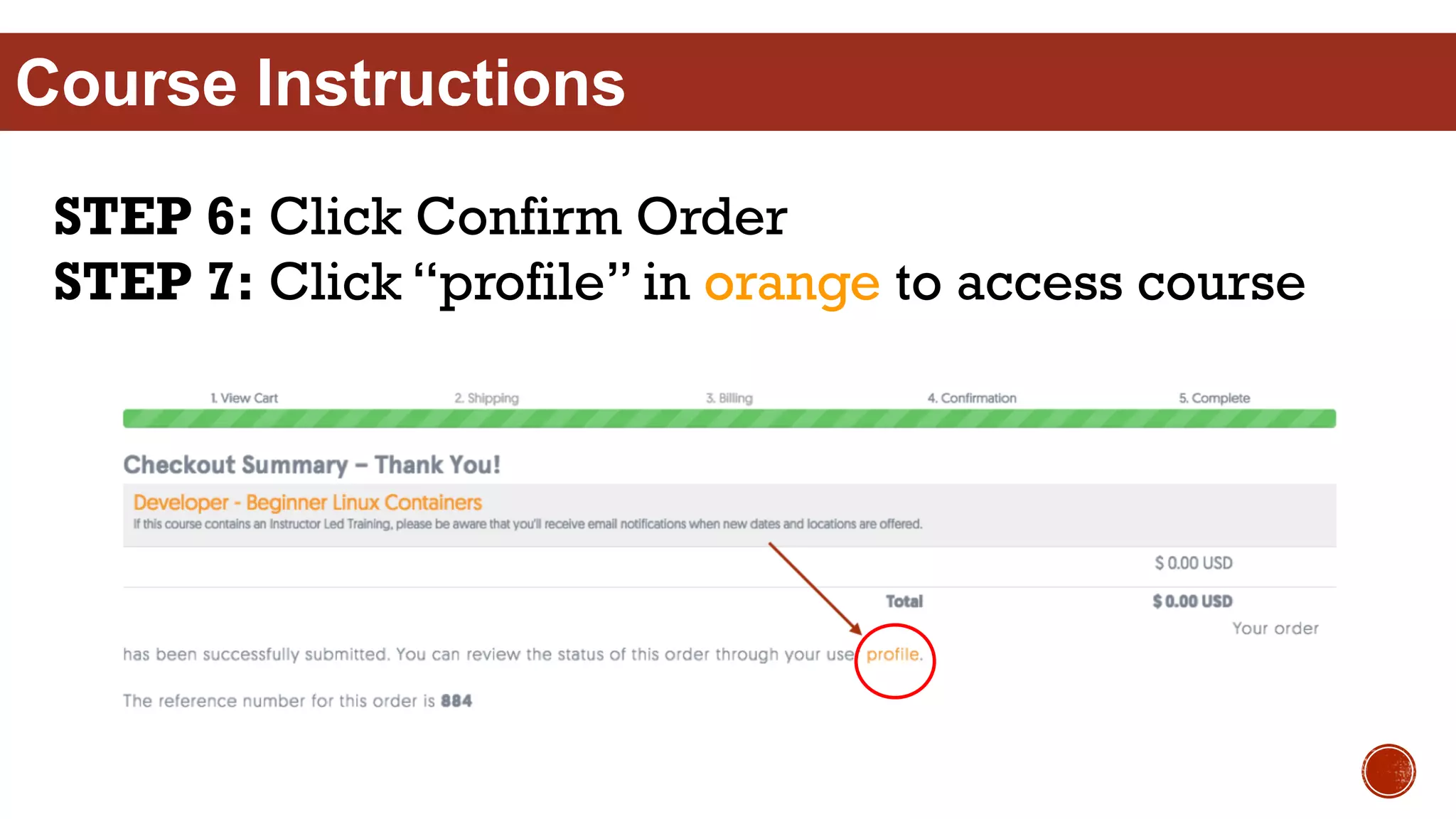

STEP 6: Click Confirm Order
STEP 7: Click “profile” in orange to access course
Course Instructions

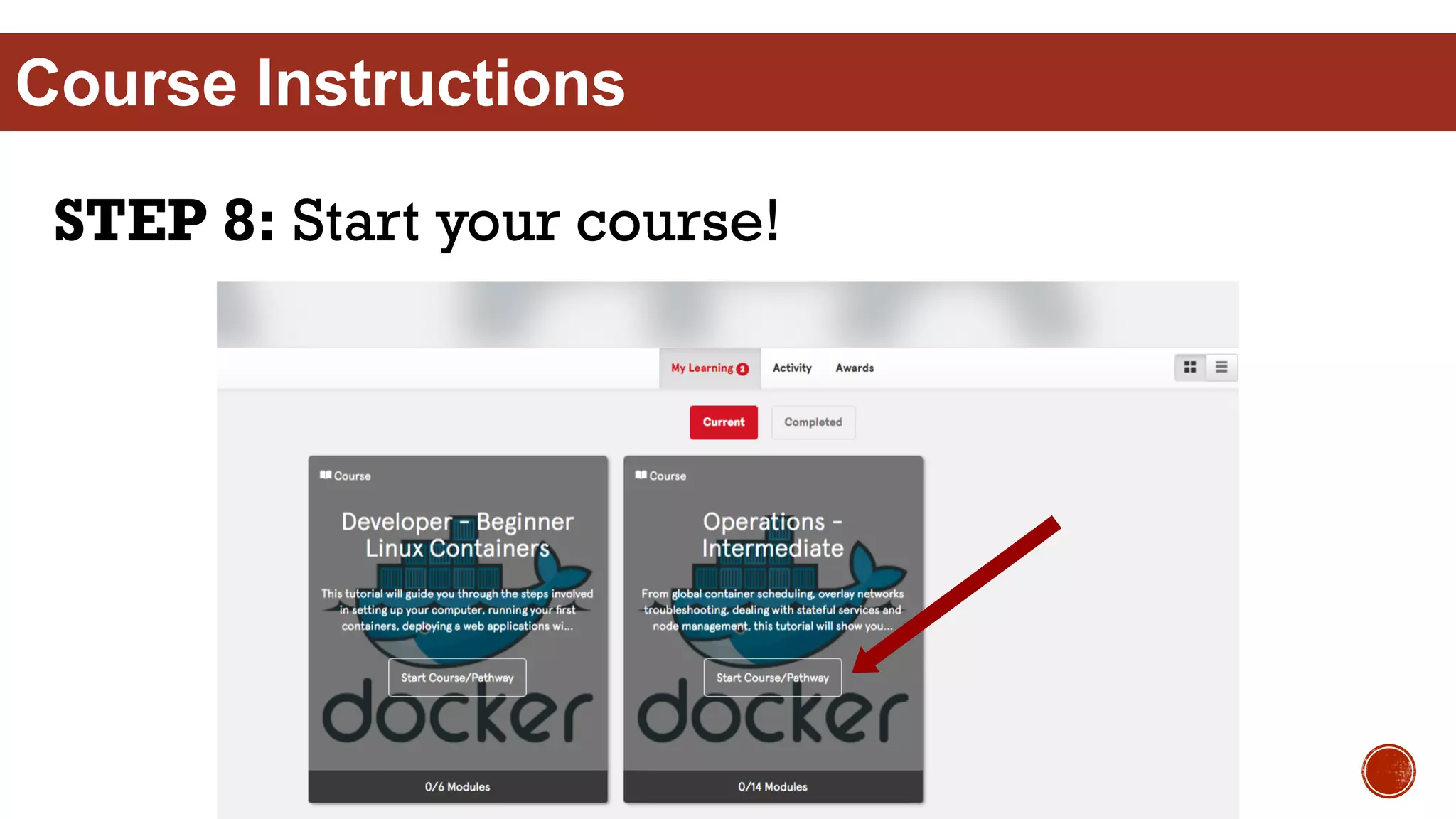

STEP 8: Start your course!
Course Instructions
Certificate of Course Completion

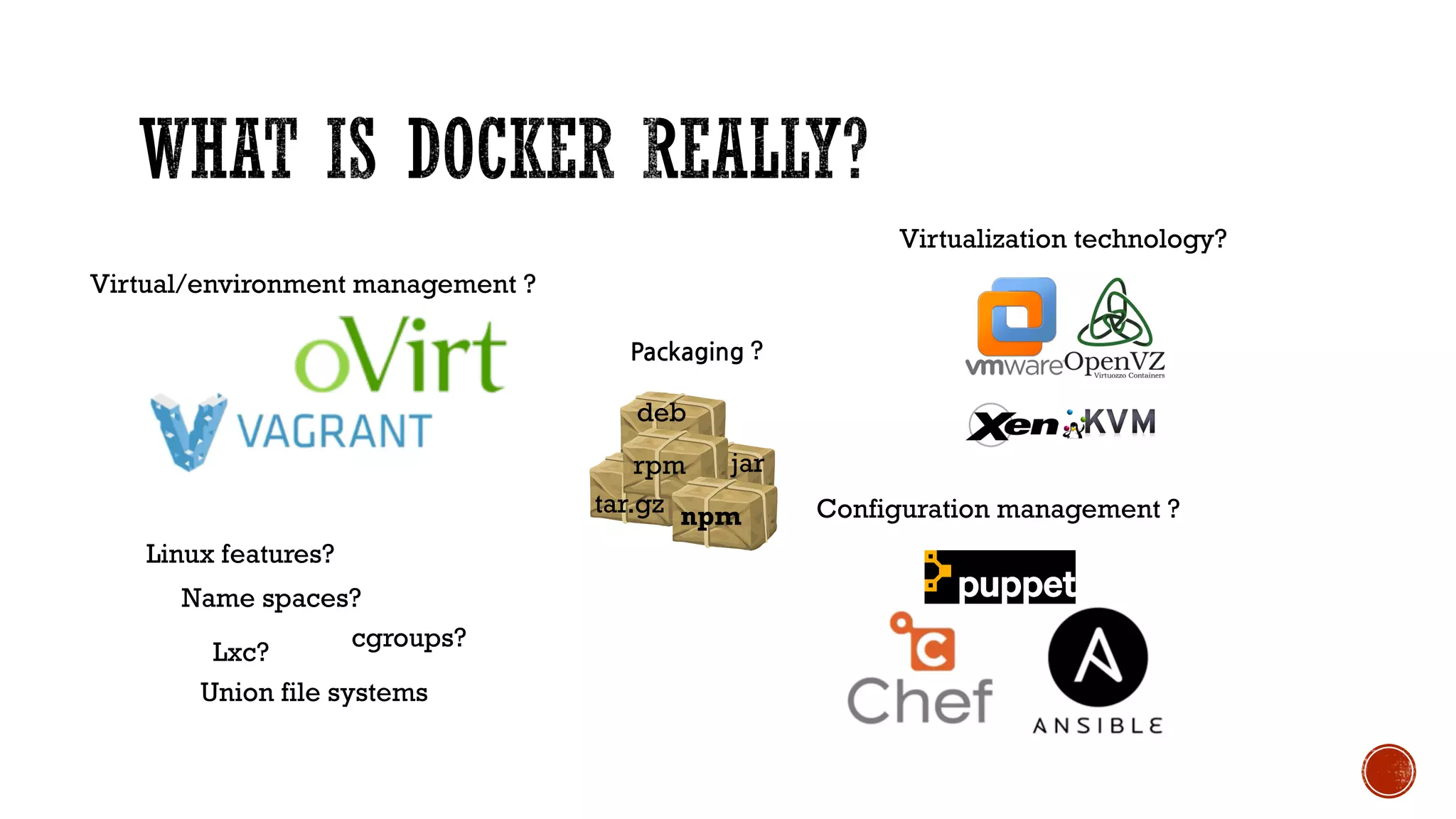

Linux features?
Name spaces?
cgroups?
Lxc?
Union file systems
Configuration management ?
Virtualization technology?
npm
jar
Packaging ?
rpm
deb
tar.gz
Virtual/environment management ?
Manual
configuration
Traditional VMs
Less Portable
Minimal overhead
Most Portable
Lots of overhead
Configuration
Management tools
Containers
Docker
Intel Clear
Containers

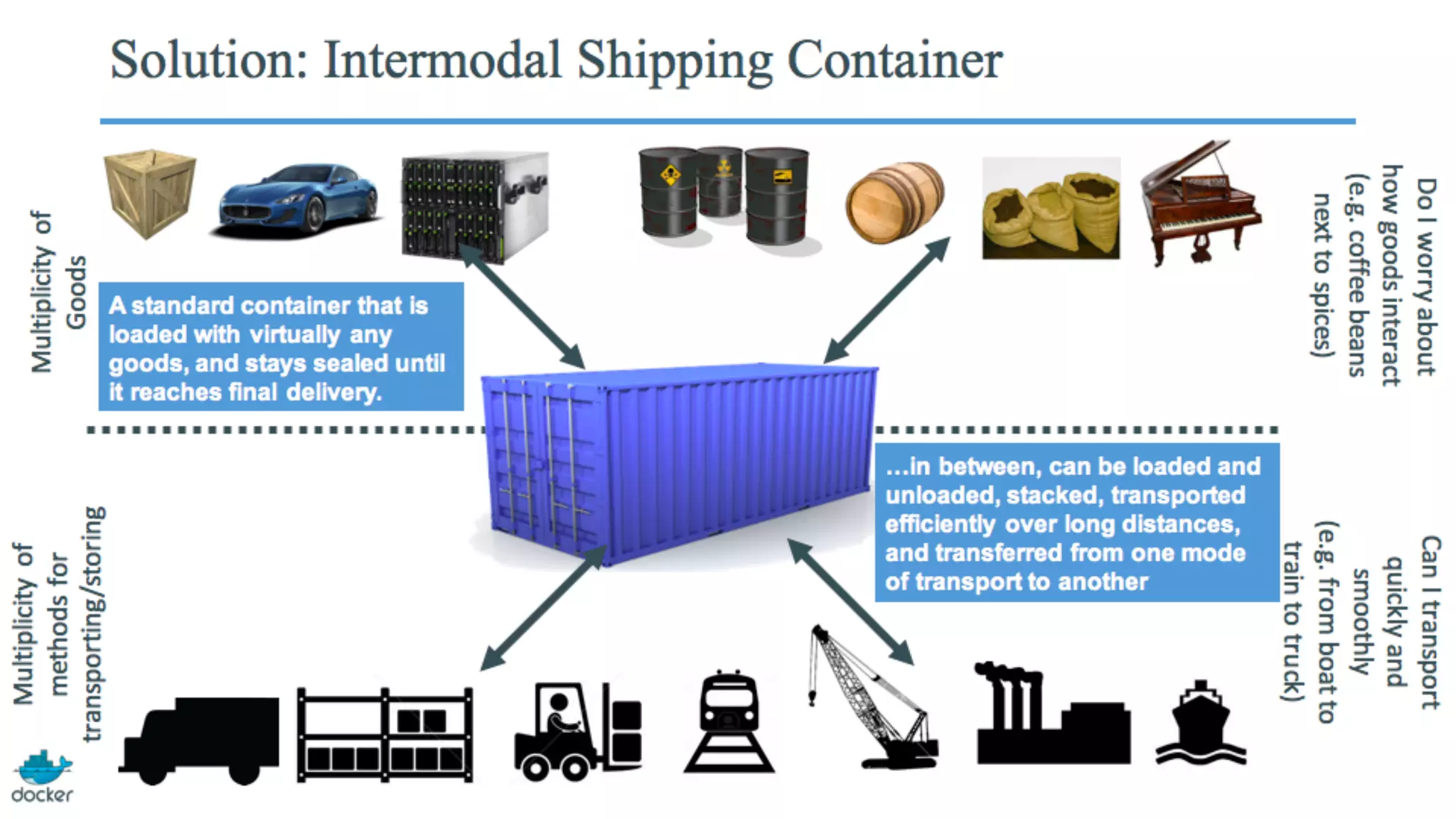

Container encapsulate an application completely with all of its
software dependencies into a standardized unit for software
portable across different platforms*.
https://www.docker.com/what-docker

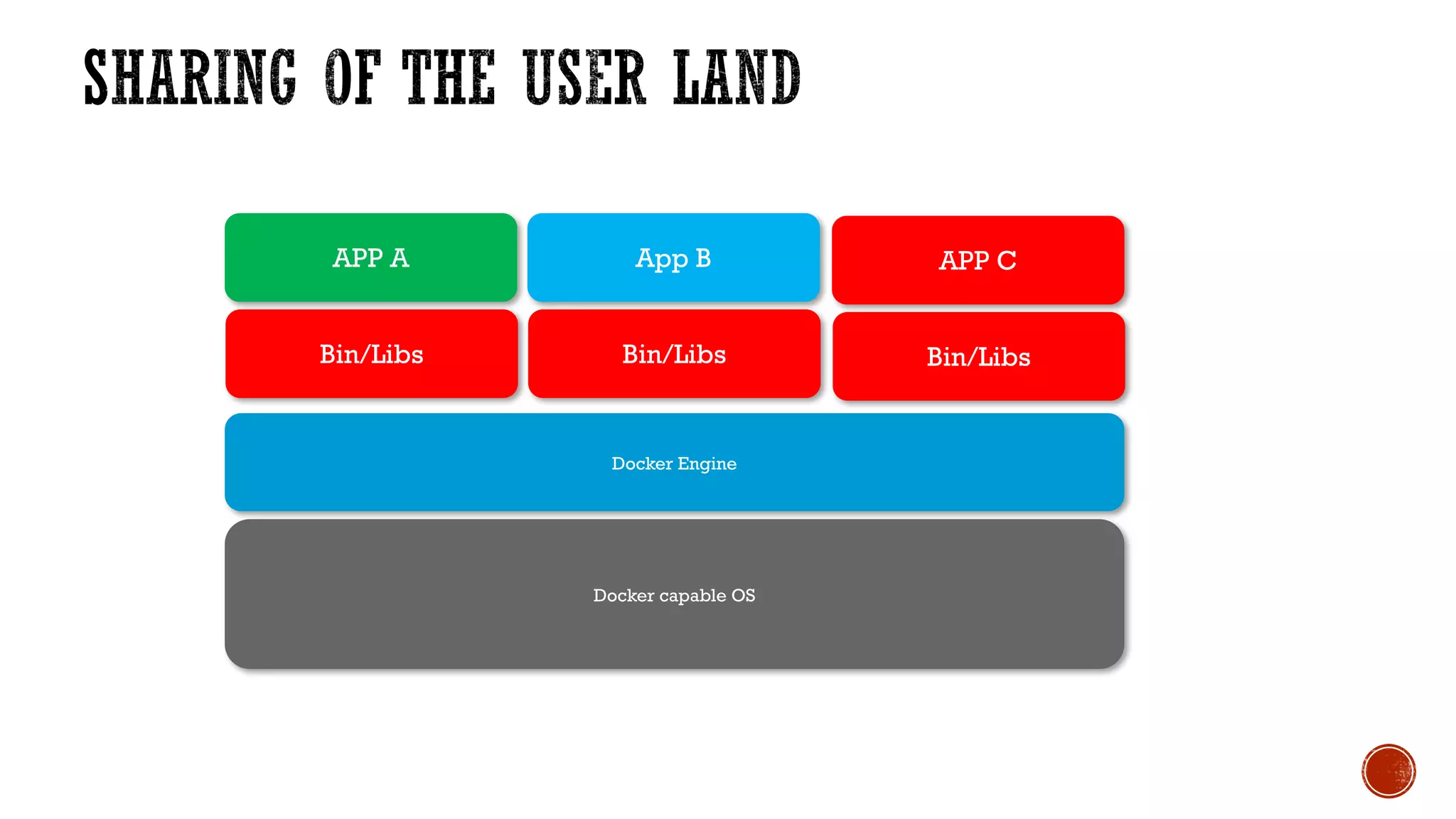

Bin/Libs
APP C
Docker Engine
Docker capable OS
Bin/Libs
App B
Bin/Libs
APP A

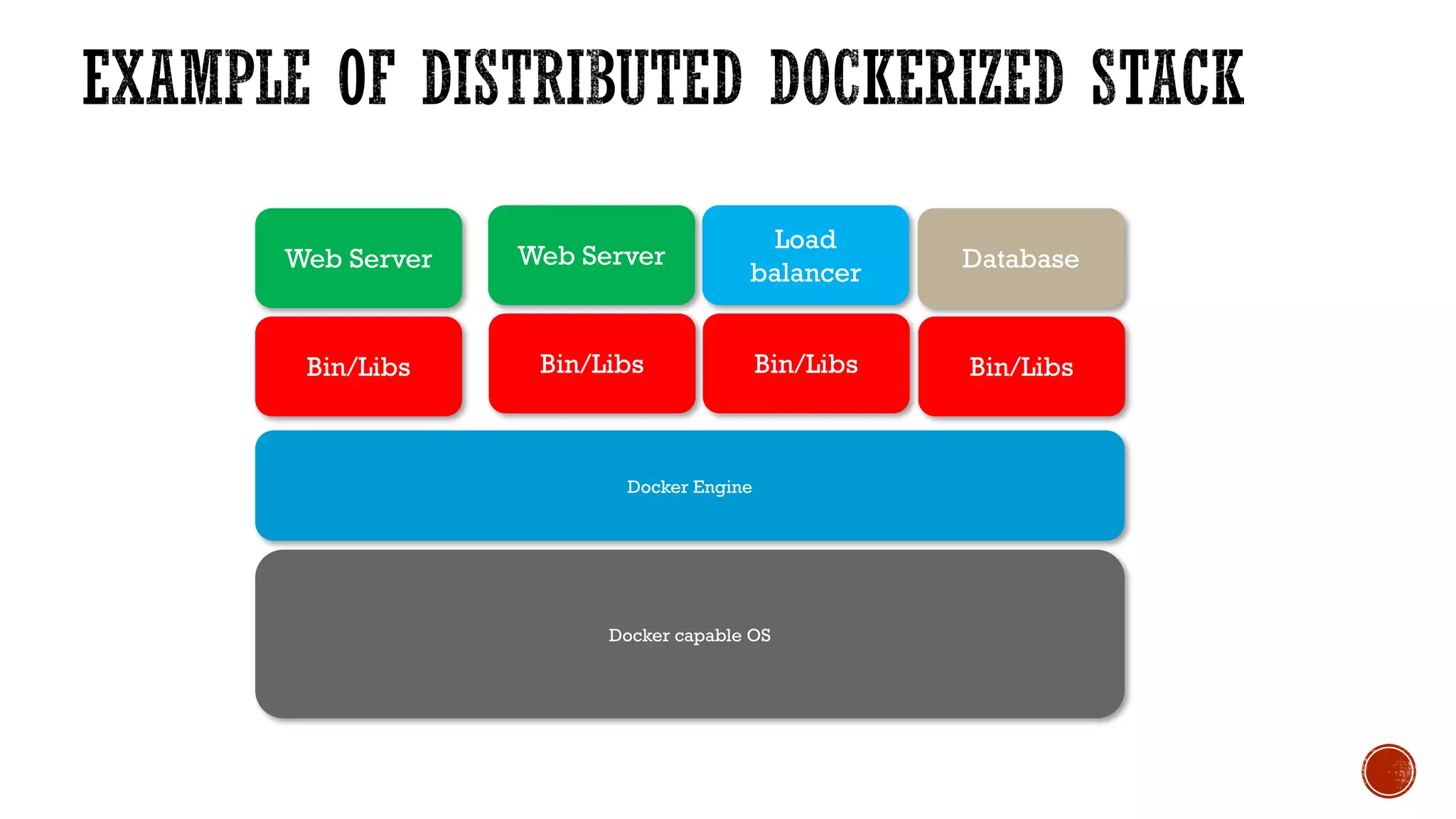

Bin/Libs
Database
Docker Engine
Docker capable OS
Bin/Libs
Load
balancer
Bin/Libs
Web ServerWeb Server
Bin/Libs

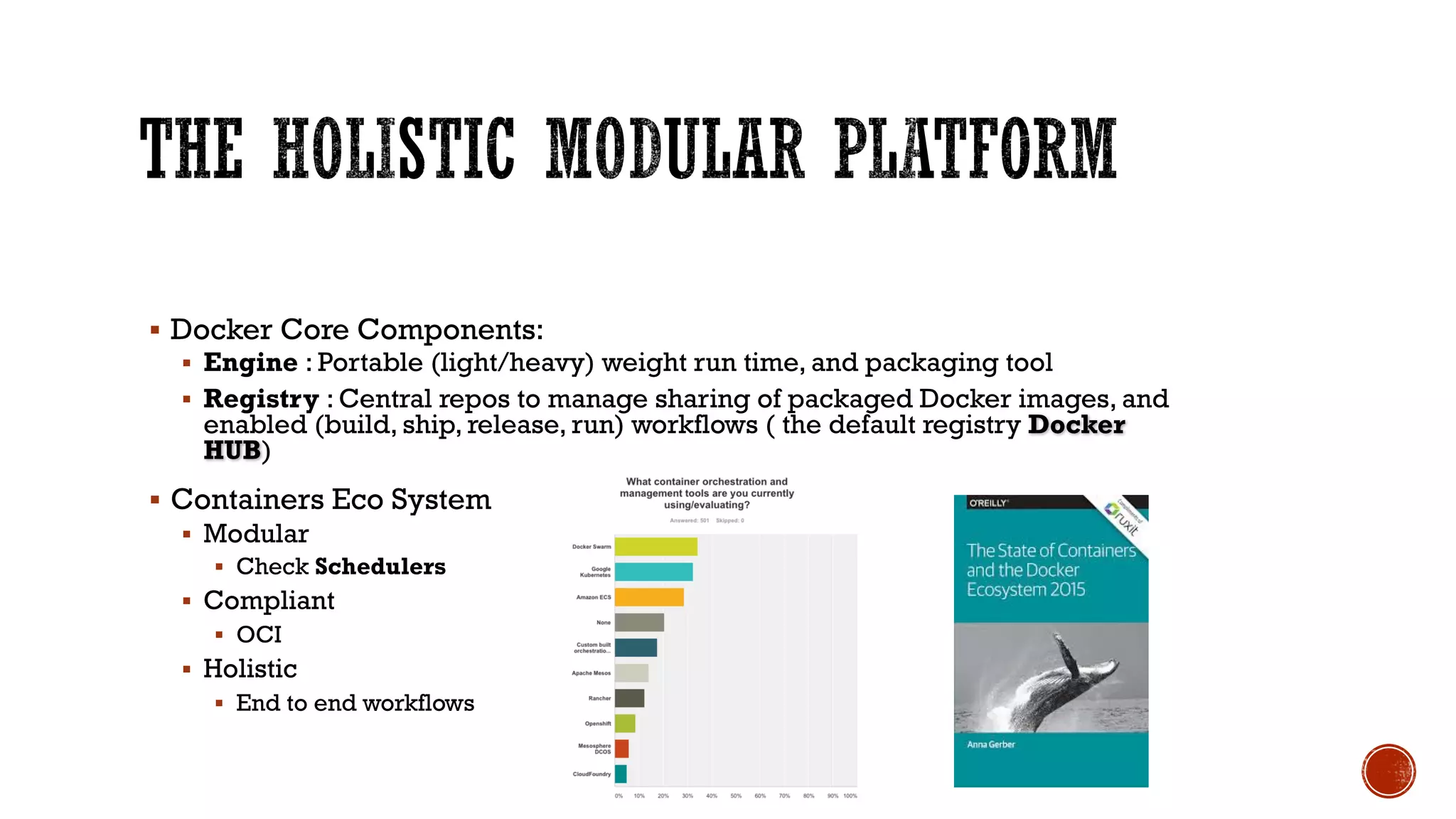

§ Docker Core Components:
§ Engine : Portable (light/heavy) weight run time, and packaging tool
§ Registry : Central repos to manage sharing of packaged Docker images, and
enabled (build, ship, release, run) workflows ( the default registry Docker
HUB)

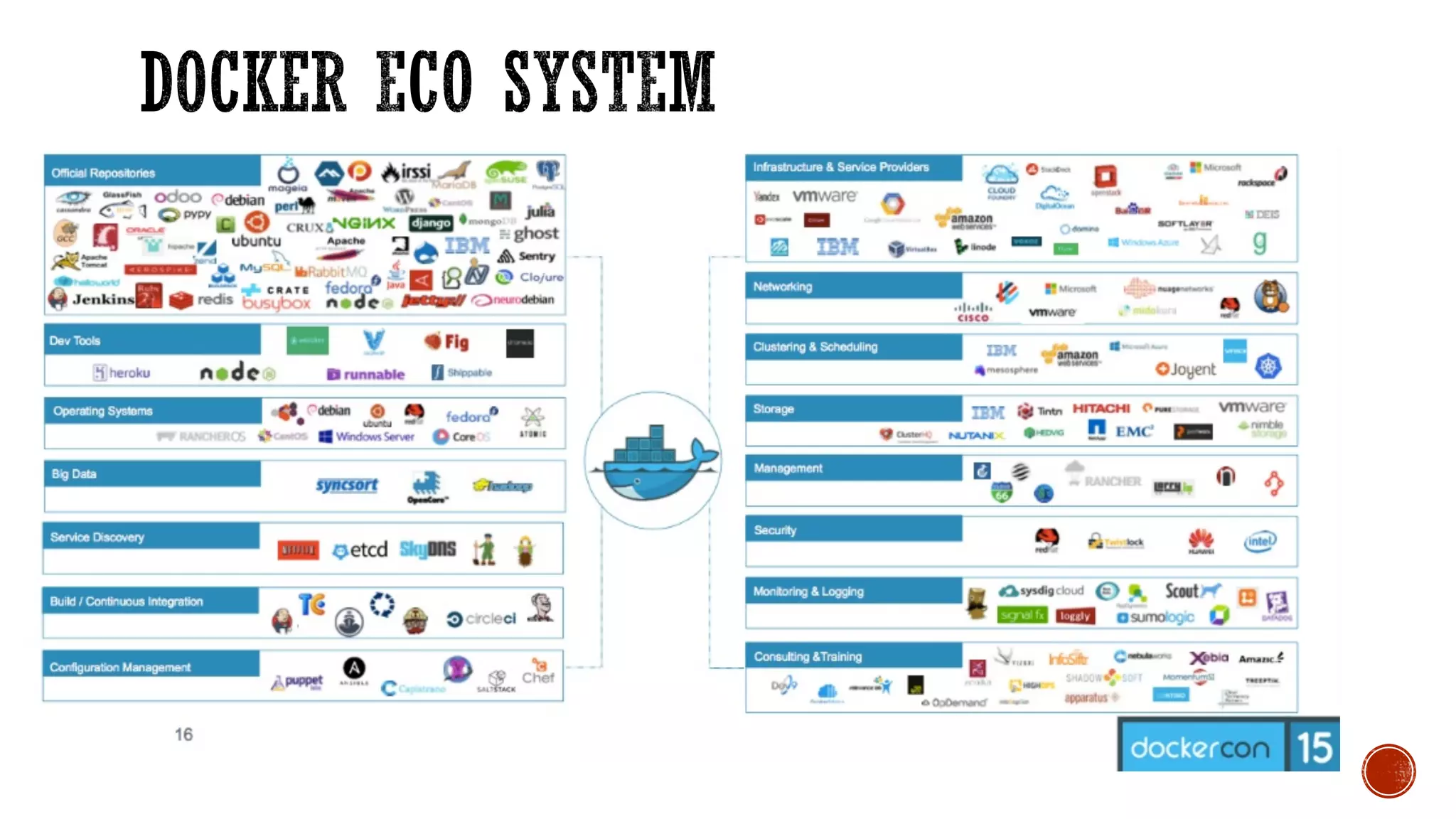

§ Containers Eco System
§ Modular
§ Check Schedulers
§ Compliant
§ OCI
§ Holistic
§ End to end workflows

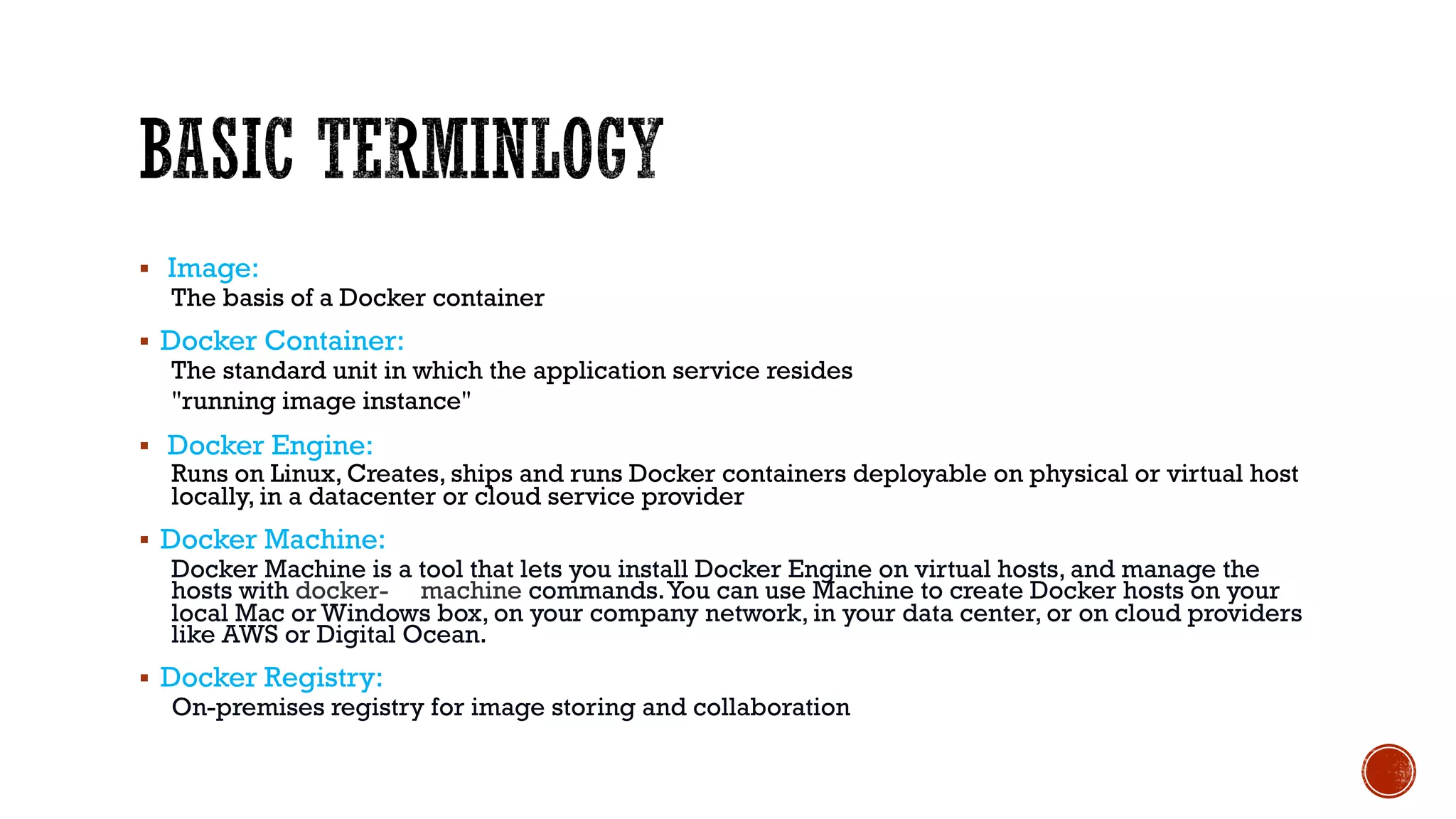

§ Image:
The basis of a Docker container
§ Docker Container:
The standard unit in which the application service resides
"running image instance"
§ Docker Engine:
Runs on Linux, Creates, ships and runs Docker containers deployable on physical or virtual host
locally, in a datacenter or cloud service provider
§ Docker Machine:
Docker Machine is a tool that lets you install Docker Engine on virtual hosts, and manage the
hosts with docker- machine commands.You can use Machine to create Docker hosts on your
local Mac or Windows box, on your company network, in your data center, or on cloud providers
like AWS or Digital Ocean.
§ Docker Registry:
On-premises registry for image storing and collaboration

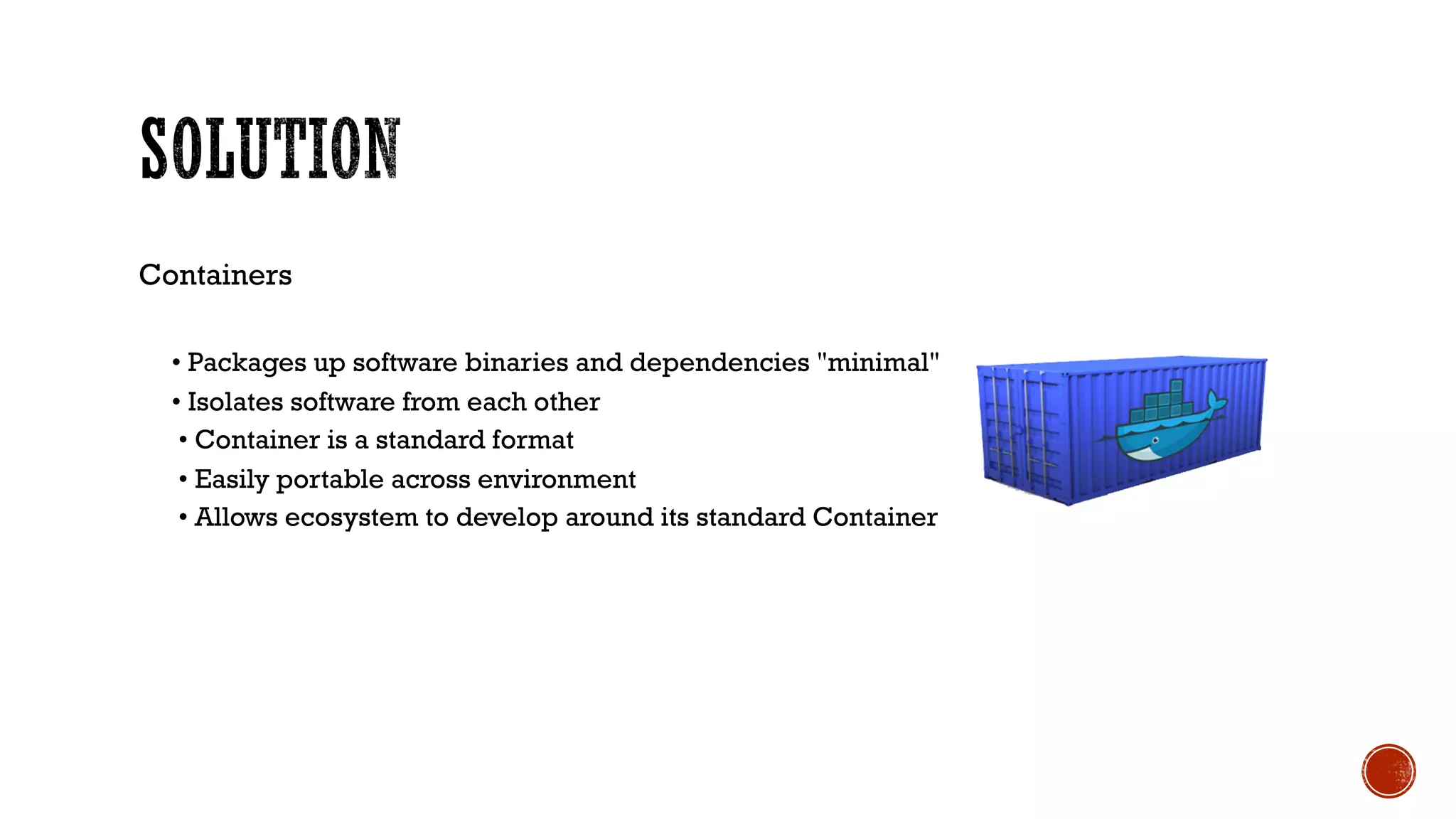

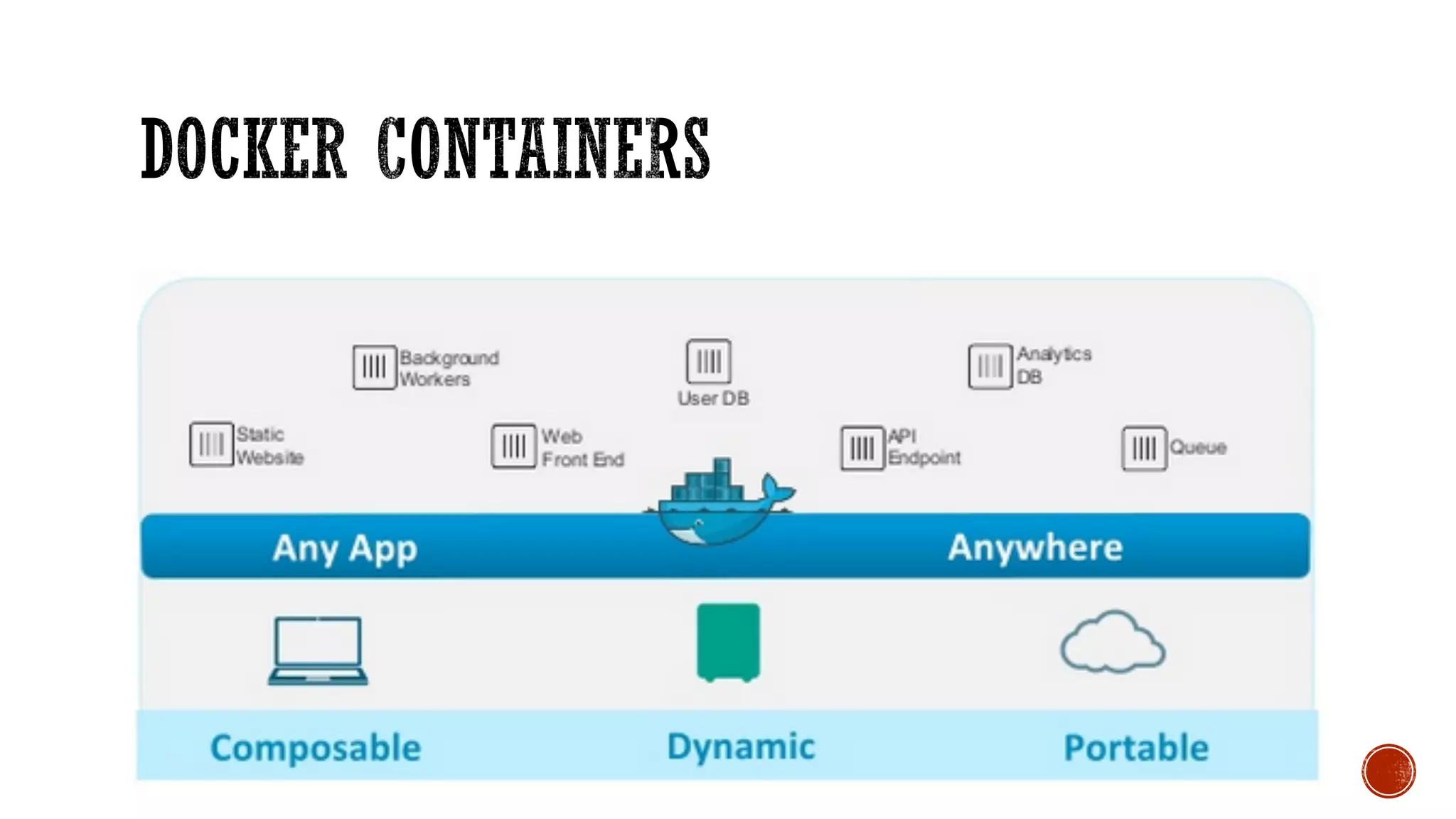

Containers
• Packages up software binaries and dependencies "minimal"
• Isolates software from each other
• Container is a standard format
• Easily portable across environment
• Allows ecosystem to develop around its standard Container

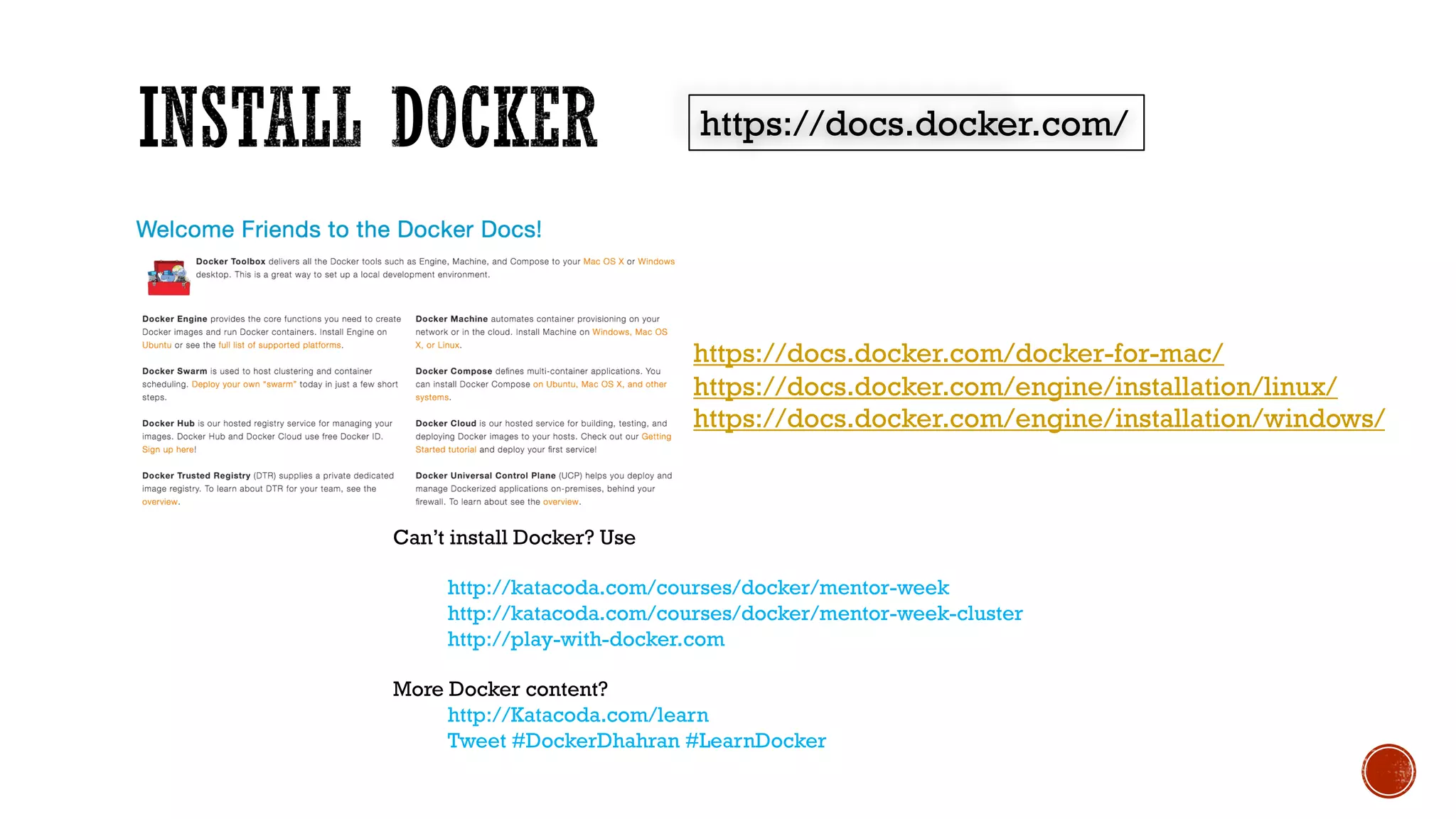

https://docs.docker.com/
https://docs.docker.com/docker-for-mac/
https://docs.docker.com/engine/installation/linux/
https://docs.docker.com/engine/installation/windows/
Can’t install Docker? Use
http://katacoda.com/courses/docker/mentor-week
http://katacoda.com/courses/docker/mentor-week-cluster
http://play-with-docker.com
More Docker content?
http://Katacoda.com/learn
Tweet #DockerDhahran #LearnDocker

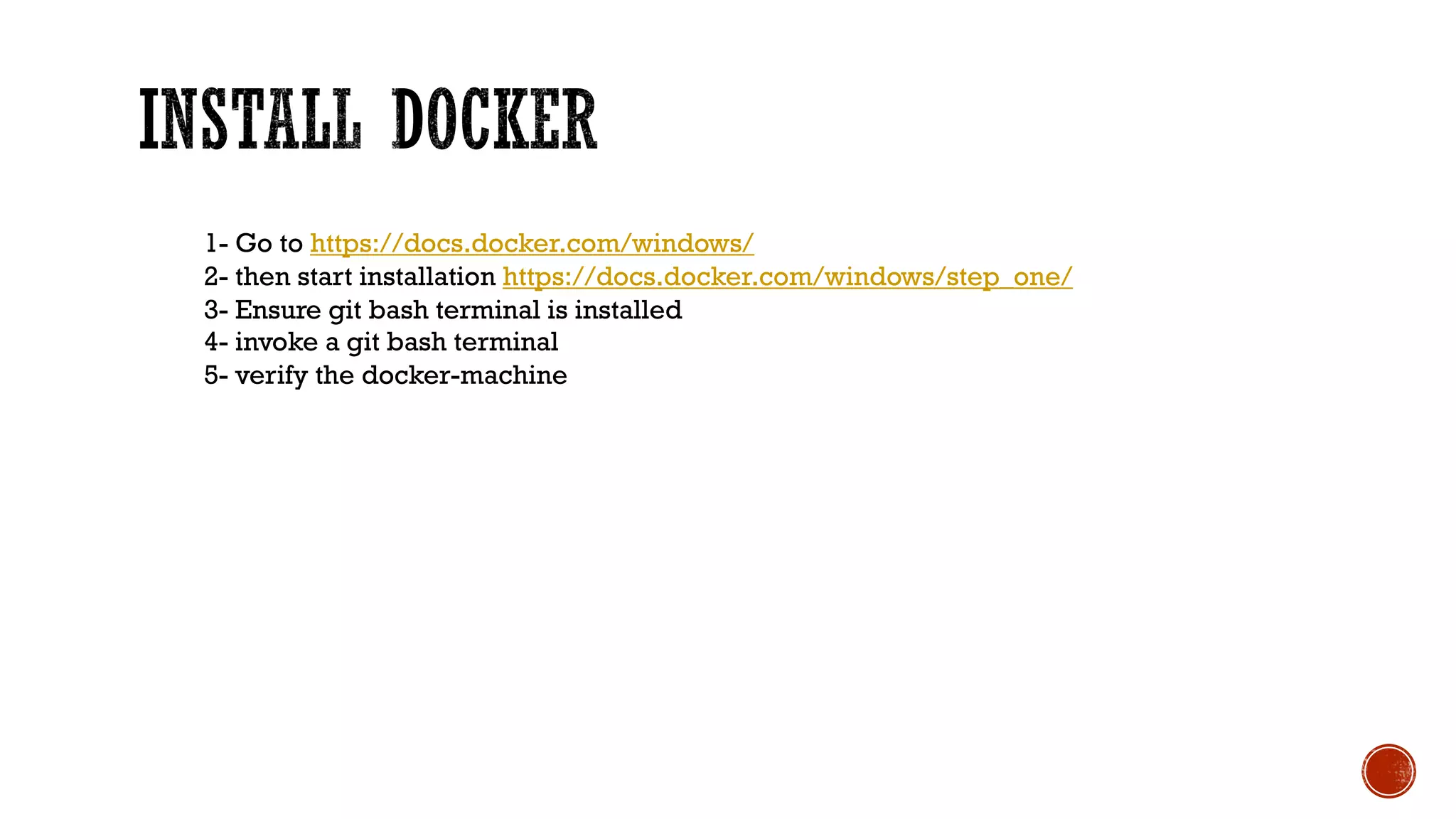

1- Go to https://docs.docker.com/windows/
2- then start installation https://docs.docker.com/windows/step_one/
3- Ensure git bash terminal is installed
4- invoke a git bash terminal
5- verify the docker-machine

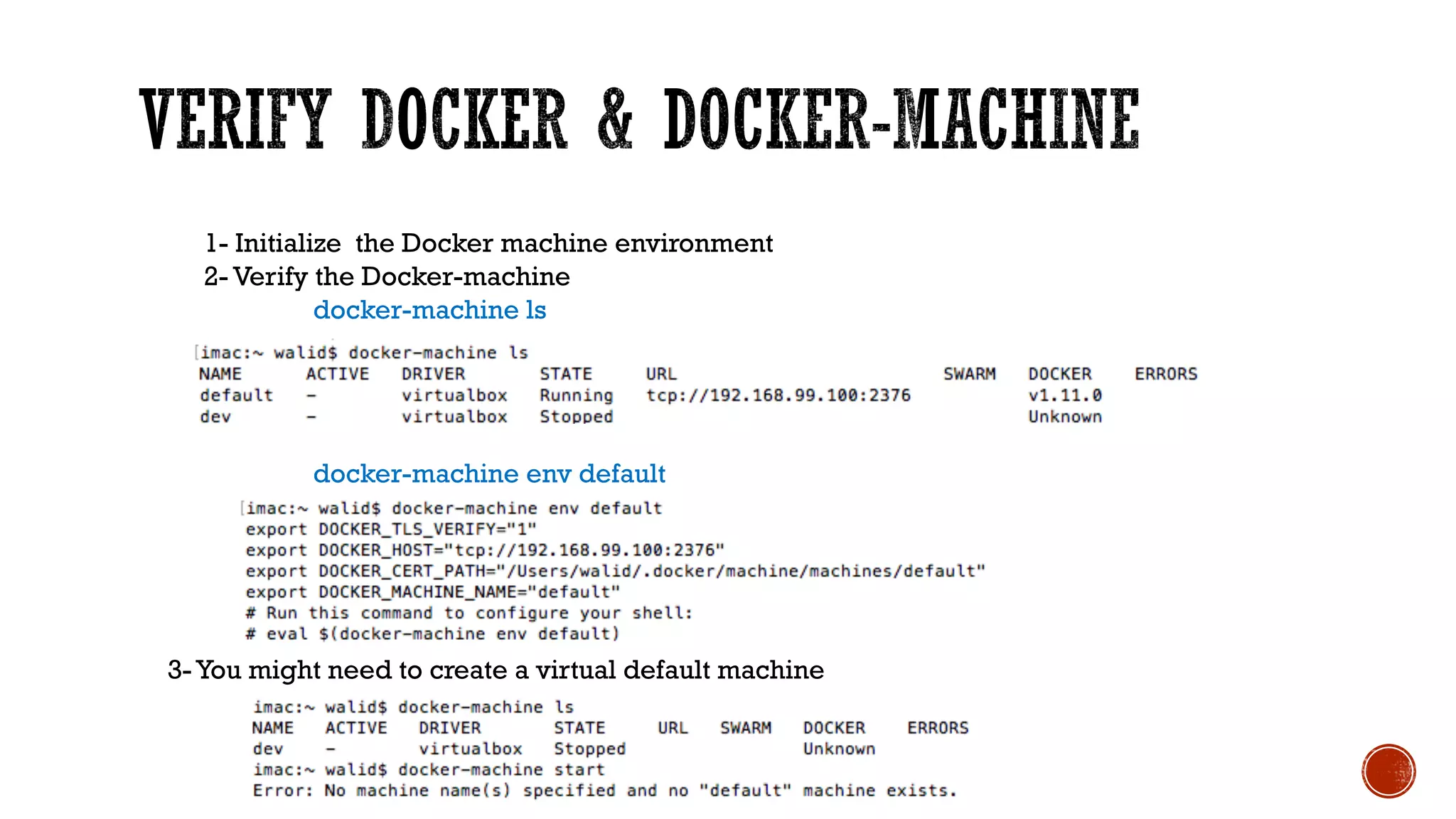

1- Initialize the Docker machine environment
2- Verify the Docker-machine
docker-machine ls
docker-machine env default
3- You might need to create a virtual default machine

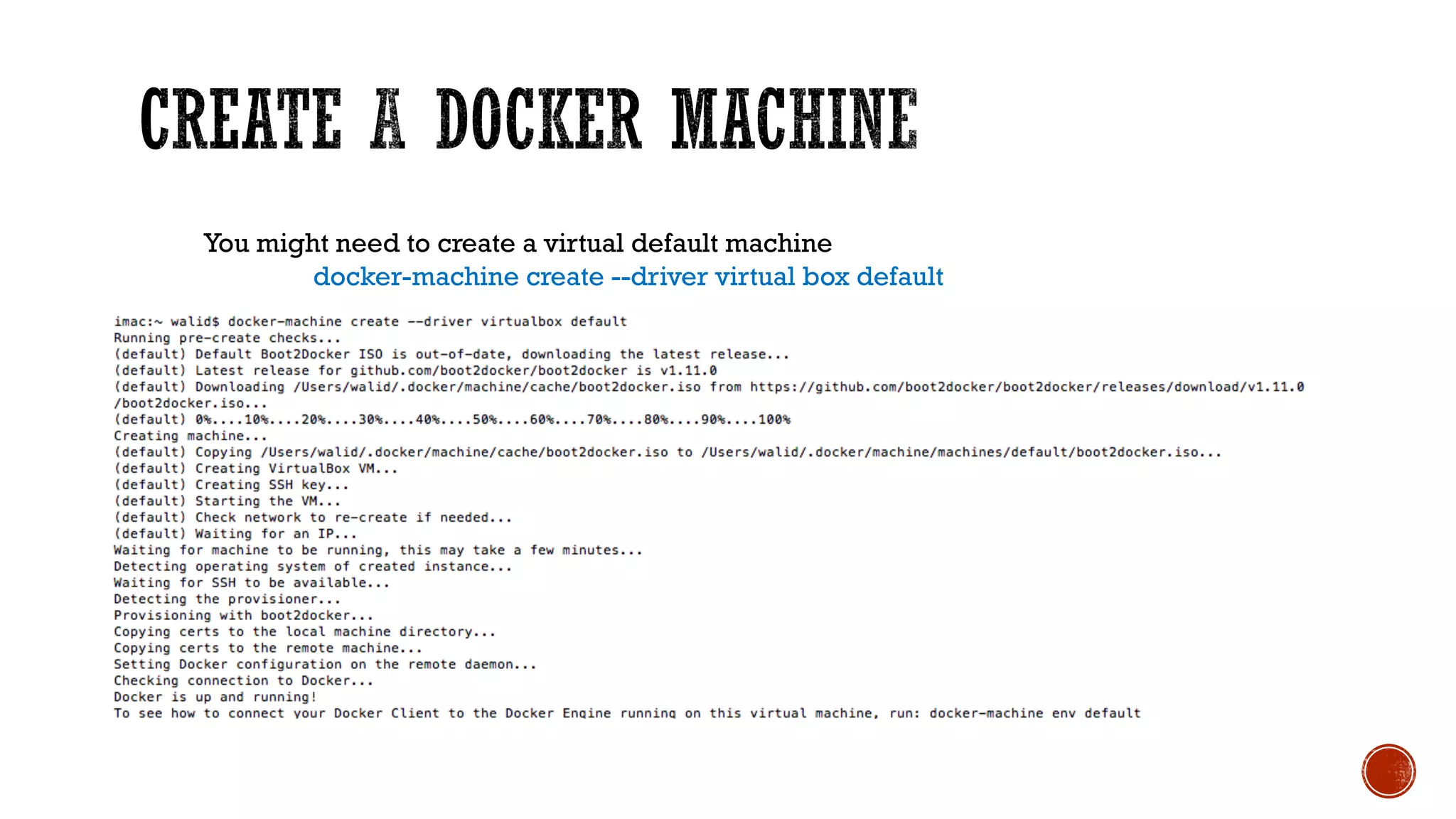

You might need to create a virtual default machine
docker-machine create --driver virtual box default

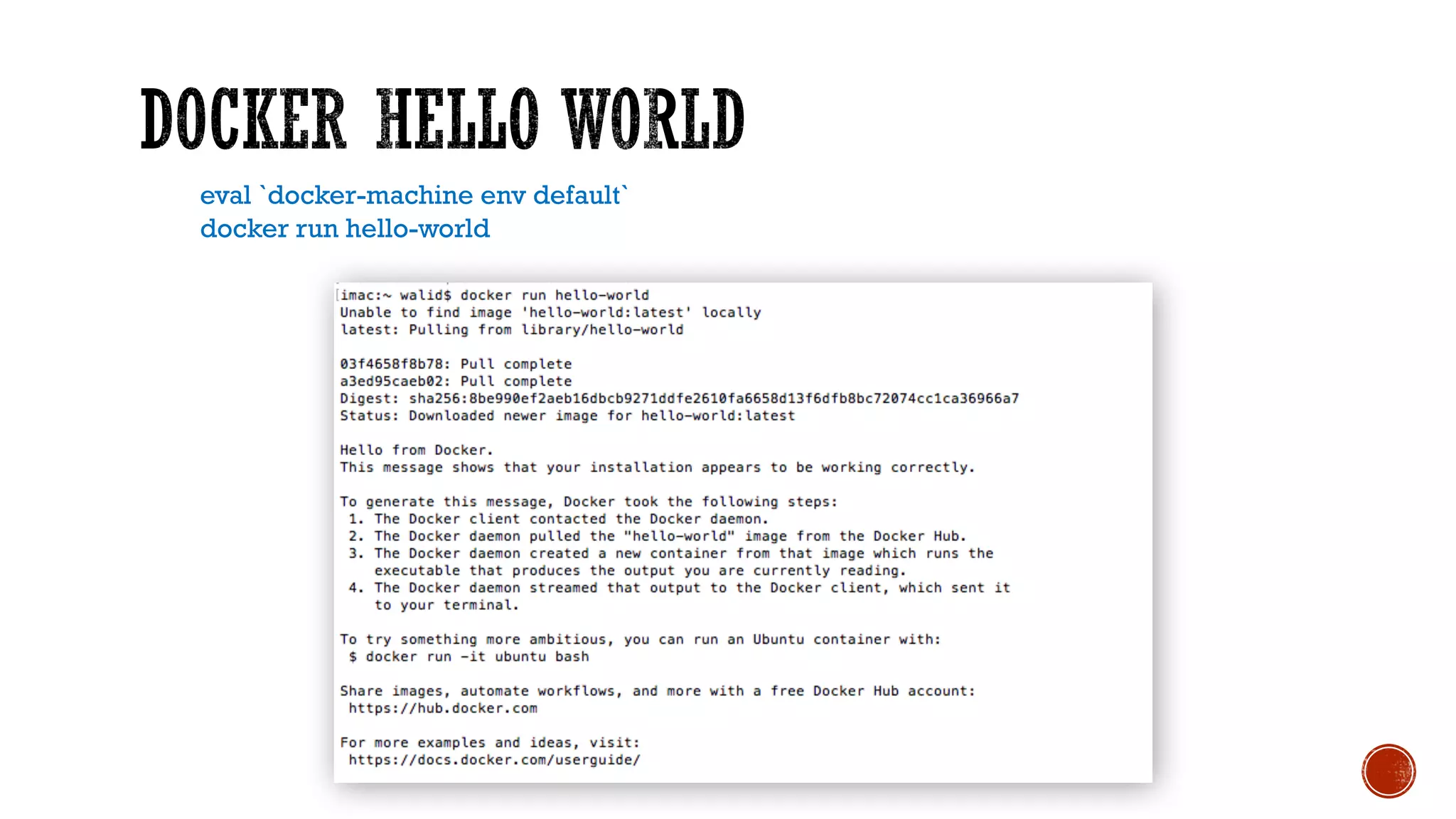

eval `docker-machine env default`
docker run hello-world

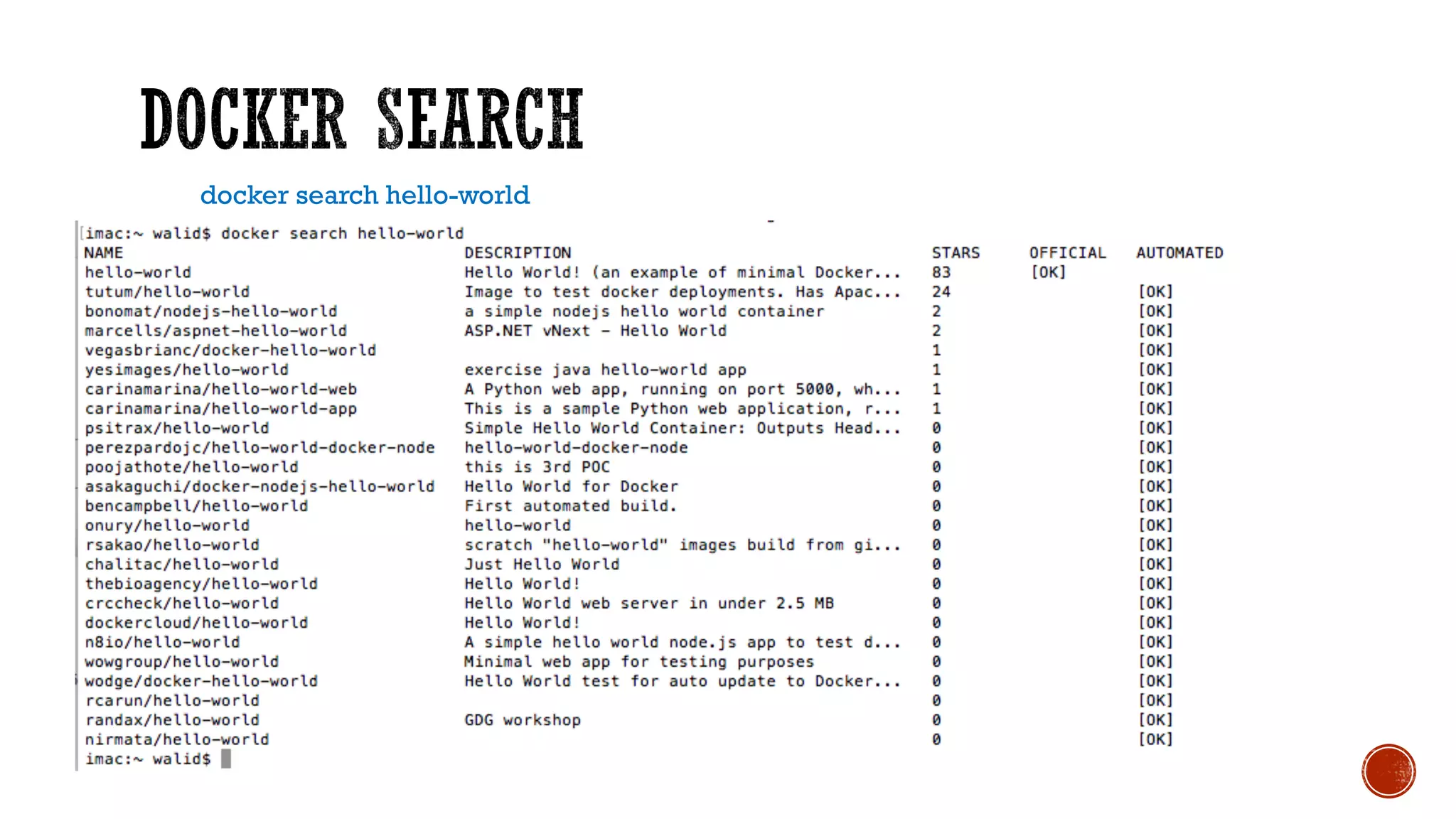

docker search hello-world

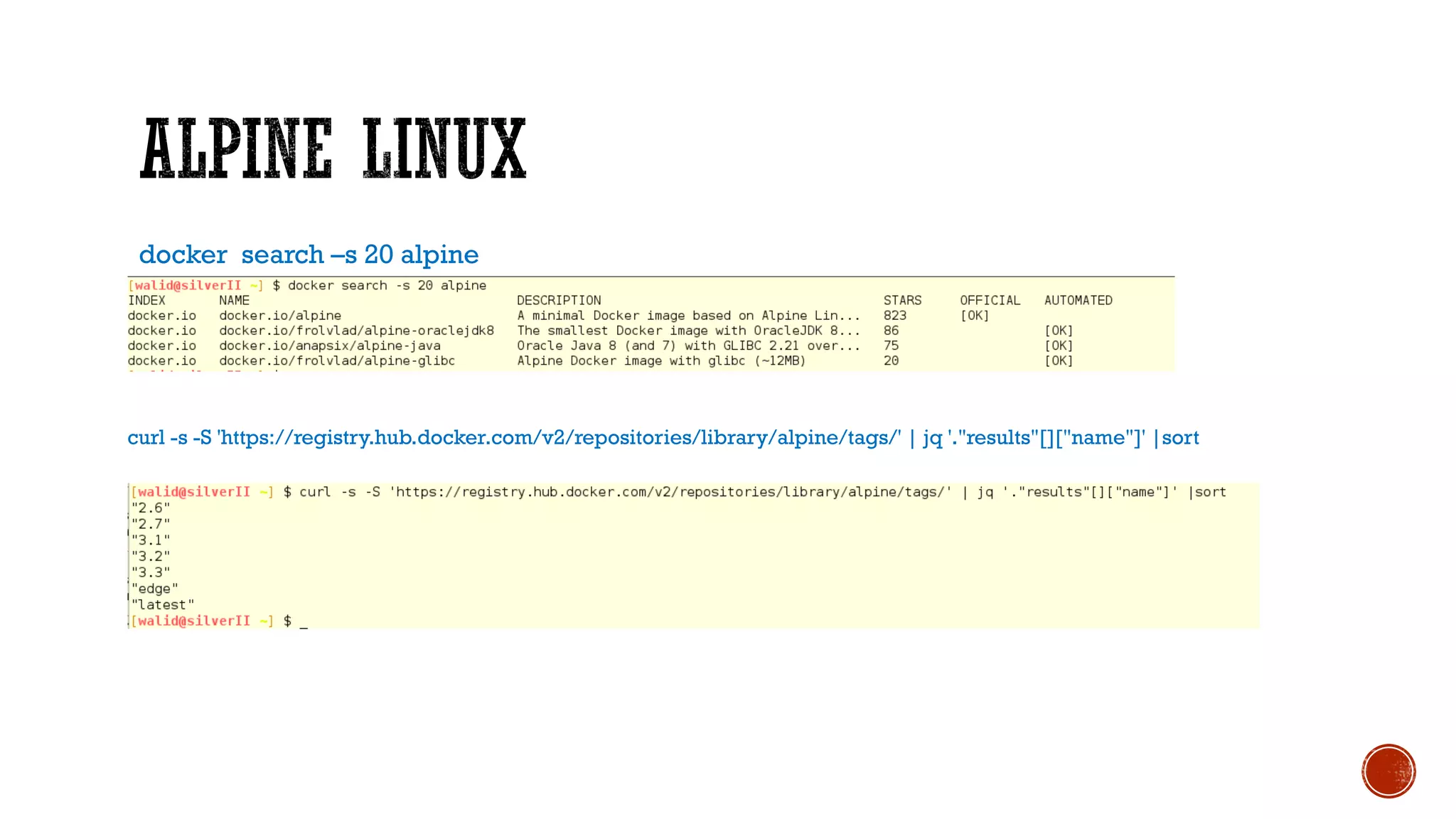

docker search –s 20 alpine
curl -s -S 'https://registry.hub.docker.com/v2/repositories/library/alpine/tags/' | jq '."results"[]["name"]' |sort

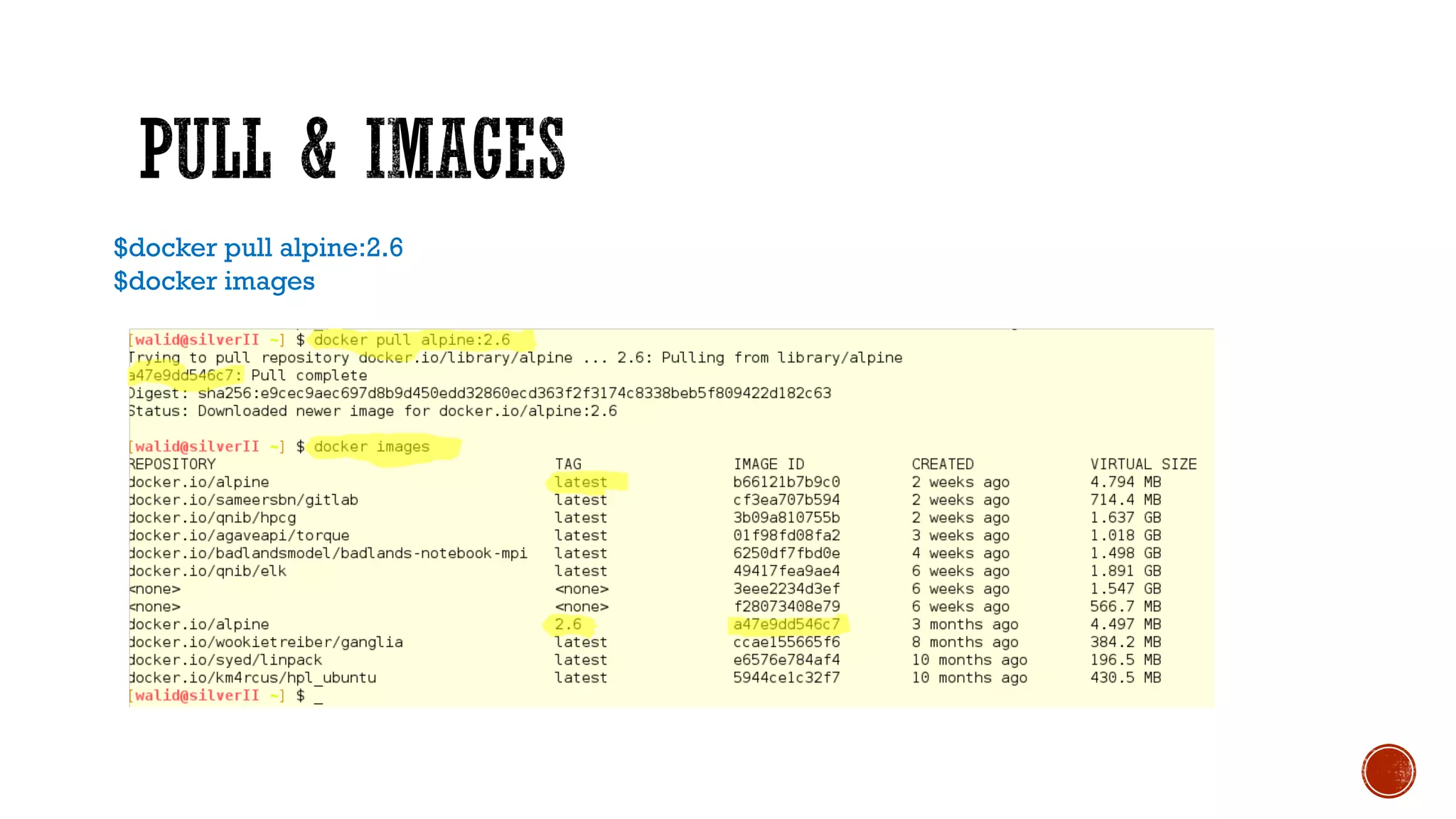

$docker pull alpine:2.6
$docker images

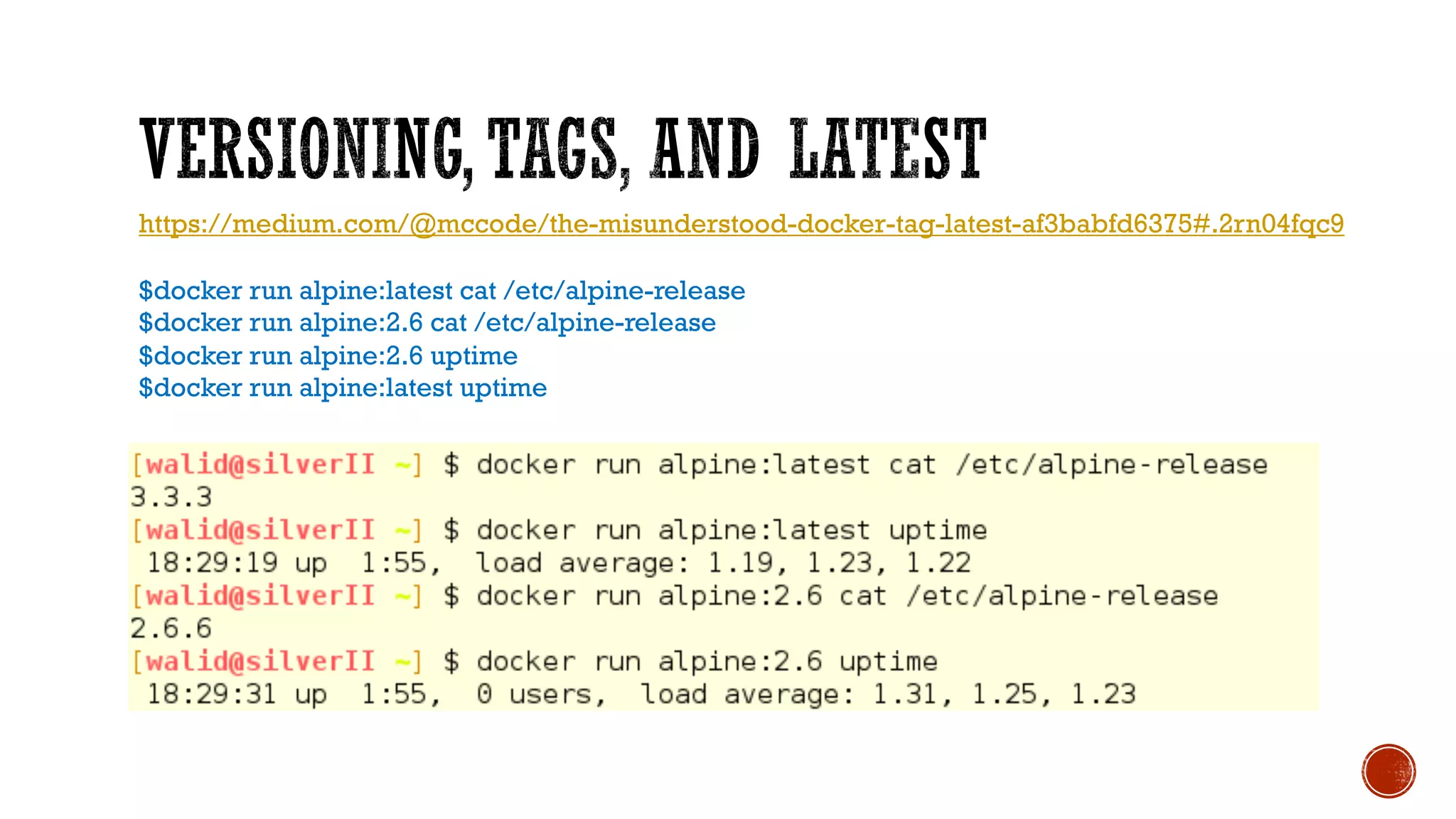

https://medium.com/@mccode/the-misunderstood-docker-tag-latest-af3babfd6375#.2rn04fqc9
$docker run alpine:latest cat /etc/alpine-release
$docker run alpine:2.6 cat /etc/alpine-release
$docker run alpine:2.6 uptime
$docker run alpine:latest uptime
$docker history alpine:latest
$docker history alpine:2.6

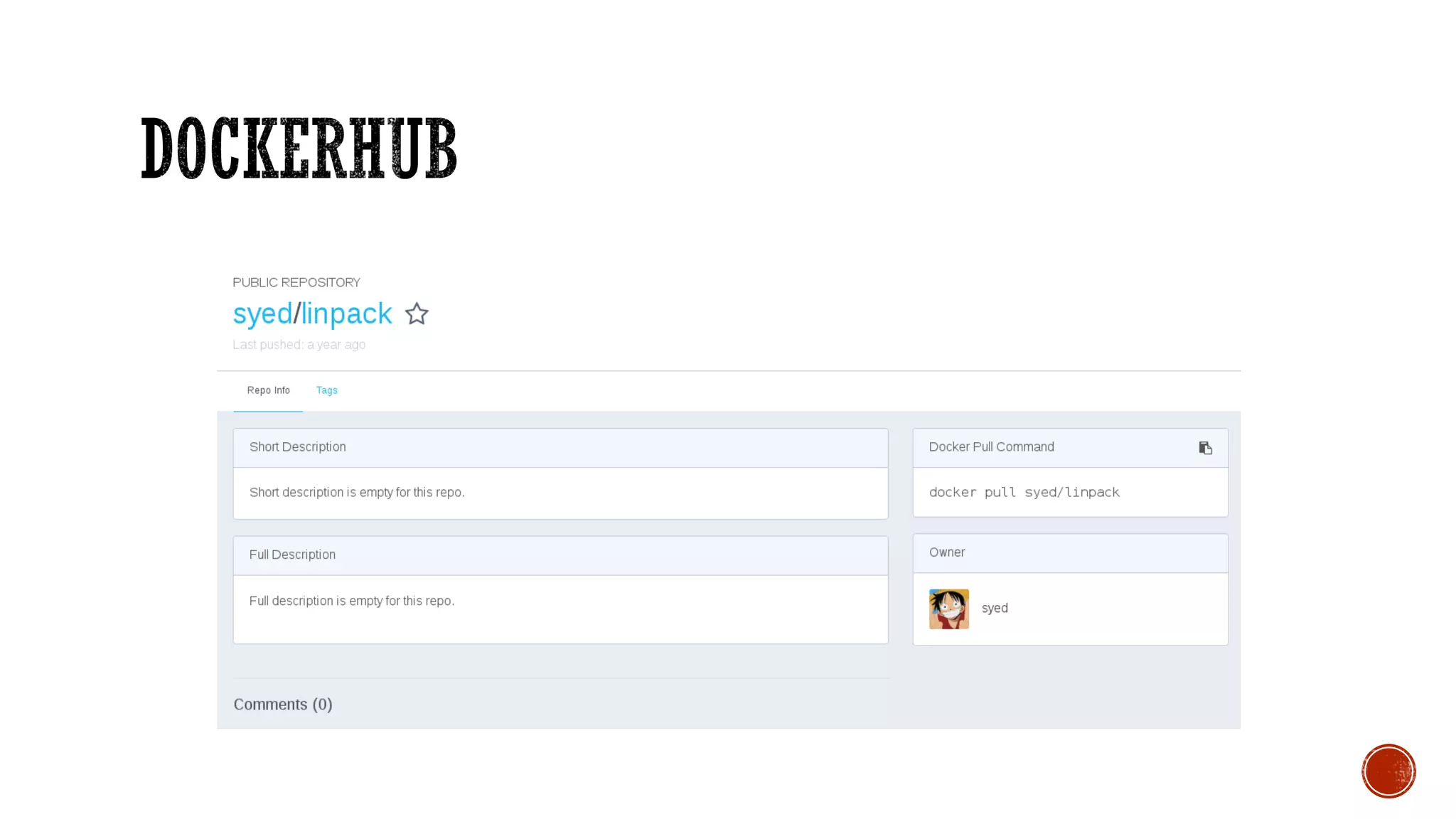

$docker history syed/linpack

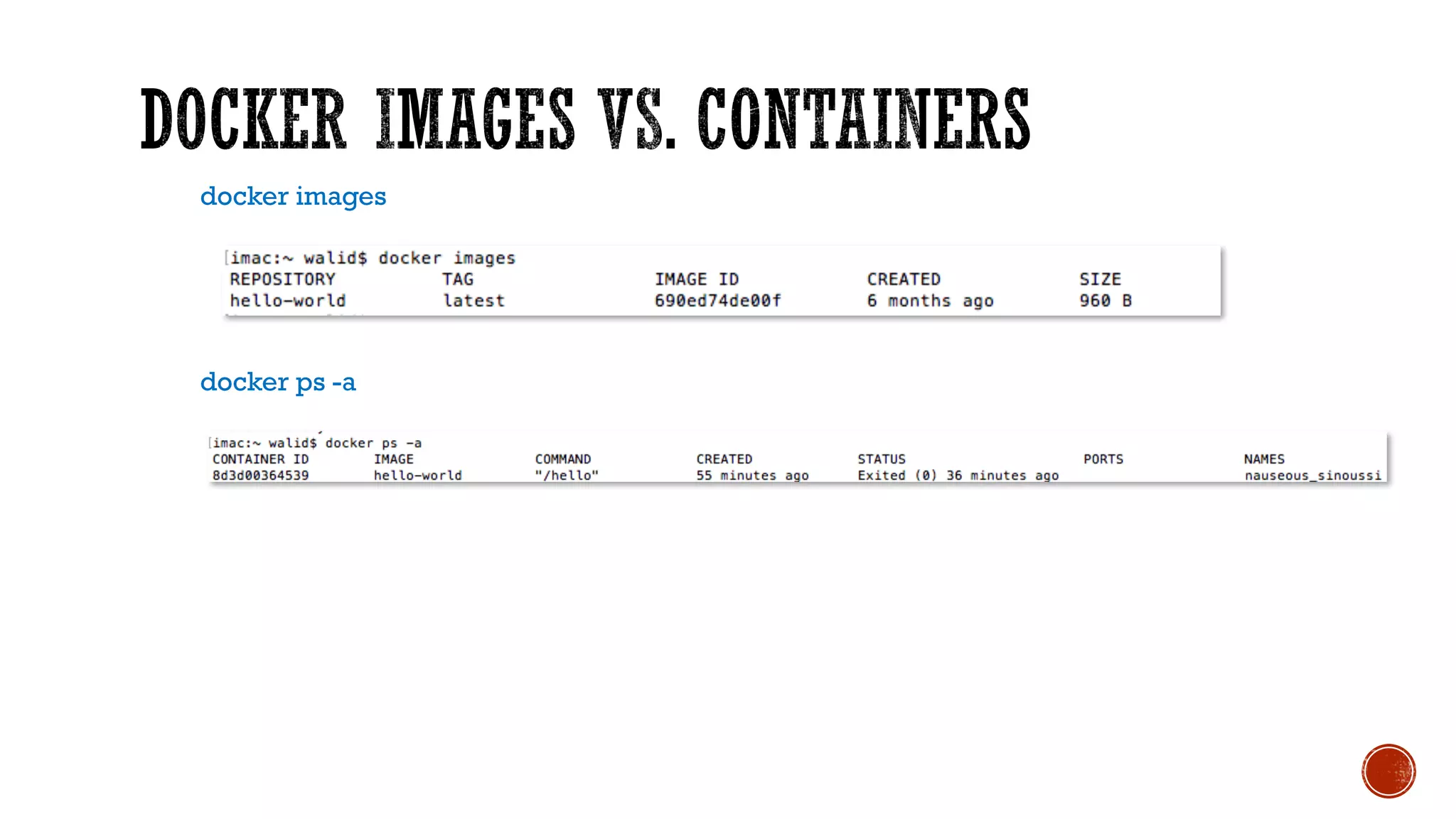

docker images
docker ps -a

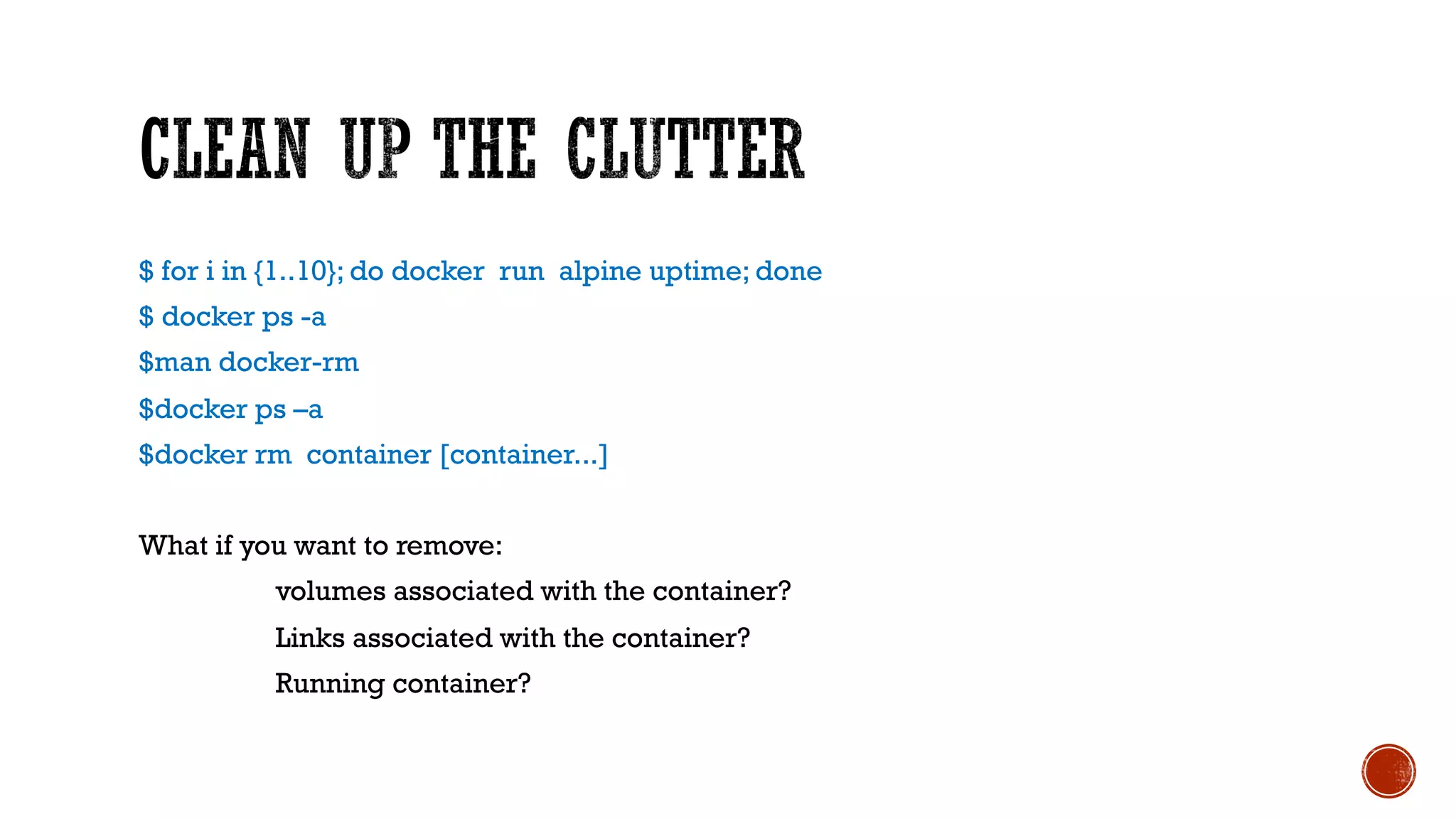

$ for i in {1..10}; do docker run alpine uptime; done
$ docker ps -a
$man docker-rm
$docker ps –a
$docker rm container [container...]
What if you want to remove:
volumes associated with the container?
Links associated with the container?
Running container?
docker stats
docker ps -a

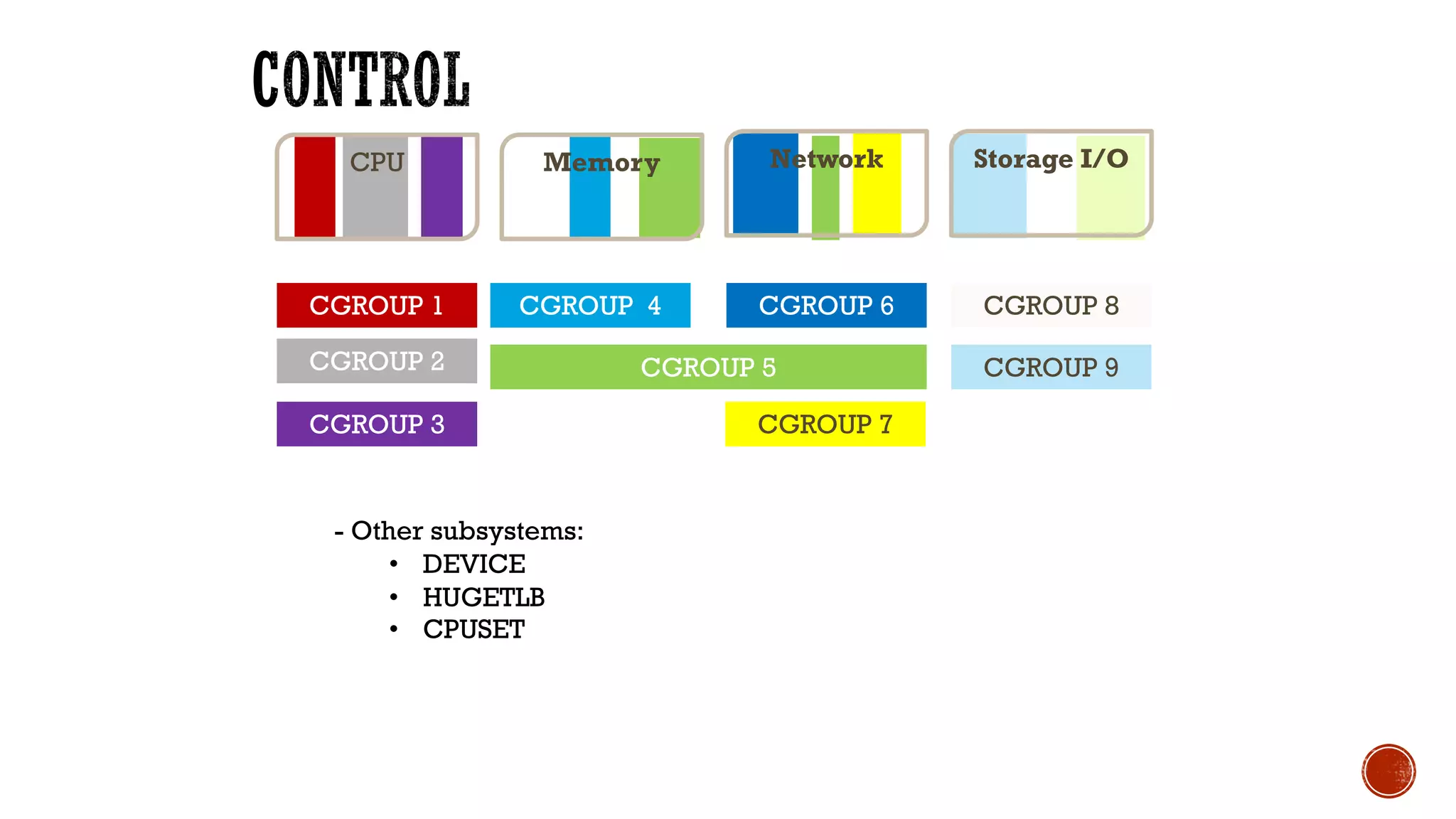

Network Storage I/OMemoryCPU
CGROUP 1
CGROUP 2
CGROUP 3
CGROUP 4
CGROUP 5
CGROUP 6 CGROUP 8
CGROUP 9
CGROUP 7
- Other subsystems:
• DEVICE
• HUGETLB
• CPUSET

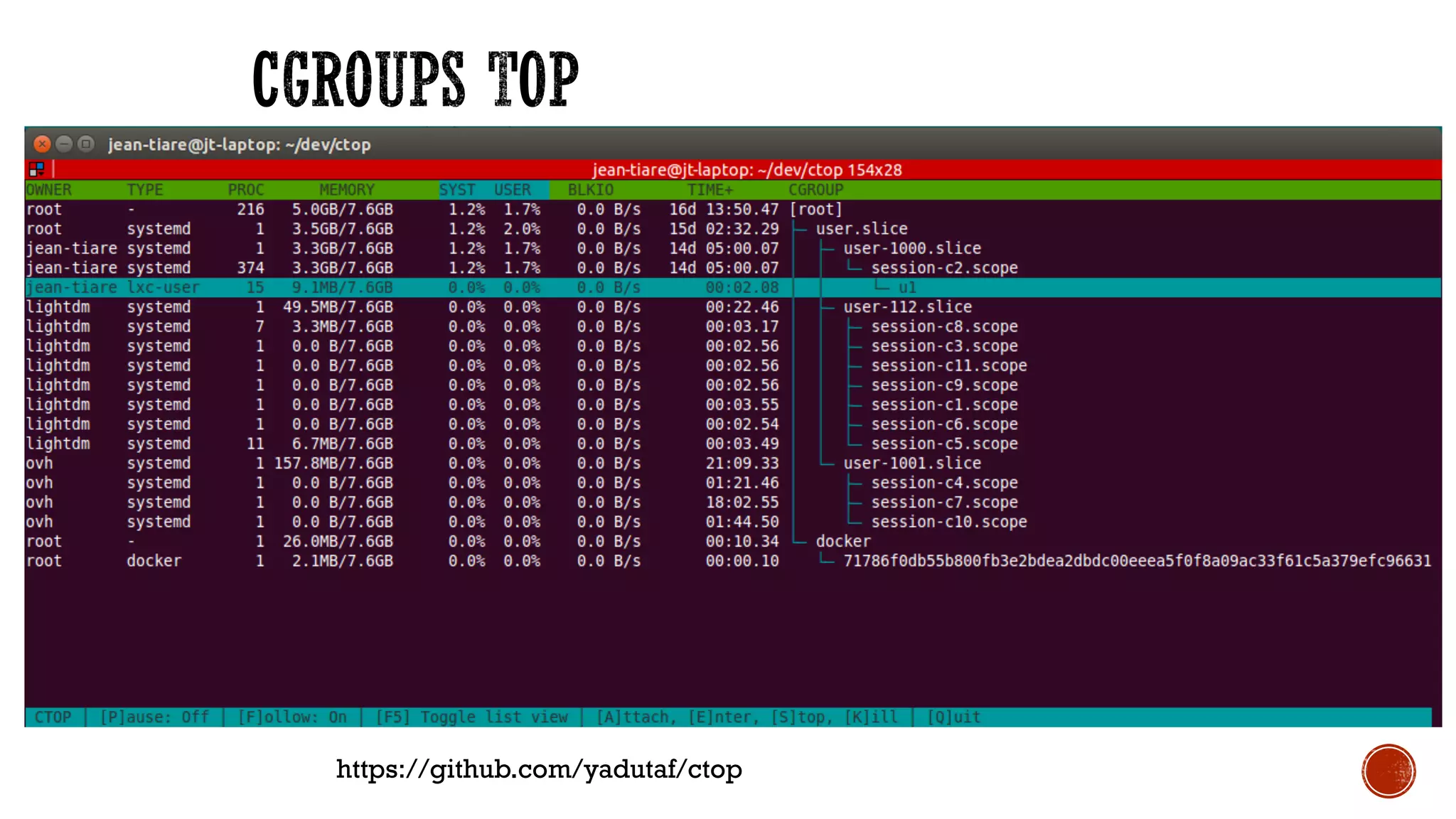

https://github.com/yadutaf/ctop
Host

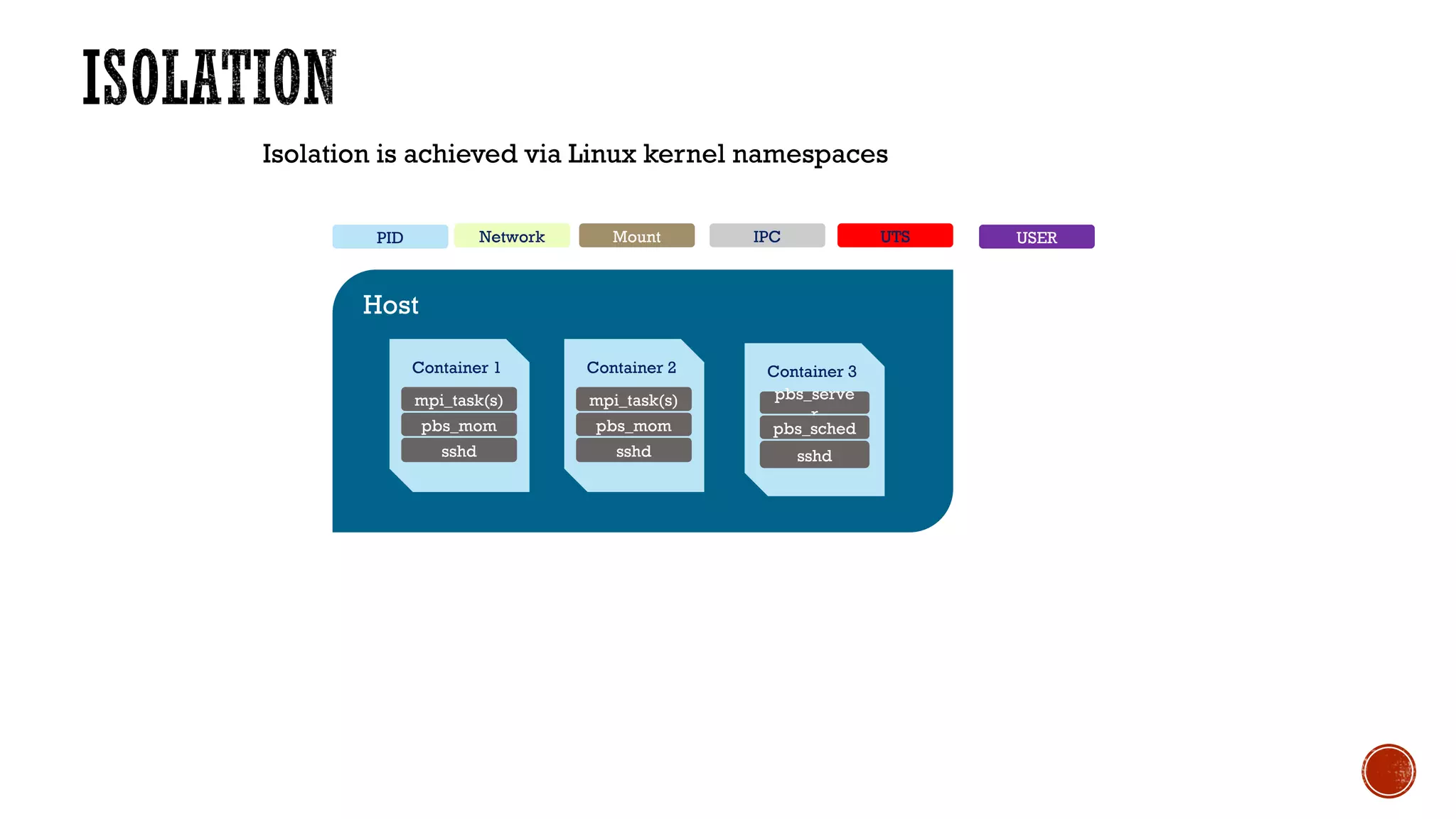

Isolation is achieved via Linux kernel namespaces
Container 3
pbs_serve
r
pbs_sched
sshd
Container 2
mpi_task(s)
pbs_mom
sshd
Container 1
mpi_task(s)
pbs_mom
sshd
Mount IPC UTSNetworkPID USER

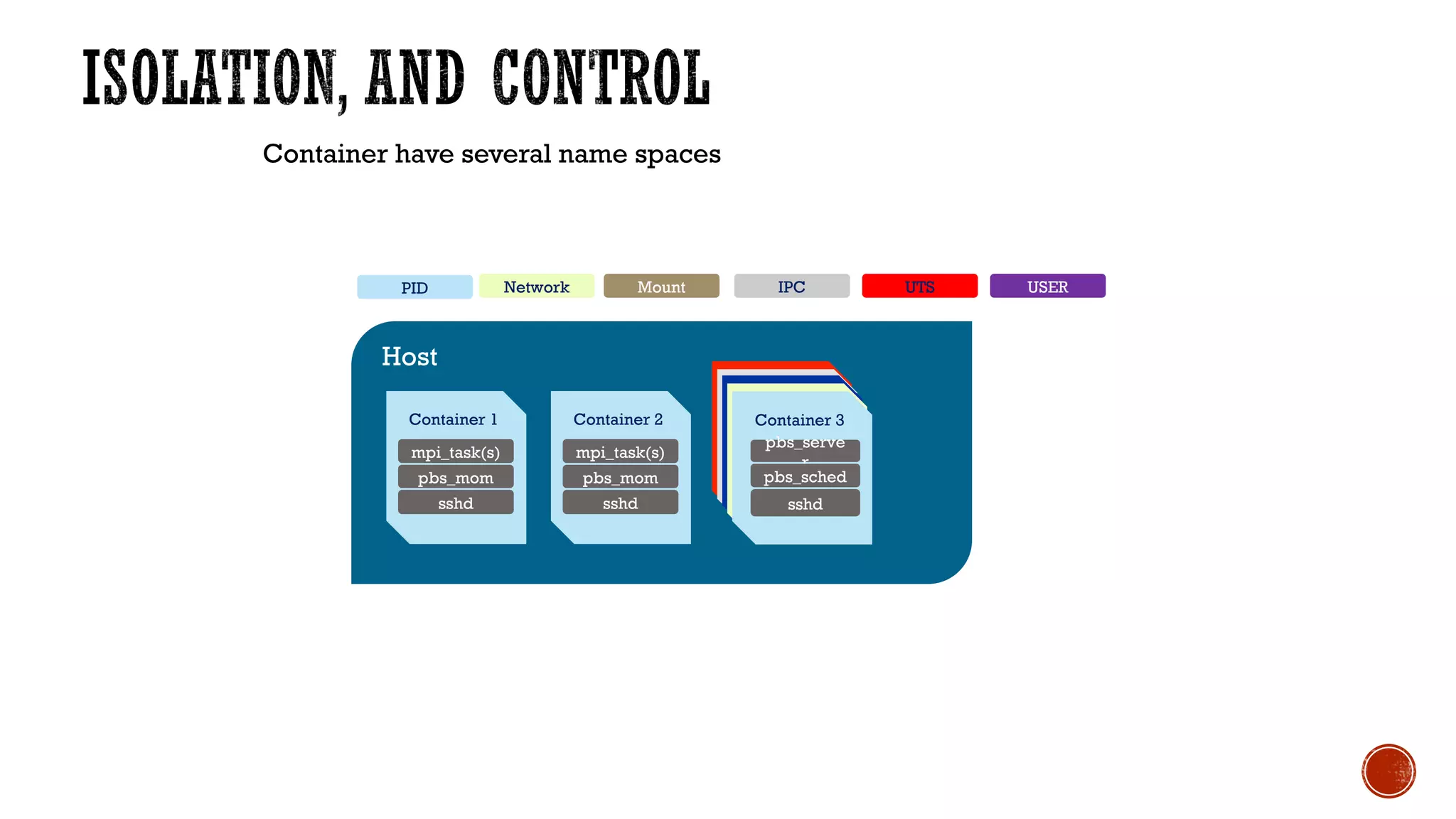

Container have several name spaces
Host
Container 2
mpi_task(s)
pbs_mom
sshd
Container 1
mpi_task(s)
pbs_mom
sshd
Mount IPC UTSNetworkPID
Container 3
pbs_serve
r
pbs_sched
sshd
USER

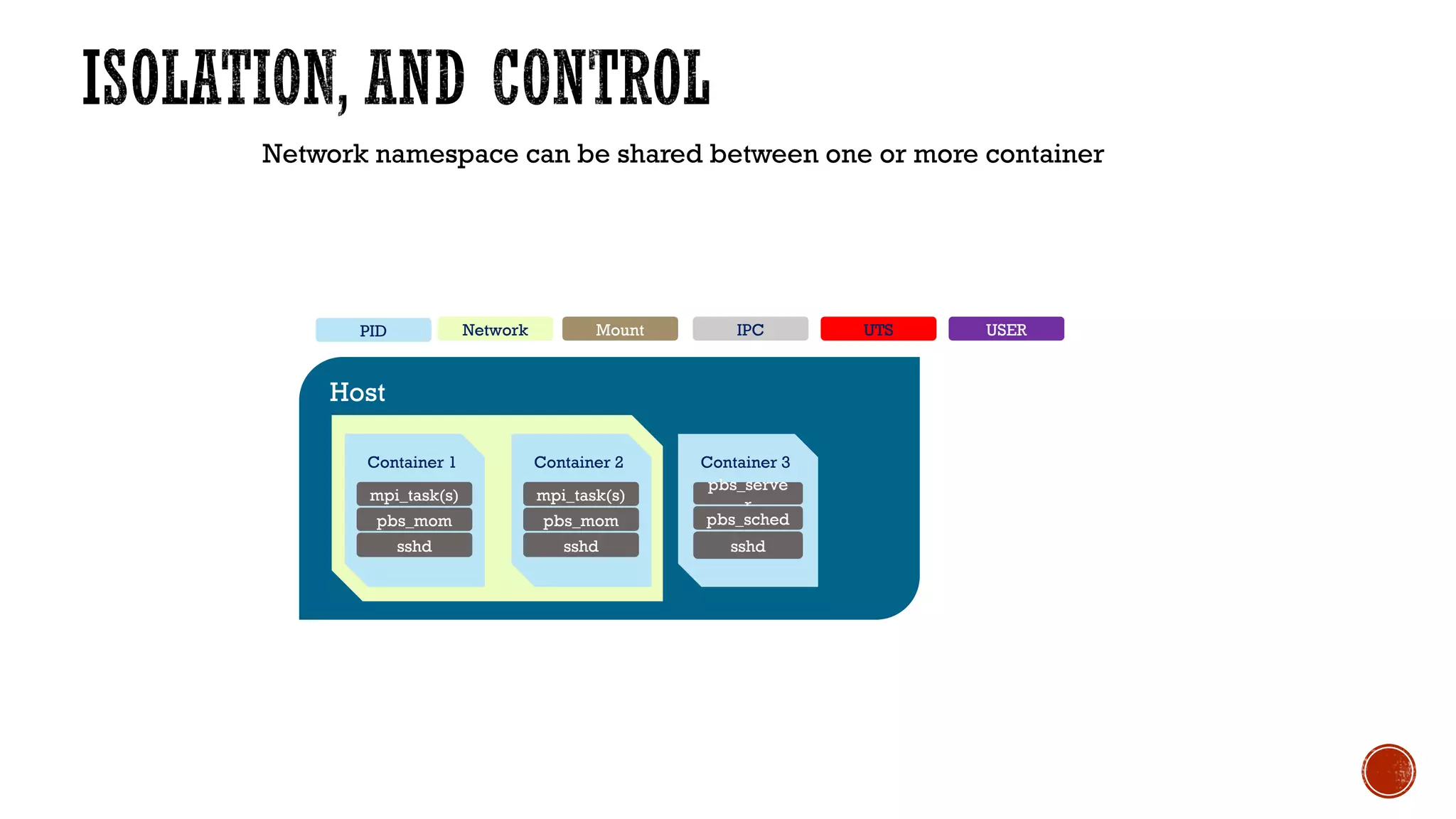

Network namespace can be shared between one or more container
Host
Container 2
mpi_task(s)
pbs_mom
sshd
Container 1
mpi_task(s)
pbs_mom
sshd
Mount IPC UTSNetworkPID
Container 3
pbs_serve
r
pbs_sched
sshd
USER
THANK YOU
