Docker 1.12 (dockercon recap)

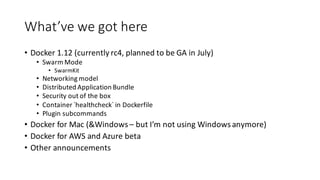

- 2. What’ve we got here • Docker 1.12 (currently rc4, planned to be GA in July) • Swarm Mode • SwarmKit • Networking model • Distributed Application Bundle • Security out of the box • Container `healthcheck` in Dockerfile • Plugin subcommands • Docker for Mac (&Windows – but I’m not using Windows anymore) • Docker for AWS and Azure beta • Other announcements

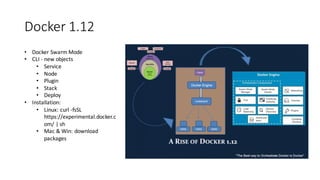

- 3. Docker 1.12 • Docker Swarm Mode • CLI - new objects • Service • Node • Plugin • Stack • Deploy • Installation: • Linux: curl -fsSL https://experimental.docker.c om/ | sh • Mac & Win: download packages

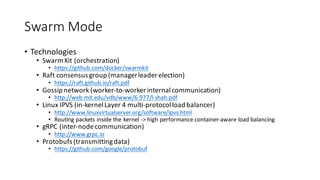

- 4. Swarm Mode • Technologies • Swarm Kit (orchestration) • https://github.com/docker/swarmkit • Raft consensus group (manager leader election) • https://raft.github.io/raft.pdf • Gossip network (worker-to-worker internal communication) • http://web.mit.edu/vdb/www/6.977/l-shah.pdf • Linux IPVS (in-kernel Layer 4 multi-protocol load balancer) • http://www.linuxvirtualserver.org/software/ipvs.html • Routing packets inside the kernel -> high performance container-aware load balancing • gRPC (inter-node communication) • http://www.grpc.io • Protobufs (transmitting data) • https://github.com/google/protobuf

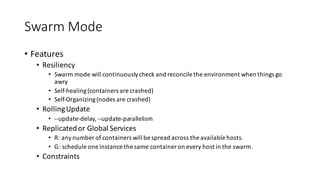

- 5. Swarm Mode • Features • Resiliency • Swarm mode will continuously check and reconcile the environment when things go awry • Self-healing (containers are crashed) • Self-Organizing (nodes are crashed) • Rolling Update • --update-delay, --update-parallelism • Replicated or Global Services • R: any number of containers will be spread across the available hosts. • G: schedule one instance the same container on every host in the swarm. • Constraints

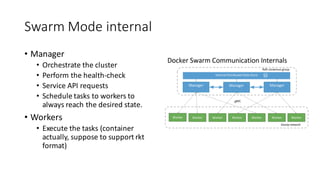

- 6. Swarm Mode internal • Manager • Orchestrate the cluster • Perform the health-check • Service API requests • Schedule tasks to workers to always reach the desired state. • Workers • Execute the tasks (container actually, suppose to support rkt format)

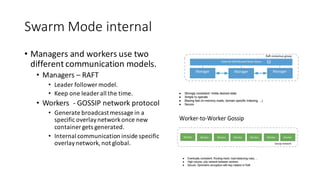

- 7. Swarm Mode internal • Managers and workers use two different communication models. • Managers – RAFT • Leader follower model. • Keep one leader all the time. • Workers - GOSSIP network protocol • Generate broadcast message in a specific overlay network once new container gets generated. • Internal communication inside specific overlay network, not global.

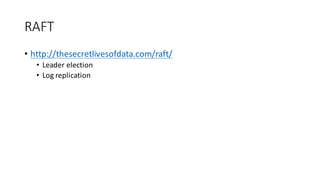

- 9. RAFT • http://thesecretlivesofdata.com/raft/ • Leader election • Log replication

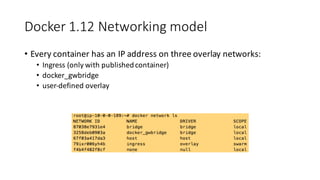

- 10. Docker 1.12 Networking model • Every container has an IP address on three overlay networks: • Ingress (only with published container) • docker_gwbridge • user-defined overlay

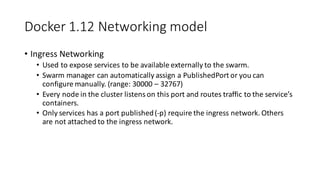

- 11. Docker 1.12 Networking model • Ingress Networking • Used to expose services to be available externally to the swarm. • Swarm manager can automatically assign a PublishedPort or you can configure manually. (range: 30000 – 32767) • Every node in the cluster listens on this port and routes traffic to the service’s containers. • Only services has a port published (-p) require the ingress network. Others are not attached to the ingress network.

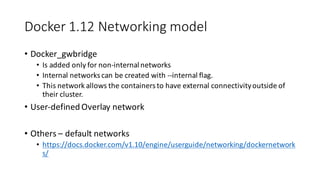

- 12. Docker 1.12 Networking model • Docker_gwbridge • Is added only for non-internal networks • Internal networks can be created with --internal flag. • This network allows the containers to have external connectivity outside of their cluster. • User-defined Overlay network • Others – default networks • https://docs.docker.com/v1.10/engine/userguide/networking/dockernetwork s/
- 13. Docker 1.12 Networking model • Routing Mesh • Linux IVPS • DNS-based service discovery • Every node listens on 80 • Transparently reroute the traffic between nodes.

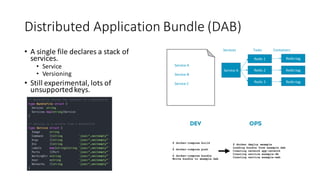

- 14. Distributed Application Bundle (DAB) • A single file declares a stack of services. • Service • Versioning • Still experimental, lots of unsupported keys.
