1. DLT UNIT-3
1 (a) What is the Anatomy of a neural network? Explain building
blocks of deep learning?
Training a neural network revolves around
the following objects:
 Layers, which are combined into a network (or model)
 The input data and corresponding targets
 The loss function, which defines the feedback signal used for
learning
 The optimizer, which determines how learning proceeds
Layers: the building blocks of DL
A layer is a data-processing module that takes as
input tensors and that outputs tensors.
 Different layers are appropriate for different types of data
processing.
 Dense layers for 2D tensors (samples, features) - simple vector
data
 RNNs (or LSTMs) for 3D tensors (samples, time-steps, features)
- sequence data

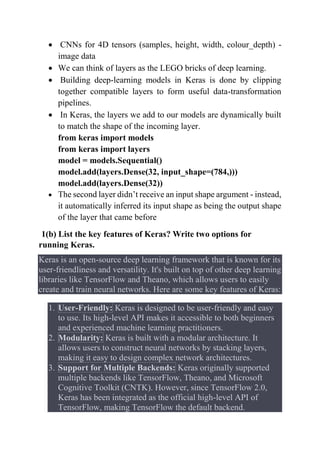

2.  CNNs for 4D tensors (samples, height, width, colour_depth) -
image data
 We can think of layers as the LEGO bricks of deep learning.
 Building deep-learning models in Keras is done by clipping
together compatible layers to form useful data-transformation
pipelines.
 In Keras, the layers we add to our models are dynamically built
to match the shape of the incoming layer.
from keras import models
from keras import layers
model = models.Sequential()
model.add(layers.Dense(32, input_shape=(784,)))
model.add(layers.Dense(32))
 The second layer didn’t receive an input shape argument - instead,
it automatically inferred its input shape as being the output shape
of the layer that came before
1(b) List the key features of Keras? Write two options for
running Keras.
Keras is an open-source deep learning framework that is known for its
user-friendliness and versatility. It's built on top of other deep learning
libraries like TensorFlow and Theano, which allows users to easily
create and train neural networks. Here are some key features of Keras:
1. User-Friendly: Keras is designed to be user-friendly and easy
to use. Its high-level API makes it accessible to both beginners
and experienced machine learning practitioners.
2. Modularity: Keras is built with a modular architecture. It
allows users to construct neural networks by stacking layers,
making it easy to design complex network architectures.
3. Support for Multiple Backends: Keras originally supported
multiple backends like TensorFlow, Theano, and Microsoft
Cognitive Toolkit (CNTK). However, since TensorFlow 2.0,
Keras has been integrated as the official high-level API of
TensorFlow, making TensorFlow the default backend.

3. 4. Extensibility: Keras is highly extensible, allowing users to
define custom layers, loss functions, and metrics. This makes it
suitable for research and experimentation.
5. Pre-trained Models: Keras provides access to popular pre-
trained models for tasks like image classification, object
detection, and natural language processing through its
applications module. These pre-trained models can be fine-
tuned for specific tasks.
6. GPU Support: Keras leverages the computational power of
GPUs, which significantly accelerates the training of deep
neural networks.
7. Visualization Tools: Keras includes tools for visualizing model
architectures, training history, and more, making it easier to
understand and debug neural networks.
8. Callback System: Keras offers a callback system that allows
users to specify functions to be executed at various stages during
training. This can be used for tasks like model checkpointing,
early stopping, and custom logging.
9. Integration with Data Libraries: Keras seamlessly integrates
with popular data manipulation libraries like NumPy and data
preprocessing libraries like TensorFlow Data Validation
(TFDV) and TensorFlow Data Validation (TFDV).
Two options for running Keras are:
1. TensorFlow with Keras: As of TensorFlow 2.0 and later,
Keras is included as the official high-level API of TensorFlow.
You can use Keras by simply importing it from TensorFlow and
building your models using the Keras API. For example:

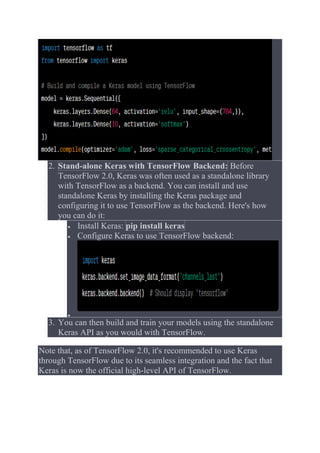

4. 2. Stand-alone Keras with TensorFlow Backend: Before
TensorFlow 2.0, Keras was often used as a standalone library
with TensorFlow as a backend. You can install and use
standalone Keras by installing the Keras package and
configuring it to use TensorFlow as the backend. Here's how
you can do it:
 Install Keras: pip install keras
 Configure Keras to use TensorFlow backend:

3. You can then build and train your models using the standalone
Keras API as you would with TensorFlow.
Note that, as of TensorFlow 2.0, it's recommended to use Keras
through TensorFlow due to its seamless integration and the fact that
Keras is now the official high-level API of TensorFlow.

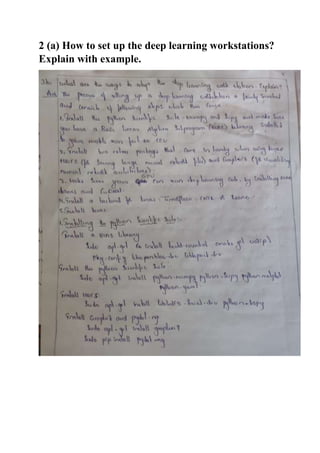

5. 2 (a) How to set up the deep learning workstations?
Explain with example.

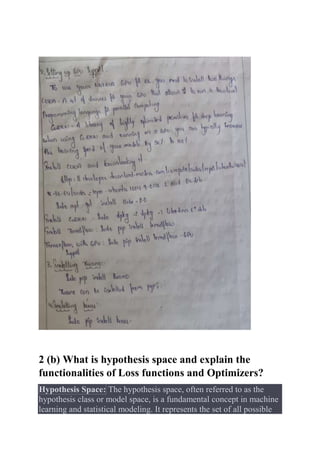

6. 2 (b) What is hypothesis space and explain the
functionalities of Loss functions and Optimizers?
Hypothesis Space: The hypothesis space, often referred to as the
hypothesis class or model space, is a fundamental concept in machine
learning and statistical modeling. It represents the set of all possible

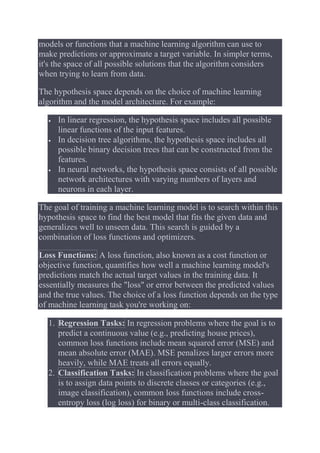

7. models or functions that a machine learning algorithm can use to
make predictions or approximate a target variable. In simpler terms,
it's the space of all possible solutions that the algorithm considers
when trying to learn from data.
The hypothesis space depends on the choice of machine learning
algorithm and the model architecture. For example:
 In linear regression, the hypothesis space includes all possible
linear functions of the input features.
 In decision tree algorithms, the hypothesis space includes all
possible binary decision trees that can be constructed from the
features.
 In neural networks, the hypothesis space consists of all possible
network architectures with varying numbers of layers and
neurons in each layer.
The goal of training a machine learning model is to search within this
hypothesis space to find the best model that fits the given data and
generalizes well to unseen data. This search is guided by a
combination of loss functions and optimizers.
Loss Functions: A loss function, also known as a cost function or
objective function, quantifies how well a machine learning model's
predictions match the actual target values in the training data. It
essentially measures the "loss" or error between the predicted values
and the true values. The choice of a loss function depends on the type
of machine learning task you're working on:
1. Regression Tasks: In regression problems where the goal is to
predict a continuous value (e.g., predicting house prices),
common loss functions include mean squared error (MSE) and
mean absolute error (MAE). MSE penalizes larger errors more
heavily, while MAE treats all errors equally.
2. Classification Tasks: In classification problems where the goal
is to assign data points to discrete classes or categories (e.g.,
image classification), common loss functions include cross-
entropy loss (log loss) for binary or multi-class classification.

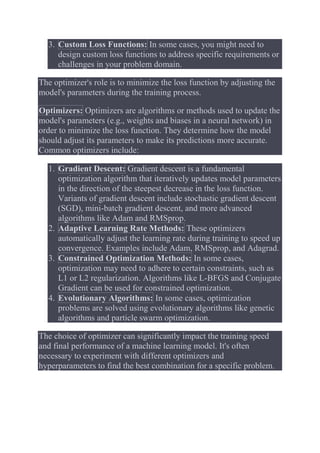

8. 3. Custom Loss Functions: In some cases, you might need to
design custom loss functions to address specific requirements or
challenges in your problem domain.
The optimizer's role is to minimize the loss function by adjusting the
model's parameters during the training process.
Optimizers: Optimizers are algorithms or methods used to update the
model's parameters (e.g., weights and biases in a neural network) in
order to minimize the loss function. They determine how the model
should adjust its parameters to make its predictions more accurate.
Common optimizers include:
1. Gradient Descent: Gradient descent is a fundamental
optimization algorithm that iteratively updates model parameters
in the direction of the steepest decrease in the loss function.
Variants of gradient descent include stochastic gradient descent
(SGD), mini-batch gradient descent, and more advanced
algorithms like Adam and RMSprop.
2. Adaptive Learning Rate Methods: These optimizers
automatically adjust the learning rate during training to speed up
convergence. Examples include Adam, RMSprop, and Adagrad.
3. Constrained Optimization Methods: In some cases,
optimization may need to adhere to certain constraints, such as
L1 or L2 regularization. Algorithms like L-BFGS and Conjugate
Gradient can be used for constrained optimization.
4. Evolutionary Algorithms: In some cases, optimization
problems are solved using evolutionary algorithms like genetic
algorithms and particle swarm optimization.
The choice of optimizer can significantly impact the training speed
and final performance of a machine learning model. It's often
necessary to experiment with different optimizers and
hyperparameters to find the best combination for a specific problem.
