Dive into SObjectizer 5.5. Tenth part: Mutable Messages

Dive into SObjectizer-5.5
SObjectizer Team, May 2017
Tenth Part: Mutable Messages
at v.5.5.19

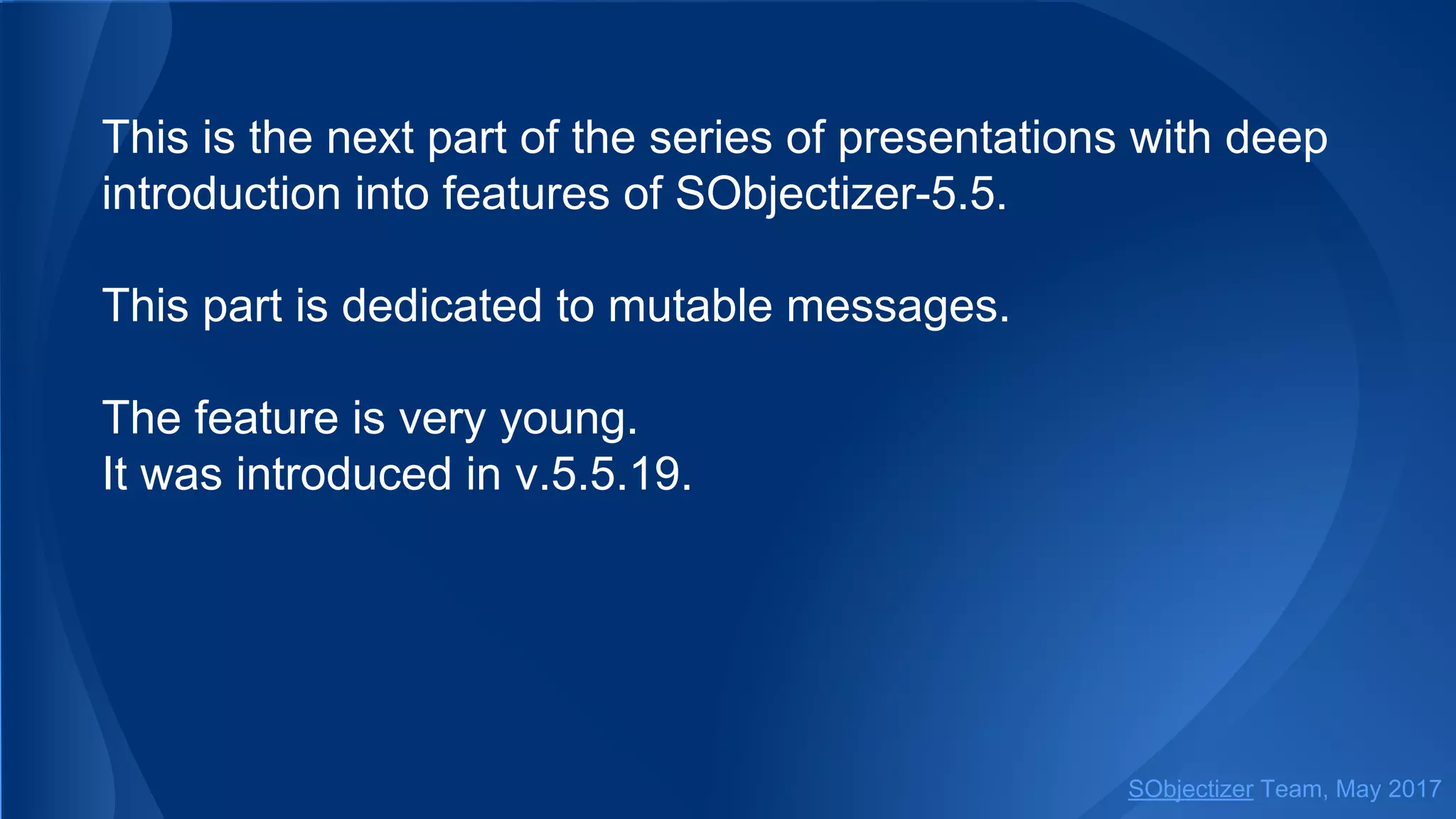

This is the next part of the series of presentations with deep
introduction into features of SObjectizer-5.5.
This part is dedicated to mutable messages.
The feature is very young.
It was introduced in v.5.5.19.

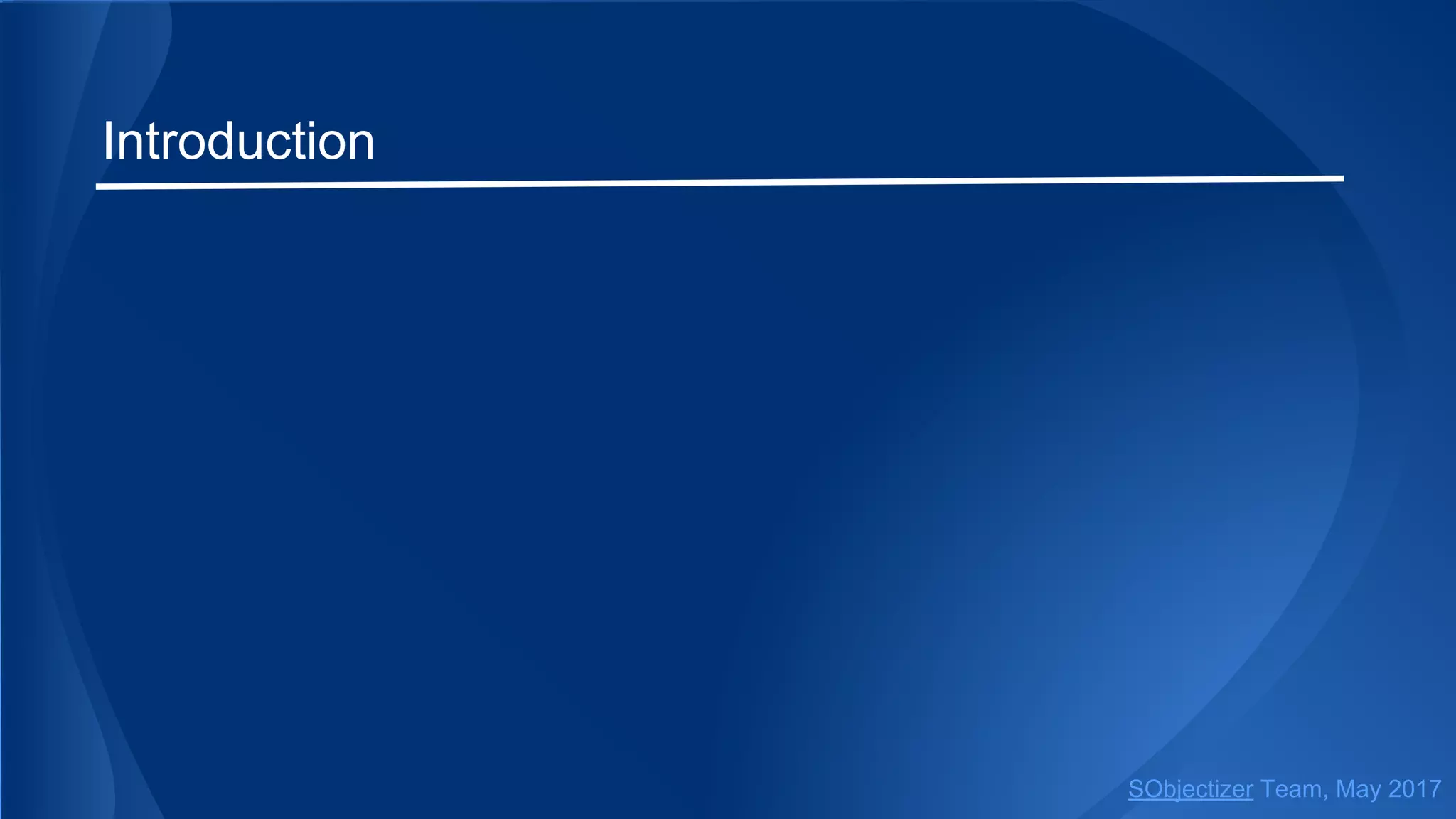

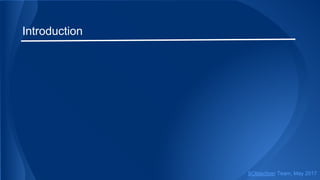

Introduction

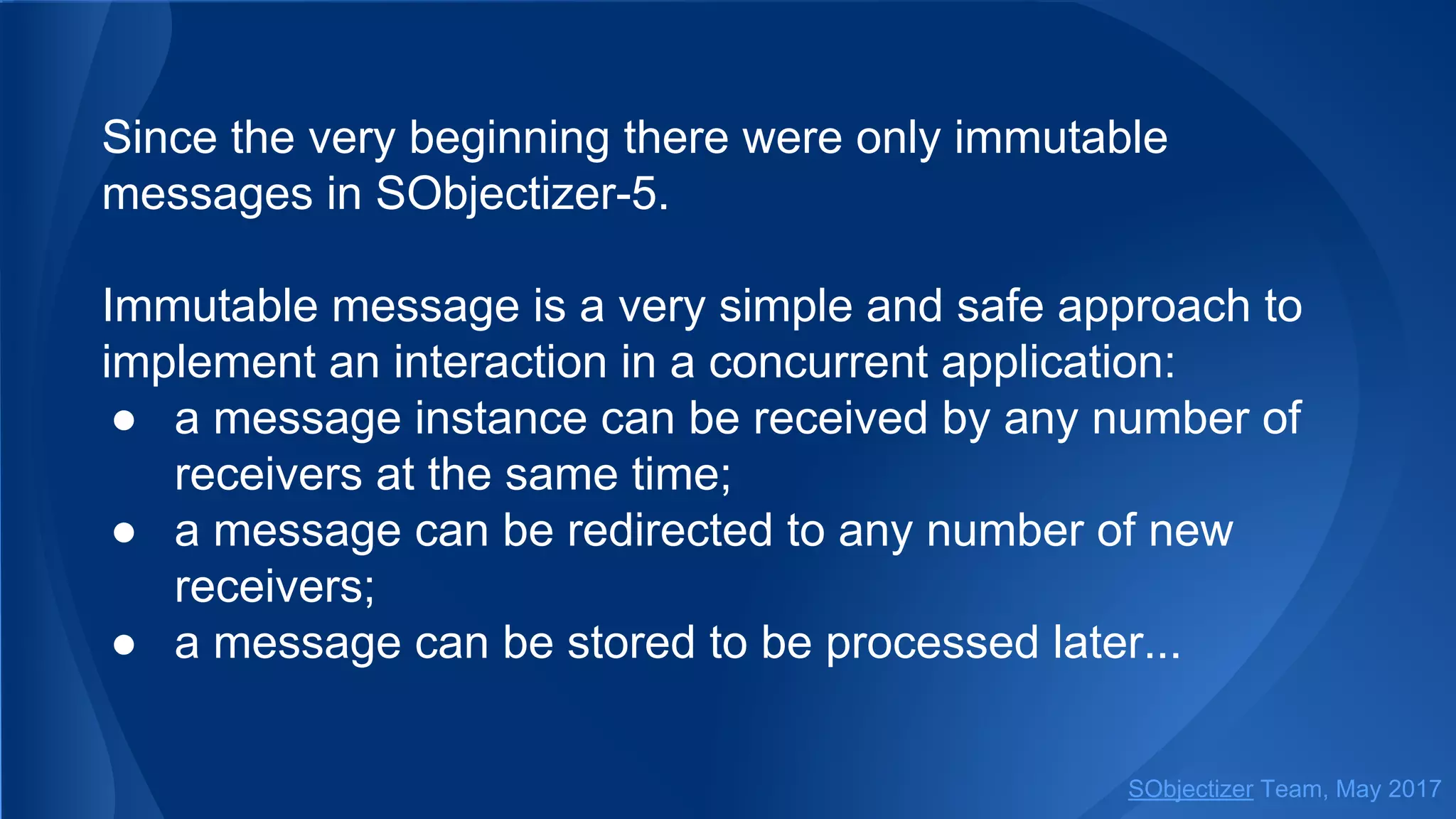

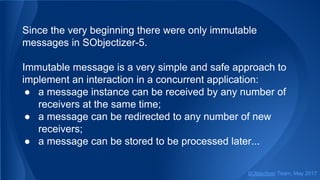

Since the very beginning there were only immutable
messages in SObjectizer-5.
Immutable message is a very simple and safe approach to
implement an interaction in a concurrent application:
● a message instance can be received by any number of
receivers at the same time;
● a message can be redirected to any number of new
receivers;
● a message can be stored to be processed later...

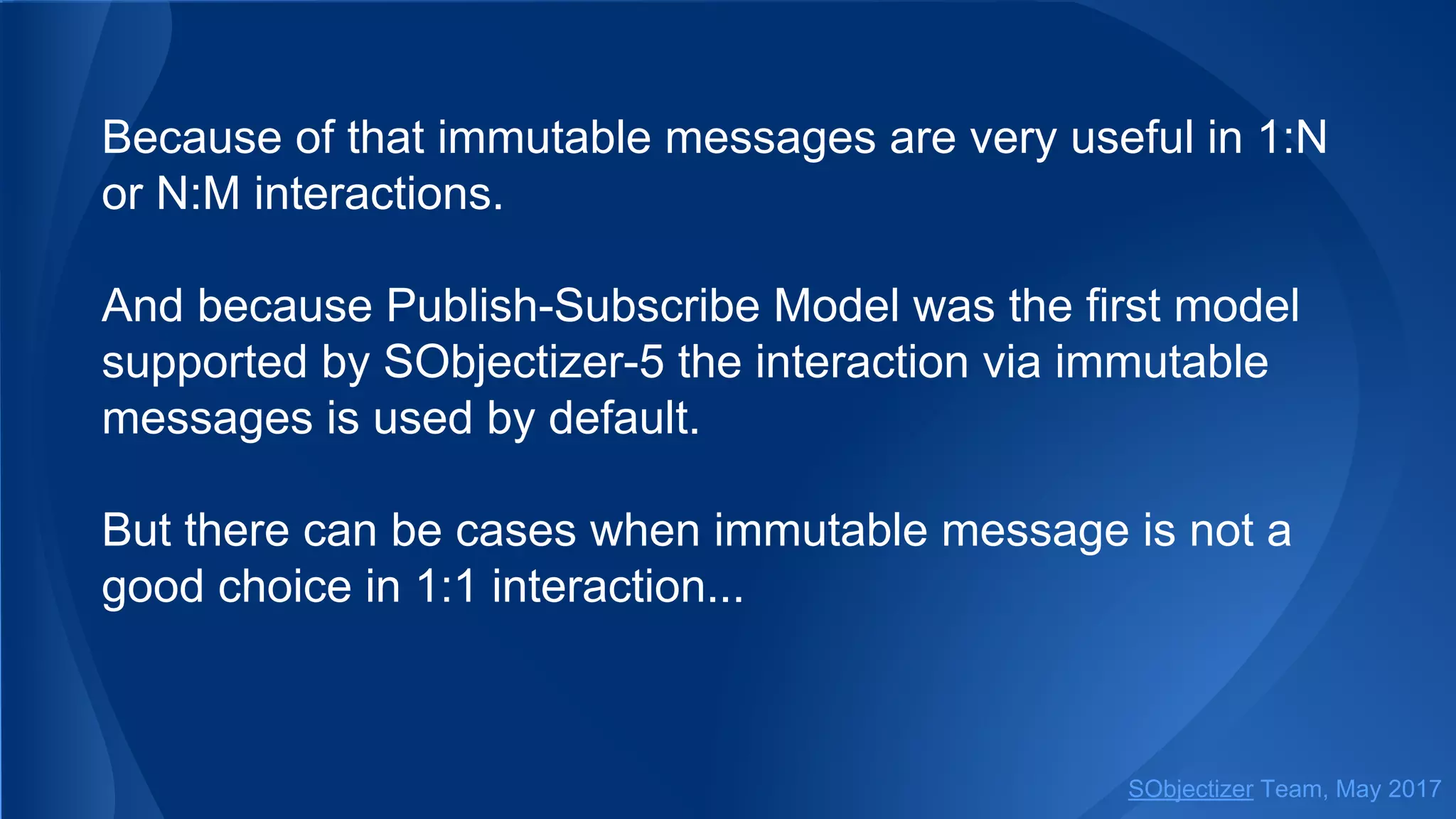

Because of that immutable messages are very useful in 1:N
or N:M interactions.
And because Publish-Subscribe Model was the first model
supported by SObjectizer-5 the interaction via immutable
messages is used by default.
But there can be cases when immutable message is not a
good choice in 1:1 interaction...

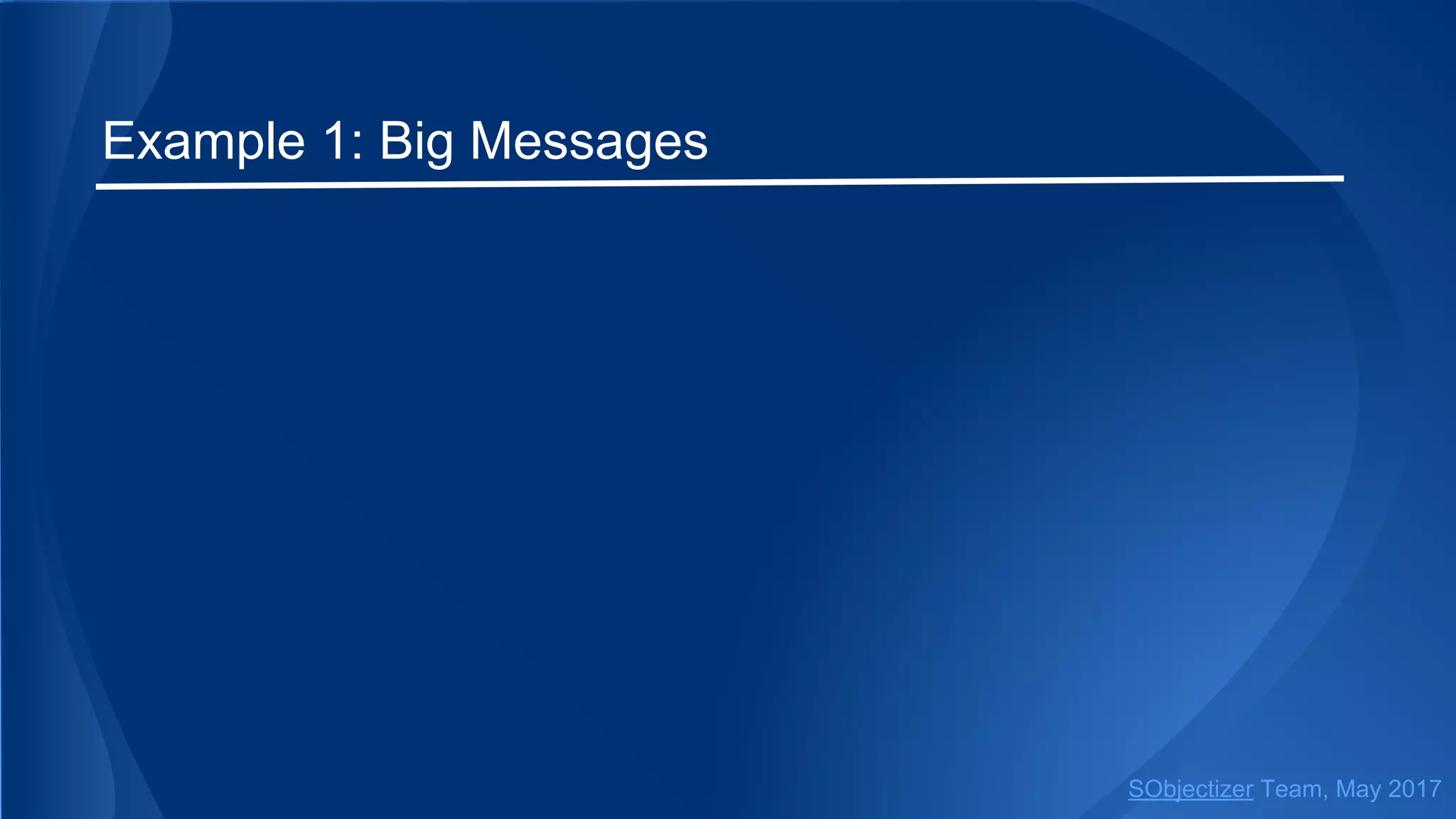

Example 1: Big Messages

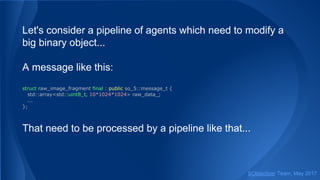

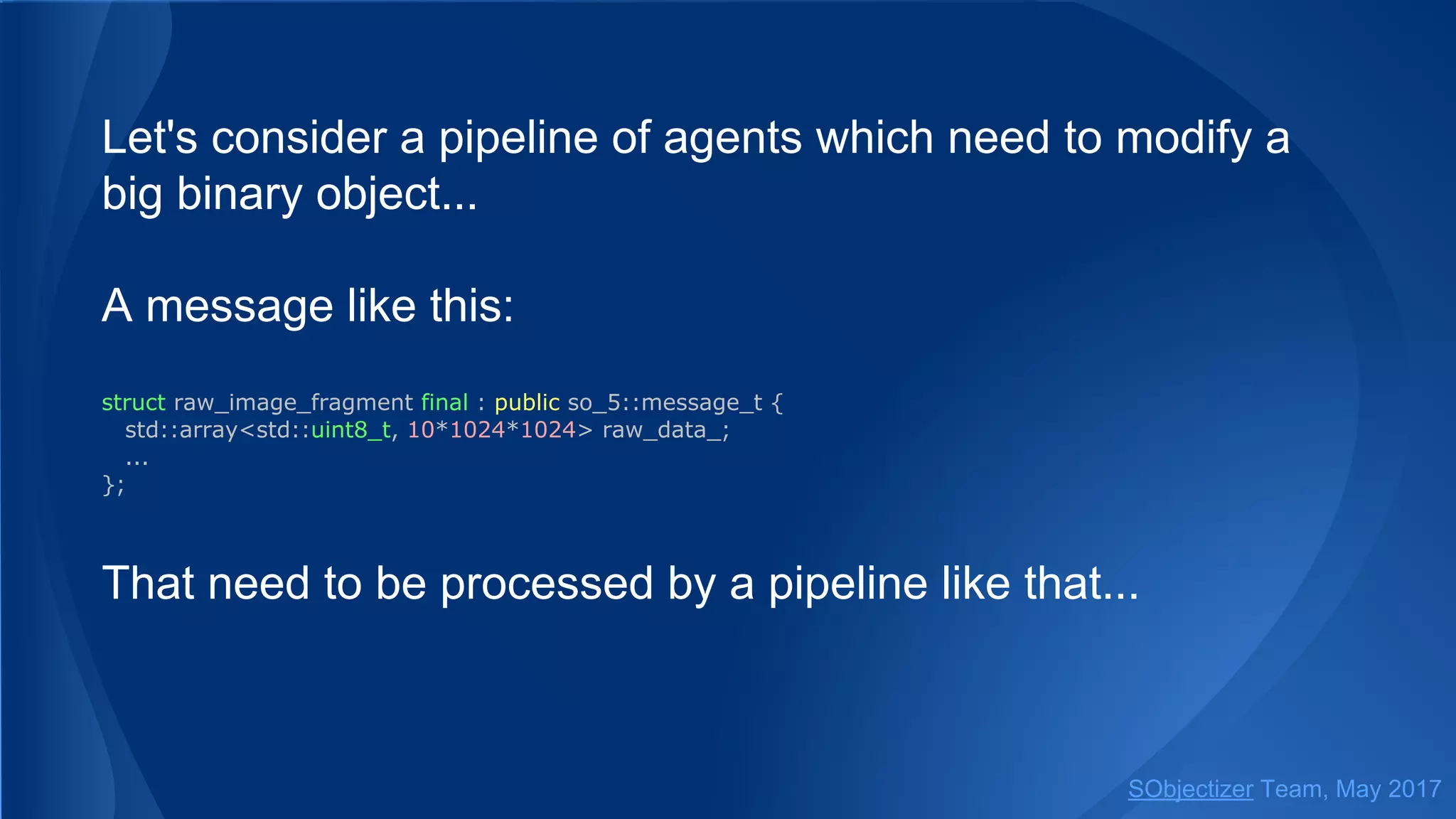

Let's consider a pipeline of agents which need to modify a
big binary object...
A message like this:
struct raw_image_fragment final : public so_5::message_t {
std::array<std::uint8_t, 10*1024*1024> raw_data_;
...
};
That need to be processed by a pipeline like that...

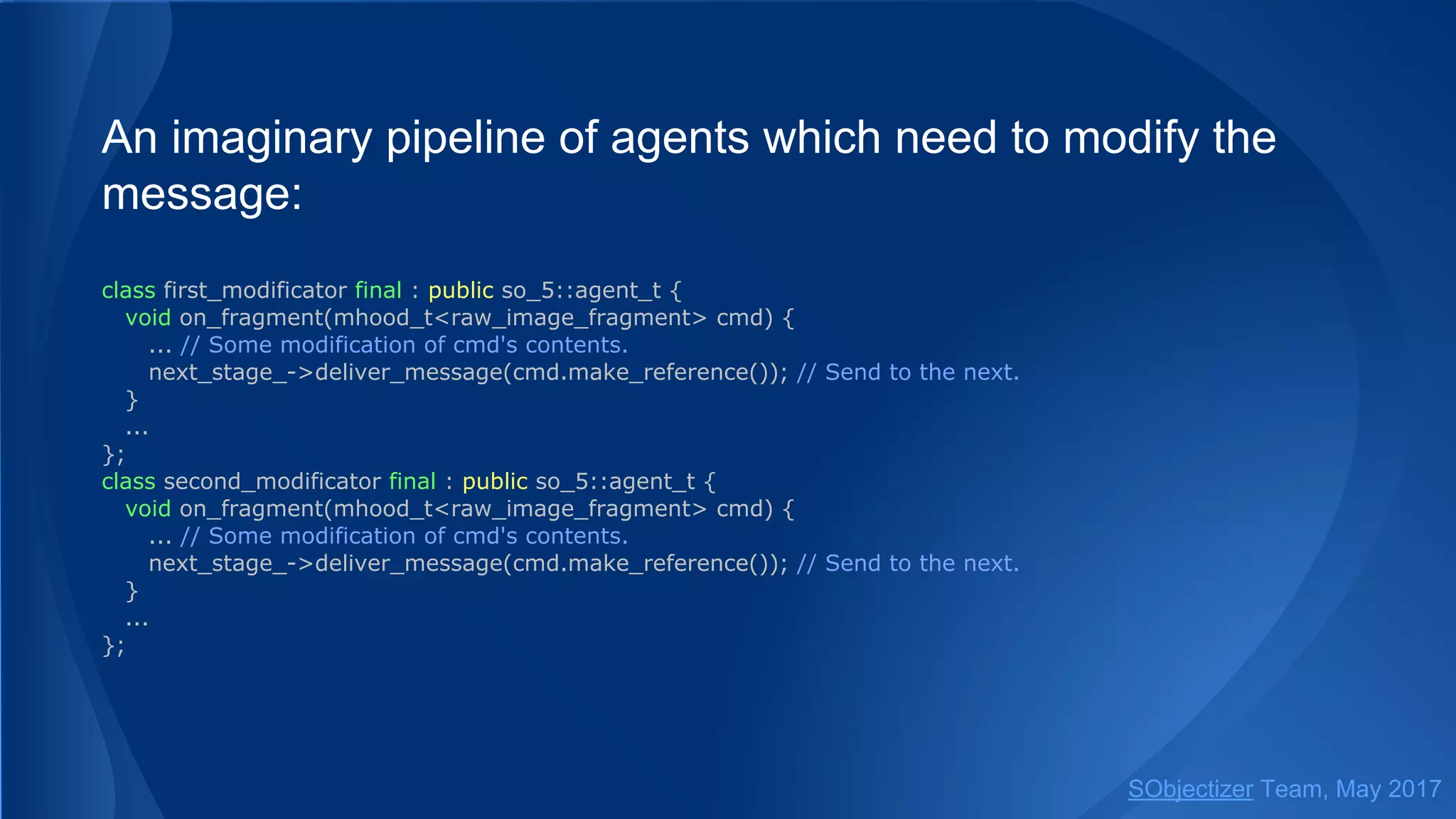

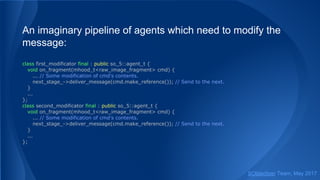

An imaginary pipeline of agents which need to modify the
message:
class first_modificator final : public so_5::agent_t {
void on_fragment(mhood_t<raw_image_fragment> cmd) {
... // Some modification of cmd's contents.
next_stage_->deliver_message(cmd.make_reference()); // Send to the next.
}
...
};
class second_modificator final : public so_5::agent_t {
... // Some modification of cmd's contents.
}
...
};

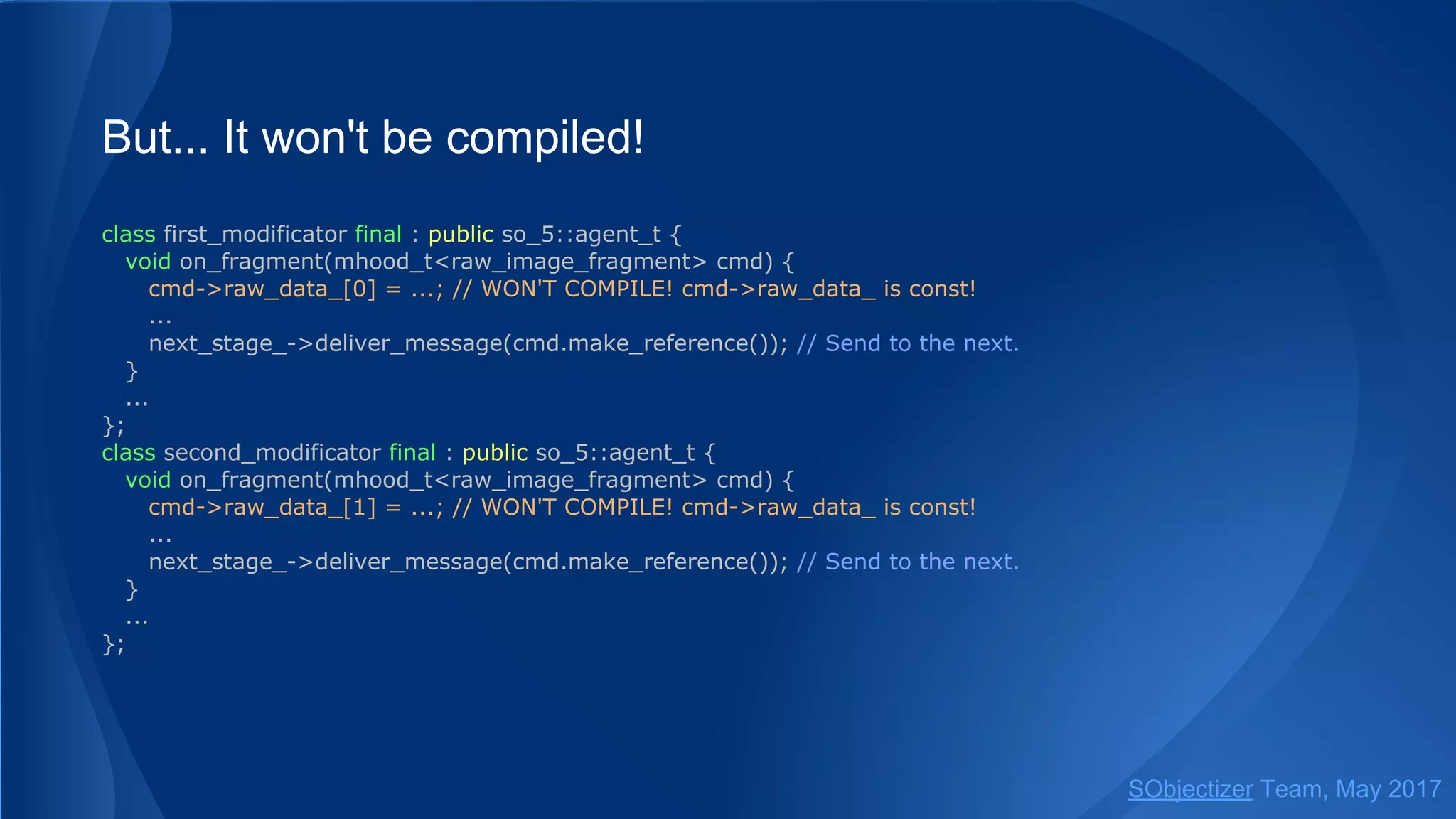

But... It won't be compiled!
cmd->raw_data_[0] = ...; // WON'T COMPILE! cmd->raw_data_ is const!
...
}
...
};
cmd->raw_data_[1] = ...; // WON'T COMPILE! cmd->raw_data_ is const!
...
}
...
};

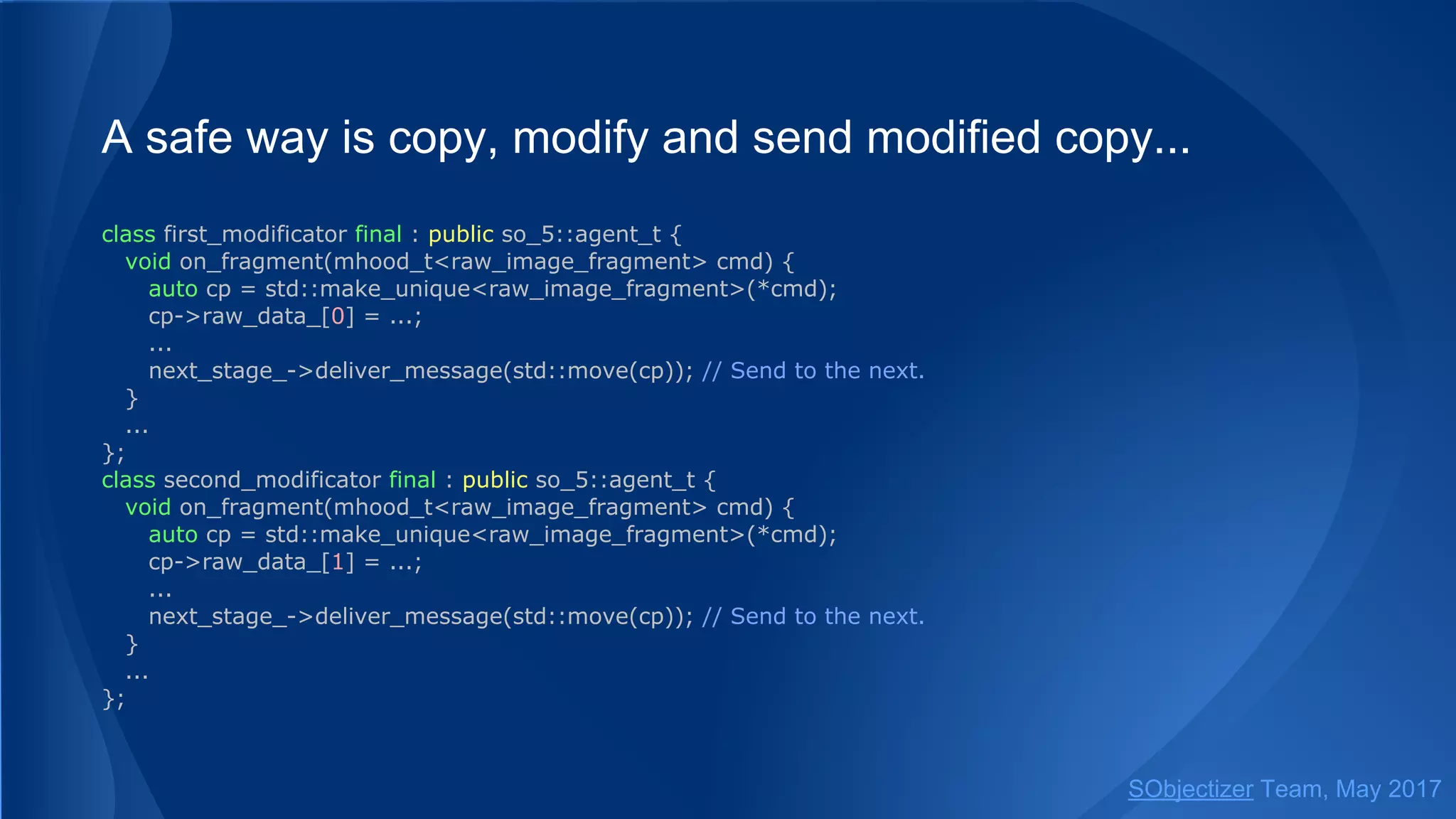

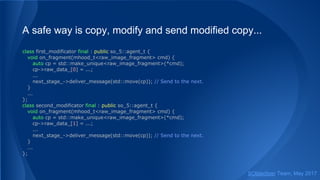

A safe way is copy, modify and send modified copy...
auto cp = std::make_unique<raw_image_fragment>(*cmd);
cp->raw_data_[0] = ...;
...
next_stage_->deliver_message(std::move(cp)); // Send to the next.
}
...
};
auto cp = std::make_unique<raw_image_fragment>(*cmd);
cp->raw_data_[1] = ...;
...
next_stage_->deliver_message(std::move(cp)); // Send to the next.
}
...
};

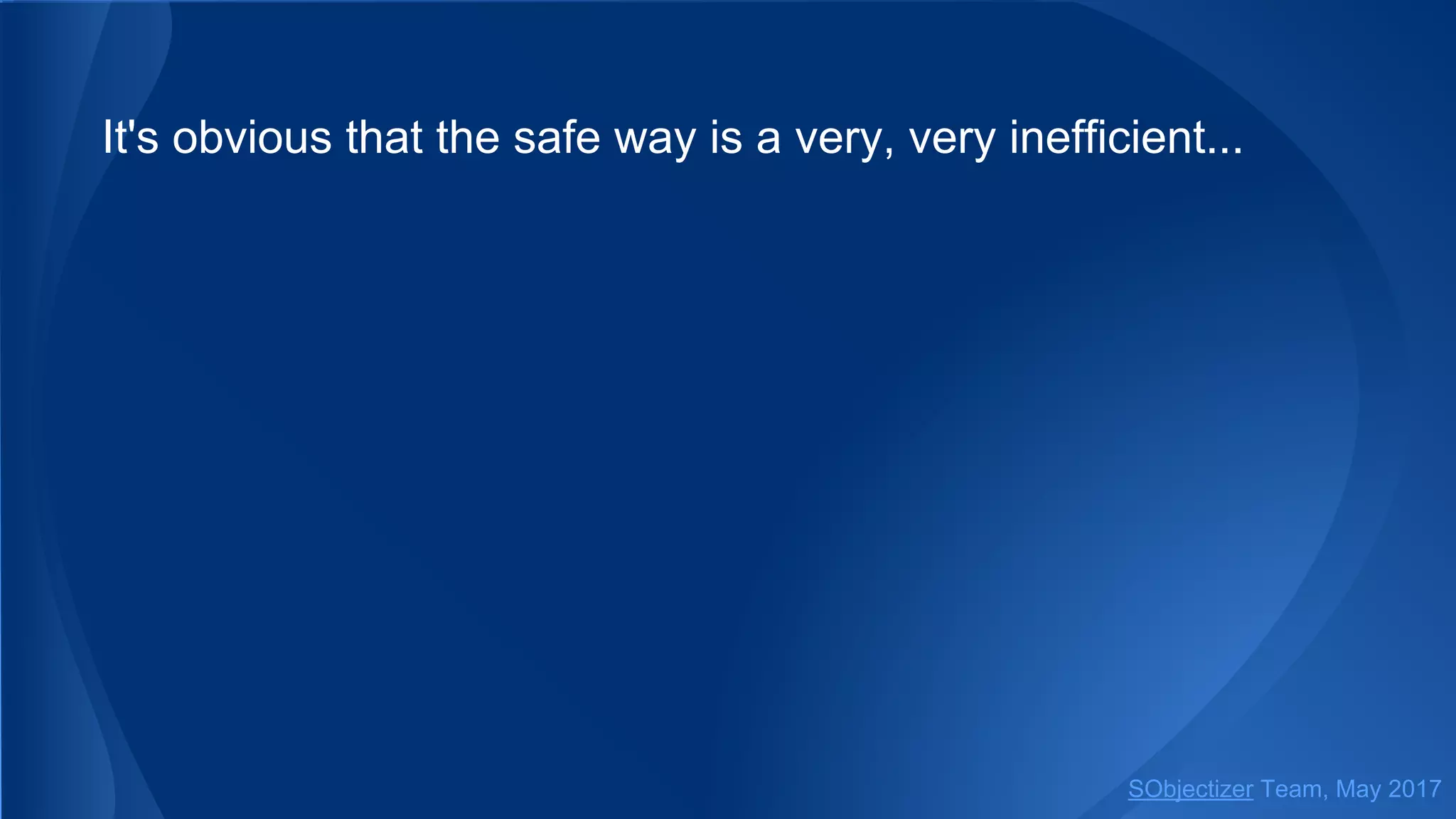

It's obvious that the safe way is a very, very inefficient...

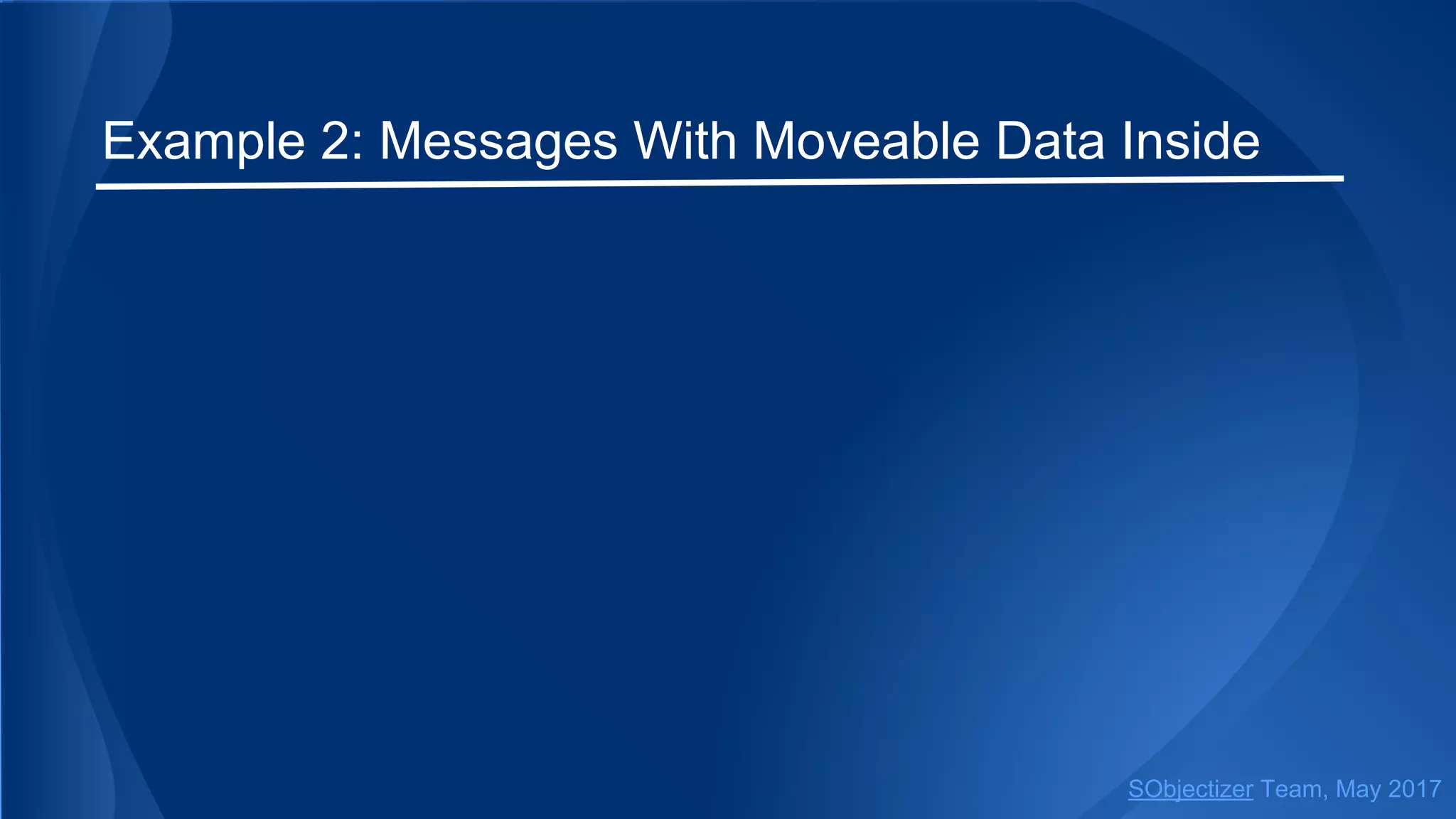

Example 2: Messages With Moveable Data Inside

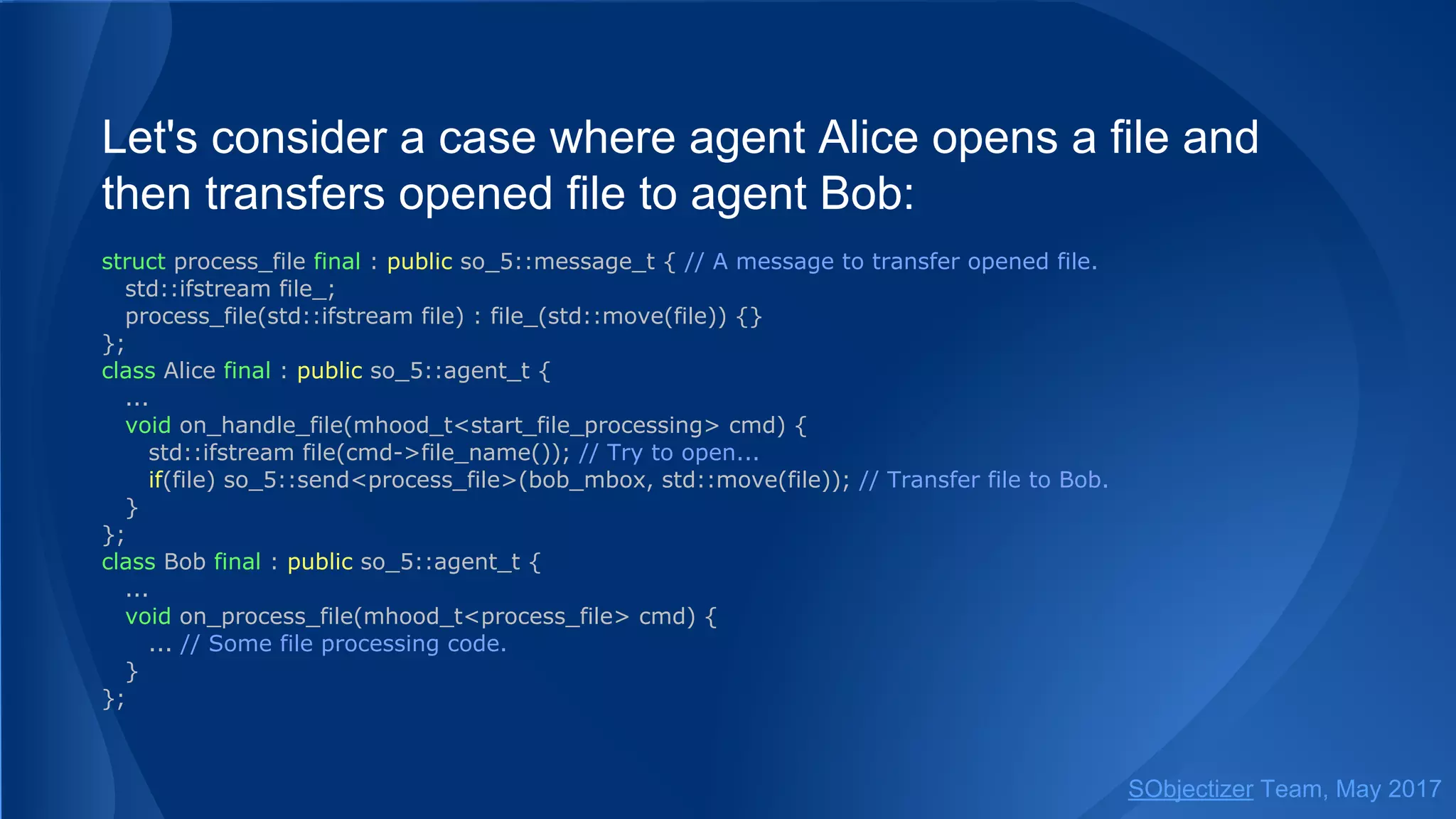

Let's consider a case where agent Alice opens a file and
then transfers opened file to agent Bob:
struct process_file final : public so_5::message_t { // A message to transfer opened file.
std::ifstream file_;
process_file(std::ifstream file) : file_(std::move(file)) {}
};
class Alice final : public so_5::agent_t {
...
void on_handle_file(mhood_t<start_file_processing> cmd) {
std::ifstream file(cmd->file_name()); // Try to open...
if(file) so_5::send<process_file>(bob_mbox, std::move(file)); // Transfer file to Bob.
}
};
class Bob final : public so_5::agent_t {
...
void on_process_file(mhood_t<process_file> cmd) {
... // Some file processing code.
}
};

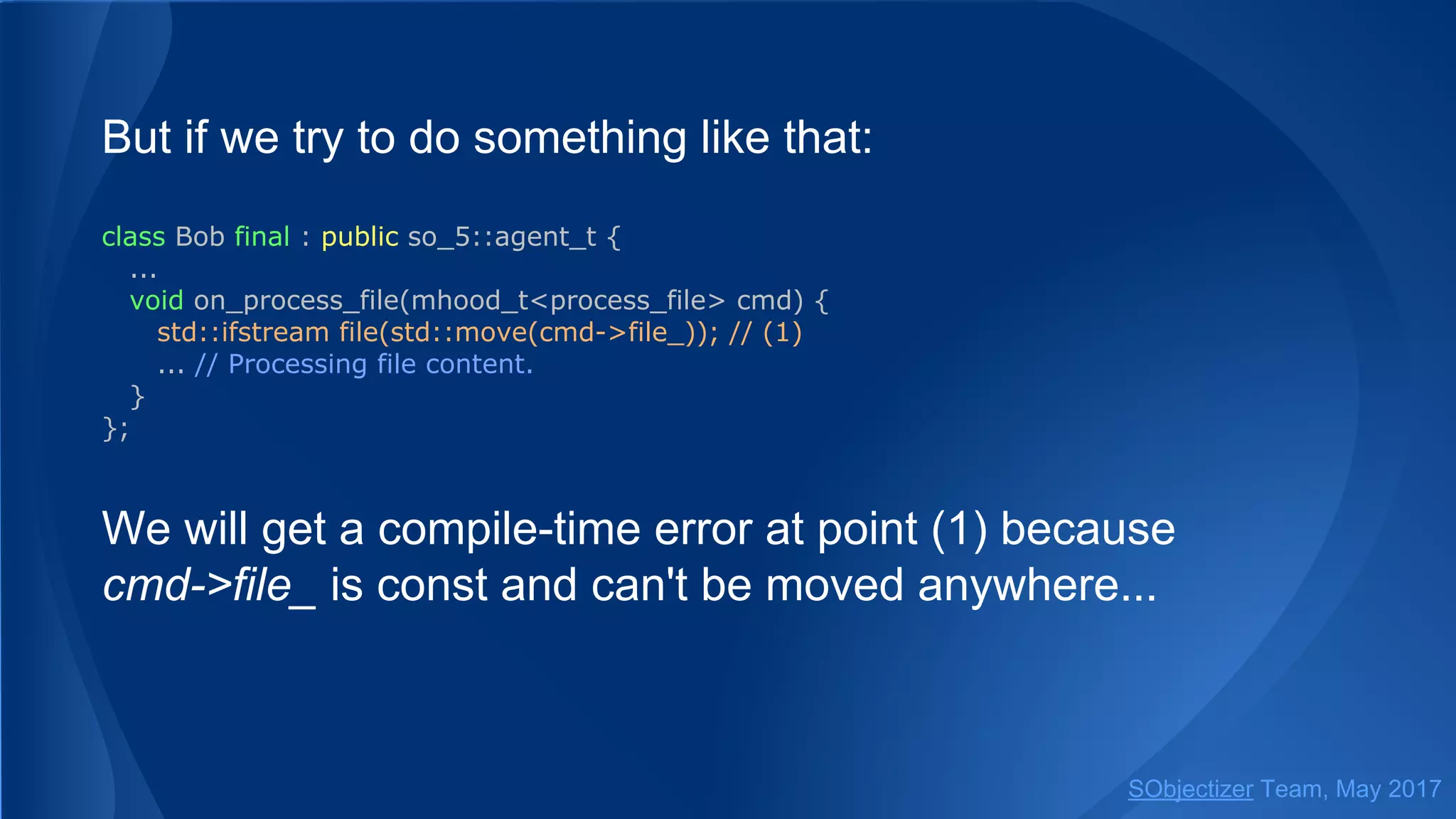

But if we try to do something like that:
...
void on_process_file(mhood_t<process_file> cmd) {
std::ifstream file(std::move(cmd->file_)); // (1)
... // Processing file content.
}
};
We will get a compile-time error at point (1) because
cmd->file_ is const and can't be moved anywhere...

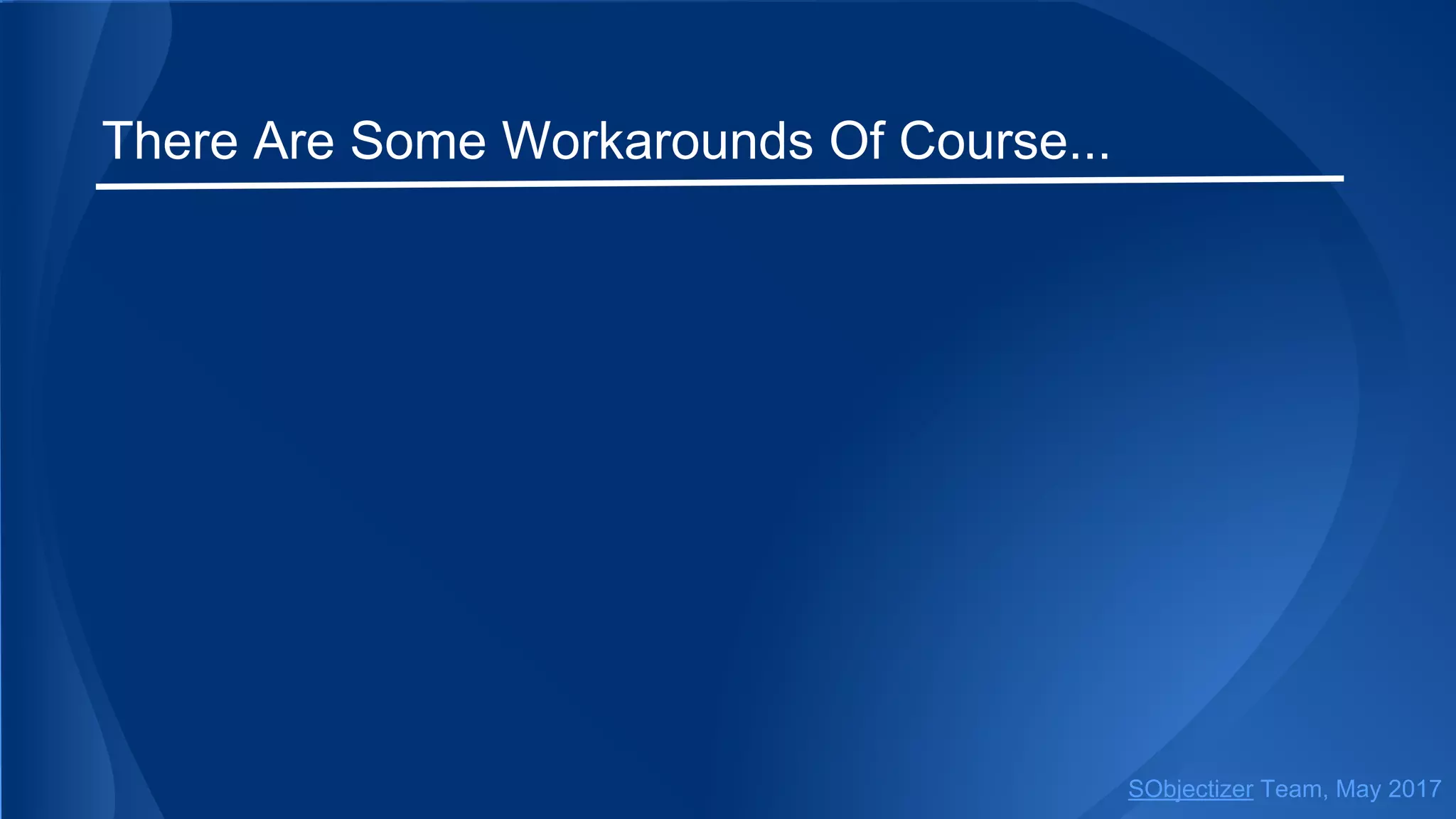

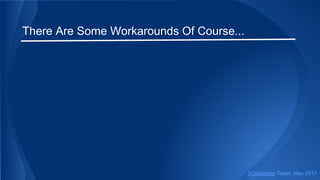

There Are Some Workarounds Of Course...

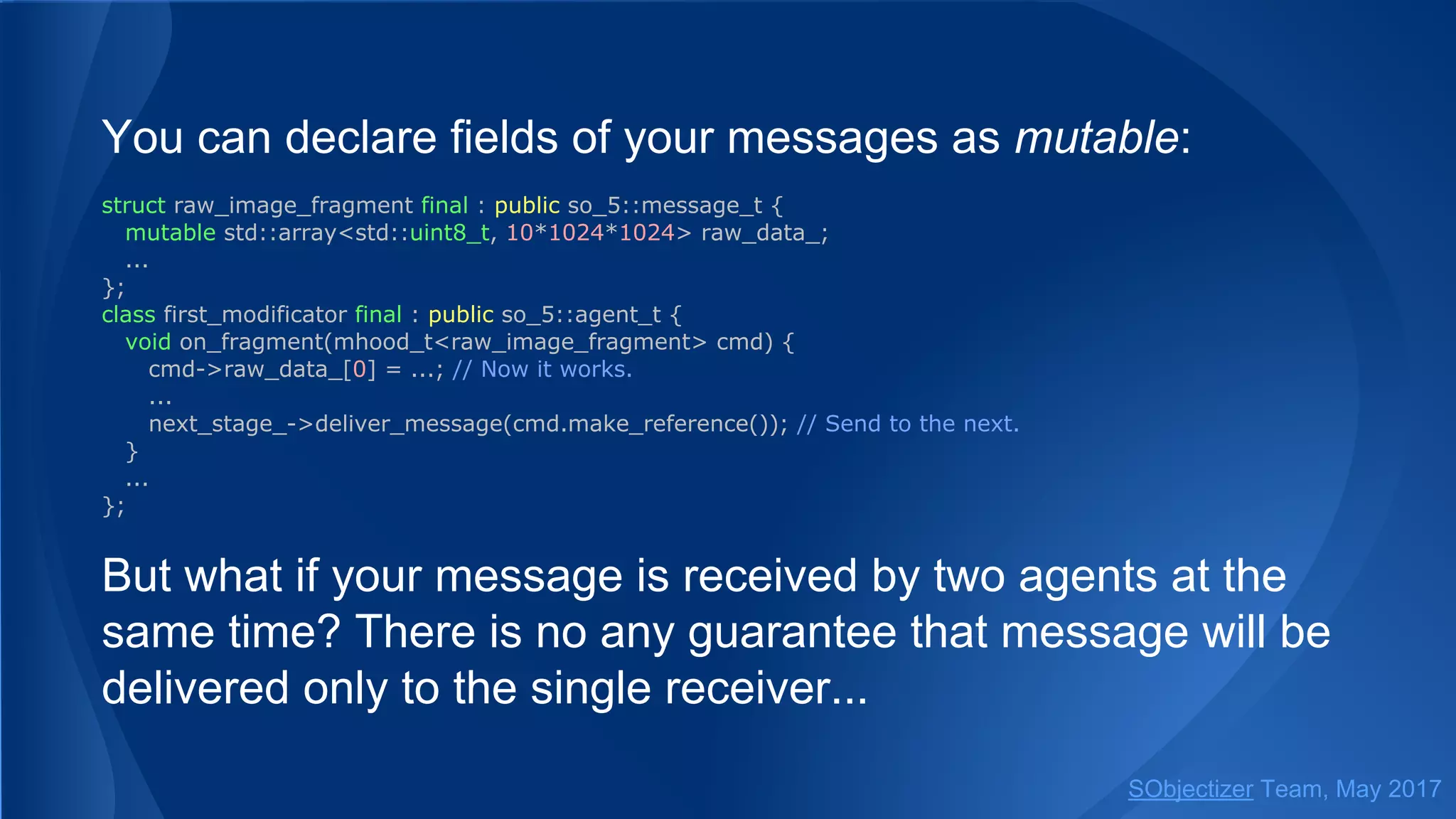

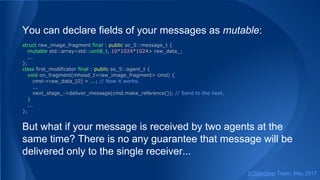

You can declare fields of your messages as mutable:
mutable std::array<std::uint8_t, 10*1024*1024> raw_data_;
...
};
cmd->raw_data_[0] = ...; // Now it works.
...
}
...
};
But what if your message is received by two agents at the
same time? There is no any guarantee that message will be
delivered only to the single receiver...

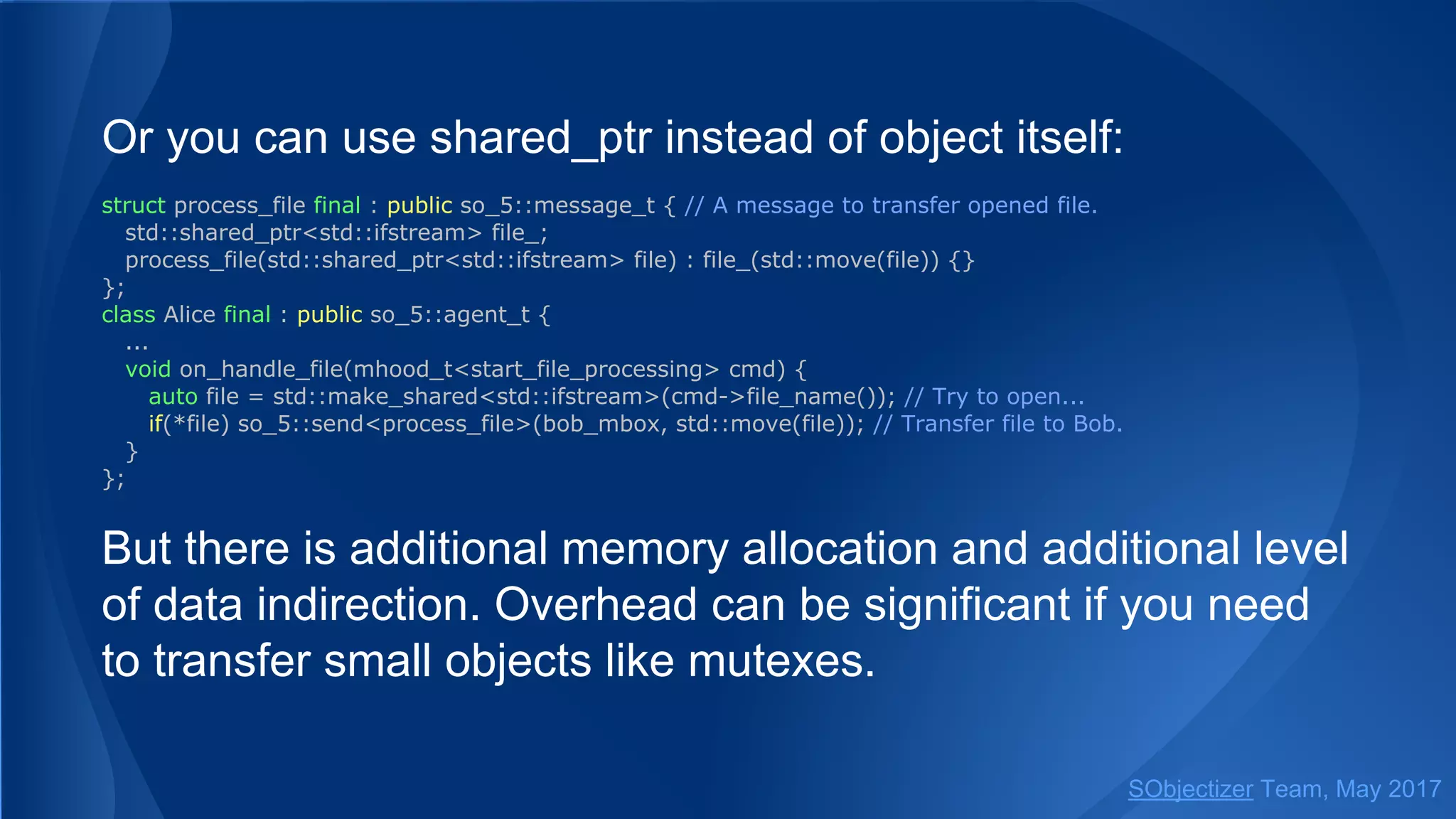

Or you can use shared_ptr instead of object itself:
std::shared_ptr<std::ifstream> file_;
process_file(std::shared_ptr<std::ifstream> file) : file_(std::move(file)) {}
};
...
auto file = std::make_shared<std::ifstream>(cmd->file_name()); // Try to open...
if(*file) so_5::send<process_file>(bob_mbox, std::move(file)); // Transfer file to Bob.
}
};
But there is additional memory allocation and additional level
of data indirection. Overhead can be significant if you need
to transfer small objects like mutexes.

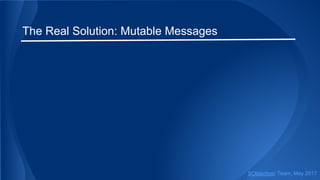

The Real Solution: Mutable Messages

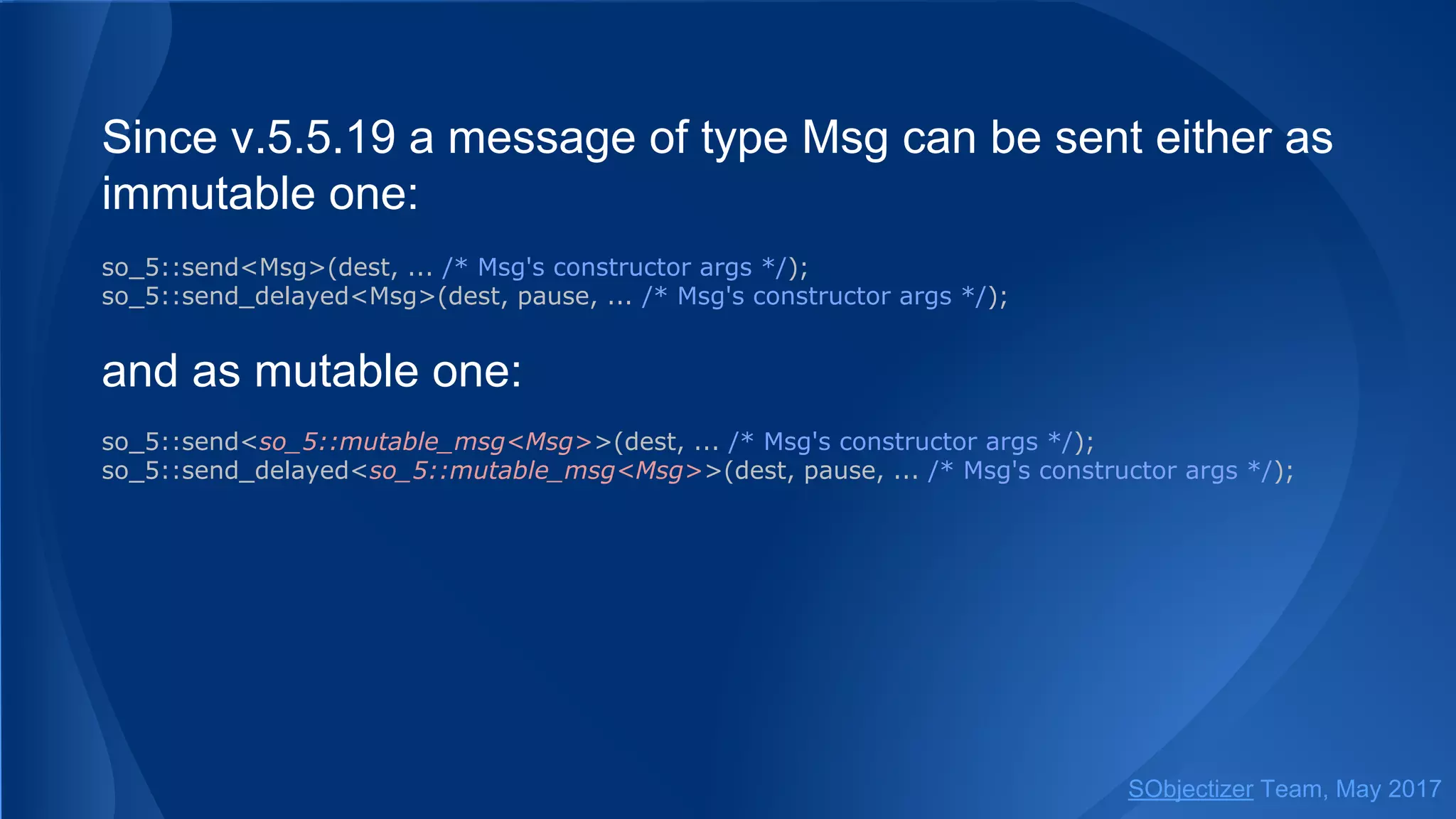

Since v.5.5.19 a message of type Msg can be sent either as
immutable one:
so_5::send<Msg>(dest, ... /* Msg's constructor args */);
so_5::send_delayed<Msg>(dest, pause, ... /* Msg's constructor args */);
and as mutable one:
so_5::send<so_5::mutable_msg<Msg>>(dest, ... /* Msg's constructor args */);
so_5::send_delayed<so_5::mutable_msg<Msg>>(dest, pause, ... /* Msg's constructor args */);

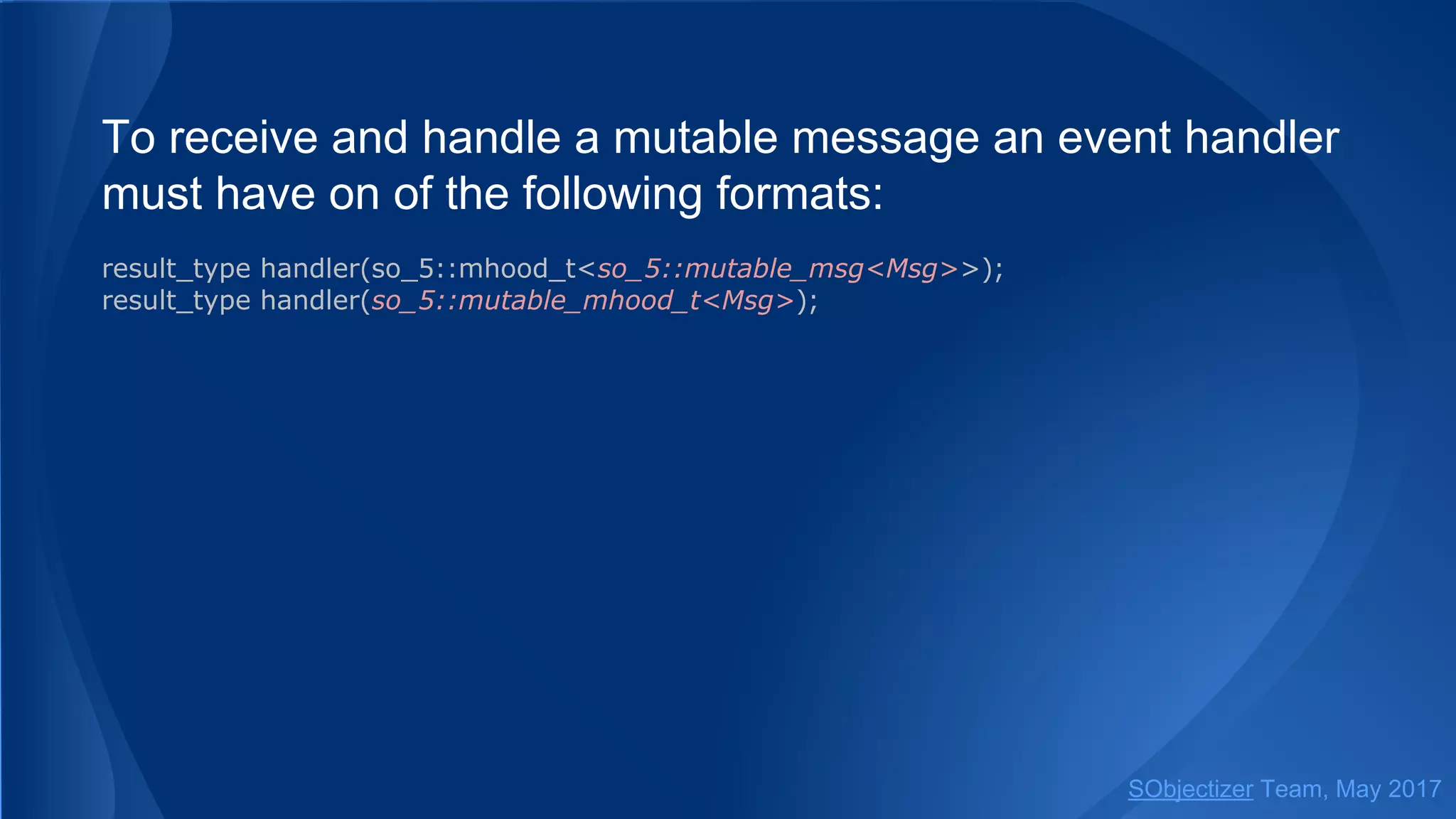

To receive and handle a mutable message an event handler
must have on of the following formats:
result_type handler(so_5::mhood_t<so_5::mutable_msg<Msg>>);
result_type handler(so_5::mutable_mhood_t<Msg>);

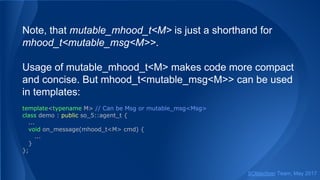

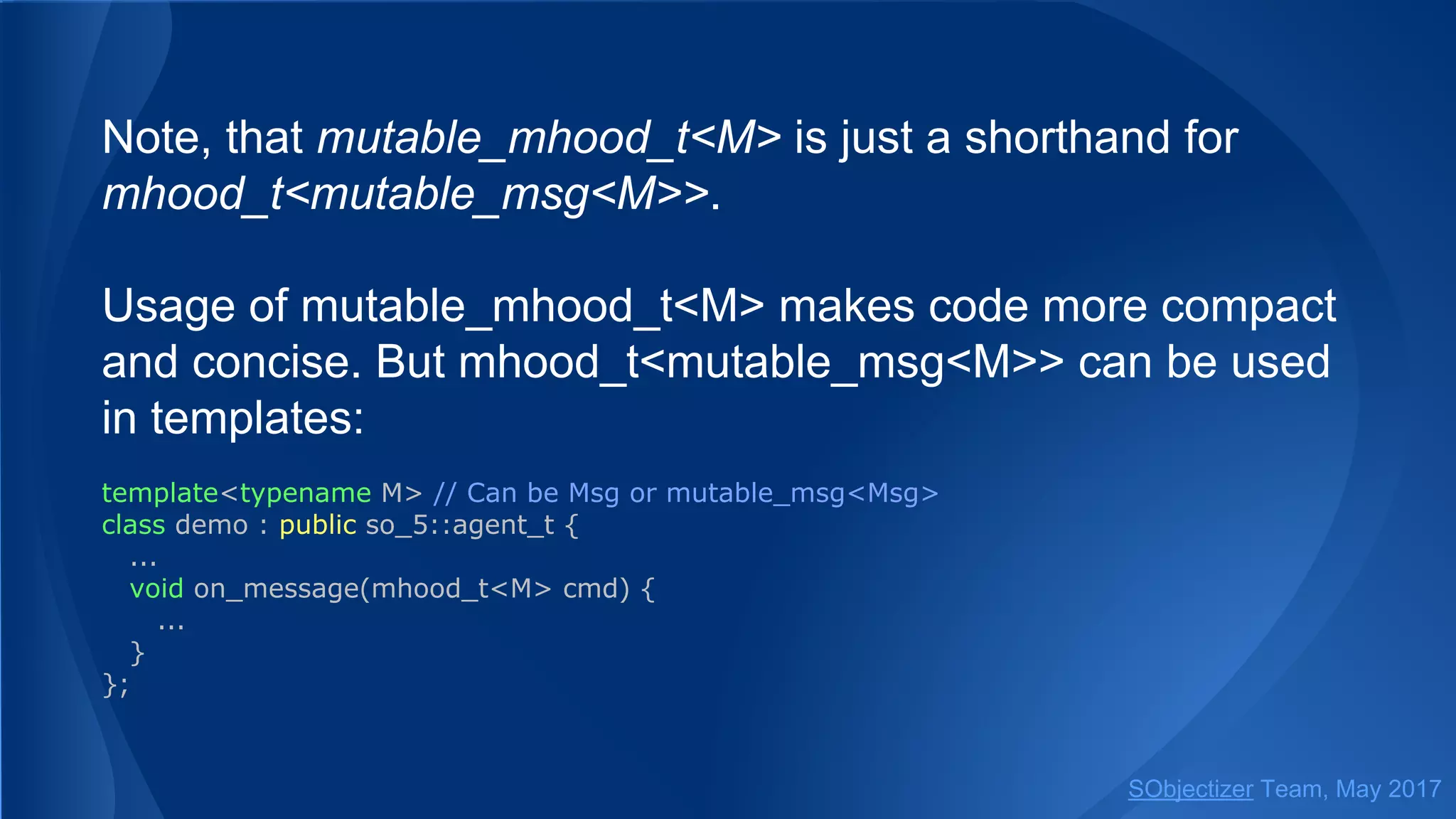

Note, that mutable_mhood_t<M> is just a shorthand for
mhood_t<mutable_msg<M>>.
Usage of mutable_mhood_t<M> makes code more compact
and concise. But mhood_t<mutable_msg<M>> can be used
in templates:
template<typename M> // Can be Msg or mutable_msg<Msg>
class demo : public so_5::agent_t {
...
void on_message(mhood_t<M> cmd) {
...
}
};

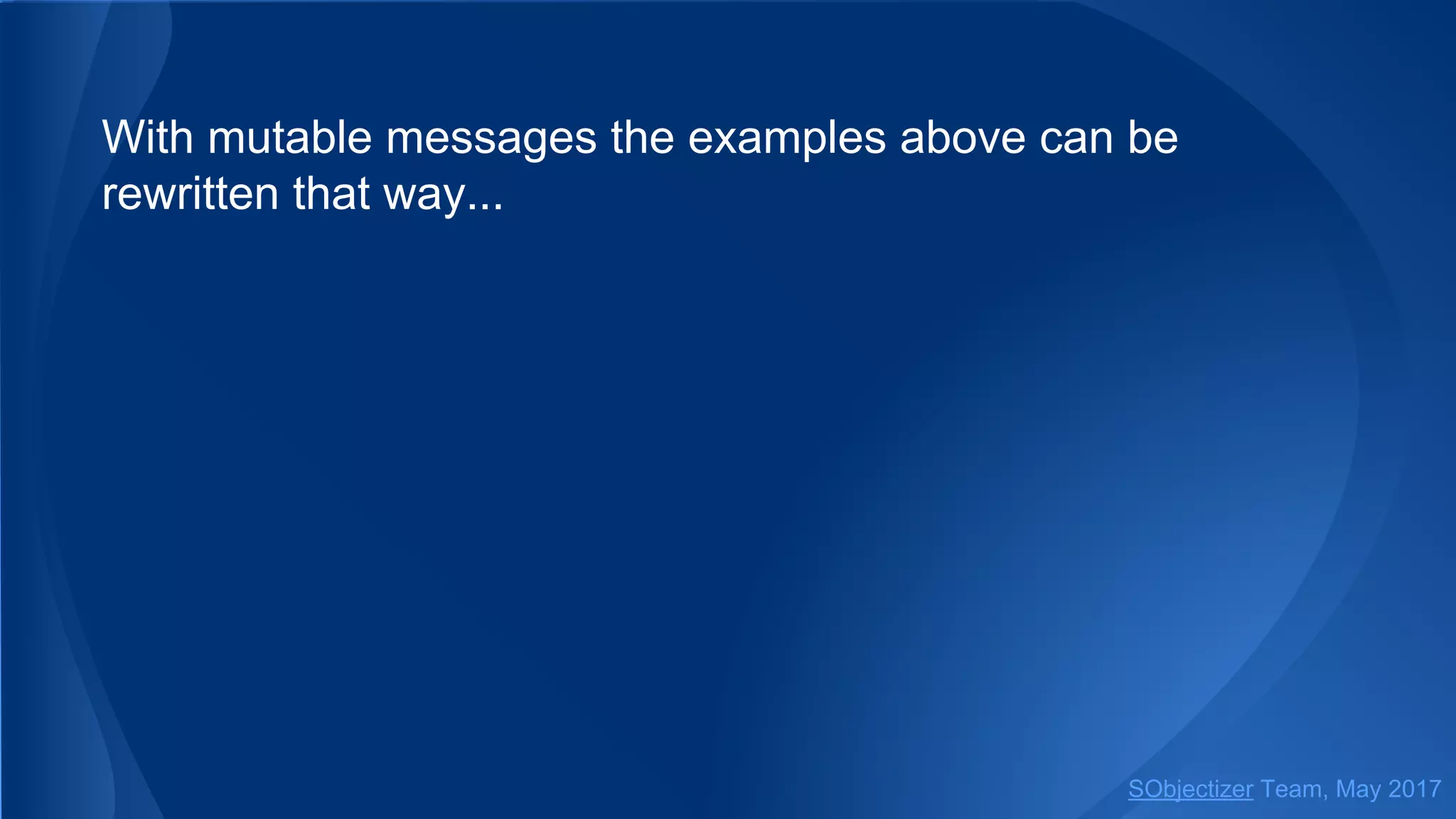

With mutable messages the examples above can be
rewritten that way...

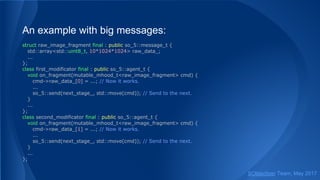

An example with big messages:
std::array<std::uint8_t, 10*1024*1024> raw_data_;
...
};
void on_fragment(mutable_mhood_t<raw_image_fragment> cmd) {
...
so_5::send(next_stage_, std::move(cmd)); // Send to the next.
}
...
};
...
so_5::send(next_stage_, std::move(cmd)); // Send to the next.
}
...
};

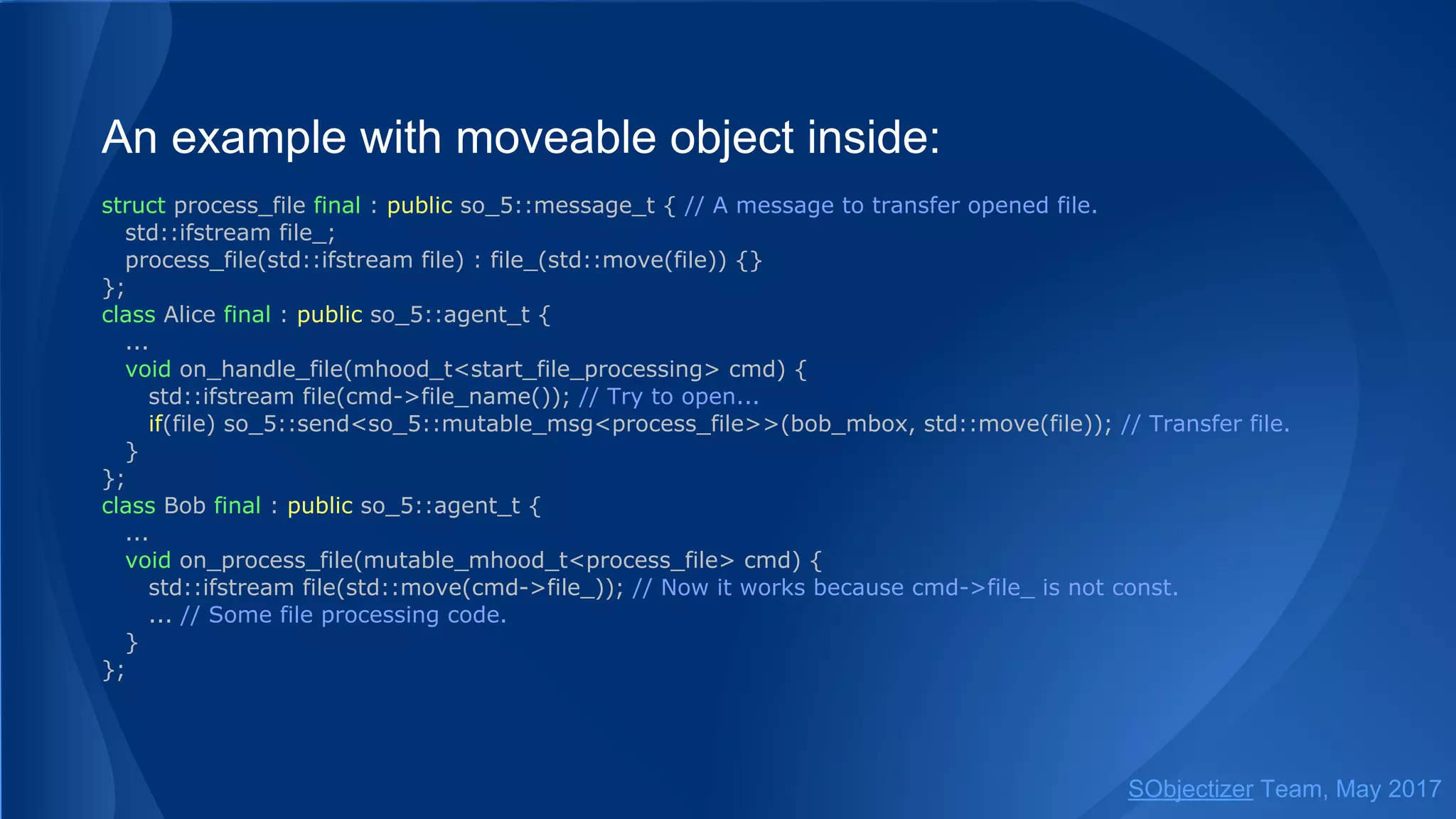

An example with moveable object inside:
std::ifstream file_;
process_file(std::ifstream file) : file_(std::move(file)) {}
};
...
std::ifstream file(cmd->file_name()); // Try to open...
if(file) so_5::send<so_5::mutable_msg<process_file>>(bob_mbox, std::move(file)); // Transfer file.
}
};
...
void on_process_file(mutable_mhood_t<process_file> cmd) {
std::ifstream file(std::move(cmd->file_)); // Now it works because cmd->file_ is not const.
... // Some file processing code.
}
};

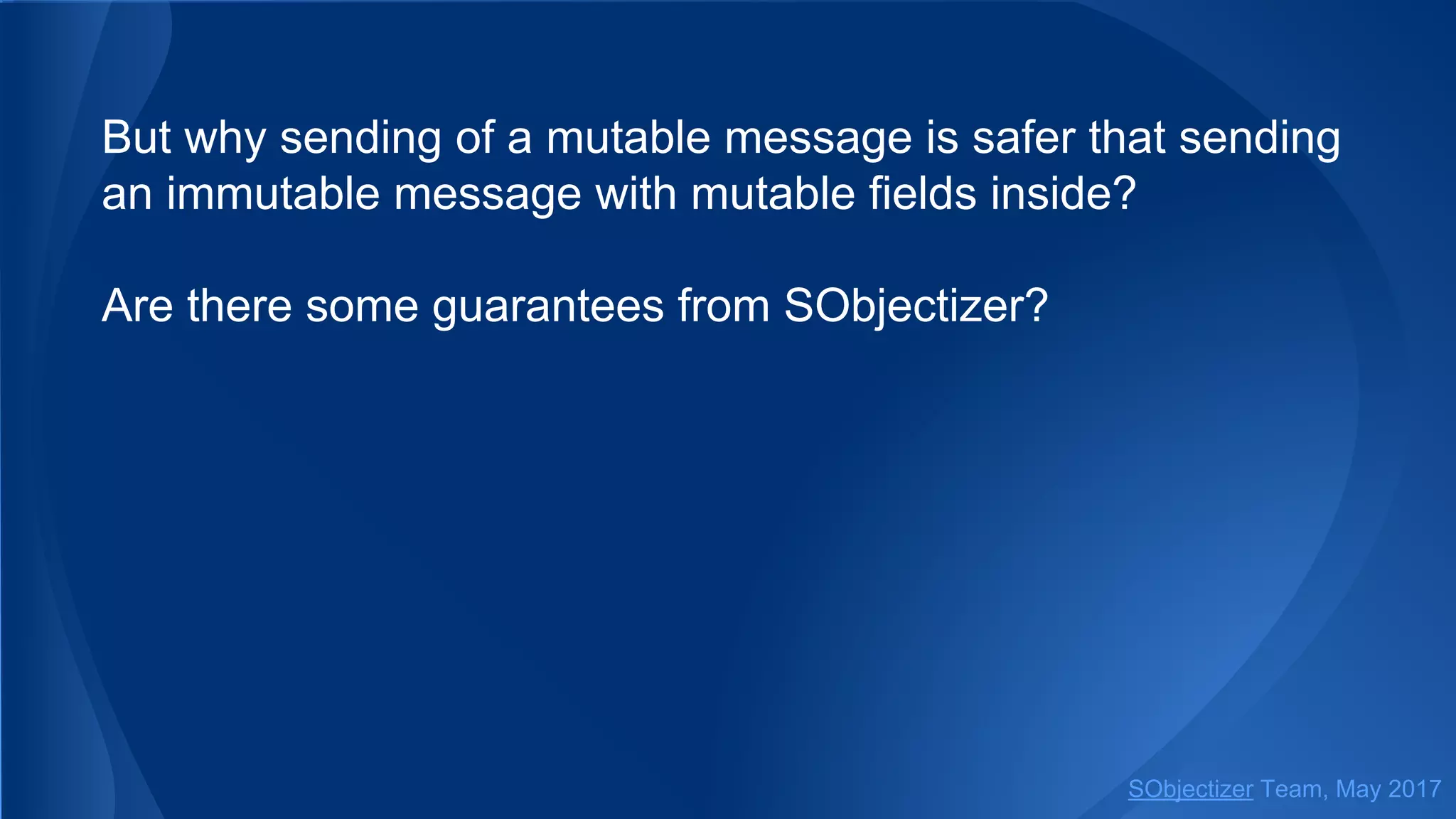

But why sending of a mutable message is safer that sending
an immutable message with mutable fields inside?
Are there some guarantees from SObjectizer?

Safety Of Mutable Messages

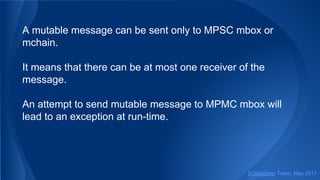

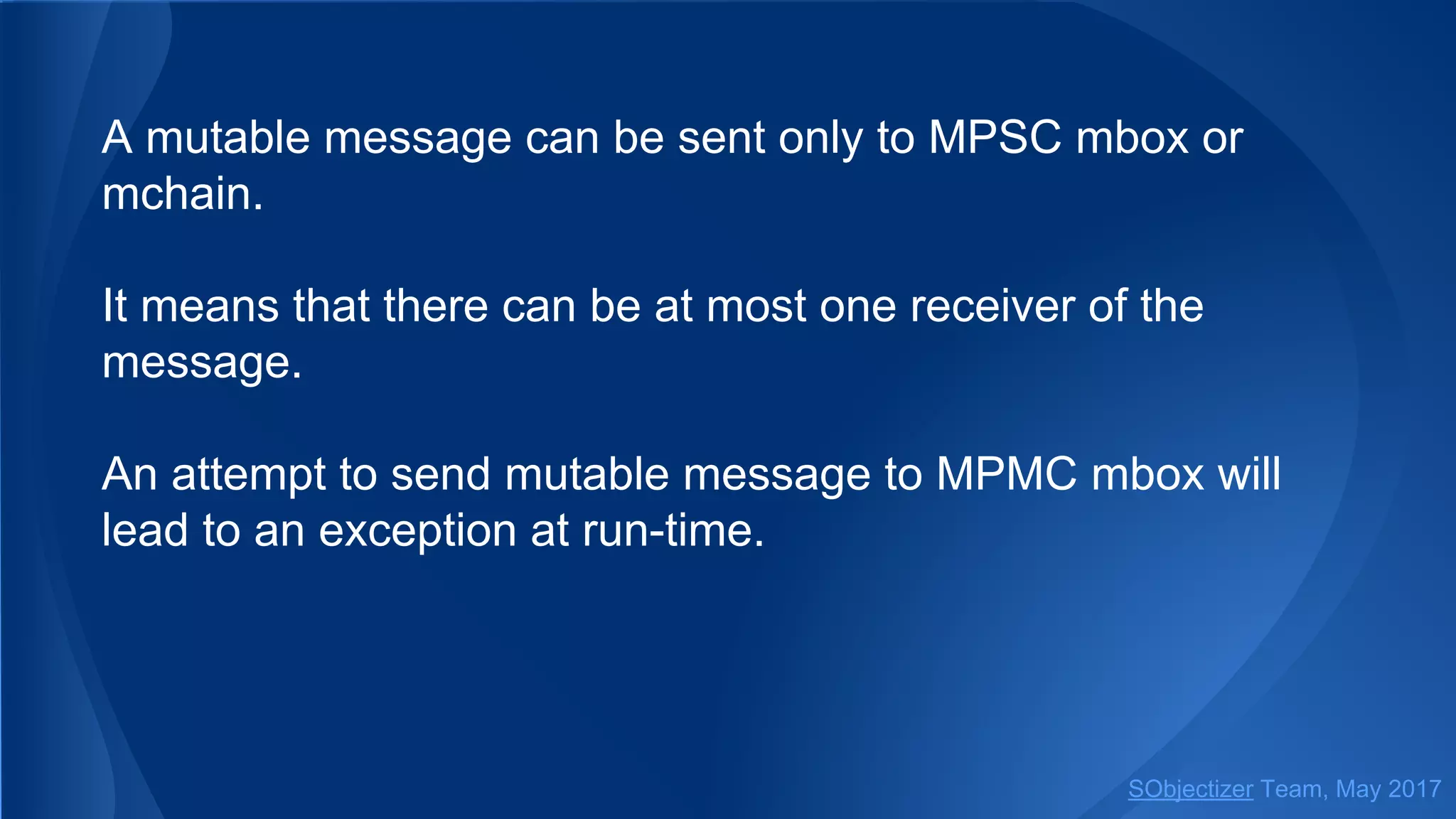

A mutable message can be sent only to MPSC mbox or
mchain.
It means that there can be at most one receiver of the
message.
An attempt to send mutable message to MPMC mbox will
lead to an exception at run-time.

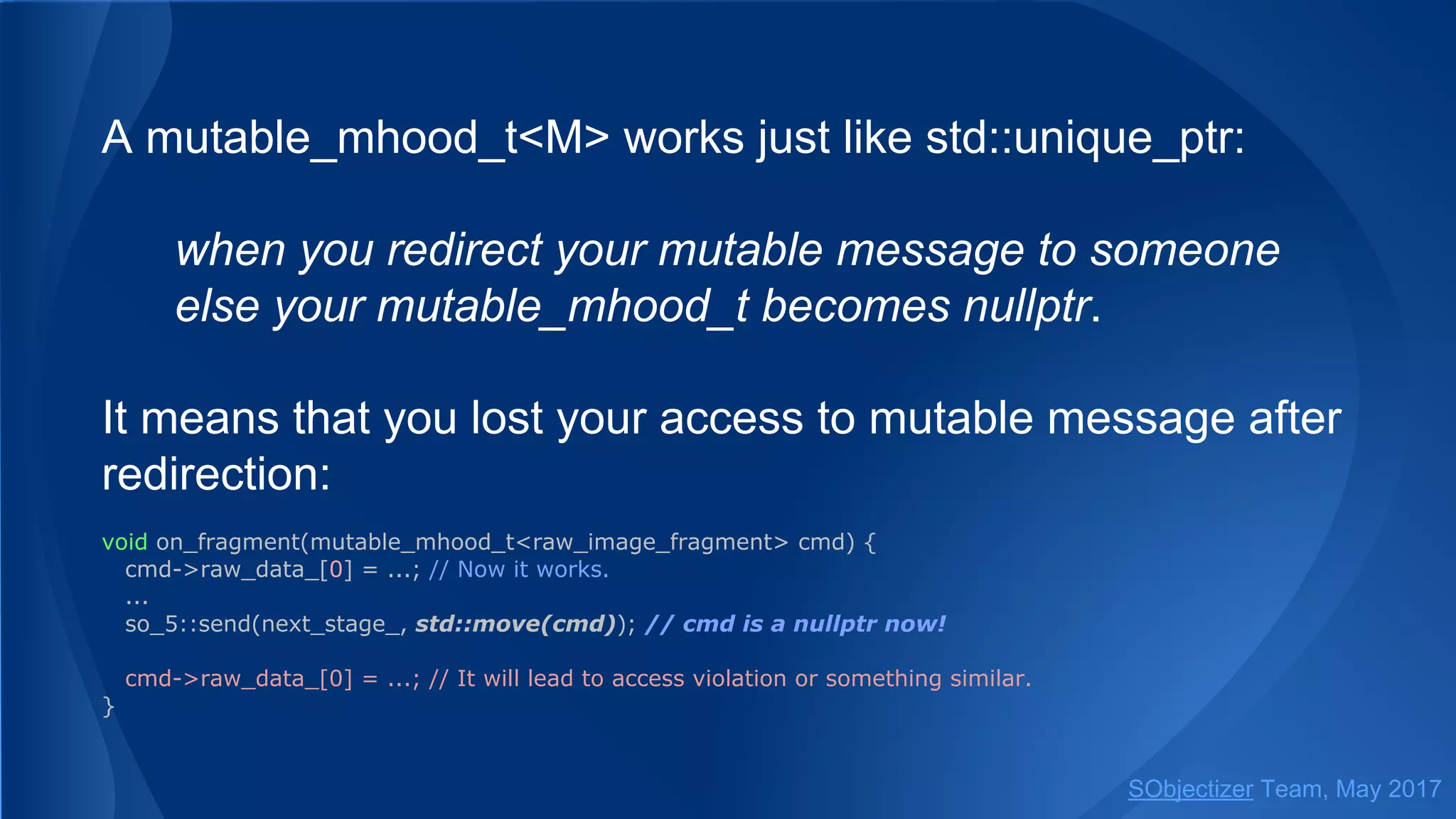

A mutable_mhood_t<M> works just like std::unique_ptr:
when you redirect your mutable message to someone
else your mutable_mhood_t becomes nullptr.
It means that you lost your access to mutable message after
redirection:
...
so_5::send(next_stage_, std::move(cmd)); // cmd is a nullptr now!
cmd->raw_data_[0] = ...; // It will lead to access violation or something similar.
}

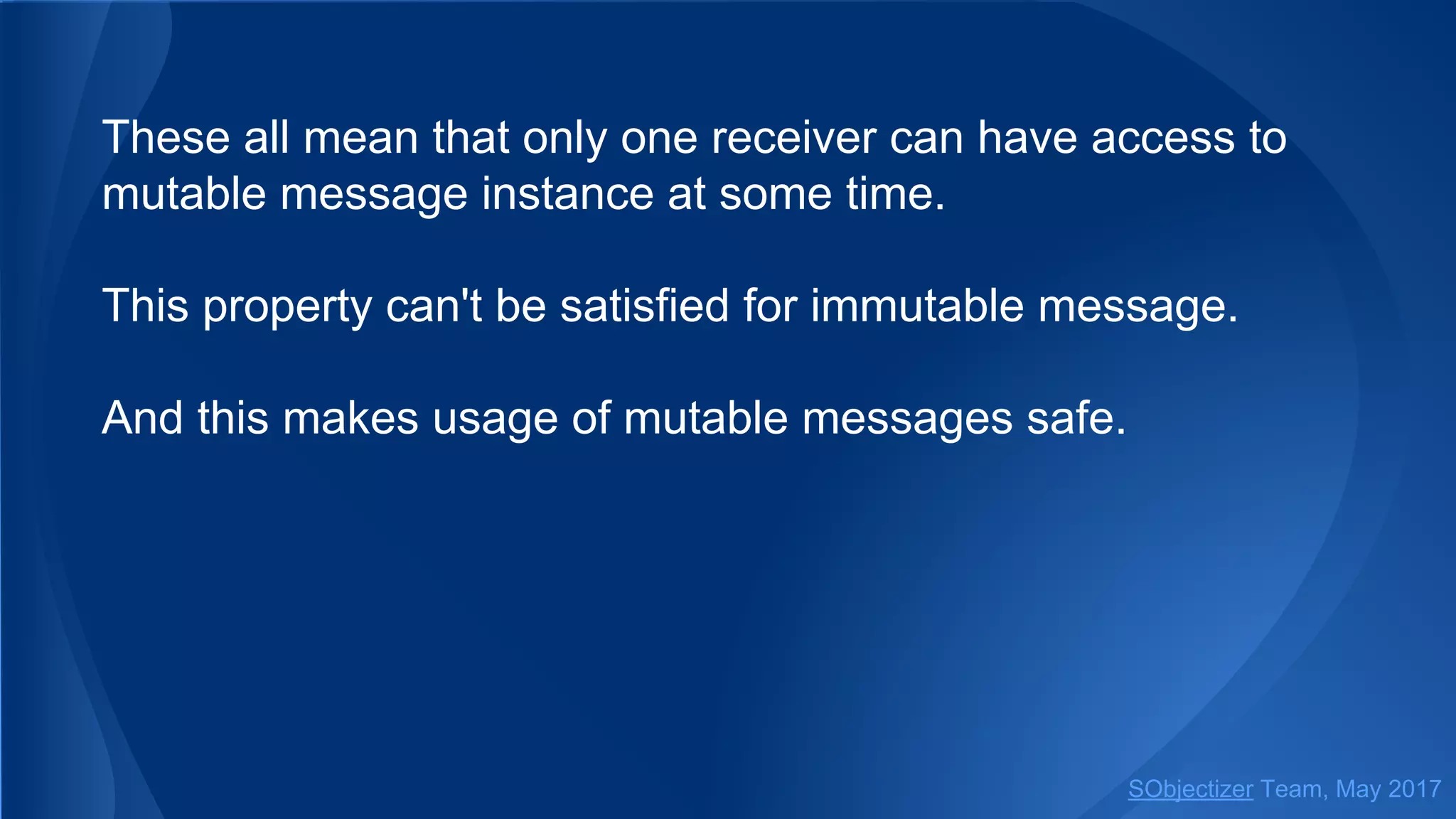

These all mean that only one receiver can have access to
mutable message instance at some time.
This property can't be satisfied for immutable message.
And this makes usage of mutable messages safe.

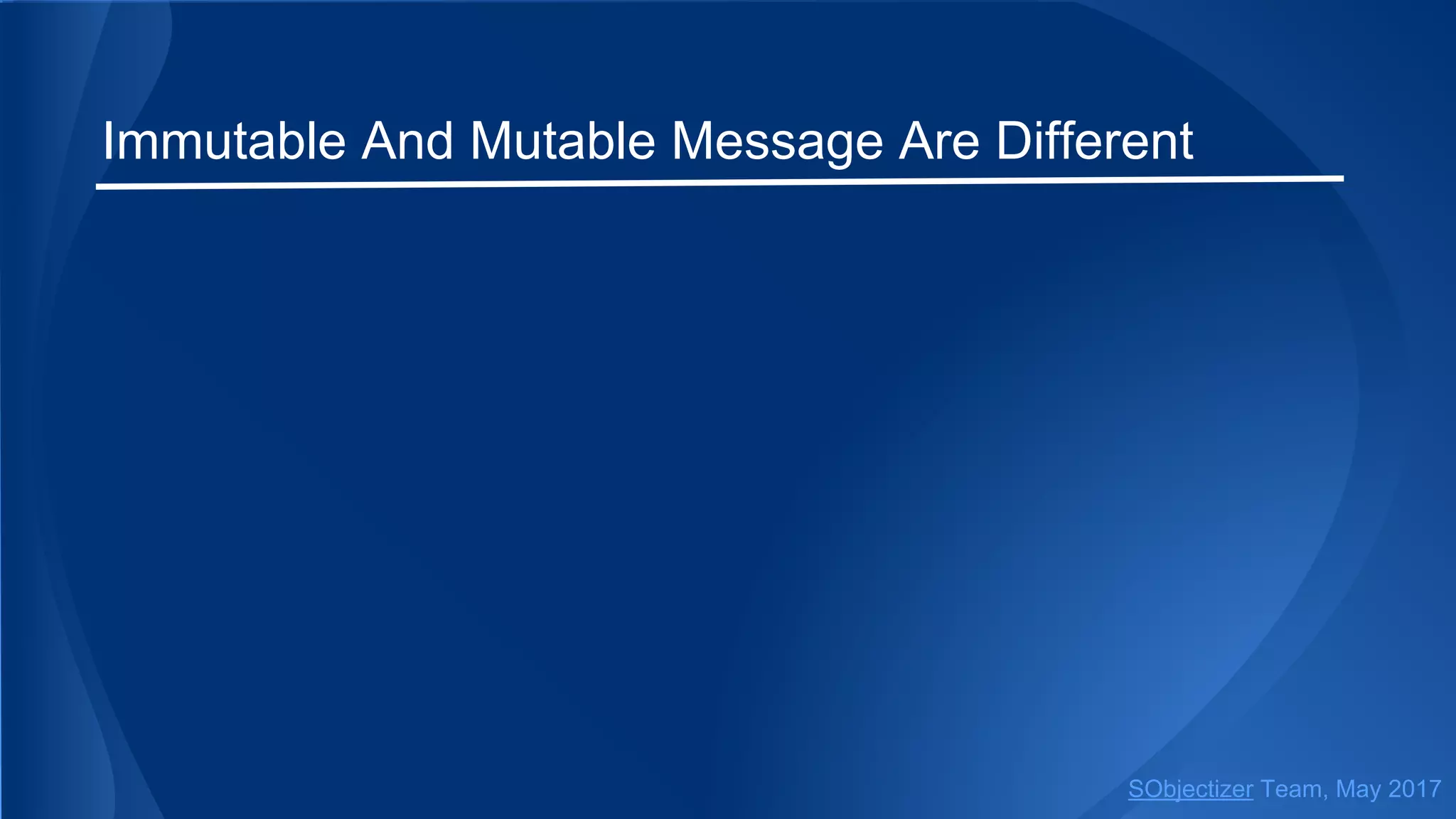

Immutable And Mutable Message Are Different

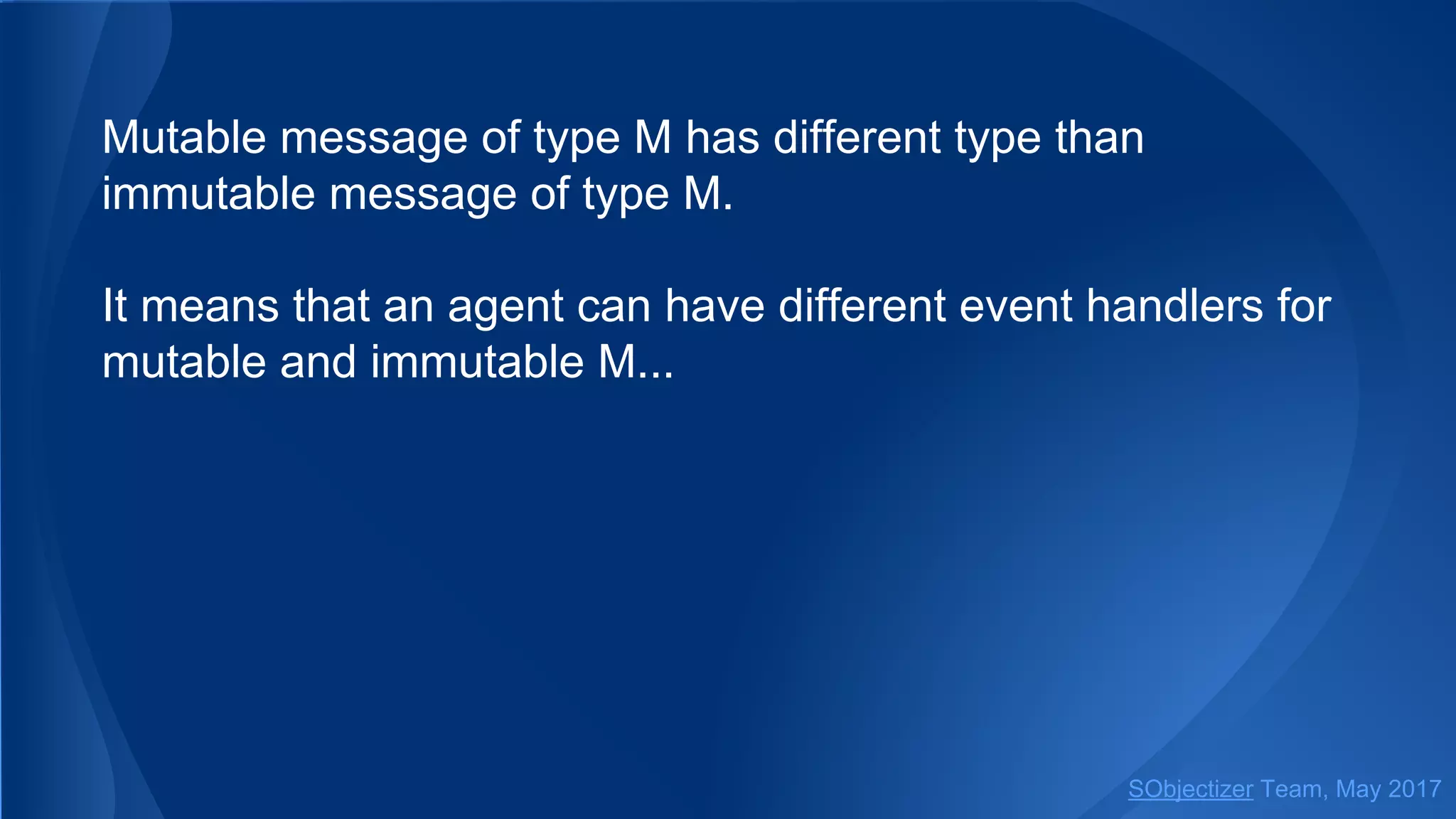

Mutable message of type M has different type than
immutable message of type M.
It means that an agent can have different event handlers for
mutable and immutable M...

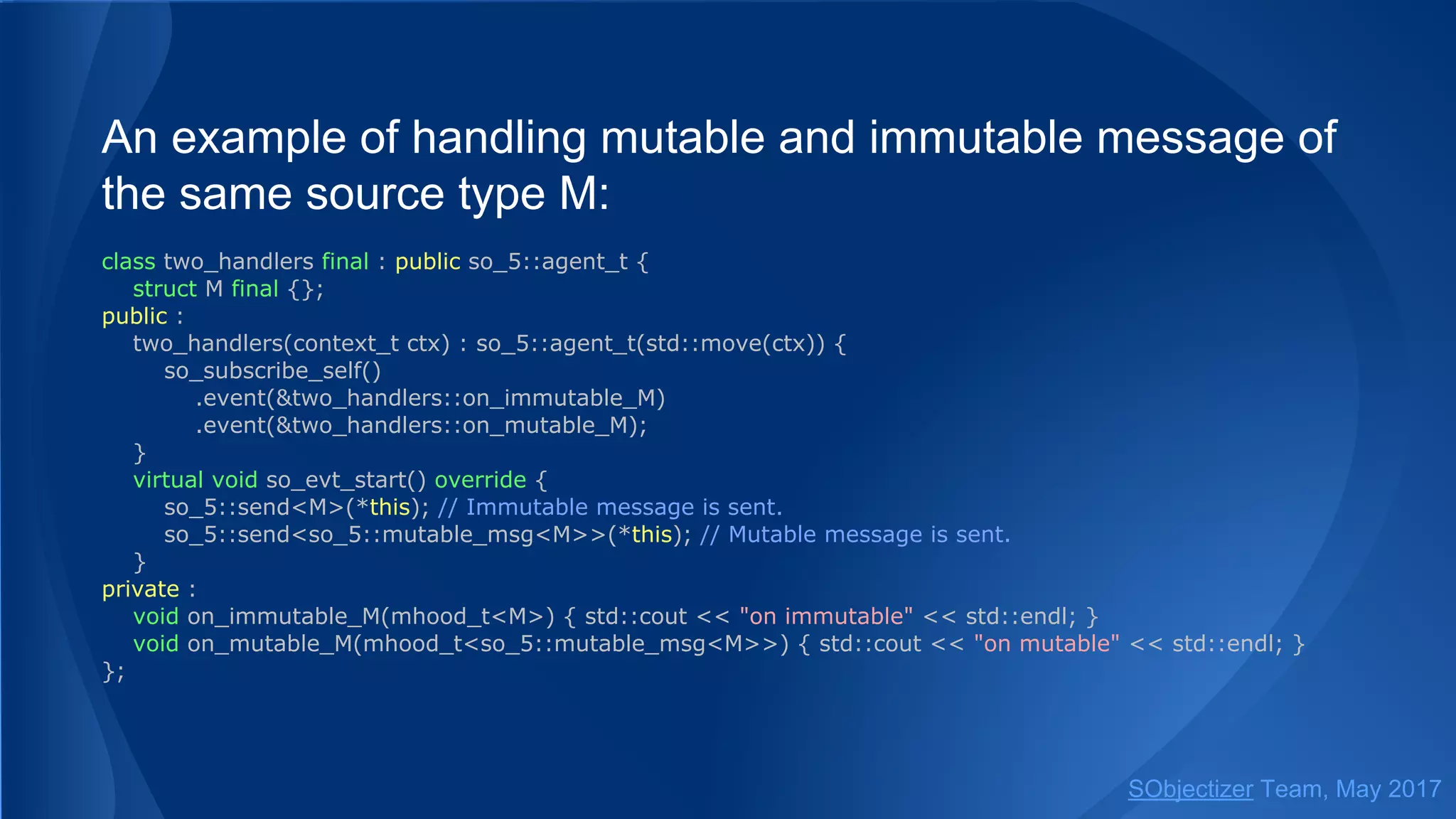

An example of handling mutable and immutable message of
the same source type M:
class two_handlers final : public so_5::agent_t {
struct M final {};
public :
two_handlers(context_t ctx) : so_5::agent_t(std::move(ctx)) {
so_subscribe_self()
.event(&two_handlers::on_immutable_M)
.event(&two_handlers::on_mutable_M);
}
virtual void so_evt_start() override {
so_5::send<M>(*this); // Immutable message is sent.
so_5::send<so_5::mutable_msg<M>>(*this); // Mutable message is sent.
}
private :
void on_immutable_M(mhood_t<M>) { std::cout << "on immutable" << std::endl; }
void on_mutable_M(mhood_t<so_5::mutable_msg<M>>) { std::cout << "on mutable" << std::endl; }
};

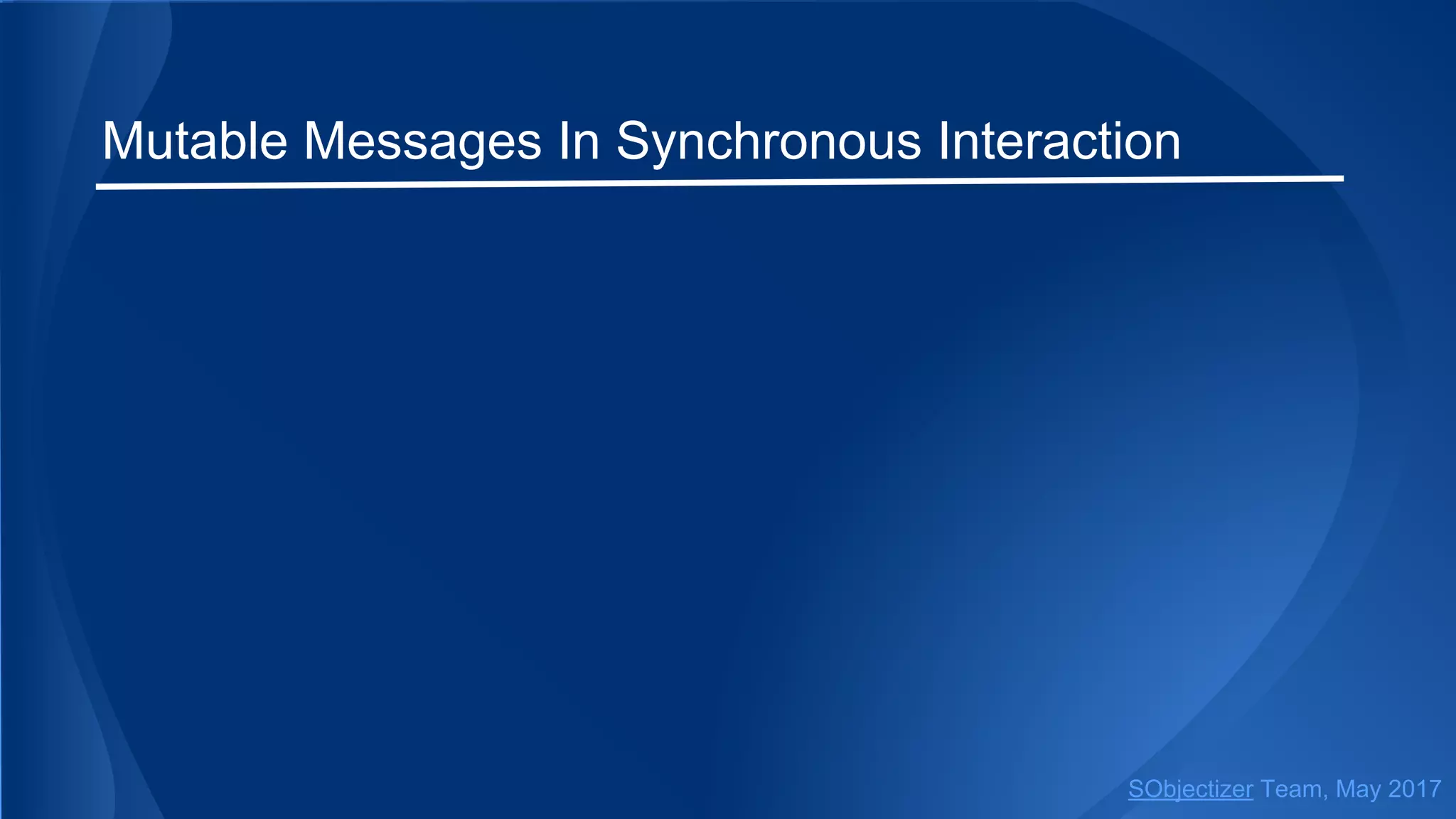

Mutable Messages In Synchronous Interaction

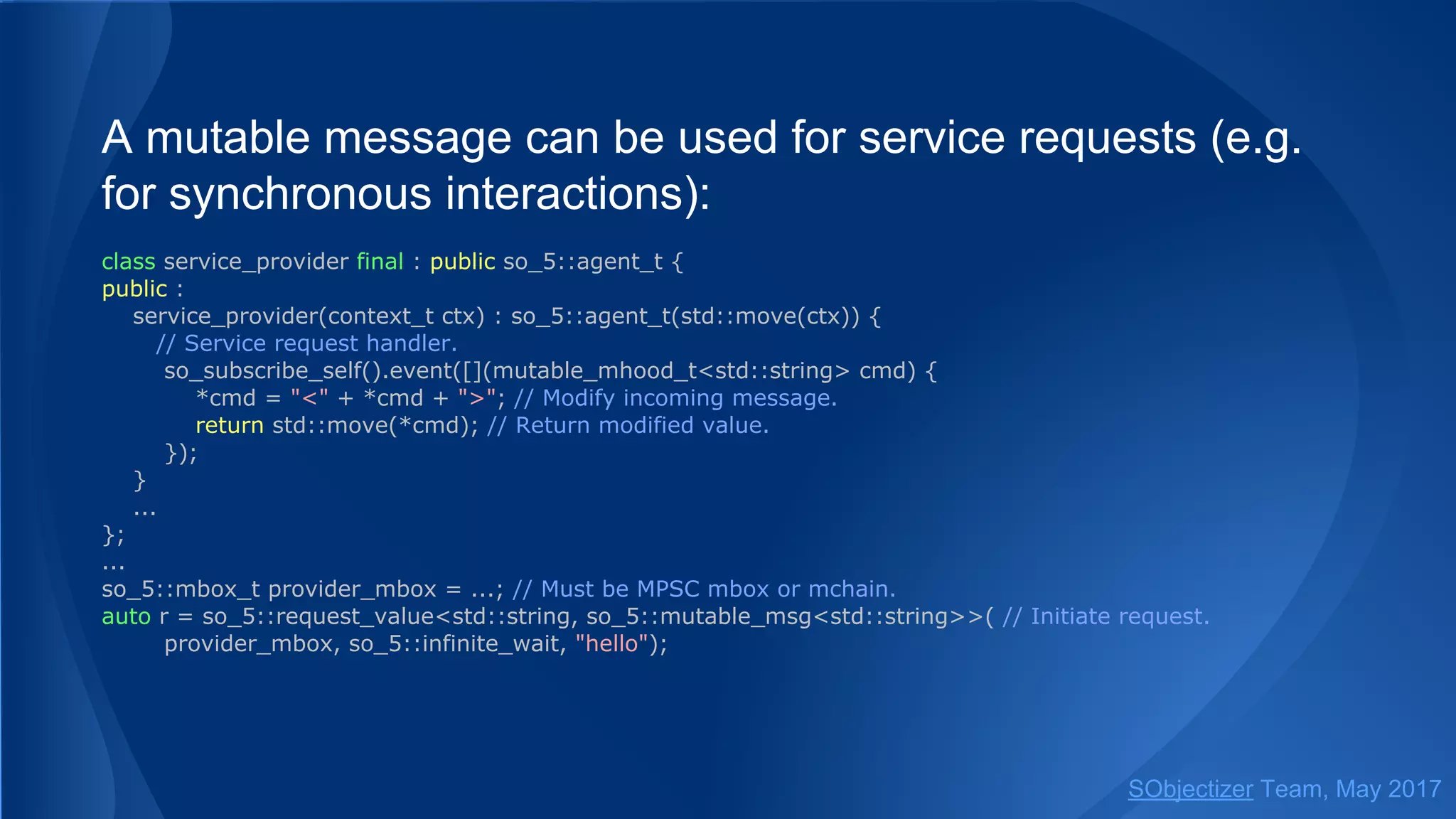

A mutable message can be used for service requests (e.g.
for synchronous interactions):
class service_provider final : public so_5::agent_t {
public :
service_provider(context_t ctx) : so_5::agent_t(std::move(ctx)) {
// Service request handler.
so_subscribe_self().event([](mutable_mhood_t<std::string> cmd) {
*cmd = "<" + *cmd + ">"; // Modify incoming message.
return std::move(*cmd); // Return modified value.
});
}
...
};
...
so_5::mbox_t provider_mbox = ...; // Must be MPSC mbox or mchain.
auto r = so_5::request_value<std::string, so_5::mutable_msg<std::string>>( // Initiate request.
provider_mbox, so_5::infinite_wait, "hello");

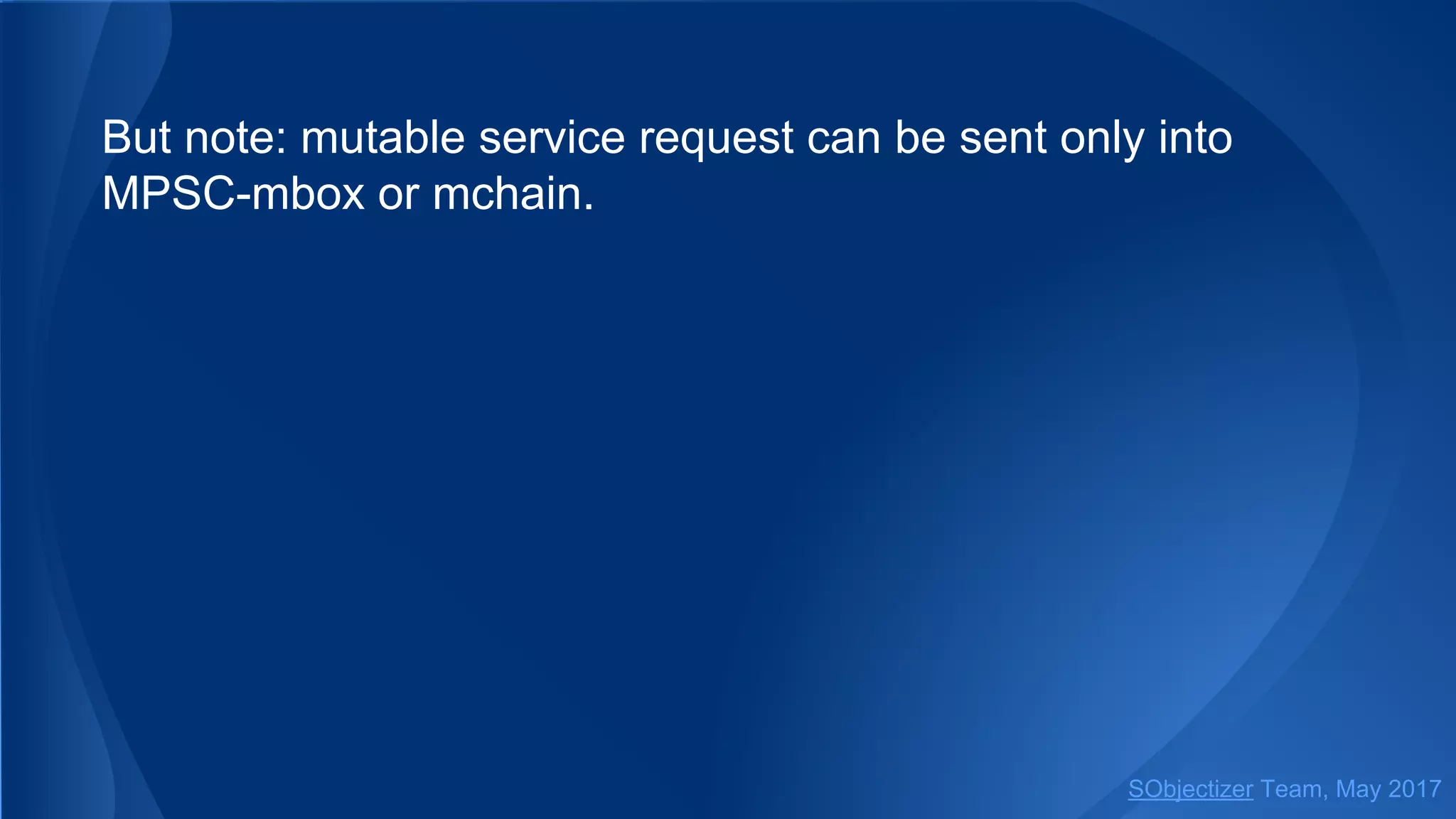

But note: mutable service request can be sent only into
MPSC-mbox or mchain.

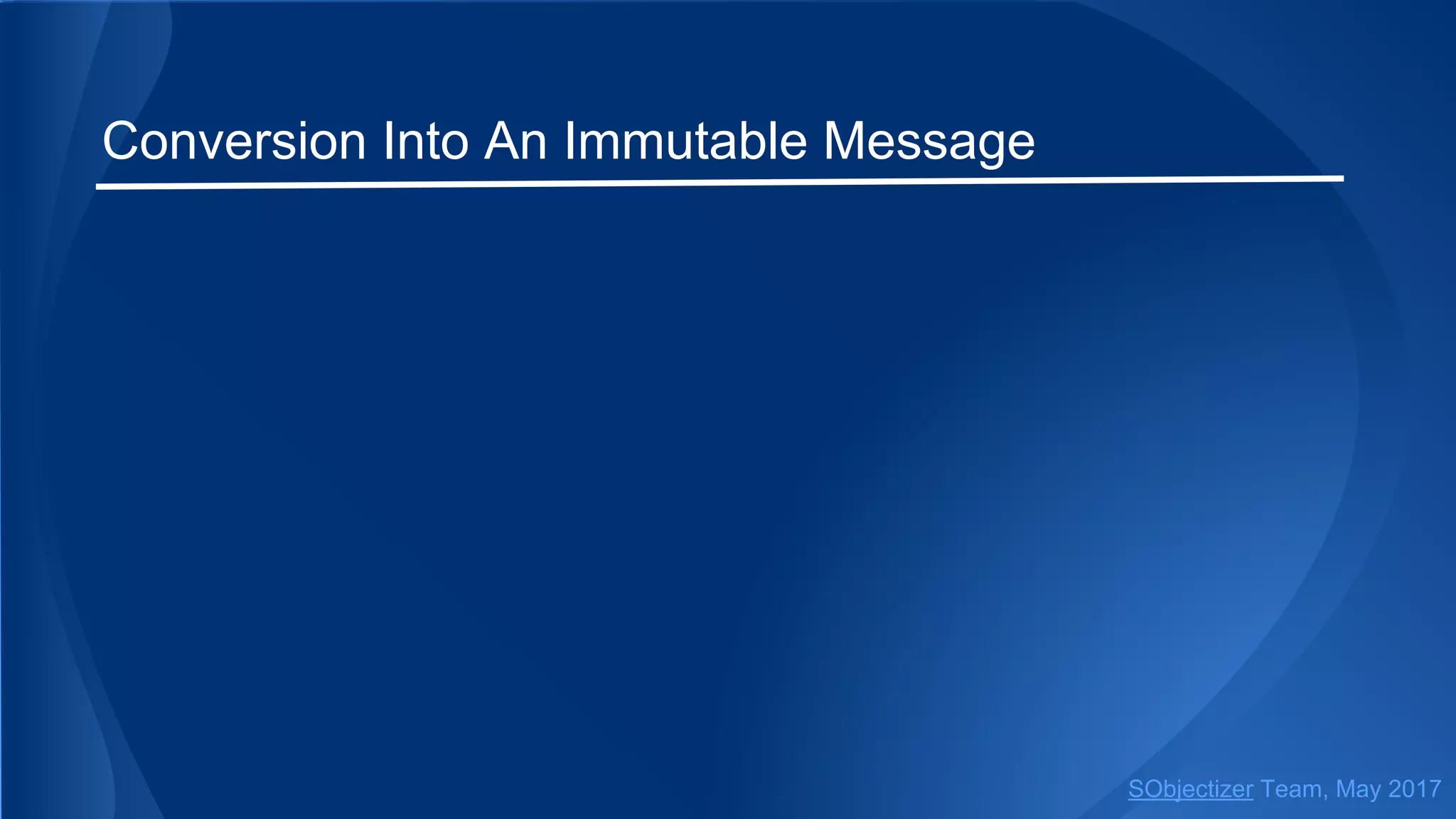

Conversion Into An Immutable Message

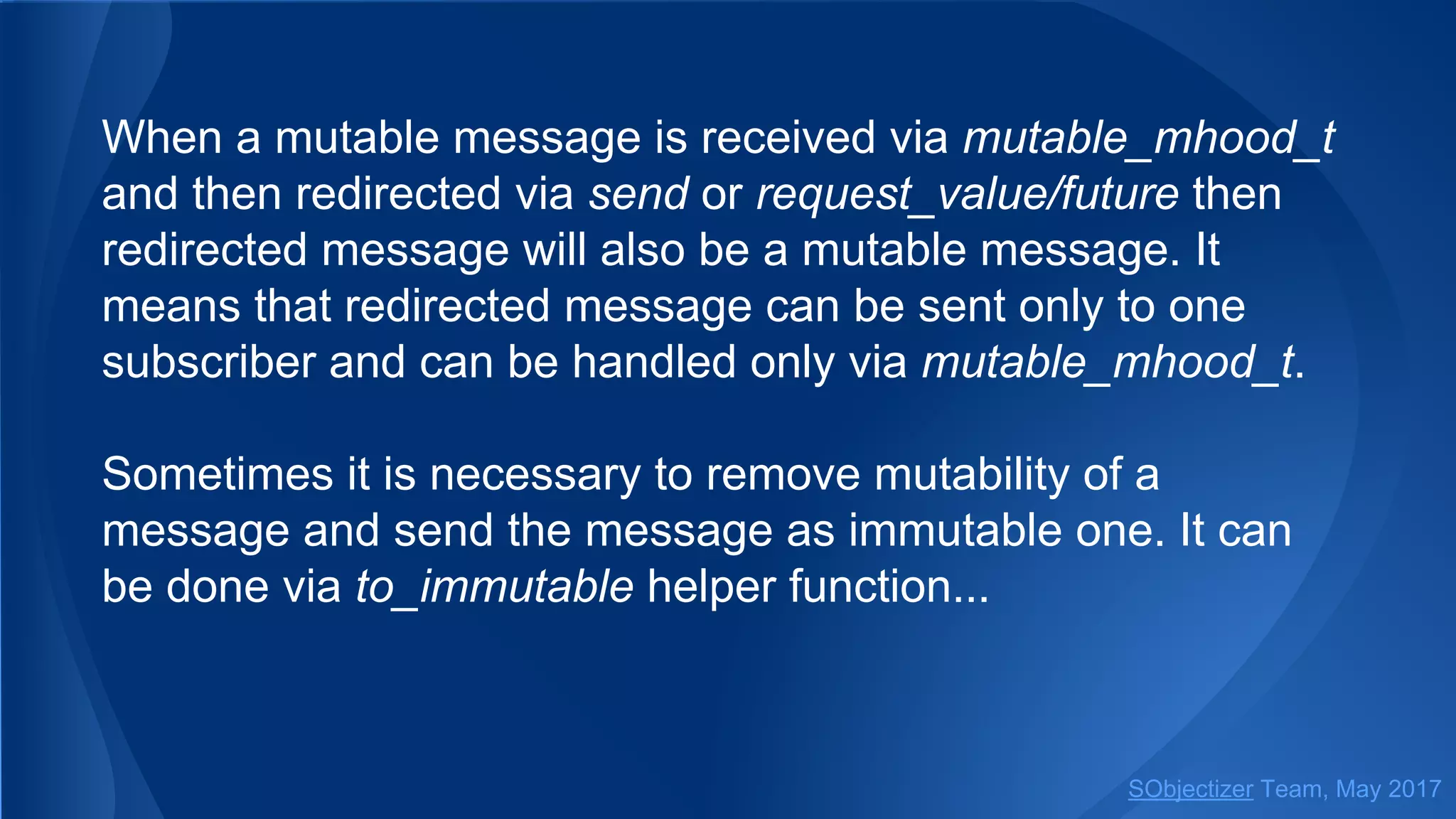

When a mutable message is received via mutable_mhood_t
and then redirected via send or request_value/future then
redirected message will also be a mutable message. It
means that redirected message can be sent only to one
subscriber and can be handled only via mutable_mhood_t.
Sometimes it is necessary to remove mutability of a
message and send the message as immutable one. It can
be done via to_immutable helper function...

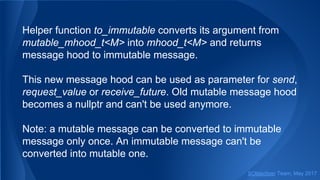

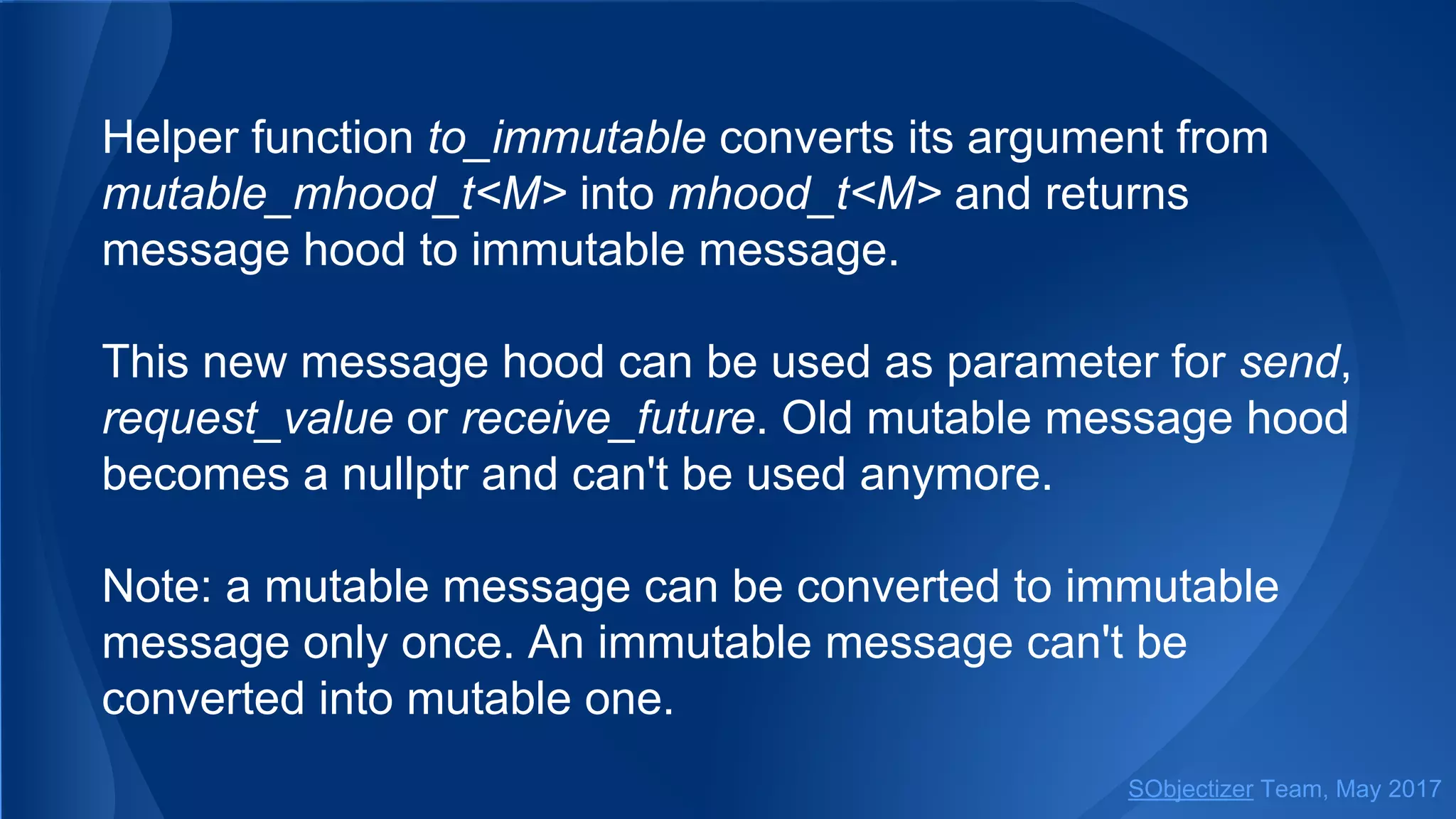

Helper function to_immutable converts its argument from
mutable_mhood_t<M> into mhood_t<M> and returns
message hood to immutable message.
This new message hood can be used as parameter for send,
request_value or receive_future. Old mutable message hood
becomes a nullptr and can't be used anymore.
Note: a mutable message can be converted to immutable
message only once. An immutable message can't be
converted into mutable one.

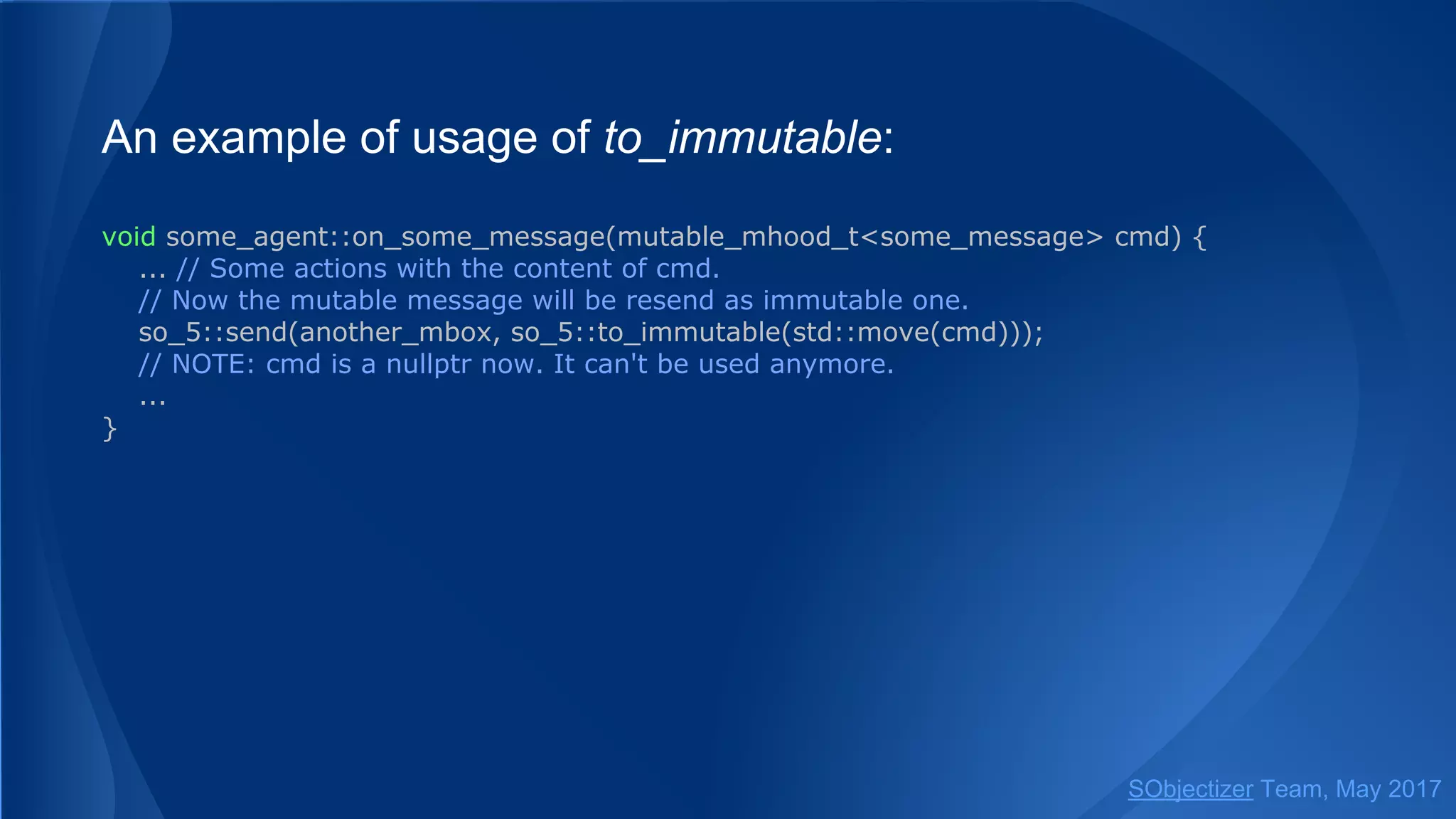

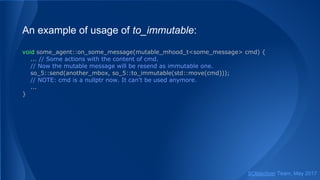

An example of usage of to_immutable:
void some_agent::on_some_message(mutable_mhood_t<some_message> cmd) {
... // Some actions with the content of cmd.
// Now the mutable message will be resend as immutable one.
so_5::send(another_mbox, so_5::to_immutable(std::move(cmd)));
// NOTE: cmd is a nullptr now. It can't be used anymore.
...
}

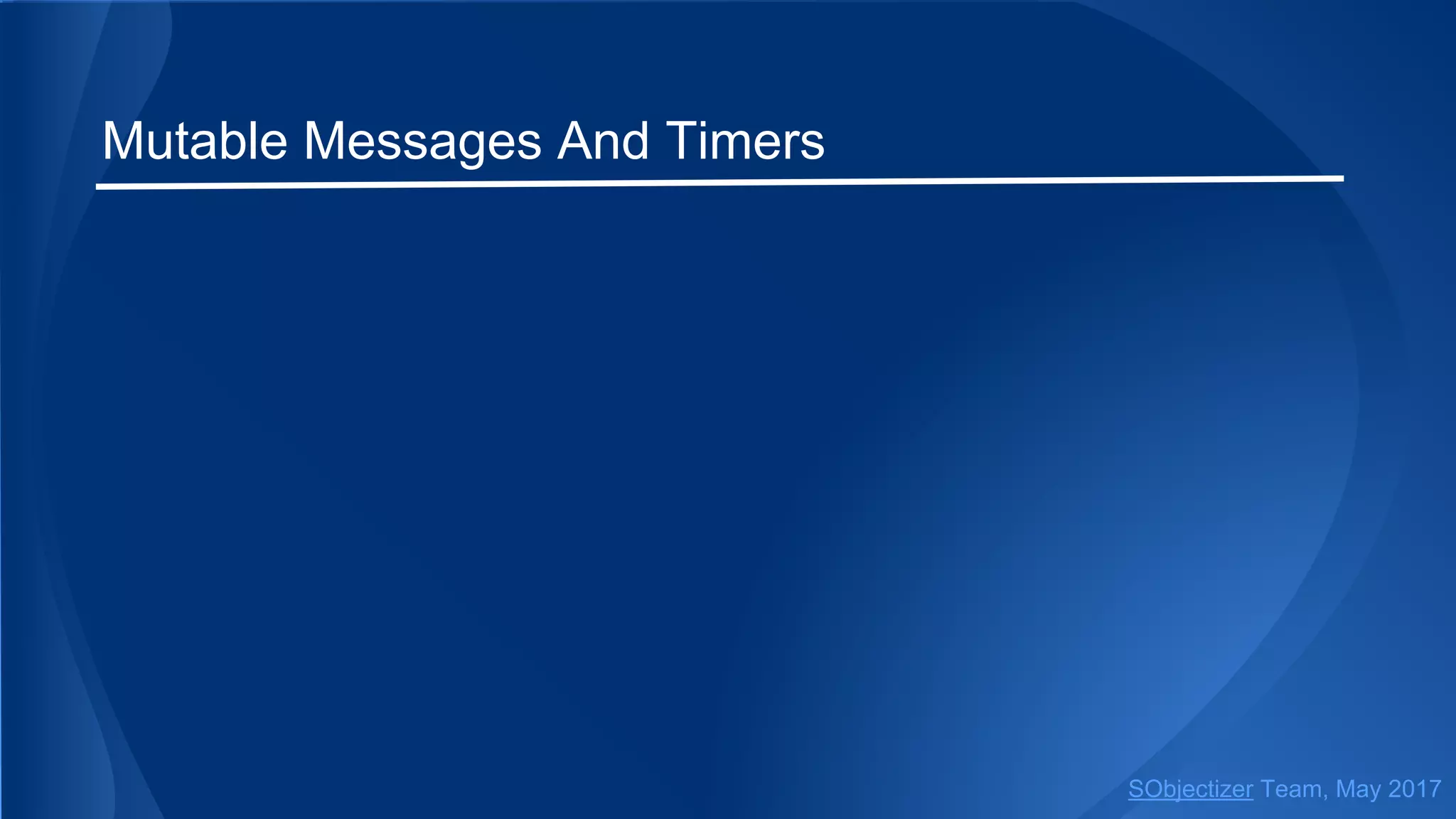

Mutable Messages And Timers

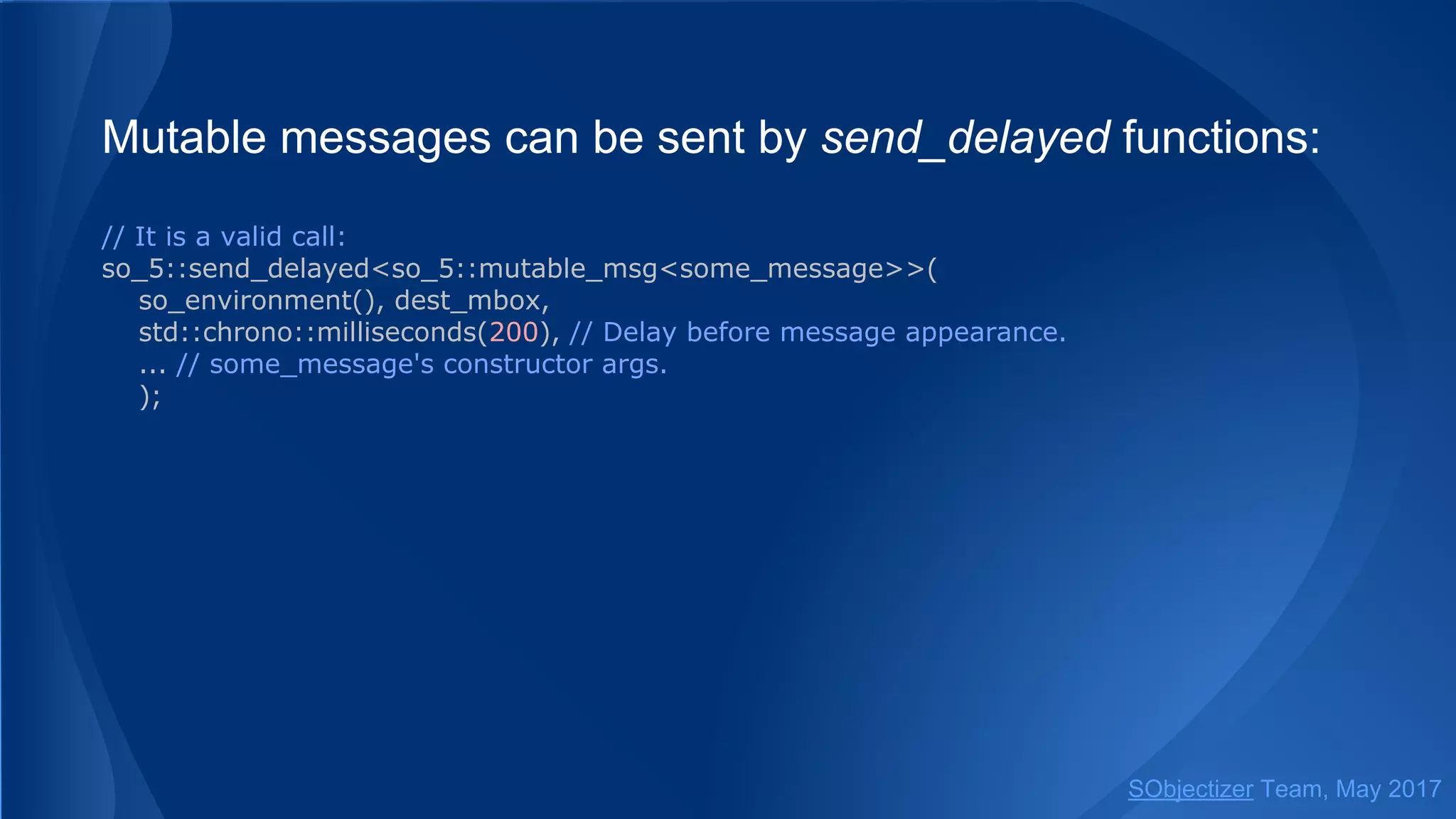

Mutable messages can be sent by send_delayed functions:
// It is a valid call:
so_5::send_delayed<so_5::mutable_msg<some_message>>(
so_environment(), dest_mbox,
std::chrono::milliseconds(200), // Delay before message appearance.
... // some_message's constructor args.
);

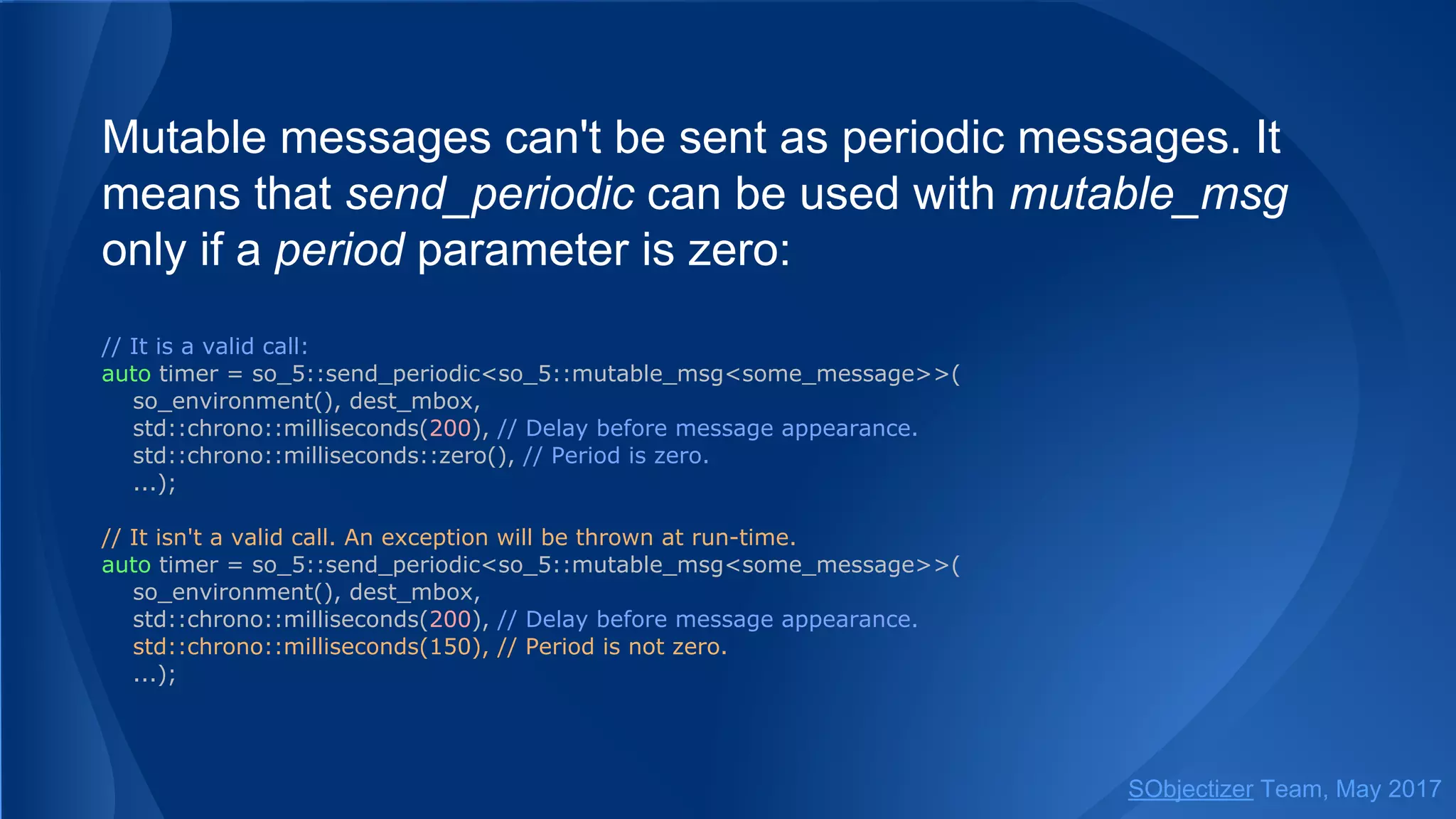

Mutable messages can't be sent as periodic messages. It
means that send_periodic can be used with mutable_msg
only if a period parameter is zero:
// It is a valid call:
auto timer = so_5::send_periodic<so_5::mutable_msg<some_message>>(
std::chrono::milliseconds::zero(), // Period is zero.
...);
// It isn't a valid call. An exception will be thrown at run-time.
auto timer = so_5::send_periodic<so_5::mutable_msg<some_message>>(
std::chrono::milliseconds(150), // Period is not zero.
...);

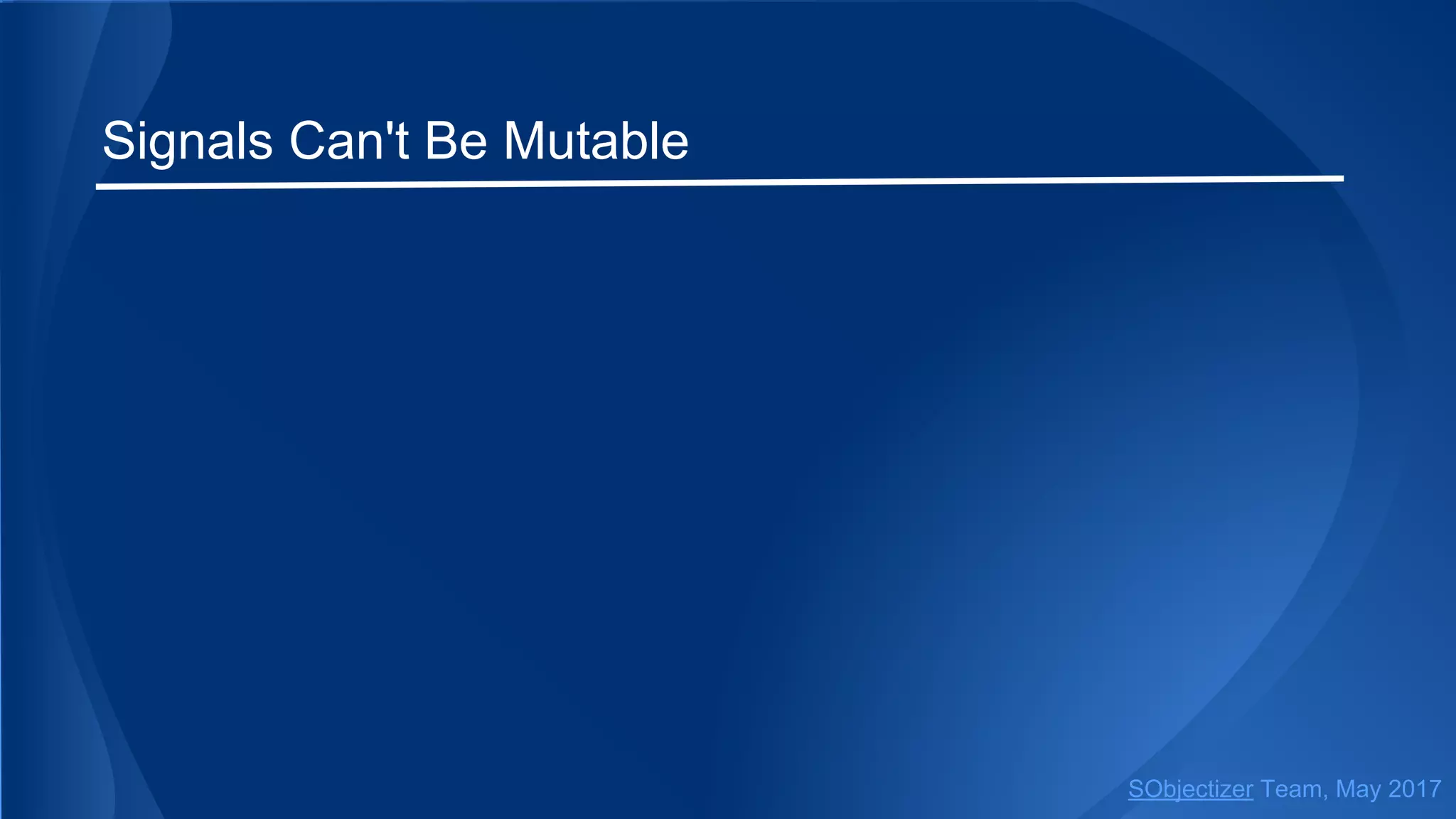

Signals Can't Be Mutable

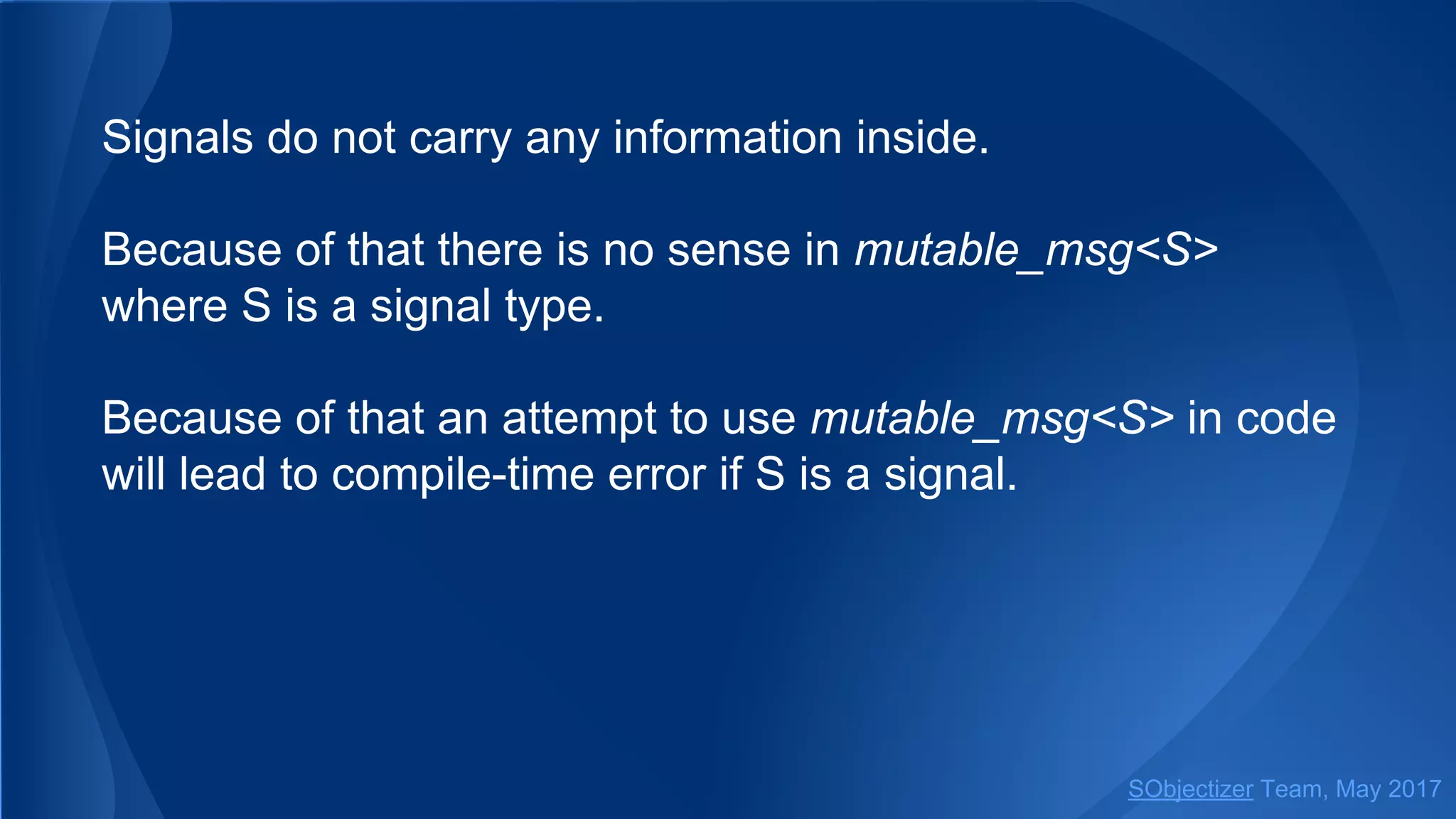

Signals do not carry any information inside.
Because of that there is no sense in mutable_msg<S>
where S is a signal type.
Because of that an attempt to use mutable_msg<S> in code
will lead to compile-time error if S is a signal.

Some Final Words

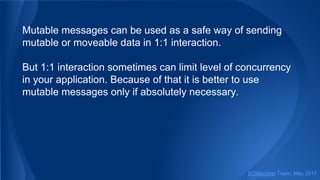

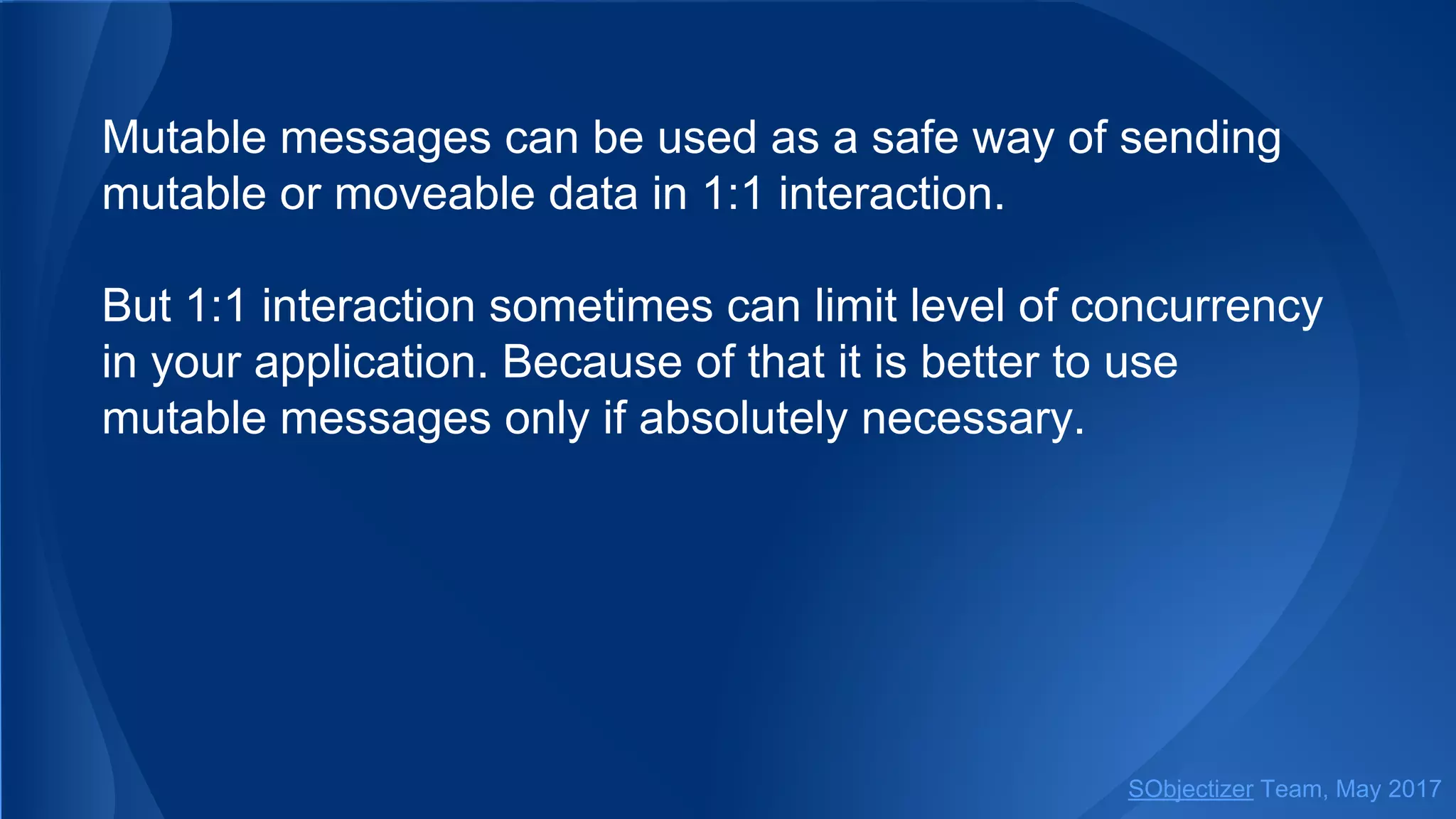

Mutable messages can be used as a safe way of sending
mutable or moveable data in 1:1 interaction.
But 1:1 interaction sometimes can limit level of concurrency
in your application. Because of that it is better to use
mutable messages only if absolutely necessary.

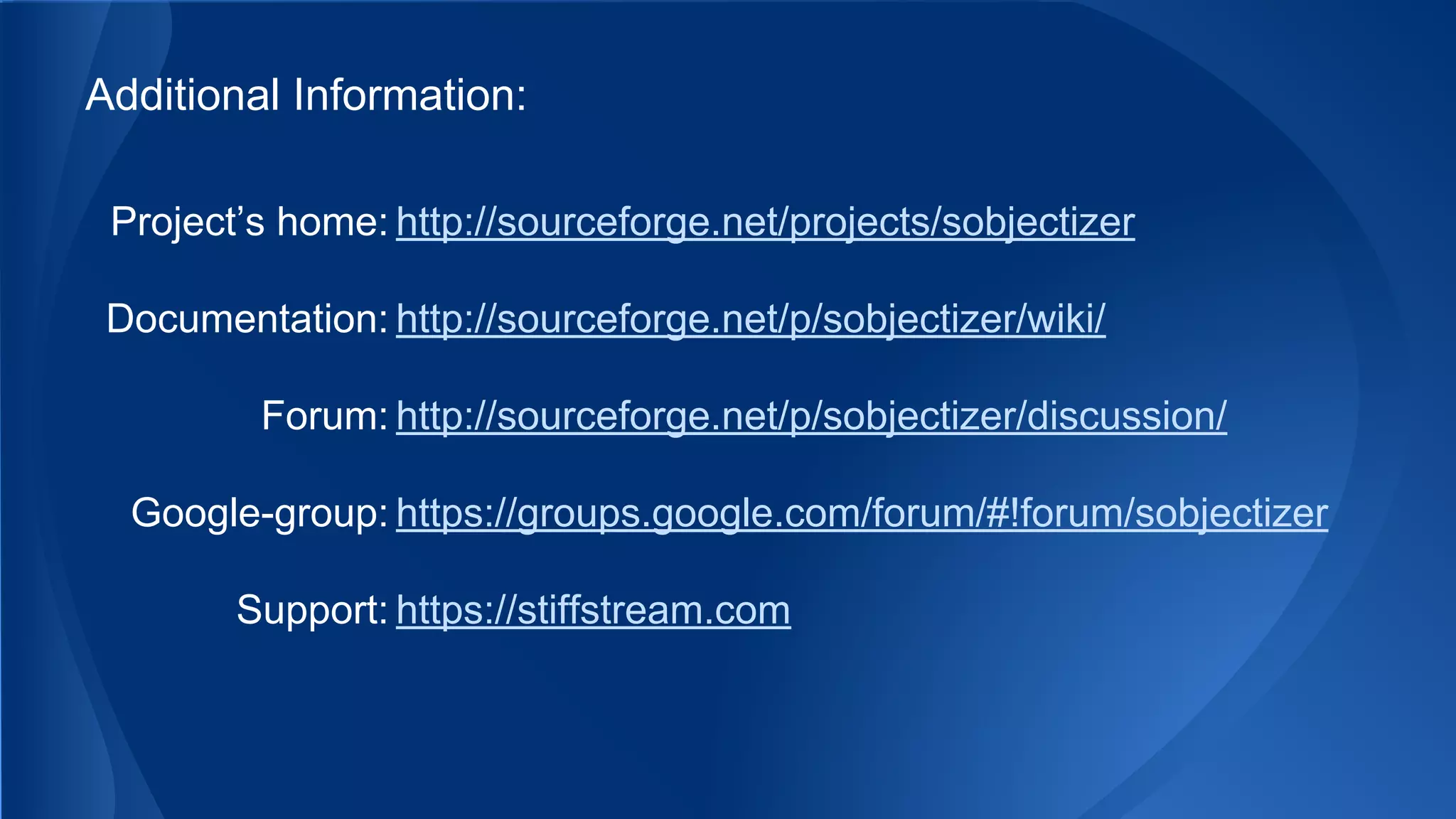

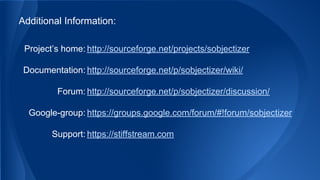

Additional Information:
Project’s home: http://sourceforge.net/projects/sobjectizer
Documentation: http://sourceforge.net/p/sobjectizer/wiki/
Forum: http://sourceforge.net/p/sobjectizer/discussion/
Google-group: https://groups.google.com/forum/#!forum/sobjectizer
Support: https://stiffstream.com

Dive into SObjectizer 5.5. Tenth part: Mutable Messages

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Dive into SObjectizer 5.5. Tenth part: Mutable Messages

Similar to Dive into SObjectizer 5.5. Tenth part: Mutable Messages (20)

More from Yauheni Akhotnikau

More from Yauheni Akhotnikau (14)

Recently uploaded

Recently uploaded (20)

Dive into SObjectizer 5.5. Tenth part: Mutable Messages
