Diprotic Acids
Tableaux & Equivalence Points
aqion.de
updated 2017-04-15
monoprotic acid: HA
diprotic acid: H2A
triprotic acid: H3A
our focus
most prominent representative:
carbonic acid (with A-2 =CO3
-2)
pure H2O
OH-
H+

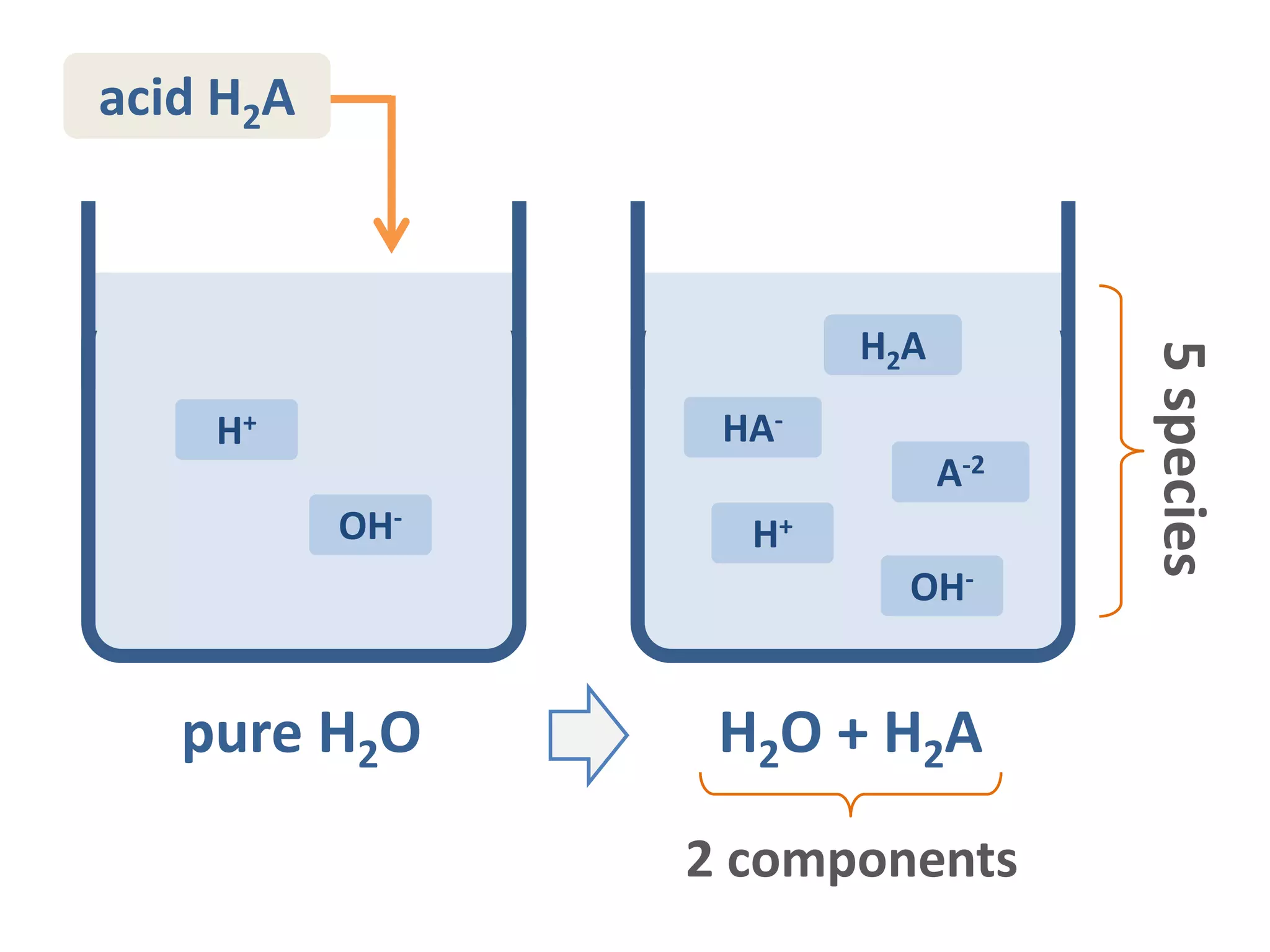

H2O + H2A
H2A
HA-
A-2
OH-
H+
acid H2A
5species
2 components

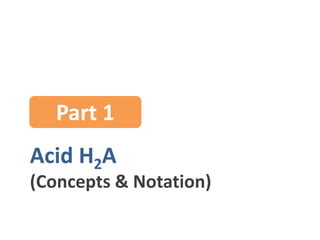

Acid H2A
(Concepts & Notation)
Part 1

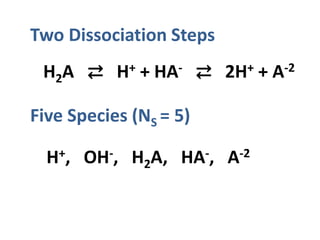

Two Dissociation Steps
H2A ⇄ H+ + HA- ⇄ 2H+ + A-2
Five Species (NS = 5)
H+, OH-, H2A, HA-, A-2

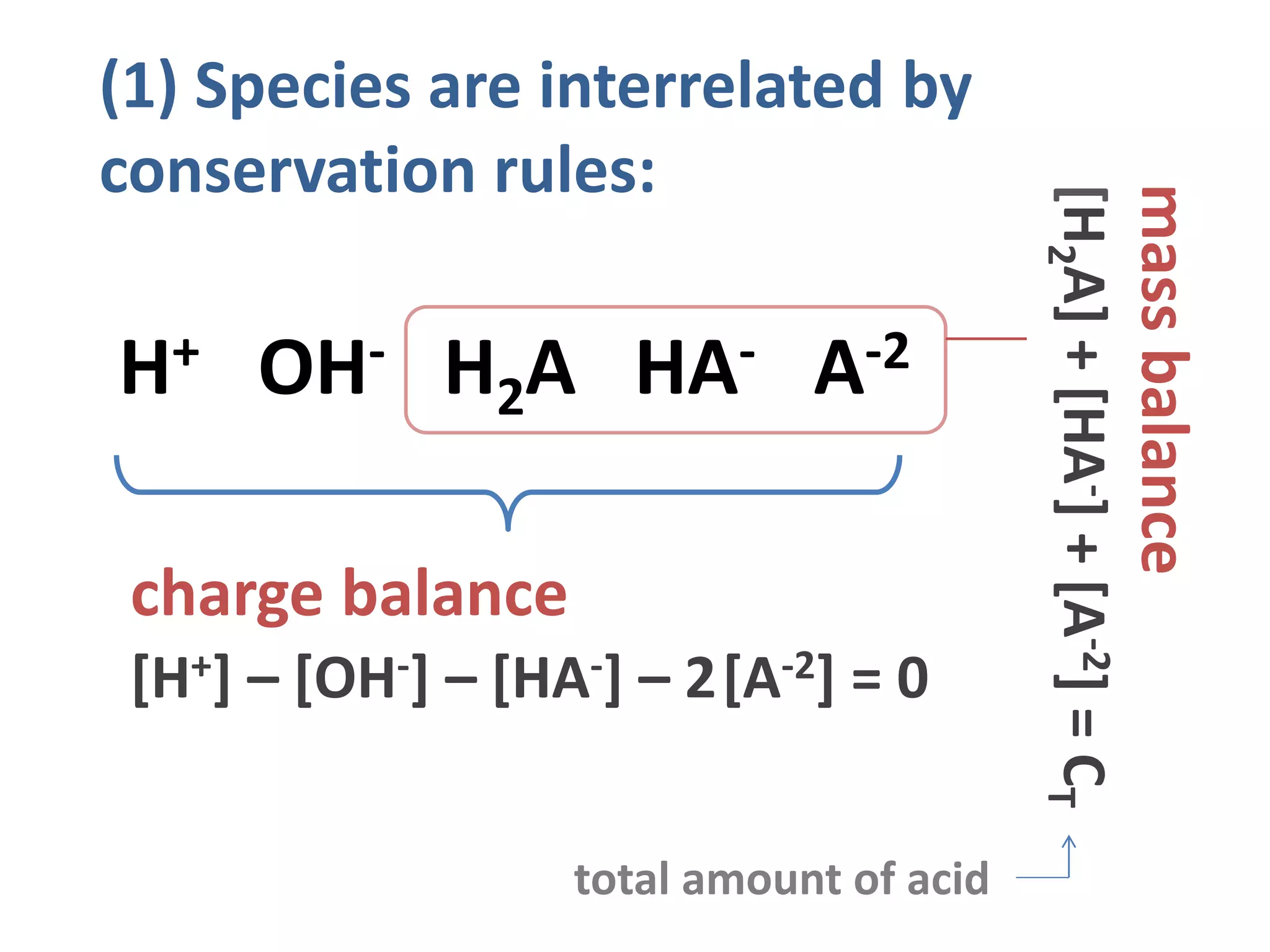

(1) Species are interrelated by
conservation rules:
H+ OH- H2A HA- A-2
charge balance
massbalance
[H2A]+[HA-]+[A-2]=CT
[H+] – [OH-] – [HA-] – 2[A-2] = 0
total amount of acid

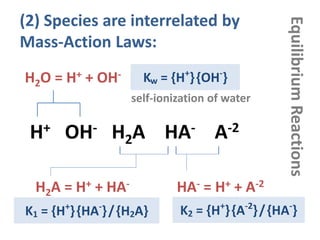

(2) Species are interrelated by
Mass-Action Laws:
H2A = H+ + HA- HA- = H+ + A-2
H2O = H+ + OH- Kw = {H+
}{OH-
}
K1 = {H+
}{HA-
}/{H2A}
H+ OH- H2A HA- A-2
K2 = {H+
}{A-2
}/{HA-
}

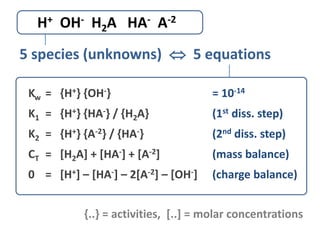

EquilibriumReactions
self-ionization of water
H+ OH- H2A HA- A-2
Kw = {H+} {OH-} = 10-14
K1 = {H+} {HA-} / {H2A} (1st diss. step)
K2 = {H+} {A-2} / {HA-} (2nd diss. step)
CT = [H2A] + [HA-] + [A-2] (mass balance)
0 = [H+] – [HA-] – 2[A-2] – [OH-] (charge balance)
5 species (unknowns)  5 equations
{..} = activities, [..] = molar concentrations

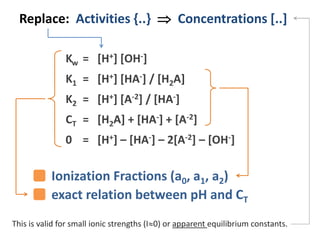

Replace: Activities {..}  Concentrations [..]
Kw = [H+] [OH-]
K1 = [H+] [HA-] / [H2A]
K2 = [H+] [A-2] / [HA-]
CT = [H2A] + [HA-] + [A-2]
0 = [H+] – [HA-] – 2[A-2] – [OH-]
This is valid for small ionic strengths (I0) or apparent equilibrium constants.
Ionization Fractions (a0, a1, a2)
exact relation between pH and CT
Ionization Fractions
a0 = [1 + K1/x + K1K2/x2]-1 [H2A] = CT a0
a1 = [x/K1 + 1 + K2/x]-1 [HA-] = CT a1
a2 = [x2/(K1K2) + x/K2 + 1]-1 [A-2] = CT a2
x = [H+] = 10-pH
K1 = 10-6.35
K2 = 10-10.33
carbonic acid
mass balance
a0 + a1 + a2 = 1
pK1 pK2

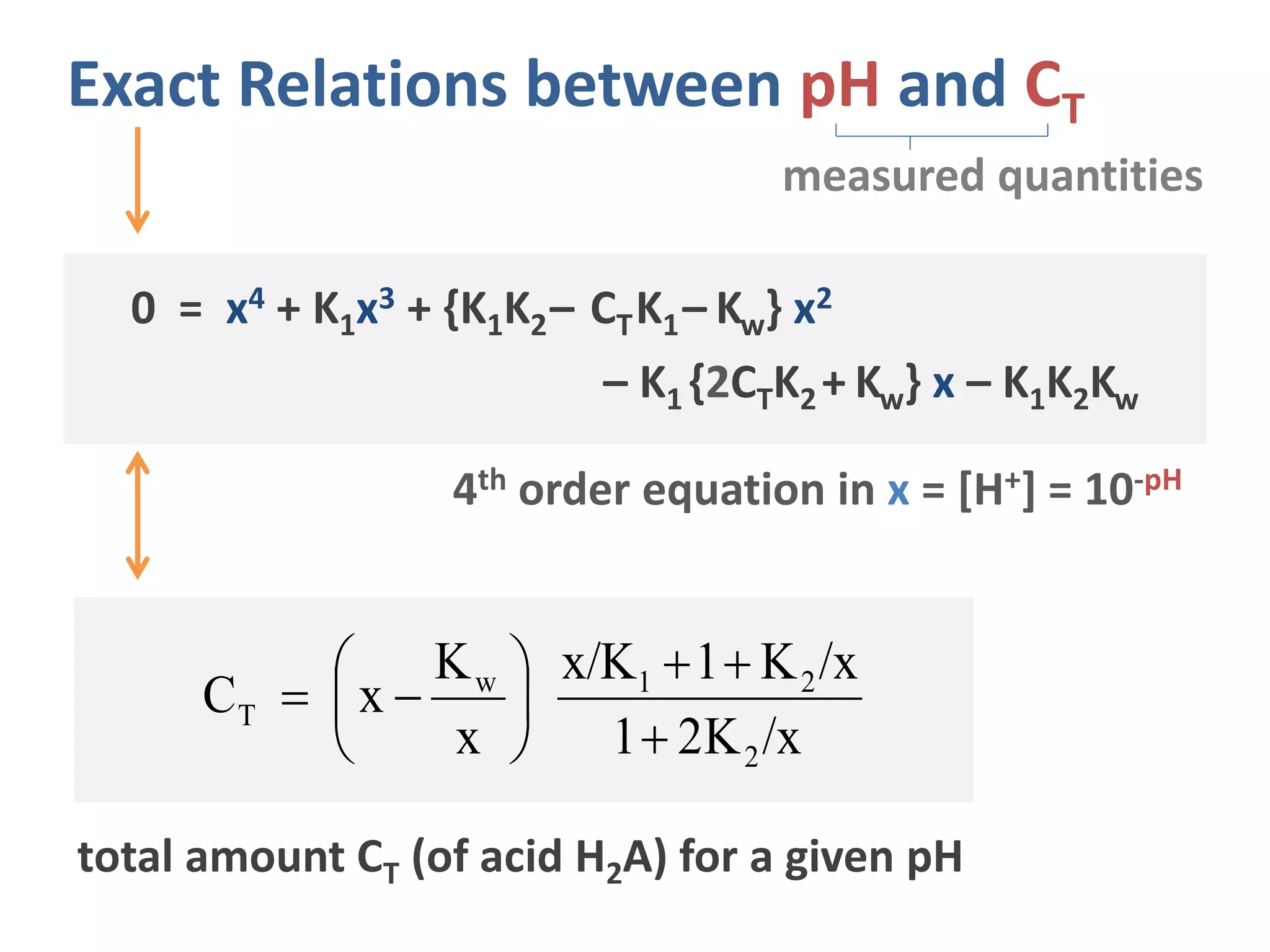

Exact Relations between pH and CT
4th order equation in x = [H+] = 10-pH
0 = x4 + K1x3 + {K1K2– CTK1– Kw} x2
– K1 {2CTK2 + Kw} x – K1K2Kw
x/K21
x/K1K/x
x
K
xC
2
21w
T









total amount CT (of acid H2A) for a given pH
measured quantities
x/K21
x/K1K/x
x
K
xC
2
21w
T










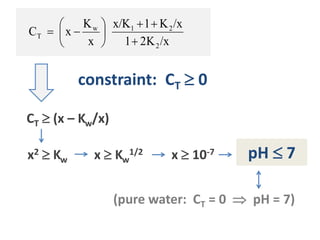

constraint: CT  0
CT  (x – Kw/x)
x2  Kw x  Kw
1/2 x  10-7 pH  7
(pure water: CT = 0  pH = 7)
Remark:
Don’t confuse CT with [H2A]
CT > [H2A]
total amount of acid H2A
that enters the solution:
CT = [H2A] + [HA-] + [A-2]
amount of
aqueous species H2A(aq)
(dissolved,
but non-dissociated)(measured quantity)
Generalization
(Acids, Ampholytes, Bases)
Part 2

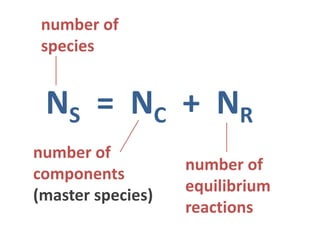

NS = NC + NR
number of
species
number of
equilibrium
reactions
number of
components
(master species)
C1 C2 ...
s1 11 12
s2 21 22
s3 31 32
...

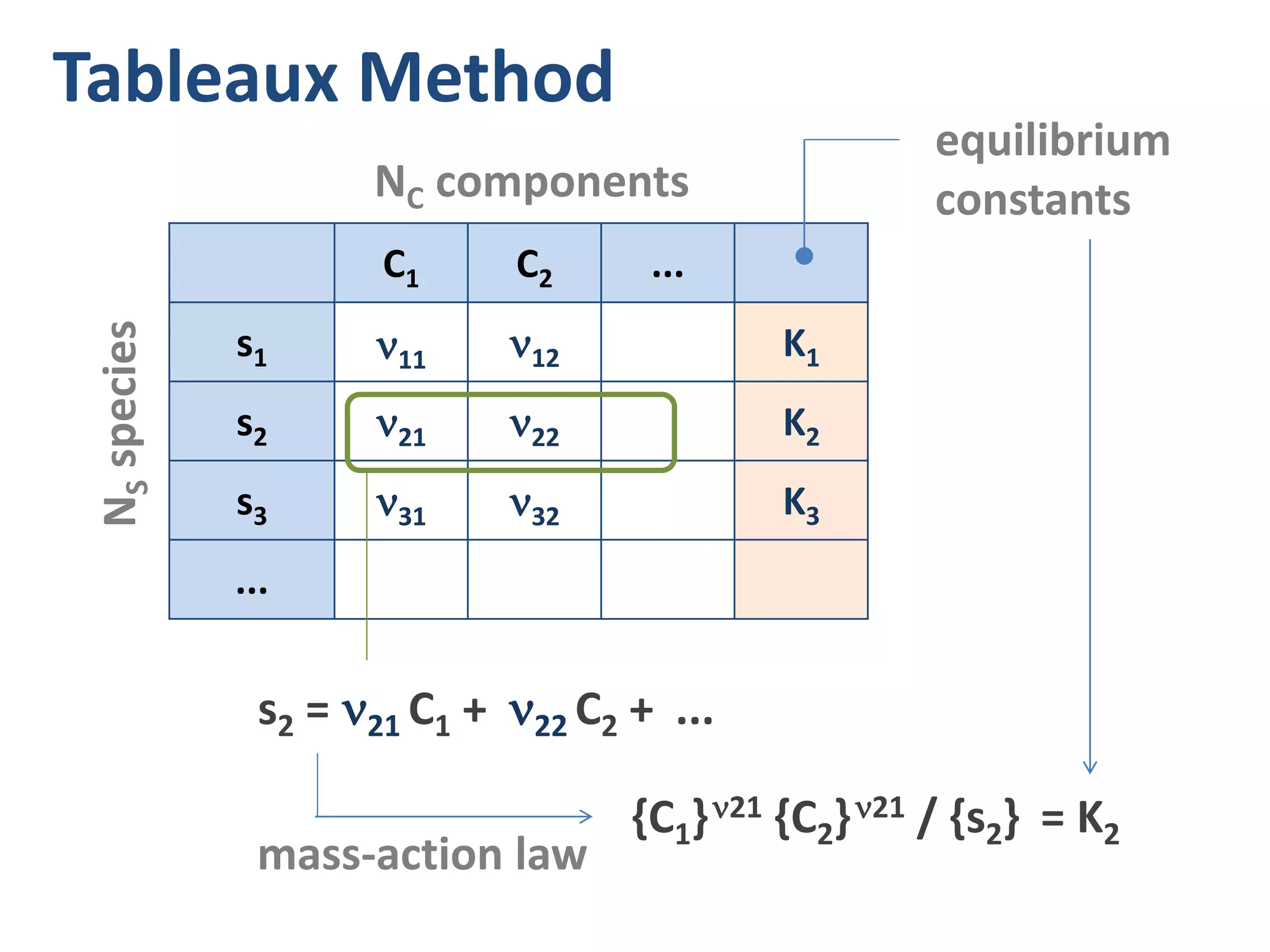

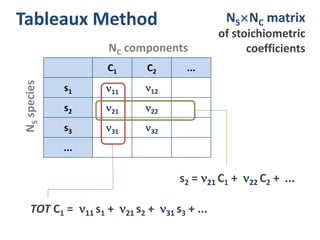

Tableaux Method
TOT C1 = 11 s1 + 21 s2 +  31 s3 + ...
NSNC matrix
of stoichiometric
coefficientsNC components
NSspecies
s2 = 21 C1 + 22 C2 +  ...
C1 C2 ...
s1 11 12 K1
s2 21 22 K2
s3 31 32 K3
...
Tableaux Method
{C1}21 {C2}21 / {s2} = K2
NC components
NSspecies
s2 = 21 C1 + 22 C2 +  ...
equilibrium
constants
mass-action law

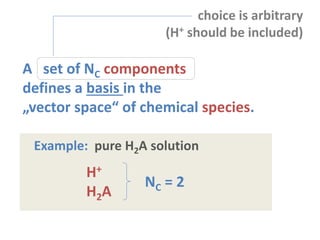

Example: pure H2A solution
choice is arbitrary
(H+ should be included)
H+
H2A
NC = 2
A set of NC components
defines a basis in the
„vector space“ of chemical species.
H+ H2A
H+ 1
OH- -1 -Kw
H2A 1
HA- -1 1 -K1
A-2 -2 1 -K1K2
H2A 0 1

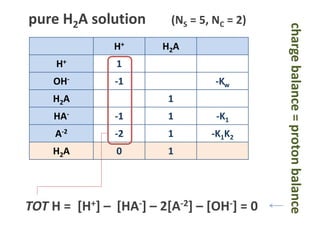

pure H2A solution (NS = 5, NC = 2)
TOT H = [H+] –  [HA-] – 2[A-2] – [OH-] = 0
chargebalance=protonbalance

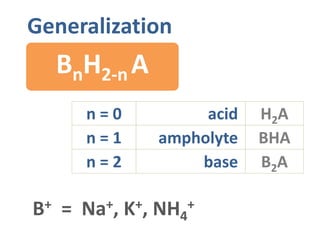

Generalization
BnH2-n A
B+ = Na+, K+, NH4
+
n = 0 acid
n = 1 ampholyte
n = 2 base
H2A
BHA
B2A
A clever choice of components
simplifies the calculations:

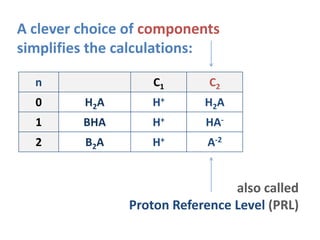

n C1 C2
0 H2A H+ H2A
1 BHA H+ HA-
2 B2A H+ A-2
also called
Proton Reference Level (PRL)
H+ H2A B+
H+ 1
OH- -1 -Kw
H2A 1
HA- -1 1 -K1
A-2 -2 1 -K1K2
B+ 0
H2A 0 1 0

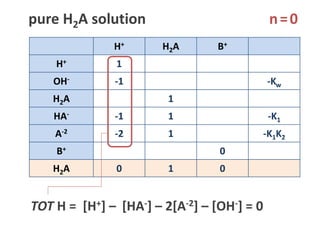

pure H2A solution
TOT H = [H+] –  [HA-] – 2[A-2] – [OH-] = 0
n=0
H+ HA- B+
H+ 1
OH- -1 -Kw
H2A 1 1 K1
HA- 1
A-2 -1 1 -K2
B+ 1
BHA 0 1 1

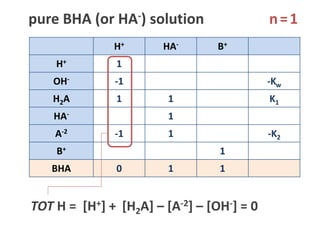

pure BHA (or HA-) solution
TOT H = [H+] +  [H2A] – [A-2] – [OH-] = 0
n=1
H+ A-2 B+
H+ 1
OH- -1 -Kw
H2A 2 1 K1K2
HA- 1 1 K2
A-2 1
B+ 2
B2A 0 1 2

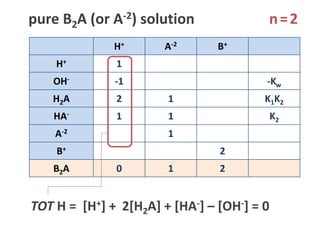

pure B2A (or A-2) solution
TOT H = [H+] + 2[H2A] + [HA-] – [OH-] = 0
n=2
H+ H2-nA-n B+ n=0 n=1 n=2
H+ 1
OH- -1 -Kw -Kw -Kw
H2A n 1 1 K1 K1K2
HA- n-1 1 -K1 1 K2
A-2 n-2 1 -K1K2 -K2 1
B+ n
BnH2-nA 0 1 n
General Case: pure BnH2-nA solution
TOT H = [H+] – [OH-] + n[H2A]
+ (n-1)[HA-] + (n-2)[A-2] = 0
Kw = {H+} {OH-} = 10-14
K1 = {H+} {HA-} / {H2A} (1st diss. step)
K2 = {H+} {A-2} / {HA-} (2nd diss. step)
CT = [H2A] + [HA-] + [A-2] (mass balance)
0 = [H+] + n[H2A] + (n-1)[HA-] + (n-2)[A-2] – [OH-]

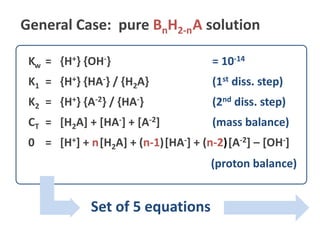

General Case: pure BnH2-nA solution
(proton balance)
Set of 5 equations
only for n=0:
proton balance = charge balance

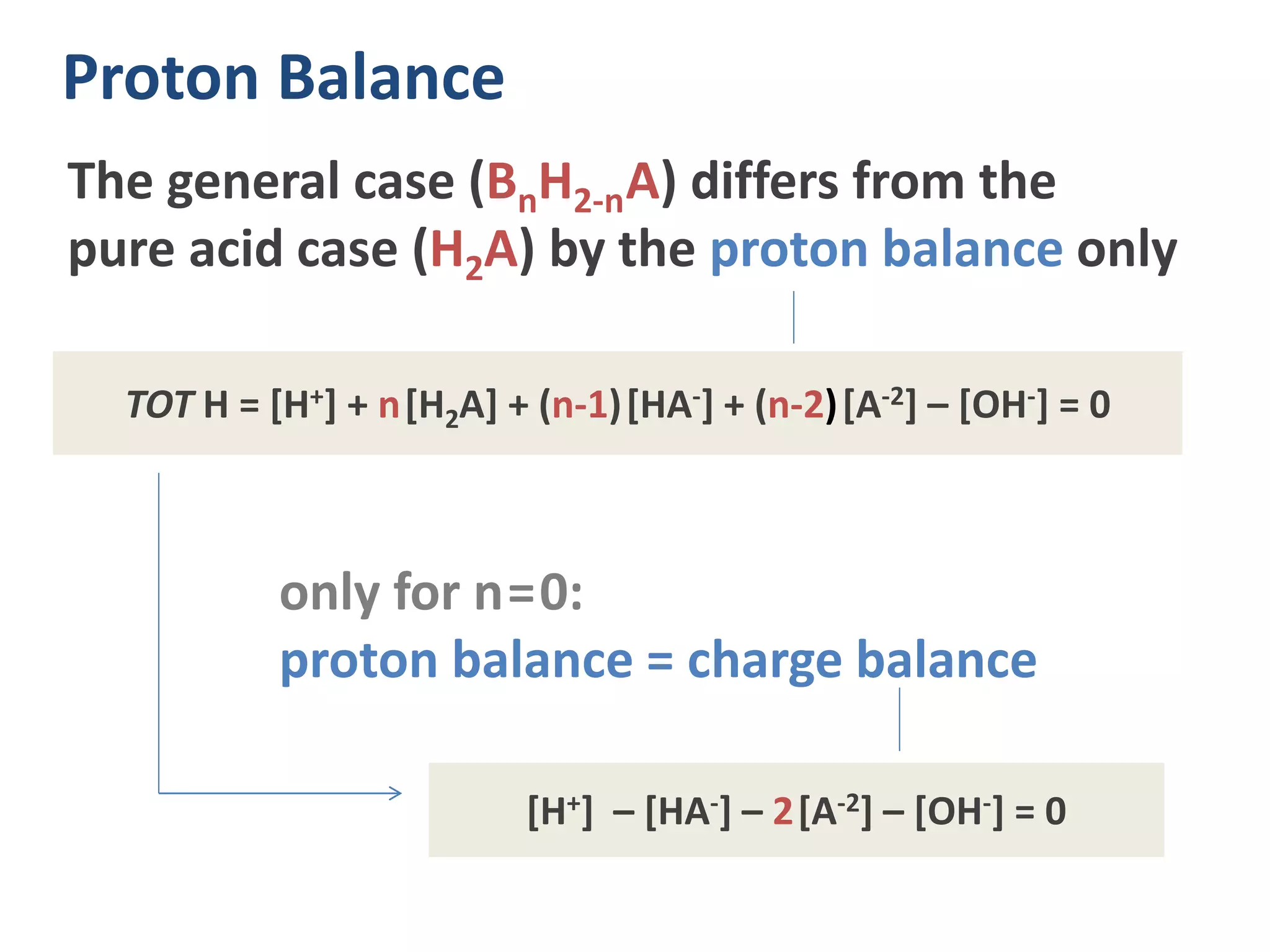

The general case (BnH2-nA) differs from the
pure acid case (H2A) by the proton balance only
TOT H = [H+] + n[H2A] + (n-1)[HA-] + (n-2)[A-2] – [OH-] = 0
[H+] – [HA-] – 2[A-2] – [OH-] = 0
Proton Balance

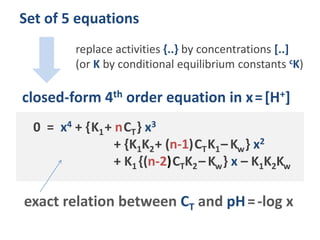

Set of 5 equations

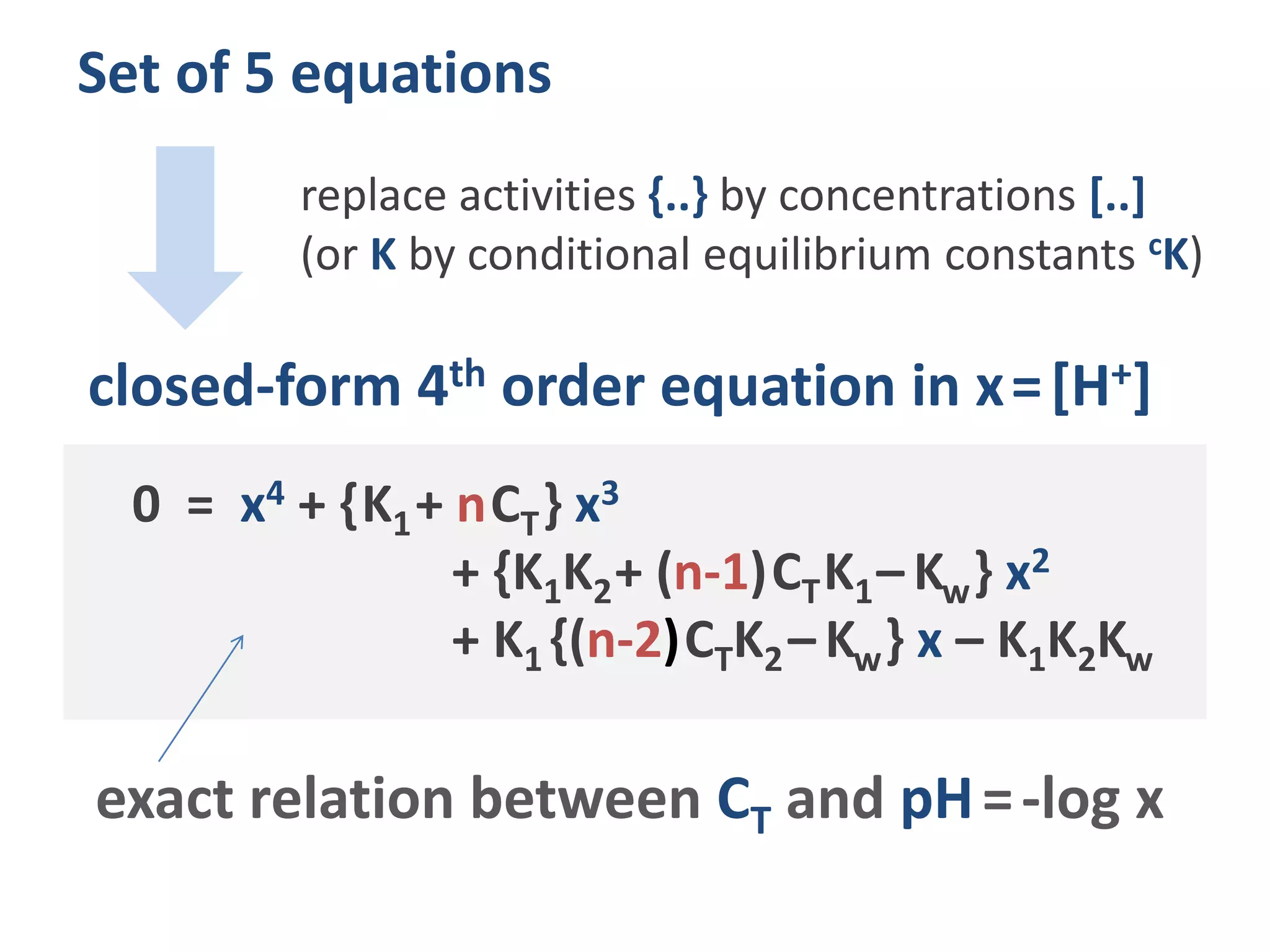

replace activities {..} by concentrations [..]
(or K by conditional equilibrium constants cK)
closed-form 4th order equation in x=[H+]
0 = x4 + {K1+ nCT} x3
+ {K1K2+ (n-1)CTK1– Kw} x2
+ K1 {(n-2)CTK2– Kw} x – K1K2Kw
exact relation between CT and pH=-log x
C
C
convert 4th-order equation to CT
12
12w
T
K/x)n0()n1(x/K)n2(
K/x1x/K
x
K
xC









total amount of BnH2-nA
as a function of pH = – log x
1
21
2w
T n
x/KK/x1
x/K21
x
K
xC


















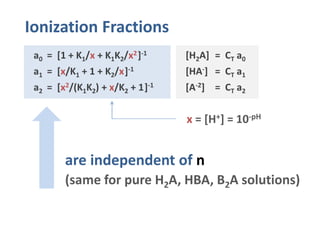

Ionization Fractions
a0 = [1 + K1/x + K1K2/x2]-1 [H2A] = CT a0
a1 = [x/K1 + 1 + K2/x]-1 [HA-] = CT a1
a2 = [x2/(K1K2) + x/K2 + 1]-1 [A-2] = CT a2
x = [H+] = 10-pH
are independent of n
(same for pure H2A, HBA, B2A solutions)
Equivalence Points
(of Carbonic Acid & Co)
Part 3

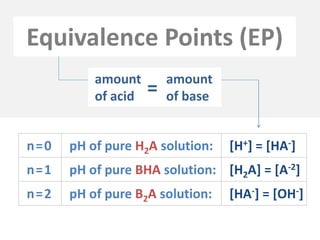

Equivalence Points (EP)
n=0 pH of pure H2A solution: [H+] = [HA-]
n=1 pH of pure BHA solution: [H2A] = [A-2]
n=2 pH of pure B2A solution: [HA-] = [OH-]
amount
of acid
amount
of base=

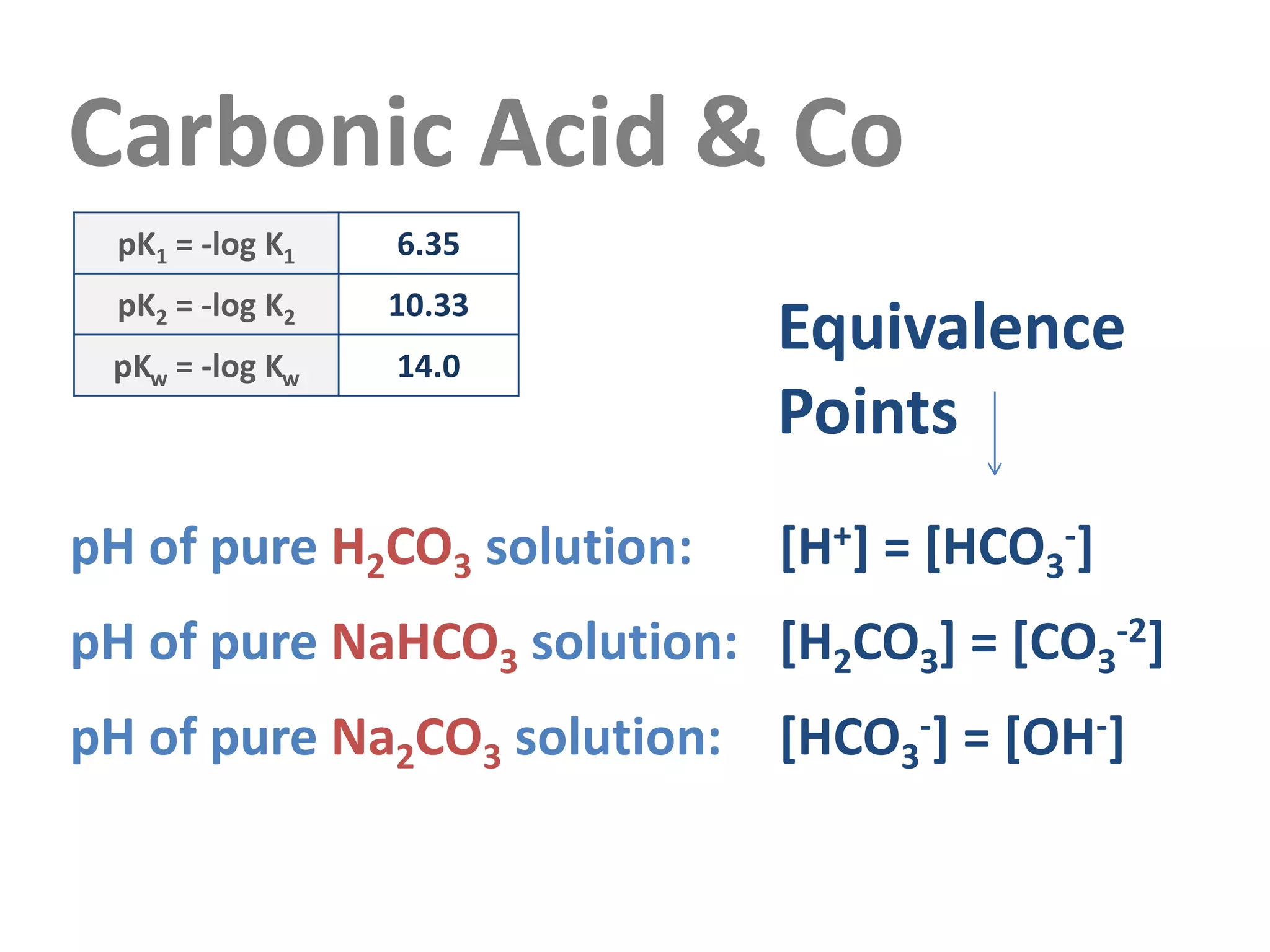

Carbonic Acid & Co
pH of pure H2CO3 solution: [H+] = [HCO3
-]
pH of pure NaHCO3 solution: [H2CO3] = [CO3
-2]
pH of pure Na2CO3 solution: [HCO3
-] = [OH-]
Equivalence
Points
pK1 = -log K1 6.35
pK2 = -log K2 10.33
pKw = -log Kw 14.0

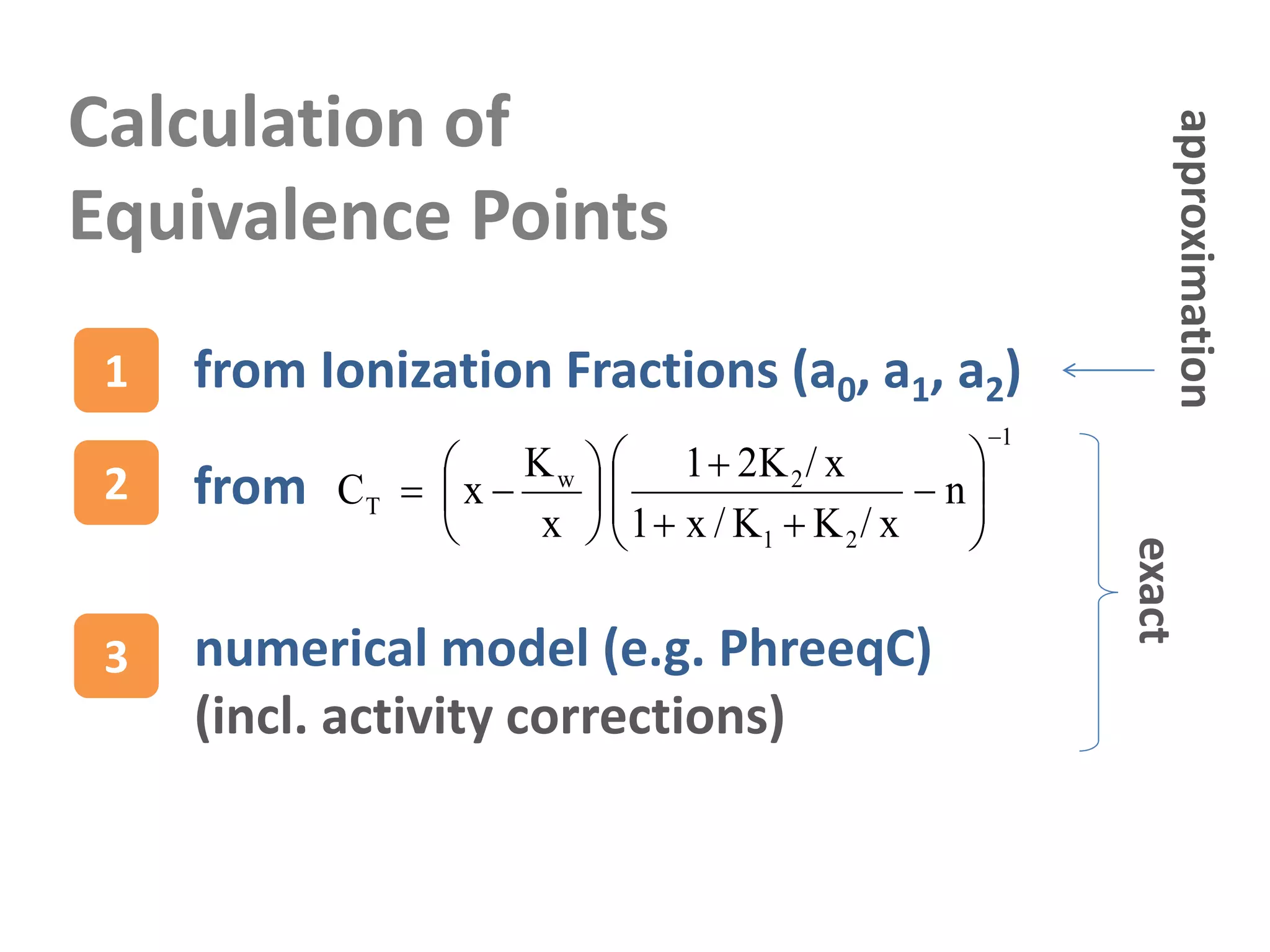

Calculation of
Equivalence Points
1 from Ionization Fractions (a0, a1, a2)
2 from
1
21
2w
T n
x/KK/x1
x/K21
x
K
xC

















3 numerical model (e.g. PhreeqC)
(incl. activity corrections)
exact
approximation
x = [H+] = 10-pH
EP based on Ionization Fractions
[H+] = [HA-]  x = CT a1  CT = x2/K1 + x + K2
[H2A] = [A-2]  a0 = a2  x2 = K1K2 (independent of CT)
[HA-] = [OH-]  CT a1 = Kw/x  CT = (Kw/x2)(x2/K1 + x + K2)
pH = -log x
CT[M]
[H+] = [HA-]
[H2A] = [A-2]
[HA-] = [OH-]
Example: Carbonic Acid
This is an
approximation
and fails
for CT  10-7 M.
1
outside range
of applicability
self-ionization
of H2O is ignored
pH
CT[M]
H2CO3
NaHCO3
Na2CO3
n= 0
n=1
n=2
)pH(fn
x/KK/x1
x/K21
x
K
xC n
1
21
2w
T 

















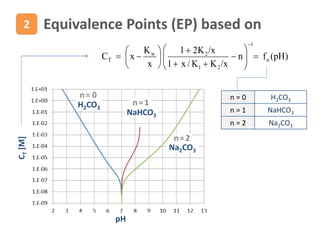

Equivalence Points (EP) based on2
n = 0 H2CO3
n = 1 NaHCO3
n = 2 Na2CO3
versus
EP based on
ionization fractions
(approximate)

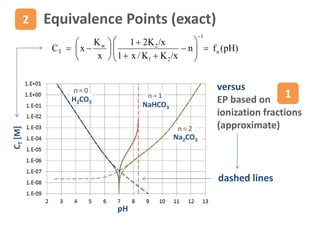

Equivalence Points (exact)
1
pH
CT[M]
H2CO3
NaHCO3
Na2CO3
n=0
n=1
n=2
2
dashed lines
)pH(fn
x/KK/x1
x/K21
x
K
xC n
1
21
2w
T 
















Equivalence
Points (EP)
pH
CT[M]
H2CO3
NaHCO3
Na2CO3

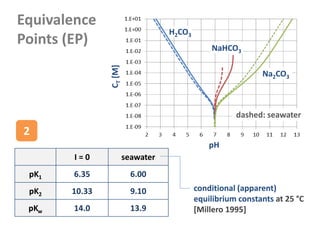

I = 0 seawater
pK1 6.35 6.00
pK2 10.33 9.10
pKw 14.0 13.9
dashed: seawater
conditional (apparent)
equilibrium constants at 25 °C
[Millero 1995]
2
pH
CT[M]
H2CO3 NaHCO3
Na2CO3
 activity corrections
 NaHCO3 and NaCO3
- species
3
lines: xlogpHwithn
x/KK/x1
x/K21
x
K
xC
1
21
2w
T 
















2
dots: PhreeqC calculations with:

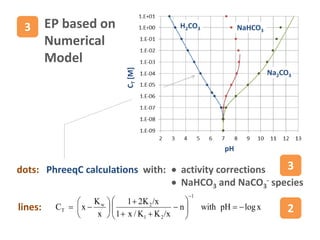

3 EP based on
Numerical
Model

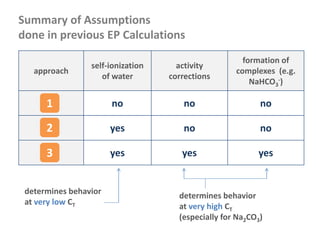

Summary of Assumptions
done in previous EP Calculations
approach
self-ionization
of water
activity
corrections
formation of
complexes (e.g.
NaHCO3
-)
no no no
yes no no
yes yes yes
1
2
3
determines behavior
at very low CT
determines behavior
at very high CT
(especially for Na2CO3)
CT = 10-4 M
CT = 10-3 M
[H+] = [HCO3
-] [HCO3
-] = [OH-]
Equivalence

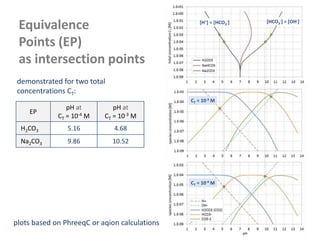

Points (EP)
as intersection points
EP
pH at
CT = 10-4 M
pH at
CT = 10-3 M
H2CO3 5.16 4.68
Na2CO3 9.86 10.52
plots based on PhreeqC or aqion calculations
demonstrated for two total
concentrations CT:

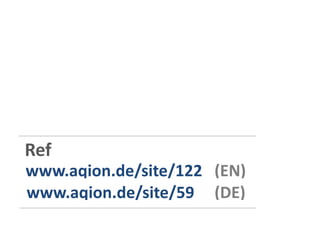

www.aqion.de/site/122 (EN)
www.aqion.de/site/59 (DE)
Ref
www.aqion.de/file/acid-base-systems.pdf

More Related Content

What's hot

AP Chemistry Chapter 16 Outline
AP Chemistry Chapter 16 OutlineAP Chemistry Chapter 16 Outline
AP Chemistry Chapter 16 Outline
Jane Hamze

8 Acid Base Equilibria
8 Acid Base Equilibria8 Acid Base Equilibria
8 Acid Base Equilibria
janetra

Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...
Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...
Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...
Lumen Learning

Semester - I B) Reactive Intermediates by Dr Pramod R Padole
Semester - I B) Reactive Intermediates by Dr Pramod R PadoleSemester - I B) Reactive Intermediates by Dr Pramod R Padole
Semester - I B) Reactive Intermediates by Dr Pramod R Padole
pramod padole

Ch.06 Chemical Equilibrium
Ch.06 Chemical EquilibriumCh.06 Chemical Equilibrium
Ch.06 Chemical Equilibrium
Sa'ib J. Khouri

Chemica kinetic 2017
Chemica kinetic 2017Chemica kinetic 2017
Chemica kinetic 2017
nysa tutorial

العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي
العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي
العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي
خالد عبد الباسط

Chemical equilibrium- Physical Chemistry
Chemical equilibrium- Physical ChemistryChemical equilibrium- Physical Chemistry
Chemical equilibrium- Physical Chemistry
Sanchit Dhankhar

Preparation of tris(ethylenediamine)nickel(ii) chloride complex.
Preparation of tris(ethylenediamine)nickel(ii) chloride complex.Preparation of tris(ethylenediamine)nickel(ii) chloride complex.
Preparation of tris(ethylenediamine)nickel(ii) chloride complex.
Mithil Fal Desai

Oxidation and reduction, Balancing the redox rections
Oxidation and reduction, Balancing the redox rectionsOxidation and reduction, Balancing the redox rections
Oxidation and reduction, Balancing the redox rections
SheikhMahatabuddinPh

Hoofdstuk 2 Chemische reacties - niet-redox - chemie
Hoofdstuk 2 Chemische reacties - niet-redox - chemieHoofdstuk 2 Chemische reacties - niet-redox - chemie
Hoofdstuk 2 Chemische reacties - niet-redox - chemie
Tom Mortier

Preparation of nitrobenzene
Preparation of nitrobenzenePreparation of nitrobenzene
Preparation of nitrobenzene
Expert Writing Help

pH presentation
pH presentationpH presentation
pH presentation
zehnerm2

IB Chemistry on Acid Base Buffers
IB Chemistry on Acid Base BuffersIB Chemistry on Acid Base Buffers
IB Chemistry on Acid Base Buffers
Lawrence kok

Chemitry Chemical Equilibrium
Chemitry Chemical EquilibriumChemitry Chemical Equilibrium
Chemitry Chemical Equilibrium
Afzal Zubair

Hoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemie
Hoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemieHoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemie
Hoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemie
Tom Mortier

UV Spectroscopy - Woodward - Feiser Rules
UV Spectroscopy - Woodward - Feiser RulesUV Spectroscopy - Woodward - Feiser Rules
UV Spectroscopy - Woodward - Feiser Rules
syed mohamed

DETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE ION
DETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE IONDETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE ION
DETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE ION
Augustine Adu

Group Theory in Chemistry - questions and answers
Group Theory in Chemistry - questions and answersGroup Theory in Chemistry - questions and answers
Group Theory in Chemistry - questions and answers
Chris Sonntag

Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...
Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...
Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...
Lumen Learning


What's hot (20)

AP Chemistry Chapter 16 Outline
AP Chemistry Chapter 16 OutlineAP Chemistry Chapter 16 Outline
AP Chemistry Chapter 16 Outline

8 Acid Base Equilibria
8 Acid Base Equilibria8 Acid Base Equilibria
8 Acid Base Equilibria

Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...
Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...
Chem 2 - Acid-Base Equilibria IV: Calculating the pH of Strong Acids versus W...

Semester - I B) Reactive Intermediates by Dr Pramod R Padole
Semester - I B) Reactive Intermediates by Dr Pramod R PadoleSemester - I B) Reactive Intermediates by Dr Pramod R Padole
Semester - I B) Reactive Intermediates by Dr Pramod R Padole

Ch.06 Chemical Equilibrium
Ch.06 Chemical EquilibriumCh.06 Chemical Equilibrium
Ch.06 Chemical Equilibrium

Chemica kinetic 2017
Chemica kinetic 2017Chemica kinetic 2017
Chemica kinetic 2017

العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي
العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي
العضوية مشتقات الهيدروكربونات استاذ رمضان غلاب تالتة ثانوي

Chemical equilibrium- Physical Chemistry
Chemical equilibrium- Physical ChemistryChemical equilibrium- Physical Chemistry
Chemical equilibrium- Physical Chemistry

Preparation of tris(ethylenediamine)nickel(ii) chloride complex.
Preparation of tris(ethylenediamine)nickel(ii) chloride complex.Preparation of tris(ethylenediamine)nickel(ii) chloride complex.
Preparation of tris(ethylenediamine)nickel(ii) chloride complex.

Oxidation and reduction, Balancing the redox rections
Oxidation and reduction, Balancing the redox rectionsOxidation and reduction, Balancing the redox rections
Oxidation and reduction, Balancing the redox rections

Hoofdstuk 2 Chemische reacties - niet-redox - chemie
Hoofdstuk 2 Chemische reacties - niet-redox - chemieHoofdstuk 2 Chemische reacties - niet-redox - chemie
Hoofdstuk 2 Chemische reacties - niet-redox - chemie

Preparation of nitrobenzene
Preparation of nitrobenzenePreparation of nitrobenzene
Preparation of nitrobenzene

pH presentation
pH presentationpH presentation
pH presentation

IB Chemistry on Acid Base Buffers
IB Chemistry on Acid Base BuffersIB Chemistry on Acid Base Buffers
IB Chemistry on Acid Base Buffers

Chemitry Chemical Equilibrium
Chemitry Chemical EquilibriumChemitry Chemical Equilibrium
Chemitry Chemical Equilibrium

Hoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemie
Hoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemieHoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemie
Hoofdstuk 3. Stoichiometrie - gassen & gaswetten - chemie

UV Spectroscopy - Woodward - Feiser Rules
UV Spectroscopy - Woodward - Feiser RulesUV Spectroscopy - Woodward - Feiser Rules
UV Spectroscopy - Woodward - Feiser Rules

DETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE ION
DETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE IONDETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE ION
DETERMINATION OF THE EQUILIBRIUM CONSTANT FOR THE FORMATION OF TRI-IODIDE ION

Group Theory in Chemistry - questions and answers
Group Theory in Chemistry - questions and answersGroup Theory in Chemistry - questions and answers
Group Theory in Chemistry - questions and answers

Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...
Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...
Chem 2 - Acid-Base Equilibria V: Weak Acid Equilibria and Calculating the pH ...


Viewers also liked

science Conservation of matter - Equation balance
science Conservation of matter - Equation balancescience Conservation of matter - Equation balance
science Conservation of matter - Equation balance
Peking

Chem 40S Unit 5 Notes
Chem 40S Unit 5 NotesChem 40S Unit 5 Notes
Chem 40S Unit 5 Notes
Bruce Coulter

01 solutions _electrolytes__protolytic_equilibria
01 solutions _electrolytes__protolytic_equilibria01 solutions _electrolytes__protolytic_equilibria
01 solutions _electrolytes__protolytic_equilibria
MUBOSScz

Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...
Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...
Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...
Chromatography & Mass Spectrometry Solutions

Environmental chemistry
 Environmental chemistry Environmental chemistry
Environmental chemistry
Afzal Zubair

Acid Base Equilibrium
Acid Base EquilibriumAcid Base Equilibrium
Acid Base Equilibrium
mgci

Acids and Bases
Acids and BasesAcids and Bases
Acids and Bases
Sadman Ridoy

Industrial chemistry lecture on sulfuric acid (ji&rb)
Industrial chemistry   lecture on sulfuric acid (ji&rb)Industrial chemistry   lecture on sulfuric acid (ji&rb)
Industrial chemistry lecture on sulfuric acid (ji&rb)
Lisa Pluis


Viewers also liked (8)

science Conservation of matter - Equation balance
science Conservation of matter - Equation balancescience Conservation of matter - Equation balance
science Conservation of matter - Equation balance

Chem 40S Unit 5 Notes
Chem 40S Unit 5 NotesChem 40S Unit 5 Notes
Chem 40S Unit 5 Notes

01 solutions _electrolytes__protolytic_equilibria
01 solutions _electrolytes__protolytic_equilibria01 solutions _electrolytes__protolytic_equilibria
01 solutions _electrolytes__protolytic_equilibria

Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...
Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...
Chromatography: Complete Inorganic Elemental Speciation Analysis Solutions fo...

Environmental chemistry
 Environmental chemistry Environmental chemistry
Environmental chemistry

Acid Base Equilibrium
Acid Base EquilibriumAcid Base Equilibrium
Acid Base Equilibrium

Acids and Bases
Acids and BasesAcids and Bases
Acids and Bases

Industrial chemistry lecture on sulfuric acid (ji&rb)
Industrial chemistry   lecture on sulfuric acid (ji&rb)Industrial chemistry   lecture on sulfuric acid (ji&rb)
Industrial chemistry lecture on sulfuric acid (ji&rb)


Similar to Diprotic Acids and Equivalence Points

Gc chemical equilibrium
Gc  chemical equilibriumGc  chemical equilibrium
Gc chemical equilibrium
David Richardson

GC Chemical Equilibrium
GC  Chemical EquilibriumGC  Chemical Equilibrium
GC Chemical Equilibrium
David Richardson

GC Chemical Equilibrium
GC  Chemical EquilibriumGC  Chemical Equilibrium
GC Chemical Equilibrium
David Richardson

Equilibrium slideshare. WN.2011
Equilibrium slideshare. WN.2011Equilibrium slideshare. WN.2011
Equilibrium slideshare. WN.2011
docott

Tang 04 ka calculations 2
Tang 04   ka calculations 2Tang 04   ka calculations 2
Tang 04 ka calculations 2
mrtangextrahelp

Ch16
Ch16Ch16
CM4106 Review of Lesson 3 (Part 1)
CM4106 Review of Lesson 3 (Part 1)CM4106 Review of Lesson 3 (Part 1)
CM4106 Review of Lesson 3 (Part 1)
Yong Yao Tan

Tang 05 ionization + kb 2
Tang 05   ionization + kb 2Tang 05   ionization + kb 2
Tang 05 ionization + kb 2
mrtangextrahelp

Lect w9 buffers_exercises
Lect w9 buffers_exercisesLect w9 buffers_exercises
Lect w9 buffers_exercises
chelss

Chapter 14
Chapter 14Chapter 14
Lect w9 152 - buffers and ksp_alg
Lect w9 152 - buffers and ksp_algLect w9 152 - buffers and ksp_alg
Lect w9 152 - buffers and ksp_alg
chelss

TOPIC 18 : ACIDS AND BASES
TOPIC 18 : ACIDS AND BASES TOPIC 18 : ACIDS AND BASES
TOPIC 18 : ACIDS AND BASES
ALIAH RUBAEE

Chemistry Equilibrium
Chemistry EquilibriumChemistry Equilibrium
Chemistry Equilibrium
Colin Quinton

Chem unit9
Chem unit9Chem unit9
04 Solutions
04 Solutions04 Solutions
04 Solutions
vodkapop

Ch18
Ch18Ch18
IB Chemistry on Hess's Law, Enthalpy Formation and Combustion
IB Chemistry on Hess's Law, Enthalpy Formation and CombustionIB Chemistry on Hess's Law, Enthalpy Formation and Combustion
IB Chemistry on Hess's Law, Enthalpy Formation and Combustion
Lawrence kok

IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.
IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.
IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.
Lawrence kok

Tang 06 titration calculations
Tang 06   titration calculationsTang 06   titration calculations
Tang 06 titration calculations
mrtangextrahelp

กรดเบส
กรดเบสกรดเบส
กรดเบส
0875773416


Similar to Diprotic Acids and Equivalence Points (20)

Gc chemical equilibrium
Gc  chemical equilibriumGc  chemical equilibrium
Gc chemical equilibrium

GC Chemical Equilibrium
GC  Chemical EquilibriumGC  Chemical Equilibrium
GC Chemical Equilibrium

GC Chemical Equilibrium
GC  Chemical EquilibriumGC  Chemical Equilibrium
GC Chemical Equilibrium

Equilibrium slideshare. WN.2011
Equilibrium slideshare. WN.2011Equilibrium slideshare. WN.2011
Equilibrium slideshare. WN.2011

Tang 04 ka calculations 2
Tang 04   ka calculations 2Tang 04   ka calculations 2
Tang 04 ka calculations 2

Ch16
Ch16Ch16
Ch16

CM4106 Review of Lesson 3 (Part 1)
CM4106 Review of Lesson 3 (Part 1)CM4106 Review of Lesson 3 (Part 1)
CM4106 Review of Lesson 3 (Part 1)

Tang 05 ionization + kb 2
Tang 05   ionization + kb 2Tang 05   ionization + kb 2
Tang 05 ionization + kb 2

Lect w9 buffers_exercises
Lect w9 buffers_exercisesLect w9 buffers_exercises
Lect w9 buffers_exercises

Chapter 14
Chapter 14Chapter 14
Chapter 14

Lect w9 152 - buffers and ksp_alg
Lect w9 152 - buffers and ksp_algLect w9 152 - buffers and ksp_alg
Lect w9 152 - buffers and ksp_alg

TOPIC 18 : ACIDS AND BASES
TOPIC 18 : ACIDS AND BASES TOPIC 18 : ACIDS AND BASES
TOPIC 18 : ACIDS AND BASES

Chemistry Equilibrium
Chemistry EquilibriumChemistry Equilibrium
Chemistry Equilibrium

Chem unit9
Chem unit9Chem unit9
Chem unit9

04 Solutions
04 Solutions04 Solutions
04 Solutions

Ch18
Ch18Ch18
Ch18

IB Chemistry on Hess's Law, Enthalpy Formation and Combustion
IB Chemistry on Hess's Law, Enthalpy Formation and CombustionIB Chemistry on Hess's Law, Enthalpy Formation and Combustion
IB Chemistry on Hess's Law, Enthalpy Formation and Combustion

IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.
IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.
IB Chemistry on Equilibrium Constant, Kc and Equilibrium Law.

Tang 06 titration calculations
Tang 06   titration calculationsTang 06   titration calculations
Tang 06 titration calculations

กรดเบส
กรดเบสกรดเบส
กรดเบส


Recently uploaded

The binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defectsThe binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defects
Sérgio Sacani

Anti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark UniverseAnti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark Universe
Sérgio Sacani

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
frank0071

8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf
by6843629

Pests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdfPests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdf
PirithiRaju

11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf
PirithiRaju

Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
PsychoTech Services

Tissue fluids_etiology_volume regulation_pressure.pptx
Tissue fluids_etiology_volume regulation_pressure.pptxTissue fluids_etiology_volume regulation_pressure.pptx
Tissue fluids_etiology_volume regulation_pressure.pptx
muralinath2

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx
ananya23nair

Summary Of transcription and Translation.pdf
Summary Of transcription and Translation.pdfSummary Of transcription and Translation.pdf
Summary Of transcription and Translation.pdf
vadgavevedant86

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Selcen Ozturkcan

HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1
Shashank Shekhar Pandey

Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...
Sérgio Sacani

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR

EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
Sérgio Sacani

CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)
CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)
CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)
eitps1506

Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)
Sciences of Europe

Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Sérgio Sacani

cathode ray oscilloscope and its applications
cathode ray oscilloscope and its applicationscathode ray oscilloscope and its applications
cathode ray oscilloscope and its applications
sandertein

JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDSJAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
Sérgio Sacani


Recently uploaded (20)

The binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defectsThe binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defects

Anti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark UniverseAnti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark Universe

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...

8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf

Pests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdfPests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdf

11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf

Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...

Tissue fluids_etiology_volume regulation_pressure.pptx
Tissue fluids_etiology_volume regulation_pressure.pptxTissue fluids_etiology_volume regulation_pressure.pptx
Tissue fluids_etiology_volume regulation_pressure.pptx

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx

Summary Of transcription and Translation.pdf
Summary Of transcription and Translation.pdfSummary Of transcription and Translation.pdf
Summary Of transcription and Translation.pdf

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf

HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1

Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf

EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...

CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)
CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)
CLASS 12th CHEMISTRY SOLID STATE ppt (Animated)

Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)

Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...

cathode ray oscilloscope and its applications
cathode ray oscilloscope and its applicationscathode ray oscilloscope and its applications
cathode ray oscilloscope and its applications

JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDSJAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS


Diprotic Acids and Equivalence Points

  • 1. Diprotic Acids Tableaux & Equivalence Points aqion.de updated 2017-04-15
  • 2. monoprotic acid: HA diprotic acid: H2A triprotic acid: H3A our focus most prominent representative: carbonic acid (with A-2 =CO3 -2)
  • 3. pure H2O OH- H+ H2O + H2A H2A HA- A-2 OH- H+ acid H2A 5species 2 components
  • 4. Acid H2A (Concepts & Notation) Part 1
  • 5. Two Dissociation Steps H2A ⇄ H+ + HA- ⇄ 2H+ + A-2 Five Species (NS = 5) H+, OH-, H2A, HA-, A-2
  • 6. (1) Species are interrelated by conservation rules: H+ OH- H2A HA- A-2 charge balance massbalance [H2A]+[HA-]+[A-2]=CT [H+] – [OH-] – [HA-] – 2[A-2] = 0 total amount of acid
  • 7. (2) Species are interrelated by Mass-Action Laws: H2A = H+ + HA- HA- = H+ + A-2 H2O = H+ + OH- Kw = {H+ }{OH- } K1 = {H+ }{HA- }/{H2A} H+ OH- H2A HA- A-2 K2 = {H+ }{A-2 }/{HA- } EquilibriumReactions self-ionization of water
  • 8. H+ OH- H2A HA- A-2 Kw = {H+} {OH-} = 10-14 K1 = {H+} {HA-} / {H2A} (1st diss. step) K2 = {H+} {A-2} / {HA-} (2nd diss. step) CT = [H2A] + [HA-] + [A-2] (mass balance) 0 = [H+] – [HA-] – 2[A-2] – [OH-] (charge balance) 5 species (unknowns)  5 equations {..} = activities, [..] = molar concentrations
  • 9. Replace: Activities {..}  Concentrations [..] Kw = [H+] [OH-] K1 = [H+] [HA-] / [H2A] K2 = [H+] [A-2] / [HA-] CT = [H2A] + [HA-] + [A-2] 0 = [H+] – [HA-] – 2[A-2] – [OH-] This is valid for small ionic strengths (I0) or apparent equilibrium constants. Ionization Fractions (a0, a1, a2) exact relation between pH and CT
  • 10. Ionization Fractions a0 = [1 + K1/x + K1K2/x2]-1 [H2A] = CT a0 a1 = [x/K1 + 1 + K2/x]-1 [HA-] = CT a1 a2 = [x2/(K1K2) + x/K2 + 1]-1 [A-2] = CT a2 x = [H+] = 10-pH K1 = 10-6.35 K2 = 10-10.33 carbonic acid mass balance a0 + a1 + a2 = 1 pK1 pK2
  • 11. Exact Relations between pH and CT 4th order equation in x = [H+] = 10-pH 0 = x4 + K1x3 + {K1K2– CTK1– Kw} x2 – K1 {2CTK2 + Kw} x – K1K2Kw x/K21 x/K1K/x x K xC 2 21w T          total amount CT (of acid H2A) for a given pH measured quantities
  • 12. x/K21 x/K1K/x x K xC 2 21w T          constraint: CT  0 CT  (x – Kw/x) x2  Kw x  Kw 1/2 x  10-7 pH  7 (pure water: CT = 0  pH = 7)
  • 13. Remark: Don’t confuse CT with [H2A] CT > [H2A] total amount of acid H2A that enters the solution: CT = [H2A] + [HA-] + [A-2] amount of aqueous species H2A(aq) (dissolved, but non-dissociated)(measured quantity)
  • 15. NS = NC + NR number of species number of equilibrium reactions number of components (master species)
  • 16. C1 C2 ... s1 11 12 s2 21 22 s3 31 32 ... Tableaux Method TOT C1 = 11 s1 + 21 s2 +  31 s3 + ... NSNC matrix of stoichiometric coefficientsNC components NSspecies s2 = 21 C1 + 22 C2 +  ...
  • 17. C1 C2 ... s1 11 12 K1 s2 21 22 K2 s3 31 32 K3 ... Tableaux Method {C1}21 {C2}21 / {s2} = K2 NC components NSspecies s2 = 21 C1 + 22 C2 +  ... equilibrium constants mass-action law
  • 18. Example: pure H2A solution choice is arbitrary (H+ should be included) H+ H2A NC = 2 A set of NC components defines a basis in the „vector space“ of chemical species.
  • 19. H+ H2A H+ 1 OH- -1 -Kw H2A 1 HA- -1 1 -K1 A-2 -2 1 -K1K2 H2A 0 1 pure H2A solution (NS = 5, NC = 2) TOT H = [H+] –  [HA-] – 2[A-2] – [OH-] = 0 chargebalance=protonbalance
  • 20. Generalization BnH2-n A B+ = Na+, K+, NH4 + n = 0 acid n = 1 ampholyte n = 2 base H2A BHA B2A
  • 21. A clever choice of components simplifies the calculations: n C1 C2 0 H2A H+ H2A 1 BHA H+ HA- 2 B2A H+ A-2 also called Proton Reference Level (PRL)
  • 22. H+ H2A B+ H+ 1 OH- -1 -Kw H2A 1 HA- -1 1 -K1 A-2 -2 1 -K1K2 B+ 0 H2A 0 1 0 pure H2A solution TOT H = [H+] –  [HA-] – 2[A-2] – [OH-] = 0 n=0
  • 23. H+ HA- B+ H+ 1 OH- -1 -Kw H2A 1 1 K1 HA- 1 A-2 -1 1 -K2 B+ 1 BHA 0 1 1 pure BHA (or HA-) solution TOT H = [H+] +  [H2A] – [A-2] – [OH-] = 0 n=1
  • 24. H+ A-2 B+ H+ 1 OH- -1 -Kw H2A 2 1 K1K2 HA- 1 1 K2 A-2 1 B+ 2 B2A 0 1 2 pure B2A (or A-2) solution TOT H = [H+] + 2[H2A] + [HA-] – [OH-] = 0 n=2
  • 25. H+ H2-nA-n B+ n=0 n=1 n=2 H+ 1 OH- -1 -Kw -Kw -Kw H2A n 1 1 K1 K1K2 HA- n-1 1 -K1 1 K2 A-2 n-2 1 -K1K2 -K2 1 B+ n BnH2-nA 0 1 n General Case: pure BnH2-nA solution TOT H = [H+] – [OH-] + n[H2A] + (n-1)[HA-] + (n-2)[A-2] = 0
  • 26. Kw = {H+} {OH-} = 10-14 K1 = {H+} {HA-} / {H2A} (1st diss. step) K2 = {H+} {A-2} / {HA-} (2nd diss. step) CT = [H2A] + [HA-] + [A-2] (mass balance) 0 = [H+] + n[H2A] + (n-1)[HA-] + (n-2)[A-2] – [OH-] General Case: pure BnH2-nA solution (proton balance) Set of 5 equations
  • 27. only for n=0: proton balance = charge balance The general case (BnH2-nA) differs from the pure acid case (H2A) by the proton balance only TOT H = [H+] + n[H2A] + (n-1)[HA-] + (n-2)[A-2] – [OH-] = 0 [H+] – [HA-] – 2[A-2] – [OH-] = 0 Proton Balance
  • 28. Set of 5 equations replace activities {..} by concentrations [..] (or K by conditional equilibrium constants cK) closed-form 4th order equation in x=[H+] 0 = x4 + {K1+ nCT} x3 + {K1K2+ (n-1)CTK1– Kw} x2 + K1 {(n-2)CTK2– Kw} x – K1K2Kw exact relation between CT and pH=-log x
  • 29. C C convert 4th-order equation to CT 12 12w T K/x)n0()n1(x/K)n2( K/x1x/K x K xC          total amount of BnH2-nA as a function of pH = – log x 1 21 2w T n x/KK/x1 x/K21 x K xC                 
  • 30. Ionization Fractions a0 = [1 + K1/x + K1K2/x2]-1 [H2A] = CT a0 a1 = [x/K1 + 1 + K2/x]-1 [HA-] = CT a1 a2 = [x2/(K1K2) + x/K2 + 1]-1 [A-2] = CT a2 x = [H+] = 10-pH are independent of n (same for pure H2A, HBA, B2A solutions)
  • 31. Equivalence Points (of Carbonic Acid & Co) Part 3
  • 32. Equivalence Points (EP) n=0 pH of pure H2A solution: [H+] = [HA-] n=1 pH of pure BHA solution: [H2A] = [A-2] n=2 pH of pure B2A solution: [HA-] = [OH-] amount of acid amount of base=
  • 33. Carbonic Acid & Co pH of pure H2CO3 solution: [H+] = [HCO3 -] pH of pure NaHCO3 solution: [H2CO3] = [CO3 -2] pH of pure Na2CO3 solution: [HCO3 -] = [OH-] Equivalence Points pK1 = -log K1 6.35 pK2 = -log K2 10.33 pKw = -log Kw 14.0
  • 34. Calculation of Equivalence Points 1 from Ionization Fractions (a0, a1, a2) 2 from 1 21 2w T n x/KK/x1 x/K21 x K xC                  3 numerical model (e.g. PhreeqC) (incl. activity corrections) exact approximation
  • 35. x = [H+] = 10-pH EP based on Ionization Fractions [H+] = [HA-]  x = CT a1  CT = x2/K1 + x + K2 [H2A] = [A-2]  a0 = a2  x2 = K1K2 (independent of CT) [HA-] = [OH-]  CT a1 = Kw/x  CT = (Kw/x2)(x2/K1 + x + K2) pH = -log x CT[M] [H+] = [HA-] [H2A] = [A-2] [HA-] = [OH-] Example: Carbonic Acid This is an approximation and fails for CT  10-7 M. 1 outside range of applicability self-ionization of H2O is ignored
  • 36. pH CT[M] H2CO3 NaHCO3 Na2CO3 n= 0 n=1 n=2 )pH(fn x/KK/x1 x/K21 x K xC n 1 21 2w T                  Equivalence Points (EP) based on2 n = 0 H2CO3 n = 1 NaHCO3 n = 2 Na2CO3
  • 37. versus EP based on ionization fractions (approximate) Equivalence Points (exact) 1 pH CT[M] H2CO3 NaHCO3 Na2CO3 n=0 n=1 n=2 2 dashed lines )pH(fn x/KK/x1 x/K21 x K xC n 1 21 2w T                 
  • 38. Equivalence Points (EP) pH CT[M] H2CO3 NaHCO3 Na2CO3 I = 0 seawater pK1 6.35 6.00 pK2 10.33 9.10 pKw 14.0 13.9 dashed: seawater conditional (apparent) equilibrium constants at 25 °C [Millero 1995] 2
  • 39. pH CT[M] H2CO3 NaHCO3 Na2CO3  activity corrections  NaHCO3 and NaCO3 - species 3 lines: xlogpHwithn x/KK/x1 x/K21 x K xC 1 21 2w T                  2 dots: PhreeqC calculations with: 3 EP based on Numerical Model
  • 40. Summary of Assumptions done in previous EP Calculations approach self-ionization of water activity corrections formation of complexes (e.g. NaHCO3 -) no no no yes no no yes yes yes 1 2 3 determines behavior at very low CT determines behavior at very high CT (especially for Na2CO3)
  • 41. CT = 10-4 M CT = 10-3 M [H+] = [HCO3 -] [HCO3 -] = [OH-] Equivalence Points (EP) as intersection points EP pH at CT = 10-4 M pH at CT = 10-3 M H2CO3 5.16 4.68 Na2CO3 9.86 10.52 plots based on PhreeqC or aqion calculations demonstrated for two total concentrations CT:
