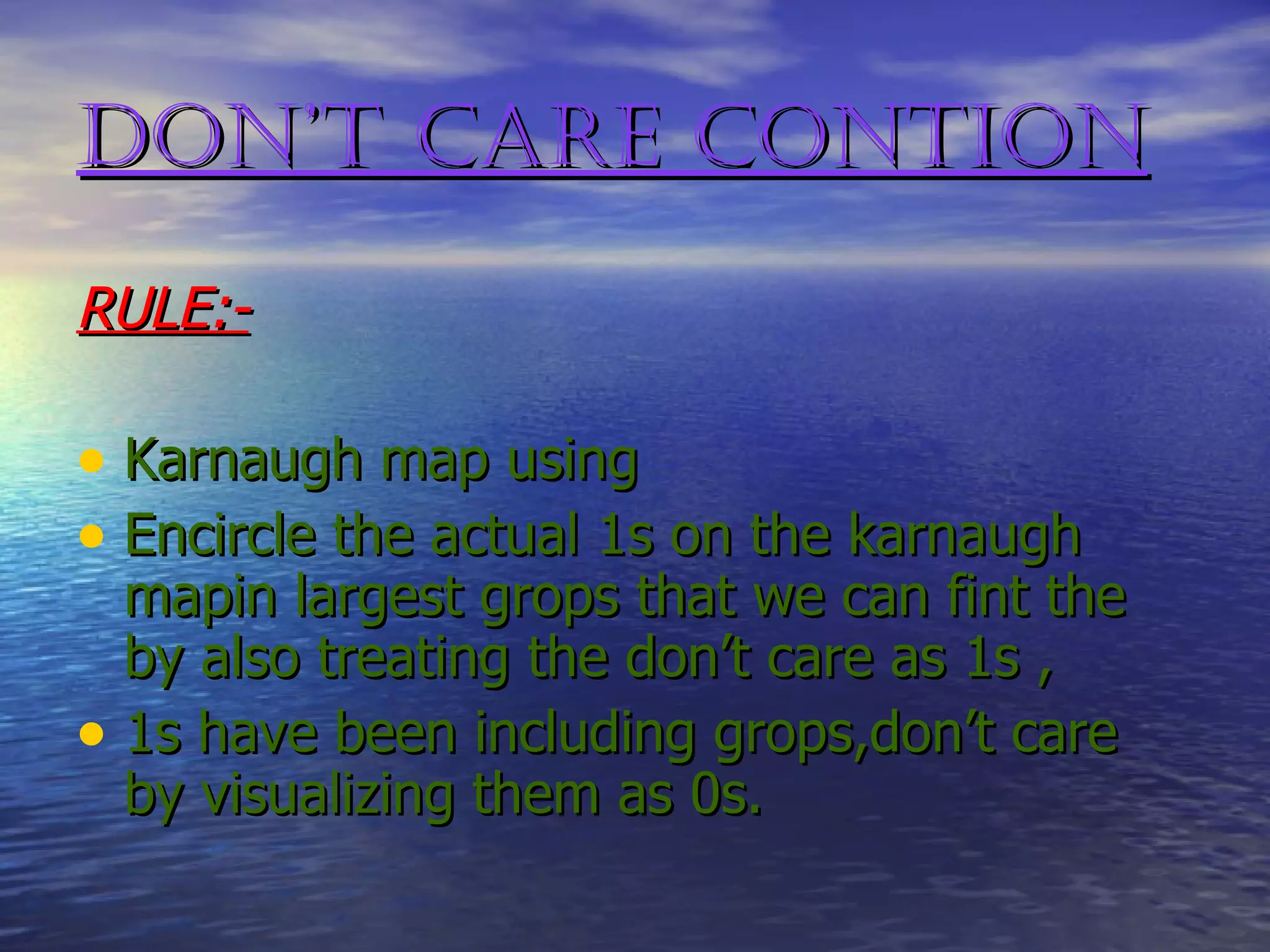

1. DON’T CARE CONTION RULE:- Karnaugh map using Encircle the actual 1s on the karnaugh mapin largest grops that we can fint the by also treating the don’t care as 1s , 1s have been including grops,don’t care by visualizing them as 0s.

2. Example:- F(w,x,y,z)= £( 1,3,7,11,15) Has the don’t care contion:- d(w,x,y,z)= £(0,2,5)

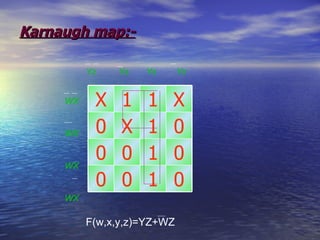

3. Karnaugh map:- Yz Yz Yz Yz WX WX WX WX F(w,x,y,z)=YZ+WZ 0 1 0 0 0 1 0 0 0 1 X 0 X 1 1 X

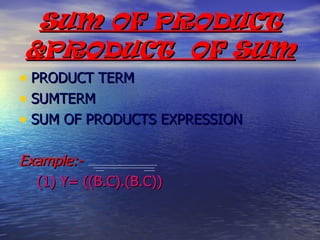

4. SUM OF PRODUCT &PRODUCT OF SUM PRODUCT TERM SUMTERM SUM OF PRODUCTS EXPRESSION Example:- (1) Y= ((B.C).(B.C))

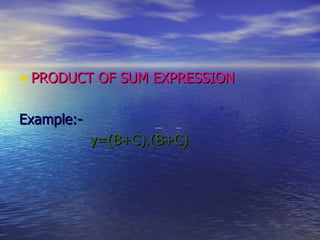

5. PRODUCT OF SUM EXPRESSION Example:- y=(B+C).(B+C)

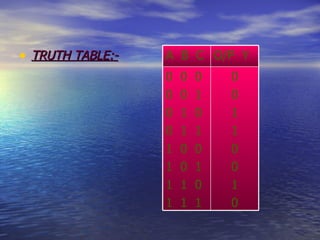

6. TRUTH TABLE:- 0 0 1 1 0 0 1 0 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 O/P Y A B C

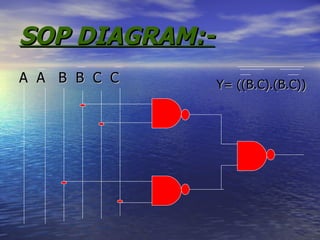

7. SOP DIAGRAM:- A A B B C C Y= ((B.C).(B.C))

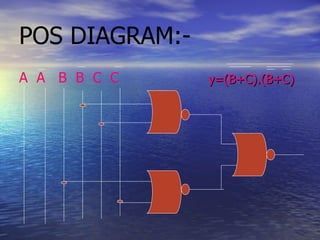

8. POS DIAGRAM:- A A B B C C y=(B+C).(B+C)

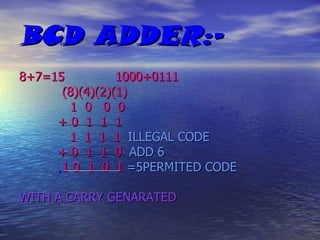

9. BCD ADDER:- 8+7=15 1000+0111 (8)(4)(2)(1) 1 0 0 0 + 0 1 1 1 1 1 1 1 ILLEGAL CODE + 0 1 1 0 ADD 6 1 0 1 0 1 =5PERMITED CODE WITH A CARRY GENARATED

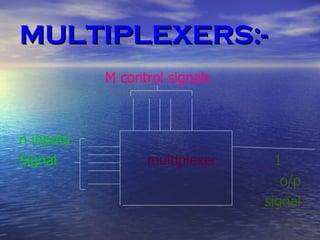

10. MULTIPLEXERS:- M control signals n inputs Signal multiplexer 1 o/p signal

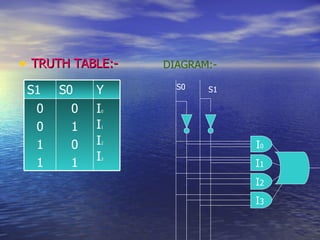

11. TRUTH TABLE:- DIAGRAM:- I 3 I 2 I 1 I 0 S1 S0 I 0 I 1 I 2 I 3 Y 0 1 0 1 0 0 1 1 S0 S1

12. DEMULTIPLEXER:- M control signals n out puts Signal Demultiplexer 1 i/p signal

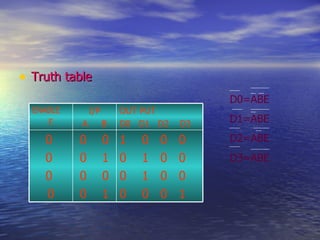

13. Truth table D0=ABE D1=ABE D2=ABE D3=ABE 1 0 0 0 0 1 0 0 0 1 0 0 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 0 OUT PUT D0 D1 D2 D3 I/P A B ENABLE E

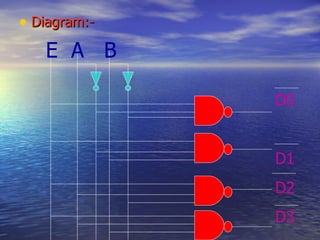

14. Diagram:- E A B D0 D1 D2 D3
