The document outlines the AERMOD modeling system, detailing its purpose in predicting ground-level pollutant concentrations and assessing compliance with air quality standards. It describes the steps involved in the modeling process, including data gathering, preprocessing, model setup, execution, and result analysis. Key inputs include emission rates, meteorological data, terrain information, and land use data, which are crucial for accurate pollutant dispersion predictions.

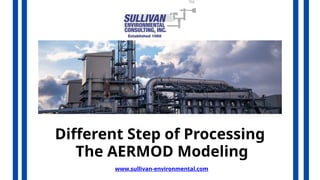

1. Different Step of Processing
The AERMOD Modeling
www.sullivan-environmental.com

2. The AERMOD system is composed of some modules that
handle several aspects of meteorology, terrain, and
dispersion. Here is overview of the diverse steps involved
in dispensation AERMOD modeling:
Step 1: Goal the AERMOD Model
Before initial the AERMOD modeling procedure, it is
important to know the scope and purpose of the
modeling effort. AERMOD is generally used to:
• Predict ground-level pollutant concentrations.
• Assess whether emissions from a source will comply
with ambient air quality standards.
• Evaluate the impact of new sources or modifications
to existing sources.
• Estimate long-term and short-term concentrations.

3. It is critical to clarify the pollutants being modeled, the
type of emissions, and the regulatory or environmental
framework being applied.
Step 2: Gathering Input Data
The first step in processing AERMOD modeling is
gathering detailed information about the emission
sources. This includes:
• Emission rates: Contaminant mass flow rates, which
could be constant, intermittent, or seasonal.
• Source characteristics: Types of sources such as point
sources area sources, or volume.
• Source dimensions: For point sources, the height,
diameter, and exit velocity of emissions must be
accurately defined.
a) Emission Source Information

4. b) Meteorological Data
Meteorological data is vital for AERMOD because
itsproperties pollutant dispersion. The important
meteorological limitations include wind direction, wind
speed, temperature, moisture, and atmospheric hardness.
These are typicallyproviding by on-site monitoring stations
or from records such as those maintained by regulatory
activities.
AERMOD requires both surface meteorological data and upper air
data to characterize the vertical profile of the atmosphere.
c) Terrain Data
Aermod Modeling Chicago considers the influence of terrain on the
dispersion of pollutants. Therefore, detailed elevation data for the
area surrounding the emission sources must be collected. The US
Geological Survey offers Digital Elevation Models (DEM), which are
often used to contribution terrain information.

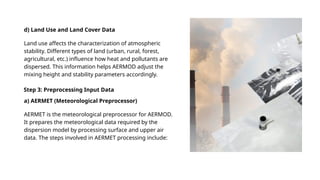

5. d) Land Use and Land Cover Data
Land use affects the characterization of atmospheric
stability. Different types of land (urban, rural, forest,
agricultural, etc.) influence how heat and pollutants are
dispersed. This information helps AERMOD adjust the
mixing height and stability parameters accordingly.
AERMET is the meteorological preprocessor for AERMOD.
It prepares the meteorological data required by the
dispersion model by processing surface and upper air
data. The steps involved in AERMET processing include:
Step 3: Preprocessing Input Data
a) AERMET (Meteorological Preprocessor)

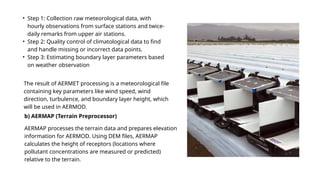

6. • Step 1: Collection raw meteorological data, with
hourly observations from surface stations and twice-
daily remarks from upper air stations.
• Step 2: Quality control of climatological data to find
and handle missing or incorrect data points.
• Step 3: Estimating boundary layer parameters based
on weather observation
The result of AERMET processing is a meteorological file
containing key parameters like wind speed, wind
direction, turbulence, and boundary layer height, which
will be used in AERMOD.
b) AERMAP (Terrain Preprocessor)
AERMAP processes the terrain data and prepares elevation
information for AERMOD. Using DEM files, AERMAP
calculates the height of receptors (locations where
pollutant concentrations are measured or predicted)
relative to the terrain.

7. This information is crucial, as the terrain features affect
how air moves and pollutants disperse, particularly in
complex terrain with hills or valleys.
Once the input data has been preprocessed, the next step
is to configure the AERMOD model. This involves defining:
Step 4: Setting Up the AERMOD Model
• Emission sources: Each source's coordinates, emission
rate, stack height, and other physical parameters are
entered.
• Receptors: Receptors are locations where AERMOD
predicts pollutant concentrations. These are typically
placed in a grid pattern, but specific sensitive locations
(such as schools or hospitals) can also be designated as
receptors.

8. Once the model setup is complete, AERMOD is executed.
The dispersion calculations consider factors such as:
Step 5: Running the AERMOD Model
• Wind patterns.
• Atmospheric turbulence.
• Source characteristics.
• Terrain effects.
• Pollutant chemical properties (e.g., whether they undergo
reactions in the atmosphere).
• Model options: Depending on the scenario, different
model options can be selected. For example, the
model can be run in regulatory mode for compliance
analysis, which uses conservative assumptions.

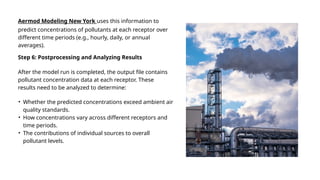

9. After the model run is completed, the output file contains
pollutant concentration data at each receptor. These
results need to be analyzed to determine:
Step 6: Postprocessing and Analyzing Results
• Whether the predicted concentrations exceed ambient air
quality standards.
• How concentrations vary across different receptors and
time periods.
• The contributions of individual sources to overall
pollutant levels.
Aermod Modeling New York uses this information to
predict concentrations of pollutants at each receptor over
different time periods (e.g., hourly, daily, or annual
averages).

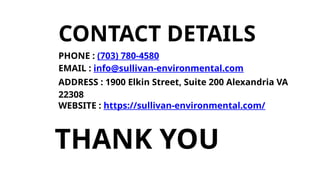

10. CONTACT DETAILS
