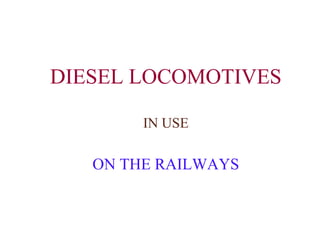

1. Different types of
DIESEL
LOCOMOTIVES
in use on the Railways
ANIL KUMAR SINGH
Asst. Production Engineer/Tooling,
DLW Varanasi

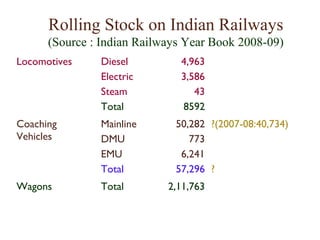

2. Rolling Stock on Indian Railways
(Source : Indian Railways Year Book 2008-09)
Locomotives Diesel
Electric
Steam
Total
4,963
3,586
43
8592
Coaching
Vehicles
Mainline
DMU
EMU
Total
50,282
773
6,241
57,296
?(2007-08:40,734)
?
Wagons Total 2,11,763

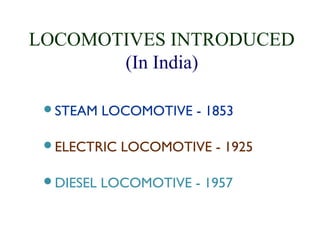

5. YDM4
• Year Introduced 1968-69
• Nos. Produced - 609
6. General Characteristic (YDM4)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
1350 HP
12 T
1000 mm
Co-Co
965 mm
3407 mm
2730 mm
13515mm
72 T
18.94 T
96 Kmph
3000 lts
3-Field Excitation
7. YDM4
Truck Brakes
Diesel Engine Transmission
6 Cylinder DLW 251D, 4 stroke
Injection System – Direct Injector
Governor – Woodward
Compression Ratio- 12.5 : 1
Lube Oil Sump Capacity – 530
Liter
Electrical DC -DC
6 Traction motor ( 3 per bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 92:19
Tri-mount CO-CO Steel Cast
bogie
Adhesion – 0.263
WABCO, 28 LV-I System
Air , Hand, Dynamic
Air , Vacuum

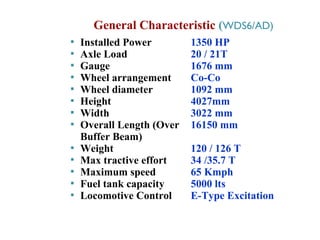

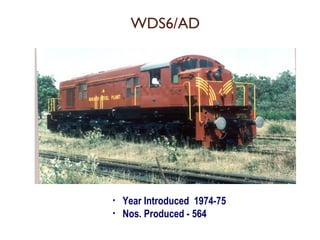

9. General Characteristic (WDS6/AD)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
1350 HP
20 / 21T
1676 mm
Co-Co
1092 mm
4027mm
3022 mm
16150 mm
120 / 126 T
34 /35.7 T
65 Kmph
5000 lts
E-Type Excitation

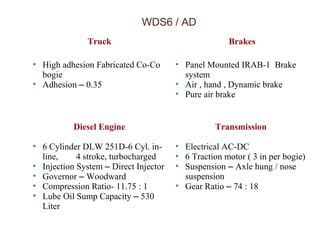

10. WDS6 / AD
Truck Brakes
High adhesion Fabricated Co-Co
bogie
Adhesion – 0.35
Panel Mounted IRAB-1 Brake
system
Air , hand , Dynamic brake
Pure air brake
Diesel Engine Transmission
6 Cylinder DLW 251D-6 Cyl. in-line,
4 stroke, turbocharged
Injection System – Direct Injector
Governor – Woodward
Compression Ratio- 11.75 : 1
Lube Oil Sump Capacity – 530
Liter
Electrical AC-DC
6 Traction motor ( 3 in per bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 74 : 18

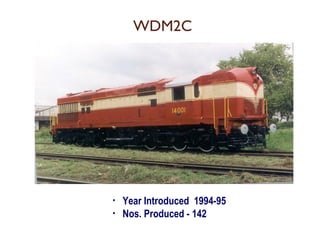

11. WDM2C
• Year Introduced 1994-95
• Nos. Produced - 142
12. General Characteristic (WDM2C)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
3100 HP
18.8 T
1676 mm
Co-Co
1092 mm
4115 mm
2864 mm
15863 mm
112.8 T
30.45 T
120 Kmph
5000 lts
E-Type Excitation

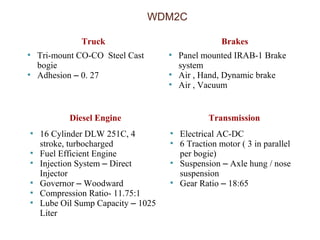

13. WDM2C
Truck Brakes
Tri-mount CO-CO Steel Cast
bogie
Adhesion – 0. 27
Panel mounted IRAB-1 Brake
system
Air , Hand, Dynamic brake
Air , Vacuum
Diesel Engine Transmission
16 Cylinder DLW 251C, 4
stroke, turbocharged
Fuel Efficient Engine
Injection System – Direct
Injector
Governor – Woodward
Compression Ratio- 11.75:1
Lube Oil Sump Capacity – 1025
Liter
Electrical AC-DC
6 Traction motor ( 3 in parallel
per bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 18:65

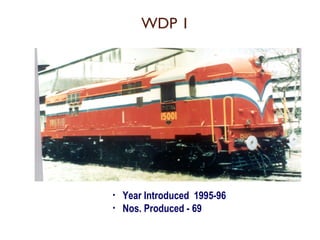

14. WDP 1
• Year Introduced 1995-96
• Nos. Produced - 69

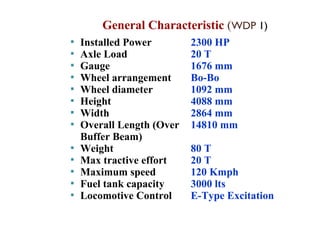

15. General Characteristic (WDP 1)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
2300 HP
20 T
1676 mm
Bo-Bo
1092 mm
4088 mm
2864 mm
14810 mm
80 T
20 T
120 Kmph
3000 lts
E-Type Excitation
16. WDP 1
Truck Brakes
BO-BO flexi-coil Bogie with two
stage suspension – Coil springs
Adhesion – 0.25
Panel Mounted 28LAV-1 Twin
Type Dual Brake System
Air , Vacuum ,
Dual brake , hand
Diesel Engine Transmission
12 Cylinder DLW 251C
(Uprated), 4 stroke,
turbocharged
Fuel Efficient Engine
Injection System – Direct Injector
Governor – Woodward
Compression Ratio- 11.75 : 1
Lube Oil Sump Capacity – 760
Liter
Electrical AC-DC
4 Traction motor ( 2 in per bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 18:65
17. WDG2/3A
WDG2 WDG3A
• Year Introduced 1995-96
• Nos. Produced – 1183 (upto July-2010)
18. General Characteristic (WDG2/3A)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
3100 HP
20.5 T
1676 mm
Co-Co
1097 mm
4162 mm
3016 mm
17840 mm
123 T
40.6T / 37.9 T
100 Kmph
6000 lts
E Type Excitation /
Micro-processor
19. WDG2/3A
Truck Brakes
High adhesion Fabricated Co-Co
bogie
Adhesion – 0.33
Panel Mounted IRAB-1 Brake
system
Air , hand , Dynamic brake
Pure air brake
Diesel Engine Transmission
16 Cylinder DLW 251C, 4 stroke,
turbocharged
Fuel Efficient Engine
Injection System –Direct Injector
Governor – Woodward
Compression Ratio- 11.75:1
Lube Oil Sump Capacity – 1270 /
1025Liter
Electrical AC-DC
6 Traction motor ( 3 in parallel per
bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 18:74
20. WDP2
• Year Introduced 1998-99
• Nos. Produced - 44
21. General Characteristic (WDP2)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
3100 HP
19.5 T
1676 mm
Co-Co
1092 mm
4081 mm
3000 mm
17900 mm
117.0 T
29.25 T
160 Kmph
6000 lts
E –Type Excitation

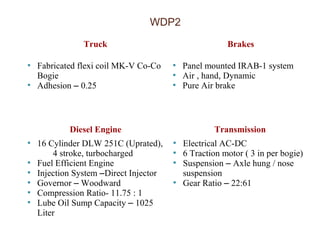

22. WDP2
Truck Brakes
Fabricated flexi coil MK-V Co-Co
Bogie
Adhesion – 0.25
Panel mounted IRAB-1 system
Air , hand, Dynamic
Pure Air brake
Diesel Engine Transmission
16 Cylinder DLW 251C (Uprated),
4 stroke, turbocharged
Fuel Efficient Engine
Injection System –Direct Injector
Governor – Woodward
Compression Ratio- 11.75 : 1
Lube Oil Sump Capacity – 1025
Liter
Electrical AC-DC
6 Traction motor ( 3 in per bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 22:61

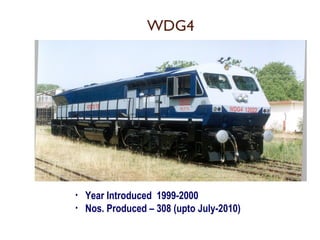

23. WDG4
• Year Introduced 1999-2000
• Nos. Produced – 308 (upto July-2010)

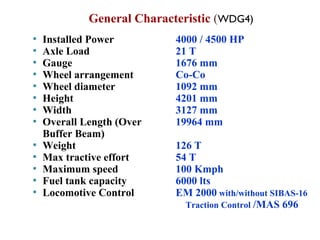

24. General Characteristic (WDG4)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
4000 / 4500 HP
21 T
1676 mm
Co-Co
1092 mm
4201 mm
3127 mm
19964 mm
126 T
54 T
100 Kmph
6000 lts
EM 2000 with/without SIBAS-16
Traction Control /MAS 696

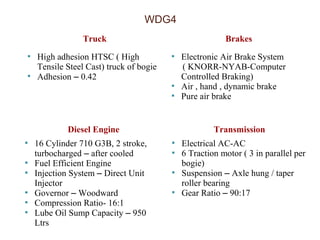

25. WDG4
Truck Brakes
High adhesion HTSC ( High
Tensile Steel Cast) truck of bogie
Adhesion – 0.42
Electronic Air Brake System
( KNORR-NYAB-Computer
Controlled Braking)
Air , hand , dynamic brake
Pure air brake
Diesel Engine Transmission
16 Cylinder 710 G3B, 2 stroke,
turbocharged – after cooled
Fuel Efficient Engine
Injection System – Direct Unit
Injector
Governor – Woodward
Compression Ratio- 16:1
Lube Oil Sump Capacity – 950
Ltrs
Electrical AC-AC
6 Traction motor ( 3 in parallel per
bogie)
Suspension – Axle hung / taper
roller bearing
Gear Ratio – 90:17

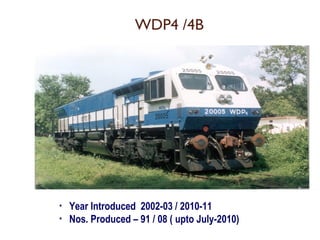

26. WDP4 /4B
• Year Introduced 2002-03 / 2010-11
• Nos. Produced – 91 / 08 ( upto July-2010)

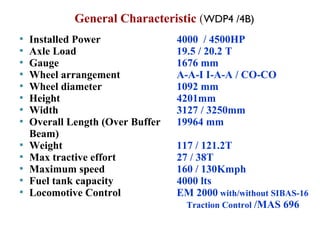

27. General Characteristic (WDP4 /4B)
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over Buffer
Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
4000 / 4500HP
19.5 / 20.2 T
1676 mm
A-A-I I-A-A / CO-CO
1092 mm
4201mm
3127 / 3250mm
19964 mm
117 / 121.2T
27 / 38T
160 / 130Kmph
4000 lts
EM 2000 with/without SIBAS-16
Traction Control /MAS 696
28. WDP4 /4B
Truck Brakes
High adhesion HTSC ( High
Tensile Steel Cast) truck or bogie
Adhesion – 0.42
Electronic Air Brake System
( KNORR-NYAB-Computer
Controlled Braking)
Air , hand , dynamic brake with
fully blended with automatic
brakes
Pure air brake
Diesel Engine Transmission
16 Cylinder 710 G3B, 2 stroke,
turbocharged – after cooled
Fuel Efficient Engine
Injection System – Direct Unit
Injector
Governor – Woodward
Compression Ratio- 16:1
Lube Oil Sump Capacity – 1073 Lts
Electrical AC-AC
4 Traction motor ( 3 in parallel
per bogie)
Suspension – Axle hung / taper
roller bearing
Gear Ratio – 77:17

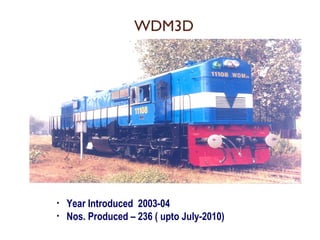

29. WDM3D
• Year Introduced 2003-04
• Nos. Produced – 236 ( upto July-2010)
30. General Characteristic
Installed Power
Axle Load
Gauge
Wheel arrangement
Wheel diameter
Height
Width
Overall Length (Over
Buffer Beam)
Weight
Max tractive effort
Maximum speed
Fuel tank capacity
Locomotive Control
3300 HP
19.5 T
1676 mm
Co-Co
1097mm
4162 mm
3016 mm
17350 mm
117 T
38.6 T
120 Kmph
5000 lts
Microprocessor
31. Truck Brakes
High adhesion Fabricated Co-Co
bogie
Adhesion (μ)– 0.33
Panel mounted IRAB-1 Brake
system
Air , Hand, Dynamic brake
Pure Air Brake system
Diesel Engine Transmission
16 Cylinder 251 C- (Uprated)
Engine, 4 stroke, turbocharged
Fuel Efficient Engine
Injection System – Direct Injector
Governor – Woodward
Compression Ratio- 11.75:1
Lube Oil Sump Capacity – 1025
Liter
Electrical AC-DC
6 Traction motor ( 3 in parallel per
bogie)
Suspension – Axle hung / nose
suspension
Gear Ratio – 18:65
