3. $1Billion Global Workforce Solutions Company
Using Kronos solutions every day
30,000+ organizations……employing 40+ million people…in more than 100 countries

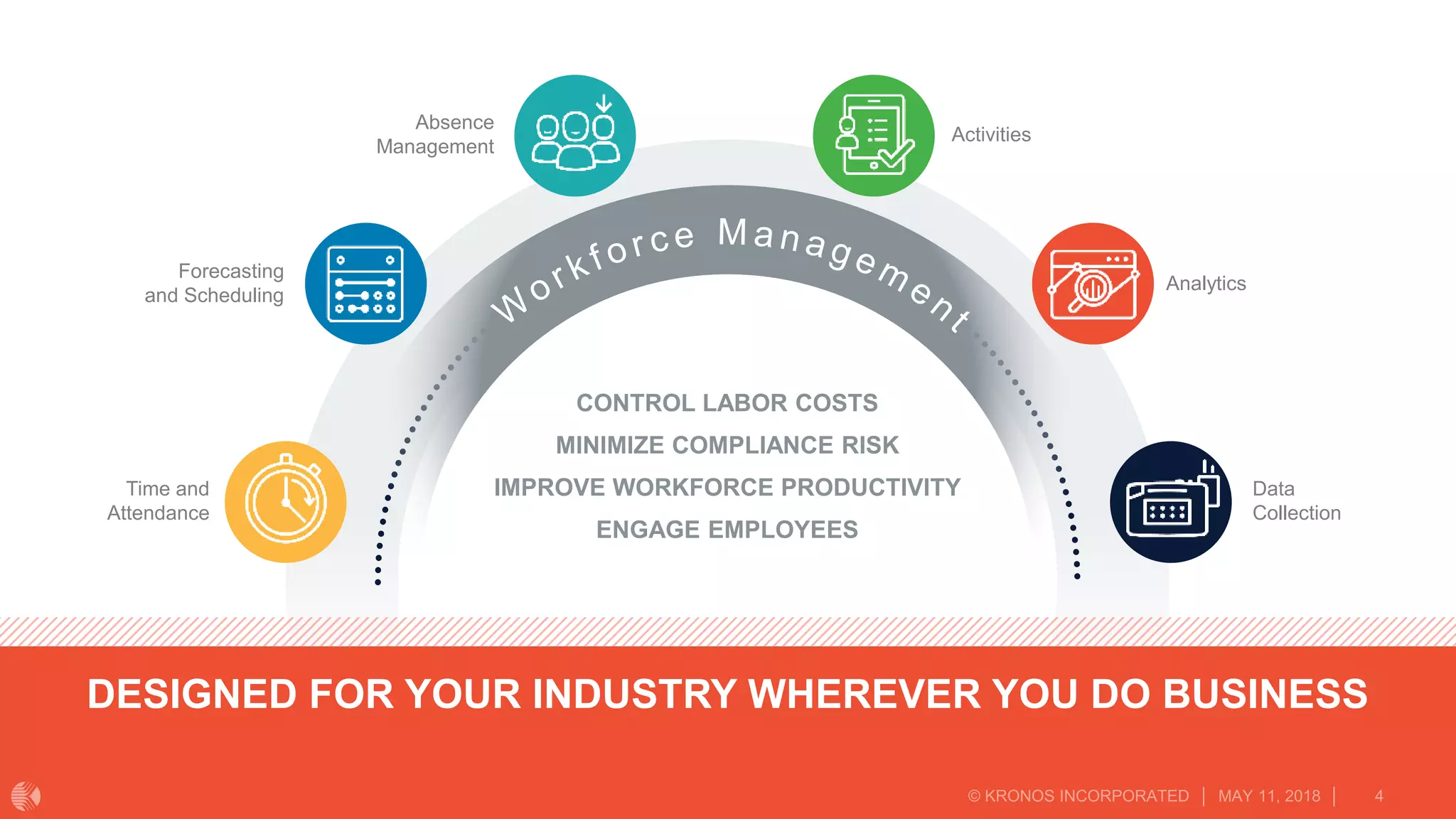

4. DESIGNED FOR YOUR INDUSTRY WHEREVER YOU DO BUSINESS
CONTROL LABOR COSTS
MINIMIZE COMPLIANCE RISK
IMPROVE WORKFORCE PRODUCTIVITY
ENGAGE EMPLOYEES
Forecasting
and Scheduling
Time and
Attendance
Absence
Management
Analytics
Data
Collection
Activities

5. Executives
Managers
Evolution of the Workforce
Employees
NOW
Tech is me
Instantly
Insight
Right decisions
Innovator
advantage
THEN
Tech is a tool
In due time
Experience
Safe decisions
Incumbent
advantage

6. Work
Your Way
Work
Smarter
Work in a
Modern Cloud

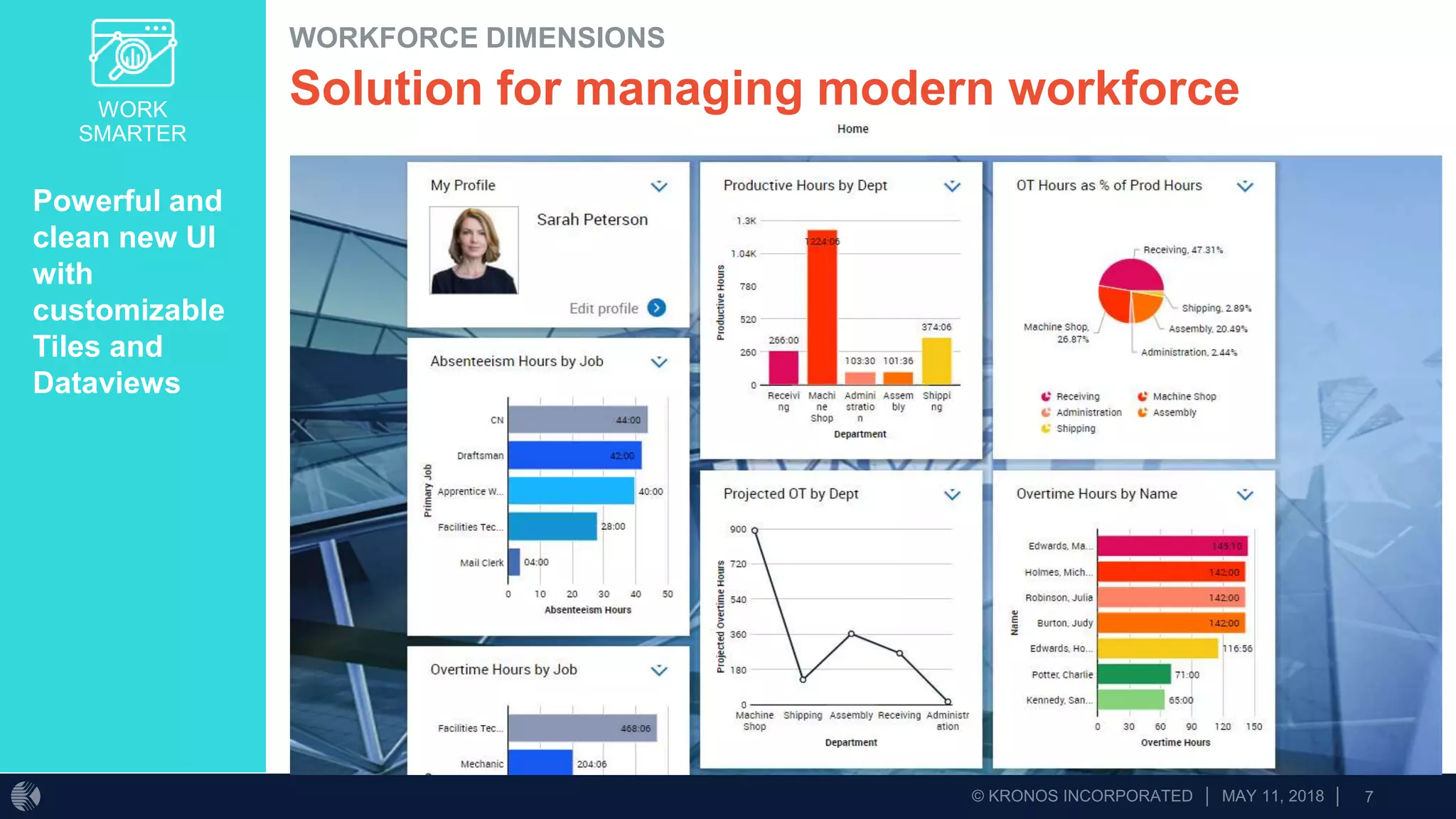

7. WORK
SMARTER
• Powerful and
clean new UI
with
customizable
Tiles and
Dataviews
WORKFORCE DIMENSIONS
Solution for managing modern workforce

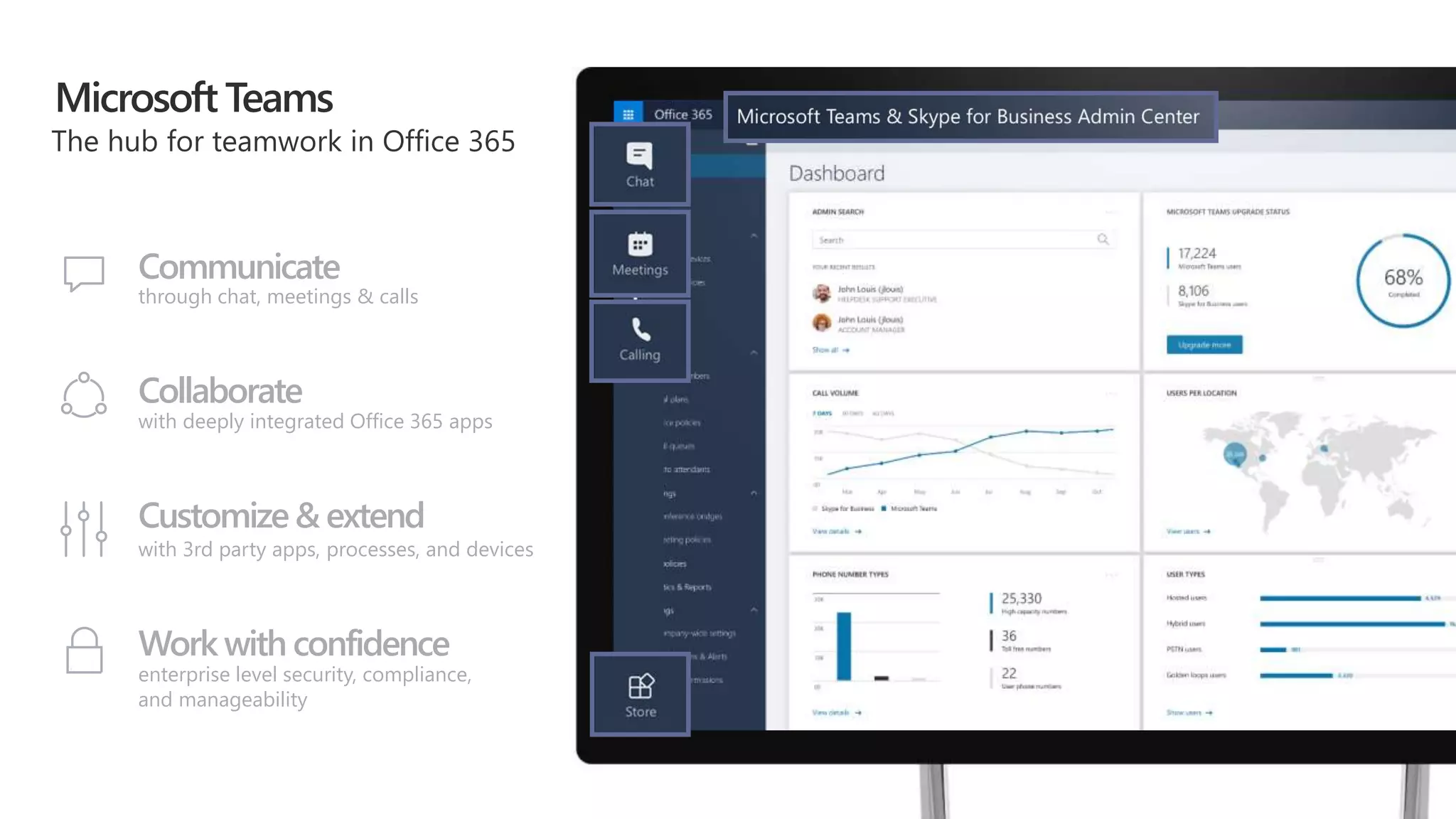

8. Microsoft Teams
Communicate
through chat, meetings & calls
Collaborate
with deeply integrated Office 365 apps
Customize& extend
with 3rd party apps, processes, and devices
Work with confidence
enterprise level security, compliance,
and manageability

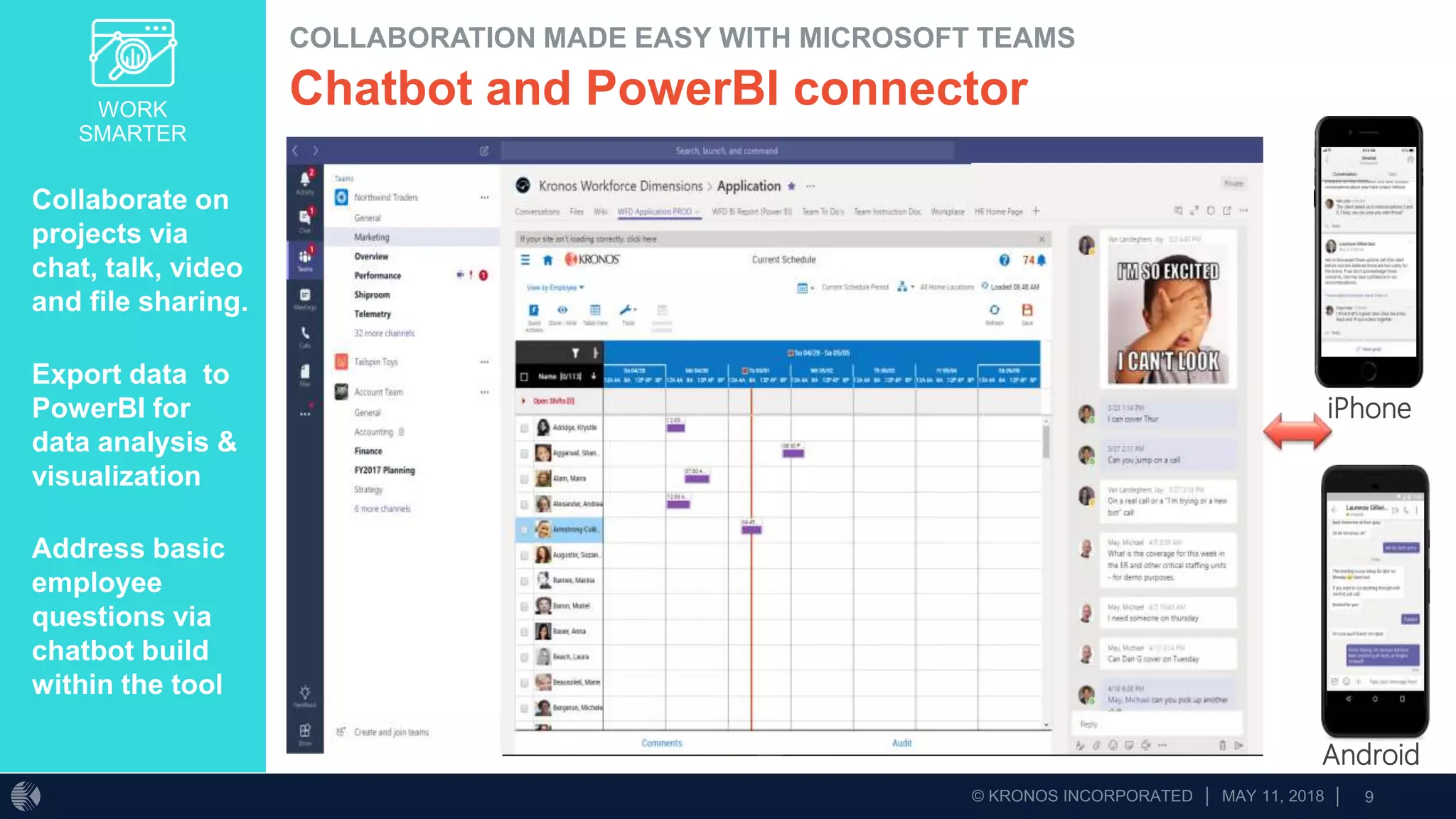

9. WORK
SMARTER
Collaborate on
projects via
chat, talk, video
and file sharing.
Export data to
PowerBI for
data analysis &
visualization
Address basic
employee
questions via
chatbot build
within the tool
COLLABORATION MADE EASY WITH MICROSOFT TEAMS
Chatbot and PowerBI connector
Northwind
Shifts
iPhone
Android

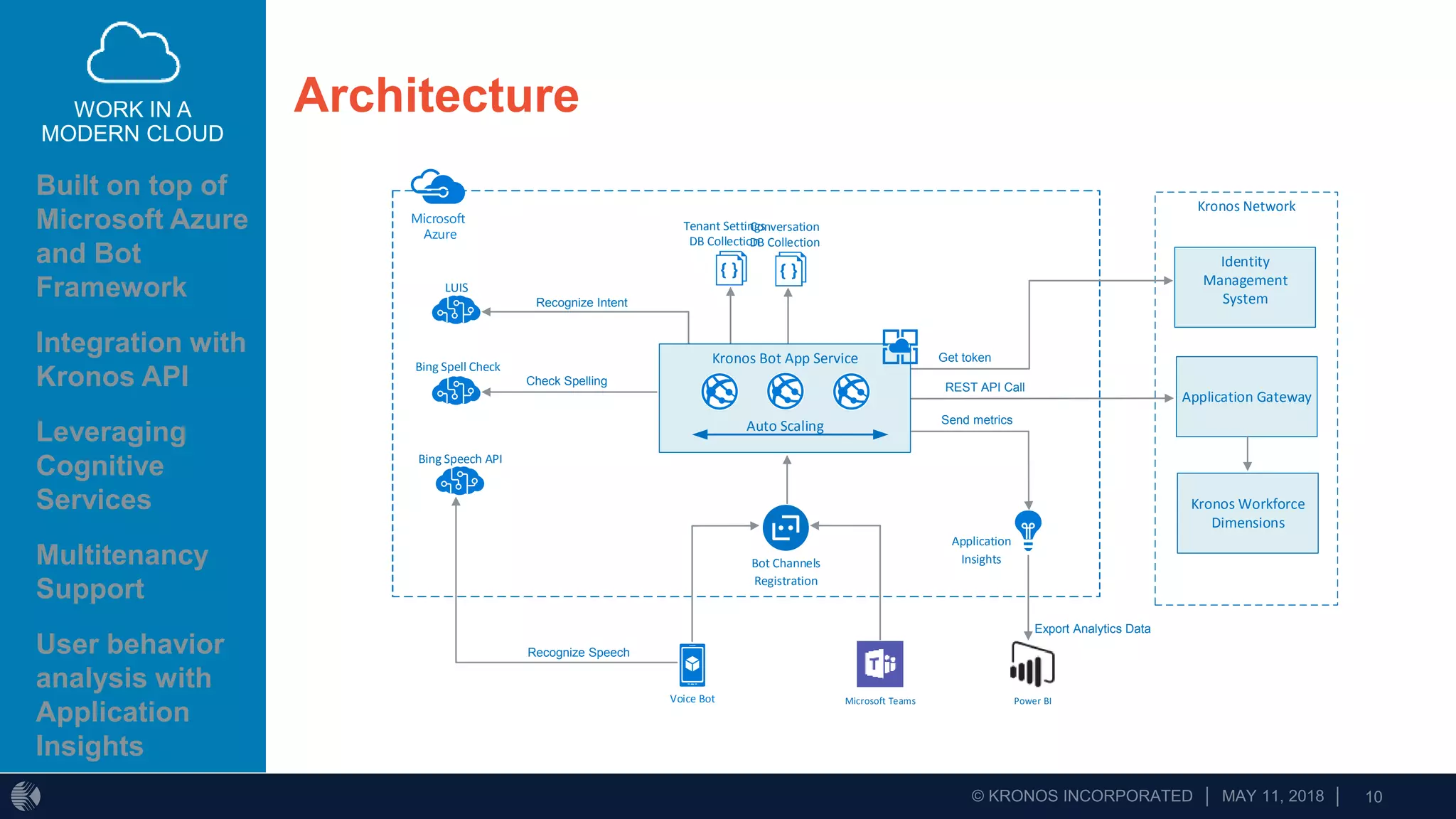

10. WORK IN A
MODERN CLOUD
Built on top of
Microsoft Azure
and Bot
Framework
Integration with
Kronos API
Leveraging
Cognitive
Services
Multitenancy
Support
User behavior
analysis with
Application
Insights
Architecture
Bot Channels
Registration
Voice Bot Microsoft Teams
Microsoft
Azure
Conversation
DB Collection
Kronos Network
Identity
Management
System
Application Gateway
Kronos Workforce
Dimensions
Get token
REST API Call
LUIS
Bing Spell Check
Bing Speech API
Recognize Intent
Check Spelling
Recognize Speech
Tenant Settings
DB Collection
Application
Insights
Send metrics
Kronos Bot App Service
Auto Scaling
Power BI
Export Analytics Data

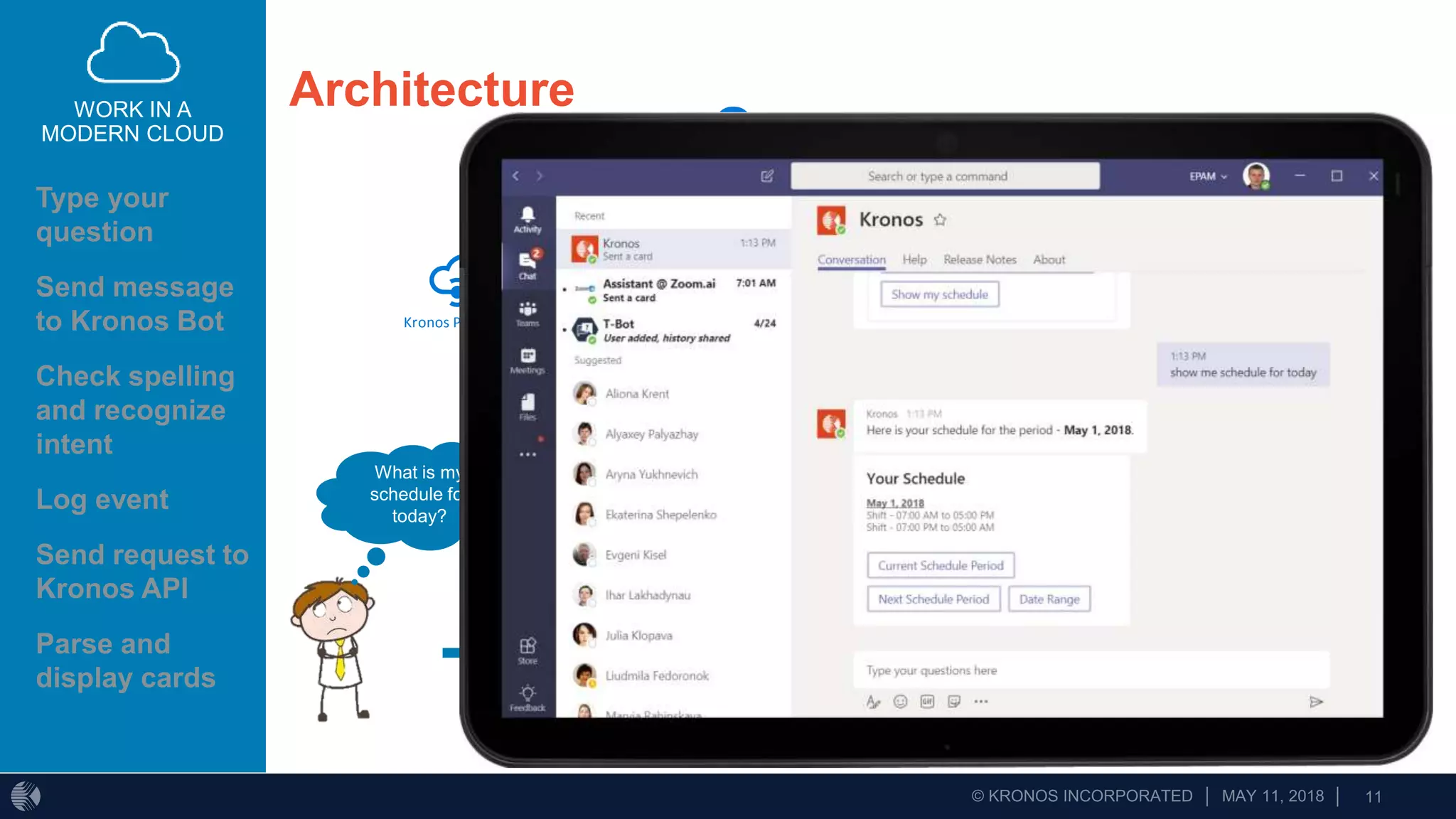

11. WORK IN A
MODERN CLOUD
Type your
question
Send message
to Kronos Bot
Check spelling
and recognize
intent
Log event
Send request to
Kronos API
Parse and
display cards
Architecture
What is my
schedule for
today?
Bot Channels
Registration
Kronos Bot
Kronos LUIS
Model
Bing Spell
Check API
Application
Insights
Kronos Public API
{
type: ‘message’,
text: ‘show my schedule for today’
}
GET https://eastus2.api.cognitive.microsoft.com/luis/v2.0id?
subscription-key=key&verbose=true&spellCheck=true&bing-spell-
check-subscription-key=key&q=show my schedule for today
{
query: ‘show my schedule for today’,
topScoringIntent: {
intent: ‘MySchedule’,
score: 0.9982713
}, entities: [
{
entity: ‘today,
type: ‘builtin.datetimeV2.date’,
resolution: {
values: [
{
value: ‘2018-05-01’
}
]
}}]}
this.appInsightsClient.trackEvent(
{
name: 'message intent’,
properties: {
intent name: 'MySchedule',
score: 0.9982713,
input: 'show my schedule for today',
tenant: 'manufacture',
source: 'msteams'
}
}
)
GET v1/scheduling/employee_schedule?employee_id=26&
start_date=2018-05-01&end_date=2018-05-01
&select=shifts,paycodes
{
shifts: [
startDateTime: ‘2017-08-31T07:30:00,
endDateTime: ‘2017-08-31T16:00:00’,
segments: [
{
id: 70227,
segmentTypeRef: {
id: 1,
qualifier: ‘REGULAR_SEGMENT’
},
startDateTime: ‘2017-08-31T07:30:00’,
endDateTime: ‘2017-08-31T11:30:00’
}]
]
}
{
type: 'message',
attachments: [
{
contentType: 'application/vnd.microsoft.card.thumbnail',
content: {
title: 'Your Schedule',
text: 'August 31, 2017<br>Shift - 07:30 AM to 04:00
PM...',
buttons: [...]
}
}
],
speak: '<speak>...</speak>'
}

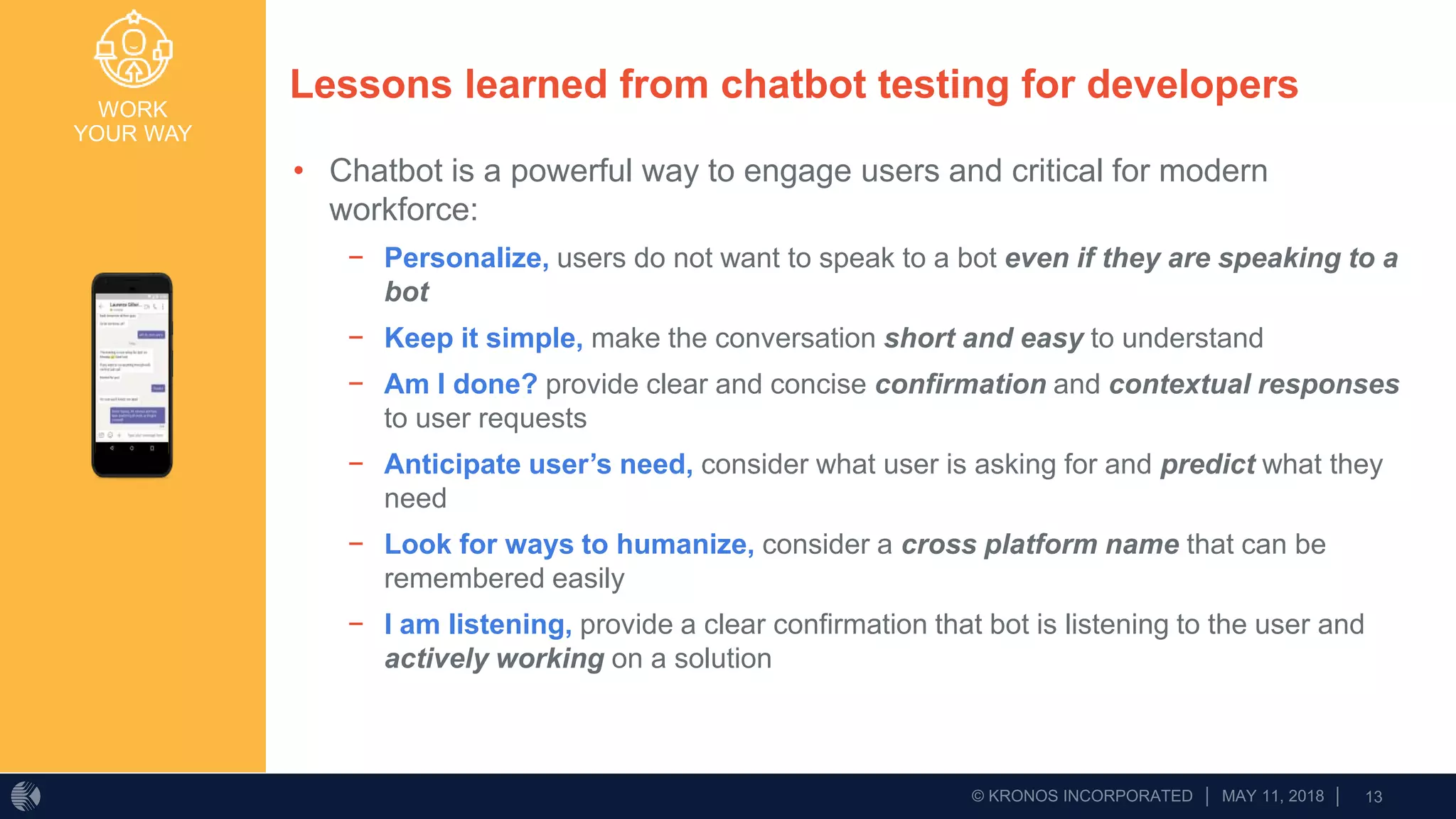

13. WORK
YOUR WAY
Lessons learned from chatbot testing for developers
• Chatbot is a powerful way to engage users and critical for modern
workforce:
− Personalize, users do not want to speak to a bot even if they are speaking to a
bot
− Keep it simple, make the conversation short and easy to understand
− Am I done? provide clear and concise confirmation and contextual responses
to user requests
− Anticipate user’s need, consider what user is asking for and predict what they
need
− Look for ways to humanize, consider a cross platform name that can be
remembered easily
− I am listening, provide a clear confirmation that bot is listening to the user and
actively working on a solution

15. Join the Office Developer Program
Learn more
Come hack with us - aka.ms/office365hackathon
Visit dev.office.com
See everything from Build - https://aka.ms/OfficeBuild2018
Follow us - @OfficeDev, #MicrosoftGraph, #SharePoint @MicrosoftTeams
Join community calls - Graph, AD, Outlook, Teams, Excel, and SharePoint

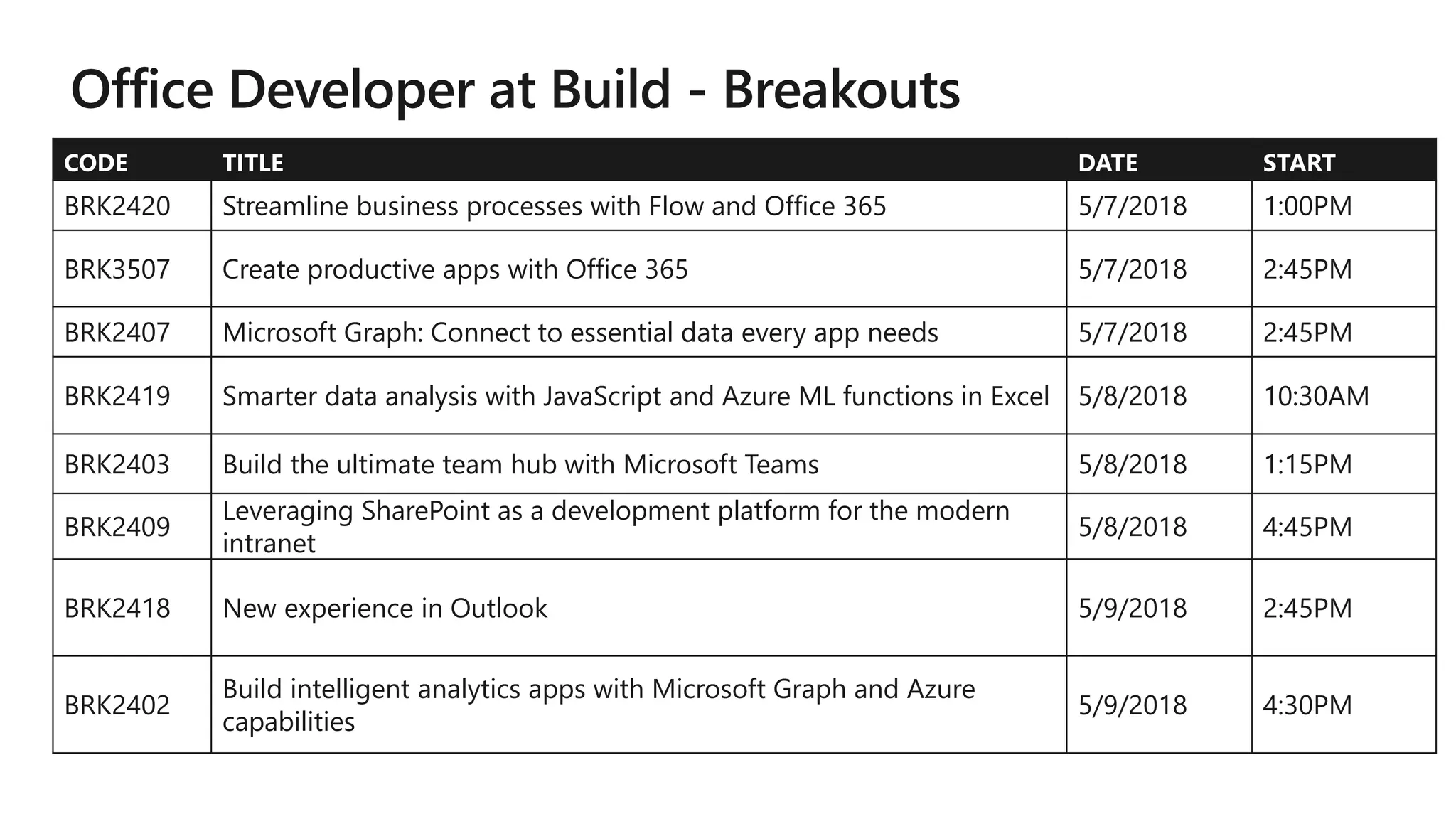

16. CODE TITLE DATE START
