This document provides an overview of developing websites, including introduction to web development, development tools, coding technologies, basic HTML, webpage structure, components, design guidelines, and publishing websites. It discusses HTML, CSS, JavaScript, text editors, IDEs, validators, elements like headings, paragraphs, lists, tables, images, links. It also covers webpage structure with DOCTYPE, head and body, and design guidelines for balance, consistency and navigation. Finally, it outlines publishing a website by uploading files to a server and setting permissions to view pages in a browser.

1. Developing Websites 1

2. Developing Websites 1
• Introduction to Web Development
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
2

3. Developing Websites 1
• Readings
• Focus On: Web Development (all)
Vermaat et al. (2018). Discovering Computers 2018: Digital
Technology, Data, and Devices. CENGAGE Learning.
3

4. Developing Websites 1
• Introduction to Web Development
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
4

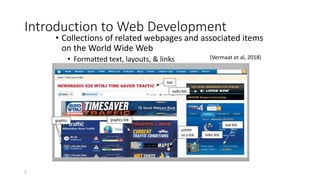

5. Introduction to Web Development
• Collections of related webpages and associated items
on the World Wide Web
• Formatted text, layouts, & links
• Graphics, audio, & video
5
(Vermaat et al, 2018)

6. Introduction to Web Development
6
https://www.mockplus.com/
• Frontend:
building everything a user
can see on the screen
• Backend:
server-side architecture,
and database management

7. Introduction to Web Development
• Simplified steps:
• Developed with tools
• Hosted on web servers
• Transmitted via the Internet (or an Intranet)
• Requested & viewed via web browsers/apps
7
(Vermaat et al, 2018)

8. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
8

9. Web Development Tools (frontend)
• Text Editors
• Notepad++
• TextWrangler (for MacOS)
• Sublime (windows, MacOS, Linux)
• Integrated Development Environments (IDEs)
• Netbeans
• Visual Studio Code
• Web Authoring Tools
• Dreamweaver
• Photoshop
• Content Management Systems
• Web publishing for large sites (e.g. Wordpress)
9

10. Web Development Tools (frontend)
10 (Vermaat et al, 2018)

11. Web Development Tools (frontend)
• Code Validators
• W3C (validator.w3.org)
• Ensures
• Code syntax is correct
• Corresponding start &
end tags in order
11

12. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
12

13. Website Coding Technologies
• Hypertext Markup Language (HTML)
• Uses a set of codes called tags to format documents for
display in a browser
• Cascading Style Sheets (CSS)
• Contains specifications for the fonts, colours, layout, and
placement of HTML elements
• JavaScript
• Programming language for programs that a browser can
run make a website more dynamic
13
https://sweetcode.io/

14. Website Coding Technologies
14 https://html-css-js.com/

15. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
15

16. Basic Websites with HTML
16 (Vermaat et al, 2018)

17. HTML History
HTML is an evolving language.
• HTML 1.0 (1993) - a way to electronically connect documents via
hyperlinks
• HTML 2.0 (1995) - developed by Internet Engineering Task Force RFC
to include stylized text , tables and many other core HTML features.
• HTML 3.0 (abandoned) - the browsers were awfully slow in
implementing any of the new improvements, only adding in a few
and leaving out the rest.
• HTML 3.2 (1997) – developed by W3C and included browser specific
features.
• HTML 4.01 (1999) - a large evolution of the HTML standards.
Support for HTML’s new supporting presentational language,
cascading stylesheets (CSS).
• HTML 5 (2014) - designed for the web, both now and in the future,
plenty of new elements, attributes and abilities to get excited about.
17

18. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
18

19. Webpage Structure
• HTML is built on the Document Object Model [DOM]
• A web page consists of elements that indicate to the
browser the structure of the web page.
19
https://www.coursera.org

20. Webpage Structure
• A webpage’s source code contains text marked up
with HTML tags that instruct a browser how to display
that content
• Three parts of a well-formed document
• Doctype: Version of HTML that you will be using
• Head: Meta data
• Body: Displayable content
20

21. Webpage Structure
• Doctype
• HTML5: <!DOCTYPE html>
• <!DOCTYPE html PUBLIC "-//W3C//DTD XTML 4.01 Transitional//EN"
“http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd”>
(Previous versions dictated backwards compatibility)
• Head
• Additional information used by the browser
• Meta data – language, font
• Supporting files – JavaScript, Styling, Add-ons
• Other than title, meta data is not displayed
• Body
• Bulk of your page
• Important to write well-formatted (tree-like) code
• Most of the content is displayed by the browser, but there may be
some meta data too
21

22. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
22

23. Webpage Components
• Each tag is enclosed by < > symbols.
• Most elements are two-sided, they have opening and closing tags
A / is used to indicate the closing tag.
• Some tags are one-sided (empty tags).
• e.g. <br /> and <hr />.
• A tag may include attributes that modify the behaviour of the element.
23

24. Webpage Components
• Headings
• Paragraphs
• <p>Write each paragraph within tags.</p>
• New lines in code are ignored (force with <br/>)
24
(Vermaat et al, 2018)

25. Webpage Components
• Format tags
• <strong>Bold</strong>
• <em>Italic</em> (emphasis)
• Preformatted tag
• The text enclosed in the pre element usually preserves
spaces and line breaks. The text renders in a fixed-pitch
font.
• Whereas when using the paragraph element (<p> ... </p>)
multiple white space characters (spaces, tabs or end-of-
lines) are reduced to a single space.
• Example:
25

26. Webpage Components
• Lists
• Unordered list: produces an indented, bulleted list.
• Ordered list: produces an indented list items in order, usually 1, 2, 3 etc
• Definition list: produces an indented list with terms and their
definitions.
26 (Vermaat et al, 2018)

27. Webpage Components
• Nested Lists
• Nested lists are lists within lists
• The outer list is not closed off until the inner list is
complete
• Different types of listed can be nested. e.g. unordered list
inside ordered list
27

28. Webpage Components
Tables
• Tables can contain anything you can put into an HTML document e.g. text, graphics, videos, and even
nested tables.
• Some tables can be used to simulate multicolumn layouts
• Caption Element (caption)
• A caption gives a brief summary of the tables contents.
<caption> caption-text </caption>
• Table Header Cell (th element)
• Used for column or row headings if desired
<th> cell-content </th>
• Row Element (tr)
• The row may contain <th> and <td> cell elements.
<tr> ... </tr>
• Table Data Cell (td element)
• Table Data cell
<td> cell-content </td>
28

29. Webpage Components
Tables (Cont.)
• Example 1:
29

30. Webpage Components
Tables (Cont.)
• colspan & rowspan
• Data cell attribute:
the cell spans a number of columns & rows
<td colspan="2"> ...</td>
<td rowspan="3"> ...</td>
• Border Attribute:
• Attribute value is in pixels (units are not required) e.g. border="1". The default is 1.
• Width Attribute :
• Specify the width of the table in pixels (width="200") or as a percentage of the browser width
(width="75%")
• If no width is specified, the table is as wide as necessary for its contents (limited by page size, margins
etc).
30

31. Webpage Components
Tables (Cont.)
• Example 2
31

32. Webpage Components
• Images
• The <img> tag inserts an image into the document's normal
text flow.
• Commonly used file formats are: JPG, PNG, GIF
• The image element has no closing tag.
• Images are displayed within some other elements such as
a paragraph <p>, list element <li>or table data cell <td>.
Example:
32

33. Webpage Components
Image Attributes
• Src (compulsory):
• The URI/filename of image file. e.g.
• src="buster.jpg"
src="http://www.somewhere.com/smiley.gif"
• alt (compulsory):
• Alternative descriptive text for the image.
• width & height (recommended ):
• The width and height of the image are specified in pixels or as a percentage.
• width = n image width in pixels e.g. width="500“
• height = n image height in pixels e.g. height="350“
• width= n% height= n% where n is the width given as a percentage of the available browser
window width e.g. width=80%
33

34. Webpage Components
• Hyperlinks - Anchor Tag
• Hyperlinks are made using the anchor tag pair, <a> and </a>.
• The href (hypertext reference/link) attribute specifies the URI
(Uniform Resource Identifiers) of the page (or mail address etc).
An anchor must be within another element such as <p> ... </p>
or <h1> ... </h1>
• Use forward slashes (/) to specify directories (folders) NOT
backslashes ().
• Spaces in file or folder names are not recommended as some
browsers may have trouble with them
34

35. Webpage Components
• Hyperlinks - Anchor Tag (Cont.)
Examples:
1.
Would be displayed as:
2.
Would be displayed as:
35

36. Webpage Components
• Format tags
• <strong>Bold</strong>
• <em>Italic</em> (emphasis)
• Horizontal rule (separator line)
• <hr/>
• Comments
• <!-- my comments -->
• Special characters
• Used for coding
36

37. Webpage Components
• Styles (early look at CSS – next week)
• Color (256 bit)
• <p style="color:red">red</p> (named)
• <p style="color:#000080">blue</p> (RGB hex)
• <p style="color:rgb(0,128,0)">green</p> (RGB dec)
Hexadecimal: 16 base numbers (0-9, A-F)
• Dec 0-255 ≡ Hex 00-FF
37

38. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
38

39. Webpage Design Guidelines
• Appeal & clarity
• Aesthetic design & communicates well
• Balance & density
• Appropriate sizing & use of space
• Consistency (across & within pages)
• Layout, color scheme, text size & fonts
• Navigation & links
39

40. Webpage Design Guidelines
40

41. Developing Websites 1
• Introduction to Websites
• Web Development Tools
• Website Coding Technologies
• Basic Websites with HTML
• Webpage Structure
• Webpage Components
• Webpage Design Guidelines
• Publishing a Website
41

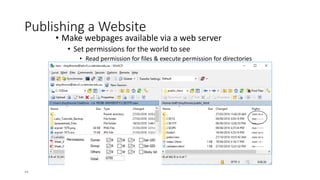

42. Publishing a Website
• Make webpages available via a web server
• Copy files to server
• Location mapped to the URL (public_html directory)
• Set permissions for the world to see
• Read permission for files & execute permission for directories
• Open the URL in a web browser
42

43. Publishing a Website
• Make webpages available via a web server
• Copy files to server
43

44. Publishing a Website
• Make webpages available via a web server
• Set permissions for the world to see
• Read permission for files & execute permission for directories
44

45. Publishing a Website
• Make webpages available via a web server
• Open the URL in a web browser
45
