Zalando's Jan Mußler points out how Docker helps to foster team autonomy while complying with company regulations. As an example he shows how Zalando Tech deploys onto its microservices infrastructure by using their open source platform STUPS (stups.io) along with Docker in their continuous delivery strategy. https://tech.zalando.com

1. Docker - Powering RA at Zalando
Docker Meetup - Dortmund 7.6.2016 | jan.mussler@zalando.de | @JanMussler

2. 15 countries
3 fulfillment centers
18+ million active customers
3.0+ billion € revenue
135+ million visits per month
1.000+ employees in tech
Europe's Leading Fashion Platform
Visit us: tech.zalando.com

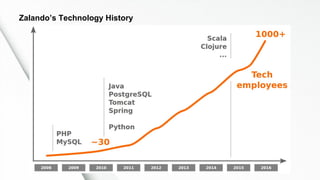

3. Zalando’s Technology History

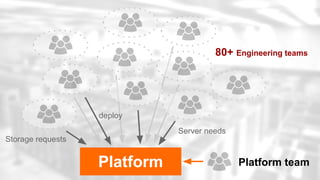

4. Platform
80+ Engineering teams
Platform team
deploy
Server needs
Storage requests

6. RADICAL AGILITY
AUTONOMY

7. Compliance Innovation

8. STUPS

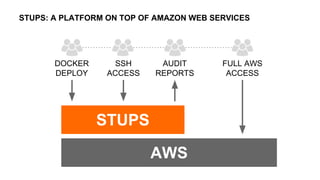

9. AWS
STUPS
DOCKER
DEPLOY
SSH
ACCESS
AUDIT
REPORTS
FULL AWS
ACCESS
STUPS: A PLATFORM ON TOP OF AMAZON WEB SERVICES

10. ➊
➋
➌
➍
➎

11. Internet
*.abc.example.org *.xyz.example.org
Team ABC Team XYZ
ISOLATED AWS ACCOUNTS
EC2EC2
ELBELB
EC2

12. DEPLOYMENT

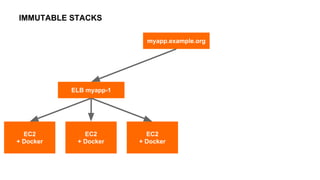

13. IMMUTABLE STACKS
ELB myapp-1
myapp.example.org
EC2
+ Docker
EC2
+ Docker
EC2
+ Docker

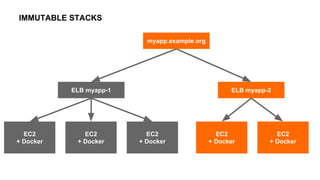

14. IMMUTABLE STACKS
ELB myapp-1
EC2
+ Docker
EC2
+ Docker
EC2
+ Docker
ELB myapp-2
EC2
+ Docker
EC2
+ Docker
myapp.example.org

15. ● Immutable AMI
● YAML user data
● Docker runtime
● Application logging:
LogEntries, Scalyr, CloudWatch Logs
● Prometheus Node Agent for metrics
● KMS encrypted env vars
TAUPAGE AMI

16. Taupage
AMI

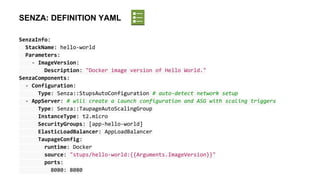

17. SENZA: DEFINITION YAML
SenzaInfo:
StackName: hello-world
Parameters:
- ImageVersion:
Description: "Docker image version of Hello World."
SenzaComponents:
- Configuration:
Type: Senza::StupsAutoConfiguration # auto-detect network setup
- AppServer: # will create a launch configuration and ASG with scaling triggers
Type: Senza::TaupageAutoScalingGroup
InstanceType: t2.micro
SecurityGroups: [app-hello-world]
ElasticLoadBalancer: AppLoadBalancer
TaupageConfig:
runtime: Docker
source: "stups/hello-world:{{Arguments.ImageVersion}}"
ports:
8080: 8080

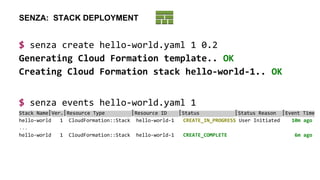

18. SENZA: STACK DEPLOYMENT
$ senza create hello-world.yaml 1 0.2
Generating Cloud Formation template.. OK
Creating Cloud Formation stack hello-world-1.. OK
$ senza events hello-world.yaml 1
Stack Name│Ver.│Resource Type │Resource ID │Status │Status Reason │Event Time
hello-world 1 CloudFormation::Stack hello-world-1 CREATE_IN_PROGRESS User Initiated 10m ago
...
hello-world 1 CloudFormation::Stack hello-world-1 CREATE_COMPLETE 6m ago

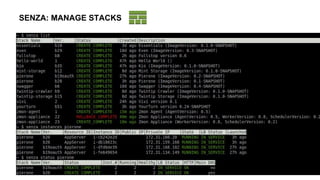

19. SENZA: MANAGE STACKS

20. SSH ACCESS

21. SSH ACCESS: TIME-LIMITED ACCESS TO ANY TEAM SERVER

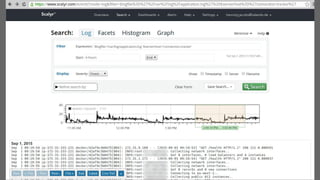

22. LOGGING

24. Automation
GOCD

25. Thoughtwork’s GOCD in action

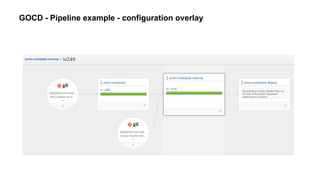

26. GOCD - Pipeline example - configuration overlay

27. Plan - B

28. The
OAuth 2.0 authorization framework
enables a third-party application
to obtain limited access to
an HTTP service.
- oauth.net
OAUTH 2.0?

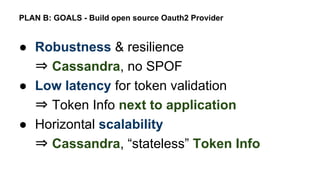

29. ● Robustness & resilience
⇒ Cassandra, no SPOF
● Low latency for token validation
⇒ Token Info next to application
● Horizontal scalability
⇒ Cassandra, “stateless” Token Info
PLAN B: GOALS - Build open source Oauth2 Provider

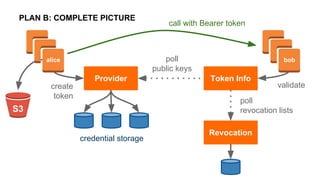

30. PLAN B: COMPLETE PICTURE
bobalice
create
token
Token Info
validate
Provider
credential storage
Revocation
poll
public keys
poll
revocation listsS3
call with Bearer token

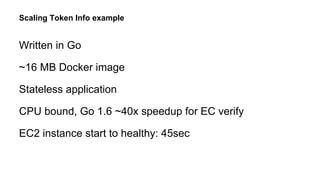

31. Written in Go
~16 MB Docker image
Stateless application
CPU bound, Go 1.6 ~40x speedup for EC verify
EC2 instance start to healthy: 45sec
Scaling Token Info example

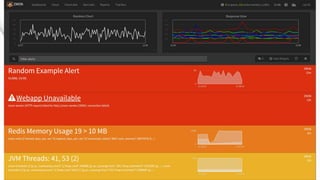

32. ZMON

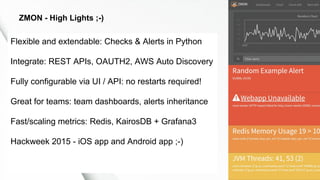

33. Flexible and extendable: Checks & Alerts in Python
Integrate: REST APIs, OAUTH2, AWS Auto Discovery
Fully configurable via UI / API: no restarts required!
Great for teams: team dashboards, alerts inheritance
Fast/scaling metrics: Redis, KairosDB + Grafana3
Hackweek 2015 - iOS app and Android app ;-)
ZMON - High Lights ;-)

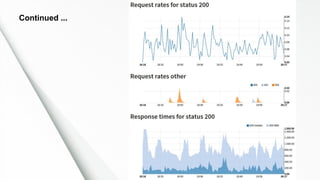

37. Continued ...

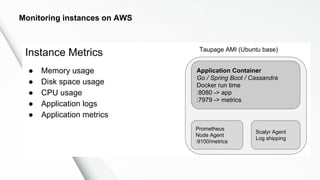

38. Instance Metrics
● Memory usage
● Disk space usage
● CPU usage
● Application logs
● Application metrics
Monitoring instances on AWS
Scalyr Agent
Log shipping
Prometheus
Node Agent
:9100/metrics
Taupage AMI (Ubuntu base)
Application Container
Go / Spring Boot / Cassandra
Docker run time
:8080 -> app
:7979 -> metrics

39. Annotated Metric Data in Grafana

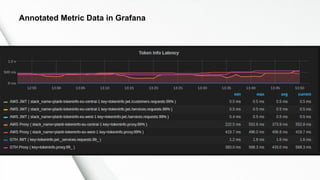

40. Annotated Metric Data in Grafana

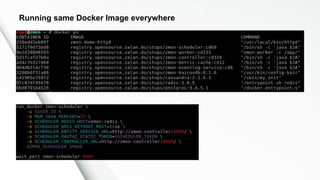

41. Running same Docker Image everywhere

42. CLAIR - SQS

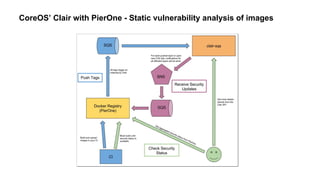

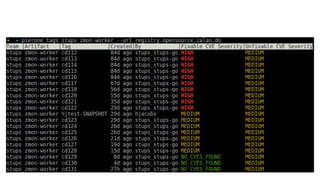

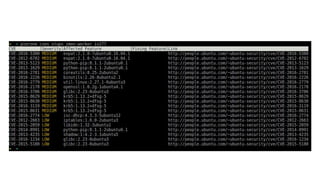

43. CoreOS’ Clair with PierOne - Static vulnerability analysis of images

46. Learnings?

47. ● AWS terminology and behavior
● OAuth2 + Security + Security Groups
● Ops can be hard -> SaaS?
● CF deployment takes time
● DNS load balancing and switching :-(
○ Remember timeout config …!!
○ ELB soso ...
● Great flexibility and power though
A lot of input to cover ...

48. Zalando on Github:
https://github.com/zalando
STUPS online:
https://stups.io
ZMON Demo:
https://demo.zmon.io
Zalando Tech:
https://tech.zalando.com
