Determination Of Dip Angle
Engineering Geology
Q/ Determine The Dip Angle Between Layer C and D ?
We Know The
Layer D is :
And layer C is :

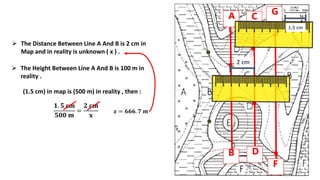

White
A
B
C
D
F
G
2 cm
 The Distance Between Line A And B is 2 cm in
Map and in reality is unknown ( x ) .
 The Height Between Line A And B is 100 m in
reality .
1.5 cm
(1.5 cm) in map is (500 m) in reality , then :
𝟏. 𝟓 𝐜𝐦
𝟓𝟎𝟎 𝐦
=
𝟐 𝐜𝐦
𝐱
𝒙 = 𝟔𝟔𝟔. 𝟕 𝒎

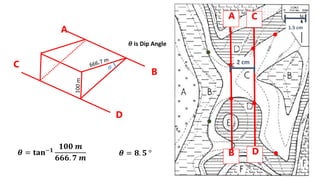

A
B
C
D
𝜽
𝜽 is Dip Angle
𝜽 = 𝐭𝐚𝐧−𝟏
𝟏𝟎𝟎 𝒎
𝟔𝟔𝟔. 𝟕 𝒎
𝜽 = 𝟖. 𝟓 °

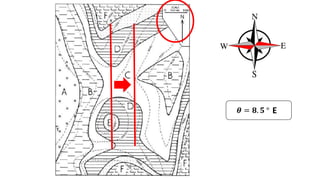

A
B
C
D
2 cm
1.5 cm
𝜽 = 𝟖. 𝟓 ° E
END
THE
