Design to Theme @ CMSExpo

Basic Design for Drupal

Emma Jane Hogbin
@emmajanedotnet
emma@designtotheme.com
www.designtotheme.com

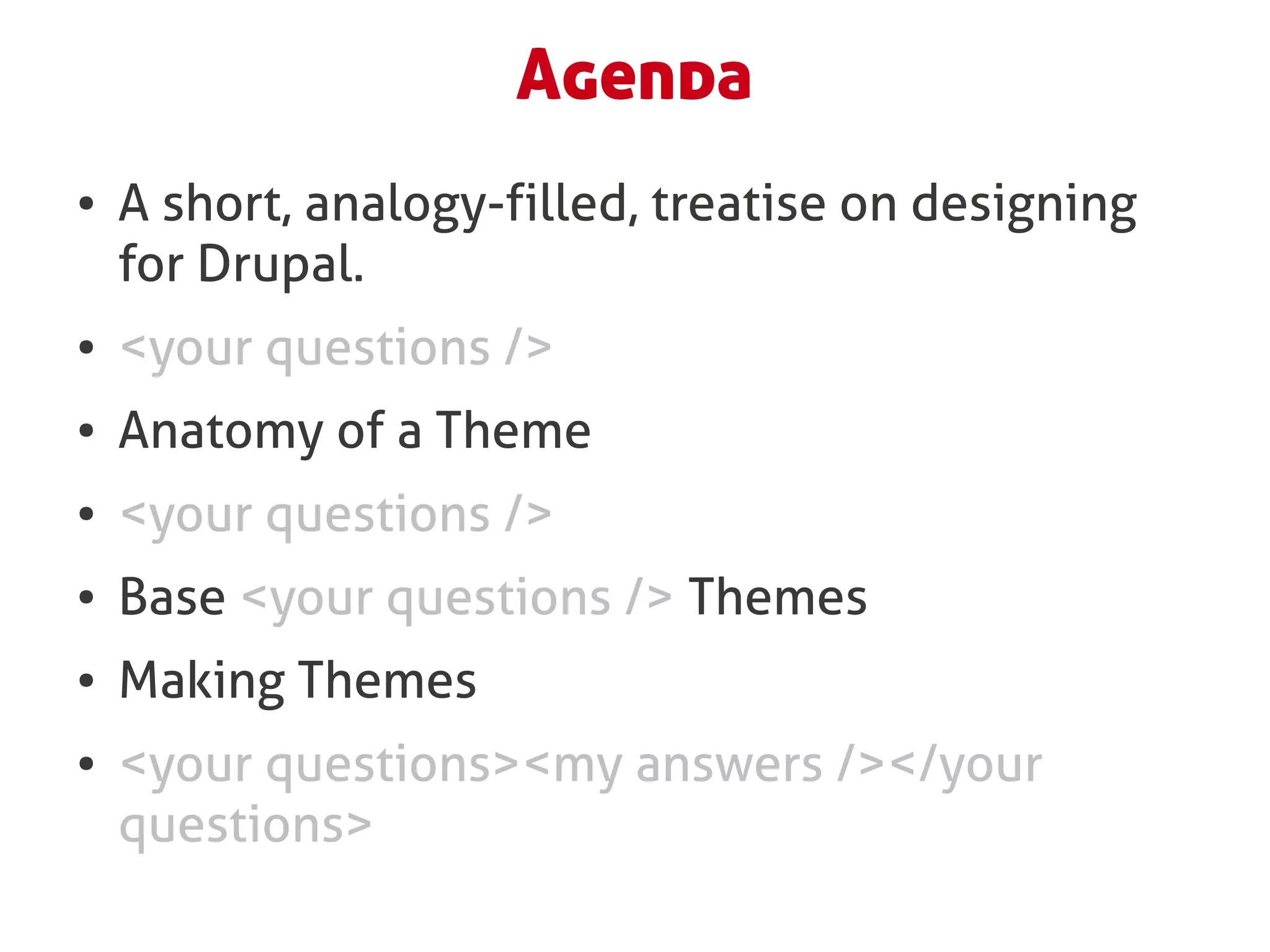

Agenda
● A short, analogy-filled, treatise on designing
for Drupal.
● <your questions />
● Anatomy of a Theme
● <your questions />
● Base <your questions /> Themes
● Making Themes
● <your questions><my answers /></your
questions>

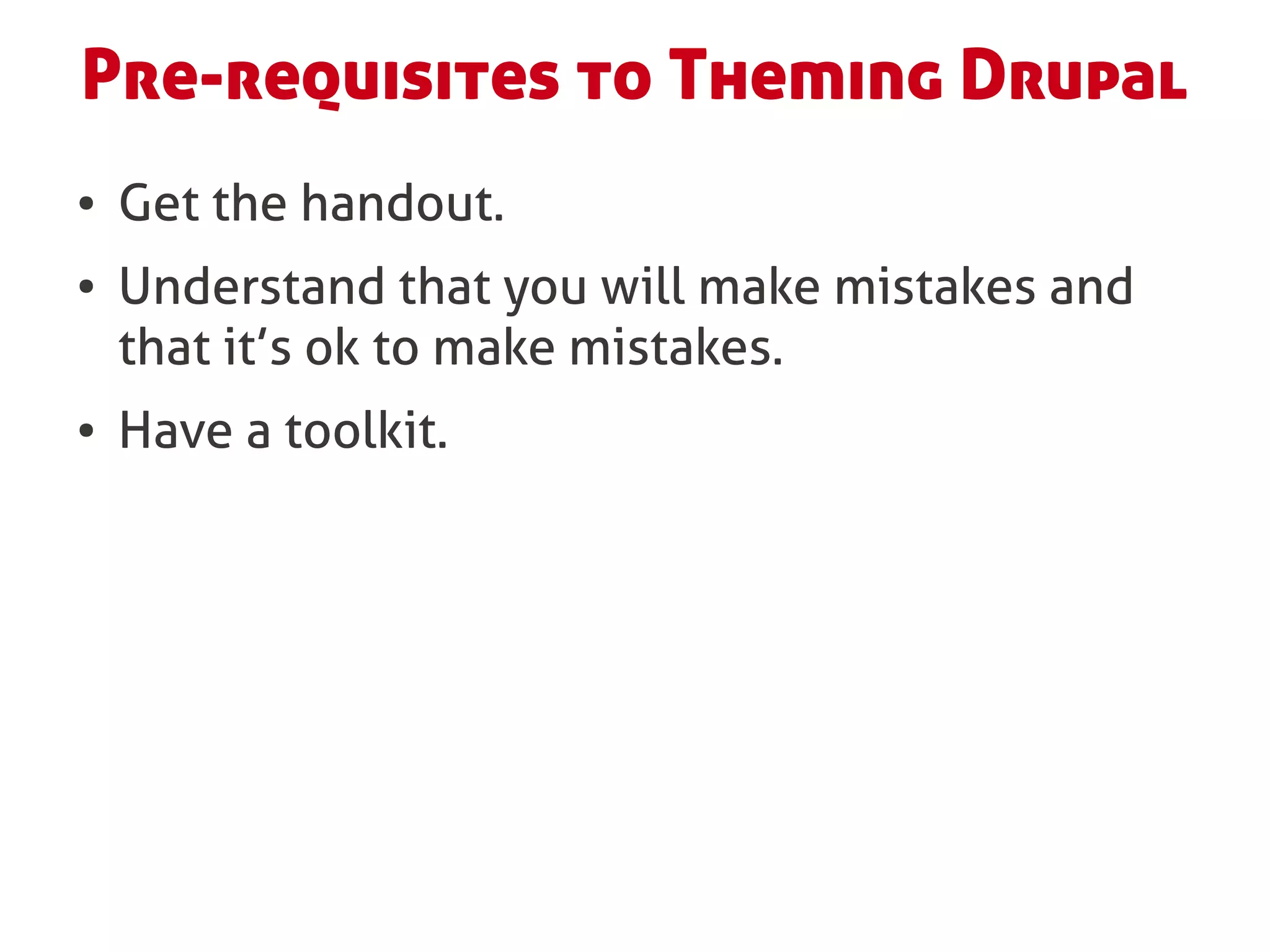

Pre-requisites to Theming Drupal
● Get the handout.
● Understand that you will make mistakes and
that it’s ok to make mistakes.
● Have a toolkit.

Overview of
Drupal’s Theming System

Theming WordPress
A “pull” system

http://www.flickr.com/photos/13879801@N00/96609354/

Theming Drupal
A prep and “push” system

Source: http://www.flickr.com/photos/sebbisuperstar/2470560831

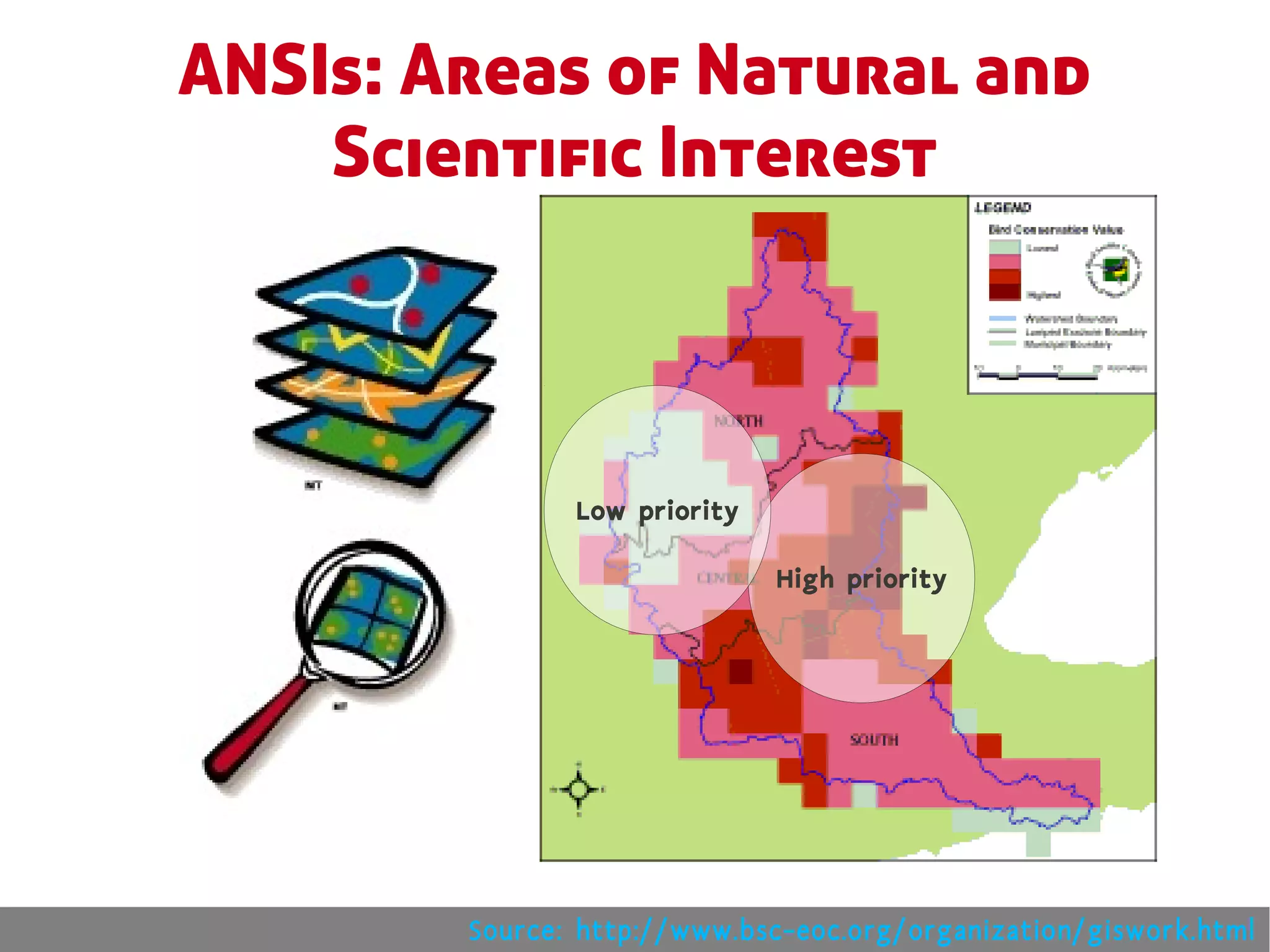

ANSIs: Areas of Natural and
Scientific Interest

Low priority

High priority

Source: http://www.bsc-eoc.org/organization/giswork.html

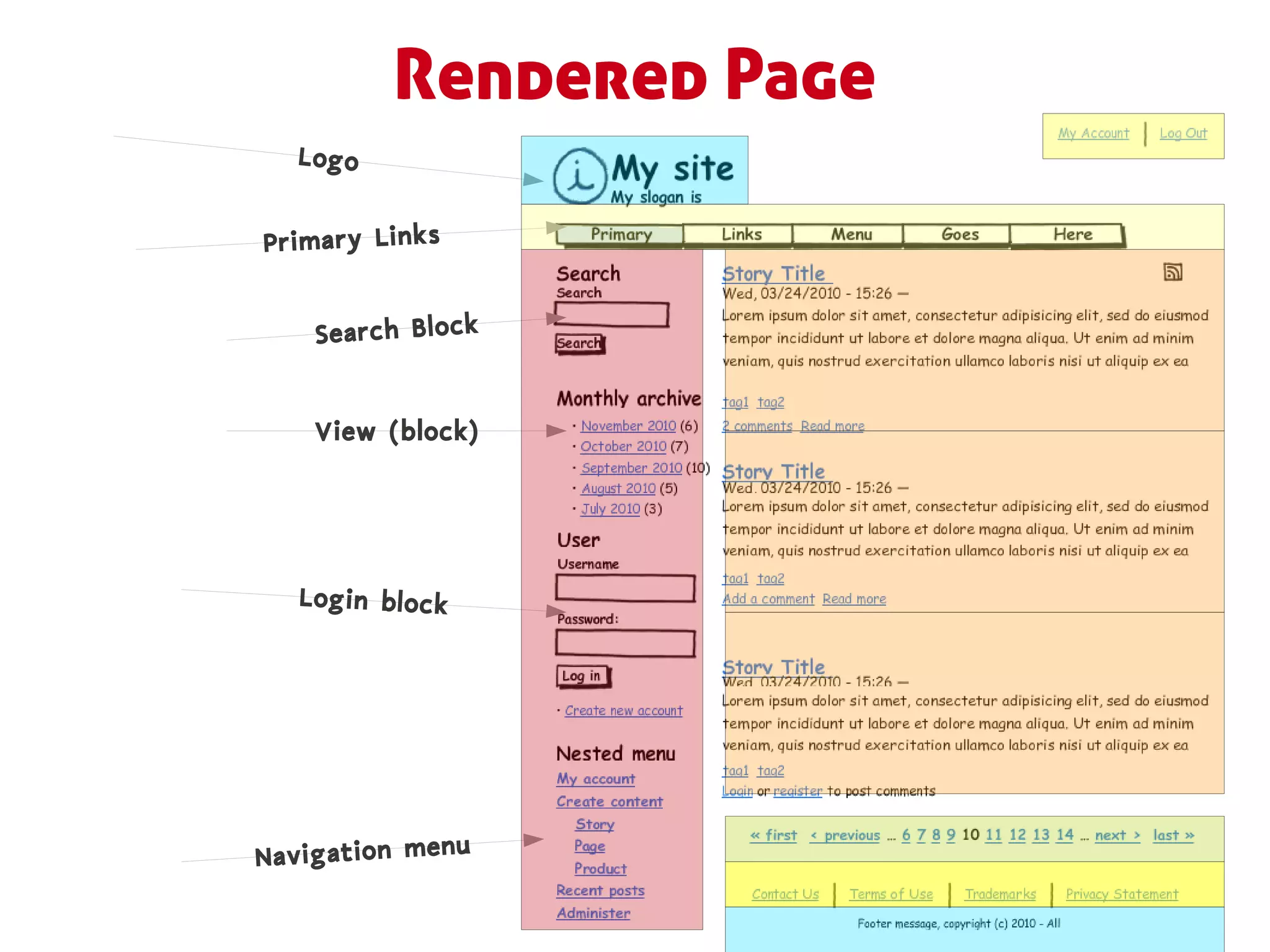

Rendered Page
Logo

Primary Links

Search Block

View (block)

Login block

Navigation menu

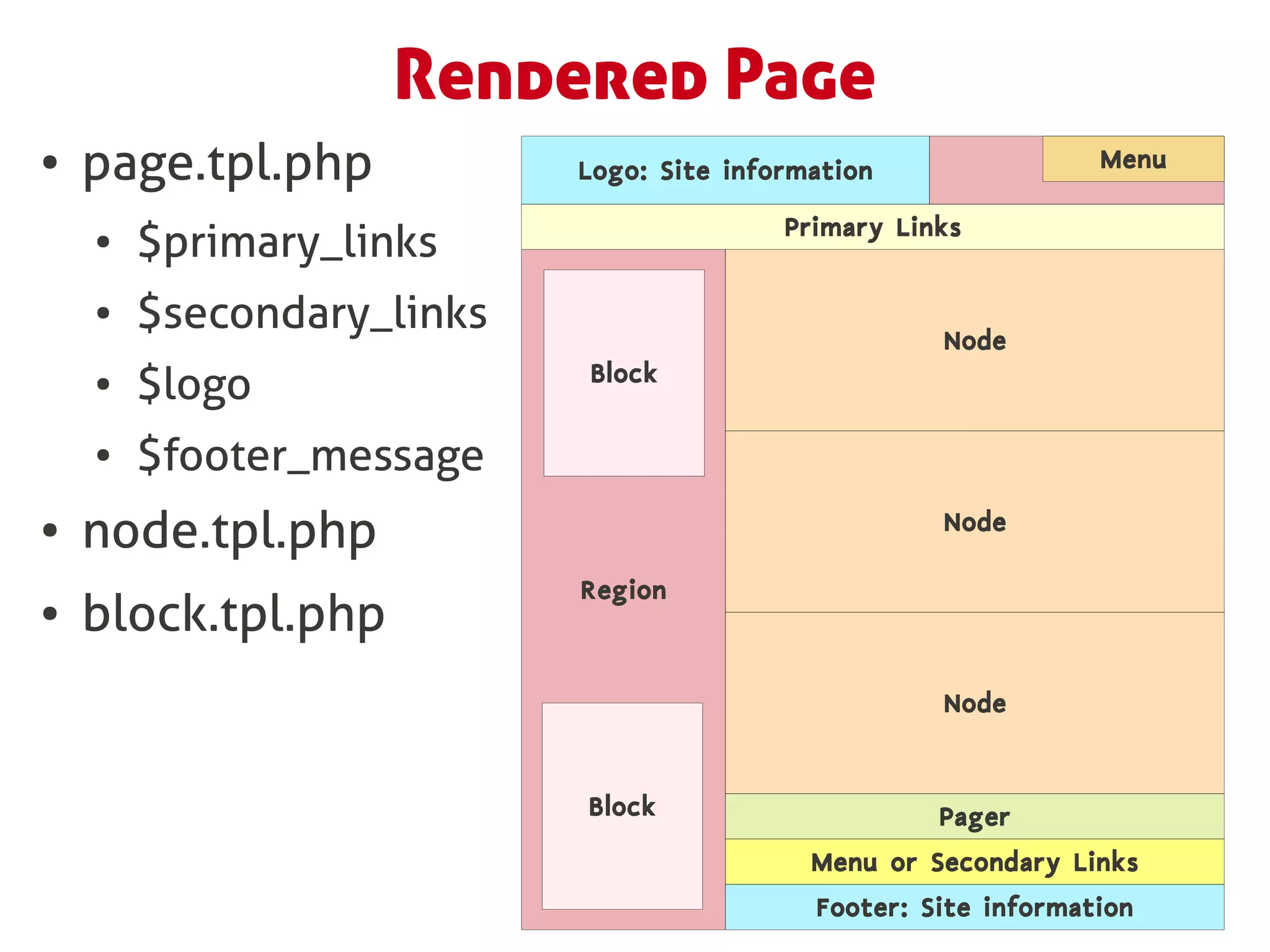

Rendered Page
● page.tpl.php Logo: Site information Menu

Primary Links
● $primary_links
● $secondary_links Node
Block
● $logo
● $footer_message
● node.tpl.php Node

Region
● block.tpl.php
Node

Block Pager
Menu or Secondary Links
Footer: Site information

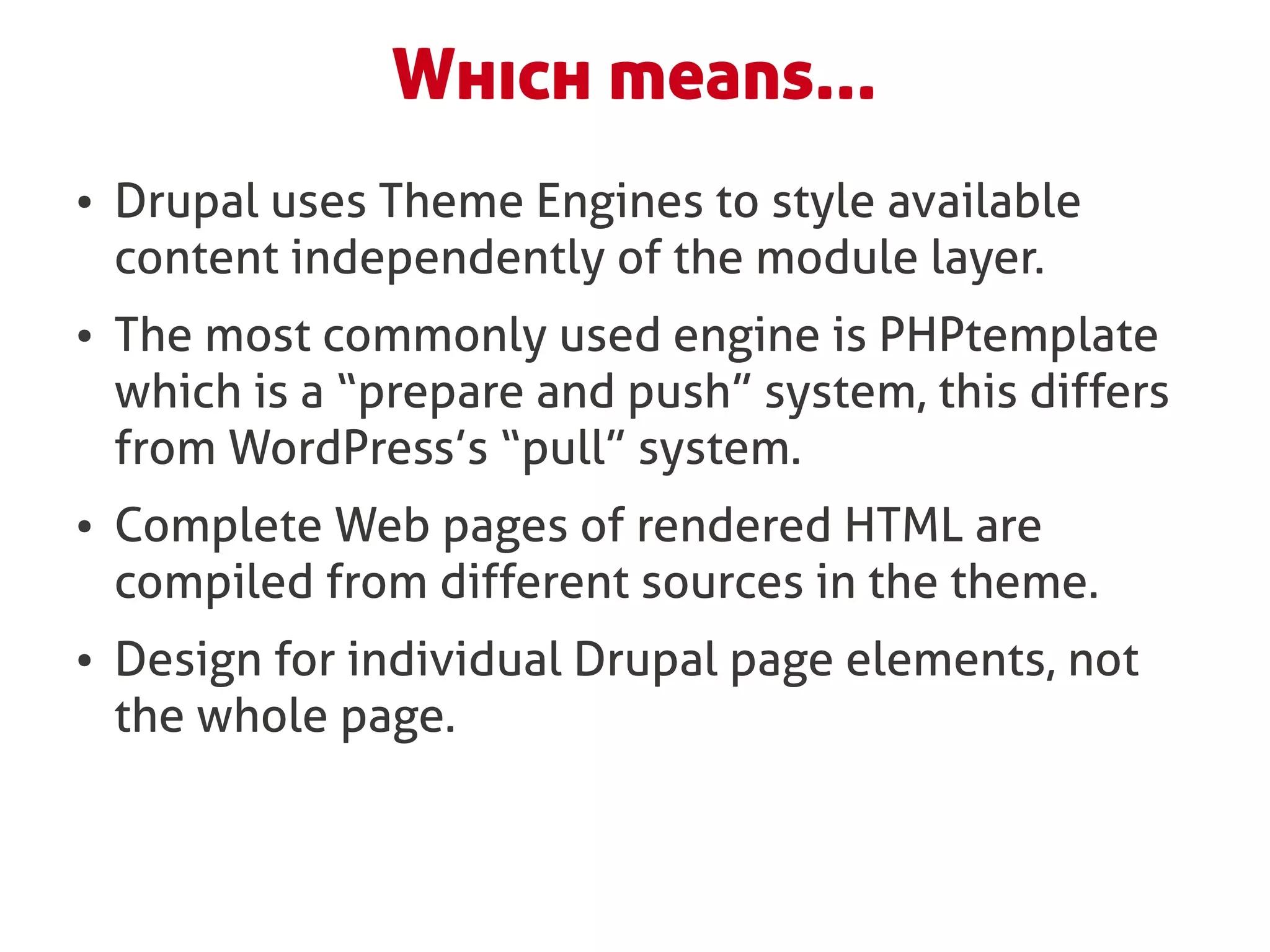

Which means...
● Drupal uses Theme Engines to style available
content independently of the module layer.
● The most commonly used engine is PHPtemplate
which is a “prepare and push” system, this differs
from WordPress’s “pull” system.
● Complete Web pages of rendered HTML are
compiled from different sources in the theme.
● Design for individual Drupal page elements, not
the whole page.

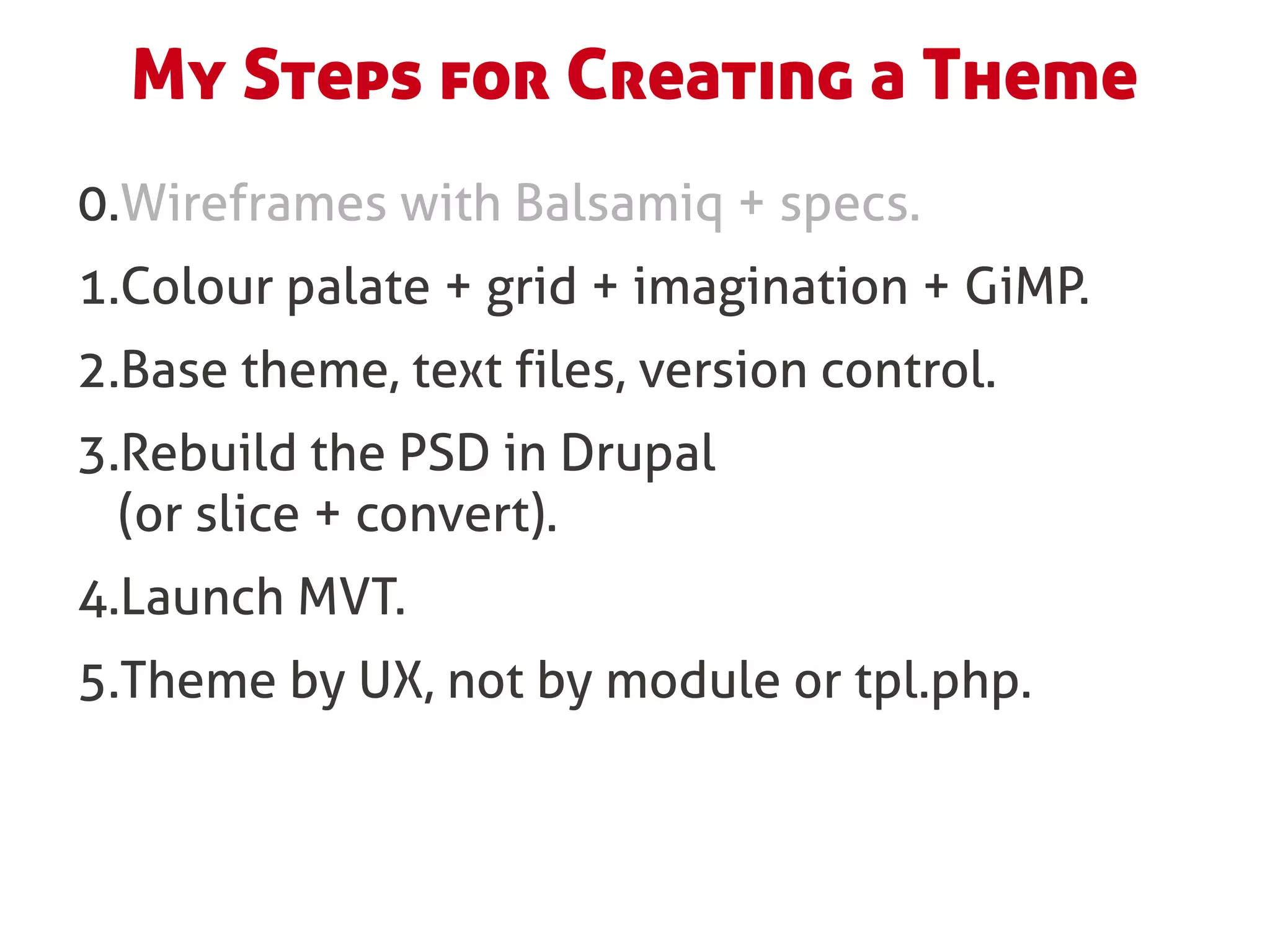

My Steps for Creating a Theme

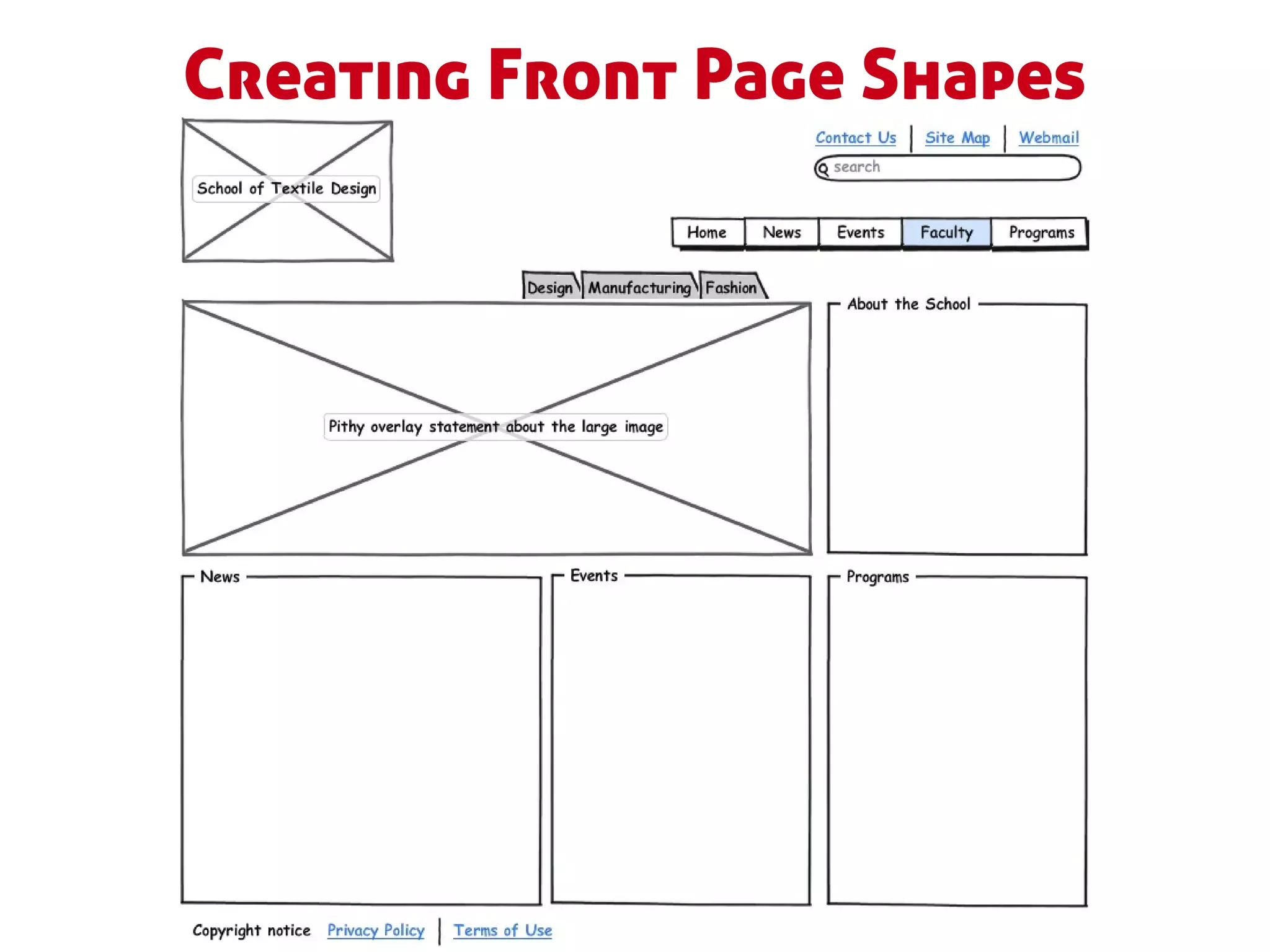

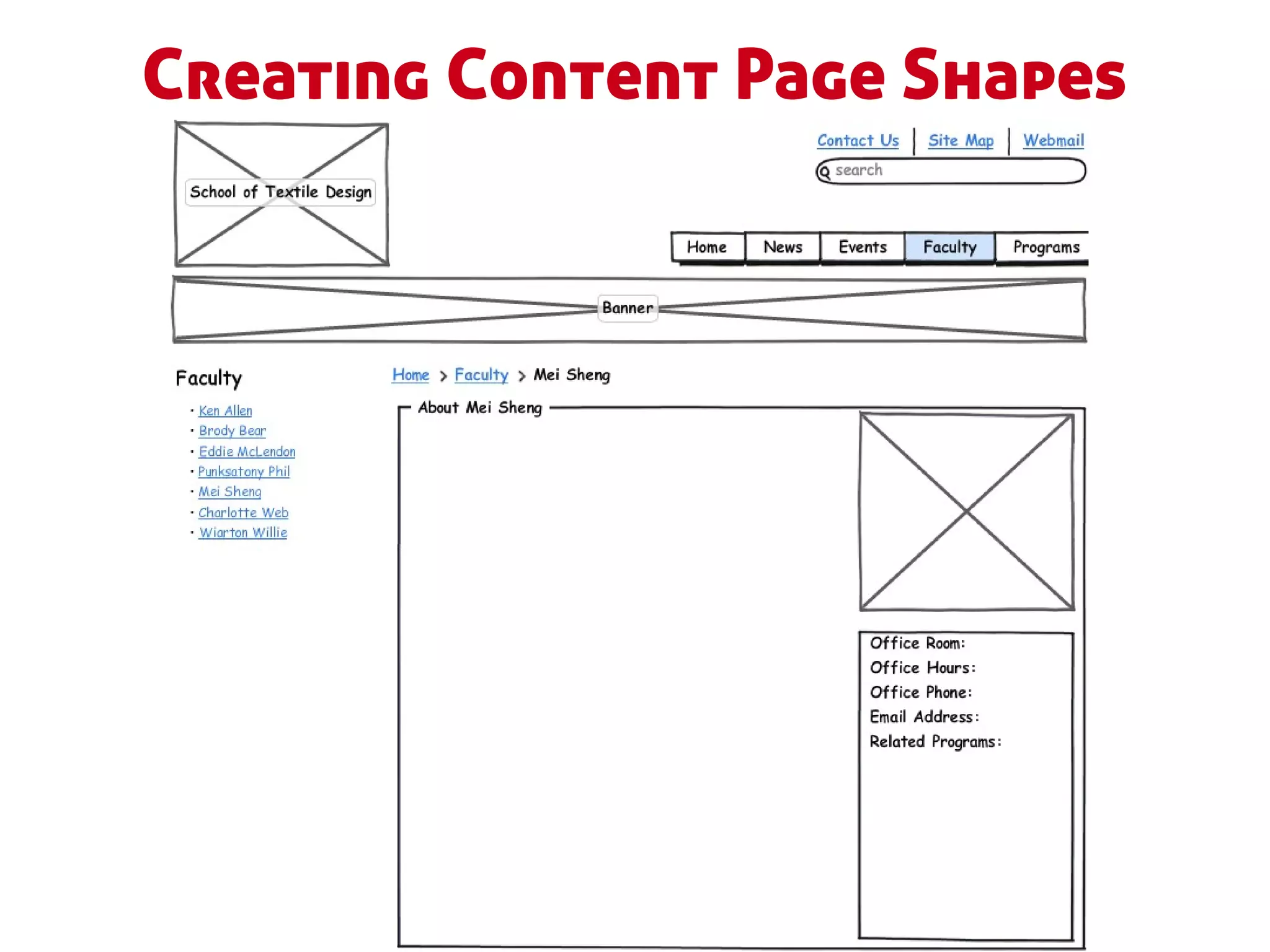

0.Wireframes with Balsamiq + specs.
1.Colour palate + grid + imagination + GiMP.
2.Base theme, text files, version control.
3.Rebuild the PSD in Drupal
(or slice + convert).
4.Launch MVT.
5.Theme by UX, not by module or tpl.php.

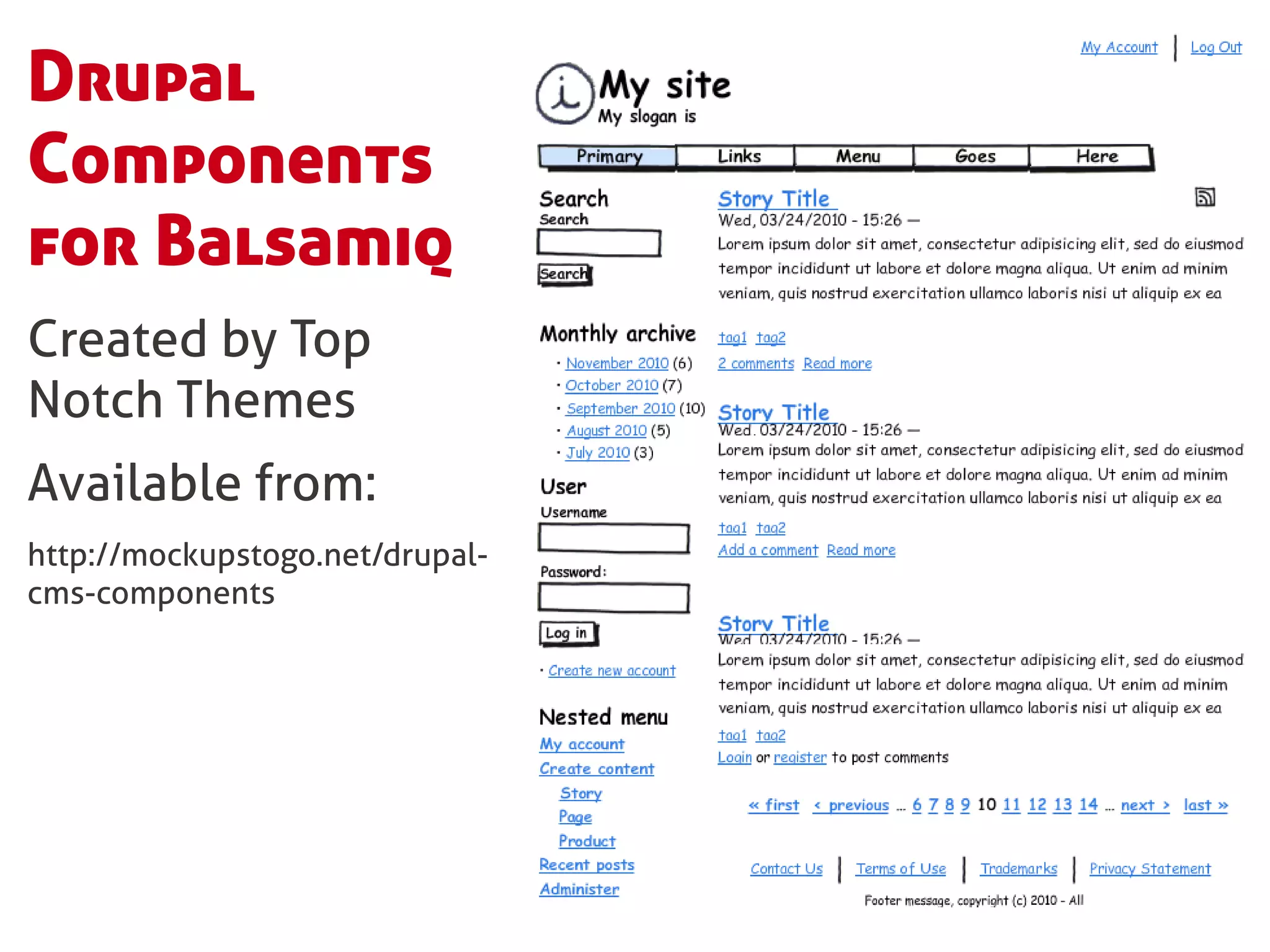

Drupal
Components
for Balsamiq
Created by Top
Notch Themes
Available from:
http://mockupstogo.net/drupal-
cms-components

Step 1: Grid + colour palate +
imagination + GiMP.

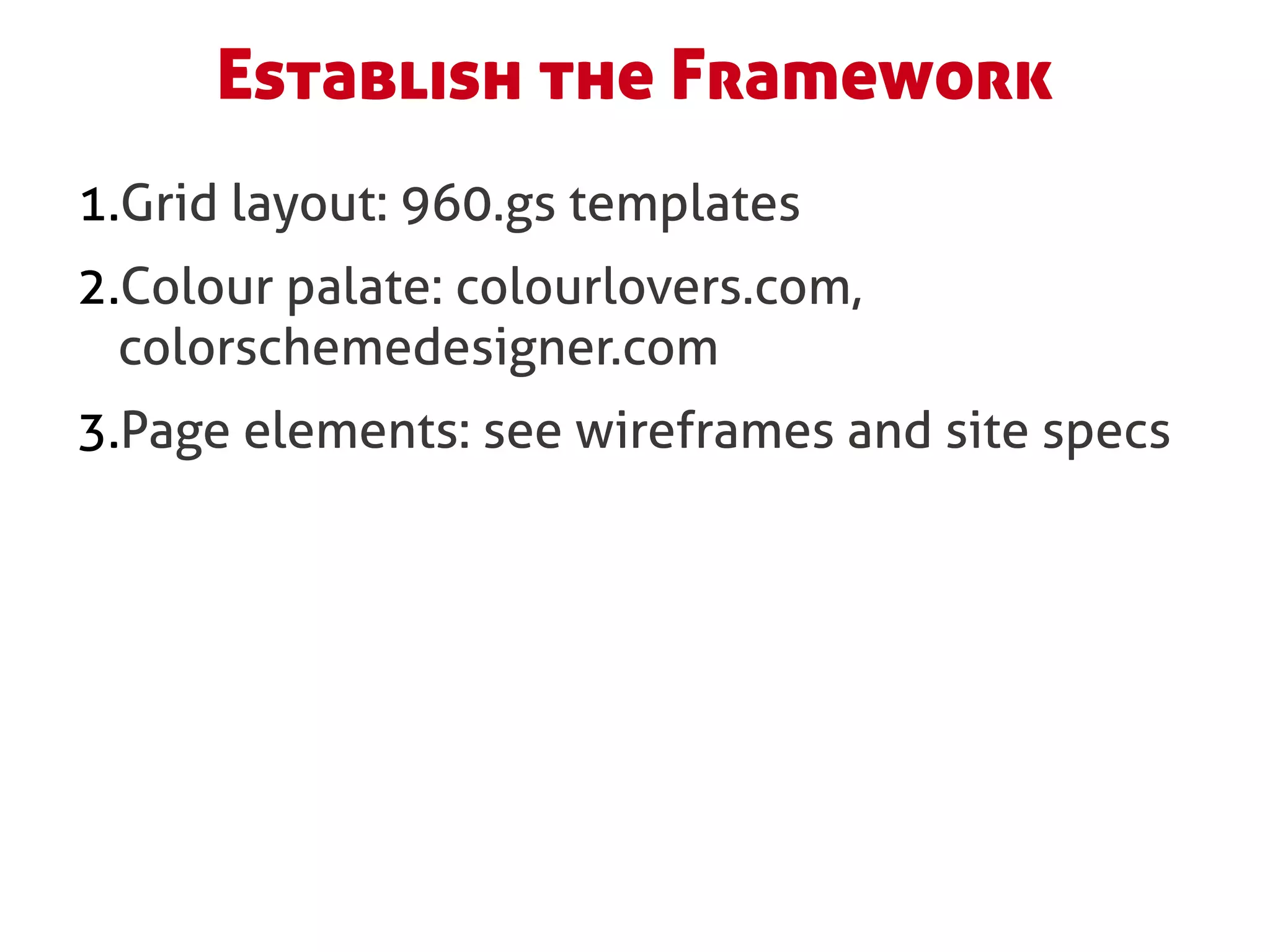

Establish the Framework

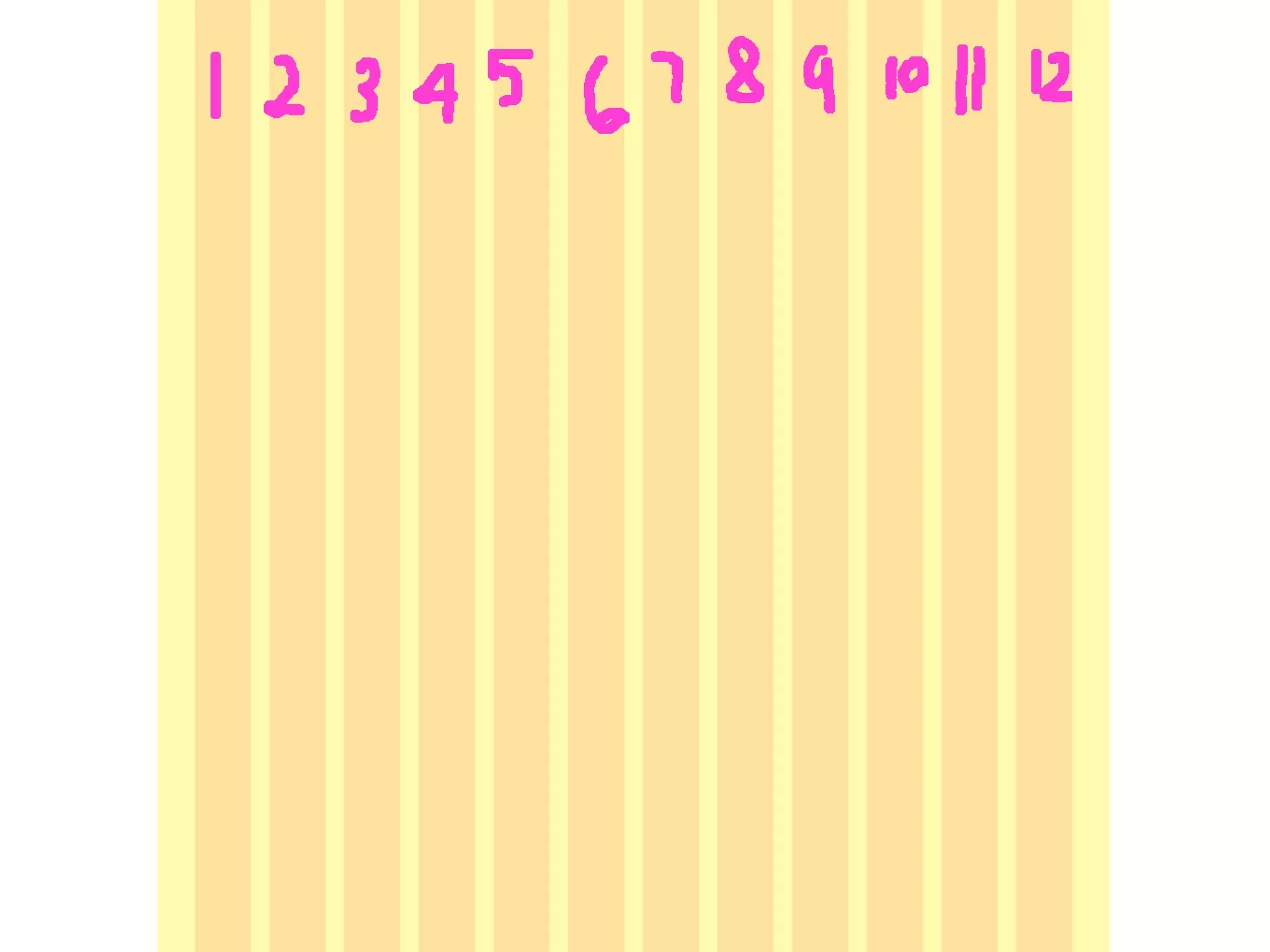

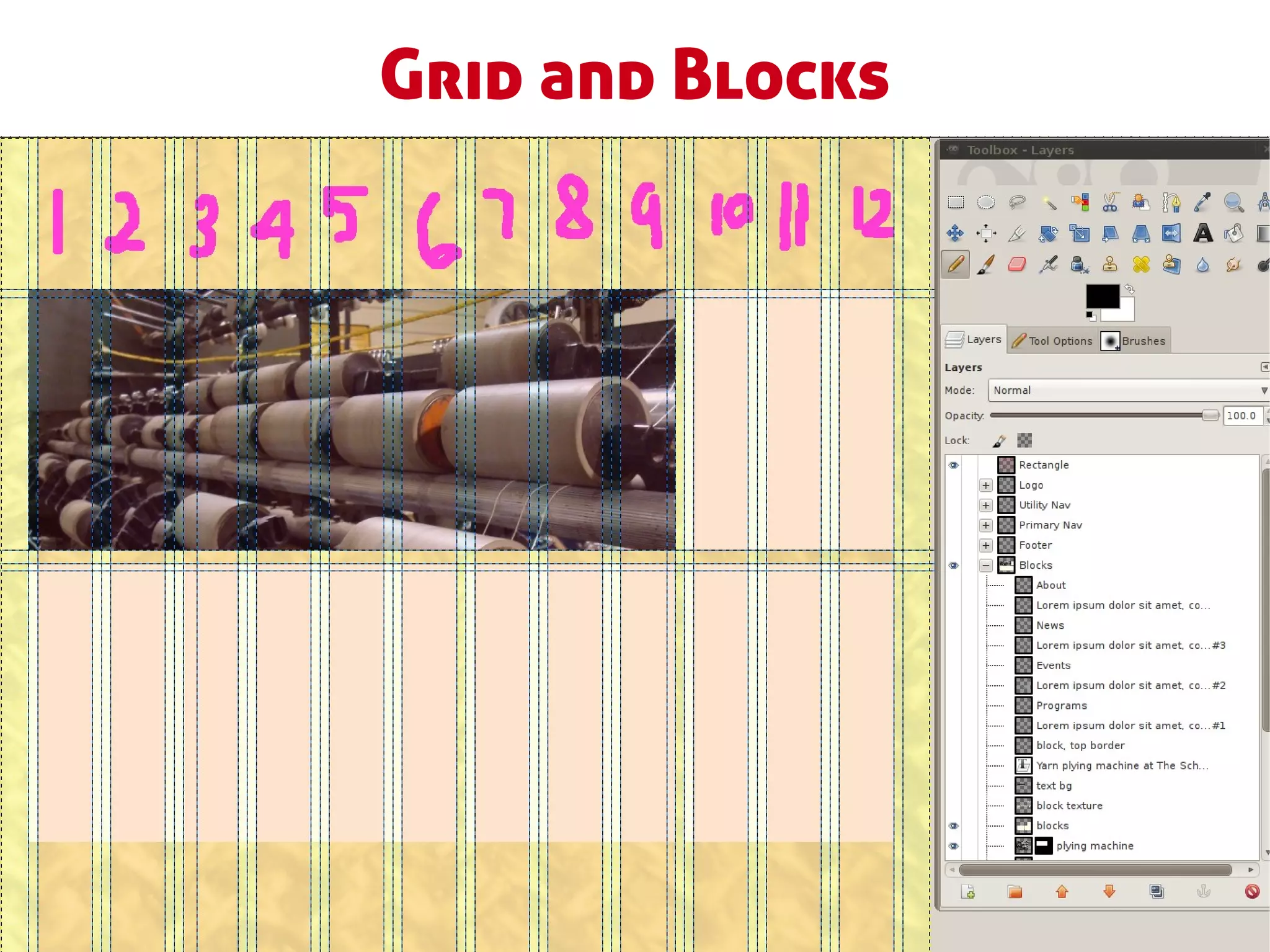

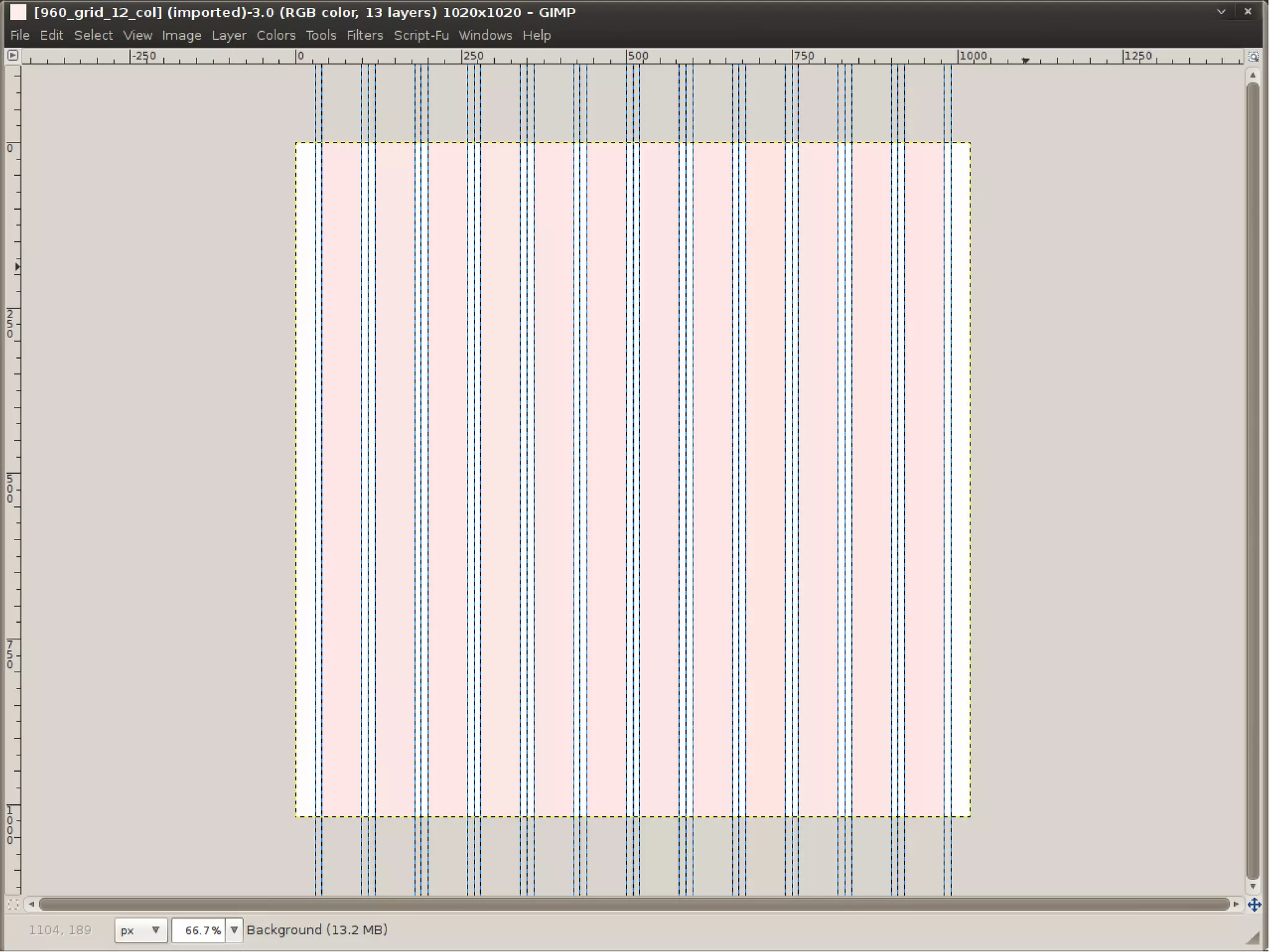

1.Grid layout: 960.gs templates

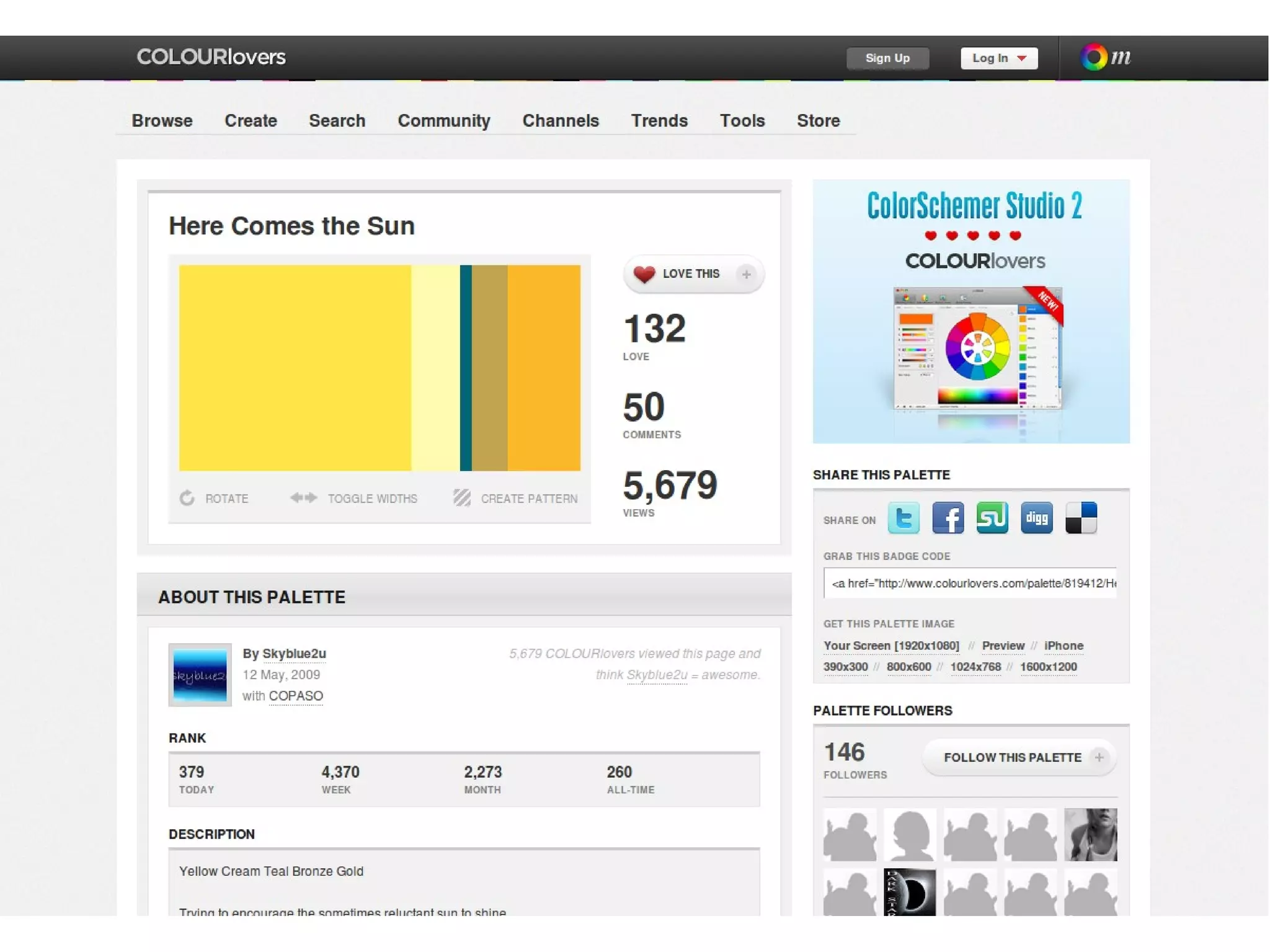

2.Colour palate: colourlovers.com,
colorschemedesigner.com
3.Page elements: see wireframes and site specs

Creating a Basic Design

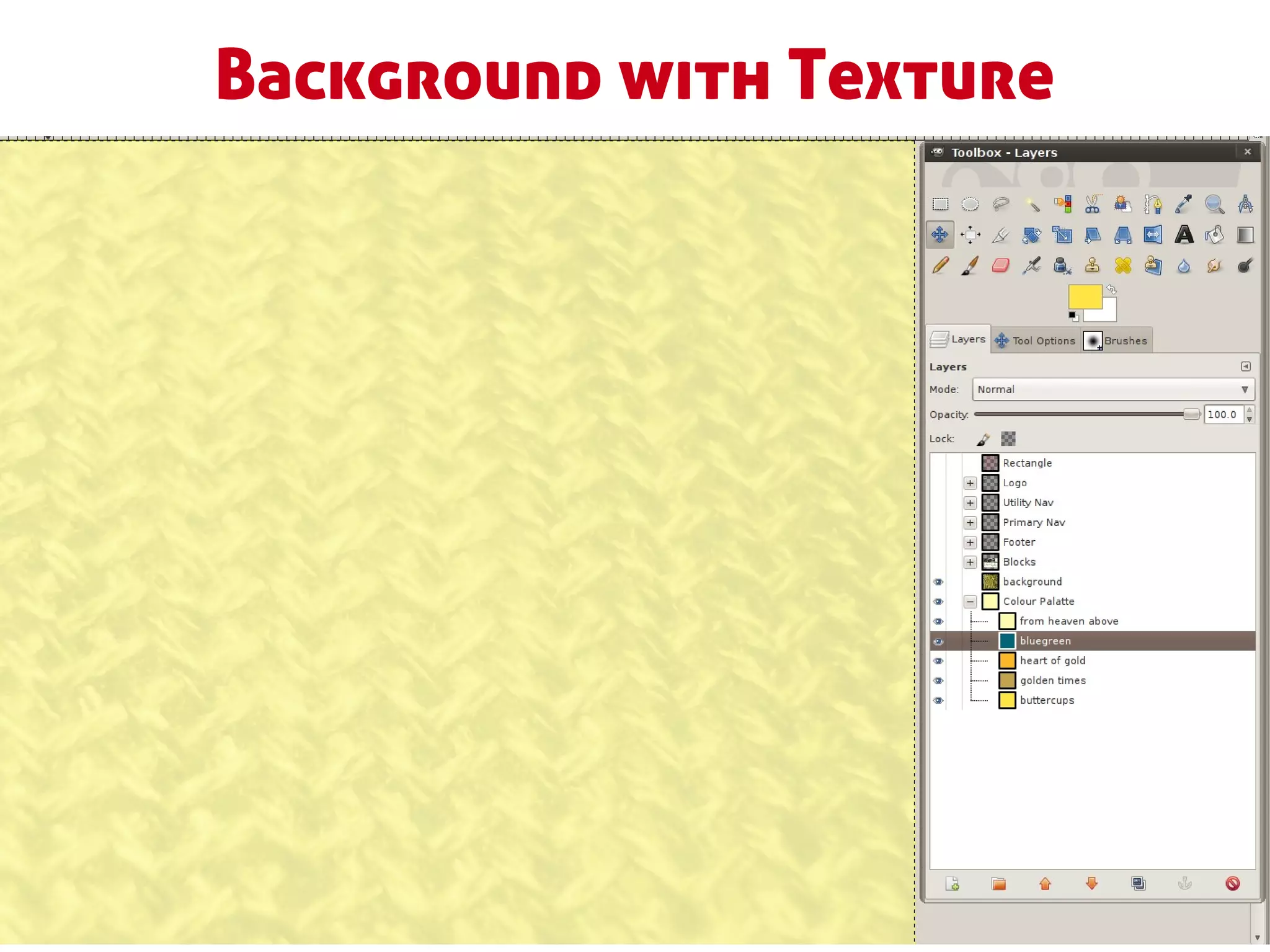

1.Background: texture, image, colour

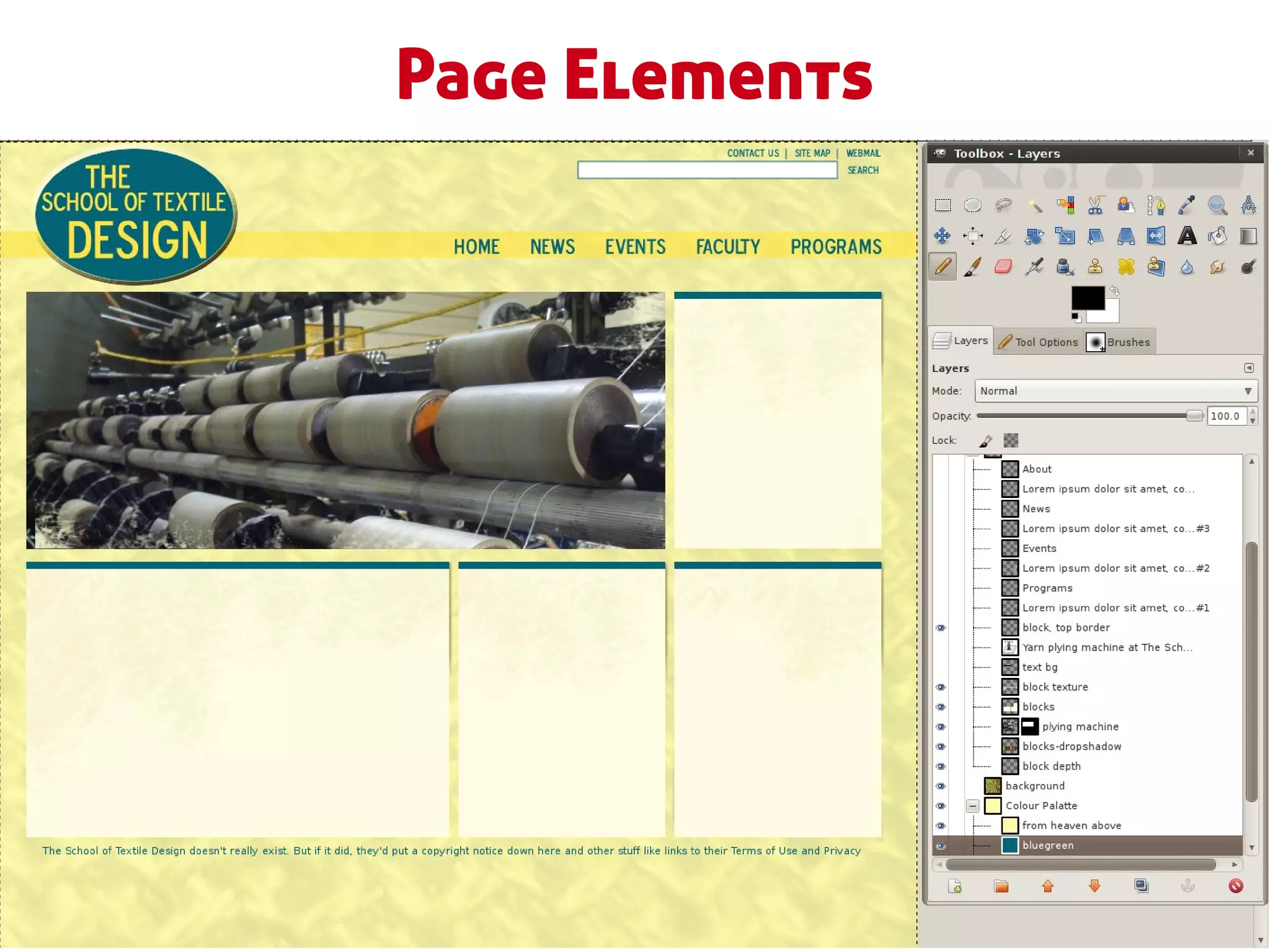

2.Place page elements: see wireframes and specs
3.Decorate: texture, flourishes, illustration,
photography
4.Typography and font selection
5.Edges and borders: page, block
6.Lists: indents, margins, padding
7.Actions: default, hover, active, .active

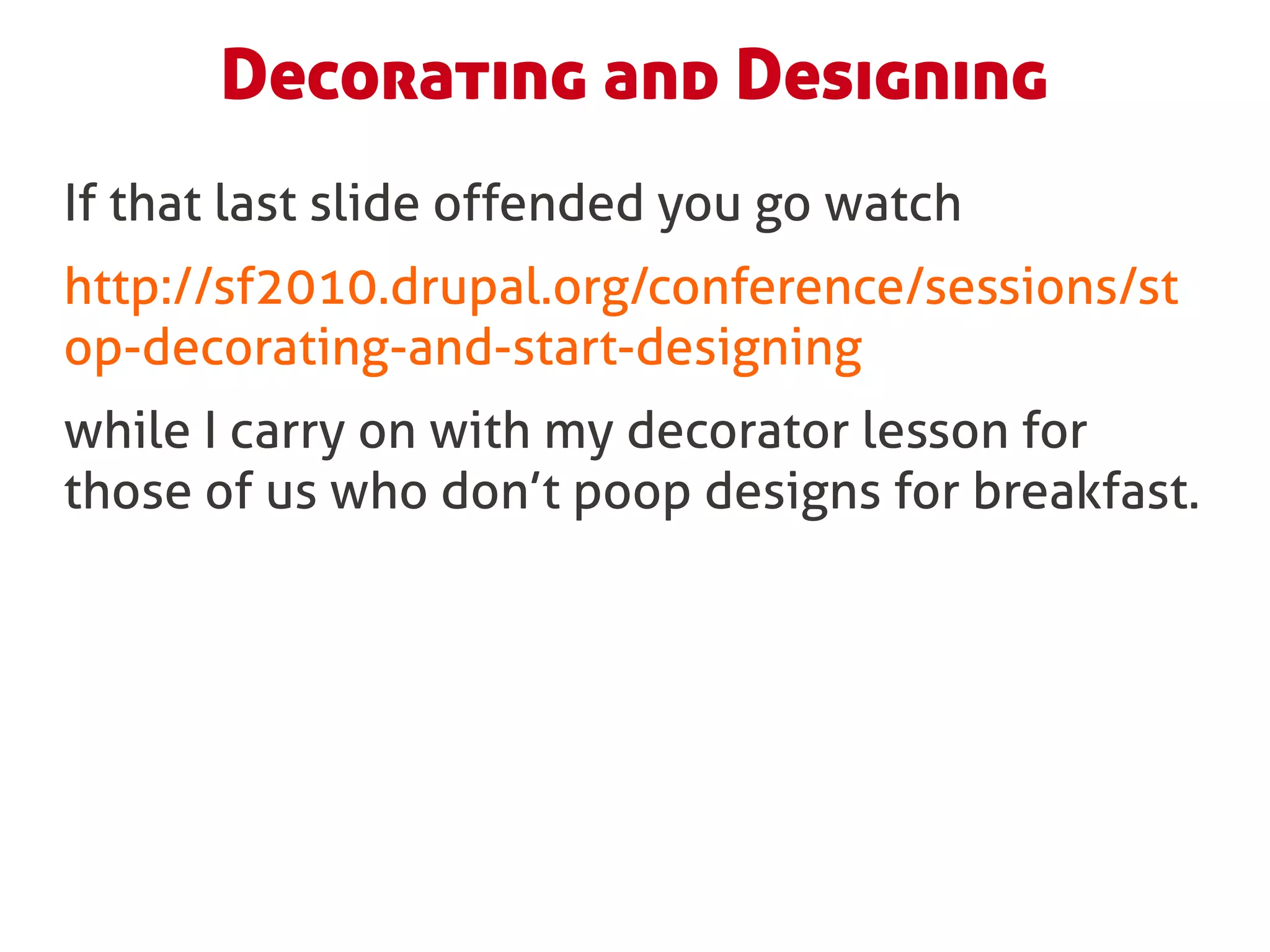

Decorating and Designing
If that last slide offended you go watch
http://sf2010.drupal.org/conference/sessions/st
op-decorating-and-start-designing
while I carry on with my decorator lesson for
those of us who don’t poop designs for breakfast.

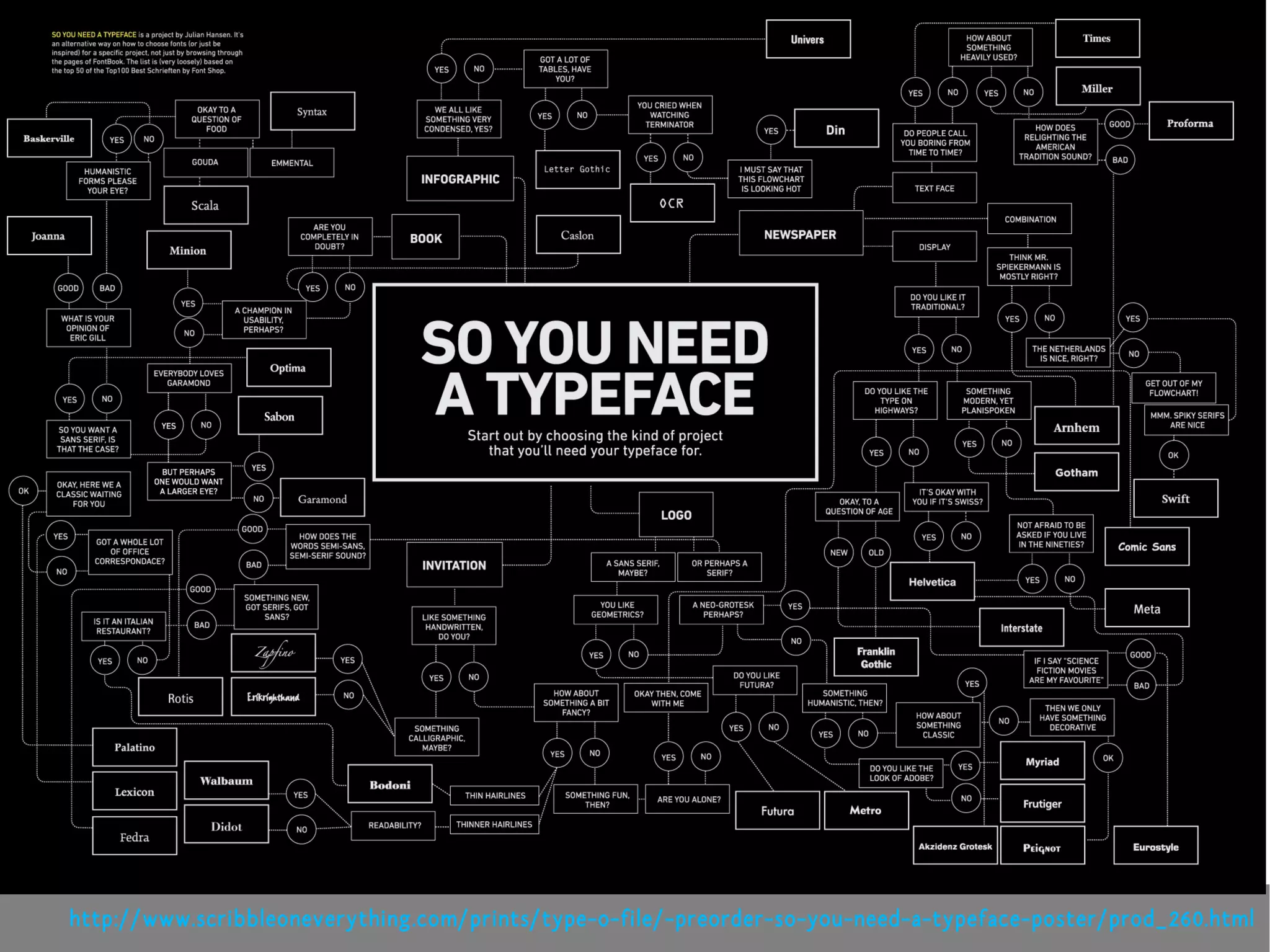

http://www.scribbleoneverything.com/prints/type-o-file/-preorder-so-you-need-a-typeface-poster/prod_260.html

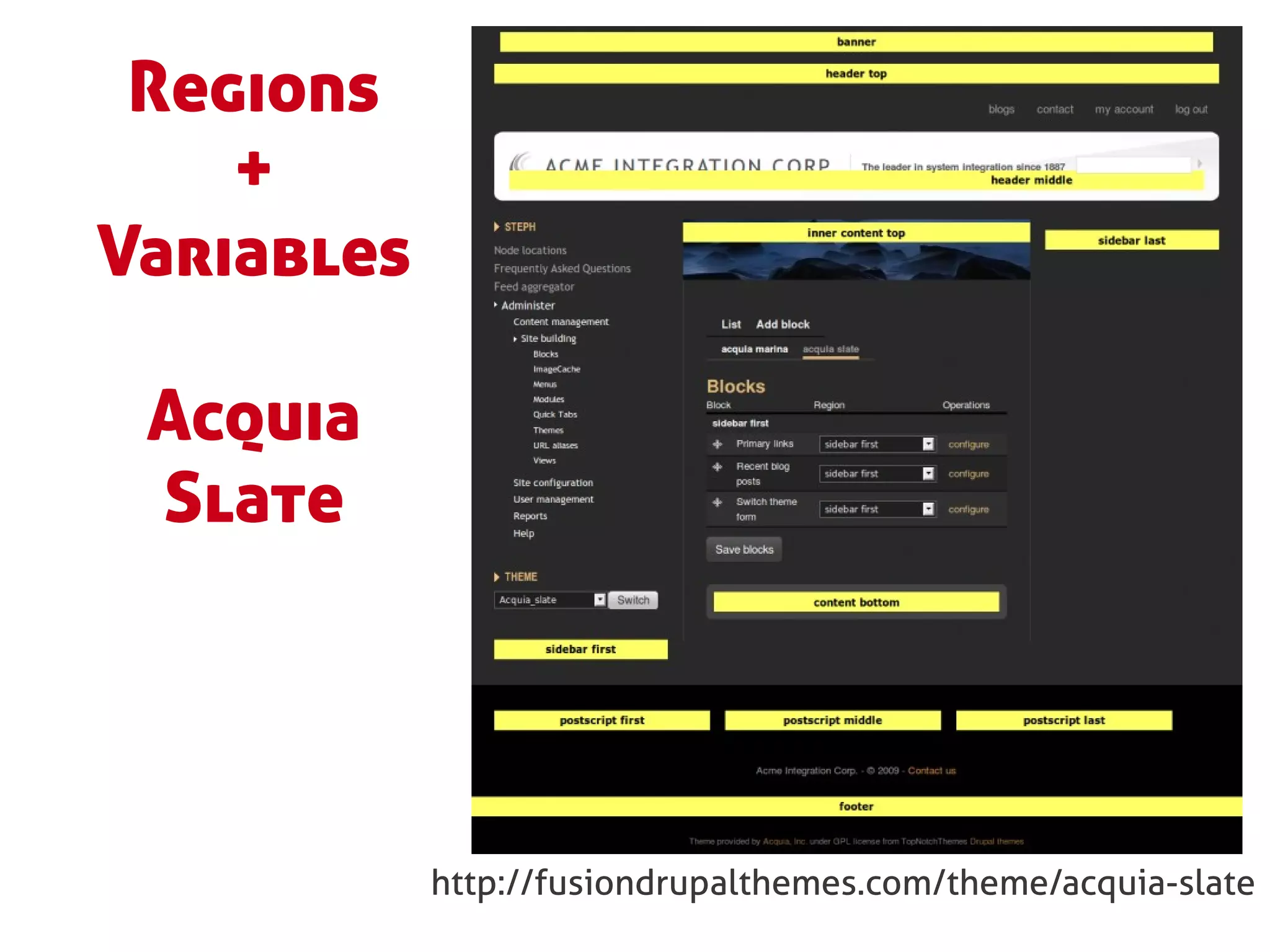

Regions
+
Variables

Acquia
Slate

http://fusiondrupalthemes.com/theme/acquia-slate

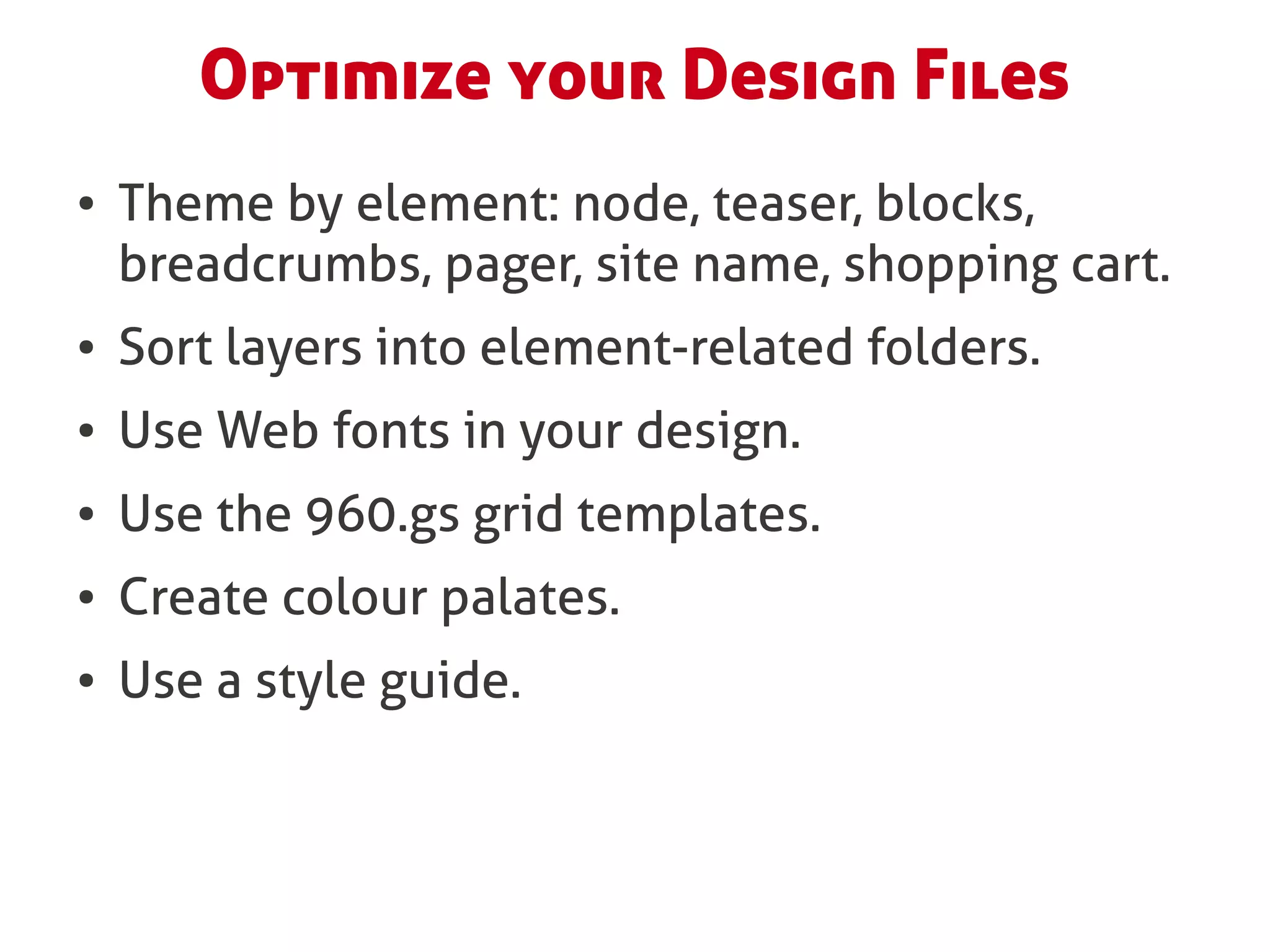

Optimize your Design Files
● Theme by element: node, teaser, blocks,
breadcrumbs, pager, site name, shopping cart.
● Sort layers into element-related folders.
● Use Web fonts in your design.
● Use the 960.gs grid templates.
● Create colour palates.
● Use a style guide.

Step 2: Base theme, text files,
version control.

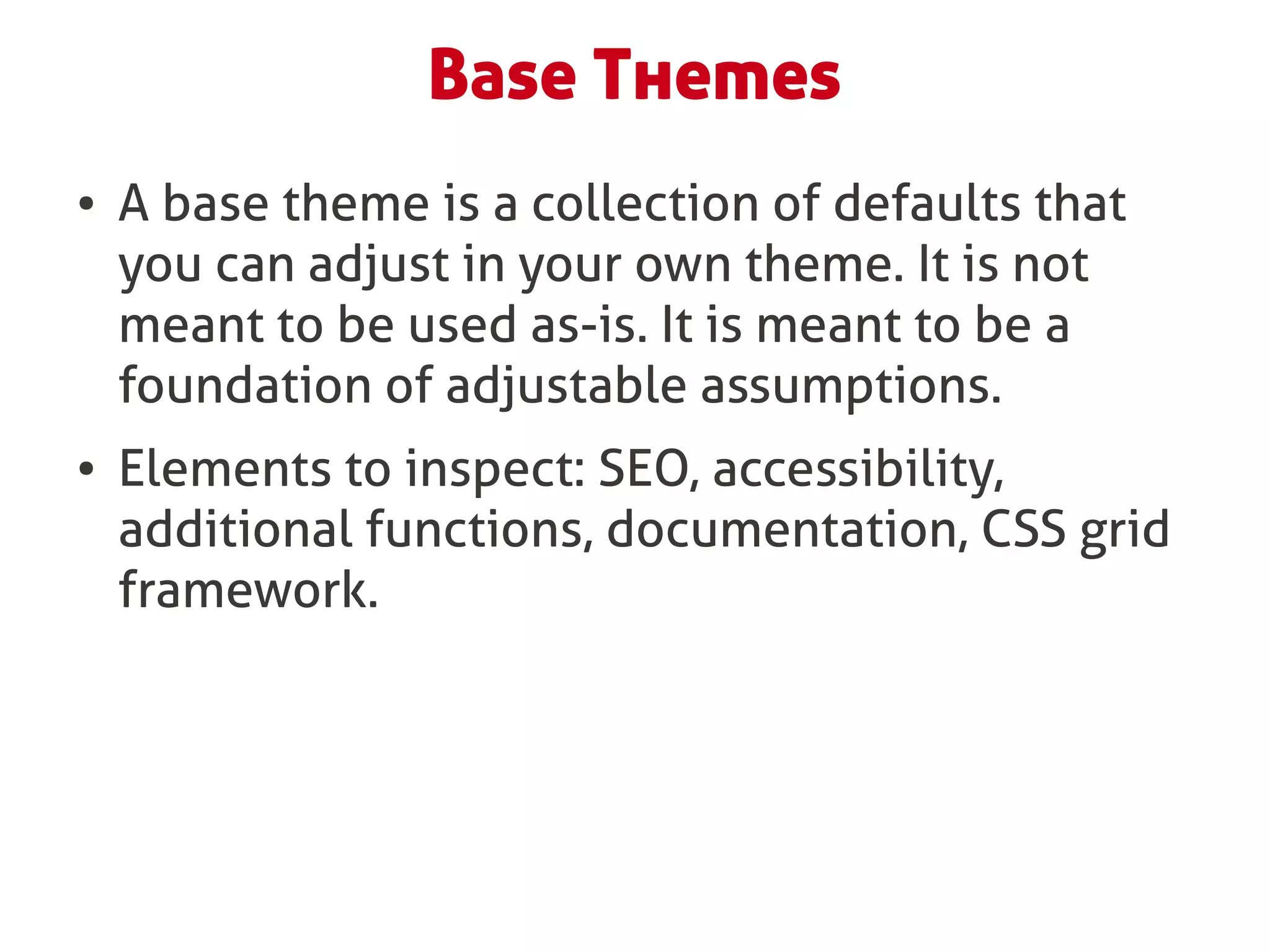

Base Themes
● A base theme is a collection of defaults that
you can adjust in your own theme. It is not
meant to be used as-is. It is meant to be a
foundation of adjustable assumptions.
● Elements to inspect: SEO, accessibility,
additional functions, documentation, CSS grid
framework.

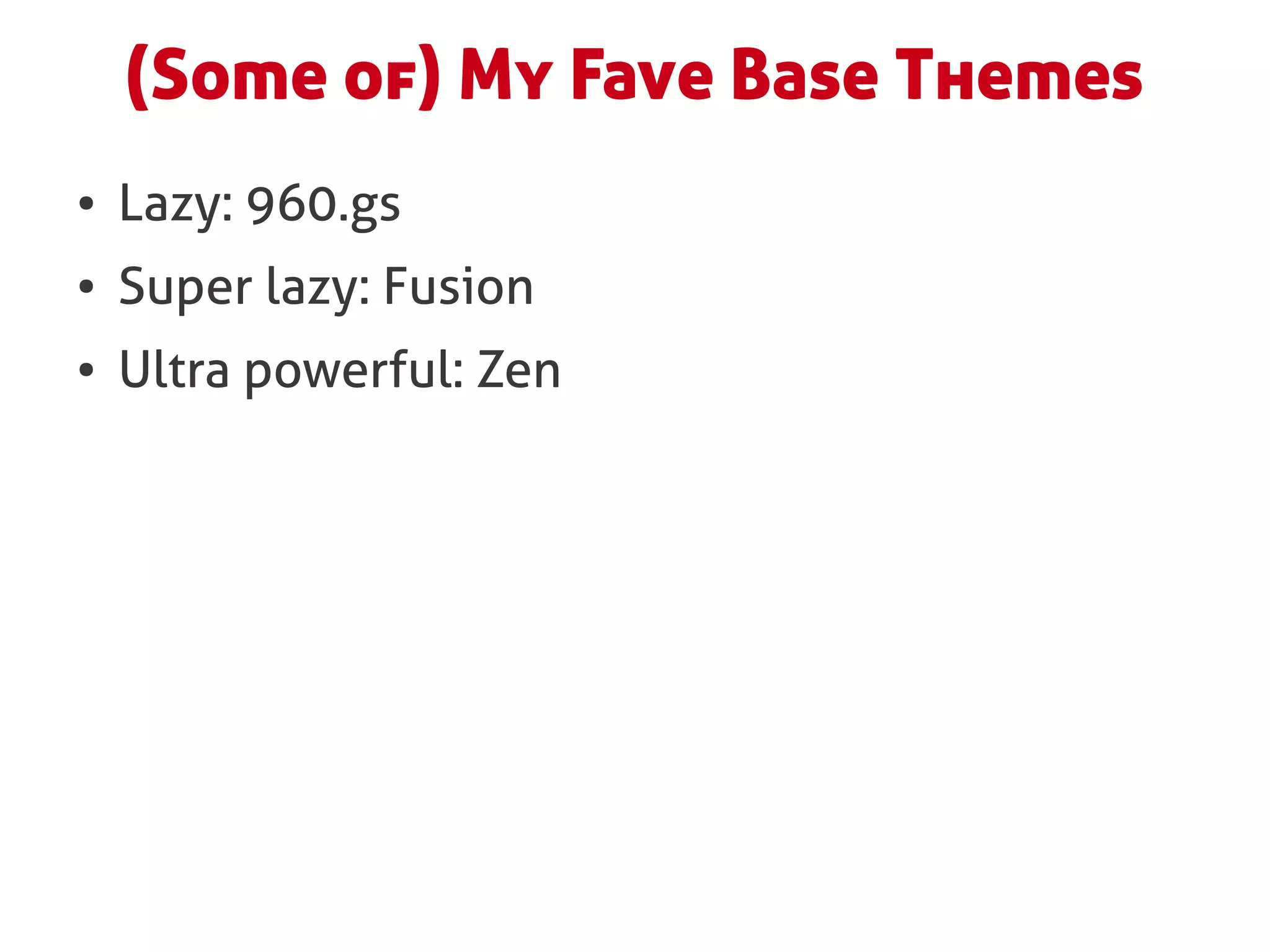

(Some of) My Fave Base Themes
● Lazy: 960.gs
● Super lazy: Fusion
● Ultra powerful: Zen

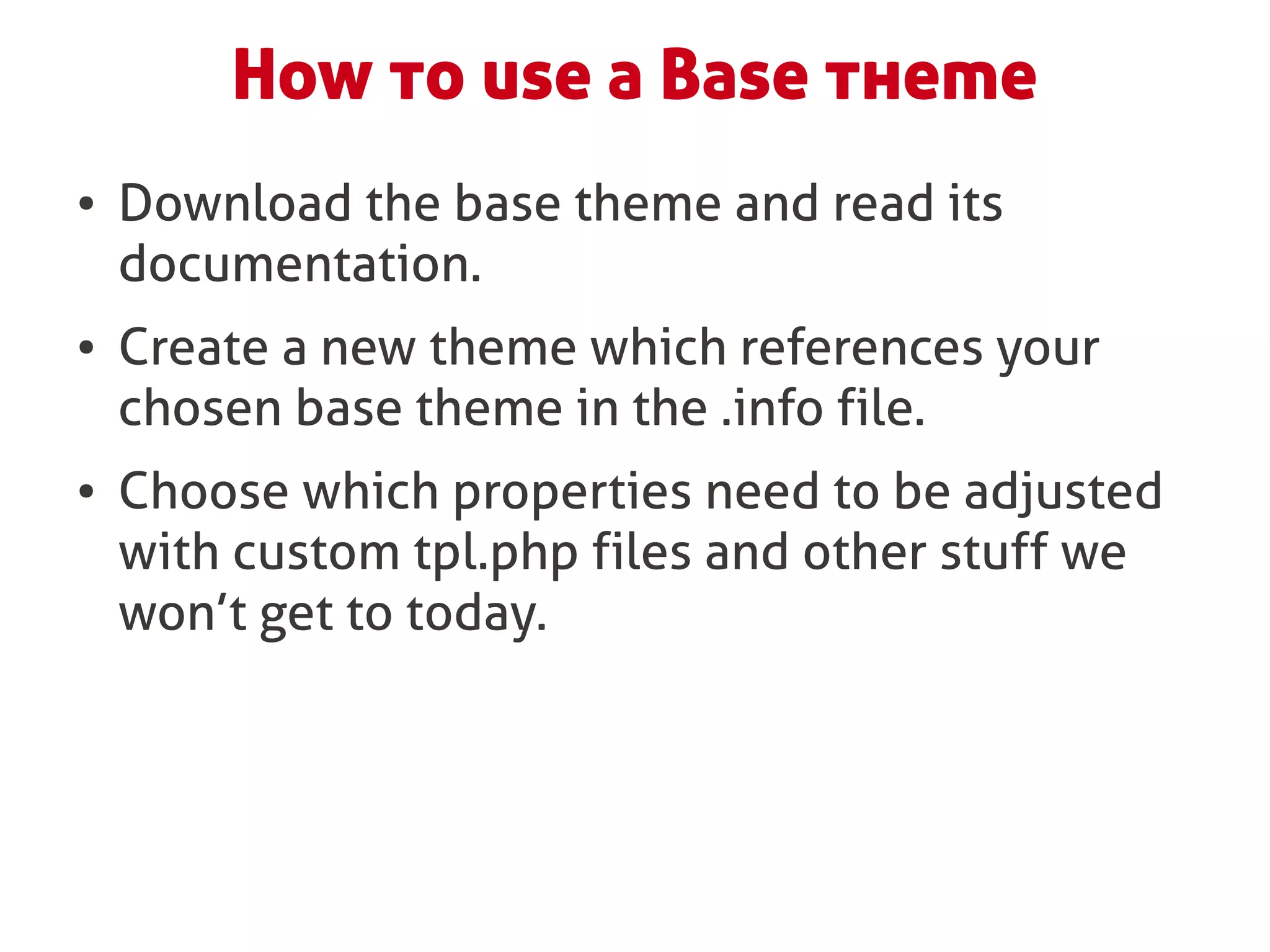

How to use a Base theme
● Download the base theme and read its
documentation.
● Create a new theme which references your
chosen base theme in the .info file.
● Choose which properties need to be adjusted
with custom tpl.php files and other stuff we
won’t get to today.

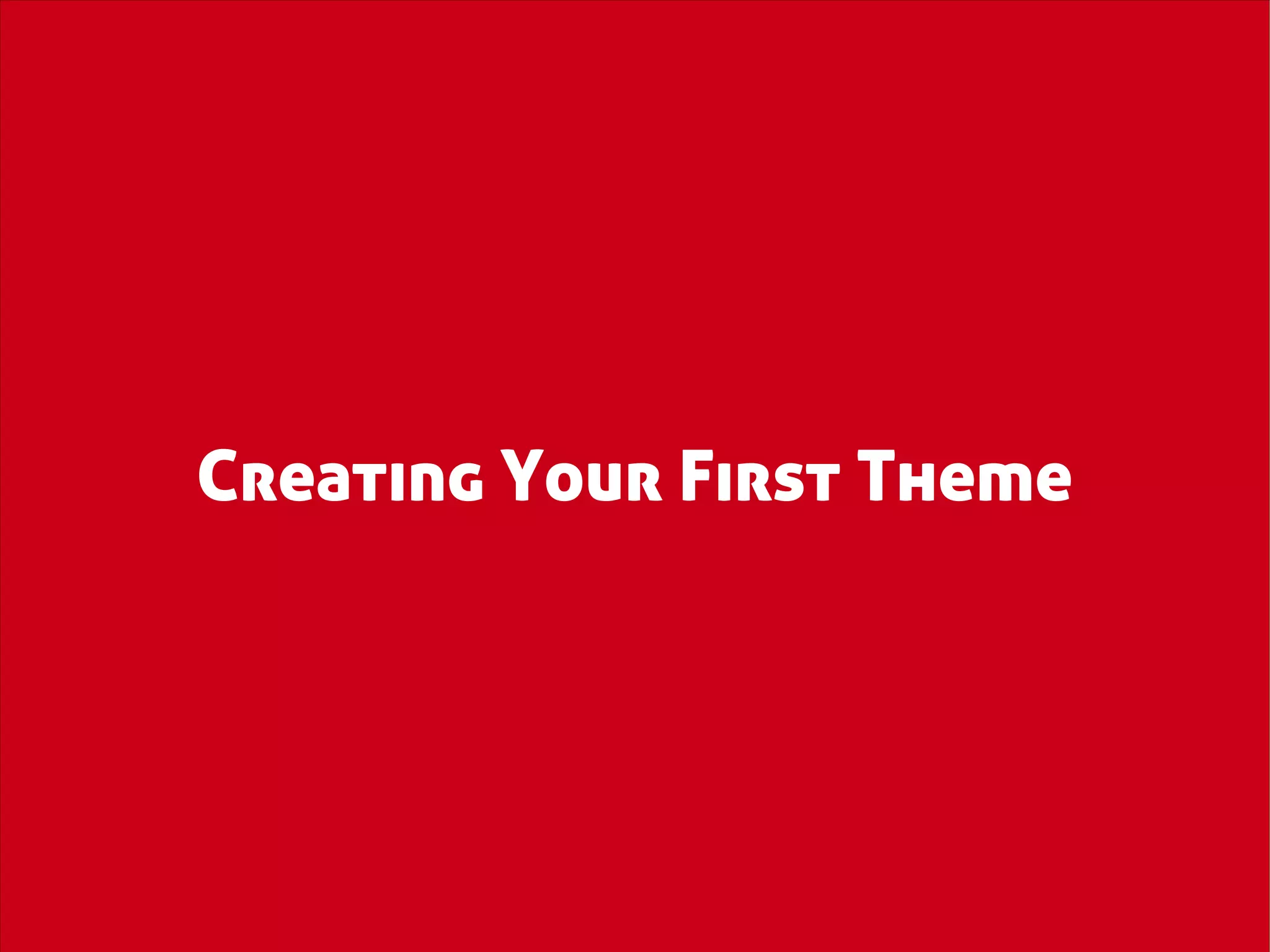

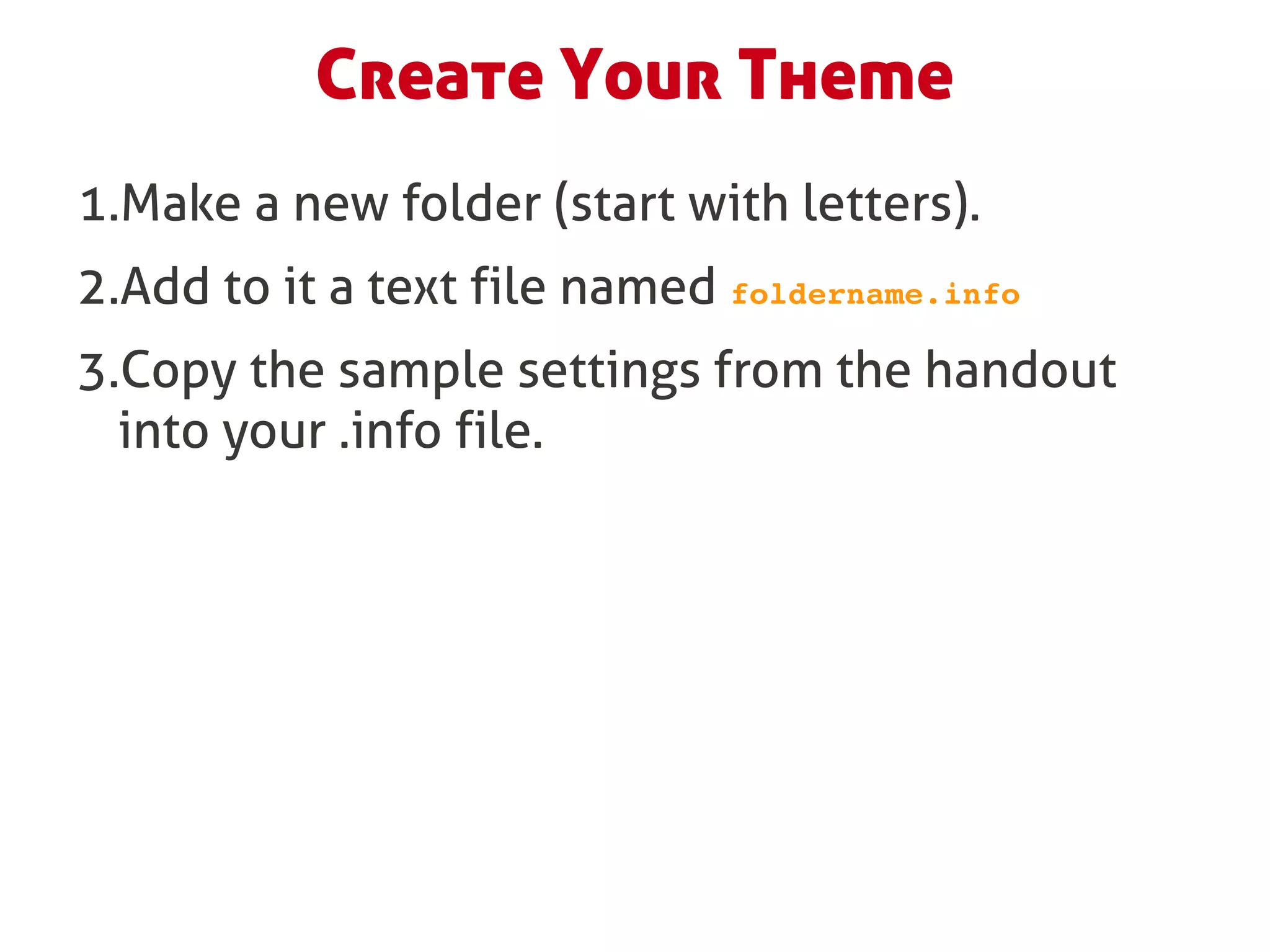

Create Your Theme
1.Make a new folder (start with letters).
2.Add to it a text file named foldername.info
3.Copy the sample settings from the handout
into your .info file.

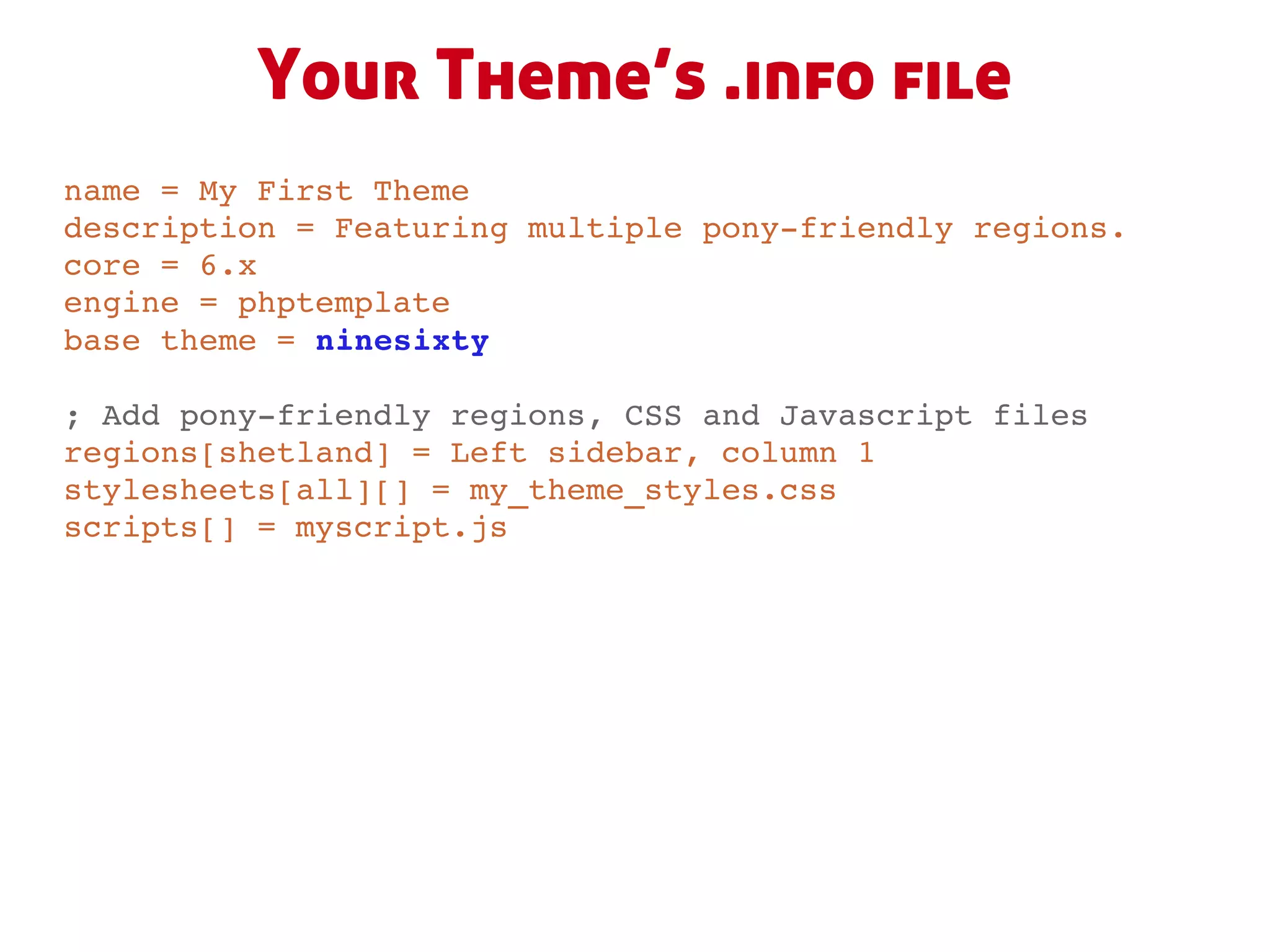

Your Theme’s .info file
name = My First Theme
description = Featuring multiple ponyfriendly regions.
core = 6.x
engine = phptemplate
base theme = ninesixty

; Add ponyfriendly regions, CSS and Javascript files
regions[shetland] = Left sidebar, column 1
stylesheets[all][] = my_theme_styles.css
scripts[] = myscript.js

Step 3: Rebuild the PSD in Drupal

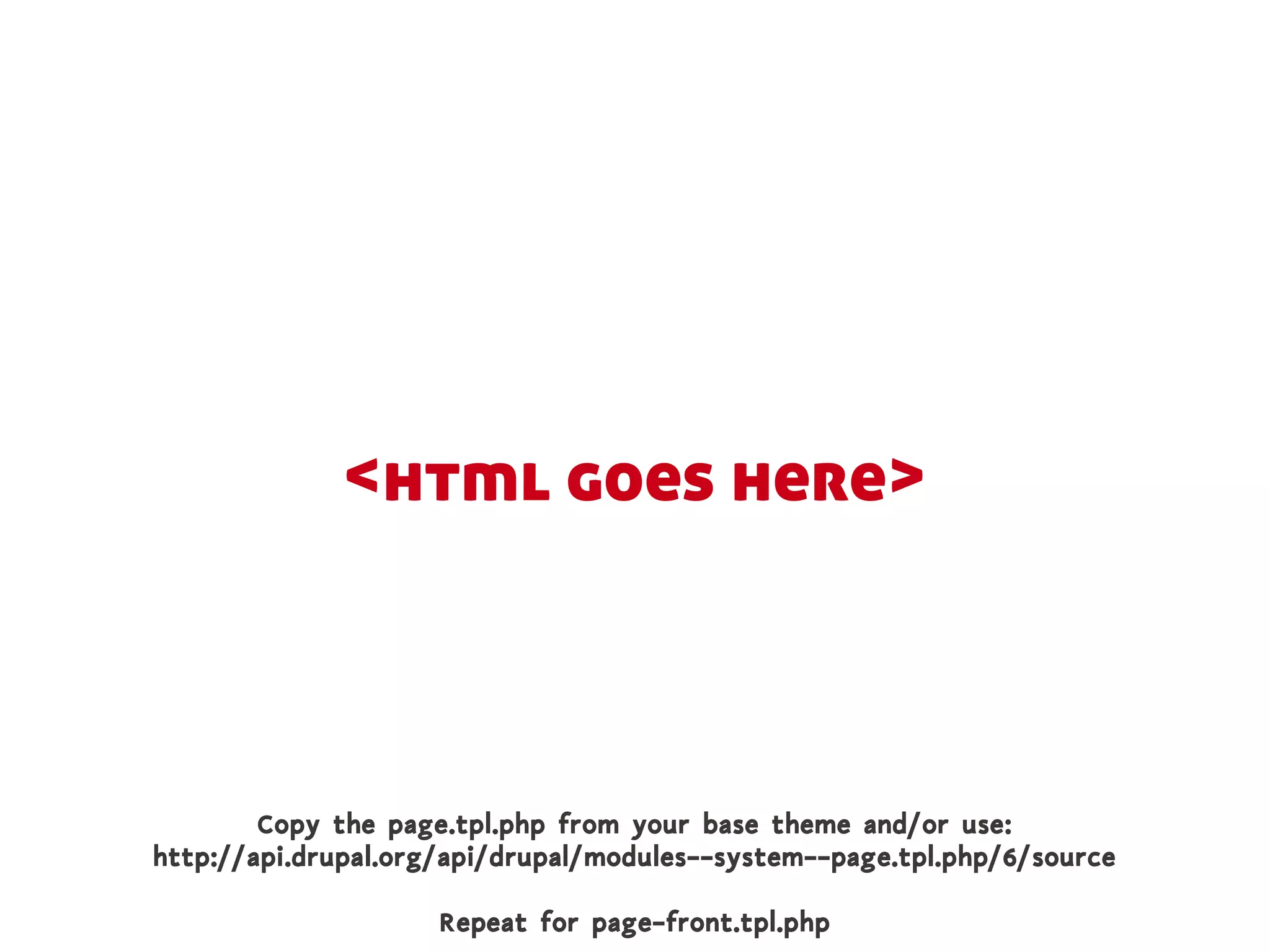

<html goes here>

Copy the page.tpl.php from your base theme and/or use:
http://api.drupal.org/api/drupal/modules--system--page.tpl.php/6/source

Repeat for page-front.tpl.php

It’s too hard.
Show me how!

Pink sherbert photography http://www.flickr.com/photos/pinksherbet/3372060864/

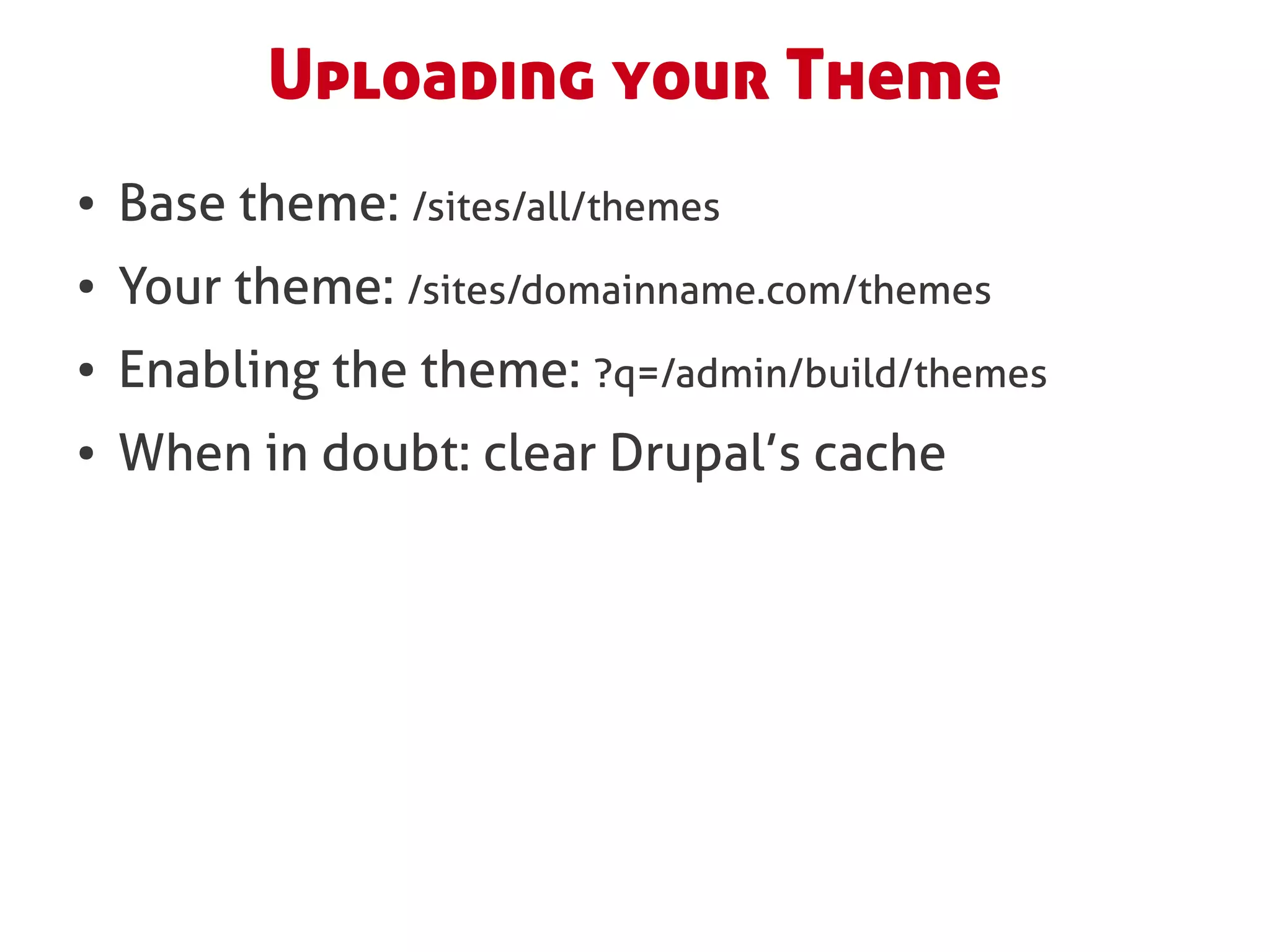

Uploading your Theme
● Base theme: /sites/all/themes
● Your theme: /sites/domainname.com/themes
● Enabling the theme: ?q=/admin/build/themes
● When in doubt: clear Drupal’s cache

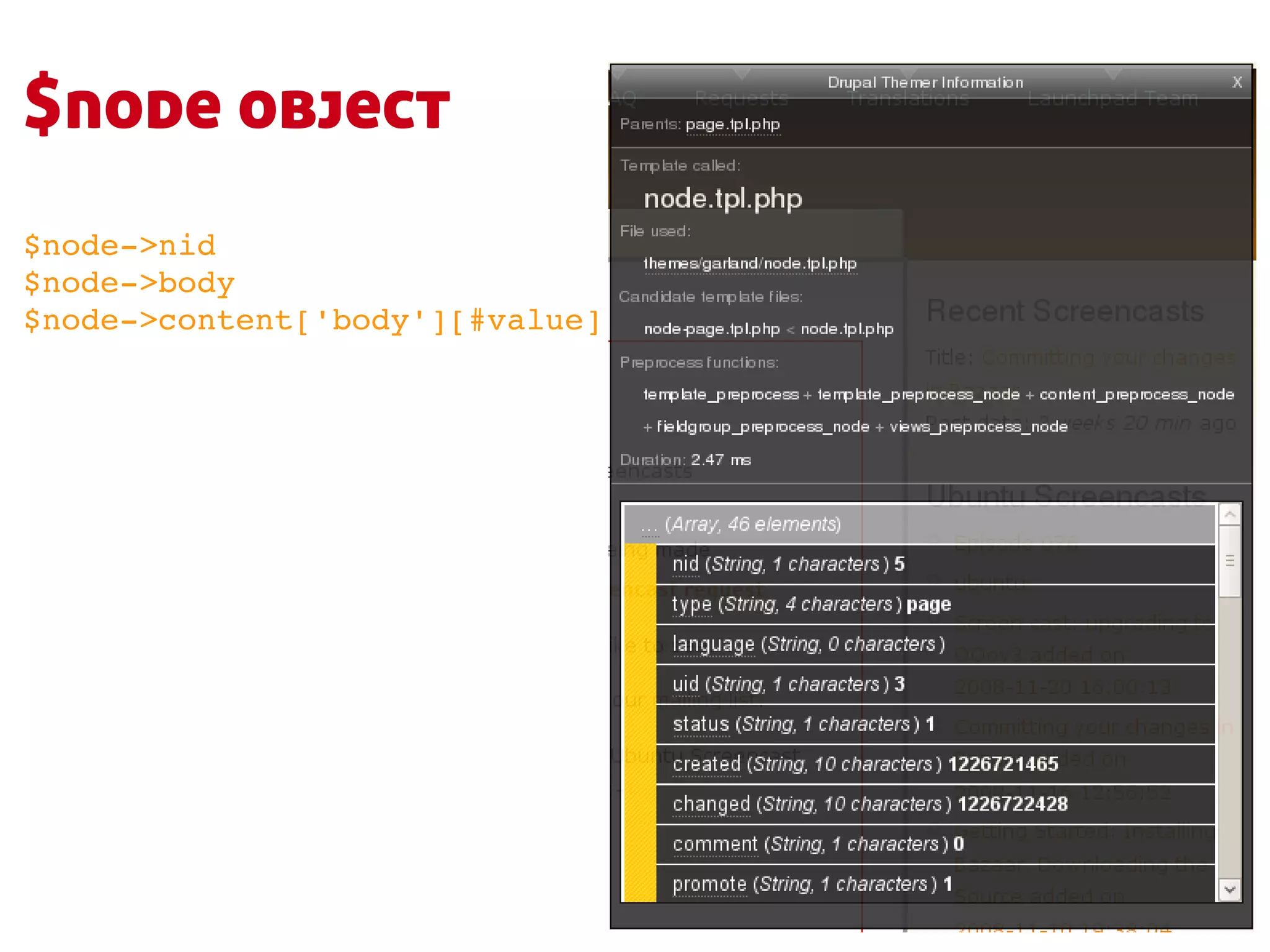

$node object
$node>nid
$node>body
$node>content['body'][#value]

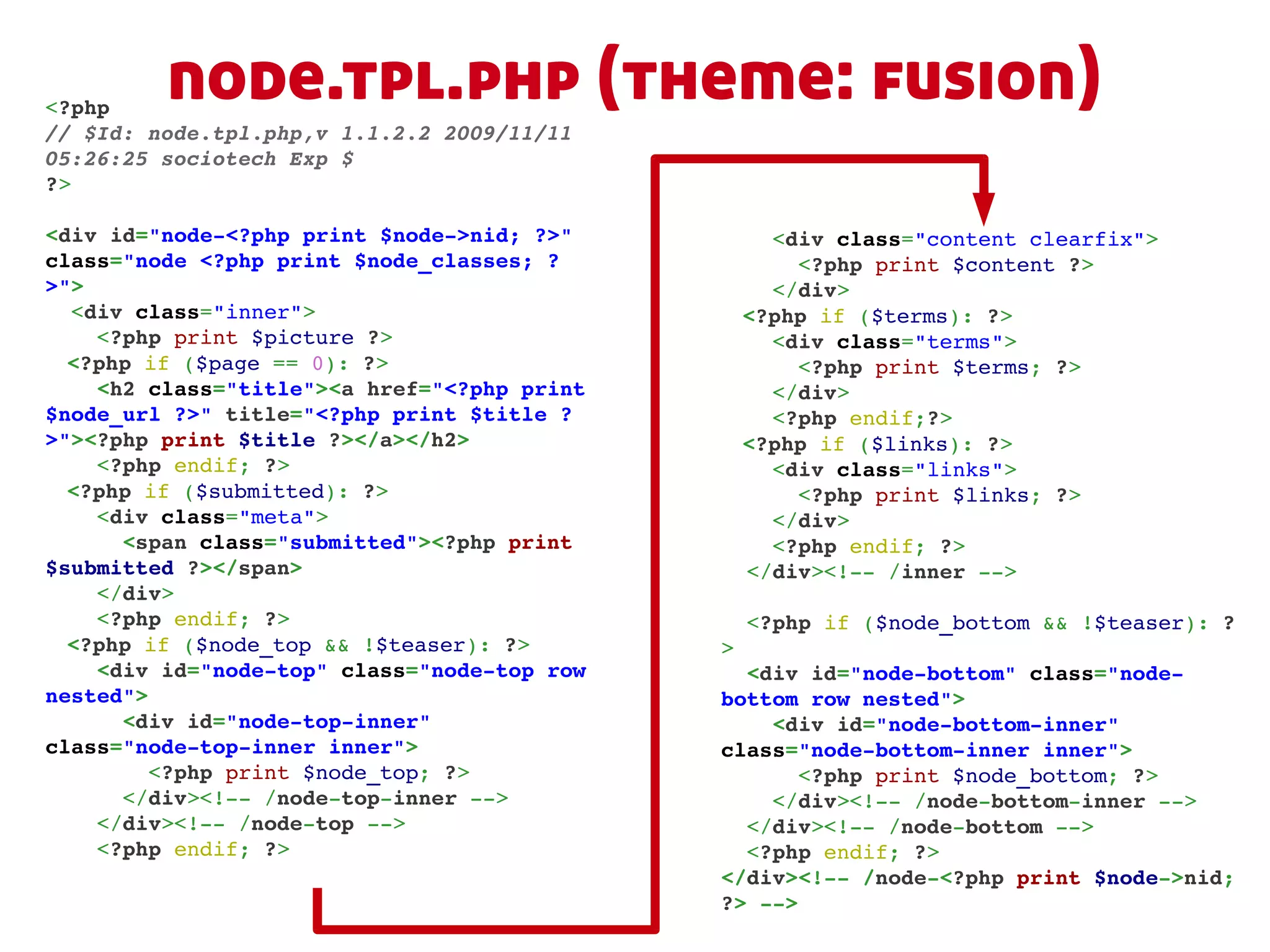

<?php
node.tpl.php (theme: fusion)
// $Id: node.tpl.php,v 1.1.2.2 2009/11/11
05:26:25 sociotech Exp $
?>

<div id="node<?php print $node>nid; ?>"     <div class="content clearfix">
class="node <?php print $node_classes; ?       <?php print $content ?>
>">     </div>
  <div class="inner"> <?php if ($terms): ?>
    <?php print $picture ?>     <div class="terms">
<?php if ($page == 0): ?>       <?php print $terms; ?>
    <h2 class="title"><a href="<?php print     </div>
$node_url ?>" title="<?php print $title ?     <?php endif;?>
>"><?php print $title ?></a></h2> <?php if ($links): ?>
    <?php endif; ?>       <div class="links">
<?php if ($submitted): ?>       <?php print $links; ?>
    <div class="meta">     </div>
      <span class="submitted"><?php print     <?php endif; ?>
$submitted ?></span>   </div><! /inner >
    </div>
    <?php endif; ?>   <?php if ($node_bottom && !$teaser): ?
<?php if ($node_top && !$teaser): ?> >
    <div id="nodetop" class="nodetop row   <div id="nodebottom" class="node
nested"> bottom row nested">
      <div id="nodetopinner"     <div id="nodebottominner"
class="nodetopinner inner"> class="nodebottominner inner">
        <?php print $node_top; ?>       <?php print $node_bottom; ?>
      </div><! /nodetopinner >     </div><! /nodebottominner >
    </div><! /nodetop >   </div><! /nodebottom >
    <?php endif; ?>   <?php endif; ?>
</div><! /node<?php print $node>nid;
?> >

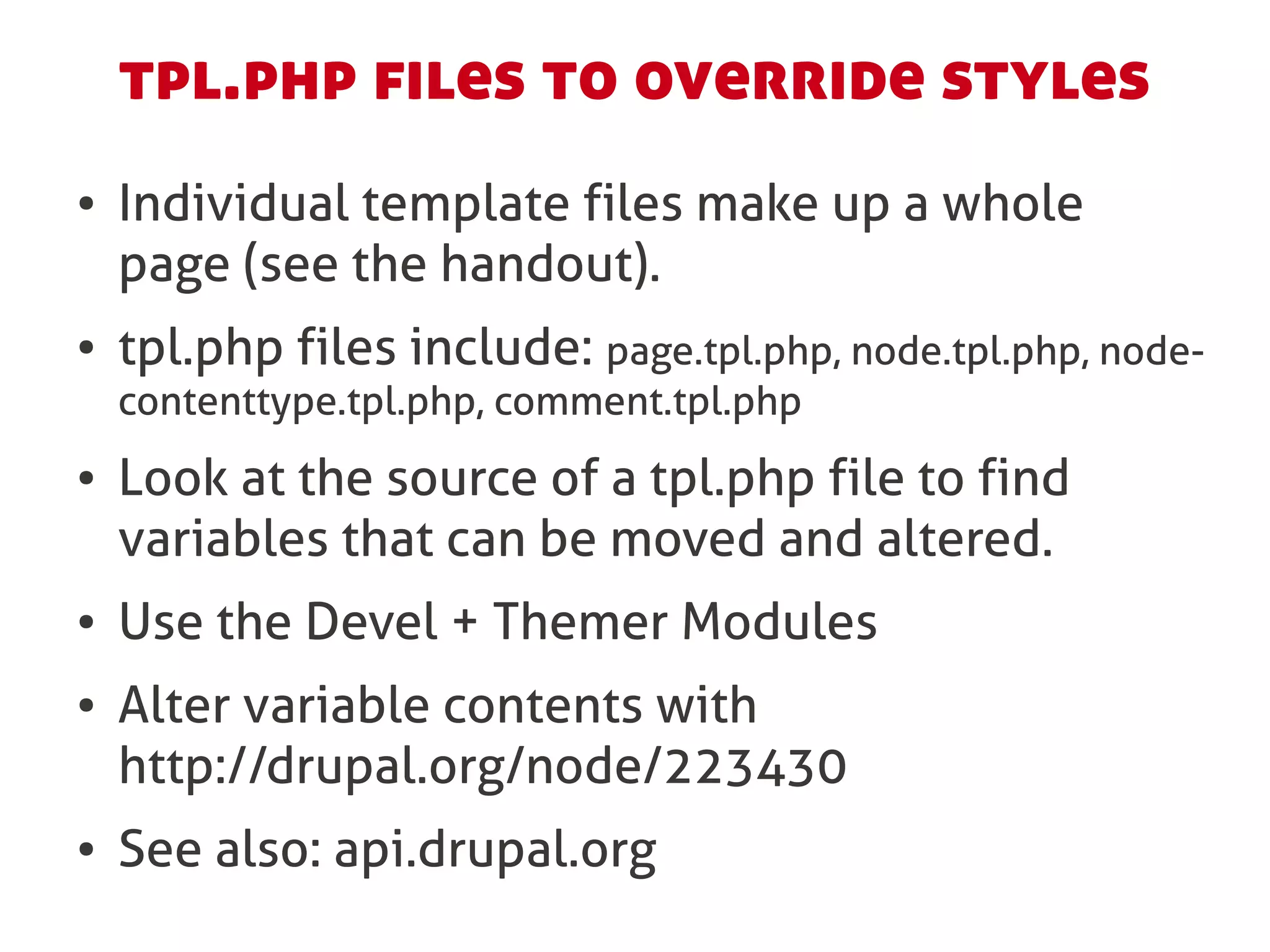

tpl.php files to override styles
● Individual template files make up a whole
page (see the handout).
● tpl.php files include: page.tpl.php, node.tpl.php, node-
contenttype.tpl.php, comment.tpl.php
● Look at the source of a tpl.php file to find
variables that can be moved and altered.

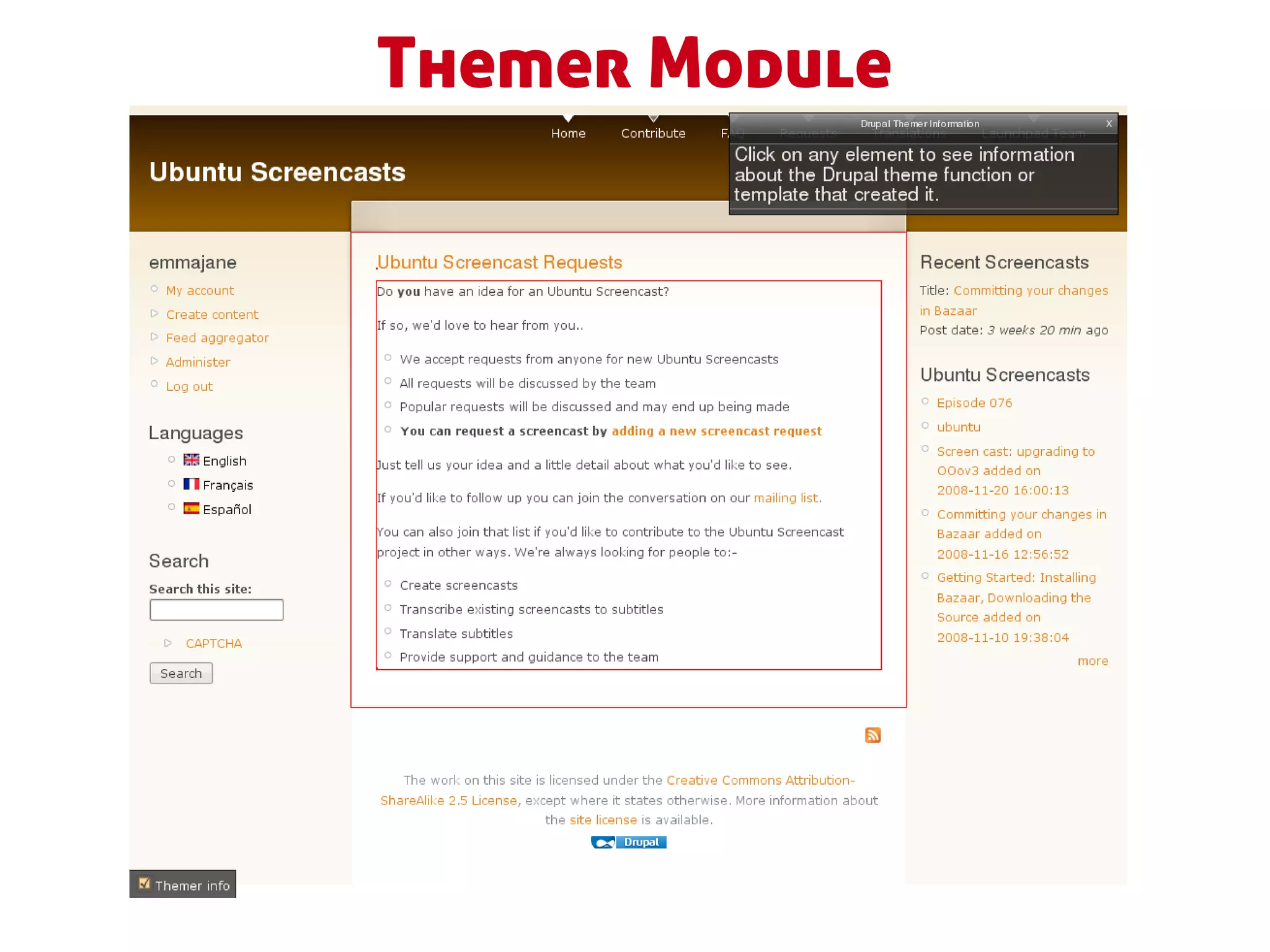

● Use the Devel + Themer Modules
● Alter variable contents with
http://drupal.org/node/223430
● See also: api.drupal.org

You’re a
Themer!

http://www.flickr.com/photos/14150482@N02/2526889807/

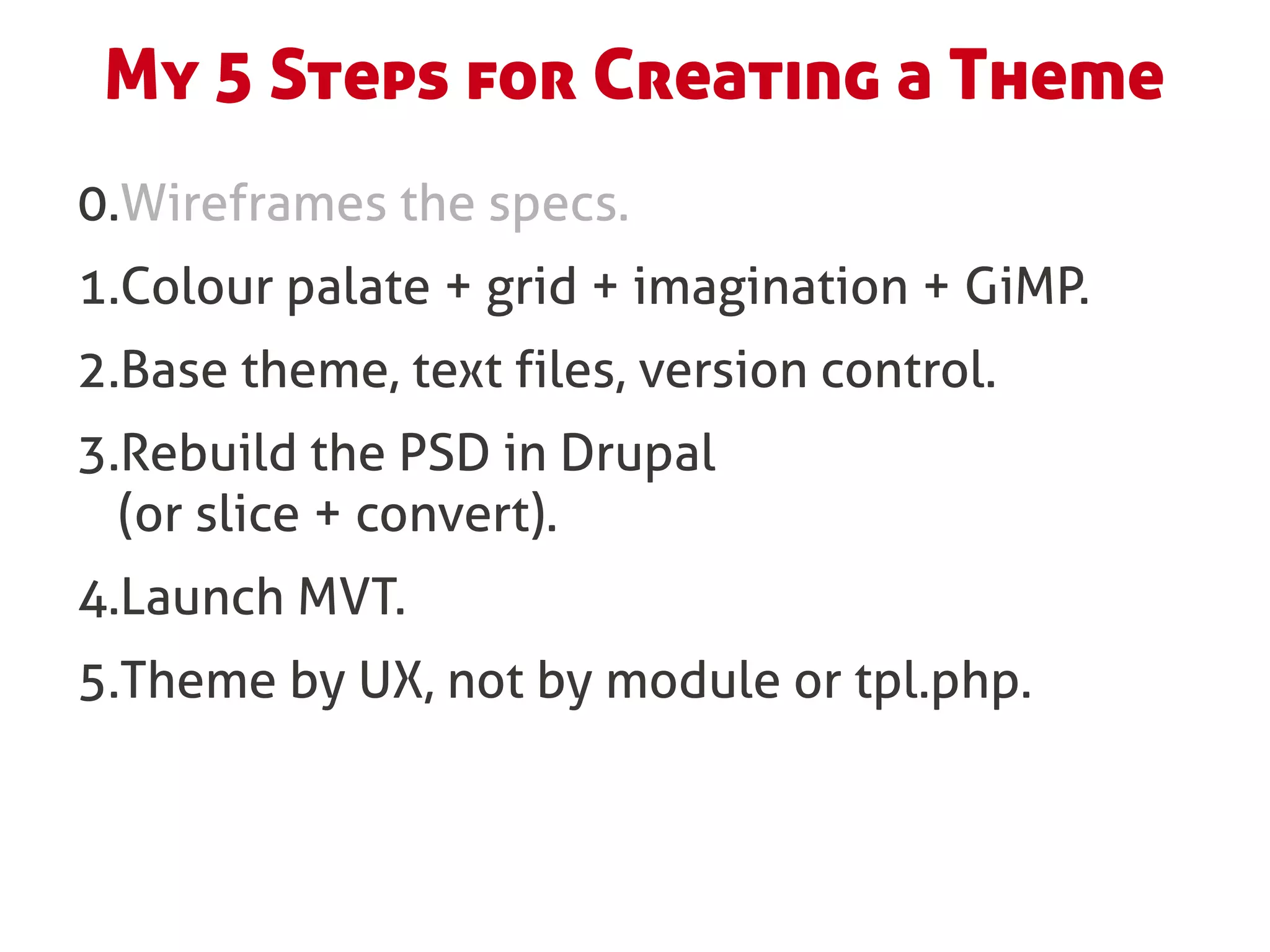

My 5 Steps for Creating a Theme
0.Wireframes the specs.
1.Colour palate + grid + imagination + GiMP.
2.Base theme, text files, version control.
3.Rebuild the PSD in Drupal
4.Launch MVT.
5.Theme by UX, not by module or tpl.php.

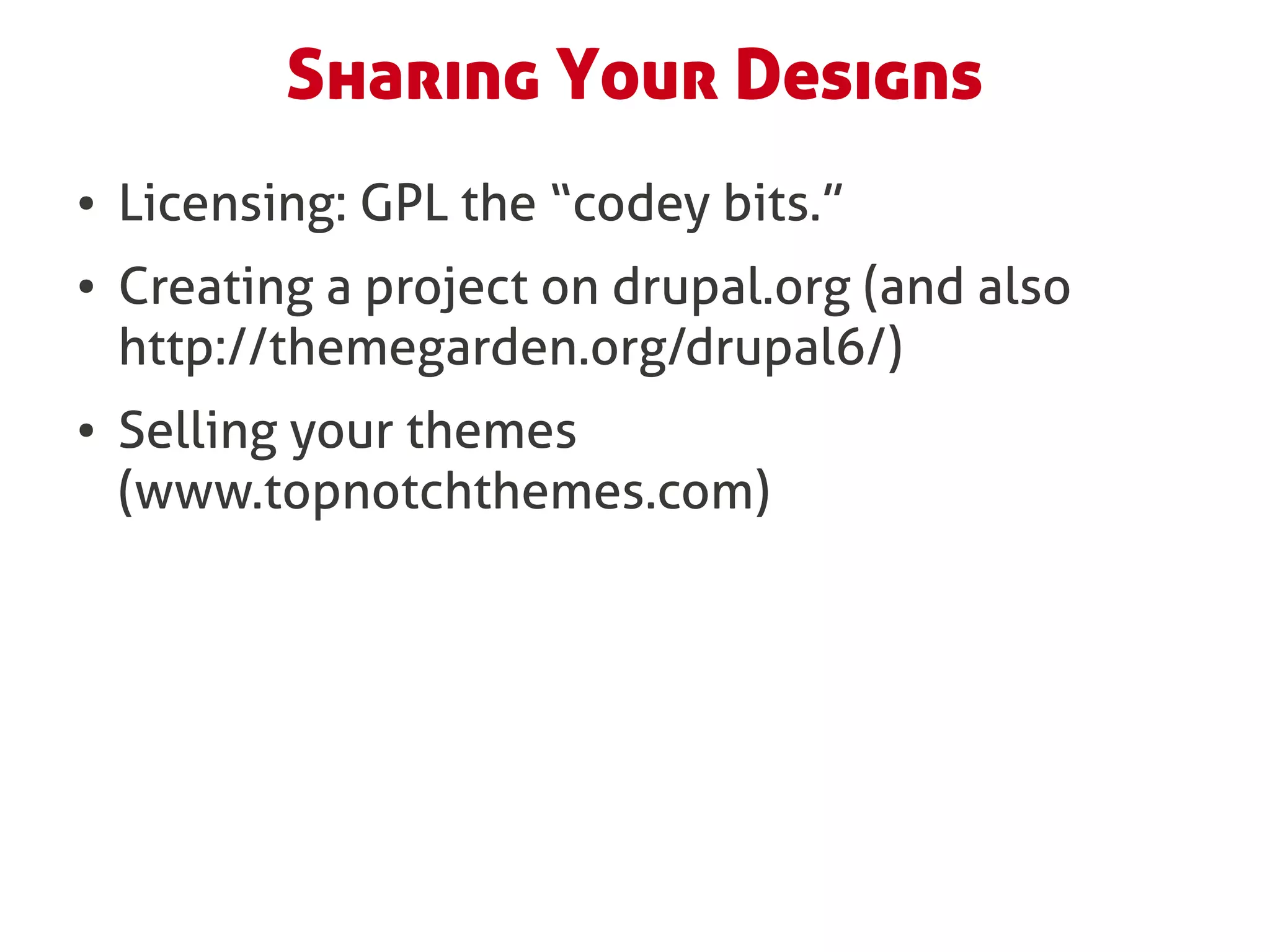

Sharing Your Designs
● Licensing: GPL the “codey bits.”
● Creating a project on drupal.org (and also
http://themegarden.org/drupal6/)
● Selling your themes
(www.topnotchthemes.com)

And that was...
Basically How You Theme Drupal
Emma Jane Hogbin
@emmajanedotnet
emma@designtotheme.com
www.designtotheme.com
Remind me I have one Balsamiq license to give away.
Also: online classes start next week.
