DES0239 7-18-14

.
Production Board
EP10xxA& EP20xxA 1.1 (DES0239)
User Manual
Developing Embedded Applications and Products
Utilizing FreescaleTM QorIQTM Integrated Multicore
Communication Processors

Production Board, EP20xxA
P700D0107R00
2

P700D0107R00
3
Copyright © 2014 Embedded Planet, Inc. All Rights Reserved.
This manual is copyrighted by Embedded Planet, Inc. No part of this
document may be copied or reproduced in any form or by any means
without the express written permission of Embedded Planet, Inc.
Embedded Planet, Inc., reserves the right to modify the information
contained herein as necessary. Embedded Planet assumes no
responsibility for any errors which may appear in this document.
Information in this document is provided solely to enable system and
software implementers to use Embedded Planet products.
This manual in whole or in part, is to be considered the intellectual
property of Embedded Planet. This document is intended for the sole
purpose of the owner of an Embedded Planet product. Neither the
document, nor reproductions of it, nor information derived from it is to
be given to others, nor used for any other purpose other than for
development of Embedded Planet computing engine applications, by
original, authorized owners of Embedded Planet products.
Embedded Planet, Linux Planet, Blue Planet, RPX LITE, and RPX LICC
are trademarks or registered trademarks of Embedded Planet.
AdvanceTCA and ATCA are registered trademarks of PCI Industrial
Computer Manufacturers Group (PICMG). AdvancedMC and
MicroTCA are trademarks of PICMG.
Freescale, QorIQ, PowerQUICC,and QUICC Engine are trademarks of
Freescale Semiconductor, Inc.
Copyright
Notice
Trademarks

P700D0107R00
4

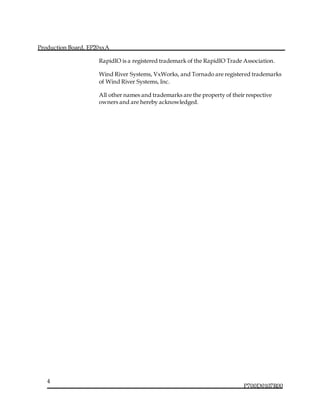

RapidIO is a registered trademark of the RapidIO Trade Association.
Wind River Systems, VxWorks, and Tornado are registered trademarks
of Wind River Systems, Inc.
All other names and trademarks are the property of their respective
owners and are hereby acknowledged.

P700D0107R00
5

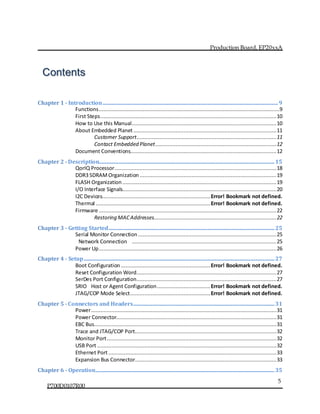

Chapter 1 - Introduction.....................................................................................................................................................9
Functions...................................................................................................................9
First Steps................................................................................................................10
How to Use this Manual............................................................................................10
About Embedded Planet ...........................................................................................11
Customer Support.........................................................................................11

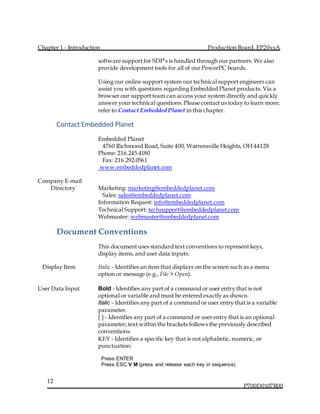

Contact Embedded Planet.............................................................................12
Document Conventions.............................................................................................12
Chapter 2 -Description.....................................................................................................................................................15
QorIQ Processor.......................................................................................................18

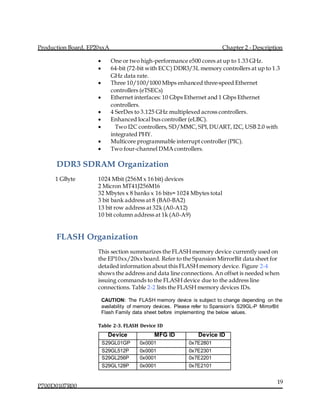

DDR3 SDRAMOrganization .......................................................................................19
FLASH Organization ..................................................................................................19

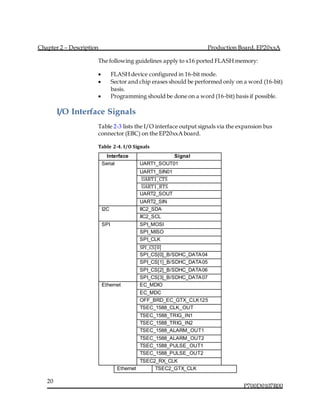

I/O Interface Signals..................................................................................................20
I2C Devices.....................................................................Error! Bookmark not defined.
Thermal .........................................................................Error! Bookmark not defined.
Firmware .................................................................................................................22

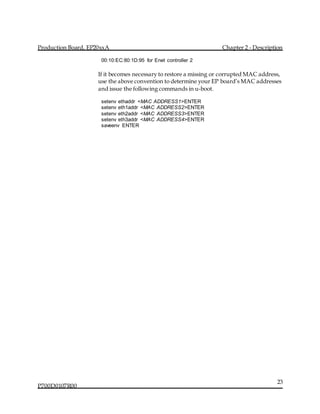

Restoring MACAddresses..............................................................................22

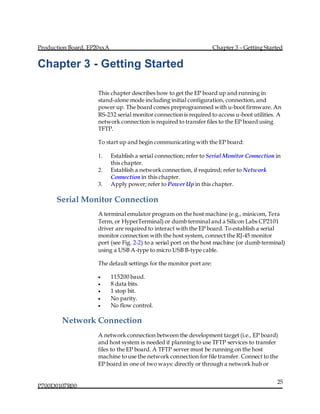

Chapter 3 - Getting Started.............................................................................................................................................25
Serial Monitor Connection ........................................................................................25
 Network Connection   ............................................................................................25

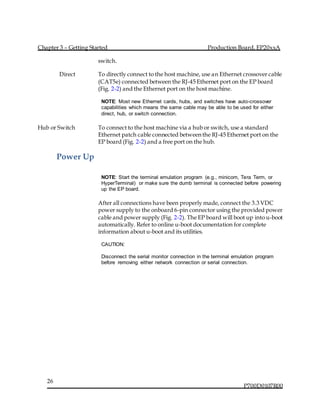

Power Up.................................................................................................................26
Chapter 4 - Setup..................................................................................................................................................................27
Boot Configuration .........................................................Error! Bookmark not defined.
Reset Configuration Word.........................................................................................27
SerDes Port Configuration.........................................................................................27
SRIO  Host or Agent Configuration..................................Error! Bookmark not defined.
JTAG/COP Mode Select...................................................Error! Bookmark not defined.

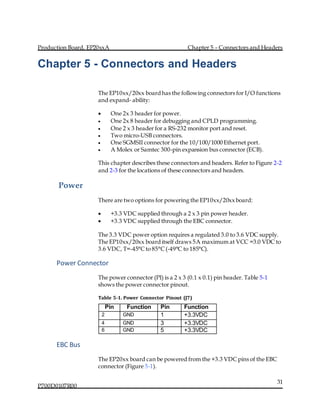

Chapter 5 -Connectors and Headers........................................................................................................................31
Power......................................................................................................................31
Power Connector......................................................................................................31
EBC Bus....................................................................................................................31
Trace and JTAG/COP Port..........................................................................................32
Monitor Port............................................................................................................32

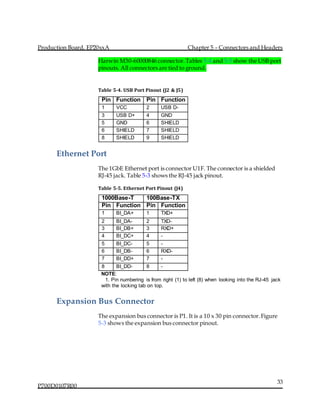

USB Port ..................................................................................................................32
Ethernet Port...........................................................................................................33
Expansion Bus Connector..........................................................................................33

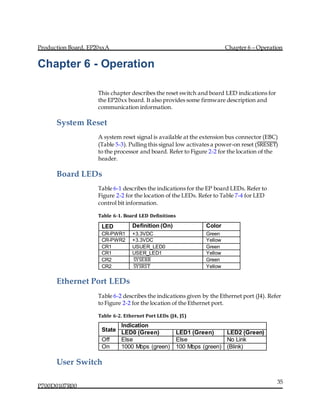

Chapter 6 - Operation........................................................................................................................................................35
Contents

P700D0107R00
6

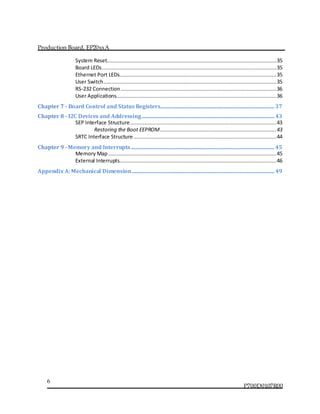

System Reset............................................................................................................35
Board LEDs...............................................................................................................35
Ethernet Port LEDs....................................................................................................35
User Switch..............................................................................................................35
RS-232 Connection ...................................................................................................36
User Applications......................................................................................................36

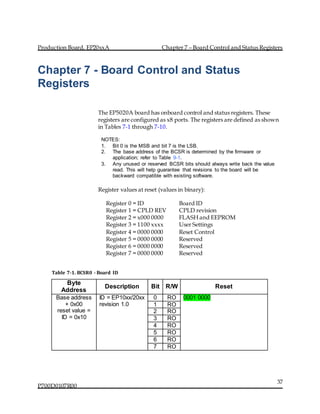

Chapter 7 - Board Control and Status Registers.................................................................................................37

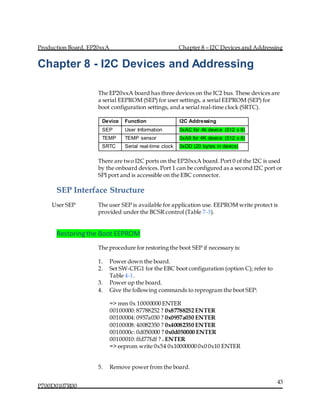

Chapter 8 - I2C Devices and Addressing.................................................................................................................43
SEP Interface Structure.............................................................................................43
Restoring the Boot EEPROM..........................................................................43

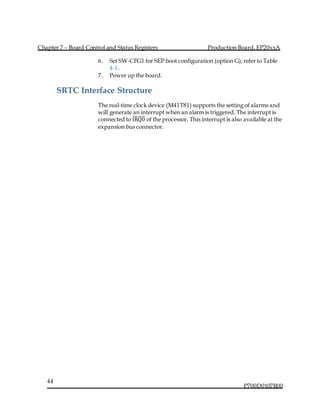

SRTC Interface Structure...........................................................................................44

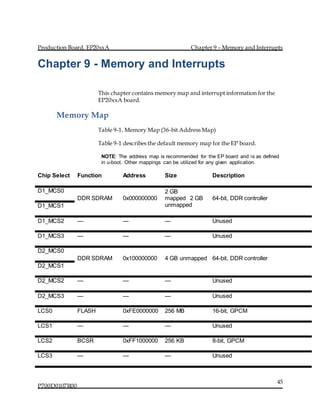

Chapter 9 -Memory and Interrupts..........................................................................................................................45
Memory Map ...........................................................................................................45

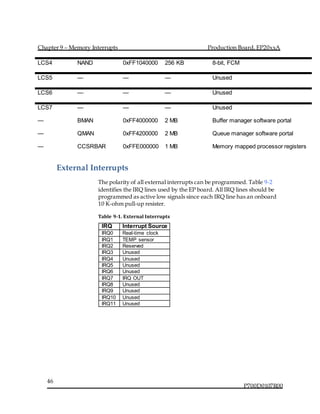

External Interrupts....................................................................................................46

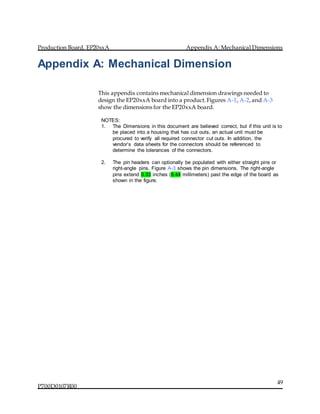

Appendix A:Mechanical Dimension.........................................................................................................................49

P700D0107R00
7

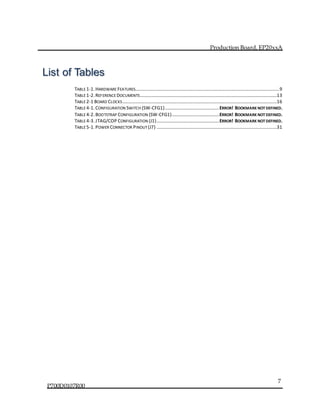

TABLE 1-1.HARDWARE FEATURES..........................................................................................................................9
TABLE 1-2.REFERENCE DOCUMENTS....................................................................................................................13
TABLE 2-1 BOARD CLOCKS...................................................................................................................................16
TABLE 4-1.CONFIGURATION SWITCH (SW-CFG1)..............................................ERROR! BOOKMARK NOTDEFINED.
TABLE 4-2.BOOTSTRAP CONFIGURATION (SW-CFG1)........................................ERROR! BOOKMARK NOTDEFINED.
TABLE4-3.JTAG/COP CONFIGURATION (J1).....................................................ERROR! BOOKMARK NOTDEFINED.
TABLE 5-1.POWER CONNECTOR PINOUT (J7) ......................................................................................................31
List of Tables

P700D0107R00
8

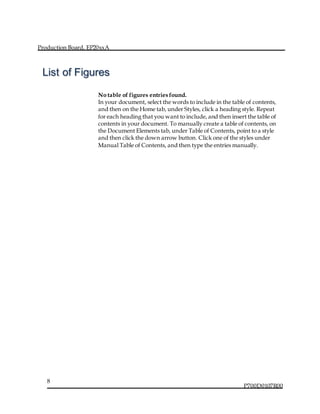

No table of figures entries found.
In your document, select the words to include in the table of contents,
and then on the Home tab, under Styles, click a heading style. Repeat
for each heading that you want to include, and then insert the table of
contents in your document. To manually create a table of contents, on
the Document Elements tab, under Table of Contents, point to a style
and then click the down arrow button. Click one of the styles under
Manual Table of Contents, and then type the entries manually.
List of Figures

Production Board, EP20xxA Chapter 1 – Introduction
P700D0107R00
9
Chapter 1 - Introduction
The EP10xx/EP20xx board is a highly integrated single-board computer
(SBC) based on one of six possible Freescale PowerPC 20xx or 10xx
processors. This EP board is a small form factor development board
with PCI-Express functionality.
Functions
The functions included on the EP board are listed in Table 1-1.
Table 1-1. Hardware Features
Entity Description
Form factor -EP custom form factor 56 X 90mm
(2.205’’ X 3.543’’)
-Fanless design
Processor PowerPC QorIQ P10xx or P20xx x64
depending on configuration (up to 1.33
GHz)
Memory Up to 1 GB x32 DDR3 SRAM@ 667MHz
or 800MHz depending on board
configuration, SODIMM1
NOR FLASH x16 up to 128 MB
MicroSD
Serial port (RJ-45) UART1, EBC RJ-45
Ethernet Onboard SGMII Ethernet via RJ45
connector
1 x 10/100/1000 BASE-T,Port0 EBC
connector via RGMII, disables above
Ethernet
GPIO Signals brought out to EBC bus
SerDes -4 SerDes lanes available via EBC
connector, and dependenton CPU for
available features:
-PCI ver.2.0 up to 2.5Gbps
-SRIO ver.? up to 3.125Gbps
-SGMII, Ethernet Controller
I2C Serial EEPROM – user/boot @ address
0xA0, 0xA2

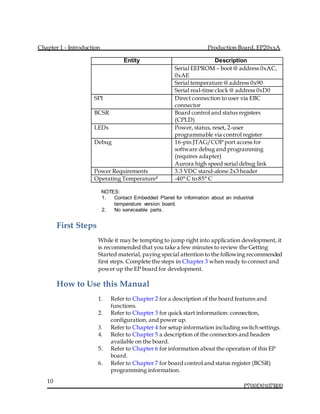

Chapter 1 - Introduction Production Board, EP20xxA
P700D0107R00
10
Entity Description
Serial EEPROM – boot @ address 0xAC,
0xAE
Serial temperature @ address 0x90
Serial real-time clock @ address 0xD0
SPI Direct connection to user via EBC
connector
BCSR Board control and status registers
(CPLD)
LEDs Power, status, reset, 2-user
programmable via control register
Debug 16-pin JTAG/COP port access for
software debug and programming
(requires adapter)
Aurora high speed serial debug link
Power Requirements 3.3 VDC stand-alone 2x3 header
Operating Temperature2
-40° C to 85° C
NOTES:
1. Contact Embedded Planet for information about an industrial
temperature version board.
2. No serviceable parts.
First Steps
While it may be tempting to jump right into application development, it
is recommended that you take a few minutes to review the Getting
Started material, paying special attention to the following recommended
first steps. Complete the steps in Chapter 3 when ready to connect and
power up the EP board for development.
How to Use this Manual
1. Refer to Chapter 2 for a description of the board features and
functions.
2. Refer to Chapter 3 for quick start information: connection,
configuration, and power up.
3. Refer to Chapter 4 for setup information including switch settings.
4. Refer to Chapter 5 a description of the connectors and headers
available on the board.
5. Refer to Chapter 6 for information about the operation of this EP
board.
6. Refer to Chapter 7 for board control and status register (BCSR)
programming information.

P700D0107R00
11

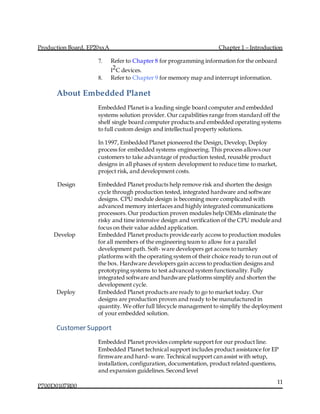

7. Refer to Chapter 8 for programming information for the onboard
I2C devices.
8. Refer to Chapter 9 for memory map and interrupt information.
About Embedded Planet
Embedded Planet is a leading single board computer and embedded
systems solution provider. Our capabilities range from standard off the
shelf single board computer products and embedded operating systems
to full custom design and intellectual property solutions.
In 1997, Embedded Planet pioneered the Design, Develop, Deploy
process for embedded systems engineering. This process allows our
customers to take advantage of production tested, reusable product
designs in all phases of system development to reduce time to market,
project risk, and development costs.
Design Embedded Planet products help remove risk and shorten the design
cycle through production tested, integrated hardware and software
designs. CPU module design is becoming more complicated with
advanced memory interfaces and highly integrated communications
processors. Our production proven modules help OEMs eliminate the
risky and time intensive design and verification of the CPU module and
focus on their value added application.
Develop Embedded Planet products provide early access to production modules
for all members of the engineering team to allow for a parallel
development path. Soft- ware developers get access to turnkey
platforms with the operating system of their choice ready to run out of
the box. Hardware developers gain access to production designs and
prototyping systems to test advanced system functionality. Fully
integrated software and hardware platforms simplify and shorten the
development cycle.
Deploy Embedded Planet products are ready to go to market today. Our
designs are production proven and ready to be manufactured in
quantity. We offer full lifecycle management to simplify the deployment
of your embedded solution.
Customer Support
Embedded Planet provides complete support for our product line.
Embedded Planet technical support includes product assistance for EP
firmware and hardware. Technical support can assist with setup,
installation, configuration, documentation, product related questions,
and expansion guidelines. Second level

Chapter 1 - Introduction Production Board, EP20xxA
P700D0107R00
12
software support for SDP’s is handled through our partners. We also
provide development tools for all of our PowerPC boards.
Using our online support system our technical support engineers can
assist you with questions regarding Embedded Planet products. Via a
browser our support team can access your system directly and quickly
answer your technical questions. Please contact us today to learn more;
refer to Contact Embedded Planet in this chapter.
Contact Embedded Planet
Embedded Planet
  4760 Richmond Road, Suite 400, Warrensville Heights, OH 44128
Phone: 216.245.4180
  Fax: 216.292.0561
www.embeddedplanet.com
Company E-mail
Directory Marketing: marketing@embeddedplanet.com
  Sales: sales@embeddedplanet.com 
Information Request: info@embeddedplanet.com
Technical Support: techsupport@embeddedplanet.com
Webmaster: webmaster@embeddedplanet.com
Document Conventions
This document uses standard text conventions to represent keys,
display items, and user data inputs:
Display Item Italic - Identifies an item that displays on the screen such as a menu
option or message (e.g., File > Open).
User Data Input Bold - Identifies any part of a command or user entry that is not
optional or variable and must be entered exactly as shown.
Italic - Identifies any part of a command or user entry that is a variable
parameter.
[ ] - Identifies any part of a command or user entry that is an optional
parameter; text within the brackets follows the previously described
conventions. 
KEY - Identifies a specific key that is not alphabetic, numeric, or
punctuation:
Press ENTER 
Press ESC V M (press and release each key in sequence)

P700D0107R00
13
  Press CTRL-ALT-DEL (press all keys in sequence simultaneously).
File Name Name - Indicates a file or directory name. Example:
file.h
/bin
Table 1-2 lists reference documents for the board.
Table 1-2. Reference Documents
Document Number Description
P700D0107R00 EP10xx/20xx User Manual
EREF_RM EREF_RM, EREF: A Programmer’s Reference
Manual for Freescale Power Architecture
Processors – Reference Manual
P1011EC P1011 QorIQ Integrated Processor Hardware
Specifications – Data Sheets
P1011RM P1011 QorIQ Integrated Processor Reference
Manual
Manual
Manual
Manual
Reference Documents

Production Board, EP20xxA Chapter 2 - Description
P700D0107R00
15
Chapter 2 - Description
This chapter provides some description of the EP10xxA/P20xxA board
features including the QorIQ processor, external interfaces, and u-boot
firmware. Figure 2-1 is a simplified block diagram of the EP board.
Figure 2-2 shows the top view of the board layout. This figure shows the
headers unpopulated (i.e., without pins or connectors).
Processor Refer to QorIQ Processor in this chapter.
Table 2-1. Clock subsystem block diagram

Chapter 2 – Description Production Board, EP20xxA
P700D0107R00
16

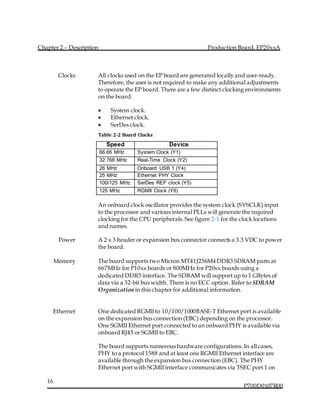

Clocks All clocks used on the EP board are generated locally and user-ready.
Therefore, the user is not required to make any additional adjustments
to operate the EP board. There are a few distinct clocking environments
on the board:
 System clock.
 Ethernet clock.
 SerDes clock.
Table 2-2 Board Clocks
Speed Device
66.66 MHz System Clock (Y1)
32.768 MHz Real-Time Clock (Y2)
26 MHz Onboard USB 1 (Y4)
25 MHz Ethernet PHY Clock
100/125 MHz SerDes REF clock (Y5)
125 MHz RGMII Clock (Y6)
An onboard clock oscillator provides the system clock (SYSCLK) input
to the processor and various internal PLLs will generate the required
clocking for the CPU peripherals. See figure 2-1 for the clock locations
and names.
Power A 2 x 3 header or expansion bus connector connects a 3.3 VDC to power
the board.
Memory The board supports two Micron MT41J256M4 DDR3 SDRAM parts at
667MHz for P10xx boards or 800MHz for P20xx boards using a
dedicated DDR3 interface. The SDRAM will support up to 1 GBytes of
data via a 32-bit bus width. There is no ECC option. Refer to SDRAM
Organization in this chapter for additional information.
Ethernet One dedicated RGMll to 10/100/1000BASE-T Ethernet port is available
on the expansion bus connection (EBC) depending on the processor.
One SGMII Ethernet port connected to an onboard PHY is available via
onboard RJ45 or SGMII to EBC.
The board supports numerous hardware configurations. In all cases,
PHY to a protocol 1588 and at least one RGMII Ethernet interface are
available through the expansion bus connection (EBC). The PHY
Ethernet port with SGMII interface communicates via TSEC port 1 on

P700D0107R00
17

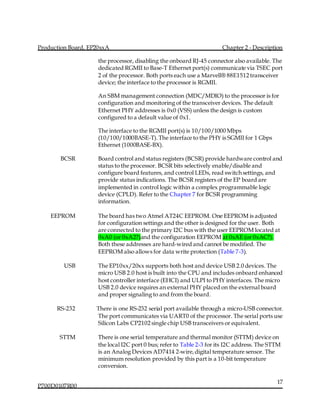

the processor, disabling the onboard RJ-45 connector also available. The
dedicated RGMII to Base-T Ethernet port(s) communicate via TSEC port
2 of the processor. Both ports each use a Marvell® 88E1512 transceiver
device; the interface to the processor is RGMII.
An SBM management connection (MDC/MDIO) to the processor is for
configuration and monitoring of the transceiver devices. The default
Ethernet PHY addresses is 0x0 (VSS) unless the design is custom
configured to a default value of 0x1.
The interface to the RGMII port(s) is 10/100/1000 Mbps
(10/100/1000BASE-T).The interface to the PHY is SGMII for 1 Gbps
Ethernet (1000BASE-BX).
BCSR Board control and status registers (BCSR) provide hardware control and
status to the processor. BCSR bits selectively enable/disable and
configure board features, and control LEDs, read switch settings, and
provide status indications. The BCSR registers of the EP board are
implemented in control logic within a complex programmable logic
device (CPLD). Refer to the Chapter 7 for BCSR programming
information.
EEPROM The board has two Atmel AT24C EEPROM. One EEPROM is adjusted
for configuration settings and the other is designed for the user. Both
are connected to the primary I2C bus with the user EEPROM located at
0xA0 (or 0xA2?)and the configuration EEPROM at 0xAE (or 0xAC?).
Both these addresses are hard-wired and cannot be modified. The
EEPROM also allows for data write protection (Table 7-3).
USB The EP10xx/20xx supports both host and device USB 2.0 devices. The
micro USB 2.0 host is built into the CPU and includes onboard enhanced
host controller interface (EHCI) and ULPI to PHY interfaces. The micro
USB 2.0 device requires an external PHY placed on the external board
and proper signaling to and from the board.
RS-232 There is one RS-232 serial port available through a micro-USB connector.
The port communicates via UART0 of the processor. The serial ports use
Silicon Labs CP2102 single chip USB transceivers or equivalent.
STTM There is one serial temperature and thermal monitor (STTM) device on
the local I2C port 0 bus; refer to Table 2-3 for its I2C address. The STTM
is an Analog Devices AD7414 2-wire,digital temperature sensor. The
minimum resolution provided by this part is a 10-bit temperature
conversion.

P700D0107R00
18

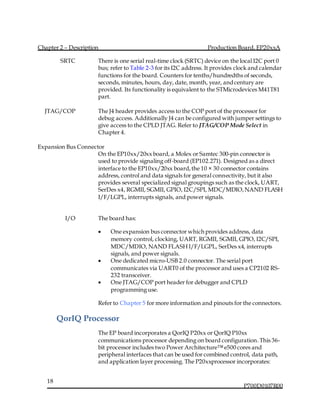

SRTC There is one serial real-time clock (SRTC) device on the local I2C port 0
bus; refer to Table 2-3 for its I2C address. It provides clock and calendar
functions for the board. Counters for tenths/hundredths of seconds,
seconds, minutes, hours, day, date, month, year, andcentury are
provided. Its functionality is equivalent to the STMicrodevices M41T81
part.
JTAG/COP The J4 header provides access to the COP port of the processor for
debug access. Additionally J4 can be configured with jumper settings to
give access to the CPLD JTAG. Refer to JTAG/COP Mode Select in
Chapter 4.
Expansion Bus Connector
On the EP10xx/20xx board, a Molex or Samtec 300-pin connector is
used to provide signaling off-board (EP102.271). Designed as a direct
interface to the EP10xx/20xx board,the 10 × 30 connector contains
address, control and data signals for general connectivity, but it also
provides several specialized signal groupings such as the clock, UART,
SerDes x4, RGMII, SGMII, GPIO, I2C/SPI, MDC/MDIO,NAND FLASH
I/F/LGPL, interrupts signals, and power signals.
I/O The board has:
 One expansion bus connector which provides address, data
memory control, clocking, UART, RGMII, SGMII, GPIO, I2C/SPI,
MDC/MDIO, NAND FLASH I/F/LGPL, SerDes x4, interrupts
signals, and power signals.
 One dedicated micro-USB 2.0 connector. The serial port
communicates via UART0 of the processor and uses a CP2102 RS-
232 transceiver.
 One JTAG/COP port header for debugger and CPLD
programming use.
Refer to Chapter 5 for more information and pinouts for the connectors.
QorIQ Processor
The EP board incorporates a QorIQ P20xx or QorIQ P10xx
communications processor depending on board configuration.This 36-
bit processor includes two Power Architecture™ e500 cores and
peripheral interfaces that can be used for combined control, data path,
and application layer processing. The P20xxprocessor incorporates:

P700D0107R00
19
 One or two high-performance e500 cores at up to 1.33 GHz.
 64-bit (72-bit with ECC) DDR3/3L memory controllers at up to 1.3
GHz data rate.
 Three 10/100/1000 Mbps enhanced three-speed Ethernet
controllers (eTSECs)
 Ethernet interfaces: 10 Gbps Ethernet and 1 Gbps Ethernet
controllers.
 4 SerDes to 3.125 GHz multiplexed across controllers.
 Enhanced local bus controller (eLBC).
   Two I2C controllers, SD/MMC, SPI,DUART, I2C, USB 2.0 with
integrated PHY.
 Multicore programmable interrupt controller (PIC).
 Two four-channel DMA controllers.
DDR3 SDRAM Organization
1 GByte 1024 Mbit (256M x 16 bit) devices
2 Micron MT41J256M16
32 Mbytes x 8 banks x 16 bits= 1024 Mbytes total
3 bit bank address at 8 (BA0-BA2)
13 bit row address at 32k (A0-A12)
10 bit column address at 1k (A0-A9)
FLASH Organization
This section summarizes the FLASH memory device currently used on
the EP10xx/20xx board. Refer to the Spansion MirrorBit data sheet for
detailed information about this FLASH memory device. Figure 2-4
shows the address and data line connections. An offset is needed when
issuing commands to the FLASH device due to the address line
connections. Table 2-2 lists the FLASH memory devices IDs.
CAUTION: The FLASH memory device is subject to change depending on the
availability of memory devices. Please refer to Spansion’s S29GL-P MirrorBit
Flash Family data sheet before implementing the below values.
Table 2-3. FLASH Device ID
Device MFG ID Device ID
S29GL01GP 0x0001 0x7E2801
S29GL512P 0x0001 0x7E2301
S29GL256P 0x0001 0x7E2201
S29GL128P 0x0001 0x7E2101

P700D0107R00
20
The following guidelines apply to x16 ported FLASH memory:
 FLASH device configured in 16-bit mode.
 Sector and chip erases should be performed only on a word (16-bit)
basis.
 Programming should be done on a word (16-bit) basis if possible.
I/O Interface Signals

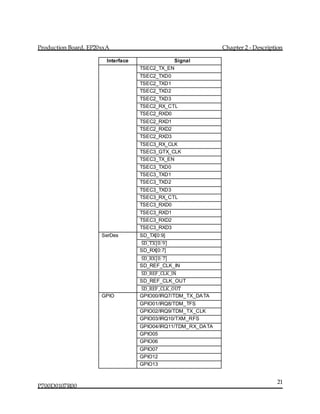

Table 2-3 lists the I/O interface output signals via the expansion bus
connector (EBC) on the EP20xxA board.
Table 2-4. I/O Signals
Interface Signal
Serial UART1_SOUT01
UART1_SIN01
UART1_CTS̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅
UART1_RTS̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅
UART2_SOUT
UART2_SIN
I2C IIC2_SDA
IIC2_SCL
SPI SPI_MOSI
SPI_MISO
SPI_CLK
SPI_CS[0]̅̅̅̅̅̅̅̅̅̅̅̅
SPI_CS[0]_B/SDHC_DATA04
Ethernet EC_MDIO
EC_MDC
OFF_BRD_EC_GTX_CLK125
TSEC_1588_CLK_OUT
TSEC_1588_TRIG_IN1
TSEC_1588_TRIG_IN2
TSEC_1588_ALARM_OUT1
TSEC_1588_ALARM_OUT2
TSEC_1588_PULSE_OUT1
TSEC_1588_PULSE_OUT2
TSEC2_RX_CLK
Ethernet TSEC2_GTX_CLK

P700D0107R00
21
Interface Signal
TSEC2_TX_EN
TSEC2_TXD0
TSEC2_TXD1
TSEC2_TXD2
TSEC2_TXD3
TSEC2_RX_CTL
TSEC2_RXD0
TSEC2_RXD1
TSEC2_RXD2
TSEC2_RXD3
TSEC3_RX_CLK
TSEC3_GTX_CLK
TSEC3_TX_EN
TSEC3_TXD0
TSEC3_TXD1
TSEC3_TXD2
TSEC3_TXD3
TSEC3_RX_CTL
TSEC3_RXD0
TSEC3_RXD1
TSEC3_RXD2
TSEC3_RXD3
SerDes SD_TX[0:9]
SD_TX[0:9]̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅
SD_RX[0:7]
SD_RX[0: 7]̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅
SD_REF_CLK_IN
SD_REF_CLK_IN̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅
SD_REF_CLK_OUT
SD_REF_CLK_OUT̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅̅
GPIO GPIO00/IRQ7/TDM_TX_DATA
GPIO01/IRQ8/TDM_TFS
GPIO02/IRQ9/TDM_TX_CLK
GPIO03/IRQ10/TXM_RFS
GPIO04/IRQ11/TDM_RX_DATA
GPIO05
GPIO06
GPIO07
GPIO12
GPIO13

P700D0107R00
22

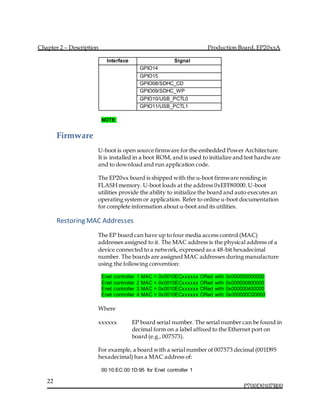

Interface Signal
GPIO14
GPIO15
GPIO08/SDHC_CD
GPIO09/SDHC_WP
GPIO10/USB_PCTL0
GPIO11/USB_PCTL1
NOTE:
Firmware
U-boot is open source firmware for the embedded Power Architecture.
It is installed in a boot ROM, and is used to initialize and test hardware
and to download and run application code.  
The EP20xx board is shipped with the u-boot firmware residing in
FLASH memory. U-boot loads at the address 0xEFF80000.U-boot
utilities provide the ability to initialize the board and auto executes an
operating system or application. Refer to online u-boot documentation
for complete information about u-boot and its utilities.
Restoring MAC Addresses
The EP board can have up to four media access control (MAC)
addresses assigned to it. The MAC address is the physical address of a
device connected to a network, expressed as a 48-bit hexadecimal
number. The boards are assigned MAC addresses during manufacture
using the following convention:
Enet controller 1 MAC = 0x0010ECxxxxxx ORed with 0x000000000000
Enet controller 4 MAC = 0x0010ECxxxxxx ORed with 0x000000C00000
Where
xxxxxx EP board serial number. The serial number can be found in
decimal form on a label affixed to the Ethernet port on
board (e.g., 007573).
For example, a board with a serial number of 007573 decimal (001D95
hexadecimal) has a MAC address of:
00:10:EC:00:1D:95 for Enet controller 1

P700D0107R00
23
00:10:EC:80:1D:95 for Enet controller 2
If it becomes necessary to restore a missing or corrupted MAC address,
use the above convention to determine your EP board’s MAC addresses
and issue the following commands in u-boot.
setenv ethaddr <MAC ADDRESS1>ENTER
setenv eth1addr <MAC ADDRESS2>ENTER
saveenv ENTER

Production Board, EP20xxA Chapter 3 – Getting Started
P700D0107R00
25
Chapter 3 - Getting Started
This chapter describes how to get the EP board up and running in
stand-alone mode including initial configuration, connection,and
power up. The board comes preprogrammed with u-boot firmware. An
RS-232 serial monitor connection is required to access u-boot utilities. A
network connection is required to transfer files to the EP board using
TFTP.
To start up and begin communicating with the EP board:
1. Establish a serial connection; refer to Serial Monitor Connection in
this chapter.
2. Establish a network connection, if required; refer to Network
Connection in this chapter.
3. Apply power; refer to Power Up in this chapter.
Serial Monitor Connection
A terminal emulator program on the host machine (e.g., minicom, Tera
Term, or HyperTerminal) or dumb terminal and a Silicon Labs CP2101
driver are required to interact with the EP board. To establish a serial
monitor connection with the host system, connect the RJ-45 monitor
port (see Fig. 2-2) to a serial port on the host machine (or dumb terminal)
using a USB A-type to micro USB B-type cable.
The default settings for the monitor port are:
 115200 baud.
 8 data bits.
 1 stop bit.
 No parity.
 No flow control.
  Network Connection  
A network connection between the development target (i.e., EP board)
and host system is needed if planning to use TFTP services to transfer
files to the EP board. A TFTP server must be running on the host
machine to use the network connection for file transfer. Connect to the
EP board in one of two ways: directly or through a network hub or

Chapter 3 – Getting Started Production Board, EP20xxA
P700D0107R00
26
switch.
Direct To directly connect to the host machine, use an Ethernet crossover cable
(CAT5e) connected between the RJ-45 Ethernet port on the EP board
(Fig. 2-2) and the Ethernet port on the host machine.
NOTE: Most new Ethernet cards, hubs, and switches have auto-crossover
capabilities which means the same cable may be able to be used for either
direct, hub, or switch connection.
Hub or Switch To connect to the host machine via a hub or switch, use a standard
Ethernet patch cable connected between the RJ-45 Ethernet port on the
EP board (Fig. 2-2) and a free port on the hub.
Power Up
NOTE: Start the terminal emulation program (e.g., minicom, Tera Term, or
HyperTerminal) or make sure the dumb terminal is connected before powering
up the EP board.
After all connections have been properly made, connect the 3.3 VDC
power supply to the onboard 6-pin connector using the provided power
cable and power supply (Fig. 2-2). The EP board will boot up into u-boot
automatically. Refer to online u-boot documentation for complete
information about u-boot and its utilities.
CAUTION:
Disconnect the serial monitor connection in the terminal emulation program
before removing either network connection or serial connection.

Production Board, EP20xxA Chapter 4 - Setup
P700D0107R00
27
Chapter 4 - Setup
This chapter describes the various configuration options that setup the
EP10xx/20xx board for operation.
Reset Configuration Word
For the P10xx/20xx processor, a reset configuration word (RCW)
configures many of the processor features. The RCW is a 512 bit long
word that is factory set; it is read from external memory. The default
location for the RCW is in the first sector of NOR FLASH. Additionally,
the EP board supports using an I2C EEPROM as the RCW source.
Refer to the P10xx/20xx Reference Manual for additional information
about the RCW and the RCW fields.
SerDes Port Configuration
For the P10xx/P20xx processor, SerDes lane configuration is factory set.
The EP board ships with an RCW residing in NOR FLASH that matches
the build option for the board. Table 2-2 shows the SerDes configuration
options supported, and the SerDes protocol for that configuration.
Refer to the P10xx/P20xx Reference Manual for additional information
about the SerDes protocol options.GET RID OF?

Chapter 4 - Setup Production Board, EP20xxA
P700D0107R00
28

Production Board, EP20xxA Chapter 4 - Setup
P700D0107R00
29

Production Board, EP20xxA Chapter 5 – Connectors and Headers
P700D0107R00
31
Chapter 5 - Connectors and Headers
The EP10xx/20xx boardhas the following connectors for I/O functions
and expand- ability:
 One 2x 3 header for power.
 One 2x 8 header for debugging and CPLD programming.
 One 2 x 3 header for a RS-232 monitor port and reset.
 Two micro-USB connectors.
 One SGMSII connector for the 10/100/1000 Ethernet port.
 A Molex or Samtec 300-pin expansion bus connector (ECB).
This chapter describes these connectors and headers. Refer to Figure 2-2
and 2-3 for the locations of these connectors and headers.
Power
There are two options for powering the EP10xx/20xx board:
 +3.3 VDC supplied through a 2 x 3 pin power header.
 +3.3 VDC supplied through the EBC connector.
The 3.3 VDC power option requires a regulated 3.0 to 3.6 VDC supply.
The EP10xx/20xx boarditself draws 5A maximum at VCC =3.0 VDC to
3.6 VDC, T=-45°C to 85°C (-49°C to 185°C).
Power Connector
The power connector (PI) is a 2 x 3 (0.1 x 0.1) pin header. Table 5-1
shows the power connector pinout.
Table 5-1. Power Connector Pinout (J7)
Pin Function Pin Function
2 GND 1 +3.3VDC
4 GND 3 +3.3VDC
6 GND 5 +3.3VDC
EBC Bus
The EP20xx board can be powered from the +3.3 VDC pins of the EBC
connector (Figure 5-1).

Chapter 5 – Connectors and Headers Production Board, EP20xxA
P700D0107R00
32

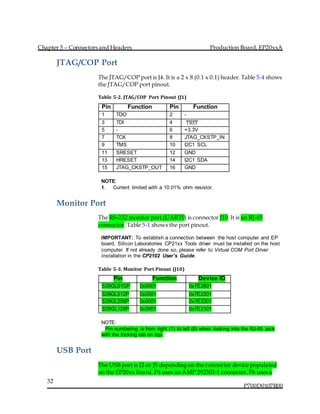

JTAG/COP Port
The JTAG/COP port is J4. It is a 2 x 8 (0.1 x 0.1) header. Table 5-4 shows
the JTAG/COP port pinout.
Table 5-2. JTAG/COP Port Pinout (J1)
1 TDO 2 -
3 TDI 4 TRST̅̅̅̅̅̅̅
5 - 6 +3.3V
7 TCK 8 JTAG_CKSTP_IN
9 TMS 10 I2C1 SCL
11 SRESET 12 GND
13 HRESET 14 I2C1 SDA
15 JTAG_CKSTP_OUT 16 GND
NOTE:
1. Current limited with a 10.01% ohm resistor.
Monitor Port
The RS-232 monitor port (UART0) is connector J10. It is an RJ-45
connector. Table 5-1 shows the port pinout.
IMPORTANT: To establish a connection between the host computer and EP
board, Silicon Laboratories CP21xx Tools driver must be installed on the host
computer. If not already done so, please refer to Virtual COM Port Driver
Installation in the CP2102 User’s Guide.
Table 5-3. Monitor Port Pinout (J10)
Pin Function Device ID
S29GL01GP 0x0001 0x7E2801
S29GL512P 0x0001 0x7E2301
S29GL256P 0x0001 0x7E2201
S29GL128P 0x0001 0x7E2101
NOTE:
  Pin numbering is from right (1) to left (8) when looking into the RJ-45 jack
with the locking tab on top.
USB Port
The USB port is J2 or J5 depending on the connector device populated
on the EP20xx board. P4 uses an AMP 292303-1 connector. P6 uses a

Production Board, EP20xxA Chapter 5 – Connectors and Headers
P700D0107R00
33
Harwin M30-60000846 connector.Tables 5-4 and 5-5 show the USB port
pinouts. All connectors are tied to ground.
Table 5-4. USB Port Pinout (J2 & J5)
1 VCC 2 USB D-
3 USB D+ 4 GND
5 GND 6 SHIELD
6 SHIELD 7 SHIELD
8 SHIELD 9 SHIELD
Ethernet Port
The 1GbE Ethernet port is connector U1F. The connector is a shielded
RJ-45 jack. Table 5-3 shows the RJ-45 jack pinout.
Table 5-5. Ethernet Port Pinout (J4)
1000Base-T 100Base-TX
1 BI_DA+ 1 TXD+
2 BI_DA- 2 TXD-
3 BI_DB+ 3 RXD+
4 BI_DC+ 4 -
5 BI_DC- 5 -
6 BI_DB- 6 RXD-
7 BI_DD+ 7 -
8 BI_DD- 8 -
NOTE:
  1. Pin numbering is from right (1) to left (8) when looking into the RJ-45 jack
with the locking tab on top.
Expansion Bus Connector
The expansion bus connector is P1. It is a 10 x 30 pin connector.Figure
5-3 shows the expansion bus connector pinout.

Chapter 5 – Connectors and Headers Production Board, EP20xxA
P700D0107R00
34

Production Board, EP20xxA Chapter 6 – Operation
P700D0107R00
35
Chapter 6 - Operation
This chapter describes the reset switch and board LED indications for
the EP20xx board. It also provides some firmware description and
communication information.
System Reset
A system reset signal is available at the extension bus connector (EBC)
(Table 5-3). Pulling this signal low activates a power-on reset (SRESET̅̅̅̅̅̅̅̅̅̅)
to the processor and board. Refer to Figure 2-2 for the location of the
header.
Board LEDs
Table 6-1 describes the indications for the EP board LEDs. Refer to
Figure 2-2 for the location of the LEDs. Refer to Table 7-4 for LED
control bit information.
Table 6-1. Board LED Definitions
LED Definition (On) Color
CR-PWR1 +3.3VDC Green
CR-PWR2 +3.3VDC Yellow
CR1 USUER_LED0 Green
CR1 USER_LED1 Yellow
CR2 SYSERR̅̅̅̅̅̅̅̅̅̅ Green
CR2 SYSRST̅̅̅̅̅̅̅̅̅̅ Yellow
Ethernet Port LEDs
Table 6-2 describes the indications given by the Ethernet port (J4). Refer
to Figure 2-2 for the location of the Ethernet port.
Table 6-2. Ethernet Port LEDs (J4, J5)
State
Indication
LED0 (Green) LED1 (Green) LED2 (Green)
Off Else Else No Link
On 1000 Mbps (green) 100 Mbps (green) (Blink)
User Switch

Chapter 6 – Operation Production Board, EP20xxA
P700D0107R00
36

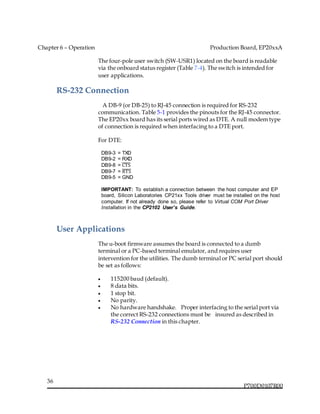

The four-pole user switch (SW-USR1) located on the board is readable
via the onboard status register (Table 7-4). The switch is intended for
user applications.
RS-232 Connection
  A DB-9 (or DB-25) to RJ-45 connection is required for RS-232
communication. Table 5-1 provides the pinouts for the RJ-45 connector.
The EP20xx board has its serial ports wired as DTE. A null modem type
of connection is required when interfacing to a DTE port.
For DTE:
DB9-3 = TXD
DB9-2 = RXD
DB9-8 = CTS̅̅̅̅̅
DB9-7 = RTS̅̅̅̅̅
DB9-5 = GND
IMPORTANT: To establish a connection between the host computer and EP
board, Silicon Laboratories CP21xx Tools driver must be installed on the host
computer. If not already done so, please refer to Virtual COM Port Driver
Installation in the CP2102 User’s Guide.
User Applications
The u-boot firmware assumes the board is connected to a dumb
terminal or a PC-based terminal emulator, and requires user
intervention for the utilities. The dumb terminal or PC serial port should
be set as follows:
 115200 baud (default).
 8 data bits.
 1 stop bit.
 No parity.
 No hardware handshake.  Proper interfacing to the serial port via
the correct RS-232 connections must be   insured as described in
RS-232 Connection in this chapter.

Production Board, EP20xxA Chapter 7 – Board Control and Status Registers
P700D0107R00
37
Chapter 7 - Board Control and Status
Registers
The EP5020A board has onboard control and status registers. These
registers are configured as x8 ports. The registers are defined as shown
in Tables 7-1 through 7-10.
NOTES:
1. Bit 0 is the MSB and bit 7 is the LSB.
2. The base address of the BCSR is determined by the firmware or
application; refer to Table 9-1.
3. Any unused or reserved BCSR bits should always write back the value
read. This will help guarantee that revisions to the board will be
backward compatible with existing software.
Register values at reset (values in binary):
Register 0 = ID Board ID
Register 1 = CPLD REV CPLD revision
Register 2 = x000 0000 FLASH and EEPROM
Register 3 = 1100 xxxx User Settings
Register 4 = 0000 0000 Reset Control
Register 5 = 0000 0000 Reserved
Table 7-1. BCSR0 - Board ID
Byte
Address
Description Bit R/W Reset
Base address
+ 0x00
reset value =
ID = 0x10
ID = EP10xx/20xx
revision 1.0
0 RO 0001 0000
1 RO
2 RO
3 RO
4 RO
5 RO
6 RO
7 RO

Chapter 7 – Board Control and Status Registers Production Board, EP20xxA
P700D0107R00
38

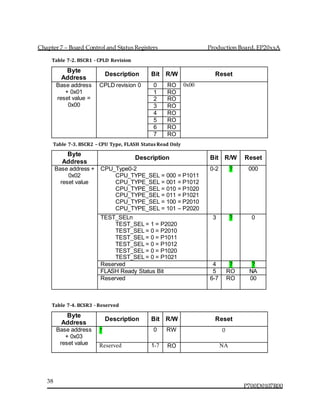

Table 7-2. BSCR1 - CPLD Revision
Byte
Address
Base address
+ 0x01
reset value =
0x00
CPLD revision 0 0 RO 0x00
1 RO
2 RO
3 RO
4 RO
5 RO
6 RO
7 RO
Table 7-3. BSCR2 – CPU Type, FLASH Status Read Only
Byte
Address
Base address +
0x02
reset value
CPU_Type0-2
CPU_TYPE_SEL = 000 = P1011
CPU_TYPE_SEL = 101 – P2020
0-2 ? 000
TEST_SELn
TEST_SEL = 1 = P2020
3 ? 0
Reserved 4 ? ?
FLASH Ready Status Bit 5 RO NA
Reserved 6-7 RO 00
Table 7-4. BCSR3 - Reserved
Byte
Address
Base address
+ 0x03
reset value
? 0 RW 0
Reserved 1-7 RO NA

P700D0107R00
39
Table 7-5. BCSR4 - FLASH LED Control
Byte
Address
Base address
+ 0x04
reset value = 0
FLASH Write
Protect (1=Write
Protect)
0 RW 0 = Not Protected
EEPROM Write
Protect (1=Write
Protect)
1 RW 0 = Not Protected
User LED1_GRN
(1=LED ON)
2 RW 0
User LED2_GRN
(1=LED ON)
3 RW 0
User LED1_RED
(1=LED ON)
4 RW 0
User LED2_RED
(1=LED ON)
5 RW 0
Reserved 6 RW 0
Reserved 7 RW 0
Table 7-6. BCSR5 - Reset Control
Byte
Address
Base
address +
0x05
reset value =
0
DDR1_RESET_EN 0 RW 0=Disabled
1 RW 0=Disabled
2 RW 0=Disabled
Reserved 3 RW NA
PHY1 Software Reset
(1=PHY Reset)
4 RW 0=Not Reset
Reserved 5 RW 0=Not Reset
RST_USB_PHYn 6 RW 0=Not Reset
SW_PORST (1=software
power on reset)
7 WO 0=Not Reset
Table 7-7. BCSR6 - Monitor Control
Byte
Address
Base
address +
Reserved 0-6 RW

P700D0107R00
40

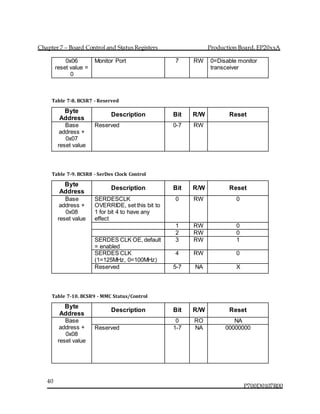

0x06
reset value =
0
Monitor Port 7 RW 0=Disable monitor
transceiver
Byte
Address
Base
address +
0x07
reset value
Reserved 0-7 RW
Table 7-9. BCSR8 - SerDes Clock Control
Byte
Address
Base
address +
0x08
reset value
SERDESCLK
OVERRIDE, set this bit to
1 for bit 4 to have any
effect
0 RW 0
1 RW 0
2 RW 0
SERDES CLK OE, default
= enabled
3 RW 1
SERDES CLK
(1=125MHz, 0=100MHz)
4 RW 0
Reserved 5-7 NA X
Table 7-10. BCSR9 - MMC Status/Control
Byte
Address
Base
address +
0x08
reset value
0 RO NA
Reserved 1-7 NA 00000000

P700D0107R00
41

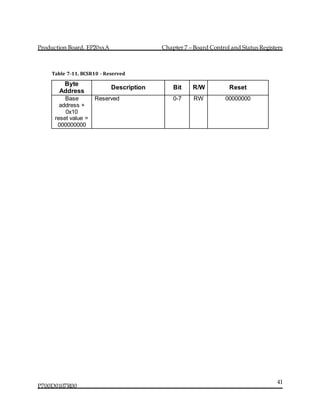

Byte
Address
Base
address +
0x10
reset value =
000000000
Reserved 0-7 RW 00000000

Production Board, EP20xxA Chapter 8 – I2C Devices and Addressing
P700D0107R00
43
Chapter 8 - I2C Devices and Addressing
The EP20xxA board has three devices on the IC2 bus. These devices are
a serial EEPROM (SEP) for user settings, a serial EEPROM (SEP) for
boot configuration settings, and a serial real-time clock (SRTC).
Device Function I2C Addressing
SEP User Information 0xAC for 4k device (512 x 8)
TEMP TEMP sensor 0xA9 for 4K device (512 x 8)
SRTC Serial real-time clock 0xDD (20 bytes in device)
There are two I2C ports on the EP20xxA board. Port 0 of the I2C is used
by the onboard devices. Port 1 can be configured as a second I2C port or
SPI port and is accessible on the EBC connector.
SEP Interface Structure
User SEP The user SEP is available for application use. EEPROM write protect is
provided under the BCSR control (Table 7-3).
Restoring the Boot EEPROM
The procedure for restoring the boot SEP if necessary is:
1. Power down the board.
2. Set SW-CFG1 for the EBC boot configuration (option C); refer to
Table 4-1.
3. Power up the board.
4. Give the following commands to reprogram the boot SEP:
=> mm 0x 10000000 ENTER
00100000:87788252 ? 0x87788252 ENTER
00100004: 0957a030 ? 0x0957a030 ENTER
00100008: 40082350 ? 0x40082350 ENTER
0010000c: 0d050000 ? 0x0d050000 ENTER
00100010: ffd77fdf ? . ENTER
=> eeprom write 0x54 0x10000000 0x0 0x10 ENTER
5. Remove power from the board.

P700D0107R00
44
6. Set SW-CFG1 for SEP boot configuration (option G); refer to Table
4-1.
7. Power up the board.
SRTC Interface Structure
The real-time clock device (M41T81) supports the setting of alarms and
will generate an interrupt when an alarm is triggered. The interrupt is
connected to IRQ0̅̅̅̅̅̅̅ of the processor. This interrupt is also available at the
expansion bus connector.

Production Board, EP20xxA Chapter 9 – Memory and Interrupts
P700D0107R00
45
Chapter 9 - Memory and Interrupts
This chapter contains memory map and interrupt information for the
EP20xxA board.
Memory Map
Table 9-1. Memory Map (36-bit Address Map)
Table 9-1 describes the default memory map for the EP board.
NOTE: The address map is recommended for the EP board and is as defined
in u-boot. Other mappings can be utilized for any given application.
Chip Select Function Address Size Description
D1_MCS0
DDR SDRAM 0x000000000
2 GB
mapped  2 GB
unmapped
64-bit, DDR controller
D1_MCS1
D1_MCS2 — — — Unused
D2_MCS0
DDR SDRAM 0x100000000 4 GB unmapped 64-bit, DDR controller
D2_MCS1
LCS0 FLASH 0xFE0000000 256 MB 16-bit, GPCM
LCS1 — — — Unused
LCS2 BCSR 0xFF1000000 256 KB 8-bit, GPCM

Chapter 9 – Memory Interrupts Production Board, EP20xxA
P700D0107R00
46
LCS4 NAND 0xFF1040000 256 KB 8-bit, FCM
— BMAN 0xFF4000000 2 MB Buffer manager software portal
— QMAN 0xFF4200000 2 MB Queue manager software portal
— CCSRBAR 0xFFE000000 1 MB Memory mapped processor registers
External Interrupts
The polarity of all external interrupts can be programmed. Table 9-2
identifies the IRQ lines used by the EP board. All IRQ lines should be
programmed as active low signals since each IRQ line has an onboard
10 K-ohm pull-up resister.
Table 9-1. External Interrupts
IRQ Interrupt Source
IRQ0 Real-time clock
IRQ1 TEMP sensor
IRQ2 Reserved
IRQ3 Unused
IRQ4 Unused
IRQ5 Unused
IRQ6 Unused
IRQ7 IRQ OUT
IRQ8 Unused
IRQ9 Unused
IRQ10 Unused
IRQ11 Unused

Production Board, EP20xxA Chapter 9 – Memory and Interrupts
P700D0107R00
47

Production Board, EP20xxA Appendix A: Mechanical Dimensions
P700D0107R00
49
Appendix A: Mechanical Dimension
This appendix contains mechanical dimension drawings needed to
design the EP20xxA board into a product.Figures A-1, A-2,and A-3
show the dimensions for the EP20xxA board.
NOTES:
1. The Dimensions in this document are believed correct, but if this unit is to
be placed into a housing that has cut outs, an actual unit must be
procured to verify all required connector cut outs. In addition, the
vendor’s data sheets for the connectors should be referenced to
determine the tolerances of the connectors.
2. The pin headers can optionally be populated with either straight pins or
right-angle pins. Figure A-3 shows the pin dimensions. The right-angle
pins extend 0.33 inches (8.44 millimeters) past the edge of the board as
shown in the figure.

Appendix A: Mechanical Dimensions Production Board, EP20xxA
P700D0107R00
50

Embedded Planet Phone: 216.245.4180
4760 Richmond Road, Suite 400 Fax: 216.292.0561
Warrensville Heights, OH 44128
www.embeddedplanet.com
Form P5010000122RA00 Litho in U.S.A. Jul2014
Copy right © 2014 Embedded Planet, Inc. All Rights Reserv ed.

DES0239 7-18-14

More Related Content

What's hot

Similar to DES0239 7-18-14

DES0239 7-18-14
