1. Ravikumar Alluboyina, Tushar Doshi
Robin Systems
Deliver Big Data, Database and AI/ML
as-a-Service anywhere

2. Who are we?
SAMPLE CUSTOMER DEPLOYMENTS
11 billion security events ingested and analyzed a day
(Elasticsearch, Logstash, Kibana, Kafka)
6 Petabytes under active management in a single Robin cluster
(Cloudera, Impala, Kafka, Druid)
400 Oracle RAC databases managed by a single Robin cluster
(Oracle, Oracle RAC)
We have solved some fundamental problems to enable containers and Kubernetes for running
complex Big Data, NoSQL, Database and AI/ML workloads
Robin is The Kubernetes platform for big data, databases and AI/ML

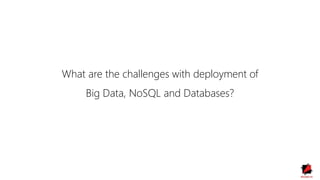

3. What are the challenges with deployment of
Big Data, NoSQL and Databases?

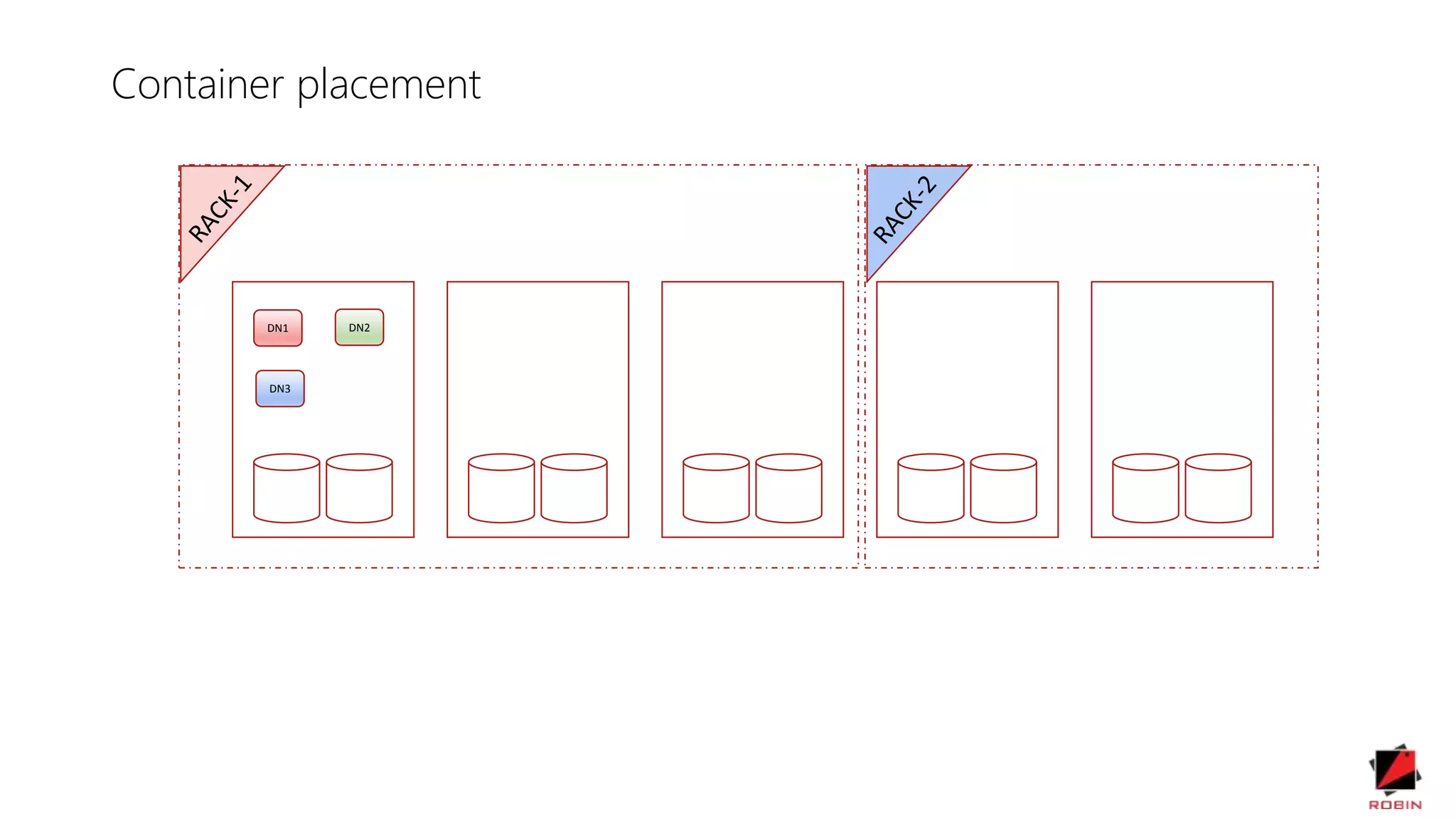

4. Container placement
DN1 DN2
DN3

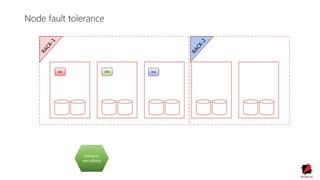

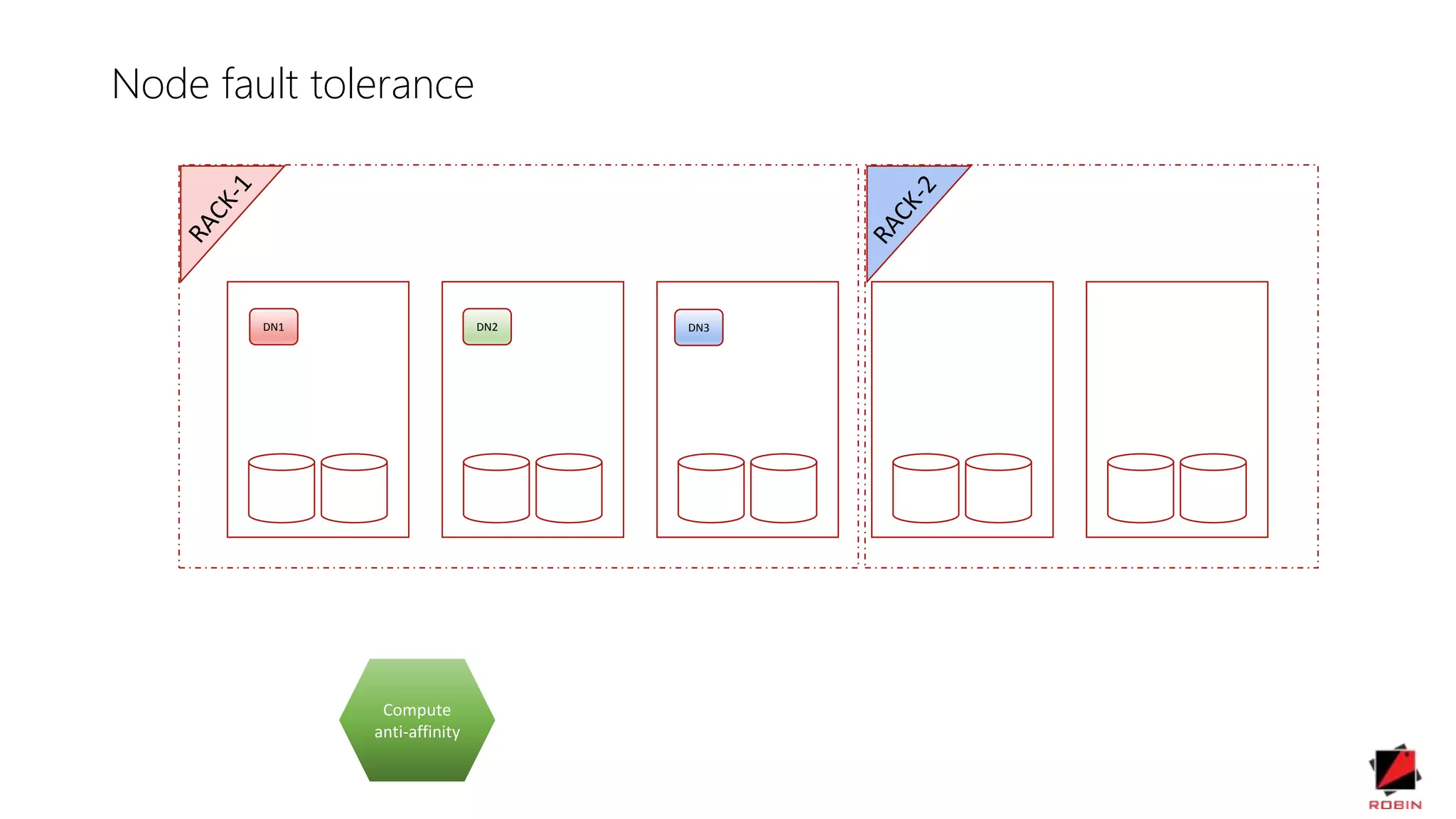

5. DN1 DN2 DN3
Node fault tolerance
Compute
anti-affinity

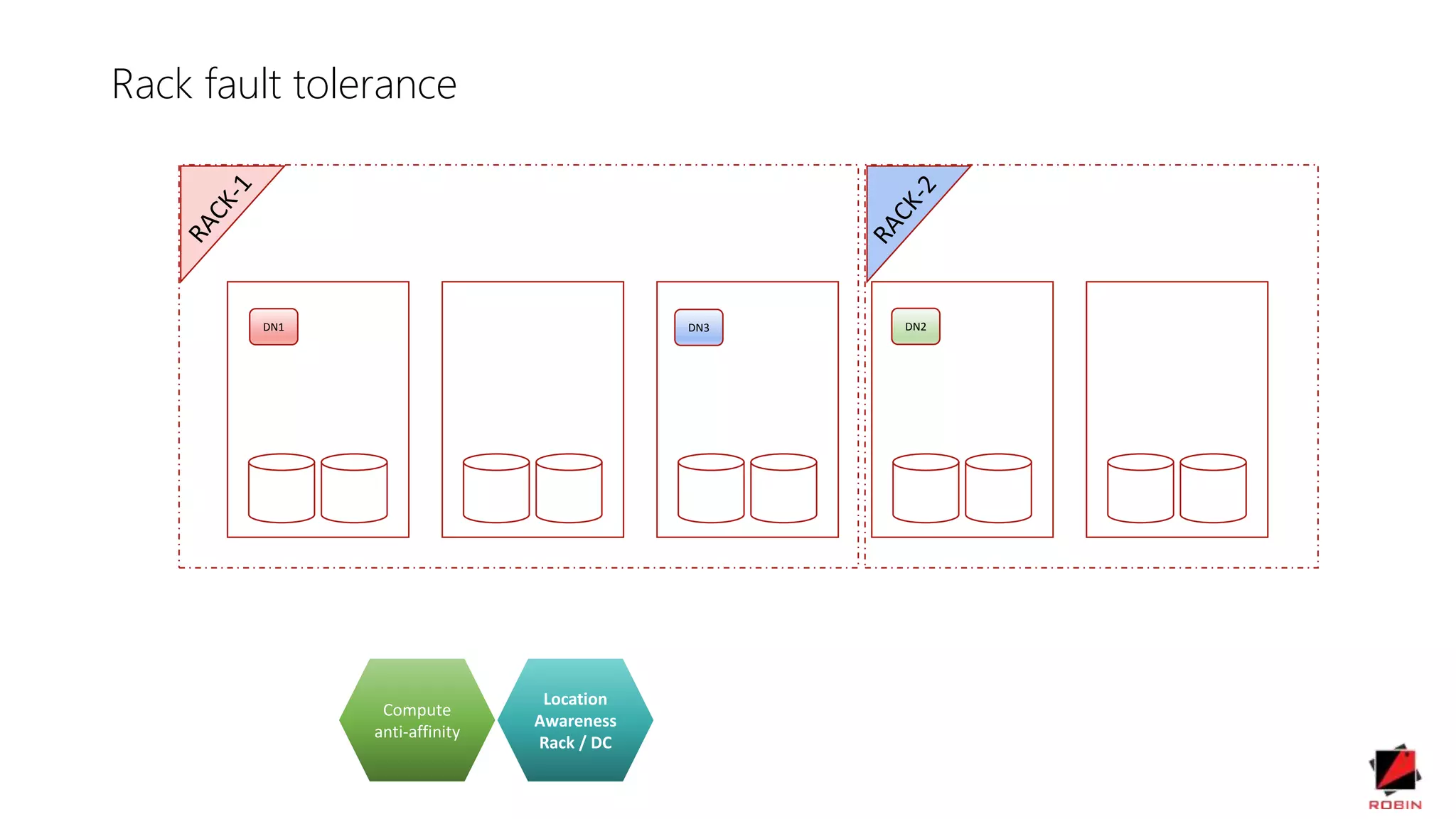

6. DN1 DN2DN3
Rack fault tolerance
Compute
anti-affinity
Location
Awareness
Rack / DC

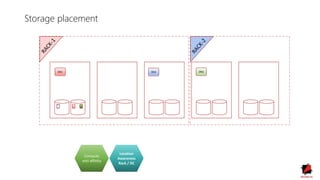

7. DN1 DN2DN3
Storage placement
Compute
anti-affinity
Location
Awareness
Rack / DC

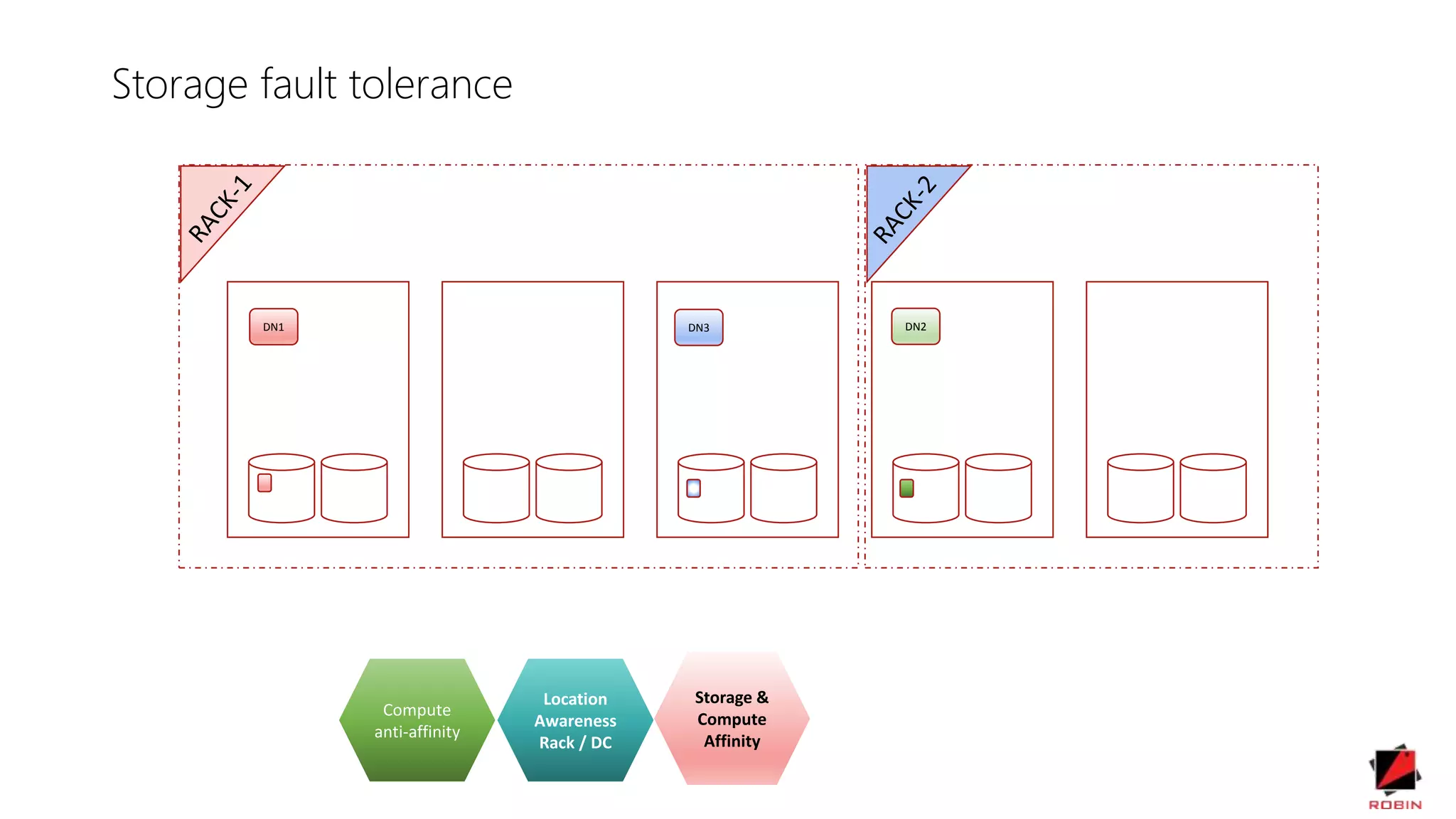

8. DN1 DN2DN3
Storage fault tolerance
Compute
anti-affinity
Location
Awareness
Rack / DC
Storage &
Compute
Affinity

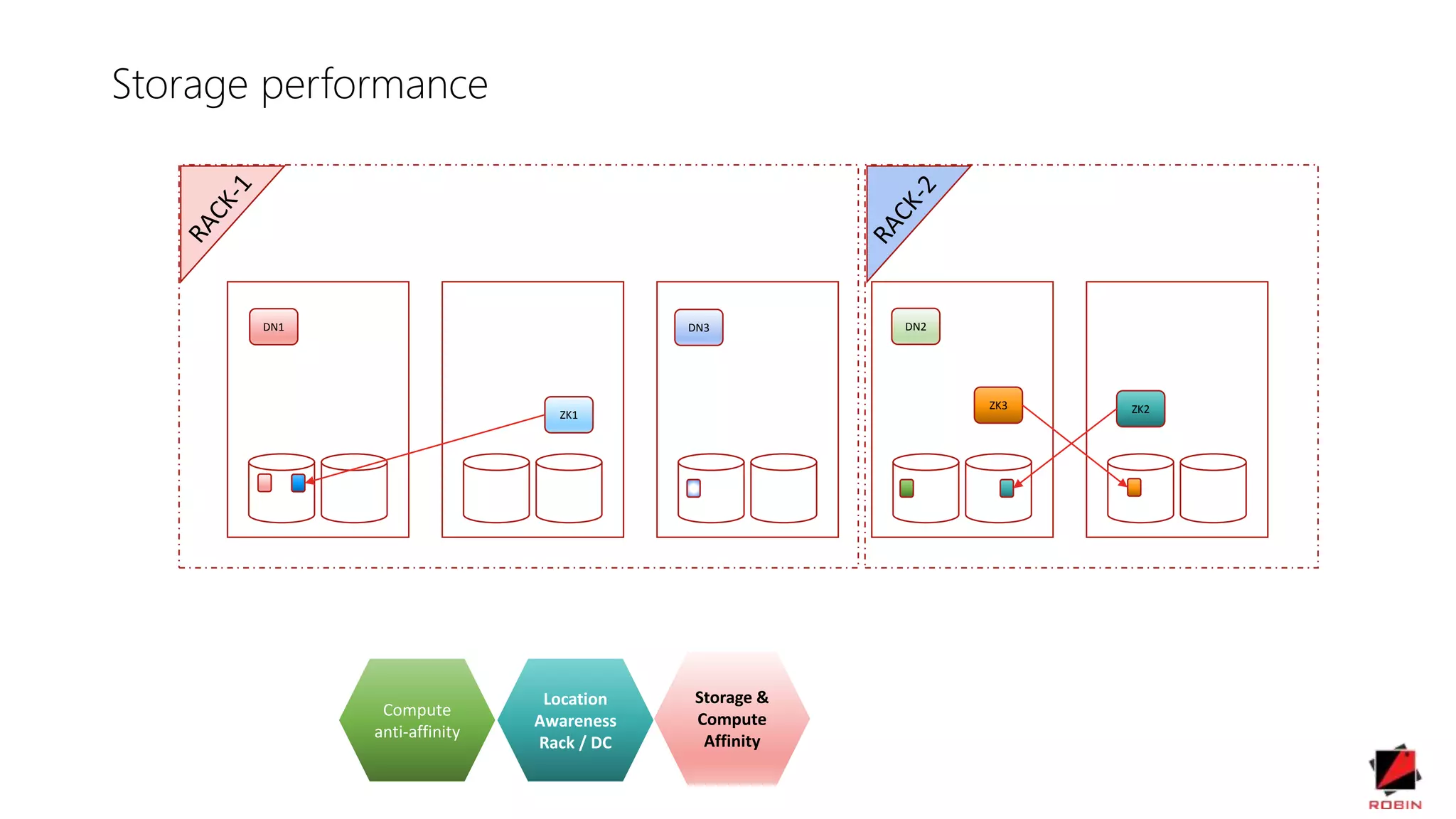

9. DN1 DN2DN3
ZK2ZK1
ZK3
Storage performance
Compute
anti-affinity
Location
Awareness
Rack / DC
Storage &
Compute
Affinity

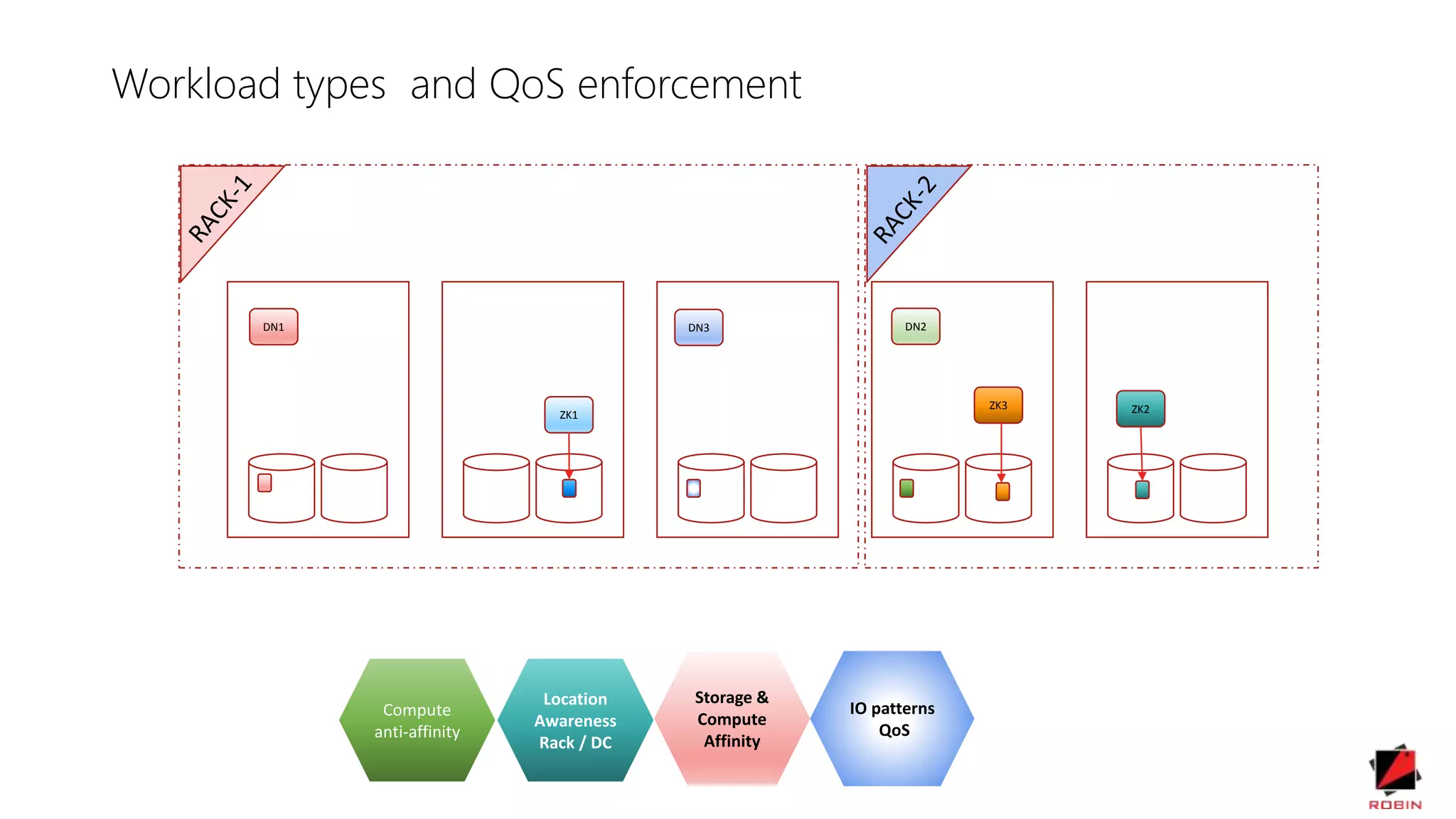

10. DN1 DN2DN3
ZK2ZK1
ZK3
Workload types and QoS enforcement
Compute
anti-affinity
Location
Awareness
Rack / DC
Storage &
Compute
Affinity
IO patterns
QoS

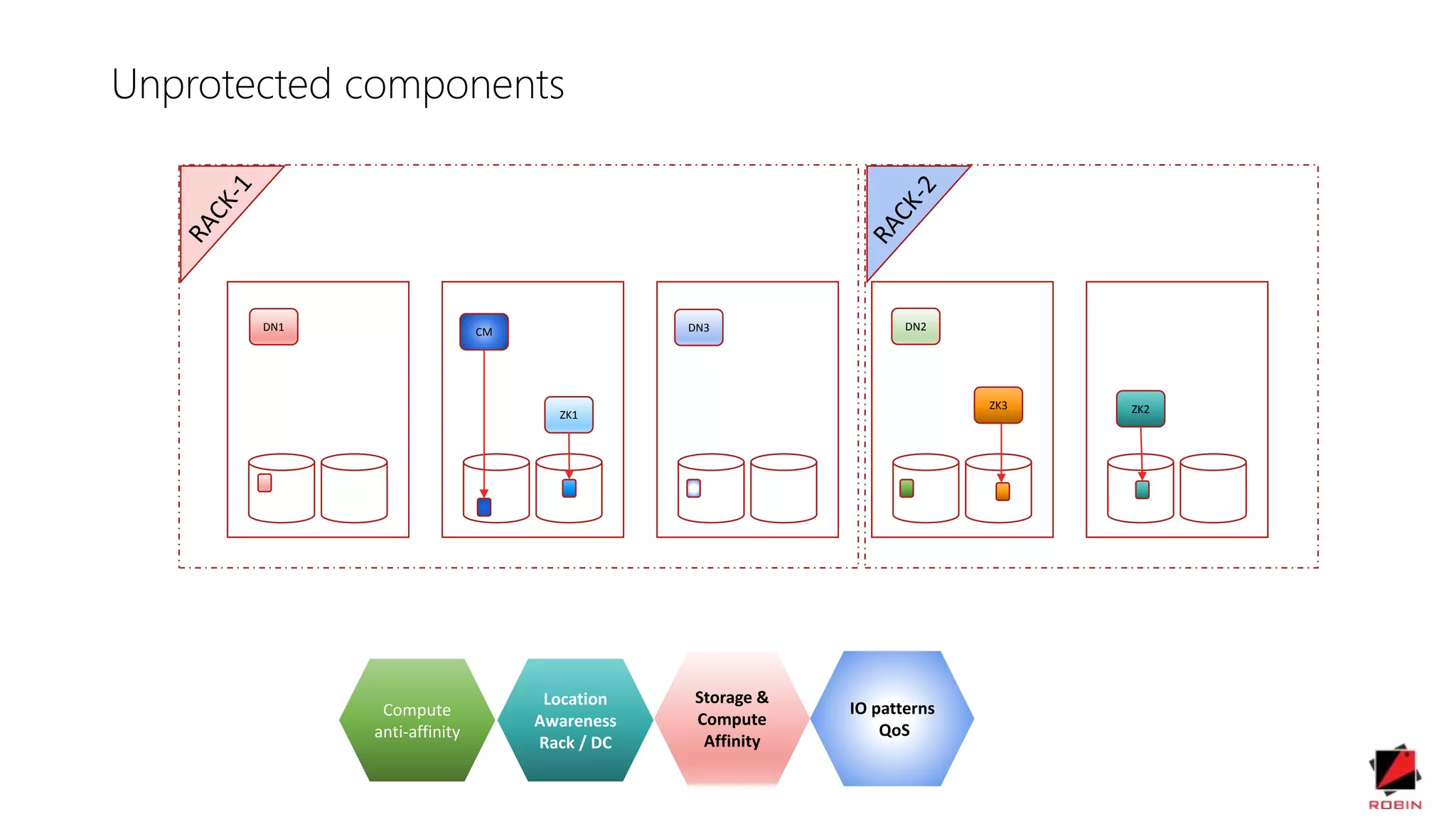

11. DN1 DN2DN3
ZK2ZK1
ZK3
CM
Unprotected components
Compute
anti-affinity
Location
Awareness
Rack / DC
Storage &
Compute
Affinity
IO patterns
QoS

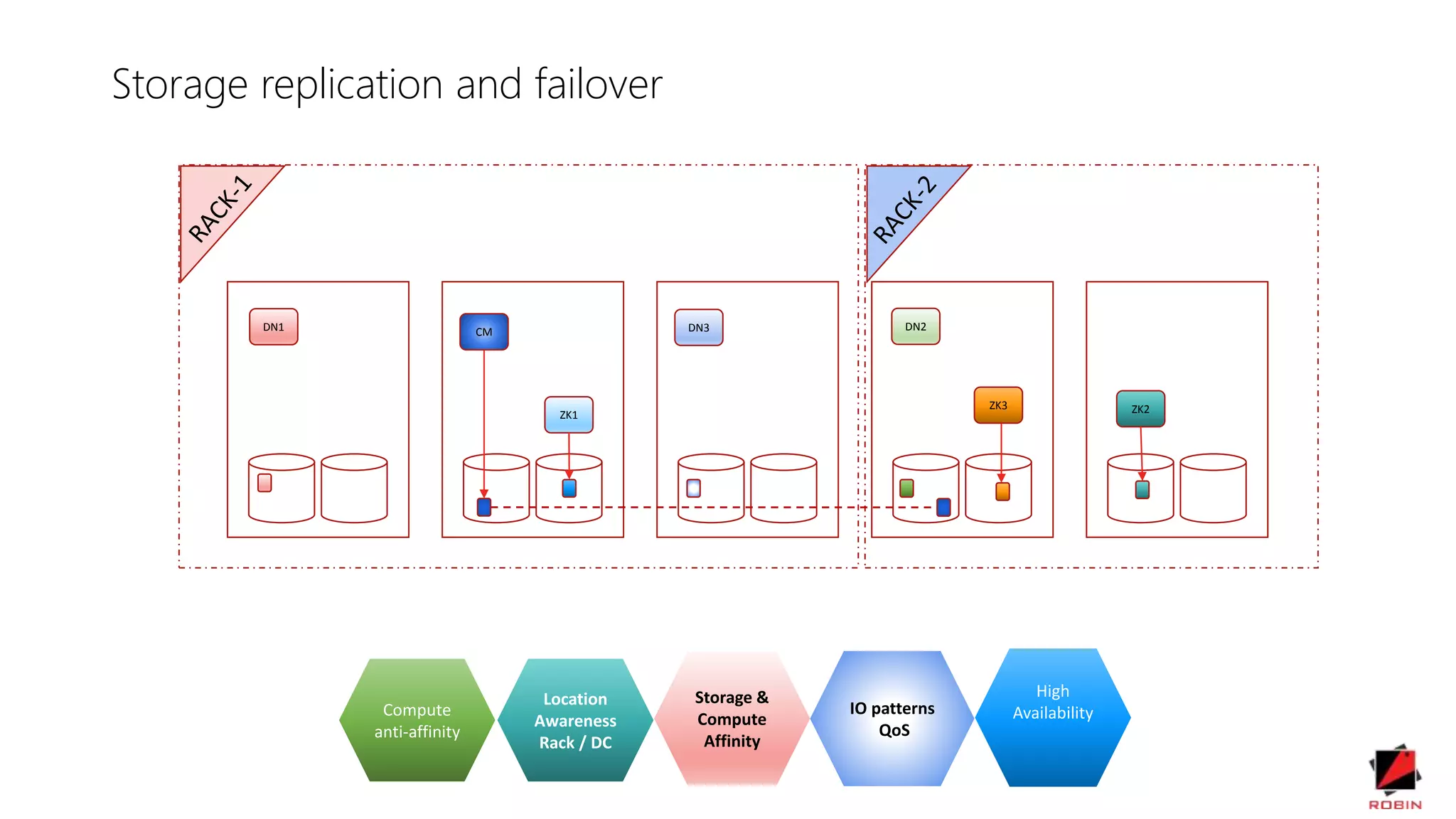

12. Compute
anti-affinity
DN1 DN2DN3
Location
Awareness
Rack / DC
Storage &
Compute
Affinity
ZK2ZK1
ZK3
IO patterns
QoS
CM
High
Availability
Storage replication and failover

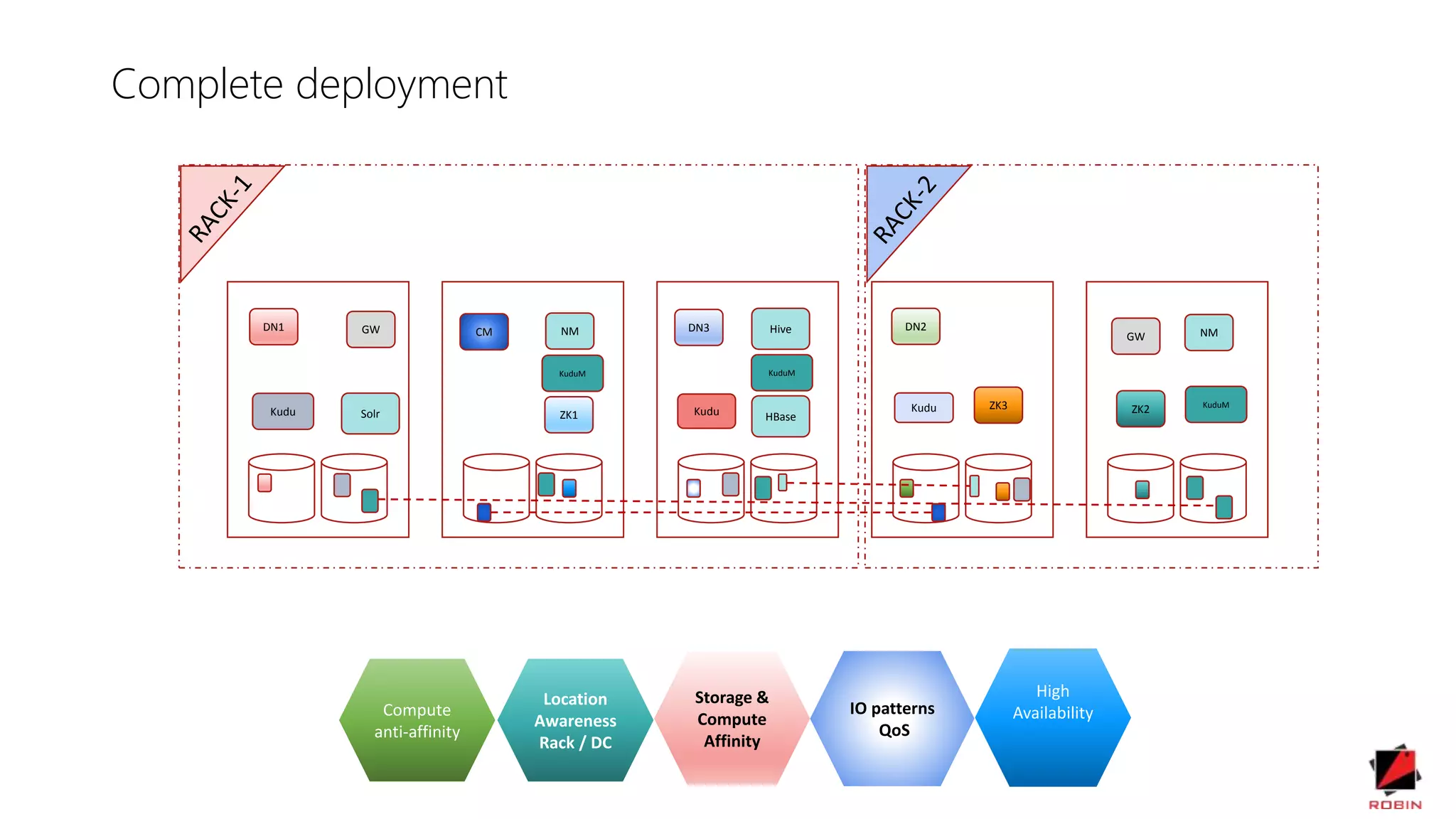

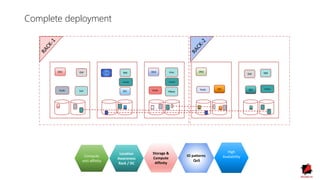

13. Compute
anti-affinity
DN1 DN2DN3
Location
Awareness
Rack / DC
Storage &
Compute
Affinity
ZK2ZK1
ZK3
IO patterns
QoS
CM
High
Availability
Complete deployment
NM NMGW
GW
HBase
Hive
Kudu KuduKudu
KuduM KuduM
KuduM
Solr

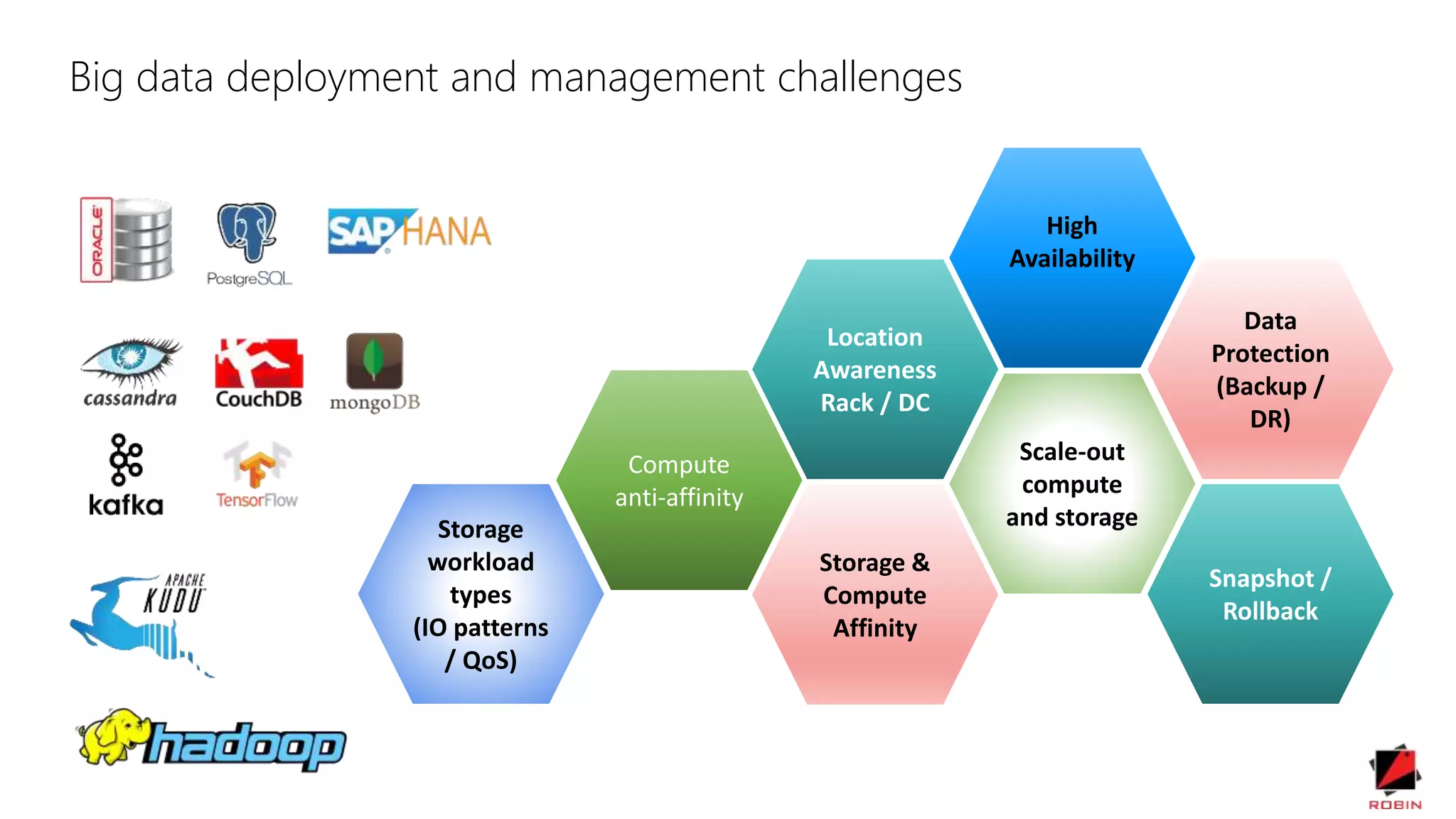

14. Big data deployment and management challenges
Storage &
Compute
Affinity
Location
Awareness
Rack / DC
Compute
anti-affinity
Scale-out
compute
and storageStorage
workload
types
(IO patterns
/ QoS)
High
Availability
Data
Protection
(Backup /
DR)
Snapshot /
Rollback

15. Kubernetes landscape

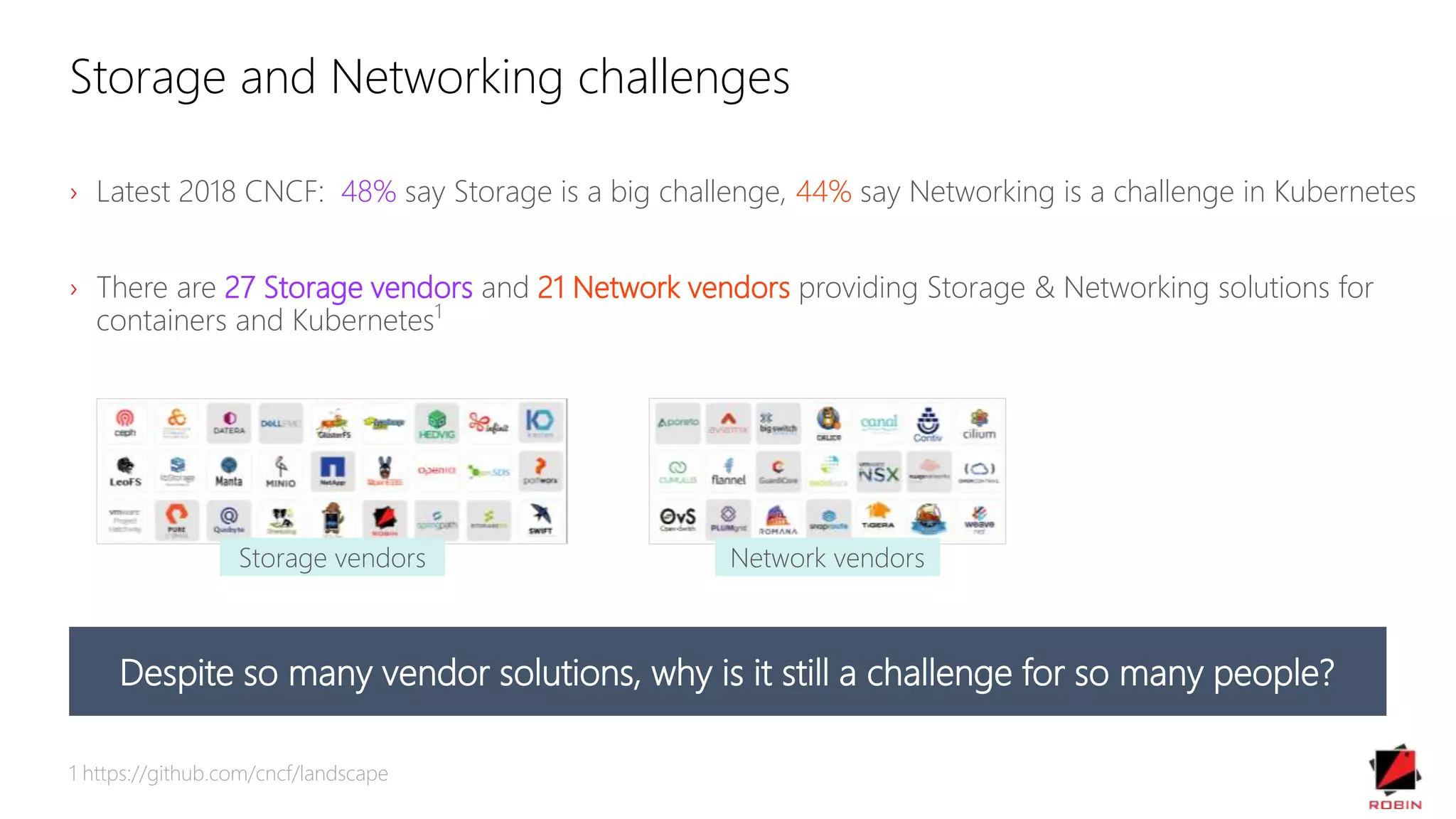

16. Storage and Networking challenges
› Latest 2018 CNCF: 48% say Storage is a big challenge, 44% say Networking is a challenge in Kubernetes
› There are 27 Storage vendors and 21 Network vendors providing Storage & Networking solutions for
containers and Kubernetes1
1 https://github.com/cncf/landscape
Despite so many vendor solutions, why is it still a challenge for so many people?
Storage vendors Network vendors

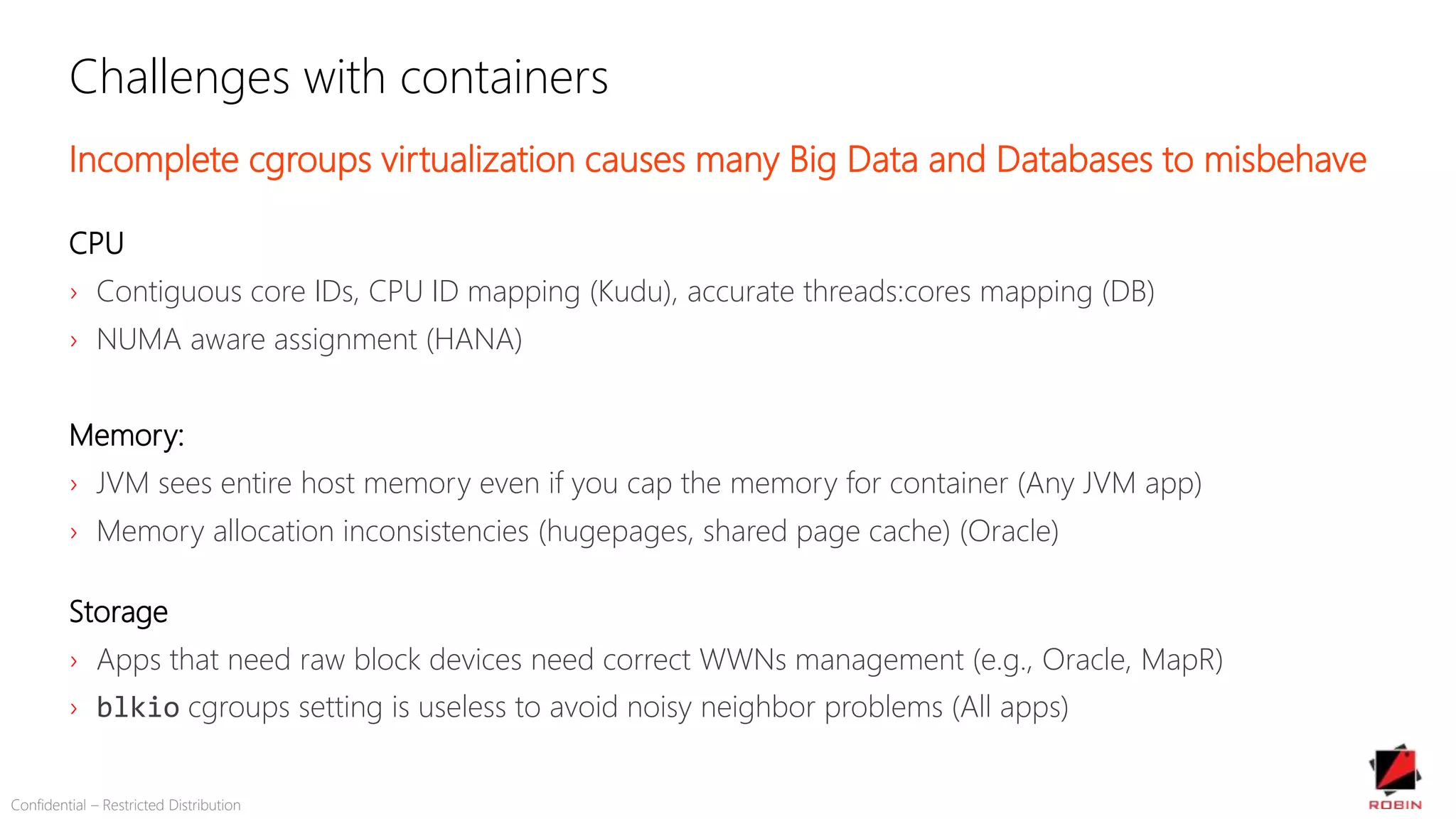

17. Challenges with containers
Incomplete cgroups virtualization causes many Big Data and Databases to misbehave
CPU
› Contiguous core IDs, CPU ID mapping (Kudu), accurate threads:cores mapping (DB)
› NUMA aware assignment (HANA)
Memory:
› JVM sees entire host memory even if you cap the memory for container (Any JVM app)
› Memory allocation inconsistencies (hugepages, shared page cache) (Oracle)
Storage
› Apps that need raw block devices need correct WWNs management (e.g., Oracle, MapR)
› blkio cgroups setting is useless to avoid noisy neighbor problems (All apps)
Confidential – Restricted Distribution

18. Time to reframe our thinking
Let applications drive infrastructure to meet user requirements
(in this model application workflows configure Kubernetes, Networking and Storage)

19. Robin is The Kubernetes platform for big data, databases and AI/ML
www.robin.io
1-click Provision
1-click Scale
1-click QoS Control
1-click Snapshots
1-click Clones
1-click Backup
1-click Upgrade
1-click Migrate

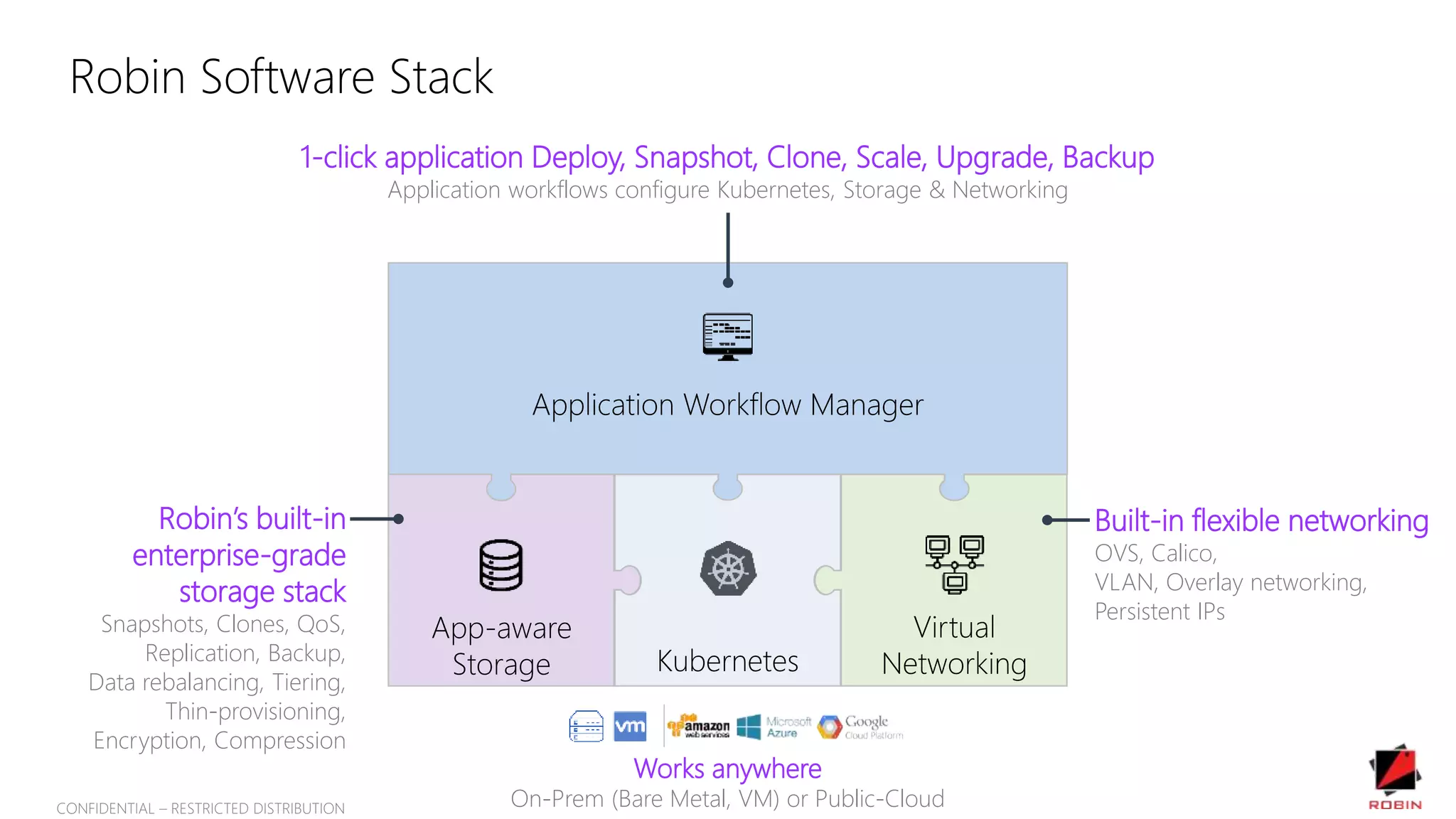

20. Robin Software Stack
Virtual
Networking
App-aware
Storage
Robin’s built-in
enterprise-grade
storage stack
Snapshots, Clones, QoS,
Replication, Backup,
Data rebalancing, Tiering,
Thin-provisioning,
Encryption, Compression
Built-in flexible networking
OVS, Calico,
VLAN, Overlay networking,
Persistent IPs
Application Workflow Manager
Kubernetes
1-click application Deploy, Snapshot, Clone, Scale, Upgrade, Backup
Application workflows configure Kubernetes, Storage & Networking
Works anywhere
On-Prem (Bare Metal, VM) or Public-CloudCONFIDENTIAL – RESTRICTED DISTRIBUTION

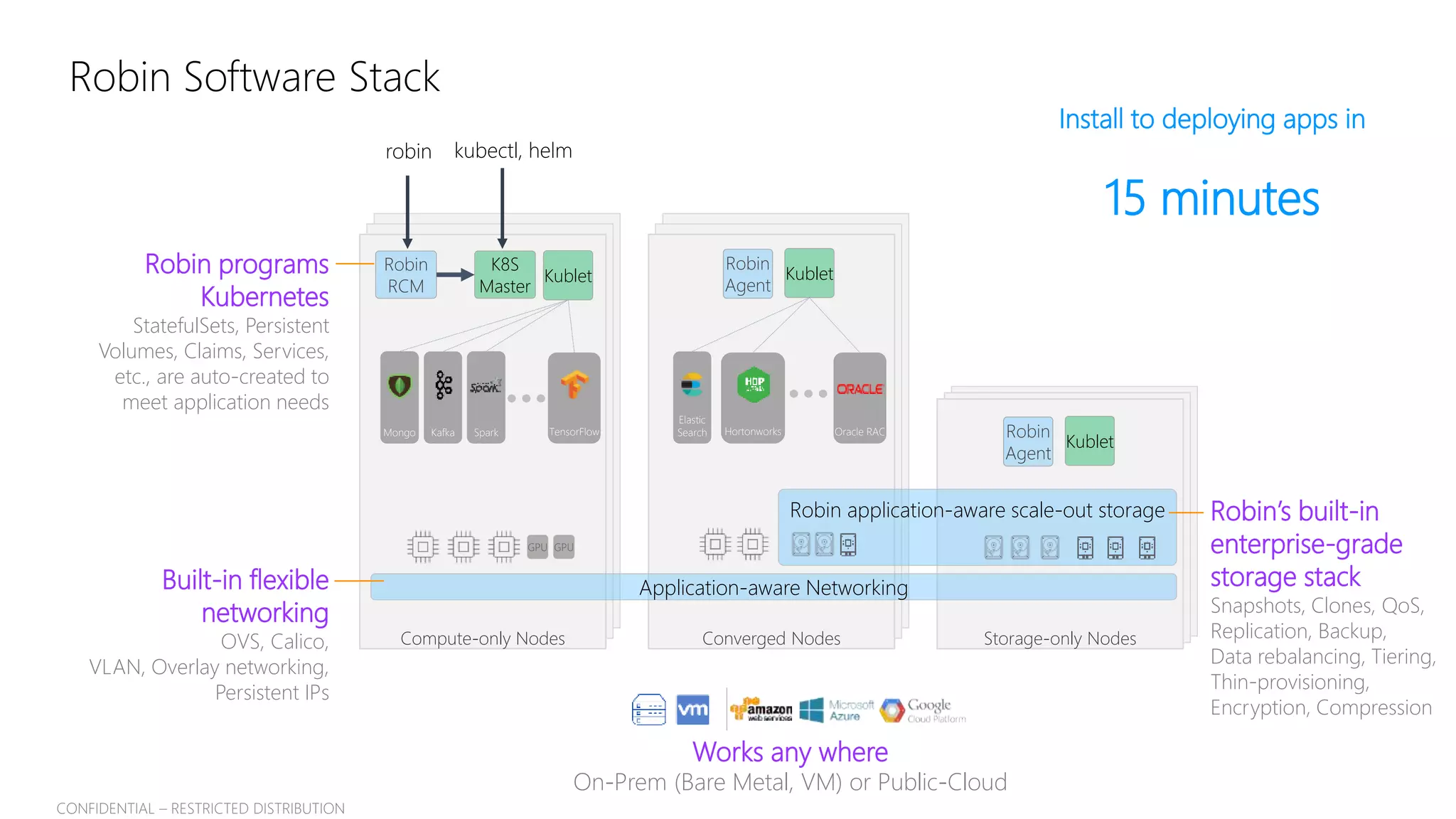

21. Converged NodesCompute-only Nodes Storage-only Nodes
Robin Software Stack
Robin application-aware scale-out storage Robin’s built-in
enterprise-grade
storage stack
Snapshots, Clones, QoS,
Replication, Backup,
Data rebalancing, Tiering,
Thin-provisioning,
Encryption, Compression
Application-aware Networking
Robin
Agent
Kublet
K8S
Master
Robin
RCM
Built-in flexible
networking
OVS, Calico,
VLAN, Overlay networking,
Persistent IPs
kubectl, helmrobin
Robin programs
Kubernetes
StatefulSets, Persistent
Volumes, Claims, Services,
etc., are auto-created to
meet application needs
GPUGPU
TensorFlowKafkaMongo Spark Hortonworks Oracle RAC
Elastic
Search Robin
Agent
Kublet
Works any where
On-Prem (Bare Metal, VM) or Public-Cloud
Install to deploying apps in
15 minutes
Kublet
CONFIDENTIAL – RESTRICTED DISTRIBUTION

22. Enough talk.. Demo time …

23. Thank you !
http://bit.ly/gorobin

24. Robin is The Kubernetes platform for big data, databases and AI/ML
www.robin.io
1-click Provision
1-click Scale
1-click QoS Control
1-click Snapshots
1-click Clones
1-click Backup
1-click Upgrade
1-click Migrate
