Slides for the presentation given at Strata Data London, 2017.

1. Deep Learning
with Microsoft
Cognitive Toolkit
Barbara Fusinska
@BasiaFusinska

2. About me
Programmer
Machine Learning
Data Solutions Architect
@BasiaFusinska

3. Agenda
• Deep Learning
• Why CNTK?
• How to start?
• Components of the platform
• The future

4. Deep Learning?

6. Neural Networks
• Interconnected units (neurons)
• Activation signal(s)
• Information processing
• Learning involves adjustments to
the synaptic connections

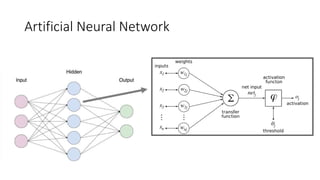

7. Artificial Neural Network

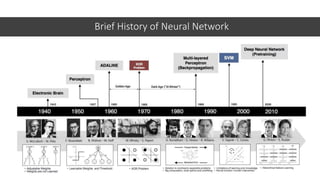

9. Brief History of Neural Network

10. Big data
• Volumes
• Cheap storage
• Cloud
• Communities
• Crowdsourcing

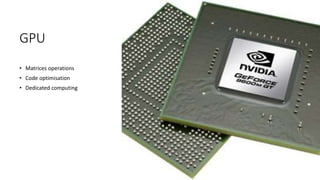

12. GPU
• Matrices operations
• Code optimisation
• Dedicated computing

13. Computer Vision
• Tag images
• Categorizing images
• Detect human faces
• Face expressions
• Flag adult content
• Crop photos
• Optical character
recognition

14. Natural Language
Processing
• Sentiment analysis
• Topic extraction
• Named entity recognition
• Translation
• Automatic text answering
• Automatic text
summarisation

15. Deep Learning
Toolkit
• Easy to use
• Fast
• Flexible
• Production tested
• Multi GPU/multi-server
• Open source

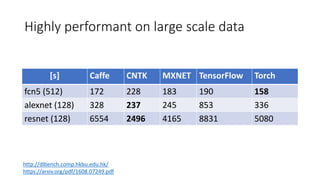

16. Highly performant on large scale data
[s] Caffe CNTK MXNET TensorFlow Torch
fcn5 (512) 172 228 183 190 158
alexnet (128) 328 237 245 853 336
resnet (128) 6554 2496 4165 8831 5080
http://dlbench.comp.hkbu.edu.hk/
https://arxiv.org/pdf/1608.07249.pdf

17. Building blocks
• Simple components
• Complex layers
• Training
• Testing
• End-to-end solutions

18. Production
tested
• Cognitive Services
• Skype Translator
• Cortana
• Bing, Bing Ads
• Augmented Reality (object
recognition)

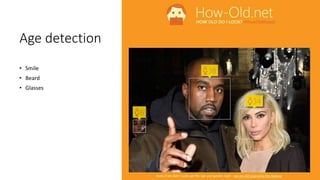

19. Age detection
• Smile
• Beard
• Glasses

20. Uber: Face
recognition

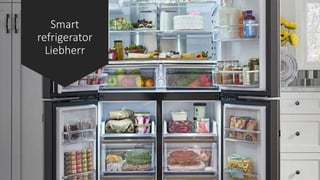

21. Smart
refrigerator
Liebherr

22. How to
contribute?
• Microsoft Contribution License
Agreement (CLA)
• Raising an issue
(https://github.com/Microsoft/CN
TK/issues)
• Forking the repository and making
a Pull Request
(https://github.com/Microsoft/CN
TK)
• https://docs.microsoft.com/en-
us/cognitive-toolkit/contributing-
to-cntk

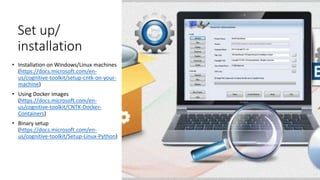

23. Set up/
installation
• Installation on Windows/Linux machines
(https://docs.microsoft.com/en-
us/cognitive-toolkit/setup-cntk-on-your-
machine)
• Using Docker images
(https://docs.microsoft.com/en-
us/cognitive-toolkit/CNTK-Docker-
Containers)
• Binary setup
(https://docs.microsoft.com/en-
us/cognitive-toolkit/Setup-Linux-Python)

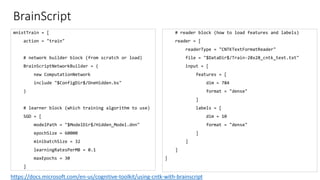

24. mnistTrain = [
action = "train"
# network builder block (from scratch or load)
BrainScriptNetworkBuilder = (
new ComputationNetwork
include "$ConfigDir$/OneHidden.bs"
)
# learner block (which training algorithm to use)
SGD = [
modelPath = "$ModelDir$/Hidden_Model.dnn"
epochSize = 60000
minibatchSize = 32
learningRatesPerMB = 0.1
maxEpochs = 30
]
# reader block (how to load features and labels)
reader = [
readerType = "CNTKTextFormatReader"
file = "$DataDir$/Train-28x28_cntk_text.txt"
input = [
features = [
dim = 784
format = "dense"
]
labels = [
dim = 10
format = "dense"
]
]
]
]
BrainScript
https://docs.microsoft.com/en-us/cognitive-toolkit/using-cntk-with-brainscript

25. APIs
• Python
(https://www.cntk.ai/pythondocs/)
• Abstraction for model definition,
compute, learning algorithms, data
reading
• Concise network definition
• Distributed, highly scalable training
• Efficient data interfaces
• C++
• Core computations, network
composition & training, data reading
• Model training and evaluation
• Driven from native code
• C#
• Evaluation related APIs
• Nuget packages

26. Getting started
• Python & BrainScript tutorials
(https://docs.microsoft.com/en-
us/cognitive-toolkit/tutorials)
CNN, LSTM, Reinforcement Learning,
ATIS, Fast R-CNN
• Python Examples
(https://docs.microsoft.com/en-
us/cognitive-toolkit/examples)
ResNet, SequenceClassification,
Sequence2Sequence, Language
Understanding
• Try it live with Azure Notebooks
(https://notebooks.azure.com/library/
cntkbeta2)

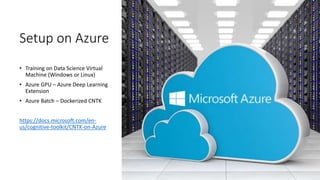

27. Setup on Azure
• Training on Data Science Virtual
Machine (Windows or Linux)
• Azure GPU – Azure Deep Learning
Extension
• Azure Batch – Dockerized CNTK
https://docs.microsoft.com/en-
us/cognitive-toolkit/CNTK-on-Azure

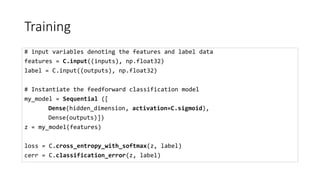

28. Training
# input variables denoting the features and label data
features = C.input((inputs), np.float32)
label = C.input((outputs), np.float32)
# Instantiate the feedforward classification model
my_model = Sequential ([
Dense(hidden_dimension, activation=C.sigmoid),
Dense(outputs)])
z = my_model(features)
loss = C.cross_entropy_with_softmax(z, label)
cerr = C.classification_error(z, label)

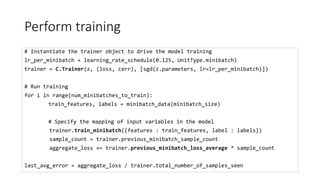

29. Perform training
# Instantiate the trainer object to drive the model training
lr_per_minibatch = learning_rate_schedule(0.125, UnitType.minibatch)
trainer = C.Trainer(z, (loss, cerr), [sgd(z.parameters, lr=lr_per_minibatch)])
# Run training
for i in range(num_minibatches_to_train):
train_features, labels = minibatch_data(minibatch_size)
# Specify the mapping of input variables in the model
trainer.train_minibatch({features : train_features, label : labels})
sample_count = trainer.previous_minibatch_sample_count
aggregate_loss += trainer.previous_minibatch_loss_average * sample_count
last_avg_error = aggregate_loss / trainer.total_number_of_samples_seen

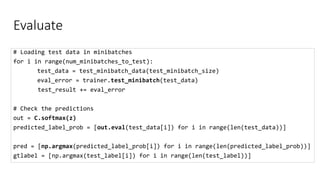

30. Evaluate
# Loading test data in minibatches
for i in range(num_minibatches_to_test):
test_data = test_minibatch_data(test_minibatch_size)
eval_error = trainer.test_minibatch(test_data)
test_result += eval_error
# Check the predictions
out = C.softmax(z)
predicted_label_prob = [out.eval(test_data[i]) for i in range(len(test_data))]
pred = [np.argmax(predicted_label_prob[i]) for i in range(len(predicted_label_prob))]
gtlabel = [np.argmax(test_label[i]) for i in range(len(test_label))]

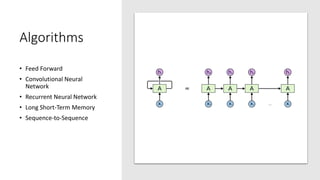

31. Algorithms
• Feed Forward
• Convolutional Neural
Network
• Recurrent Neural Network
• Long Short-Term Memory
• Sequence-to-Sequence

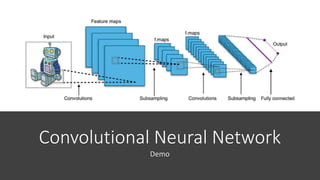

32. Convolutional Neural Network
Demo

33. Layers library
• Dense
• Convolution
• (Global)MaxPooling
• (Global)AveragePooling
• Dropout
• Embedding
• LSTM
• RNNUnit

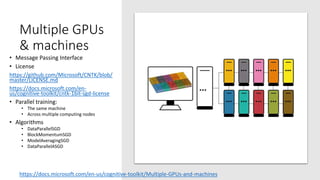

34. Multiple GPUs
& machines
• Message Passing Interface
• License
https://github.com/Microsoft/CNTK/blob/
master/LICENSE.md
https://docs.microsoft.com/en-
us/cognitive-toolkit/cntk-1bit-sgd-license
• Parallel training:
• The same machine
• Across multiple computing nodes
• Algorithms
• DataParallelSGD
• BlockMomentumSGD
• ModelAveragingSGD
• DataParallelASGD
https://docs.microsoft.com/en-us/cognitive-toolkit/Multiple-GPUs-and-machines

35. The future of
Cognitive Toolkit
• Dynamic Networks
• Support for Model
Compression/Sparsity
• Partial Precision Training and
Evaluation
• Offline compilation techniques
• More language bindings

37. Keep in touch
BarbaraFusinska.com
@BasiaFusinska
