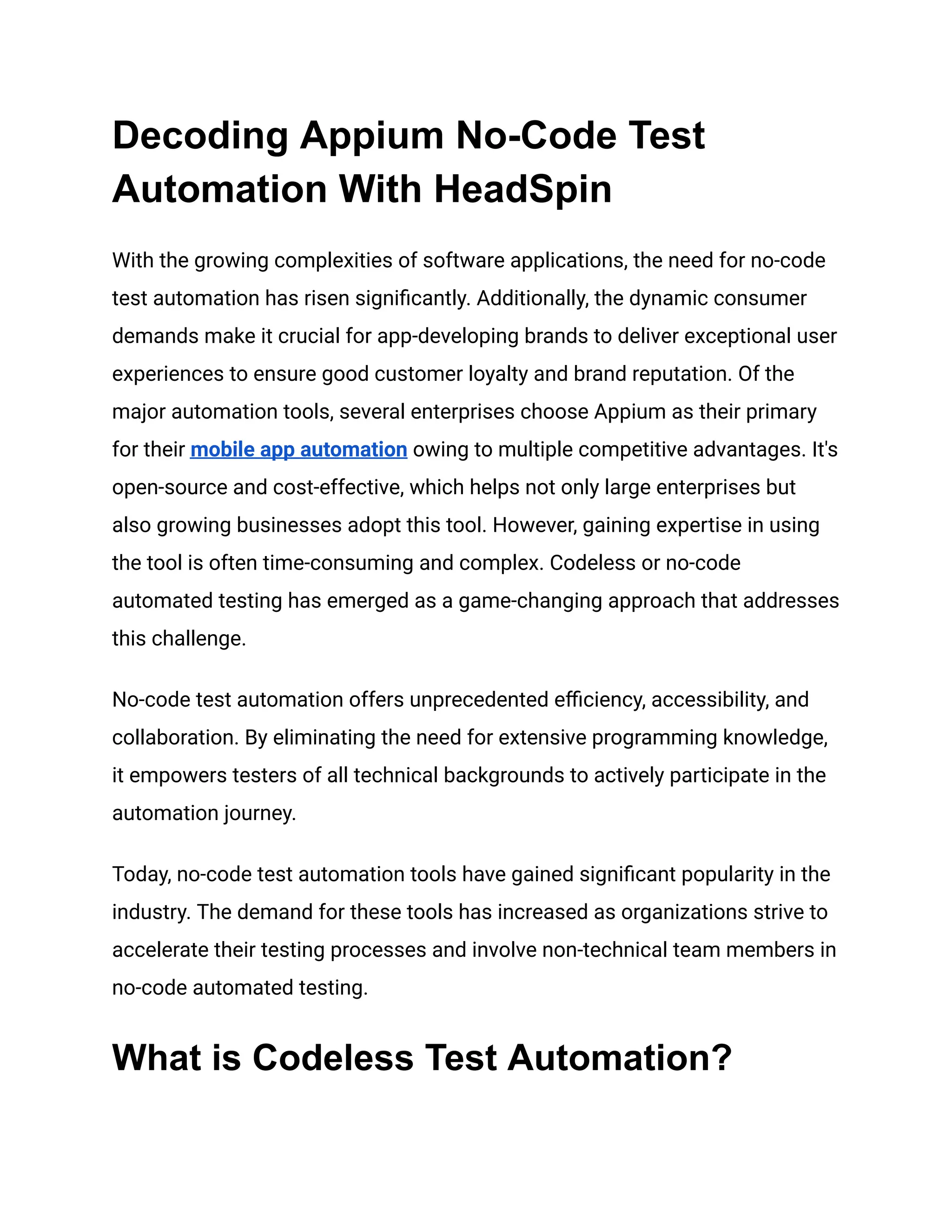

Decoding Appium No-Code Test
Automation With HeadSpin
With the growing complexities of software applications, the need for no-code
test automation has risen significantly. Additionally, the dynamic consumer
demands make it crucial for app-developing brands to deliver exceptional user
experiences to ensure good customer loyalty and brand reputation. Of the
major automation tools, several enterprises choose Appium as their primary
for their mobile app automation owing to multiple competitive advantages. It's
open-source and cost-effective, which helps not only large enterprises but
also growing businesses adopt this tool. However, gaining expertise in using
the tool is often time-consuming and complex. Codeless or no-code
automated testing has emerged as a game-changing approach that addresses
this challenge.
No-code test automation offers unprecedented efficiency, accessibility, and
collaboration. By eliminating the need for extensive programming knowledge,
it empowers testers of all technical backgrounds to actively participate in the
automation journey.
Today, no-code test automation tools have gained significant popularity in the
industry. The demand for these tools has increased as organizations strive to
accelerate their testing processes and involve non-technical team members in
no-code automated testing.
What is Codeless Test Automation?

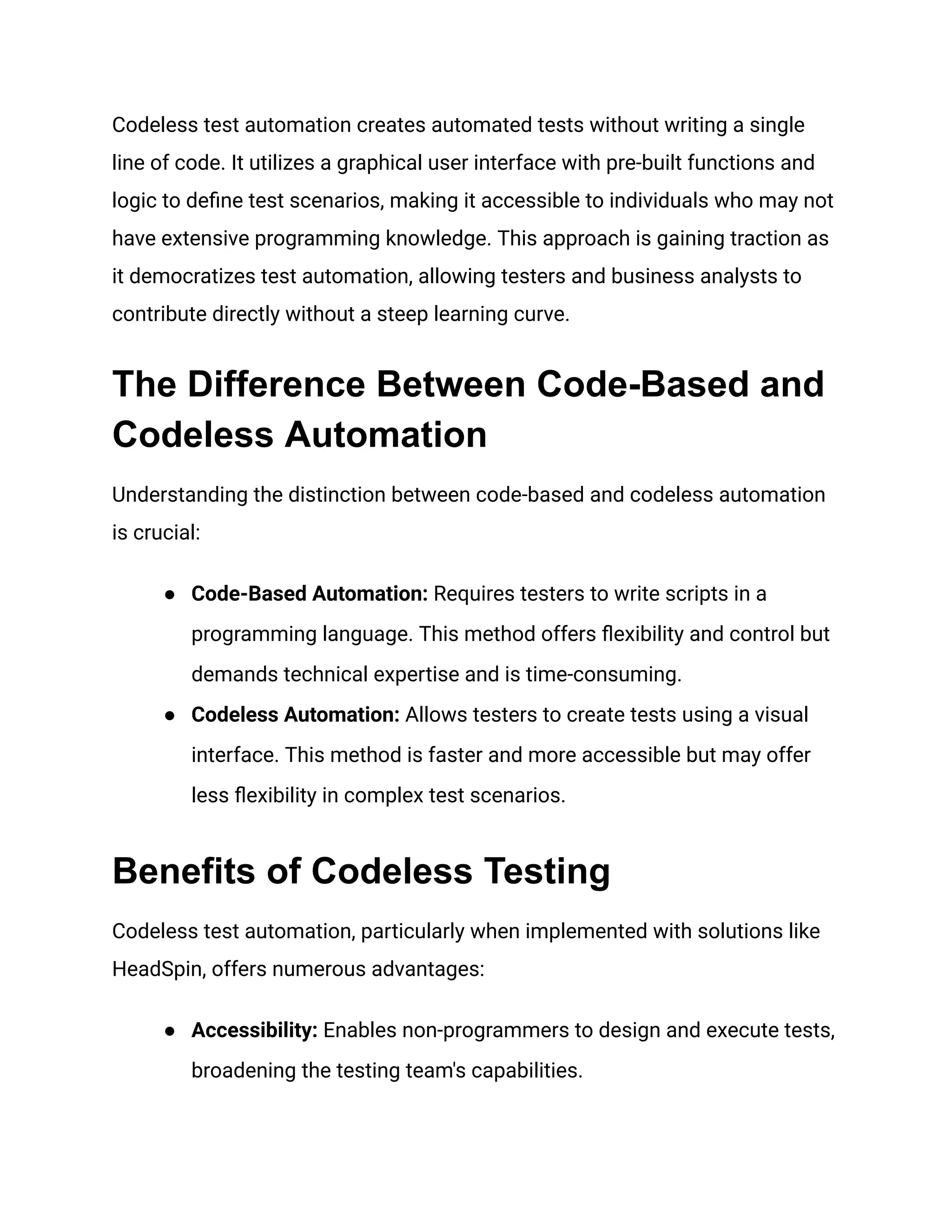

Codeless test automation creates automated tests without writing a single
line of code. It utilizes a graphical user interface with pre-built functions and
logic to define test scenarios, making it accessible to individuals who may not
have extensive programming knowledge. This approach is gaining traction as
it democratizes test automation, allowing testers and business analysts to
contribute directly without a steep learning curve.
The Difference Between Code-Based and
Codeless Automation
Understanding the distinction between code-based and codeless automation
is crucial:
● Code-Based Automation: Requires testers to write scripts in a
programming language. This method offers flexibility and control but
demands technical expertise and is time-consuming.
● Codeless Automation: Allows testers to create tests using a visual
interface. This method is faster and more accessible but may offer
less flexibility in complex test scenarios.
Benefits of Codeless Testing
Codeless test automation, particularly when implemented with solutions like
HeadSpin, offers numerous advantages:
● Accessibility: Enables non-programmers to design and execute tests,
broadening the testing team's capabilities.

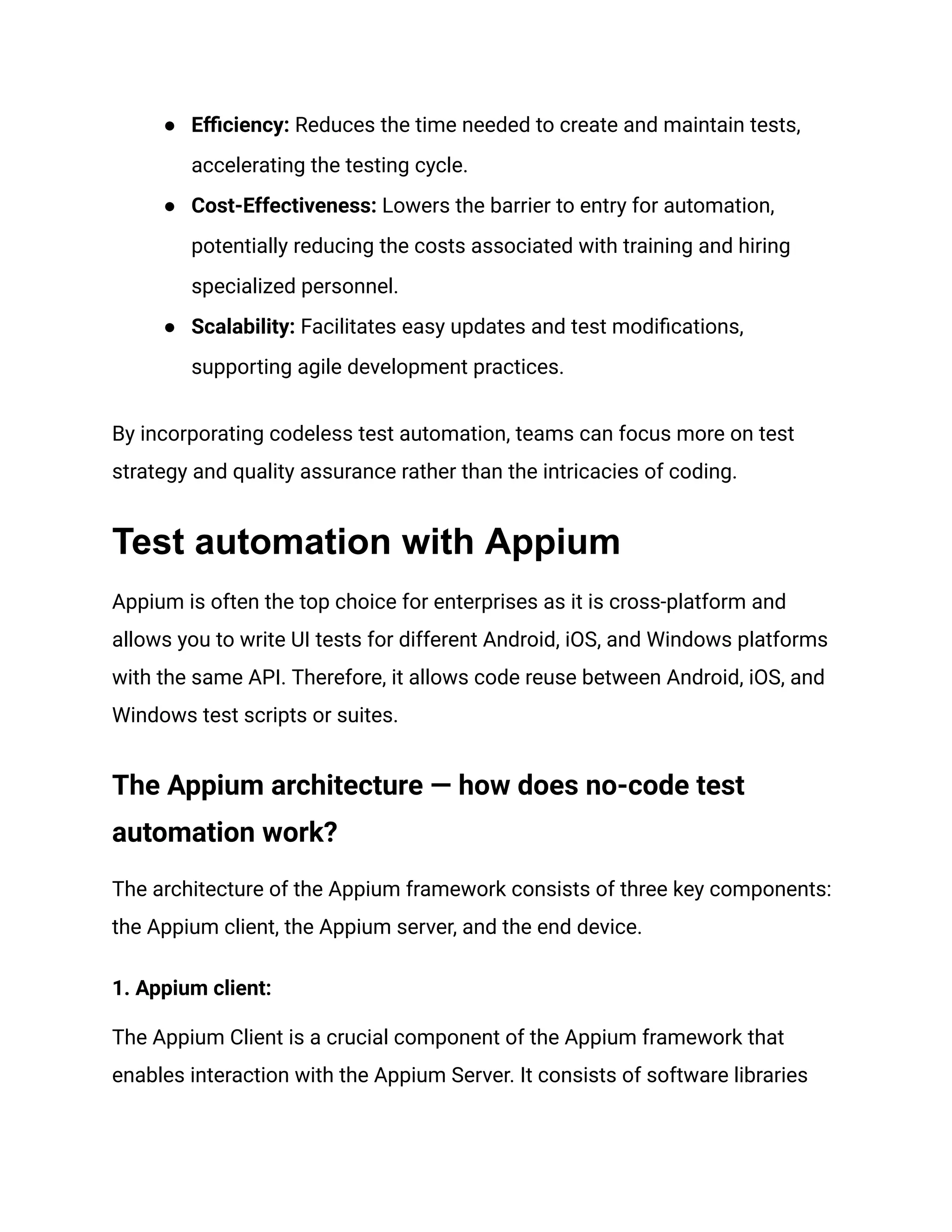

● Efficiency: Reduces the time needed to create and maintain tests,
accelerating the testing cycle.
● Cost-Effectiveness: Lowers the barrier to entry for automation,
potentially reducing the costs associated with training and hiring
specialized personnel.
● Scalability: Facilitates easy updates and test modifications,
supporting agile development practices.
By incorporating codeless test automation, teams can focus more on test
strategy and quality assurance rather than the intricacies of coding.
Test automation with Appium
Appium is often the top choice for enterprises as it is cross-platform and
allows you to write UI tests for different Android, iOS, and Windows platforms
with the same API. Therefore, it allows code reuse between Android, iOS, and
Windows test scripts or suites.
The Appium architecture — how does no-code test
automation work?
The architecture of the Appium framework consists of three key components:
the Appium client, the Appium server, and the end device.
1. Appium client:
The Appium Client is a crucial component of the Appium framework that
enables interaction with the Appium Server. It consists of software libraries

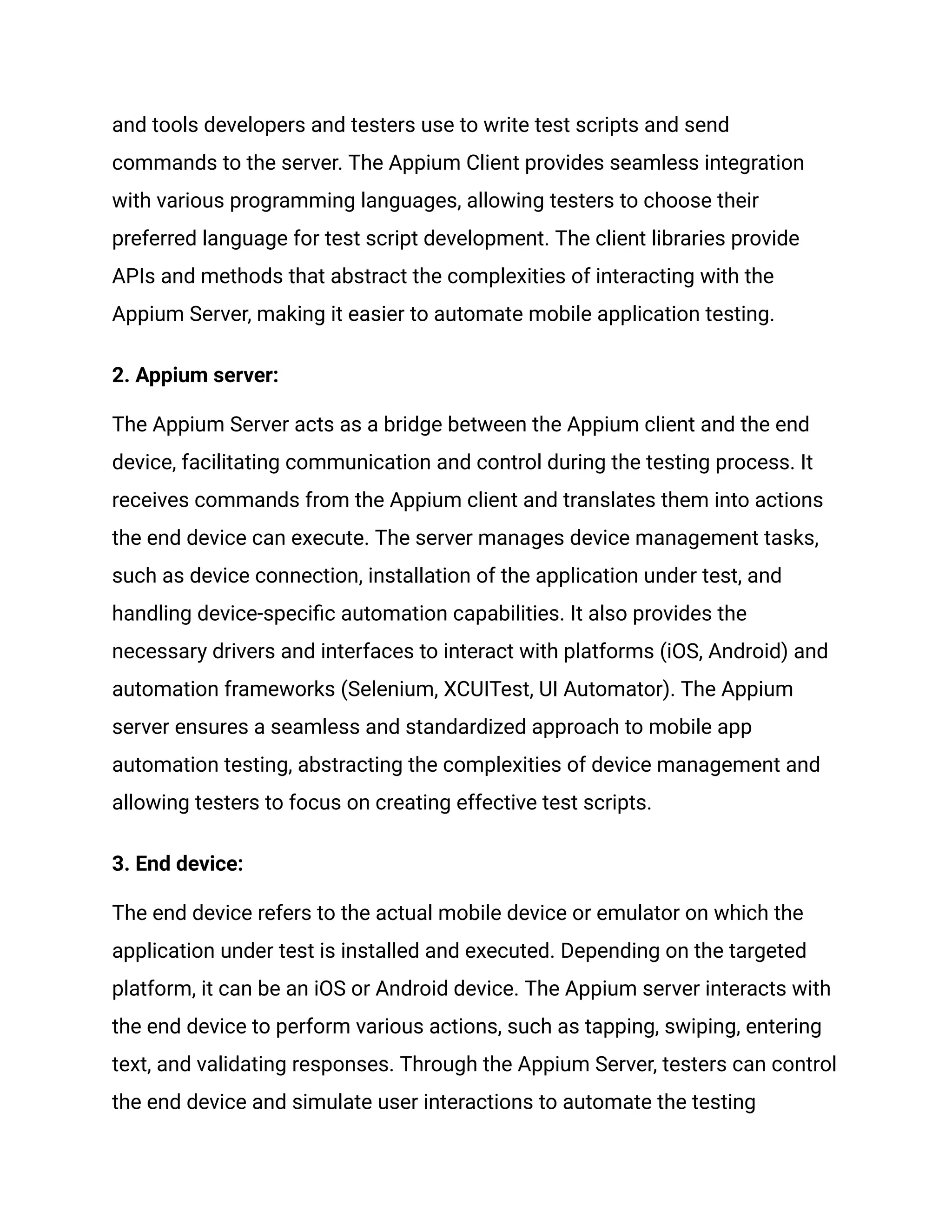

and tools developers and testers use to write test scripts and send
commands to the server. The Appium Client provides seamless integration
with various programming languages, allowing testers to choose their
preferred language for test script development. The client libraries provide
APIs and methods that abstract the complexities of interacting with the
Appium Server, making it easier to automate mobile application testing.
2. Appium server:
The Appium Server acts as a bridge between the Appium client and the end
device, facilitating communication and control during the testing process. It
receives commands from the Appium client and translates them into actions
the end device can execute. The server manages device management tasks,
such as device connection, installation of the application under test, and
handling device-specific automation capabilities. It also provides the
necessary drivers and interfaces to interact with platforms (iOS, Android) and
automation frameworks (Selenium, XCUITest, UI Automator). The Appium
server ensures a seamless and standardized approach to mobile app
automation testing, abstracting the complexities of device management and
allowing testers to focus on creating effective test scripts.
3. End device:
The end device refers to the actual mobile device or emulator on which the
application under test is installed and executed. Depending on the targeted
platform, it can be an iOS or Android device. The Appium server interacts with
the end device to perform various actions, such as tapping, swiping, entering
text, and validating responses. Through the Appium Server, testers can control
the end device and simulate user interactions to automate the testing

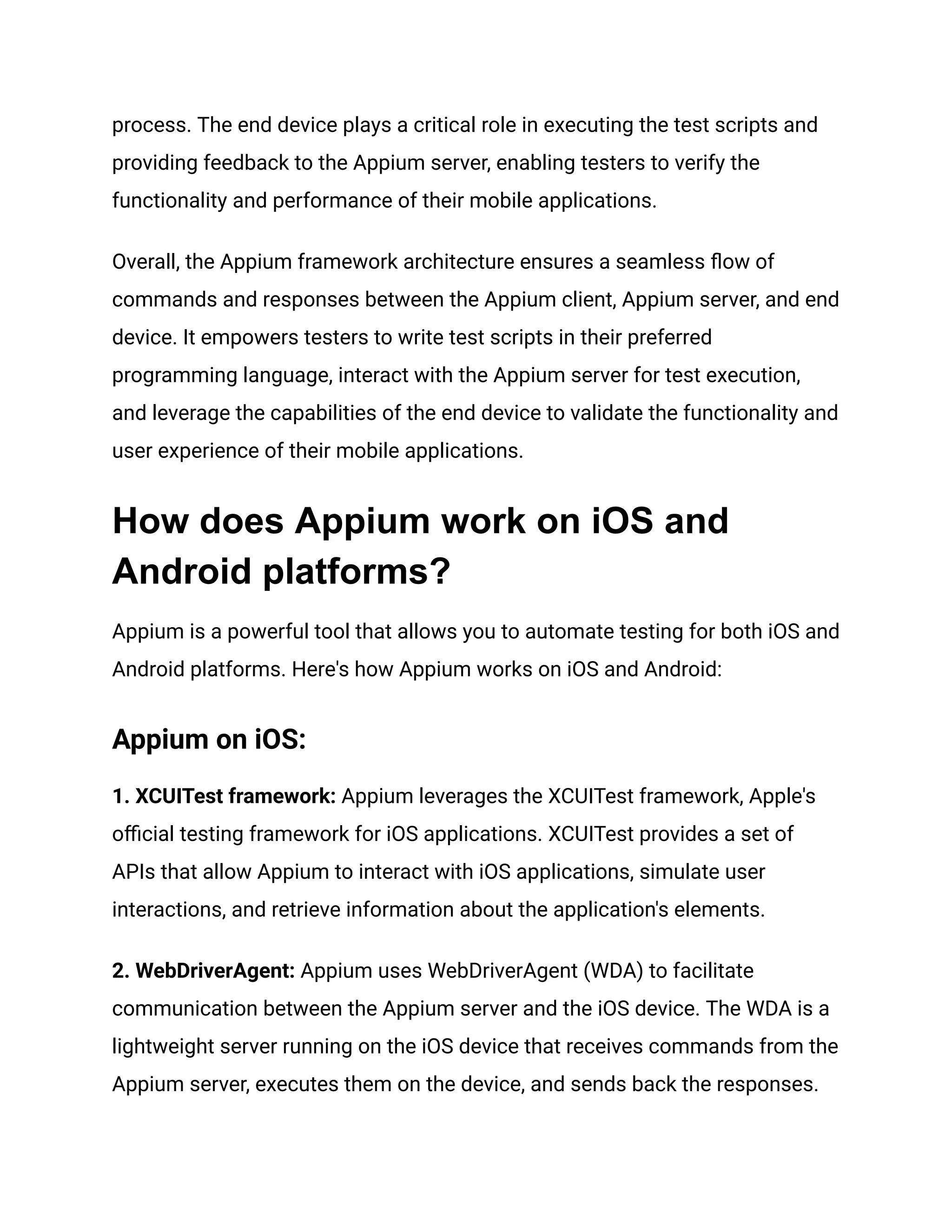

process. The end device plays a critical role in executing the test scripts and
providing feedback to the Appium server, enabling testers to verify the
functionality and performance of their mobile applications.
Overall, the Appium framework architecture ensures a seamless flow of
commands and responses between the Appium client, Appium server, and end
device. It empowers testers to write test scripts in their preferred
programming language, interact with the Appium server for test execution,
and leverage the capabilities of the end device to validate the functionality and
user experience of their mobile applications.
How does Appium work on iOS and
Android platforms?
Appium is a powerful tool that allows you to automate testing for both iOS and
Android platforms. Here's how Appium works on iOS and Android:
Appium on iOS:
1. XCUITest framework: Appium leverages the XCUITest framework, Apple's
official testing framework for iOS applications. XCUITest provides a set of
APIs that allow Appium to interact with iOS applications, simulate user
interactions, and retrieve information about the application's elements.
2. WebDriverAgent: Appium uses WebDriverAgent (WDA) to facilitate
communication between the Appium server and the iOS device. The WDA is a
lightweight server running on the iOS device that receives commands from the
Appium server, executes them on the device, and sends back the responses.

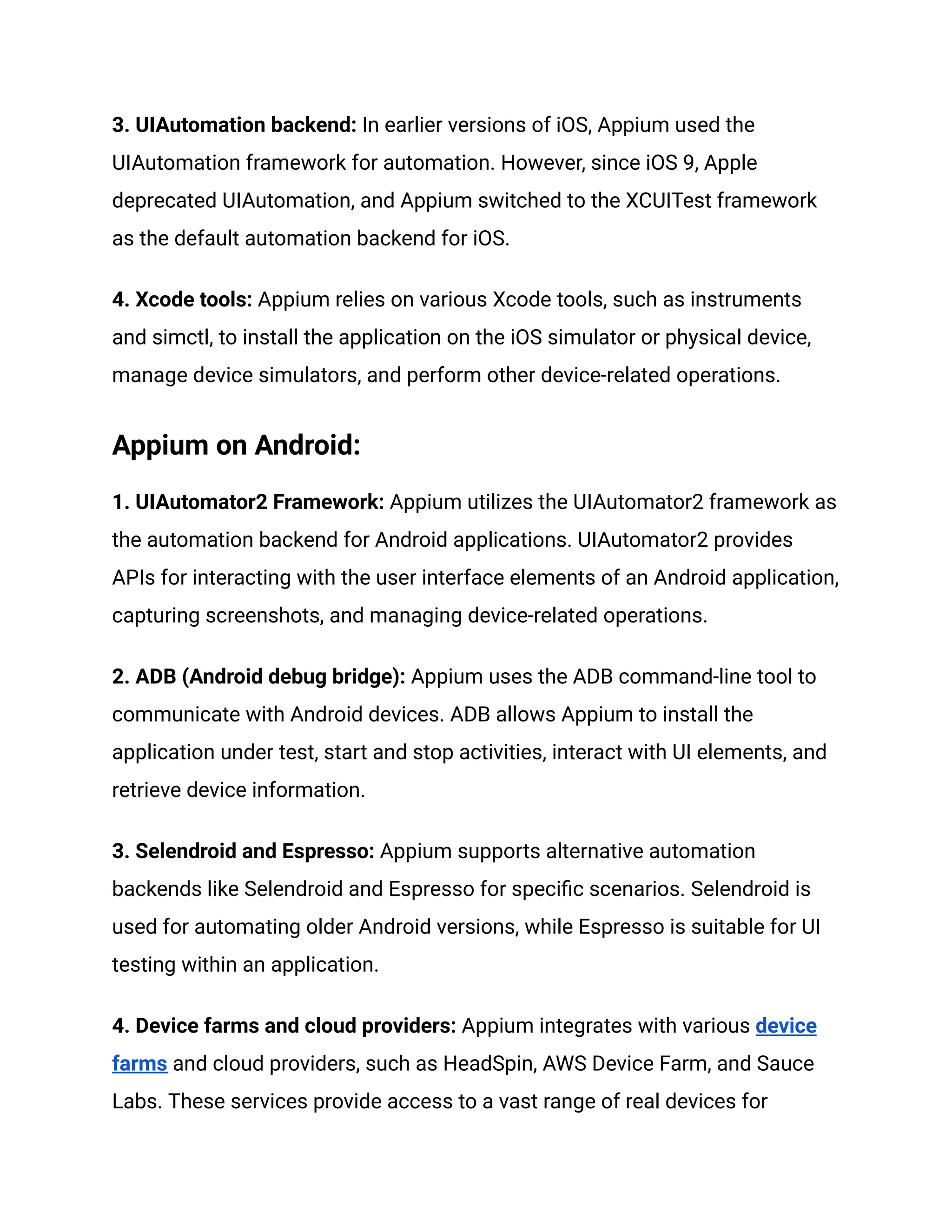

3. UIAutomation backend: In earlier versions of iOS, Appium used the
UIAutomation framework for automation. However, since iOS 9, Apple
deprecated UIAutomation, and Appium switched to the XCUITest framework
as the default automation backend for iOS.
4. Xcode tools: Appium relies on various Xcode tools, such as instruments
and simctl, to install the application on the iOS simulator or physical device,
manage device simulators, and perform other device-related operations.
Appium on Android:
1. UIAutomator2 Framework: Appium utilizes the UIAutomator2 framework as
the automation backend for Android applications. UIAutomator2 provides
APIs for interacting with the user interface elements of an Android application,
capturing screenshots, and managing device-related operations.
2. ADB (Android debug bridge): Appium uses the ADB command-line tool to
communicate with Android devices. ADB allows Appium to install the
application under test, start and stop activities, interact with UI elements, and
retrieve device information.
3. Selendroid and Espresso: Appium supports alternative automation
backends like Selendroid and Espresso for specific scenarios. Selendroid is
used for automating older Android versions, while Espresso is suitable for UI
testing within an application.
4. Device farms and cloud providers: Appium integrates with various device
farms and cloud providers, such as HeadSpin, AWS Device Farm, and Sauce
Labs. These services provide access to a vast range of real devices for

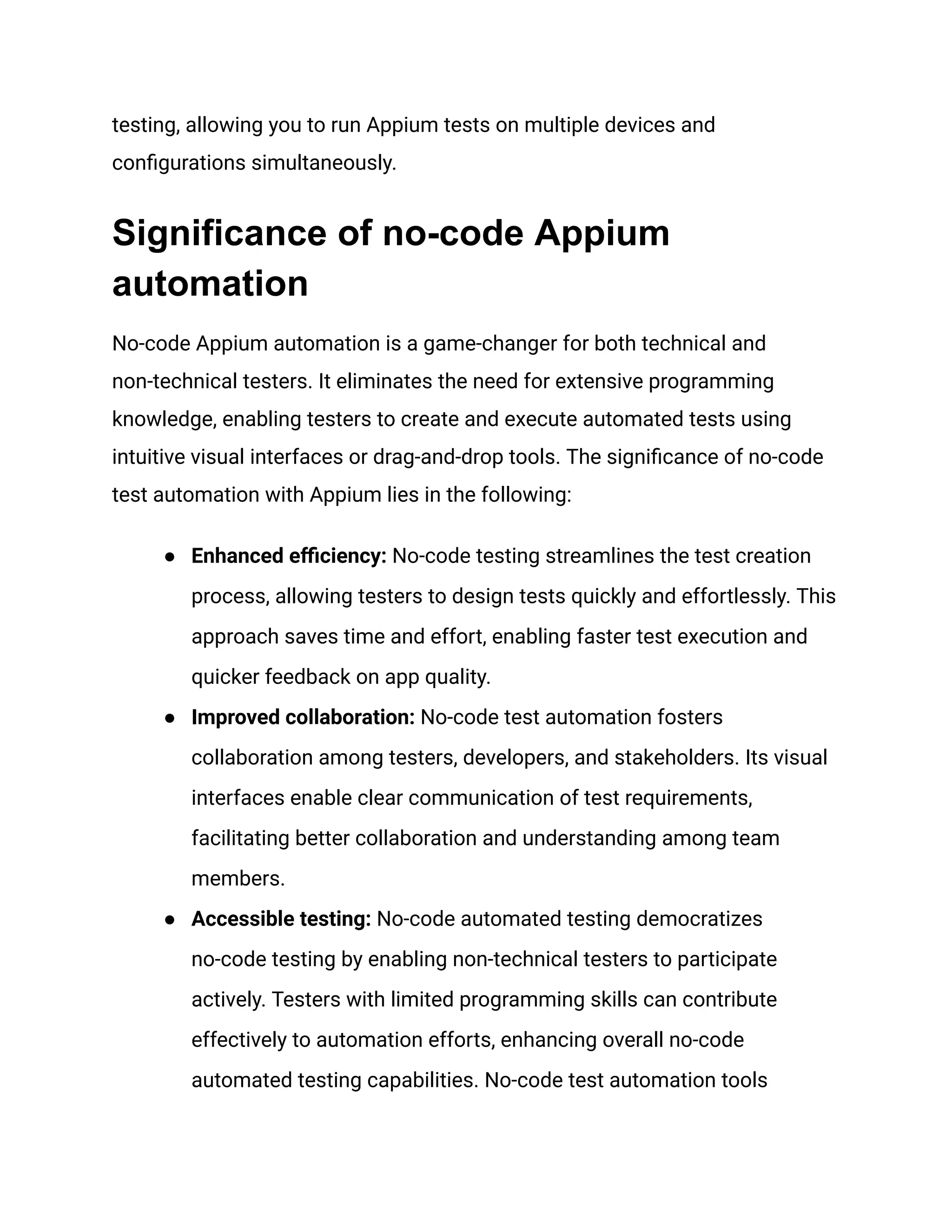

testing, allowing you to run Appium tests on multiple devices and
configurations simultaneously.
Significance of no-code Appium
automation
No-code Appium automation is a game-changer for both technical and
non-technical testers. It eliminates the need for extensive programming
knowledge, enabling testers to create and execute automated tests using
intuitive visual interfaces or drag-and-drop tools. The significance of no-code
test automation with Appium lies in the following:
● Enhanced efficiency: No-code testing streamlines the test creation
process, allowing testers to design tests quickly and effortlessly. This
approach saves time and effort, enabling faster test execution and
quicker feedback on app quality.
● Improved collaboration: No-code test automation fosters
collaboration among testers, developers, and stakeholders. Its visual
interfaces enable clear communication of test requirements,
facilitating better collaboration and understanding among team
members.
● Accessible testing: No-code automated testing democratizes
no-code testing by enabling non-technical testers to participate
actively. Testers with limited programming skills can contribute
effectively to automation efforts, enhancing overall no-code
automated testing capabilities. No-code test automation tools

facilitate collaboration between team members by providing a
common platform for test development. Test cases and components
can be easily shared and reused across projects, promoting efficiency
and consistency in test automation efforts.

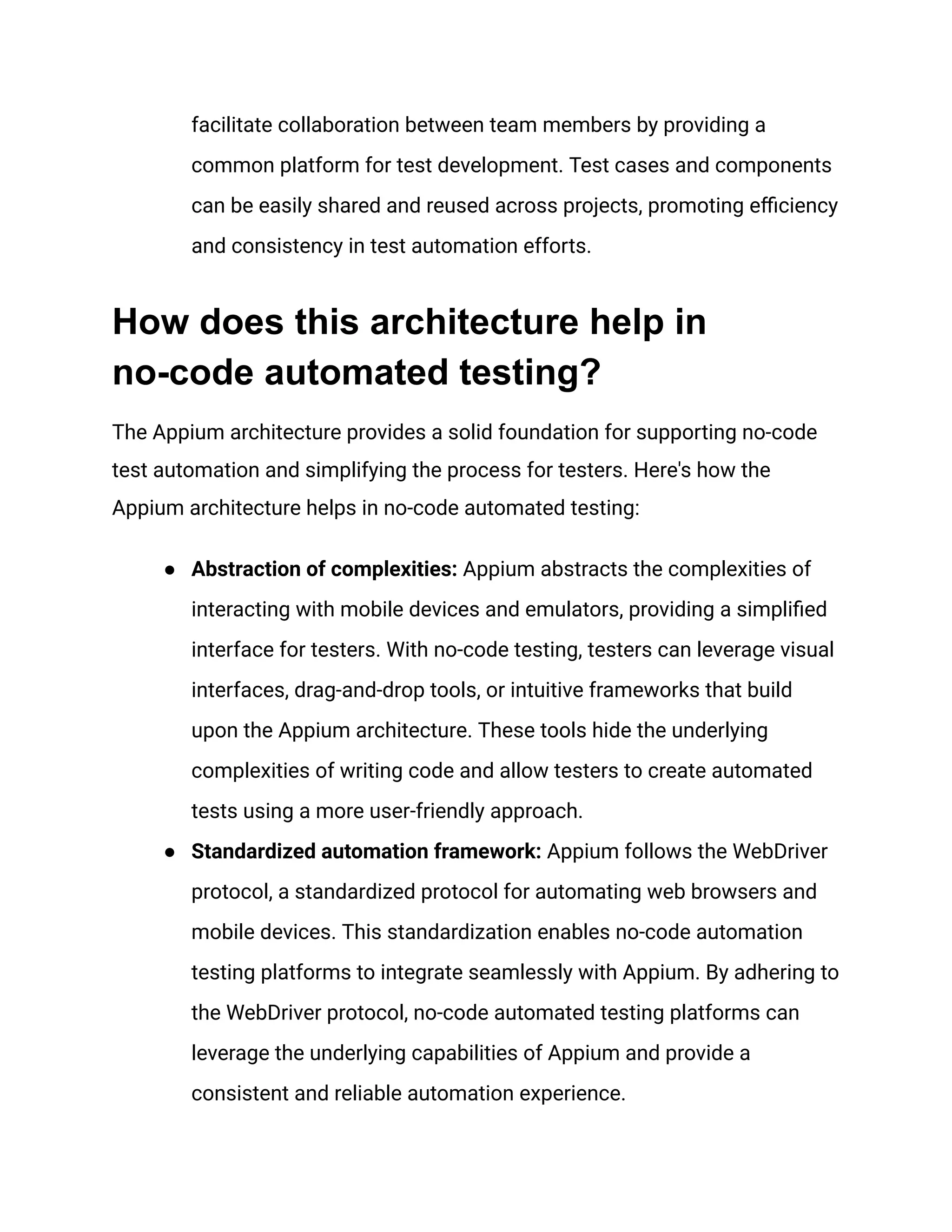

How does this architecture help in
no-code automated testing?
The Appium architecture provides a solid foundation for supporting no-code
test automation and simplifying the process for testers. Here's how the
Appium architecture helps in no-code automated testing:
● Abstraction of complexities: Appium abstracts the complexities of
interacting with mobile devices and emulators, providing a simplified
interface for testers. With no-code testing, testers can leverage visual
interfaces, drag-and-drop tools, or intuitive frameworks that build
upon the Appium architecture. These tools hide the underlying
complexities of writing code and allow testers to create automated
tests using a more user-friendly approach.
● Standardized automation framework: Appium follows the WebDriver
protocol, a standardized protocol for automating web browsers and
mobile devices. This standardization enables no-code automation
testing platforms to integrate seamlessly with Appium. By adhering to
the WebDriver protocol, no-code automated testing platforms can
leverage the underlying capabilities of Appium and provide a
consistent and reliable automation experience.

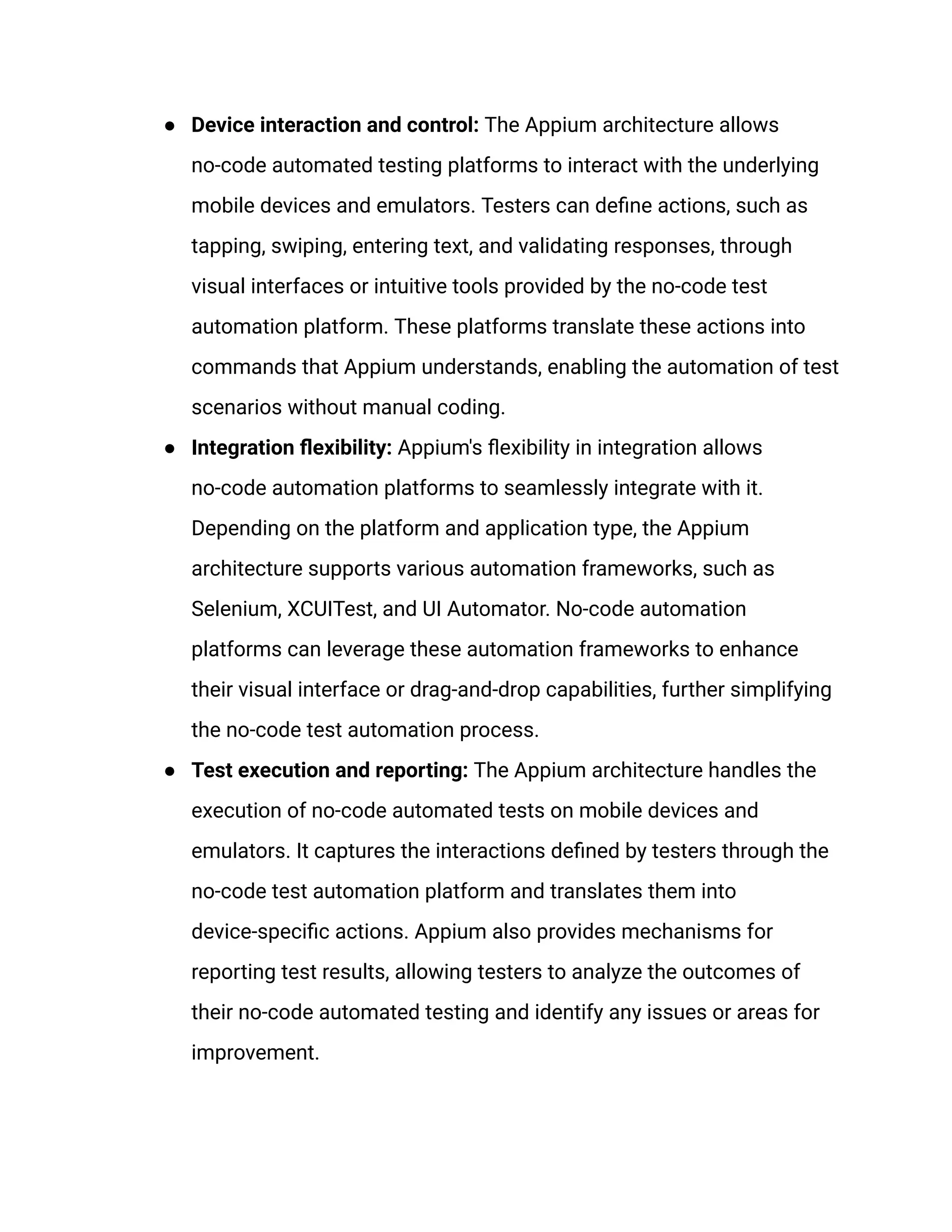

● Device interaction and control: The Appium architecture allows
no-code automated testing platforms to interact with the underlying
mobile devices and emulators. Testers can define actions, such as
tapping, swiping, entering text, and validating responses, through
visual interfaces or intuitive tools provided by the no-code test
automation platform. These platforms translate these actions into
commands that Appium understands, enabling the automation of test
scenarios without manual coding.
● Integration flexibility: Appium's flexibility in integration allows
no-code automation platforms to seamlessly integrate with it.
Depending on the platform and application type, the Appium
architecture supports various automation frameworks, such as
Selenium, XCUITest, and UI Automator. No-code automation
platforms can leverage these automation frameworks to enhance
their visual interface or drag-and-drop capabilities, further simplifying
the no-code test automation process.
● Test execution and reporting: The Appium architecture handles the
execution of no-code automated tests on mobile devices and
emulators. It captures the interactions defined by testers through the
no-code test automation platform and translates them into
device-specific actions. Appium also provides mechanisms for
reporting test results, allowing testers to analyze the outcomes of
their no-code automated testing and identify any issues or areas for
improvement.

Unset
Unset

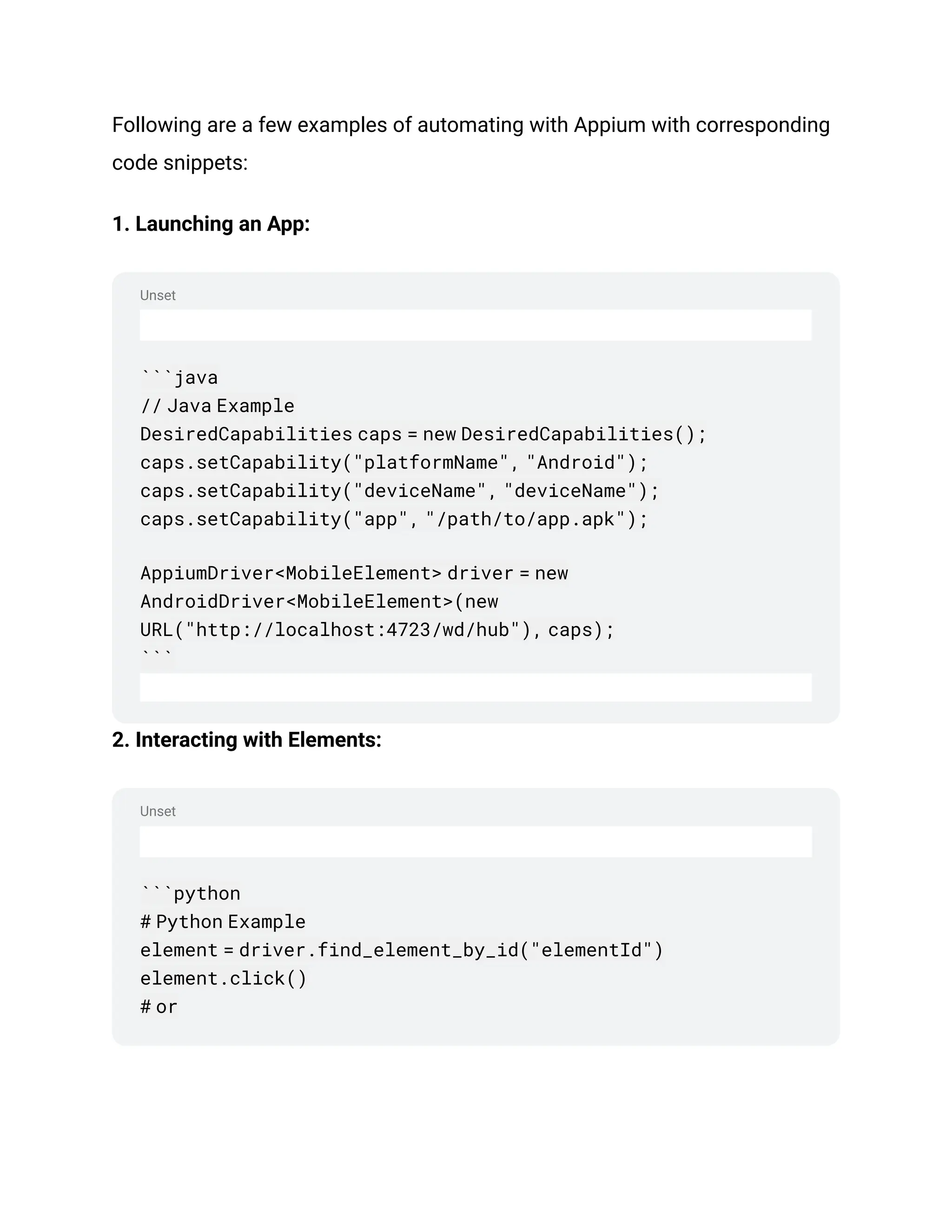

Following are a few examples of automating with Appium with corresponding
code snippets:
1. Launching an App:
```java
// Java Example
DesiredCapabilities caps = new DesiredCapabilities();
caps.setCapability("platformName", "Android");
caps.setCapability("deviceName", "deviceName");
caps.setCapability("app", "/path/to/app.apk");
AppiumDriver<MobileElement> driver = new
AndroidDriver<MobileElement>(new
URL("http://localhost:4723/wd/hub"), caps);
```
2. Interacting with Elements:
```python
# Python Example
element = driver.find_element_by_id("elementId")
element.click()
# or

Unset
Unset

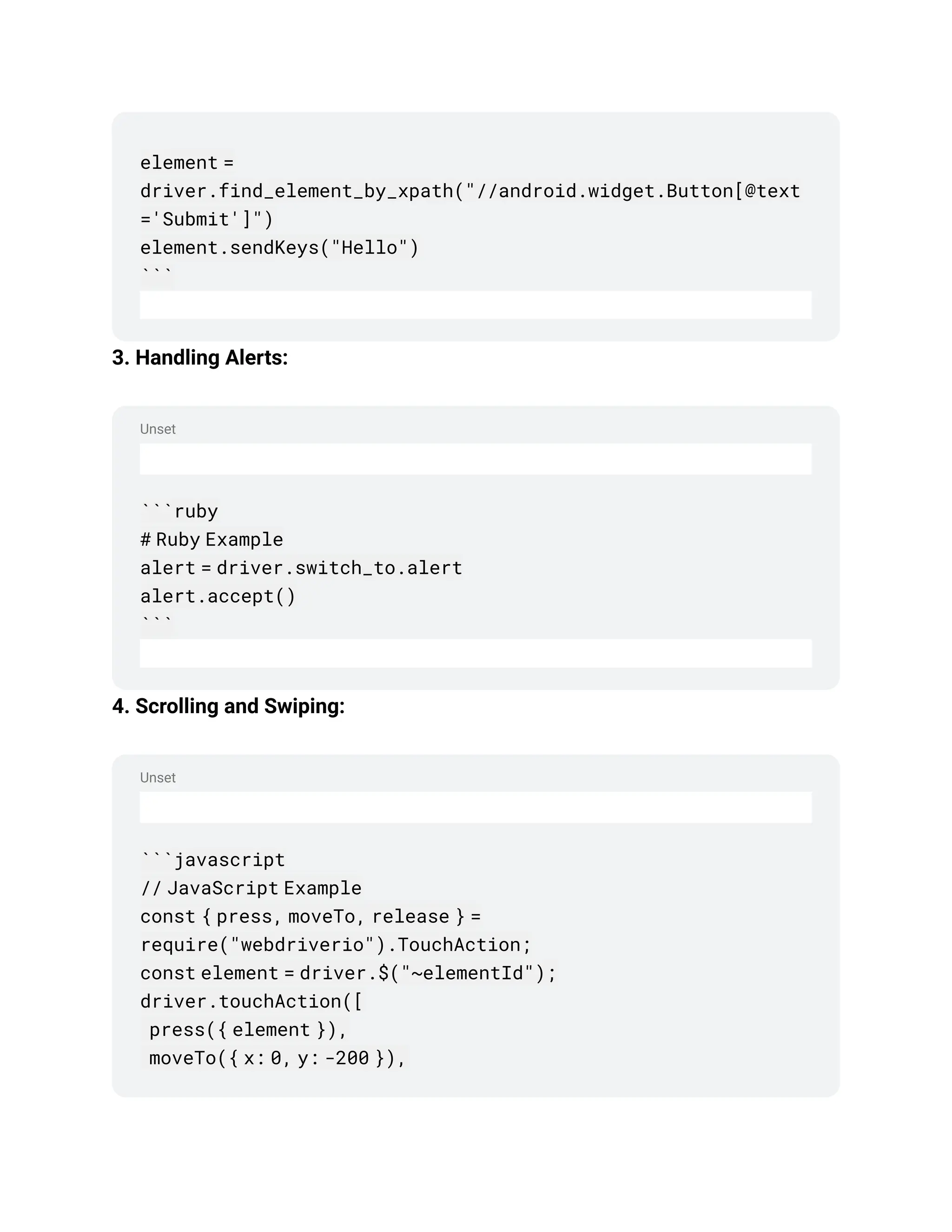

element =
driver.find_element_by_xpath("//android.widget.Button[@text
='Submit']")
element.sendKeys("Hello")
```
3. Handling Alerts:
```ruby
# Ruby Example
alert = driver.switch_to.alert
alert.accept()
```
4. Scrolling and Swiping:
```javascript
// JavaScript Example
const { press, moveTo, release } =
require("webdriverio").TouchAction;
const element = driver.$("~elementId");
driver.touchAction([
press({ element }),
moveTo({ x: 0, y: -200 }),

Unset
release(),
]);
```

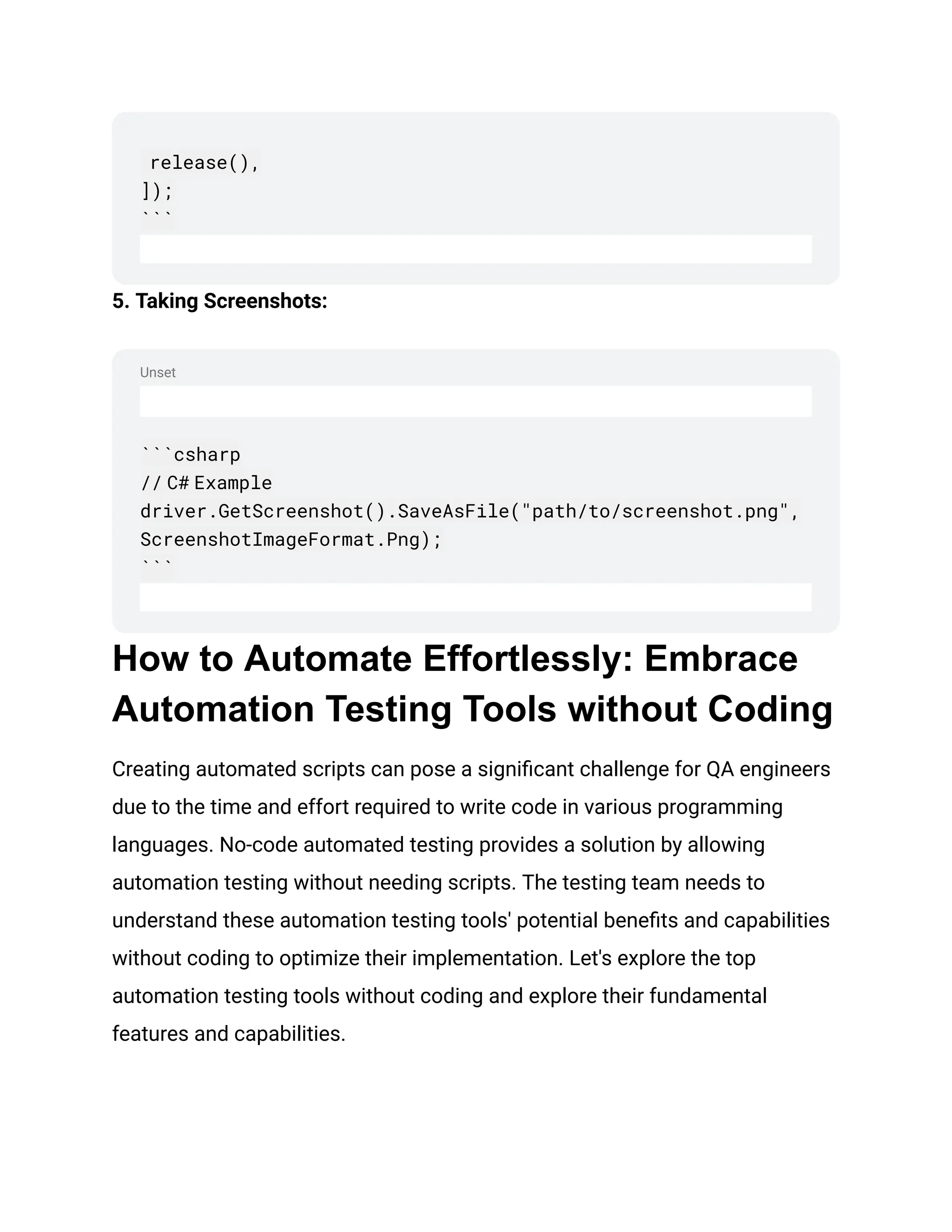

5. Taking Screenshots:
```csharp
// C# Example
driver.GetScreenshot().SaveAsFile("path/to/screenshot.png",
ScreenshotImageFormat.Png);
```
How to Automate Effortlessly: Embrace
Automation Testing Tools without Coding
Creating automated scripts can pose a significant challenge for QA engineers
due to the time and effort required to write code in various programming
languages. No-code automated testing provides a solution by allowing
automation testing without needing scripts. The testing team needs to
understand these automation testing tools' potential benefits and capabilities
without coding to optimize their implementation. Let's explore the top
automation testing tools without coding and explore their fundamental
features and capabilities.

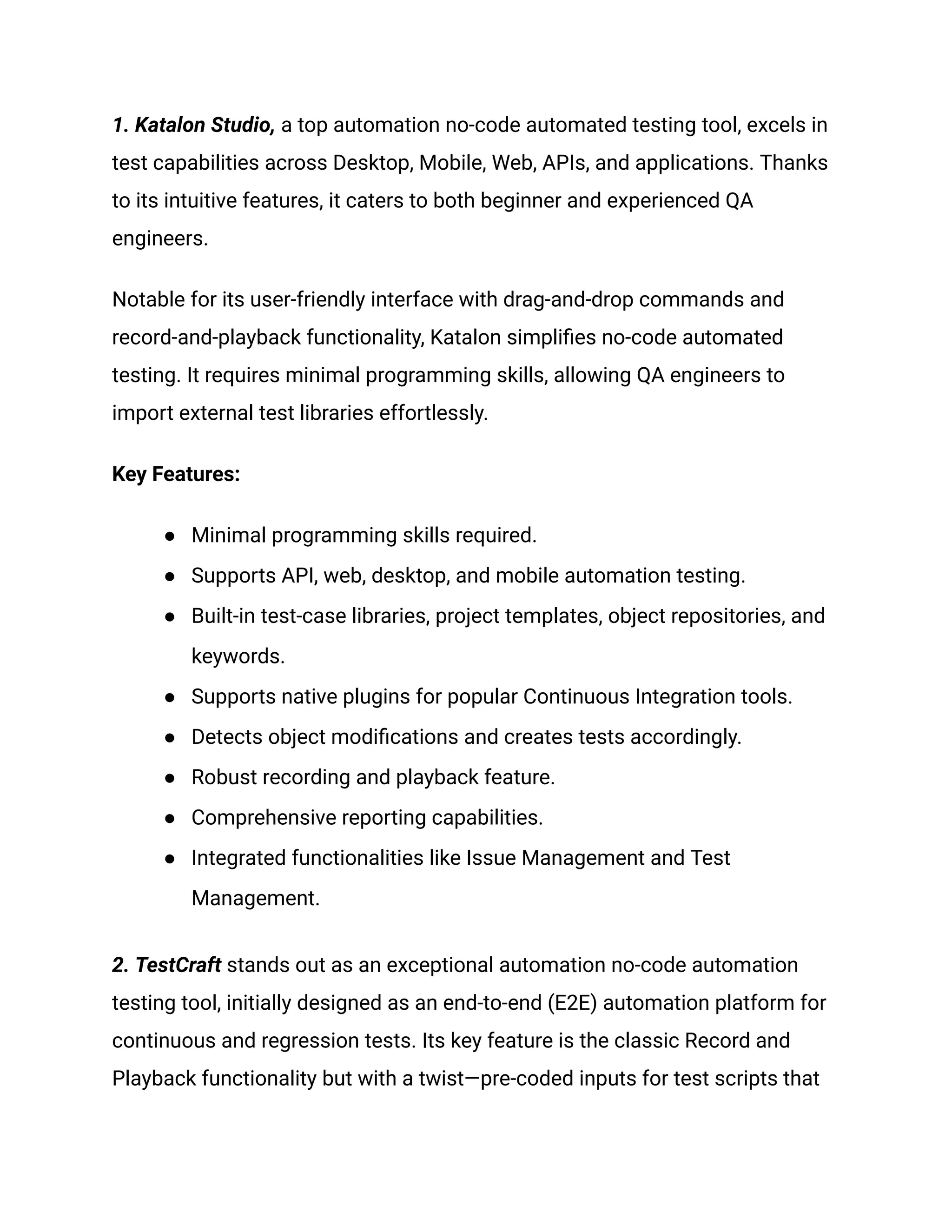

1. Katalon Studio, a top automation no-code automated testing tool, excels in
test capabilities across Desktop, Mobile, Web, APIs, and applications. Thanks
to its intuitive features, it caters to both beginner and experienced QA
engineers.
Notable for its user-friendly interface with drag-and-drop commands and
record-and-playback functionality, Katalon simplifies no-code automated
testing. It requires minimal programming skills, allowing QA engineers to
import external test libraries effortlessly.
Key Features:
● Minimal programming skills required.
● Supports API, web, desktop, and mobile automation testing.
● Built-in test-case libraries, project templates, object repositories, and
keywords.
● Supports native plugins for popular Continuous Integration tools.
● Detects object modifications and creates tests accordingly.
● Robust recording and playback feature.
● Comprehensive reporting capabilities.
● Integrated functionalities like Issue Management and Test
Management.
‍
2. TestCraft stands out as an exceptional automation no-code automation
testing tool, initially designed as an end-to-end (E2E) automation platform for
continuous and regression tests. Its key feature is the classic Record and
Playback functionality but with a twist—pre-coded inputs for test scripts that

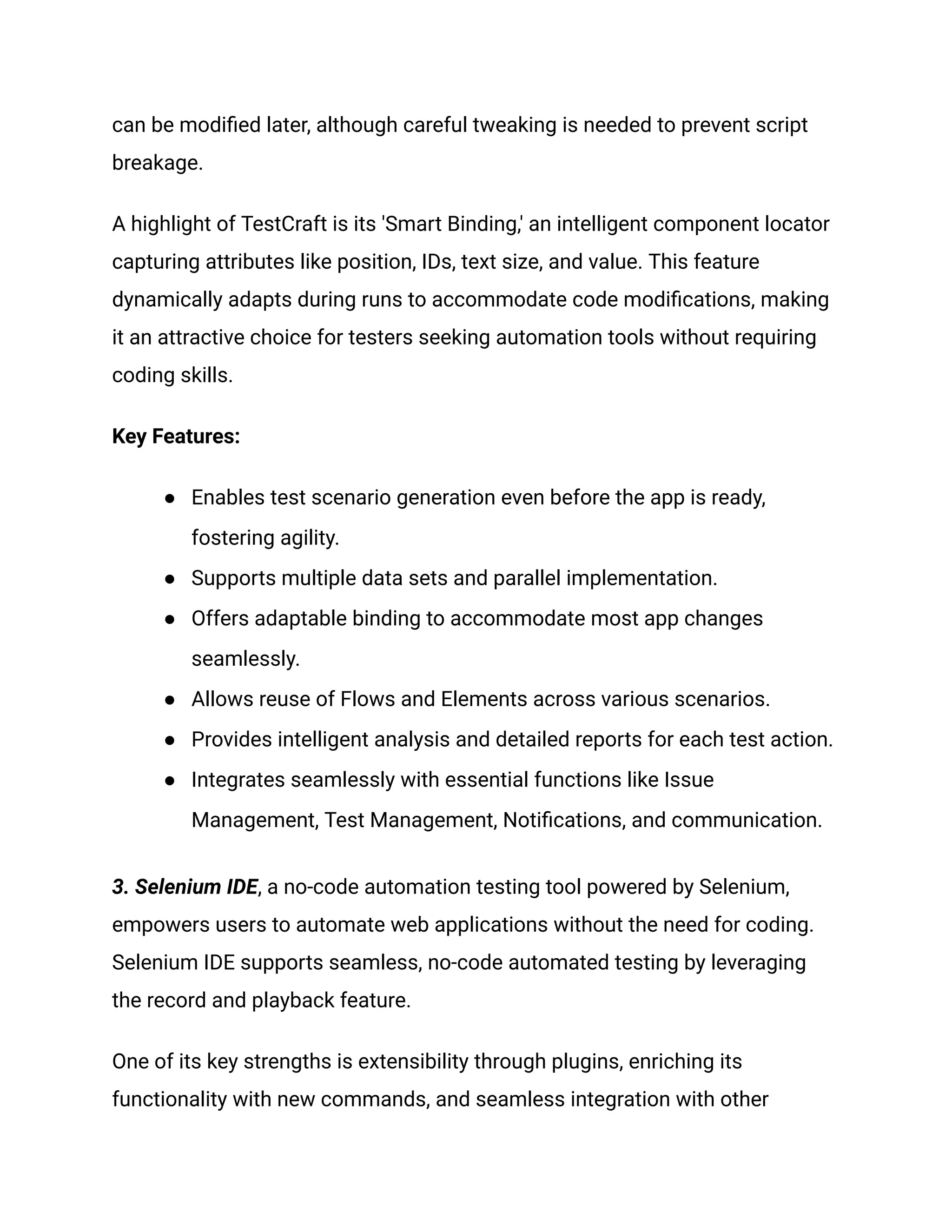

can be modified later, although careful tweaking is needed to prevent script
breakage.
A highlight of TestCraft is its 'Smart Binding,' an intelligent component locator
capturing attributes like position, IDs, text size, and value. This feature
dynamically adapts during runs to accommodate code modifications, making
it an attractive choice for testers seeking automation tools without requiring
coding skills.
Key Features:
● Enables test scenario generation even before the app is ready,
fostering agility.
● Supports multiple data sets and parallel implementation.
● Offers adaptable binding to accommodate most app changes
seamlessly.
● Allows reuse of Flows and Elements across various scenarios.
● Provides intelligent analysis and detailed reports for each test action.
● Integrates seamlessly with essential functions like Issue
Management, Test Management, Notifications, and communication.
3. Selenium IDE, a no-code automation testing tool powered by Selenium,
empowers users to automate web applications without the need for coding.
Selenium IDE supports seamless, no-code automated testing by leveraging
the record and playback feature.
One of its key strengths is extensibility through plugins, enriching its
functionality with new commands, and seamless integration with other

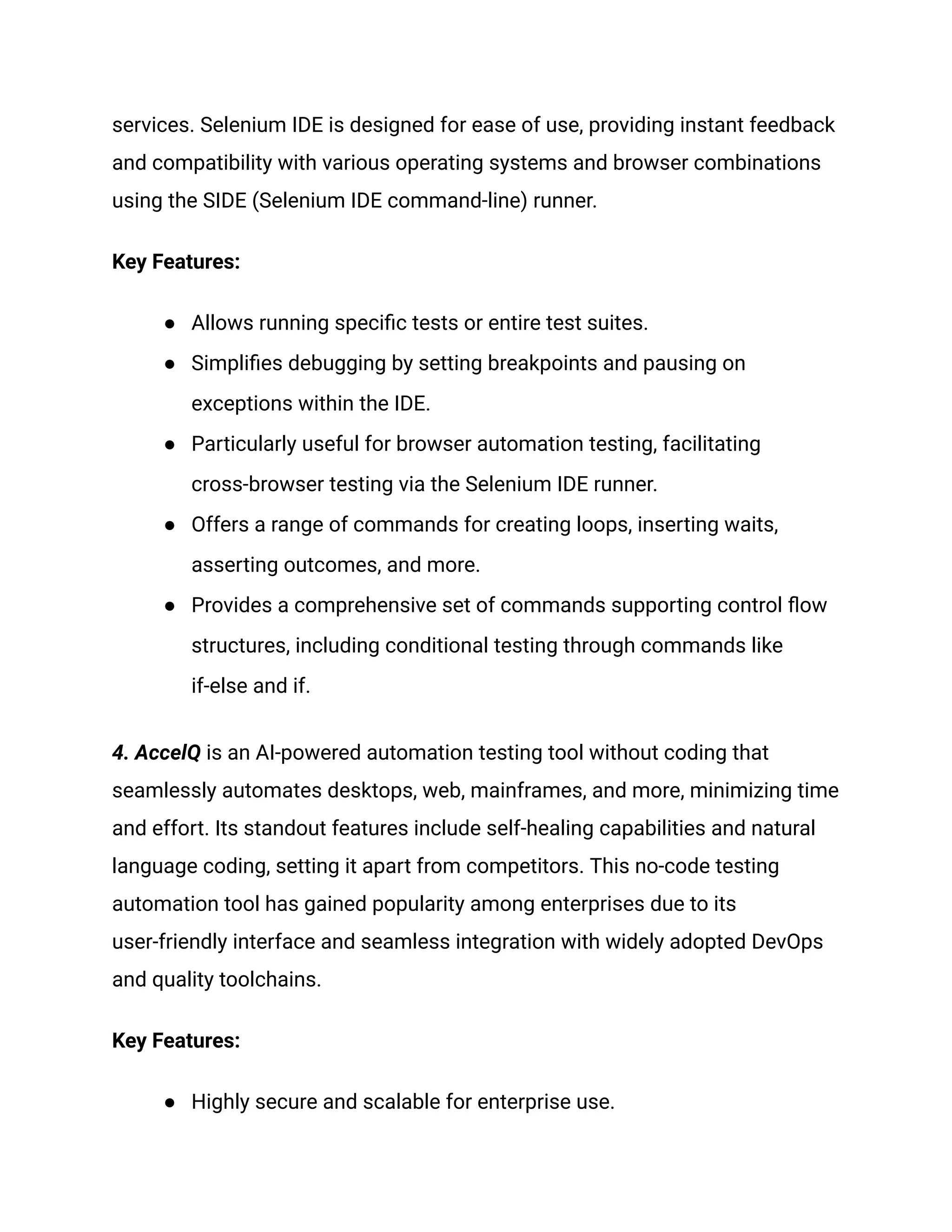

services. Selenium IDE is designed for ease of use, providing instant feedback
and compatibility with various operating systems and browser combinations
using the SIDE (Selenium IDE command-line) runner.
Key Features:
● Allows running specific tests or entire test suites.
● Simplifies debugging by setting breakpoints and pausing on
exceptions within the IDE.
● Particularly useful for browser automation testing, facilitating
cross-browser testing via the Selenium IDE runner.
● Offers a range of commands for creating loops, inserting waits,
asserting outcomes, and more.
● Provides a comprehensive set of commands supporting control flow
structures, including conditional testing through commands like
if-else and if.
4. AccelQ is an AI-powered automation testing tool without coding that
seamlessly automates desktops, web, mainframes, and more, minimizing time
and effort. Its standout features include self-healing capabilities and natural
language coding, setting it apart from competitors. This no-code testing
automation tool has gained popularity among enterprises due to its
user-friendly interface and seamless integration with widely adopted DevOps
and quality toolchains.

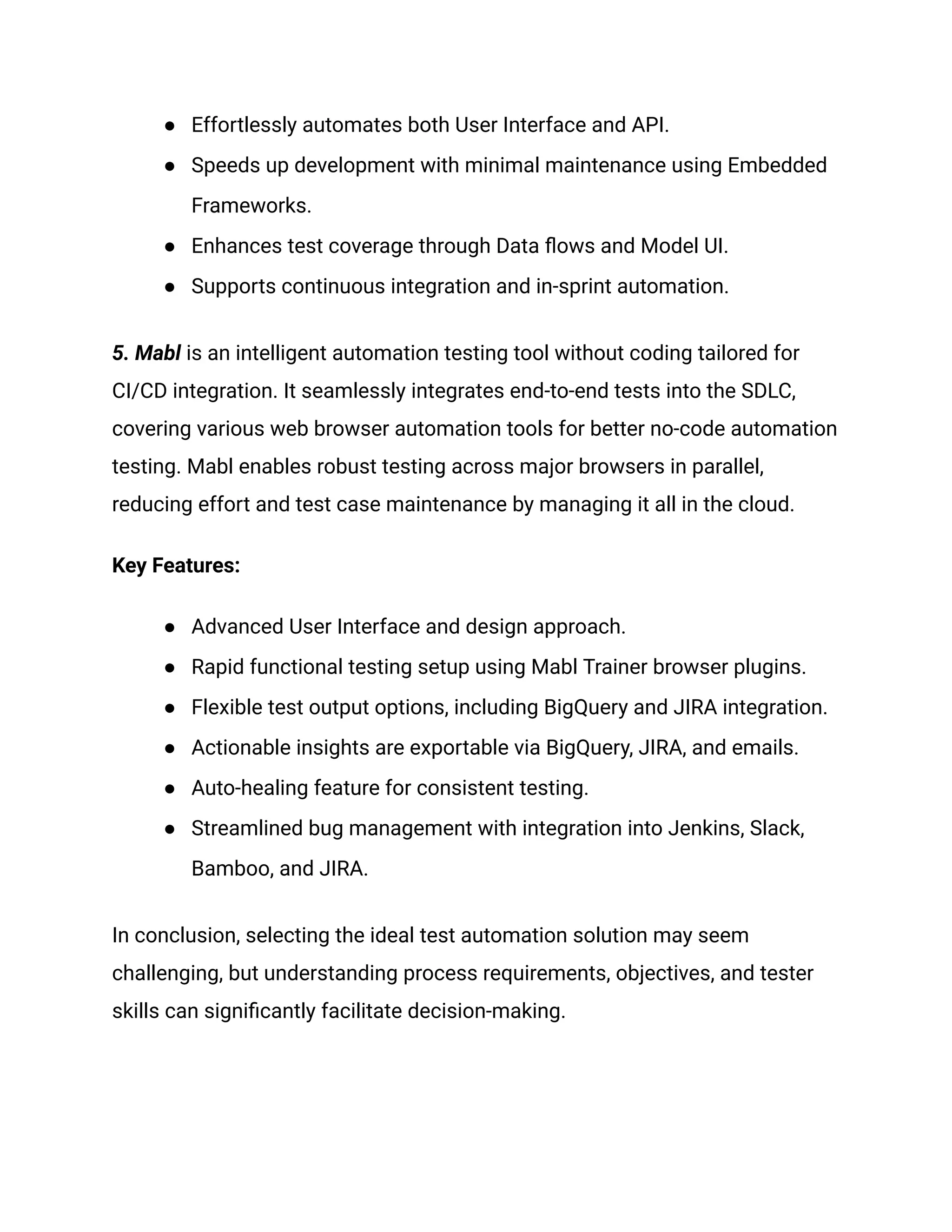

Key Features:
● Highly secure and scalable for enterprise use.

● Effortlessly automates both User Interface and API.
● Speeds up development with minimal maintenance using Embedded
Frameworks.
● Enhances test coverage through Data flows and Model UI.
● Supports continuous integration and in-sprint automation.
5. Mabl is an intelligent automation testing tool without coding tailored for
CI/CD integration. It seamlessly integrates end-to-end tests into the SDLC,
covering various web browser automation tools for better no-code automation
testing. Mabl enables robust testing across major browsers in parallel,
reducing effort and test case maintenance by managing it all in the cloud.
Key Features:
● Advanced User Interface and design approach.
● Rapid functional testing setup using Mabl Trainer browser plugins.
● Flexible test output options, including BigQuery and JIRA integration.
● Actionable insights are exportable via BigQuery, JIRA, and emails.
● Auto-healing feature for consistent testing.
● Streamlined bug management with integration into Jenkins, Slack,
Bamboo, and JIRA.
In conclusion, selecting the ideal test automation solution may seem
challenging, but understanding process requirements, objectives, and tester
skills can significantly facilitate decision-making.

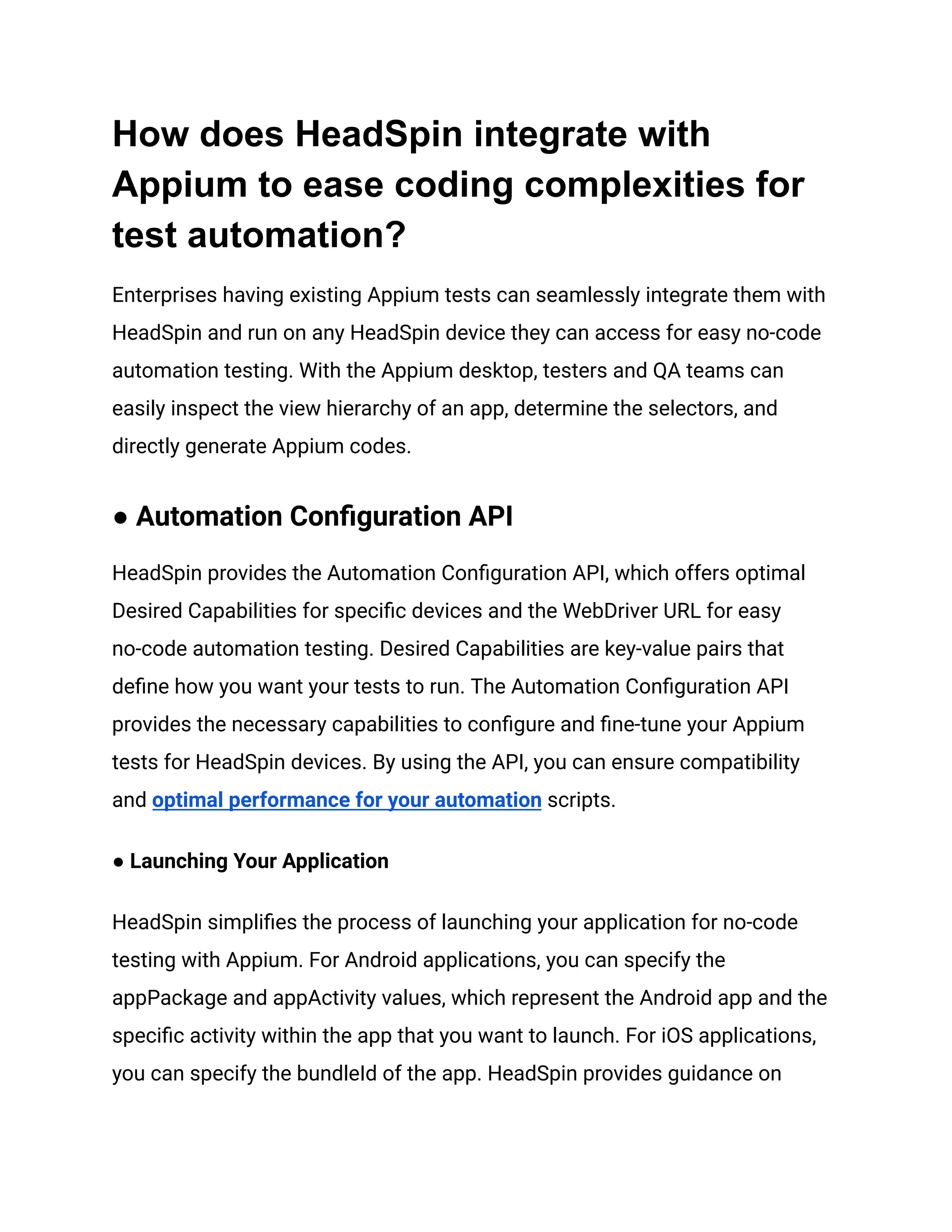

How does HeadSpin integrate with
Appium to ease coding complexities for
test automation?
Enterprises having existing Appium tests can seamlessly integrate them with
HeadSpin and run on any HeadSpin device they can access for easy no-code
automation testing. With the Appium desktop, testers and QA teams can
easily inspect the view hierarchy of an app, determine the selectors, and
directly generate Appium codes.
● Automation Configuration API
HeadSpin provides the Automation Configuration API, which offers optimal
Desired Capabilities for specific devices and the WebDriver URL for easy
no-code automation testing. Desired Capabilities are key-value pairs that
define how you want your tests to run. The Automation Configuration API
provides the necessary capabilities to configure and fine-tune your Appium
tests for HeadSpin devices. By using the API, you can ensure compatibility
and optimal performance for your automation scripts.
● Launching Your Application
HeadSpin simplifies the process of launching your application for no-code
testing with Appium. For Android applications, you can specify the
appPackage and appActivity values, which represent the Android app and the
specific activity within the app that you want to launch. For iOS applications,
you can specify the bundleId of the app. HeadSpin provides guidance on

Unset

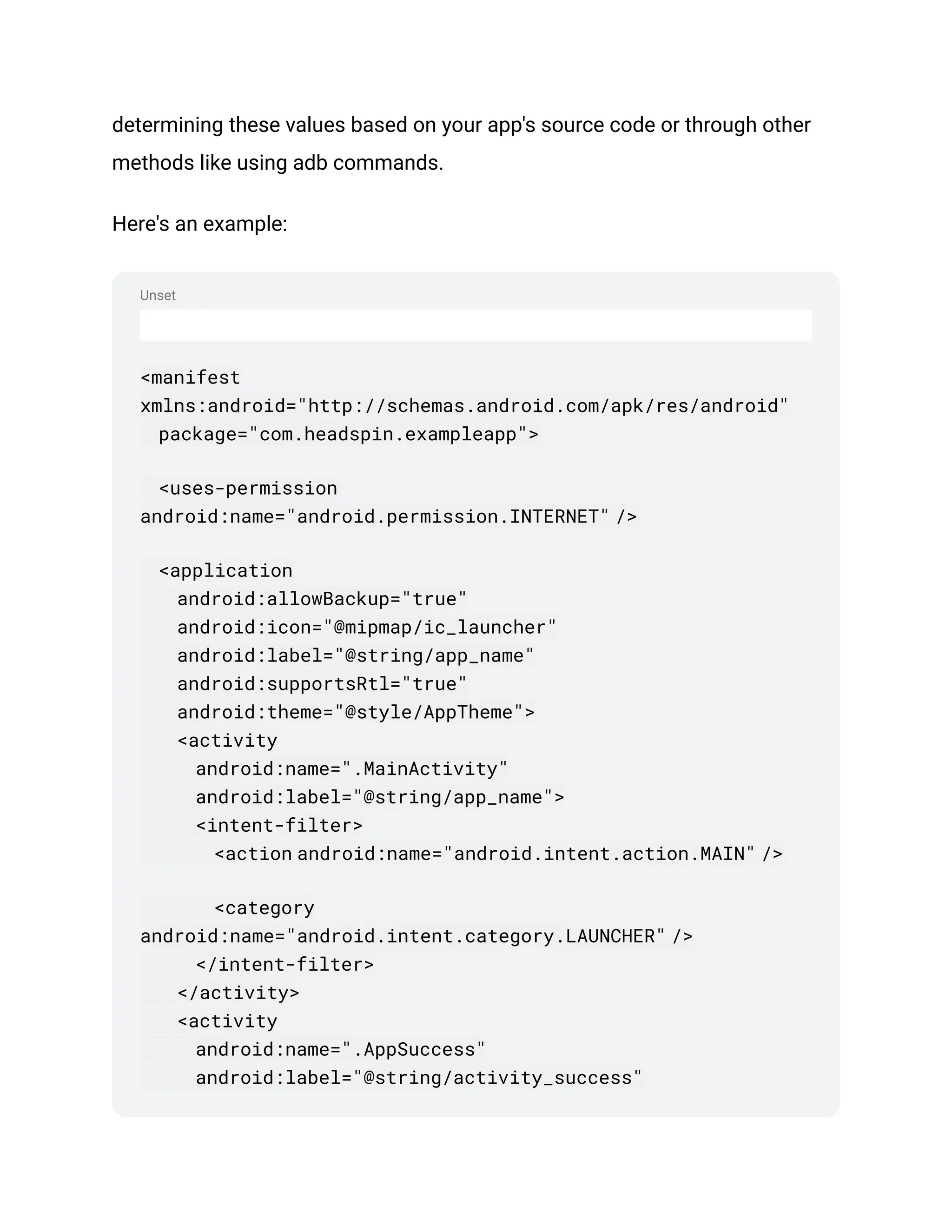

determining these values based on your app's source code or through other
methods like using adb commands.
Here's an example:
<manifest
xmlns:android="http://schemas.android.com/apk/res/android"
package="com.headspin.exampleapp">
<uses-permission
android:name="android.permission.INTERNET" />
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme">
<activity
android:name=".MainActivity"
android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category
android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:name=".AppSuccess"
android:label="@string/activity_success"

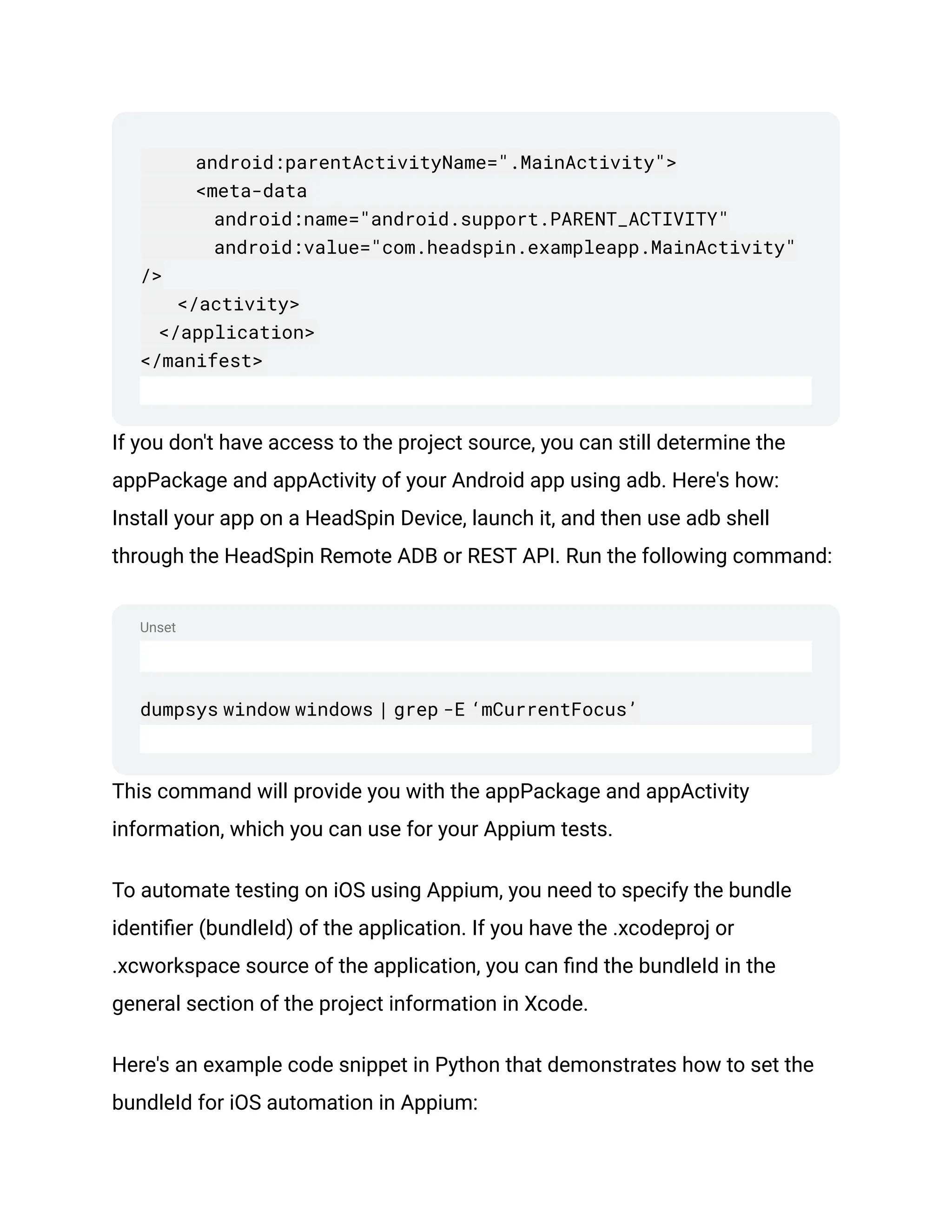

Unset
android:parentActivityName=".MainActivity">
<meta-data
android:name="android.support.PARENT_ACTIVITY"
android:value="com.headspin.exampleapp.MainActivity"
/>
</activity>
</application>
</manifest>
If you don't have access to the project source, you can still determine the
appPackage and appActivity of your Android app using adb. Here's how:
Install your app on a HeadSpin Device, launch it, and then use adb shell
through the HeadSpin Remote ADB or REST API. Run the following command:
dumpsys window windows | grep -E ‘mCurrentFocus’
This command will provide you with the appPackage and appActivity
information, which you can use for your Appium tests.
To automate testing on iOS using Appium, you need to specify the bundle
identifier (bundleId) of the application. If you have the .xcodeproj or
.xcworkspace source of the application, you can find the bundleId in the
general section of the project information in Xcode.

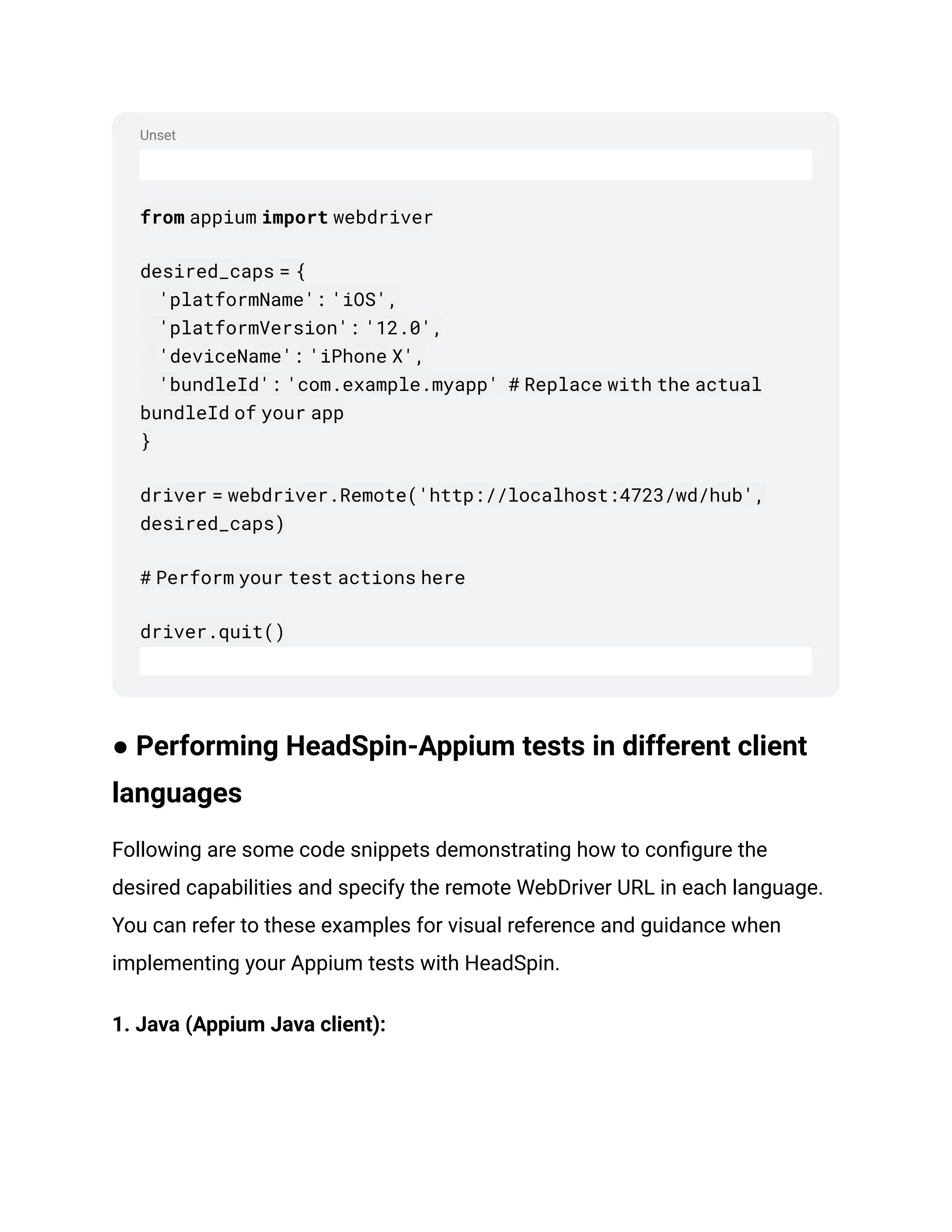

Here's an example code snippet in Python that demonstrates how to set the
bundleId for iOS automation in Appium:

Unset
from appium import webdriver
desired_caps = {
'platformName': 'iOS',
'platformVersion': '12.0',
'deviceName': 'iPhone X',
'bundleId': 'com.example.myapp' # Replace with the actual
bundleId of your app
}
driver = webdriver.Remote('http://localhost:4723/wd/hub',
desired_caps)
# Perform your test actions here
driver.quit()

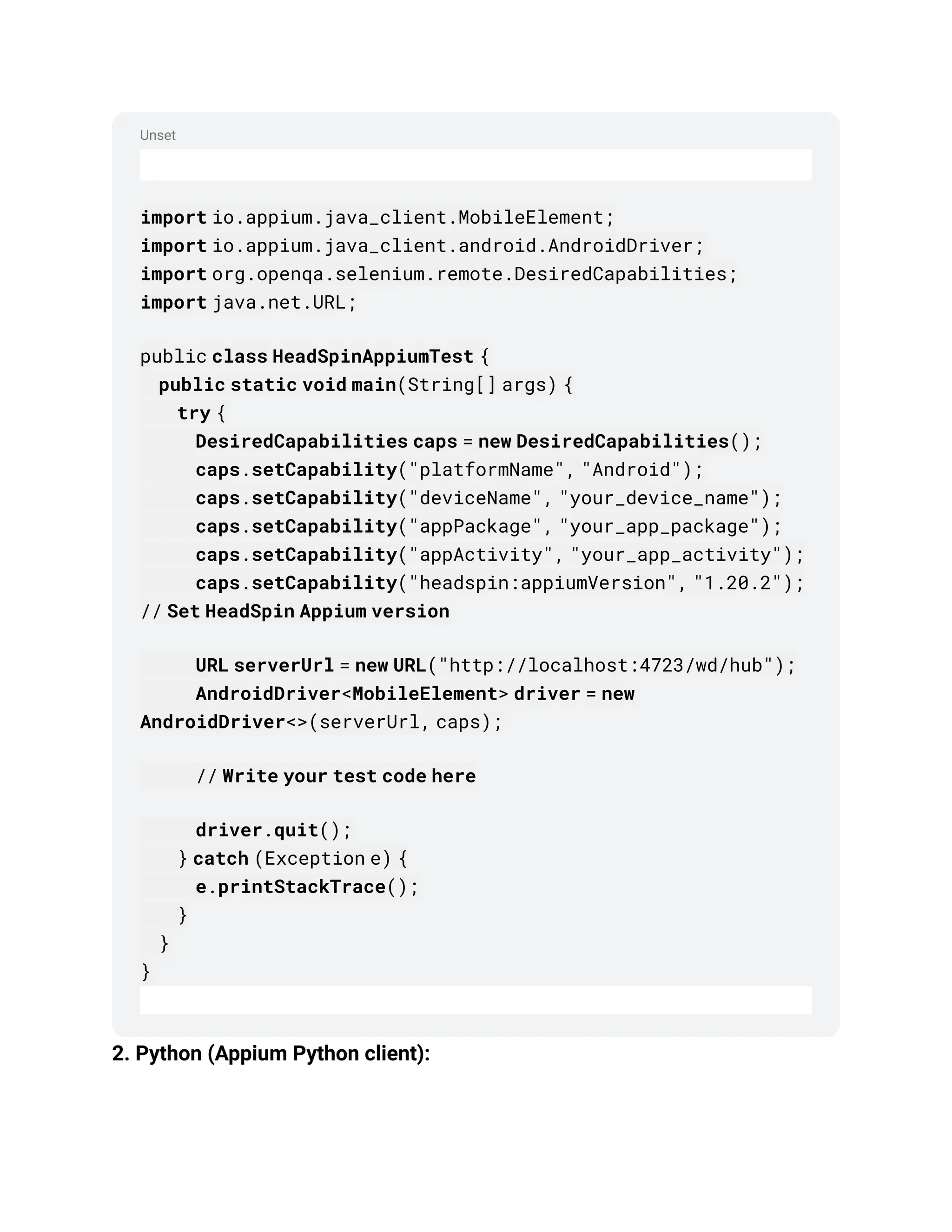

● Performing HeadSpin-Appium tests in different client
languages
Following are some code snippets demonstrating how to configure the
desired capabilities and specify the remote WebDriver URL in each language.
You can refer to these examples for visual reference and guidance when
implementing your Appium tests with HeadSpin.
1. Java (Appium Java client):

Unset
import io.appium.java_client.MobileElement;
import io.appium.java_client.android.AndroidDriver;
import org.openqa.selenium.remote.DesiredCapabilities;
import java.net.URL;
public class HeadSpinAppiumTest {
public static void main(String[] args) {
try {
DesiredCapabilities caps = new DesiredCapabilities();
caps.setCapability("platformName", "Android");
caps.setCapability("deviceName", "your_device_name");
caps.setCapability("appPackage", "your_app_package");
caps.setCapability("appActivity", "your_app_activity");
caps.setCapability("headspin:appiumVersion", "1.20.2");
// Set HeadSpin Appium version
URL serverUrl = new URL("http://localhost:4723/wd/hub");
AndroidDriver<MobileElement> driver = new
AndroidDriver<>(serverUrl, caps);
// Write your test code here
driver.quit();
} catch (Exception e) {
e.printStackTrace();
}
}
}

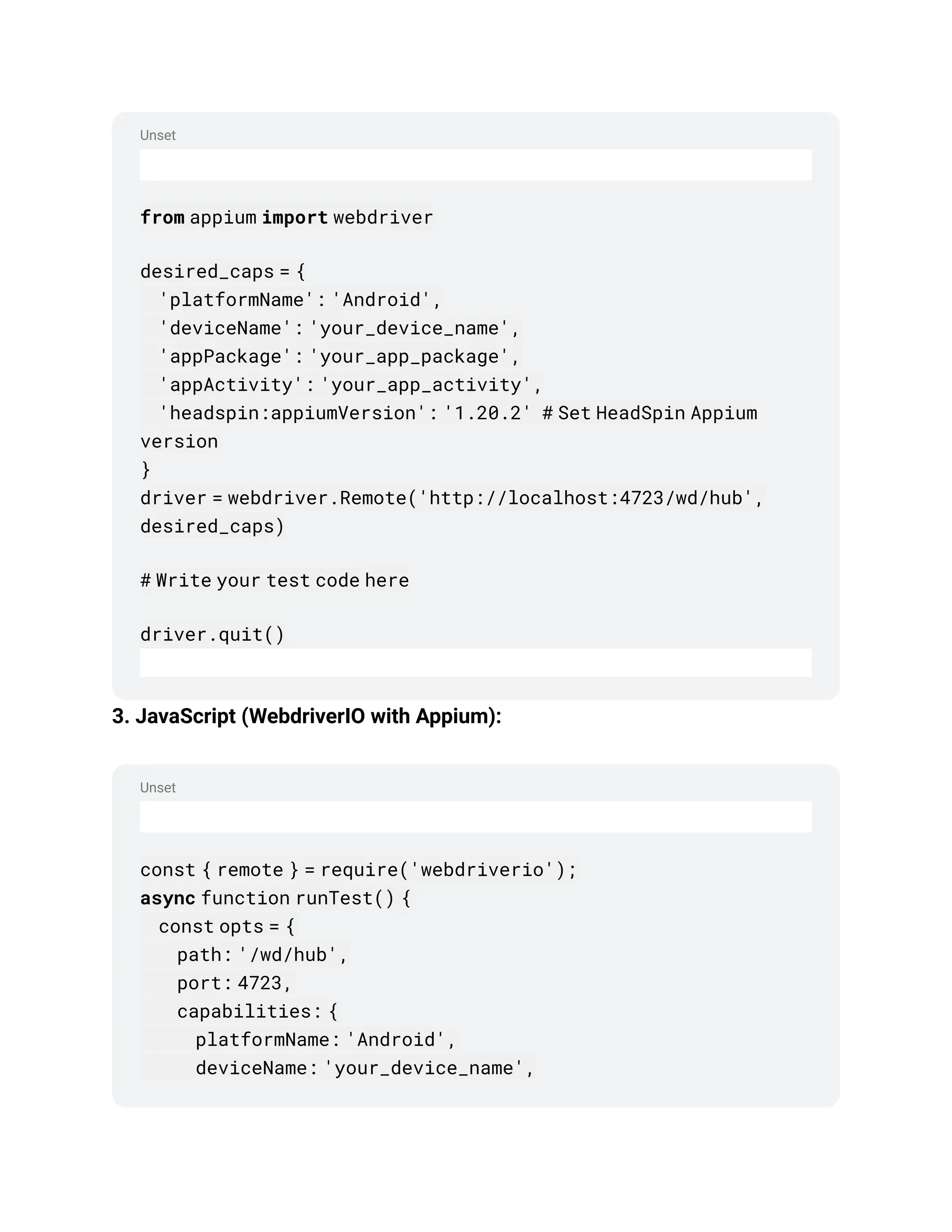

2. Python (Appium Python client):

Unset
Unset
from appium import webdriver
desired_caps = {
'platformName': 'Android',
'deviceName': 'your_device_name',
'appPackage': 'your_app_package',
'appActivity': 'your_app_activity',
'headspin:appiumVersion': '1.20.2' # Set HeadSpin Appium
version
}
driver = webdriver.Remote('http://localhost:4723/wd/hub',
desired_caps)
# Write your test code here
driver.quit()

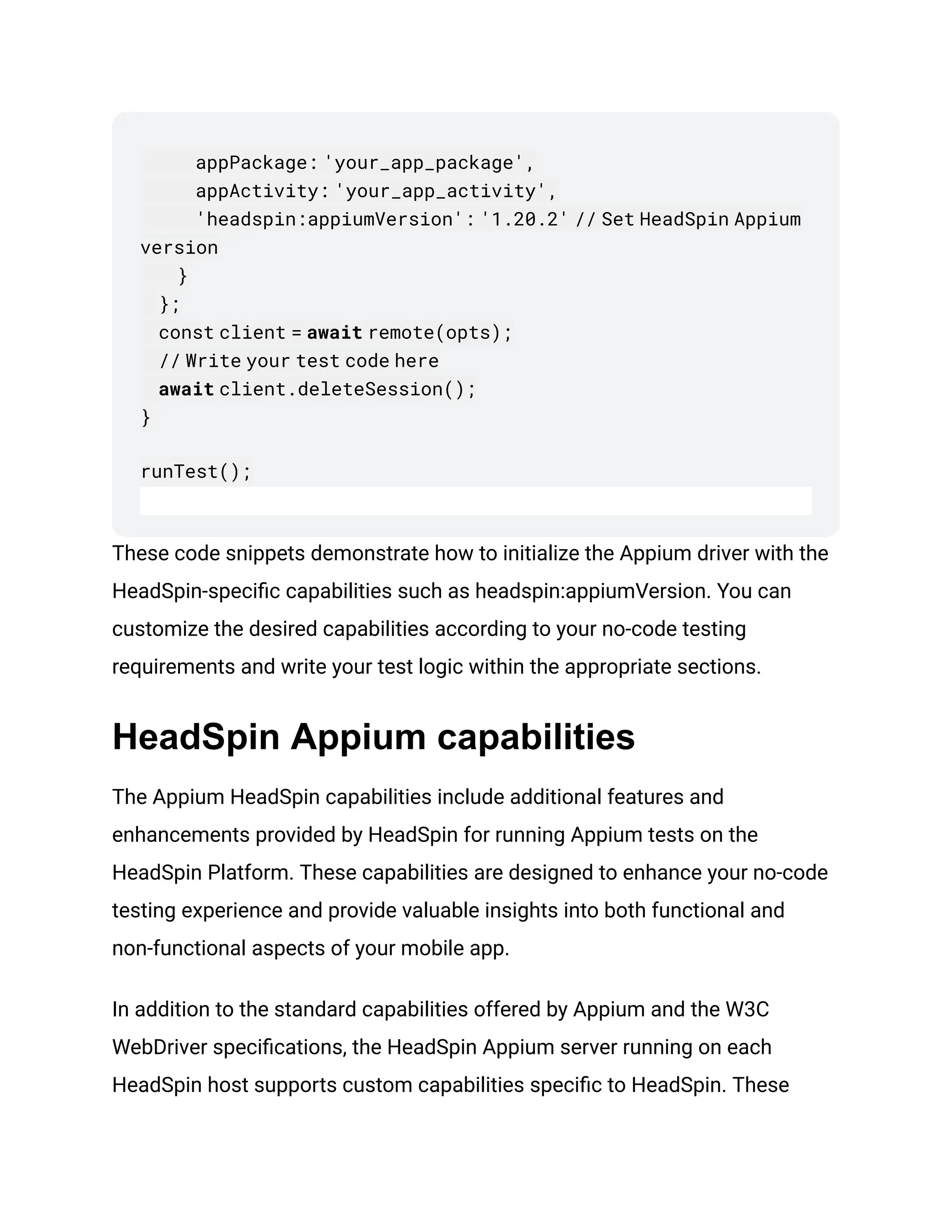

3. JavaScript (WebdriverIO with Appium):
const { remote } = require('webdriverio');
async function runTest() {
const opts = {
path: '/wd/hub',
port: 4723,
capabilities: {
platformName: 'Android',
deviceName: 'your_device_name',

appPackage: 'your_app_package',
appActivity: 'your_app_activity',
'headspin:appiumVersion': '1.20.2' // Set HeadSpin Appium
version
}
};
const client = await remote(opts);
// Write your test code here
await client.deleteSession();
}
runTest();
These code snippets demonstrate how to initialize the Appium driver with the
HeadSpin-specific capabilities such as headspin:appiumVersion. You can
customize the desired capabilities according to your no-code testing
requirements and write your test logic within the appropriate sections.
HeadSpin Appium capabilities
The Appium HeadSpin capabilities include additional features and
enhancements provided by HeadSpin for running Appium tests on the
HeadSpin Platform. These capabilities are designed to enhance your no-code
testing experience and provide valuable insights into both functional and
non-functional aspects of your mobile app.
In addition to the standard capabilities offered by Appium and the W3C
WebDriver specifications, the HeadSpin Appium server running on each
HeadSpin host supports custom capabilities specific to HeadSpin. These

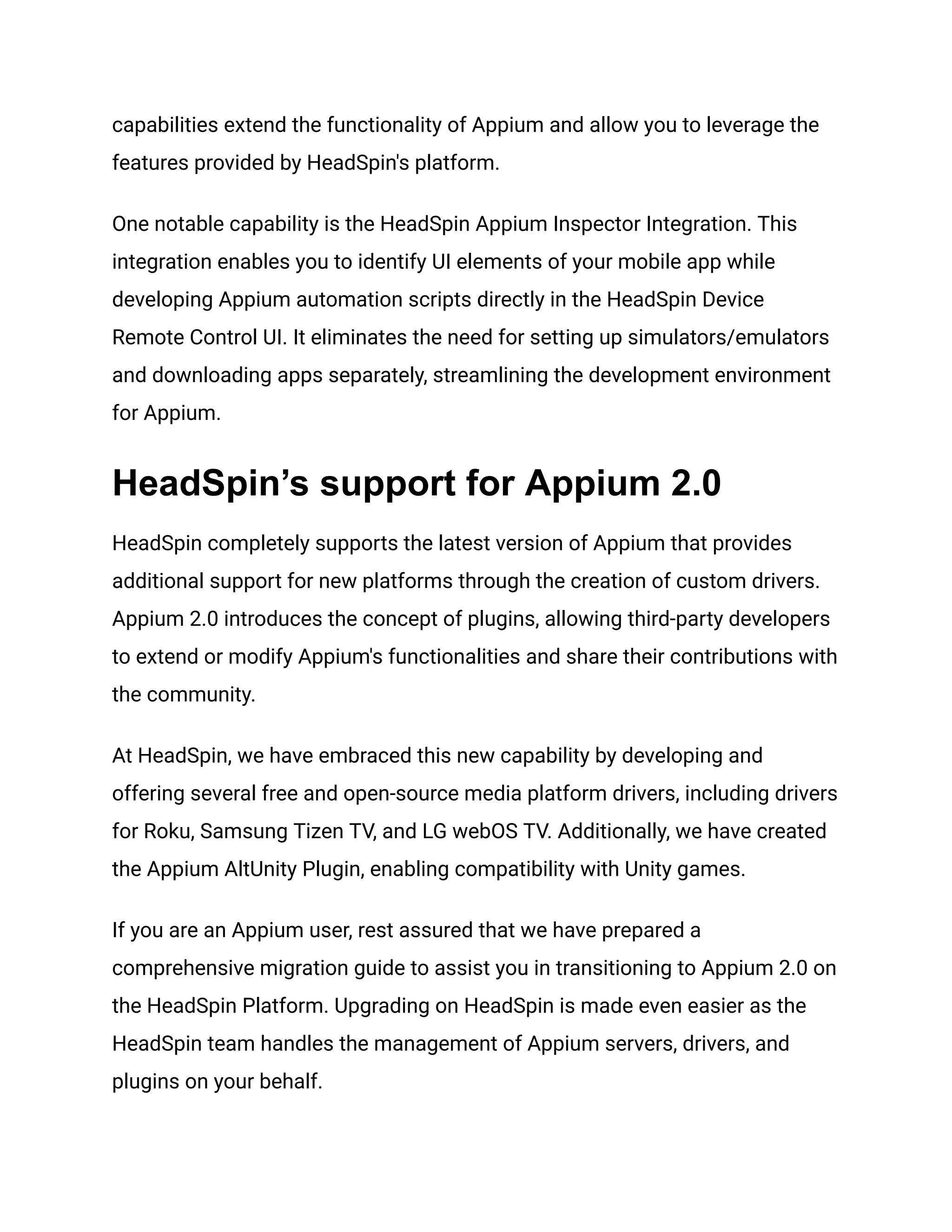

capabilities extend the functionality of Appium and allow you to leverage the
features provided by HeadSpin's platform.
One notable capability is the HeadSpin Appium Inspector Integration. This
integration enables you to identify UI elements of your mobile app while
developing Appium automation scripts directly in the HeadSpin Device
Remote Control UI. It eliminates the need for setting up simulators/emulators
and downloading apps separately, streamlining the development environment
for Appium.
HeadSpin’s support for Appium 2.0
HeadSpin completely supports the latest version of Appium that provides
additional support for new platforms through the creation of custom drivers.
Appium 2.0 introduces the concept of plugins, allowing third-party developers
to extend or modify Appium's functionalities and share their contributions with
the community.
At HeadSpin, we have embraced this new capability by developing and
offering several free and open-source media platform drivers, including drivers
for Roku, Samsung Tizen TV, and LG webOS TV. Additionally, we have created
the Appium AltUnity Plugin, enabling compatibility with Unity games.
If you are an Appium user, rest assured that we have prepared a
comprehensive migration guide to assist you in transitioning to Appium 2.0 on
the HeadSpin Platform. Upgrading on HeadSpin is made even easier as the
HeadSpin team handles the management of Appium servers, drivers, and
plugins on your behalf.

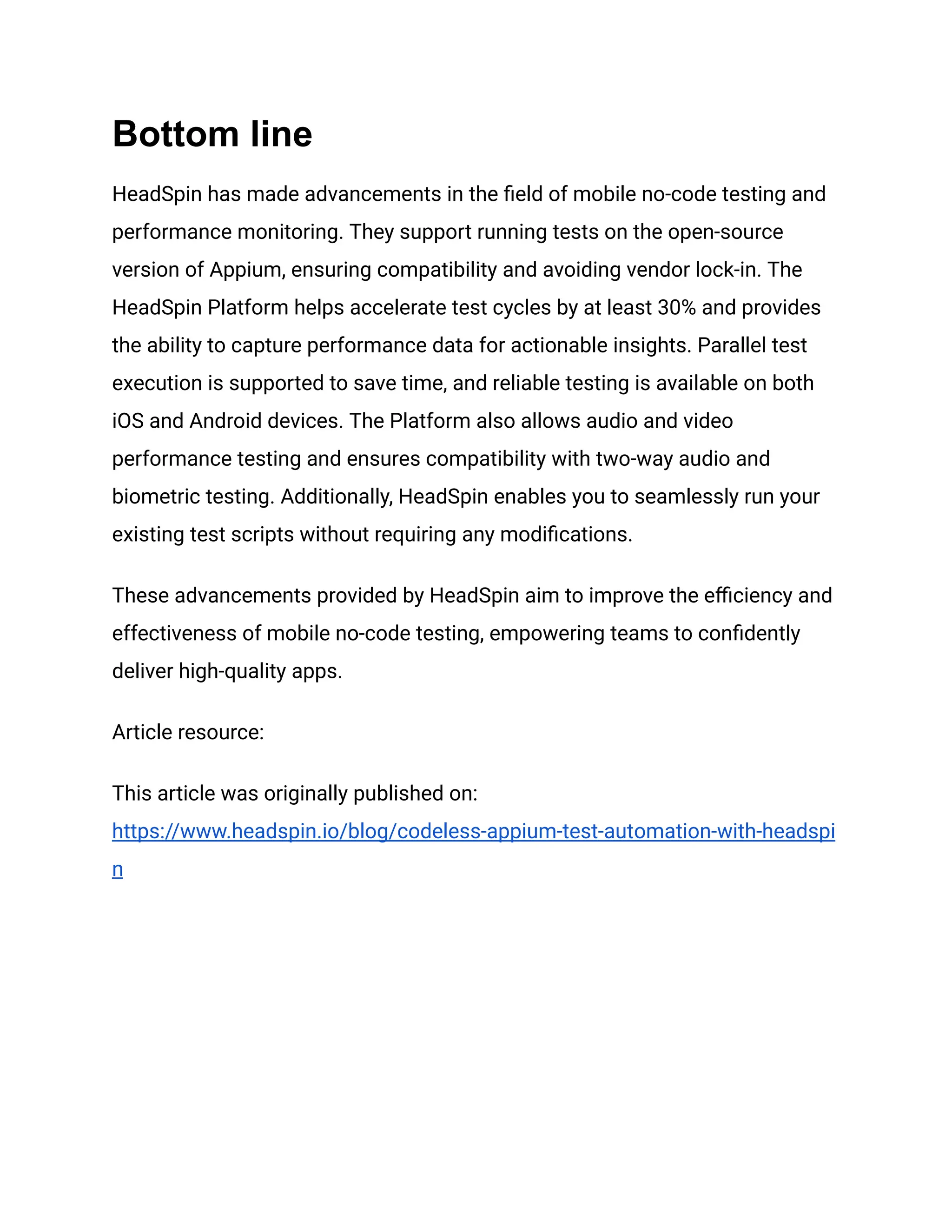

Bottom line
HeadSpin has made advancements in the field of mobile no-code testing and
performance monitoring. They support running tests on the open-source
version of Appium, ensuring compatibility and avoiding vendor lock-in. The
HeadSpin Platform helps accelerate test cycles by at least 30% and provides
the ability to capture performance data for actionable insights. Parallel test
execution is supported to save time, and reliable testing is available on both
iOS and Android devices. The Platform also allows audio and video
performance testing and ensures compatibility with two-way audio and
biometric testing. Additionally, HeadSpin enables you to seamlessly run your
existing test scripts without requiring any modifications.
These advancements provided by HeadSpin aim to improve the efficiency and
effectiveness of mobile no-code testing, empowering teams to confidently
deliver high-quality apps.
Article resource:
This article was originally published on:
https://www.headspin.io/blog/codeless-appium-test-automation-with-headspi
n

Decoding Appium No-Code Test Automation With HeadSpin.pdf

More Related Content

Similar to Decoding Appium No-Code Test Automation With HeadSpin.pdf

More from kalichargn70th171

Recently uploaded

Decoding Appium No-Code Test Automation With HeadSpin.pdf
