The document proposes developing a plot of land measuring 435,600 square feet into commercial and residential units. It outlines plans for 18 double-storey shop/office lots of 2,080 square feet each, accounting for 15% of the development area. It also details plans for 83 double-storey terrace houses of 1,650 square feet each, taking up 55% of the area, and distributed across 7 blocks. Finally, it proposes developing 64 low-cost houses of 1,200 square feet each, using 30% of the area spread over 5 blocks.

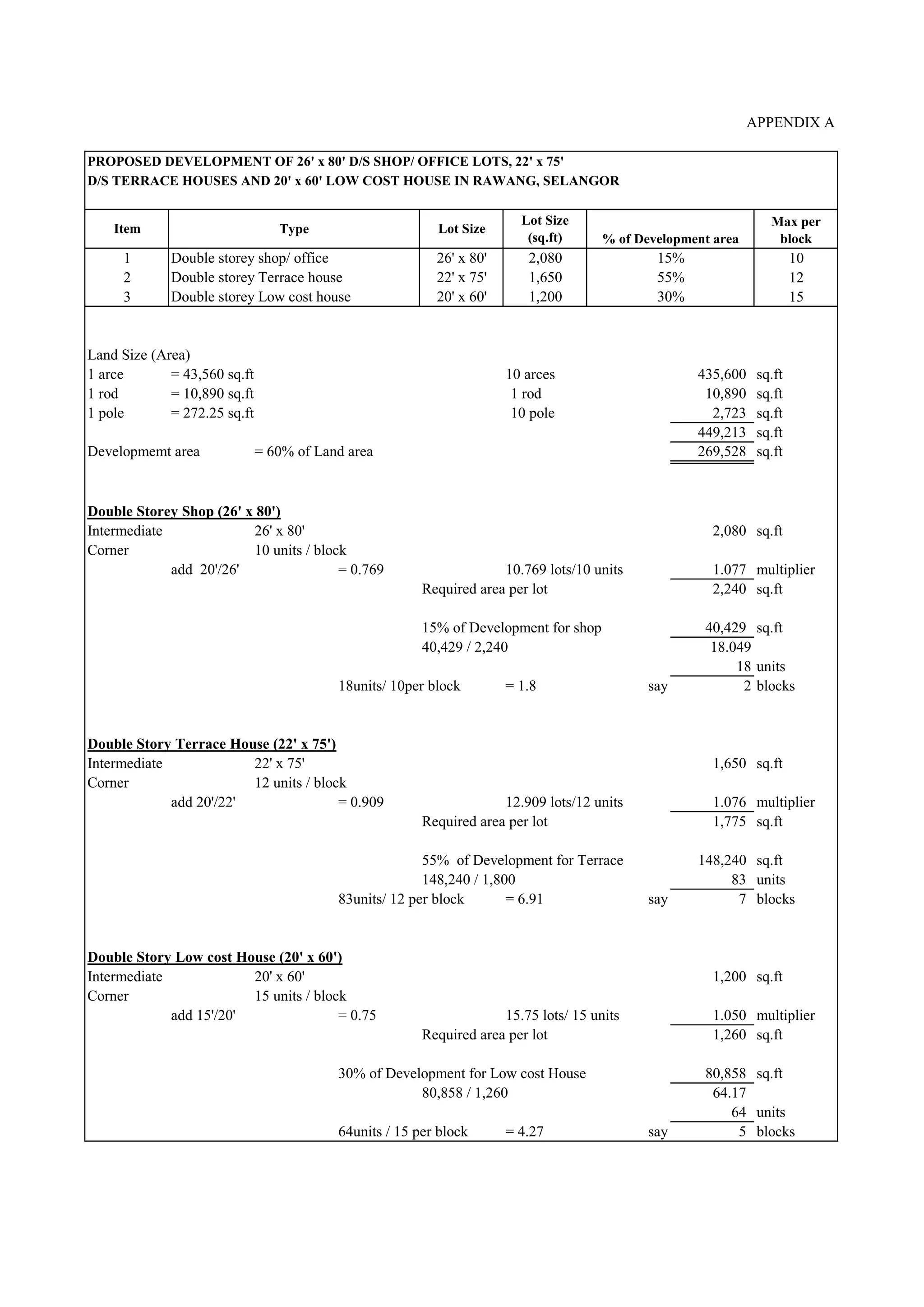

1. APPENDIX A
PROPOSED DEVELOPMENT OF 26' x 80' D/S SHOP/ OFFICE LOTS, 22' x 75'
D/S TERRACE HOUSES AND 20' x 60' LOW COST HOUSE IN RAWANG, SELANGOR
1 Double storey shop/ office 26' x 80' 2,080 10
2 Double storey Terrace house 22' x 75' 1,650 12
3 Double storey Low cost house 20' x 60' 1,200 15
Land Size (Area)
1 arce = 43,560 sq.ft 10 arces 435,600 sq.ft
1 rod = 10,890 sq.ft 1 rod 10,890 sq.ft
1 pole = 272.25 sq.ft 10 pole 2,723 sq.ft
449,213 sq.ft
Developmemt area = 60% of Land area 269,528 sq.ft
Double Storey Shop (26' x 80')
Intermediate 26' x 80' 2,080 sq.ft
Corner 10 units / block
add 20'/26' = 0.769 10.769 lots/10 units 1.077 multiplier
Required area per lot 2,240 sq.ft
15% of Development for shop 40,429 sq.ft
40,429 / 2,240 18.049
18 units
18units/ 10per block = 1.8 say 2 blocks
Double Story Terrace House (22' x 75')
Intermediate 22' x 75' 1,650 sq.ft
Corner 12 units / block
add 20'/22' = 0.909 12.909 lots/12 units 1.076 multiplier
Required area per lot 1,775 sq.ft
55% of Development for Terrace 148,240 sq.ft
148,240 / 1,800 83 units
83units/ 12 per block = 6.91 say 7 blocks
Double Story Low cost House (20' x 60')
Intermediate 20' x 60' 1,200 sq.ft
Corner 15 units / block
add 15'/20' = 0.75 15.75 lots/ 15 units 1.050 multiplier
Required area per lot 1,260 sq.ft
30% of Development for Low cost House 80,858 sq.ft
80,858 / 1,260 64.17
64 units
64units / 15 per block = 4.27 say 5 blocks
55%
30%
15%
Max per
block
Item Type Lot Size
Lot Size
(sq.ft) % of Development area
