The document describes the MEGA POWER+ modular UPS system from Gamatronic. The system uses modular 25 kVA/kW modules that can be configured up to 500 kVA/kW total capacity. It offers high power density, efficiency of up to 96%, and redundancy through its modular design which allows for hot-swapping of modules with minimal downtime. The system is suitable for applications such as data centers, servers, medical equipment, and industrial systems.

1. MEGA POWER+ - 25 kVA/25 kW modules (PF=1)
- Up to 20 modules in a system
Modular UPS systems
- Internal computer for control and
125 kVA/kw to management
500 kVA/kw - Centralized Static Switch and batteries
- The highest power density & the
smallest footprint
- Especially high e ciency of 96 %
- Maximum availability and minimal downtime

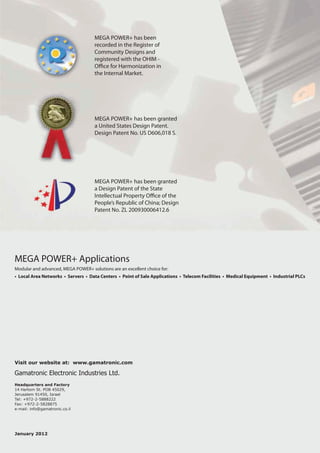

2. MEGA POWER+ has been
recorded in the Register of
Community Designs and
registered with the OHIM -
O ce for Harmonization in
the Internal Market.
MEGA POWER+ has been granted
a United States Design Patent.
Design Patent No. US D606,018 S.
MEGA POWER+ has been granted
a Design Patent of the State
Intellectual Property O ce of the
People’s Republic of China; Design
Patent No. ZL 200930006412.6
MEGA POWER+ Applications
Modular and advanced, MEGA POWER+ solutions are an excellent choice for:
• Local Area Networks • Servers • Data Centers • Point of Sale Applications • Telecom Facilities • Medical Equipment • Industrial PLCs
Visit our website at: www.gamatronic.com
Gamatronic Electronic Industries Ltd.
Headquarters and Factory
14 Hartom St. POB 45029,
Jerusalem 91450, Israel
Tel: +972-2-5888222
Fax: +972-2-5828875
e-mail: info@gamatronic.co.il
January 2012

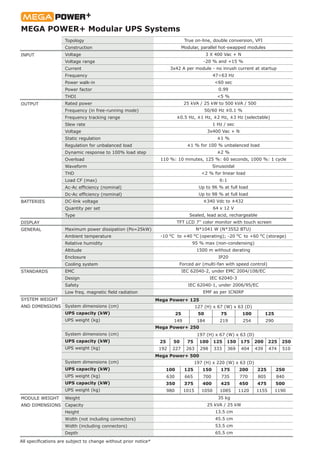

3. MEGA POWER+ Modular UPS Systems
Topology True on-line, double conversion, VFI
Construction Modular, parallel hot-swapped modules
INPUT Voltage 3 X 400 Vac + N
Voltage range -20 % and +15 %
Current 3x42 A per module - no inrush current at startup
Frequency 47÷63 Hz
Power walk-in <60 sec
Power factor 0.99
THDI <5 %
OUTPUT Rated power 25 kVA / 25 kW to 500 kVA / 500
Frequency (in free-running mode) 50/60 Hz ±0.1 %
Frequency tracking range ±0.5 Hz, ±1 Hz, ±2 Hz, ±3 Hz (selectable)
Slew rate 1 Hz / sec
Voltage 3x400 Vac + N
Static regulation ±1 %
Regulation for unbalanced load ±1 % for 100 % unbalanced load
Dynamic response to 100% load step ±2 %
Overload 110 %: 10 minutes, 125 %: 60 seconds, 1000 %: 1 cycle
Waveform Sinusoidal
THD <2 % for linear load
Load CF (max) 6:1
Ac-Ac efficiency (nominal) Up to 96 % at full load
Dc-Ac efficiency (nominal) Up to 98 % at full load
BATTERIES DC-link voltage ±340 Vdc to ±432
Quantity per set 64 x 12 V
Type Sealed, lead acid, rechargeable
DISPLAY TFT LCD 7'' color monitor with touch screen
GENERAL Maximum power dissipation (Po=25kW) N*1041 W (N*3552 BTU)
Ambient temperature -10 oC to +40 oC (operating); -20 oC to +60 oC (storage)
Relative humidity 95 % max (non-condensing)
Altitude 1500 m without derating
Enclosure IP20
Cooling system Forced air (multi-fan with speed control)
STANDARDS EMC IEC 62040-2, under EMC 2004/108/EC
Design IEC 62040-3
Safety IEC 62040-1, under 2006/95/EC
Low freq. magnetic field radiation EMF as per ICNIRP
SYSTEM WEIGHT Mega Power+ 125
AND DIMENSIONS System dimensions (cm) 127 (H) x 67 (W) x 63 (D)
UPS capacity (kW) 25 50 75 100 125
UPS weight (kg) 149 184 219 254 290
Mega Power+ 250
System dimensions (cm) 197 (H) x 67 (W) x 63 (D)
UPS capacity (kW) 25 50 75 100 125 150 175 200 225 250
UPS weight (kg) 192 227 263 298 333 369 404 439 474 510
Mega Power+ 500
System dimensions (cm) 197 (H) x 220 (W) x 63 (D)
UPS capacity (kW) 100 125 150 175 200 225 250
UPS weight (kg) 630 665 700 735 770 805 840
UPS capacity (kW) 350 375 400 425 450 475 500
UPS weight (kg) 980 1015 1050 1085 1120 1155 1190
MODULE WEIGHT Weight 35 kg
AND DIMENSIONS Capacity 25 kVA / 25 kW
Height 13.5 cm
Width (not including connectors) 45.5 cm
Width (including connectors) 53.5 cm
Depth 65.5 cm
All specifications are subject to change without prior notice*

4. MEGA POWER+ Green Power is our Priority
Gamatronic understands that energy-savings is not only a matter of cost-savings, but also of social
responsibility. MEGA POWER+’s clean and globally responsible energy technology meets power
requirements, while minimizing environmental impact.
MEGA POWER+ High Efficiency UPS MEGA ROI (Return On Investment)
Money Saved
$300,000
$250,000
$200,000
$150,000
$100,000
$50,000
$0
I Year 2 Years 3 Years 4 Years 5 Years 10 Years
MEGA POWER+ delivers one of the highest Calculations based on USA electricity cost
e ciency rates available. At an e ciency rate of MEGA Pay back time = 1.5 Years
96 %, MEGA POWER+ provides signi cant energy
and cooling savings.
MEGA POWER+ User-Friendly Controller
Each MEGA POWER+ features a unique and proprietary controller, which is the user's main interface with
the MEGA POWER+. The controller features a colored, touch-sensitive screen which enables the user to
navigate through the system screens by pressing various icons. Multilanguage functions allow simple
usage worldwide. The controller is not a failure point and UPS operation is not interrupted if the
controller is removed. Its interface o ers up-to-the-minute, intelligent monitoring of all UPS parameters,
including intelligent battery monitoring functionality, system voltage, temperature etc. Each system
element has its own control and history log. Built in SNMP/TCIP provides complete control over unit's
operation without installing software or using dedicated computers or control hardware.

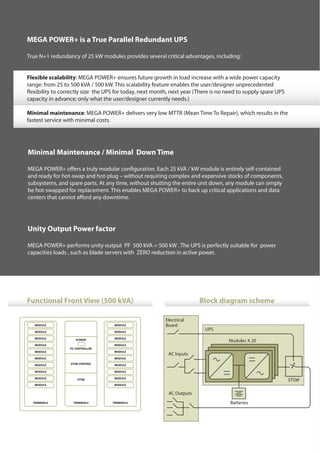

5. MEGA POWER+ is a True Parallel Redundant UPS
True N+1 redundancy of 25 kW modules provides several critical advantages, including:
Flexible scalability: MEGA POWER+ ensures future growth in load increase with a wide power capacity
range: from 25 to 500 kVA / 500 kW. This scalability feature enables the user/designer unprecedented
exibility to correctly size the UPS for today, next month, next year (There is no need to supply spare UPS
capacity in advance; only what the user/designer currently needs.)
Minimal maintenance: MEGA POWER+ delivers very low MTTR (Mean Time To Repair), which results in the
fastest service with minimal costs.
Minimal Maintenance / Minimal Down Time
MEGA POWER+ o ers a truly modular con guration. Each 25 kVA / kW module is entirely self-contained
and ready for hot-swap and hot-plug – without requiring complex and expensive stocks of components,
subsystems, and spare parts. At any time, without shutting the entire unit down, any module can simply
be hot-swapped for replacement. This enables MEGA POWER+ to back up critical applications and data
centers that cannot a ord any downtime.
Unity Output Power factor
MEGA POWER+ performs unity output PF 500 kVA = 500 kW . The UPS is perfectly suitable for power
capacities loads , such as blade servers with ZERO reduction in active power.
Functional Front View (500 kVA) Block diagram scheme
Electrical
MODULE MODULE Board
MODULE MODULE
UPS
MODULE MODULE
SCREEN Modules X 20
MODULE MODULE
PC CONTROLLER
MODULE MODULE
AC Inputs
MODULE MODULE
MODULE STSW CONTROL MODULE
MODULE MODULE
MODULE MODULE
STSW STSW
MODULE MODULE
AC Outputs
TERMINALS TERMINALS TERMINALS Batteries

6. The Mega Power+ is a state of the art modular redundant UPS System - With the capacity
to grow up to 500 kW (in 25 kW increments).
The product's unbelievable small footprint and high e ciency make it one of the world's
leading solutions in this range.
The Mega Power+ is installed in many datacenters, hospitals, institutions, manufacturing
and industrial plants, telecom facilities and in many other applications.
The Highest Power Density / Smallest Footprint
Gamatronic's studies have shown that the issue of space requirements in today's world is critical.
MEGA POWER+ delivers extremely high power density = 5 kW / inch3. MEGA POWER + modules are
each 25 kVA / kW 3U and saves space in data centers, IT rooms and other critical sites.
Unique Design and Engineering
MEGA POWER+ o ers an “all-contained” original and proprietary design, where all connections and
cables are internal. Minimal access to the sides and rear of the unit is required.
MEGA POWER+ unique mechanical design provides a modular UPS solution to 500 kW (available bases:
125, 250 and 500 kW), setting a new standard for the market.
Mega Power+ Double Conversion True On-Line Battery (VFI)
According to IEC 62040-3
Complying with international standards such as AC Input DC link AC Output
the IEC-62040-3, and the highest classi cation Rectifier Inverter
VFI-SS-111, the Mega Power+ features a galvanic
battery connected between the recti er output Battery
and the inverter input on a common DC link.
