DC machines

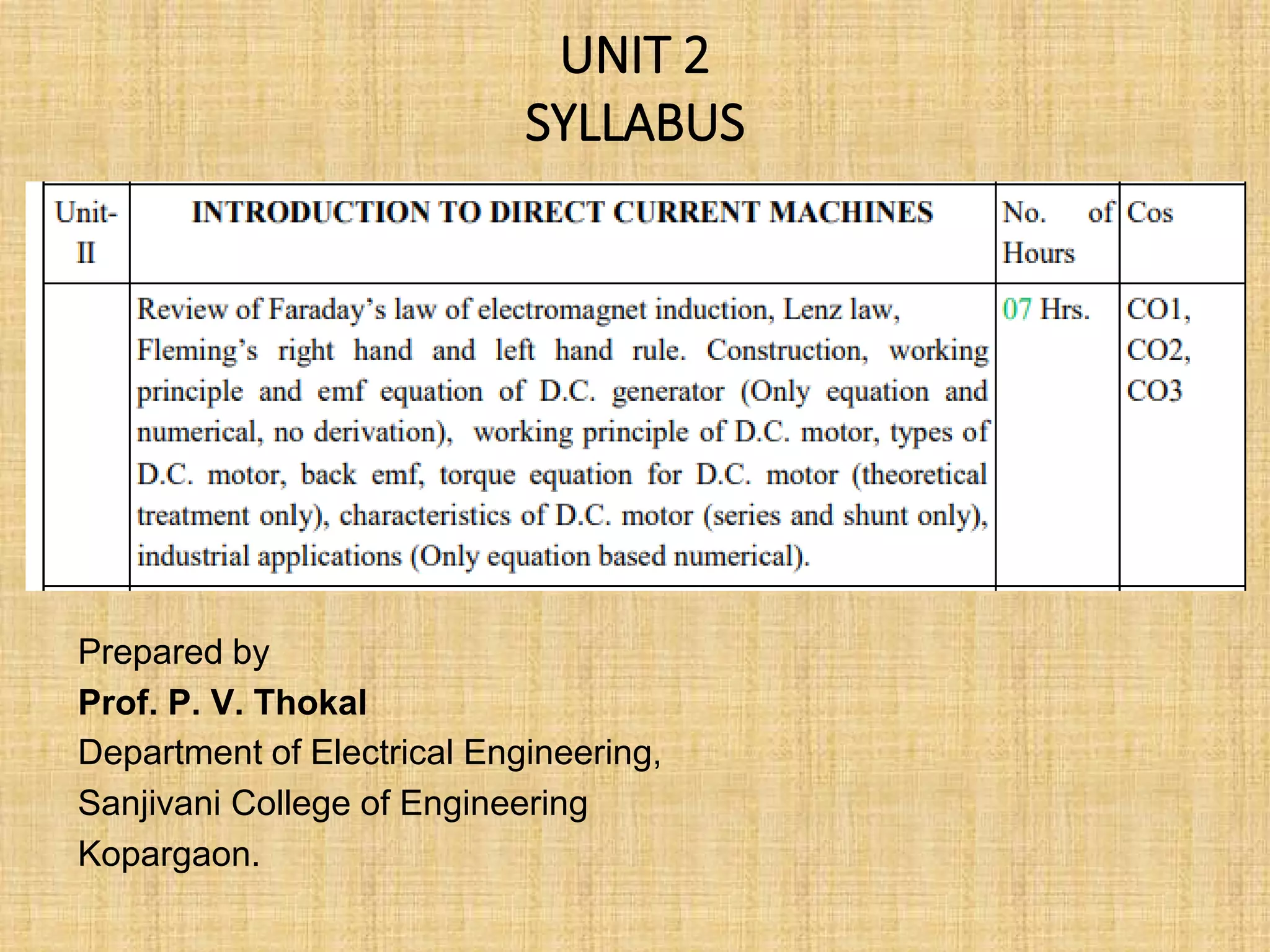

- 1. UNIT 2 SYLLABUS Prepared by Prof.P. V. Thokal Department of Electrical Engineering, Sanjivani College of Engineering Kopargaon.

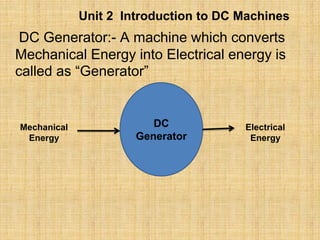

- 2. Unit 2 Introductionto DC Machines DC Generator:- A machine which converts Mechanical Energy into Electrical energy is called as “Generator” DC Generator Mechanical Energy Electrical Energy

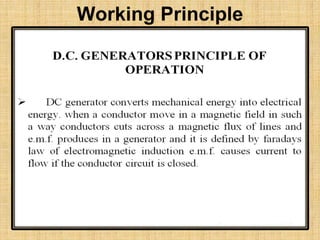

- 3.

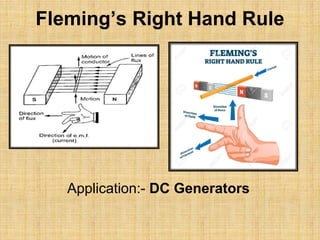

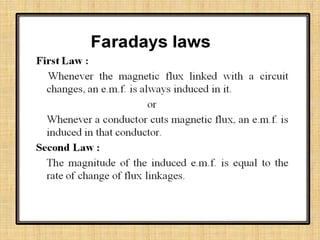

- 6. Fleming’s Right HandRule Application:- DC Generators
- 7. Fleming’s Left HandRule Application:- DC Motors

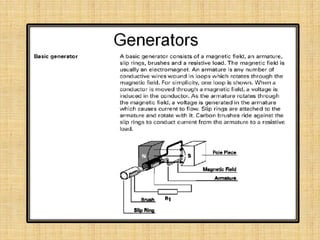

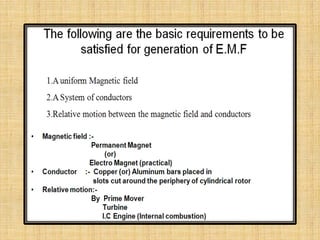

- 10.
- 11.

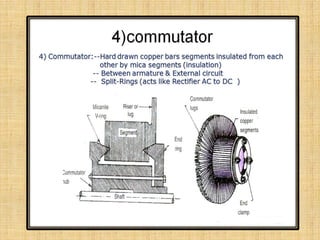

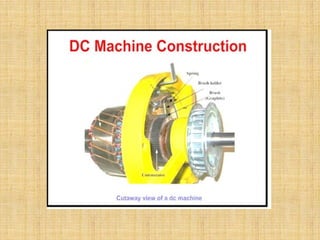

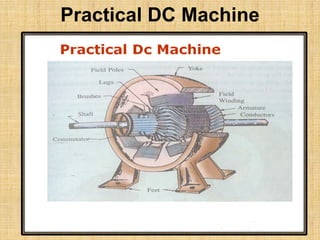

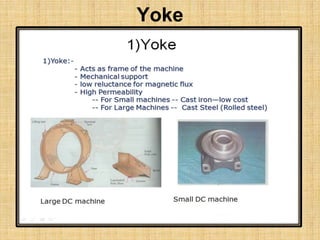

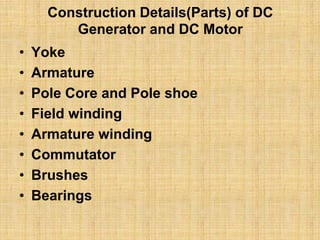

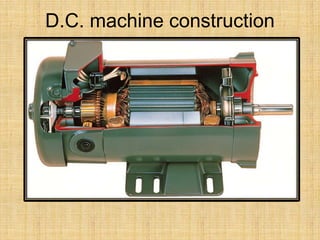

- 13. Construction Details(Parts) ofDC Generator and DC Motor • Yoke • Armature • Pole Core and Pole shoe • Field winding • Armature winding • Commutator • Brushes • Bearings
- 14.
- 15.

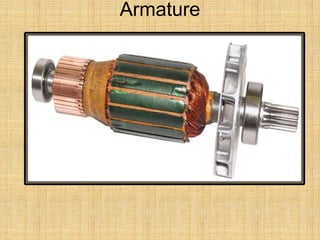

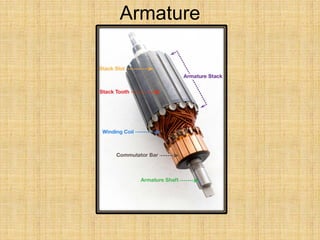

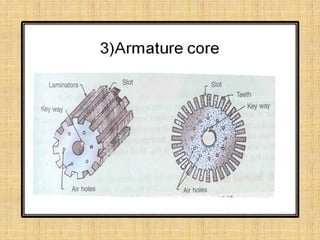

- 18. Armature of DCMotor
- 19.
- 20.

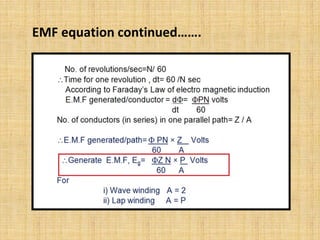

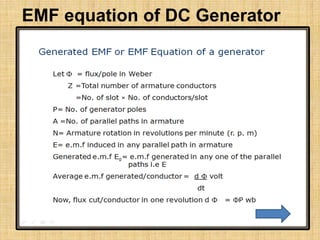

- 22. EMF equation ofDC Generator
- 23.

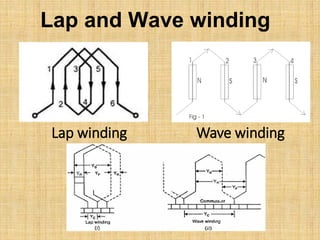

- 24. Lap and Wavewinding Wave winding Lap winding
- 25. Comparison between Lapand Wave Winding
- 26. Working Principle ofDC Motor Principle: Whenever a current carrying conductor is placed in a magnetic field it experience a FORCE.
- 27.

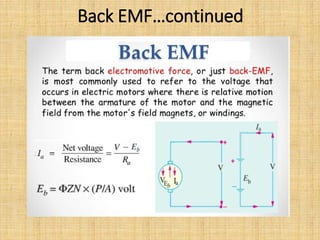

- 28.

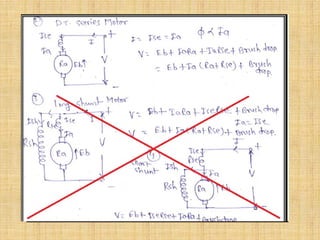

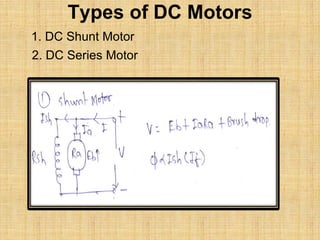

- 29. Types of DCMotors 1. DC Shunt Motor 2. DC Series Motor

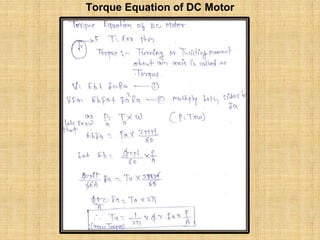

- 31. Torque Equation ofDC Motor

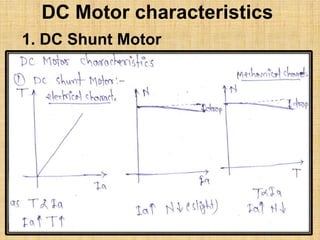

- 32. DC Motor characteristics 1.DC Shunt Motor

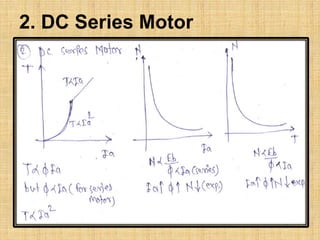

- 33. 2. DC SeriesMotor

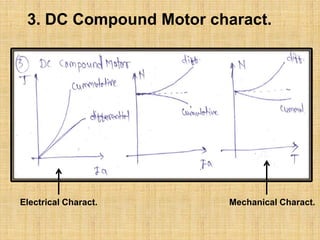

- 34. 3. DC CompoundMotor charact. Electrical Charact. Mechanical Charact.

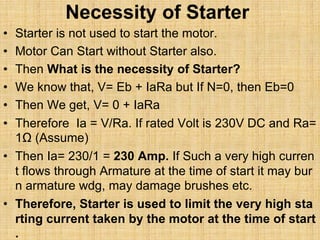

- 35. Necessity of Starter •Starter is not used to start the motor. • Motor Can Start without Starter also. • Then What is the necessity of Starter? • We know that, V= Eb + IaRa but If N=0, then Eb=0 • Then We get, V= 0 + IaRa • Therefore Ia = V/Ra. If rated Volt is 230V DC and Ra= 1Ω (Assume) • Then Ia= 230/1 = 230 Amp. If Such a very high curren t flows through Armature at the time of start it may bur n armature wdg, may damage brushes etc. • Therefore, Starter is used to limit the very high sta rting current taken by the motor at the time of start .

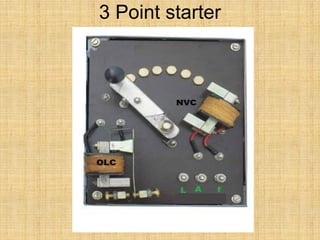

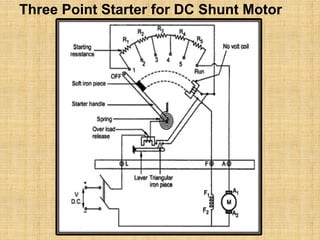

- 36. Three Point Starterfor DC Shunt Motor
- 37.
- 38. Speed Control ofDC shunt motor • 1. Flux Control

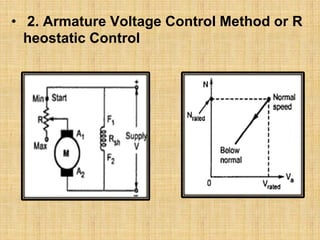

- 39. • 2. ArmatureVoltage Control Method or R heostatic Control

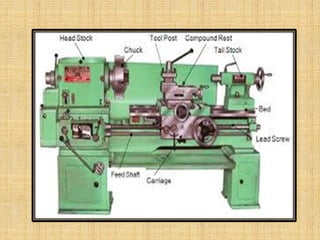

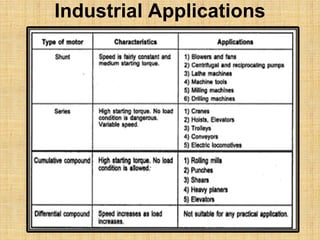

- 40.
- 41.
