Scalability with MariaDB and MaxScale talks about MariaDB 10, and MaxScale, a pluggable router for your queries. These are technologies developed at MariaDB Corporation, made opensource, and will help scale your MariaDB and MySQL workloads

1. Scalability with MariaDB and
MaxScale
Colin Charles, Team MariaDB, MariaDB Corporation
colin@mariadb.org | http://mariadb.org/
http://bytebot.net/blog/ | @bytebot on Twitter
db tech showcase, Tokyo, Japan
11 November 2014

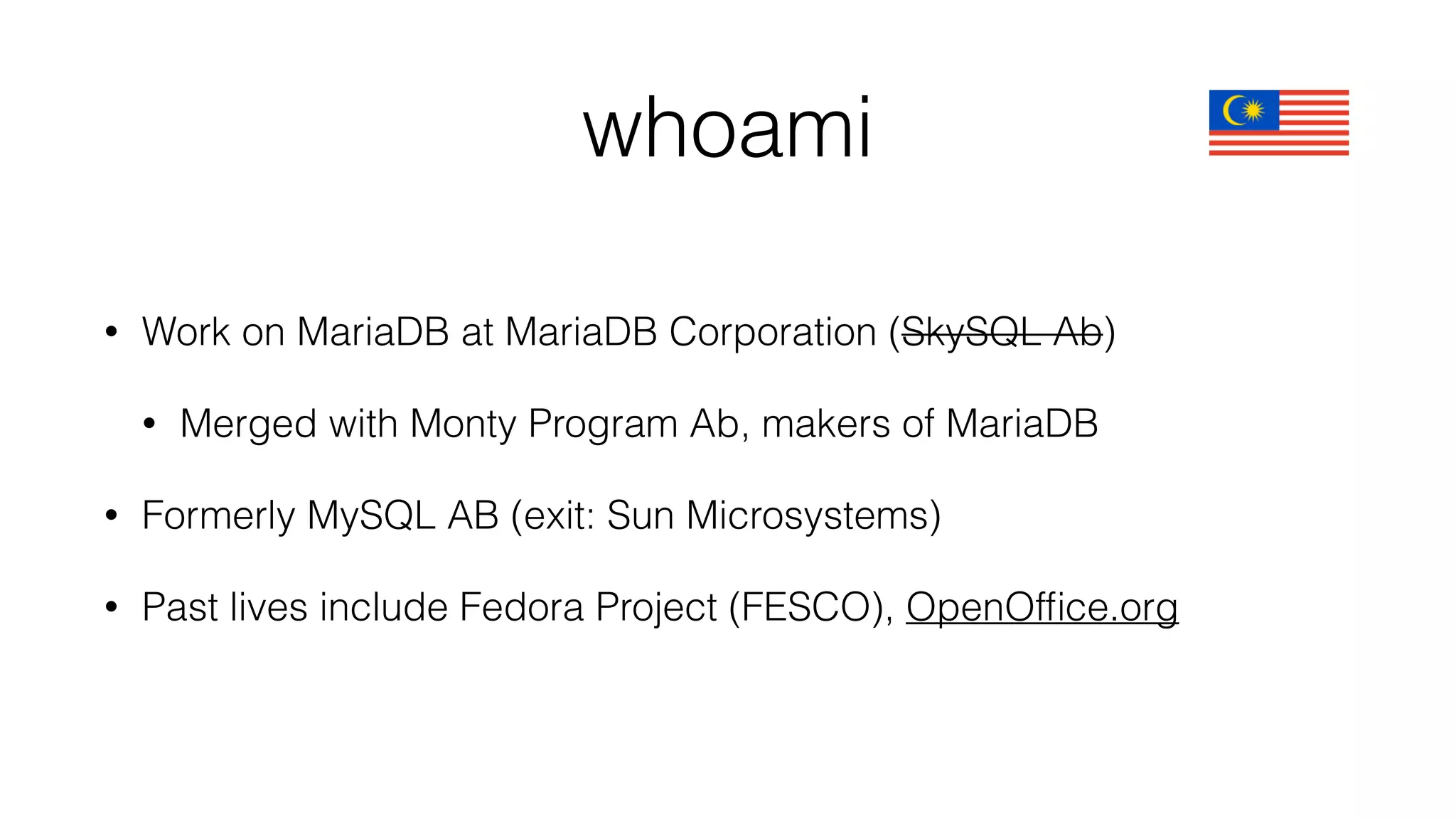

2. whoami
• Work on MariaDB at MariaDB Corporation (SkySQL Ab)
• Merged with Monty Program Ab, makers of MariaDB
• Formerly MySQL AB (exit: Sun Microsystems)
• Past lives include Fedora Project (FESCO), OpenOffice.org

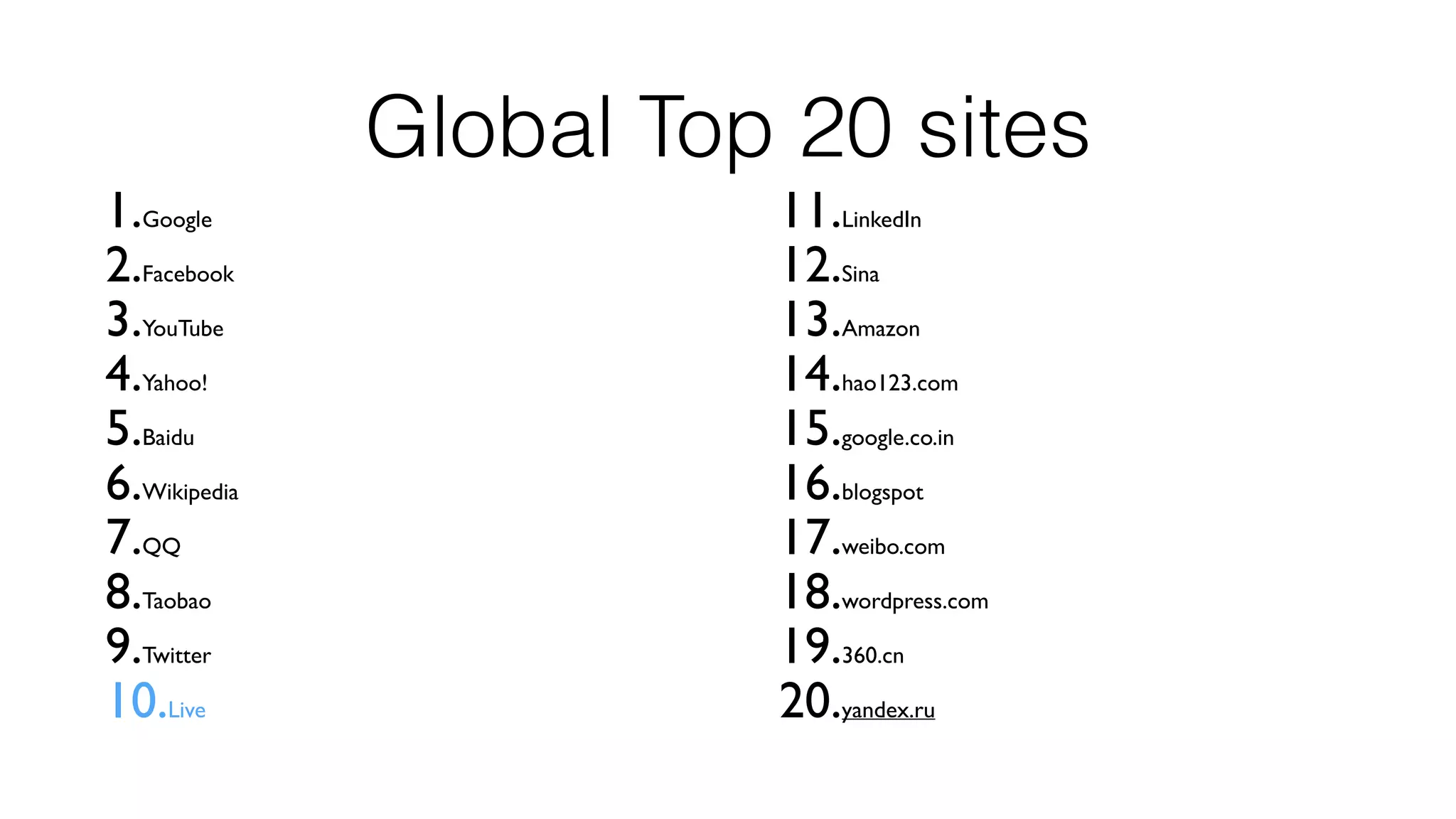

3. Global Top 20 sites
1.Google
2.Facebook
3.YouTube
4.Yahoo!
5.Baidu
6.Wikipedia
7.QQ
8.Taobao
9.Twitter
10.Live
11.LinkedIn
12.Sina
13.Amazon
14.hao123.com
15.google.co.in
16.blogspot
17.weibo.com
18.wordpress.com
19.360.cn
20.yandex.ru

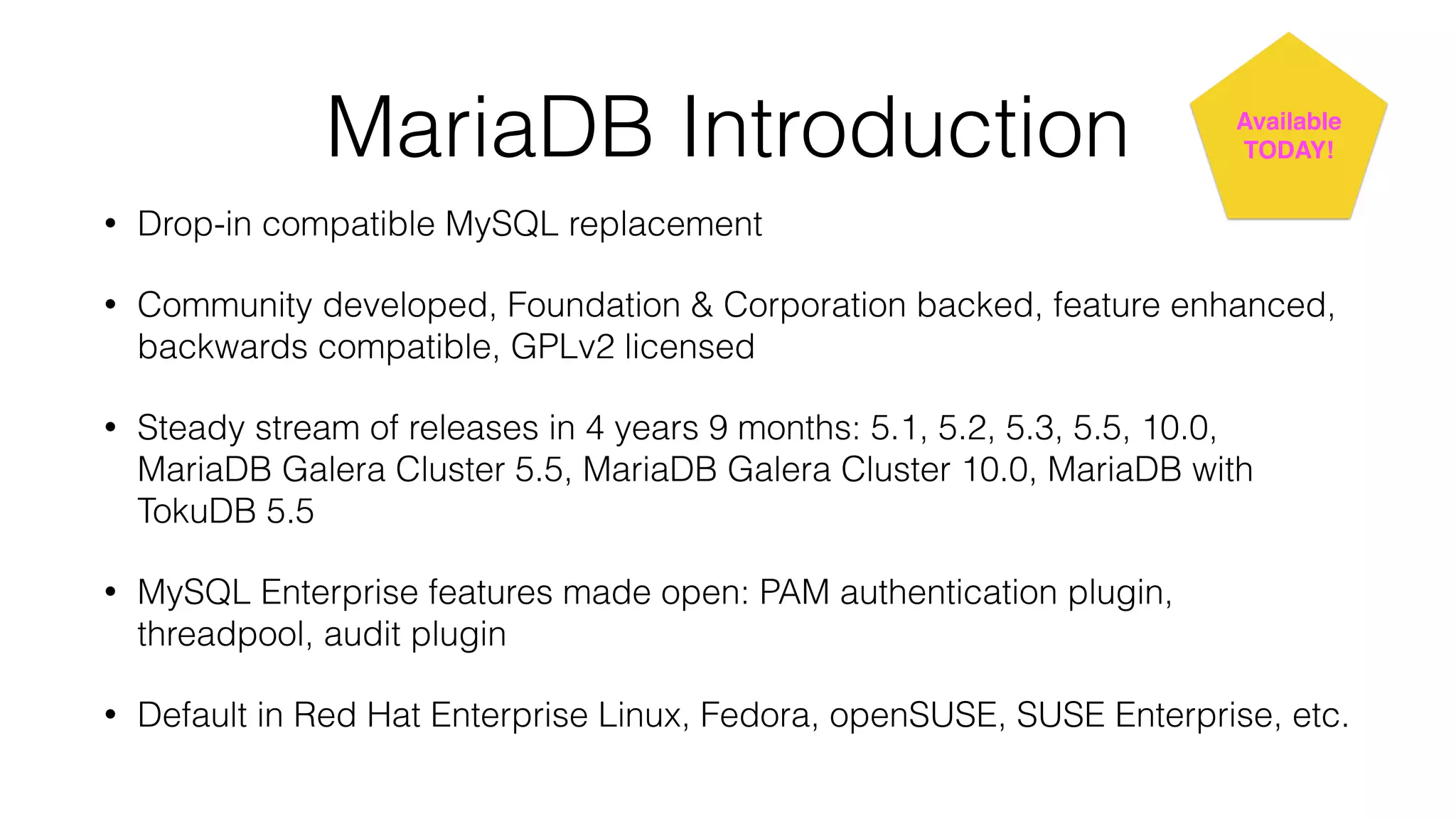

4. MariaDB Introduction
• Drop-in compatible MySQL replacement
Available!
TODAY!
• Community developed, Foundation & Corporation backed, feature enhanced,
backwards compatible, GPLv2 licensed
• Steady stream of releases in 4 years 9 months: 5.1, 5.2, 5.3, 5.5, 10.0,
MariaDB Galera Cluster 5.5, MariaDB Galera Cluster 10.0, MariaDB with
TokuDB 5.5
• MySQL Enterprise features made open: PAM authentication plugin,
threadpool, audit plugin
• Default in Red Hat Enterprise Linux, Fedora, openSUSE, SUSE Enterprise, etc.

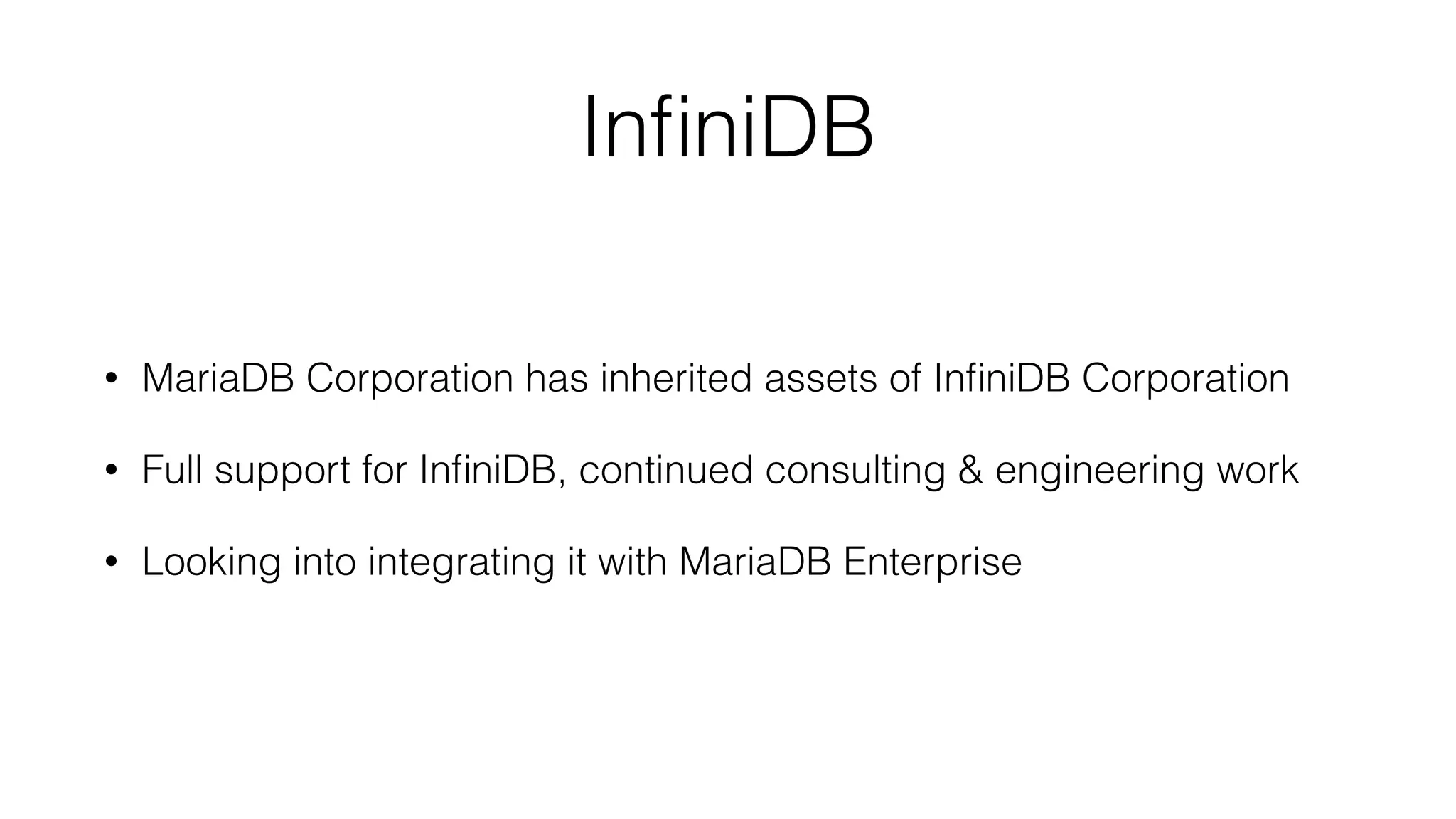

5. InfiniDB
• MariaDB Corporation has inherited assets of InfiniDB Corporation
• Full support for InfiniDB, continued consulting & engineering work
• Looking into integrating it with MariaDB Enterprise

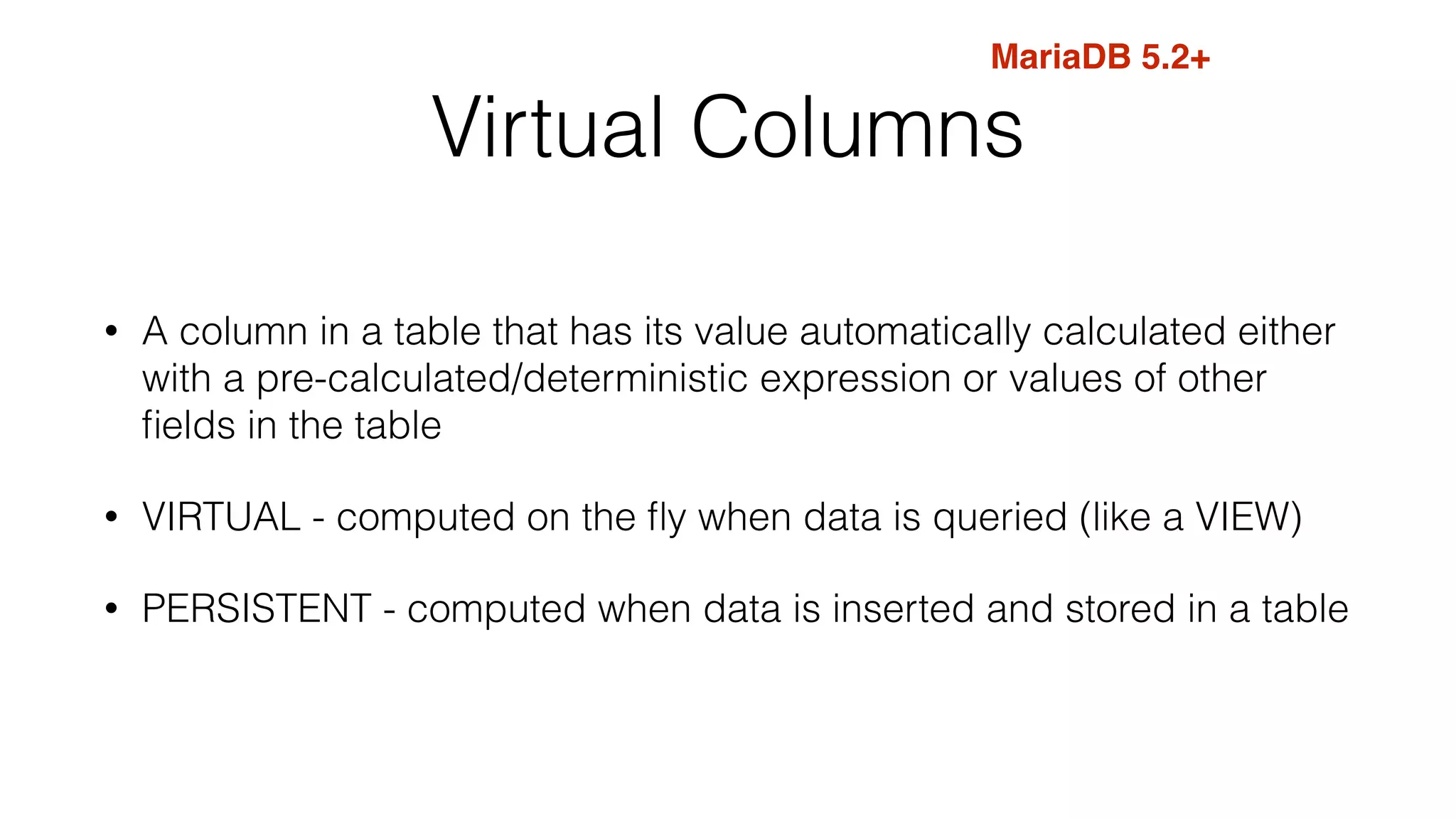

8. MariaDB 5.2+
Virtual Columns
• A column in a table that has its value automatically calculated either
with a pre-calculated/deterministic expression or values of other
fields in the table
• VIRTUAL - computed on the fly when data is queried (like a VIEW)
• PERSISTENT - computed when data is inserted and stored in a table

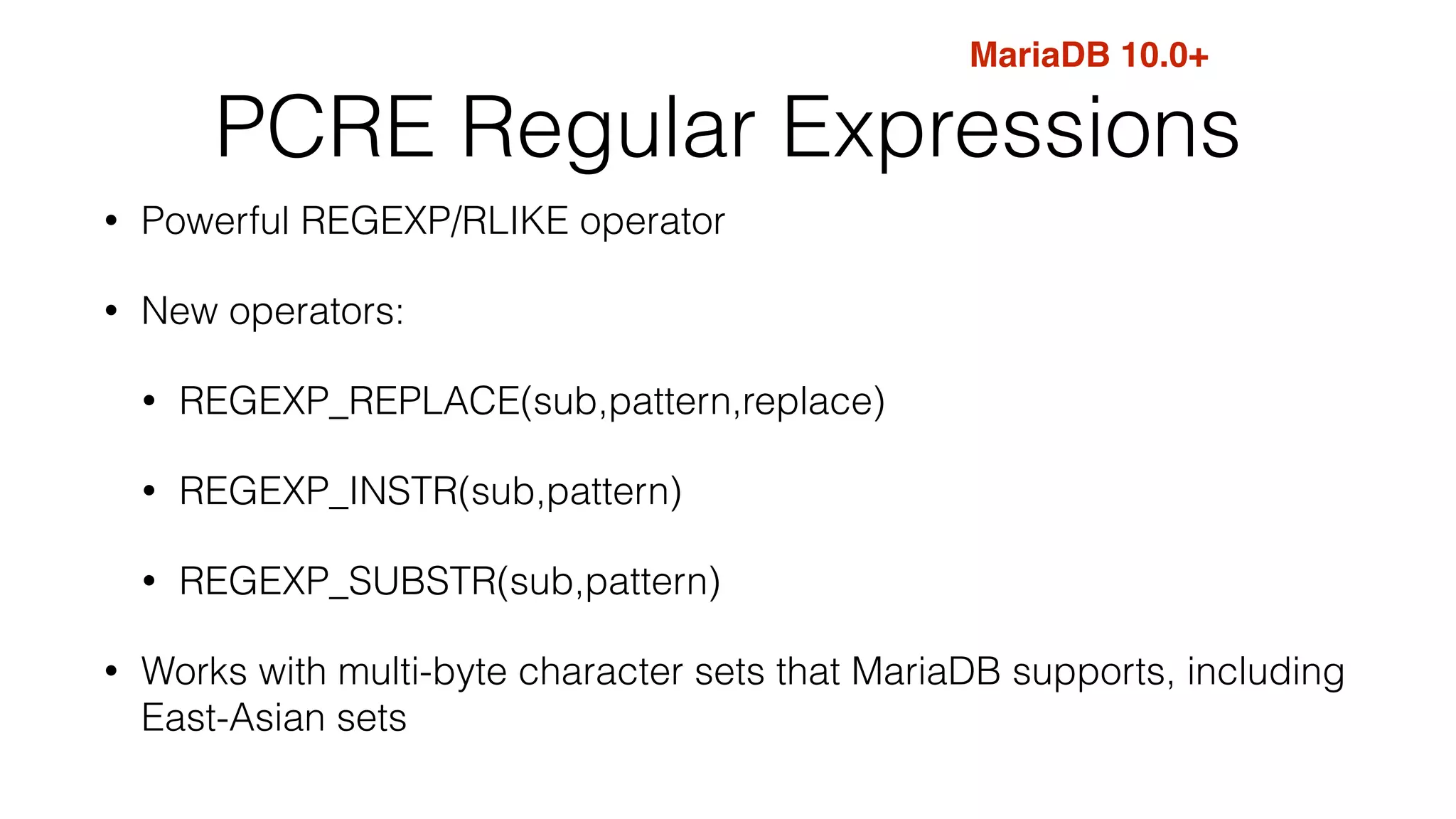

9. MariaDB 10.0+
PCRE Regular Expressions
• Powerful REGEXP/RLIKE operator
• New operators:
• REGEXP_REPLACE(sub,pattern,replace)
• REGEXP_INSTR(sub,pattern)
• REGEXP_SUBSTR(sub,pattern)
• Works with multi-byte character sets that MariaDB supports, including
East-Asian sets

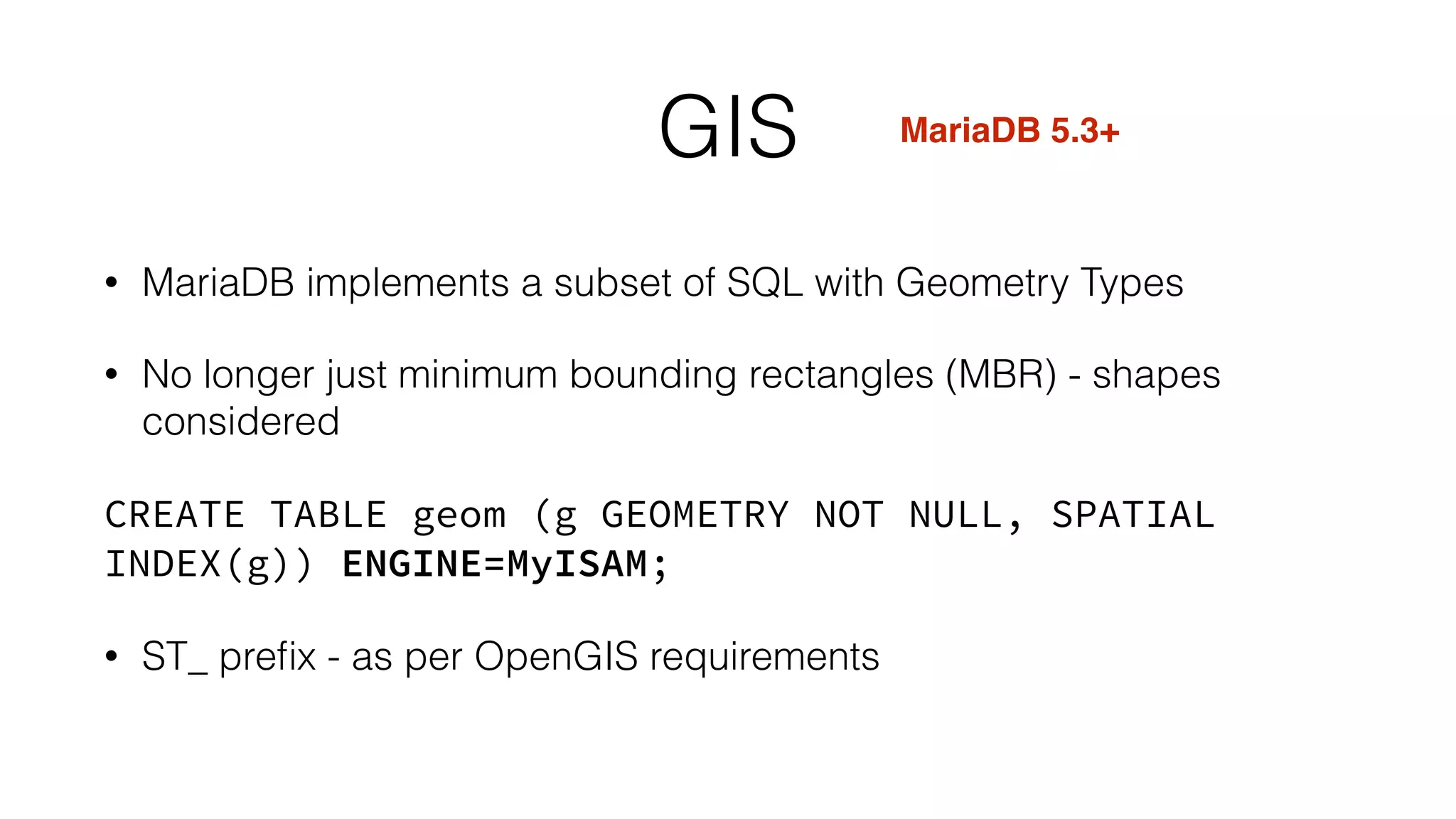

10. GIS
• MariaDB implements a subset of SQL with Geometry Types
• No longer just minimum bounding rectangles (MBR) - shapes
considered
CREATE TABLE geom (g GEOMETRY NOT NULL, SPATIAL
INDEX(g)) ENGINE=MyISAM;
• ST_ prefix - as per OpenGIS requirements
MariaDB 5.3+

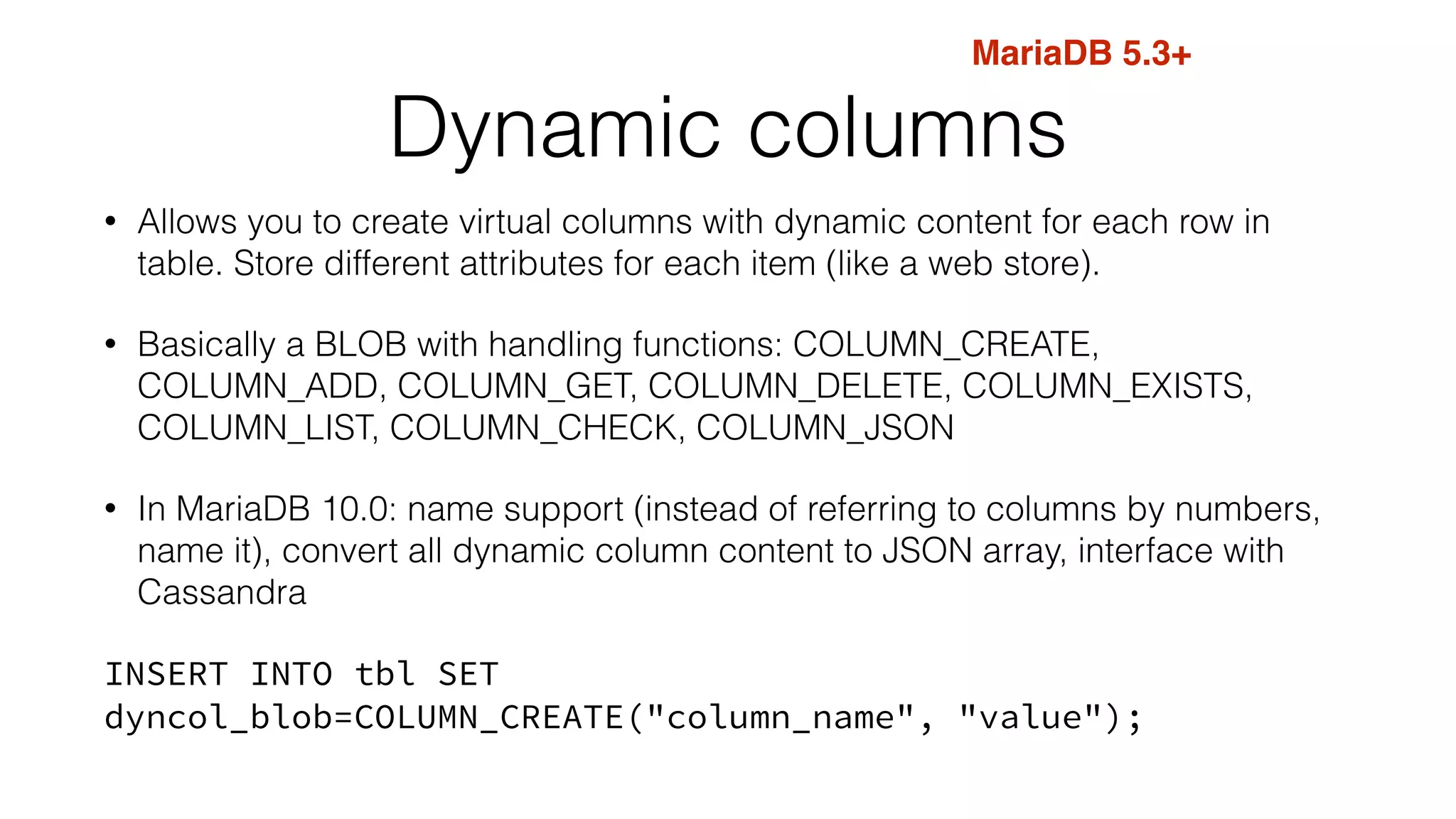

11. MariaDB 5.3+
Dynamic columns
• Allows you to create virtual columns with dynamic content for each row in
table. Store different attributes for each item (like a web store).
• Basically a BLOB with handling functions: COLUMN_CREATE,
COLUMN_ADD, COLUMN_GET, COLUMN_DELETE, COLUMN_EXISTS,
COLUMN_LIST, COLUMN_CHECK, COLUMN_JSON
• In MariaDB 10.0: name support (instead of referring to columns by numbers,
name it), convert all dynamic column content to JSON array, interface with
Cassandra
INSERT INTO tbl SET
dyncol_blob=COLUMN_CREATE("column_name", "value");

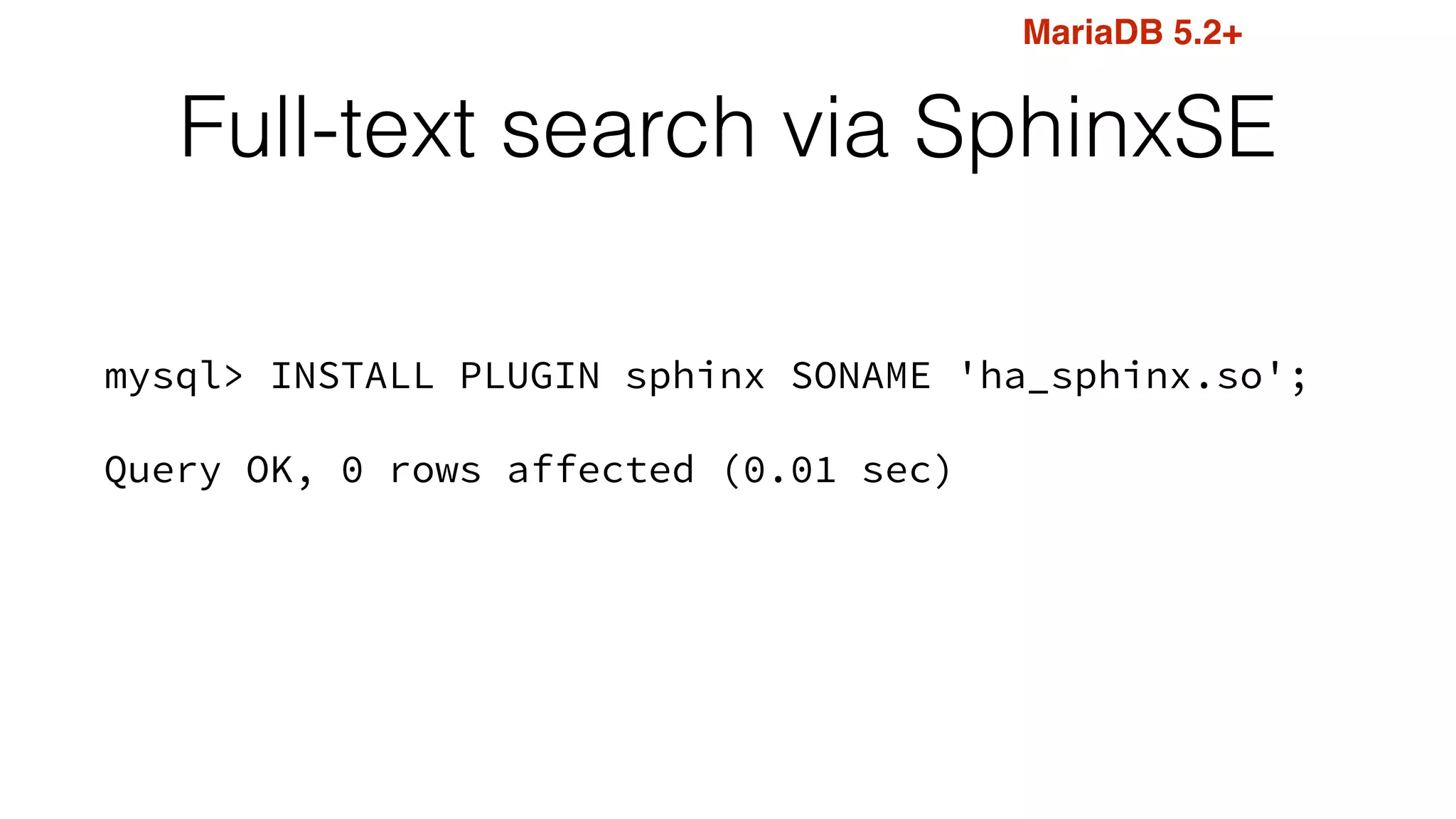

12. MariaDB 5.2+
Full-text search via SphinxSE
mysql> INSTALL PLUGIN sphinx SONAME 'ha_sphinx.so';
Query OK, 0 rows affected (0.01 sec)

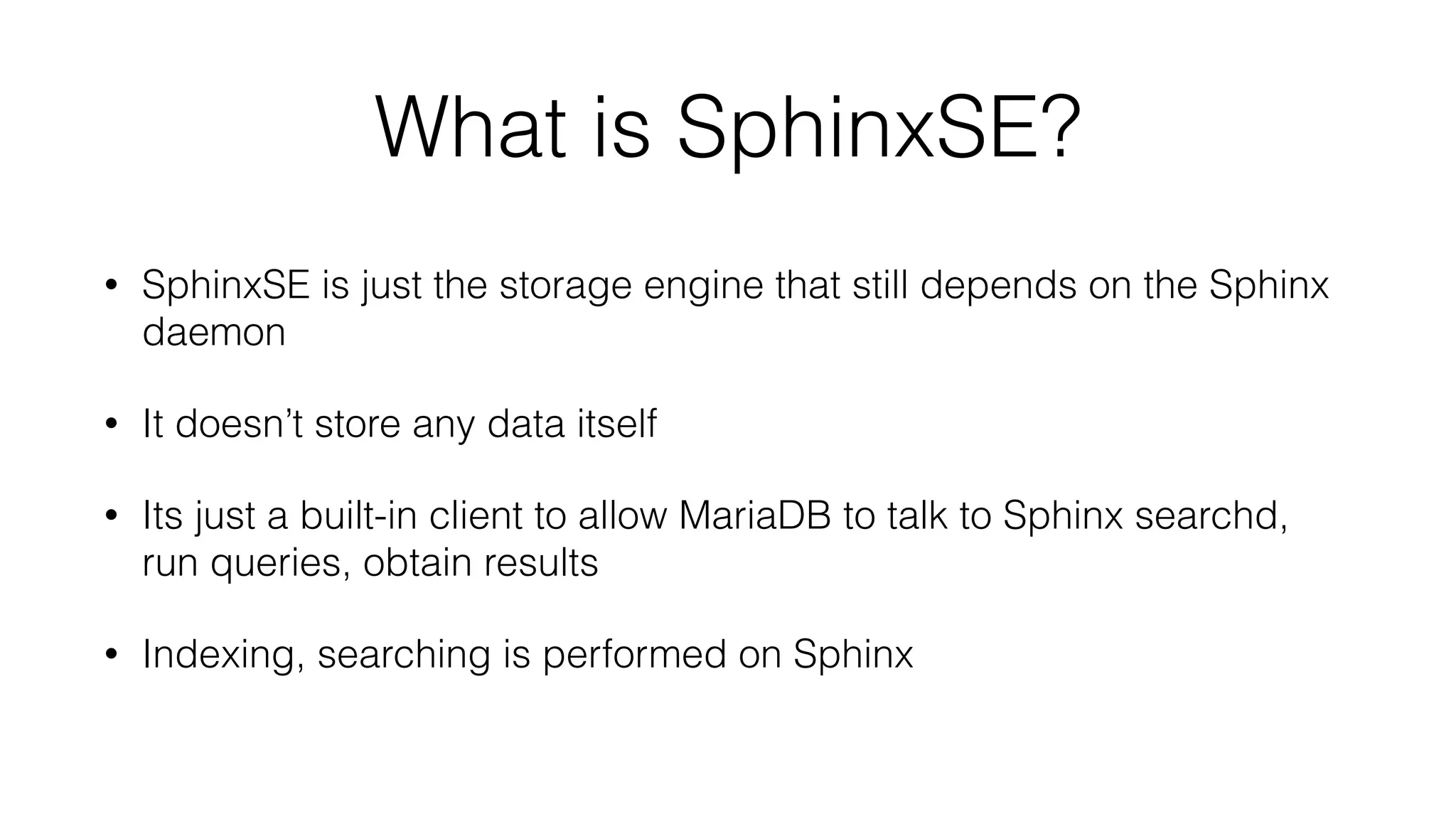

13. What is SphinxSE?
• SphinxSE is just the storage engine that still depends on the Sphinx
daemon
• It doesn’t store any data itself
• Its just a built-in client to allow MariaDB to talk to Sphinx searchd,
run queries, obtain results
• Indexing, searching is performed on Sphinx

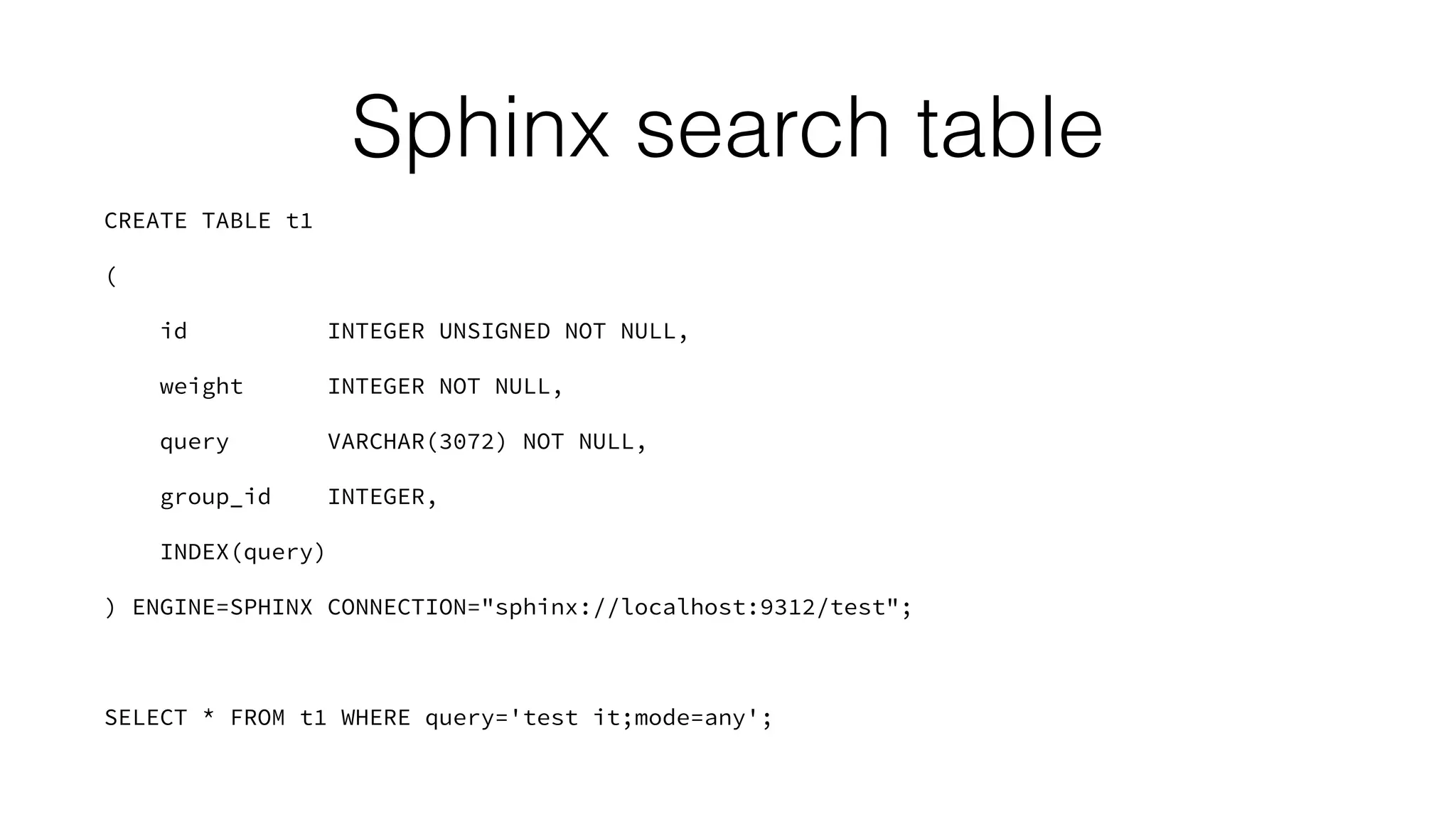

14. Sphinx search table
CREATE TABLE t1
(
id INTEGER UNSIGNED NOT NULL,
weight INTEGER NOT NULL,
query VARCHAR(3072) NOT NULL,
group_id INTEGER,
INDEX(query)
) ENGINE=SPHINX CONNECTION="sphinx://localhost:9312/test";
!
SELECT * FROM t1 WHERE query='test it;mode=any';

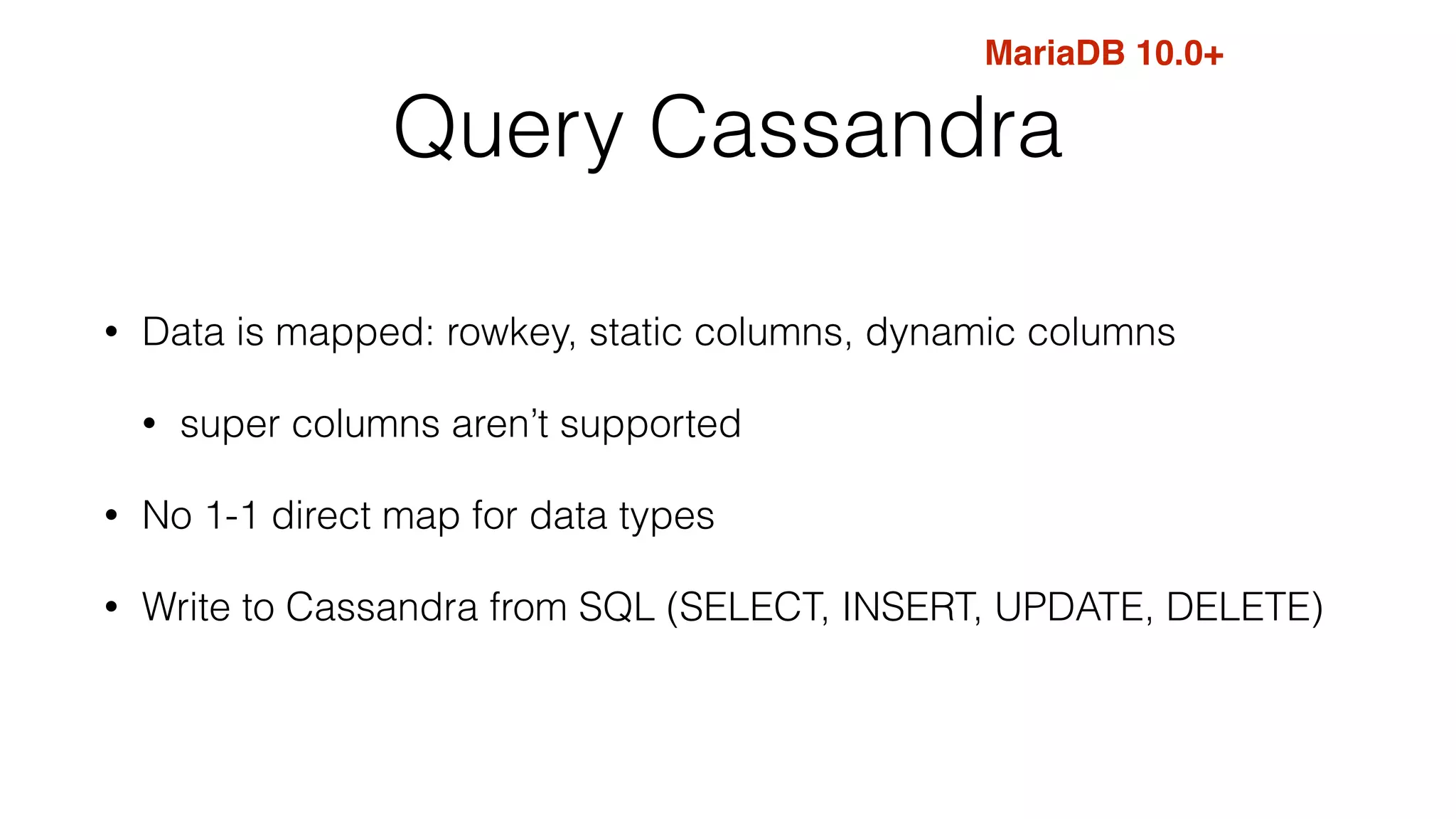

15. MariaDB 10.0+
Query Cassandra
• Data is mapped: rowkey, static columns, dynamic columns
• super columns aren’t supported
• No 1-1 direct map for data types
• Write to Cassandra from SQL (SELECT, INSERT, UPDATE, DELETE)

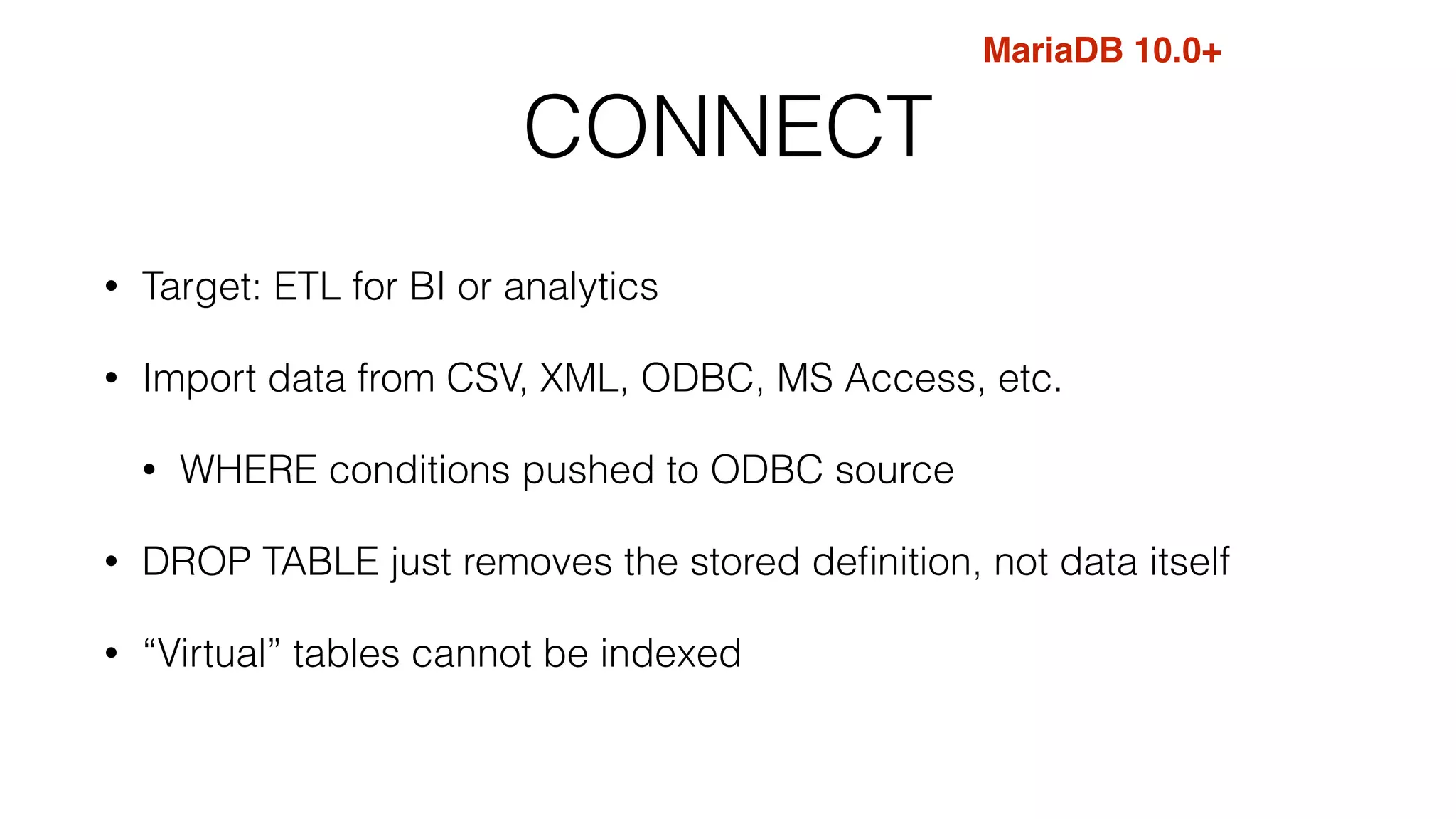

16. CONNECT
• Target: ETL for BI or analytics
• Import data from CSV, XML, ODBC, MS Access, etc.
• WHERE conditions pushed to ODBC source
• DROP TABLE just removes the stored definition, not data itself
• “Virtual” tables cannot be indexed
MariaDB 10.0+

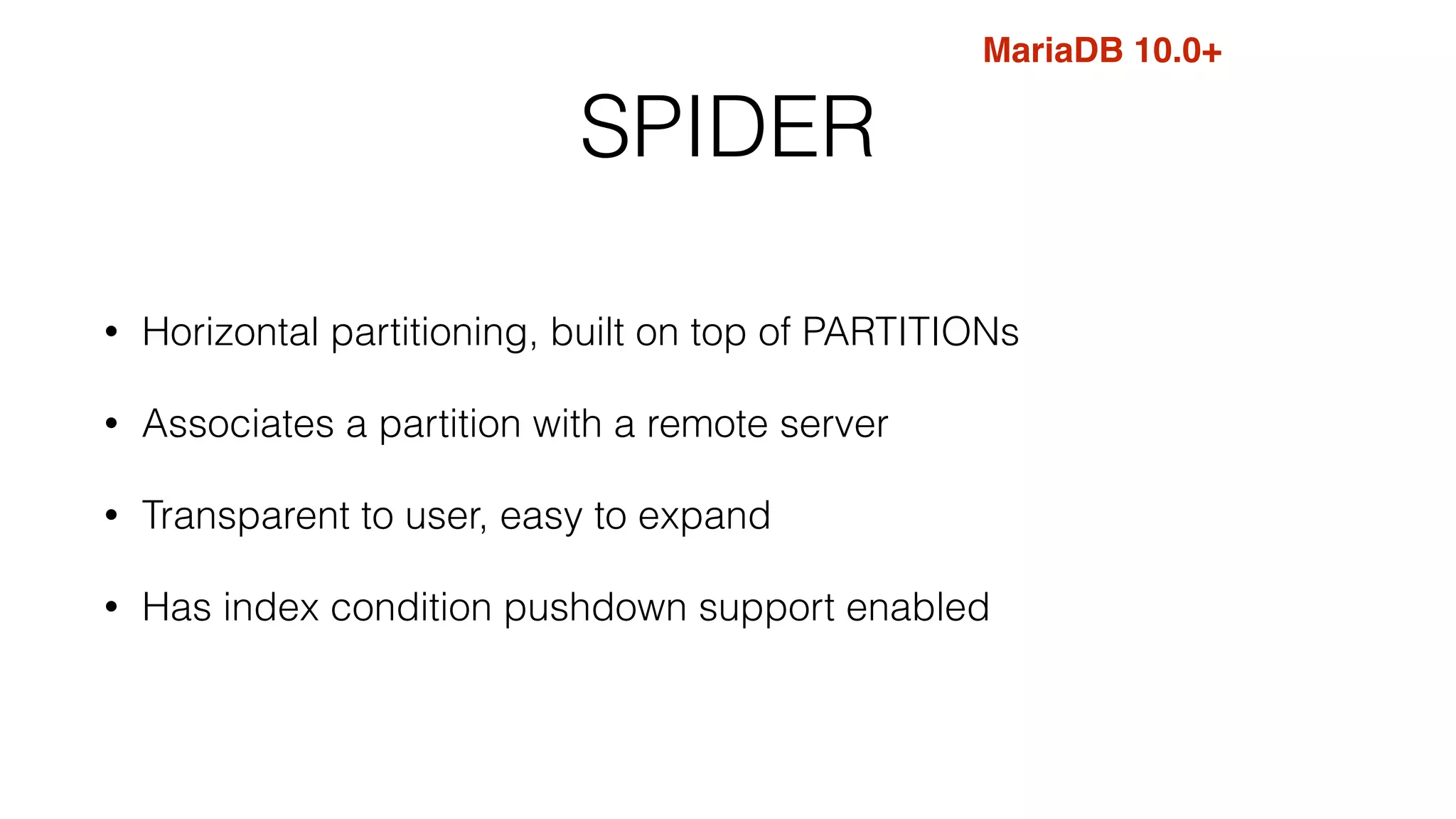

17. SPIDER
MariaDB 10.0+
• Horizontal partitioning, built on top of PARTITIONs
• Associates a partition with a remote server
• Transparent to user, easy to expand
• Has index condition pushdown support enabled

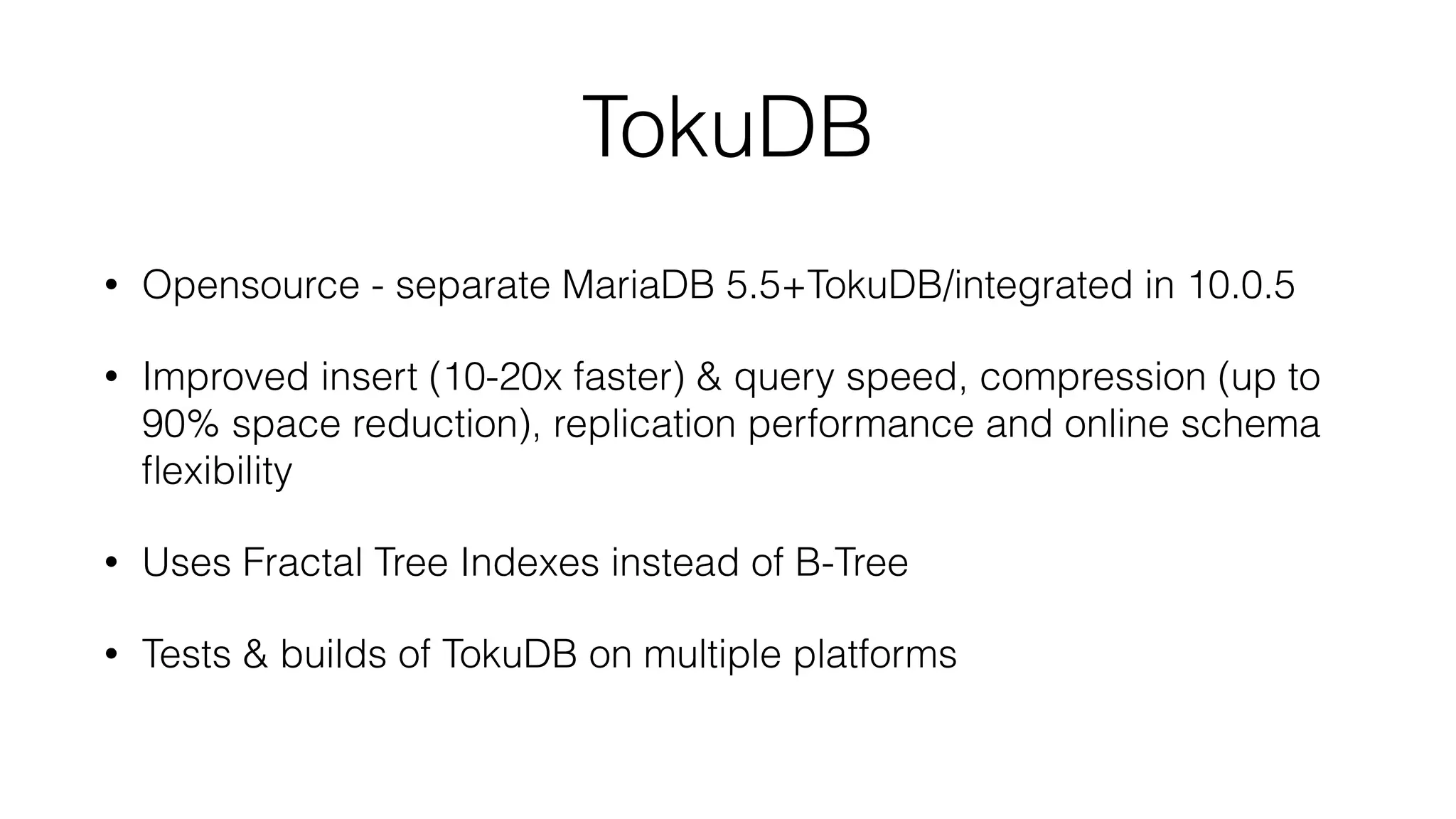

18. TokuDB
• Opensource - separate MariaDB 5.5+TokuDB/integrated in 10.0.5
• Improved insert (10-20x faster) & query speed, compression (up to
90% space reduction), replication performance and online schema
flexibility
• Uses Fractal Tree Indexes instead of B-Tree
• Tests & builds of TokuDB on multiple platforms

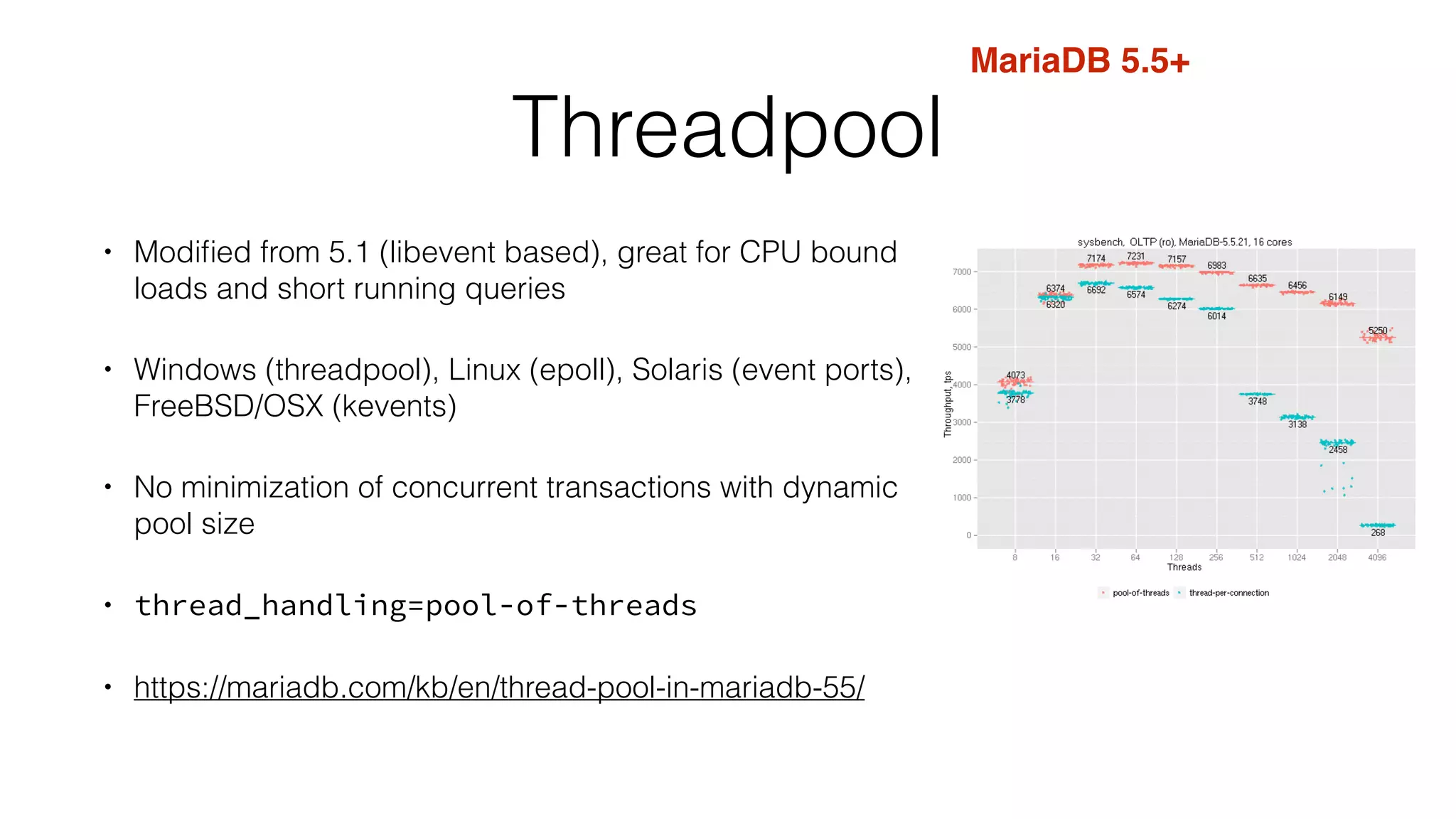

19. Threadpool
• Modified from 5.1 (libevent based), great for CPU bound
loads and short running queries
• Windows (threadpool), Linux (epoll), Solaris (event ports),
FreeBSD/OSX (kevents)
• No minimization of concurrent transactions with dynamic
pool size
• thread_handling=pool-of-threads
• https://mariadb.com/kb/en/thread-pool-in-mariadb-55/
MariaDB 5.5+

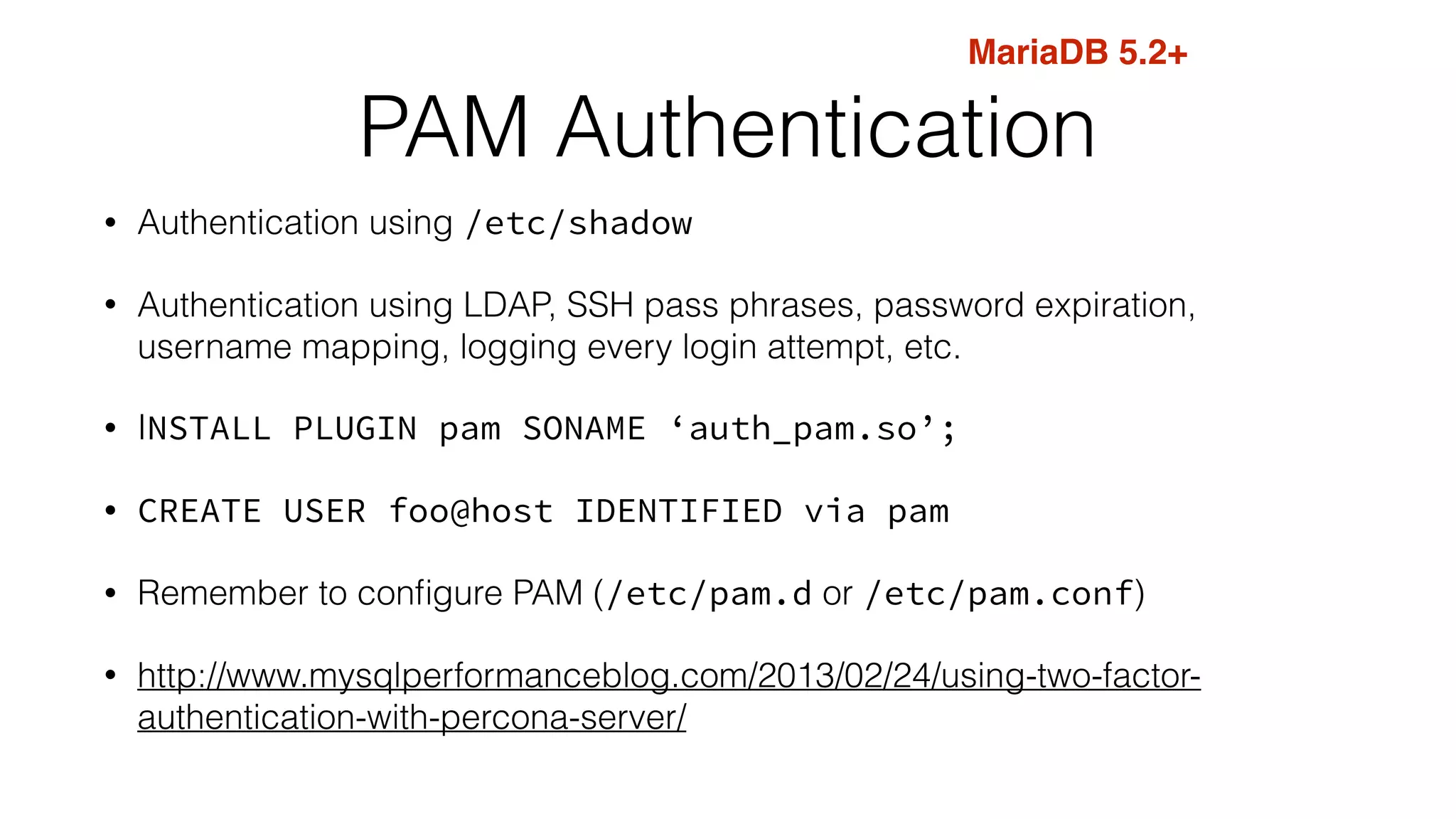

20. PAM Authentication
• Authentication using /etc/shadow
• Authentication using LDAP, SSH pass phrases, password expiration,
username mapping, logging every login attempt, etc.
• INSTALL PLUGIN pam SONAME ‘auth_pam.so’;
• CREATE USER foo@host IDENTIFIED via pam
• Remember to configure PAM (/etc/pam.d or /etc/pam.conf)
• http://www.mysqlperformanceblog.com/2013/02/24/using-two-factor-authentication-
with-percona-server/
MariaDB 5.2+

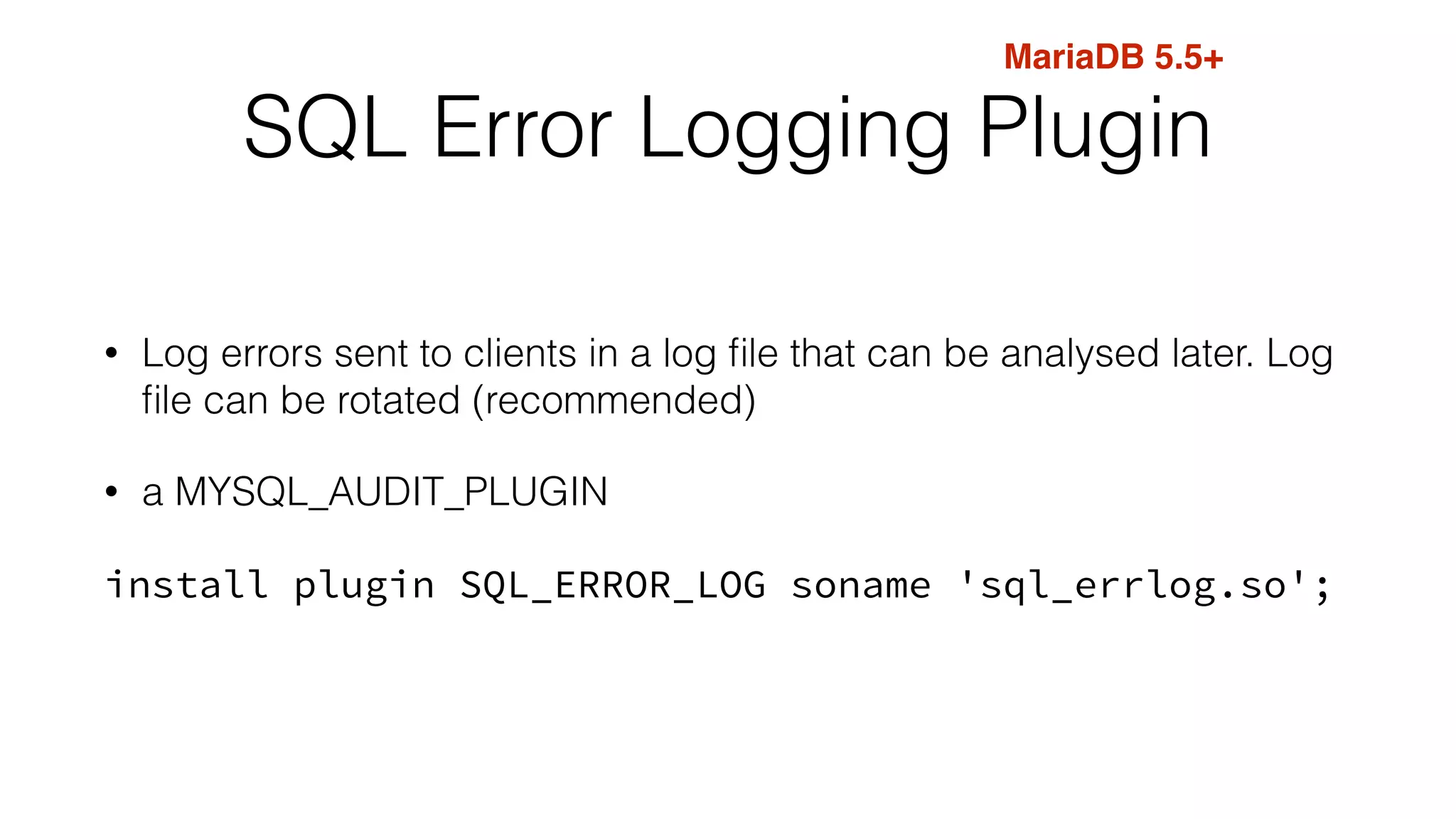

21. MariaDB 5.5+
SQL Error Logging Plugin
• Log errors sent to clients in a log file that can be analysed later. Log
file can be rotated (recommended)
• a MYSQL_AUDIT_PLUGIN
install plugin SQL_ERROR_LOG soname 'sql_errlog.so';

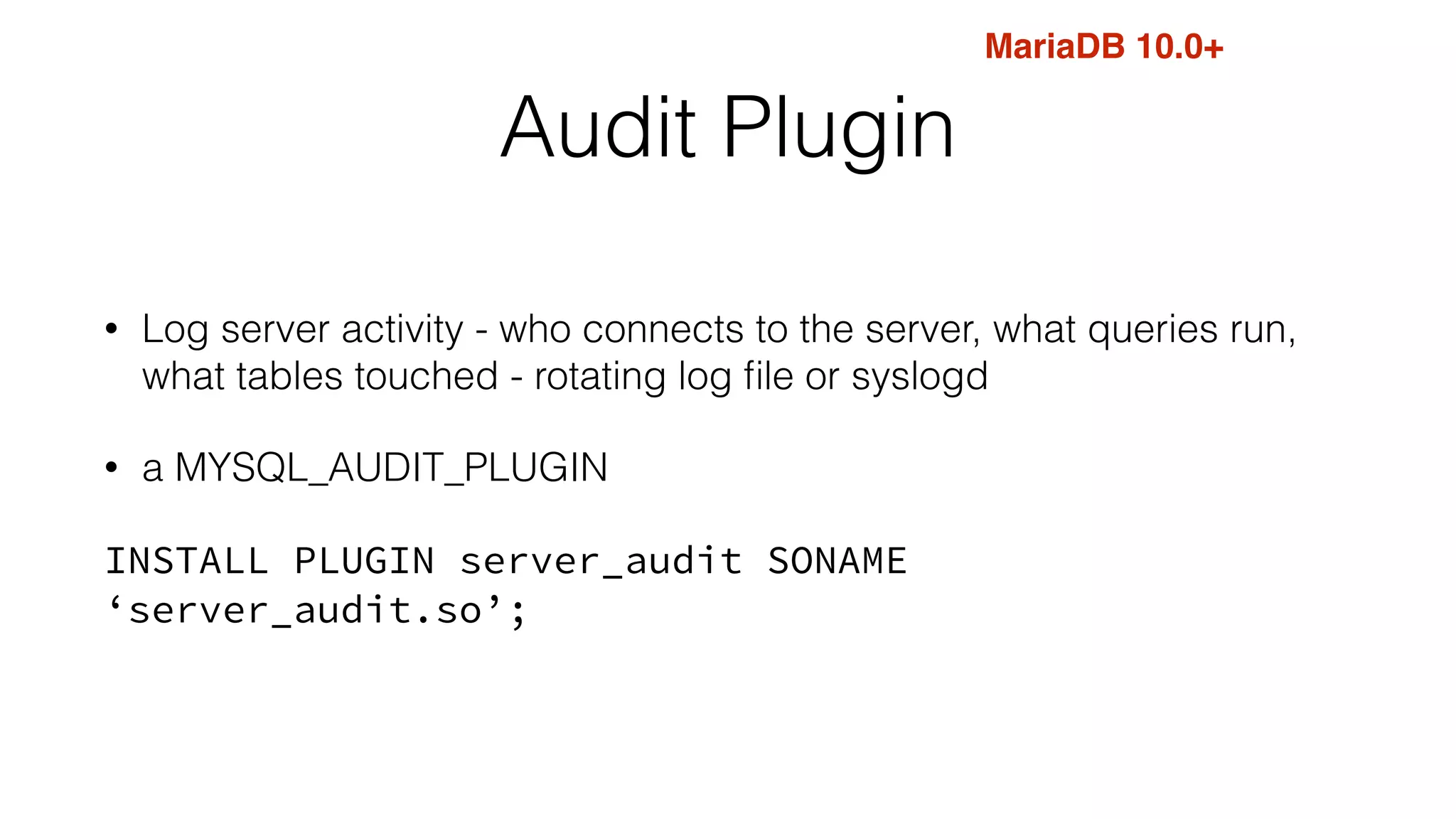

22. Audit Plugin
• Log server activity - who connects to the server, what queries run,
what tables touched - rotating log file or syslogd
• a MYSQL_AUDIT_PLUGIN
INSTALL PLUGIN server_audit SONAME
‘server_audit.so’;
MariaDB 10.0+

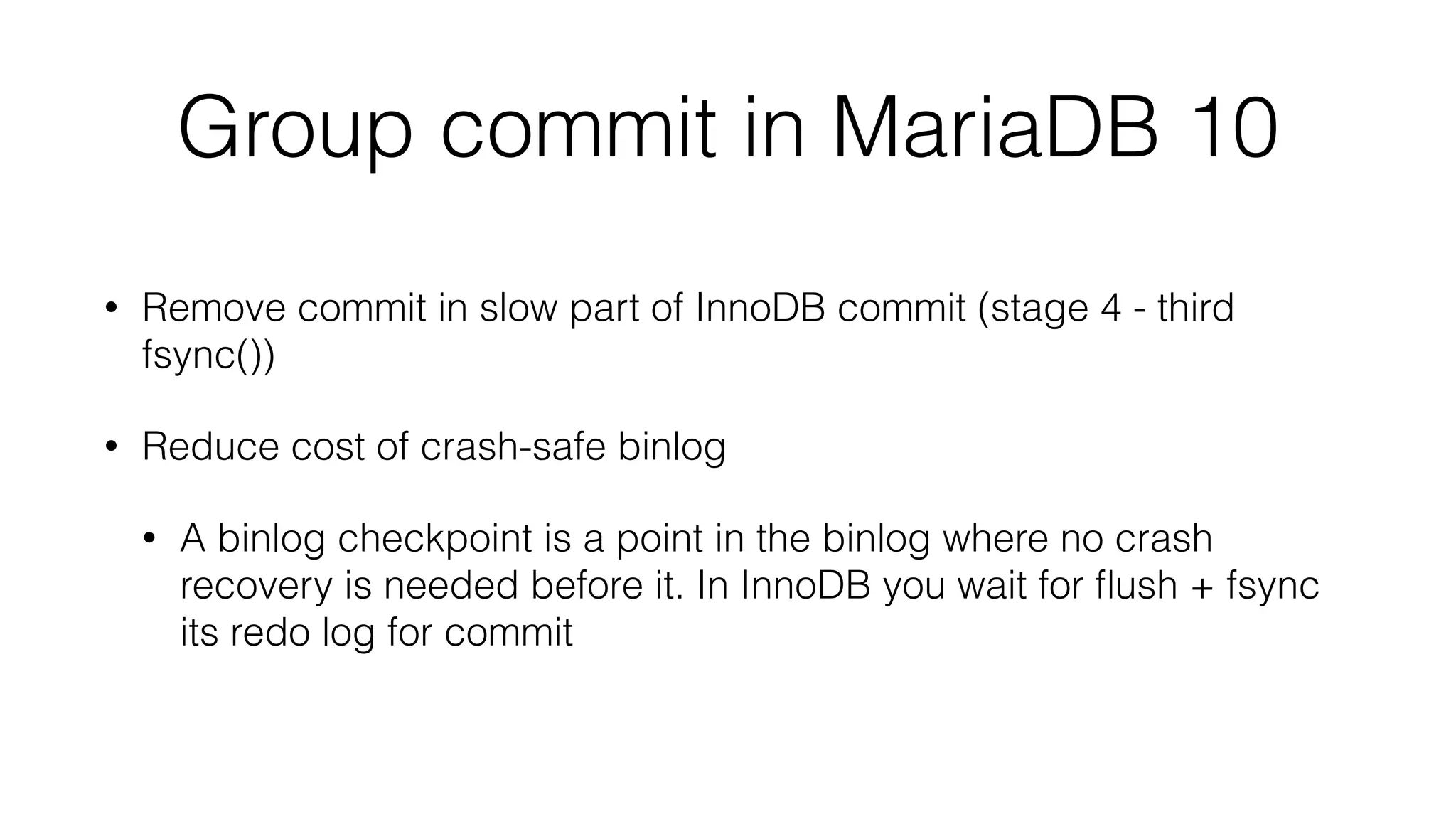

23. Group commit in MariaDB 10
• Remove commit in slow part of InnoDB commit (stage 4 - third
fsync())
• Reduce cost of crash-safe binlog
• A binlog checkpoint is a point in the binlog where no crash
recovery is needed before it. In InnoDB you wait for flush + fsync
its redo log for commit

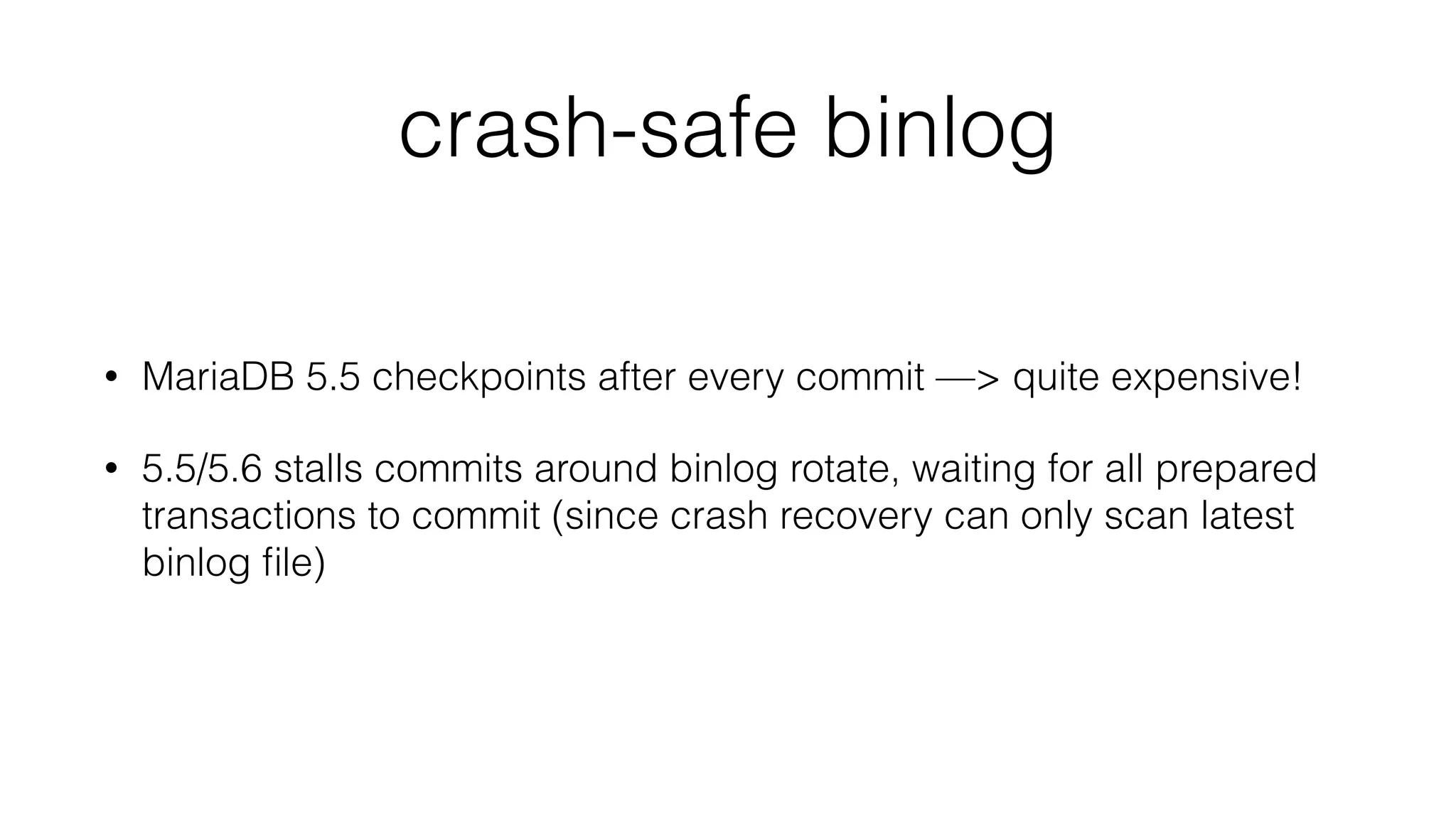

24. crash-safe binlog
• MariaDB 5.5 checkpoints after every commit —> quite expensive!
• 5.5/5.6 stalls commits around binlog rotate, waiting for all prepared
transactions to commit (since crash recovery can only scan latest
binlog file)

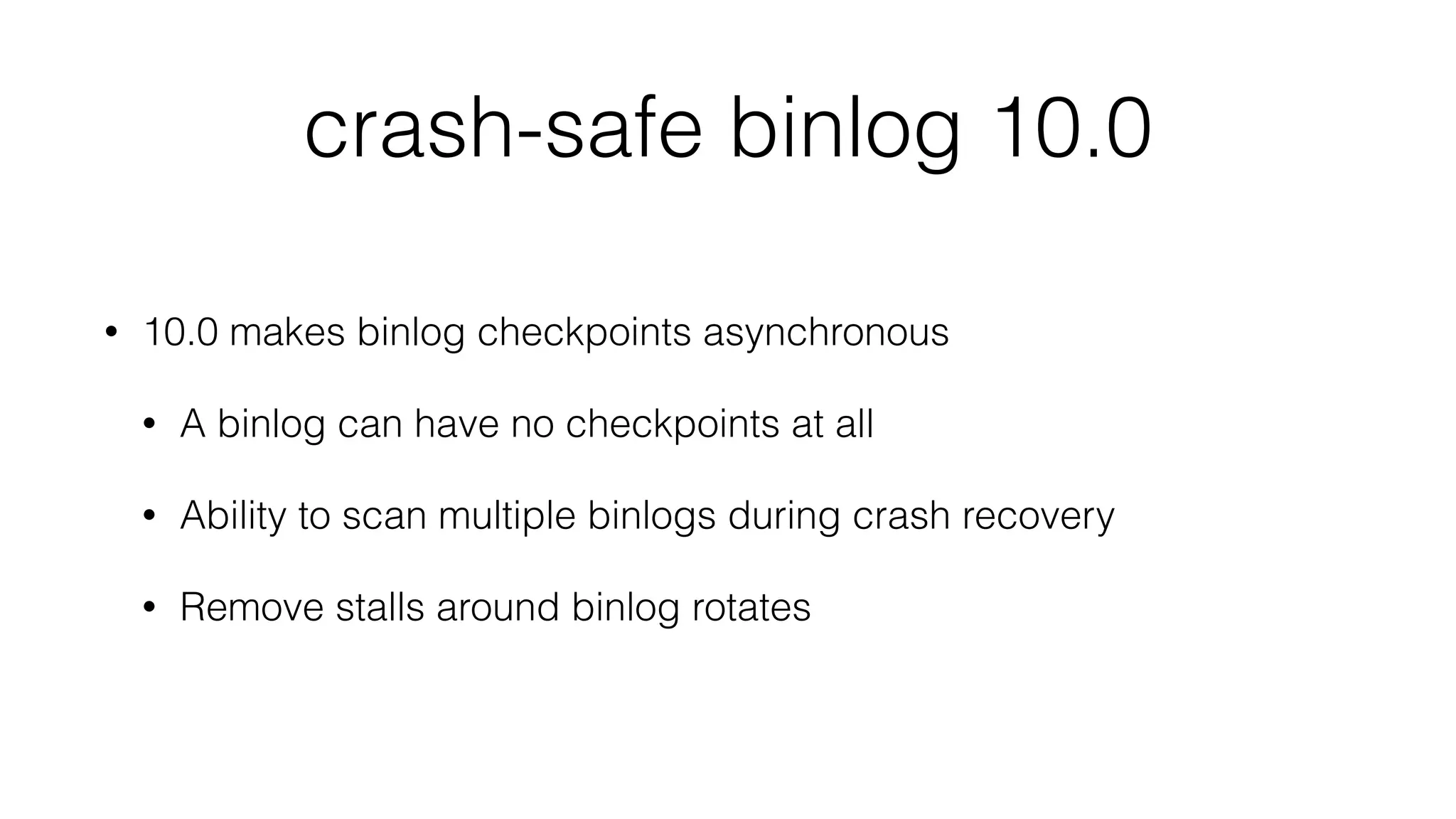

25. crash-safe binlog 10.0
• 10.0 makes binlog checkpoints asynchronous
• A binlog can have no checkpoints at all
• Ability to scan multiple binlogs during crash recovery
• Remove stalls around binlog rotates

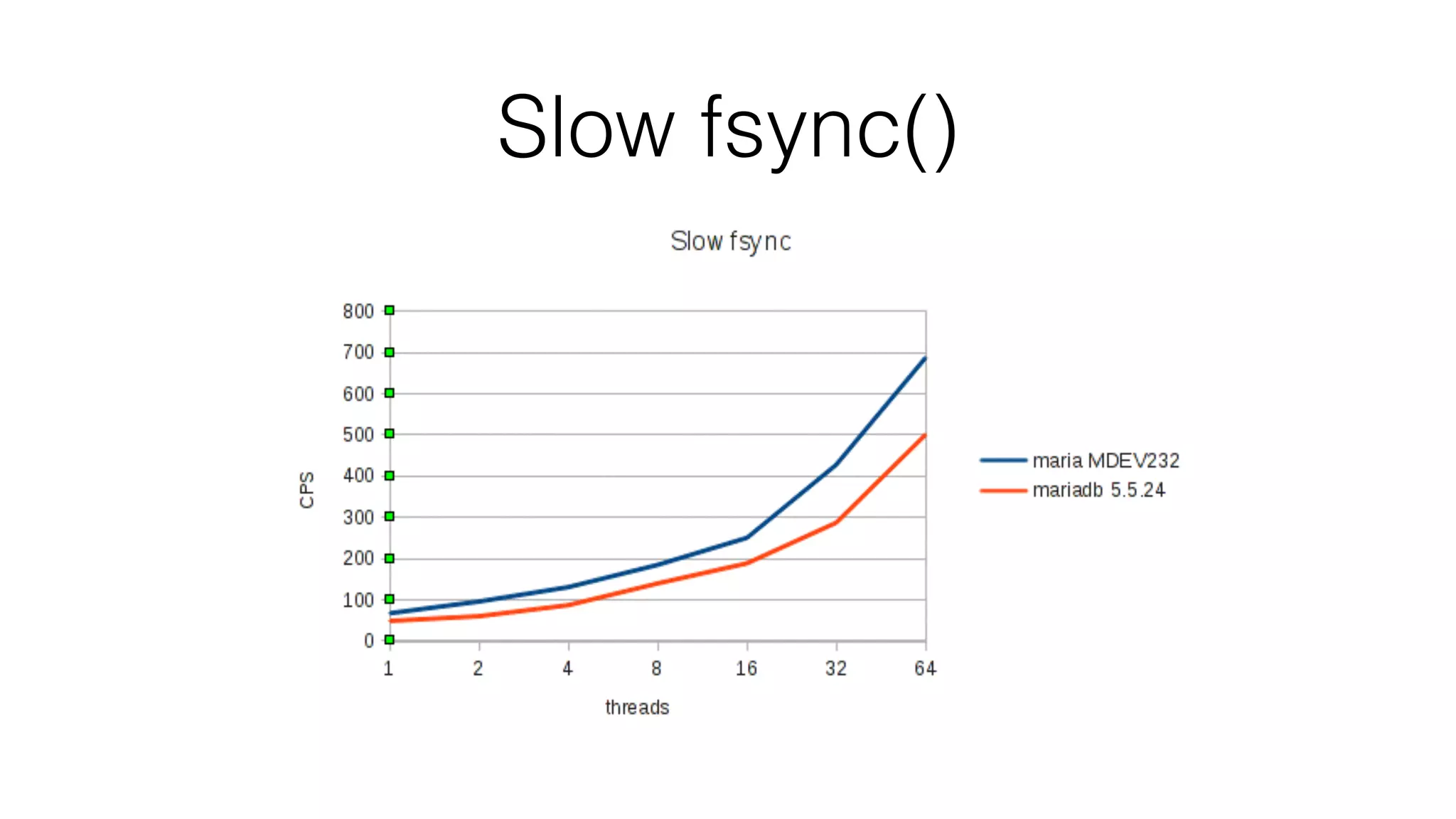

26. Slow fsync()

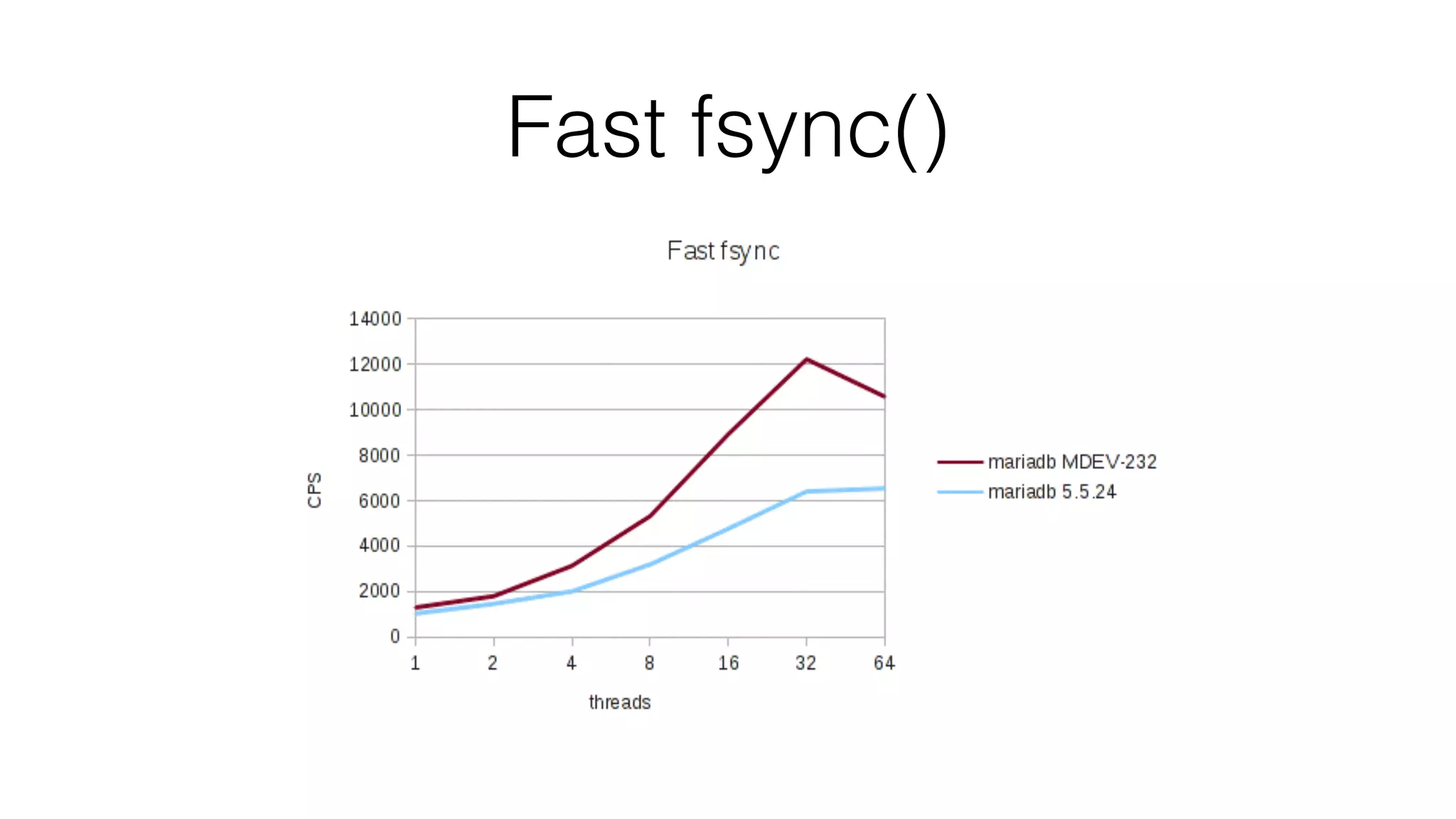

27. Fast fsync()

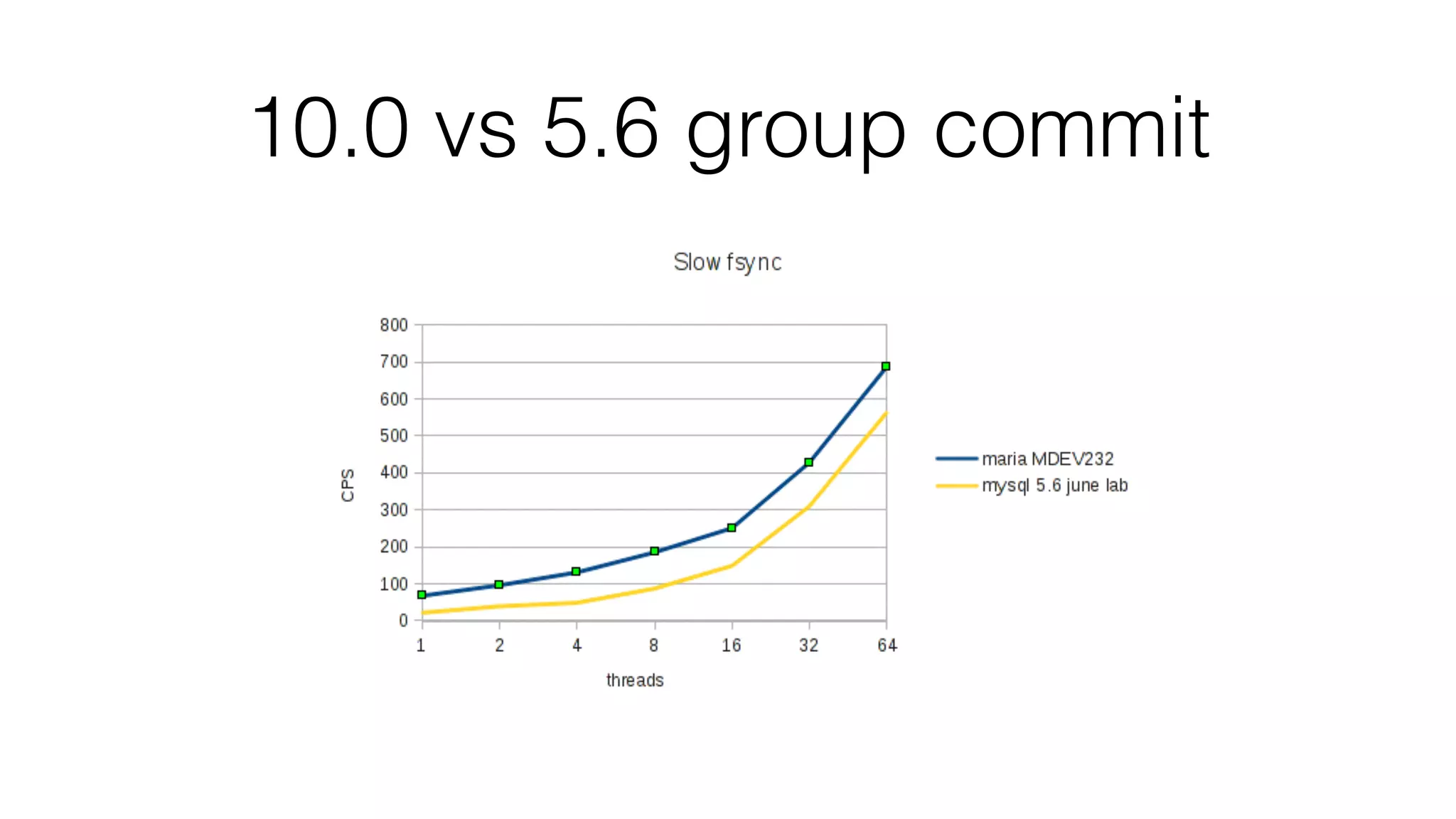

28. 10.0 vs 5.6 group commit

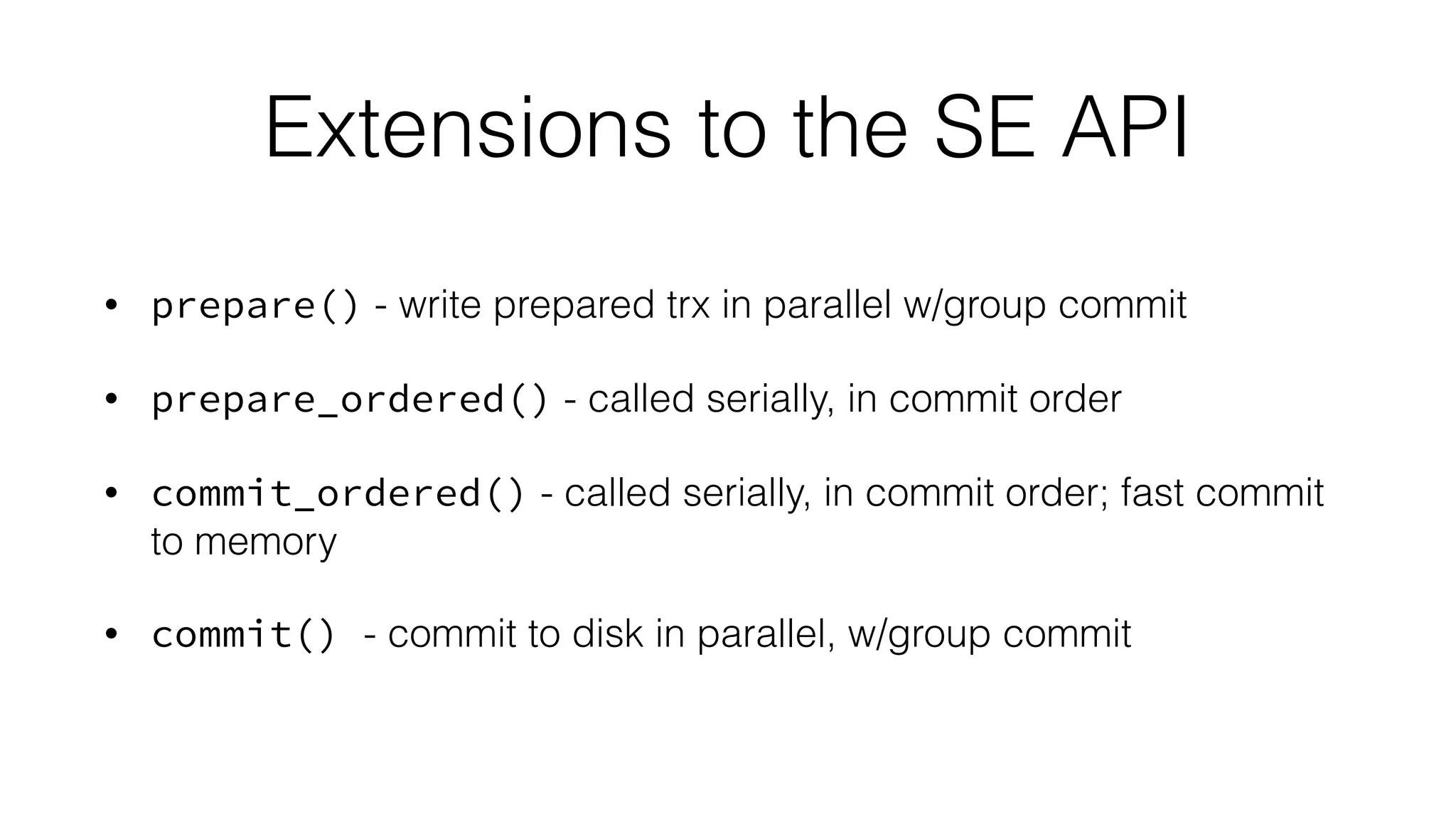

29. Extensions to the SE API
• prepare() - write prepared trx in parallel w/group commit
• prepare_ordered() - called serially, in commit order
• commit_ordered() - called serially, in commit order; fast commit
to memory
• commit() - commit to disk in parallel, w/group commit

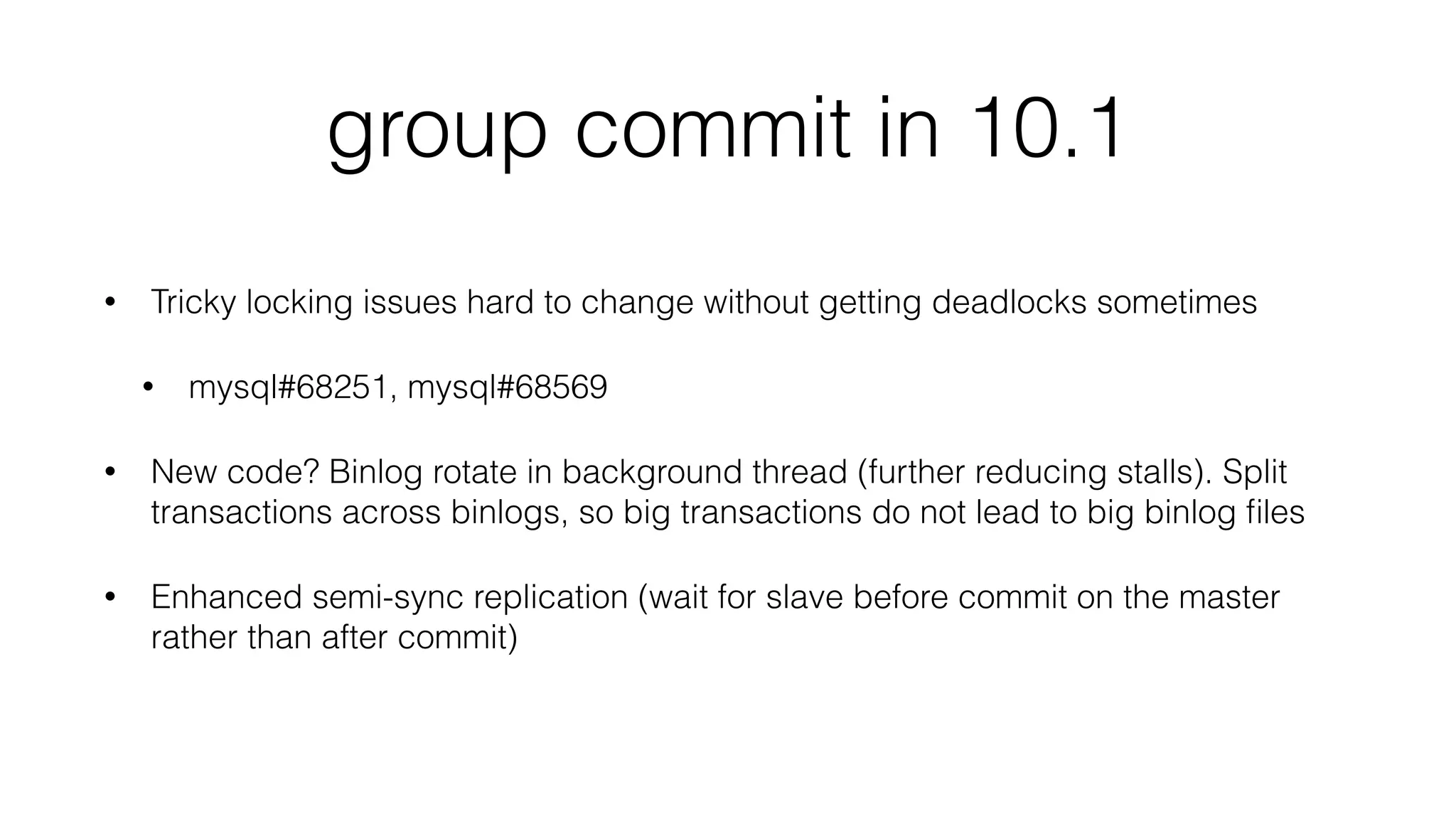

30. group commit in 10.1
• Tricky locking issues hard to change without getting deadlocks sometimes
• mysql#68251, mysql#68569
• New code? Binlog rotate in background thread (further reducing stalls). Split
transactions across binlogs, so big transactions do not lead to big binlog files
• Enhanced semi-sync replication (wait for slave before commit on the master
rather than after commit)

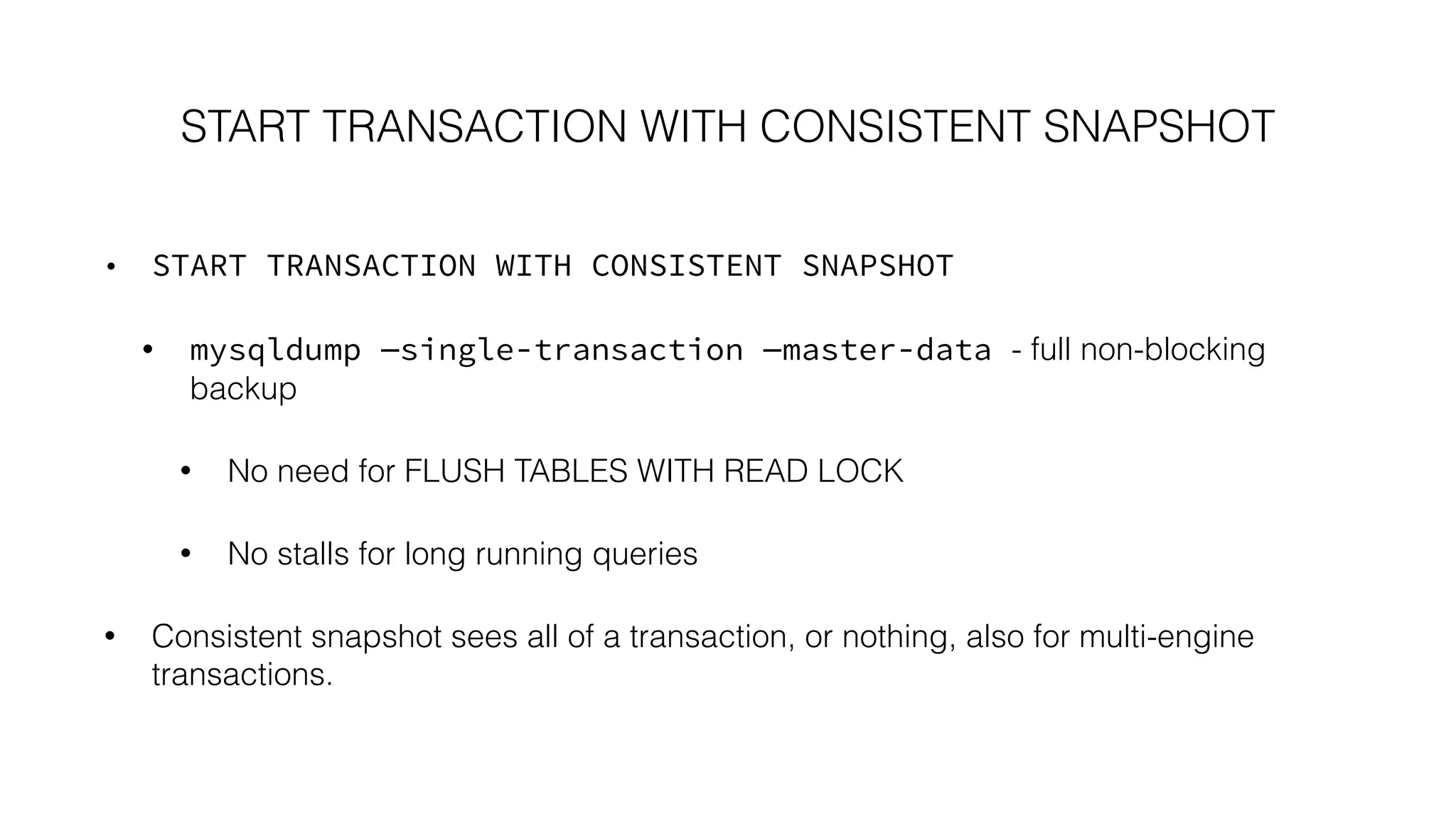

31. START TRANSACTION WITH CONSISTENT SNAPSHOT
• START TRANSACTION WITH CONSISTENT SNAPSHOT
• mysqldump —single-transaction —master-data - full non-blocking
backup
• No need for FLUSH TABLES WITH READ LOCK
• No stalls for long running queries
• Consistent snapshot sees all of a transaction, or nothing, also for multi-engine
transactions.

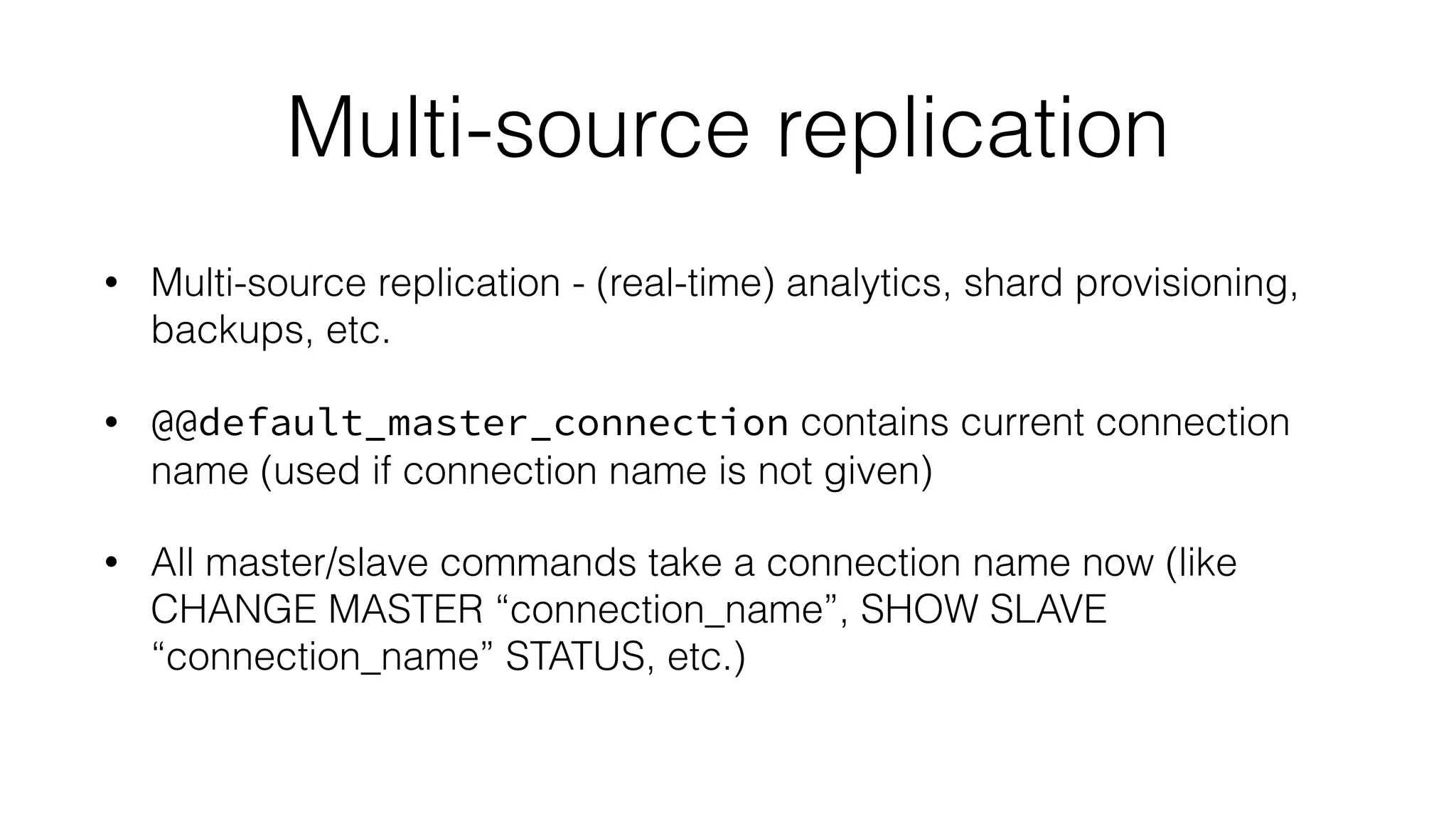

32. Multi-source replication
• Multi-source replication - (real-time) analytics, shard provisioning,
backups, etc.
• @@default_master_connection contains current connection
name (used if connection name is not given)
• All master/slave commands take a connection name now (like
CHANGE MASTER “connection_name”, SHOW SLAVE
“connection_name” STATUS, etc.)

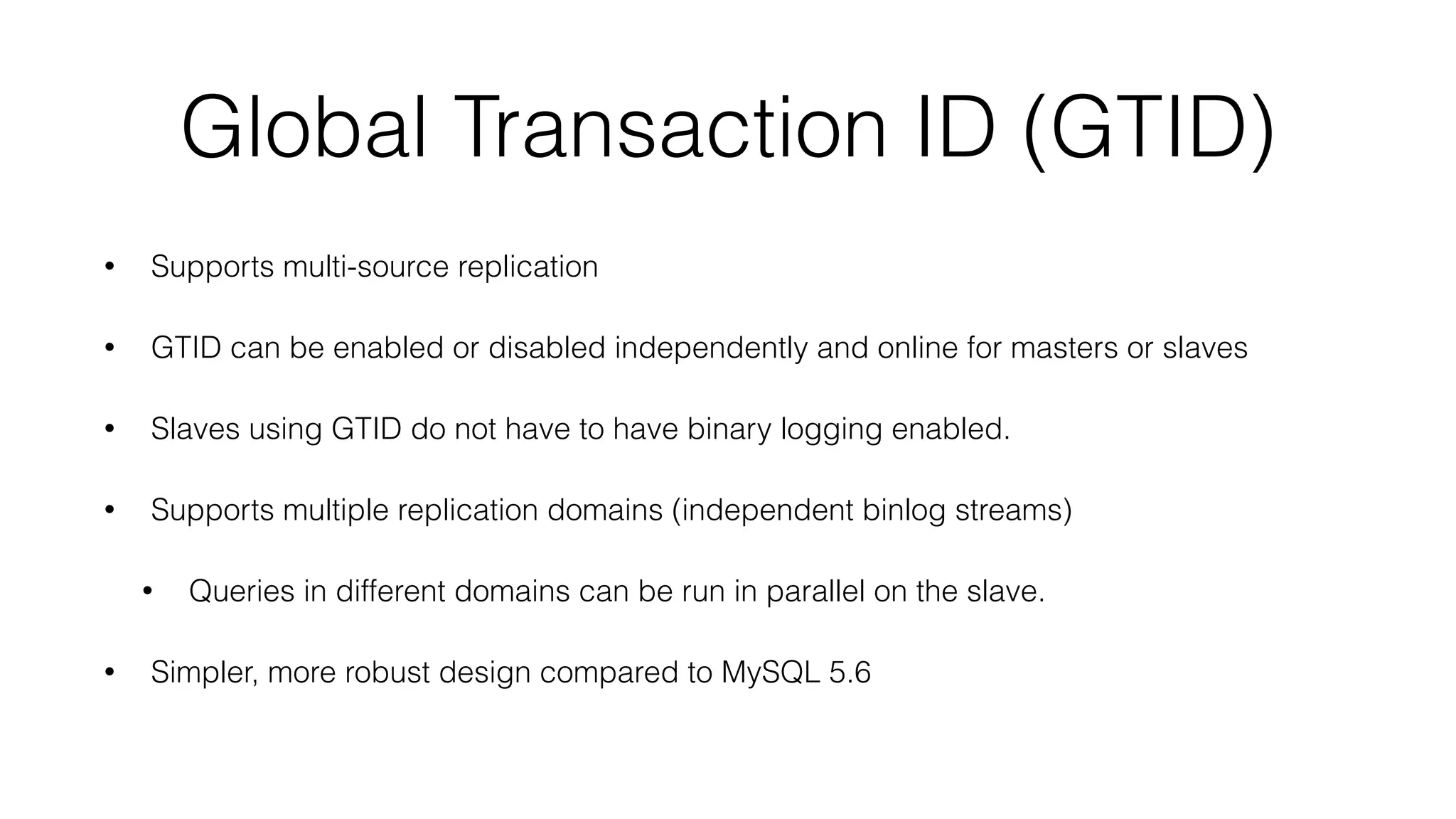

33. Global Transaction ID (GTID)
• Supports multi-source replication
• GTID can be enabled or disabled independently and online for masters or slaves
• Slaves using GTID do not have to have binary logging enabled.
• Supports multiple replication domains (independent binlog streams)
• Queries in different domains can be run in parallel on the slave.
• Simpler, more robust design compared to MySQL 5.6

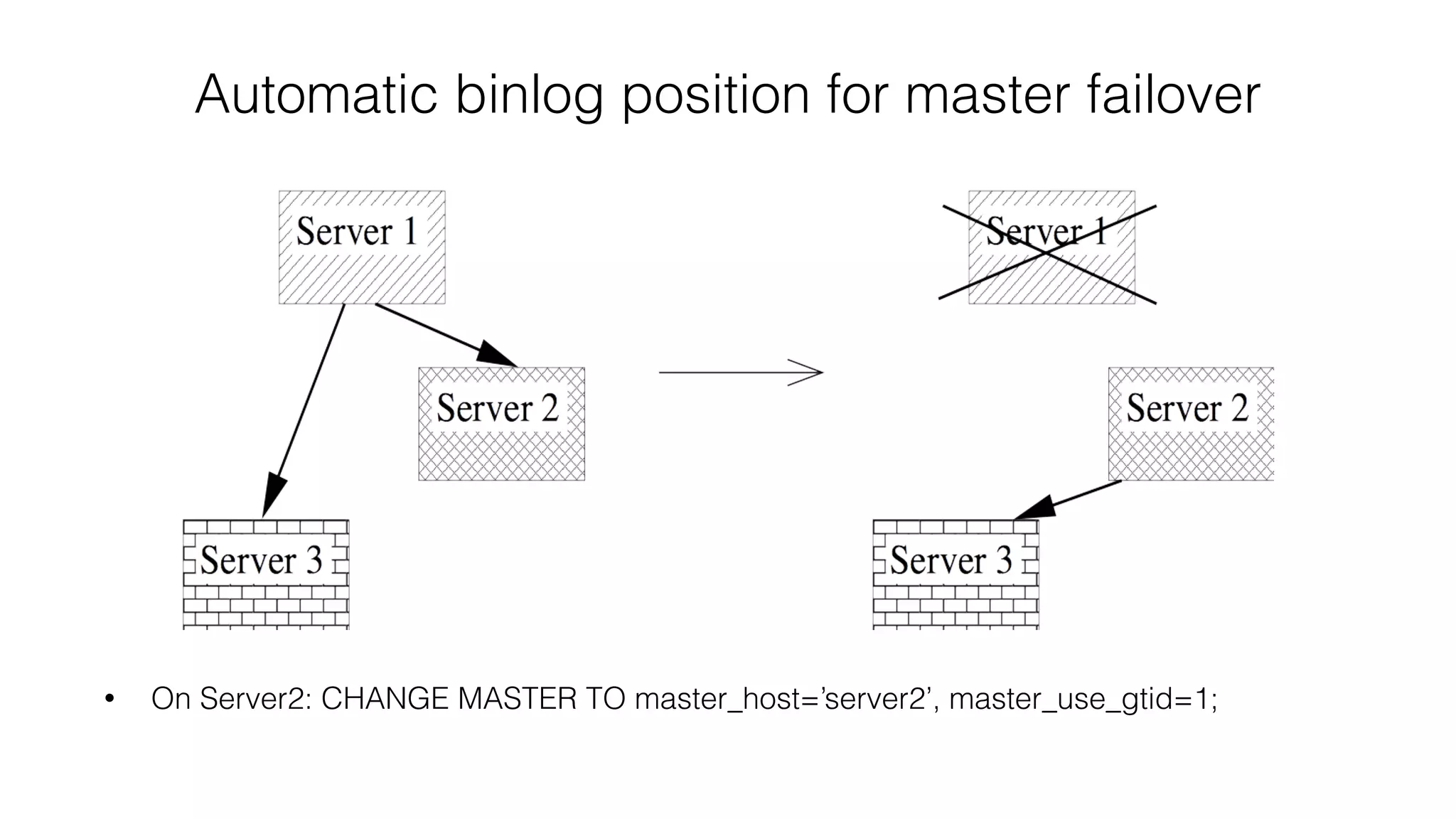

34. Automatic binlog position for master failover
• On Server2: CHANGE MASTER TO master_host=’server2’, master_use_gtid=1;

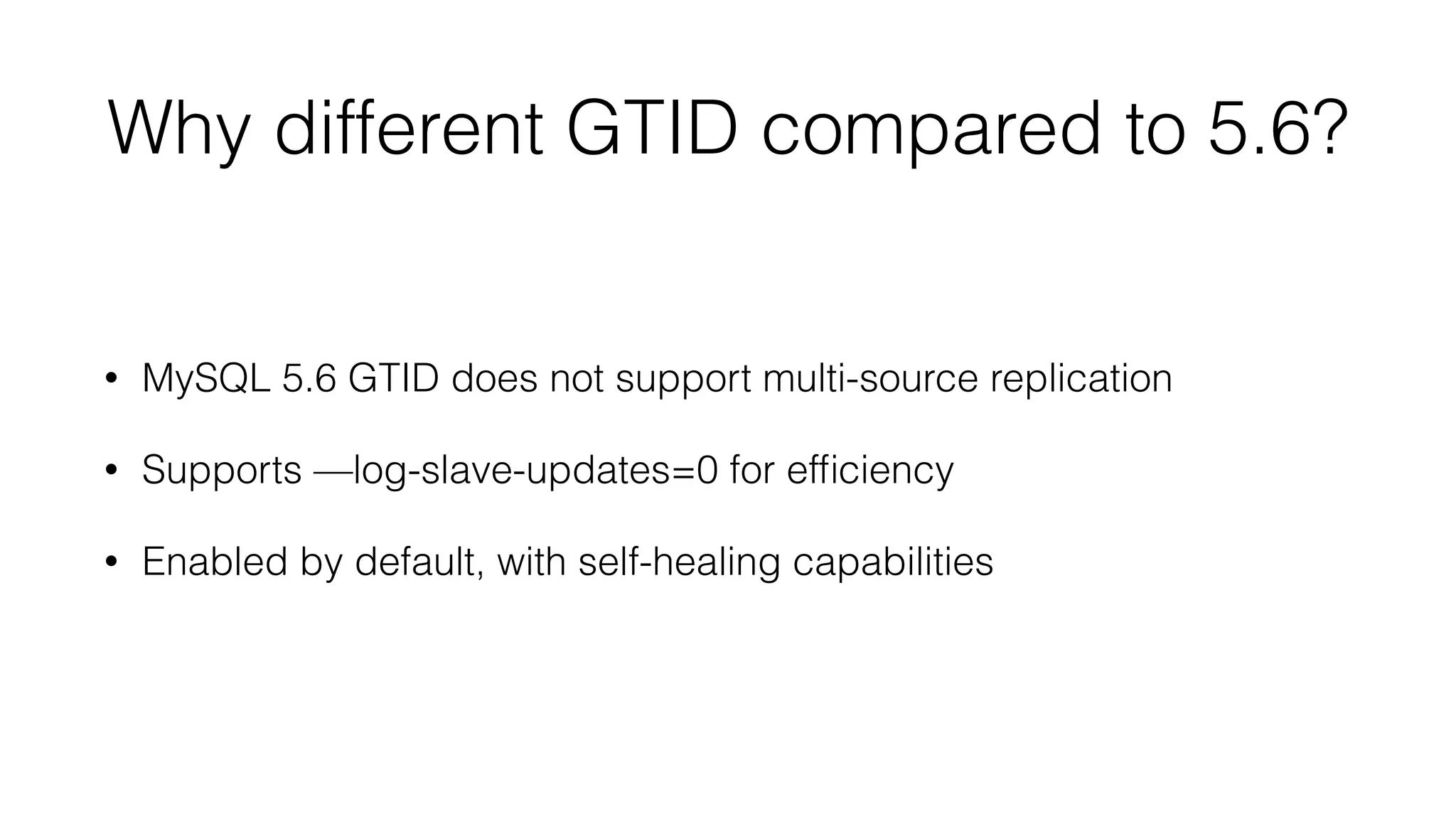

35. Why different GTID compared to 5.6?
• MySQL 5.6 GTID does not support multi-source replication
• Supports —log-slave-updates=0 for efficiency
• Enabled by default, with self-healing capabilities

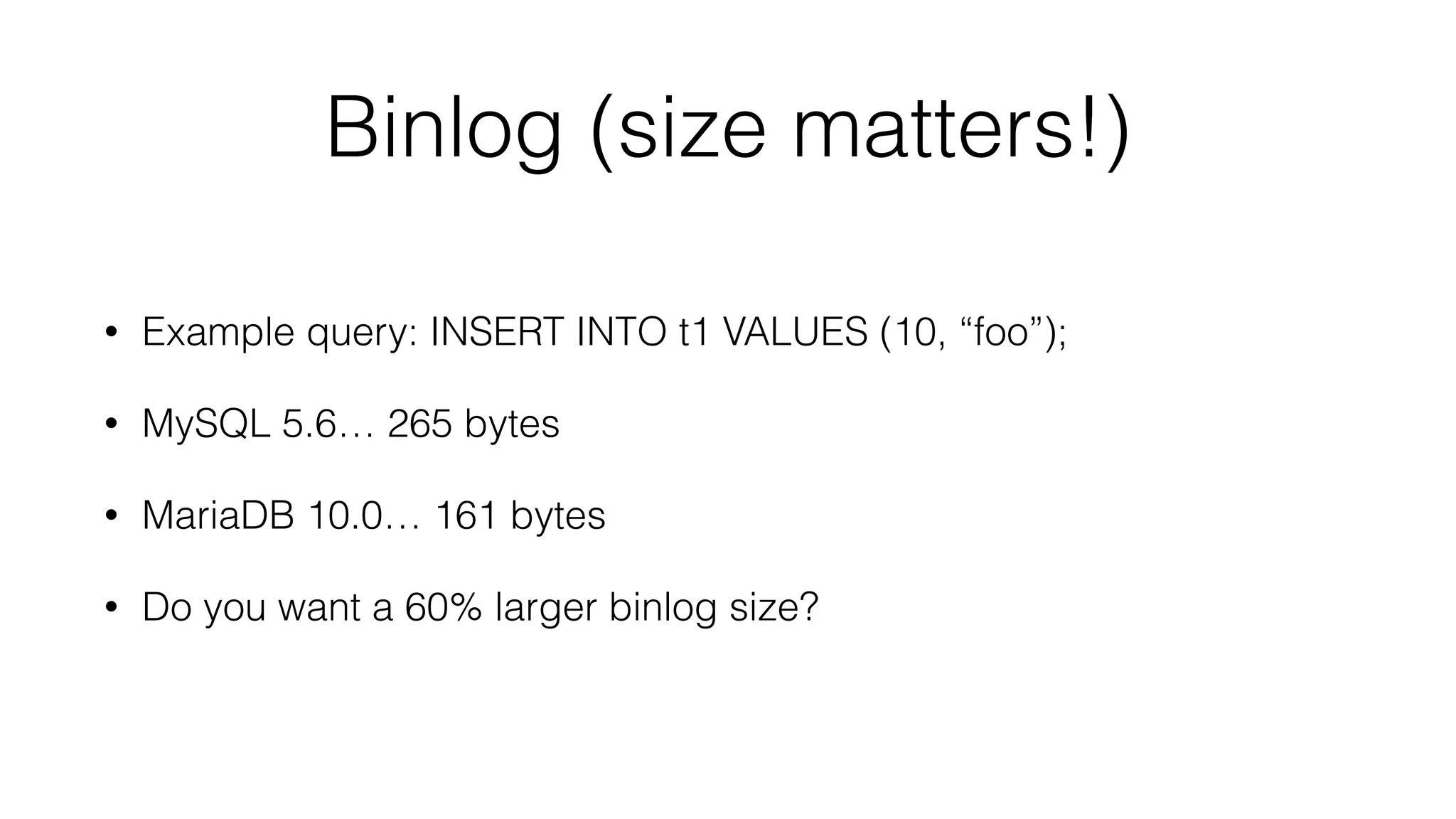

36. Binlog (size matters!)
• Example query: INSERT INTO t1 VALUES (10, “foo”);
• MySQL 5.6… 265 bytes
• MariaDB 10.0… 161 bytes
• Do you want a 60% larger binlog size?

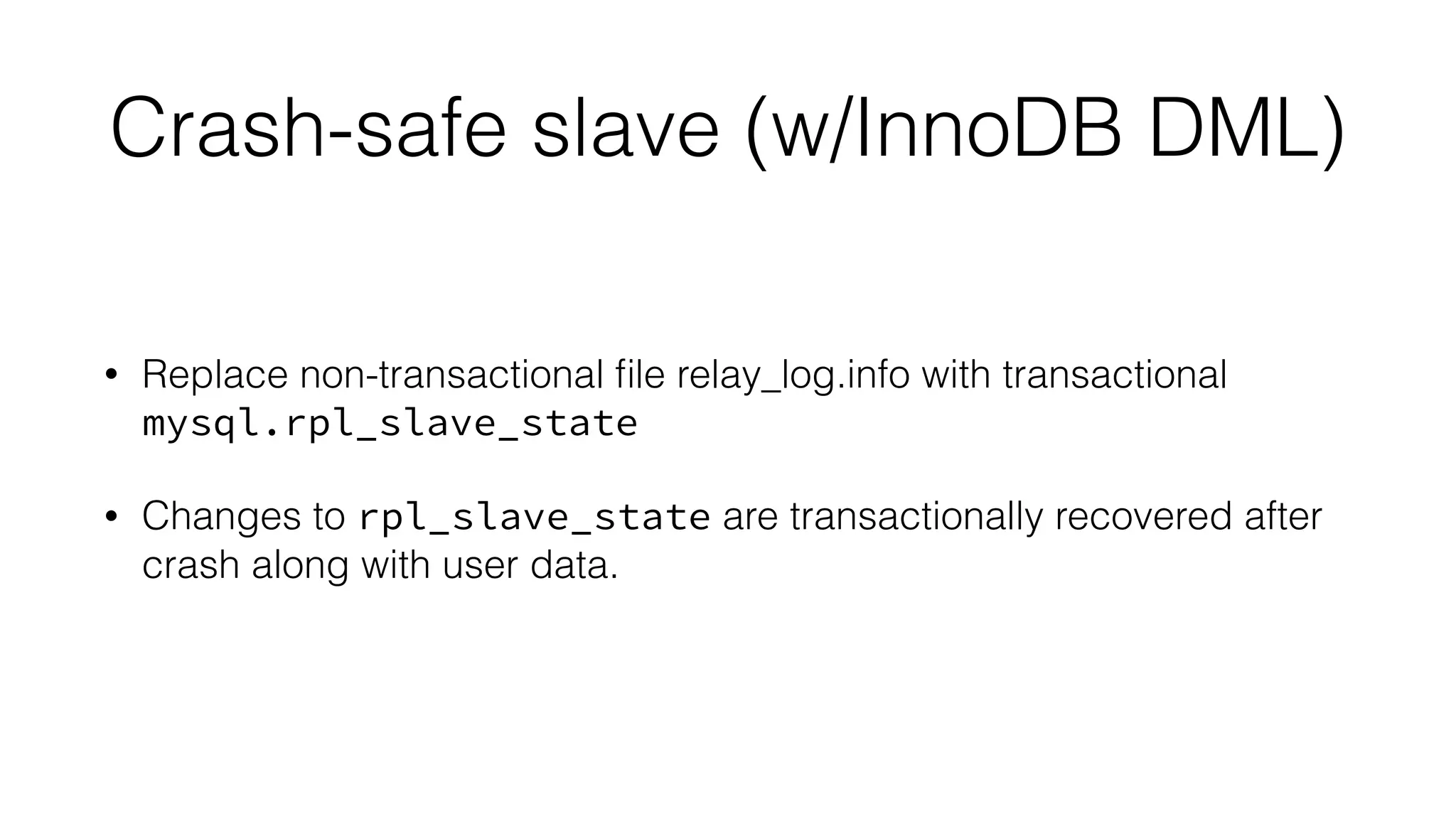

37. Crash-safe slave (w/InnoDB DML)
• Replace non-transactional file relay_log.info with transactional
mysql.rpl_slave_state
• Changes to rpl_slave_state are transactionally recovered after
crash along with user data.

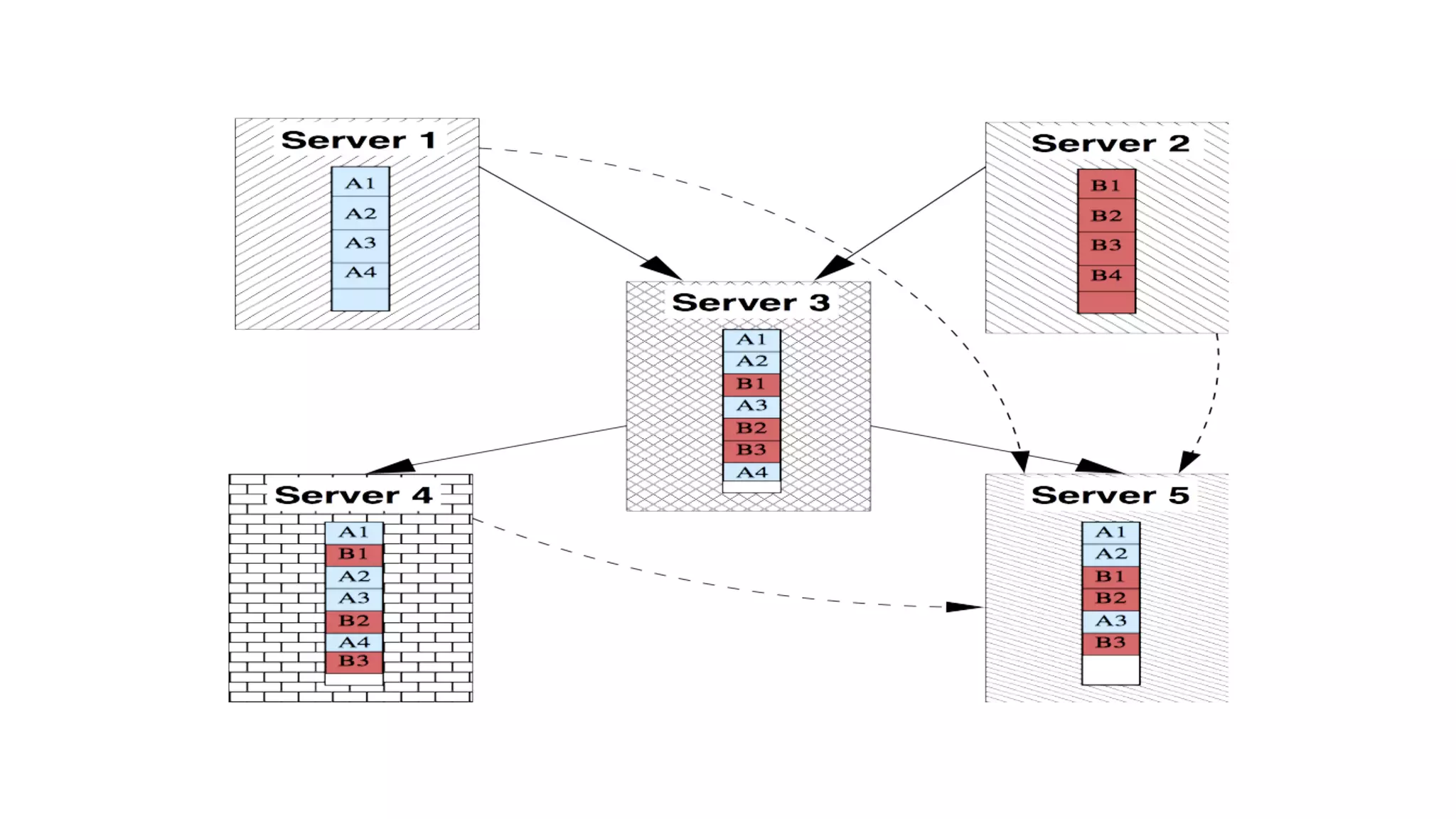

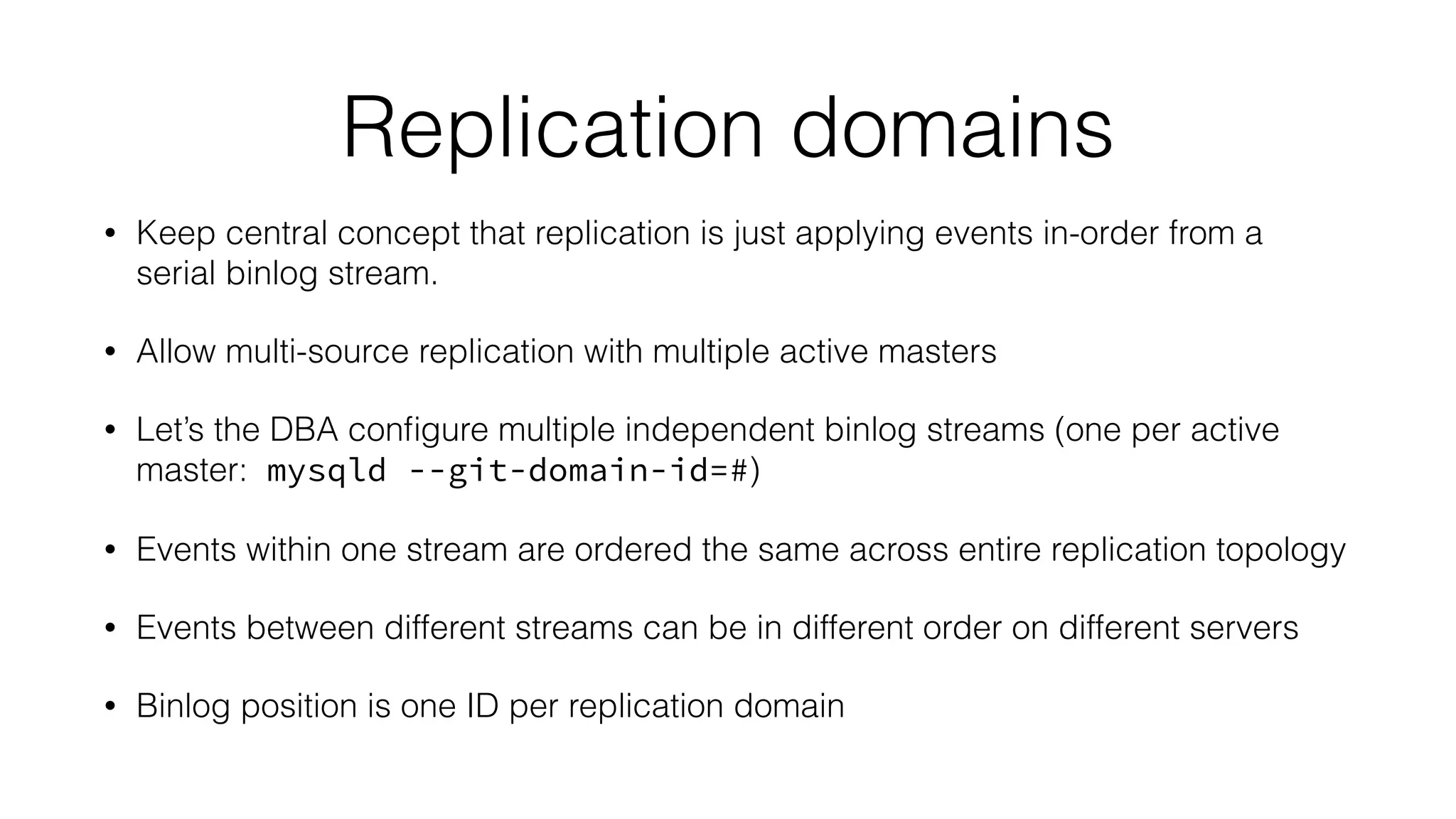

38. Replication domains
• Keep central concept that replication is just applying events in-order from a
serial binlog stream.
• Allow multi-source replication with multiple active masters
• Let’s the DBA configure multiple independent binlog streams (one per active
master: mysqld --git-domain-id=#)
• Events within one stream are ordered the same across entire replication topology
• Events between different streams can be in different order on different servers
• Binlog position is one ID per replication domain

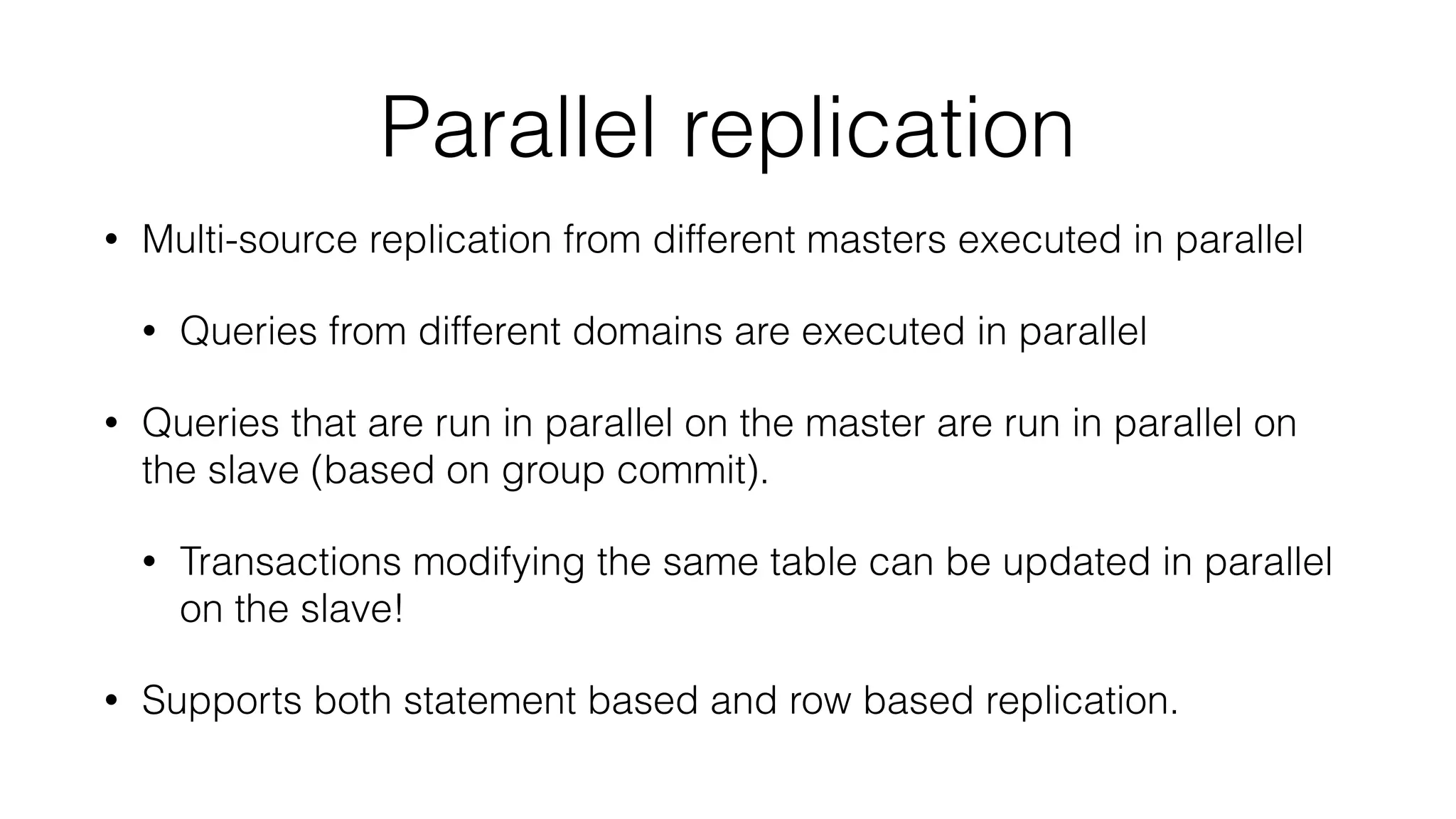

40. Parallel replication
• Multi-source replication from different masters executed in parallel
• Queries from different domains are executed in parallel
• Queries that are run in parallel on the master are run in parallel on
the slave (based on group commit).
• Transactions modifying the same table can be updated in parallel
on the slave!
• Supports both statement based and row based replication.

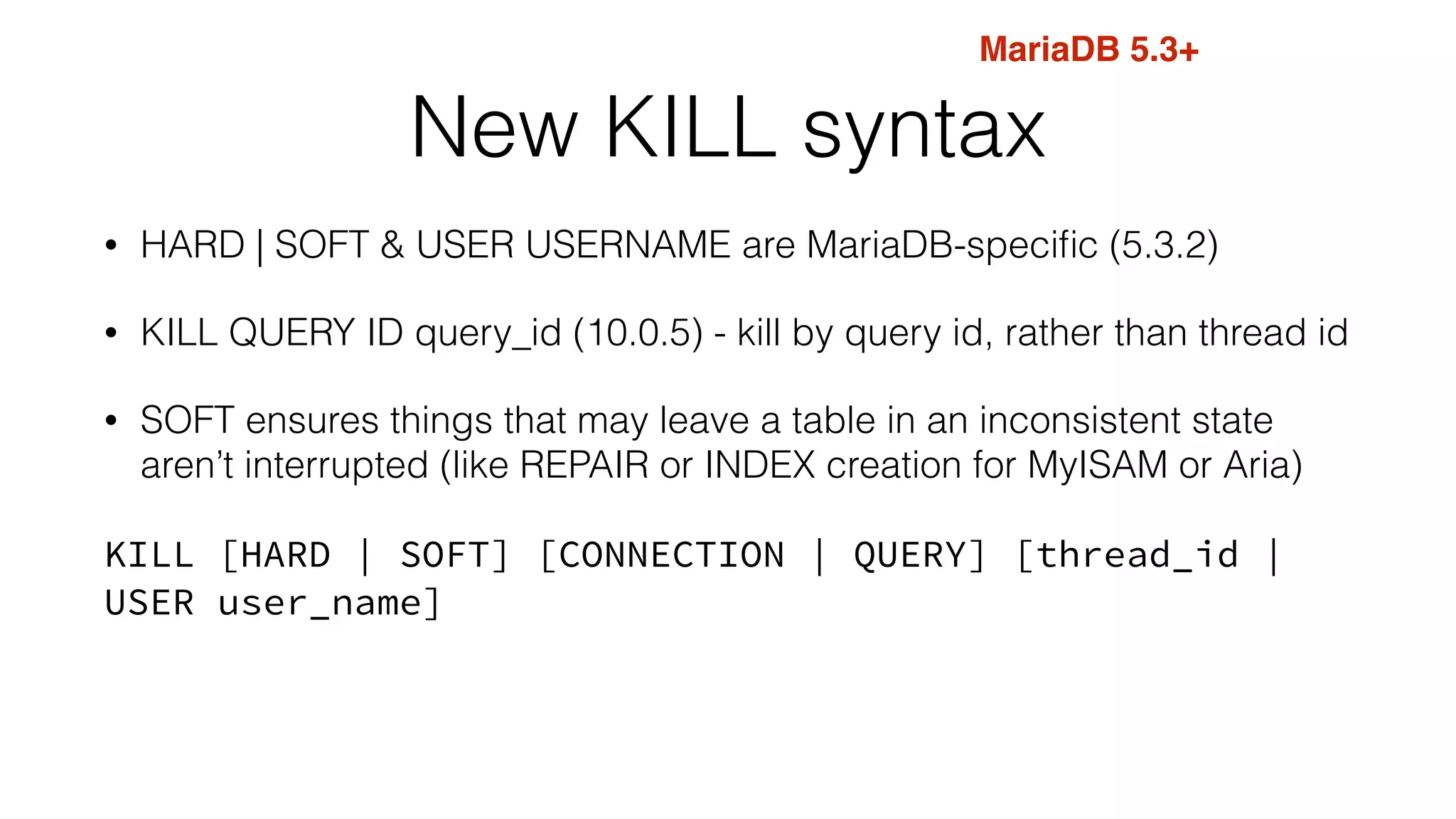

41. MariaDB 5.3+
New KILL syntax
• HARD | SOFT & USER USERNAME are MariaDB-specific (5.3.2)
• KILL QUERY ID query_id (10.0.5) - kill by query id, rather than thread id
• SOFT ensures things that may leave a table in an inconsistent state
aren’t interrupted (like REPAIR or INDEX creation for MyISAM or Aria)
KILL [HARD | SOFT] [CONNECTION | QUERY] [thread_id |
USER user_name]

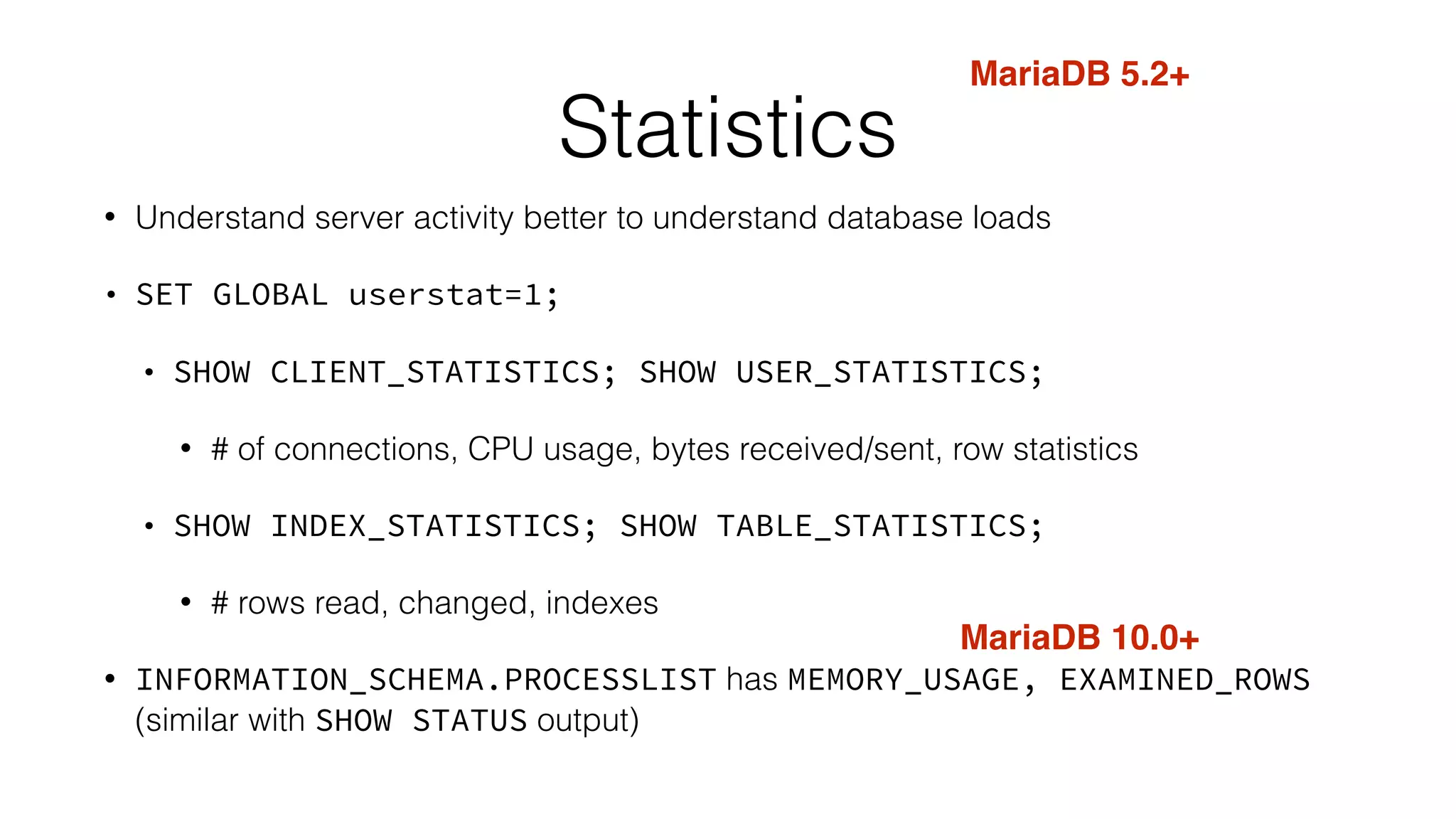

42. Statistics
MariaDB 5.2+
• Understand server activity better to understand database loads
• SET GLOBAL userstat=1;
• SHOW CLIENT_STATISTICS; SHOW USER_STATISTICS;
• # of connections, CPU usage, bytes received/sent, row statistics
• SHOW INDEX_STATISTICS; SHOW TABLE_STATISTICS;
• # rows read, changed, indexes
MariaDB 10.0+
• INFORMATION_SCHEMA.PROCESSLIST has MEMORY_USAGE, EXAMINED_ROWS
(similar with SHOW STATUS output)

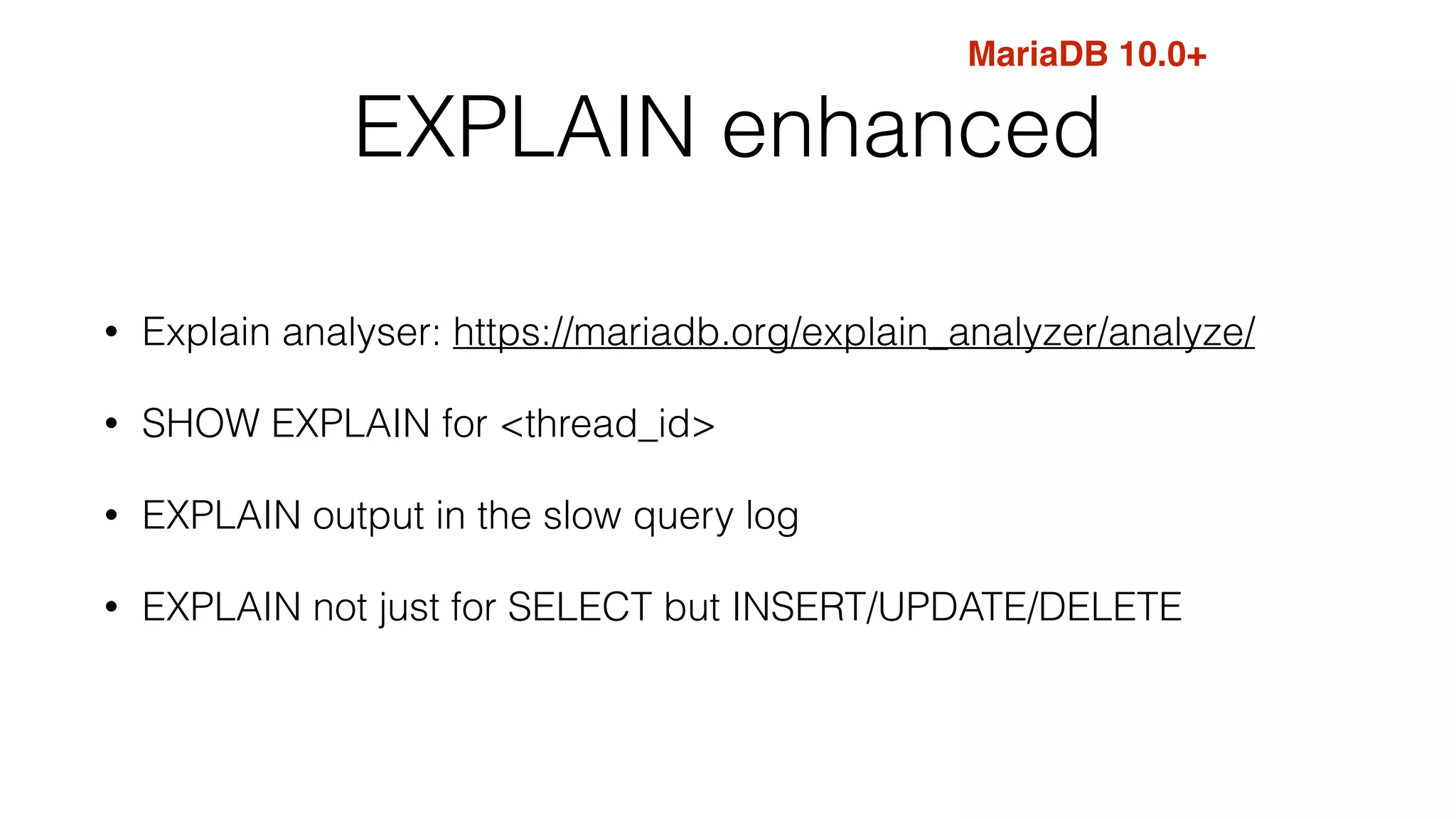

43. MariaDB 10.0+
EXPLAIN enhanced
• Explain analyser: https://mariadb.org/explain_analyzer/analyze/
• SHOW EXPLAIN for <thread_id>
• EXPLAIN output in the slow query log
• EXPLAIN not just for SELECT but INSERT/UPDATE/DELETE

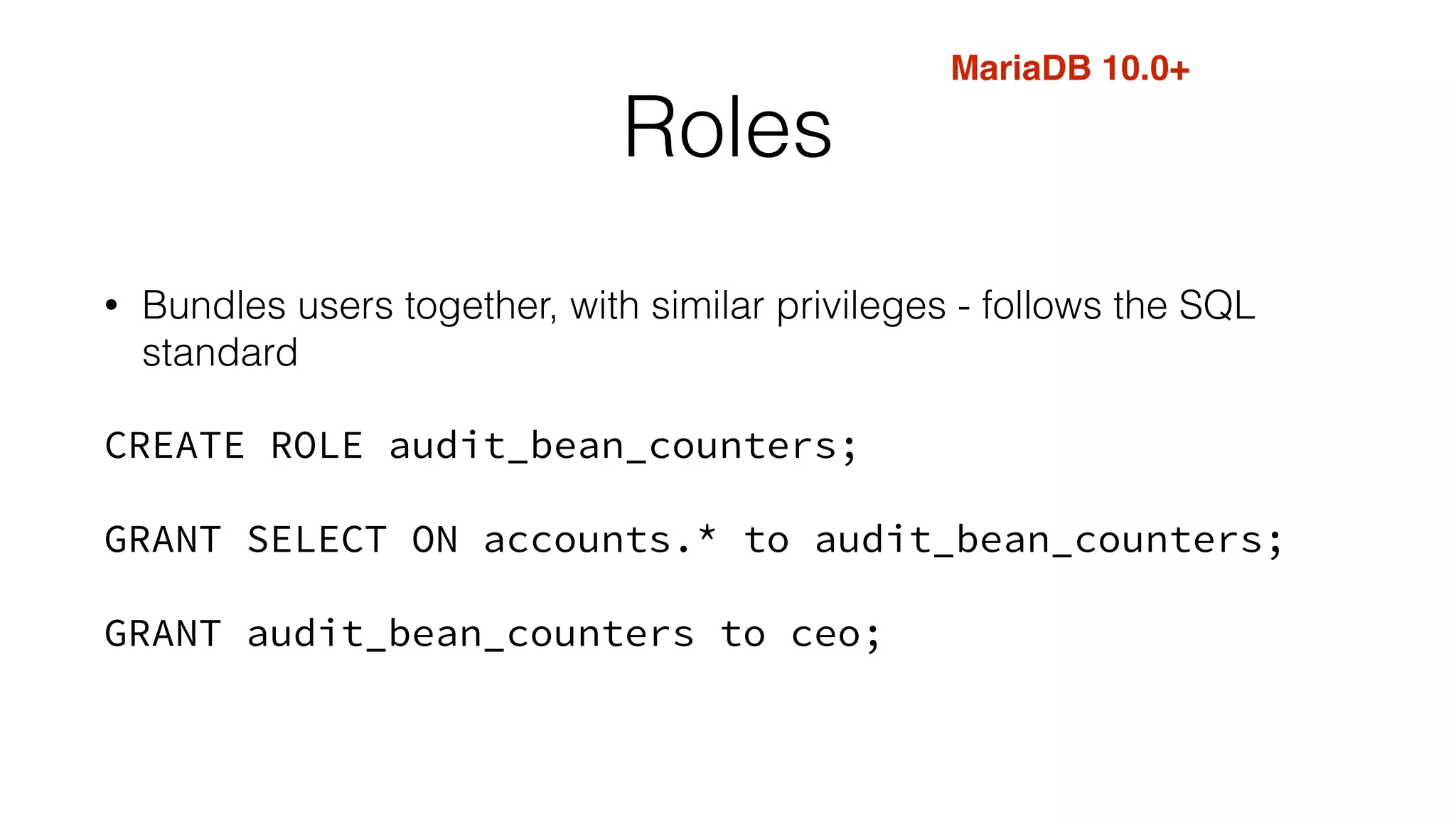

44. Roles
MariaDB 10.0+
• Bundles users together, with similar privileges - follows the SQL
standard
CREATE ROLE audit_bean_counters;
GRANT SELECT ON accounts.* to audit_bean_counters;
GRANT audit_bean_counters to ceo;

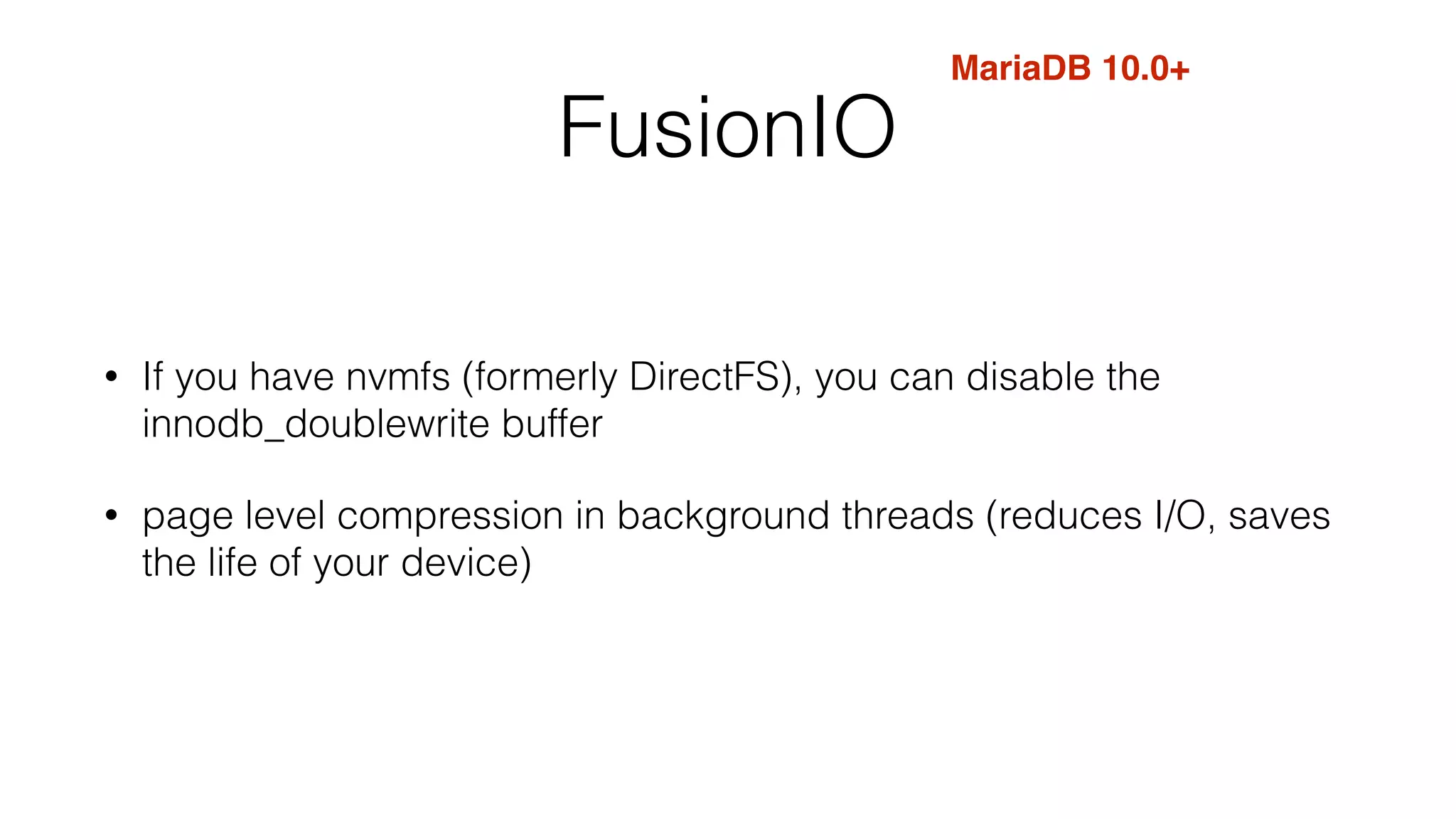

45. FusionIO
MariaDB 10.0+
• If you have nvmfs (formerly DirectFS), you can disable the
innodb_doublewrite buffer
• page level compression in background threads (reduces I/O, saves
the life of your device)

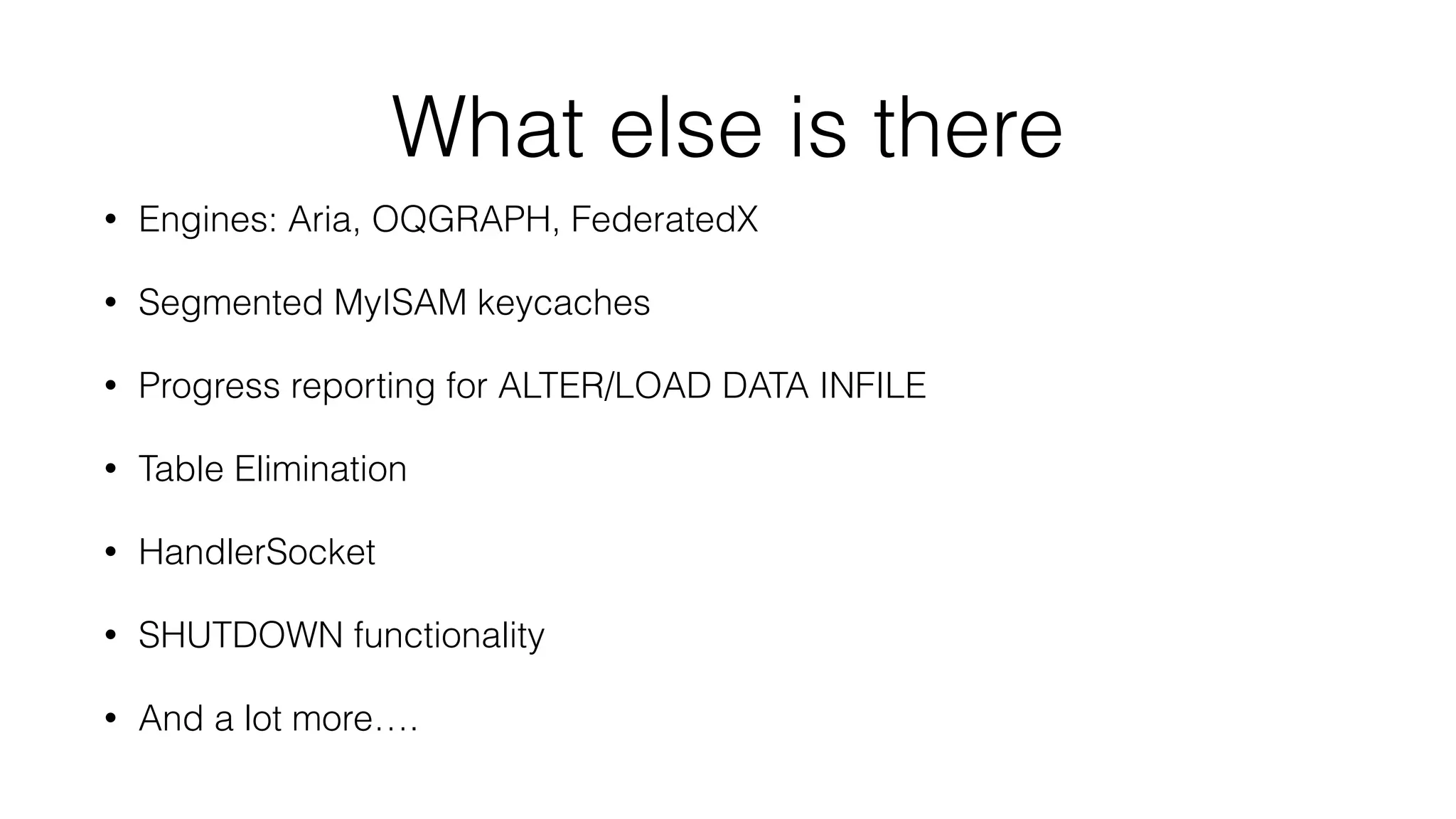

46. What else is there
• Engines: Aria, OQGRAPH, FederatedX
• Segmented MyISAM keycaches
• Progress reporting for ALTER/LOAD DATA INFILE
• Table Elimination
• HandlerSocket
• SHUTDOWN functionality
• And a lot more….

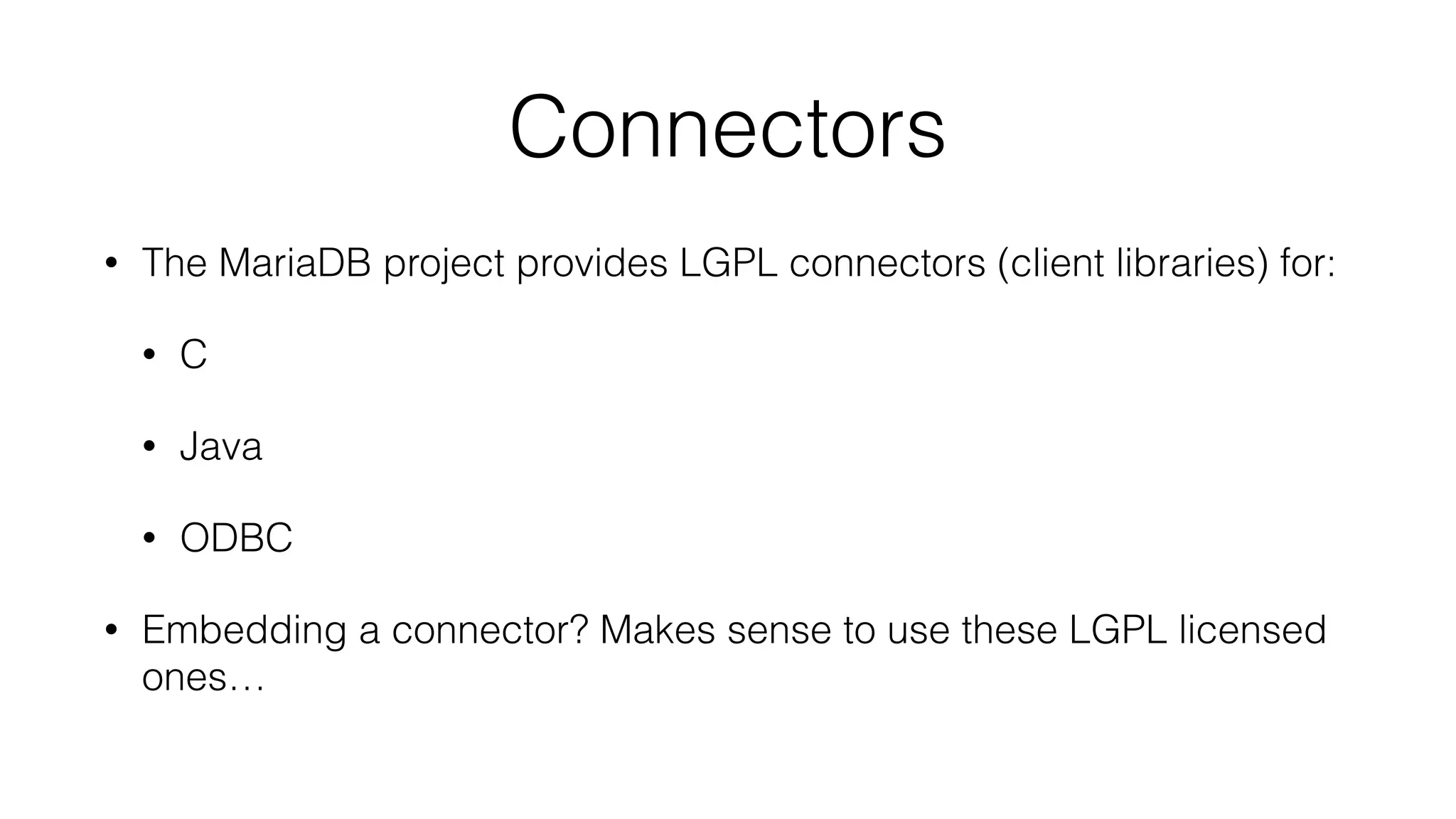

47. Connectors
• The MariaDB project provides LGPL connectors (client libraries) for:
• C
• Java
• ODBC
• Embedding a connector? Makes sense to use these LGPL licensed
ones…

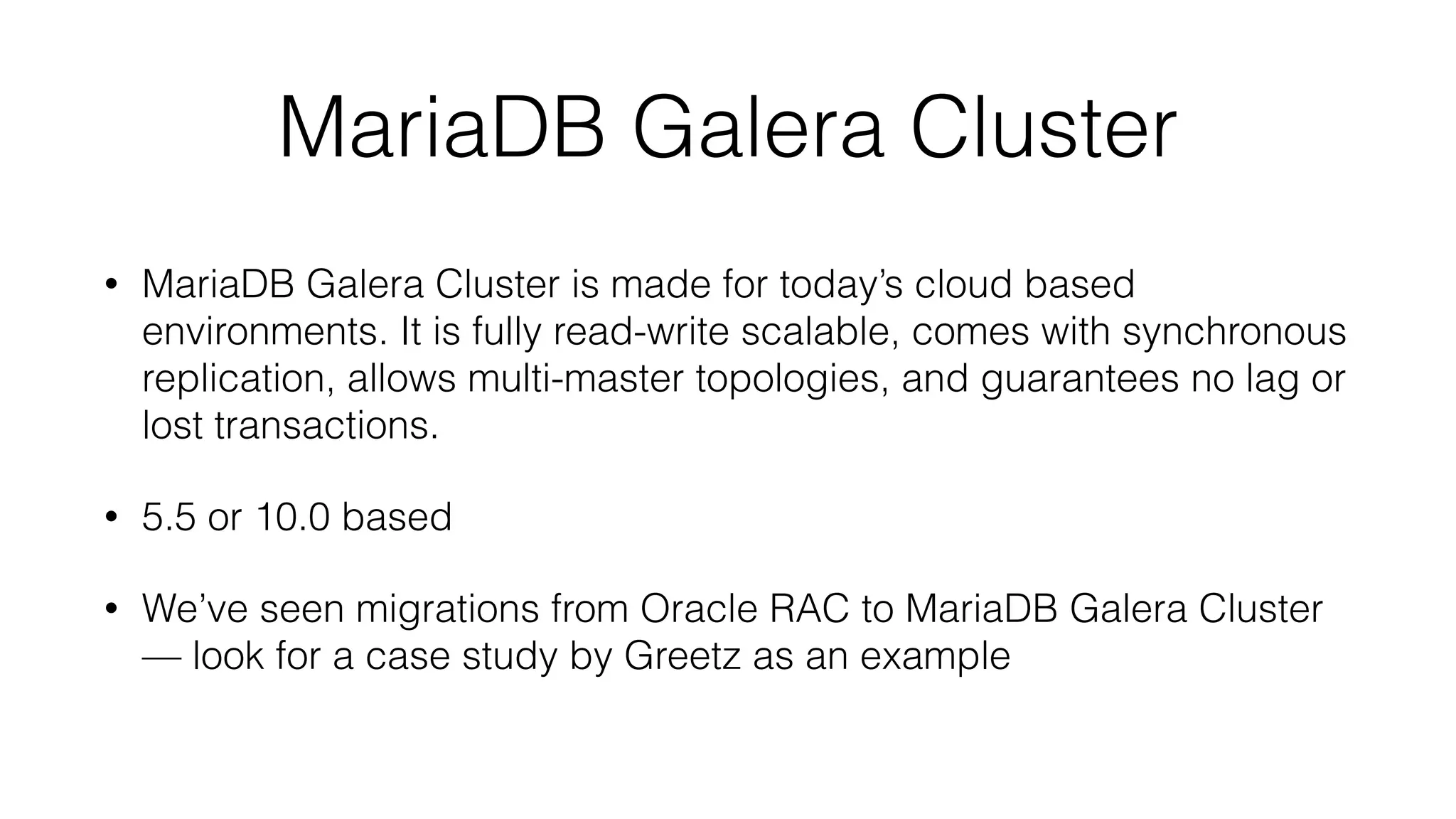

48. MariaDB Galera Cluster
• MariaDB Galera Cluster is made for today’s cloud based
environments. It is fully read-write scalable, comes with synchronous
replication, allows multi-master topologies, and guarantees no lag or
lost transactions.
• 5.5 or 10.0 based
• We’ve seen migrations from Oracle RAC to MariaDB Galera Cluster
— look for a case study by Greetz as an example

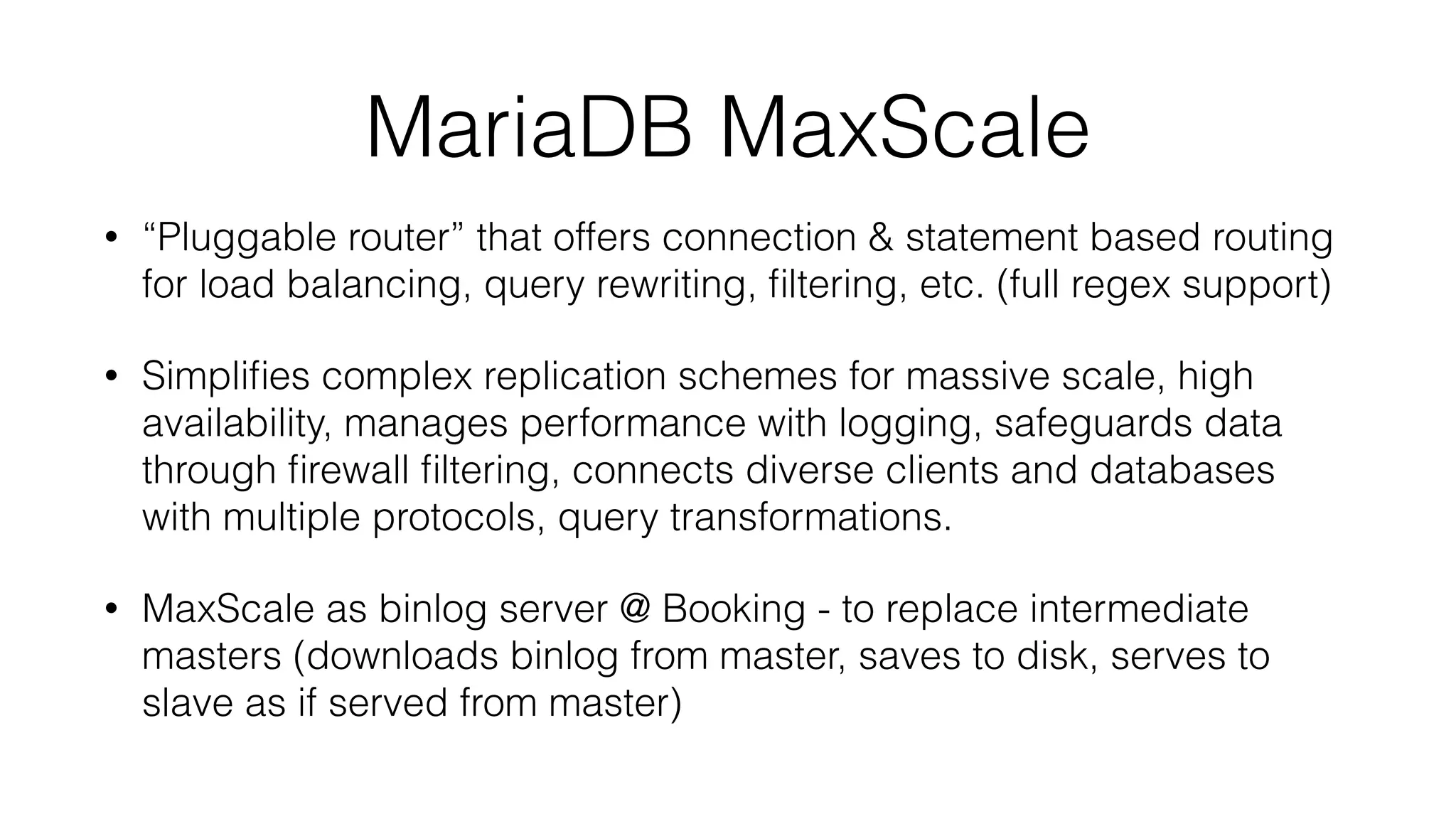

49. MariaDB MaxScale
• “Pluggable router” that offers connection & statement based routing
for load balancing, query rewriting, filtering, etc. (full regex support)
• Simplifies complex replication schemes for massive scale, high
availability, manages performance with logging, safeguards data
through firewall filtering, connects diverse clients and databases
with multiple protocols, query transformations.
• MaxScale as binlog server @ Booking - to replace intermediate
masters (downloads binlog from master, saves to disk, serves to
slave as if served from master)

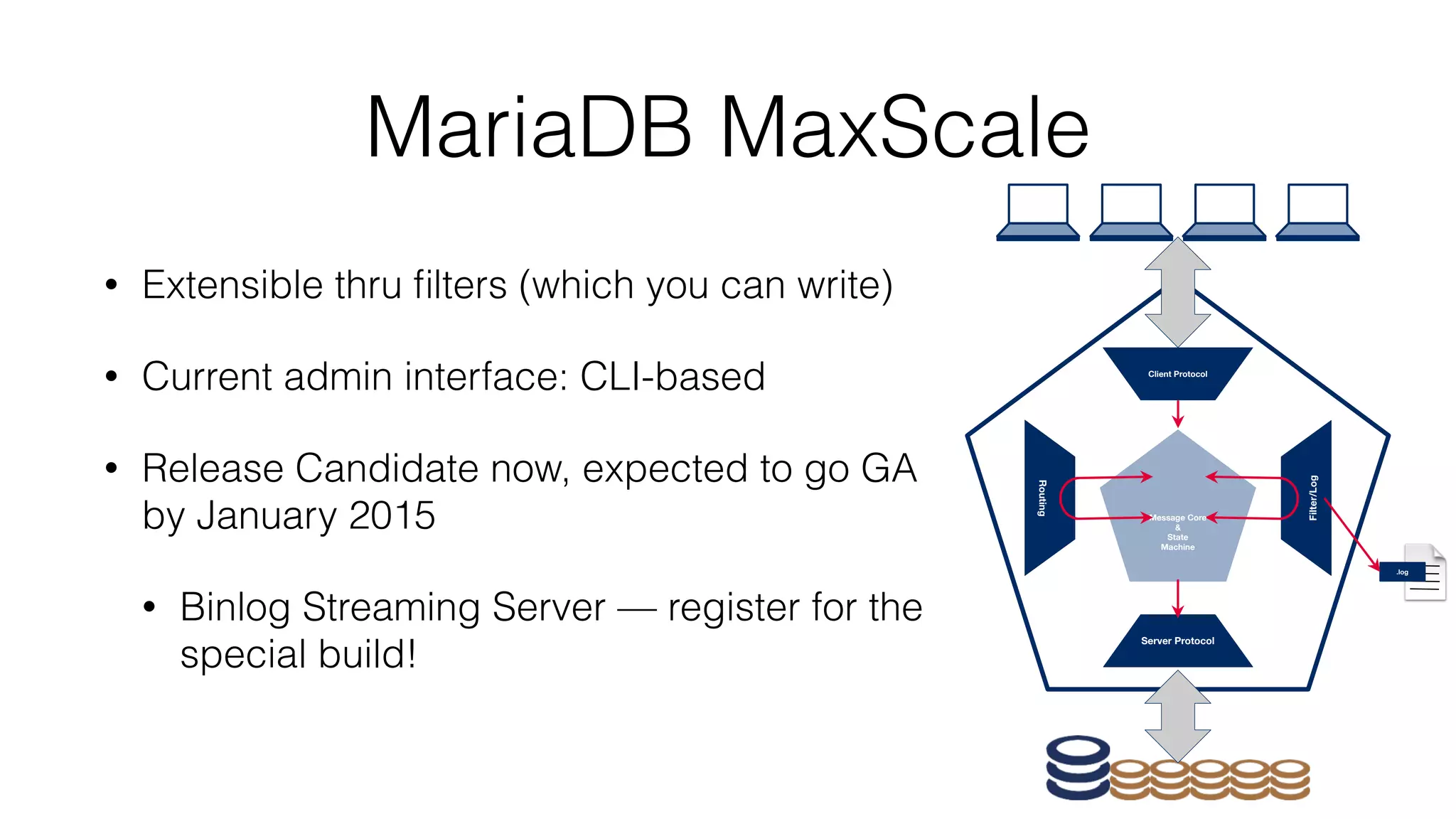

50. MariaDB MaxScale
• Extensible thru filters (which you can write)
• Current admin interface: CLI-based
• Release Candidate now, expected to go GA
by January 2015
• Binlog Streaming Server — register for the
special build!
Routing
Filter/Log
Client Protocol
Message Core
&
State
Machine
Server Protocol
.log

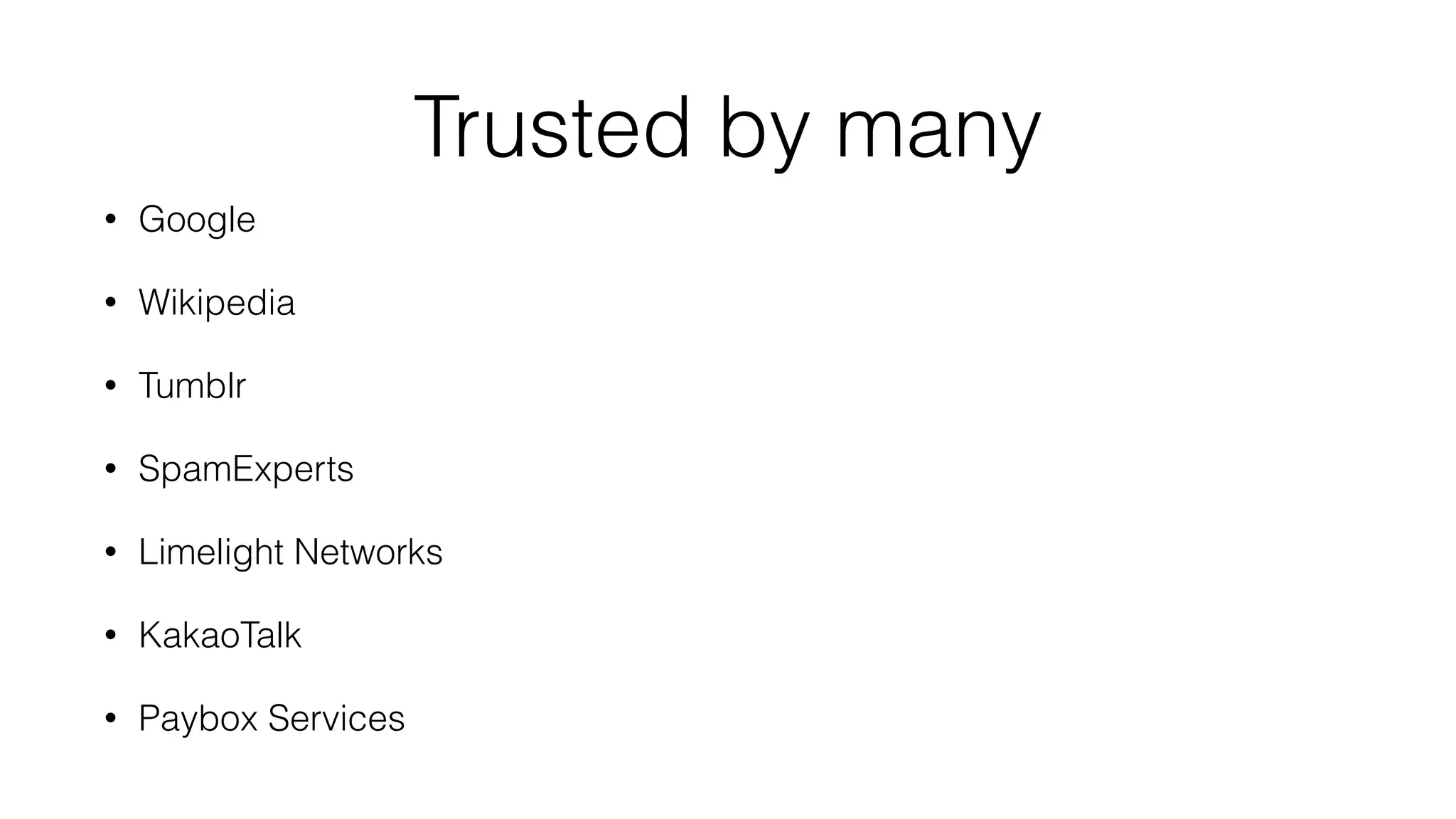

51. Trusted by many
• Google
• Wikipedia
• Tumblr
• SpamExperts
• Limelight Networks
• KakaoTalk
• Paybox Services

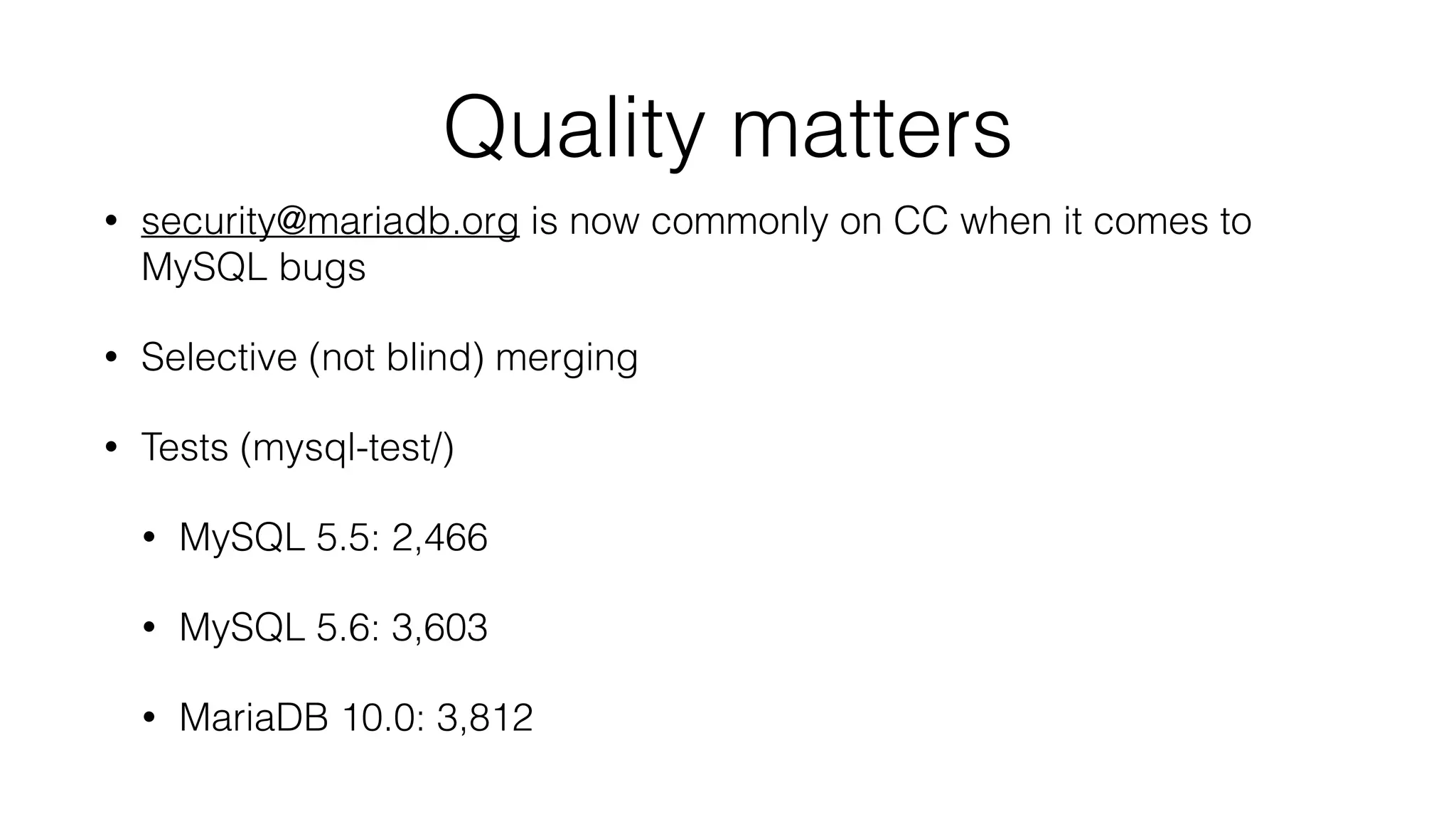

52. Quality matters
• security@mariadb.org is now commonly on CC when it comes to
MySQL bugs
• Selective (not blind) merging
• Tests (mysql-test/)
• MySQL 5.5: 2,466
• MySQL 5.6: 3,603
• MariaDB 10.0: 3,812

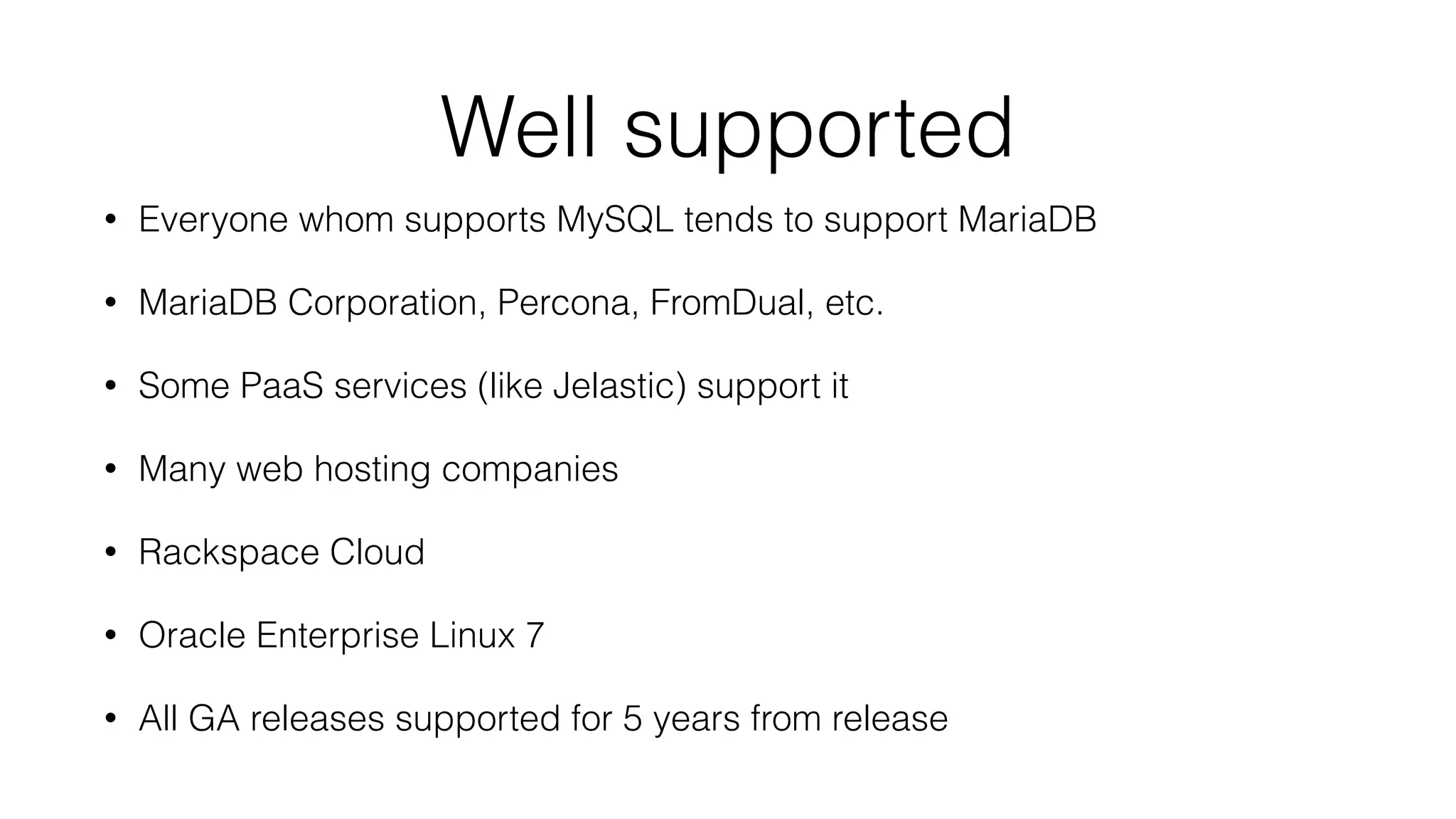

53. Well supported
• Everyone whom supports MySQL tends to support MariaDB
• MariaDB Corporation, Percona, FromDual, etc.
• Some PaaS services (like Jelastic) support it
• Many web hosting companies
• Rackspace Cloud
• Oracle Enterprise Linux 7
• All GA releases supported for 5 years from release

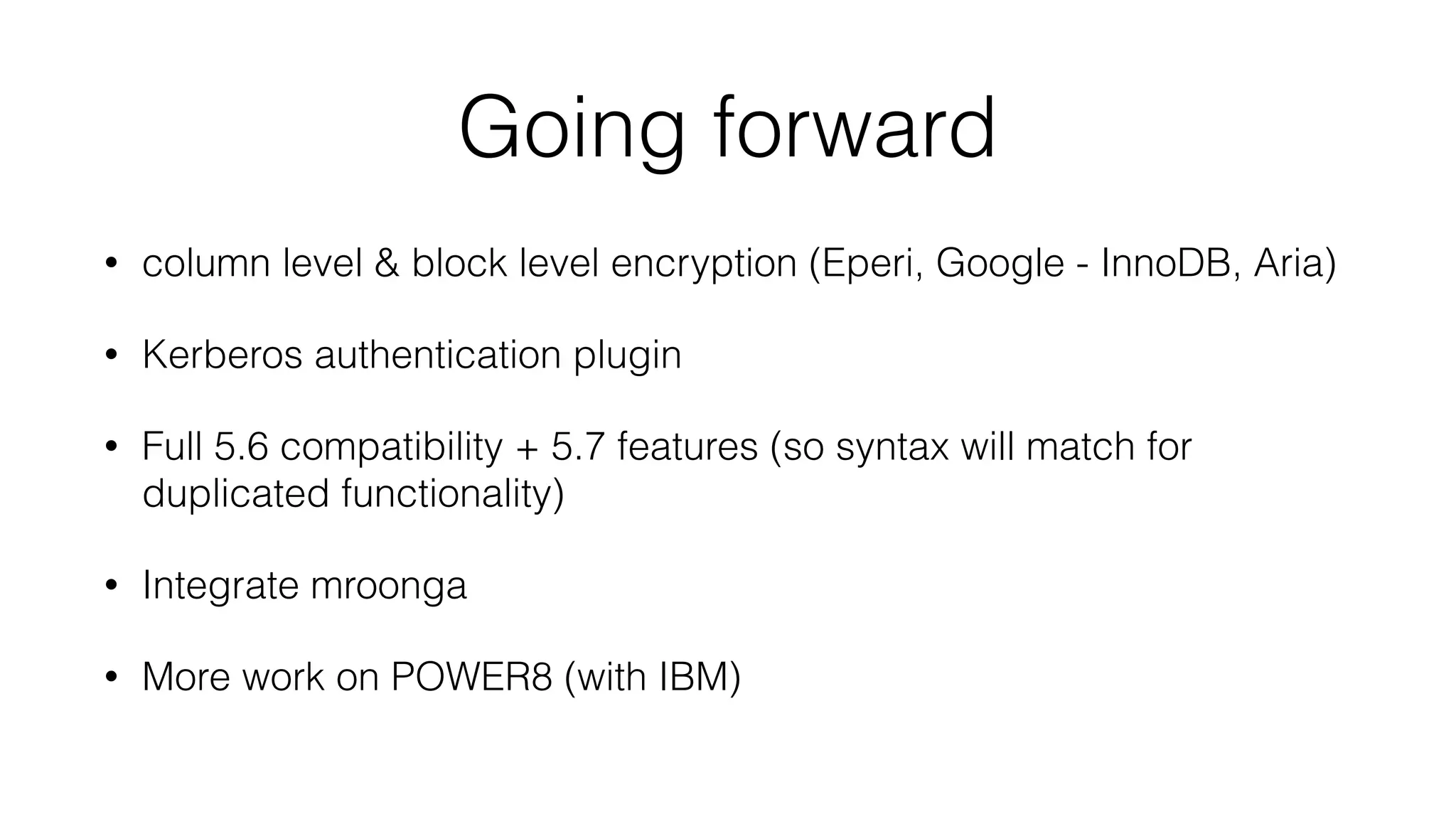

54. Going forward
• column level & block level encryption (Eperi, Google - InnoDB, Aria)
• Kerberos authentication plugin
• Full 5.6 compatibility + 5.7 features (so syntax will match for
duplicated functionality)
• Integrate mroonga
• More work on POWER8 (with IBM)

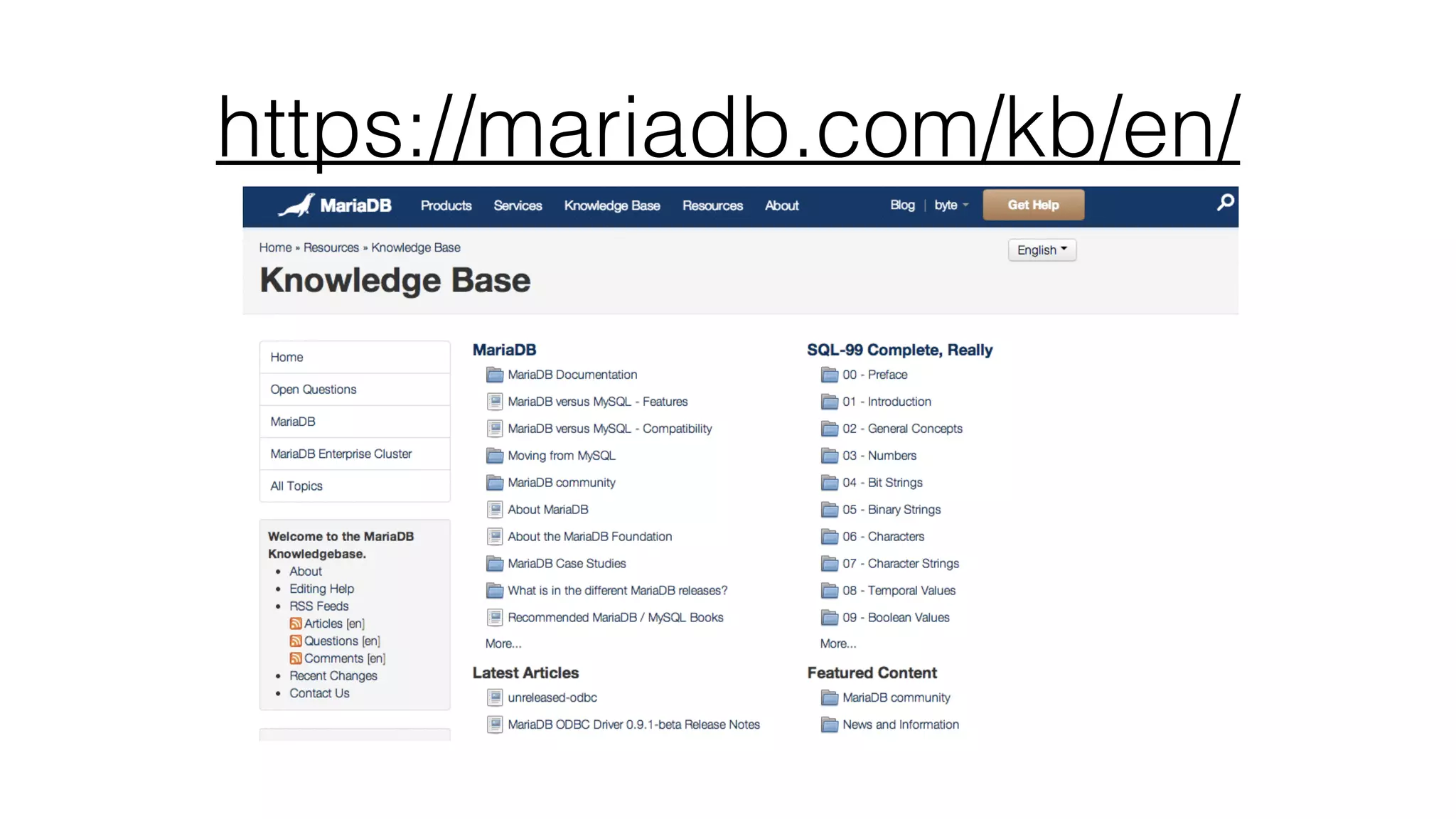

55. https://mariadb.com/kb/en/

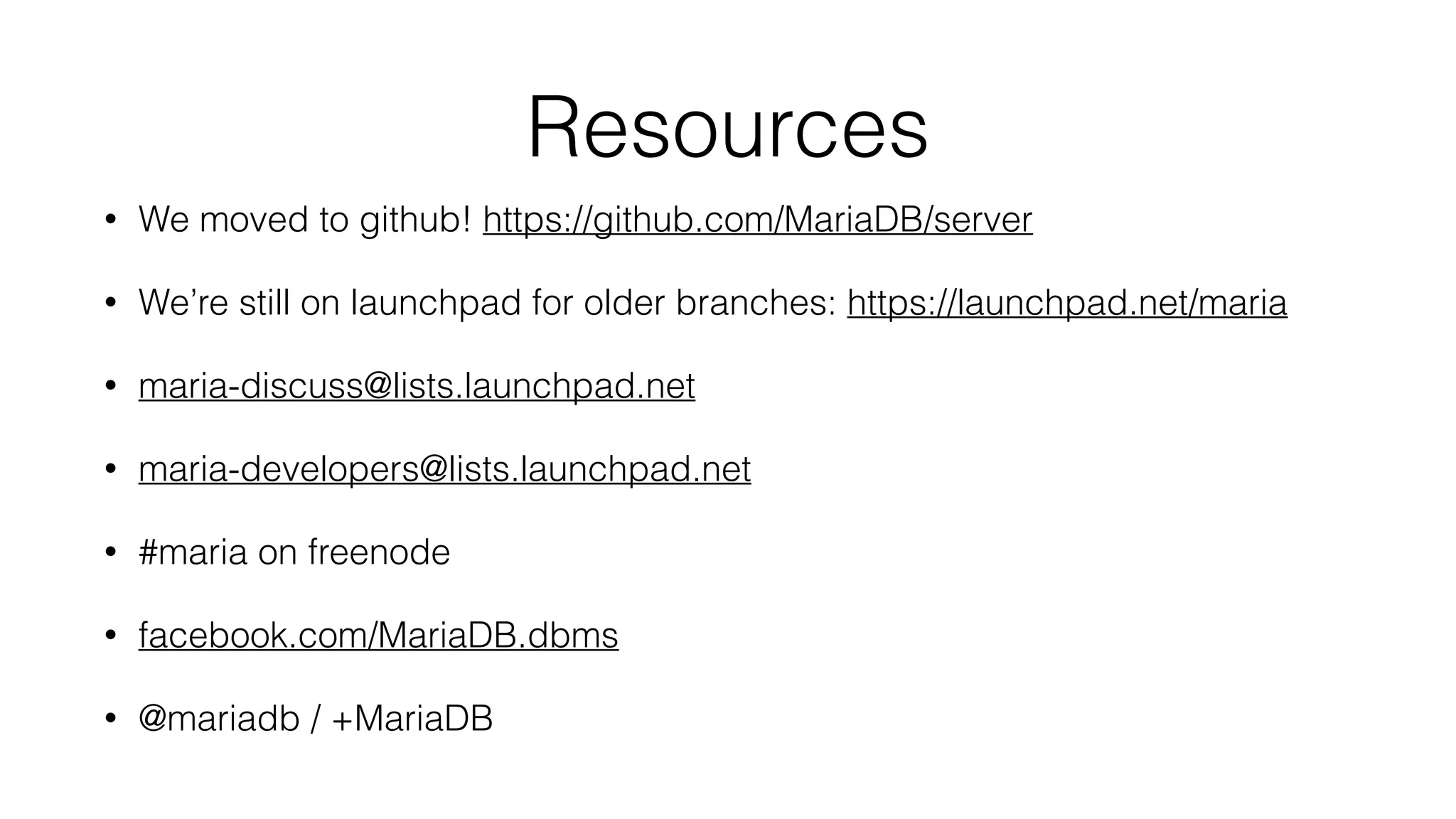

56. Resources
• We moved to github! https://github.com/MariaDB/server
• We’re still on launchpad for older branches: https://launchpad.net/maria
• maria-discuss@lists.launchpad.net
• maria-developers@lists.launchpad.net
• #maria on freenode
• facebook.com/MariaDB.dbms
• @mariadb / +MariaDB

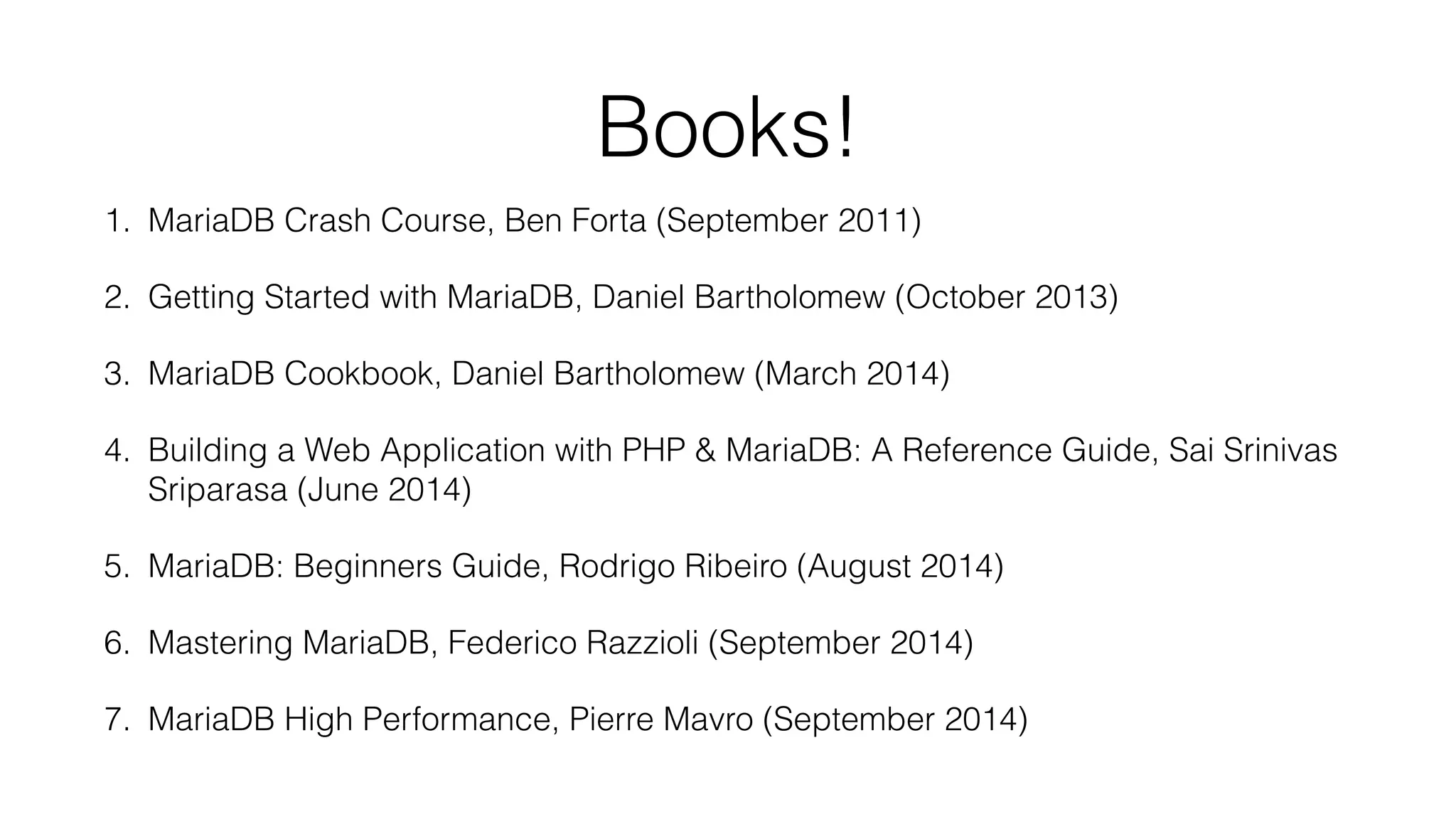

57. Books!
1. MariaDB Crash Course, Ben Forta (September 2011)
2. Getting Started with MariaDB, Daniel Bartholomew (October 2013)
3. MariaDB Cookbook, Daniel Bartholomew (March 2014)
4. Building a Web Application with PHP & MariaDB: A Reference Guide, Sai Srinivas
Sriparasa (June 2014)
5. MariaDB: Beginners Guide, Rodrigo Ribeiro (August 2014)
6. Mastering MariaDB, Federico Razzioli (September 2014)
7. MariaDB High Performance, Pierre Mavro (September 2014)

58. Q&A
colin@mariadb.org | byte@bytebot.net
http://skysql.com/ | http://mariadb.org/
twitter: @bytebot | url: http://bytebot.net/blog/
