The document provides an implementation plan for a database to support the Refugio Web System project. It includes an entity relationship diagram, logical database model, data dictionary defining the database tables and columns, functional dependency graph, and SQL script to create the database along with sample data. The plan was prepared by KMDC2 and contains details needed to set up the backend database for the Refugio Web System.

1. Database Implementation plan for Refugio
Web System.
Prepared and created by KMDC2

2. i | P a g e

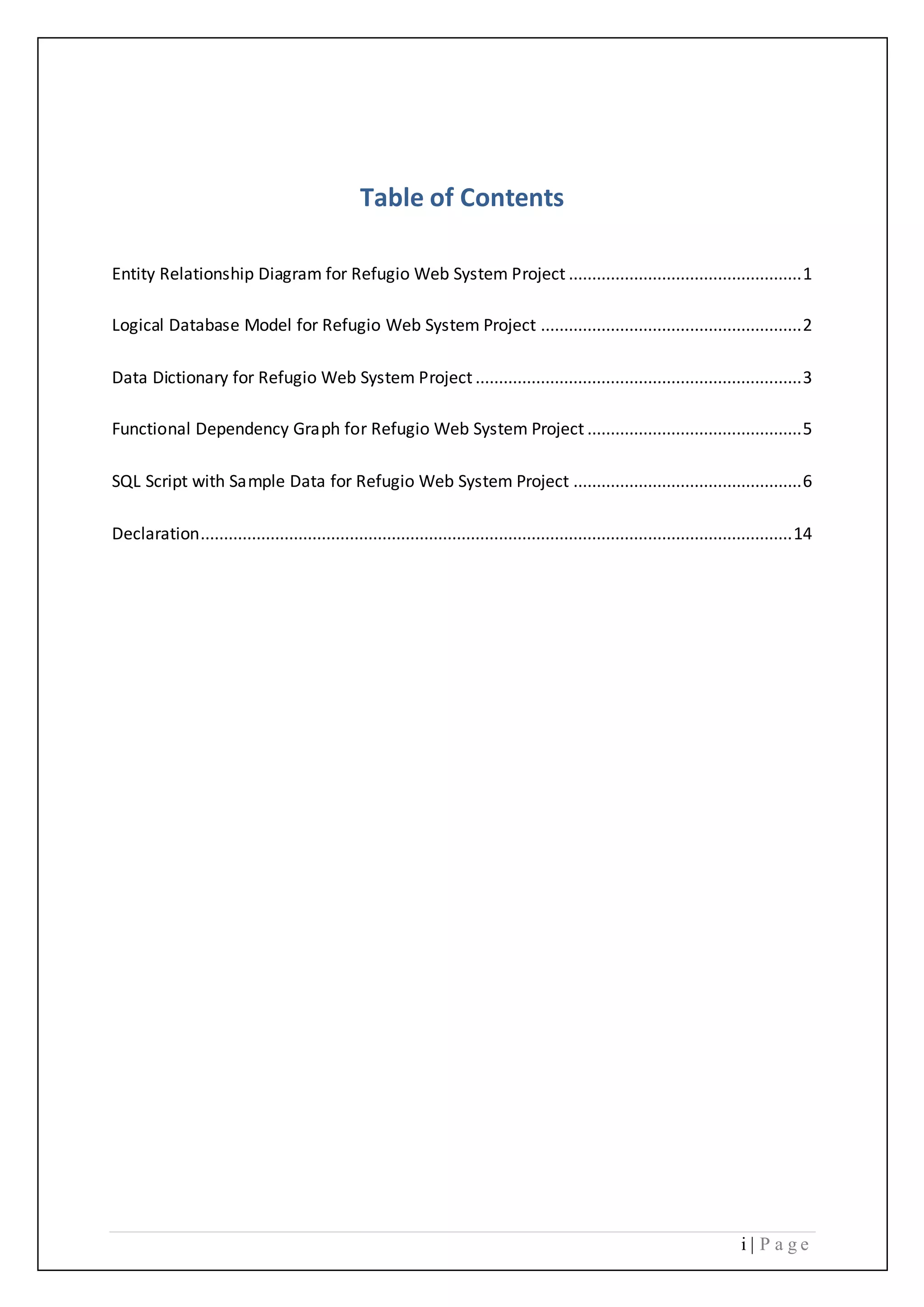

Table of Contents
Entity Relationship Diagram for Refugio Web System Project ..................................................1
Logical Database Model for Refugio Web System Project ........................................................2
Data Dictionary for Refugio Web System Project ......................................................................3
Functional Dependency Graph for Refugio Web System Project ..............................................5
SQL Script with Sample Data for Refugio Web System Project .................................................6
Declaration...............................................................................................................................14

3. 1 | P a g e
Entity Relationship Diagram for Refugio Web System Project
Prepared by: KMDC2 Date: 16/01/2015

4. 2 | P a g e

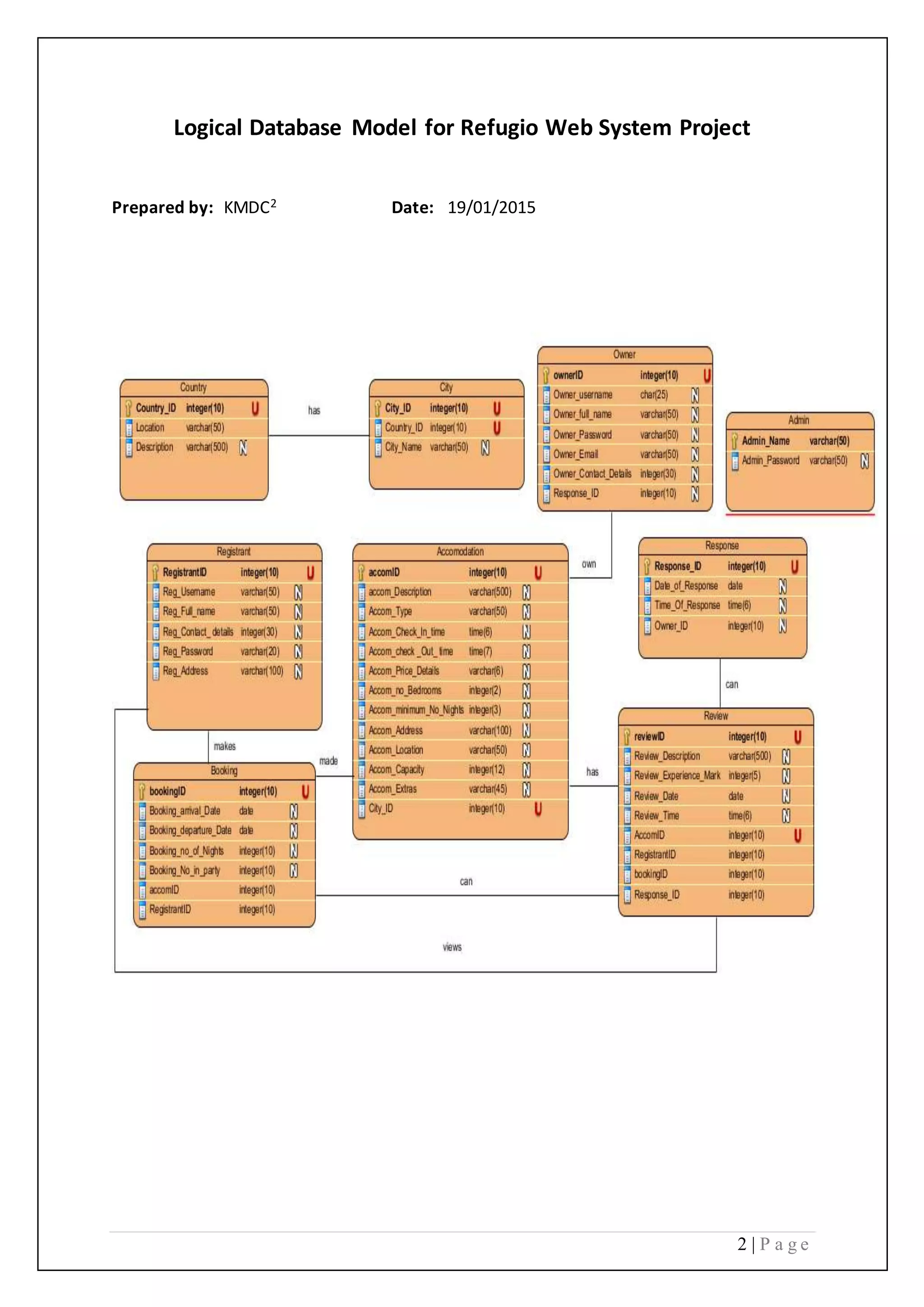

Logical Database Model for Refugio Web System Project
Prepared by: KMDC2 Date: 19/01/2015

5. 3 | P a g e

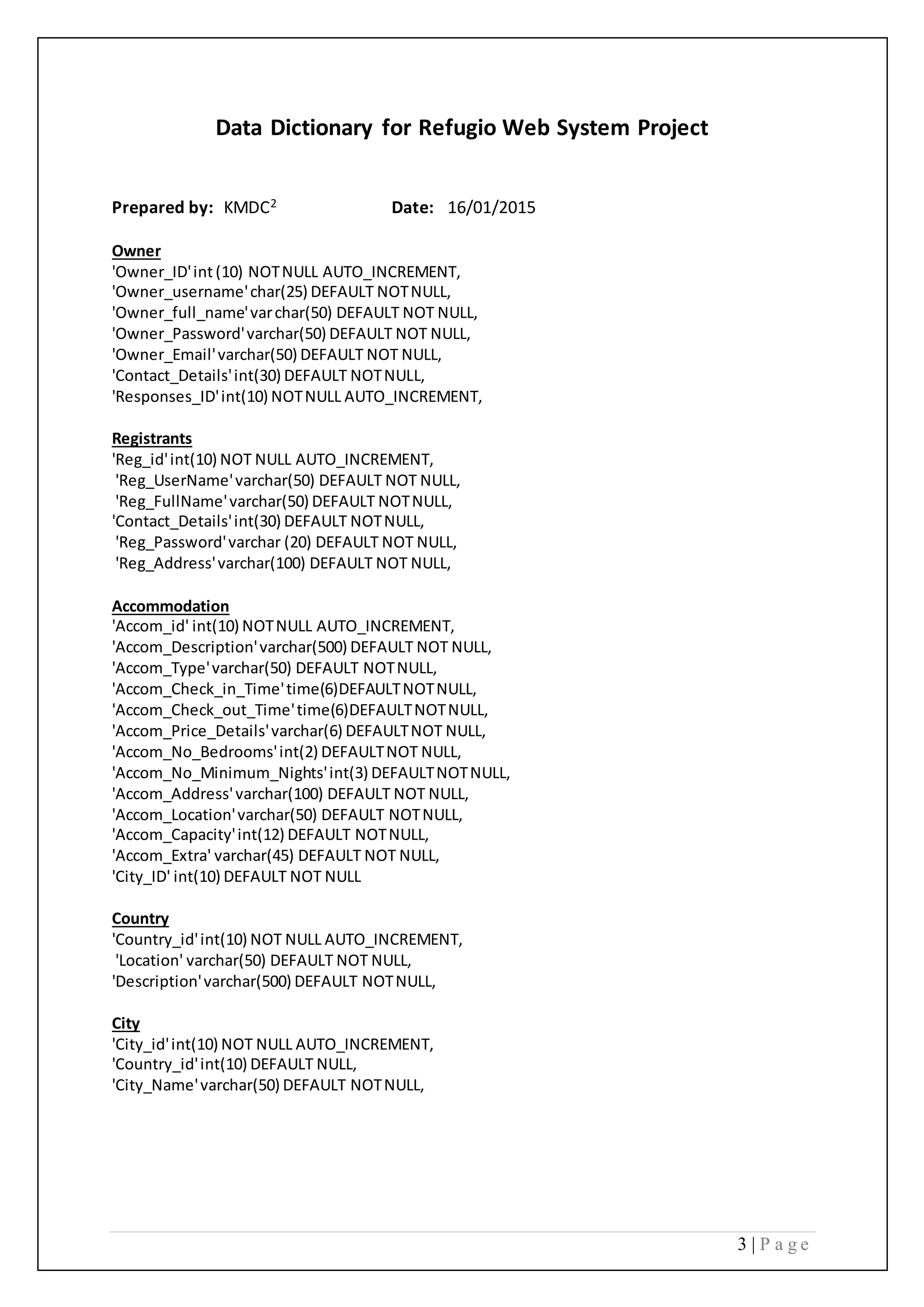

Data Dictionary for Refugio Web System Project
Prepared by: KMDC2 Date: 16/01/2015
Owner
'Owner_ID'int(10) NOTNULL AUTO_INCREMENT,
'Owner_username'char(25) DEFAULT NOTNULL,
'Owner_full_name'varchar(50) DEFAULT NOT NULL,
'Owner_Password'varchar(50) DEFAULT NOT NULL,
'Owner_Email'varchar(50) DEFAULT NOT NULL,
'Contact_Details'int(30) DEFAULT NOTNULL,
'Responses_ID'int(10) NOTNULL AUTO_INCREMENT,
Registrants
'Reg_id'int(10) NOT NULL AUTO_INCREMENT,
'Reg_UserName'varchar(50) DEFAULT NOT NULL,
'Reg_FullName'varchar(50) DEFAULT NOTNULL,
'Contact_Details'int(30) DEFAULT NOTNULL,
'Reg_Password'varchar (20) DEFAULT NOT NULL,
'Reg_Address'varchar(100) DEFAULT NOT NULL,
Accommodation
'Accom_id' int(10) NOTNULL AUTO_INCREMENT,
'Accom_Description'varchar(500) DEFAULT NOT NULL,
'Accom_Type'varchar(50) DEFAULT NOTNULL,
'Accom_Check_in_Time'time(6)DEFAULTNOTNULL,
'Accom_Check_out_Time'time(6)DEFAULTNOTNULL,
'Accom_Price_Details'varchar(6) DEFAULTNOT NULL,
'Accom_No_Bedrooms'int(2) DEFAULTNOT NULL,
'Accom_No_Minimum_Nights'int(3) DEFAULTNOTNULL,
'Accom_Address'varchar(100) DEFAULT NOT NULL,
'Accom_Location'varchar(50) DEFAULT NOTNULL,
'Accom_Capacity'int(12) DEFAULT NOTNULL,
'Accom_Extra' varchar(45) DEFAULT NOT NULL,
'City_ID' int(10) DEFAULT NOT NULL
Country
'Country_id'int(10) NOT NULL AUTO_INCREMENT,
'Location' varchar(50) DEFAULT NOT NULL,
'Description'varchar(500) DEFAULT NOTNULL,
City
'City_id'int(10) NOT NULL AUTO_INCREMENT,
'Country_id'int(10) DEFAULT NULL,
'City_Name'varchar(50) DEFAULT NOTNULL,

6. 4 | P a g e

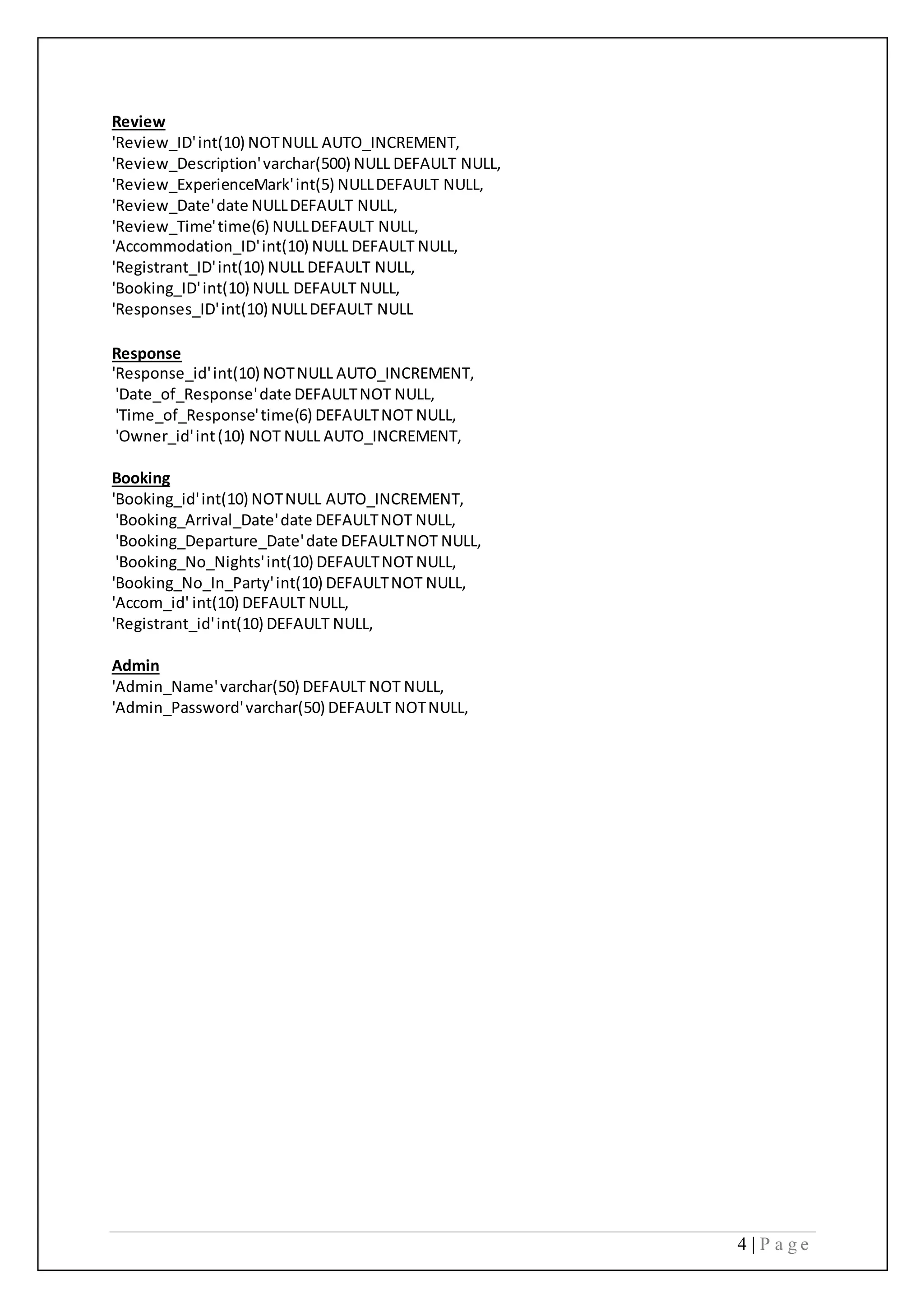

Review
'Review_ID'int(10) NOTNULL AUTO_INCREMENT,
'Review_Description'varchar(500) NULL DEFAULT NULL,
'Review_ExperienceMark'int(5) NULLDEFAULT NULL,
'Review_Date'date NULLDEFAULT NULL,
'Review_Time'time(6) NULLDEFAULT NULL,
'Accommodation_ID'int(10) NULL DEFAULT NULL,
'Registrant_ID'int(10) NULL DEFAULT NULL,
'Booking_ID'int(10) NULL DEFAULT NULL,
'Responses_ID'int(10) NULLDEFAULT NULL
Response
'Response_id'int(10) NOTNULL AUTO_INCREMENT,
'Date_of_Response'date DEFAULTNOT NULL,
'Time_of_Response'time(6) DEFAULTNOT NULL,
'Owner_id'int(10) NOT NULL AUTO_INCREMENT,
Booking
'Booking_id'int(10) NOTNULL AUTO_INCREMENT,
'Booking_Arrival_Date'date DEFAULTNOT NULL,
'Booking_Departure_Date'date DEFAULTNOT NULL,
'Booking_No_Nights'int(10) DEFAULTNOT NULL,
'Booking_No_In_Party'int(10) DEFAULTNOT NULL,
'Accom_id' int(10) DEFAULT NULL,
'Registrant_id'int(10) DEFAULT NULL,
Admin
'Admin_Name'varchar(50) DEFAULT NOT NULL,
'Admin_Password'varchar(50) DEFAULT NOTNULL,

7. 5 | P a g e

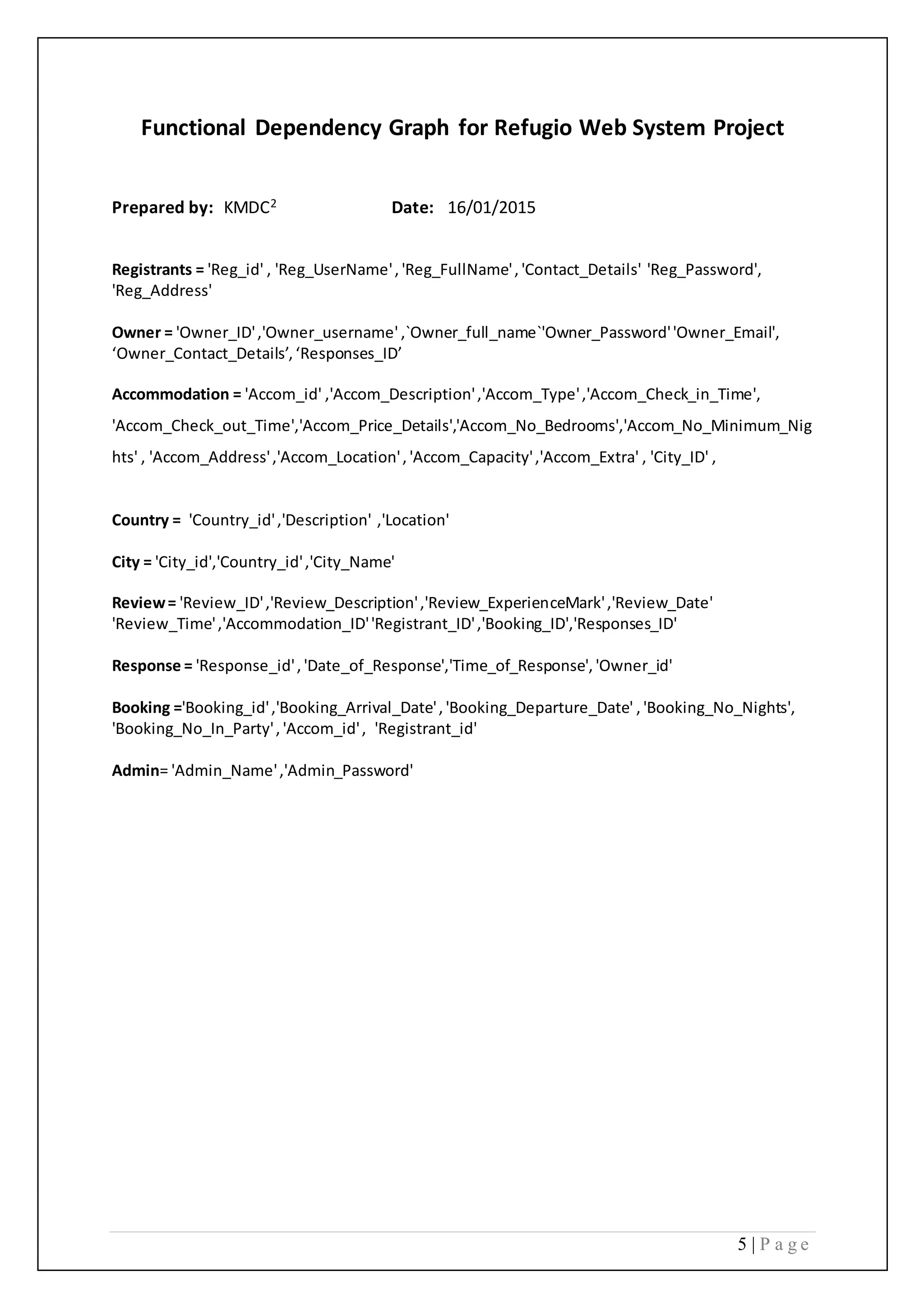

Functional Dependency Graph for Refugio Web System Project
Prepared by: KMDC2 Date: 16/01/2015
Registrants = 'Reg_id' , 'Reg_UserName','Reg_FullName','Contact_Details' 'Reg_Password',
'Reg_Address'
Owner = 'Owner_ID','Owner_username',`Owner_full_name`'Owner_Password''Owner_Email',
‘Owner_Contact_Details’,‘Responses_ID’
Accommodation = 'Accom_id' ,'Accom_Description','Accom_Type','Accom_Check_in_Time',
'Accom_Check_out_Time','Accom_Price_Details','Accom_No_Bedrooms','Accom_No_Minimum_Nig
hts' , 'Accom_Address','Accom_Location','Accom_Capacity','Accom_Extra' , 'City_ID' ,
Country = 'Country_id','Description' ,'Location'
City = 'City_id','Country_id','City_Name'
Review= 'Review_ID','Review_Description','Review_ExperienceMark','Review_Date'
'Review_Time','Accommodation_ID''Registrant_ID','Booking_ID','Responses_ID'
Response = 'Response_id','Date_of_Response','Time_of_Response','Owner_id'
Booking ='Booking_id','Booking_Arrival_Date','Booking_Departure_Date' ,'Booking_No_Nights',
'Booking_No_In_Party','Accom_id', 'Registrant_id'
Admin= 'Admin_Name','Admin_Password'

8. 6 | P a g e

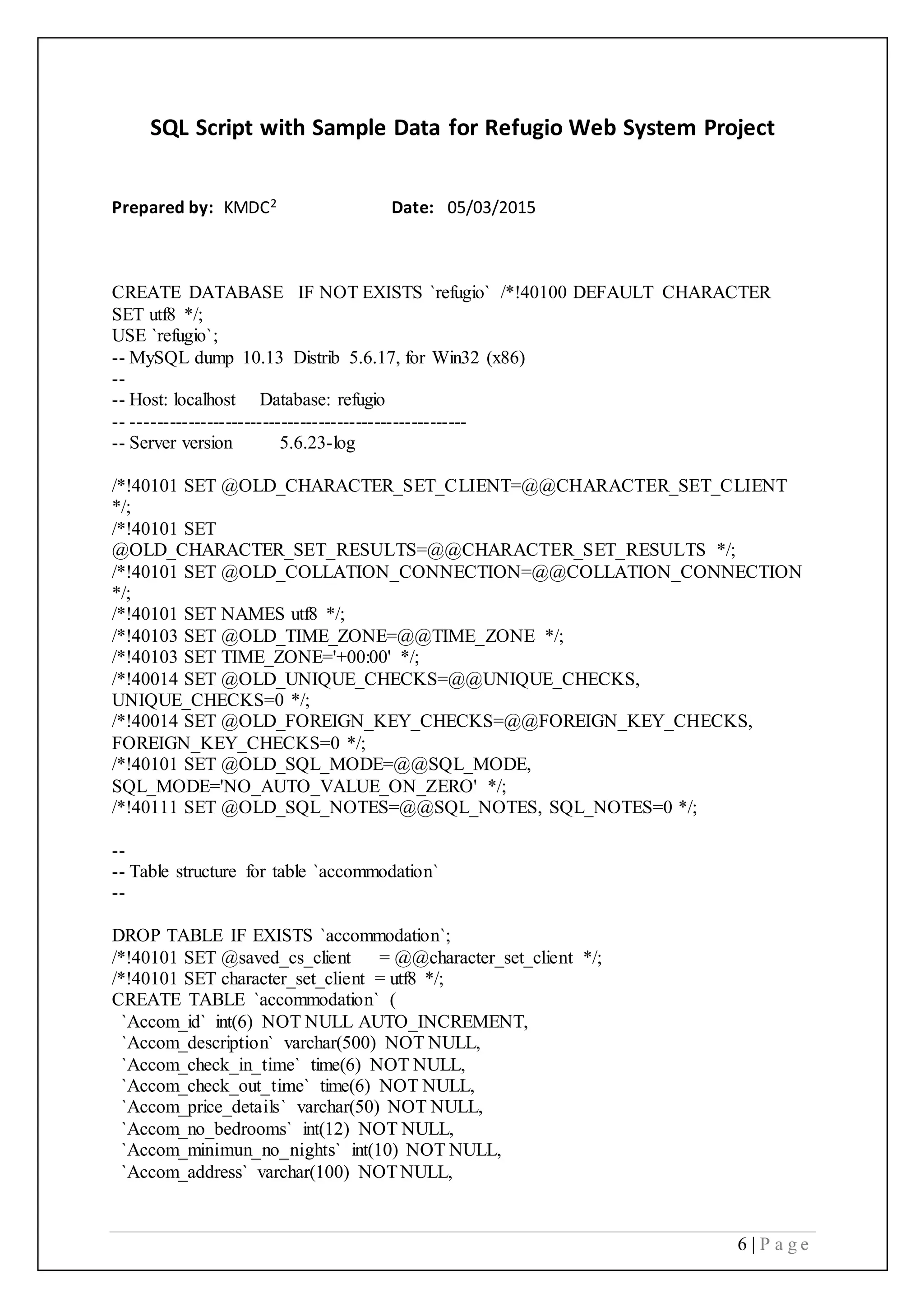

SQL Script with Sample Data for Refugio Web System Project
Prepared by: KMDC2 Date: 05/03/2015
CREATE DATABASE IF NOT EXISTS `refugio` /*!40100 DEFAULT CHARACTER
SET utf8 */;
USE `refugio`;
-- MySQL dump 10.13 Distrib 5.6.17, for Win32 (x86)
--
-- Host: localhost Database: refugio
-- ------------------------------------------------------
-- Server version 5.6.23-log
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT
*/;
/*!40101 SET
@OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION
*/;
/*!40101 SET NAMES utf8 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS,
UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS,
FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE,
SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
--
-- Table structure for table `accommodation`
--
DROP TABLE IF EXISTS `accommodation`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `accommodation` (
`Accom_id` int(6) NOT NULL AUTO_INCREMENT,
`Accom_description` varchar(500) NOT NULL,
`Accom_check_in_time` time(6) NOT NULL,
`Accom_check_out_time` time(6) NOT NULL,
`Accom_price_details` varchar(50) NOT NULL,
`Accom_no_bedrooms` int(12) NOT NULL,
`Accom_minimun_no_nights` int(10) NOT NULL,
`Accom_address` varchar(100) NOTNULL,

9. 7 | P a g e

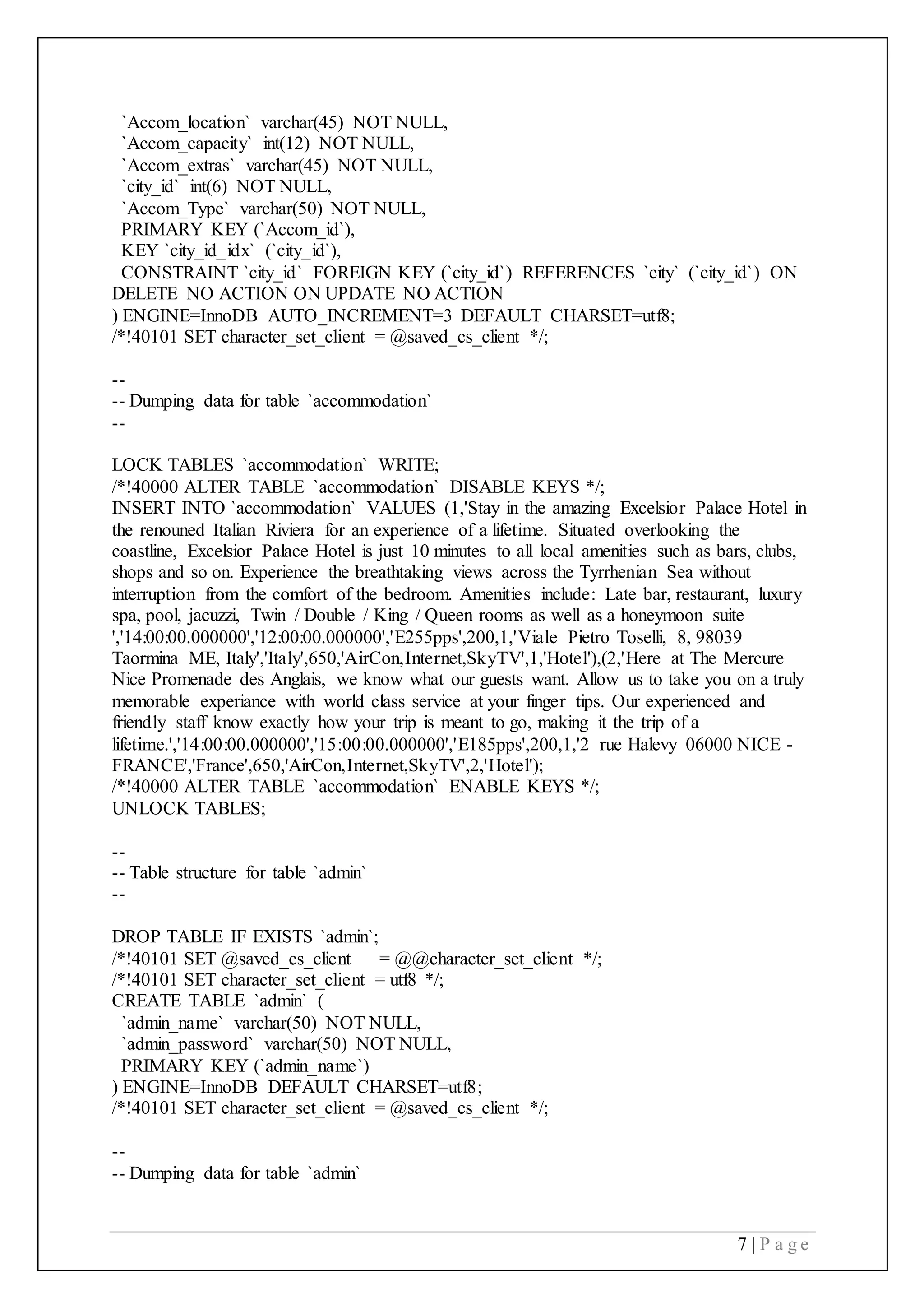

`Accom_location` varchar(45) NOT NULL,
`Accom_capacity` int(12) NOT NULL,
`Accom_extras` varchar(45) NOT NULL,
`city_id` int(6) NOT NULL,
`Accom_Type` varchar(50) NOT NULL,
PRIMARY KEY (`Accom_id`),
KEY `city_id_idx` (`city_id`),
CONSTRAINT `city_id` FOREIGN KEY (`city_id`) REFERENCES `city` (`city_id`) ON
DELETE NO ACTION ON UPDATE NO ACTION
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `accommodation`
--
LOCK TABLES `accommodation` WRITE;
/*!40000 ALTER TABLE `accommodation` DISABLE KEYS */;
INSERT INTO `accommodation` VALUES (1,'Stay in the amazing Excelsior Palace Hotel in
the renouned Italian Riviera for an experience of a lifetime. Situated overlooking the
coastline, Excelsior Palace Hotel is just 10 minutes to all local amenities such as bars, clubs,
shops and so on. Experience the breathtaking views across the Tyrrhenian Sea without
interruption from the comfort of the bedroom. Amenities include: Late bar, restaurant, luxury
spa, pool, jacuzzi, Twin / Double / King / Queen rooms as well as a honeymoon suite
','14:00:00.000000','12:00:00.000000','E255pps',200,1,'Viale Pietro Toselli, 8, 98039
Taormina ME, Italy','Italy',650,'AirCon,Internet,SkyTV',1,'Hotel'),(2,'Here at The Mercure
Nice Promenade des Anglais, we know what our guests want. Allow us to take you on a truly
memorable experiance with world class service at your finger tips. Our experienced and
friendly staff know exactly how your trip is meant to go, making it the trip of a
lifetime.','14:00:00.000000','15:00:00.000000','E185pps',200,1,'2 rue Halevy 06000 NICE -
FRANCE','France',650,'AirCon,Internet,SkyTV',2,'Hotel');
/*!40000 ALTER TABLE `accommodation` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `admin`
--
DROP TABLE IF EXISTS `admin`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `admin` (
`admin_name` varchar(50) NOT NULL,
`admin_password` varchar(50) NOT NULL,
PRIMARY KEY (`admin_name`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `admin`

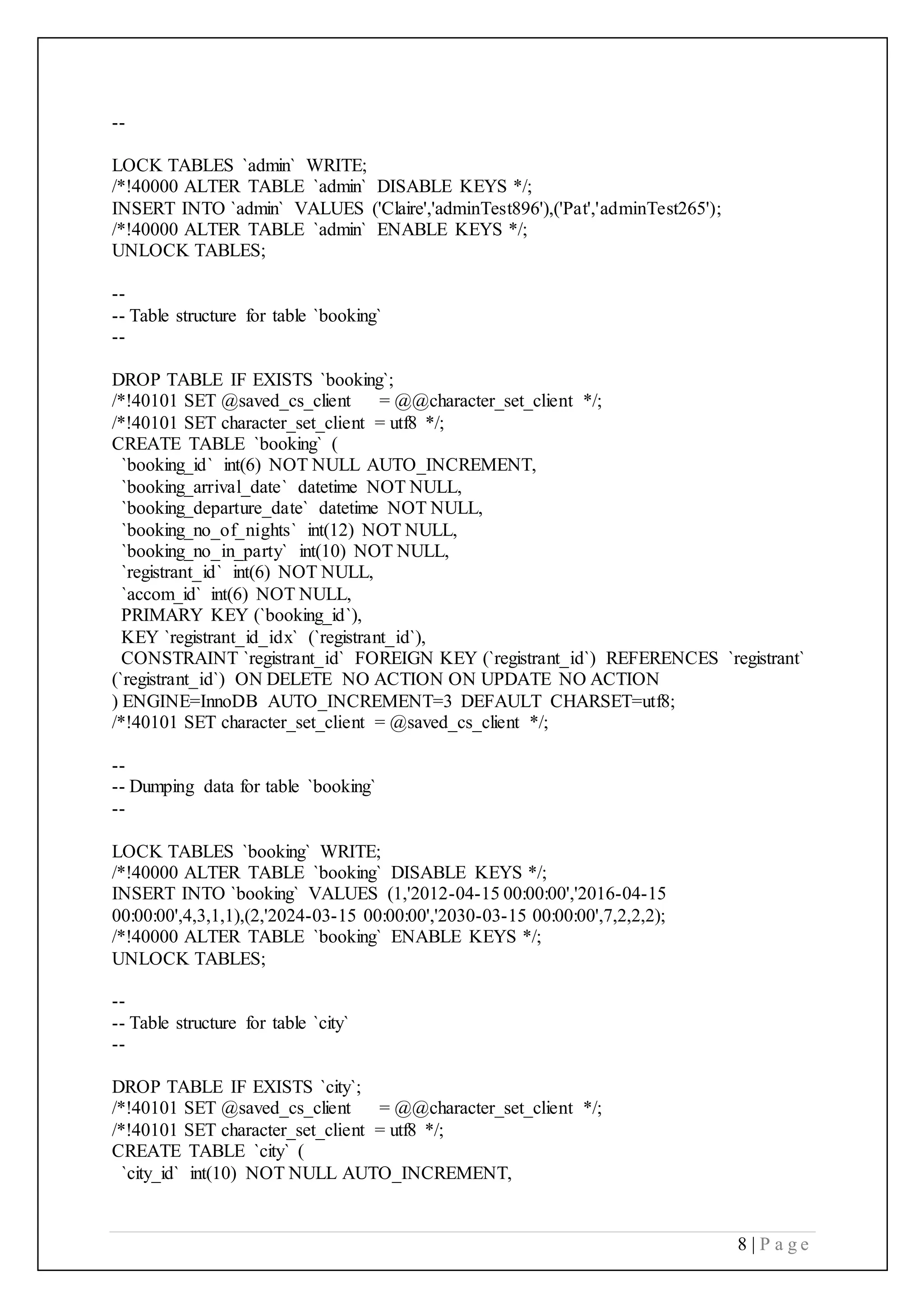

10. 8 | P a g e
--
LOCK TABLES `admin` WRITE;
/*!40000 ALTER TABLE `admin` DISABLE KEYS */;
INSERT INTO `admin` VALUES ('Claire','adminTest896'),('Pat','adminTest265');
/*!40000 ALTER TABLE `admin` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `booking`
--
DROP TABLE IF EXISTS `booking`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `booking` (
`booking_id` int(6) NOT NULL AUTO_INCREMENT,
`booking_arrival_date` datetime NOT NULL,
`booking_departure_date` datetime NOT NULL,
`booking_no_of_nights` int(12) NOT NULL,
`booking_no_in_party` int(10) NOT NULL,
`registrant_id` int(6) NOT NULL,
`accom_id` int(6) NOT NULL,
PRIMARY KEY (`booking_id`),
KEY `registrant_id_idx` (`registrant_id`),
CONSTRAINT `registrant_id` FOREIGN KEY (`registrant_id`) REFERENCES `registrant`
(`registrant_id`) ON DELETE NO ACTION ON UPDATE NO ACTION
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `booking`
--
LOCK TABLES `booking` WRITE;
/*!40000 ALTER TABLE `booking` DISABLE KEYS */;
INSERT INTO `booking` VALUES (1,'2012-04-15 00:00:00','2016-04-15
00:00:00',4,3,1,1),(2,'2024-03-15 00:00:00','2030-03-15 00:00:00',7,2,2,2);
/*!40000 ALTER TABLE `booking` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `city`
--
DROP TABLE IF EXISTS `city`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;

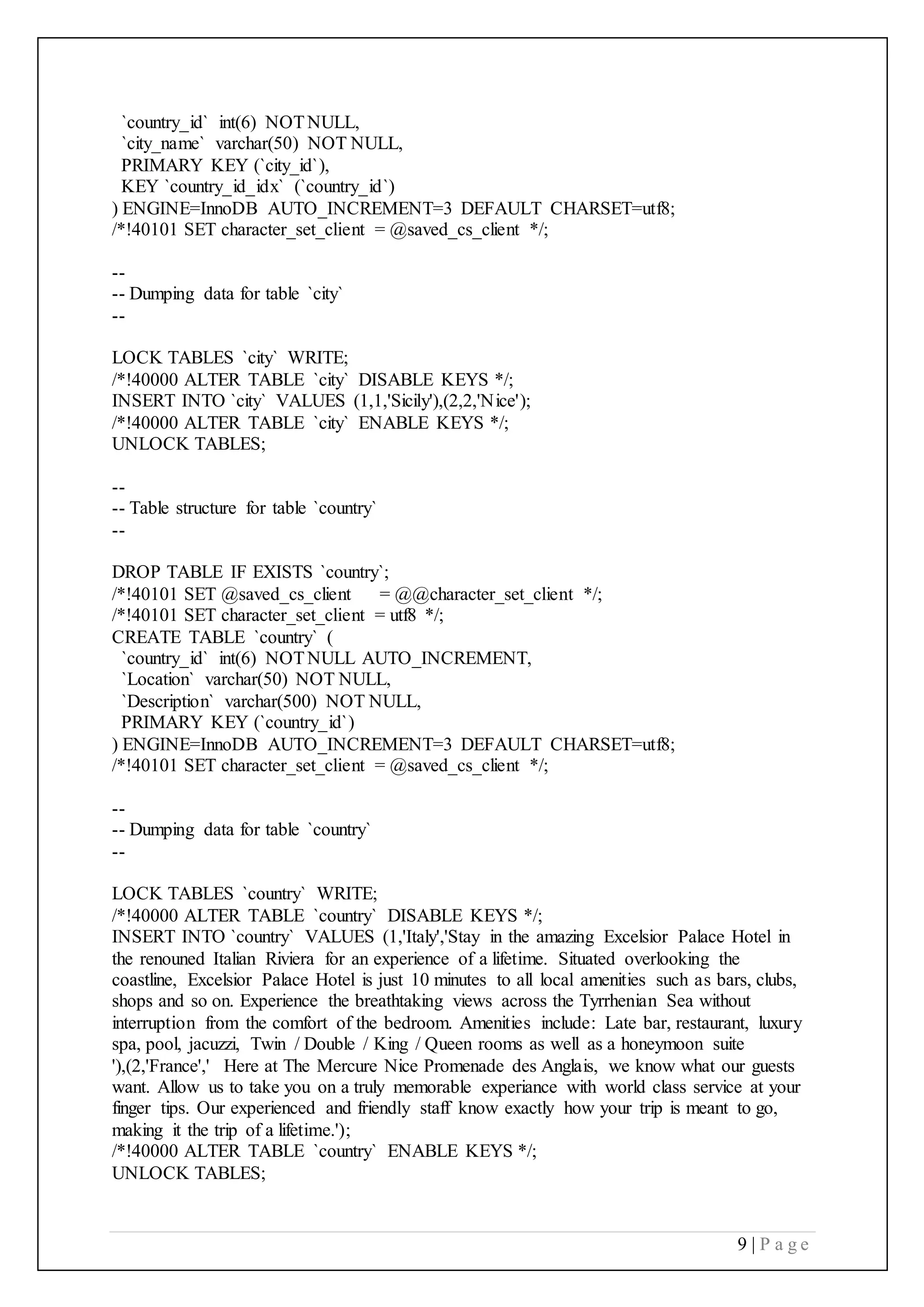

CREATE TABLE `city` (
`city_id` int(10) NOT NULL AUTO_INCREMENT,

11. 9 | P a g e
`country_id` int(6) NOTNULL,
`city_name` varchar(50) NOT NULL,
PRIMARY KEY (`city_id`),
KEY `country_id_idx` (`country_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `city`
--
LOCK TABLES `city` WRITE;
/*!40000 ALTER TABLE `city` DISABLE KEYS */;
INSERT INTO `city` VALUES (1,1,'Sicily'),(2,2,'Nice');
/*!40000 ALTER TABLE `city` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `country`
--
DROP TABLE IF EXISTS `country`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `country` (
`country_id` int(6) NOTNULL AUTO_INCREMENT,
`Location` varchar(50) NOT NULL,
`Description` varchar(500) NOT NULL,
PRIMARY KEY (`country_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `country`
--
LOCK TABLES `country` WRITE;
/*!40000 ALTER TABLE `country` DISABLE KEYS */;
INSERT INTO `country` VALUES (1,'Italy','Stay in the amazing Excelsior Palace Hotel in
the renouned Italian Riviera for an experience of a lifetime. Situated overlooking the
coastline, Excelsior Palace Hotel is just 10 minutes to all local amenities such as bars, clubs,
shops and so on. Experience the breathtaking views across the Tyrrhenian Sea without
interruption from the comfort of the bedroom. Amenities include: Late bar, restaurant, luxury
spa, pool, jacuzzi, Twin / Double / King / Queen rooms as well as a honeymoon suite
'),(2,'France',' Here at The Mercure Nice Promenade des Anglais, we know what our guests
want. Allow us to take you on a truly memorable experiance with world class service at your
finger tips. Our experienced and friendly staff know exactly how your trip is meant to go,
making it the trip of a lifetime.');
/*!40000 ALTER TABLE `country` ENABLE KEYS */;
UNLOCK TABLES;

12. 10 | P a g e
--

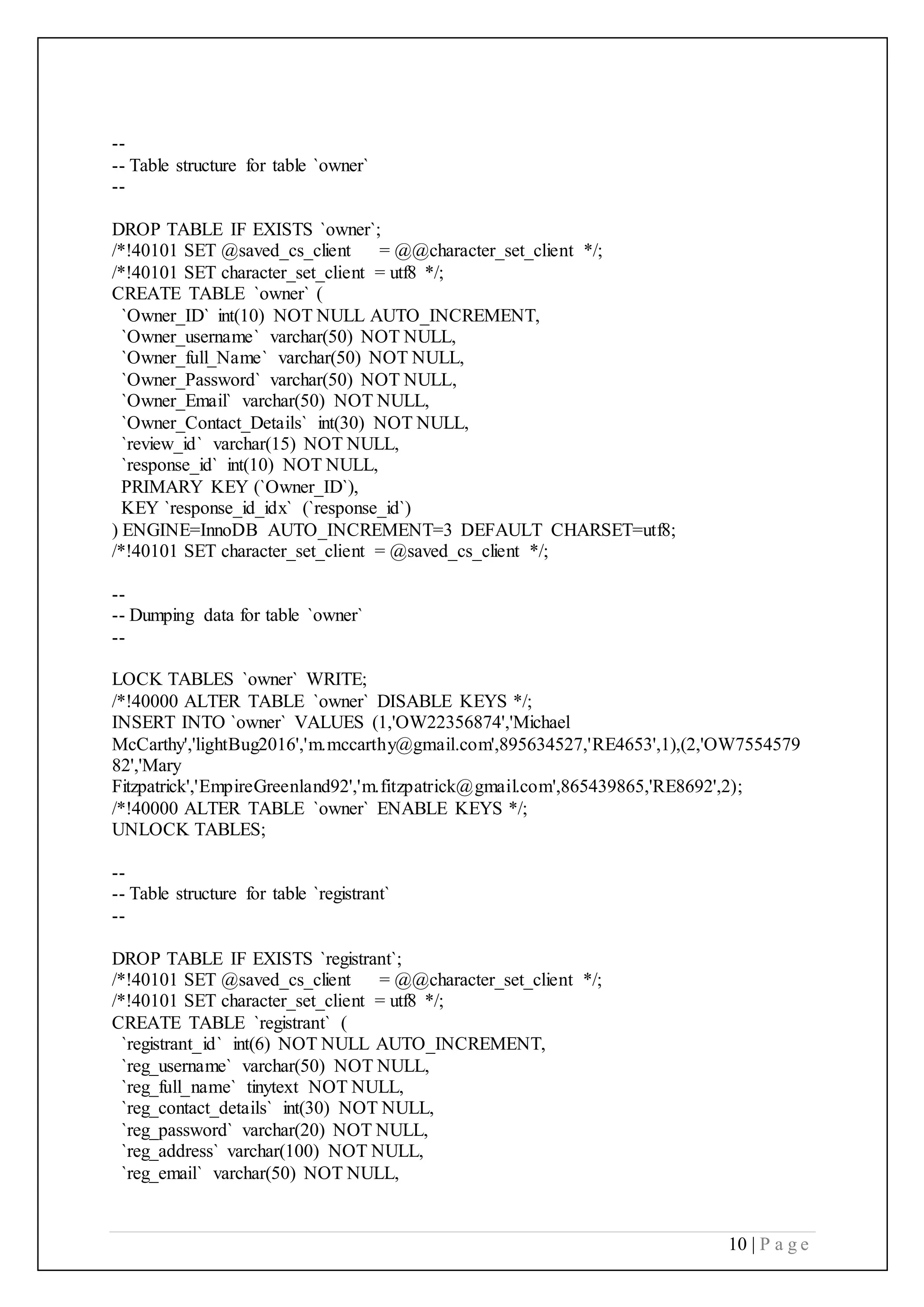

-- Table structure for table `owner`
--
DROP TABLE IF EXISTS `owner`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `owner` (
`Owner_ID` int(10) NOT NULL AUTO_INCREMENT,
`Owner_username` varchar(50) NOT NULL,
`Owner_full_Name` varchar(50) NOT NULL,
`Owner_Password` varchar(50) NOT NULL,
`Owner_Email` varchar(50) NOT NULL,
`Owner_Contact_Details` int(30) NOT NULL,
`review_id` varchar(15) NOT NULL,
`response_id` int(10) NOT NULL,
PRIMARY KEY (`Owner_ID`),
KEY `response_id_idx` (`response_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `owner`
--
LOCK TABLES `owner` WRITE;
/*!40000 ALTER TABLE `owner` DISABLE KEYS */;
INSERT INTO `owner` VALUES (1,'OW22356874','Michael
McCarthy','lightBug2016','m.mccarthy@gmail.com',895634527,'RE4653',1),(2,'OW7554579
82','Mary
Fitzpatrick','EmpireGreenland92','m.fitzpatrick@gmail.com',865439865,'RE8692',2);
/*!40000 ALTER TABLE `owner` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `registrant`
--
DROP TABLE IF EXISTS `registrant`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `registrant` (
`registrant_id` int(6) NOT NULL AUTO_INCREMENT,
`reg_username` varchar(50) NOT NULL,
`reg_full_name` tinytext NOT NULL,
`reg_contact_details` int(30) NOT NULL,
`reg_password` varchar(20) NOT NULL,
`reg_address` varchar(100) NOT NULL,
`reg_email` varchar(50) NOT NULL,

13. 11 | P a g e

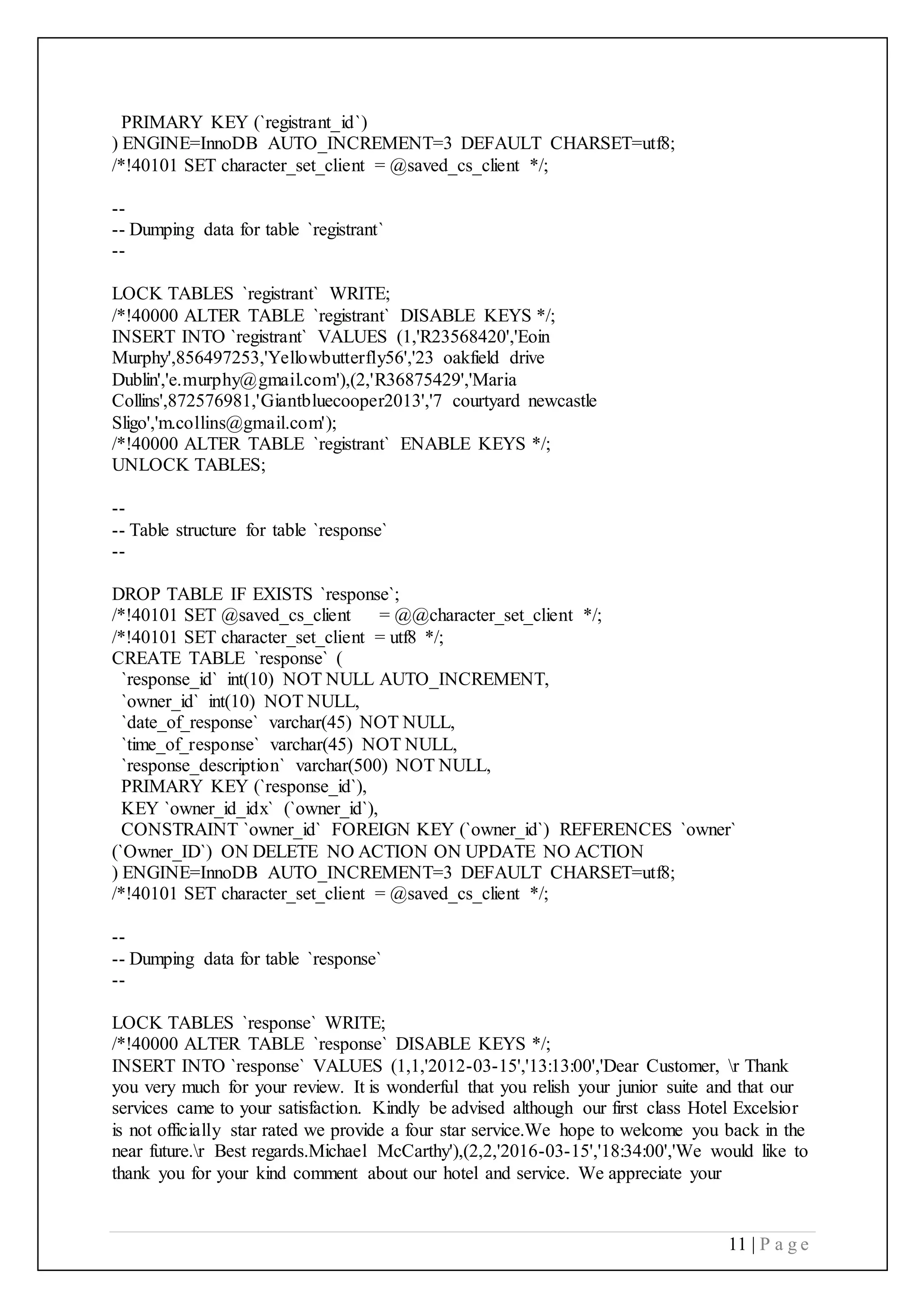

PRIMARY KEY (`registrant_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `registrant`
--
LOCK TABLES `registrant` WRITE;
/*!40000 ALTER TABLE `registrant` DISABLE KEYS */;
INSERT INTO `registrant` VALUES (1,'R23568420','Eoin
Murphy',856497253,'Yellowbutterfly56','23 oakfield drive
Dublin','e.murphy@gmail.com'),(2,'R36875429','Maria
Collins',872576981,'Giantbluecooper2013','7 courtyard newcastle
Sligo','m.collins@gmail.com');
/*!40000 ALTER TABLE `registrant` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `response`
--
DROP TABLE IF EXISTS `response`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `response` (
`response_id` int(10) NOT NULL AUTO_INCREMENT,
`owner_id` int(10) NOT NULL,
`date_of_response` varchar(45) NOT NULL,
`time_of_response` varchar(45) NOT NULL,
`response_description` varchar(500) NOT NULL,
PRIMARY KEY (`response_id`),
KEY `owner_id_idx` (`owner_id`),
CONSTRAINT `owner_id` FOREIGN KEY (`owner_id`) REFERENCES `owner`
(`Owner_ID`) ON DELETE NO ACTION ON UPDATE NO ACTION
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `response`
--
LOCK TABLES `response` WRITE;
/*!40000 ALTER TABLE `response` DISABLE KEYS */;
INSERT INTO `response` VALUES (1,1,'2012-03-15','13:13:00','Dear Customer, r Thank
you very much for your review. It is wonderful that you relish your junior suite and that our
services came to your satisfaction. Kindly be advised although our first class Hotel Excelsior
is not officially star rated we provide a four star service.We hope to welcome you back in the
near future.r Best regards.Michael McCarthy'),(2,2,'2016-03-15','18:34:00','We would like to
thank you for your kind comment about our hotel and service. We appreciate your

14. 12 | P a g e

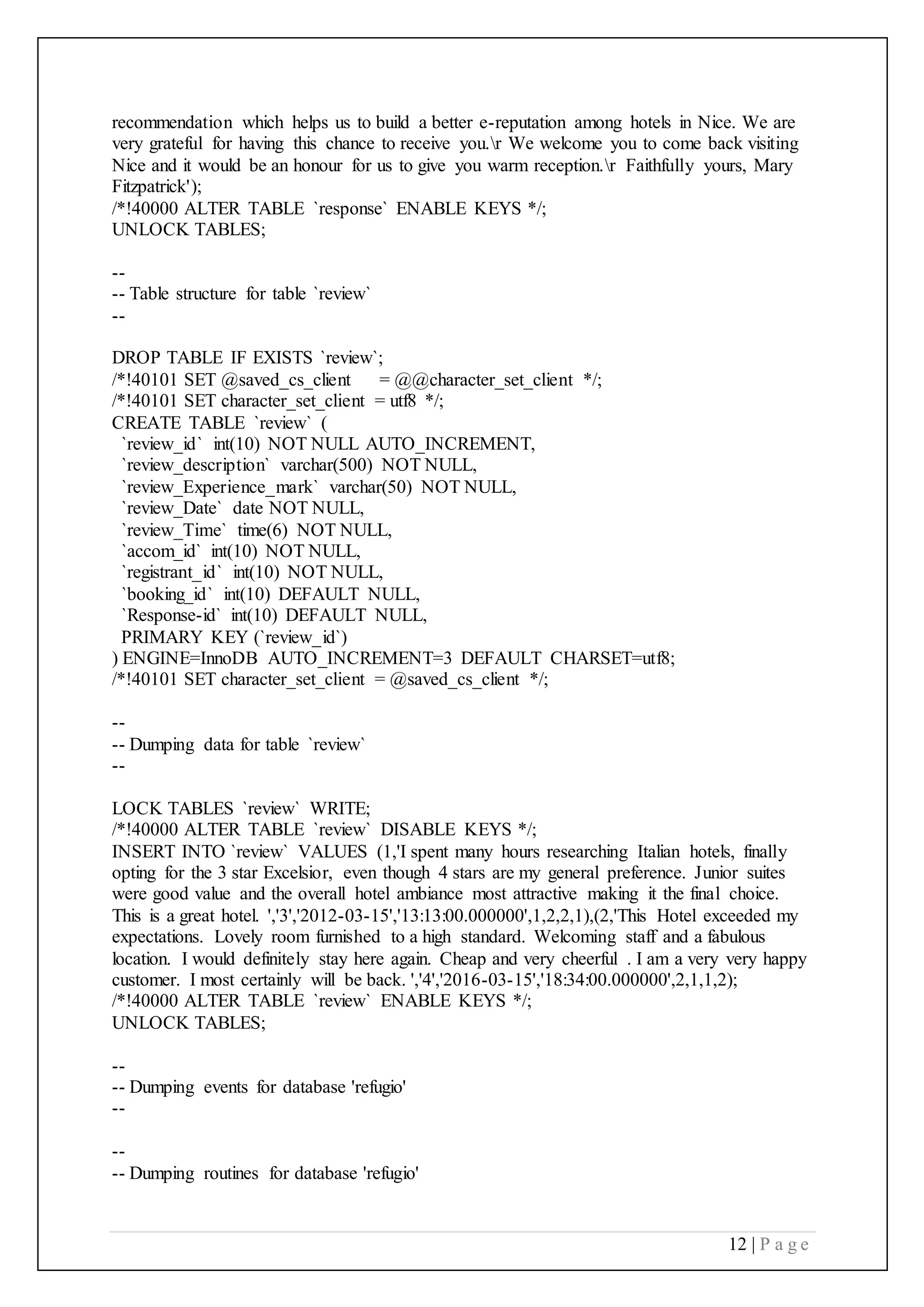

recommendation which helps us to build a better e-reputation among hotels in Nice. We are
very grateful for having this chance to receive you.r We welcome you to come back visiting
Nice and it would be an honour for us to give you warm reception.r Faithfully yours, Mary
Fitzpatrick');
/*!40000 ALTER TABLE `response` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `review`
--
DROP TABLE IF EXISTS `review`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `review` (
`review_id` int(10) NOT NULL AUTO_INCREMENT,
`review_description` varchar(500) NOT NULL,
`review_Experience_mark` varchar(50) NOT NULL,
`review_Date` date NOT NULL,
`review_Time` time(6) NOT NULL,
`accom_id` int(10) NOT NULL,
`registrant_id` int(10) NOT NULL,
`booking_id` int(10) DEFAULT NULL,
`Response-id` int(10) DEFAULT NULL,
PRIMARY KEY (`review_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `review`
--
LOCK TABLES `review` WRITE;
/*!40000 ALTER TABLE `review` DISABLE KEYS */;
INSERT INTO `review` VALUES (1,'I spent many hours researching Italian hotels, finally
opting for the 3 star Excelsior, even though 4 stars are my general preference. Junior suites
were good value and the overall hotel ambiance most attractive making it the final choice.
This is a great hotel. ','3','2012-03-15','13:13:00.000000',1,2,2,1),(2,'This Hotel exceeded my
expectations. Lovely room furnished to a high standard. Welcoming staff and a fabulous
location. I would definitely stay here again. Cheap and very cheerful . I am a very very happy
customer. I most certainly will be back. ','4','2016-03-15','18:34:00.000000',2,1,1,2);
/*!40000 ALTER TABLE `review` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Dumping events for database 'refugio'
--
--
-- Dumping routines for database 'refugio'

15. 13 | P a g e
--

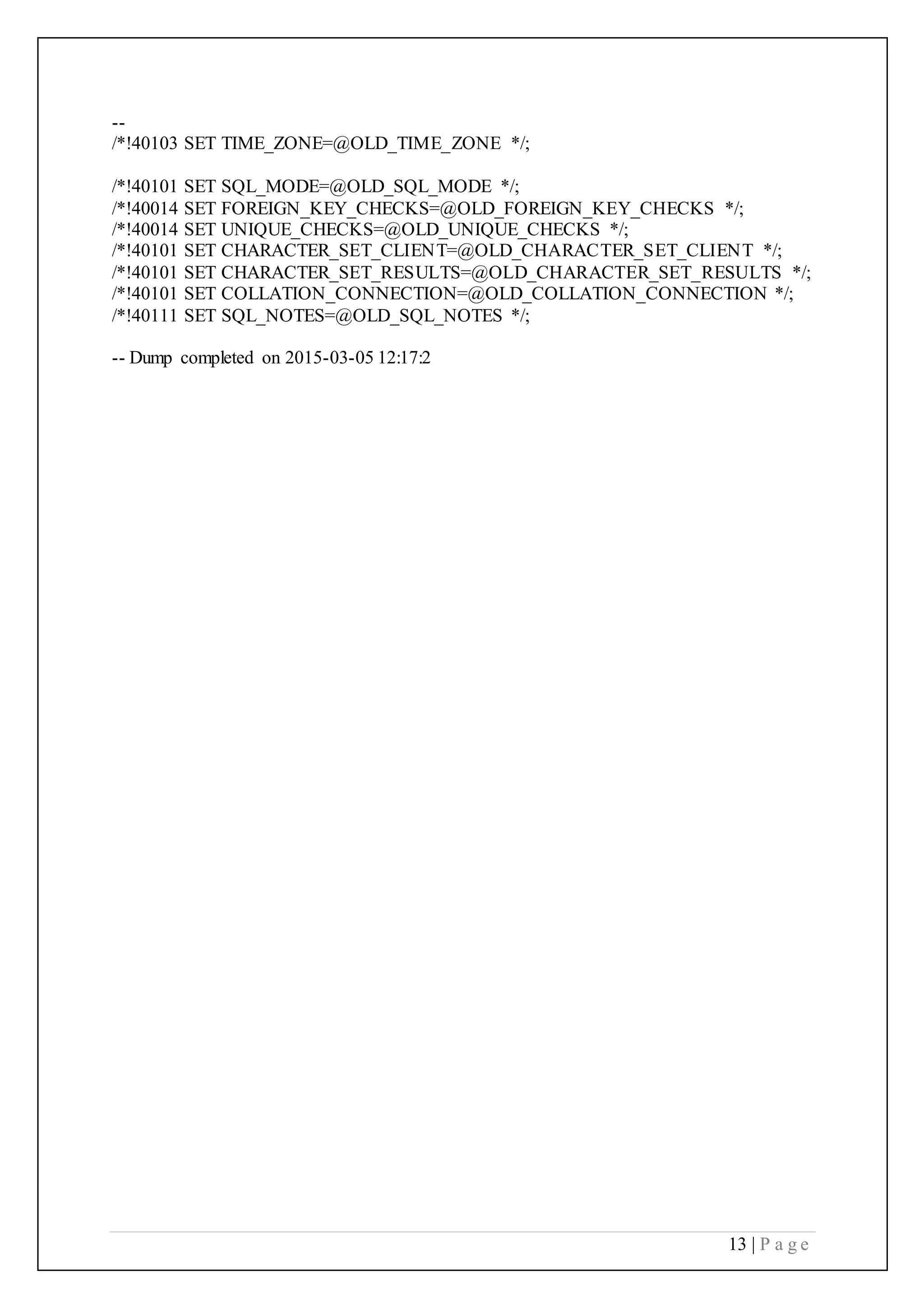

/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
-- Dump completed on 2015-03-05 12:17:2

16. 14 | P a g e
Declaration
Prepared by: KMDC2 Date: 11/03/2015
We as a group, KMDC2, declare that all work enclosed in this document is 100% our own.
We declare that each member has contributed equally to the workload and has participated
in accordance with the requirements of the project specification.
KimHornibrook
ConorMurphy
Daniel Murphy
ConorO’Callaghan
Meghan Walsh
