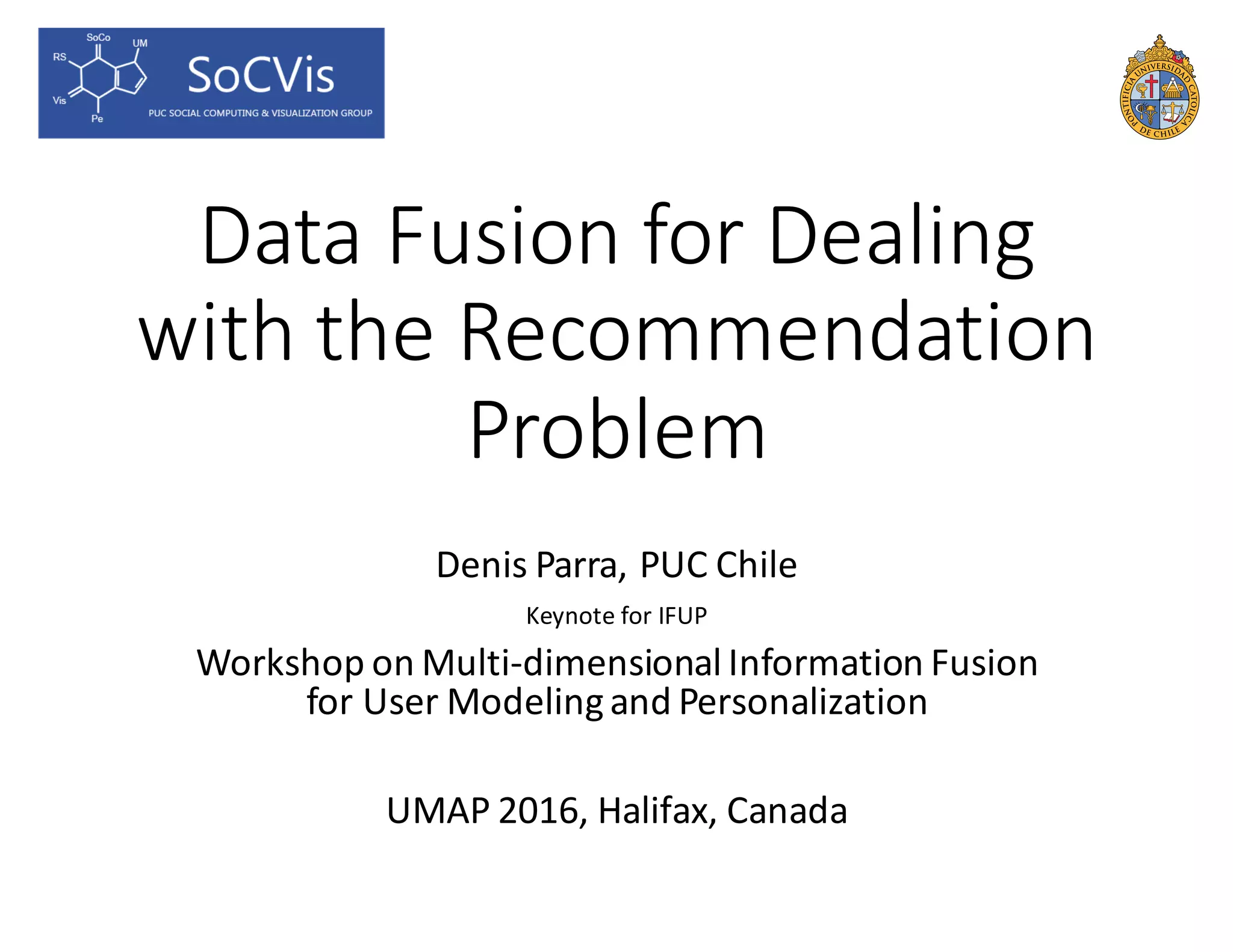

Data Fusion for Dealing with the Recommendation Problem

Data Fusion for Dealing
with the Recommendation
Problem
Denis Parra, PUC Chile
Keynote for IFUP
Workshop on Multi-dimensional Information Fusion
for User Modeling and Personalization
UMAP 2016, Halifax, Canada

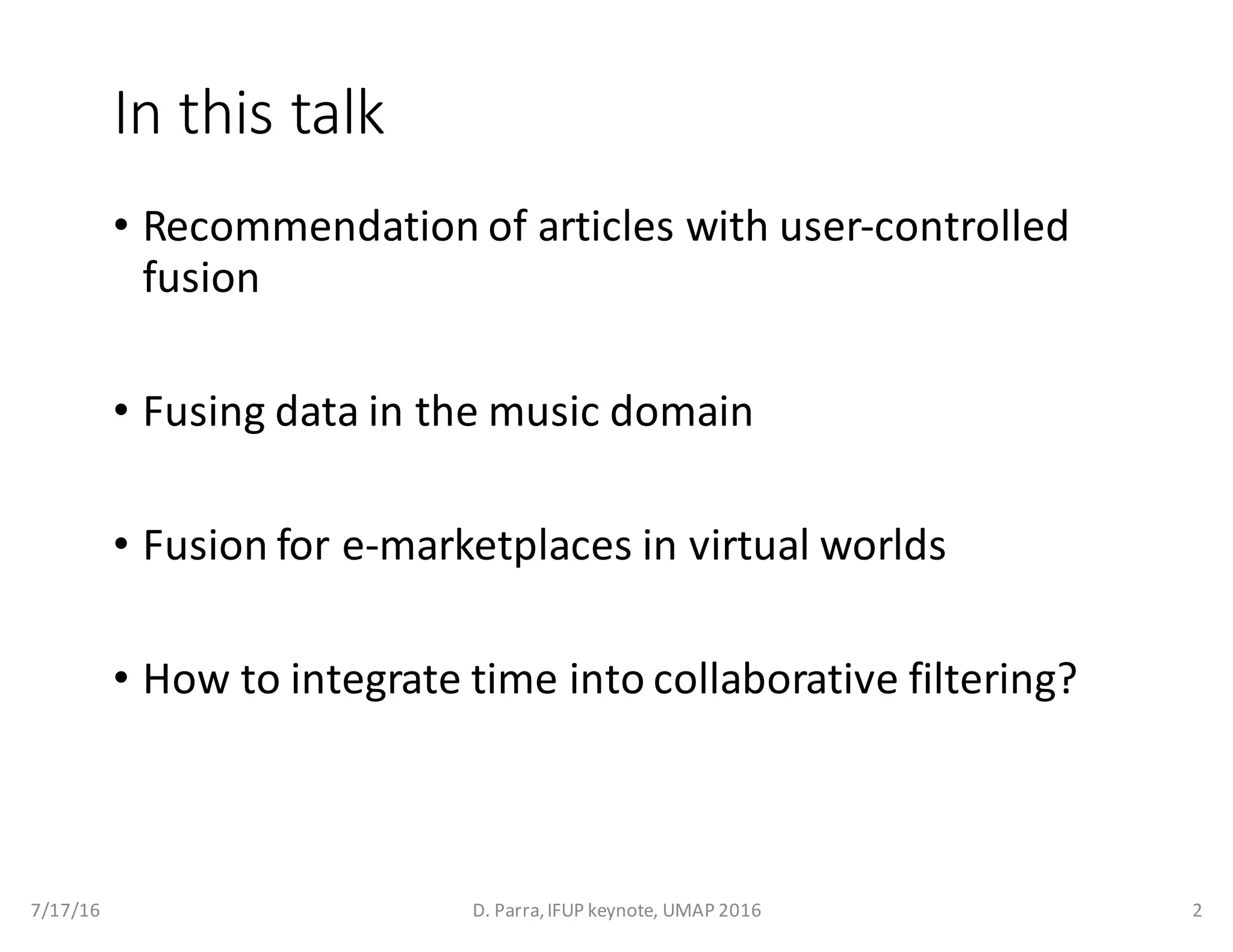

In this talk
• Recommendation of articles with user-controlled
fusion
• Fusing data in the music domain
• Fusion for e-marketplaces in virtual worlds
• How to integrate time into collaborative filtering?
7/17/16 D. Parra, IFUP keynote, UMAP 2016 2

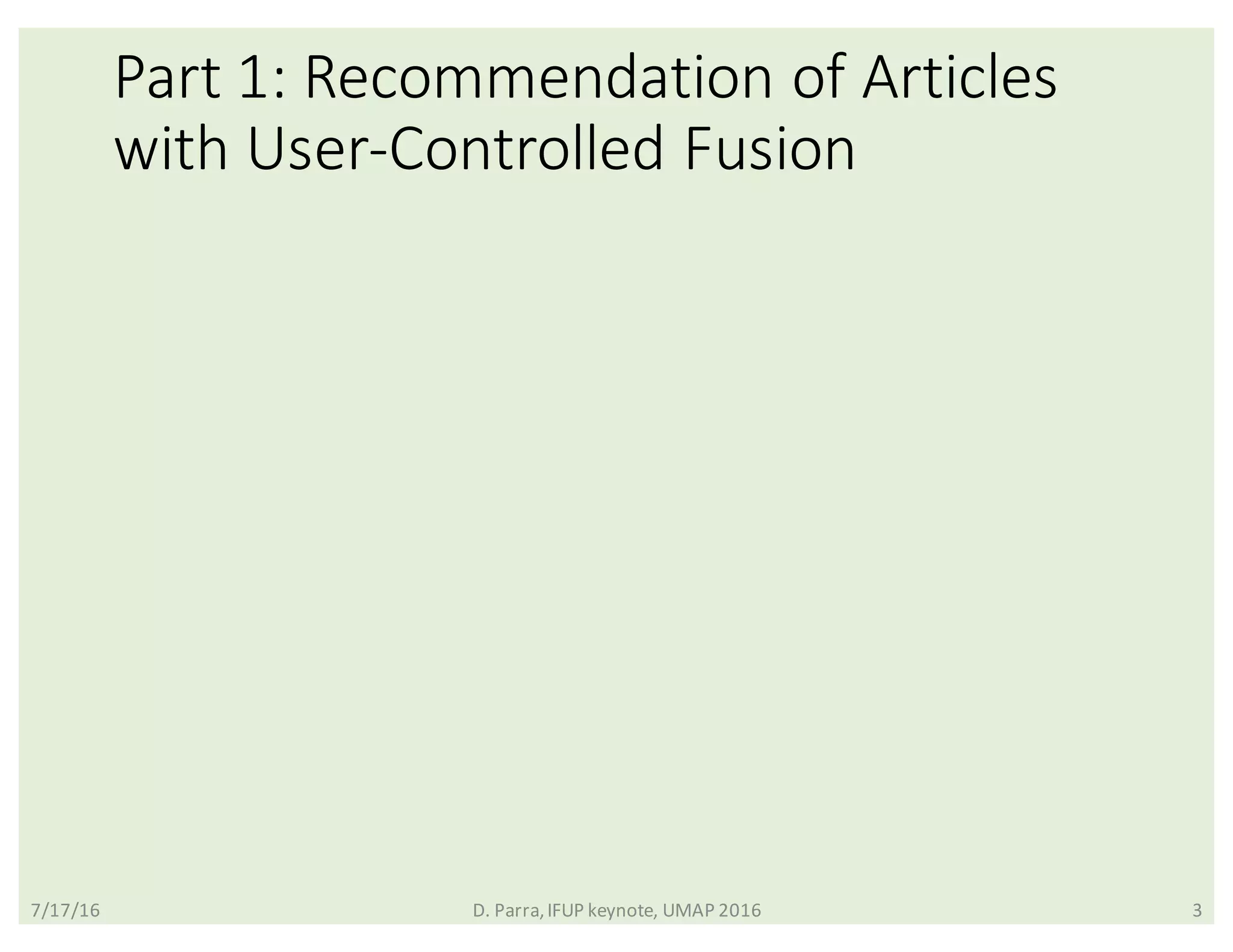

Part 1: Recommendation of Articles
with User-Controlled Fusion

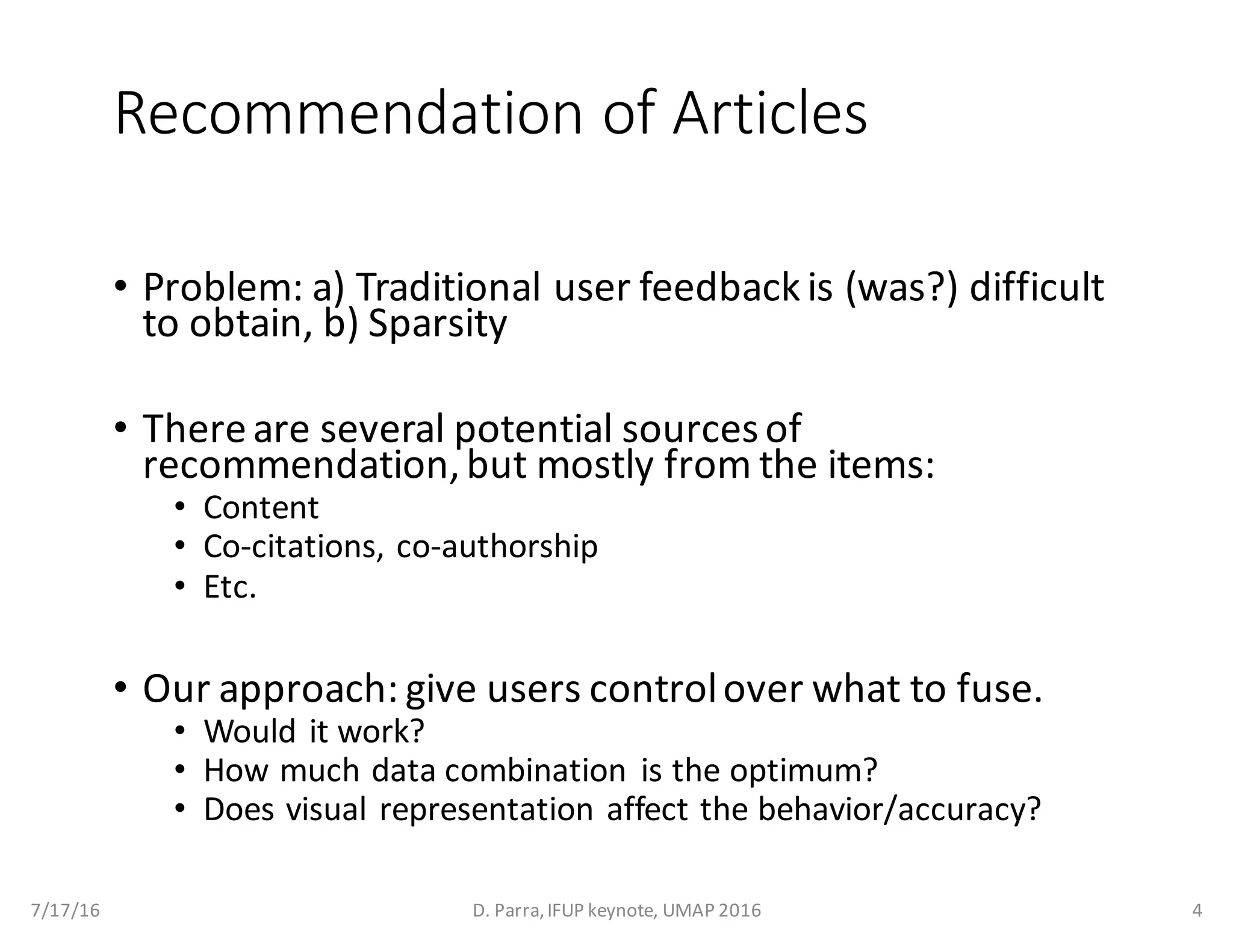

Recommendation of Articles
• Problem: a) Traditional user feedback is (was?) difficult
to obtain, b) Sparsity
• There are several potential sources of
recommendation, but mostly from the items:
• Content
• Co-citations, co-authorship
• Etc.
• Our approach: give users control over what to fuse.
• Would it work?
• How much data combination is the optimum?
• Does visual representation affect the behavior/accuracy?

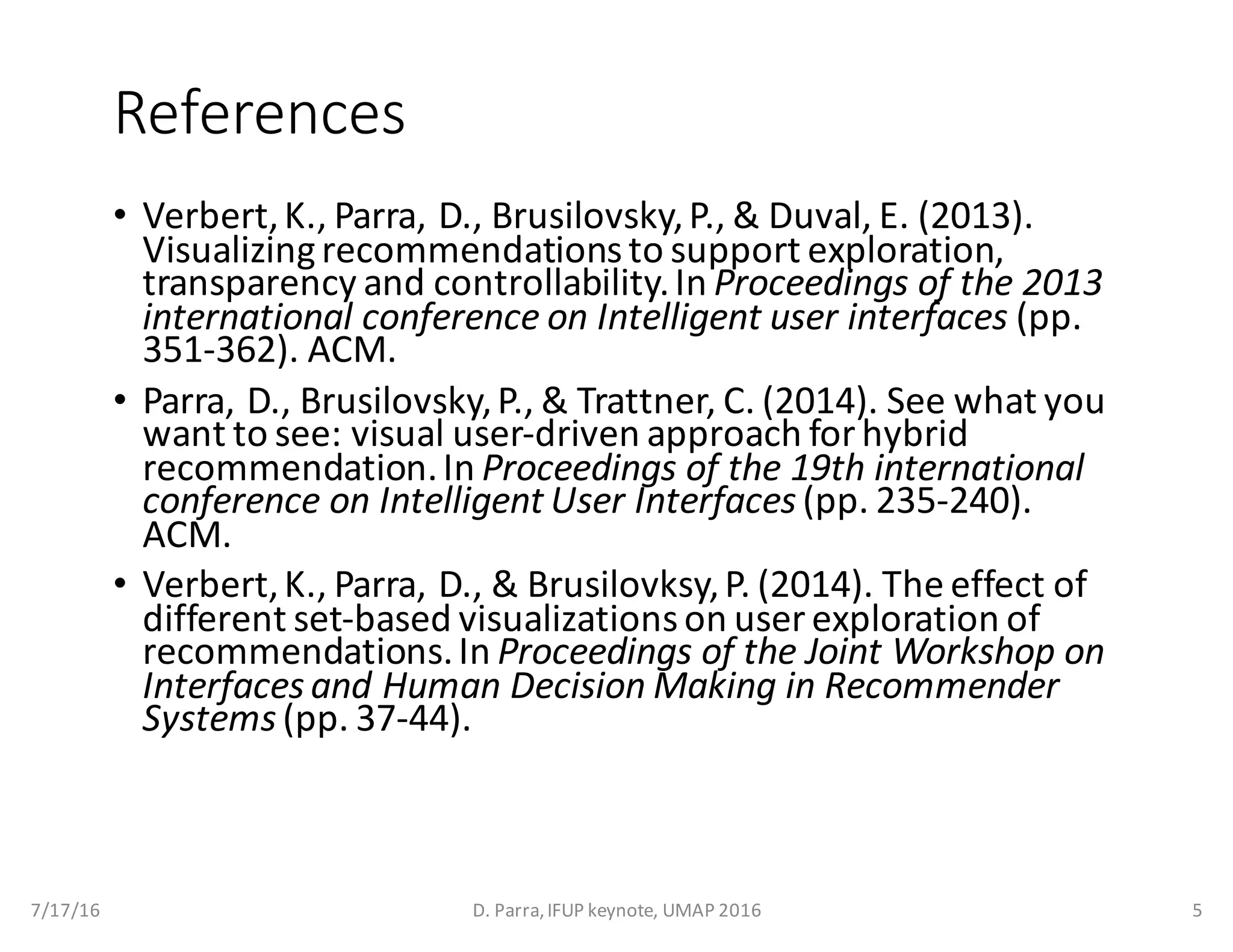

References
• Verbert, K., Parra, D., Brusilovsky, P., & Duval, E. (2013).
Visualizing recommendations to support exploration,
transparency and controllability. In Proceedings of the 2013
international conference on Intelligent user interfaces (pp.
351-362). ACM.
• Parra, D., Brusilovsky, P., & Trattner, C. (2014). See what you
want to see: visual user-driven approach for hybrid
recommendation. In Proceedings of the 19th international
conference on Intelligent User Interfaces(pp. 235-240).
ACM.
• Verbert, K., Parra, D., & Brusilovksy, P. (2014). The effect of
different set-based visualizations on user exploration of
recommendations. In Proceedings of the Joint Workshop on
Interfaces and Human Decision Making in Recommender
Systems(pp. 37-44).

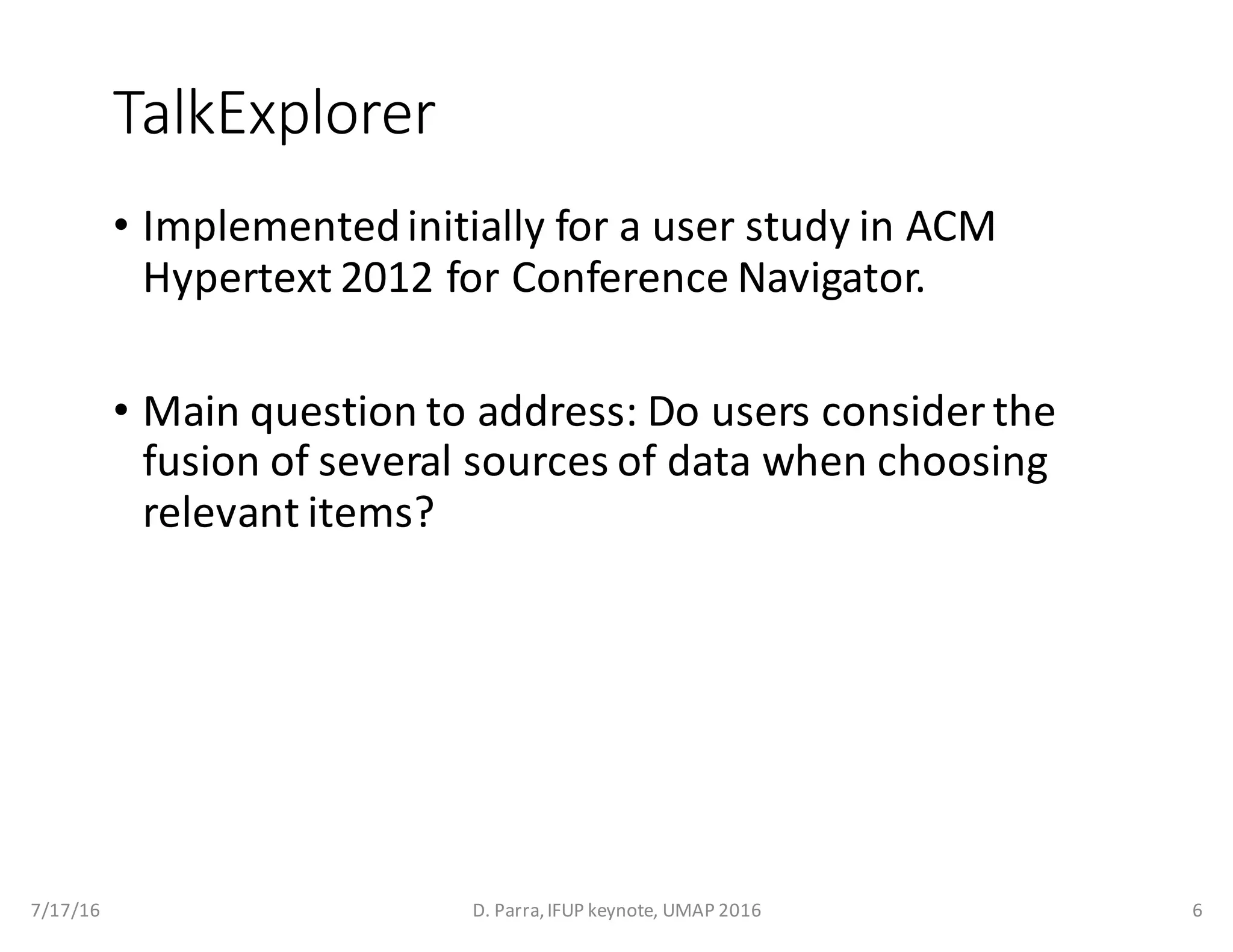

TalkExplorer
• Implemented initially for a user study in ACM
Hypertext 2012 for Conference Navigator.
• Main question to address: Do users consider the
fusion of several sources of data when choosing
relevant items?

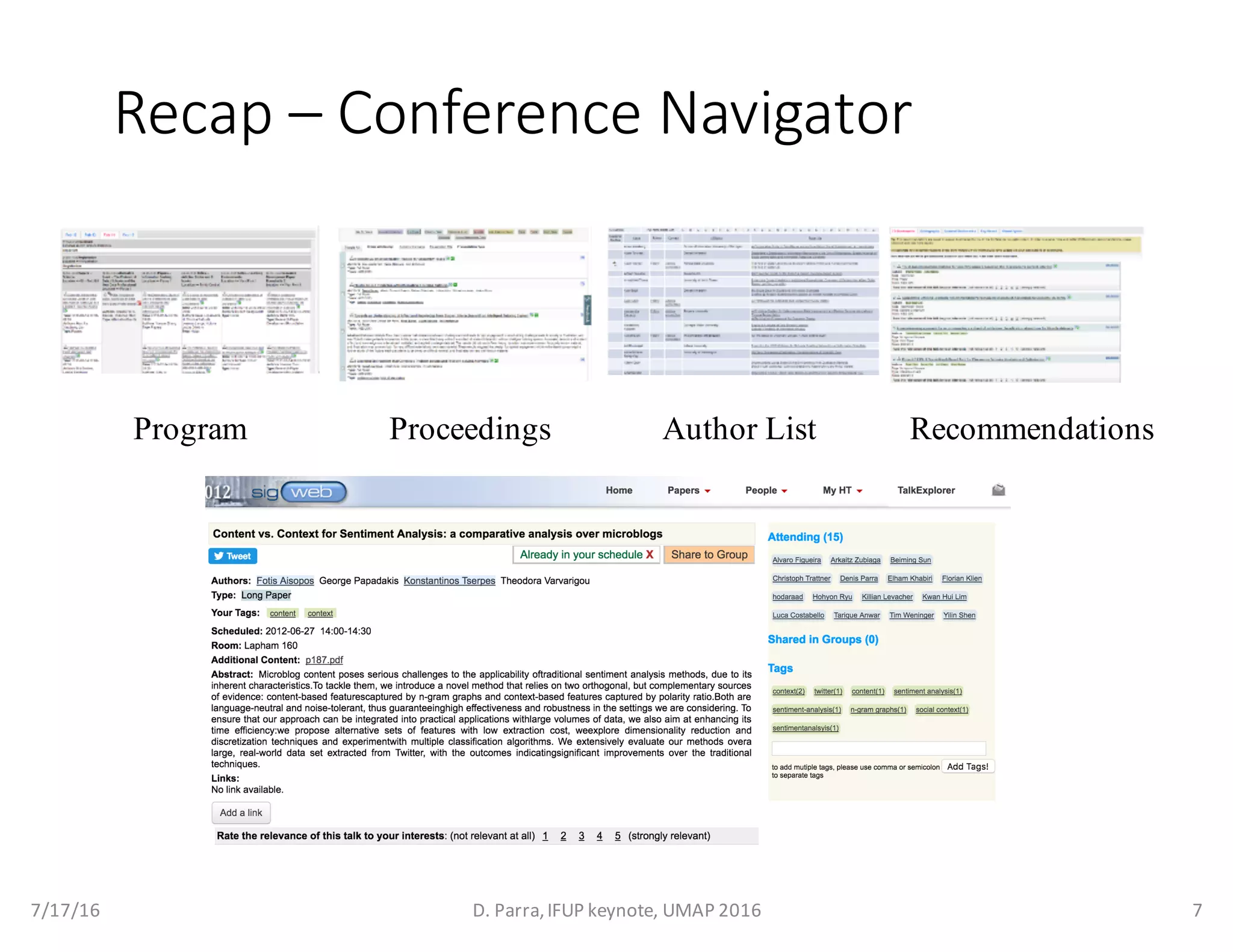

Recap – Conference Navigator
Program Proceedings Author List Recommendations

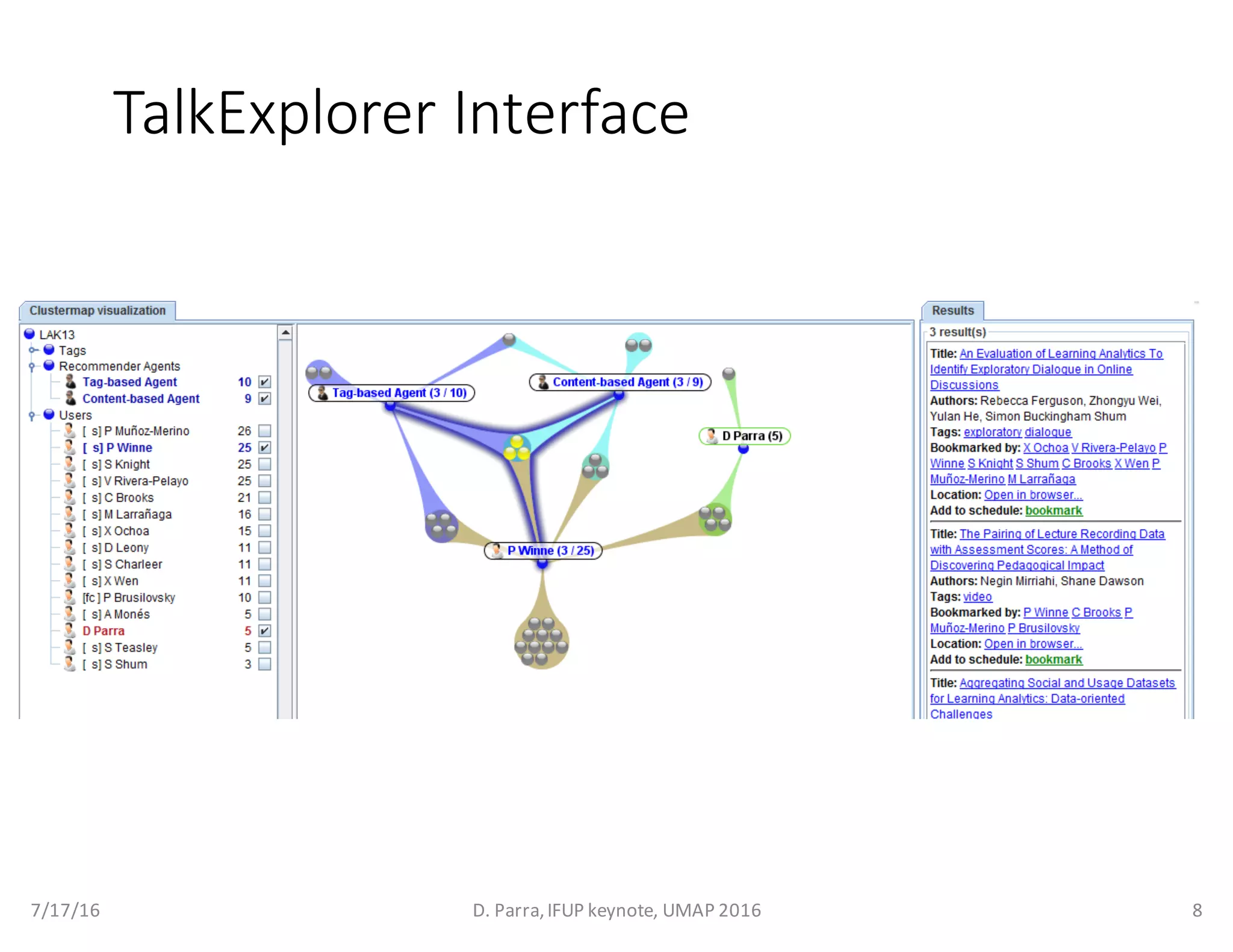

TalkExplorer Interface

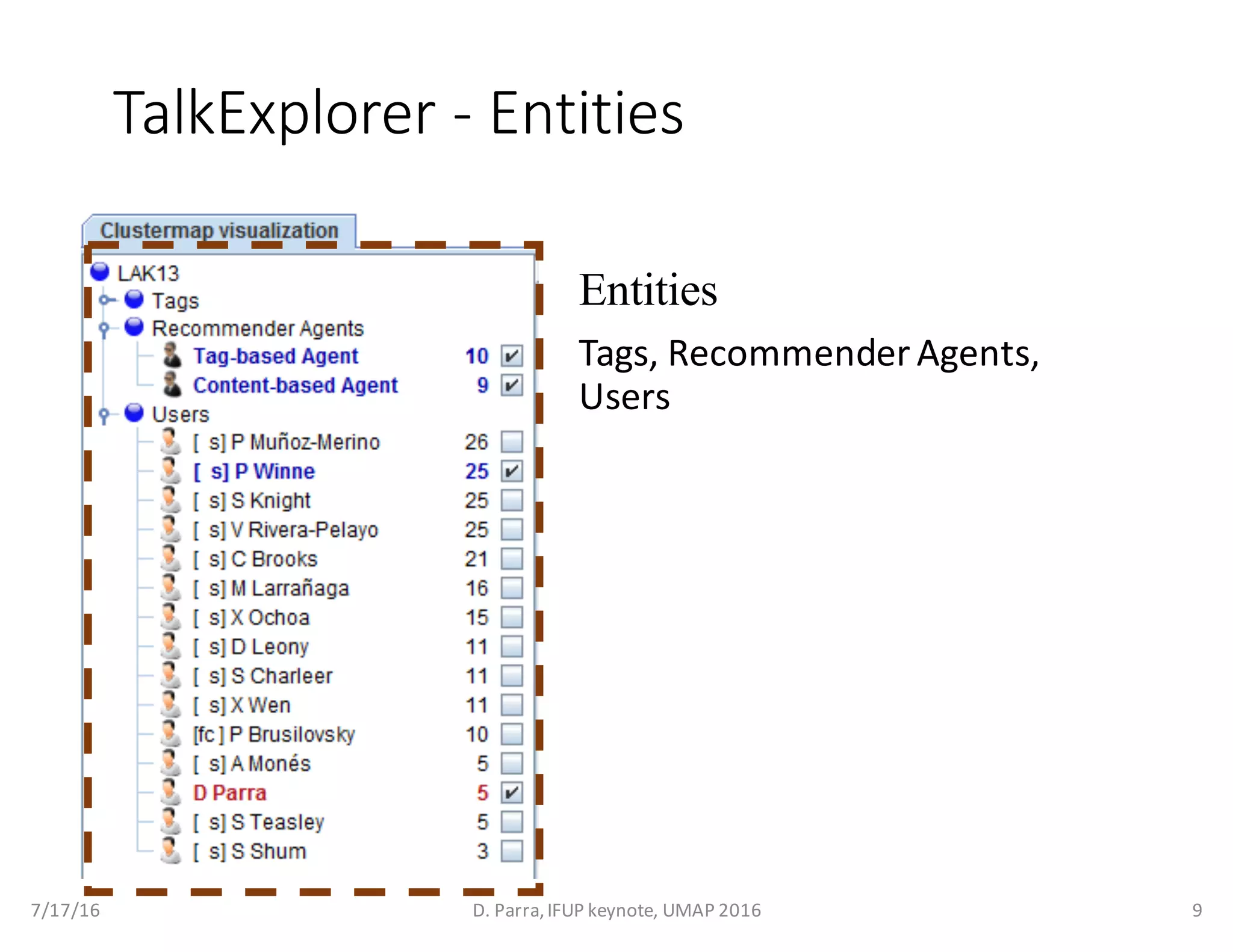

TalkExplorer - Entities
Entities
Tags, Recommender Agents,
Users

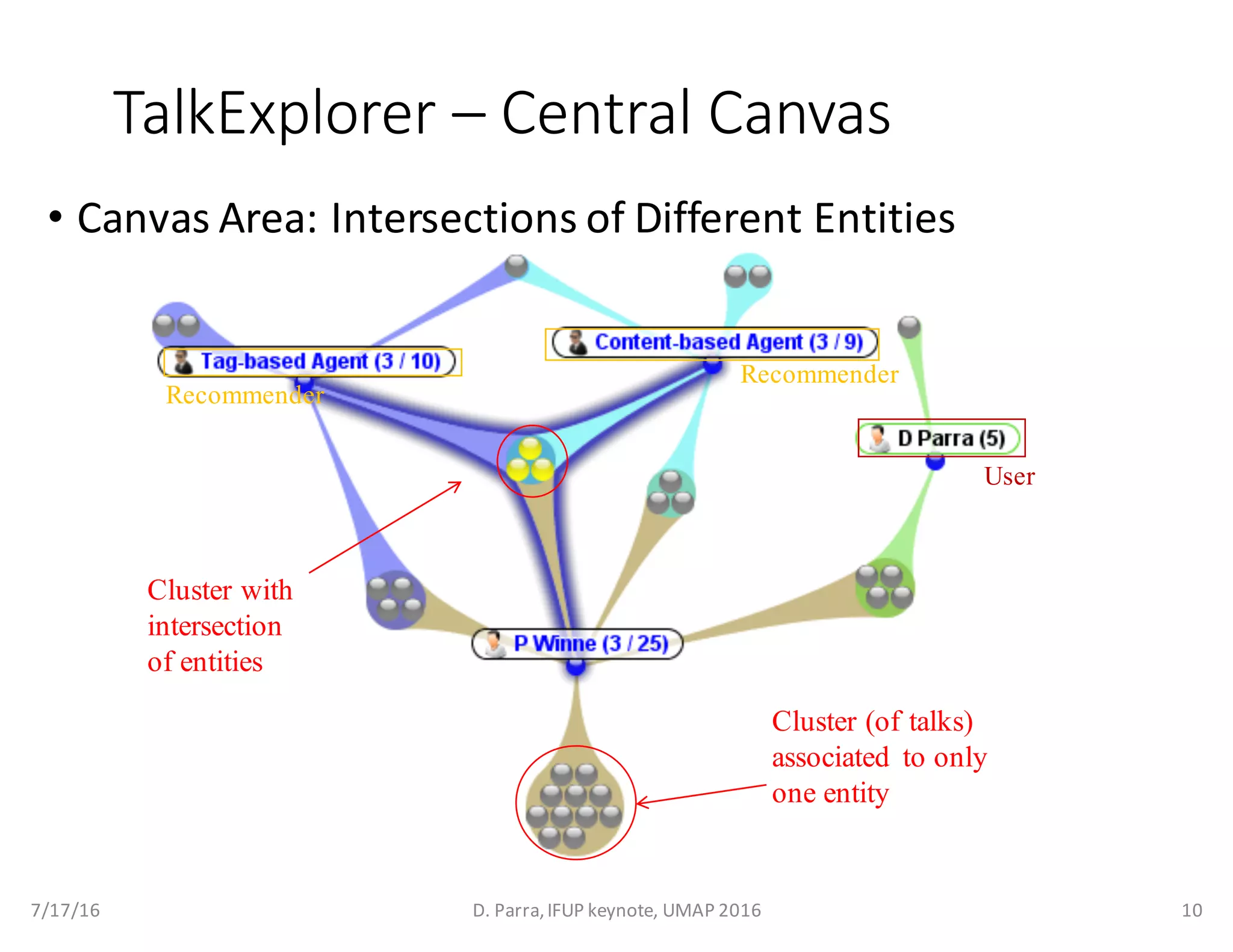

TalkExplorer – Central Canvas
Recommender
Recommender
Cluster with
intersection
of entities
Cluster (of talks)
associated to only
one entity
• Canvas Area: Intersections of Different Entities
User

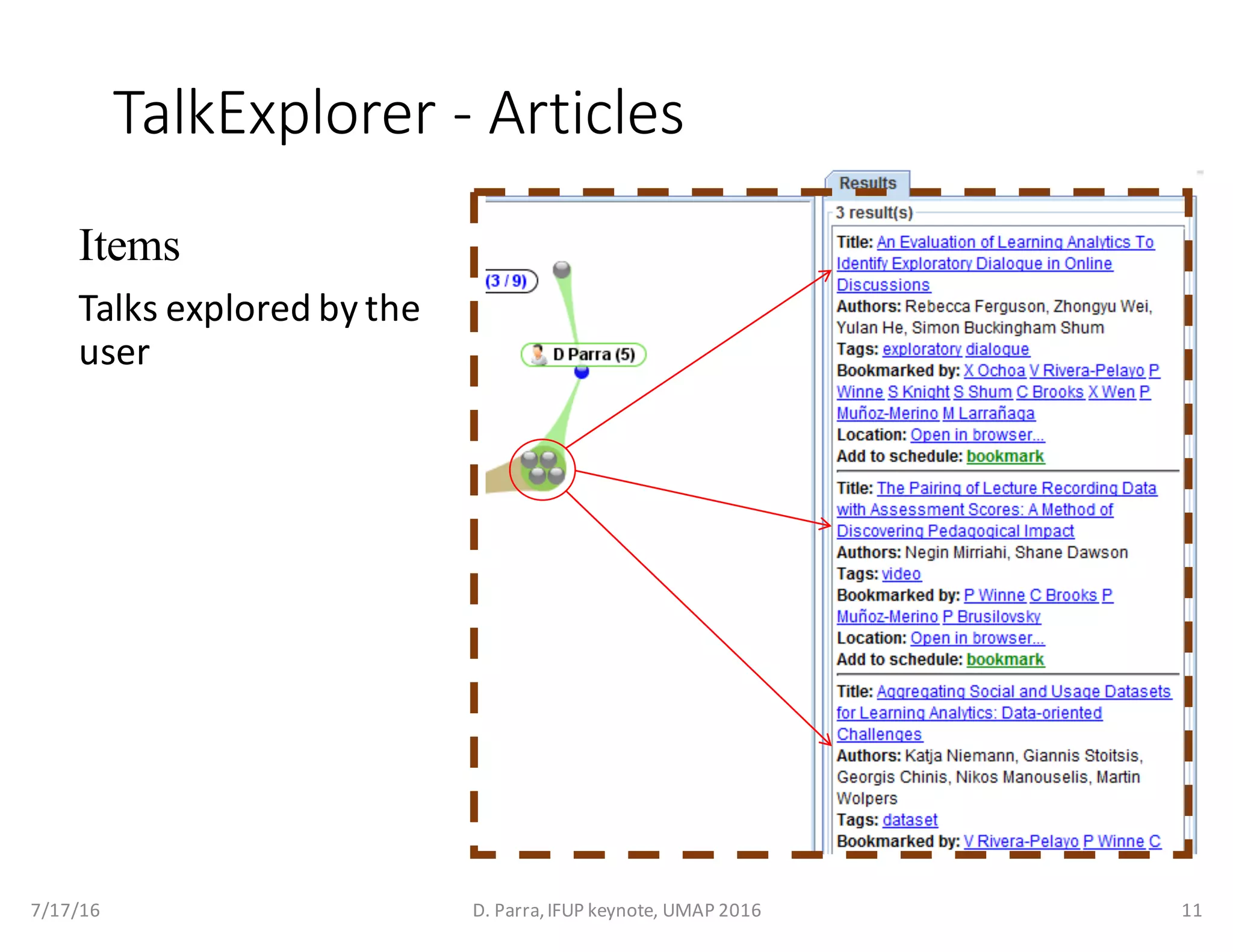

TalkExplorer - Articles
Items
Talks explored by the
user

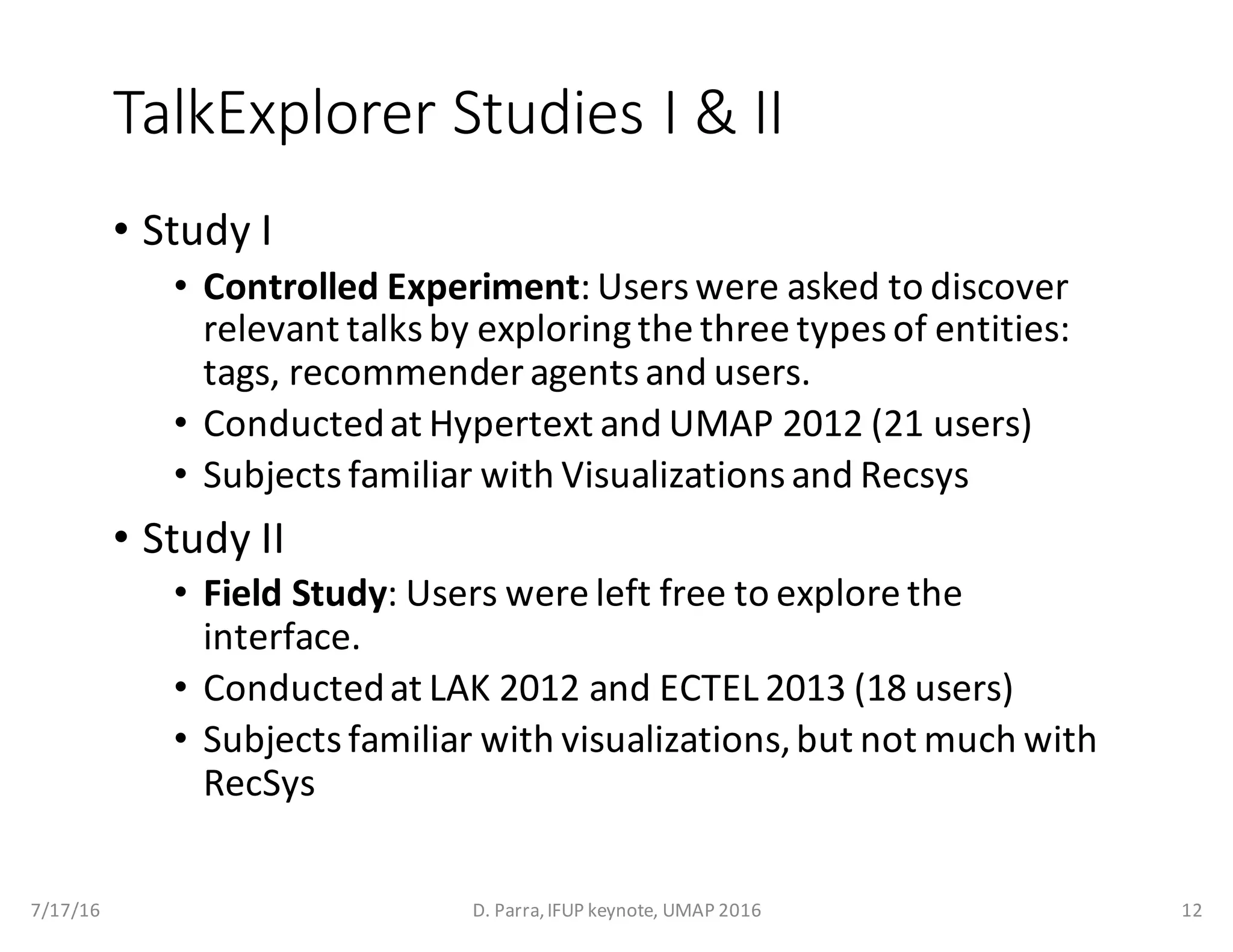

TalkExplorer Studies I & II
• Study I
• Controlled Experiment: Users were asked to discover
relevant talks by exploring the three types of entities:
tags, recommender agents and users.
• Conducted at Hypertext and UMAP 2012 (21 users)
• Subjects familiar with Visualizations and Recsys
• Study II
• Field Study: Users were left free to explore the
interface.
• Conducted at LAK 2012 and ECTEL 2013 (18 users)
• Subjects familiar with visualizations, but not much with
RecSys

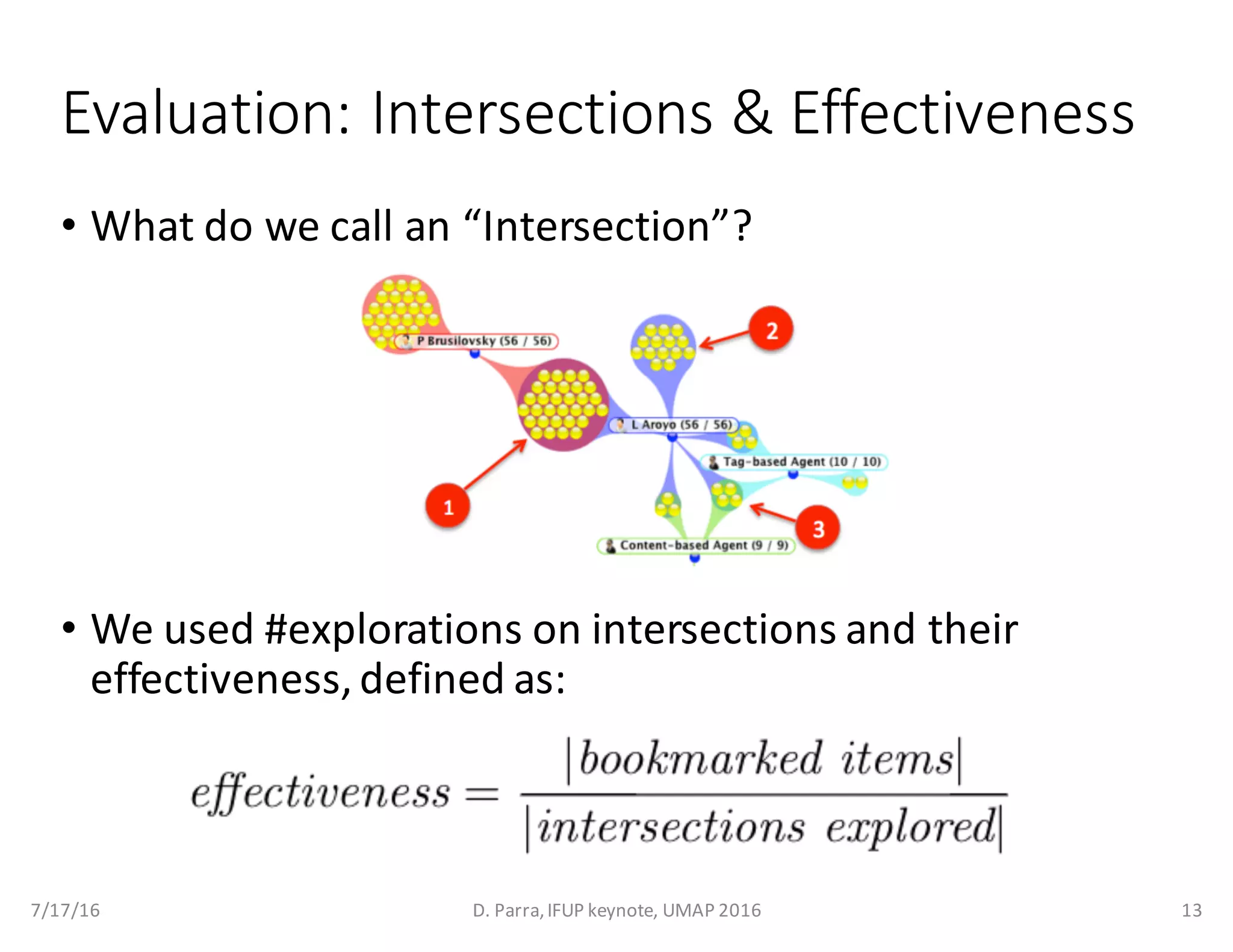

Evaluation: Intersections & Effectiveness
• What do we call an “Intersection”?
• We used #explorations on intersections and their
effectiveness, defined as:

Results of Studies I & II
• Effectiveness increases
with intersections of more
entities
• Effectiveness wasn’t
affected in the field study
(study 2)
• … but exploration
distribution was affected

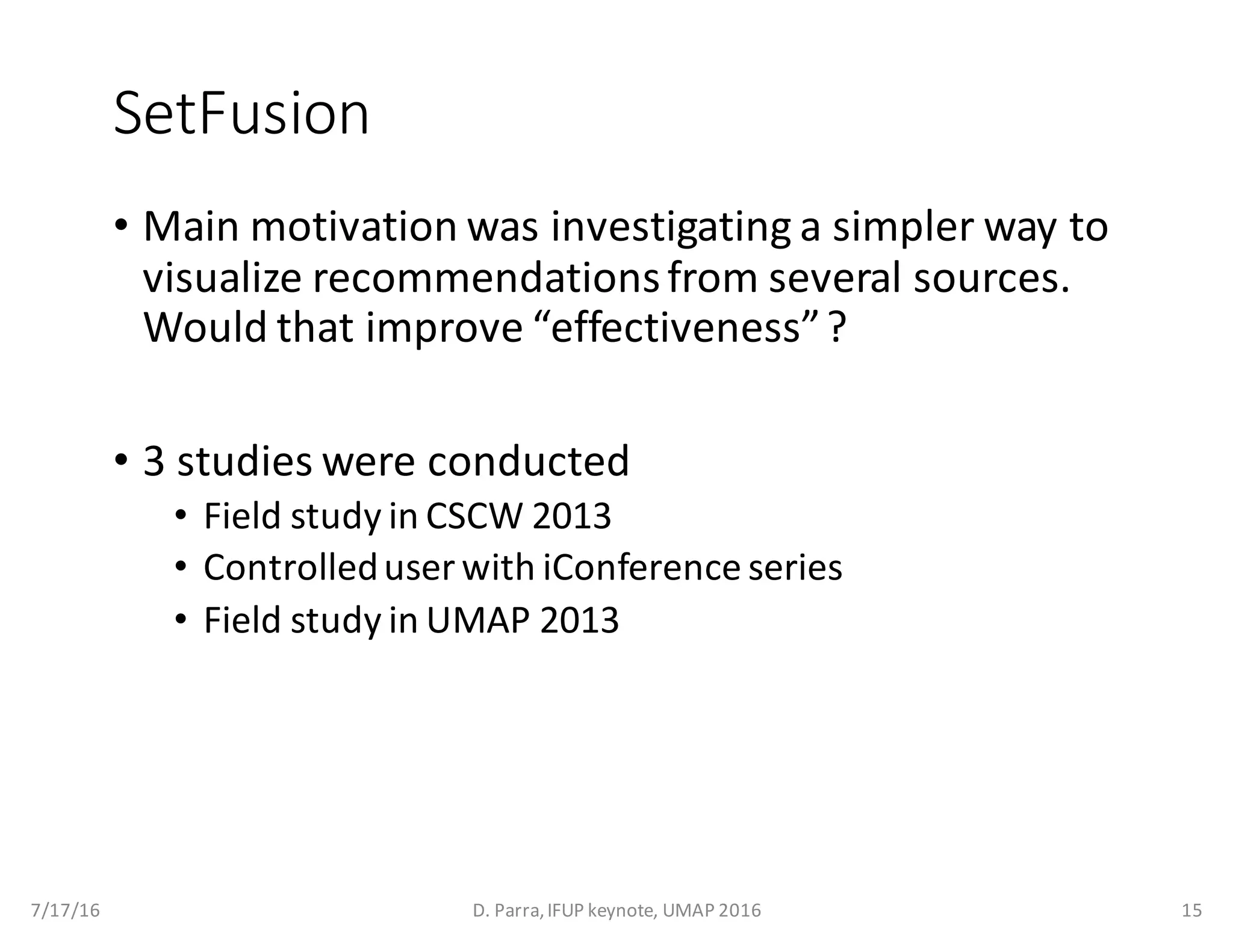

SetFusion
• Main motivation was investigating a simpler way to
visualize recommendations from several sources.
Would that improve “effectiveness” ?
• 3 studies were conducted
• Field study in CSCW 2013
• Controlled user with iConference series
• Field study in UMAP 2013

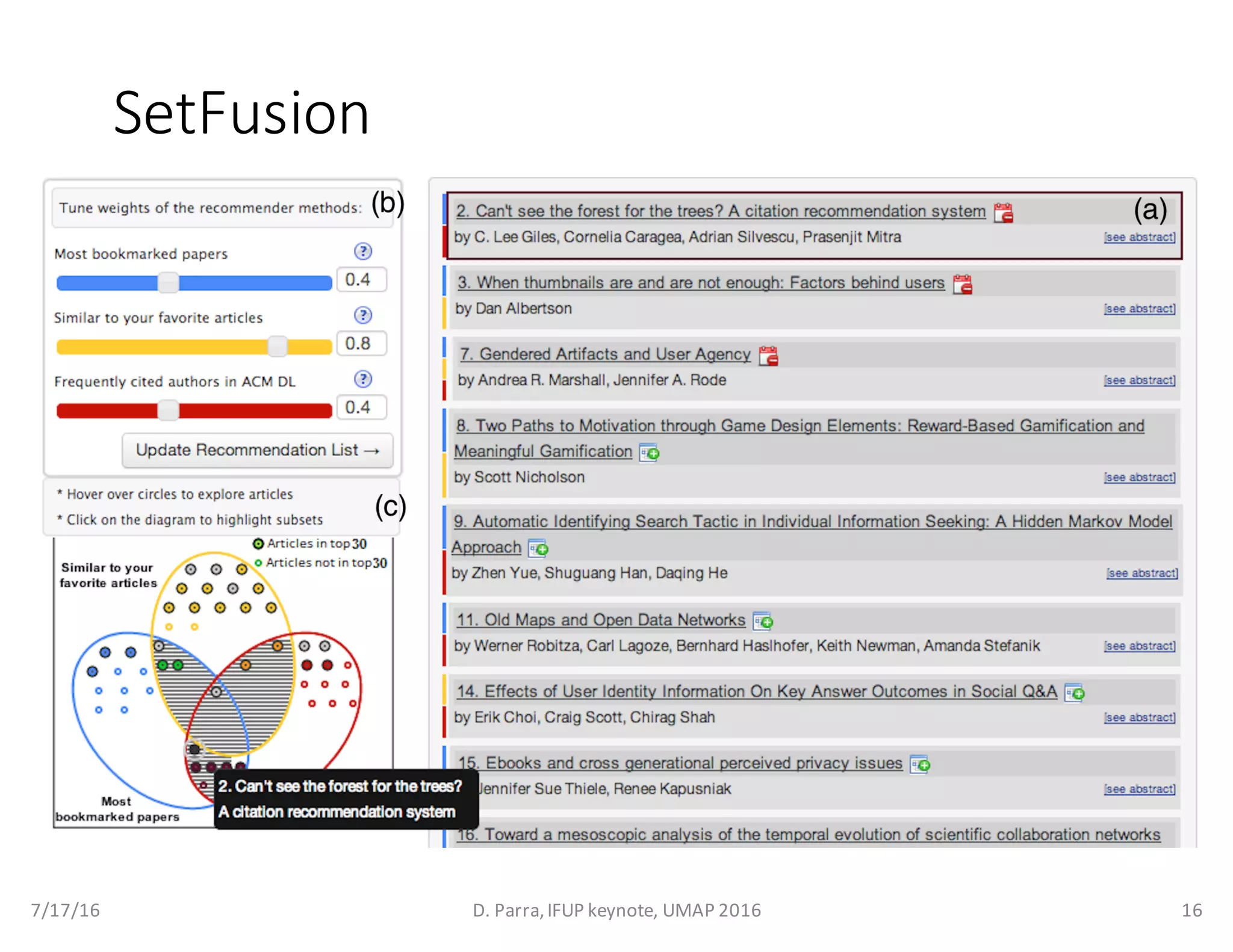

SetFusion

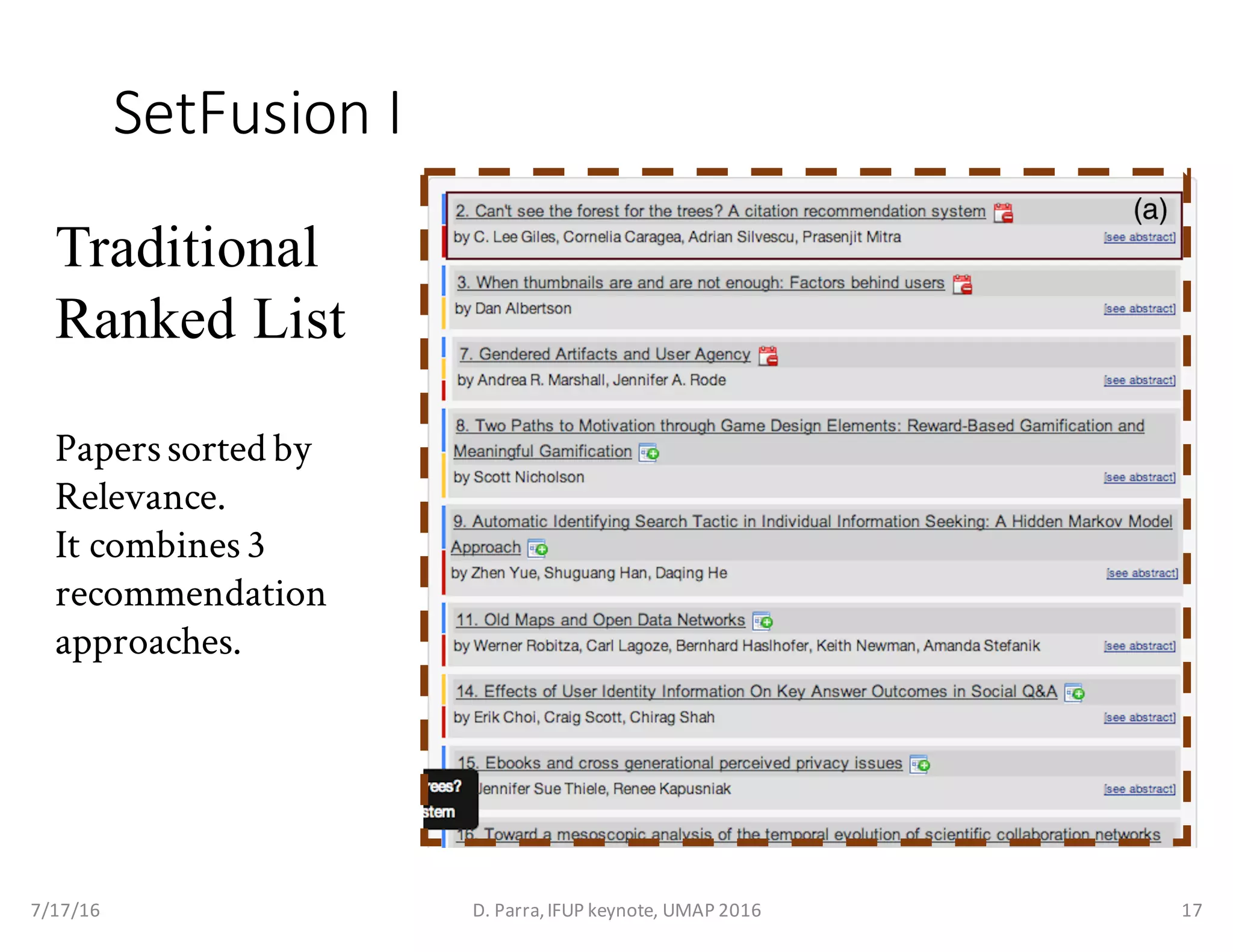

SetFusion I
Traditional
Ranked List
Paperssorted by
Relevance.
It combines3
recommendation
approaches.

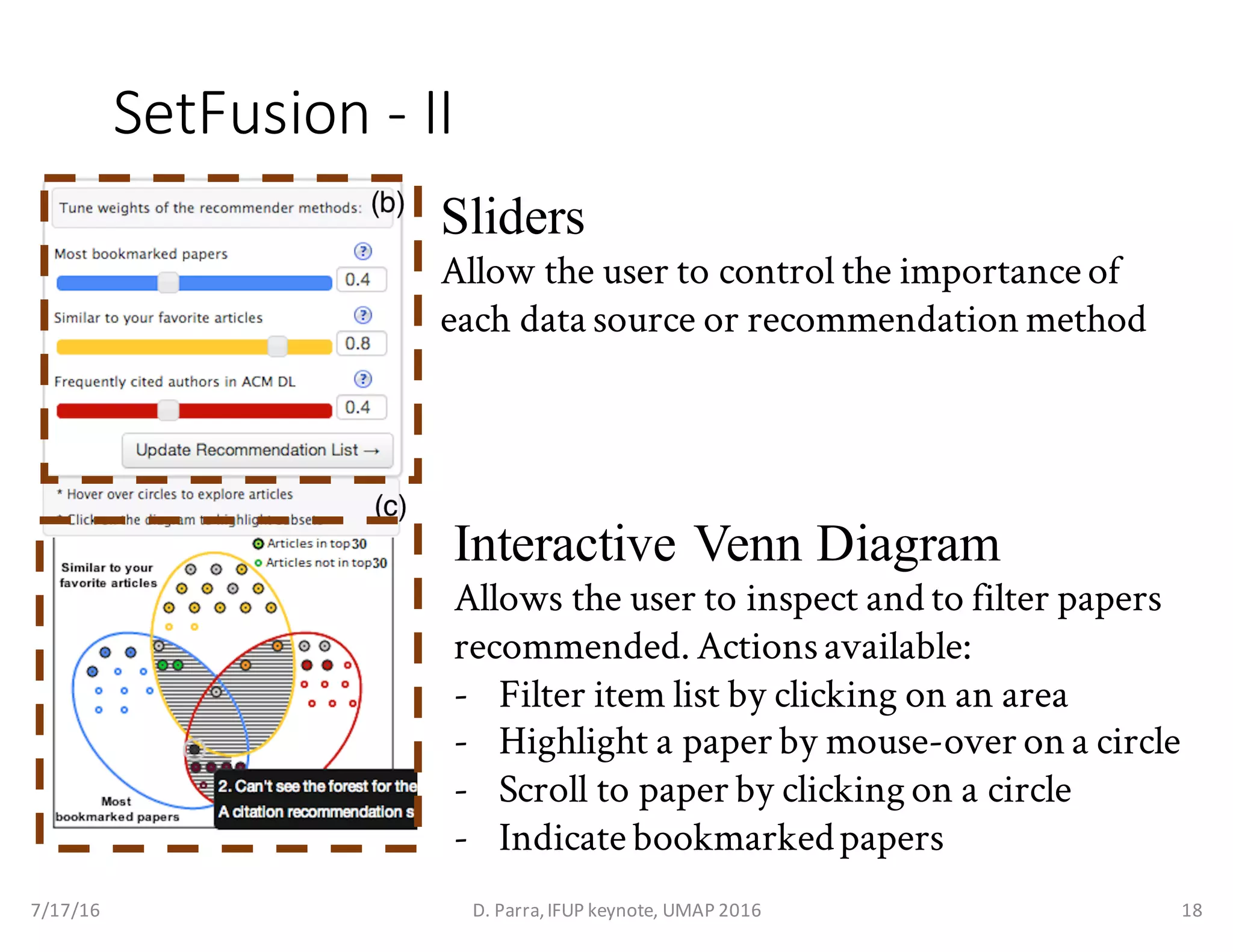

SetFusion - II
Sliders
Allow the user to control the importance of
each data source or recommendation method
Interactive Venn Diagram
Allows the user to inspect and to filter papers
recommended. Actionsavailable:
- Filter item list by clicking on an area
- Highlight a paper by mouse-over on a circle
- Scroll to paper by clicking on a circle
- Indicate bookmarkedpapers

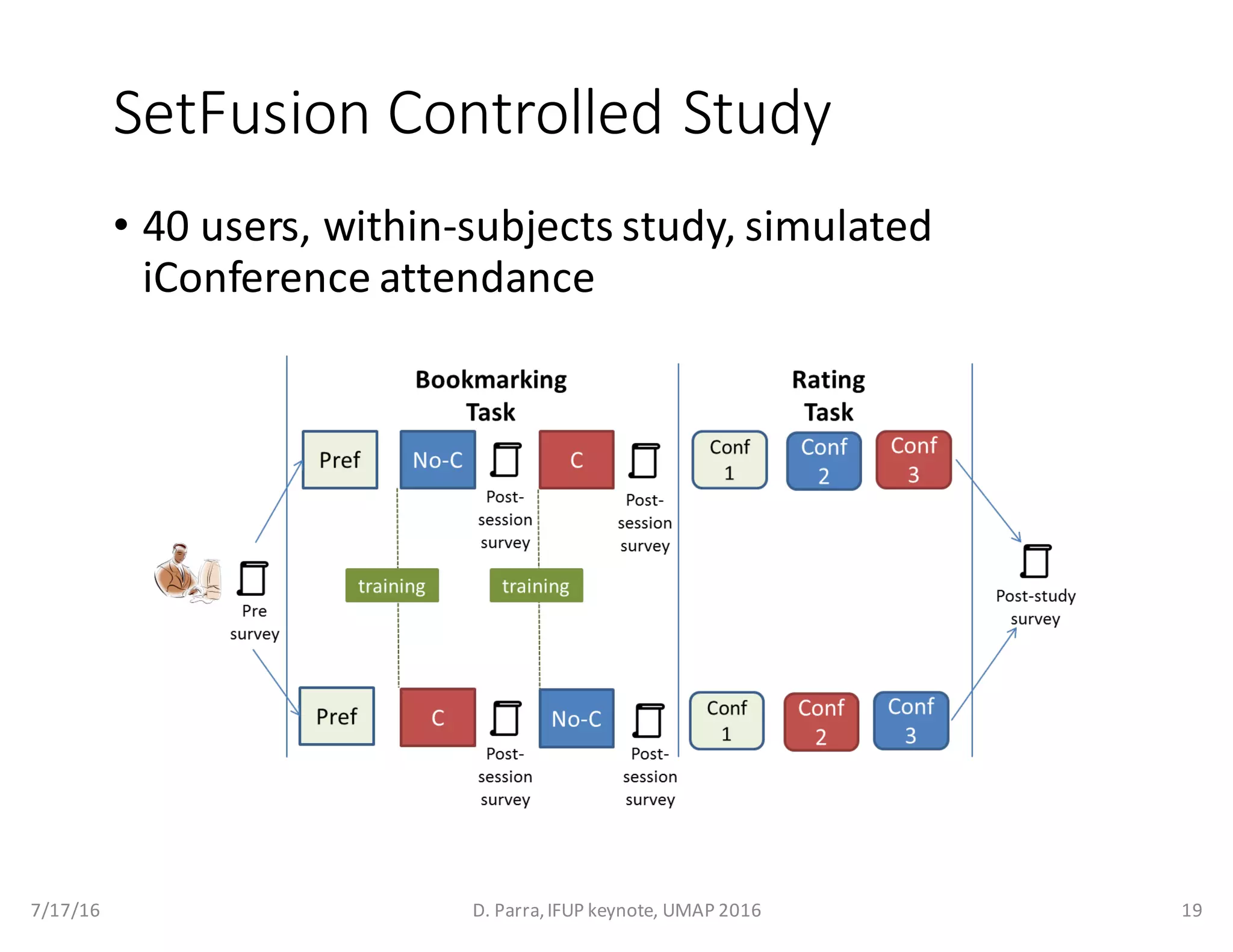

SetFusion Controlled Study
• 40 users, within-subjects study, simulated
iConference attendance

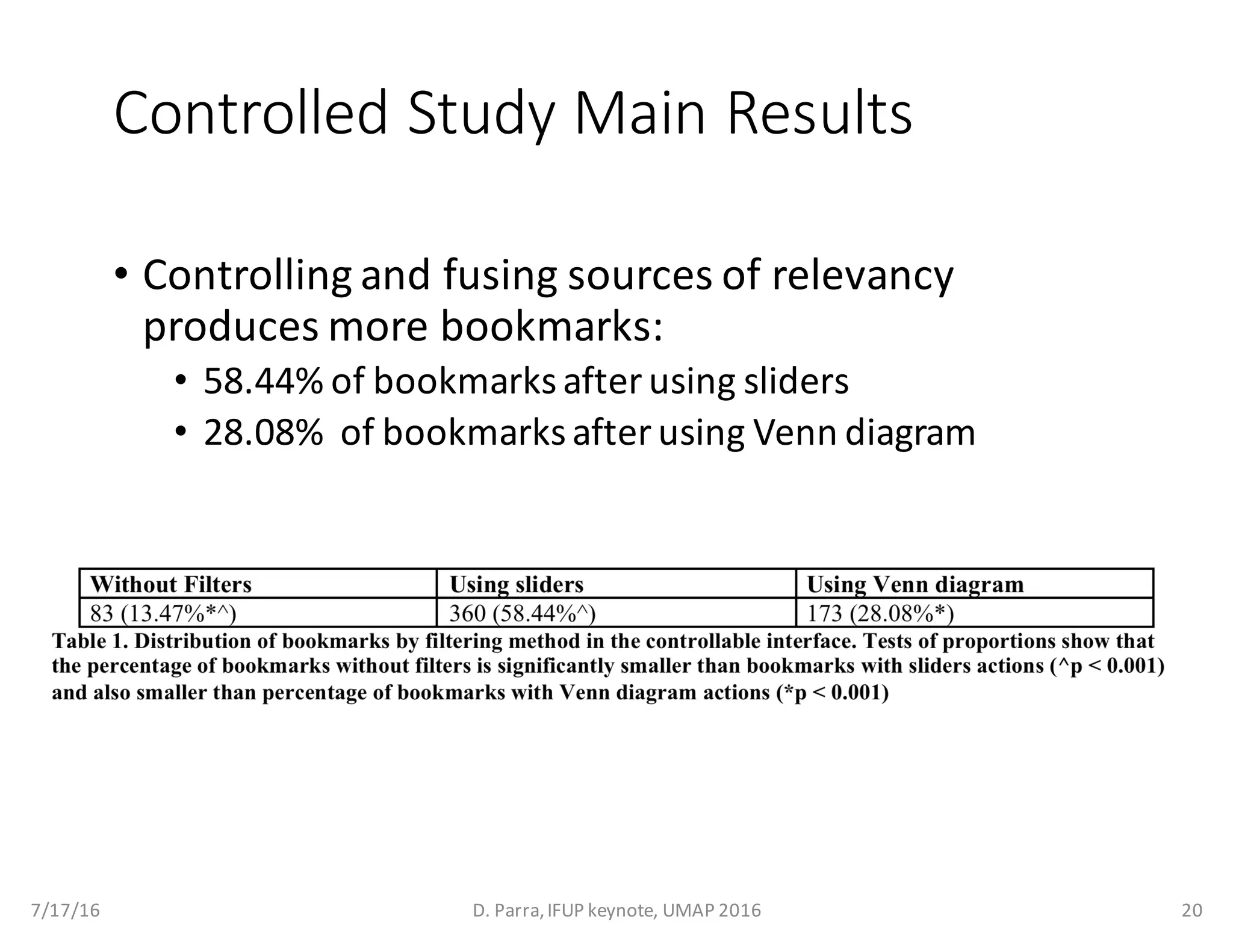

Controlled Study Main Results
• Controlling and fusing sources of relevancy
produces more bookmarks:
• 58.44% of bookmarks after using sliders
• 28.08% of bookmarks after using Venn diagram

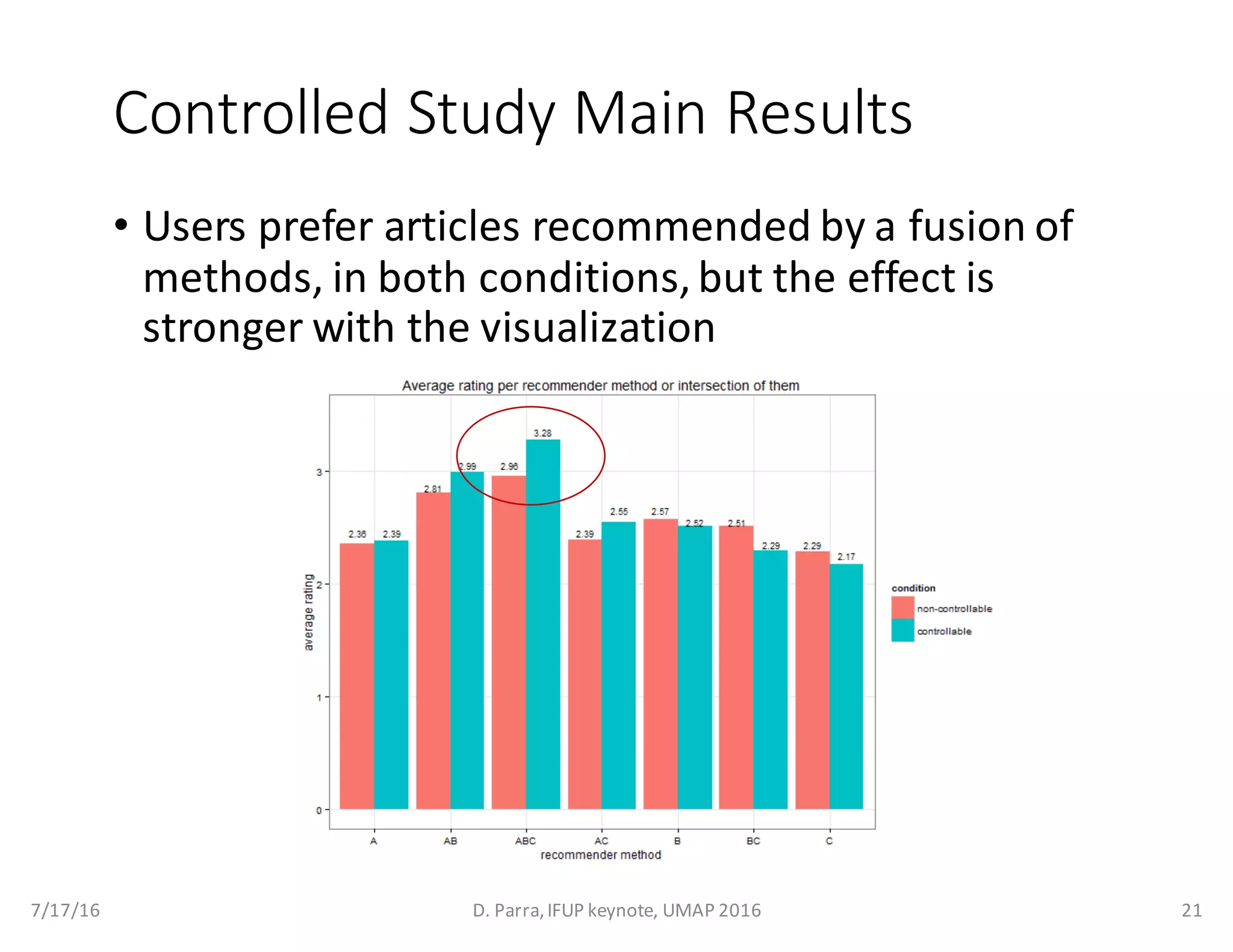

Controlled Study Main Results
• Users prefer articles recommended by a fusion of
methods, in both conditions, but the effect is
stronger with the visualization

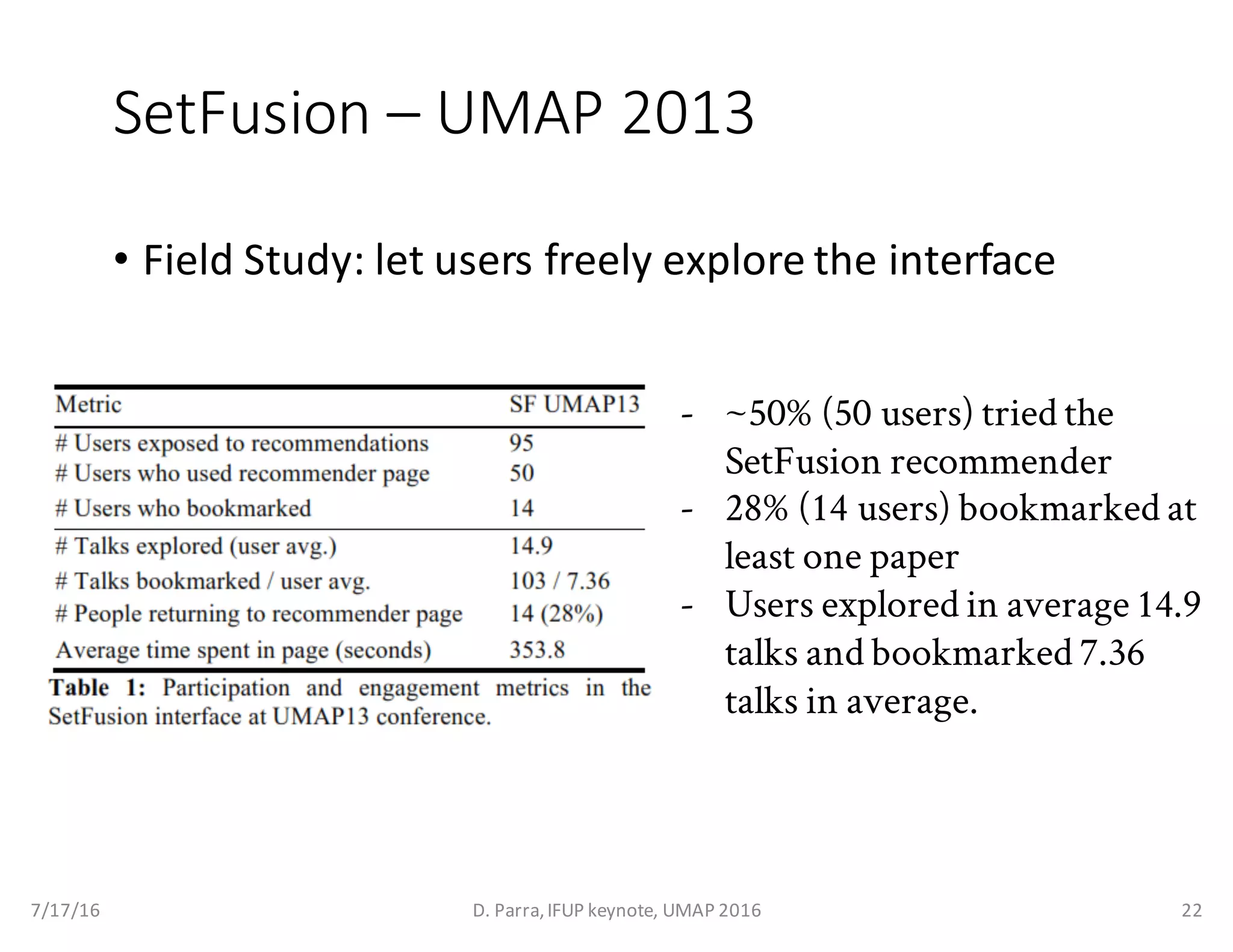

SetFusion – UMAP 2013
• Field Study: let users freely explore the interface
- ~50% (50 users) tried the
SetFusion recommender
- 28% (14 users) bookmarked at
least one paper
- Users explored in average 14.9
talks and bookmarked 7.36
talks in average.

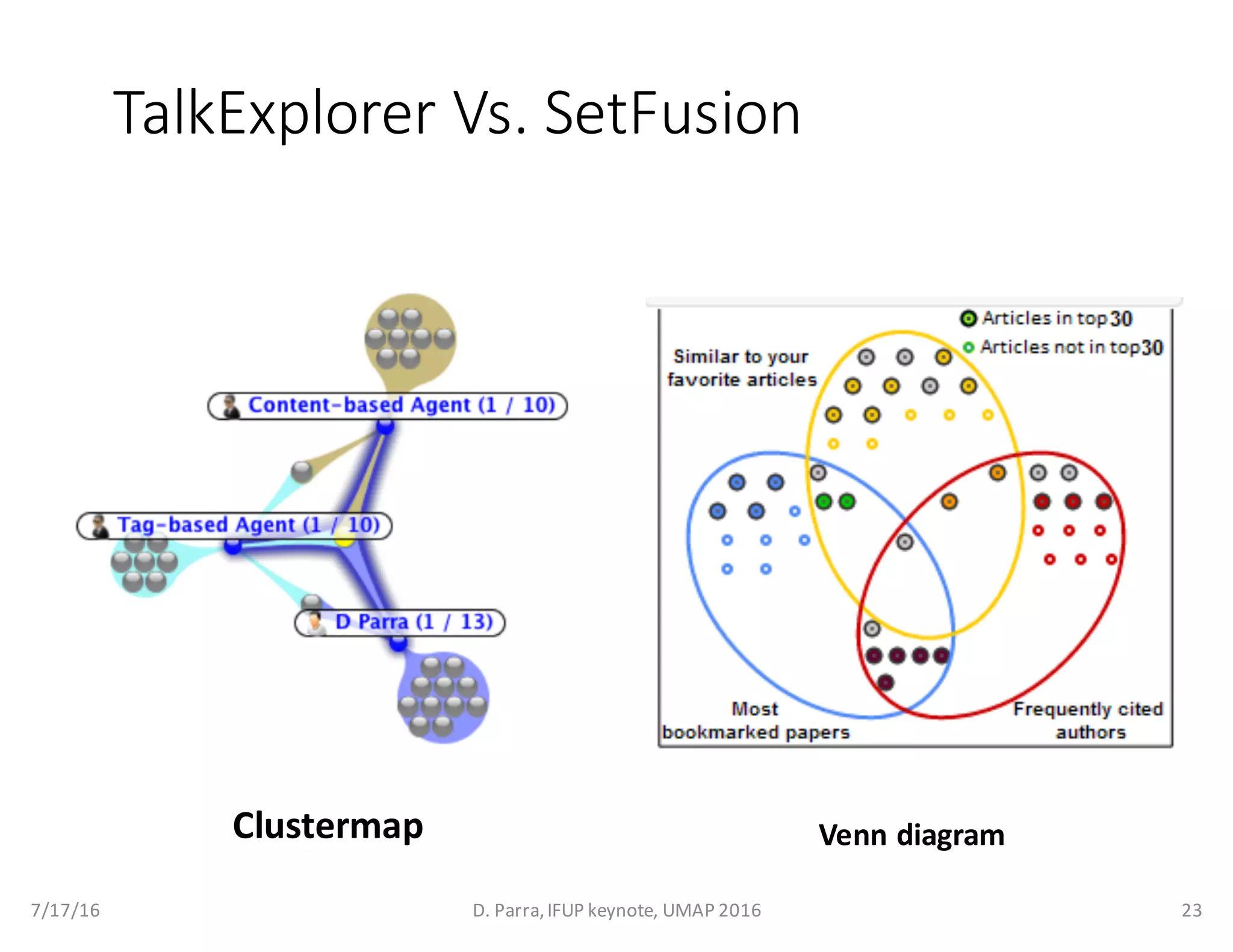

TalkExplorer Vs. SetFusion
Clustermap Venn diagram

TalkExplorer vs. SetFusion
• Comparing distributions of explorations
In studies 1 and 2 over
TalkExplorer we observed an
important change in the
distribution of explorations.

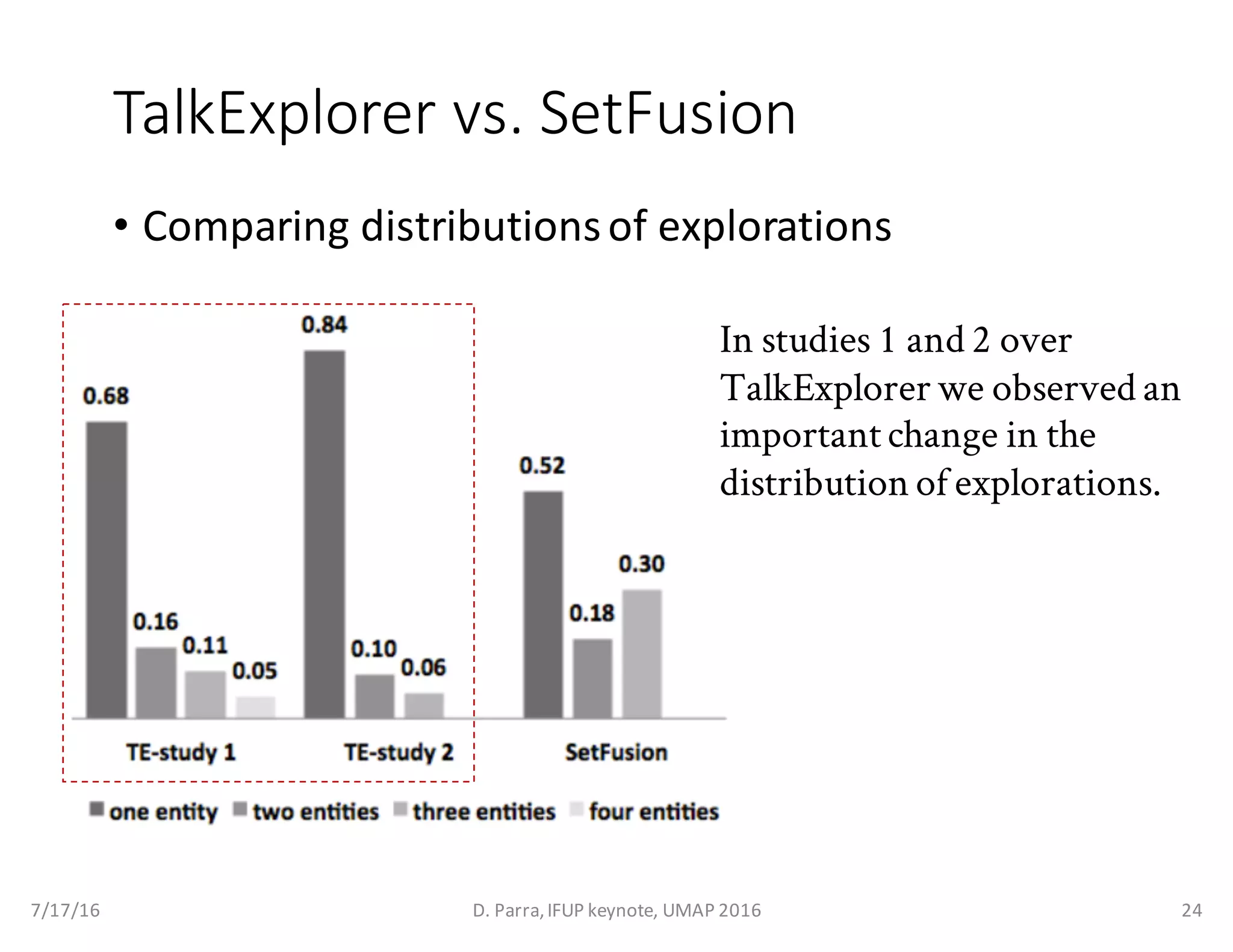

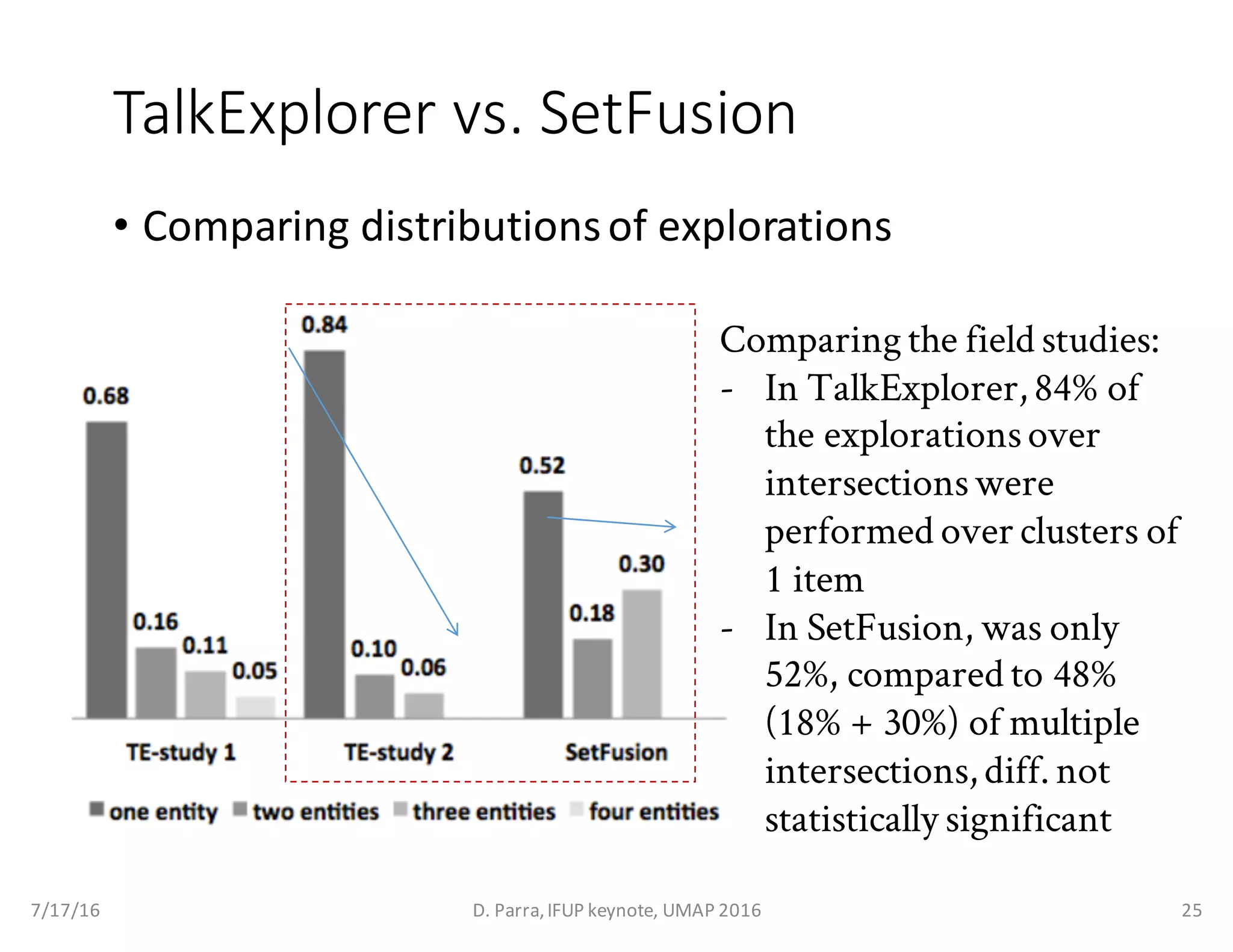

TalkExplorer vs. SetFusion
• Comparing distributions of explorations
Comparing the field studies:
- In TalkExplorer, 84% of
the explorationsover
intersectionswere
performed over clusters of
1 item
- In SetFusion, was only
52%, compared to 48%
(18% + 30%) of multiple
intersections, diff. not
statistically significant

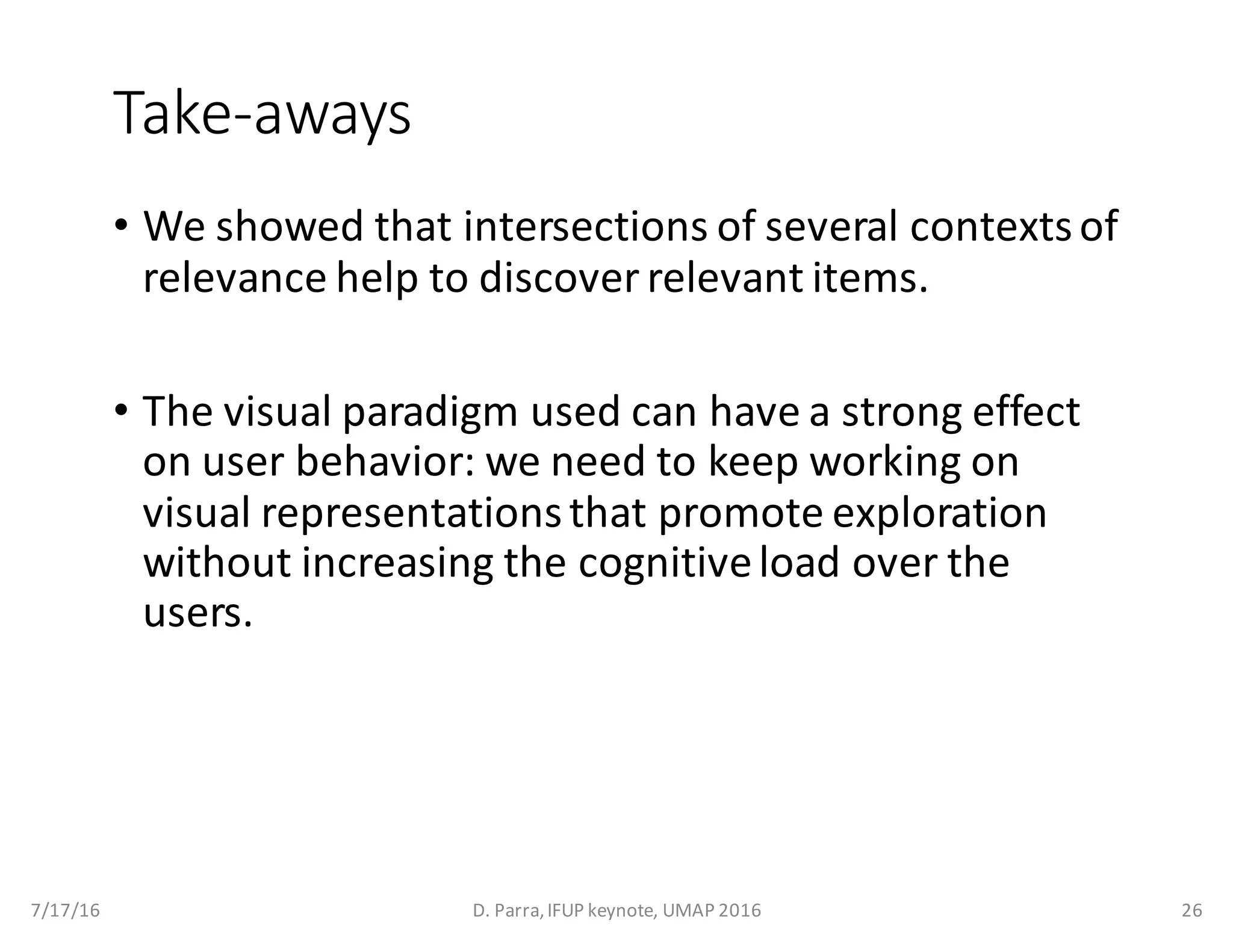

Take-aways
• We showed that intersections of several contexts of
relevance help to discover relevant items.
• The visual paradigm used can have a strong effect
on user behavior: we need to keep working on
visual representations that promote exploration
without increasing the cognitive load over the
users.

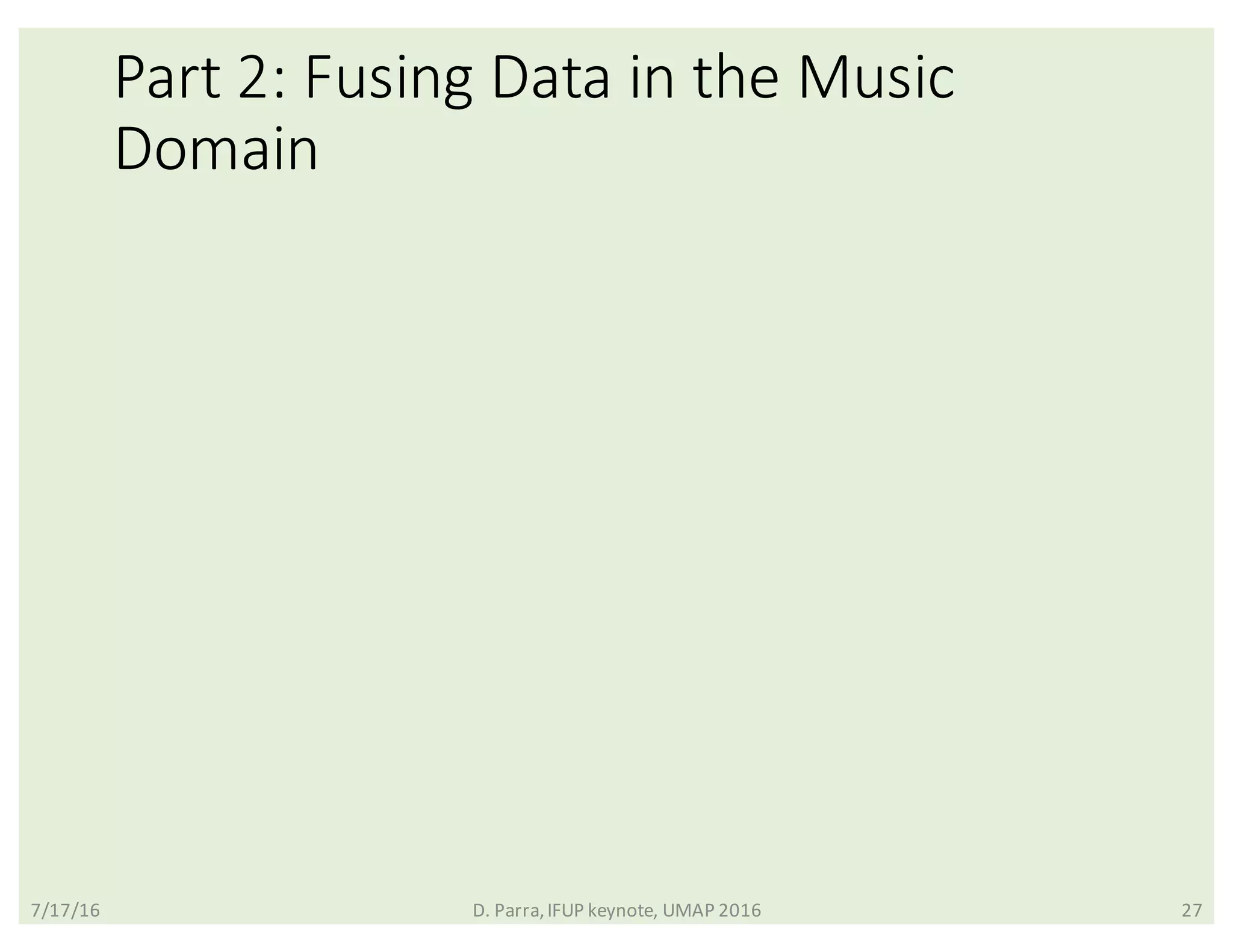

Part 2: Fusing Data in the Music
Domain

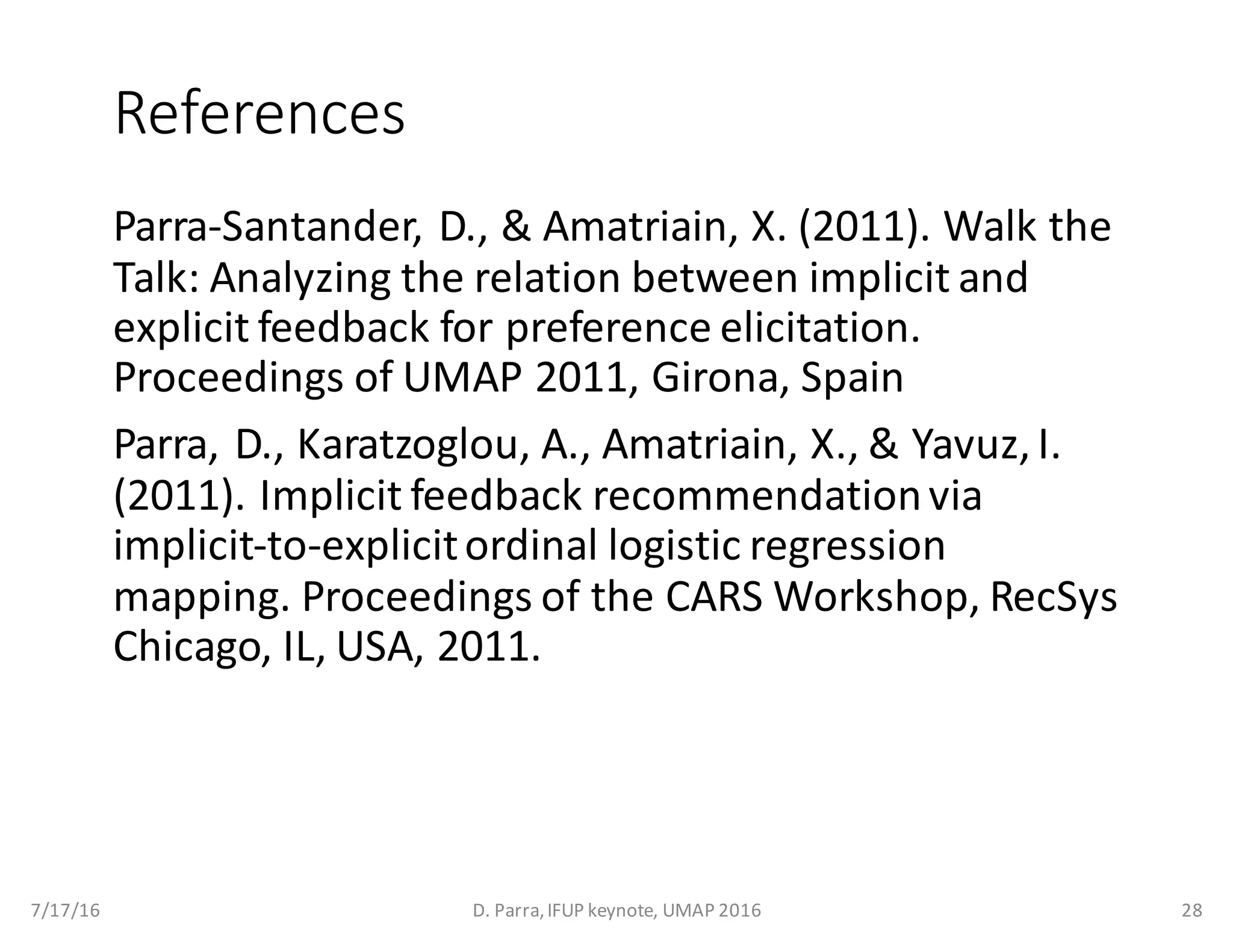

References
Parra-Santander, D., & Amatriain, X. (2011). Walk the
Talk: Analyzing the relation between implicit and
explicit feedback for preference elicitation.
Proceedings of UMAP 2011, Girona, Spain
Parra, D., Karatzoglou, A., Amatriain, X., & Yavuz, I.
(2011). Implicit feedback recommendation via
implicit-to-explicit ordinal logistic regression
mapping. Proceedings of the CARS Workshop, RecSys
Chicago, IL, USA, 2011.

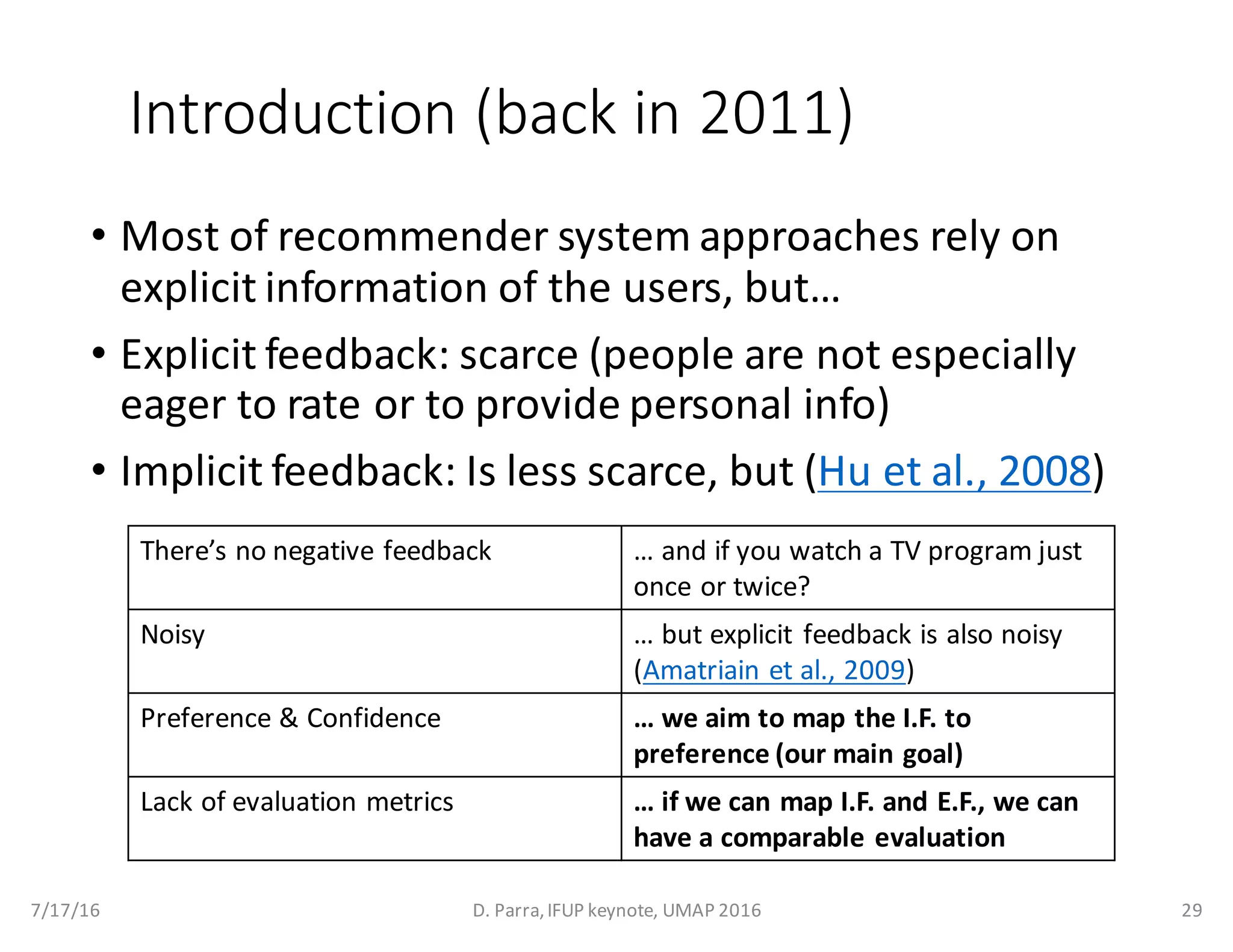

Introduction (back in 2011)
• Most of recommender system approaches rely on
explicit information of the users, but…
• Explicit feedback: scarce (people are not especially
eager to rate or to provide personal info)
• Implicit feedback: Is less scarce, but (Hu et al., 2008)
There’s no negative feedback … and if you watch a TV program just
once or twice?
Noisy … but explicit feedback is also noisy
(Amatriain et al., 2009)
Preference & Confidence … we aim to map the I.F. to
preference (our main goal)
Lack of evaluation metrics … if we can map I.F. and E.F., we can
have a comparable evaluation

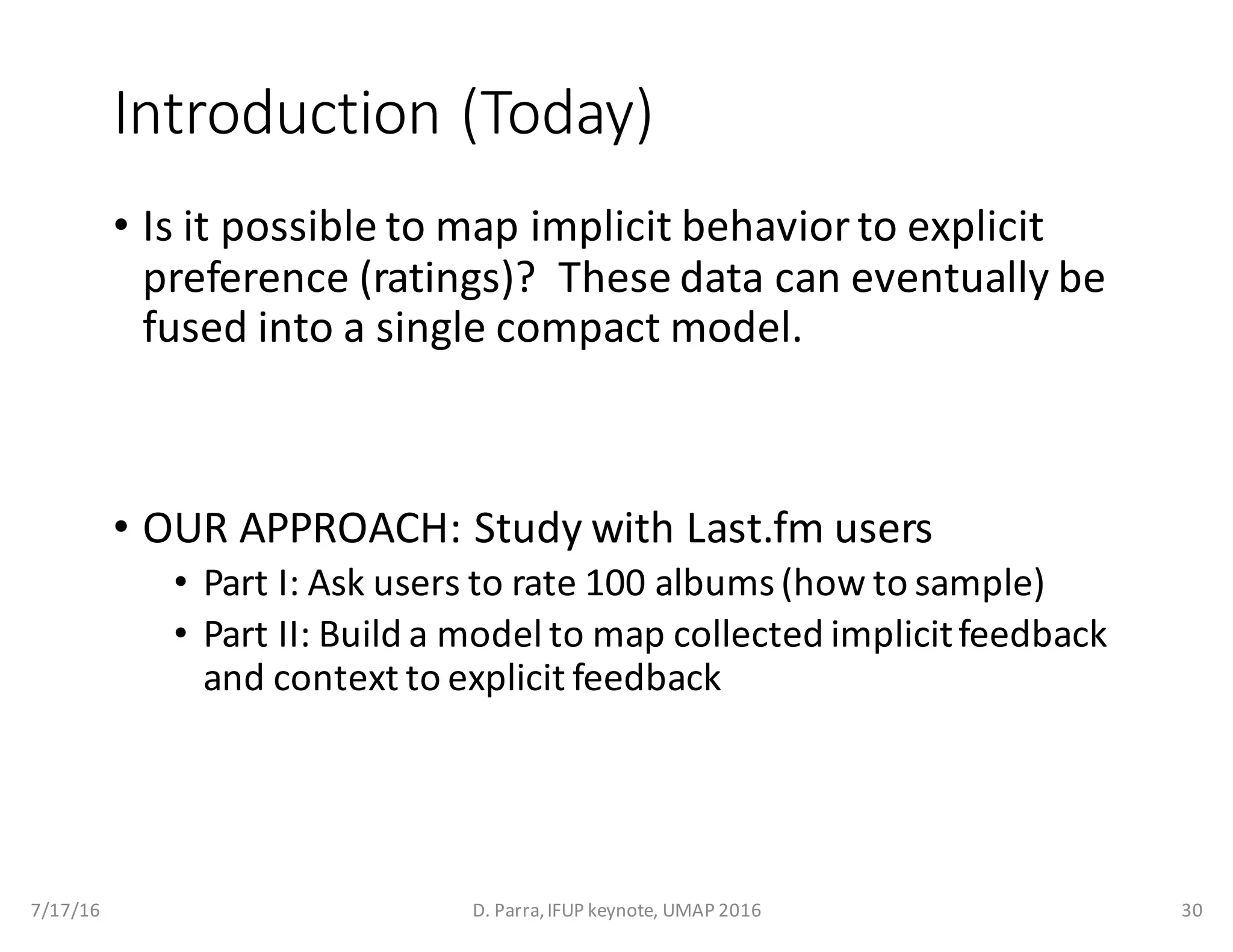

Introduction (Today)
• Is it possible to map implicit behavior to explicit
preference (ratings)? These data can eventually be
fused into a single compact model.
• OUR APPROACH: Study with Last.fm users
• Part I: Ask users to rate 100 albums (how to sample)
• Part II: Build a model to map collected implicit feedback
and context to explicit feedback

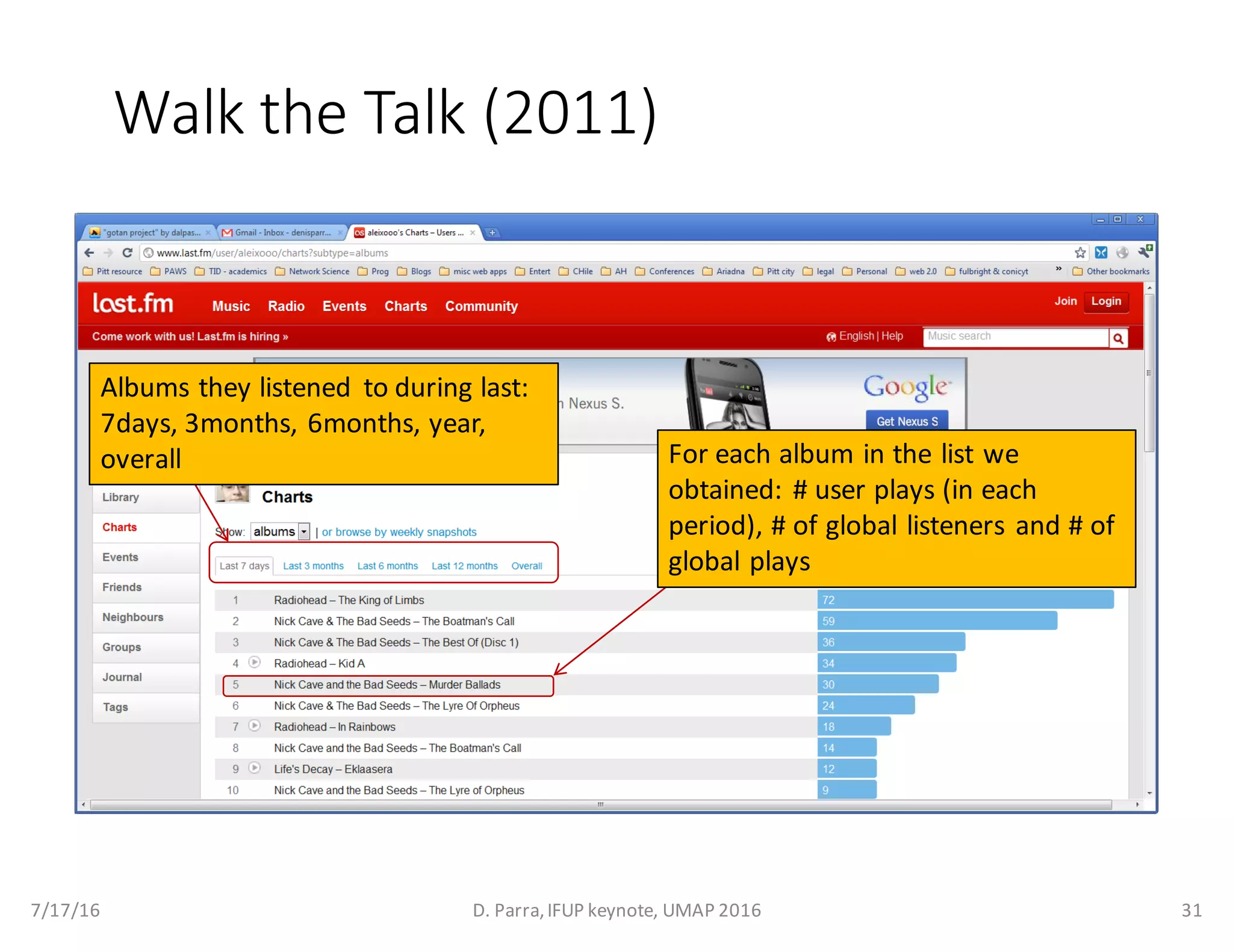

Walk the Talk (2011)
Albums they listened to during last:
7days, 3months, 6months, year,
overall For each album in the list we
obtained: # user plays (in each
period), # of global listeners and # of
global plays

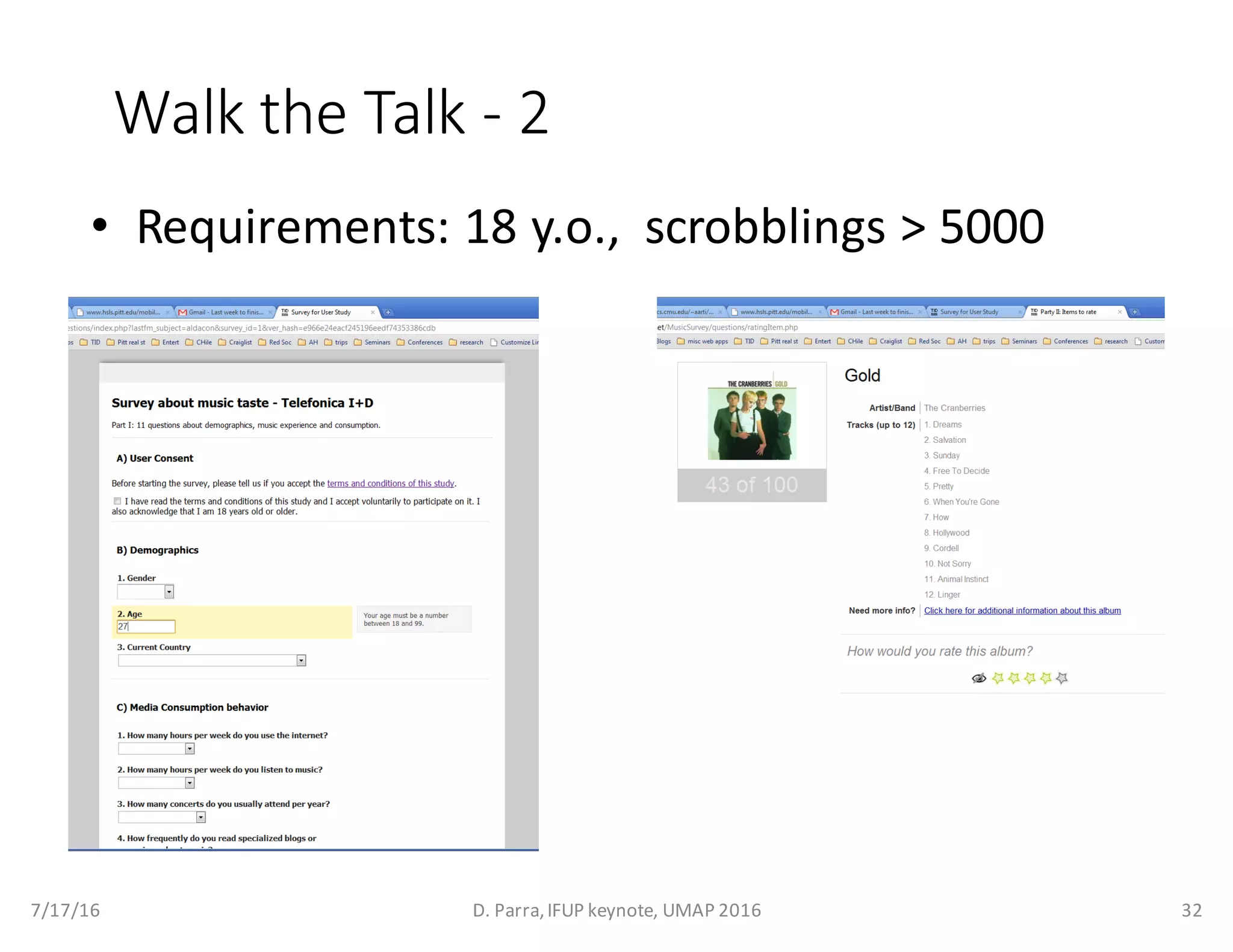

Walk the Talk - 2
• Requirements: 18 y.o., scrobblings > 5000

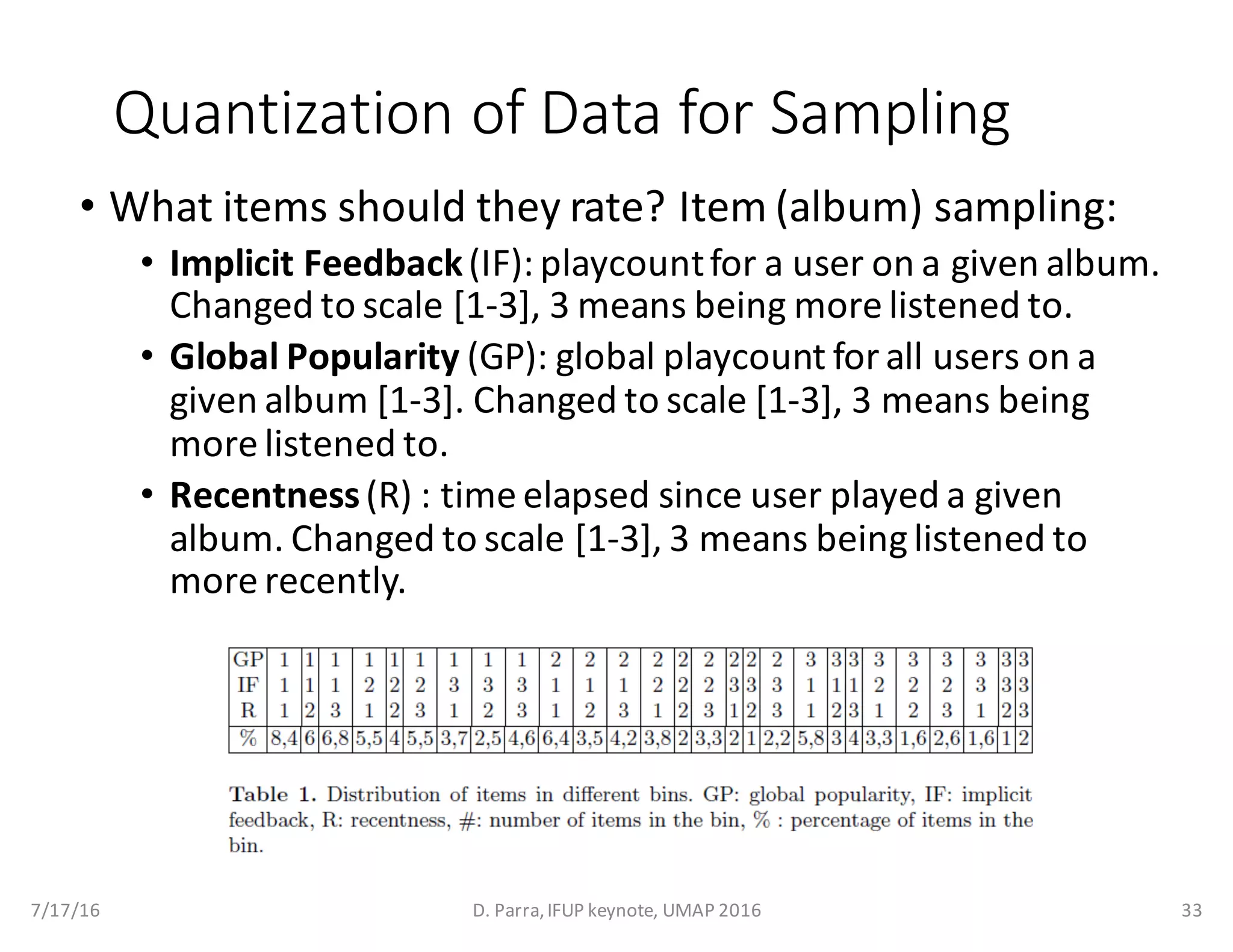

Quantization of Data for Sampling
• What items should they rate? Item (album) sampling:
• Implicit Feedback (IF): playcountfor a user on a given album.
Changed to scale [1-3], 3 means being more listened to.
• Global Popularity (GP): global playcount for all users on a
given album [1-3]. Changed to scale [1-3], 3 means being
more listened to.
• Recentness(R) : time elapsed since user played a given
album. Changed to scale [1-3], 3 means being listened to
more recently.

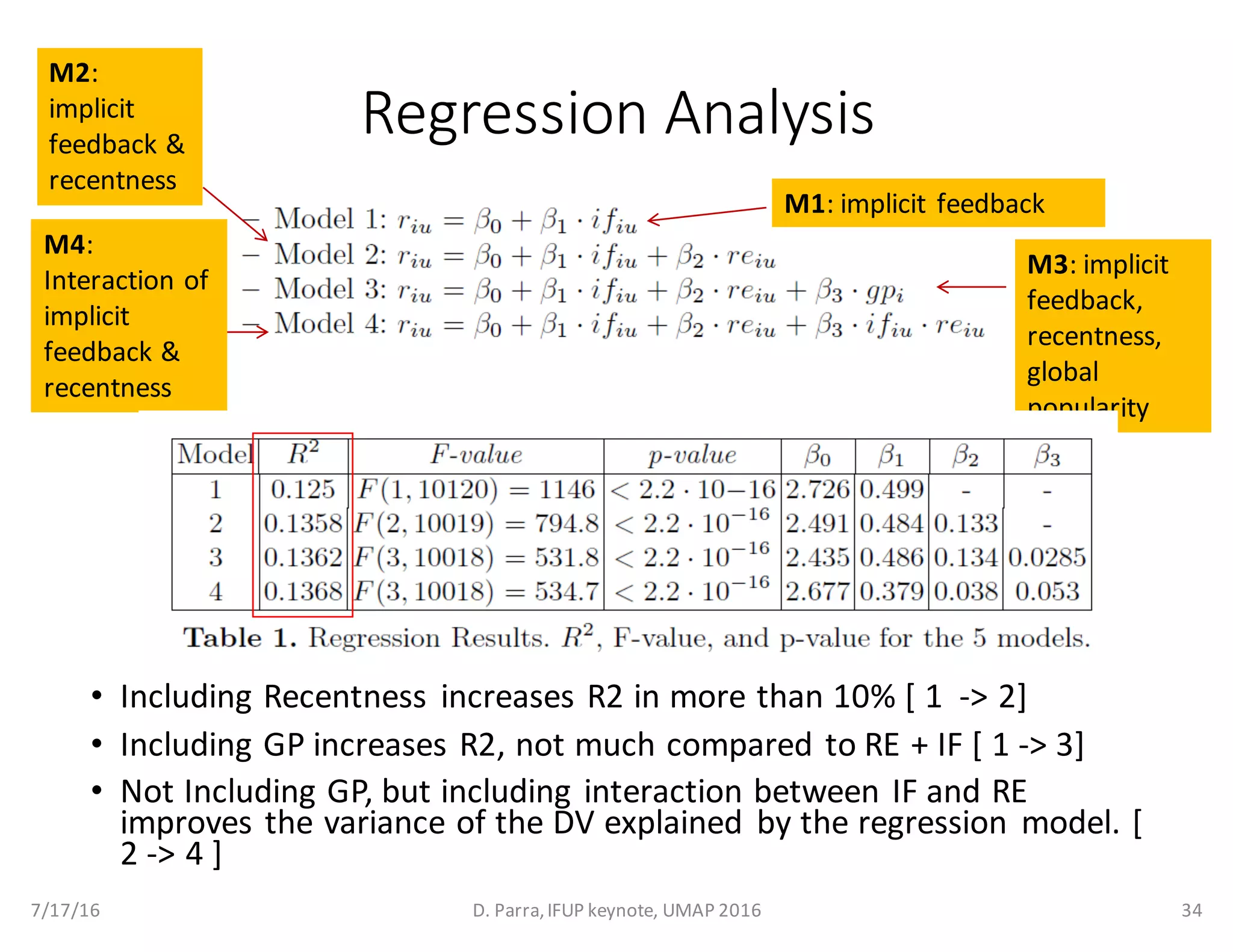

Regression Analysis
• Including Recentness increases R2 in more than 10% [ 1 -> 2]
• Including GP increases R2, not much compared to RE + IF [ 1 -> 3]
• Not Including GP, but including interaction between IF and RE
improves the variance of the DV explained by the regression model. [
2 -> 4 ]
M1: implicit feedback
M2:
implicit
feedback &
recentness
M4:
Interaction of
implicit
feedback &
recentness
M3: implicit
feedback,
recentness,
global
popularity

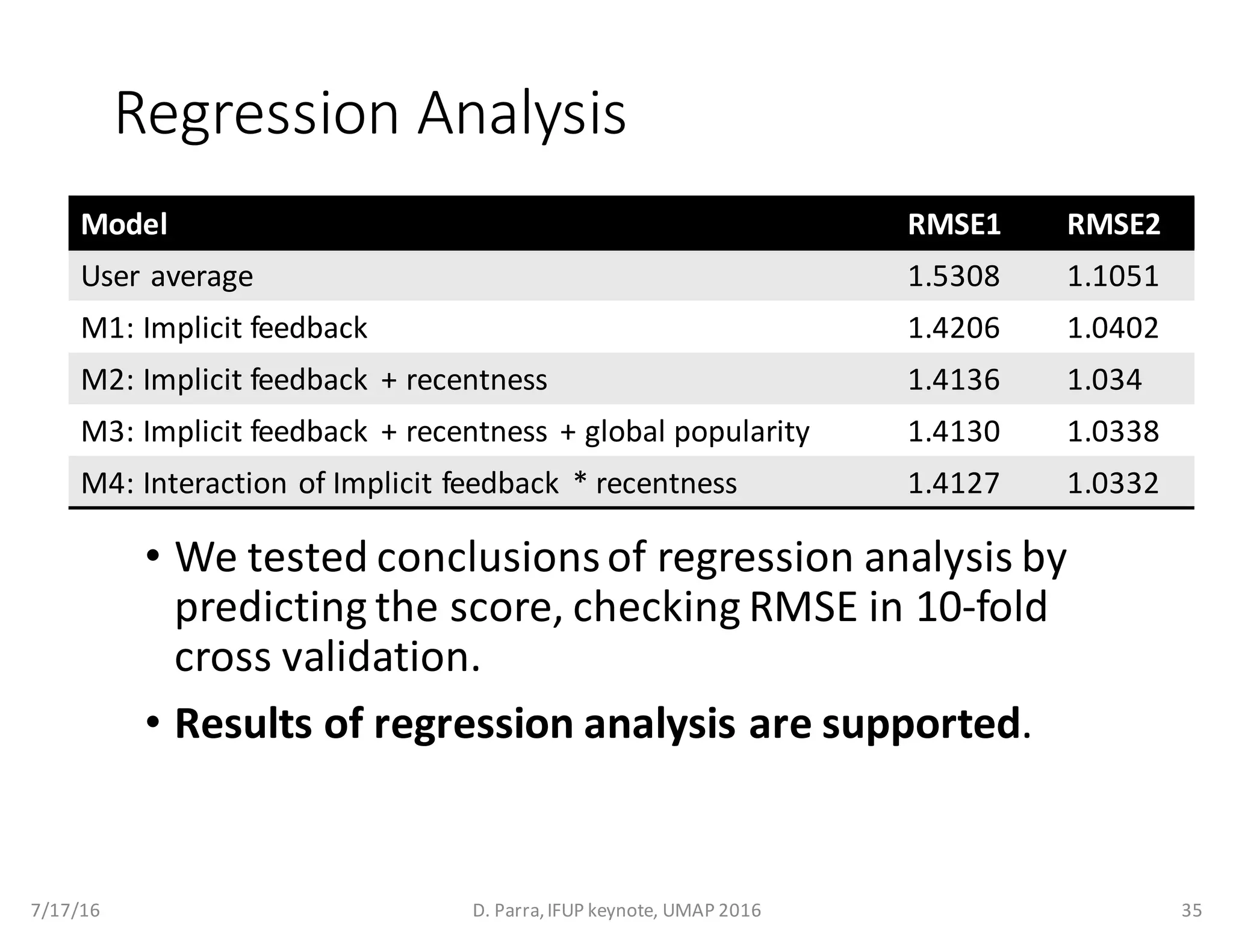

Regression Analysis
• We tested conclusions of regression analysis by
predicting the score, checking RMSE in 10-fold
cross validation.
• Results of regression analysis are supported.
Model RMSE1 RMSE2
User average 1.5308 1.1051
M1: Implicit feedback 1.4206 1.0402
M2: Implicit feedback + recentness 1.4136 1.034
M3: Implicit feedback + recentness + global popularity 1.4130 1.0338
M4: Interaction of Implicit feedback * recentness 1.4127 1.0332

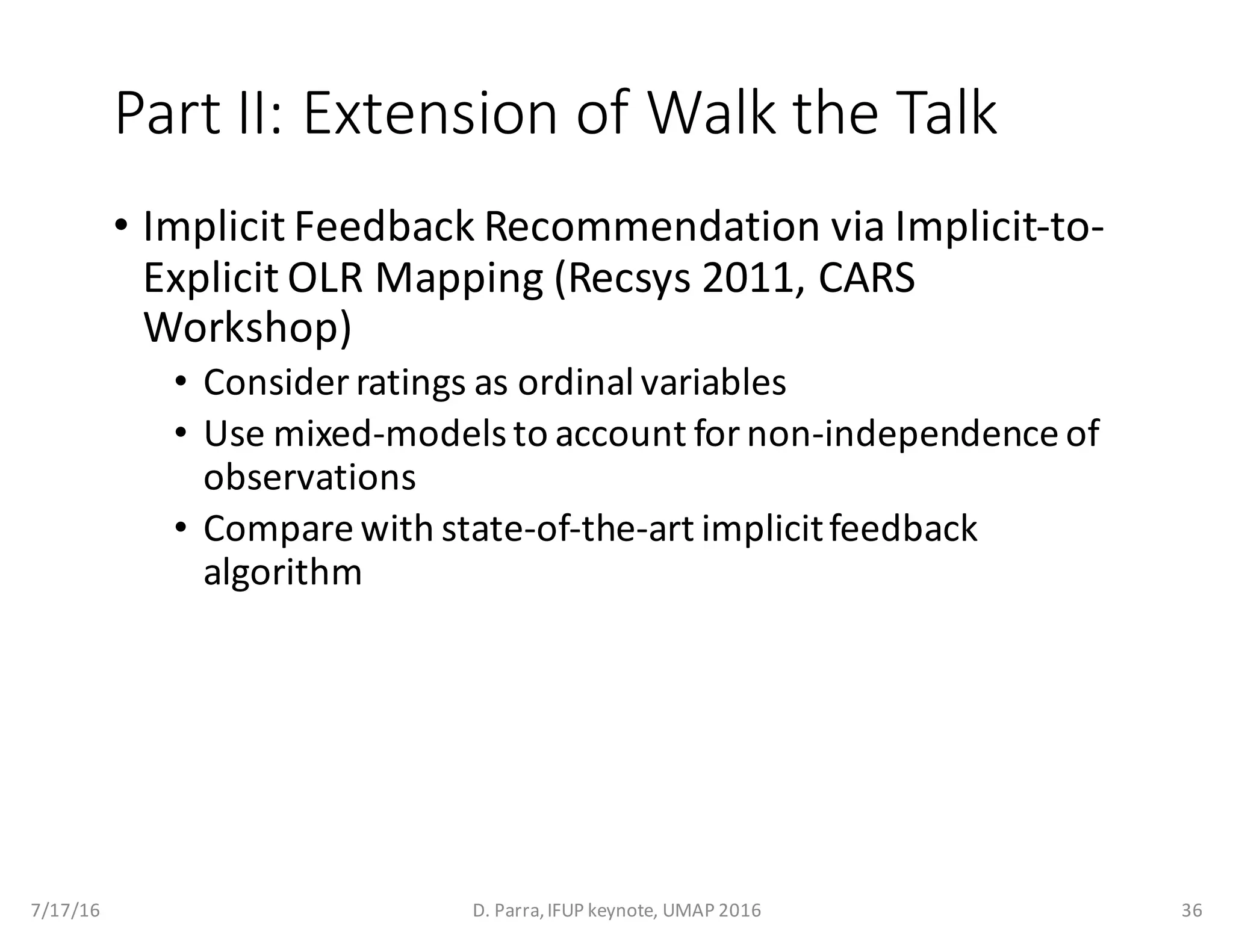

Part II: Extension of Walk the Talk
• Implicit Feedback Recommendation via Implicit-to-
Explicit OLR Mapping (Recsys 2011, CARS
Workshop)
• Consider ratings as ordinal variables
• Use mixed-models to account for non-independence of
observations
• Compare with state-of-the-art implicit feedback
algorithm

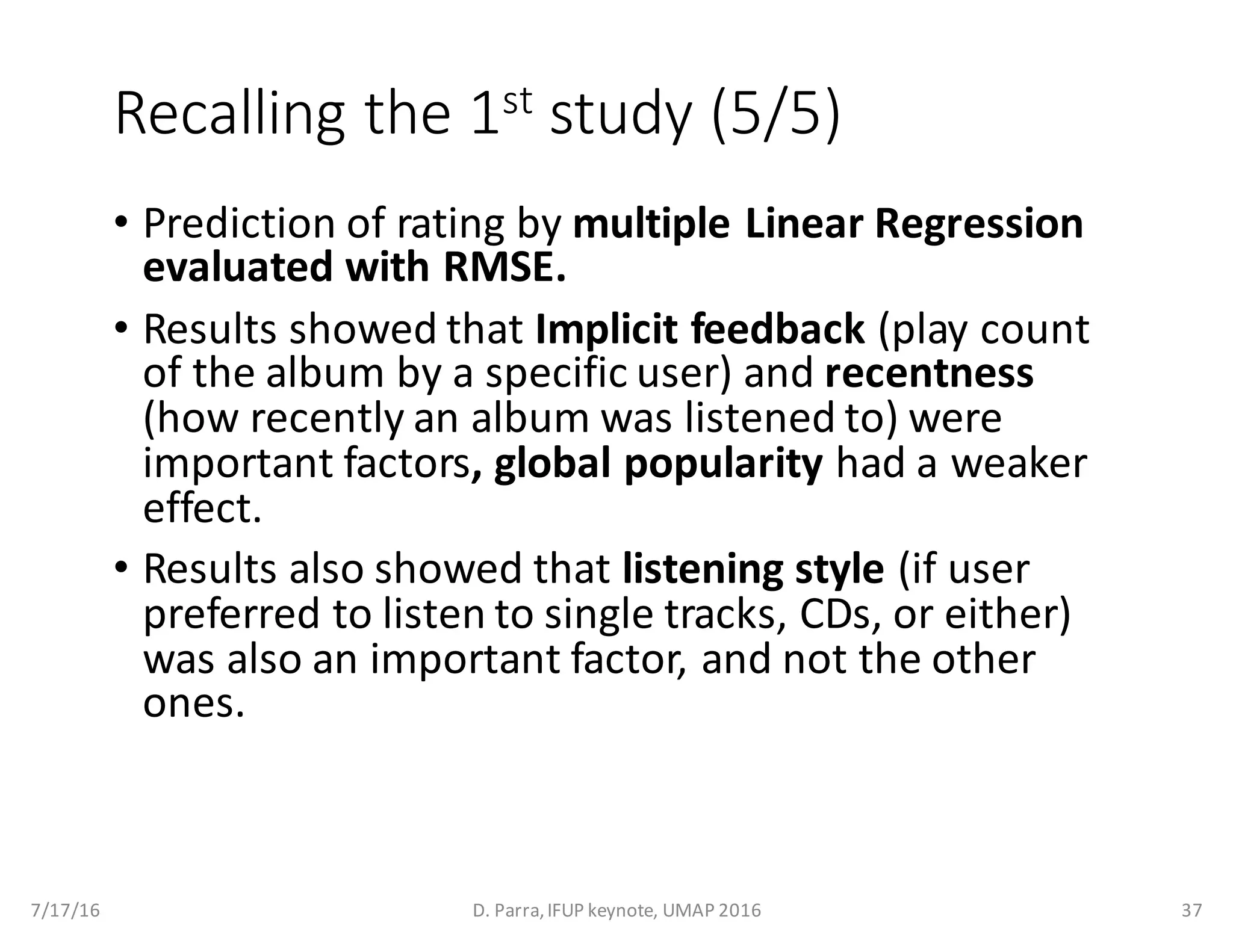

Recalling the 1st study (5/5)
• Prediction of rating by multiple Linear Regression
evaluated with RMSE.
• Results showed that Implicit feedback (play count
of the album by a specific user) and recentness
(how recently an album was listened to) were
important factors, global popularity had a weaker
effect.
• Results also showed that listening style (if user
preferred to listen to single tracks, CDs, or either)
was also an important factor, and not the other
ones.

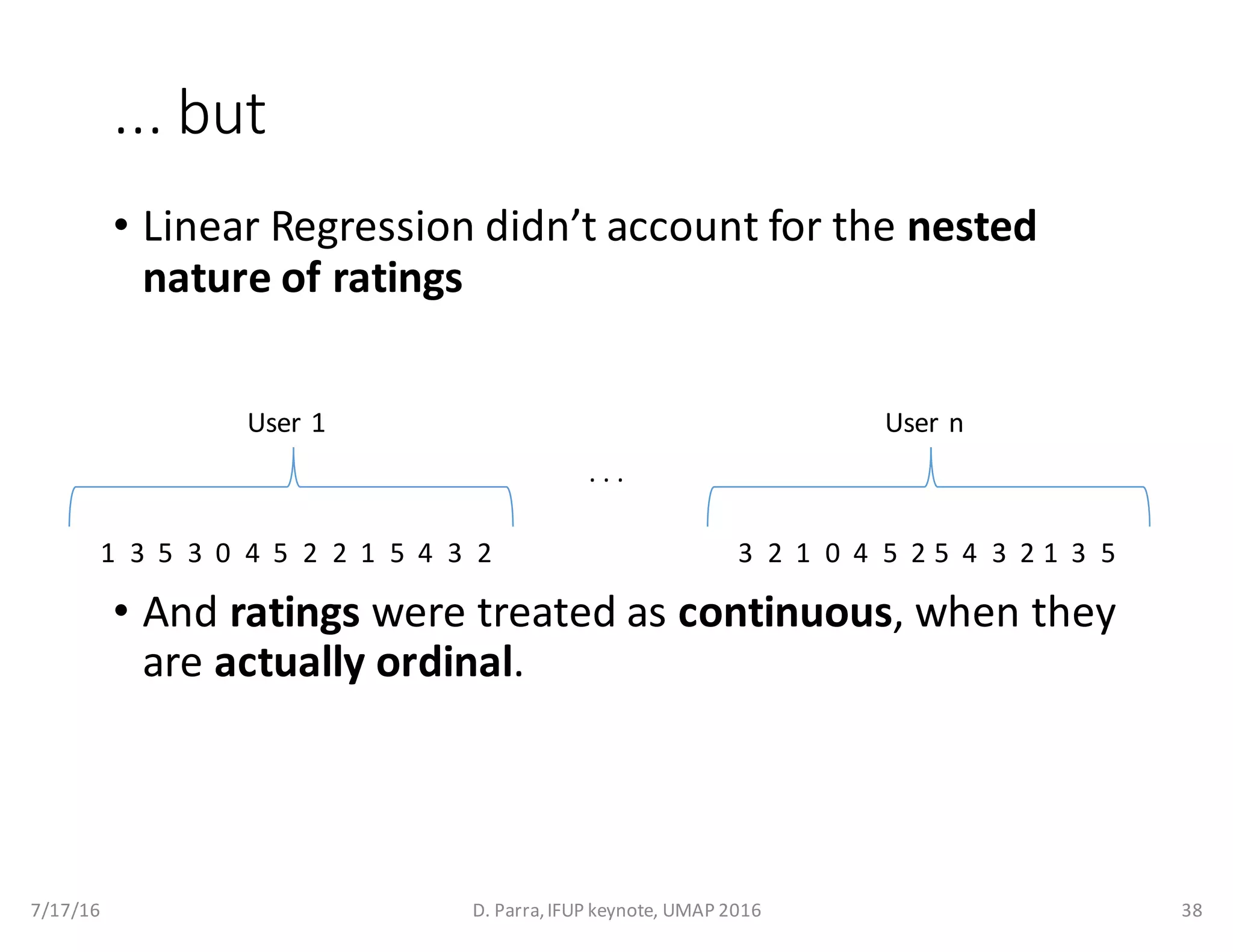

... but
• Linear Regression didn’t account for the nested
nature of ratings
• And ratings were treated as continuous, when they
are actually ordinal.
User 1
1 3 5 3 0 4 5 2 2 1 5 4 3 2
User n
3 2 1 0 4 5 2 5 4 3 2 1 3 5
. . .

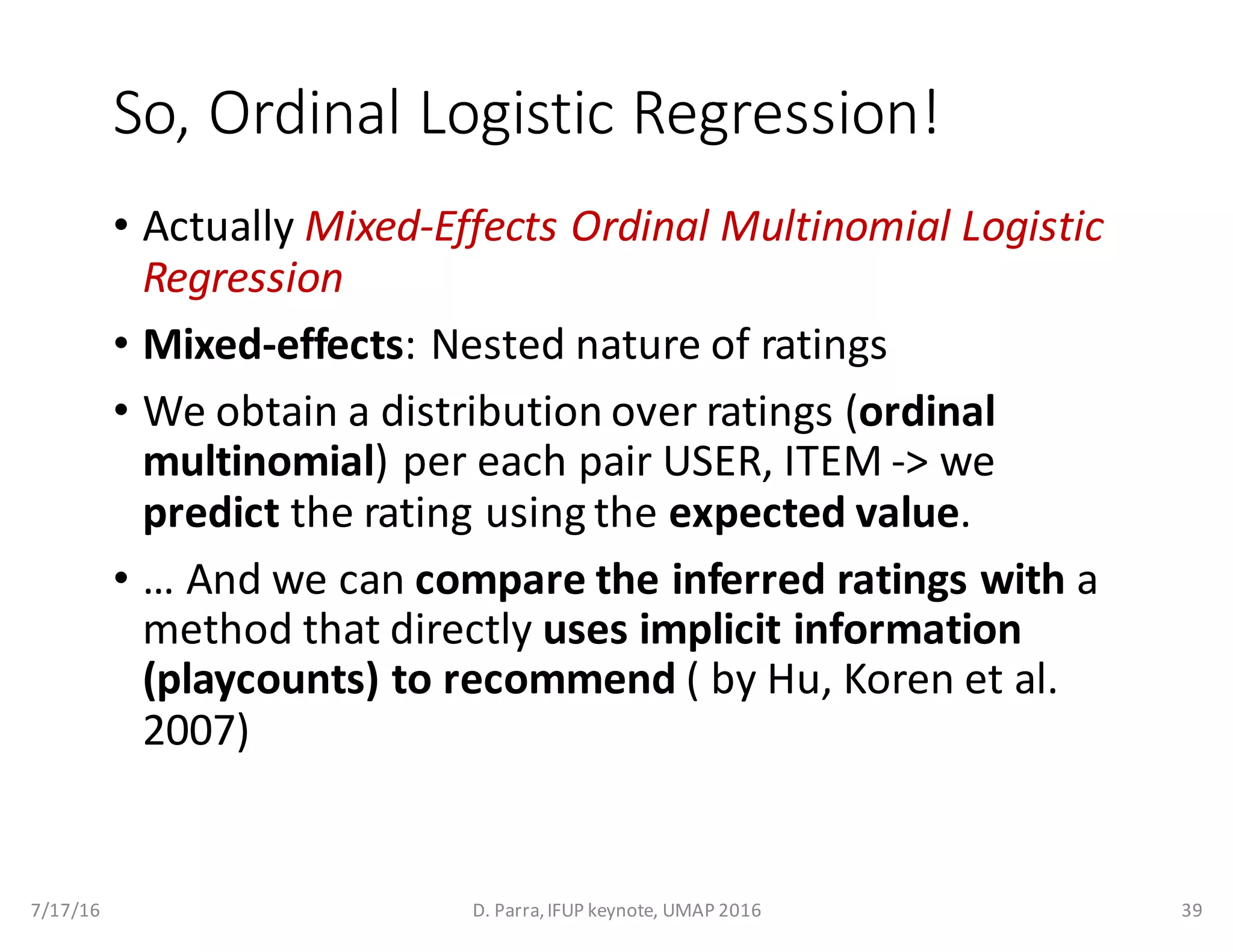

So, Ordinal Logistic Regression!
• Actually Mixed-Effects Ordinal Multinomial Logistic
Regression
• Mixed-effects: Nested nature of ratings
• We obtain a distribution over ratings (ordinal
multinomial) per each pair USER, ITEM -> we
predict the rating using the expected value.
• … And we can compare the inferred ratings with a
method that directly uses implicit information
(playcounts) to recommend ( by Hu, Koren et al.
2007)

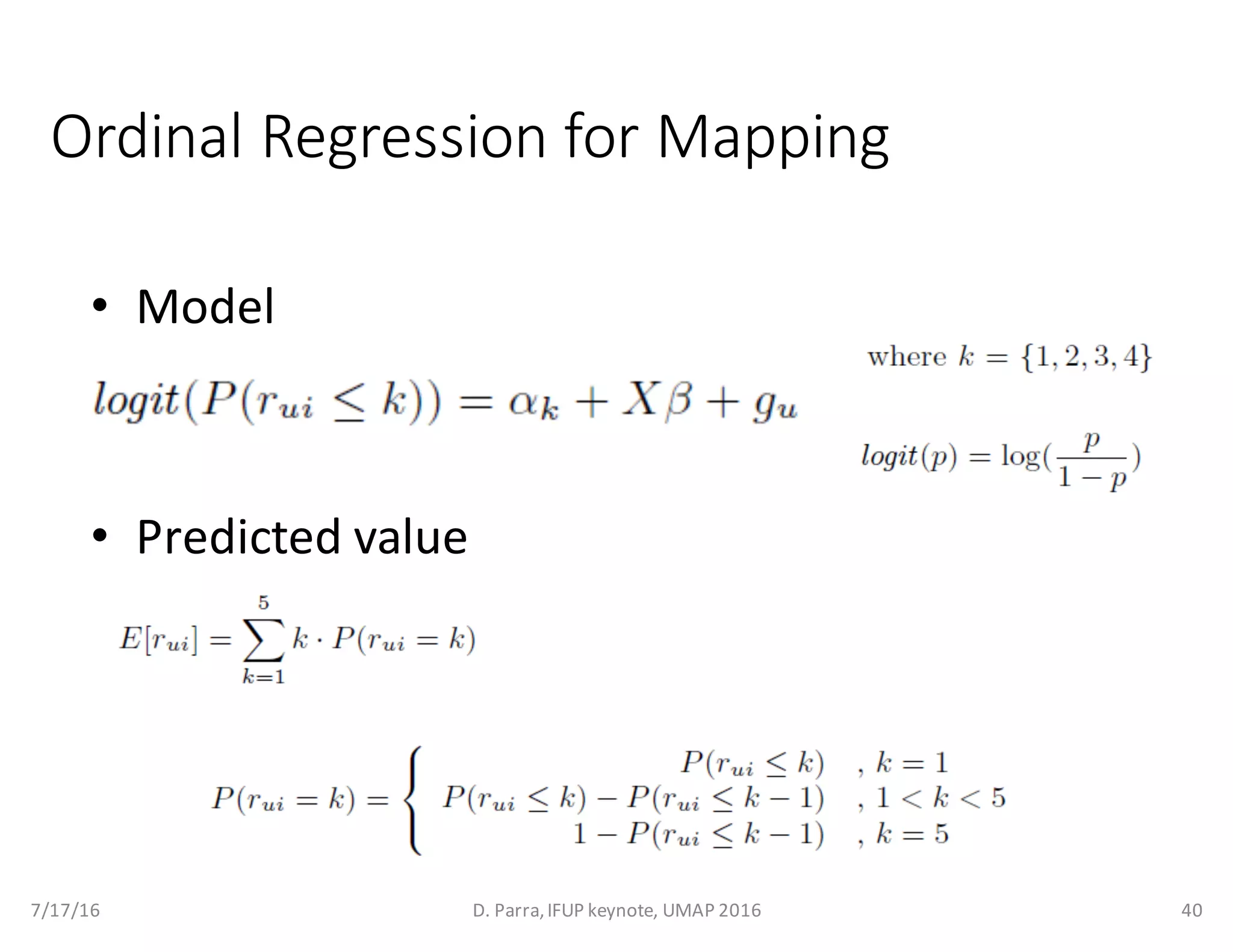

Ordinal Regression for Mapping
• Model
• Predicted value

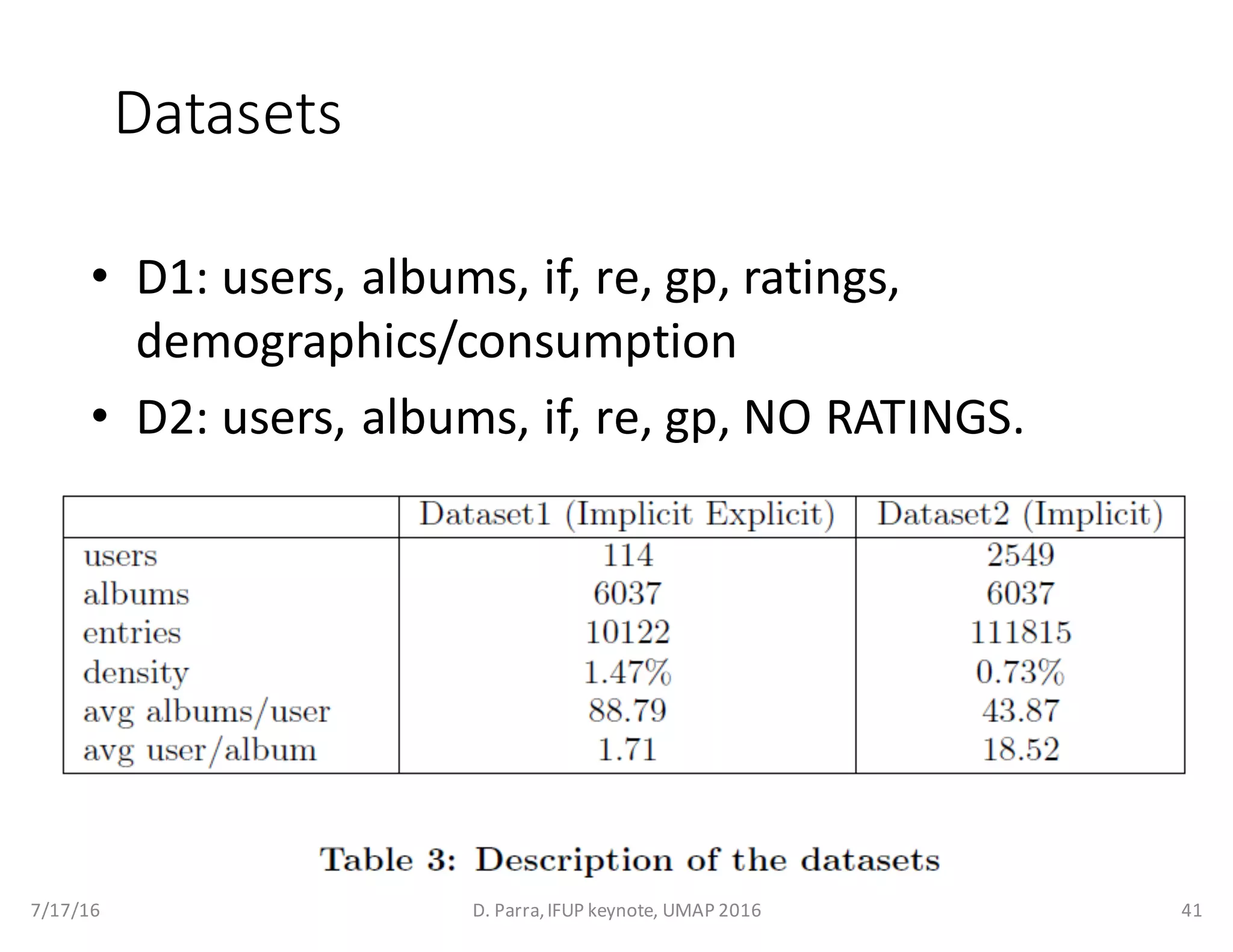

Datasets
• D1: users, albums, if, re, gp, ratings,
demographics/consumption
• D2: users, albums, if, re, gp, NO RATINGS.

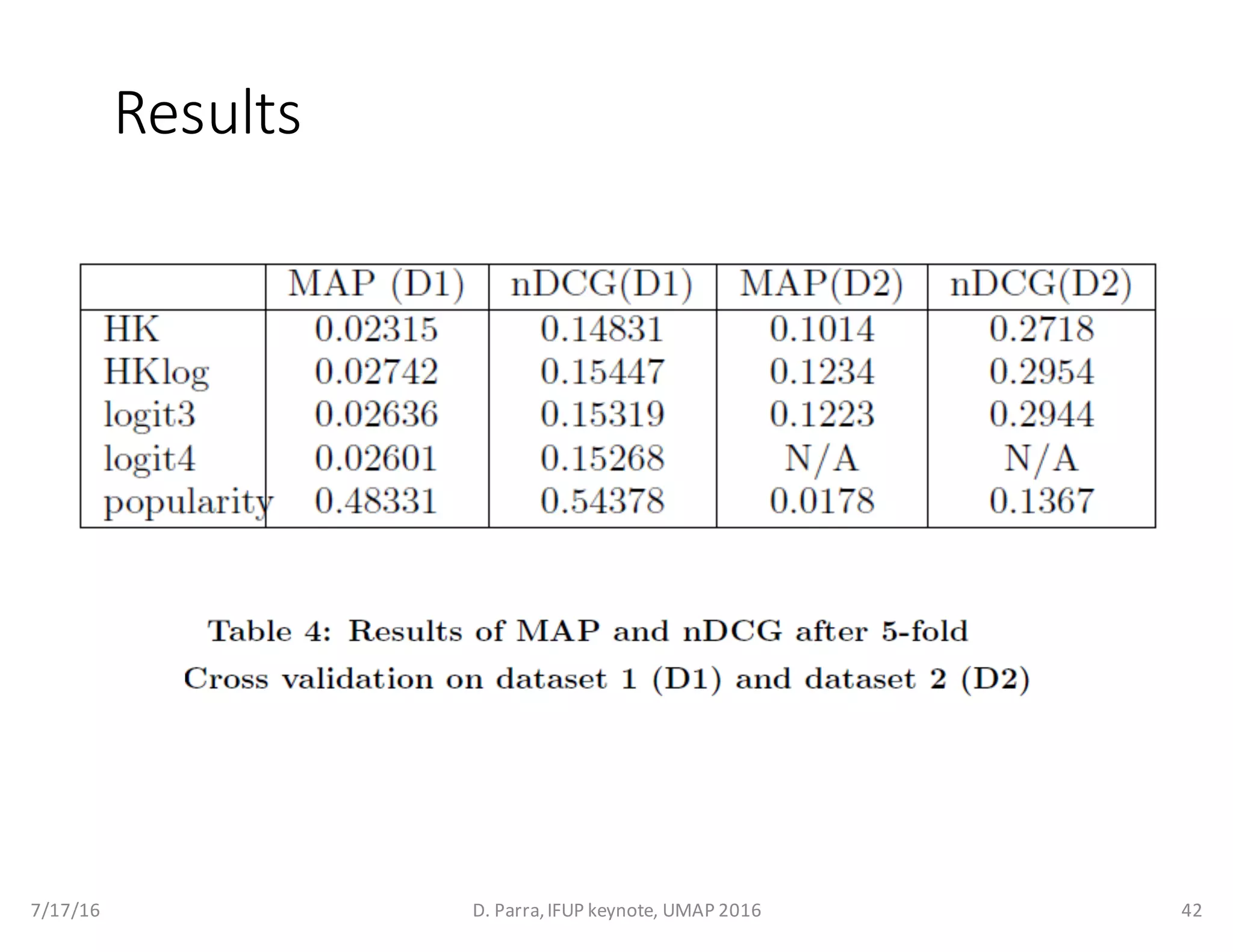

Results

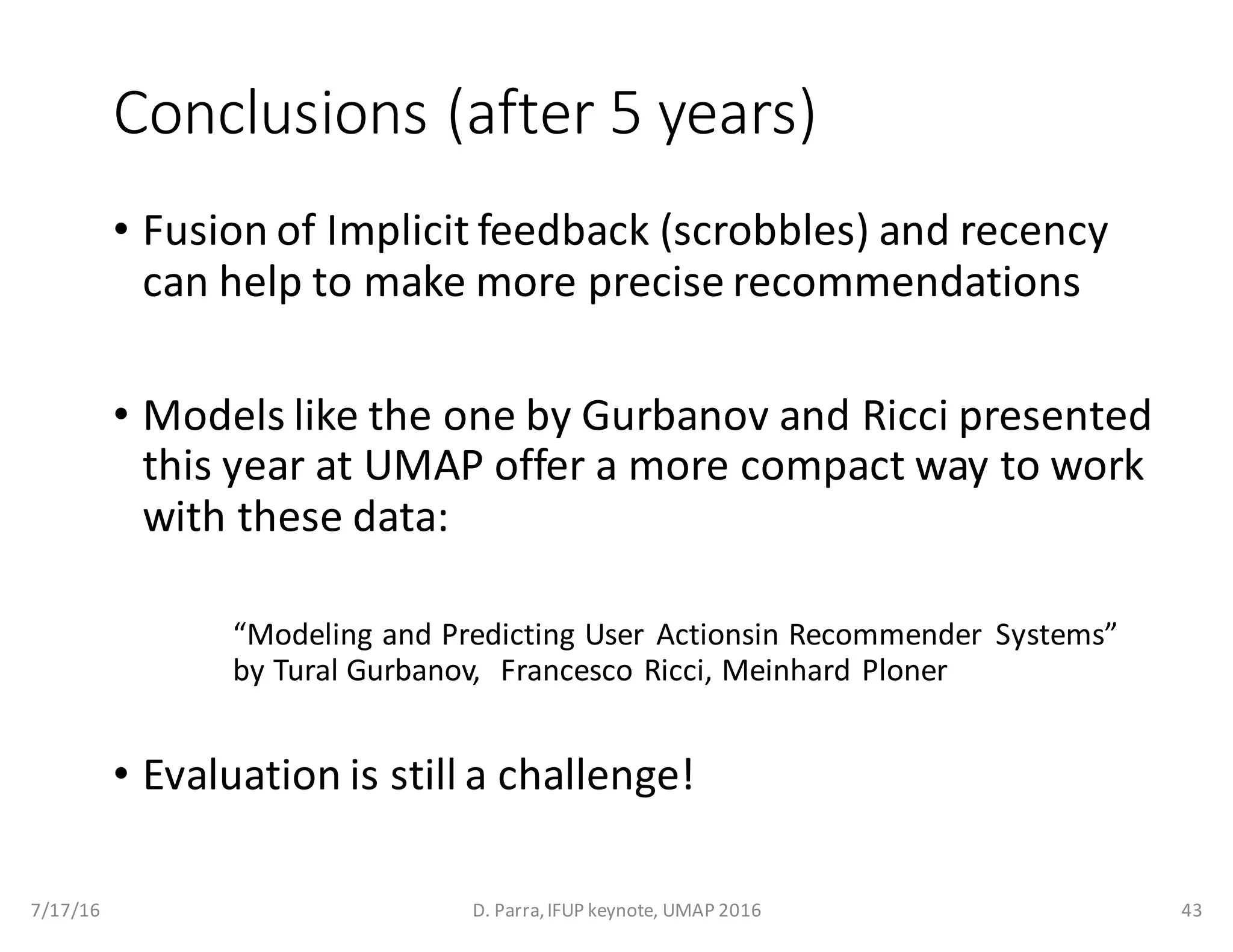

Conclusions (after 5 years)
• Fusion of Implicit feedback (scrobbles) and recency
can help to make more precise recommendations
• Models like the one by Gurbanov and Ricci presented
this year at UMAP offer a more compact way to work
with these data:
“Modeling and Predicting User Actionsin Recommender Systems”
by Tural Gurbanov, Francesco Ricci, Meinhard Ploner
• Evaluation is still a challenge!

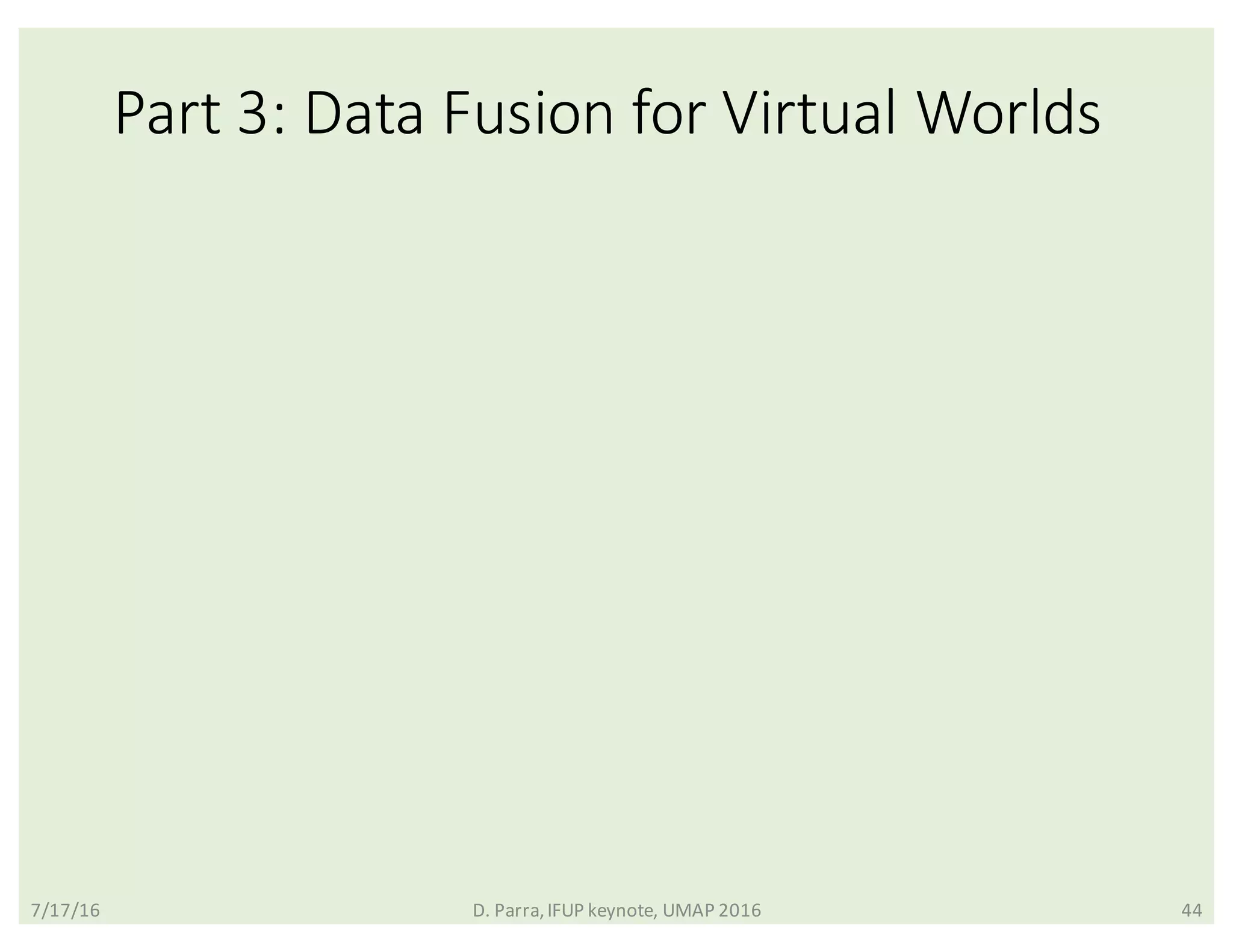

Part 3: Data Fusion for Virtual Worlds

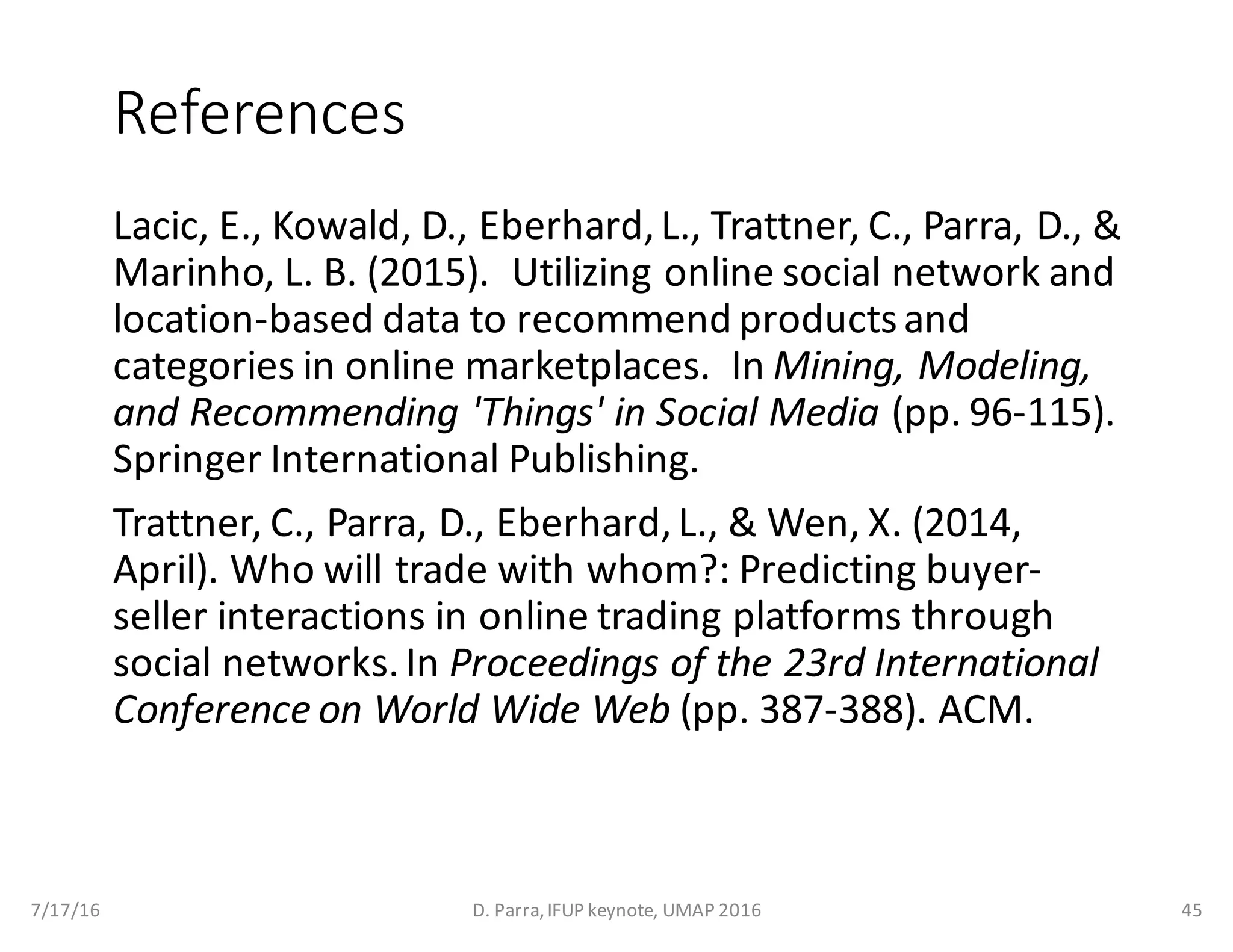

References
Lacic, E., Kowald, D., Eberhard, L., Trattner, C., Parra, D., &
Marinho, L. B. (2015). Utilizing online social network and
location-based data to recommend products and
categories in online marketplaces. In Mining, Modeling,
and Recommending 'Things' in Social Media (pp. 96-115).
Springer International Publishing.
Trattner, C., Parra, D., Eberhard, L., & Wen, X. (2014,
April). Who will trade with whom?: Predicting buyer-
seller interactions in online trading platforms through
social networks. In Proceedings of the 23rd International
Conference on World Wide Web (pp. 387-388). ACM.

Second Life
Social Network
Marketplace
Virtual World
Christoph Trattner
Know-Center
Graz, Austria

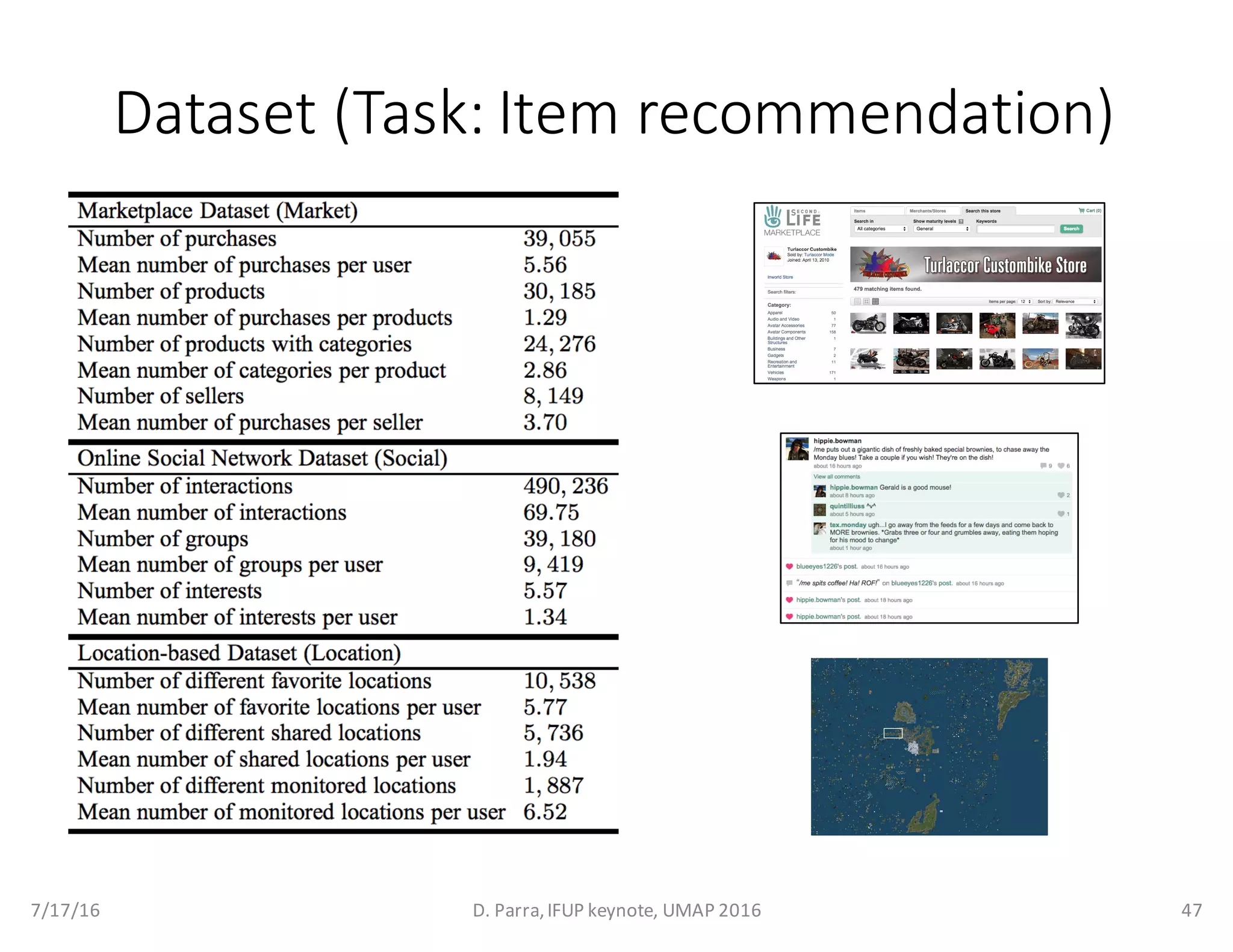

Dataset (Task: Item recommendation)

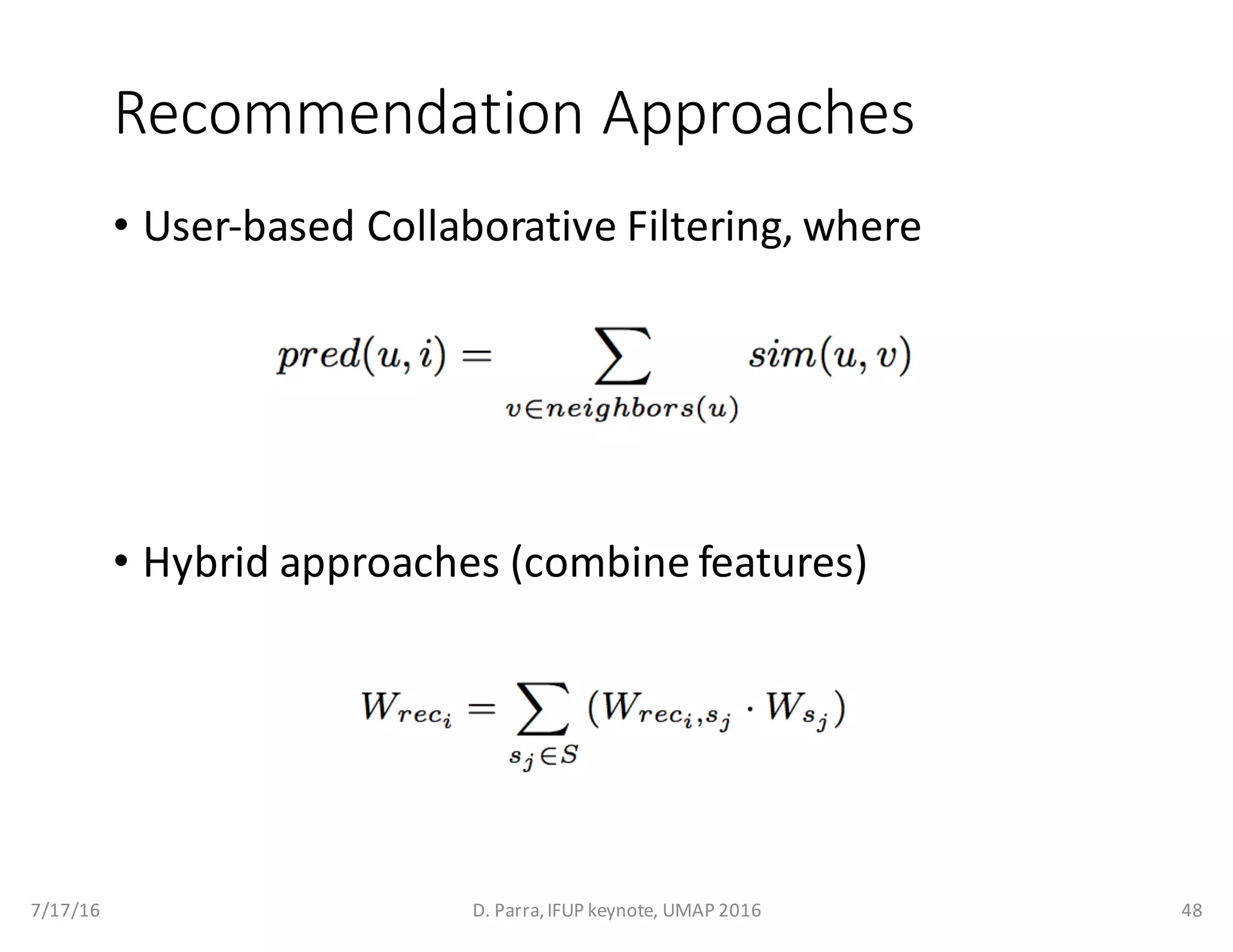

Recommendation Approaches
• User-based Collaborative Filtering, where
• Hybrid approaches (combine features)

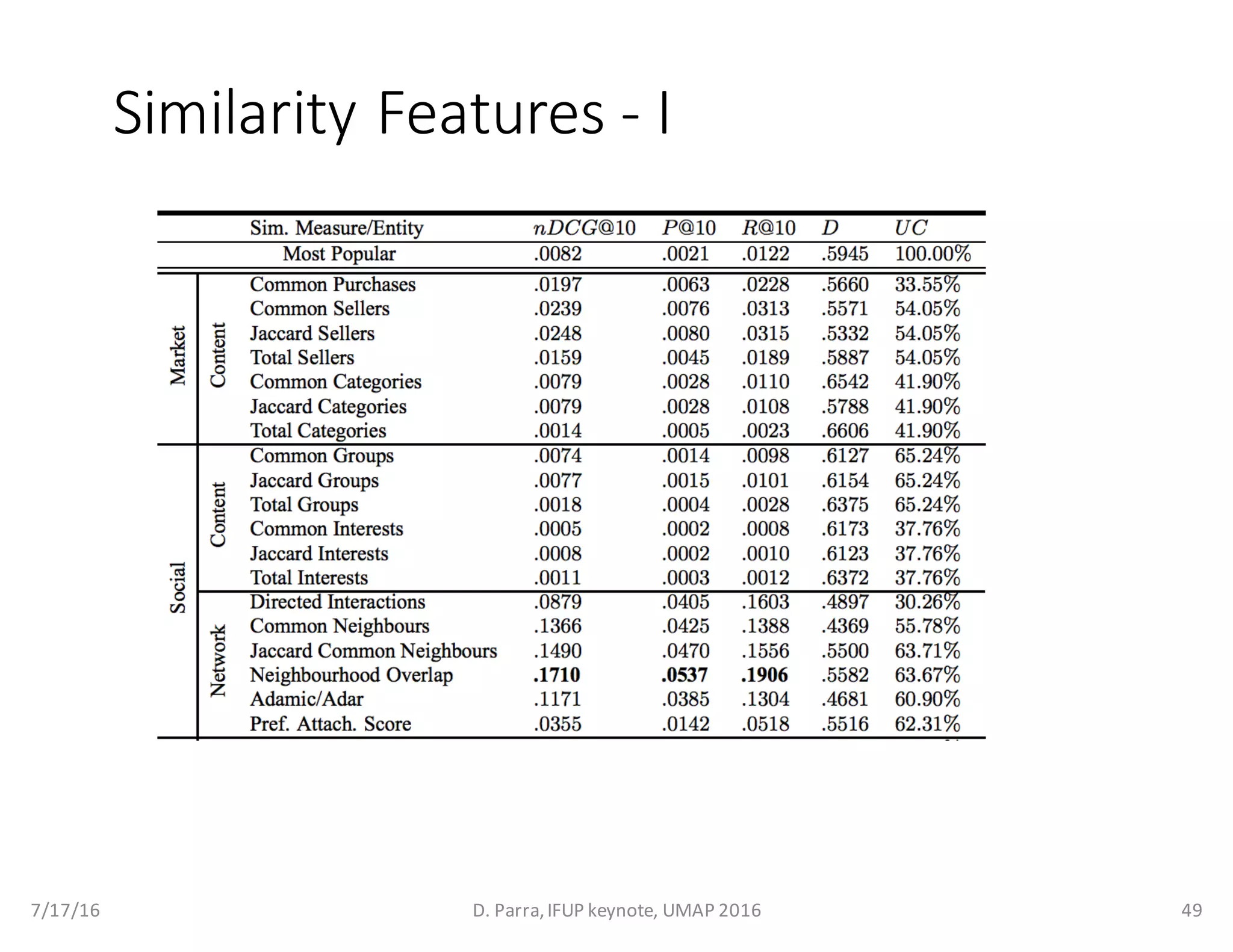

Similarity Features - I

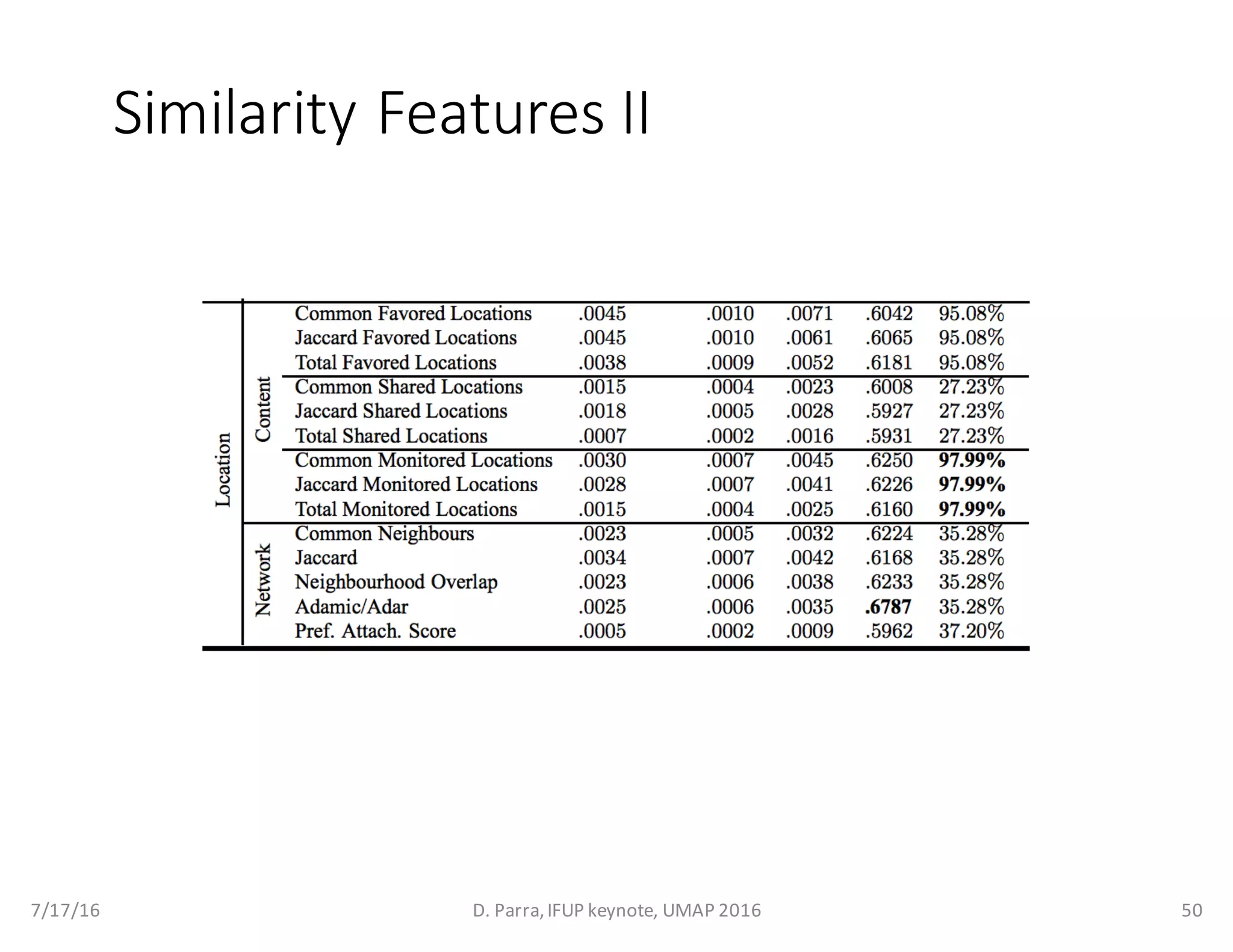

Similarity Features II

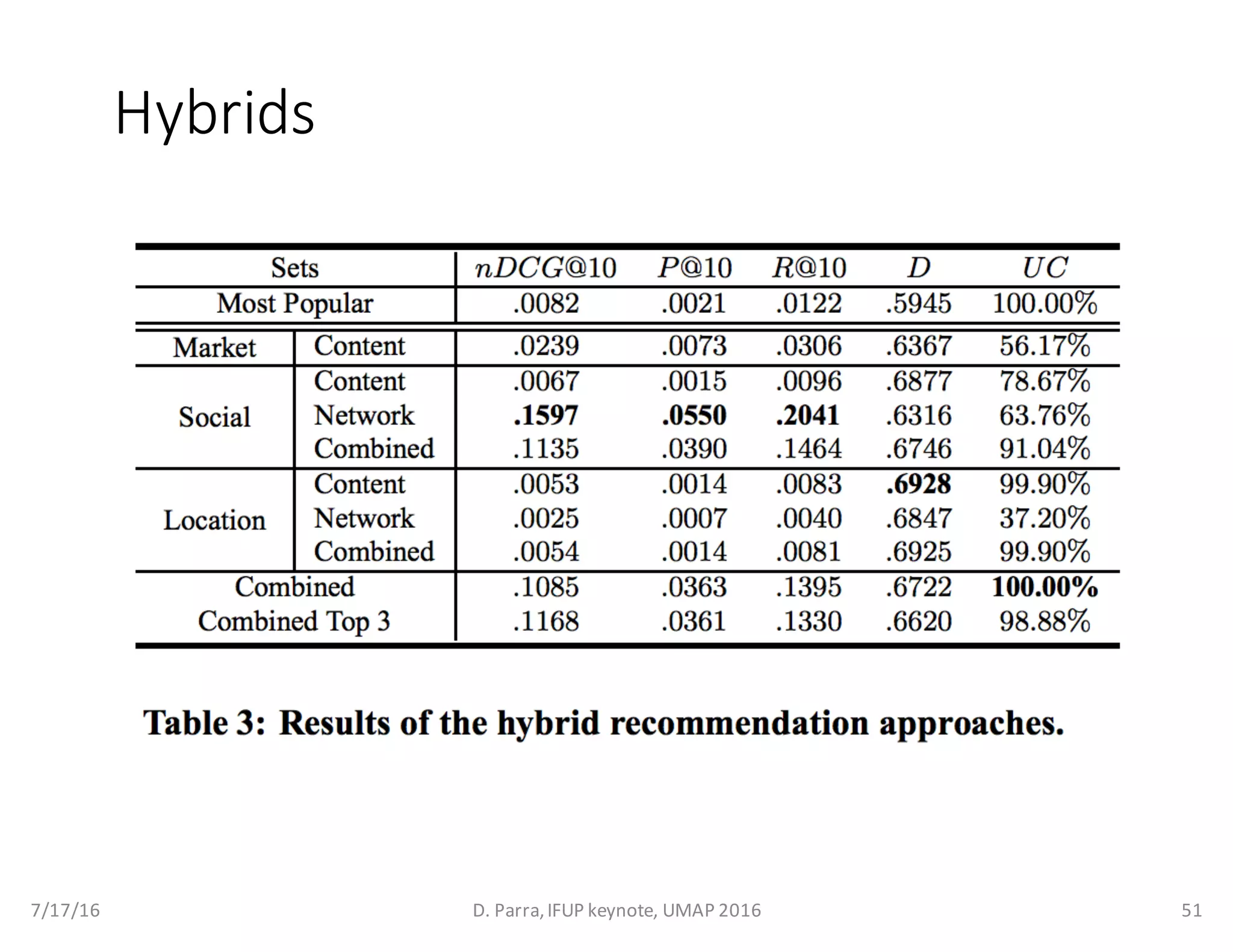

Hybrids

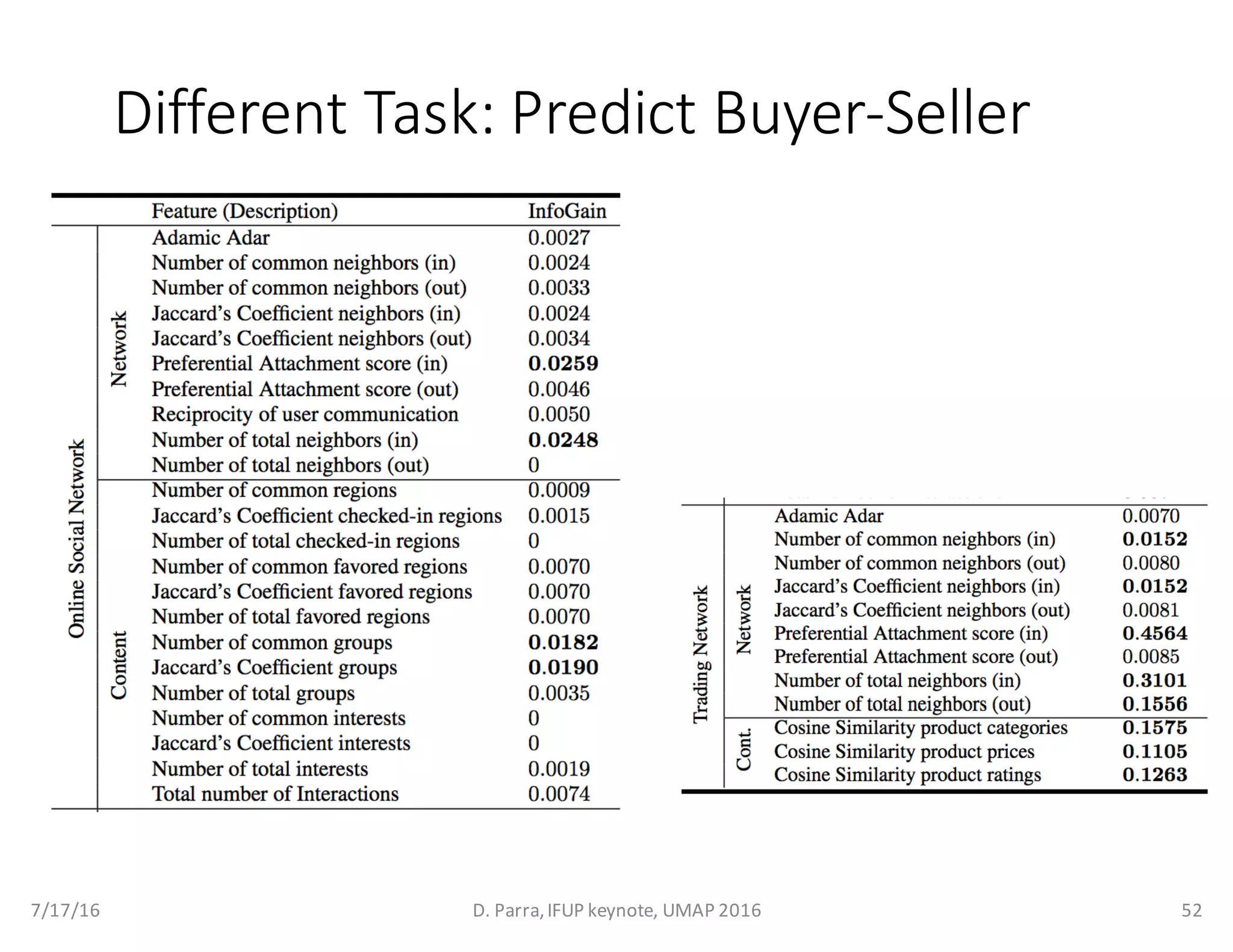

Different Task: Predict Buyer-Seller

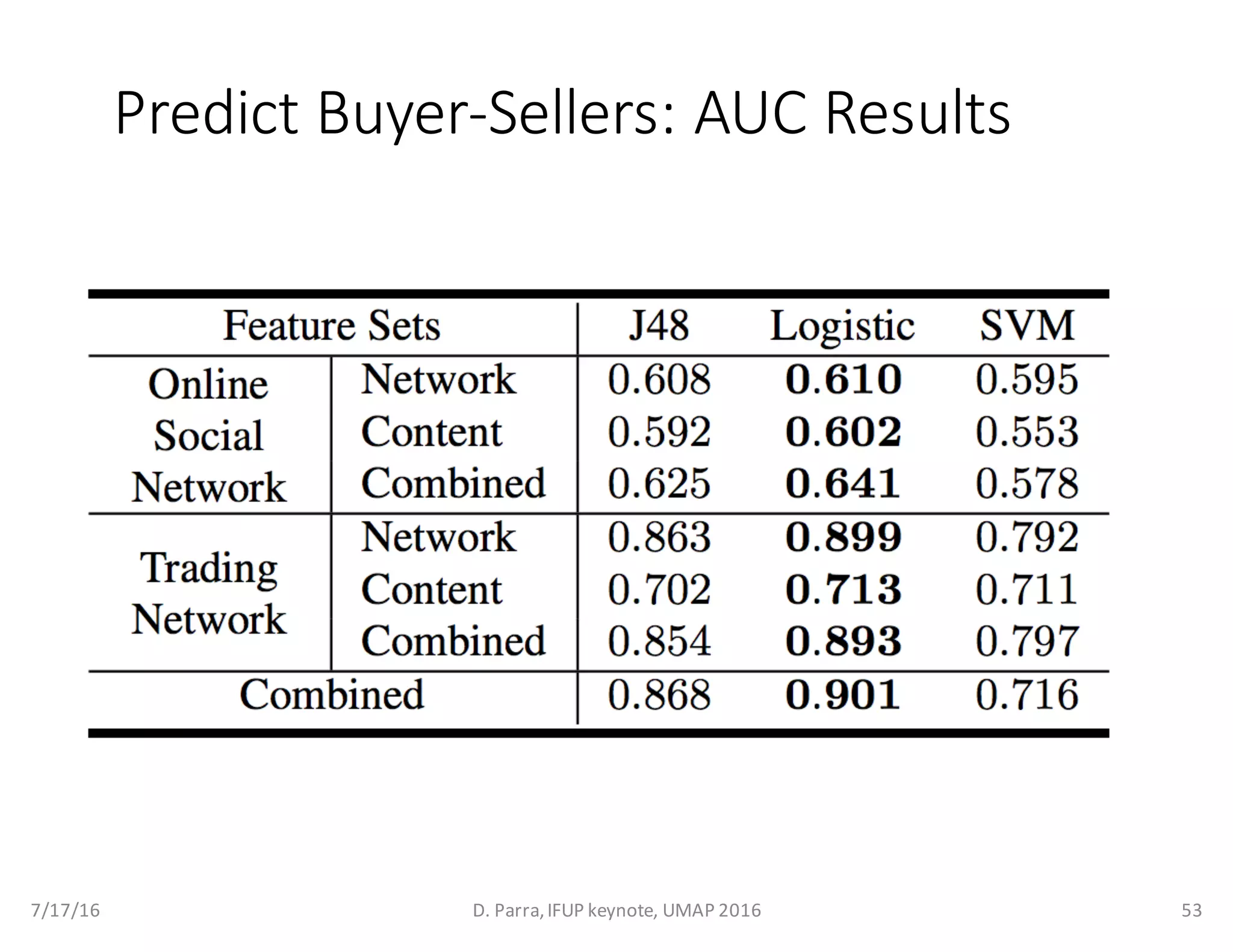

Predict Buyer-Sellers: AUC Results

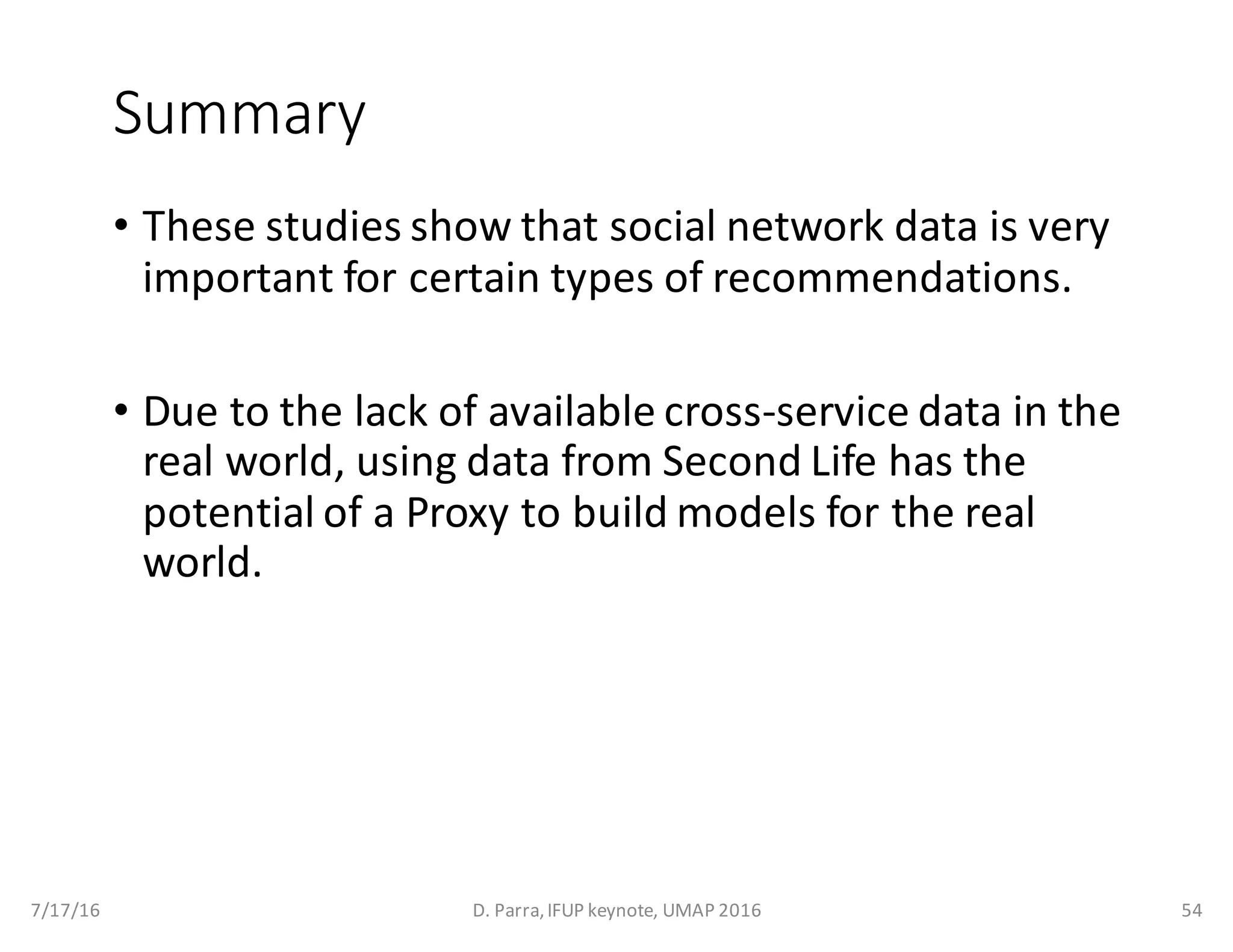

Summary
• These studies show that social network data is very
important for certain types of recommendations.
• Due to the lack of available cross-service data in the
real world, using data from Second Life has the
potential of a Proxy to build models for the real
world.

Part 4: Fusion of Time into CF

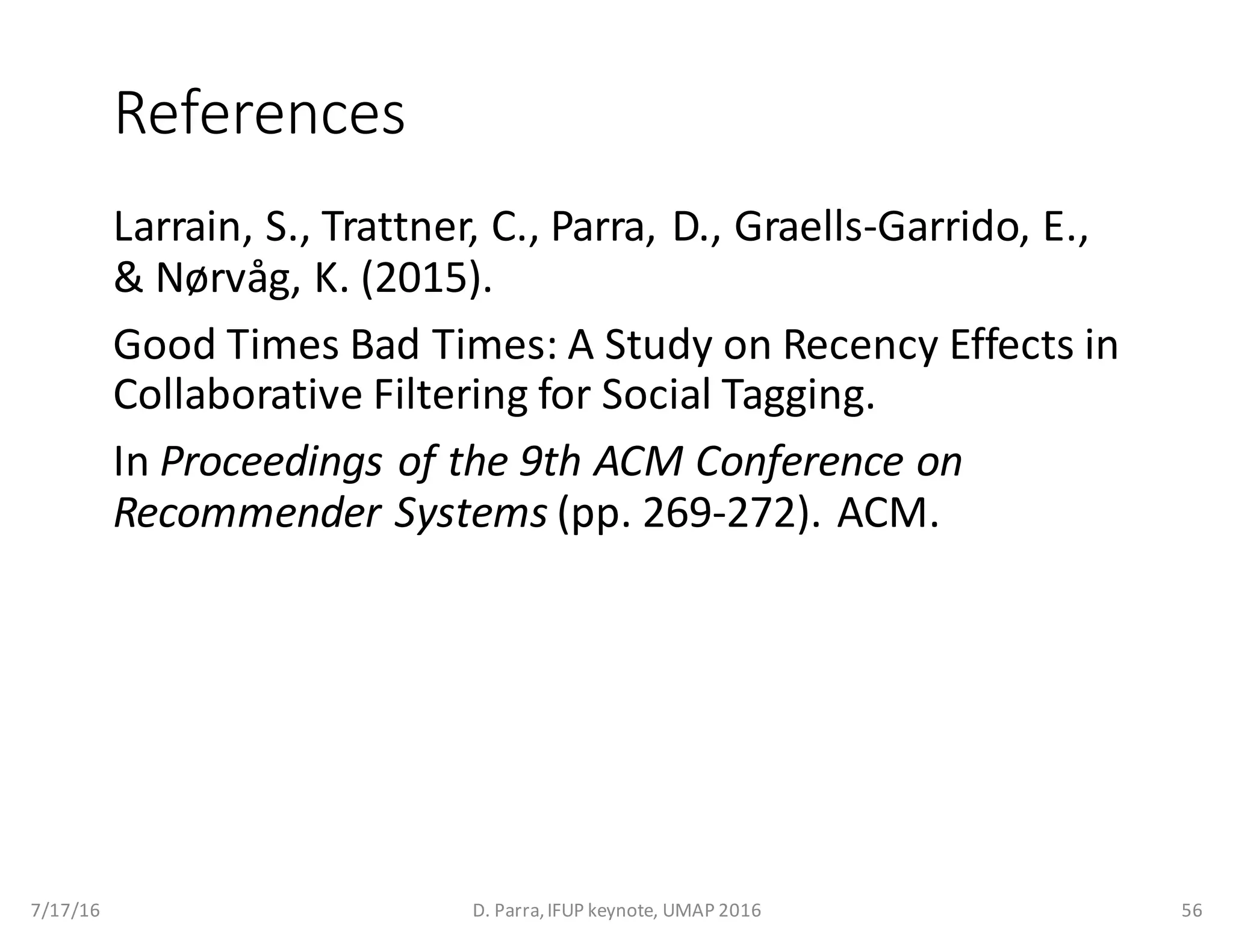

References
Larrain, S., Trattner, C., Parra, D., Graells-Garrido, E.,
& Nørvåg, K. (2015).
Good Times Bad Times: A Study on Recency Effects in
Collaborative Filtering for Social Tagging.
In Proceedings of the 9th ACM Conference on
Recommender Systems (pp. 269-272). ACM.

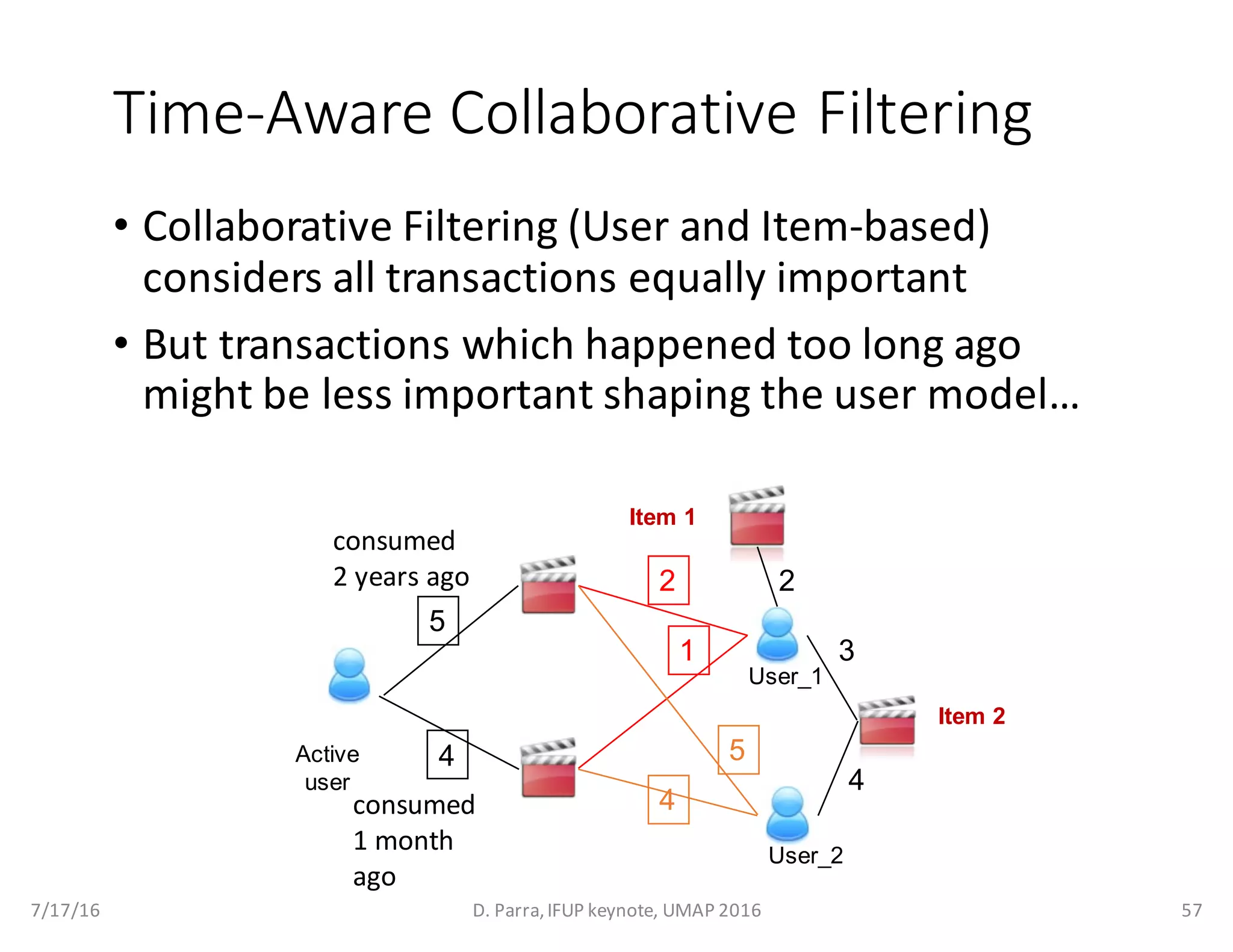

Time-Aware Collaborative Filtering
• Collaborative Filtering (User and Item-based)
considers all transactions equally important
• But transactions which happened too long ago
might be less important shaping the user model…
5
4
2
1
5
4
Active
user
User_1
User_2
2
3
4
Item 1
Item 2
consumed
2 years ago
consumed
1 month
ago

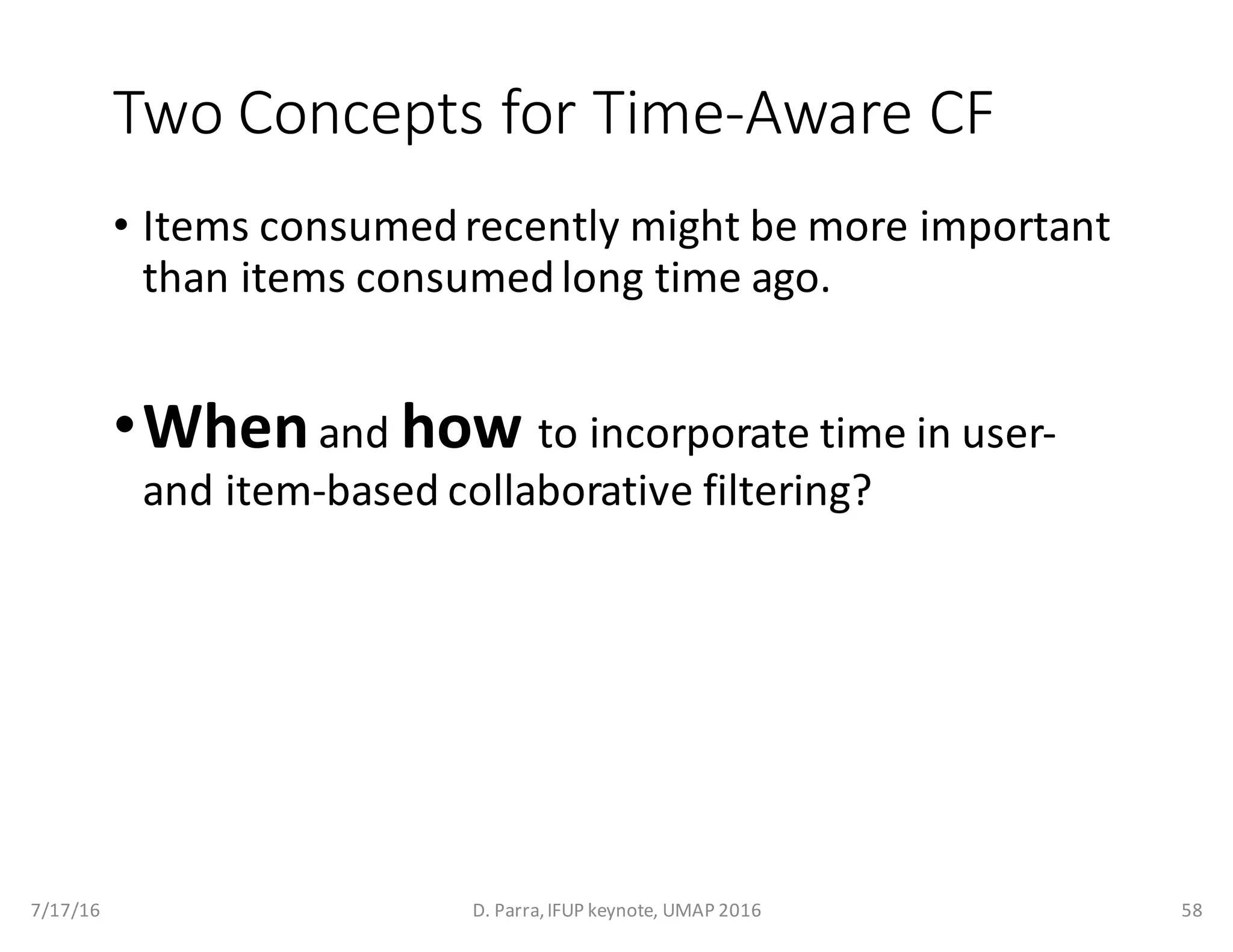

Two Concepts for Time-Aware CF
• Items consumed recently might be more important
than items consumed long time ago.
•Whenand how to incorporate time in user-
and item-based collaborative filtering?

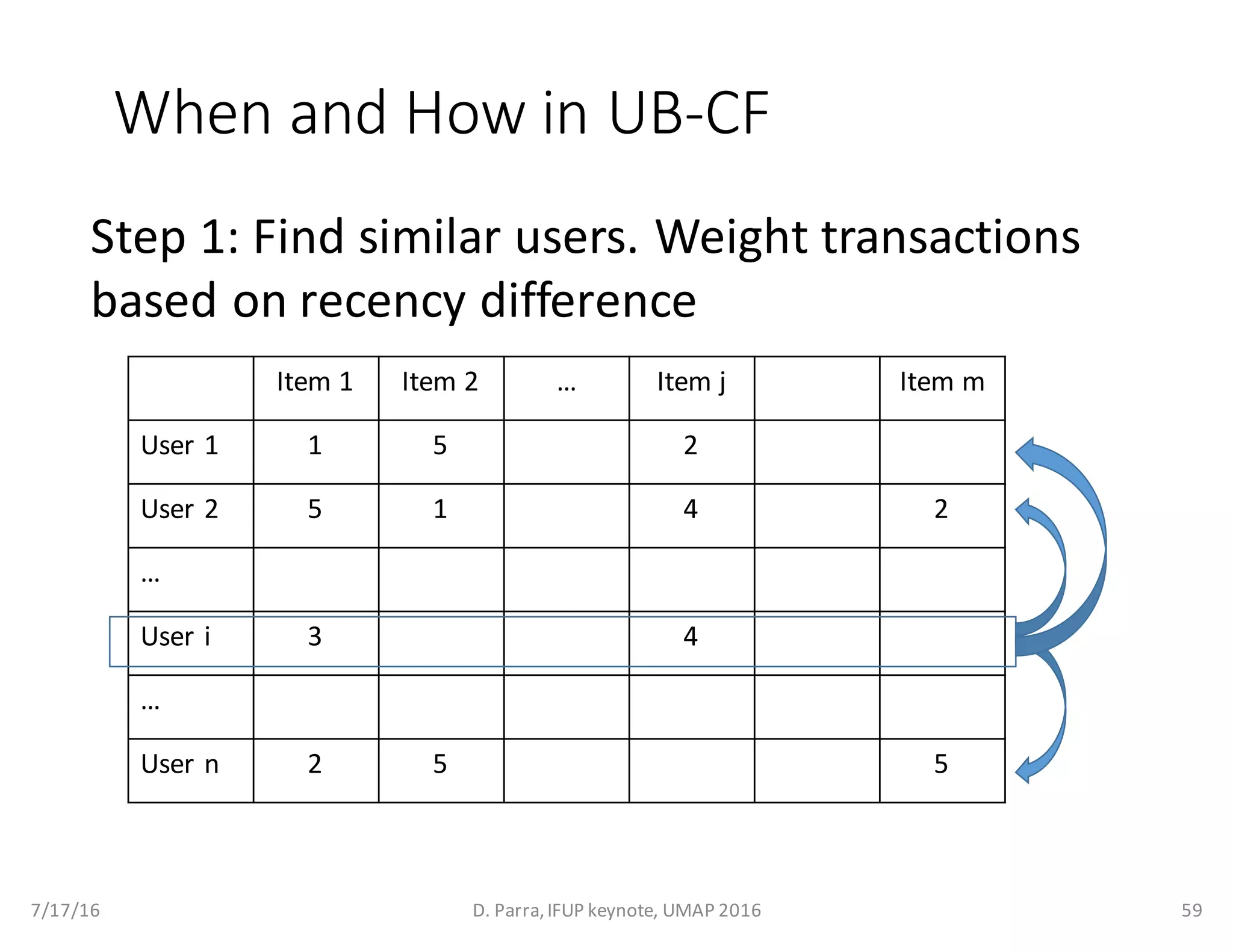

When and How in UB-CF
Item 1 Item 2 … Item j Item m
User 1 1 5 2
User 2 5 1 4 2
…
User i 3 4
…
User n 2 5 5
Step 1: Find similar users. Weight transactions
based on recency difference

When and How in UB-CF
User 1 1 5 2
User 2 5 1 4 3
…
User i 3 4
…
User n 2 5 4
Step 2: Similar users found. Recommend items
with high ratings and consumed recently.

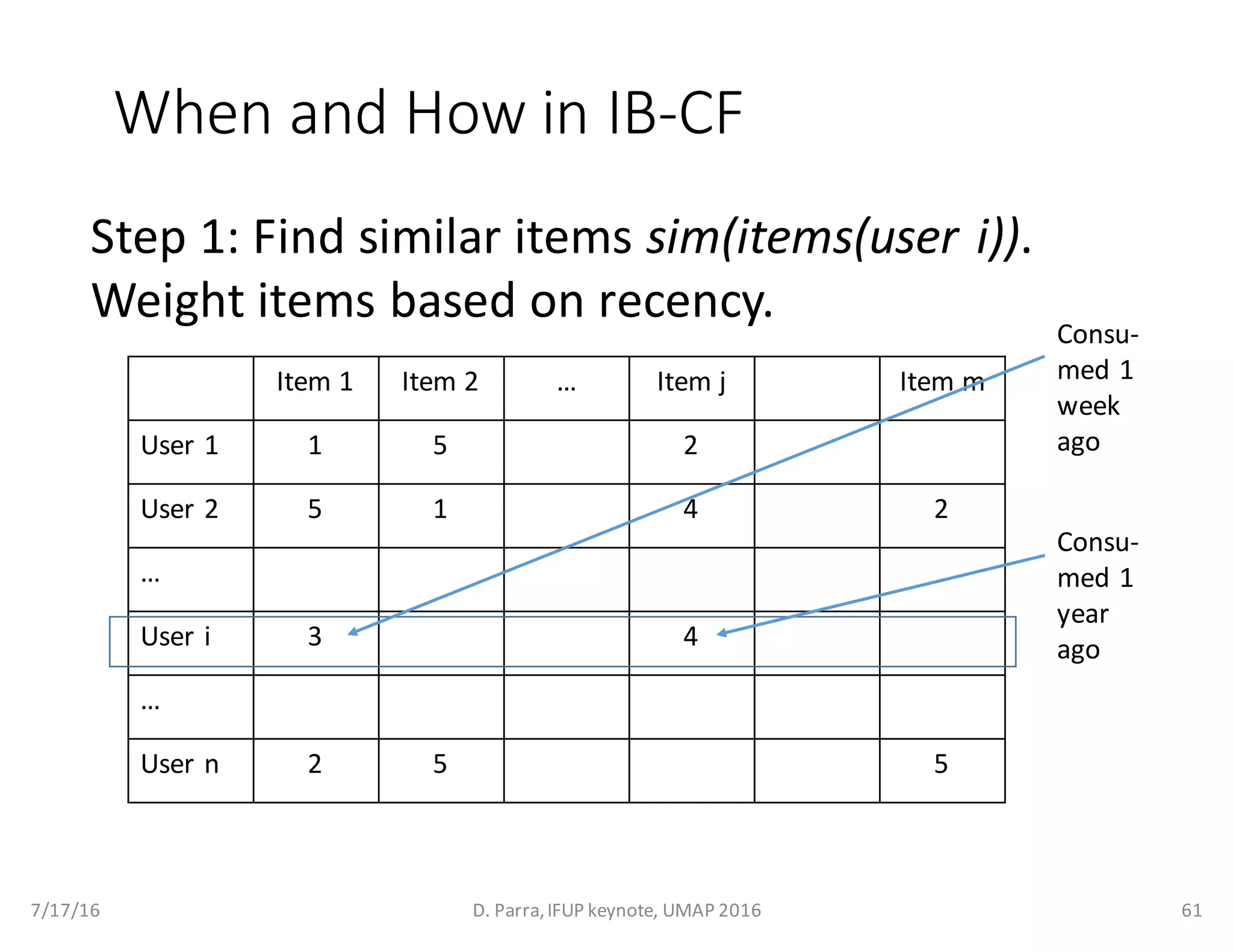

When and How in IB-CF
User 1 1 5 2
User 2 5 1 4 2
…
User i 3 4
…
User n 2 5 5
Step 1: Find similar items sim(items(user i)).
Weight items based on recency. Consu-
med 1
week
ago
Consu-
med 1
year
ago

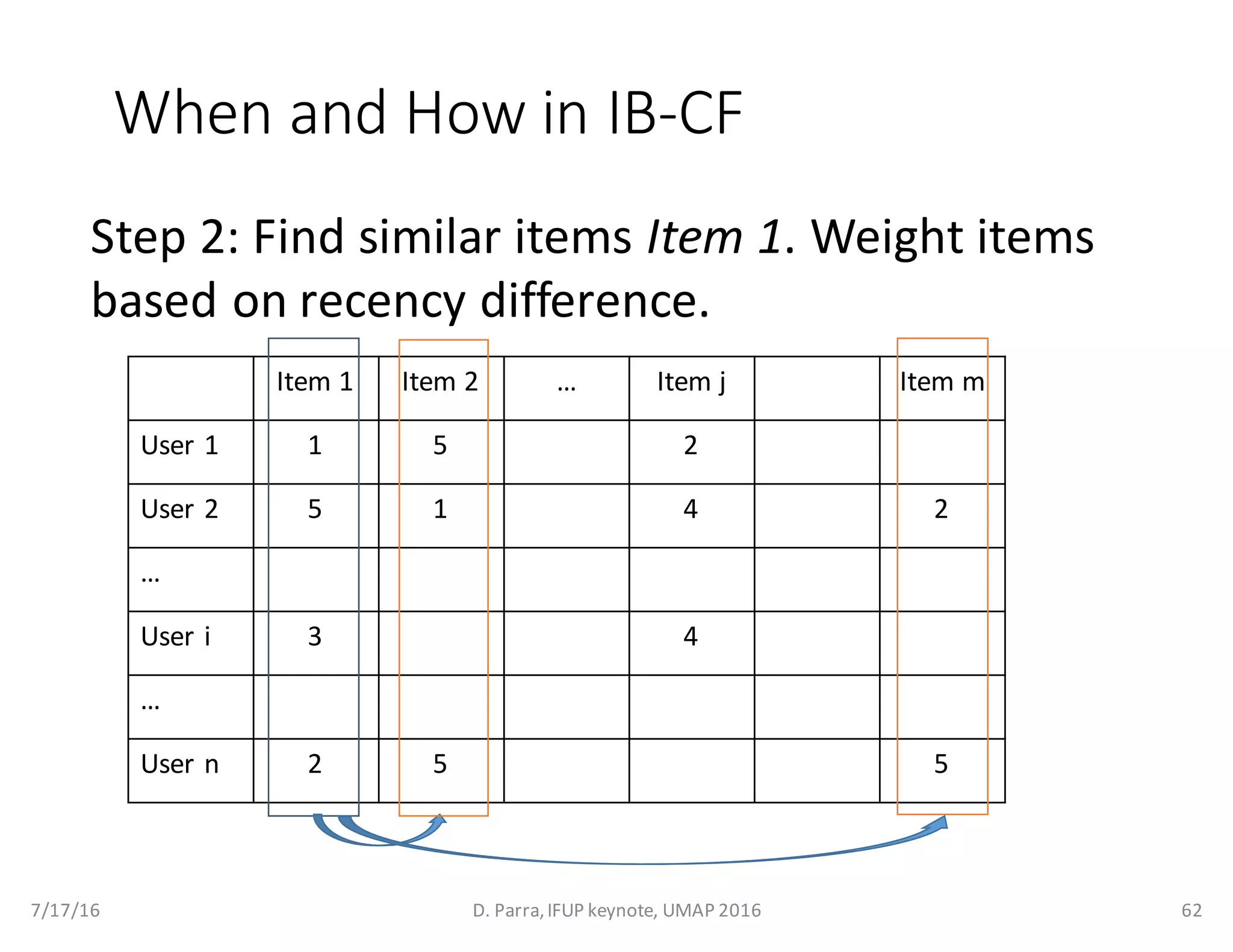

When and How in IB-CF
User 1 1 5 2
User 2 5 1 4 2
…
User i 3 4
…
User n 2 5 5
Step 2: Find similar items Item 1. Weight items
based on recency difference.

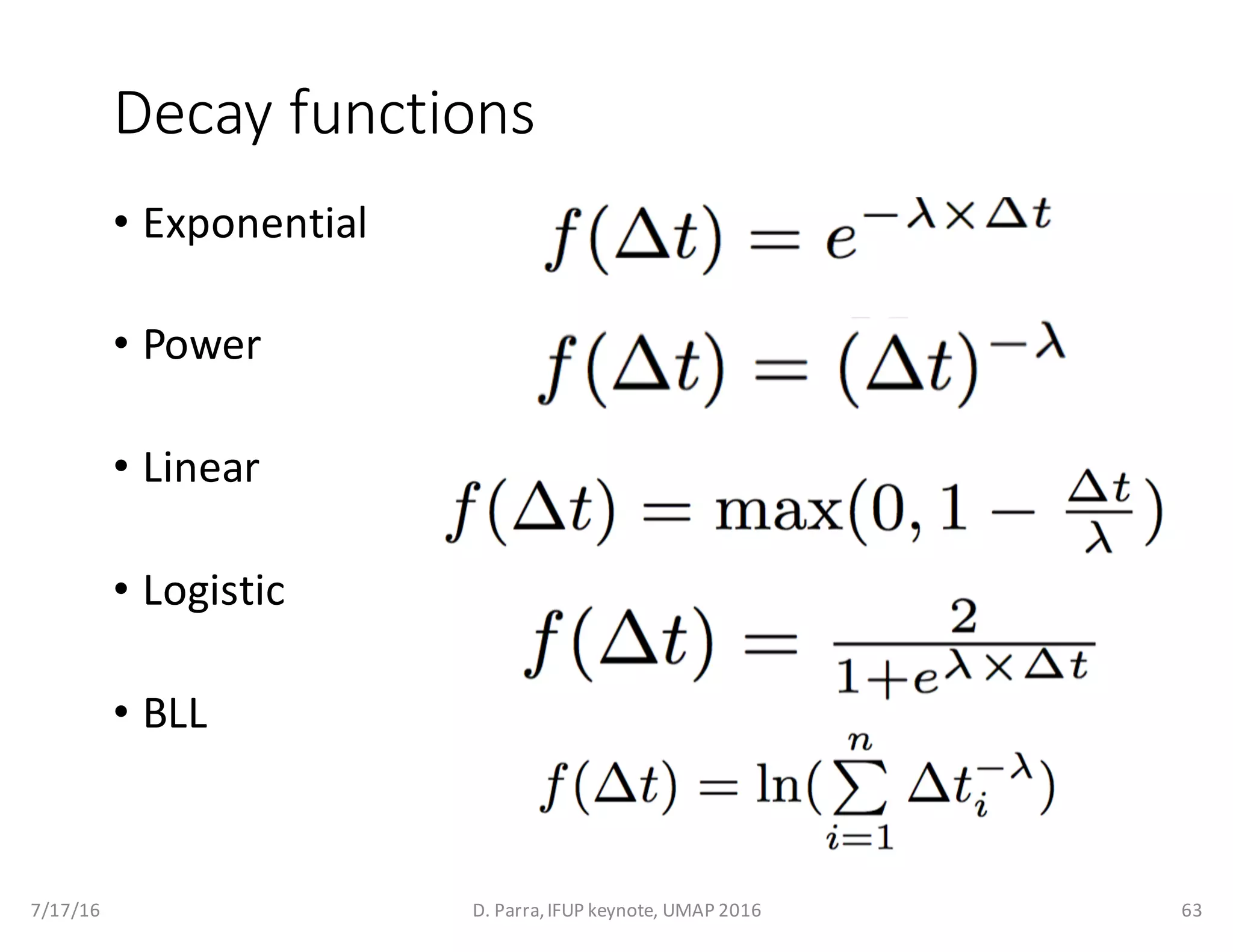

Decay functions
• Exponential
• Power
• Linear
• Logistic
• BLL

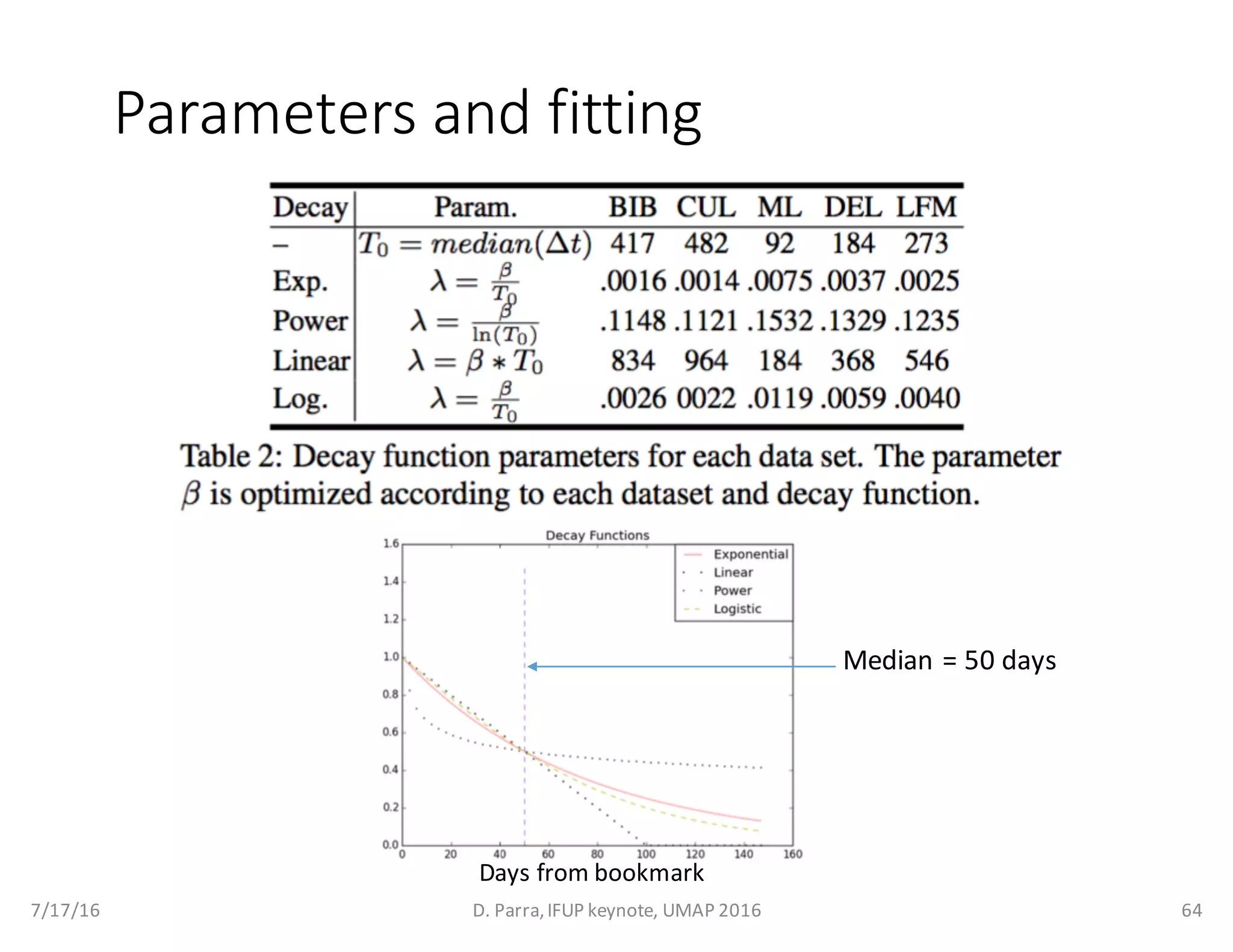

Parameters and fitting
Days from bookmark
Median = 50 days

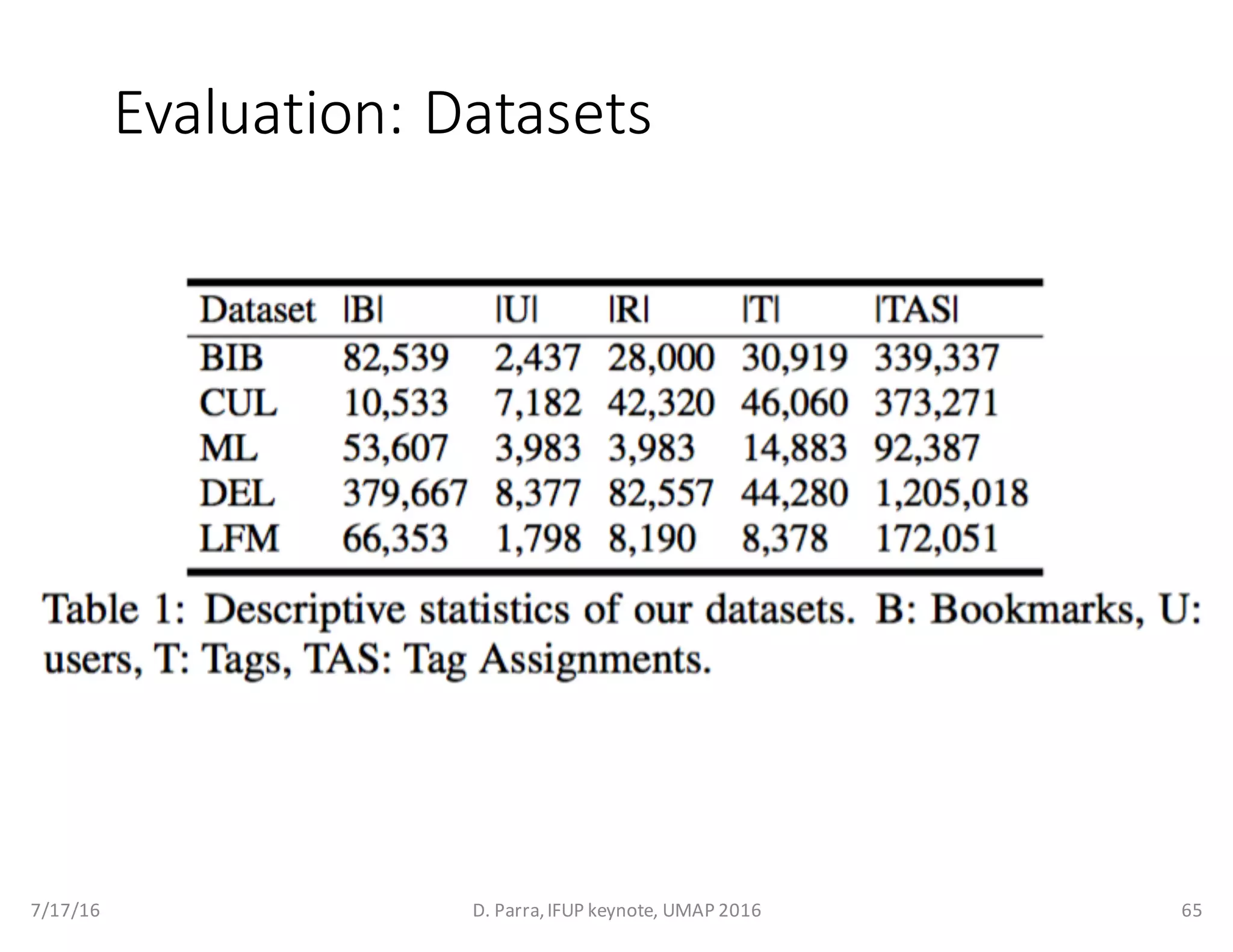

Evaluation: Datasets

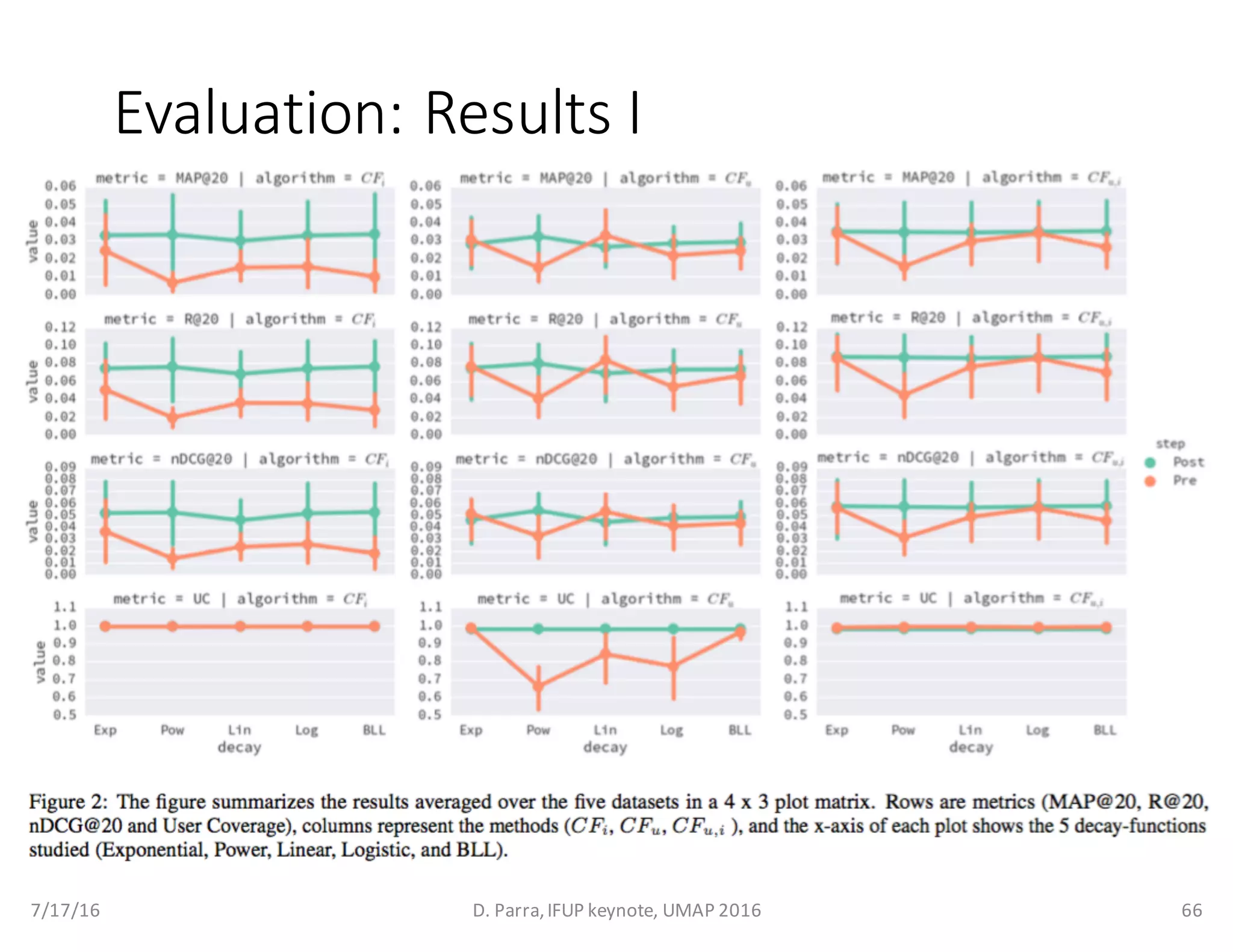

Evaluation: Results I

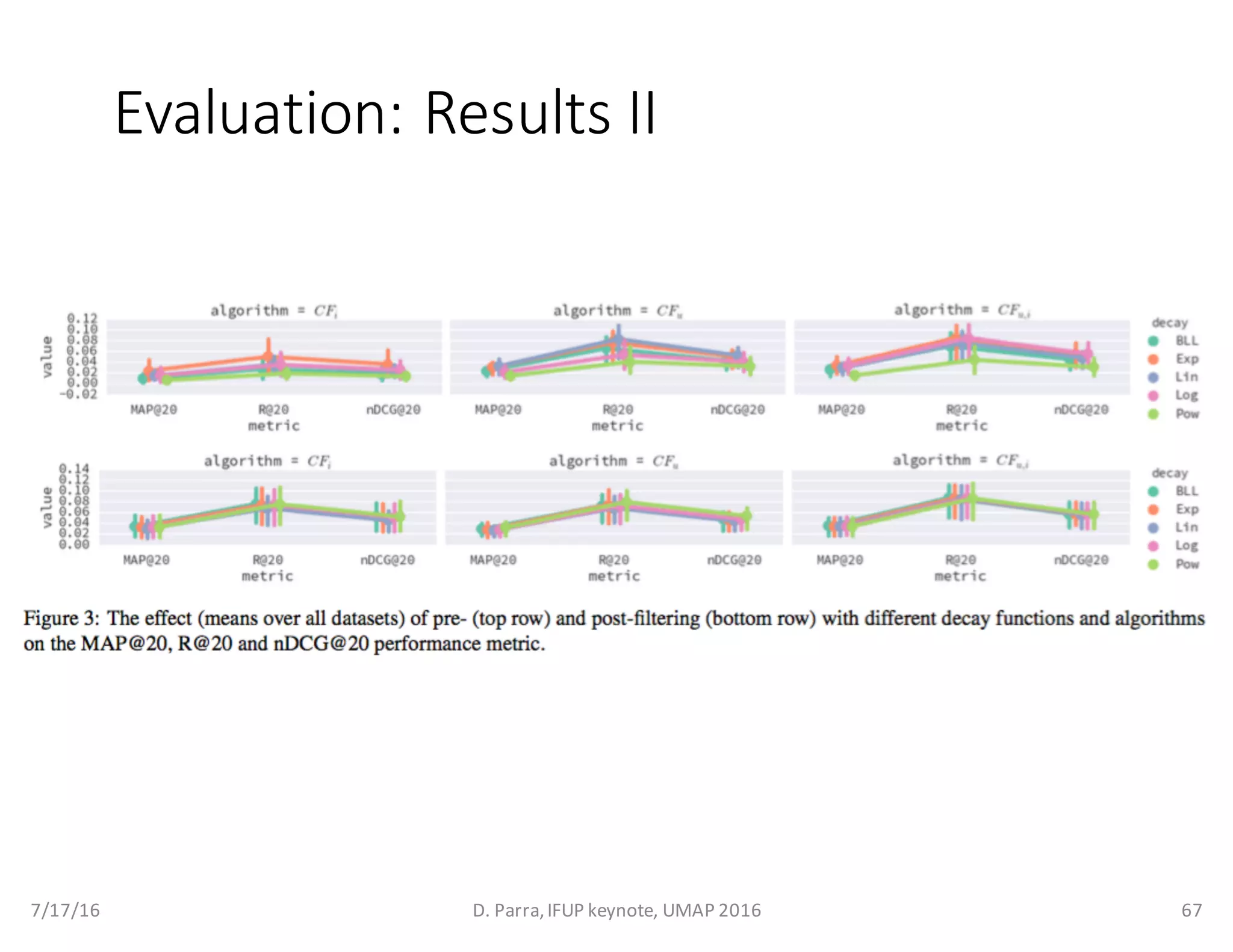

Evaluation: Results II

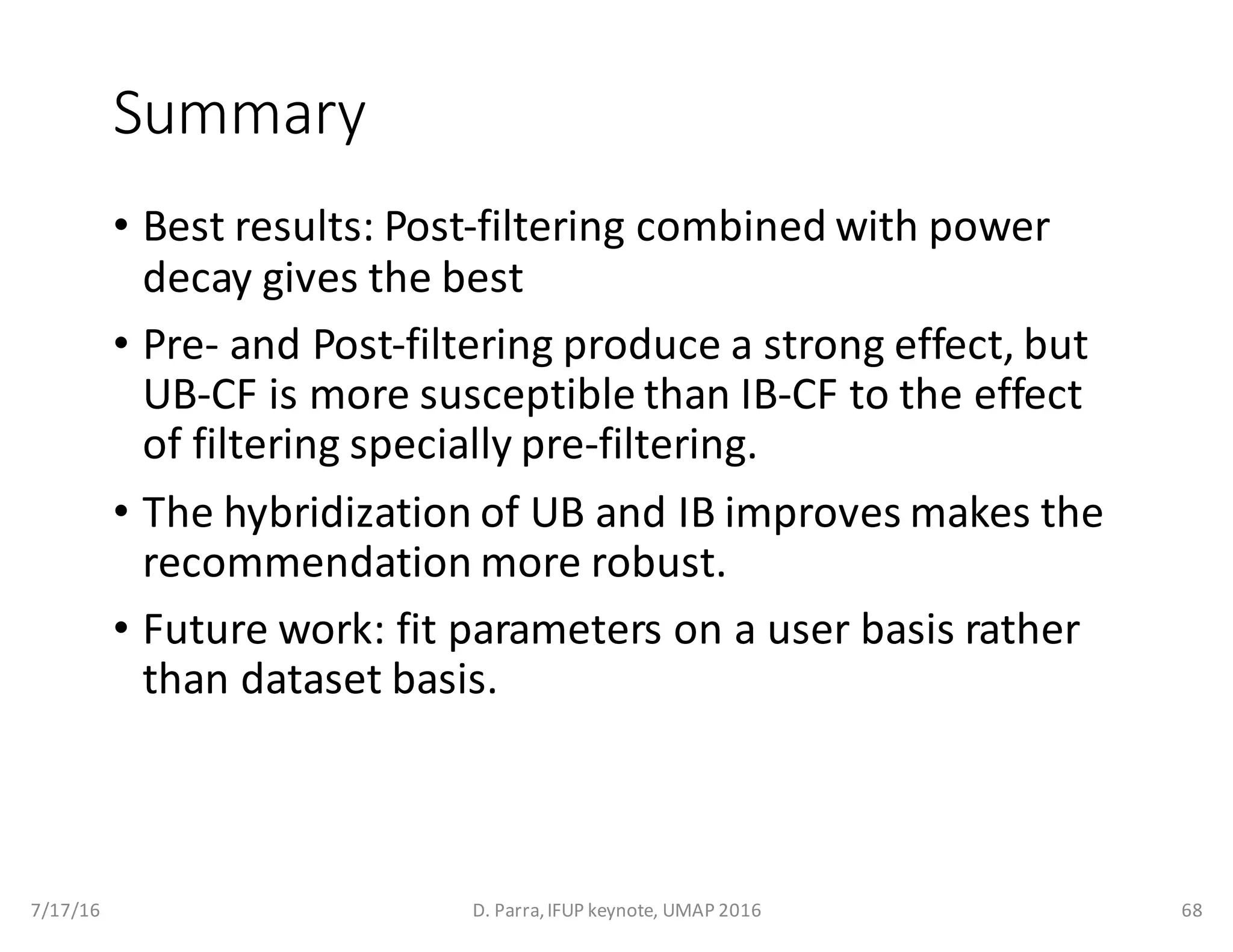

Summary
• Best results: Post-filtering combined with power
decay gives the best
• Pre- and Post-filtering produce a strong effect, but
UB-CF is more susceptible than IB-CF to the effect
of filtering specially pre-filtering.
• The hybridization of UB and IB improves makes the
recommendation more robust.
• Future work: fit parameters on a user basis rather
than dataset basis.

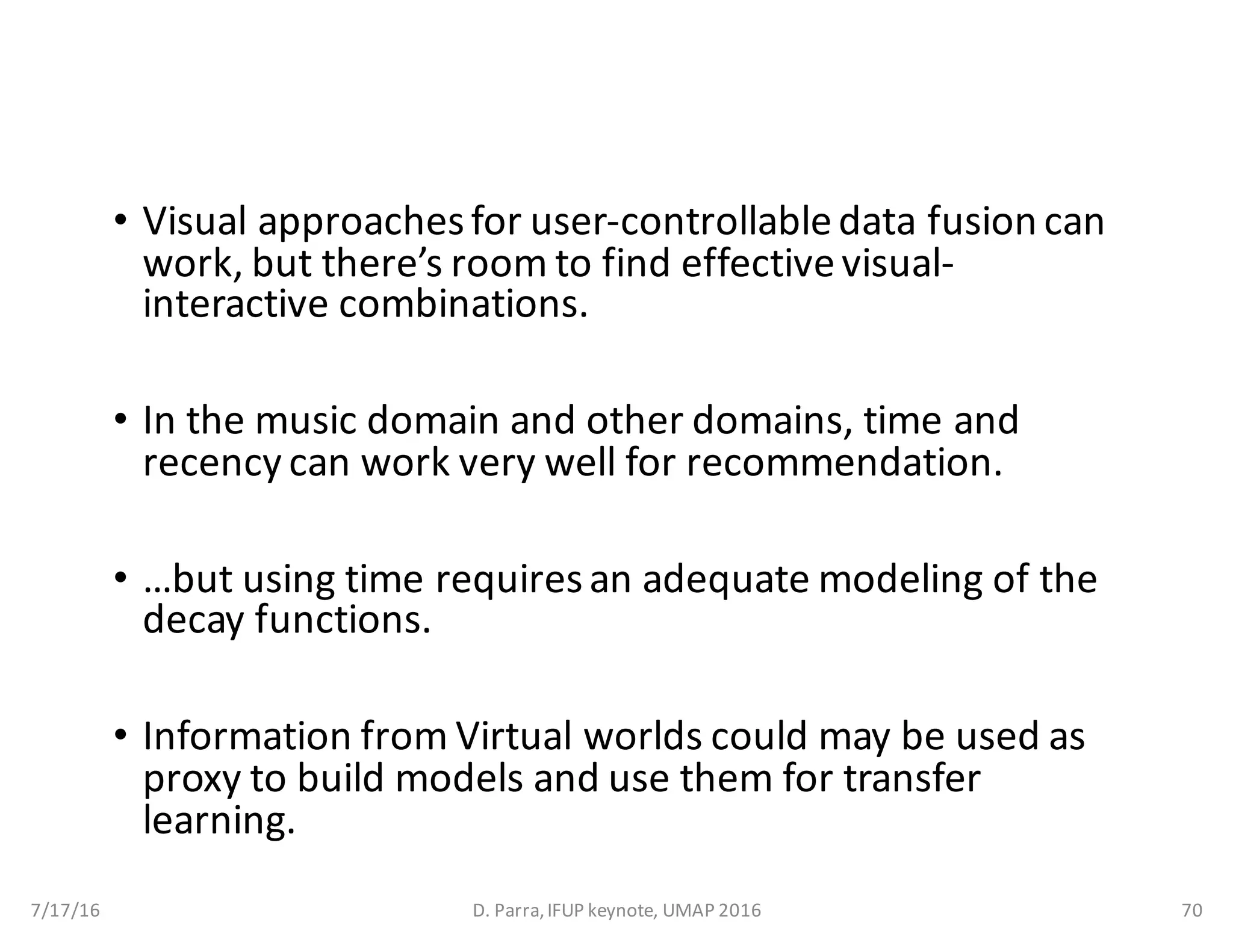

Wrapping up

• Visual approaches for user-controllable data fusion can
work, but there’s room to find effective visual-
interactive combinations.
• In the music domain and other domains, time and
recency can work very well for recommendation.
• …but using time requires an adequate modeling of the
decay functions.
• Information from Virtual worlds could may be used as
proxy to build models and use them for transfer
learning.

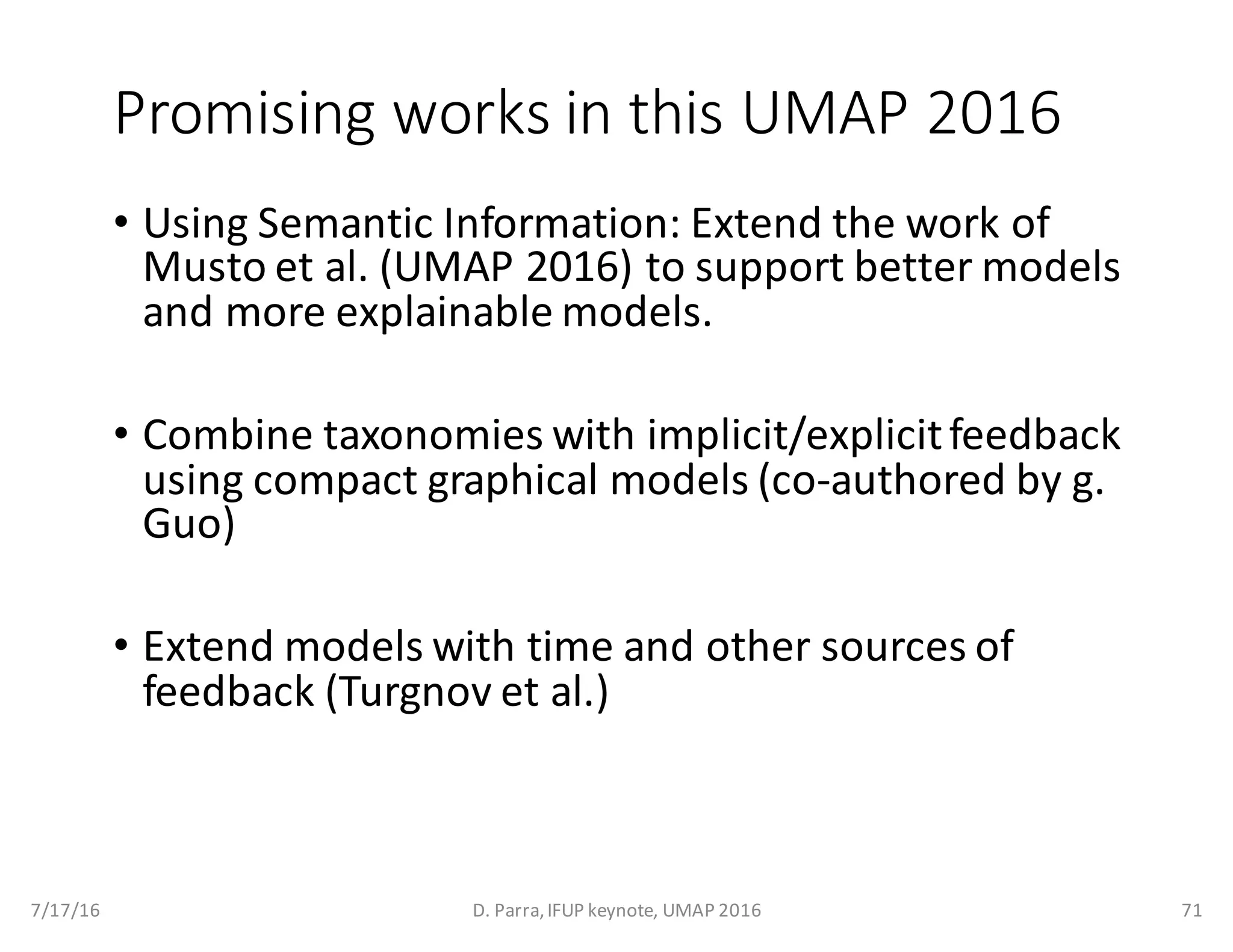

Promising works in this UMAP 2016
• Using Semantic Information: Extend the work of
Musto et al. (UMAP 2016) to support better models
and more explainable models.
• Combine taxonomies with implicit/explicit feedback
using compact graphical models (co-authored by g.
Guo)
• Extend models with time and other sources of
feedback (Turgnov et al.)

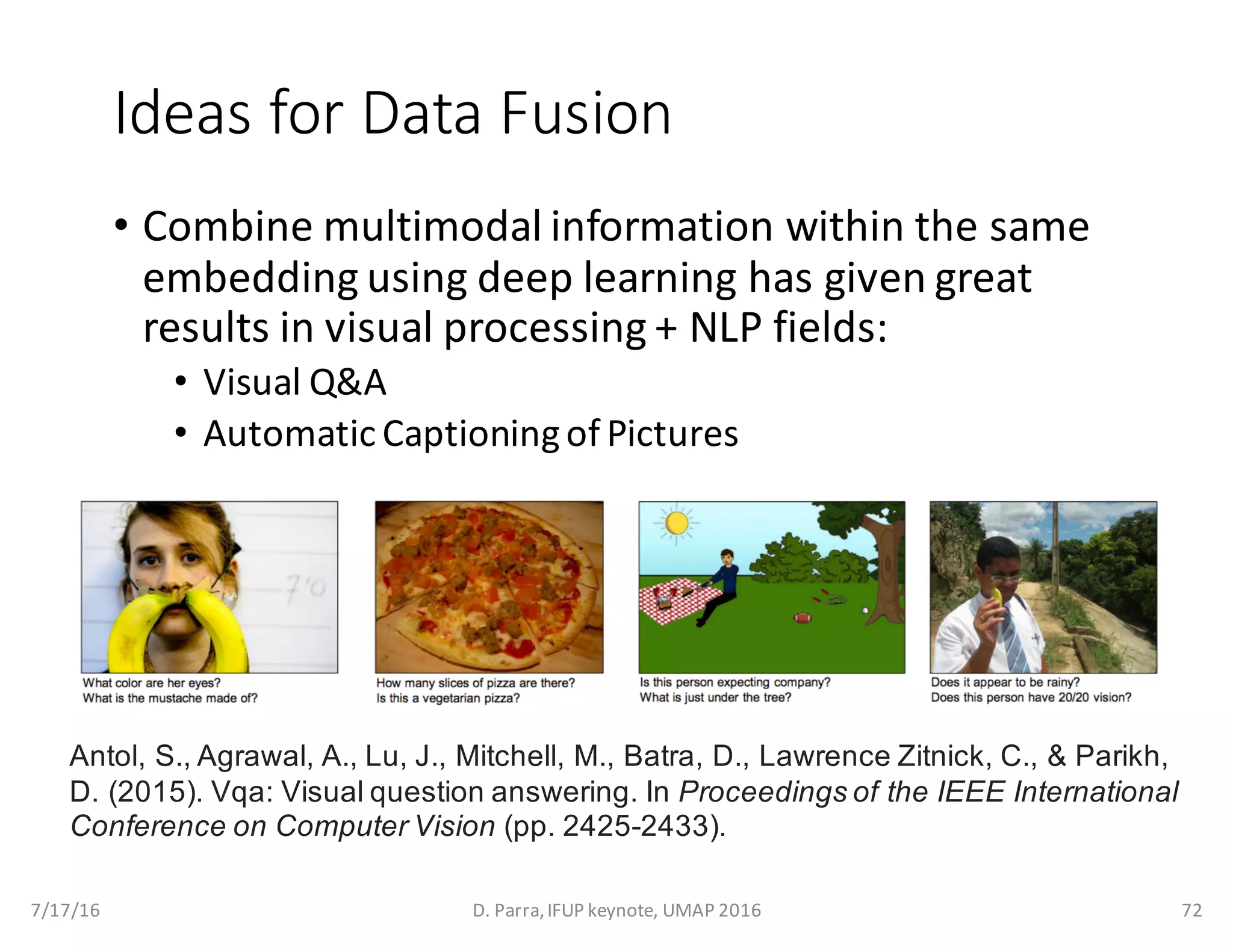

Ideas for Data Fusion
• Combine multimodal information within the same
embedding using deep learning has given great
results in visual processing + NLP fields:
• Visual Q&A
• Automatic Captioning of Pictures
Antol, S., Agrawal, A., Lu, J., Mitchell, M., Batra, D., Lawrence Zitnick, C., & Parikh,
D. (2015). Vqa: Visual question answering. In Proceedings of the IEEE International
Conference on Computer Vision (pp. 2425-2433).

Thanks!
dparras@uc.cl
http://dparra.sitios.ing.uc.cl/

Data Fusion for Dealing with the Recommendation Problem

More Related Content

What's hot

Viewers also liked

Similar to Data Fusion for Dealing with the Recommendation Problem

Recently uploaded

Data Fusion for Dealing with the Recommendation Problem
