1. DAEWOO FLOOR HEATING SYSTEM
For your healthy & energy saving system
DAEWOO ENERTEC
2. GREETINGS!
Since global oil pricing has been rising, our company has readjusted the
overall energy reduction to make it suitable for the era of high oil prices
and we made an effort to develop alternative energy source which is
called Ondol heating system. Traditional Ondol is used to heat homes by
using hot air coming from the burning wood under the floor. However, a
big change occured. Nowadays, we use to electric floor heating system.
So it can reduce the Oil price as well as gas heating cost and prevent
global warming as it does not generate carbon dioxide. The comfort
and warmth that it brings is quite better compared to that of western
heating style. Therefore Ondol system became popular throughout the
world.
Our electric floor heating system offers the affordable luxury of
warm floors and barefoot comfort that anyone can enjoy anytime.
Also installing is easy so you can place it anywhere you desire for the
enjoyment of warm floors.
Our floor heating system allows homeowners to enjoy warm temperature
with a reduced utility cost and maximized energy efficiency.
We, in our company, would like to guarantee that we can meet the
standards you have for a heating system.
DAEWOO ENERTEC
TECHNOLOGIES PATENTED BY THE KOREAN INTELLECTUAL
PROPERTY OFFICE
• 2006.02 Granted Utility Model No. 0408349 on Heating Generating Plate
• 2006.03 Granted Utility Model No. 0412561 on Heating Cable
• 2007.01 Granted Trademark Registration No. 0695865 on ENERPIA
• 2008.02 Granted Patent No. 0805702 on Electric Heating System of X-L PIPE
• 2008.02 Granted Patent No. 0805703 on the Pressure Absorbing Device in X-L PIPE
• 2008.11 Granted Utility Model No. 0442474 on The Pressure Absorbing Device in X-L PIPE
HISTORY
• 2006.05 Certified 4 Safety Certifications for Electrical Appliances by Korea Testing Laboratory
• 2007.02 Founded Daewoo Enertec Inc, Daegu Factory
• 2008.03 Certified as “Venture Company” by Korea Technology credit guarantee fund
• 2008.03 Registered as a bidder who participates in Public Procurement Service’s bidding for
supplying goods and services
• 2008.06 Open R&D Department
• 2008.10 CE Certified, UL Certified
• 2009.03 ISO 14001:2004 Certified
• 2009.03 RoHS Certified
• 2009.05 Q-Mark Certified
• 2009.10 Open Chinese branch office
• 2010.01 ISO 9001:2008 Certified
• 2010.01 Gost Certified
• 2010.03 Certified as “Technical Innovative Company INNO-BIZ” by small and Medium Business
Administration
• 2010.09 Expanded Facilities 75m/m Extruding Machine, 100m/m Extruding Machine

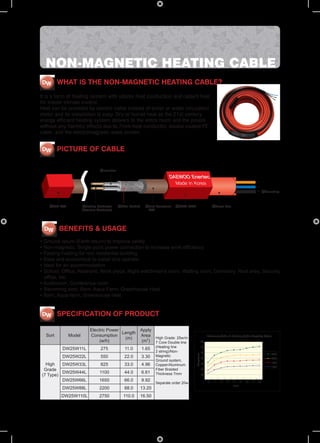

3. NON-MAGNETIC HEATING CABLE
DW WHAT IS THE NON-MAGNETIC HEATING CABLE?
It is a form of heating system with utilizes heat conduction and radiant heat
for indoor climate control.
Heat can be provided by electric cable instead of boiler or water circulation
motor and its installation is easy. Dry or humid heat as the 21st century
energy efficient heating system delivers to the entire room and the people
without any harmful effects due to 7mm heat conductor, double coated PE
cable, and the electromagnetic wave screen.
DW PICTURE OF CABLE
DW BENEFITS & USAGE
Ground return (Earth return) to improve safety
Non-magnetic, Single point power connection to increase work efficiency
Fasting heating for non residential building
Easy and economical to install and operate
Ideal for an accommodation
School, Office, Restraint, Work place, Night watchman’s room. Waiting room, Dormitory, Rest area, Security
office, etc
Auditorium, Conference room
Swimming pool, Barn, Aqua Farm, Greenhouse Heat
Barn, Aqua-farm, Greenhouse heat
DW SPECIFICATION OF PRODUCT
Electric Power Apply
Length
Sort Model Consumption Area
(m) High Grade: 25w/m
(w/h) (m2) 7 Core Double line
(Heating line
DW25W11L 275 11.0 1.65
2 string)/Non-
DW25W22L 550 22.0 3.30 Magnetic
Ground system,
High DW25W33L 825 33.0 4.96 Copper/Aluminum
Grade Fiber Braided
DW25W44L 1100 44.0 6.61 Thickness 7mm
(7 Type)
DW25W66L 1650 66.0 9.92
Separate order 20w
DW25W88L 2200 88.0 13.20
DW25W110L 2750 110.0 16.50

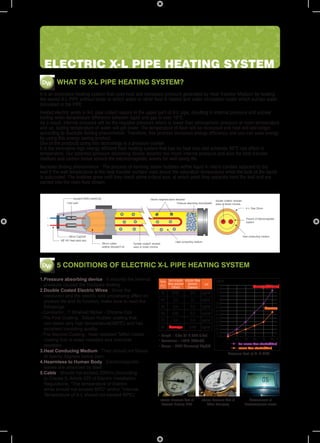

4. ELECTRIC X-L PIPE HEATING SYSTEM
DW WHAT IS X-L PIPE HEATING SYSTEM?
It is an innovative heating system that uses heat and increased pressure generated by Heat Transfer Medium by heating
the sealed X-L PIPE without boiler in which water or other fluid is heated and water circulation motor which pumps water
circulated in the PIPE.
Heated electric wires in X-L pipe collect vapors in the upper part of X-L pipe, resulting in internal pressure and unclear
boiling when temperature difference between liquid and gas is over 10°C.
As a result, internal pressure will be the negative pressure which is lower than atmospheric pressure at room temperature
and so, boiling temperature of water will get lower. The temperature of floor will be increased and heat will last longer
according to Nucleate Boiling phenomenon. Therefore, this process increases energy efficiency and you can save energy
by using this energy saving product.
One of the products using this technology is a pressure cooker.
It is the innovative high energy efficient floor heating system that has no heat loss and achieves 30°C rise effect in
temperature. Our patented pressure absorbing device absorbs too much internal pressure and also the heat transfer
medium and carbon tissue absorb the electromagnetic waves for well-being life.
Nucleate Boiling phenomenon : The process of forming steam bubbles within liquid in micro cavities adjacent to the
wall if the wall temperature at the heat transfer surface rises above the saturation temperature while the bulk of the liquid
is subcooled. The bubbles grow until they reach some critical size, at which point they separate from the wall and are
carried into the main fluid stream.
DW 5 CONDITIONS OF ELECTRIC X-L PIPE HEATING SYSTEM
1.Pressure absorbing device : It absorbs the internal
pressure caused the Nucleate Boiling.
2.Double Coated Electric Wires : Since the
conductor and the electric wire processing affect on
product life and its function, make sure to read the
followings.
-Conductor : 7 Strained Nickel - Chrome Coil
-The First Coating : Silicon Rubber coating that
can stand very high temperature(280ºC) and has
excellent insulating quality,
-The Second Coating : Heat resistant Teflon rubber Length : 9.8m (X-L PIPE 4.9m)
coating that is water resistant and chemical Resistance : 182Ω (266w/h)
resistant. Gauge ; WISE (Germany) 3kgt/㎡
3.Heat Conducing Medium : They should not freeze
at twenty degrees below zero.
4.Hearmless to Human Body : Electromagnetic
waves are absorbed by itself.
5.Cable : Should not exceed 20W/m.(According
to Clause 5, Article 225 of Electric Installation
Regulations. “The temperature of Electric
wires should not exceed 80ºC” and/or “Internal
Temperature of X-L should not exceed 80ºC)
Internal Pressure Test of Internal Pressure Test of Measurement of
Daewoo Heating PIPE Other Company Electromagnetic waves
5. DAEWOO
The Productivity to create Energy Utopia
Efficient and energy saving heaing system

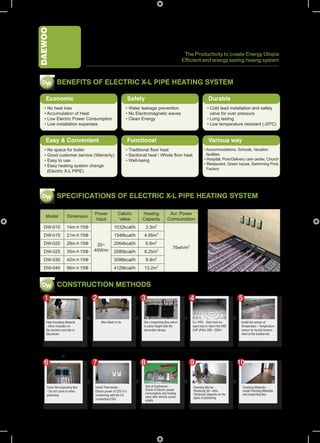

DW BENEFITS OF ELECTRIC X-L PIPE HEATING SYSTEM
Economic Safety Durable
• No heat loss • Water leakage prevention • Cold lead installation and safety
• Accumulation of Heat • No Electromagnetic waves valve for over pressure
• Low Electric Power Consumption • Clean Energy • Long lasting
• Low installation expenses • Low temperature resistant (-20ºC)
Easy & Convenient Functional Various way
• No space for boiler • Traditional floor heat • Accommodations, Schools, Vacation
• Good customer service (Warranty) • Sectional heat / Whole floor heat facilities
• Easy to use • Well-being • Hospital, Post-Delivery care center, Church
• Easy heating system change • Restaurant, Green house, Swimming Pool,
Factory
(Electric X-L PIPE)
DW SPECIFICATIONS OF ELECTRIC X-L PIPE HEATING SYSTEM
Power Caloric Heating Avr. Power
Model Dimension
Input Value Capacity Comsumption
DW-010 14m×15Φ 1032kcal/h 3.3m2
DW-015 21m×15Φ 1548kcal/h 4.95m2
DW-020 28m×15Φ 20~ 2064kcal/h 6.6m2
76wh/m2
DW-025 35m×15Φ 40W/m 2580kcal/h 8.25m2
DW-030 42m×15Φ 3096kcal/h 9.9m2
DW-040 56m×15Φ 4128kcal/h 13.2m2
DW CONSTRUCTION METHODS
1 2 3 4 5
Heat Insulating Material
Wire Mash to fix
Set a Inspecting Box which
X-L PIPE - Start from In-
Install the sensor of
- Silver insulator on is same height with the spect box to return the END Temperature - Temperature
the aerated concrete or decorative design CAP (Pitch 200~250m sensor for humid environ-
Styrofoam ment at the Exothermic
6 7 8 9 10
Test of Exothermic -
Cover the Inspecting Box Install Thermostat - Finishing Mortar - Finishing Materials -
- Do not come in when Electro power of 220 V is Check of Electric power Plastering 30~40m Install Finishing Materials
consumption and heating Thickness depends on the and Inspecting Box
plastering connecting with the I/O
value after electric power types of plastering
connection(15A) supply
6. HEATING FILM
USING THE HIGH EFFICIENT RADIANT HEAT
DW WHAT IS DAEWOO HEATING FILM?
It is an innovative heating system that is made with gravure
printing of heat generating carbon tissue on PET Film and
copper busbar. Since it emits far infrared rays and anions, warm
radiant heat can be felt for a well-being life.
This film is ideal for during the certain time for the sectional
space that needs to be heated because it requires a short period
of time to make heat so suitable for customer, accommodation,
office, church, restaurant, and stairs. For stable use, we
recommend you to use the hardwood as the finishing material.
If you are using for the linoleum finishing or humid environment,
you need to consult with a construction company.
DW BENEFITS OF HEATING FILM
1.Energy can be saved more than 65%.(On regular basis)
2.No need space for boiler
3.Far infrared radiation (90.3%) and anions (250cc) are emitted to improve
health.
4.Don’t worry about smoke, noise, fueling, freezing.
5.Convinient control such as sectional heating, central heating and
sectional control.
6.One day installation and immediately usable
7.Free to choose of finishing materials
8.Fast installation without taking off the existing floor
9.It can lower the height of ceiling and the weight of building.
DW FEATURES OF HEATING FILM
1.Burning resist PET application : The ivory PET Film is used the XB-65 with VTH-2 chip in for heat
defying insulation which has the UL Certificate and is manufactured by Doraysaeghan.
2. Gravure printing : As screen printing cannot print carbon tissue evenly, it is inappropriate for the heat
generating plate. It can be partially overheated to cause fire and short circuit. We, however, have chosen
the gravure rotary printing press to pursue to the safety by giving electric resistance evenly to the Heat
Generating Plate.
3. Wide silver space : The silver space is for the space between carbon and copper busbar where the
electrical energy is converted to thermal energy. This space prevent spark, and is important part related
to product life and safety. We broadened this space for safety.
4. Copper busbar with 12mm of width and 10amp : Wide copper busbar to restrain overheating.
The thinner PET has superior adhesive strength and keeps air cut.
7. DAEWOO
The Productivity to create Energy Utopia
Efficient and energy saving heaing system

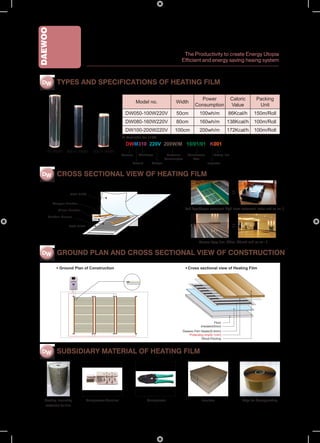

DW TYPES AND SPECIFICATIONS OF HEATING FILM
Power Caloric Packing
Model no. Width
Consumption Value Unit
DW050-100W220V 50cm 100wh/m 86Kcal/h 150m/Roll
DW080-160W220V 80cm 160wh/m 138Kcal/h 100m/Roll
DW100-200W220V 100cm 200wh/m 172Kcal/h 100m/Roll
※ Available for 110V
DWM310 220V 200W/M 10/01/01 K001
1m Width 80cm Width 50cm Width
Daewoo Thickness Customer Manufacture Cutting line
Consumption Date
Material Voltage Inspector
DW CROSS SECTIONAL VIEW OF HEATING FILM
PET FILM
Copper Busbar
Silver Busbar Sub Type(Japan restaurant High class restaurant, stairs and so on..)
Carbon Tissue
PET FILM
General Tyep (Inn, Office, Church and so on…)
DW GROUND PLAN AND CROSS SECTIONAL VIEW OF CONSTRUCTION
Ground Plan of Construction Cross sectional view of Heating Film
Floor
Insulator(5mm)
Daewoo Film Heater(0.4mm)
Protecting vinyl(0.1mm)
Wood Flooring
DW SUBSIDIARY MATERIAL OF HEATING FILM
Heating insulating Compressor Terminal Compressor Insulator Tape for Dampproofing
materials for film
8. DAEWOO ENERTEC INC.
Head Office
#2-1305, Ace Hightech City, 54-66, Moonrae 3-dong,
Yeoungdeungpo-gu, Seoul, KOREA
Tel : +82-2-6309-7050~2 Fax : +82-2-6309-7053
Factory
148-21, Namsan 2-dong, Jung-gu, Daegu, KOREA
Tel : +82-53-474-8050 Fax : +82-53-473-8050
E-mail : info@floorwarm.net
Http:/www.floorwarm.net
Patent No. 0805702 Patent No. 0805703 Certificate of Quality Evaluations (Test Result)
(Pressure Controlling Balls) (Heat System of XL Pipe) Assurance
European Safety Certification UL Certification ISO9001 GOST(Russia) Certification
(CE)
