Cumbria Development Update - Outpost
- 1. Outpost Great Place: Lakes & Dales 116.01.2020
- 3. 316.01.2020

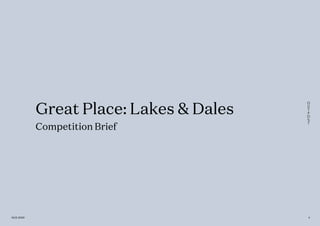

- 4. Great Place: Lakes & Dales Competition Brief 416.01.2020

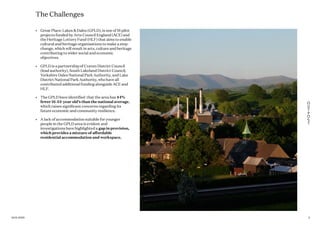

- 5. The Challenges • Great Place: Lakes & Dales (GPLD), is one of 16 pilot projects funded by Arts Council England (ACE) and the Heritage Lottery Fund (HLF) that aims to enable cultural and heritage organisations to make a step- change, which will result in arts, culture and heritage contributing to wider social and economic objectives. • GPLD is a partnership of Craven District Council (lead authority), South Lakeland District Council, Yorkshire Dales National Park Authority, and Lake District National Park Authority, who have all contributed additional funding alongside ACE and HLF. • The GPLD have identified that the area has 44% fewer 16-34-year old’s than the national average, which raises significant concerns regarding its future economic and community resilience. • A lack of accommodation suitable for younger people in the GPLD area is evident and investigations have highlighted a gap in provision, which provides a mixture of affordable residential accommodation and workspace. 516.01.2020

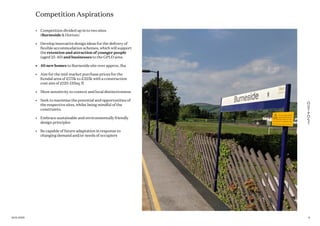

- 6. Competition Aspirations • Competition divided up in to two sites (Burneside & Horton) • Develop innovative design ideas for the delivery of flexible accommodation schemes, which will support the retention and attraction of younger people (aged 25-40) and businesses to the GPLD area. • 40 new homes to Burneside site over approx. 1ha • Aim for the mid-market purchase prices for the Kendal area of £175k to £325k with a construction cost aim of £120-135sq. ft • Show sensitivity to context and local distinctiveness • Seek to maximise the potential and opportunities of the respective sites, whilst being mindful of the constraints. • Embrace sustainable and environmentally friendly design principles • Be capable of future adaptation in response to changing demand and/or needs of occupiers 616.01.2020
- 8. Our Approach 1 - Place Making 816.01.2020

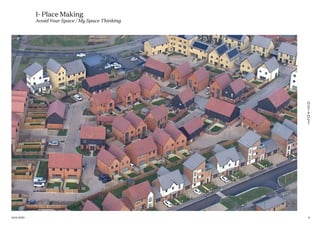

- 9. 1- Place Making Avoid Your Space / My Space Thinking 916.01.2020

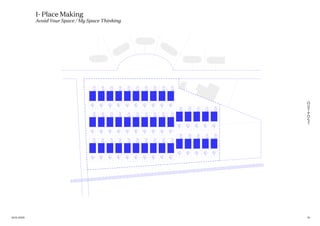

- 10. 1- Place Making Avoid Your Space / My Space Thinking 1016.01.2020

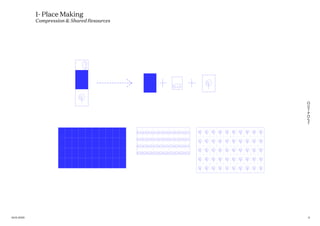

- 11. 1- Place Making Compression & Shared Resources 1116.01.2020

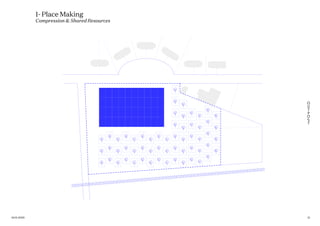

- 12. 1- Place Making Compression & Shared Resources 1216.01.2020

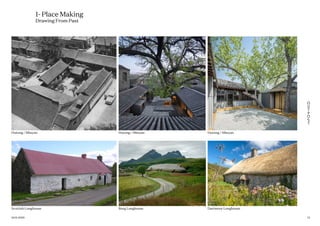

- 13. 1- Place Making Drawing From Past Scottish Longhouse Borg Longhouse Dartmoor Longhouse Hutong / Siheyan Hutong / Siheyan Hutong / Siheyan 1316.01.2020

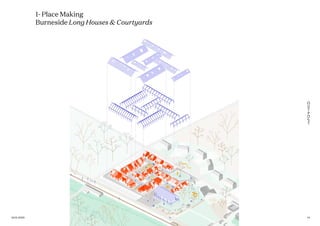

- 14. 1- Place Making Burneside Long Houses & Courtyards 1416.01.2020

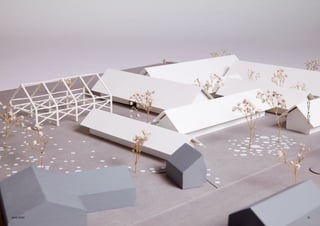

- 15. 1516.01.2020

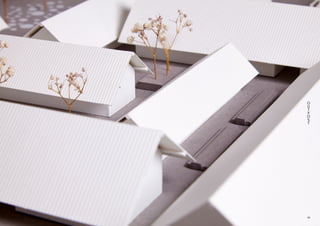

- 16. 1616.01.2020

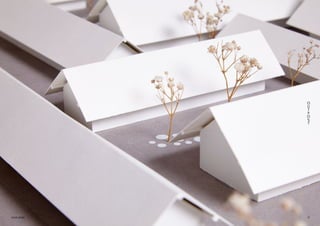

- 17. 1716.01.2020
- 18. 1816.01.2020
- 19. Our Approach 2 - Live & Work Flexibility 1916.01.2020

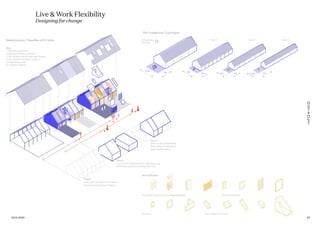

- 20. Live & Work Flexibility Designing for change Windows Doors & ShuttersStraw Bale Wall System & Shingle Cladding Roof Lights & Terraces Year 0 Jenny the Jeweller buys 3 bays Peter the Potter buys 3 bays Year 1 Jenny buys 2 bed home & workshop unit Peter buys pottery & studio flat unit Year 5 Jenny adds 2 bedrooms Peter adds 1 bedroom & more studio space Key: 1. Shared metal roof 2. Shared primary structure 3. Kit of parts straw bale wall system 4. Kit of parts windows & doors 5. Expansion zone 6. Volumes added 1. 2. 3. 4. 5. 6. 6. Inhabitation Timeline of 2 Units URN L52_Sheet01_Burneside 12 m 9 m 6 m 4.5 m 6 m 3 m 4 m 5 m Windows Doors & ShuttersStraw Bale Wall System & Shingle Cladding Roof Lights & Terraces Year 5 Key: 1. Shared metal roof 2. Shared primary structure 3. Kit of parts straw bale wall system 4. Kit of parts windows & doors 5. Expansion zone 6. Volumes added 1. 3. 4. 5. 6. B B A A B C C Type ACommunity Building Type B Type C Kit of Parts The Longhouse Typologies Inhabitation Timeline of 2 Units URN L52_Sheet01_Burneside 12 m 9 m 6 m 4.5 m 6 m 3 m 4 m 5 m Windows Doors & ShuttersStraw Bale Wall System & Shingle Cladding Roof Lights & Terraces B B A B C Type ACommunity Building Type B Type C Kit of Parts The Longhouse Typologies Inhabitation Timeline of 2 Units 2016.01.2020

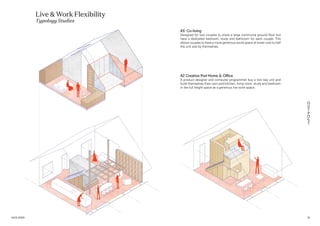

- 21. A2 Creative Pod Home & Office A product designer and computer programmer buy a two bay unit and build themselves their own pod kitchen, living room, study and bedroom in the full height space as a generous live work space. A5 Co-living Designed for two couples to share a large communal ground floor but have a dedicated bedroom, study and bathroom for each couple. This allows couples to have a more generous social space at lower cost to half the unit size by themselves. Live & Work Flexibility Typology Studies 2116.01.2020

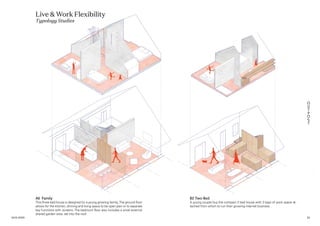

- 22. A6 Family This three bed house is designed for a young growing family. The ground floor allows for the kitchen, dinning and living space to be open plan or to separate key functions with screens. The bedroom floor also includes a small external shared garden area, set into the roof. B2 Two-Bed A young couple buy the compact 2 bed house with 2 bays of work space at- tached from which to run their growing internet business . Live & Work Flexibility Typology Studies 2216.01.2020

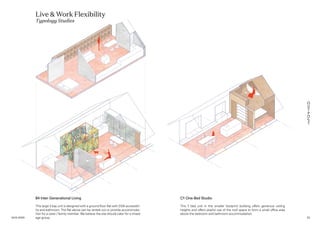

- 23. B4 Inter Generational Living This large 3 bay unit is designed with a ground floor flat with DDA accessibil- ity and bathroom. The flat above can be rented out or provide accommoda- tion for a carer / family member. We believe the site should cater for a mixed age group. Live & Work Flexibility Typology Studies C1 One-Bed Studio This 1 bed unit in the smaller footprint building offers generous ceiling heights and offers playful use of the roof space to form a small office area above the bedroom and bathroom accommodation. 2316.01.2020
- 24. Live & Work Flexibility Visual C1 Typology 2416.01.2020
- 25. Our Approach 3 - Fabric First Approach 2516.01.2020

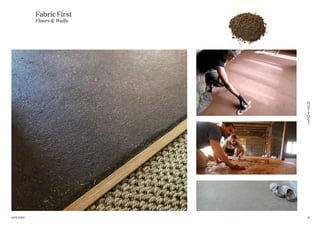

- 31. Fabric First Floors & Walls 3116.01.2020

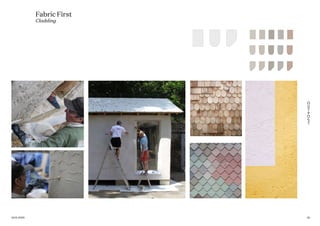

- 32. Fabric First Cladding SHINGLE SHAPE OPTIONS DESIGN SCHEMES COLOUR OPTIONS 1 1A 1A 1B 1B2 3 1C 1D 1E 2A 2B 1C 1C 1D 1E 2A 2B 2E 2C 2D 2E 1B 2C 3D 1D 2E 3C 1A 2D 3E 1C 2A 3B SHINGLE SHAPE OPTIONS DESIGN SCHEMES COLOUR OPTIONS 1 1A 1A 1B 1B2 3 1C 1D 1E 2A 2B 2C 2D 2E 3A 3B 1C 1C 1D 1E 2A 2B 2E 2C 2D 2E 3A 3B 3C 3C 3D 3E 1B 2C 3D 1D 2E 3C 1A 2D 3E 1C 2A 3B 1E 2A 3C 1B 2A 3D SHINGLE SHAPE OPTIONS DESIGN SCHEMES COLOUR OPTIONS 1 1A 1A 1B 1B2 3 1C 1D 1E 2A 2B 2C 2D 2E 3A 3B 3C 3D 3E 1C 1C 1D 1E 2A 2B 2E 2C 2D 2E 3A 3B 3C 3C 3D 3E 1B 2C 3D 1D 2E 3C 1A 2D 3E 1C 2A 3B 1E 2A 3C 1B 2A 3D SHINGLE SHAPE OPTIONS DESIGN SCHEMES COLOUR OPTIONS 1 1A 1A 1B 1B2 3 1C 1D 1C 1C 1D 1E 1A 2D 3E 3216.01.2020

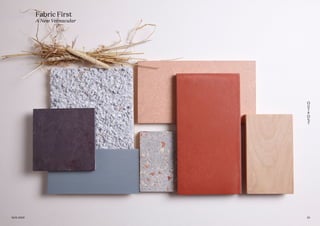

- 33. Fabric First A New Vernacular 3316.01.2020
- 34. Industry Changes Needed Our Thoughts 3416.01.2020

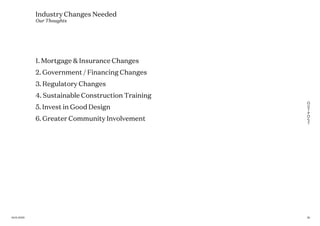

- 35. 1. Mortgage & Insurance Changes 2. Government / Financing Changes 3. Regulatory Changes 4. Sustainable Construction Training 5. Invest in Good Design 6. Greater Community Involvement Industry Changes Needed Our Thoughts 3516.01.2020
- 36. Thankyou. Outpost Purple Studio, Old Paradise Yard 20 Carlisle Lane, London SE1 7LG +44 (0) 20 7928 2481 outpostlondon.com 3616.01.2020
