1. CHAPTER 3 -
Static techniques
Based on ISTQB CTFL Syllabus
Presented by :
DavisThomas K

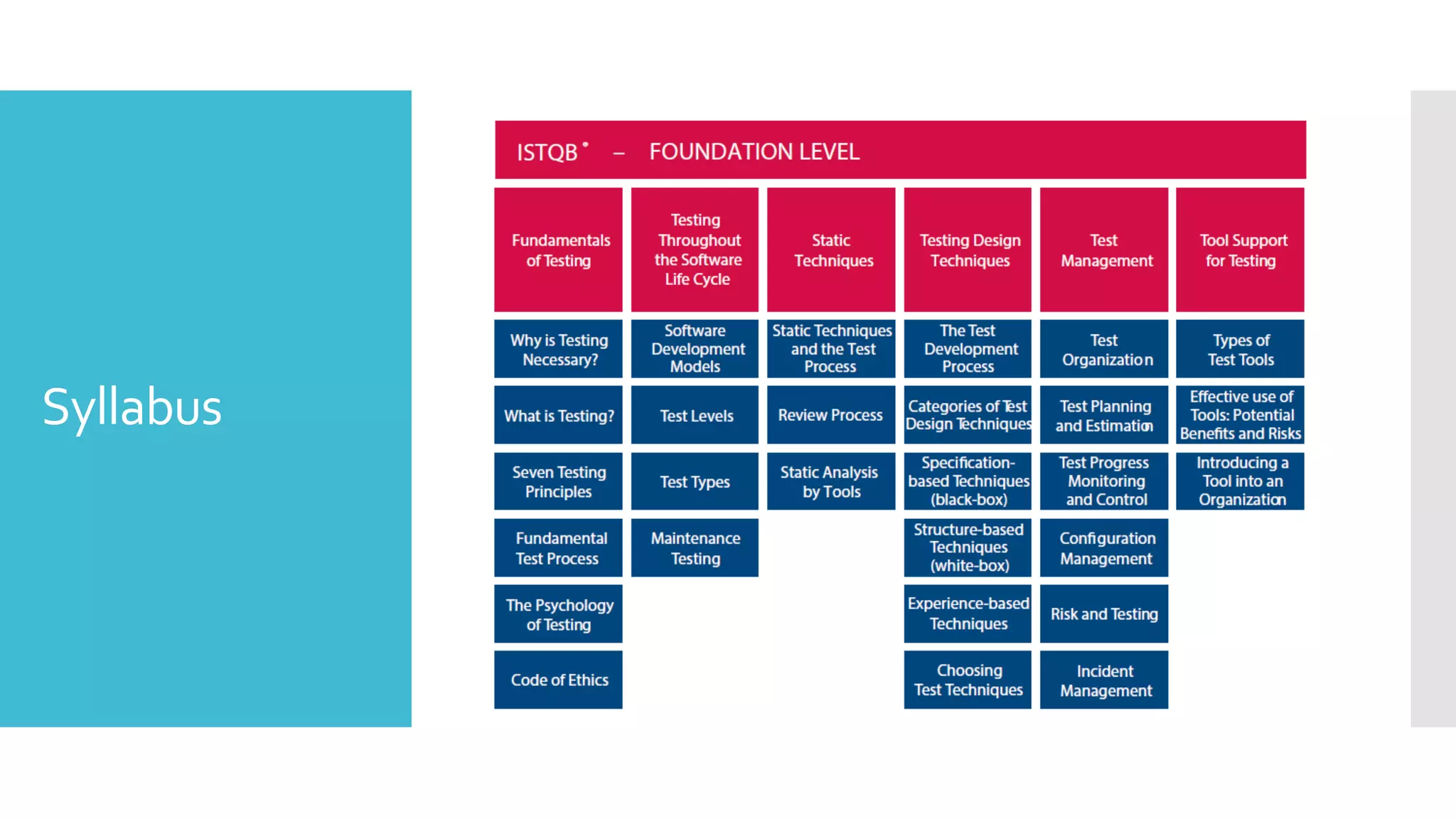

2. Syllabus

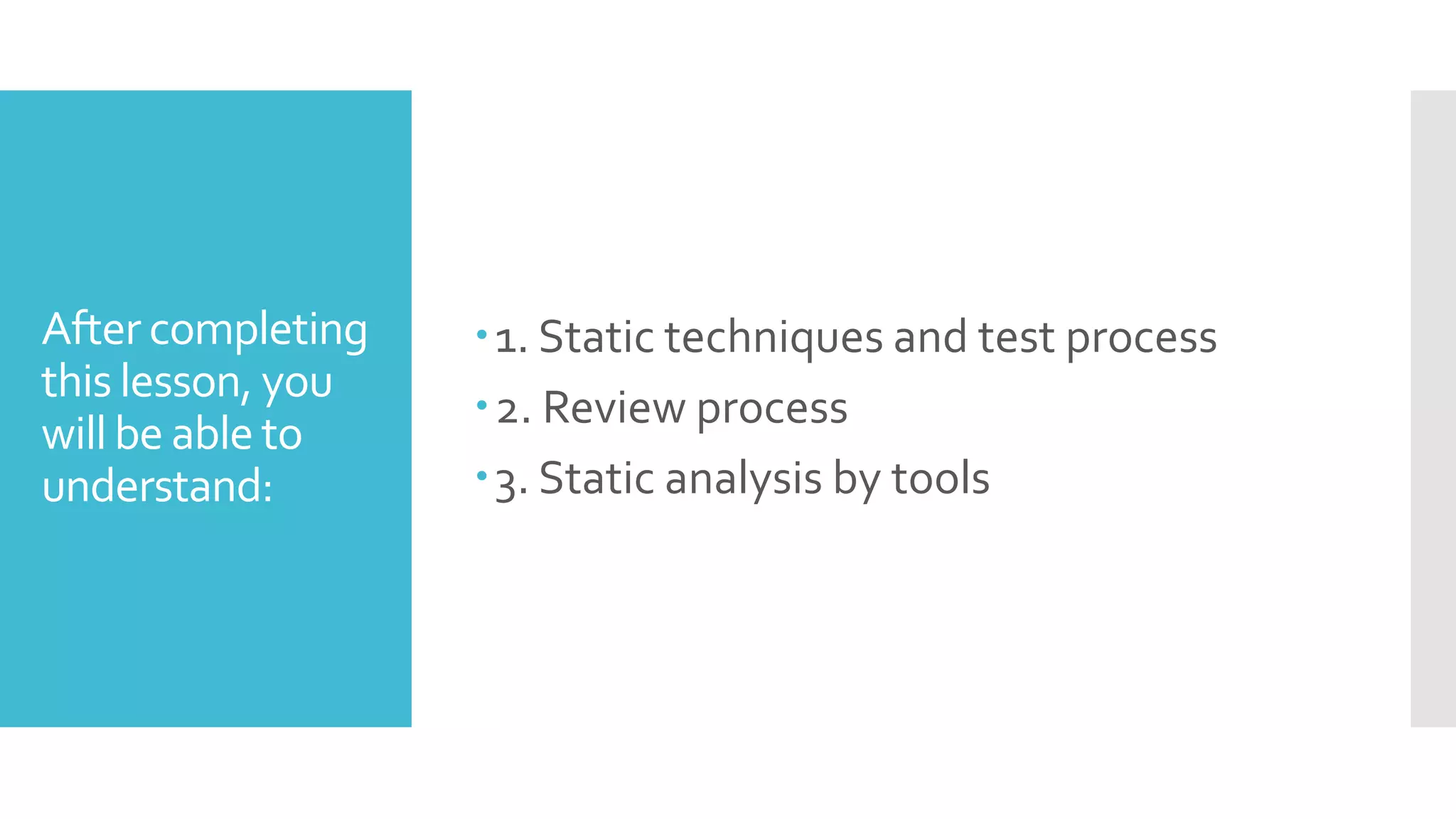

3. After completing
this lesson, you
will be able to
understand:
1. Static techniques and test process
2. Review process
3. Static analysis by tools

4. K Level
 3) Static testing: (K2)
 Reviews and theTest process (K2)
 Review Process (K2)
 Static analysis by tools (K2)

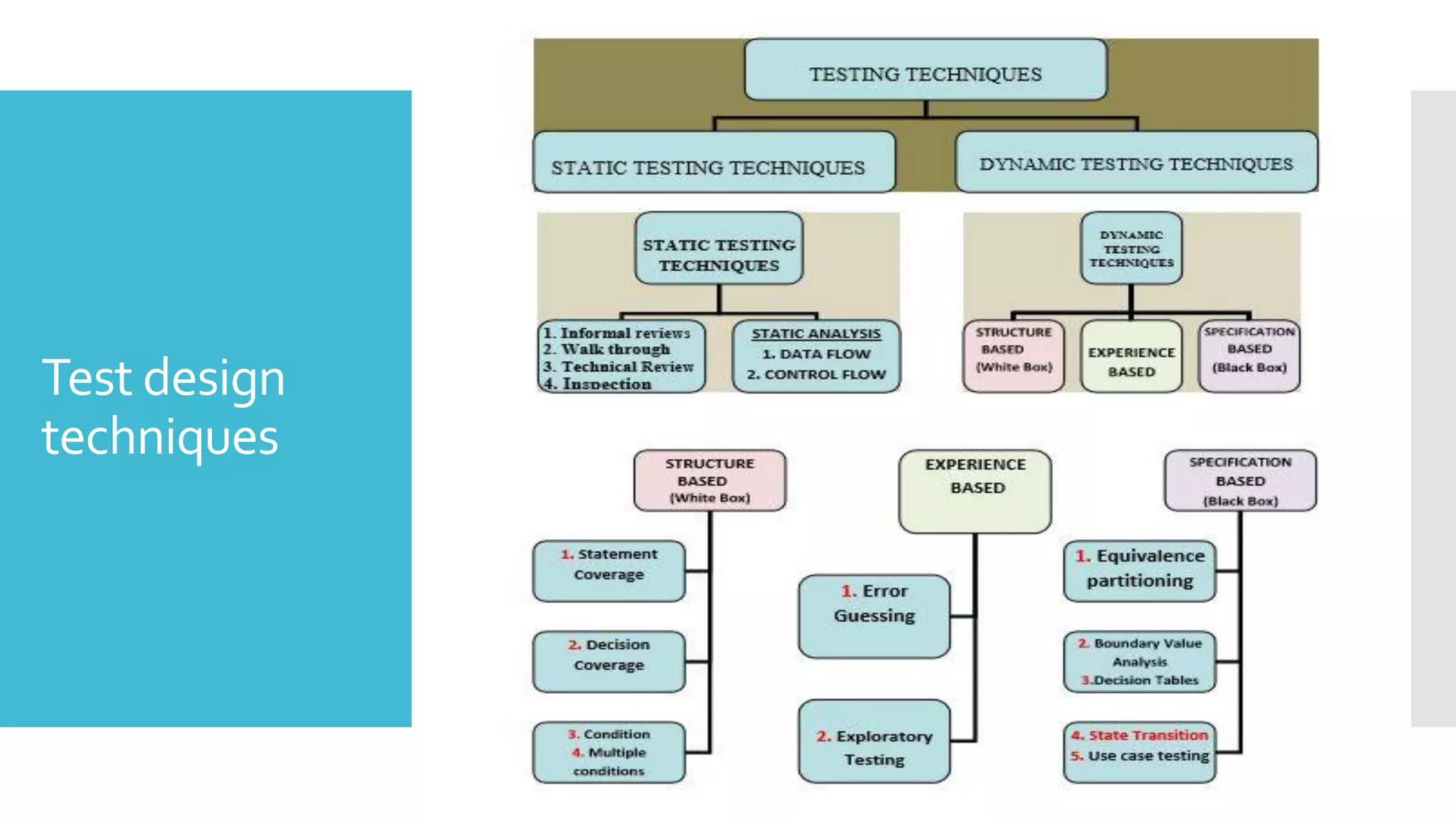

5. Test design
techniques

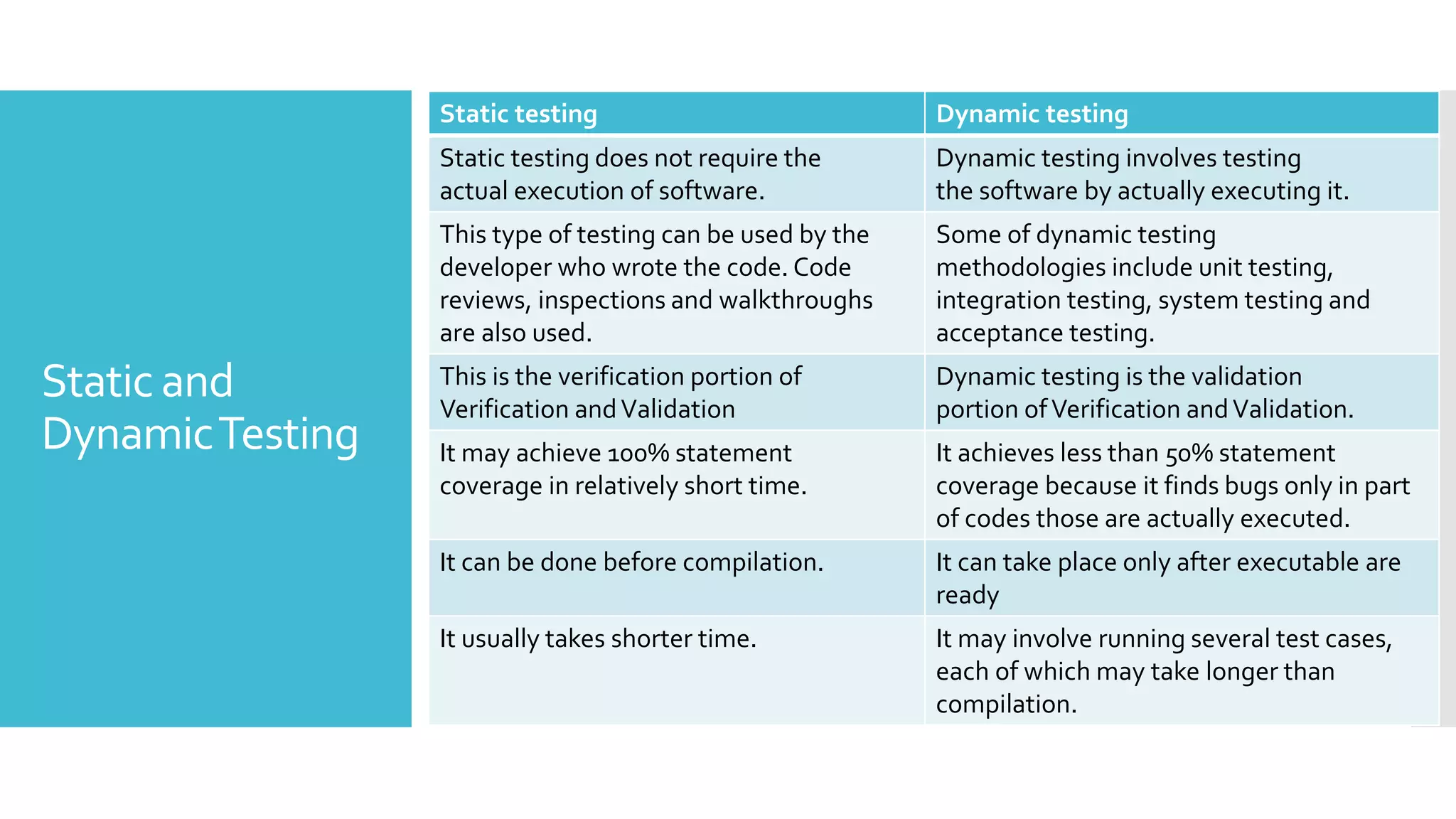

6. Static and
DynamicTesting
Static testing Dynamic testing
Static testing does not require the
actual execution of software.
Dynamic testing involves testing
the software by actually executing it.
This type of testing can be used by the
developer who wrote the code. Code
reviews, inspections and walkthroughs
are also used.
Some of dynamic testing
methodologies include unit testing,
integration testing, system testing and
acceptance testing.
This is the verification portion of
Verification andValidation
Dynamic testing is the validation
portion ofVerification andValidation.
It may achieve 100% statement
coverage in relatively short time.
It achieves less than 50% statement
coverage because it finds bugs only in part
of codes those are actually executed.
It can be done before compilation. It can take place only after executable are
ready
It usually takes shorter time. It may involve running several test cases,
each of which may take longer than
compilation.

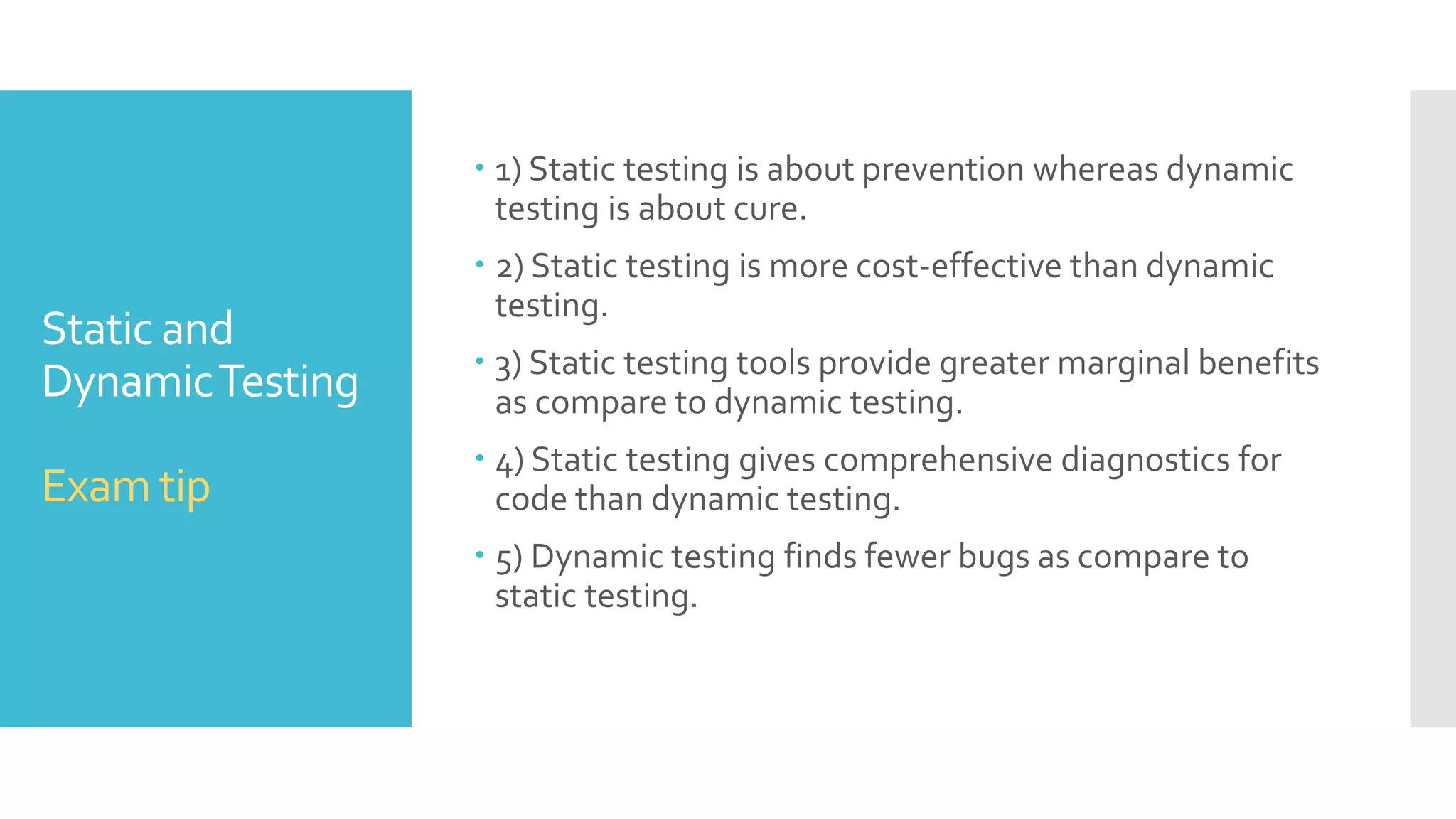

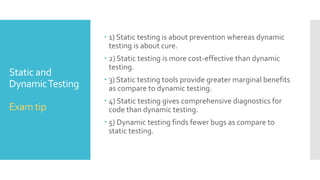

7. Static and
DynamicTesting
Exam tip
 1) Static testing is about prevention whereas dynamic
testing is about cure.
 2) Static testing is more cost-effective than dynamic
testing.
 3) Static testing tools provide greater marginal benefits
as compare to dynamic testing.
 4) Static testing gives comprehensive diagnostics for
code than dynamic testing.
 5) Dynamic testing finds fewer bugs as compare to
static testing.

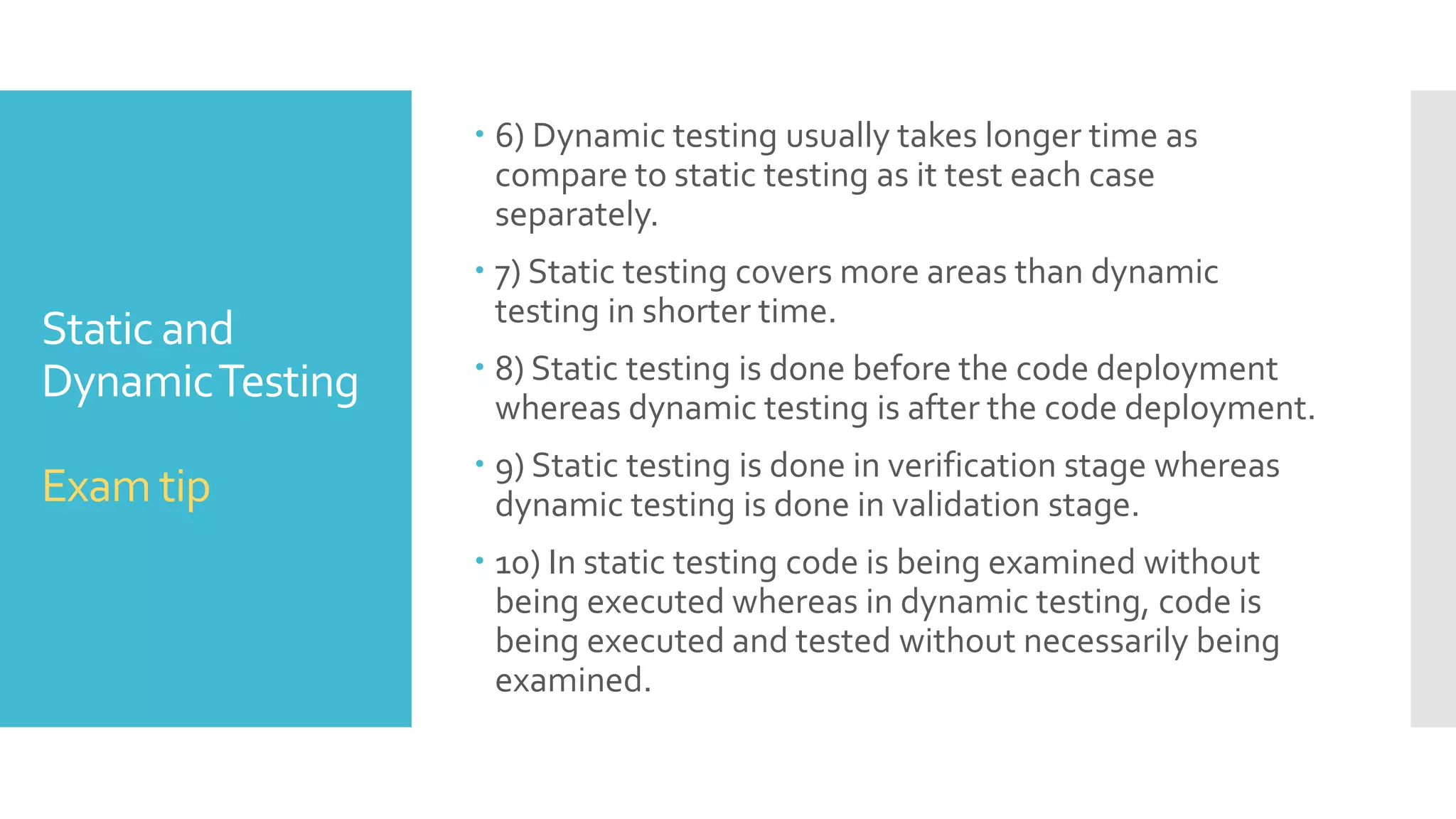

8. Static and
DynamicTesting
Exam tip
 6) Dynamic testing usually takes longer time as
compare to static testing as it test each case
separately.
 7) Static testing covers more areas than dynamic
testing in shorter time.
 8) Static testing is done before the code deployment
whereas dynamic testing is after the code deployment.
 9) Static testing is done in verification stage whereas
dynamic testing is done in validation stage.
 10) In static testing code is being examined without
being executed whereas in dynamic testing, code is
being executed and tested without necessarily being
examined.

9. Static and
DynamicTesting
Exam tip
 6) Dynamic testing usually takes longer time as
compare to static testing as it test each case
separately.
 7) Static testing covers more areas than dynamic
testing in shorter time.
 8) Static testing is done before the code deployment
whereas dynamic testing is after the code deployment.
 9) Static testing is done in verification stage whereas
dynamic testing is done in validation stage.
 10) In static testing code is being examined without
being executed whereas in dynamic testing, code is
being executed and tested without necessarily being
examined.

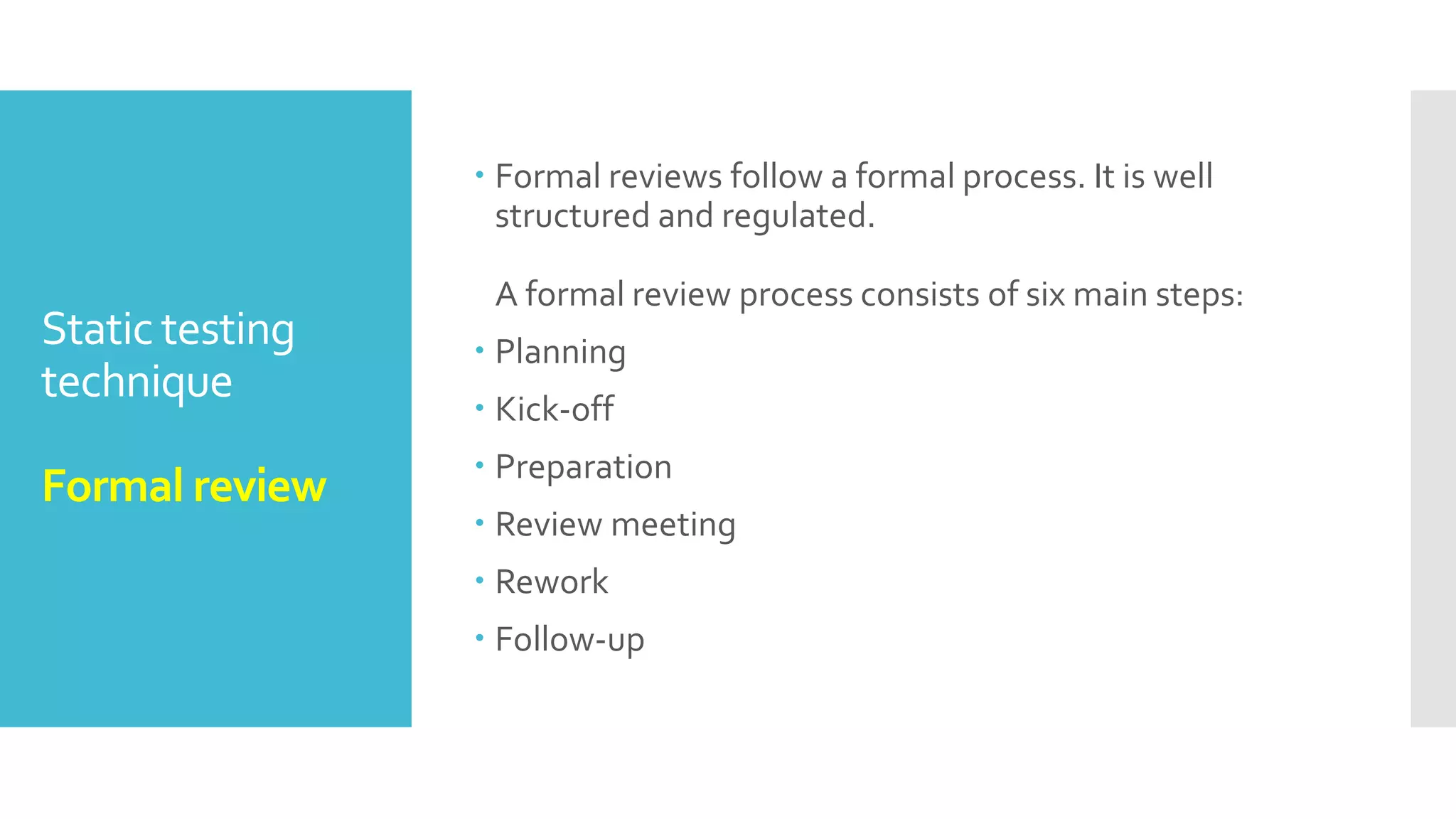

10. Static testing
technique
Formal review
 Formal reviews follow a formal process. It is well
structured and regulated.
A formal review process consists of six main steps:
 Planning
 Kick-off
 Preparation
 Review meeting
 Rework
 Follow-up

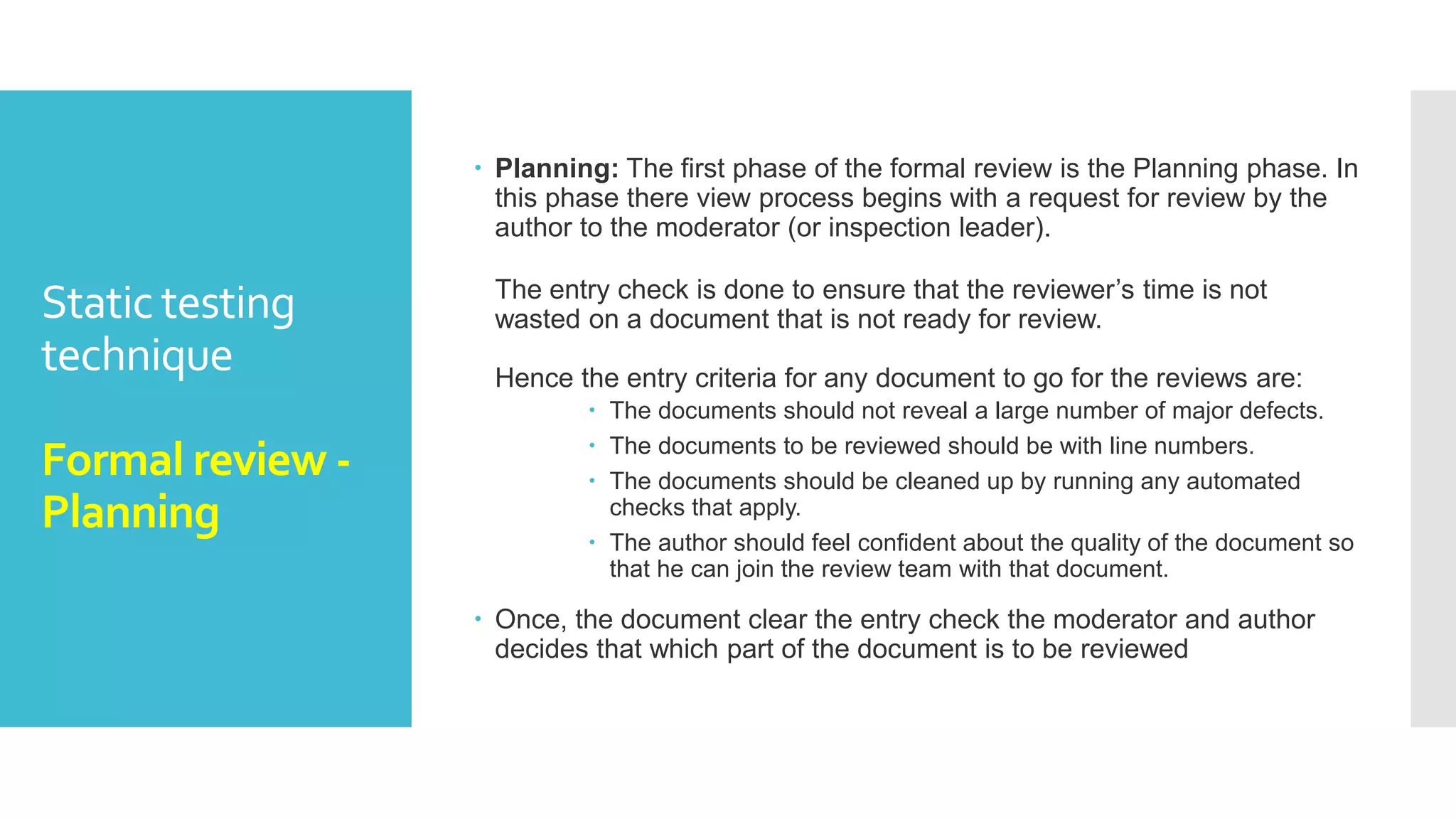

11. Static testing
technique
Formal review -
Planning
 Planning: The first phase of the formal review is the Planning phase. In
this phase there view process begins with a request for review by the
author to the moderator (or inspection leader).
The entry check is done to ensure that the reviewer’s time is not
wasted on a document that is not ready for review.
Hence the entry criteria for any document to go for the reviews are:
 The documents should not reveal a large number of major defects.
 The documents to be reviewed should be with line numbers.
 The documents should be cleaned up by running any automated
checks that apply.
 The author should feel confident about the quality of the document so
that he can join the review team with that document.
 Once, the document clear the entry check the moderator and author
decides that which part of the document is to be reviewed

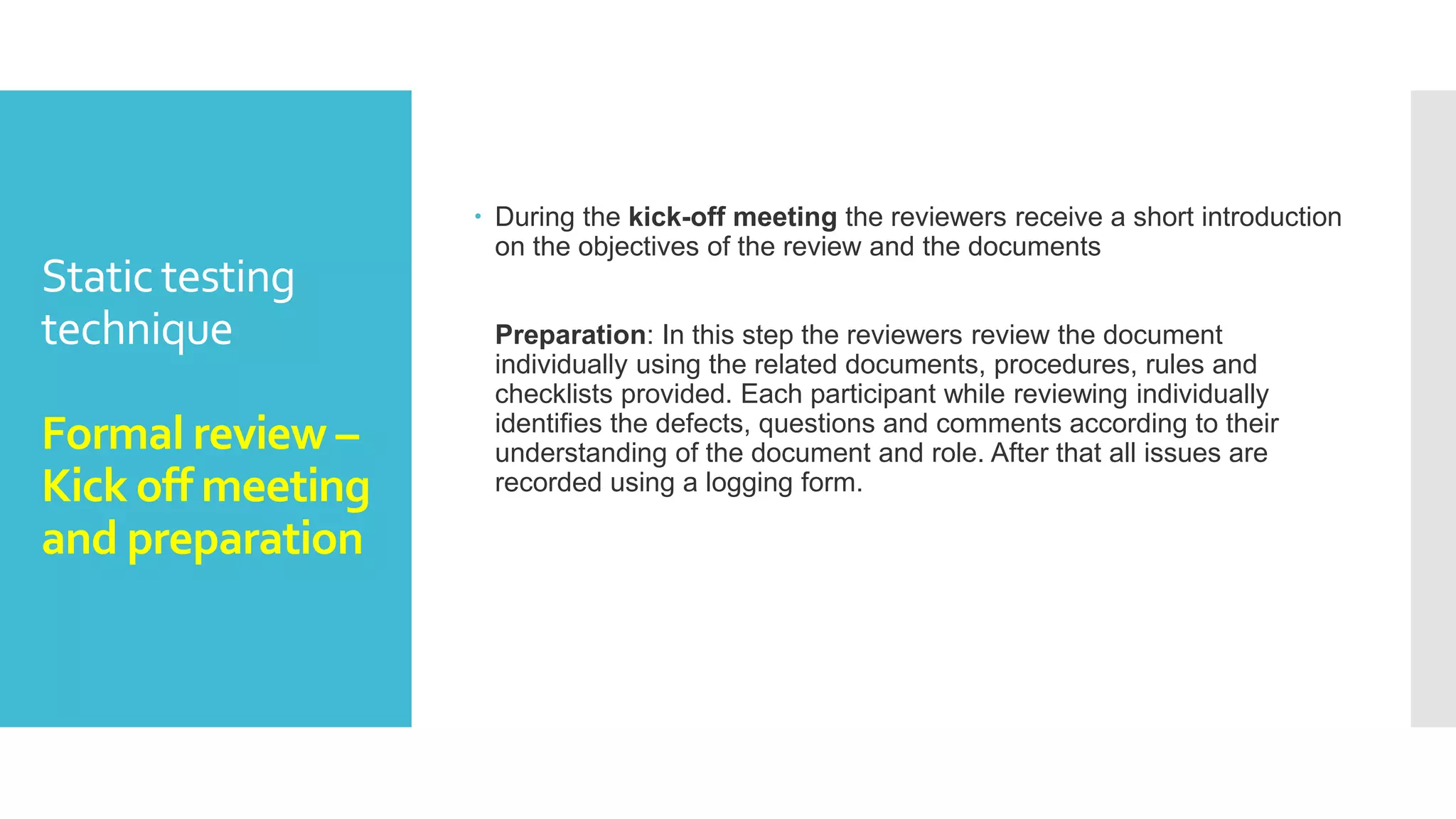

12. Static testing
technique
Formal review –
Kick off meeting
and preparation
 During the kick-off meeting the reviewers receive a short introduction
on the objectives of the review and the documents
Preparation: In this step the reviewers review the document
individually using the related documents, procedures, rules and
checklists provided. Each participant while reviewing individually
identifies the defects, questions and comments according to their
understanding of the document and role. After that all issues are
recorded using a logging form.

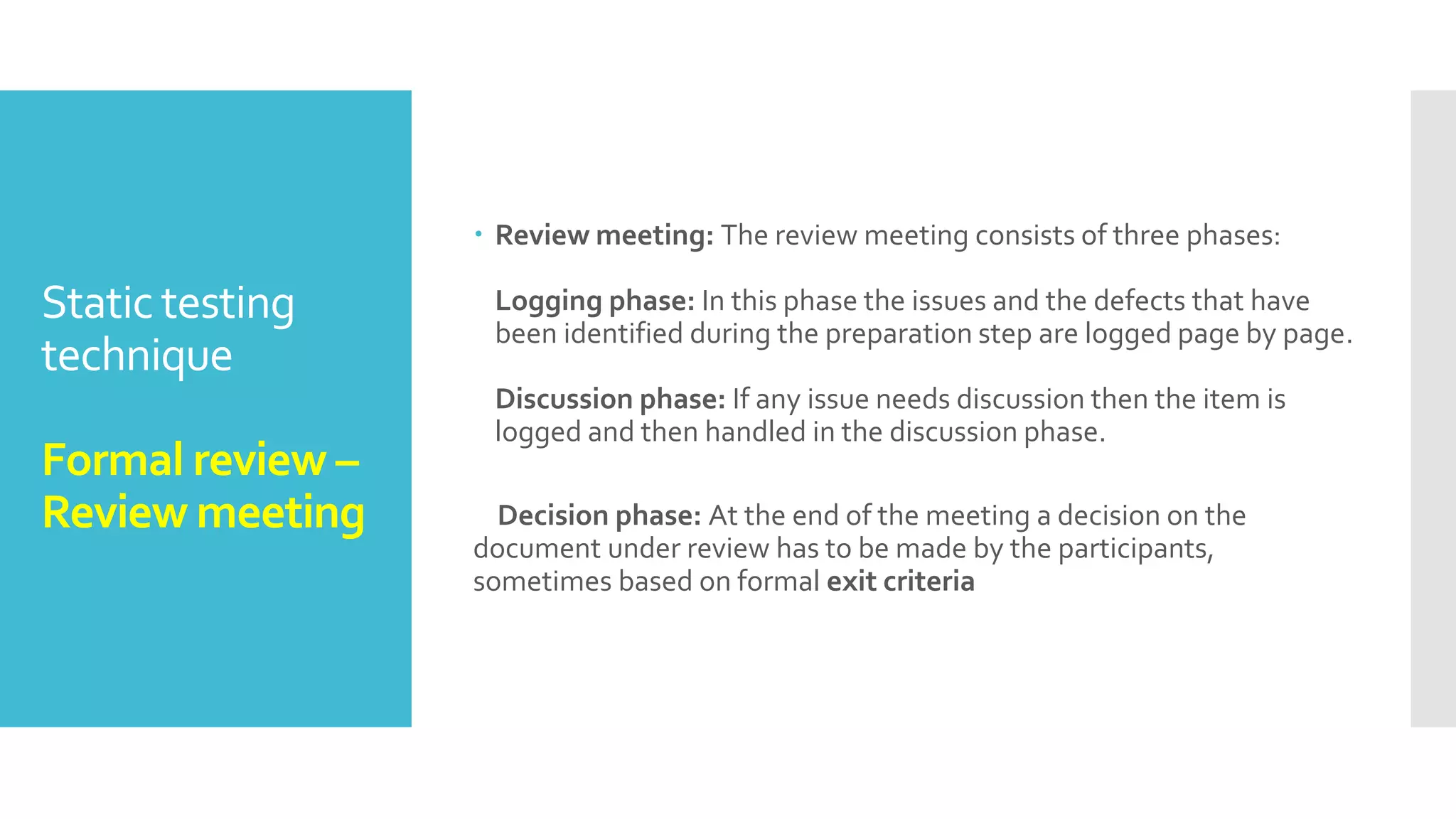

13. Static testing
technique
Formal review –
Review meeting
 Review meeting: The review meeting consists of three phases:
Logging phase: In this phase the issues and the defects that have
been identified during the preparation step are logged page by page.
Discussion phase: If any issue needs discussion then the item is
logged and then handled in the discussion phase.
Decision phase: At the end of the meeting a decision on the
document under review has to be made by the participants,
sometimes based on formal exit criteria

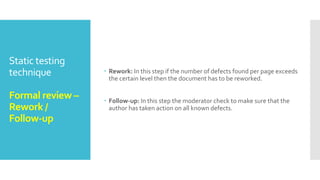

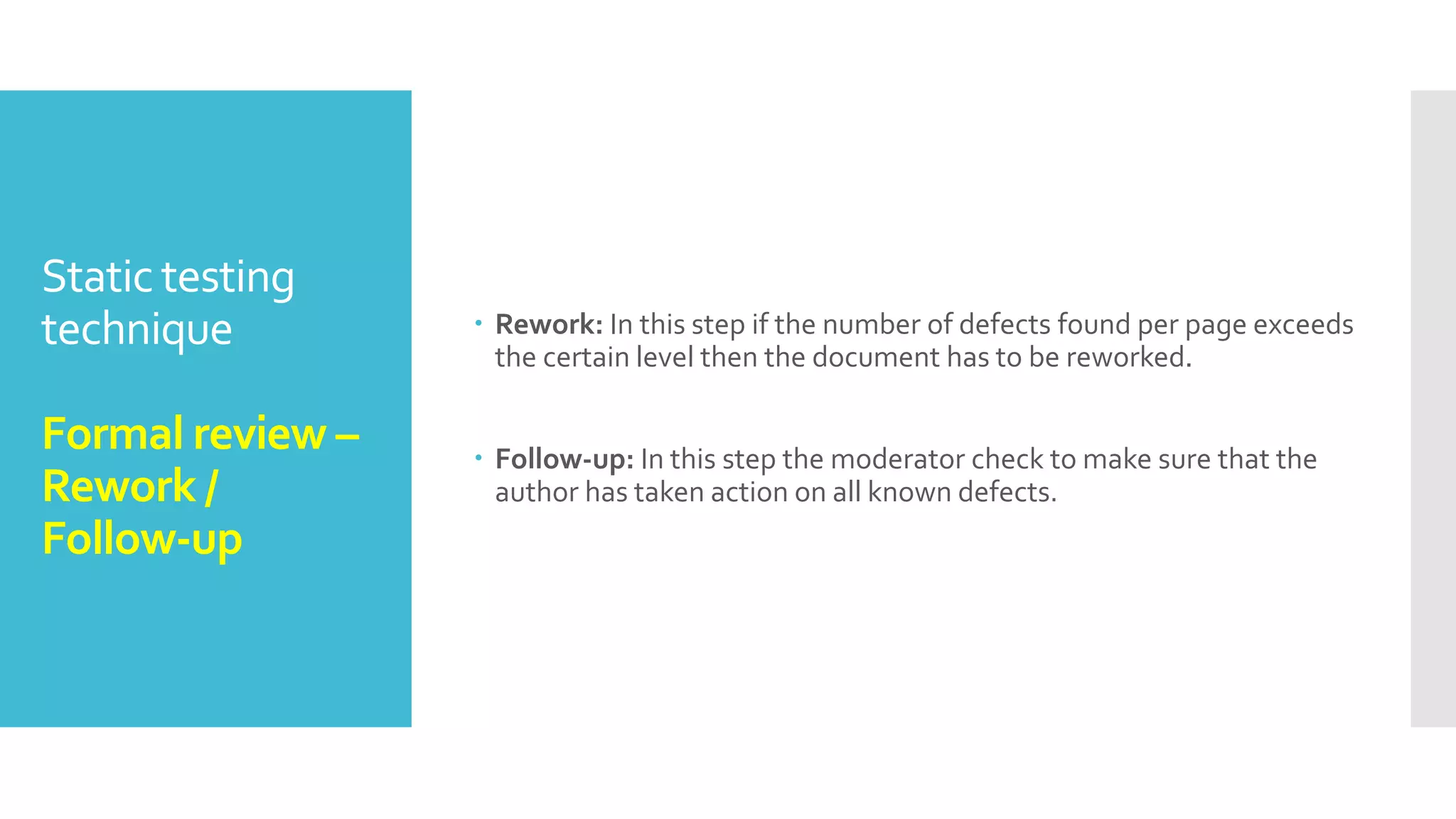

14. Static testing
technique
Formal review –
Rework /
Follow-up
 Rework: In this step if the number of defects found per page exceeds
the certain level then the document has to be reworked.
 Follow-up: In this step the moderator check to make sure that the
author has taken action on all known defects.

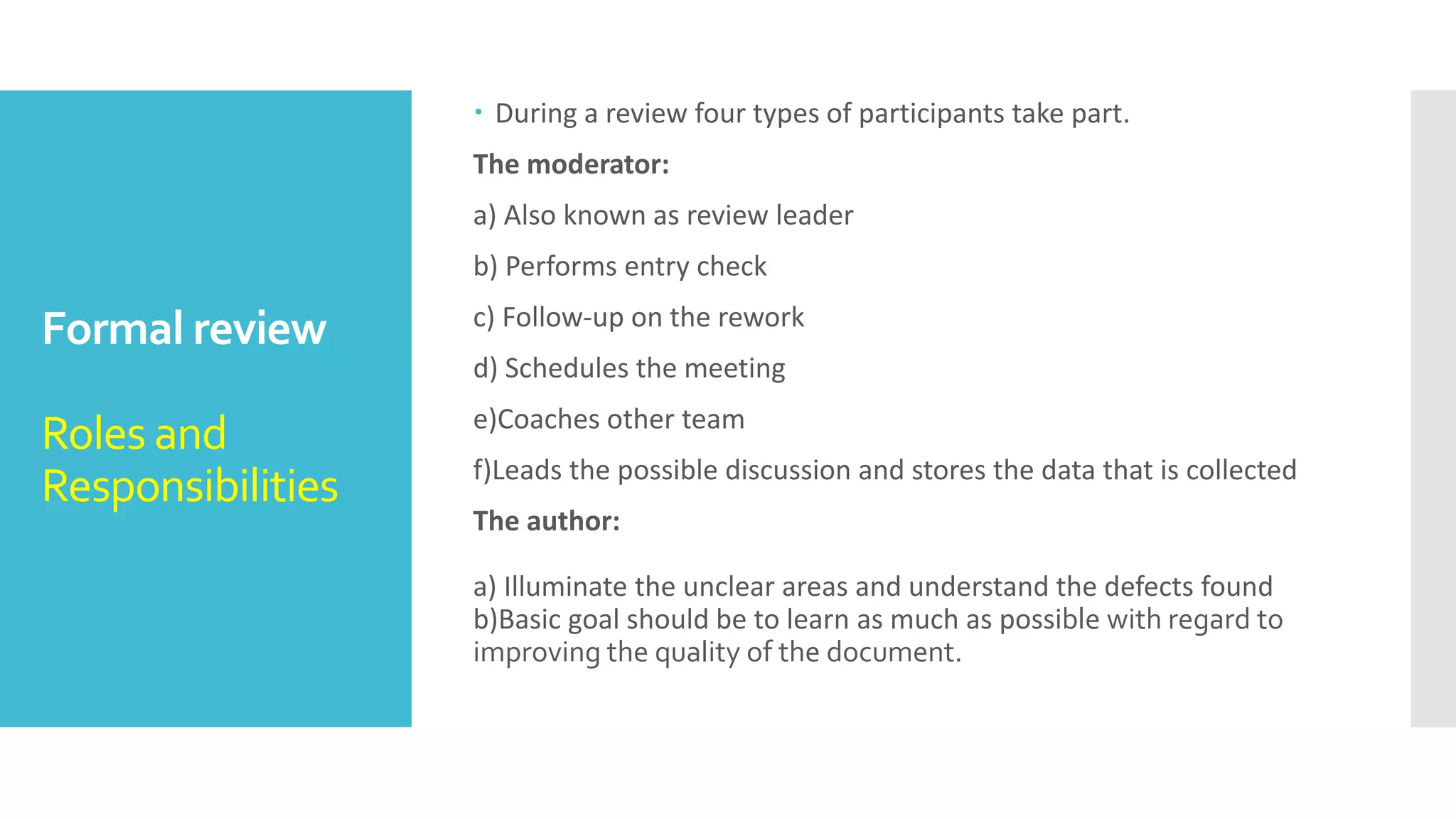

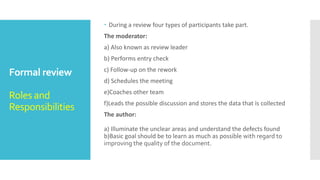

15. Formal review
Roles and
Responsibilities
 During a review four types of participants take part.
The moderator:
a) Also known as review leader
b) Performs entry check
c) Follow-up on the rework
d) Schedules the meeting
e)Coaches other team
f)Leads the possible discussion and stores the data that is collected
The author:
a) Illuminate the unclear areas and understand the defects found
b)Basic goal should be to learn as much as possible with regard to
improving the quality of the document.

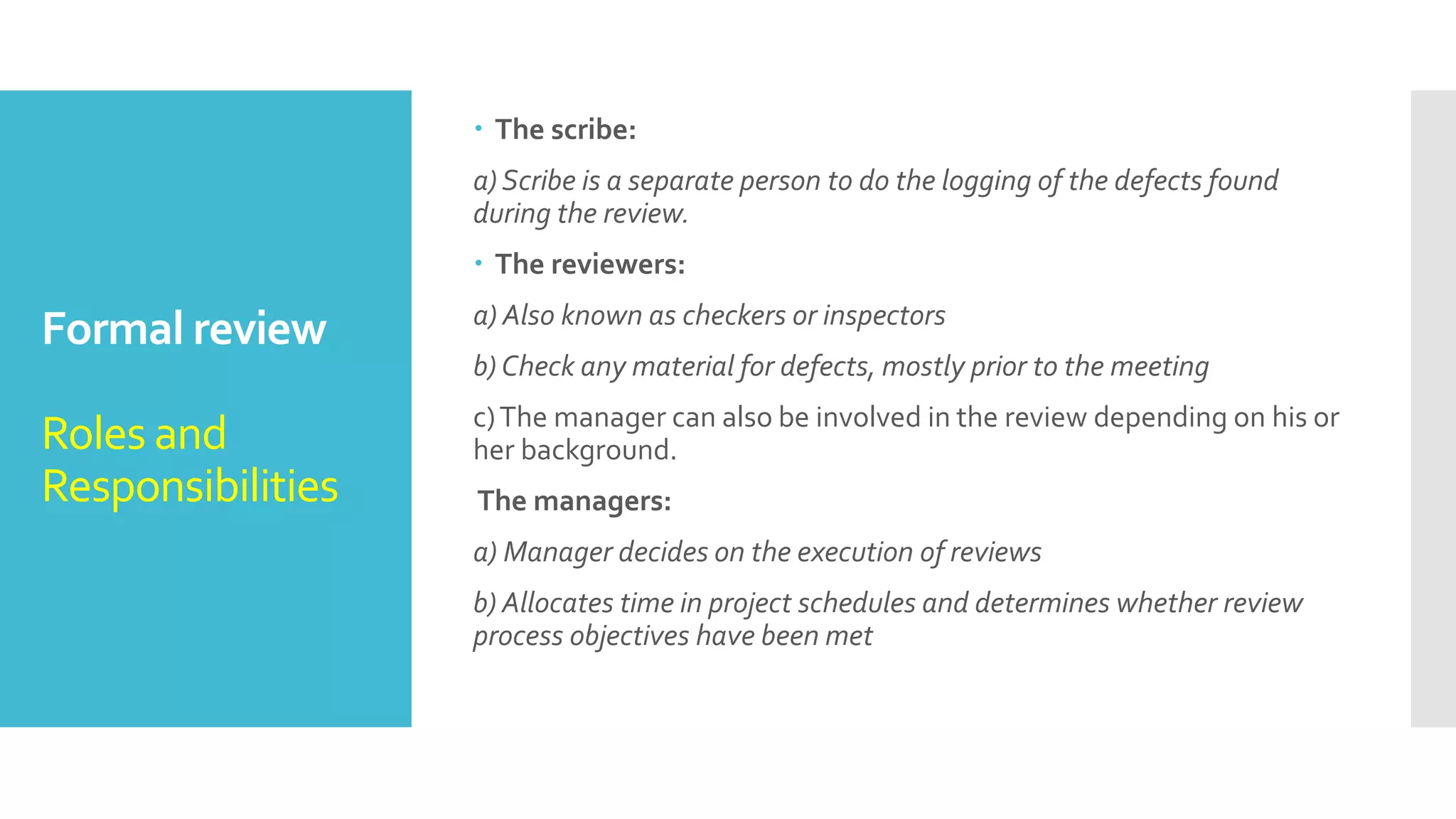

16. Formal review
Roles and
Responsibilities
 The scribe:
a) Scribe is a separate person to do the logging of the defects found
during the review.
 The reviewers:
a) Also known as checkers or inspectors
b) Check any material for defects, mostly prior to the meeting
c)The manager can also be involved in the review depending on his or
her background.
The managers:
a) Manager decides on the execution of reviews
b) Allocates time in project schedules and determines whether review
process objectives have been met

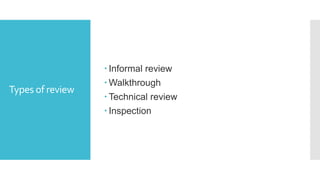

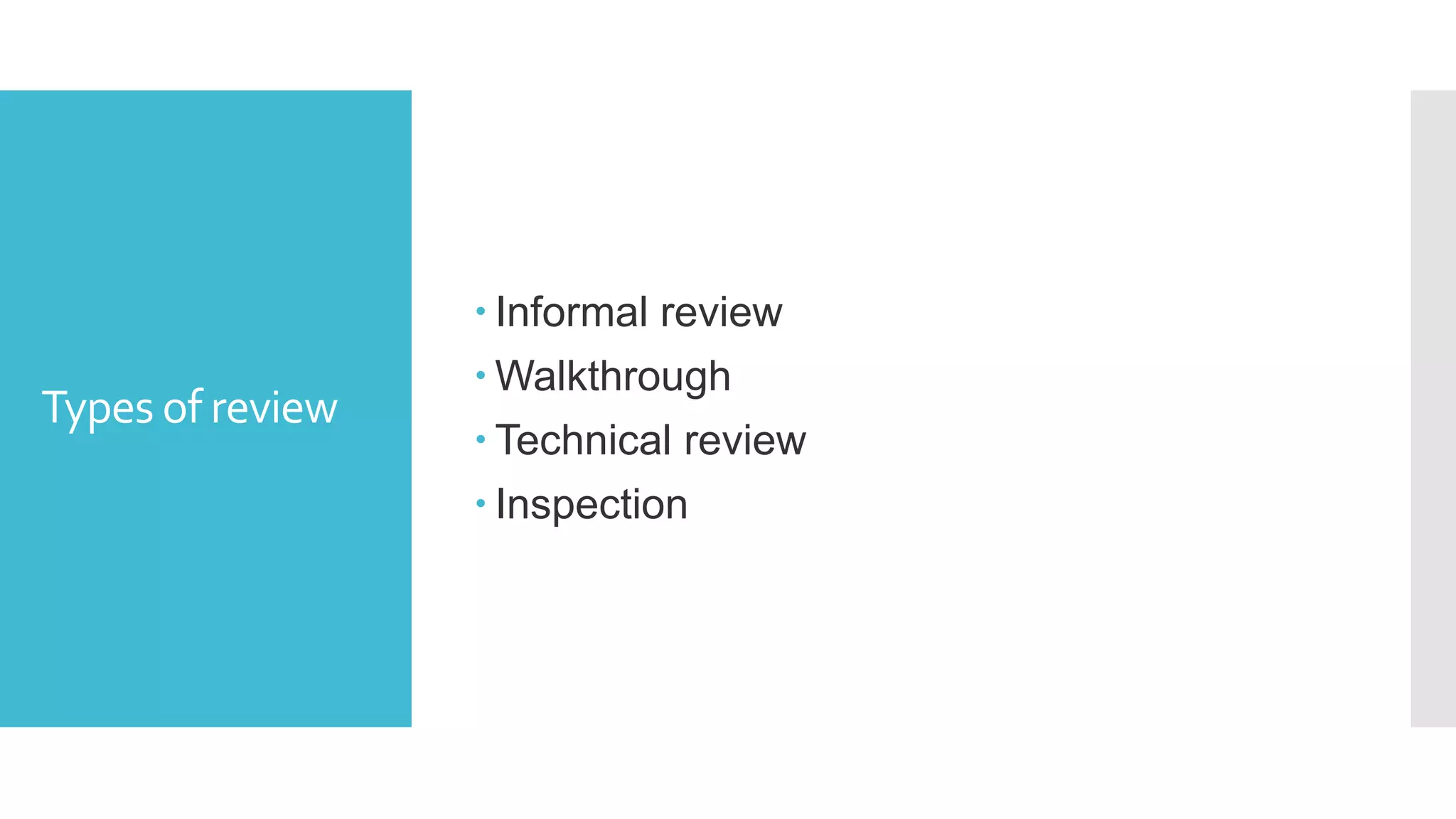

17. Types of review
 Informal review
 Walkthrough
 Technical review
 Inspection

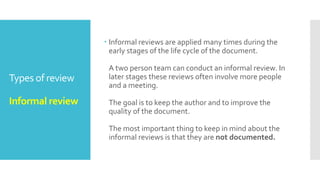

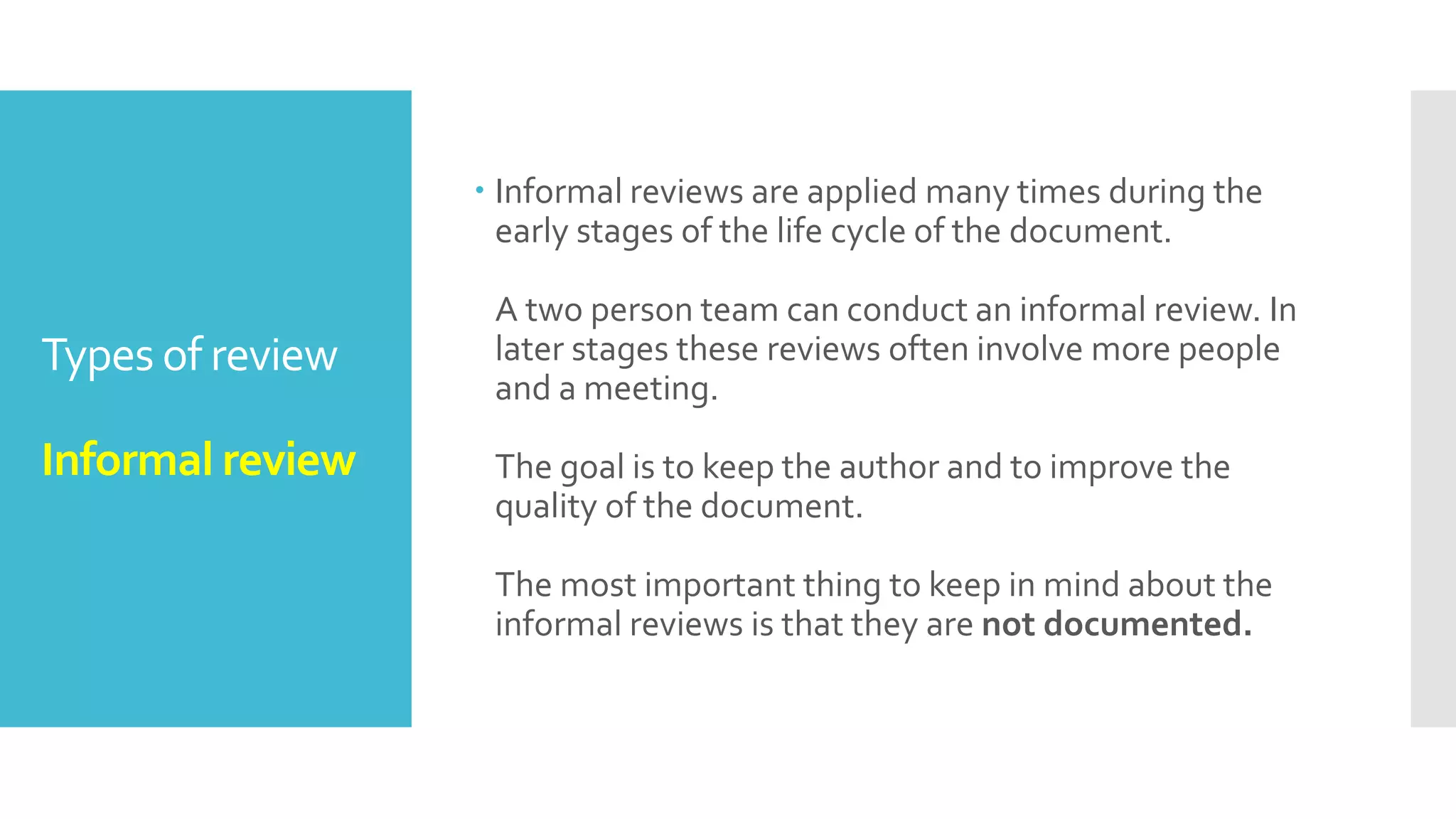

19. Types of review
Informal review
 Informal reviews are applied many times during the
early stages of the life cycle of the document.
A two person team can conduct an informal review. In
later stages these reviews often involve more people
and a meeting.
The goal is to keep the author and to improve the
quality of the document.
The most important thing to keep in mind about the
informal reviews is that they are not documented.

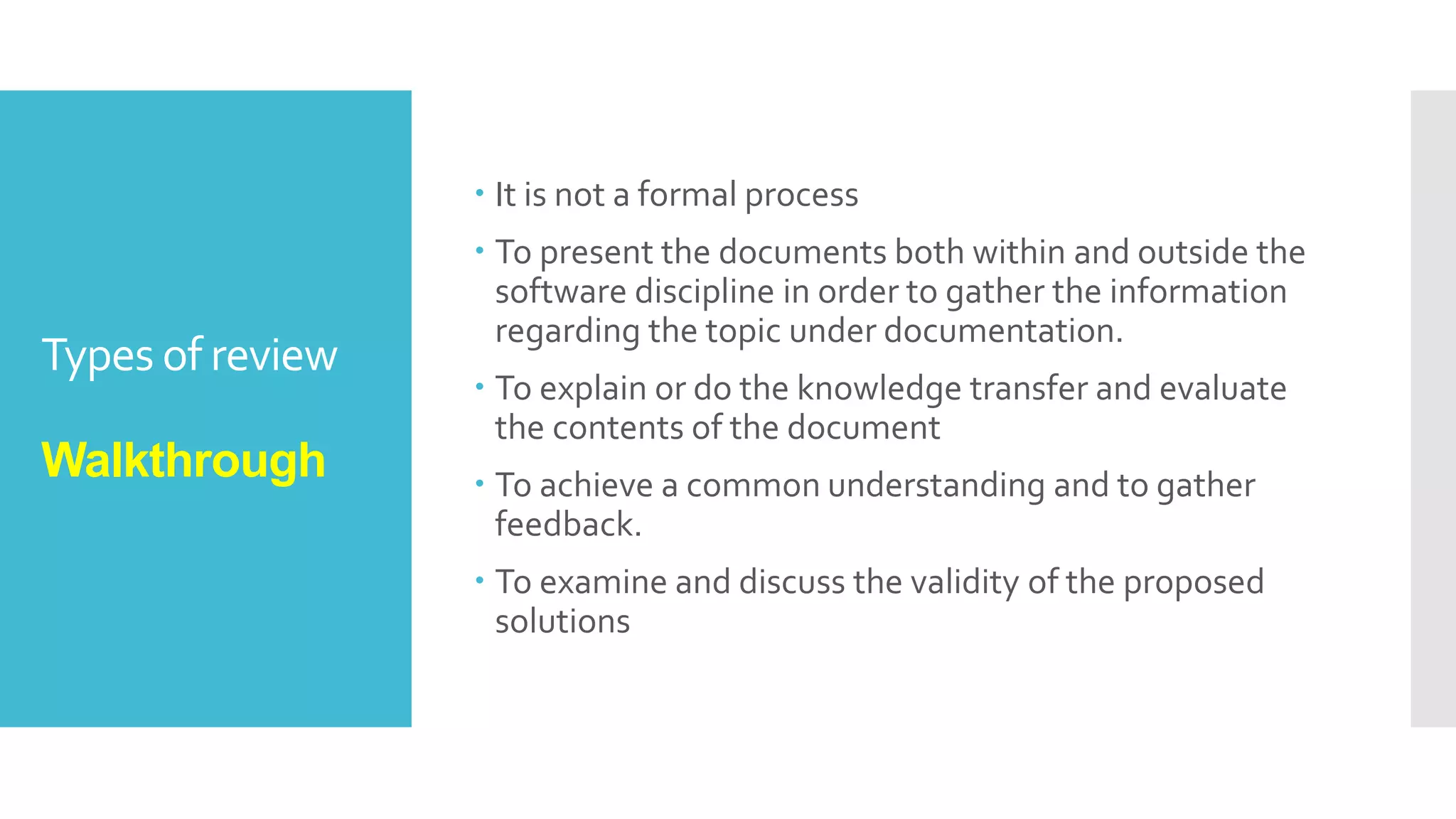

20. Types of review
Walkthrough
 It is not a formal process
 To present the documents both within and outside the
software discipline in order to gather the information
regarding the topic under documentation.
 To explain or do the knowledge transfer and evaluate
the contents of the document
 To achieve a common understanding and to gather
feedback.
 To examine and discuss the validity of the proposed
solutions

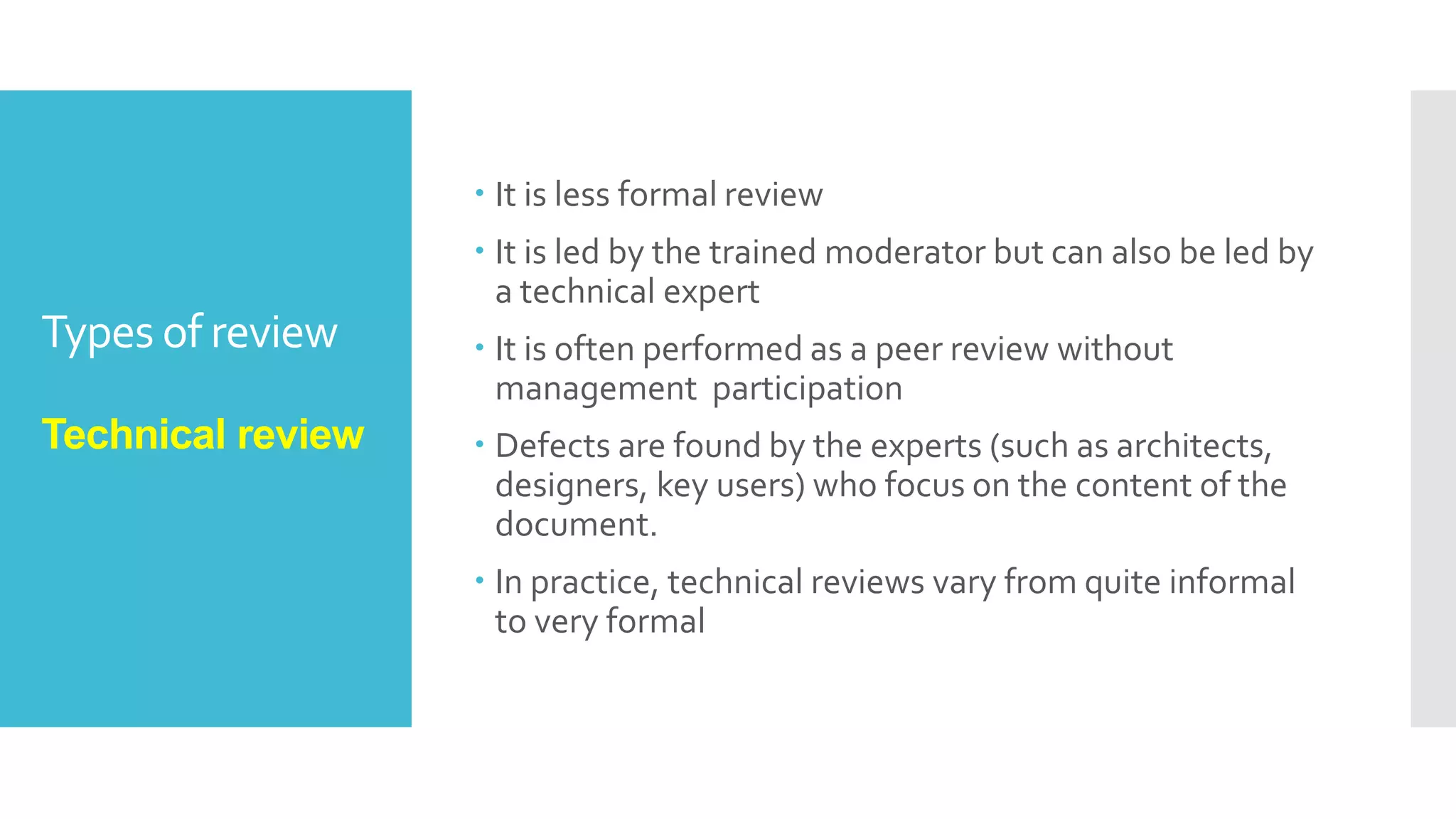

21. Types of review
Technical review
 It is less formal review
 It is led by the trained moderator but can also be led by
a technical expert
 It is often performed as a peer review without
management participation
 Defects are found by the experts (such as architects,
designers, key users) who focus on the content of the
document.
 In practice, technical reviews vary from quite informal
to very formal

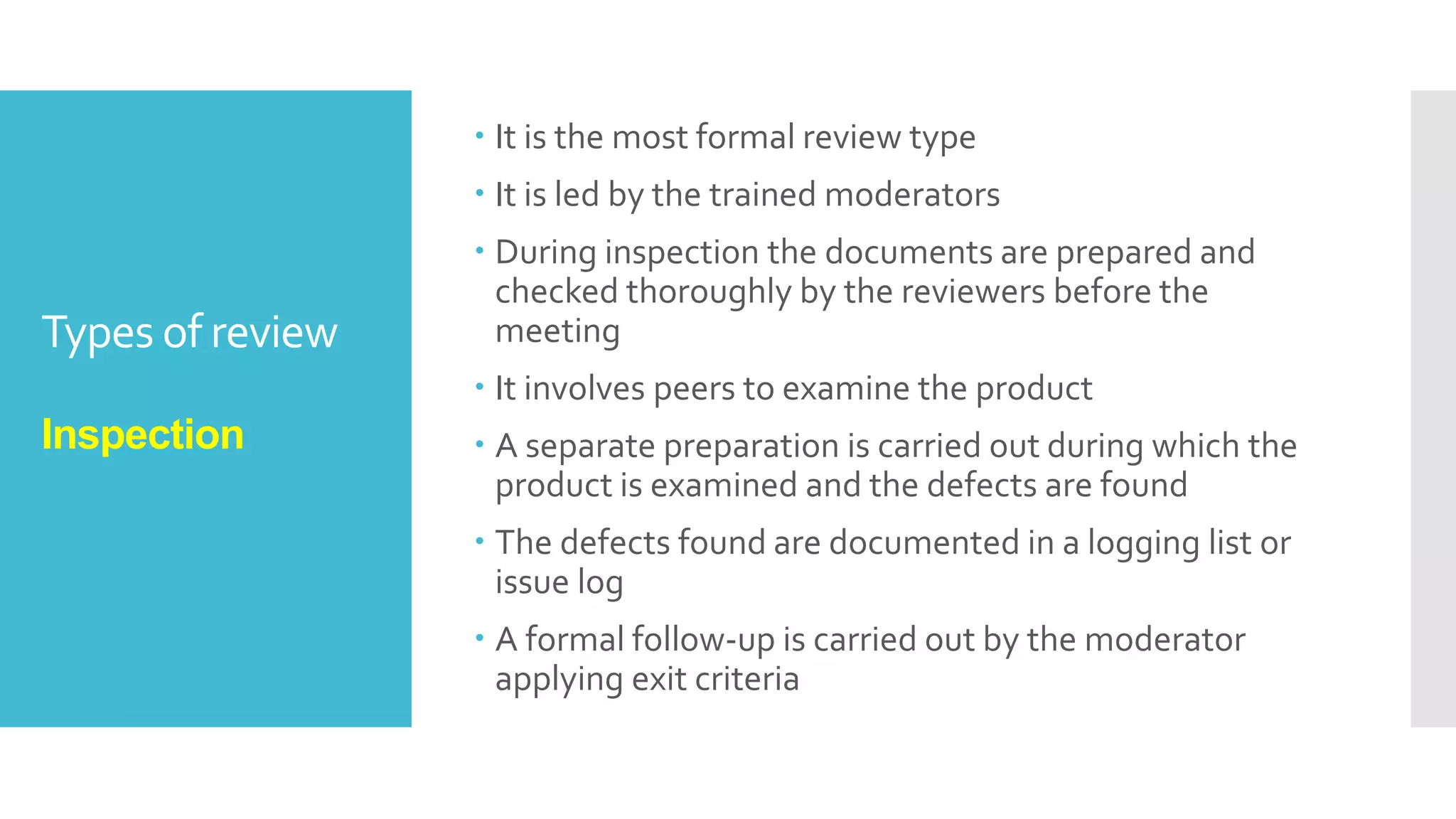

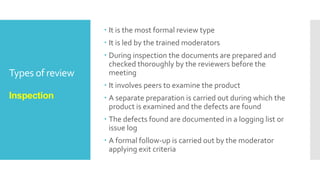

22. Types of review
Inspection
 It is the most formal review type
 It is led by the trained moderators
 During inspection the documents are prepared and
checked thoroughly by the reviewers before the
meeting
 It involves peers to examine the product
 A separate preparation is carried out during which the
product is examined and the defects are found
 The defects found are documented in a logging list or
issue log
 A formal follow-up is carried out by the moderator
applying exit criteria

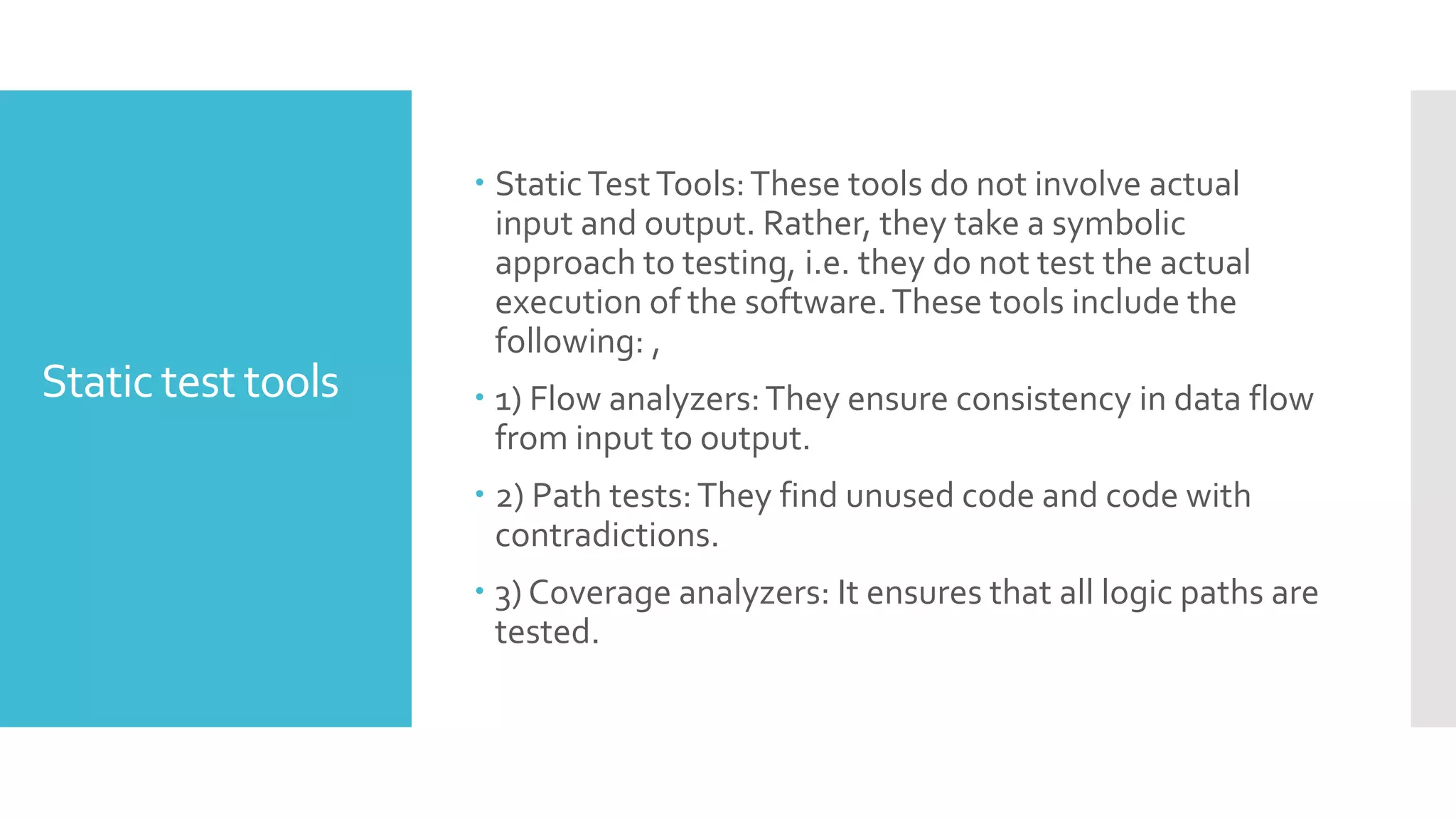

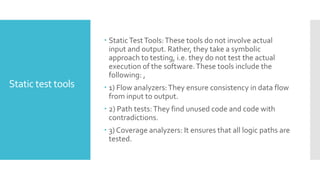

23. Static test tools
 StaticTestTools:These tools do not involve actual
input and output. Rather, they take a symbolic
approach to testing, i.e. they do not test the actual
execution of the software.These tools include the
following: ,
 1) Flow analyzers:They ensure consistency in data flow
from input to output.
 2) Path tests:They find unused code and code with
contradictions.
 3) Coverage analyzers: It ensures that all logic paths are
tested.

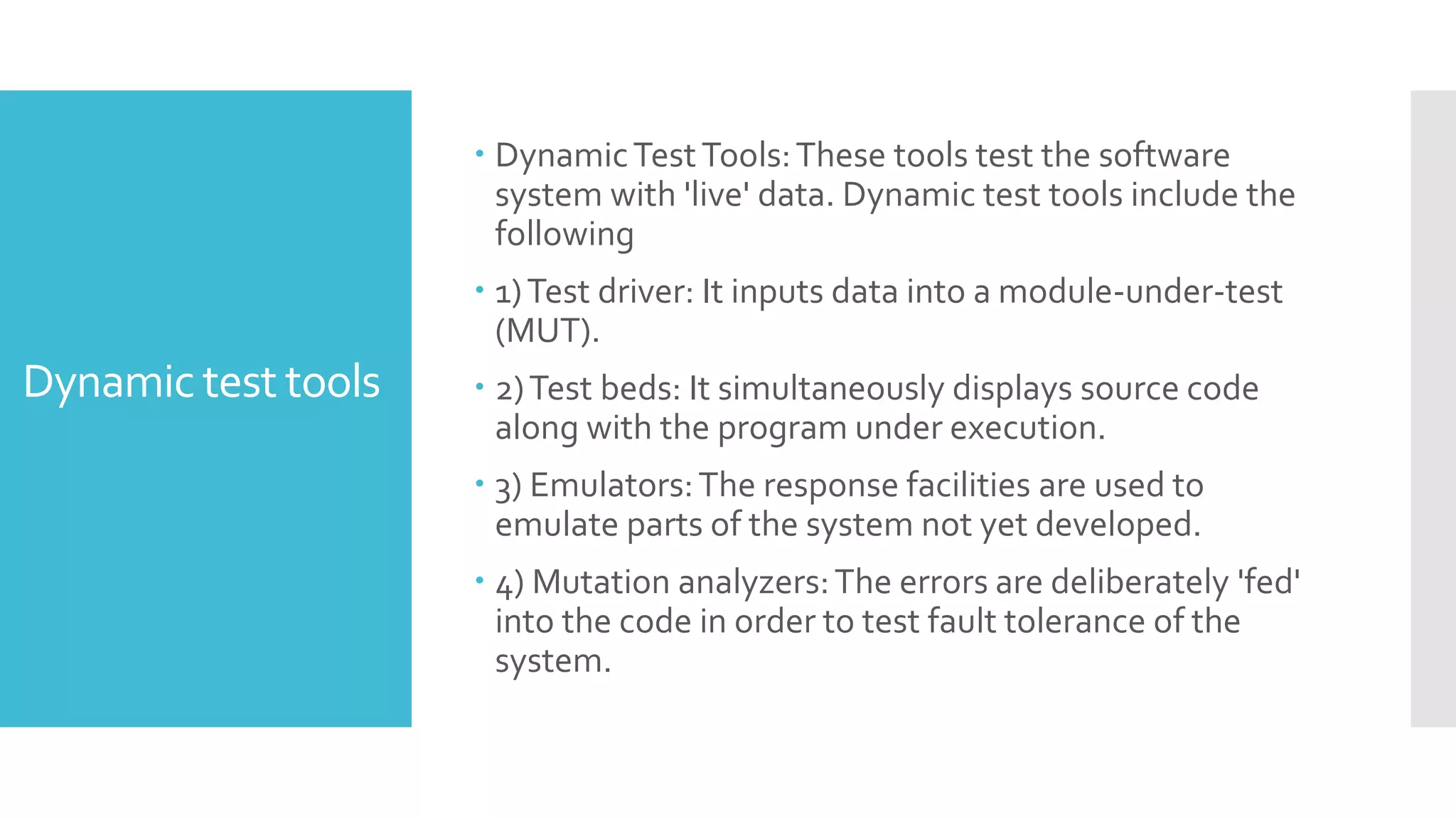

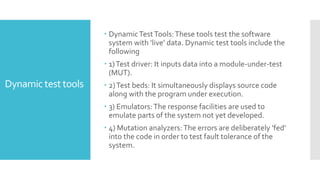

24. Dynamic test tools
 DynamicTestTools:These tools test the software
system with 'live' data. Dynamic test tools include the
following
 1)Test driver: It inputs data into a module-under-test
(MUT).
 2)Test beds: It simultaneously displays source code
along with the program under execution.
 3) Emulators:The response facilities are used to
emulate parts of the system not yet developed.
 4) Mutation analyzers:The errors are deliberately 'fed'
into the code in order to test fault tolerance of the
system.

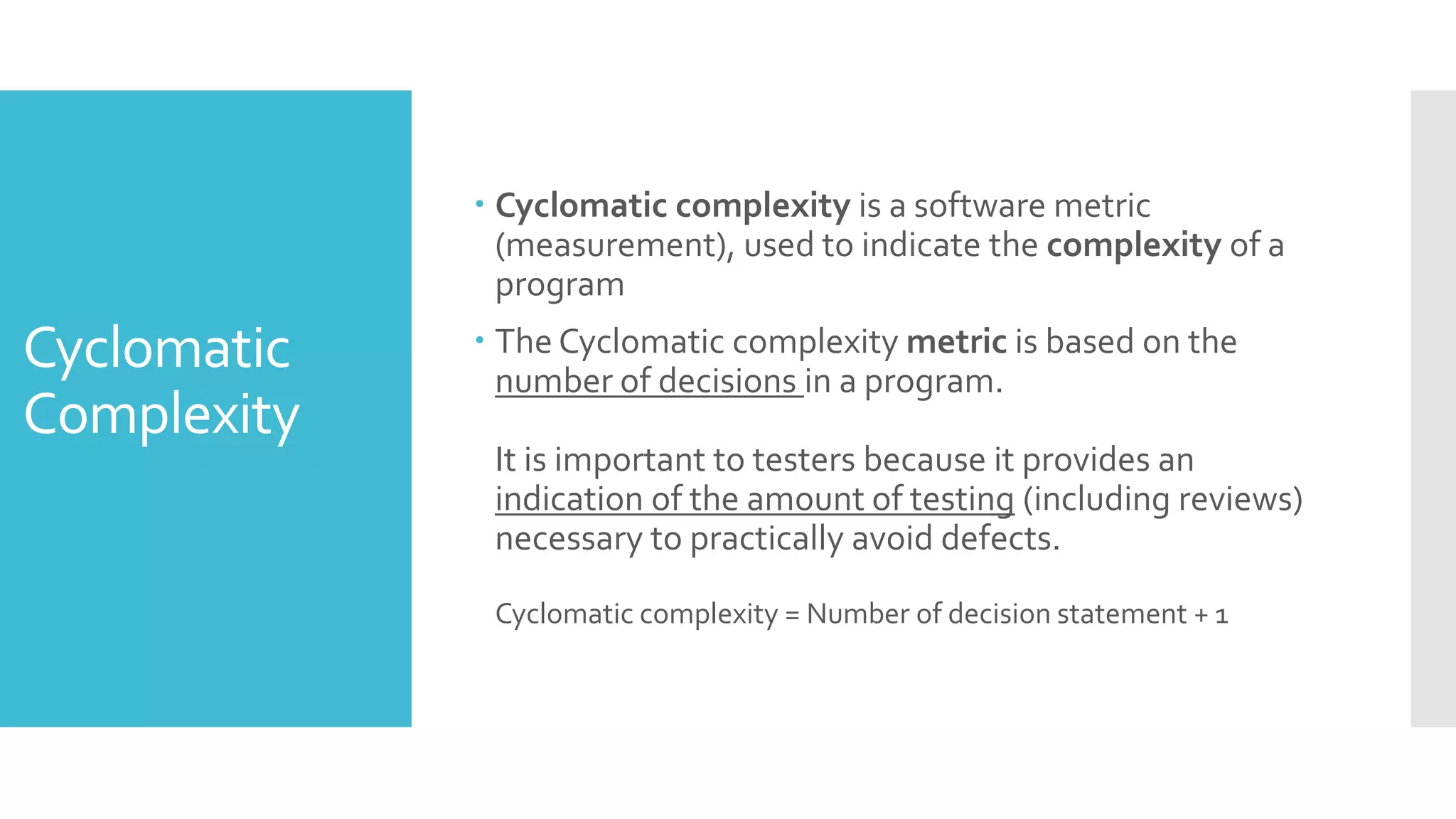

25. Cyclomatic
Complexity
 Cyclomatic complexity is a software metric
(measurement), used to indicate the complexity of a
program
 The Cyclomatic complexity metric is based on the
number of decisions in a program.
It is important to testers because it provides an
indication of the amount of testing (including reviews)
necessary to practically avoid defects.
Cyclomatic complexity = Number of decision statement + 1

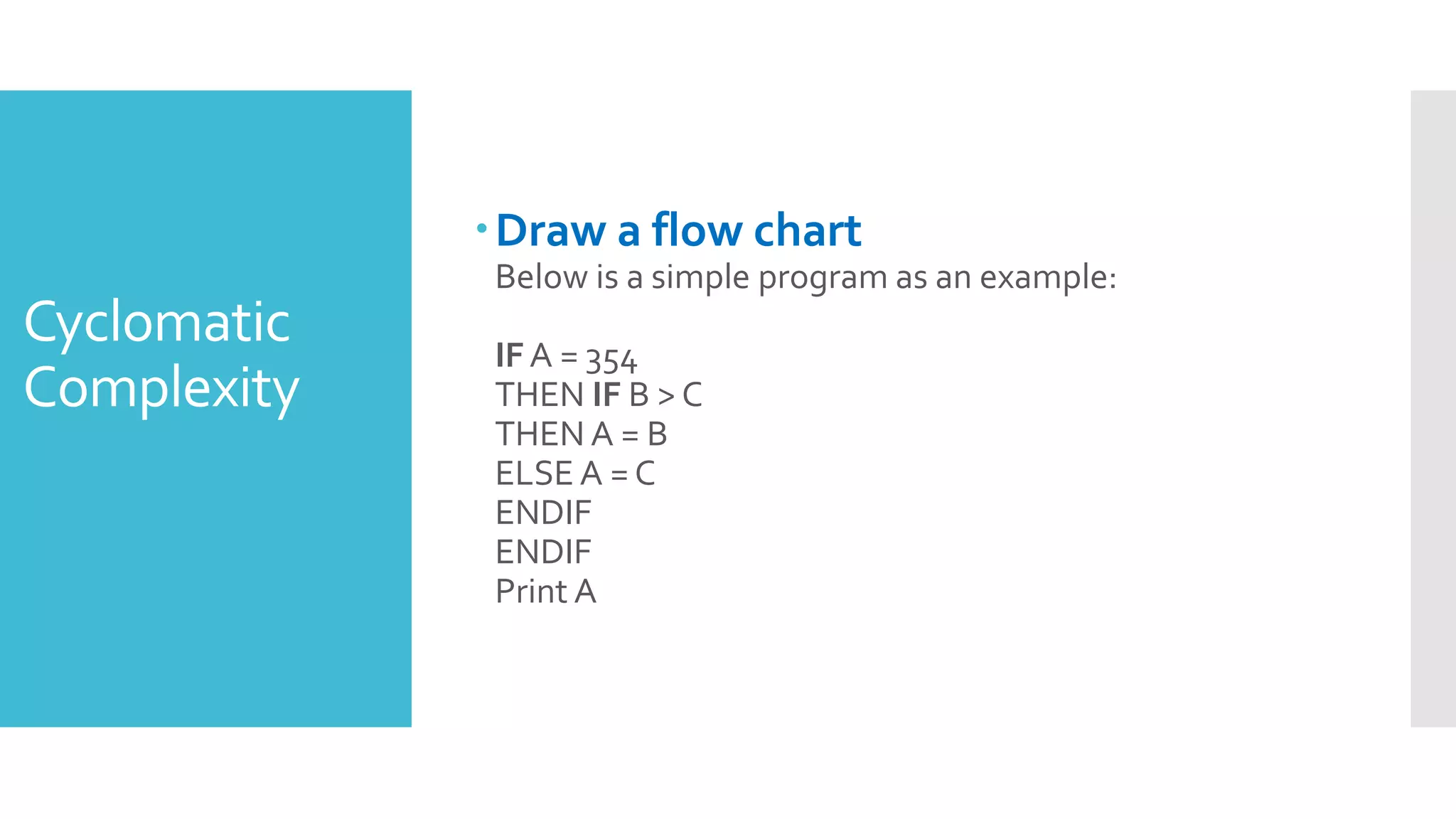

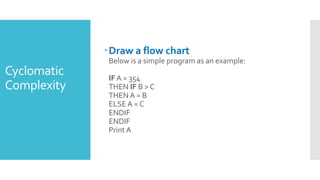

26. Cyclomatic
Complexity
Draw a flow chart
Below is a simple program as an example:
IF A = 354
THEN IF B > C
THEN A = B
ELSE A = C
ENDIF .
ENDIF
Print A

27. Cyclomatic complexity = No of binary
decisions +1
There are 2 IF statements
So , Cyclomatic complexity = 2+1 = 3

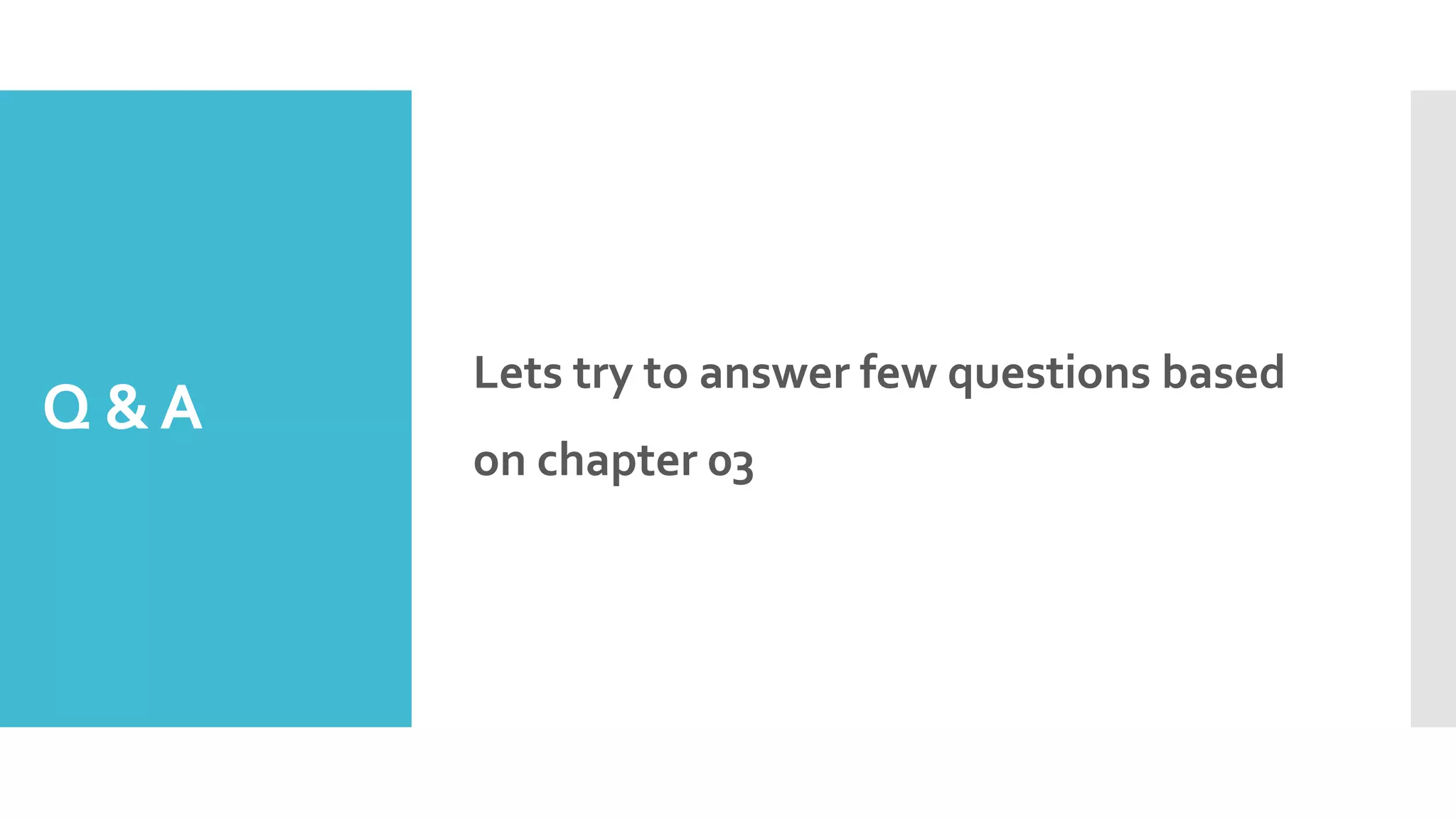

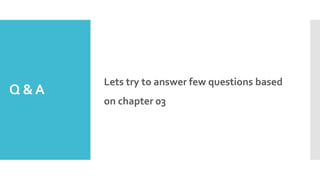

28. Q &A
Lets try to answer few questions based
on chapter 03

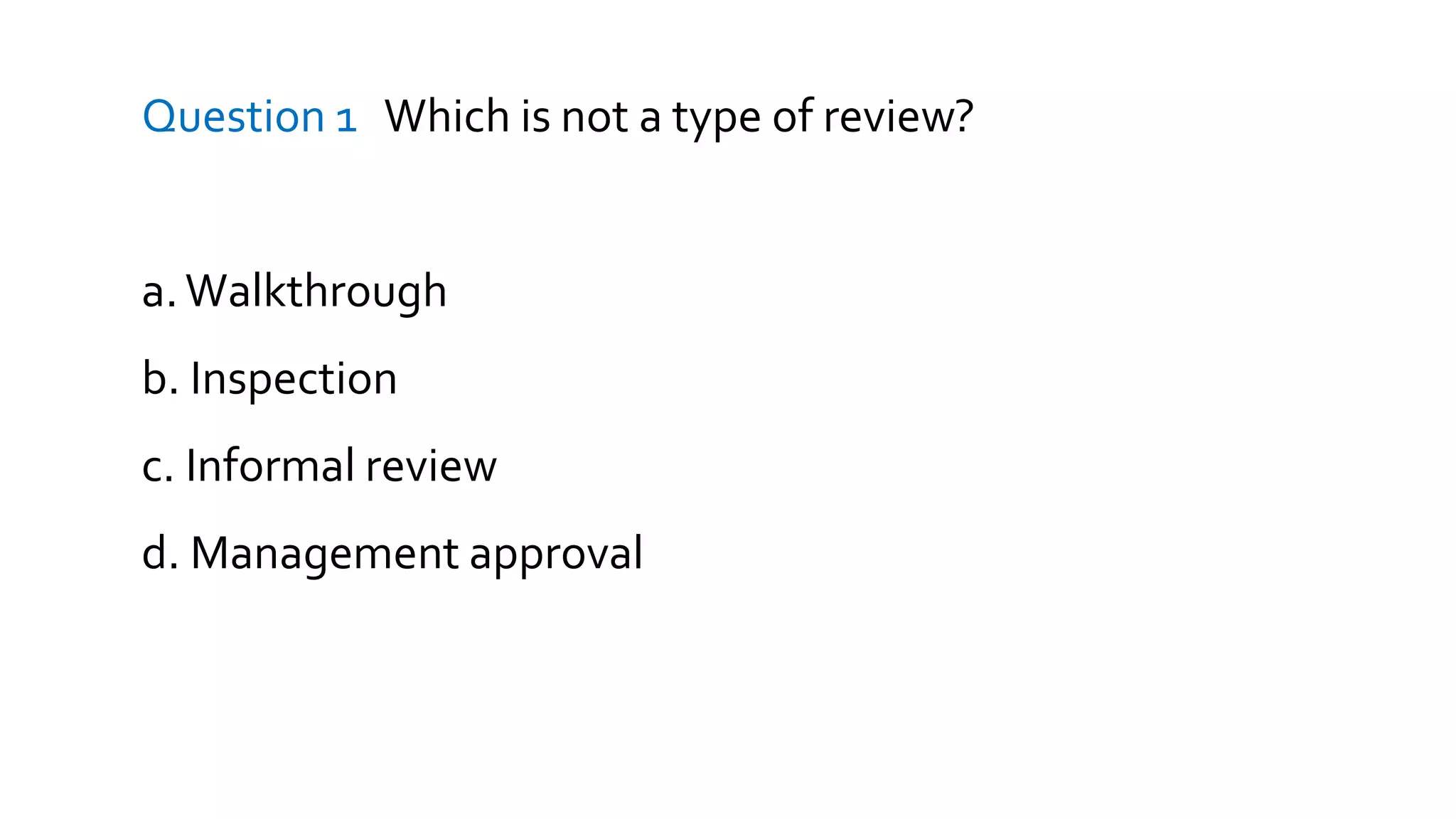

29. Question 1 Which is not a type of review?
a.Walkthrough
b. Inspection
c. Informal review
d. Management approval

30. Question 2 What statement about reviews is true?
a. Inspections are led by a trained moderator, whereas technical reviews are not
necessarily.
b.Technical reviews are led by a trained leader, inspections are not.
c. In a walkthrough, the author does not attend.
d. Participants for a walkthrough always need to be thoroughly trained.

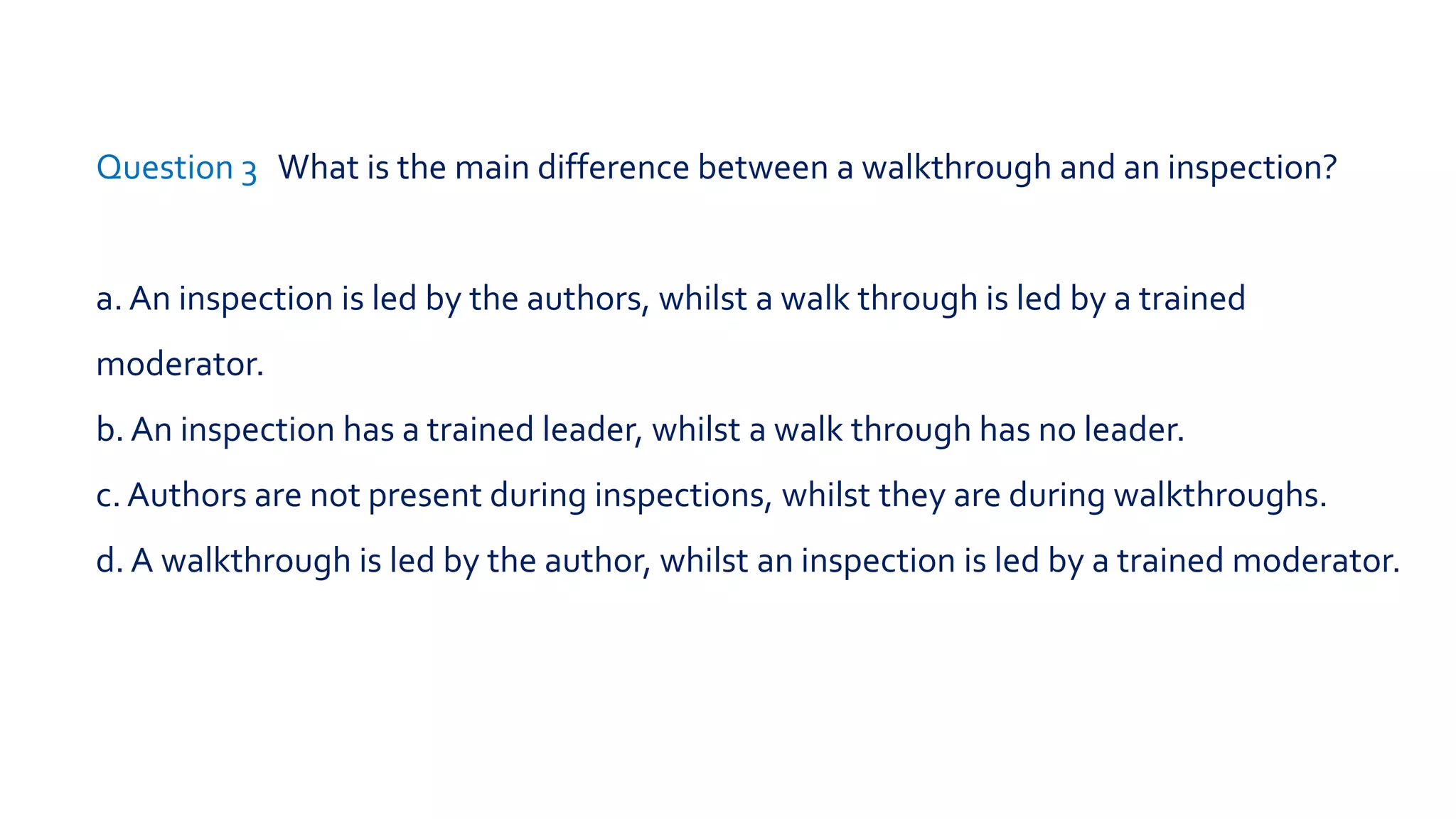

31. Question 3 What is the main difference between a walkthrough and an inspection?
a. An inspection is led by the authors, whilst a walk through is led by a trained
moderator.
b. An inspection has a trained leader, whilst a walk through has no leader.
c. Authors are not present during inspections, whilst they are during walkthroughs.
d. A walkthrough is led by the author, whilst an inspection is led by a trained moderator.

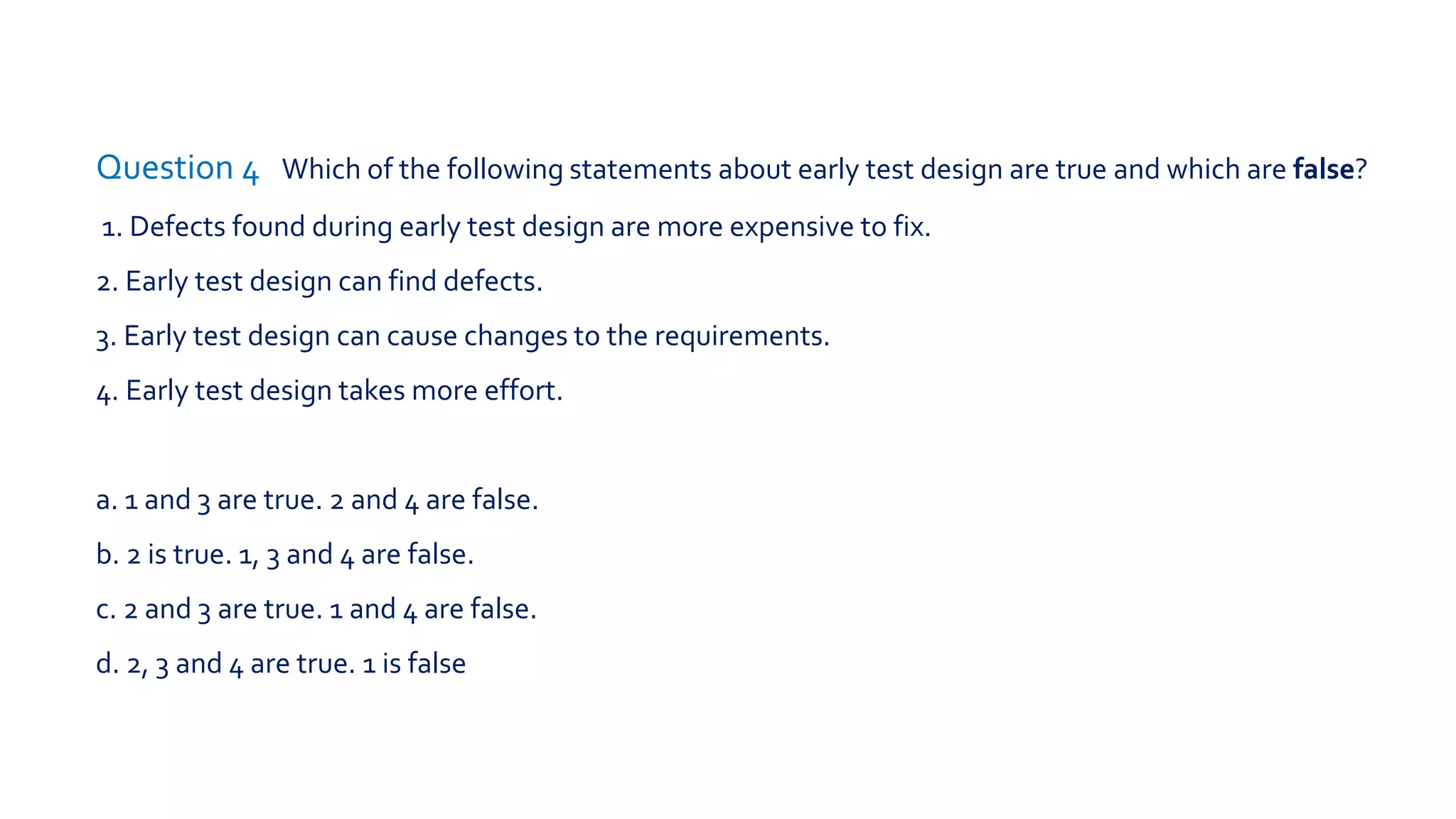

32. Question 4 Which of the following statements about early test design are true and which are false?
1. Defects found during early test design are more expensive to fix.
2. Early test design can find defects.
3. Early test design can cause changes to the requirements.
4. Early test design takes more effort.
a. 1 and 3 are true. 2 and 4 are false.
b. 2 is true. 1, 3 and 4 are false.
c. 2 and 3 are true. 1 and 4 are false.
d. 2, 3 and 4 are true. 1 is false
