CSS3: Are you experienced?

Are You {css3;}
Experienced?
Denise R.
Jacobs
Rich Web
Experience
Fort
Lauderdale
December 2010

The Twitter Experience
I am:
@denisejacobs

We’re at:
@rwx #rwx

And I’m talkin’ jive about:
#css3ux

2008: the start of the Summer of CSS3 Love

http://www.flickr.com/photos/victoriapeckham/2091704802/

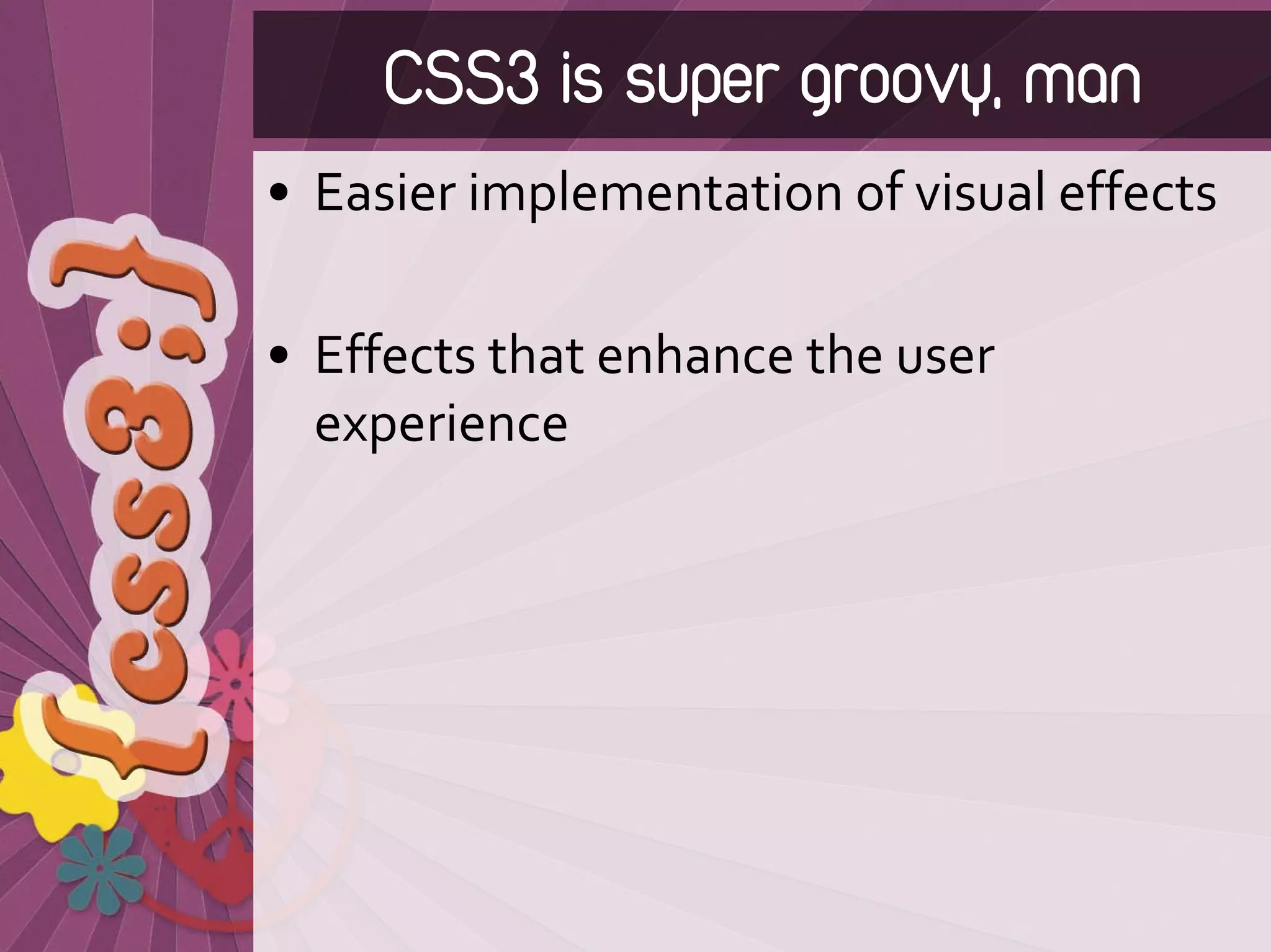

CSS3 is super groovy, man
• Easier implementation of visual effects

• Effects that enhance the user
experience

“Do websites need to look exactly
the same in every browser?”

http://dowebsitesneedtolookexactlythesameineverybrowser.com/

“Do websites
need to be
experienced
exactly the
same in every
browser?”

http://dowebsitesneedtobeexperiencedexactlythesameineverybrowser.com/

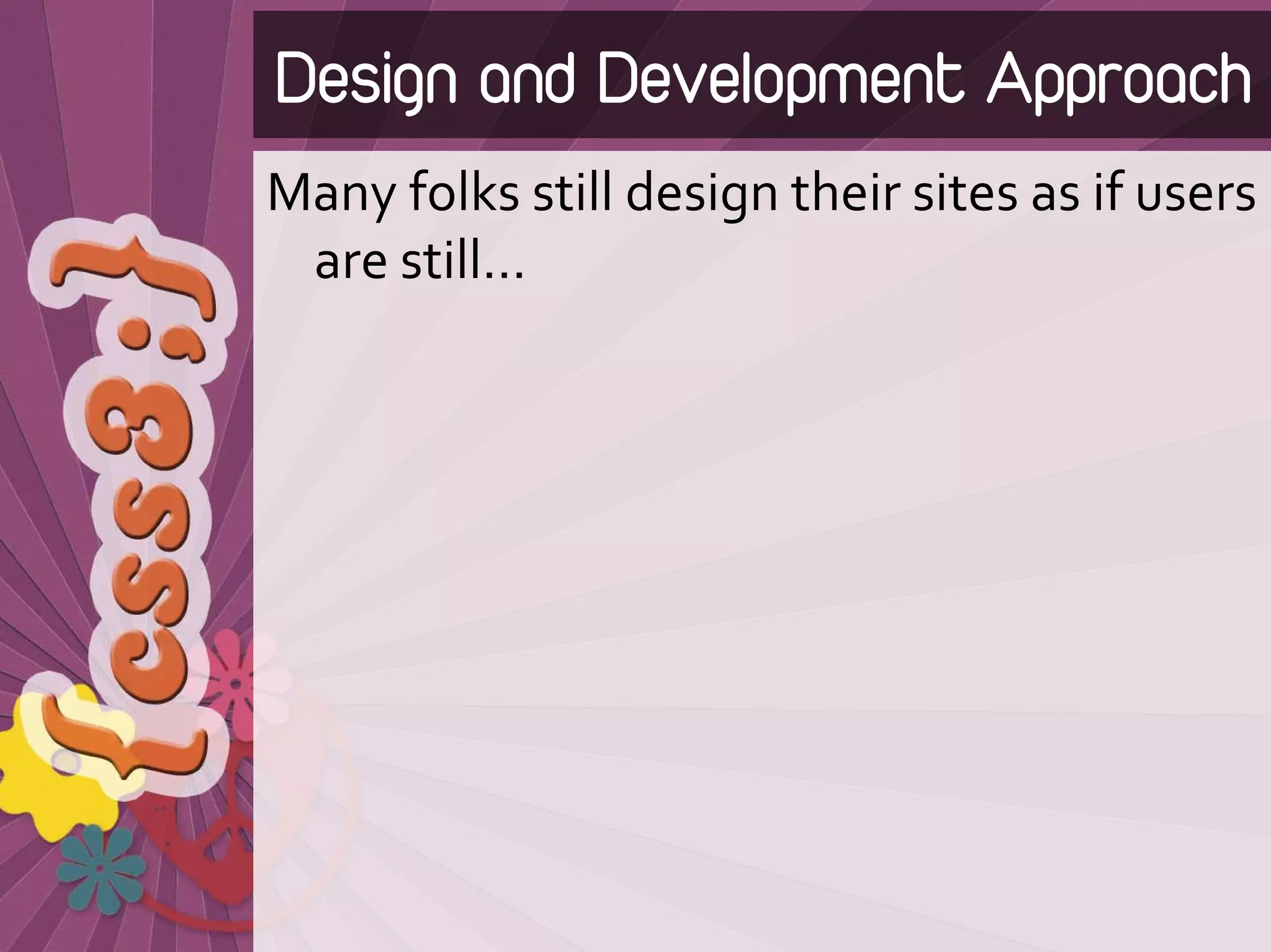

Design and Development Approach
Many folks still design their sites as if users
are still…

The Age of Emotional
& Experience Design

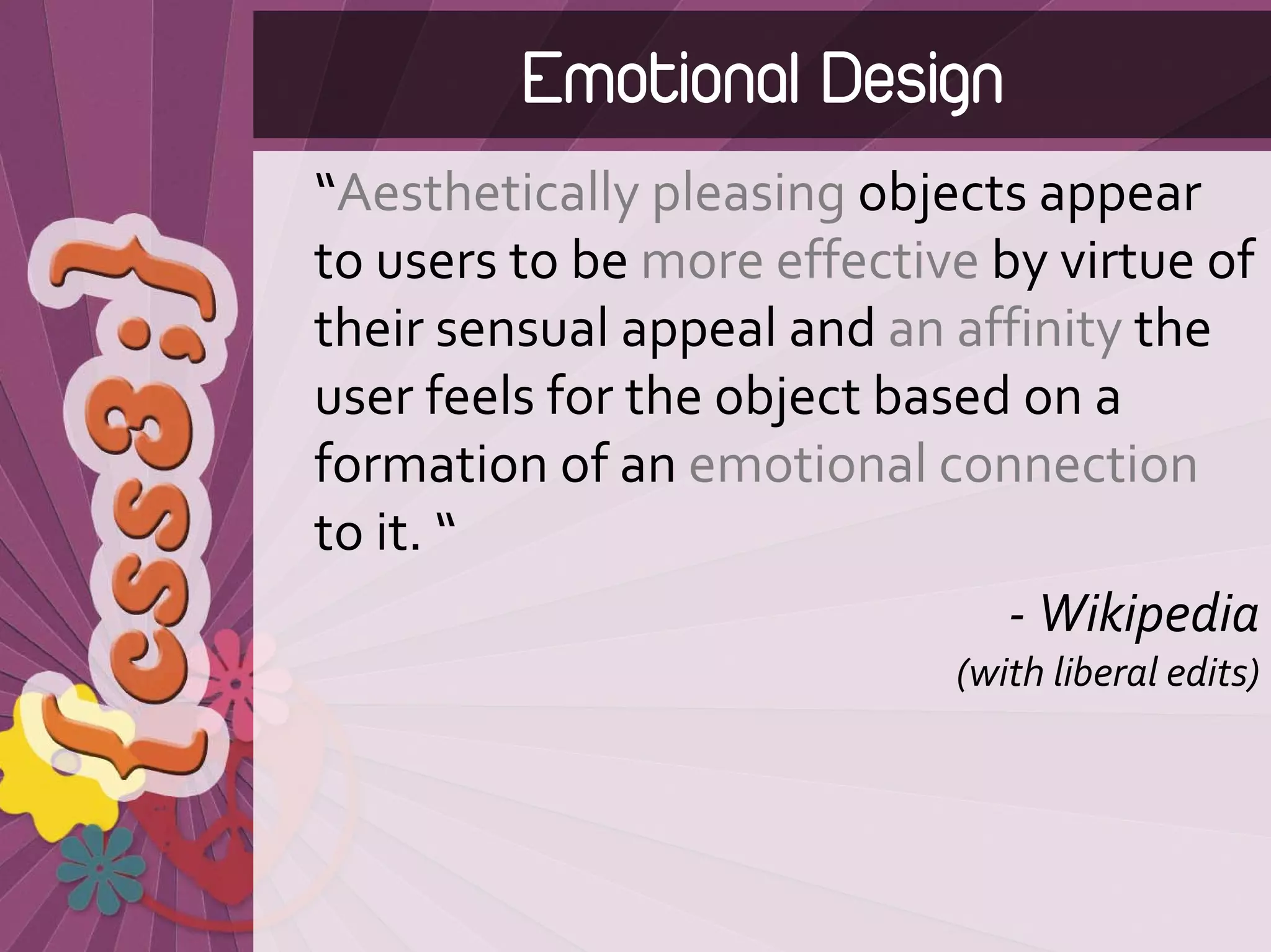

Emotional Design
“Aesthetically pleasing objects appear
to users to be more effective by virtue of
their sensual appeal and an affinity the
user feels for the object based on a
formation of an emotional connection
to it. “
‐ Wikipedia
(with liberal edits)

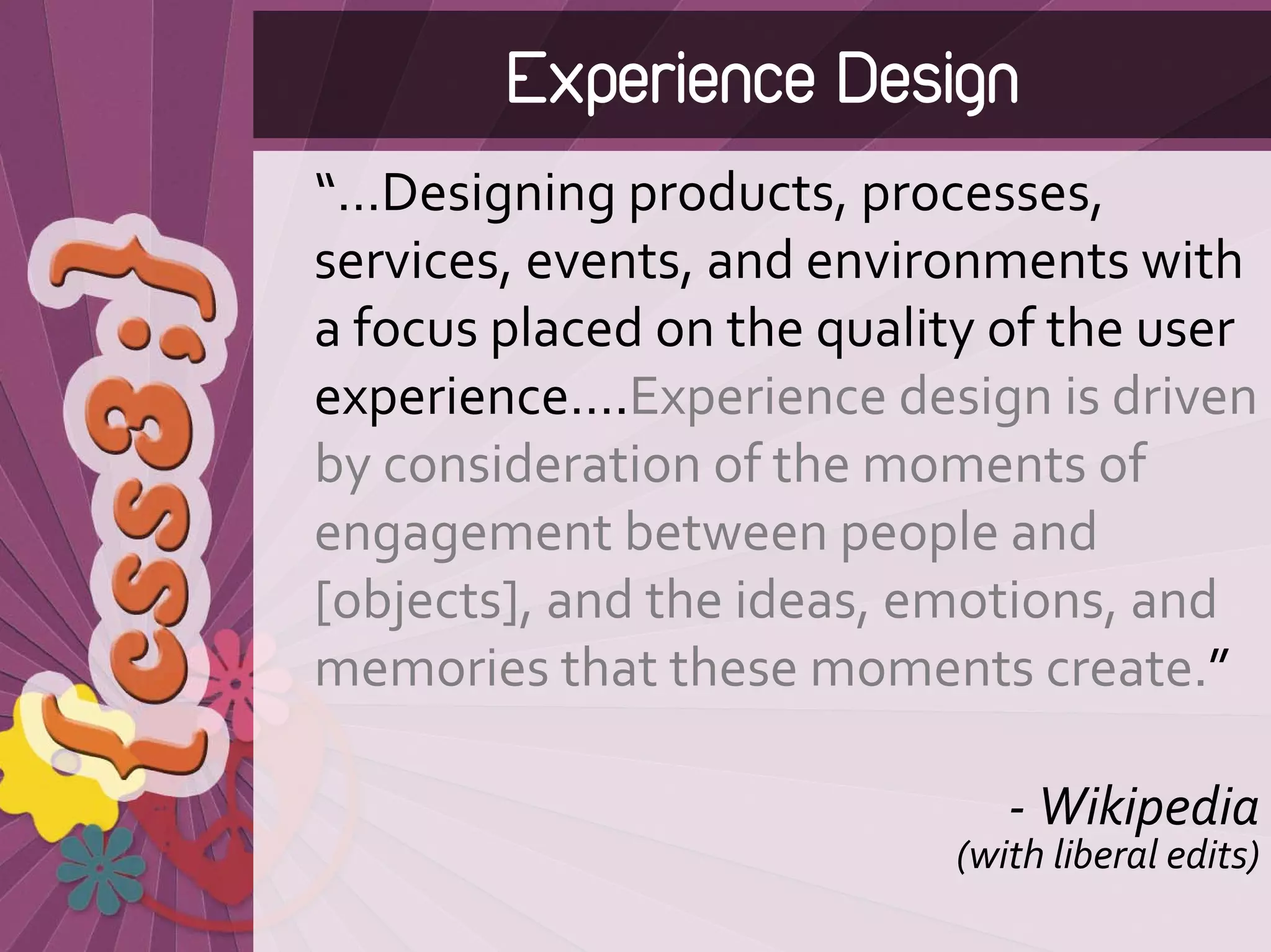

Experience Design
“…Designing products, processes,
services, events, and environments with
a focus placed on the quality of the user
experience….Experience design is driven
by consideration of the moments of
engagement between people and
[objects], and the ideas, emotions, and
memories that these moments create.”

‐ Wikipedia
(with liberal edits)

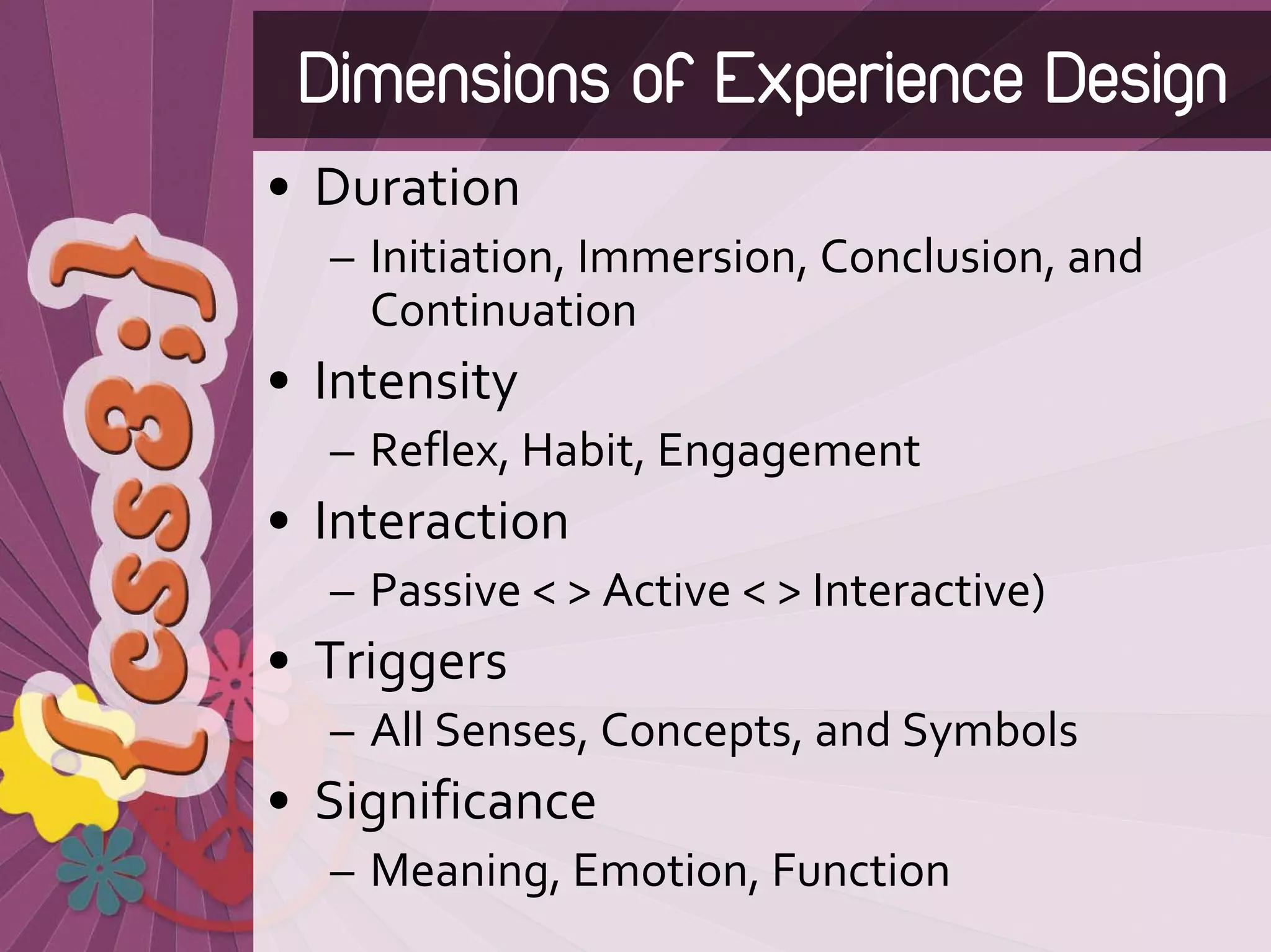

Dimensions of Experience Design
• Duration
– Initiation, Immersion, Conclusion, and
Continuation
• Intensity
– Reflex, Habit, Engagement
• Interaction
– Passive < > Active < > Interactive)
• Triggers
– All Senses, Concepts, and Symbols
• Significance
– Meaning, Emotion, Function

Good looks +

http://www.flickr.com/photos/spierzchala/66232046/

Delight +

http://www.flickr.com/photos/cristeenq/2360466038/

Compatibility =

http://www.flickr.com/photos/trektrack/134157546/

A strong positive user experience

http://www.flickr.com/photos/meggers/2378288736/

Sites need be usable and look
good to as many people as
possible.

That’s the true goal.

http://www.flickr.com/photos/shirinwiniger/3680885289/

So the question is…

Are You {css3;}
Experienced?

http://www.flickr.com/photos/exquisitur/2549355743/

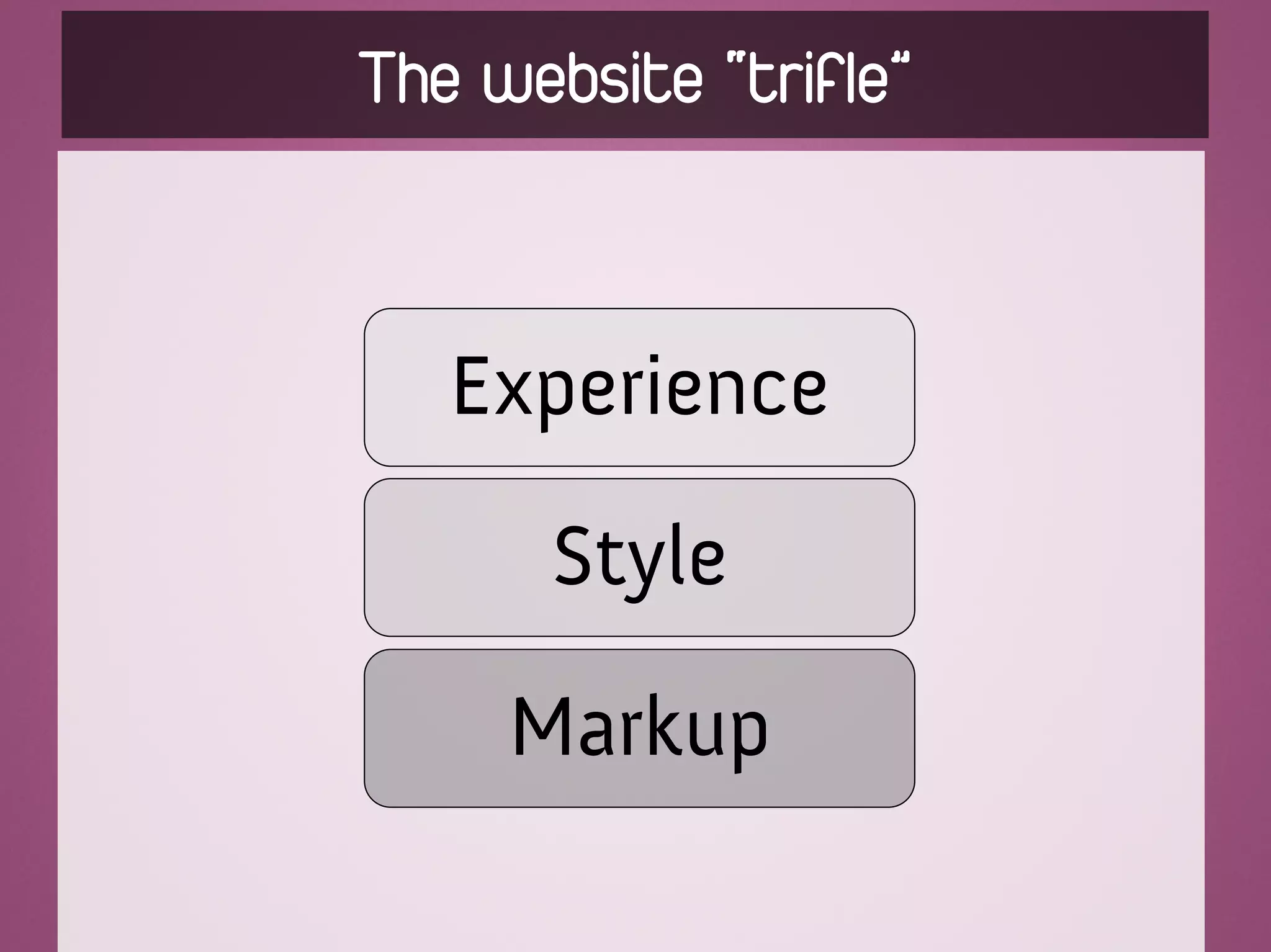

The website “trifle”

Experience

Style

Markup

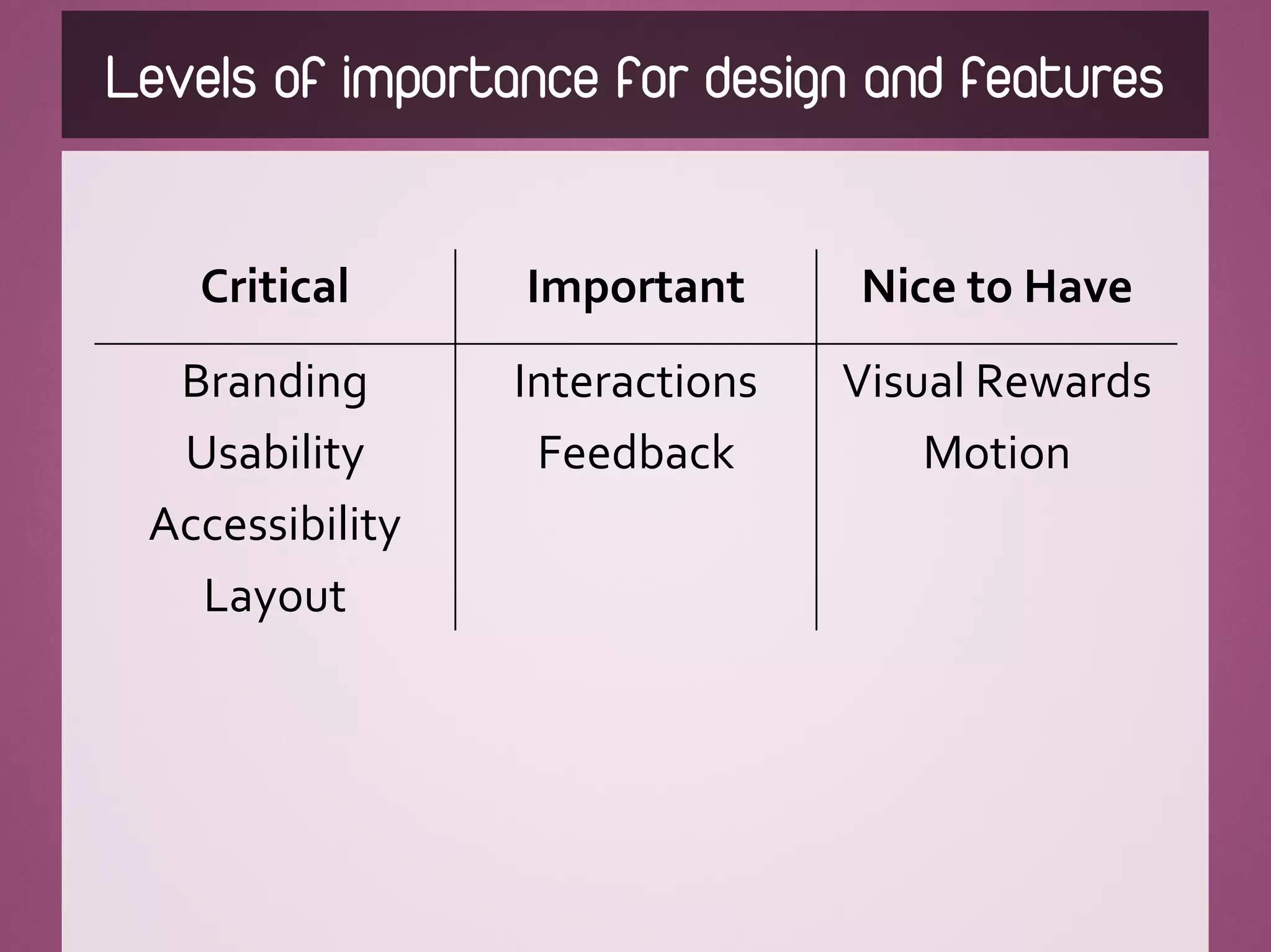

Levels of importance for design and features

Critical Important Nice to Have
Branding Interactions Visual Rewards
Usability Feedback Motion
Accessibility
Layout

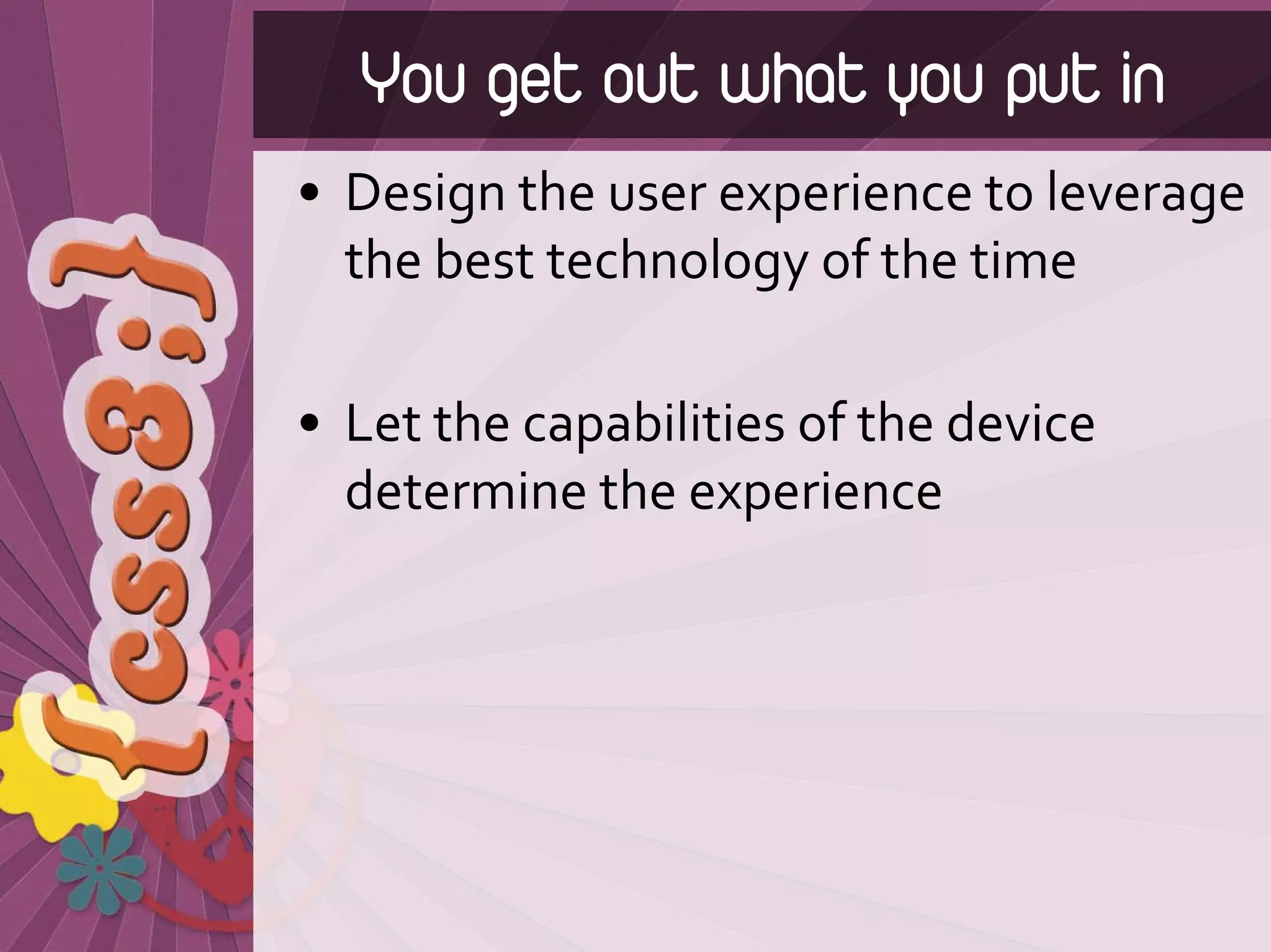

You get out what you put in
• Design the user experience to leverage
the best technology of the time

• Let the capabilities of the device
determine the experience

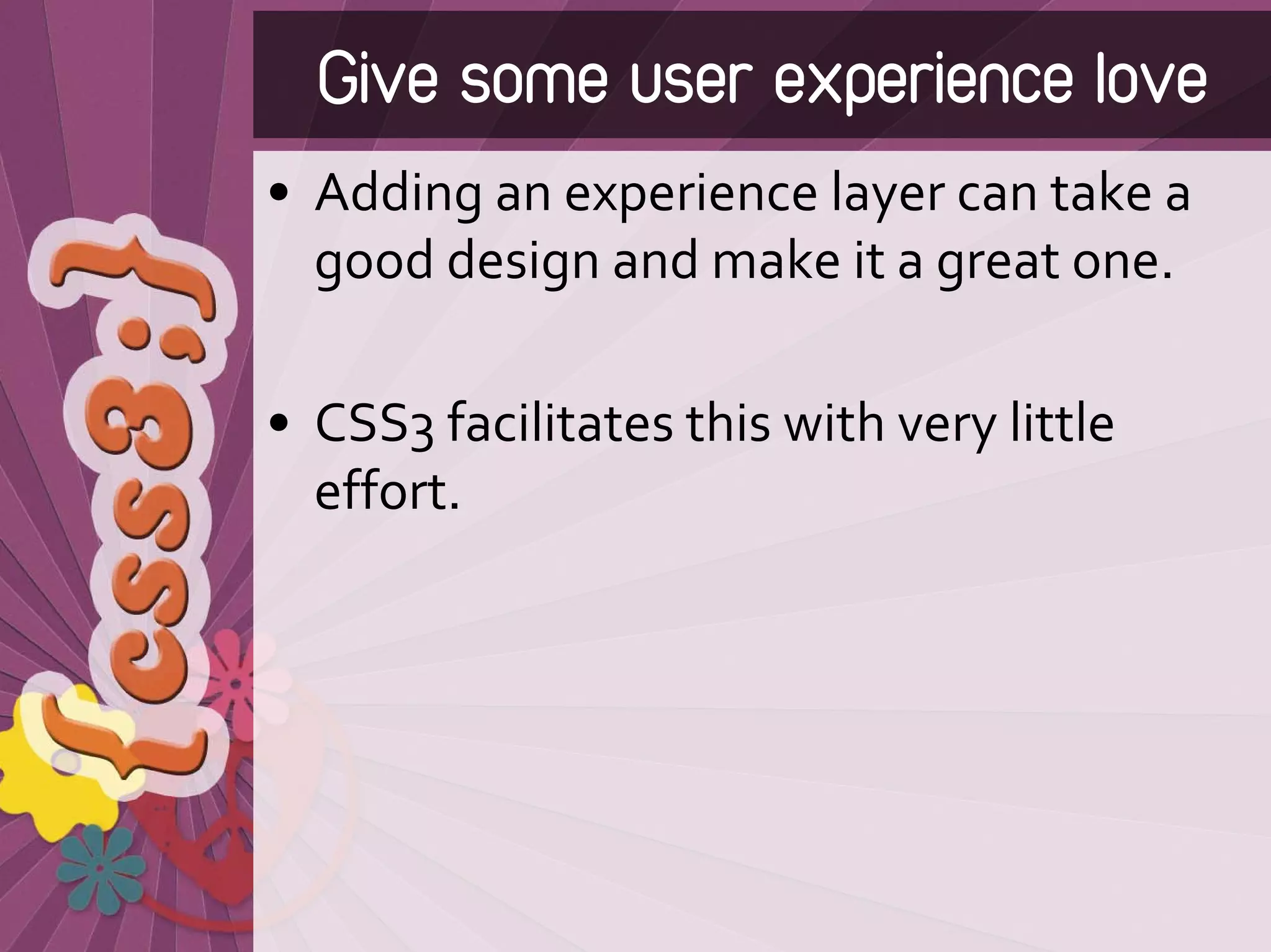

Give some user experience love
• Adding an experience layer can take a
good design and make it a great one.

• CSS3 facilitates this with very little
effort.

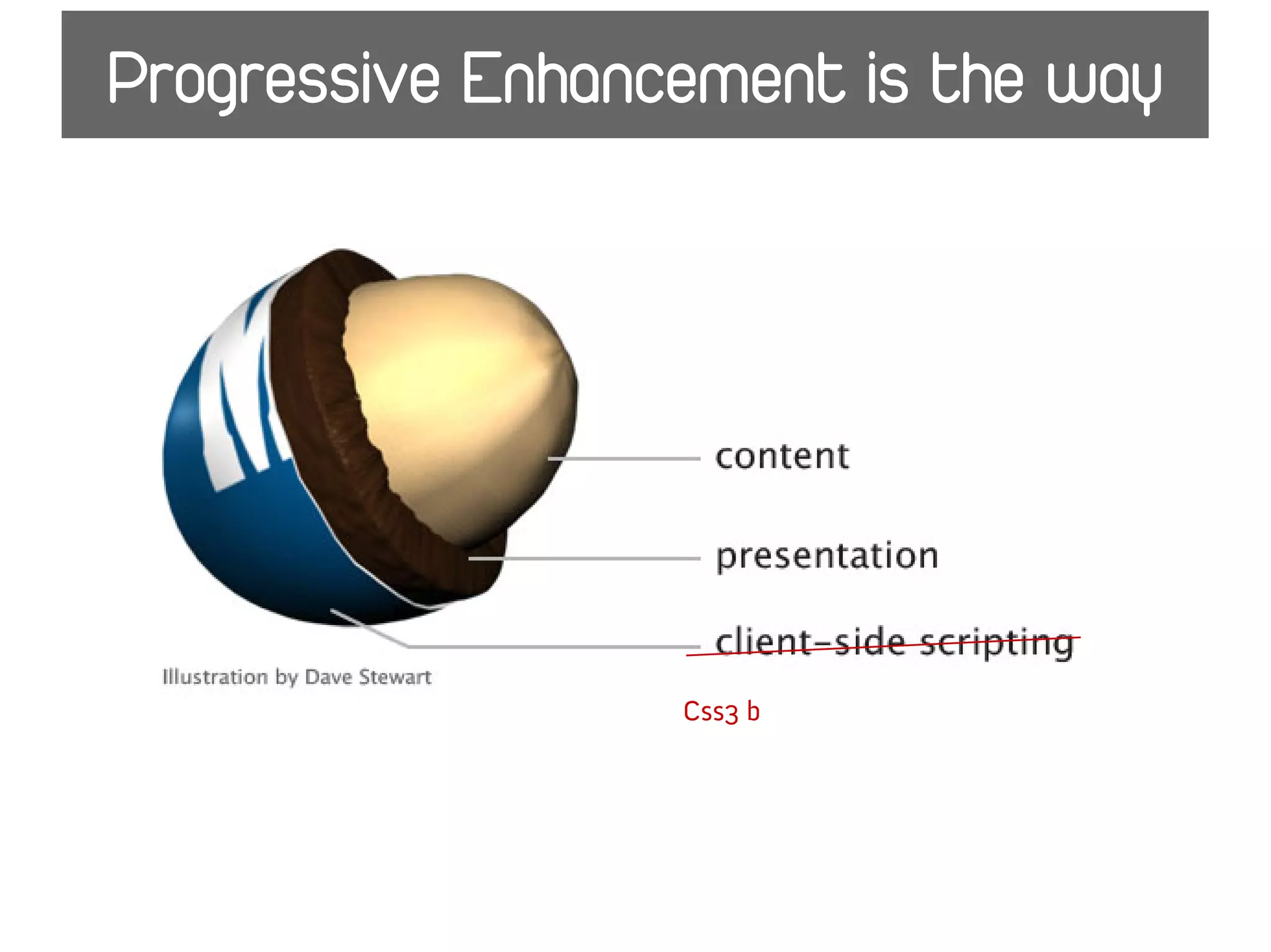

Progressive Enhancement is the way

Css3 b

What’s the difference between
Graceful Degradation or Progressive Enhancement?

http://www.flickr.com/photos/tom1231/273579455/

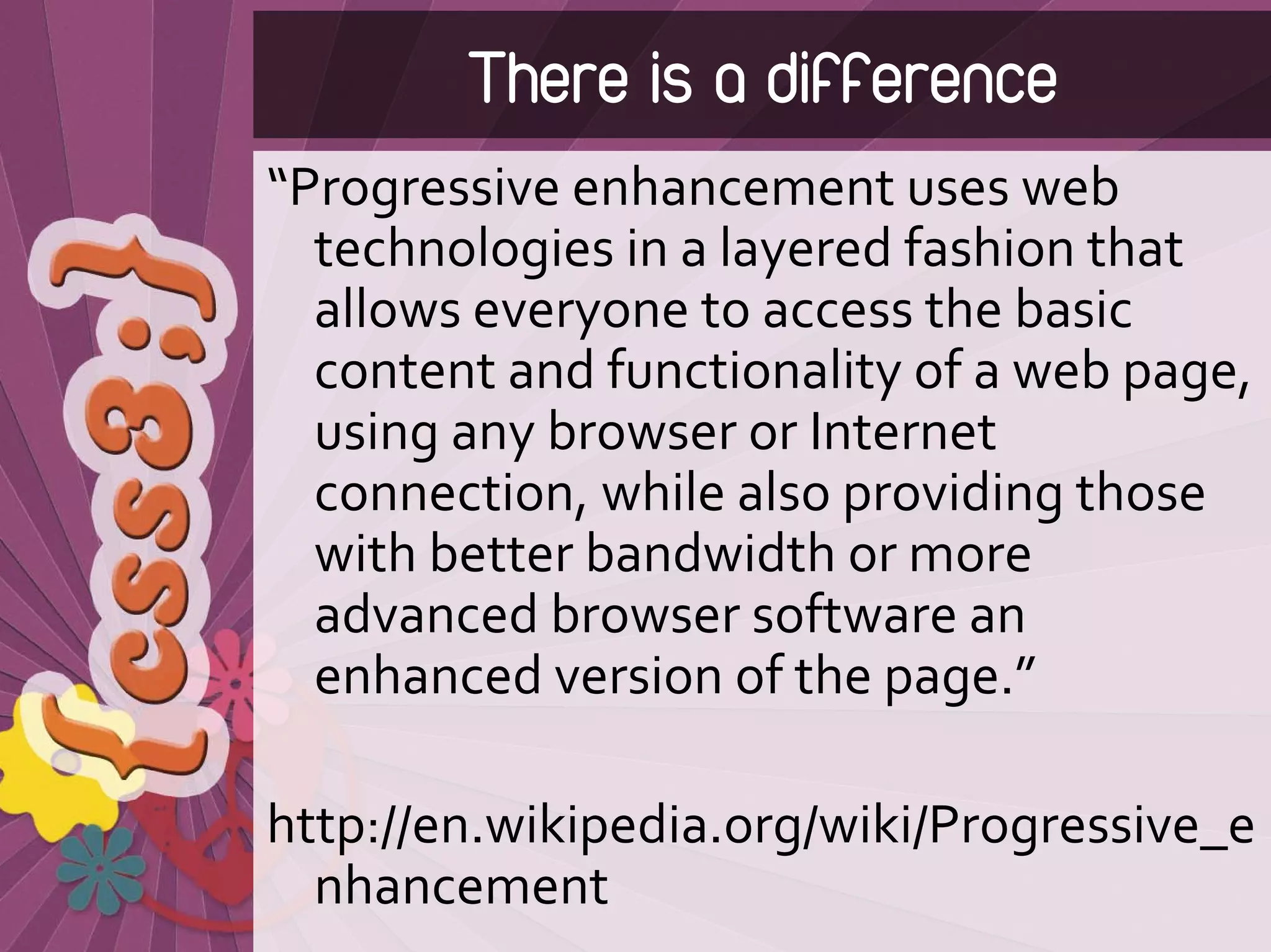

There is a difference
“Progressive enhancement uses web
technologies in a layered fashion that
allows everyone to access the basic
content and functionality of a web page,
using any browser or Internet
connection, while also providing those
with better bandwidth or more
advanced browser software an
enhanced version of the page.”

http://en.wikipedia.org/wiki/Progressive_e
nhancement

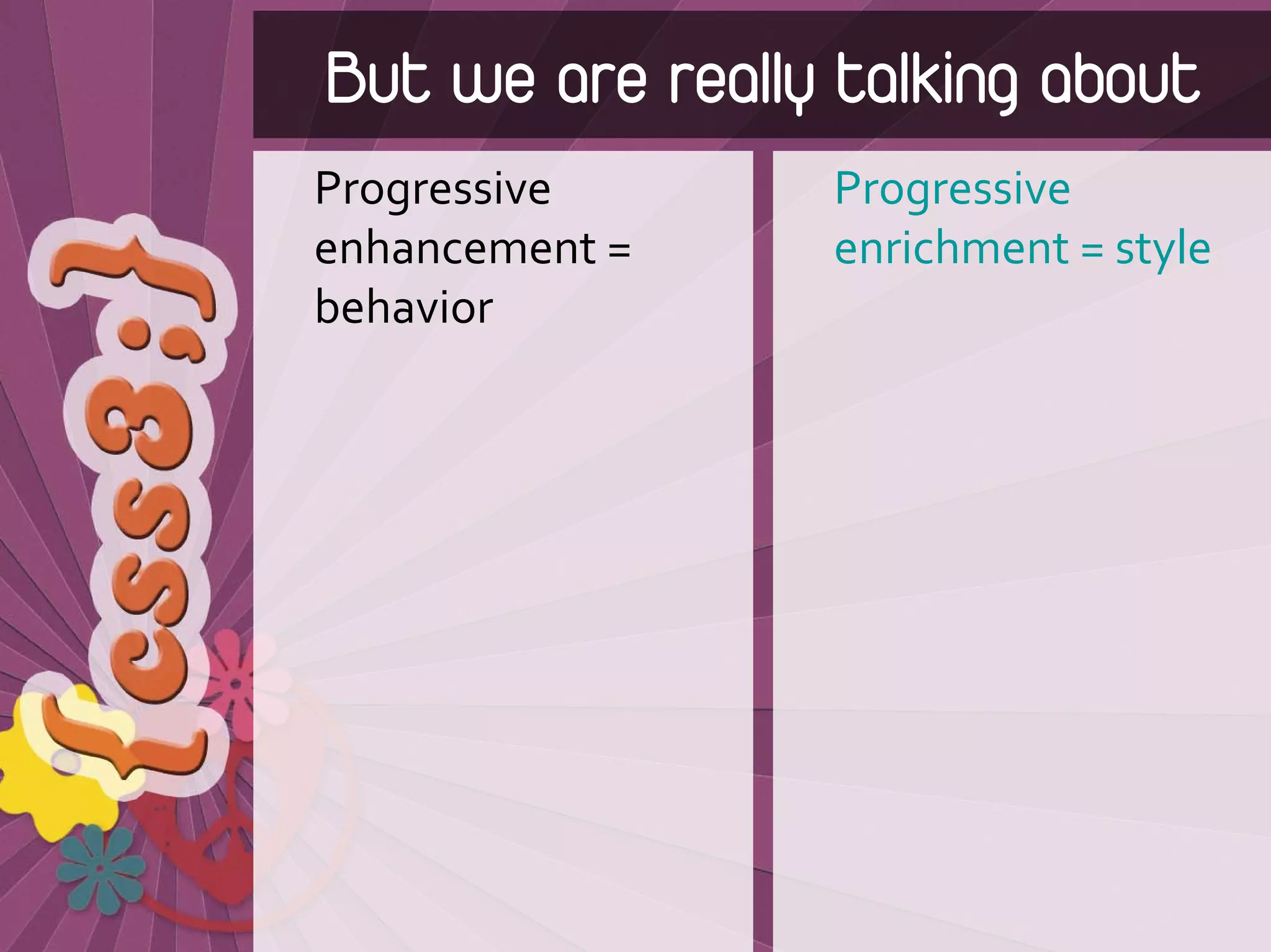

But we are really talking about
Progressive Progressive
enhancement = enrichment = style
behavior

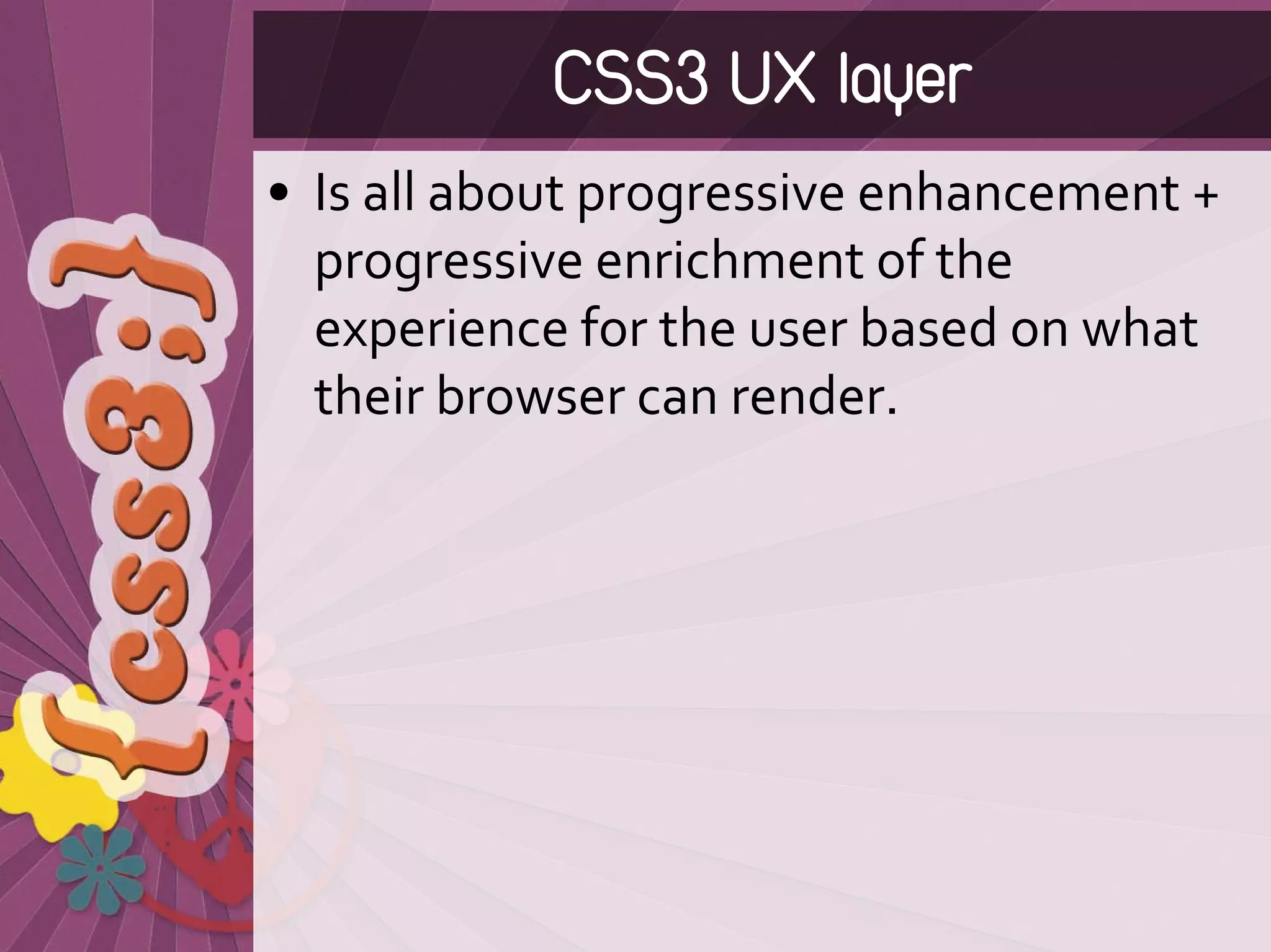

CSS3 UX layer
• Is all about progressive enhancement +
progressive enrichment of the
experience for the user based on what
their browser can render.

One set of users gets this
• Modernizr article example

While another gets this

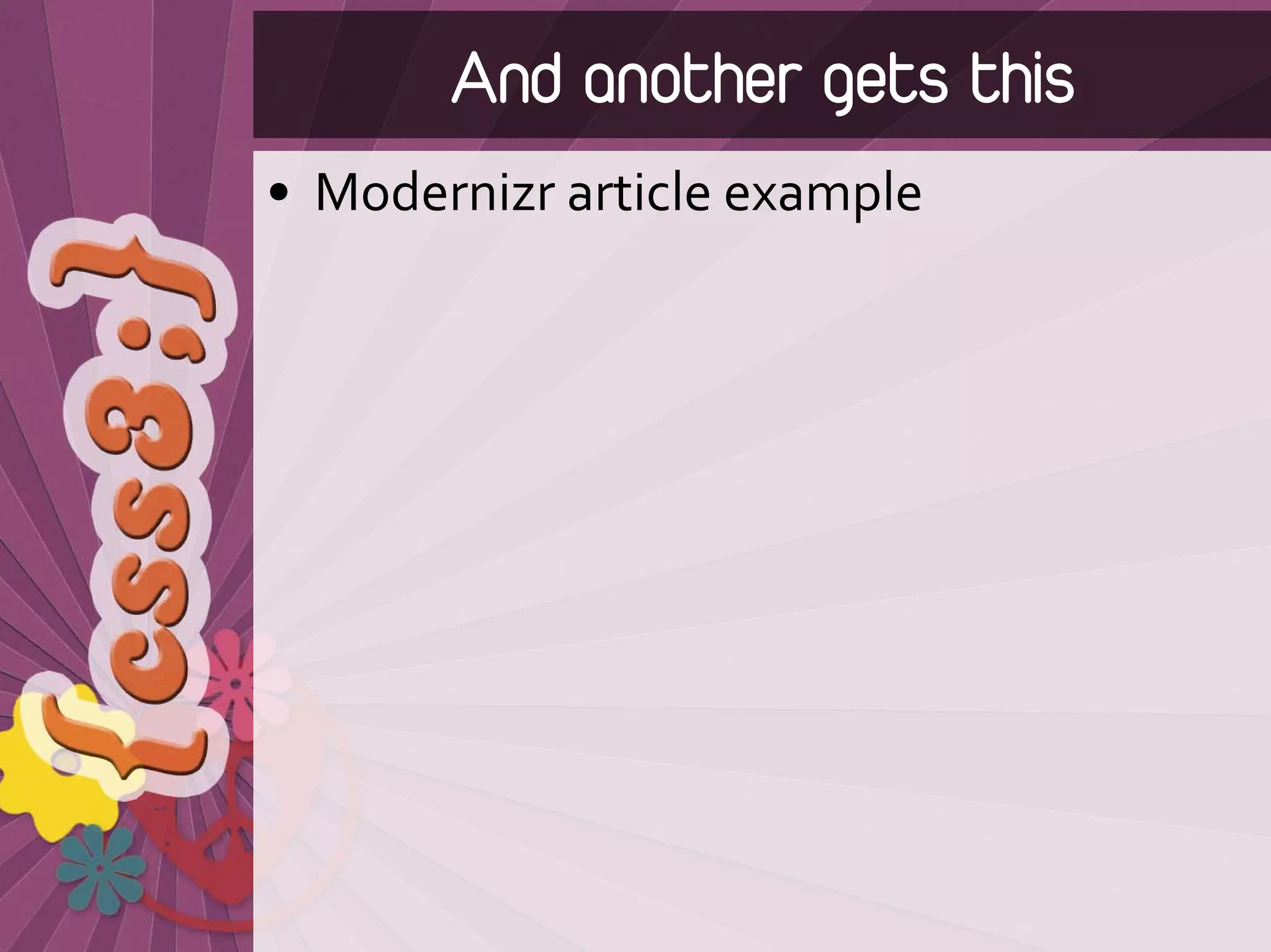

And another gets this

However, there are issues…

http://www.flickr.com/photos/cybervin/266632074/

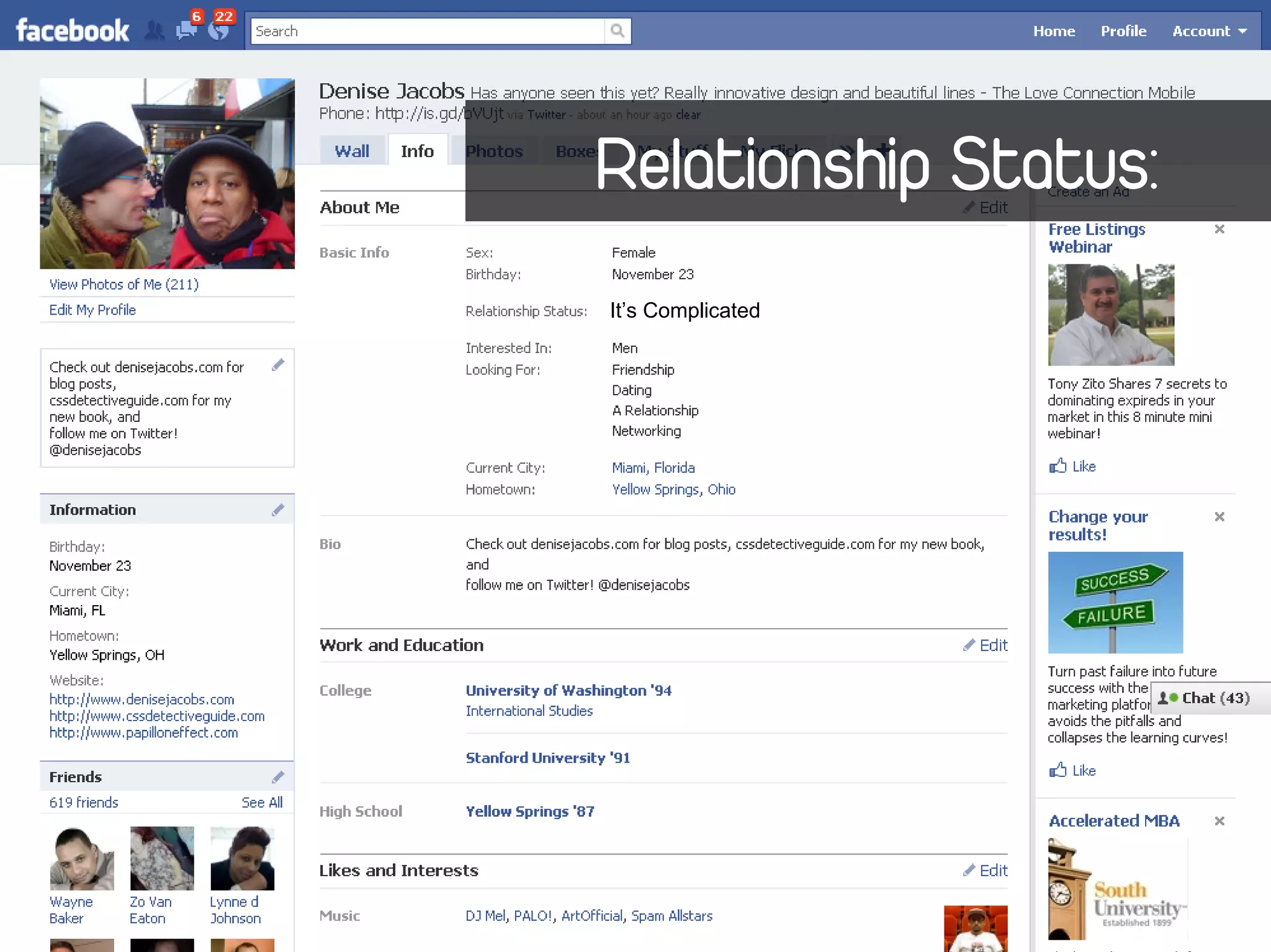

Relationship Status:
It’s Complicated

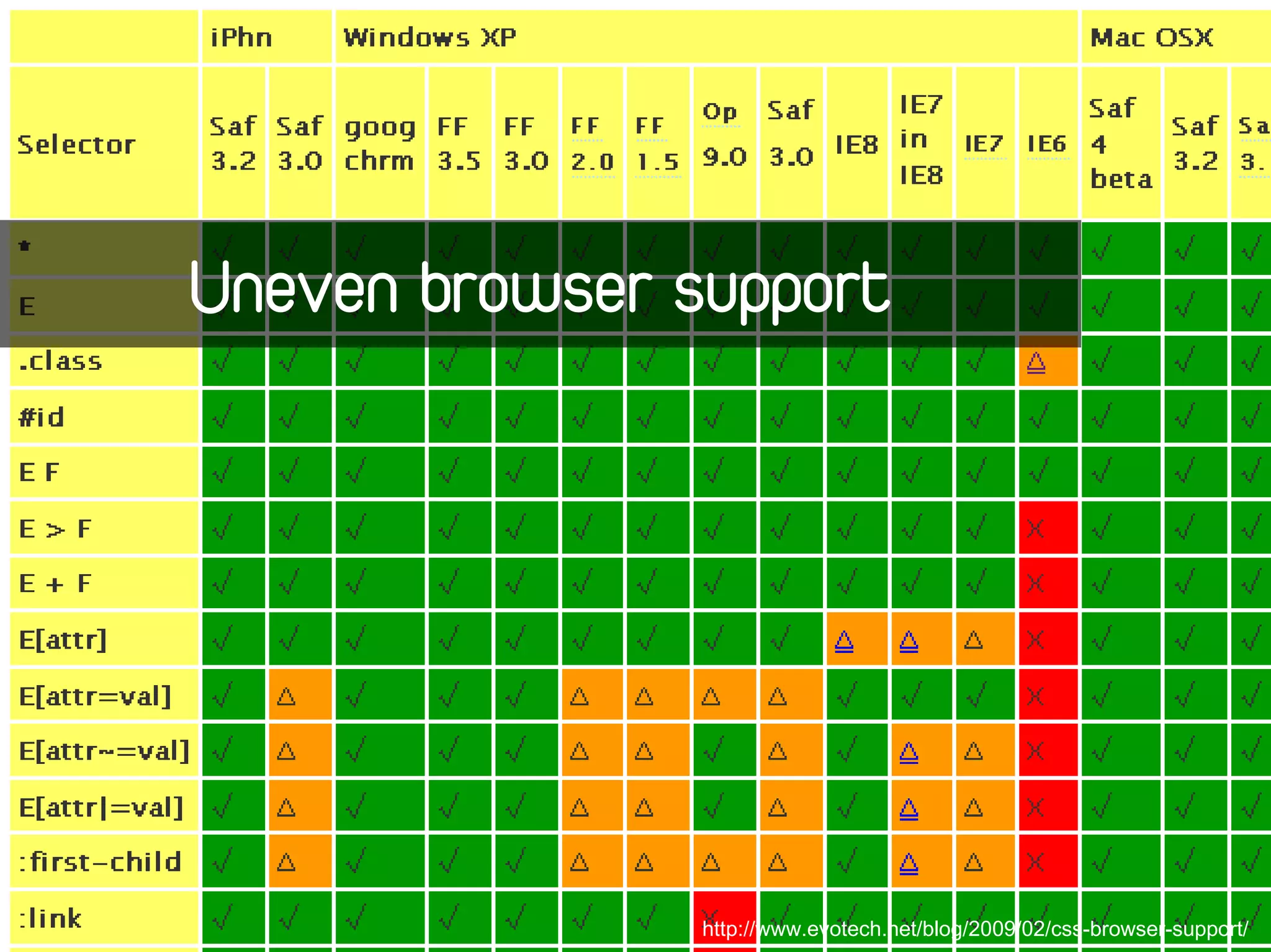

Uneven browser support

http://www.evotech.net/blog/2009/02/css-browser-support/

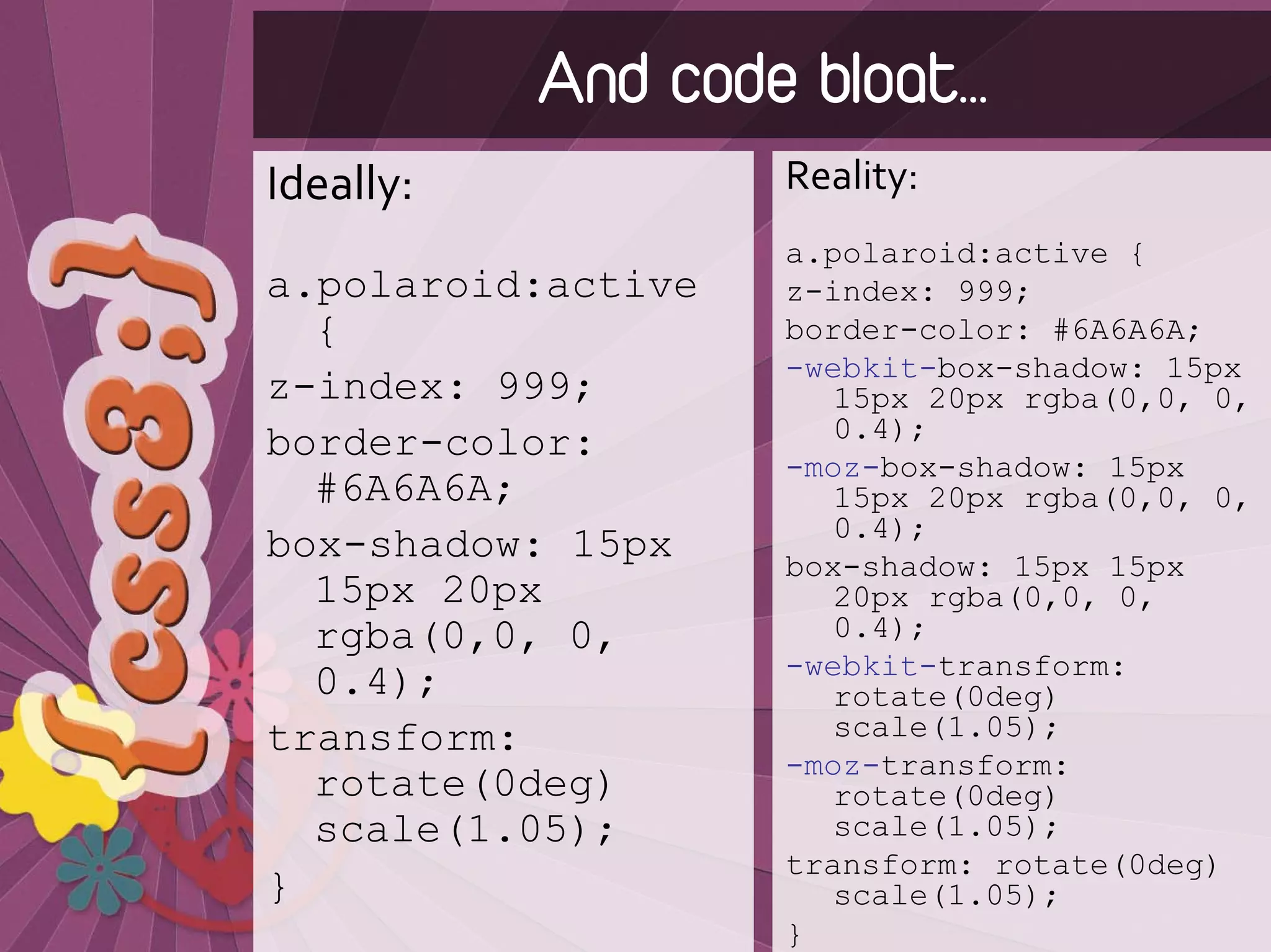

And code bloat…
Ideally: Reality:
a.polaroid:active {
a.polaroid:active z-index: 999;
{ border-color: #6A6A6A;
-webkit-box-shadow: 15px
z-index: 999; 15px 20px rgba(0,0, 0,
0.4);
border-color:
-moz-box-shadow: 15px
#6A6A6A; 15px 20px rgba(0,0, 0,
0.4);
box-shadow: 15px box-shadow: 15px 15px
15px 20px 20px rgba(0,0, 0,
rgba(0,0, 0, 0.4);
-webkit-transform:
0.4); rotate(0deg)
transform: scale(1.05);
-moz-transform:
rotate(0deg) rotate(0deg)
scale(1.05); scale(1.05);
transform: rotate(0deg)
} scale(1.05);
}

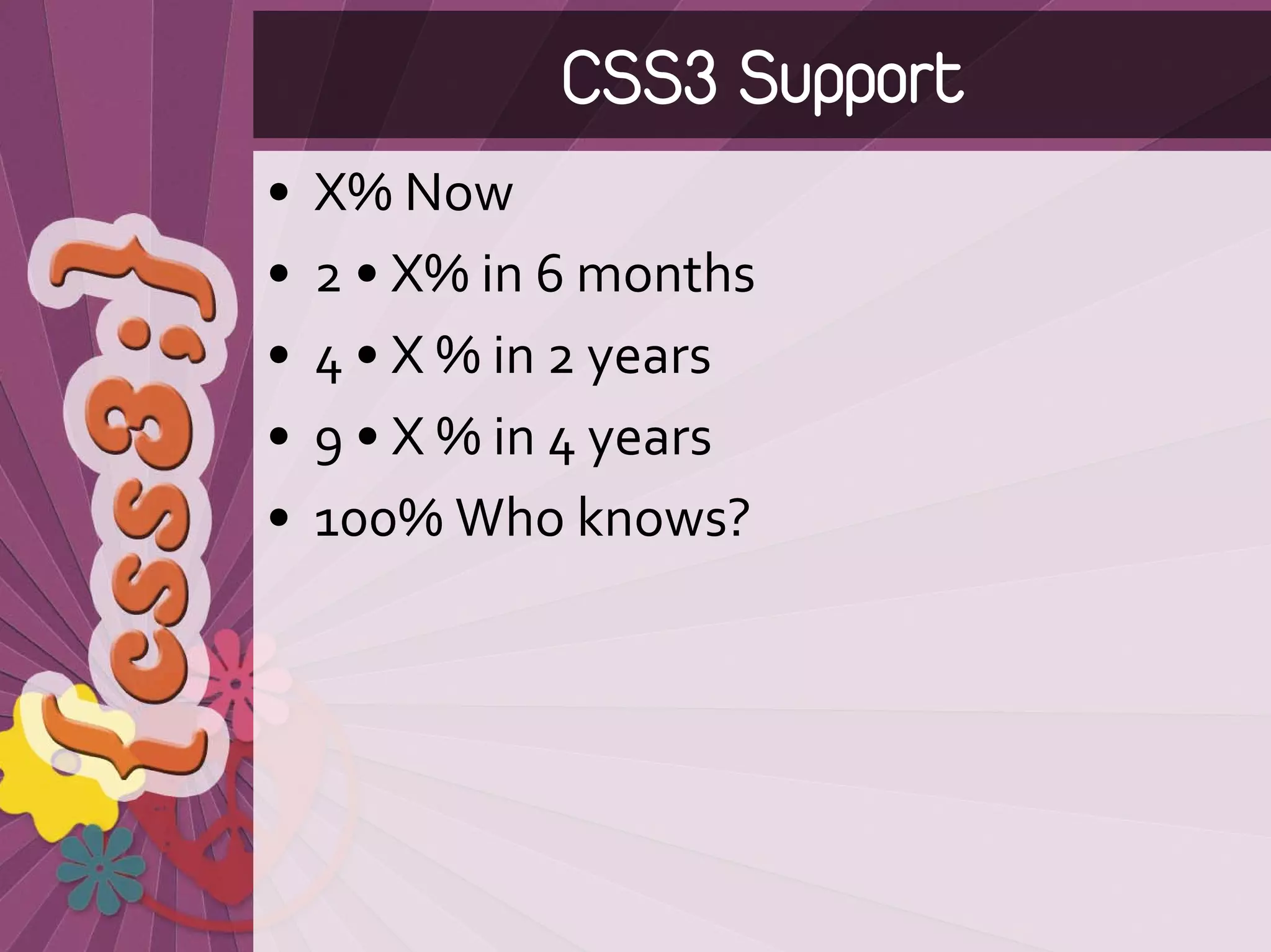

CSS3 Support
• X% Now
• 2 • X% in 6 months
• 4 • X % in 2 years
• 9 • X % in 4 years
• 100% Who knows?

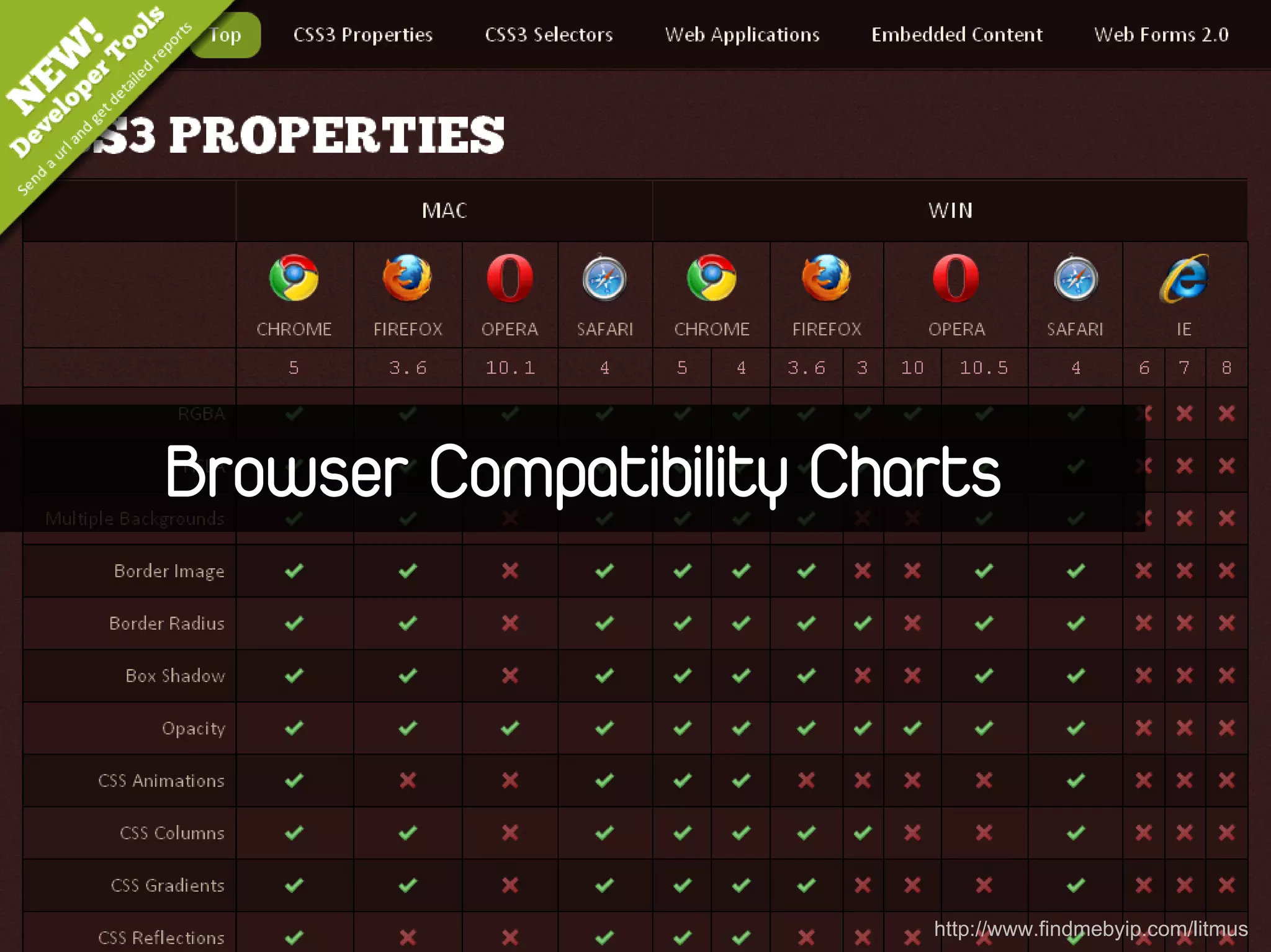

Browser Compatibility Charts

http://www.findmebyip.com/litmus

Some Useful Tips

http://www.flickr.com/photos/nostri-imago/3216359107/

Progressive techniques
• A proper stack
• Multiple stylesheets
• Targeted styles (advanced selectors)

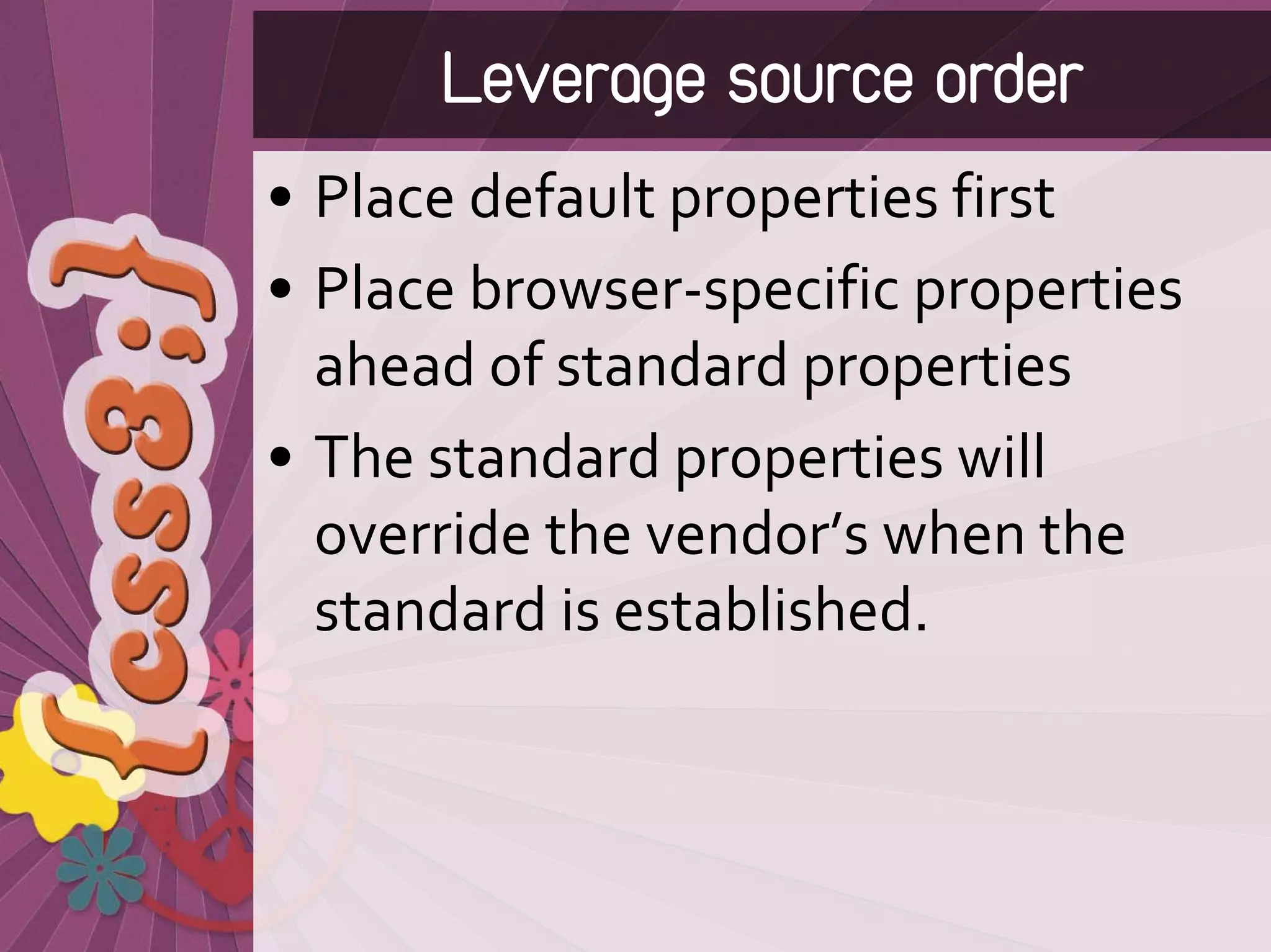

Leverage source order
• Place default properties first
• Place browser‐specific properties
ahead of standard properties
• The standard properties will
override the vendor’s when the
standard is established.

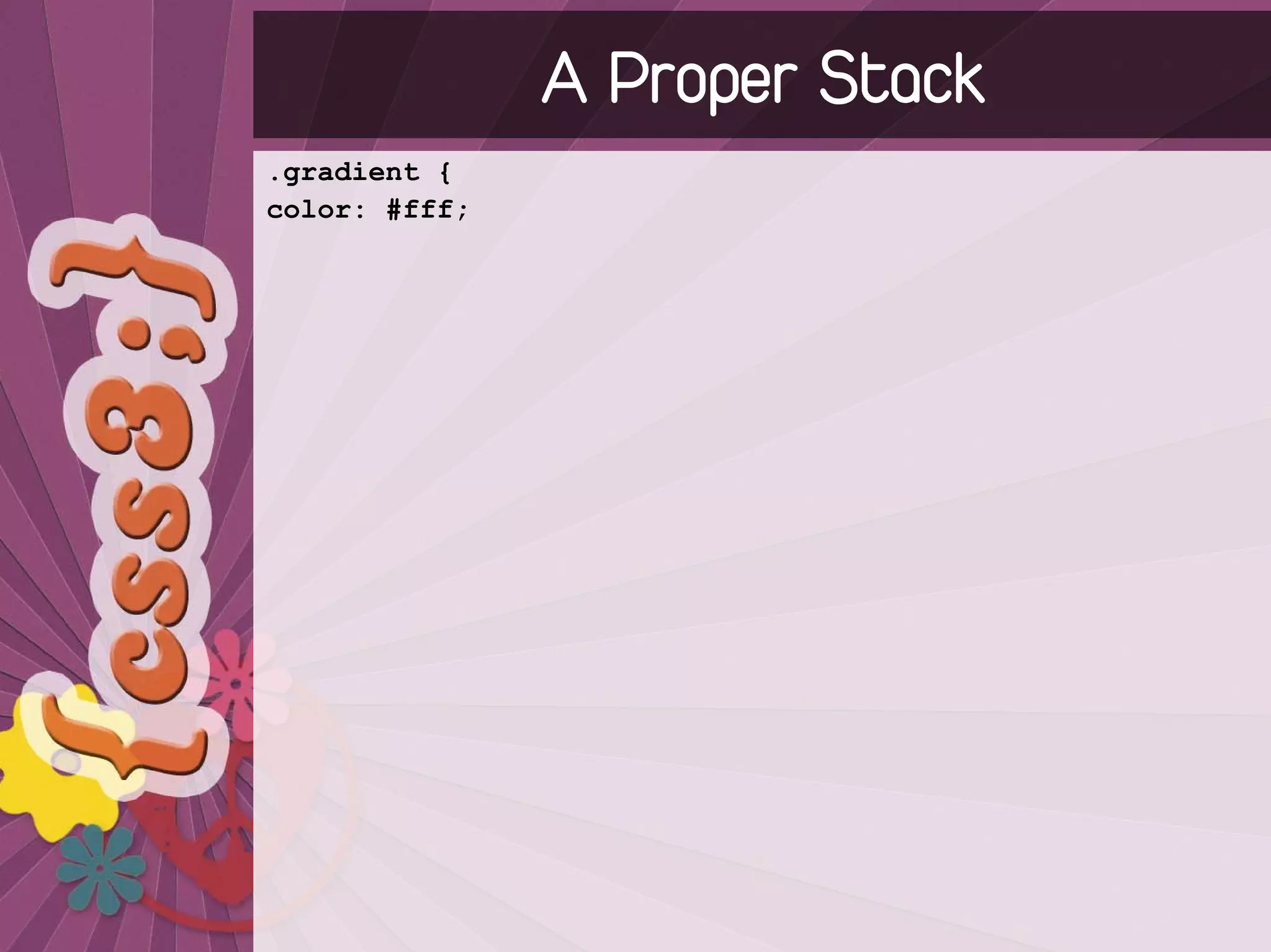

A Proper Stack
.gradient {
color: #fff;

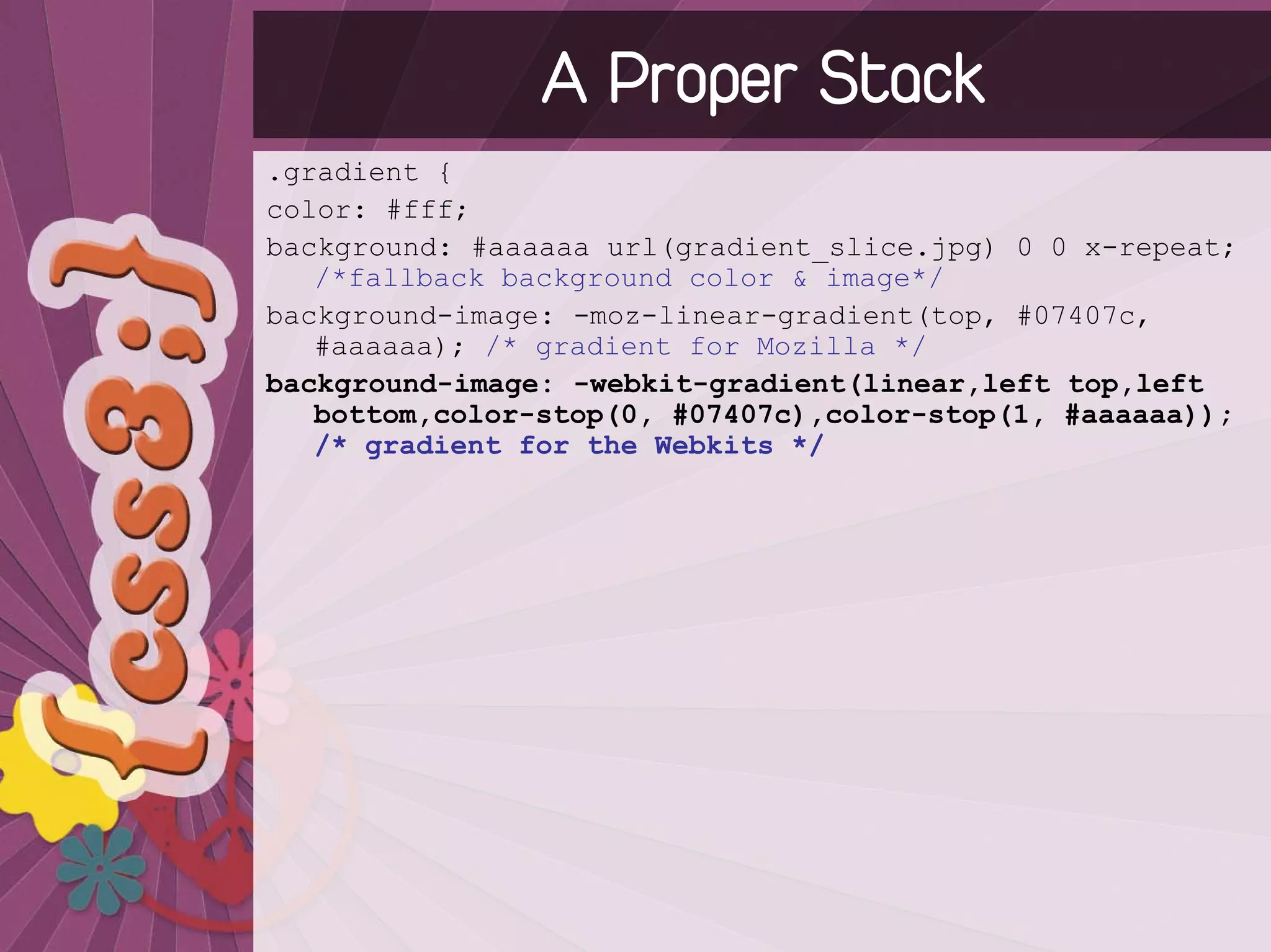

A Proper Stack
.gradient {
color: #fff;
background: #aaaaaa url(gradient_slice.jpg) 0 0 x-repeat;
/*fallback background color & image*/

A Proper Stack
.gradient {
color: #fff;
background-image: -moz-linear-gradient(top, #07407c,
#aaaaaa); /* gradient for Mozilla */

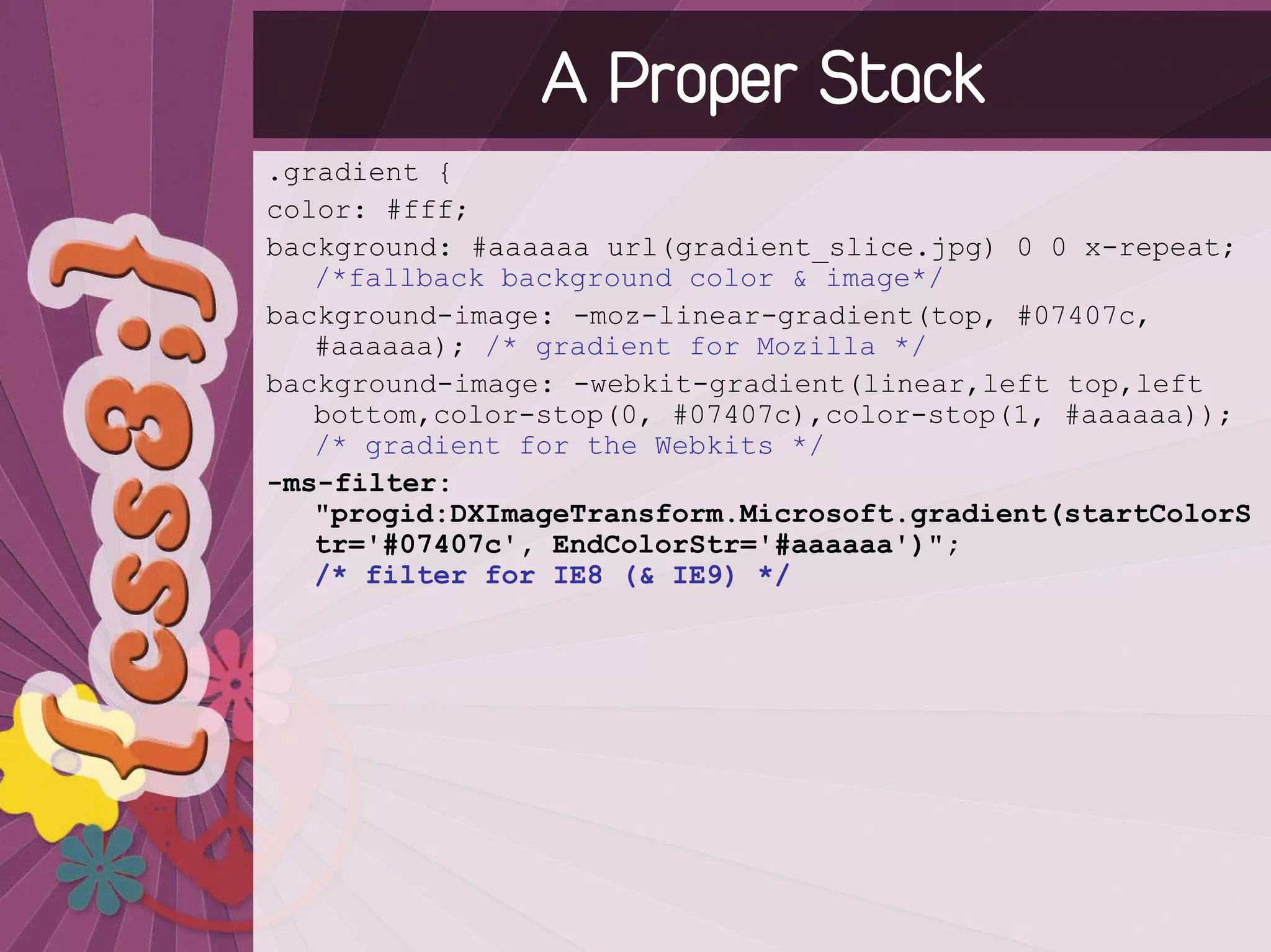

A Proper Stack
.gradient {
color: #fff;
background-image: -webkit-gradient(linear,left top,left
bottom,color-stop(0, #07407c),color-stop(1, #aaaaaa));
/* gradient for the Webkits */

A Proper Stack
.gradient {
color: #fff;
-ms-filter:
"progid:DXImageTransform.Microsoft.gradient(startColorS
tr='#07407c', EndColorStr='#aaaaaa')";
/* filter for IE8 (& IE9) */

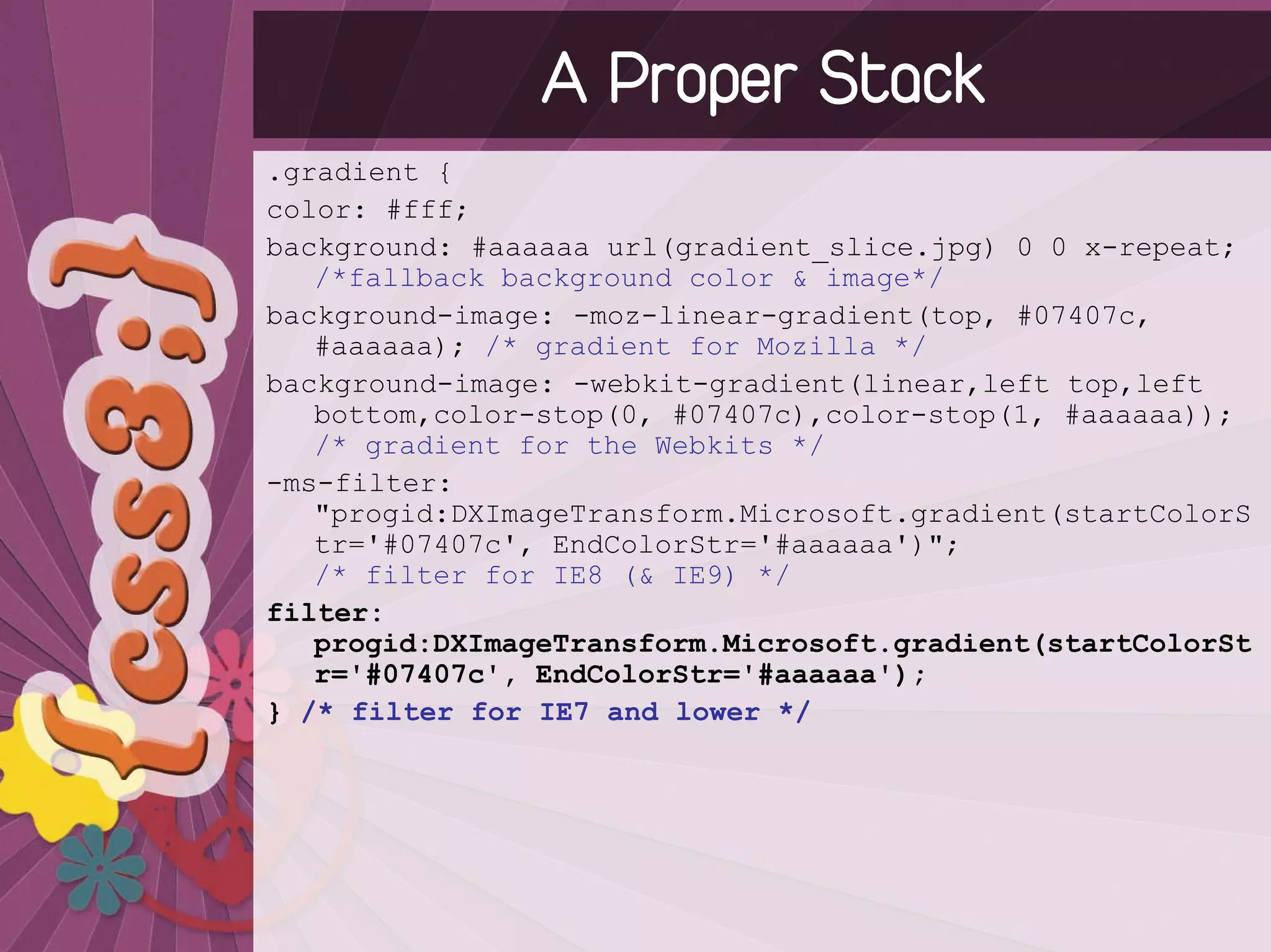

A Proper Stack
.gradient {
color: #fff;
-ms-filter:
"progid:DXImageTransform.Microsoft.gradient(startColorS
tr='#07407c', EndColorStr='#aaaaaa')";
/* filter for IE8 (& IE9) */
filter:
progid:DXImageTransform.Microsoft.gradient(startColorSt
r='#07407c', EndColorStr='#aaaaaa');
} /* filter for IE7 and lower */

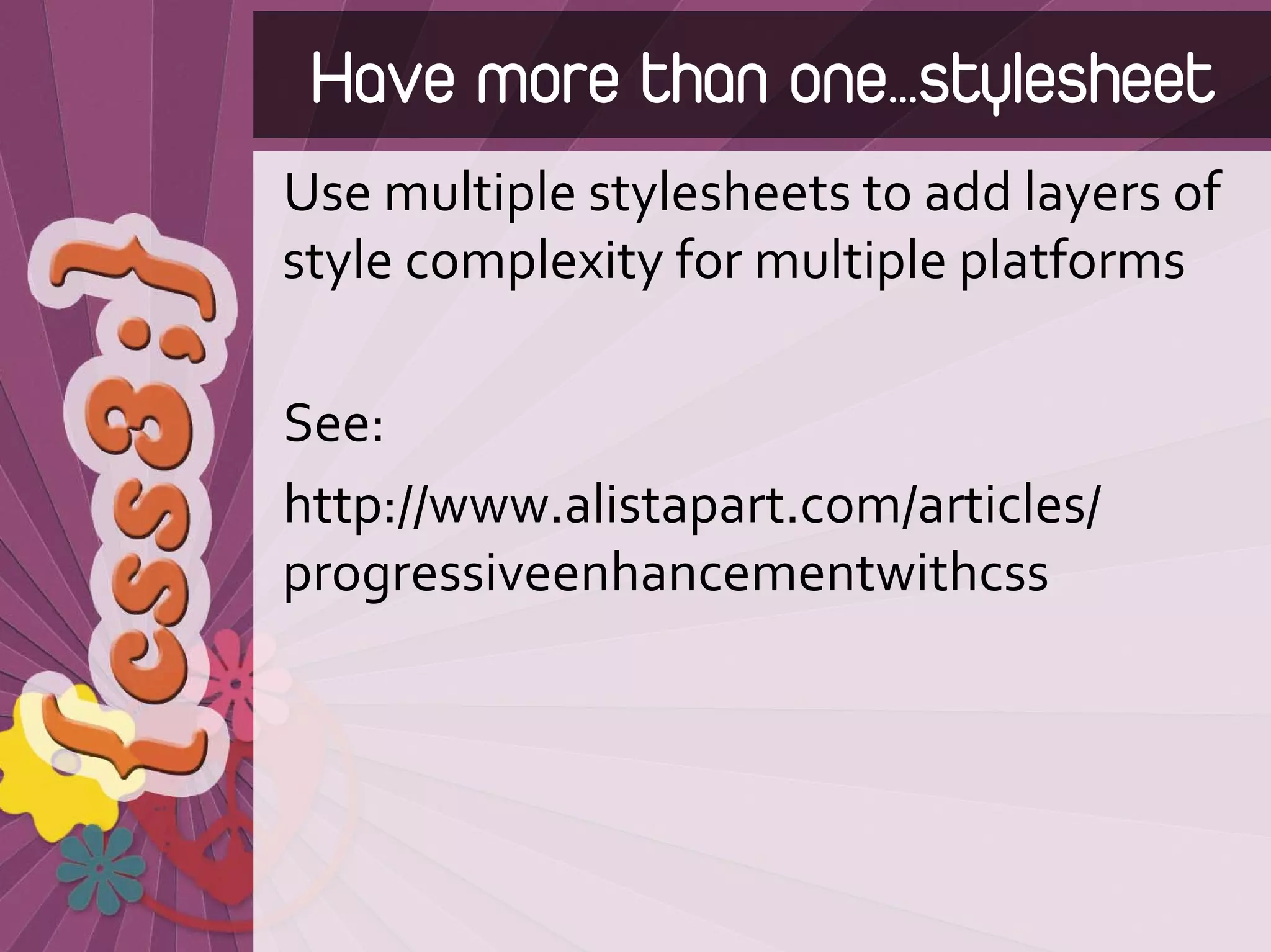

Have more than one…stylesheet
Use multiple stylesheets to add layers of
style complexity for multiple platforms

See:
http://www.alistapart.com/articles/
progressiveenhancementwithcss

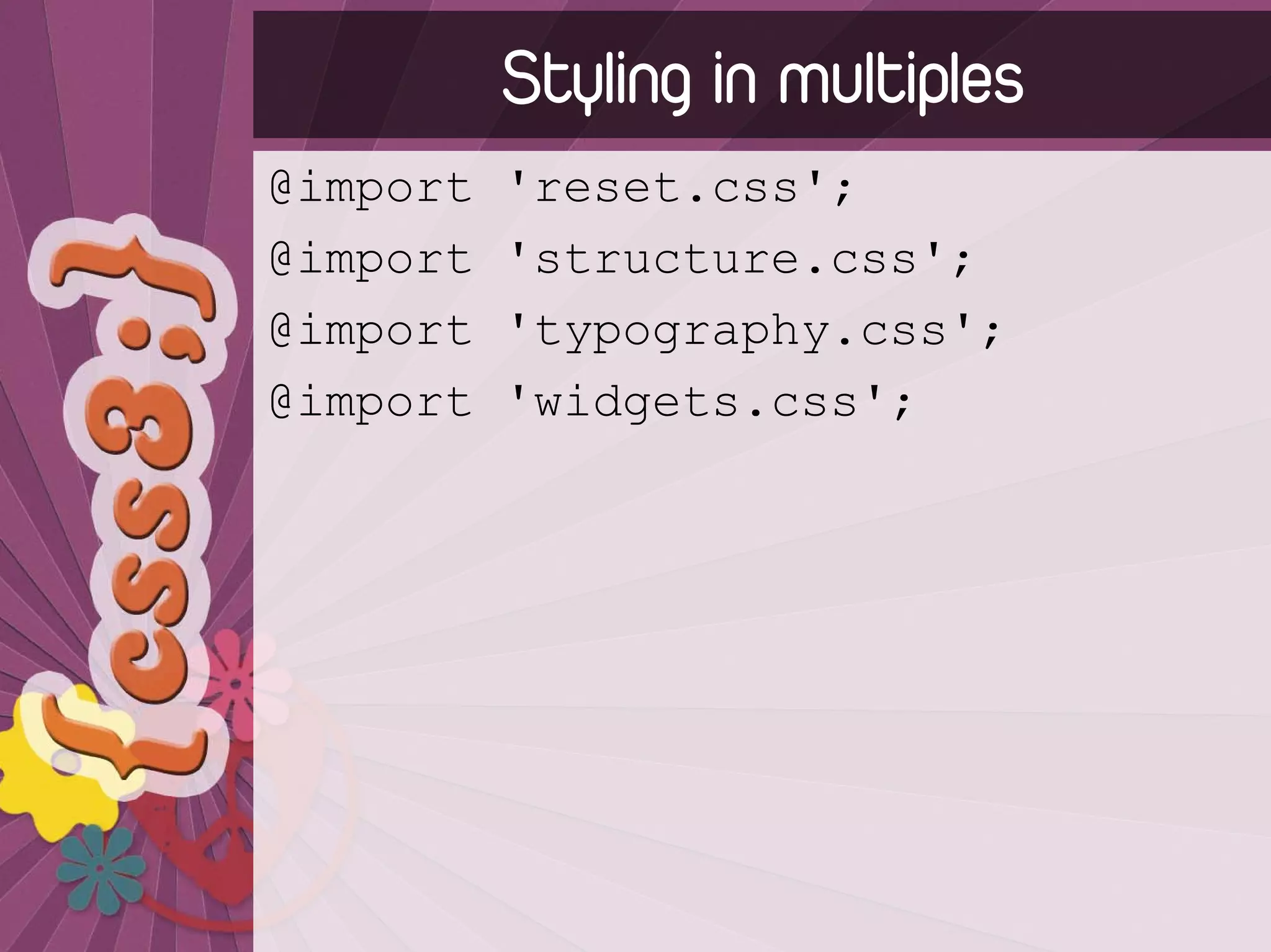

Styling in multiples
@import 'reset.css';
@import 'structure.css';
@import 'typography.css';
@import 'widgets.css';

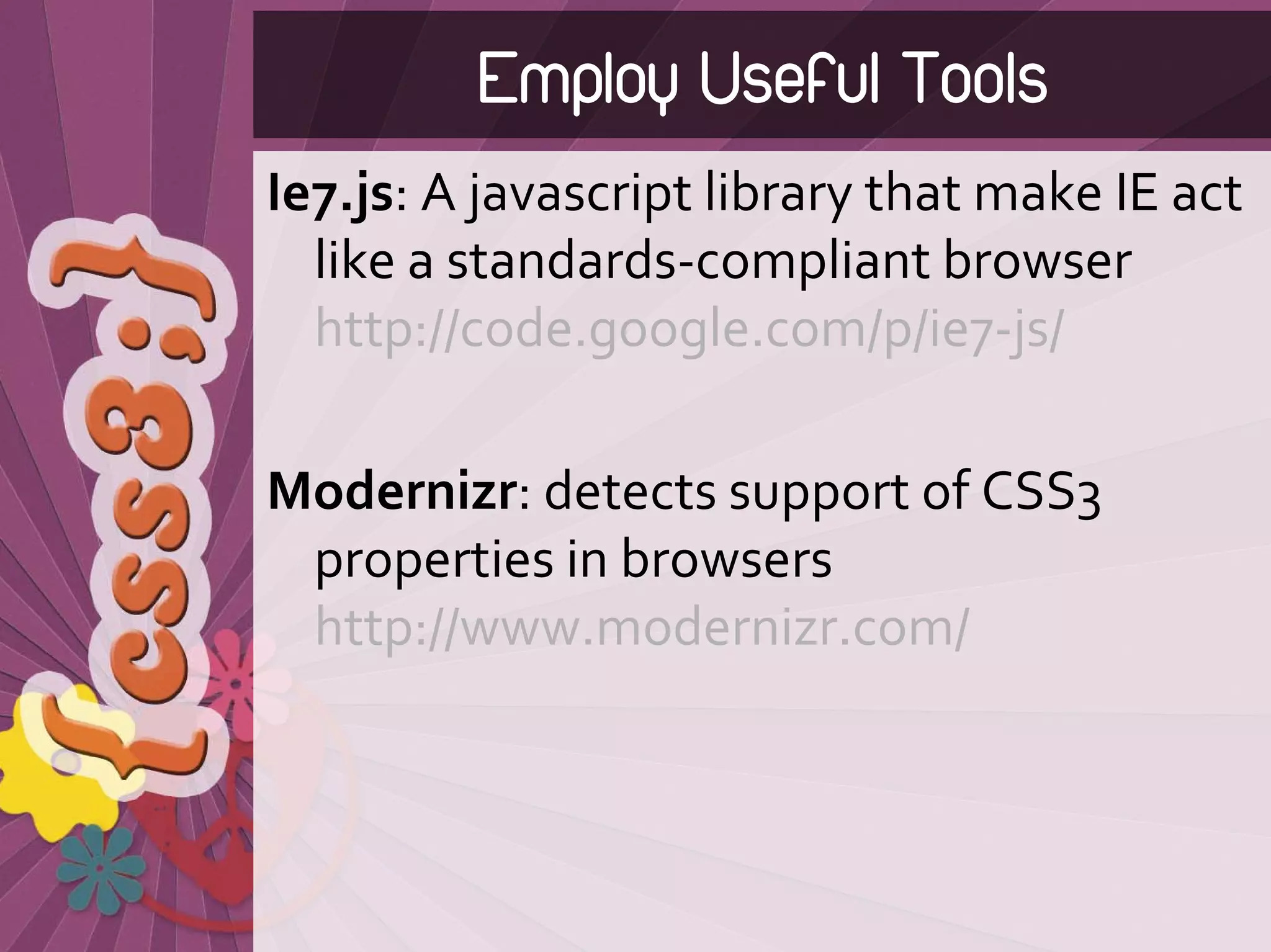

Employ Useful Tools
Ie7.js: A javascript library that make IE act
like a standards‐compliant browser
http://code.google.com/p/ie7‐js/

Modernizr: detects support of CSS3
properties in browsers
http://www.modernizr.com/

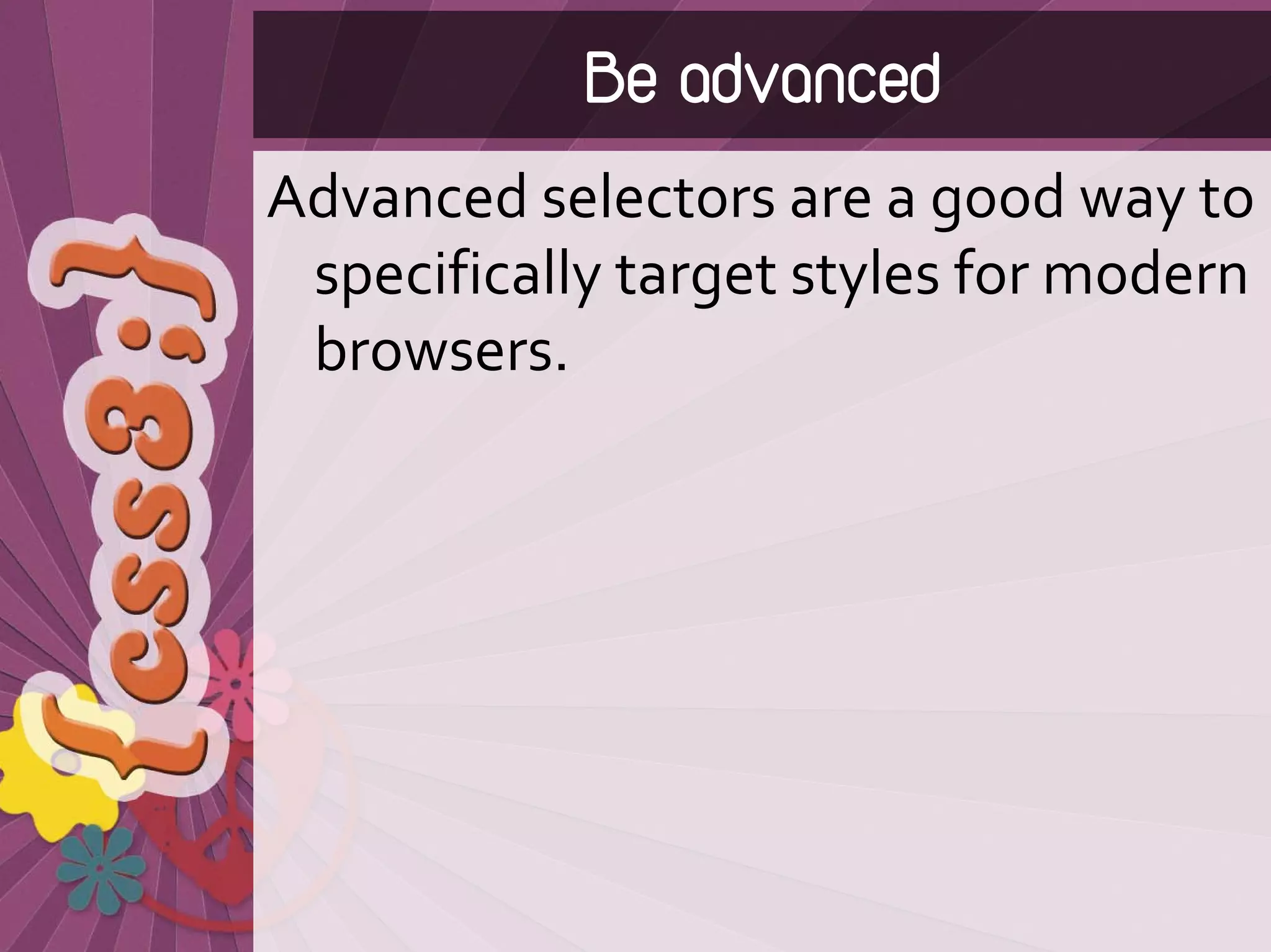

Be advanced
Advanced selectors are a good way to
specifically target styles for modern
browsers.

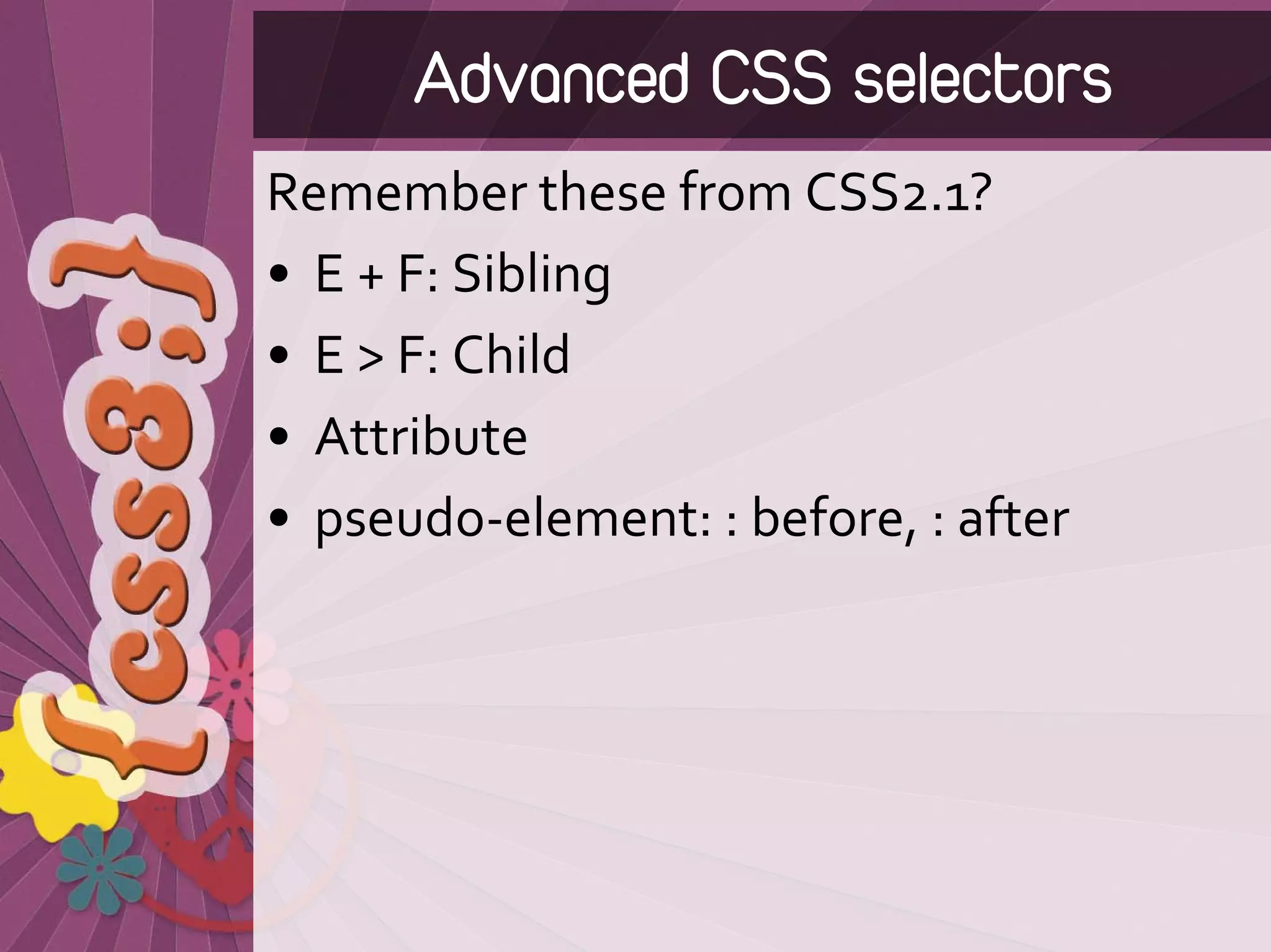

Advanced CSS selectors
Remember these from CSS2.1?
• E + F: Sibling
• E > F: Child
• Attribute
• pseudo‐element: : before, : after

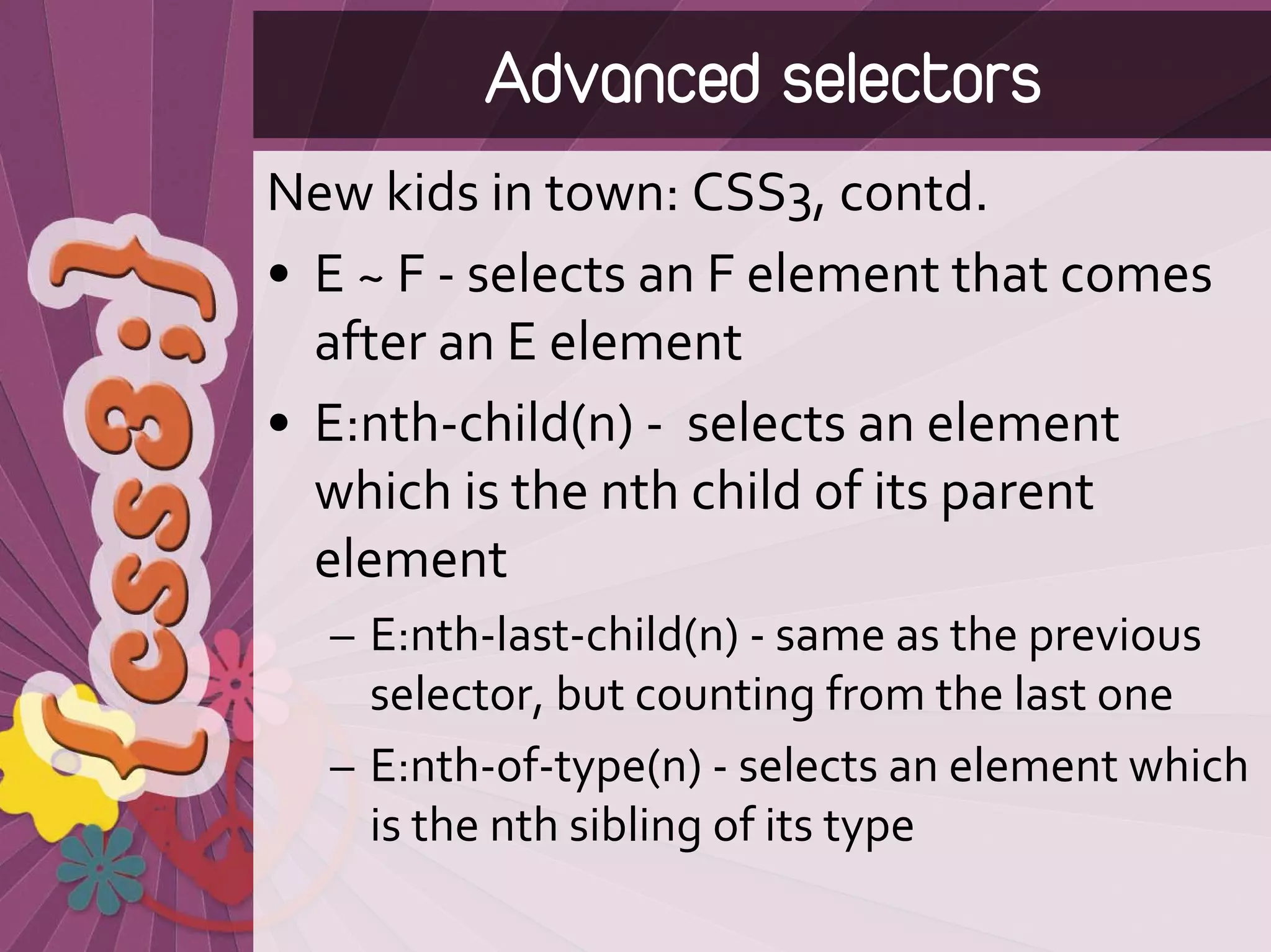

Advanced selectors
New kids in town: CSS3, contd.
• E ~ F ‐ selects an F element that comes
after an E element
• E:nth‐child(n) ‐ selects an element
which is the nth child of its parent
element
– E:nth‐last‐child(n) ‐ same as the previous
selector, but counting from the last one
– E:nth‐of‐type(n) ‐ selects an element which
is the nth sibling of its type

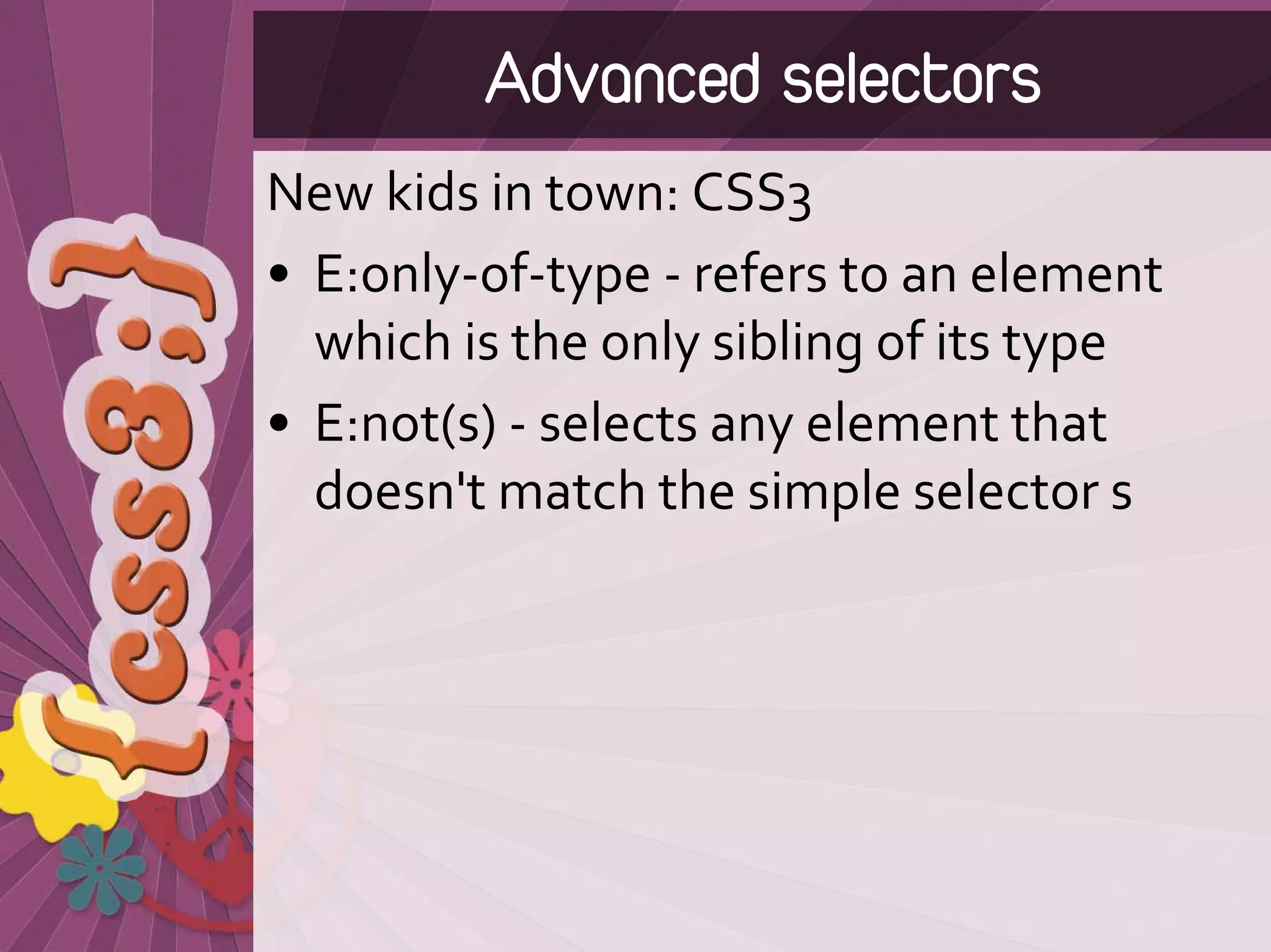

Advanced selectors
New kids in town: CSS3
• E:only‐of‐type ‐ refers to an element
which is the only sibling of its type
• E:not(s) ‐ selects any element that
doesn't match the simple selector s

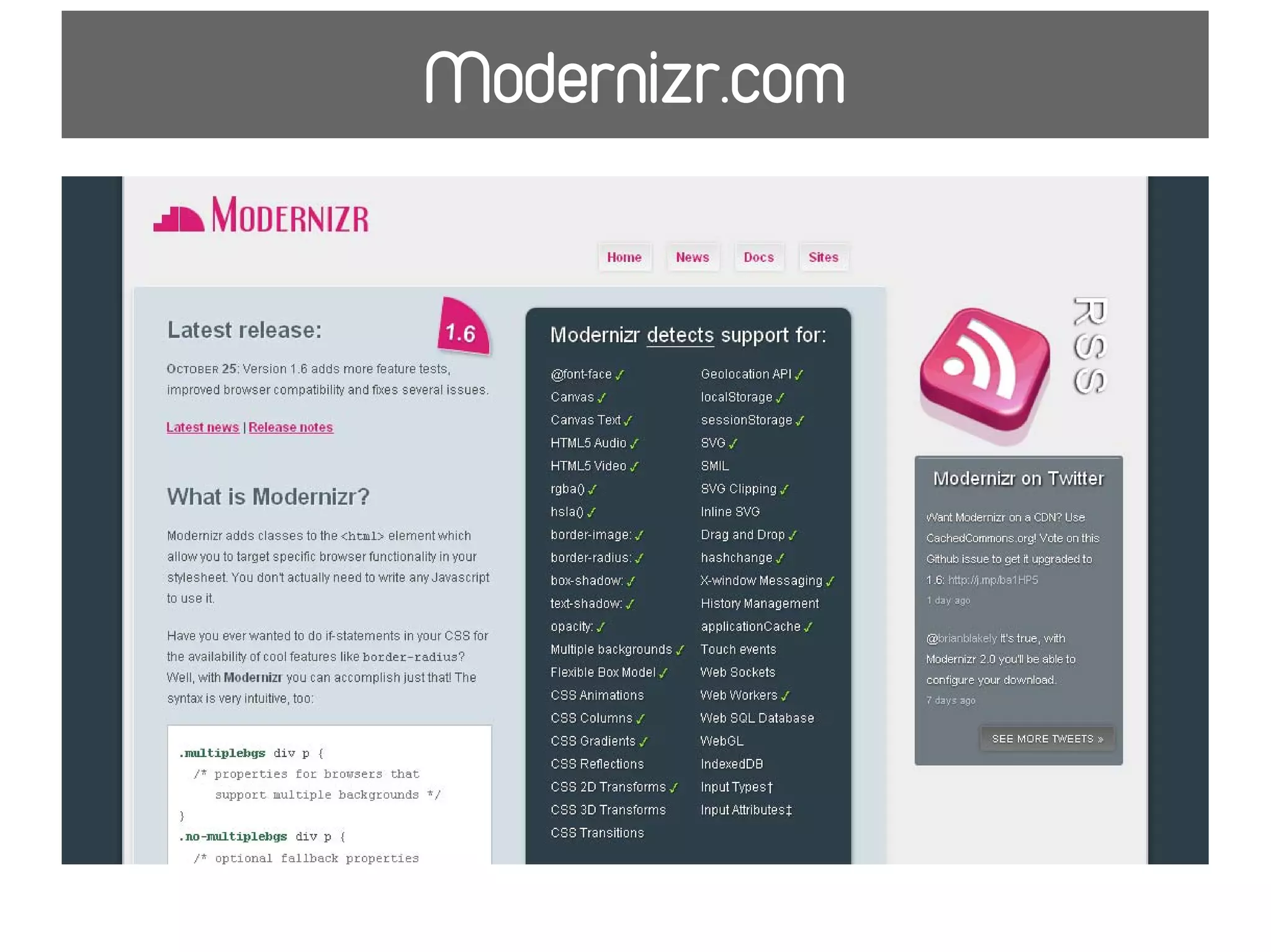

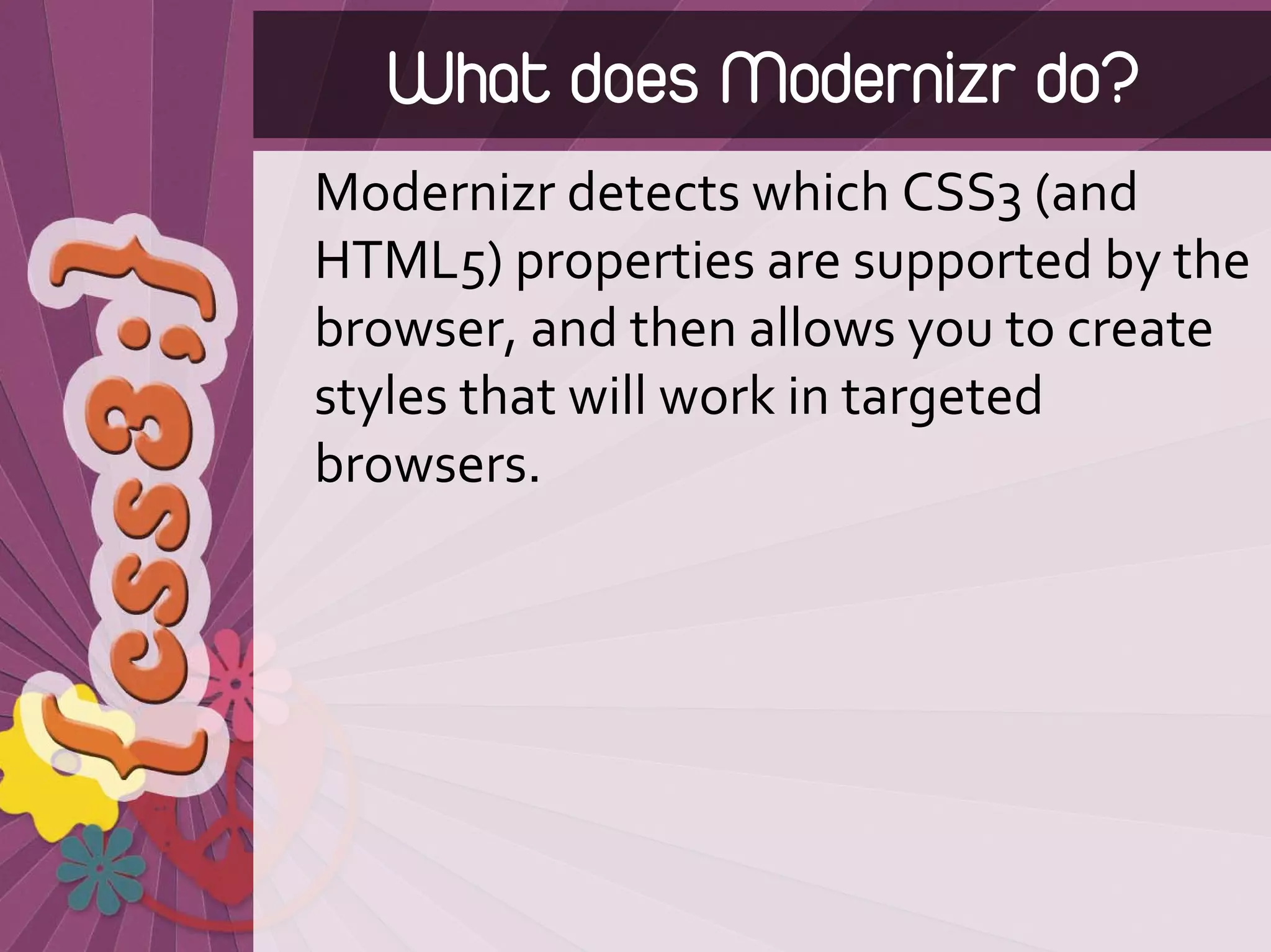

What does Modernizr do?
Modernizr detects which CSS3 (and
HTML5) properties are supported by the
browser, and then allows you to create
styles that will work in targeted
browsers.

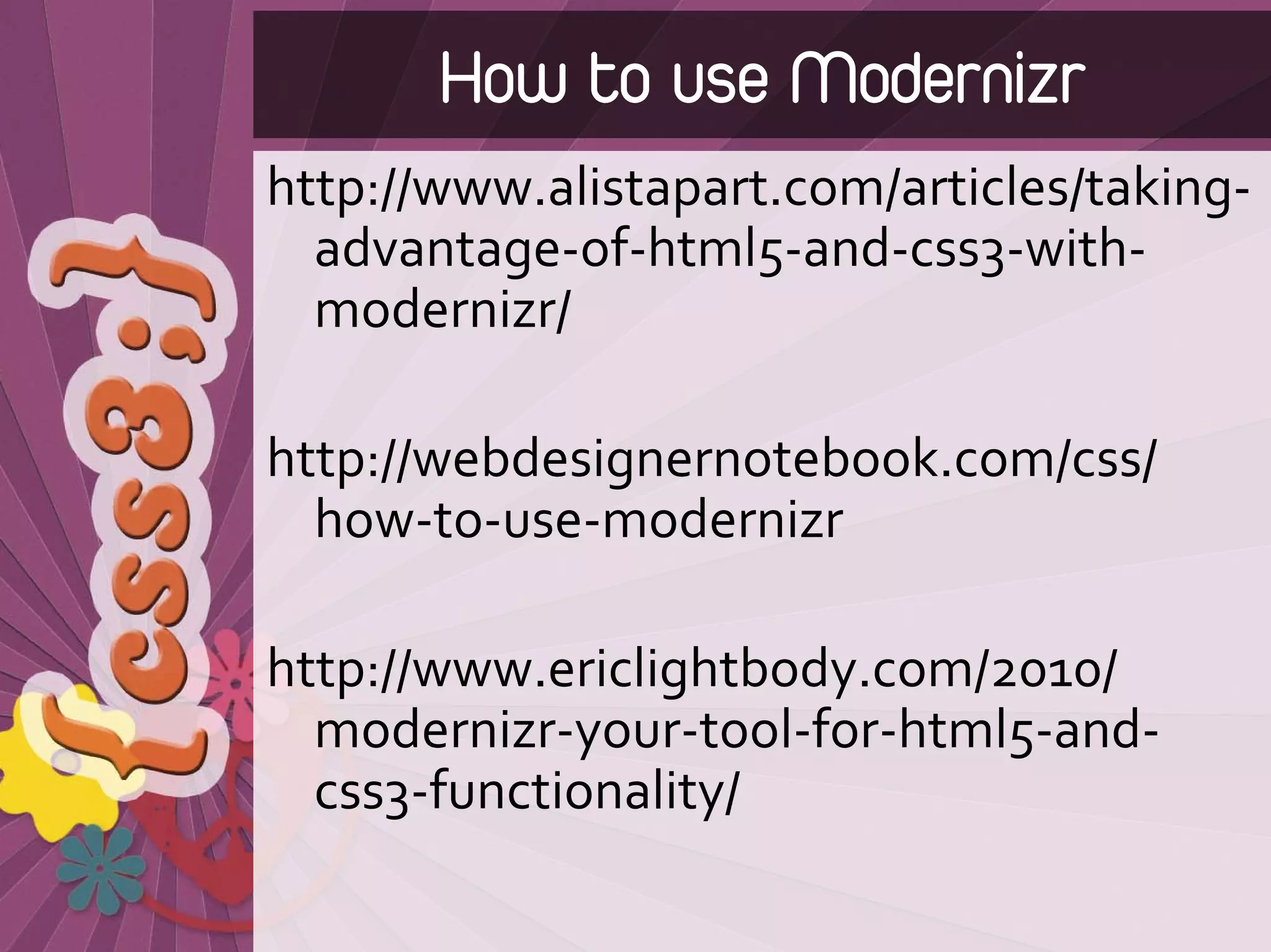

How to use Modernizr
http://www.alistapart.com/articles/taking‐
advantage‐of‐html5‐and‐css3‐with‐
modernizr/

http://webdesignernotebook.com/css/
how‐to‐use‐modernizr

http://www.ericlightbody.com/2010/
modernizr‐your‐tool‐for‐html5‐and‐
css3‐functionality/

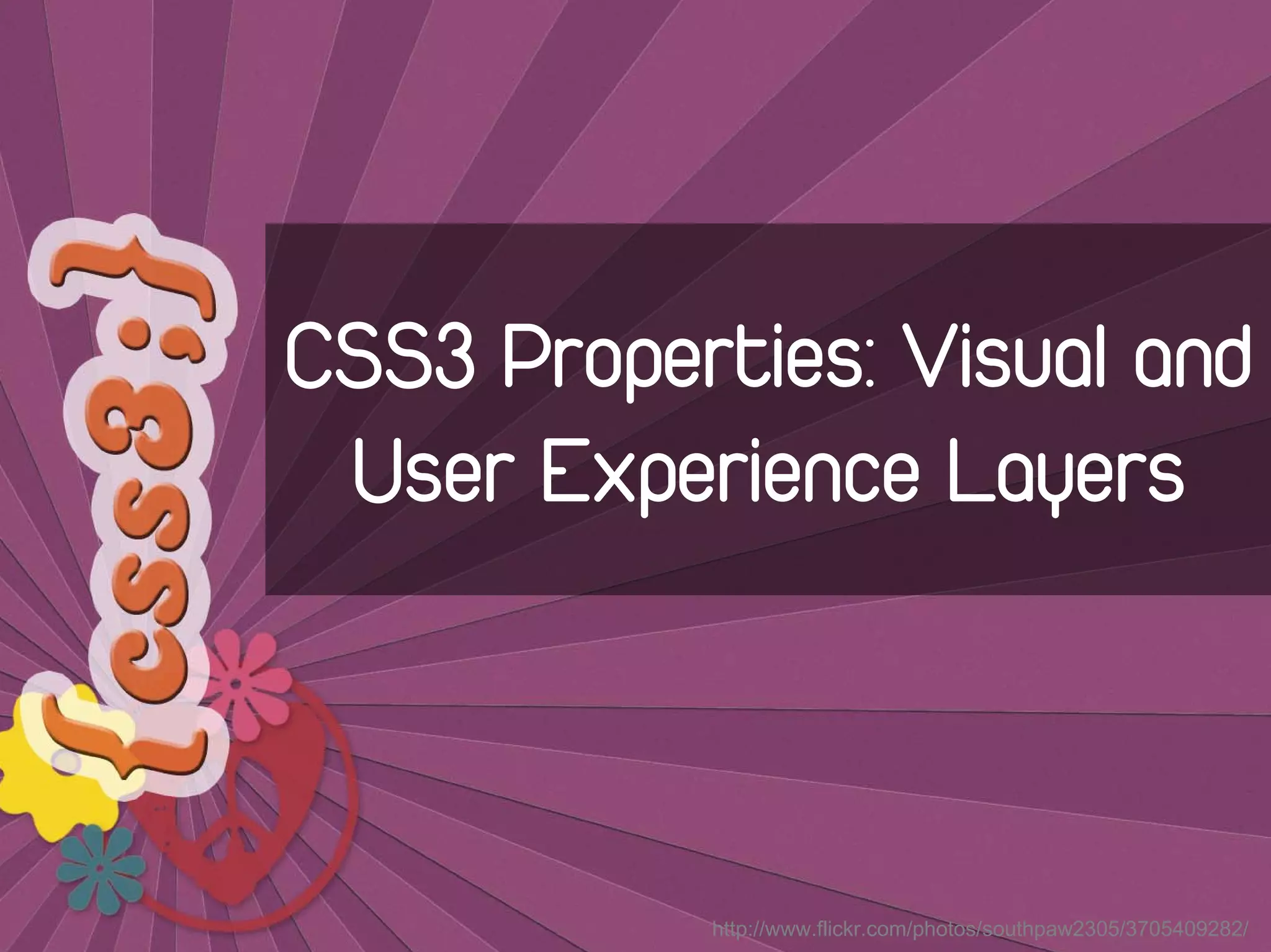

CSS3 Properties: Visual and
User Experience Layers

http://www.flickr.com/photos/southpaw2305/3705409282/

NOTE: None of the IEs support CSS3.

6 7 8

…as in “not any”. Right. ‘Nuff said.
http://www.flickr.com/photos/johnsnape/4258191545/

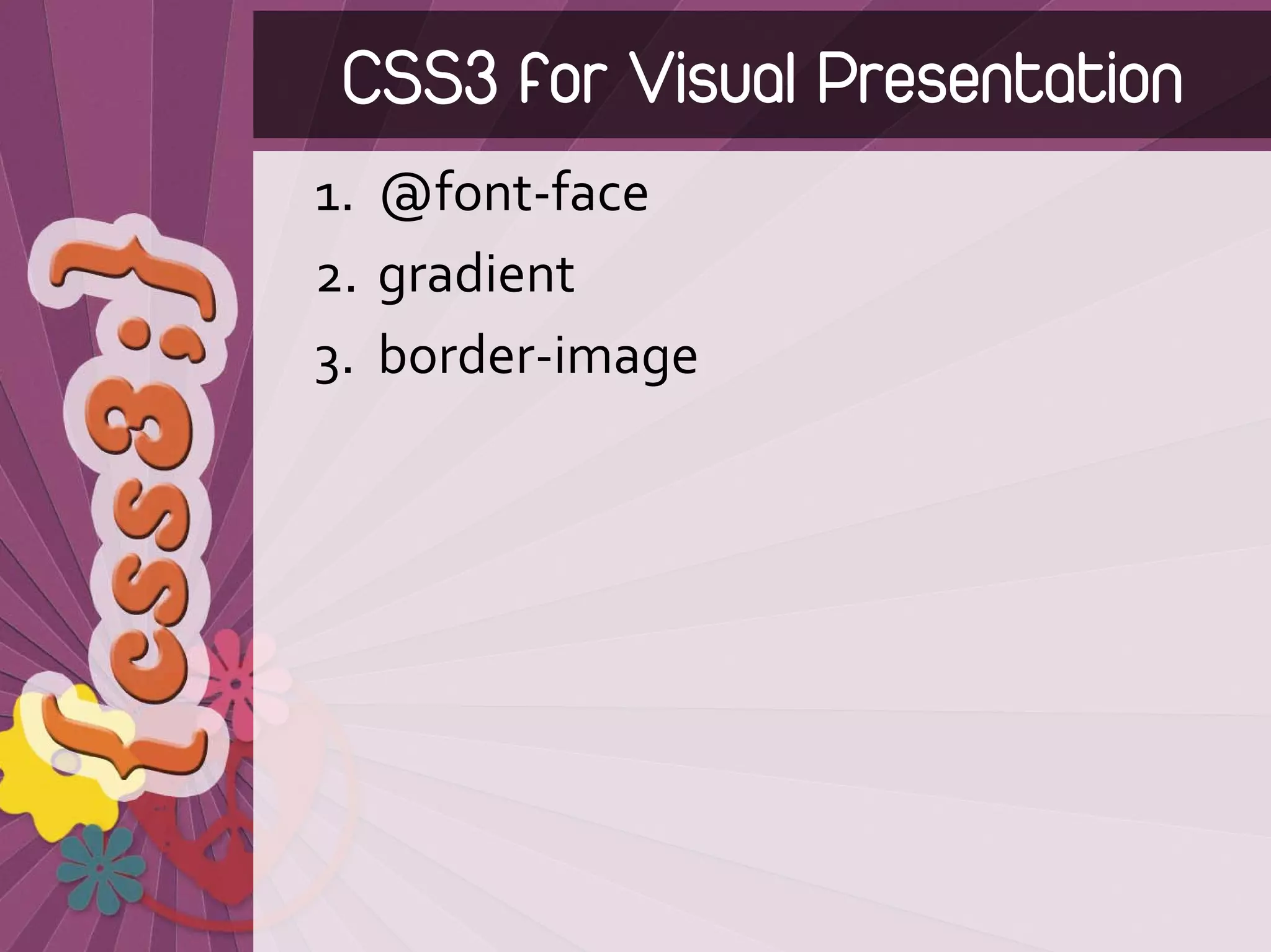

CSS3 for Visual Presentation
1. @font‐face
2. gradient
3. border‐image

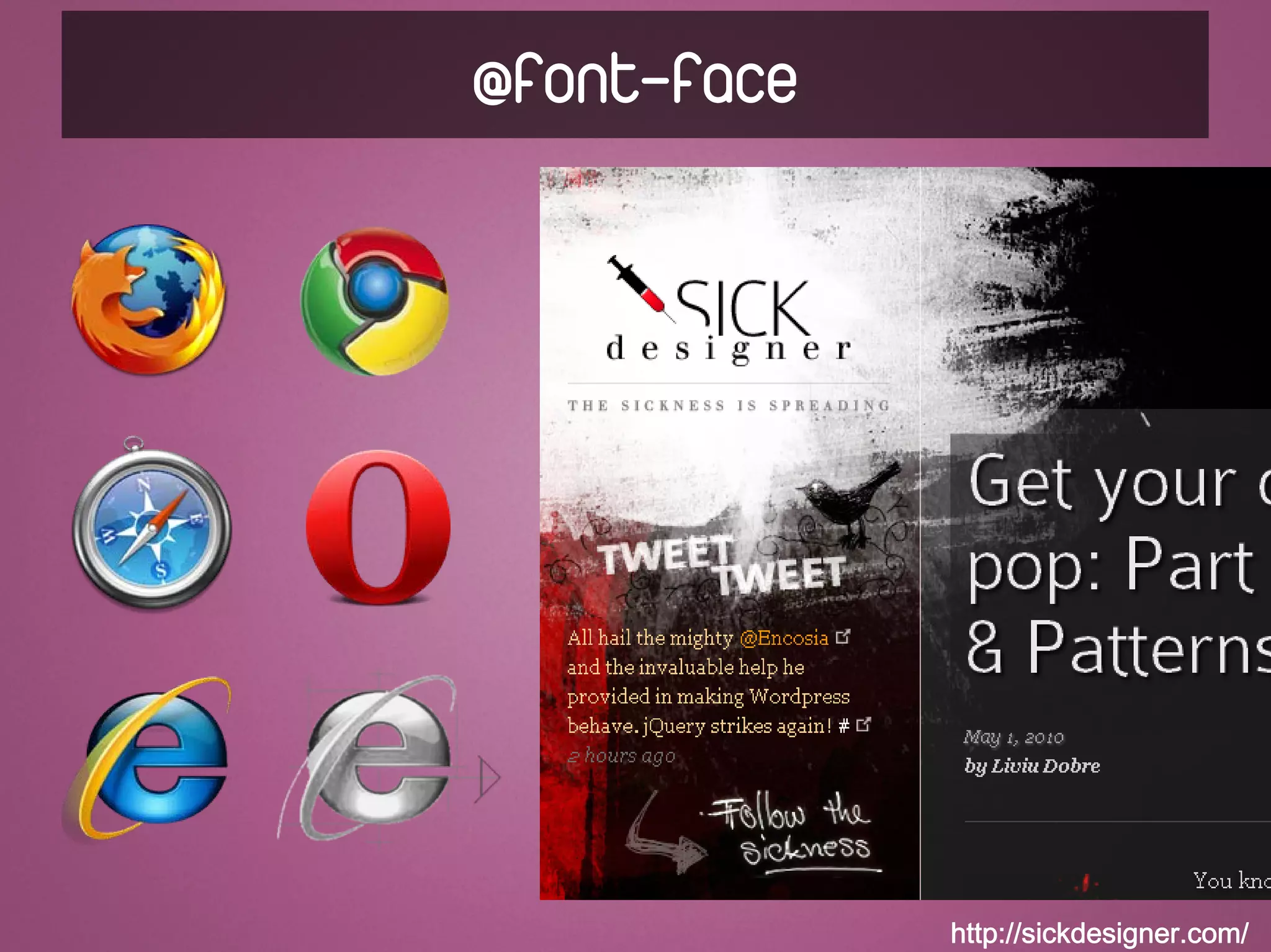

@font-face

http://sickdesigner.com/

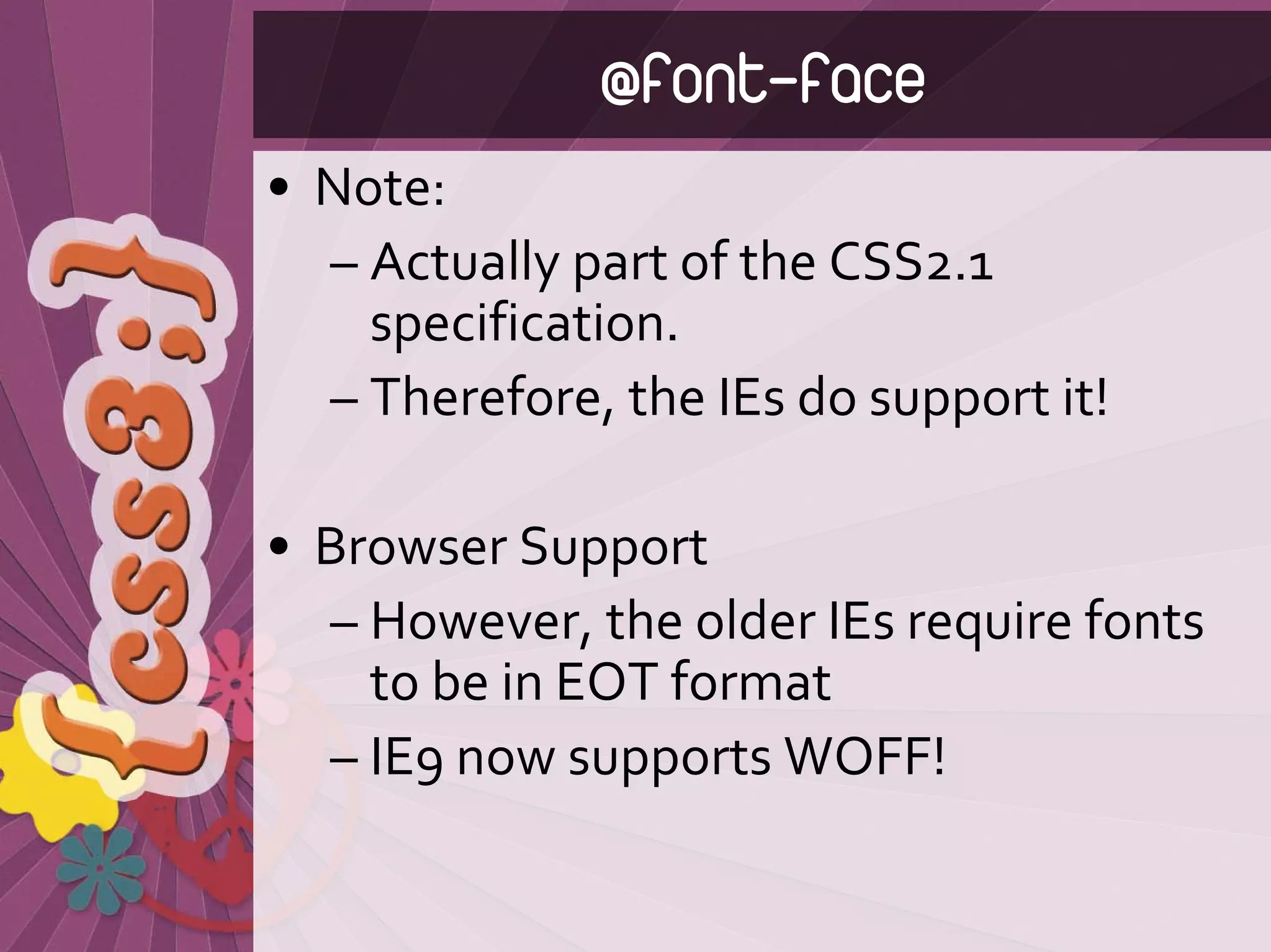

@font-face
• Note:
– Actually part of the CSS2.1
specification.
– Therefore, the IEs do support it!

• Browser Support
– However, the older IEs require fonts
to be in EOT format
– IE9 now supports WOFF!

@font-face bug: IE
@font-face super bullet‐proofing

The problem:
@font‐face doesn’t work, even with the
proper normal syntax. What gives?

The solution:
Separate out the .eot call with a new
@font‐face declaration.

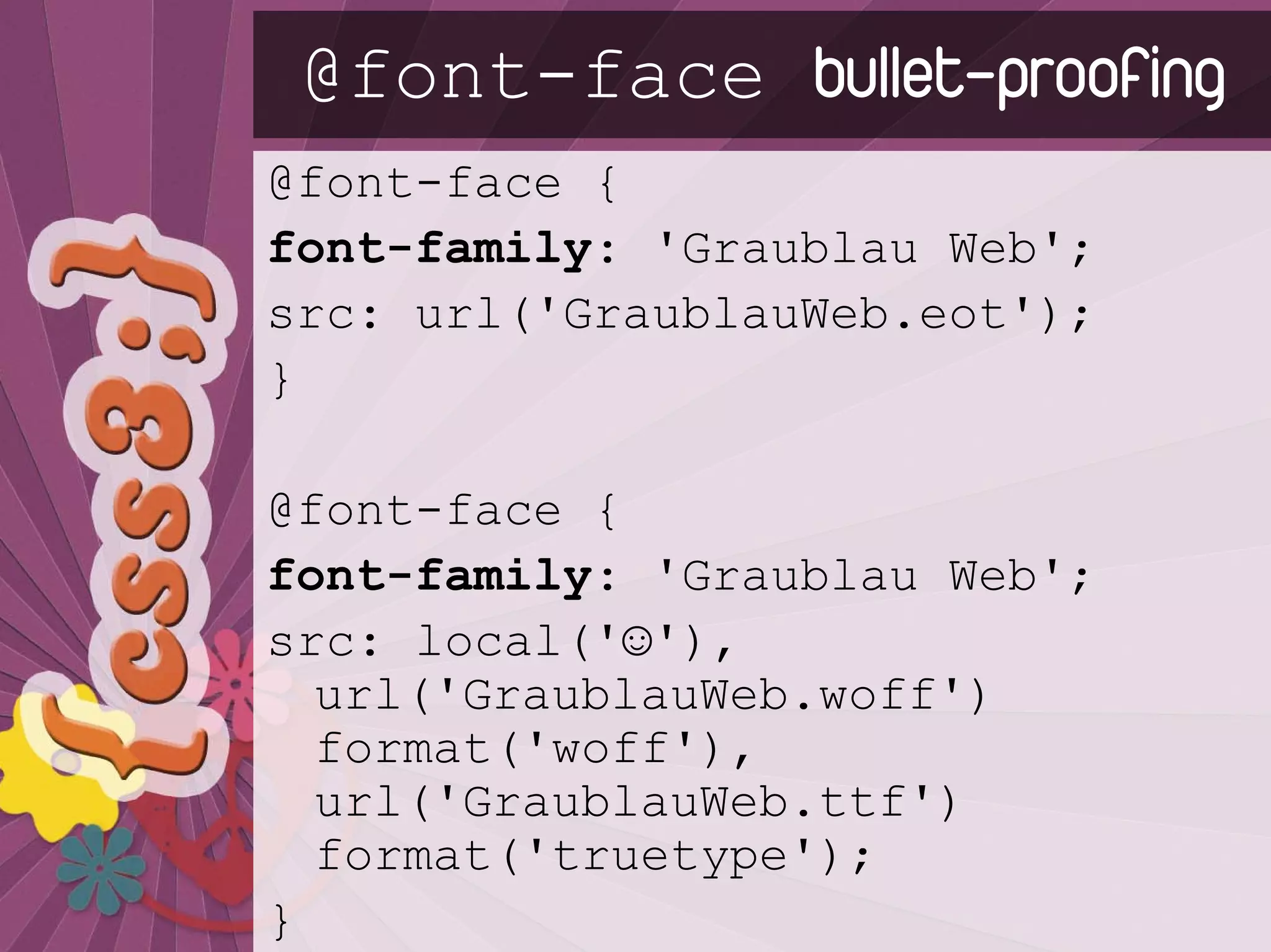

@font-face bullet-proofing
@font-face {
font-family: 'Graublau Web';
src: url('GraublauWeb.eot');
}

@font-face {
src: local('☺'),
url('GraublauWeb.woff')
format('woff'),
url('GraublauWeb.ttf')
format('truetype');
}

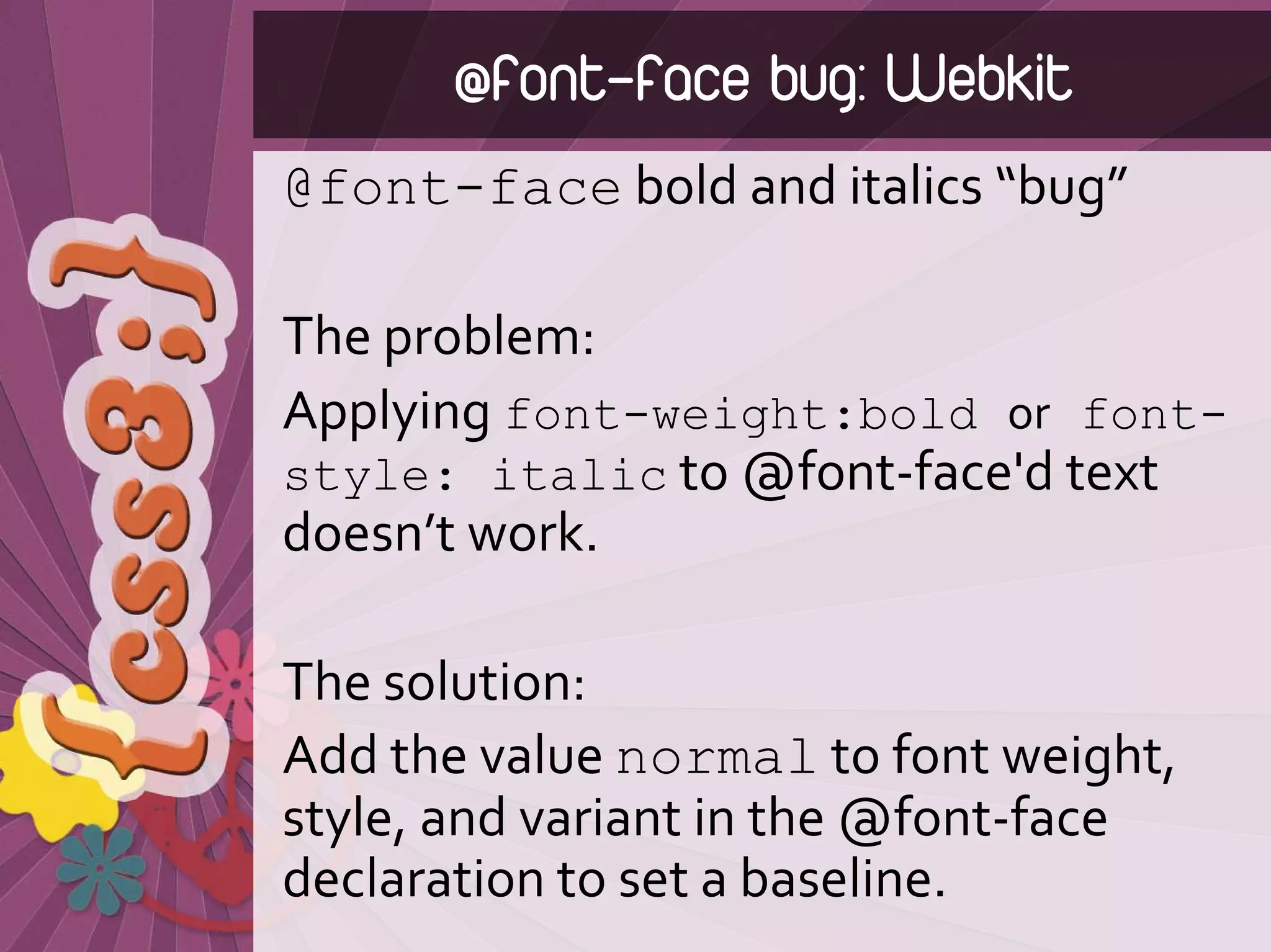

@font-face bug: Webkit
@font-face bold and italics “bug”

The problem:
Applying font-weight:bold or font-
style: italic to @font‐face'd text
doesn’t work.

The solution:
Add the value normal to font weight,
style, and variant in the @font‐face
declaration to set a baseline.

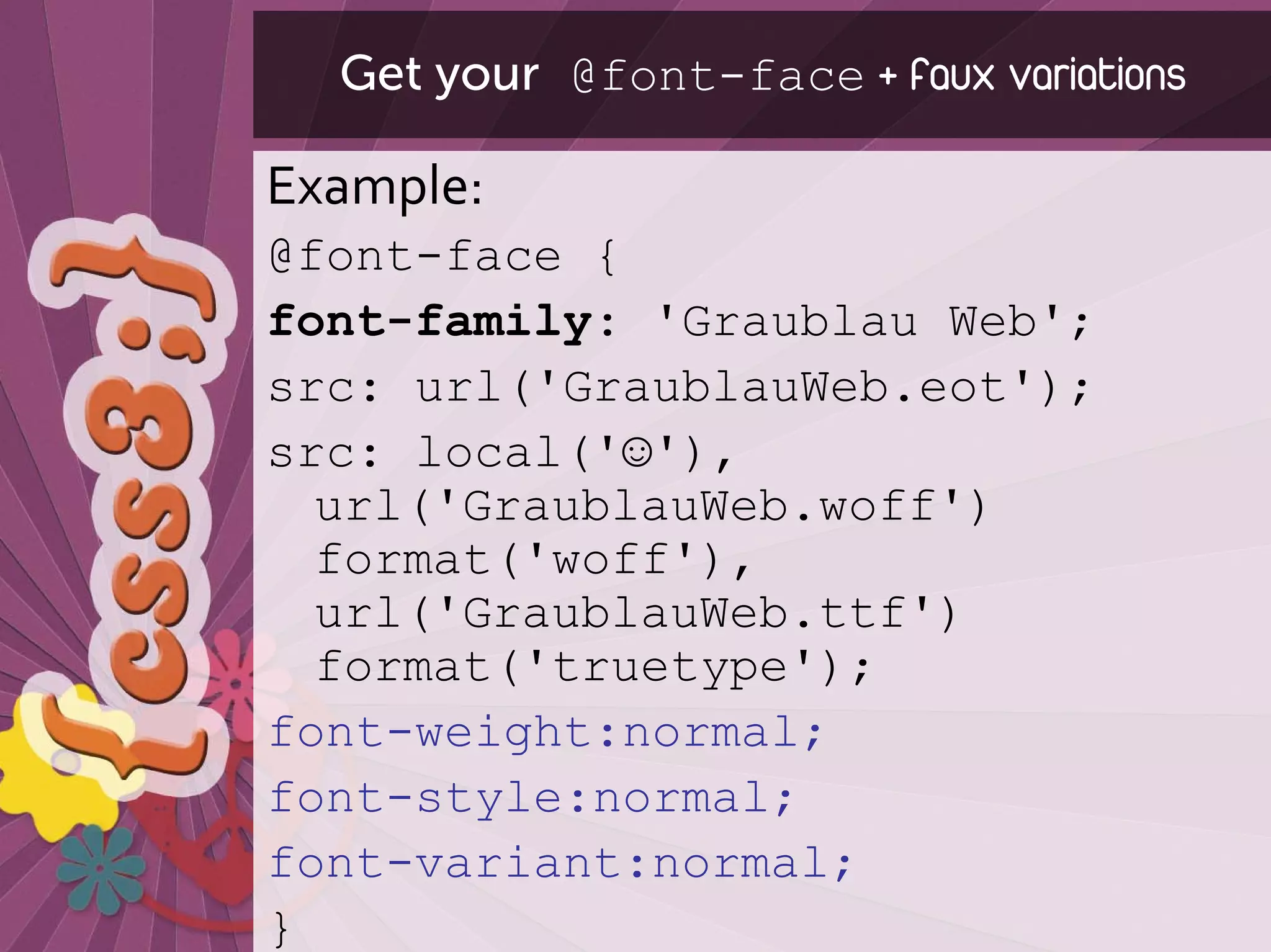

Get your @font-face + faux variations

Example:
@font-face {
src: url('GraublauWeb.eot');
src: local('☺'),
url('GraublauWeb.woff')
format('woff'),
url('GraublauWeb.ttf')
format('truetype');
font-weight:normal;
font-style:normal;
font-variant:normal;
}

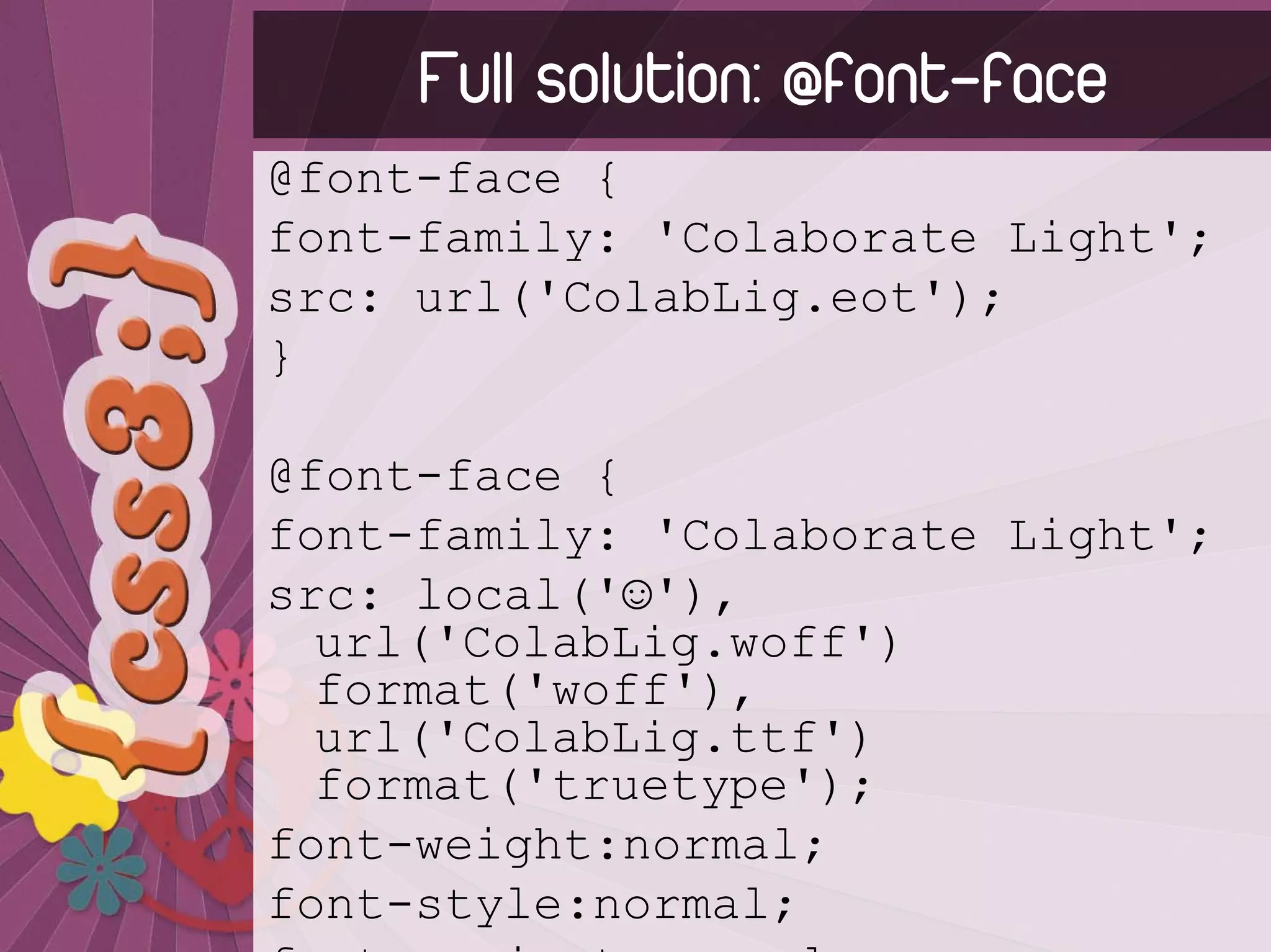

Full solution: @font-face
@font-face {
font-family: 'Colaborate Light';
src: url('ColabLig.eot');
}

@font-face {
font-family: 'Colaborate Light';
src: local('☺'),
url('ColabLig.woff')
format('woff'),
url('ColabLig.ttf')
format('truetype');
font-weight:normal;
font-style:normal;

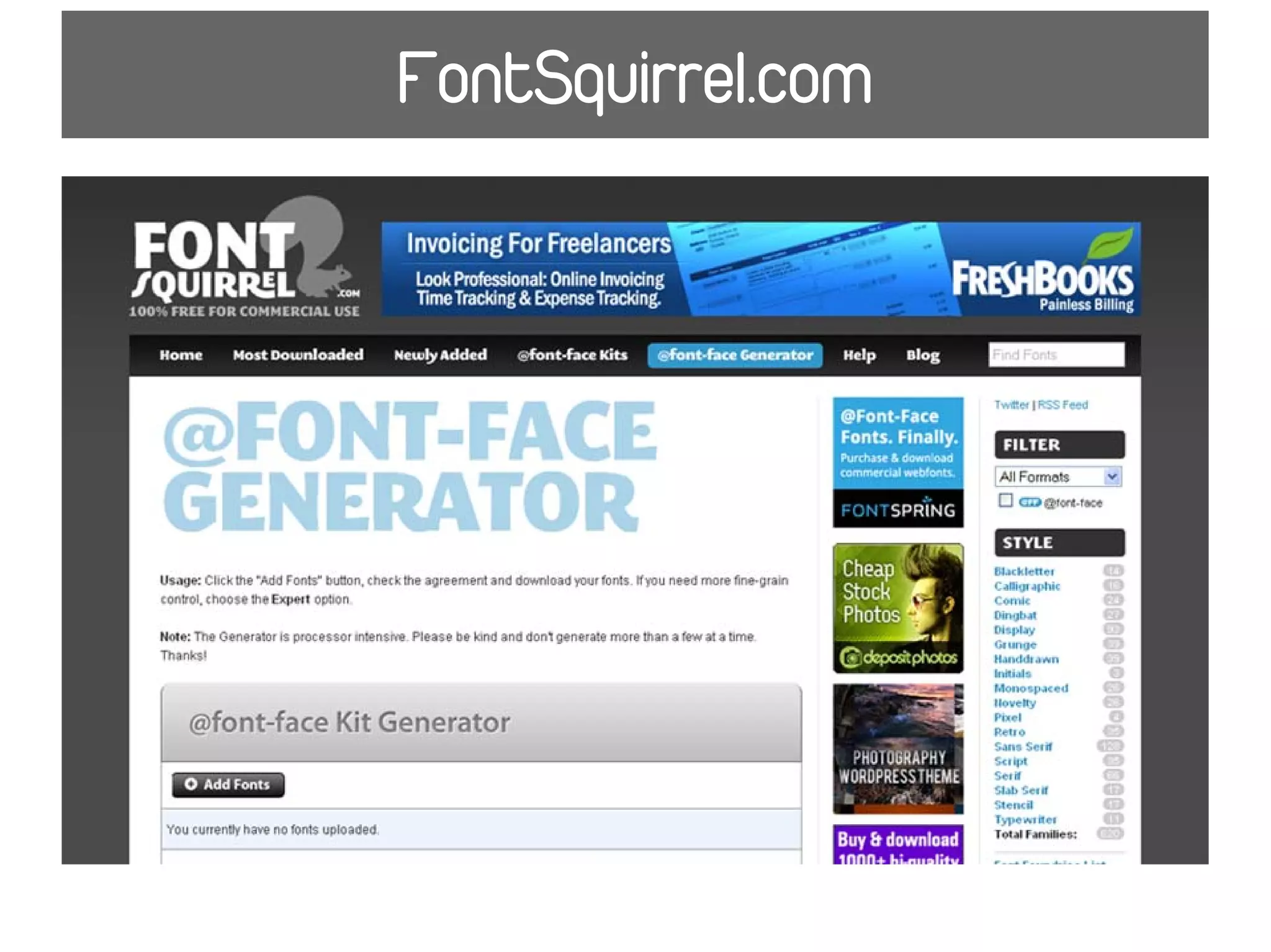

FontSquirrel.com

http://www.fontsquirrel.com/fontface/generator

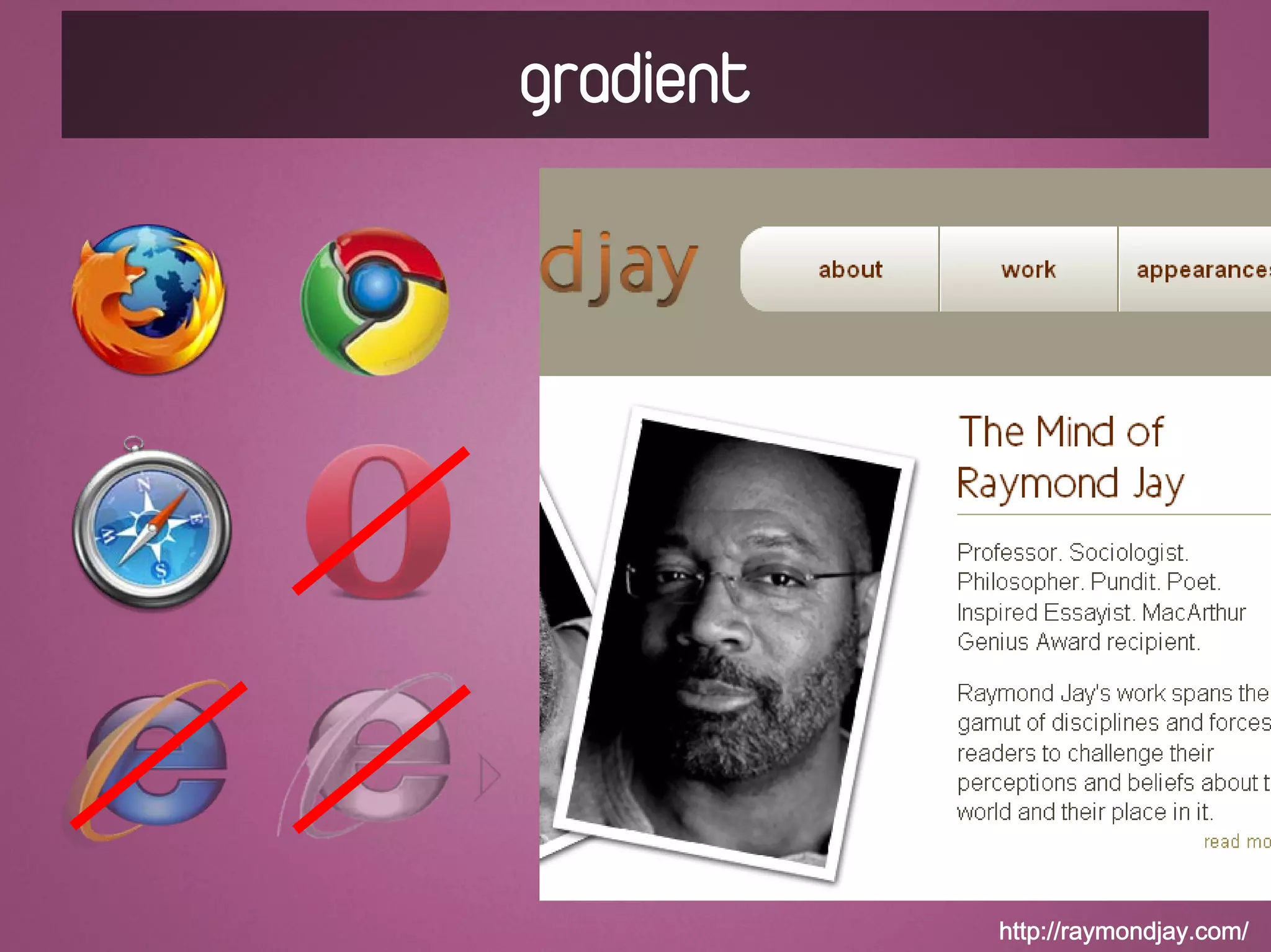

gradient

http://raymondjay.com/

gradient
• Tips & issues
– Different syntax for mozilla and
webkit browsers
– Establish fallback background image
first in code

• Browser Support
– IE and Opera do not support, so will
still need a fallback image*

*which may make you think “then why use it at all?”

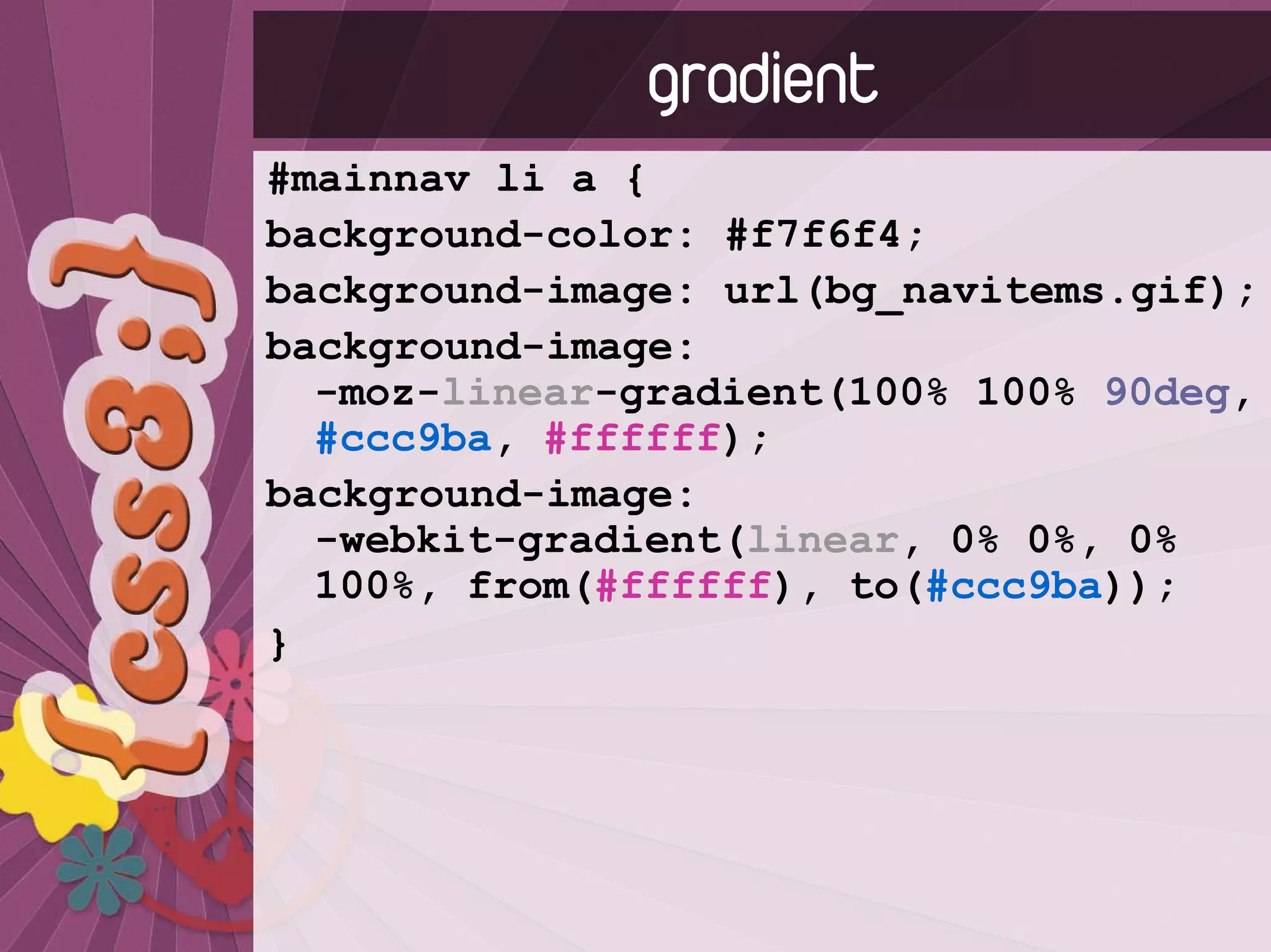

gradient
#mainnav li a {
background-color: #f7f6f4;
background-image: url(bg_navitems.gif);
background-image:
-moz-linear-gradient(100% 100% 90deg,
#ccc9ba, #ffffff);
background-image:
-webkit-gradient(linear, 0% 0%, 0%
100%, from(#ffffff), to(#ccc9ba));
}

gradient: Full solution
.gradient {
color: #fff;
background: #aaaaaa url(gradient_slice.jpg) 0
0 x-repeat; /*background color matches one
of the stop colors. The gradient_slice.jpg
is 1px wide */
background-image: -moz-linear-gradient(top,
#07407c, #aaaaaa);
background-image: -webkit-gradient(linear,left
top,left bottom,color-stop(0,
#07407c),color-stop(1, #aaaaaa));
-ms-filter:
"progid:DXImageTransform.Microsoft.gradient(
startColorStr='#07407c',
EndColorStr='#aaaaaa')";
/* IE8+ */
filter:
progid:DXImageTransform.Microsoft.gradient(s
tartColorStr='#07407c',
EndColorStr='#aaaaaa');
/* IE7- */

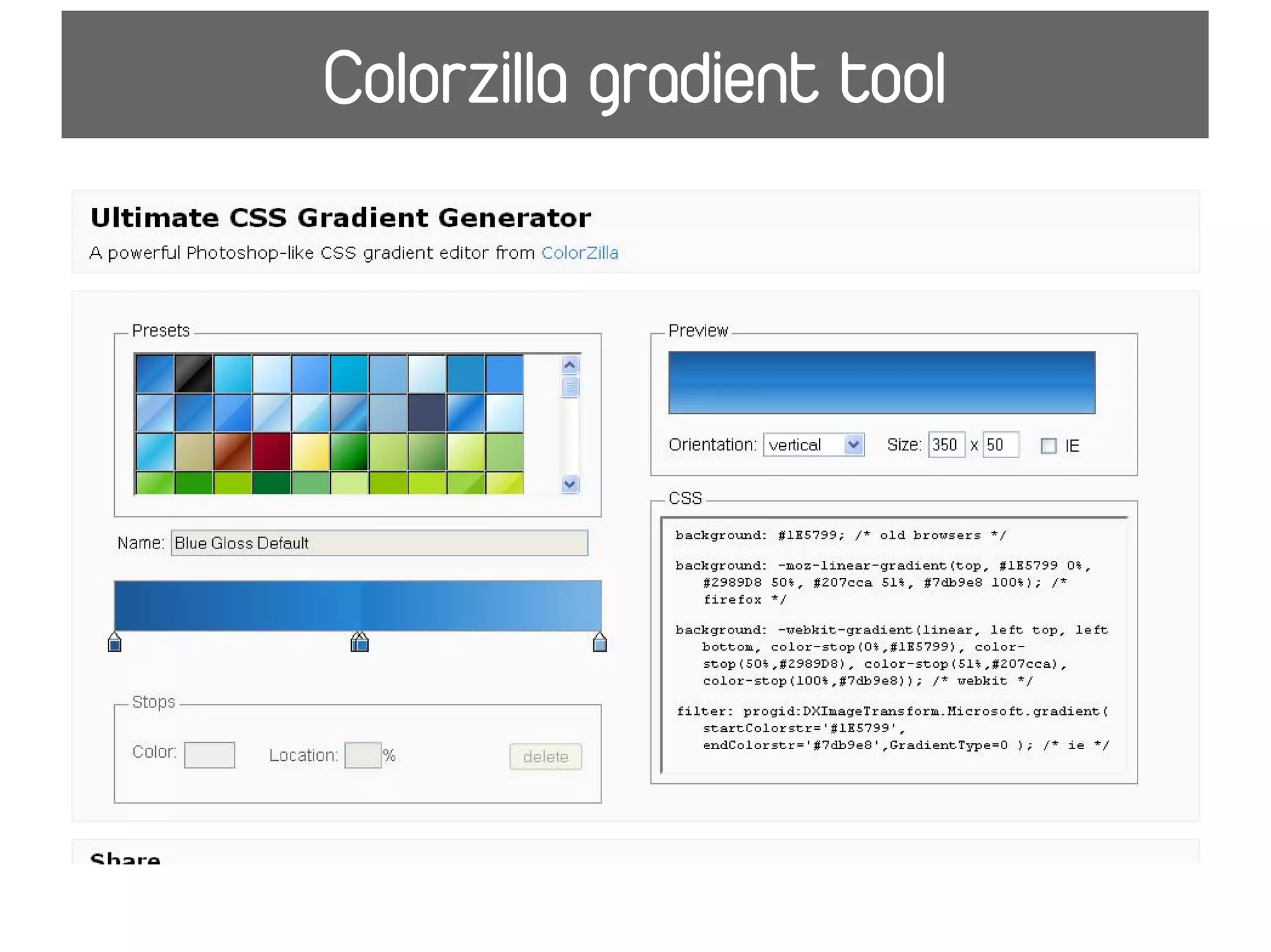

Colorzilla gradient tool

http://www.colorzilla.com/gradient-editor/

border-image

http://www.zurb.com/playground/awesome-overlays

border-image
div.note div.border {
-moz-border-image:
url(/playground/awesome-
overlays/border-image.png) 5 5 5 5
stretch;
-webkit-border-image:
url(/playground/awesome-
stretch;
border-image: url(/playground/awesome-
stretch;
}

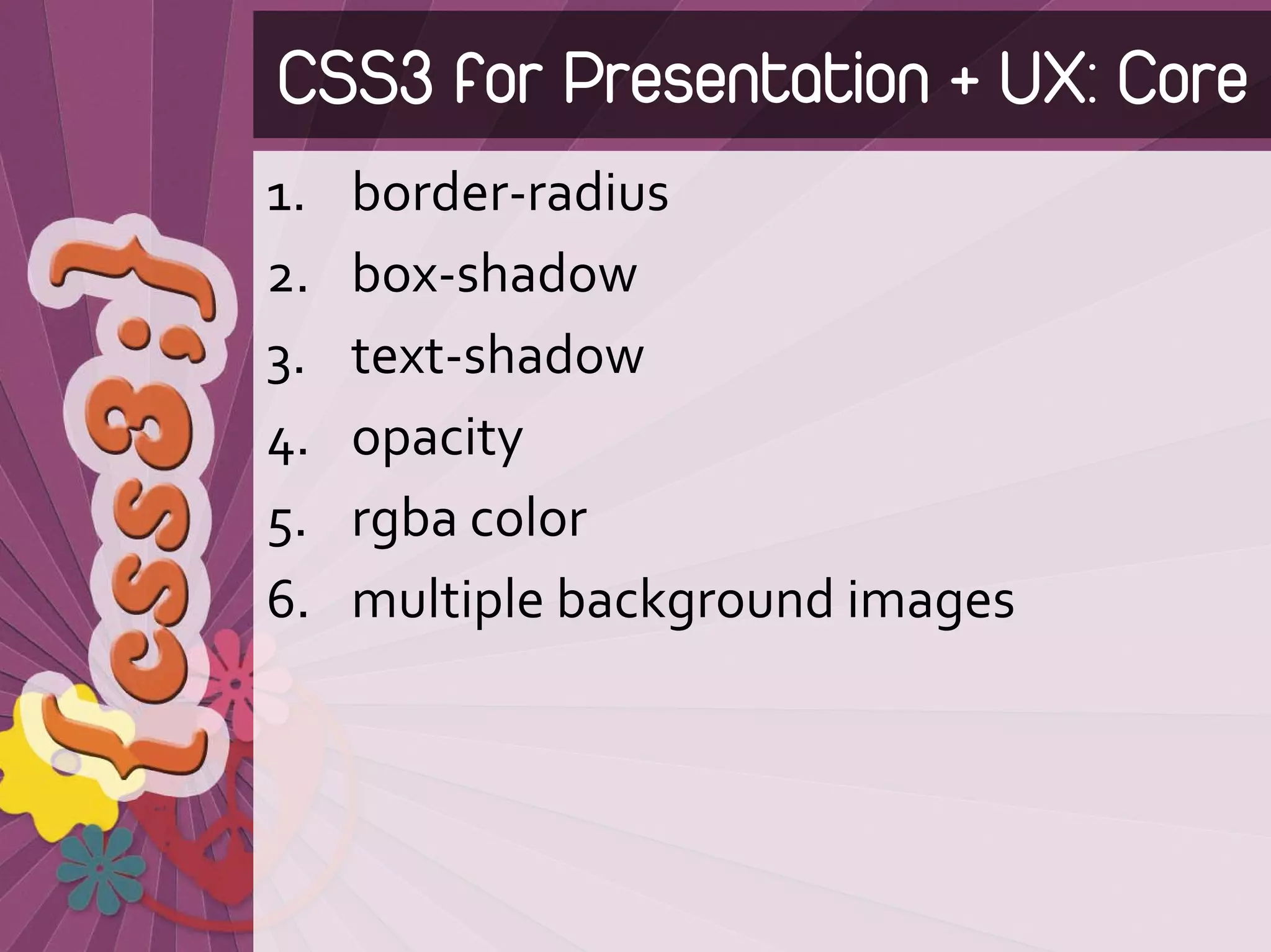

CSS3 for Presentation + UX: Core
1. border‐radius
2. box‐shadow
3. text‐shadow
4. opacity
5. rgba color
6. multiple background images

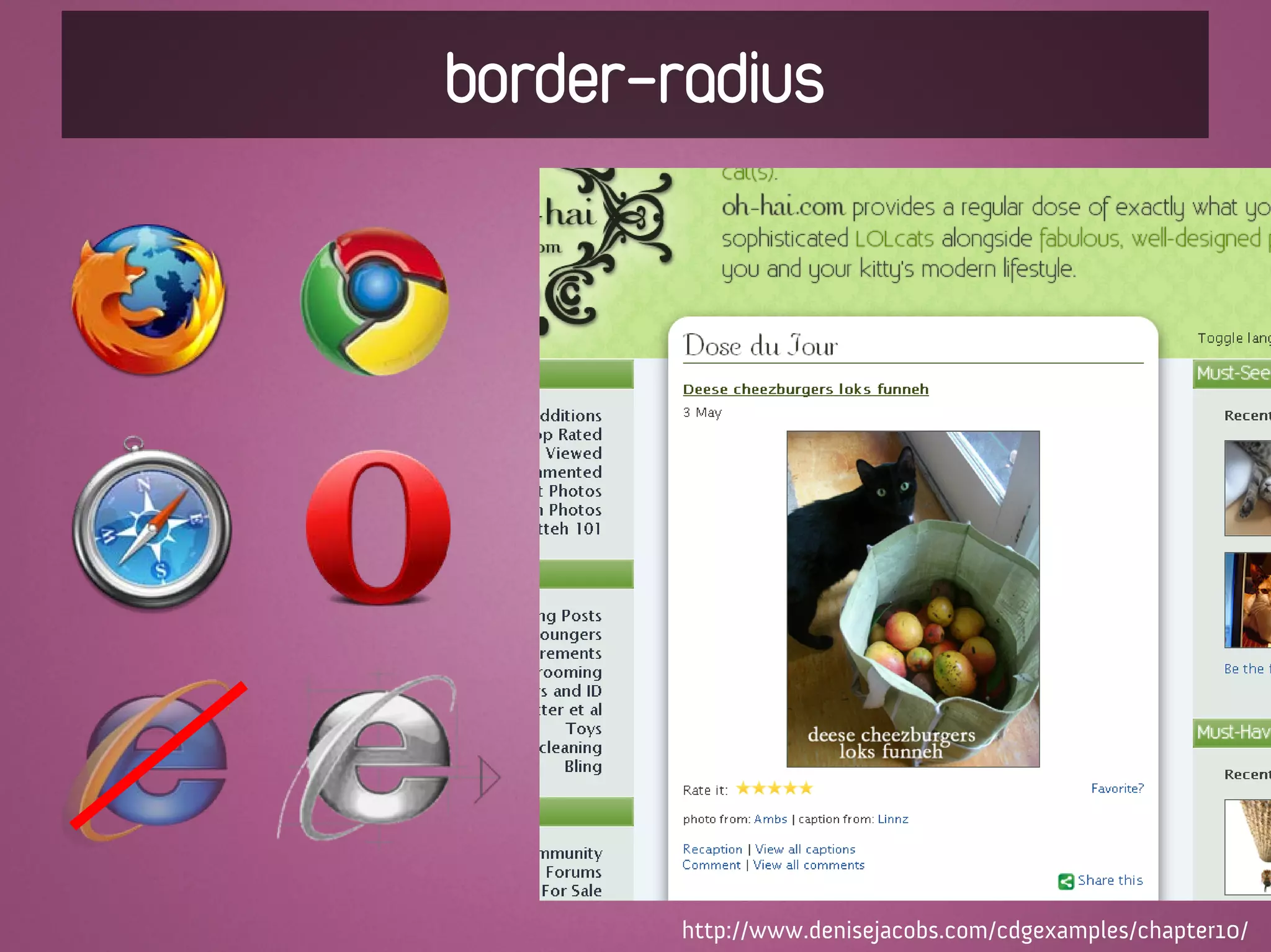

border-radius

http://www.denisejacobs.com/cdgexamples/chapter10/

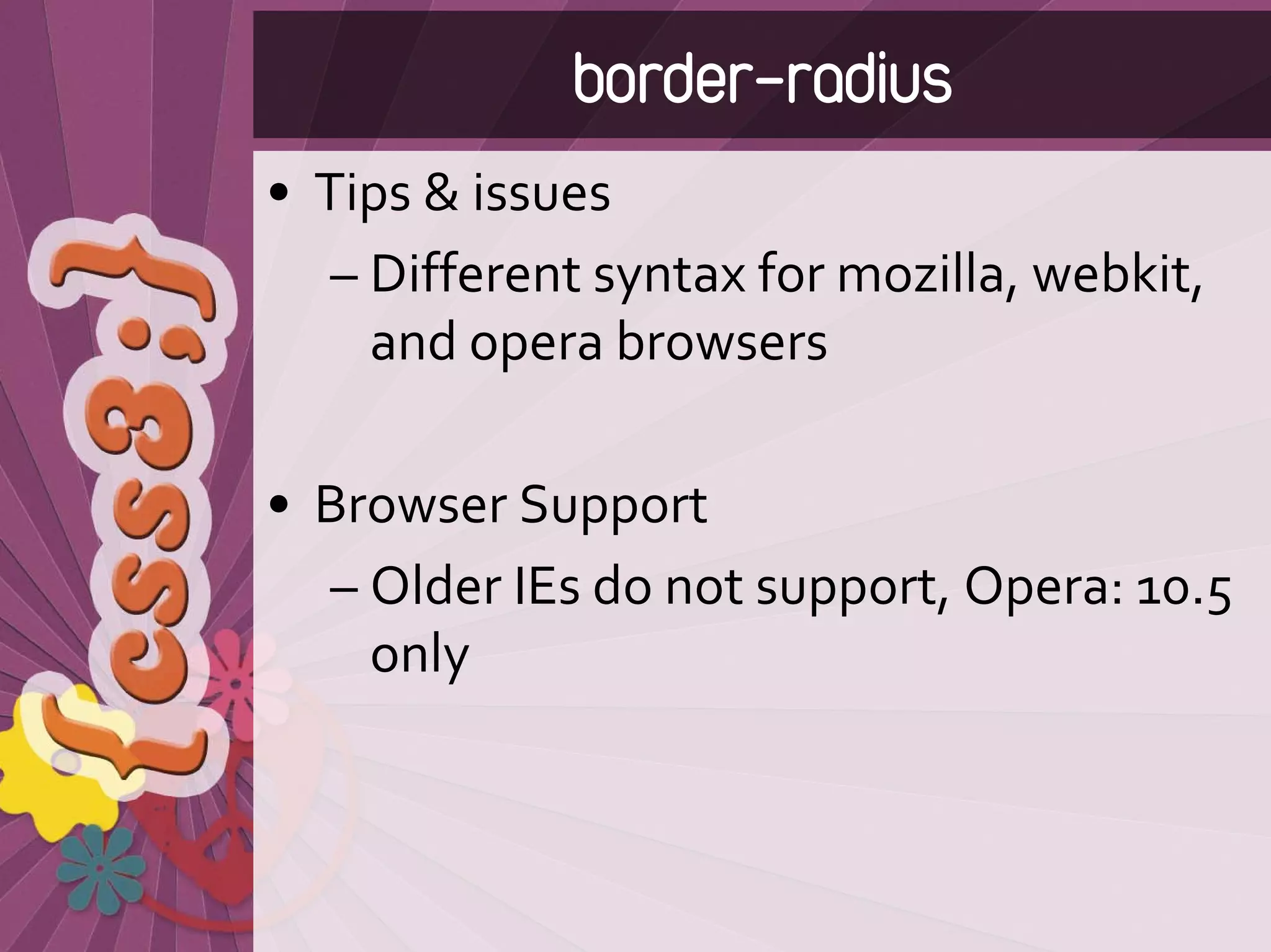

border-radius
• Tips & issues
– Different syntax for mozilla, webkit,
and opera browsers

• Browser Support
– Older IEs do not support, Opera: 10.5
only

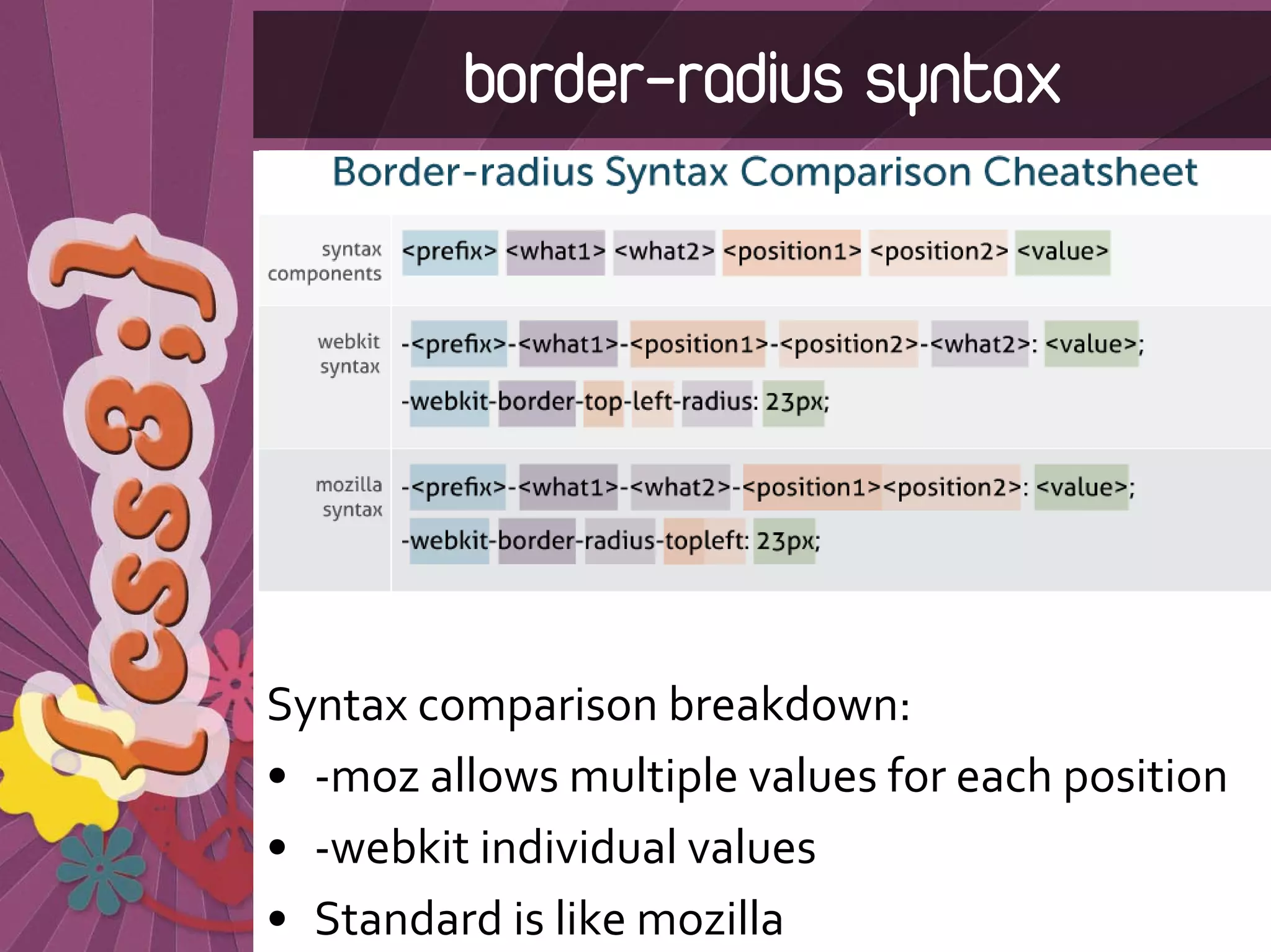

border-radius syntax

Syntax comparison breakdown:
• ‐moz allows multiple values for each position
• ‐webkit individual values
• Standard is like mozilla

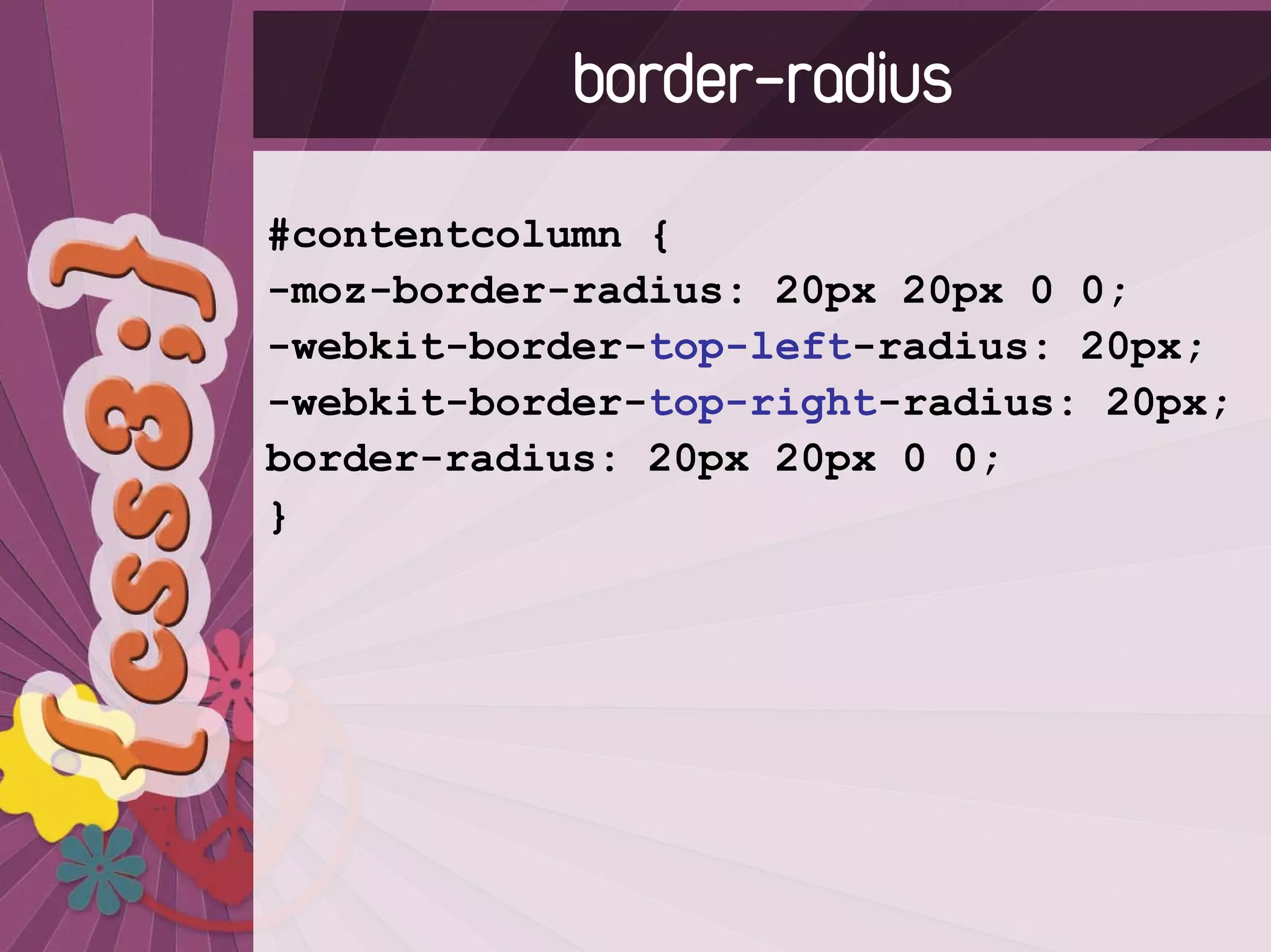

border-radius
#contentcolumn {
-moz-border-radius: 20px 20px 0 0;
-webkit-border-top-left-radius: 20px;
-webkit-border-top-right-radius: 20px;
border-radius: 20px 20px 0 0;
}

Full solution: border-radius
#contentcolumn {
margin: -40px 3% 0 3%;
width: 42%;
-moz-border-radius: 20px 20px 0 0;
-webkit-border-top-left-radius: 20px;
-webkit-border-top-right-radius:
20px;
-moz-box-shadow: 0 5px 20px
rgba(0,0,0,0.6);
-webkit-box-shadow: 0 5px 20px
rgba(0,0,0,0.6);
box-shadow: 0 5px 20px
rgba(0,0,0,0.6);
}

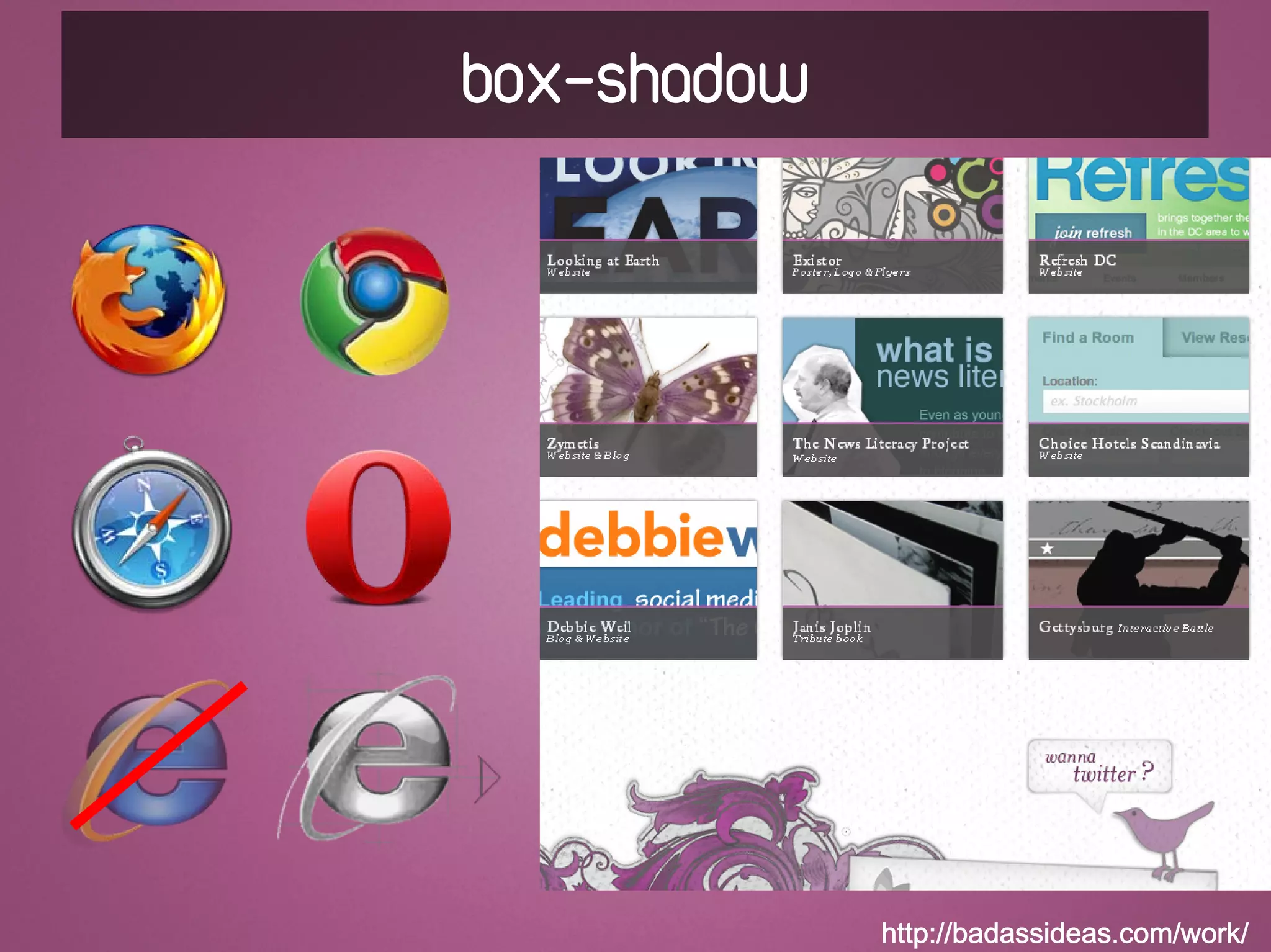

box-shadow

http://badassideas.com/work/

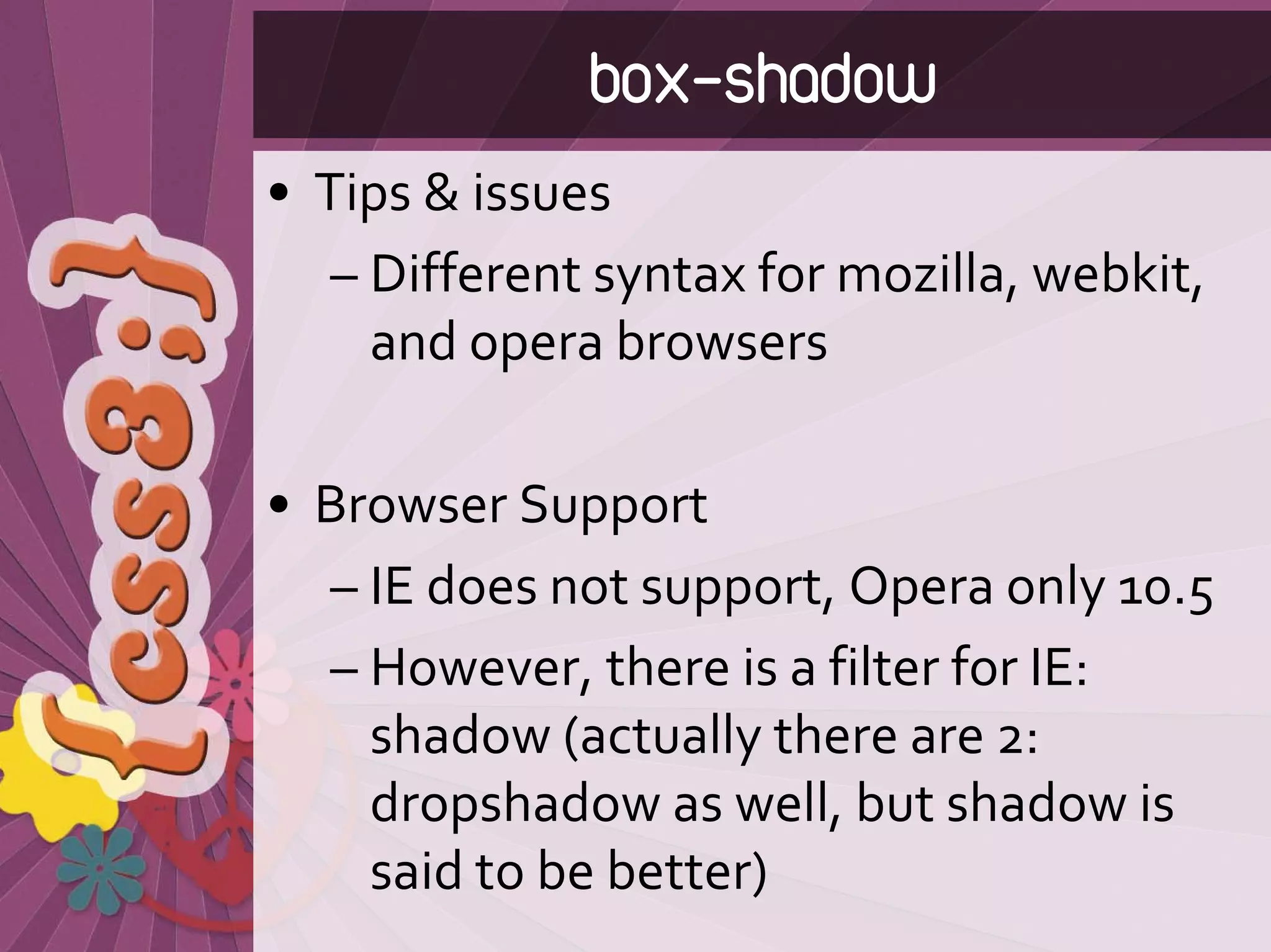

box-shadow
• Tips & issues
– Different syntax for mozilla, webkit,
and opera browsers

• Browser Support
– IE does not support, Opera only 10.5
– However, there is a filter for IE:
shadow (actually there are 2:
dropshadow as well, but shadow is
said to be better)

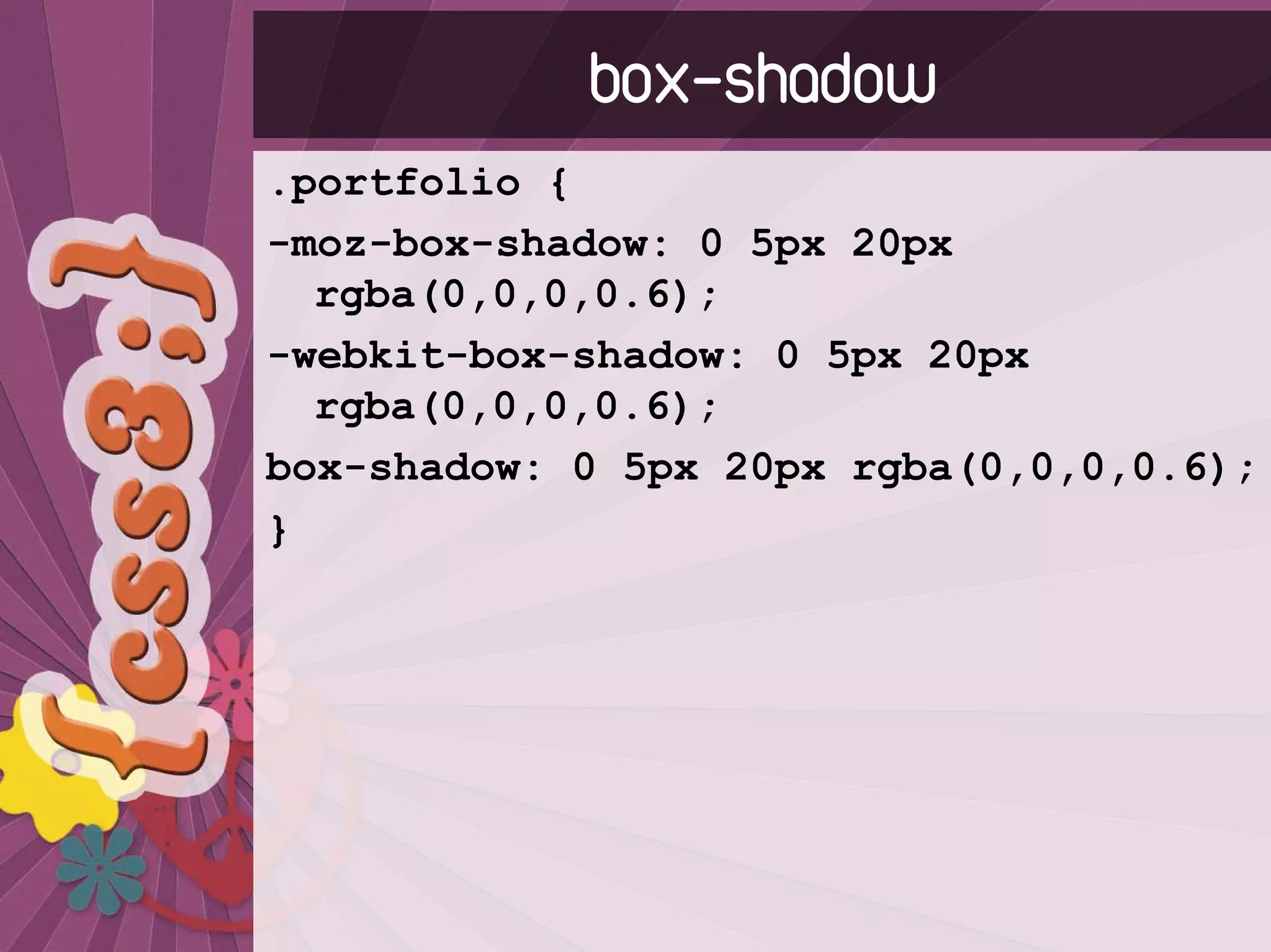

box-shadow
.portfolio {
-moz-box-shadow: 0 5px 20px
rgba(0,0,0,0.6);
-webkit-box-shadow: 0 5px 20px
rgba(0,0,0,0.6);
box-shadow: 0 5px 20px rgba(0,0,0,0.6);
}

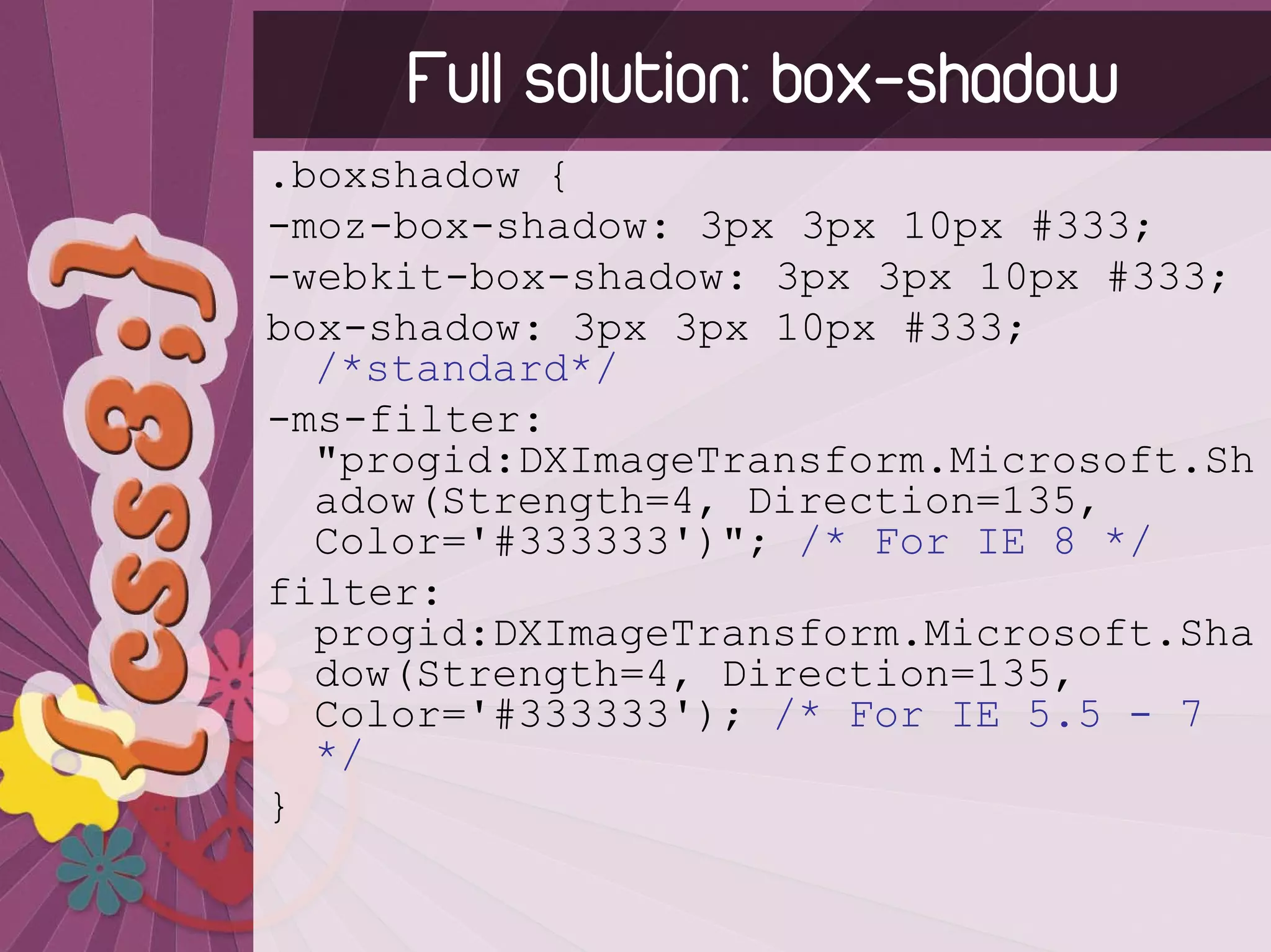

Full solution: box-shadow
.boxshadow {
-moz-box-shadow: 3px 3px 10px #333;
-webkit-box-shadow: 3px 3px 10px #333;
box-shadow: 3px 3px 10px #333;
/*standard*/
-ms-filter:
"progid:DXImageTransform.Microsoft.Sh
adow(Strength=4, Direction=135,
Color='#333333')"; /* For IE 8 */
filter:
progid:DXImageTransform.Microsoft.Sha
dow(Strength=4, Direction=135,
Color='#333333'); /* For IE 5.5 - 7
*/
}

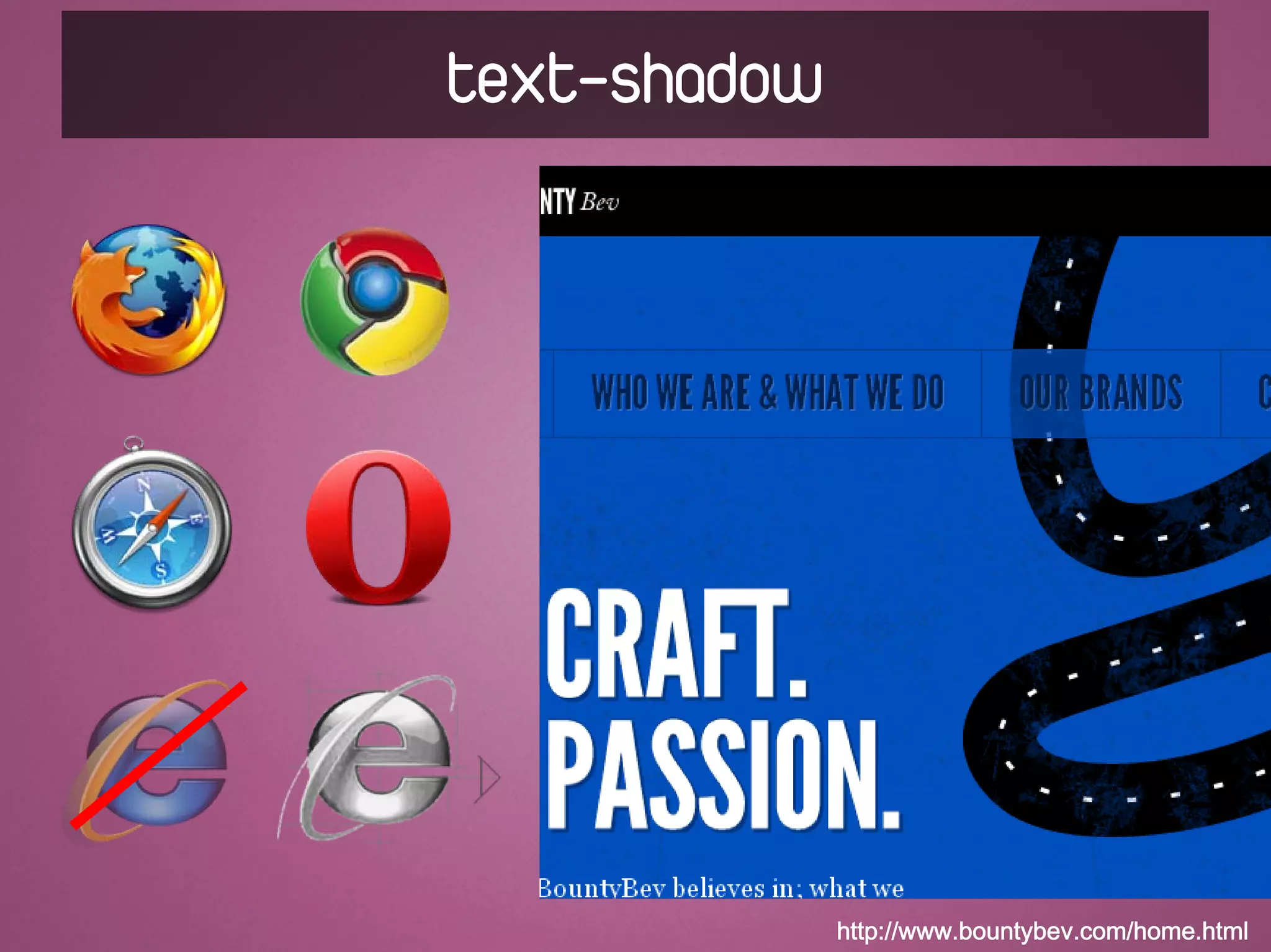

text-shadow

http://www.bountybev.com/home.html

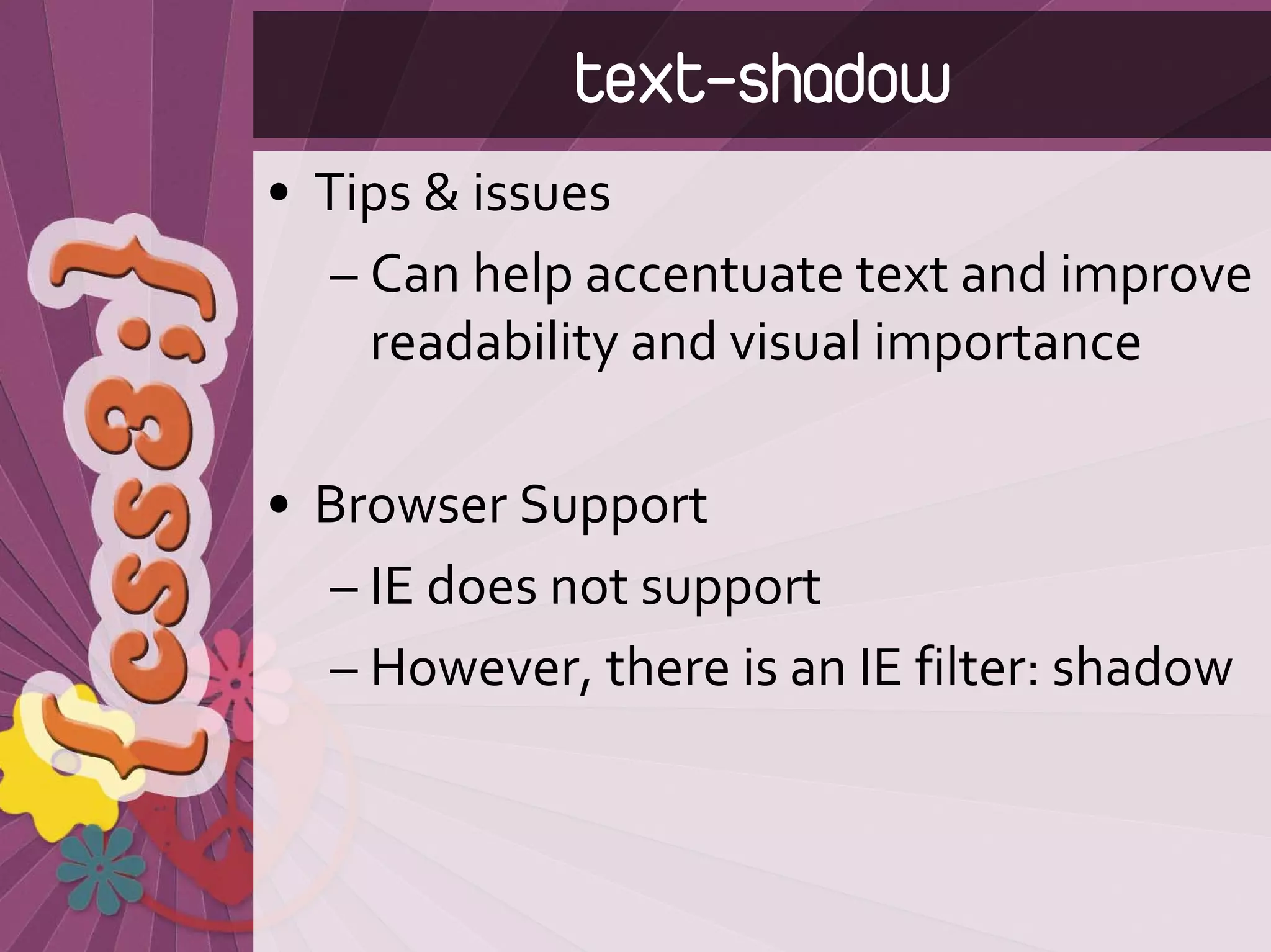

text-shadow
• Tips & issues
– Can help accentuate text and improve
readability and visual importance

• Browser Support
– IE does not support
– However, there is an IE filter: shadow

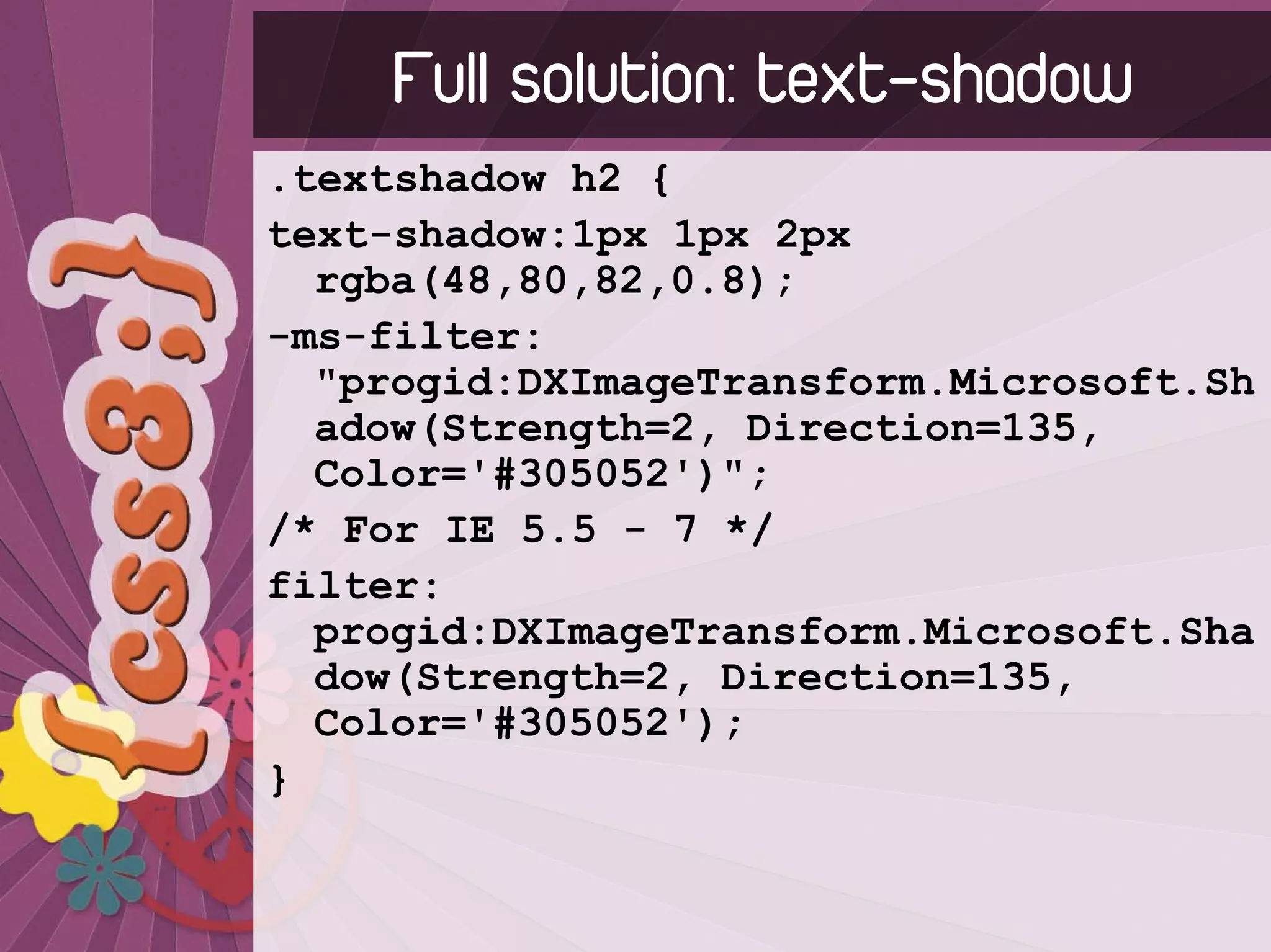

Full solution: text-shadow
.textshadow h2 {
text-shadow:1px 1px 2px
rgba(48,80,82,0.8);
-ms-filter:
"progid:DXImageTransform.Microsoft.Sh
adow(Strength=2, Direction=135,
Color='#305052')";
/* For IE 5.5 - 7 */
filter:
progid:DXImageTransform.Microsoft.Sha
dow(Strength=2, Direction=135,
Color='#305052');
}

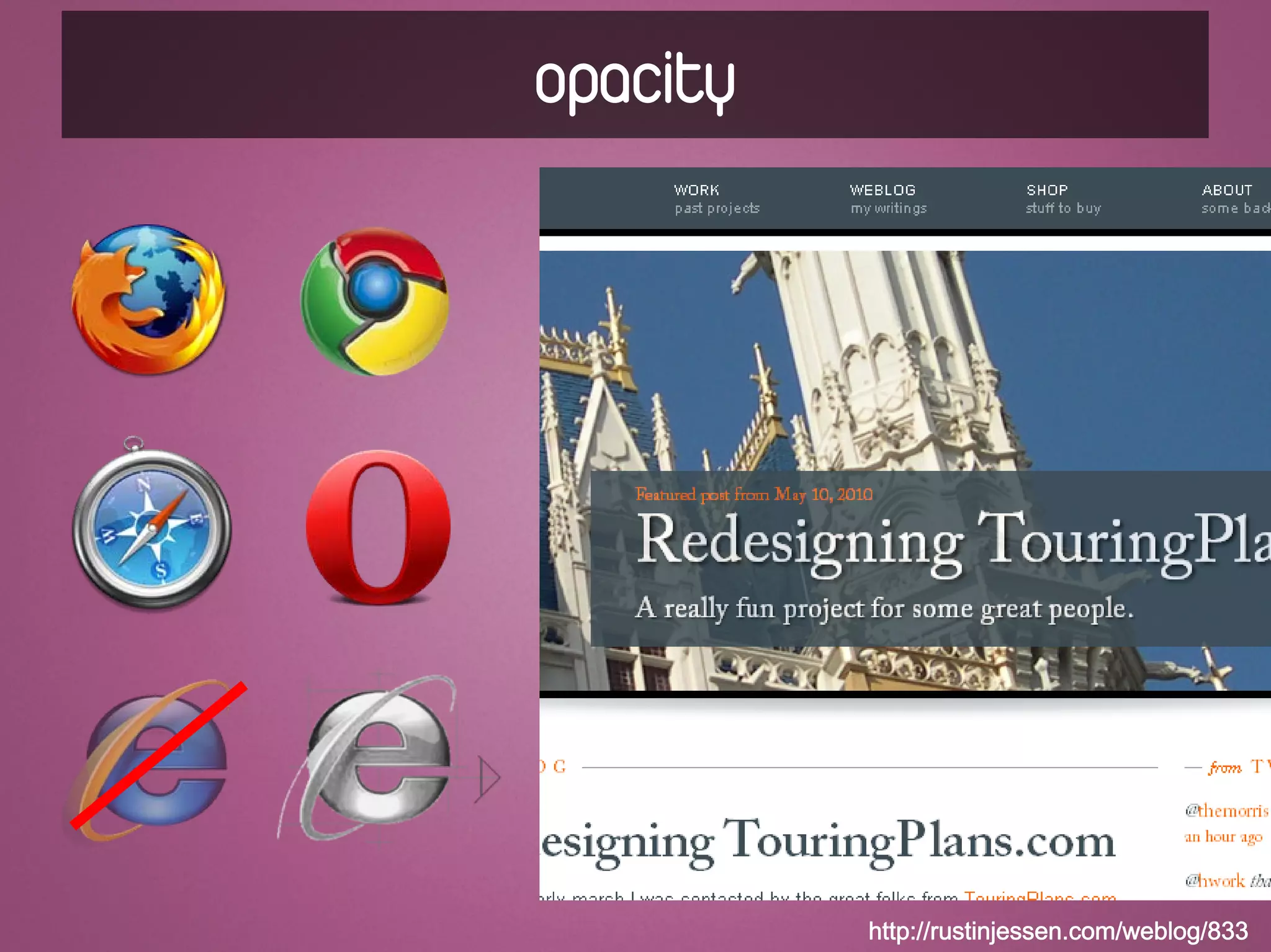

opacity

http://rustinjessen.com/weblog/833

opacity
• Tips & issues
– Do not use on elements that would
cover important content

• Browser Support
– IE filter exists

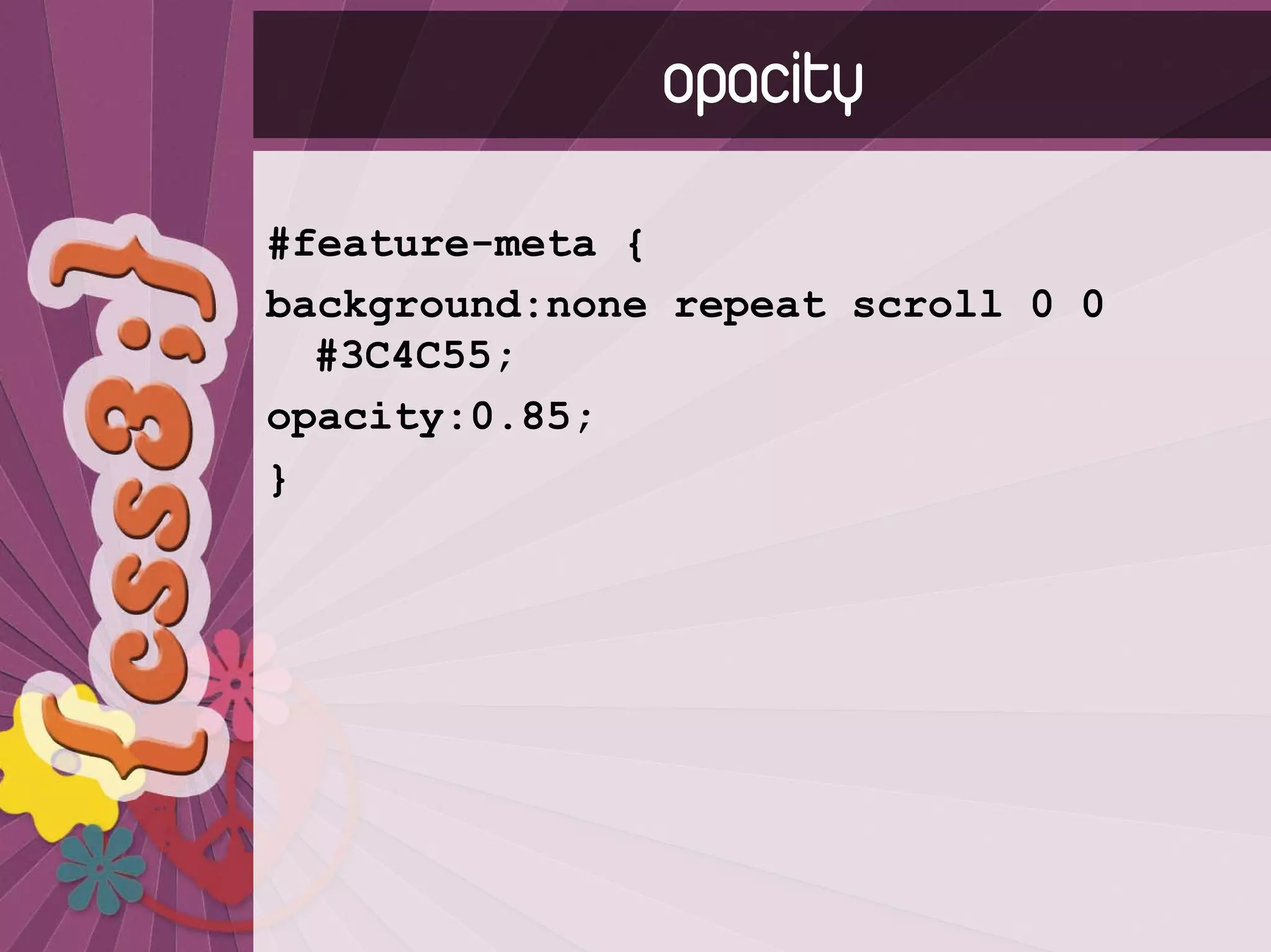

opacity
#feature-meta {
background:none repeat scroll 0 0
#3C4C55;
opacity:0.85;
}

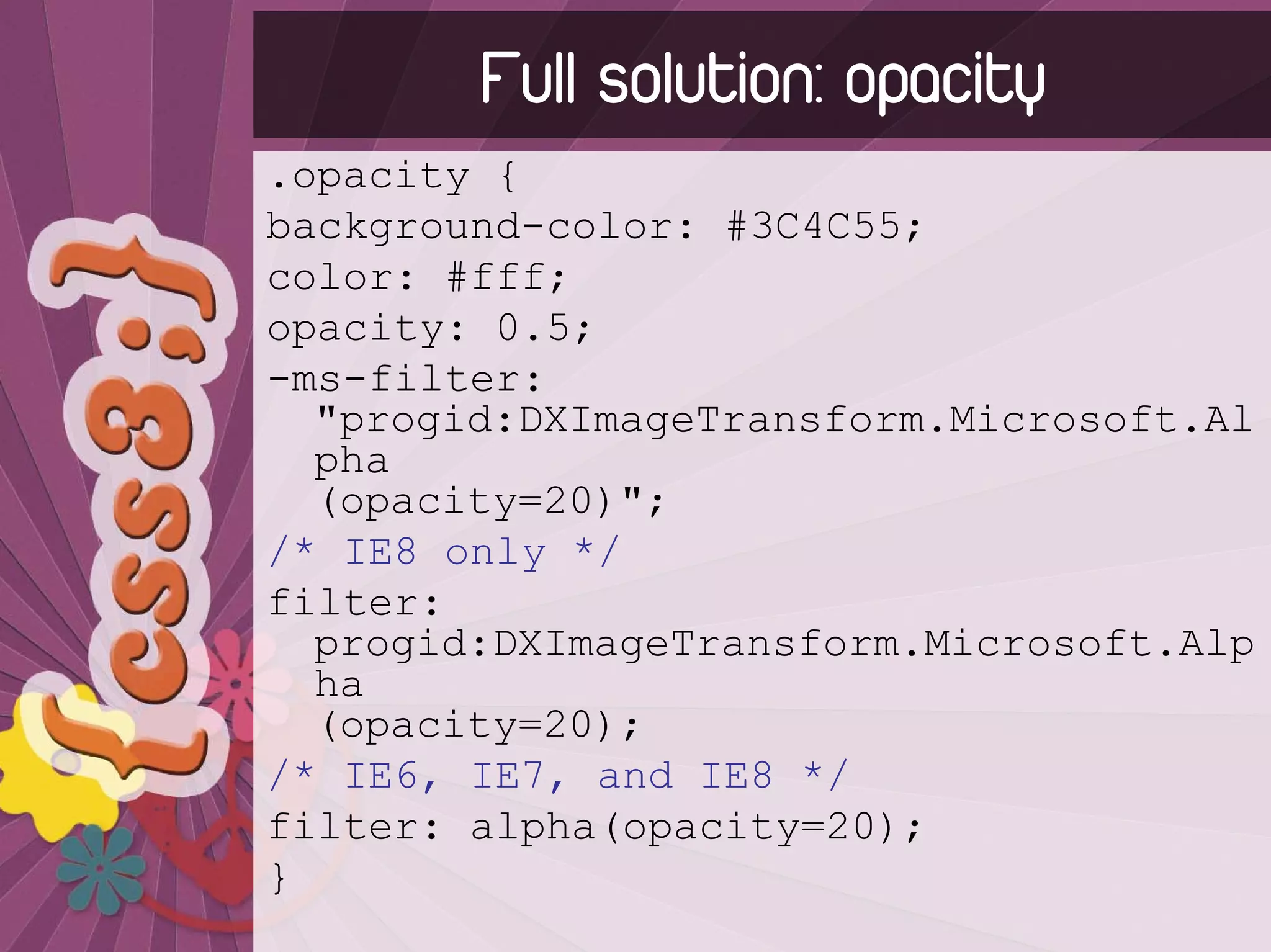

Full solution: opacity
.opacity {
background-color: #3C4C55;
color: #fff;
opacity: 0.5;
-ms-filter:
"progid:DXImageTransform.Microsoft.Al
pha
(opacity=20)";
/* IE8 only */
filter:
progid:DXImageTransform.Microsoft.Alp
ha
(opacity=20);
/* IE6, IE7, and IE8 */
filter: alpha(opacity=20);
}

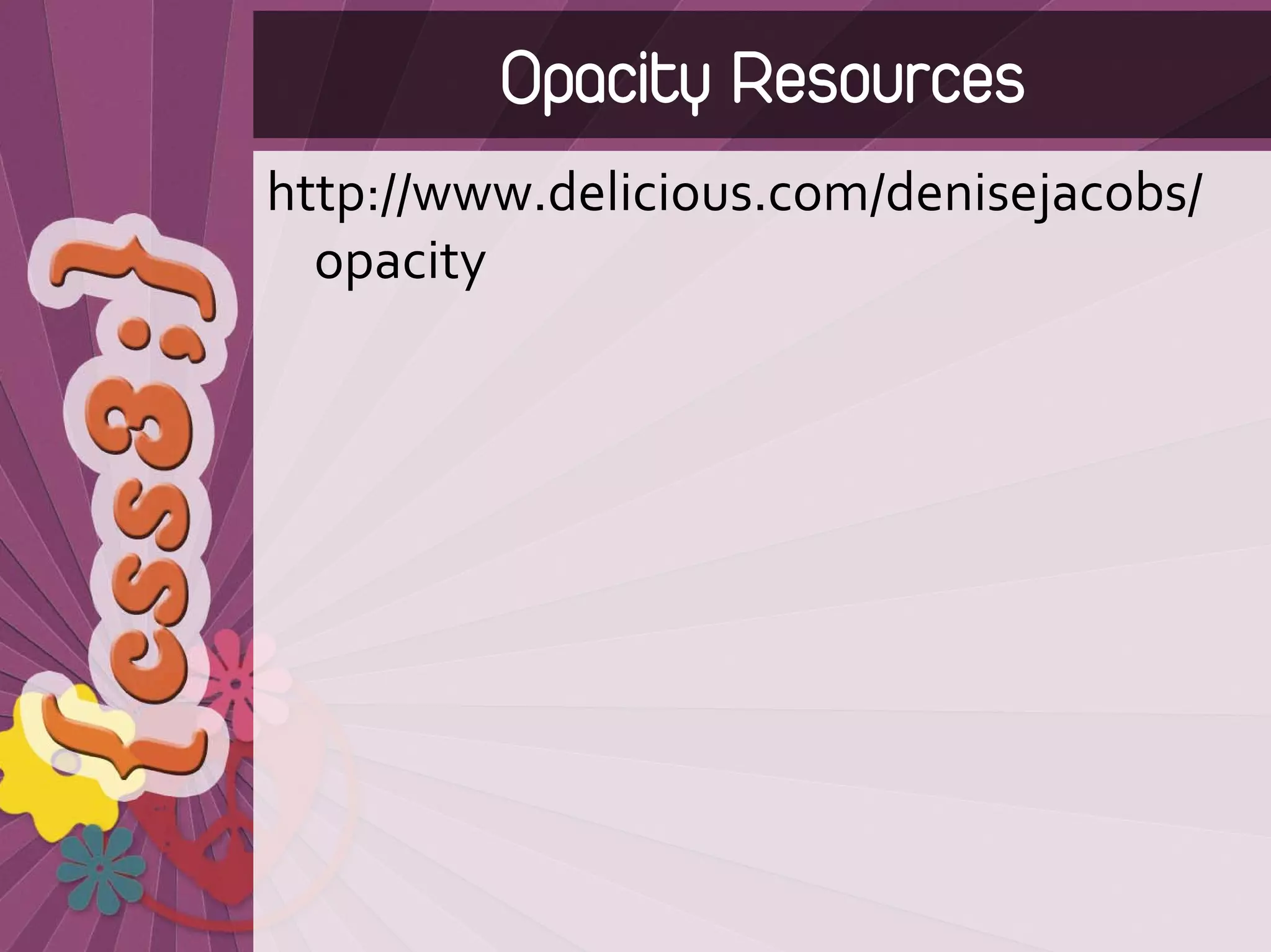

Opacity Resources
http://www.delicious.com/denisejacobs/
opacity

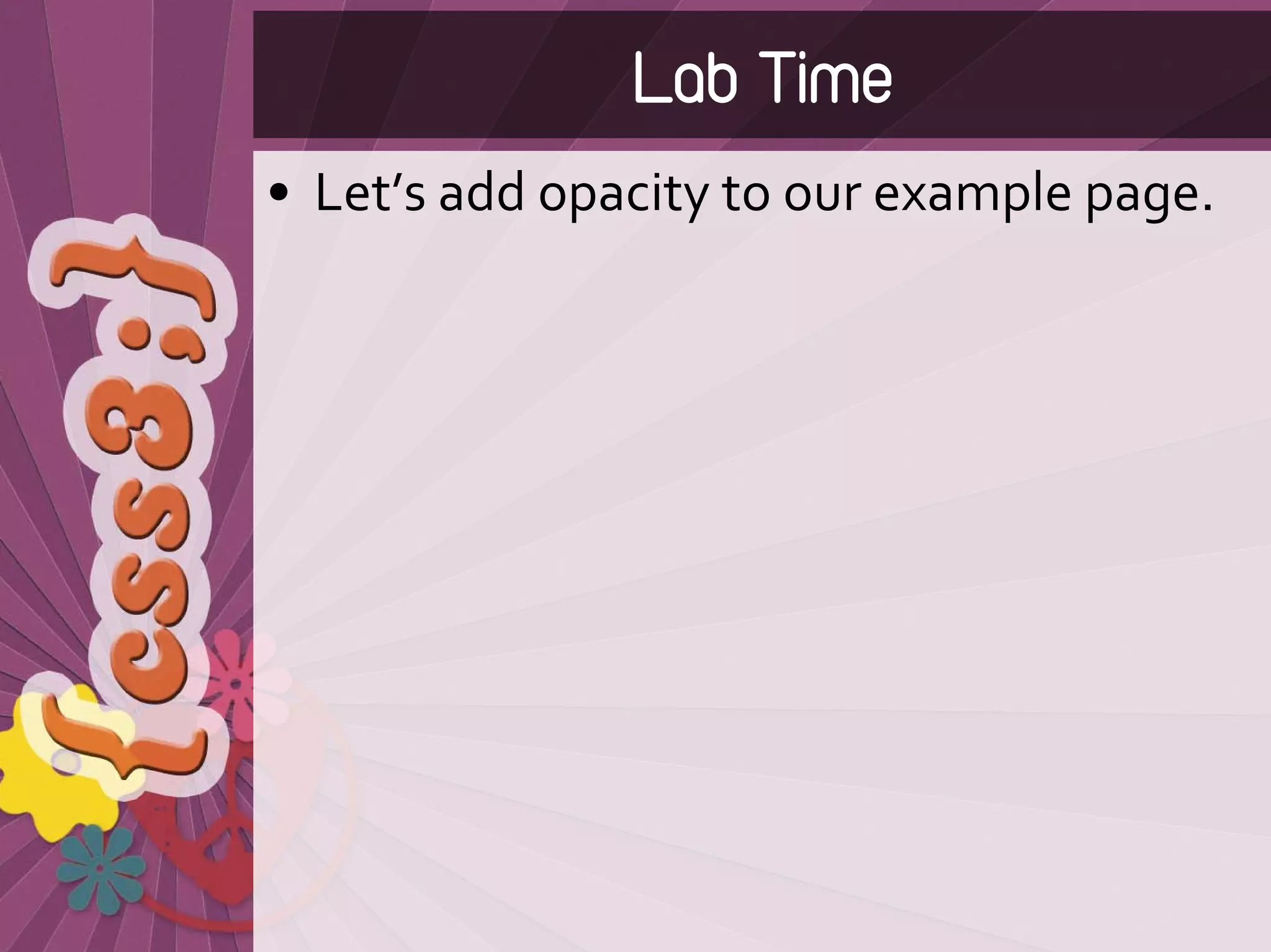

Lab Time
• Let’s add opacity to our example page.

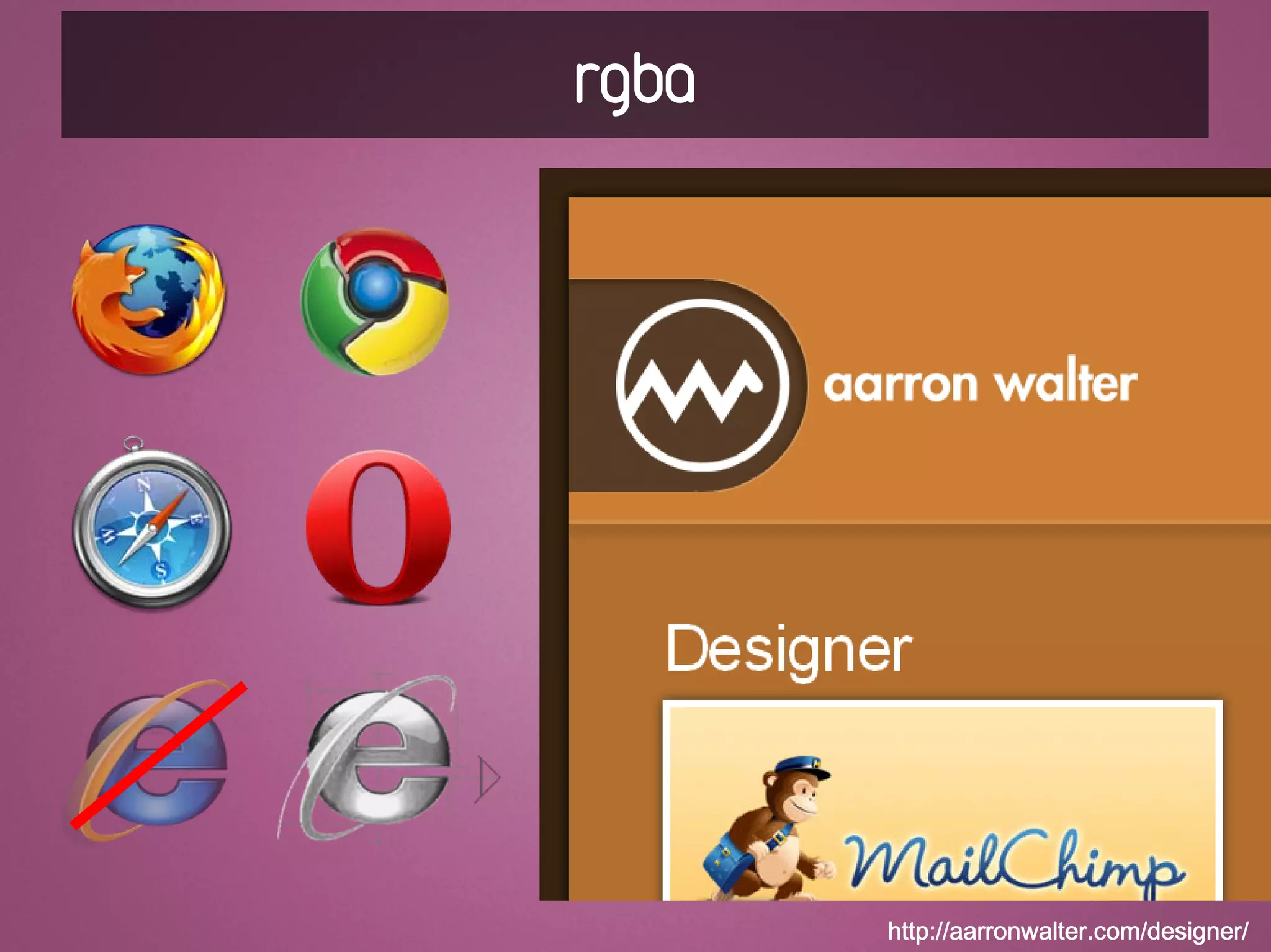

rgba

http://aarronwalter.com/designer/

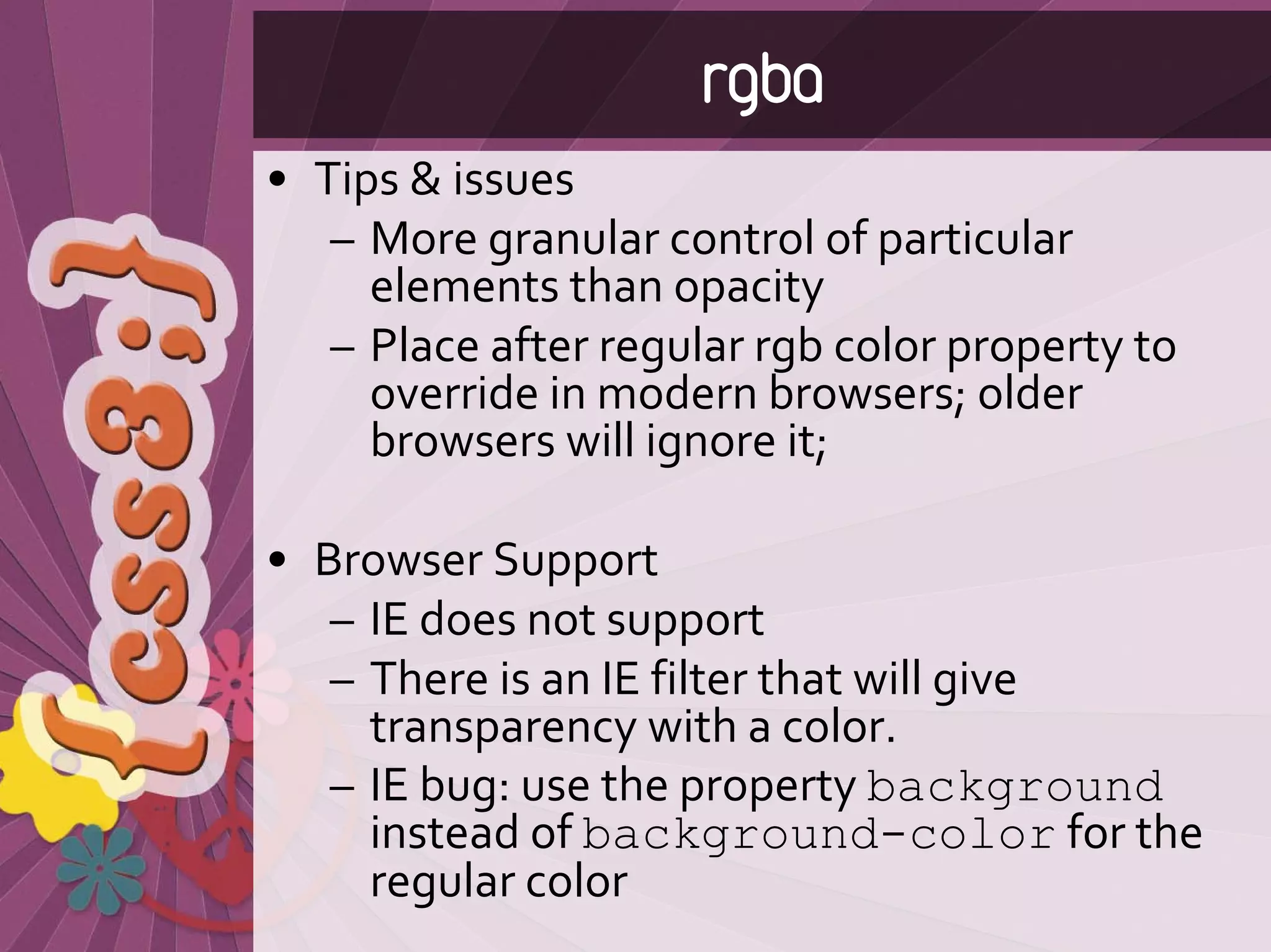

rgba
• Tips & issues
– More granular control of particular
elements than opacity
– Place after regular rgb color property to
override in modern browsers; older
browsers will ignore it;

• Browser Support
– There is an IE filter that will give
transparency with a color.
– IE bug: use the property background
instead of background-color for the
regular color

Full solution: rgba
.rgba {
background-color: #ff0000; /* fallback
color in hexidecimal. */
background-color: transparent; /*
transparent is key for the filter to
work in IE8. best done through
conditional comments */
background-color: rgba(255, 0, 0, 0.3);
-ms-filter:
"progid:DXImageTransform.Microsoft.gradi
ent(startColorstr=#4CFF0000,
endColorstr=#4CFF0000)";
/* filter for IE8 */
filter:
progid:DXImageTransform.Microsoft.gradie
nt(startColorstr=#4CFF0000,
endColorstr=#4CFF0000);
/* filter for older IEs */
}

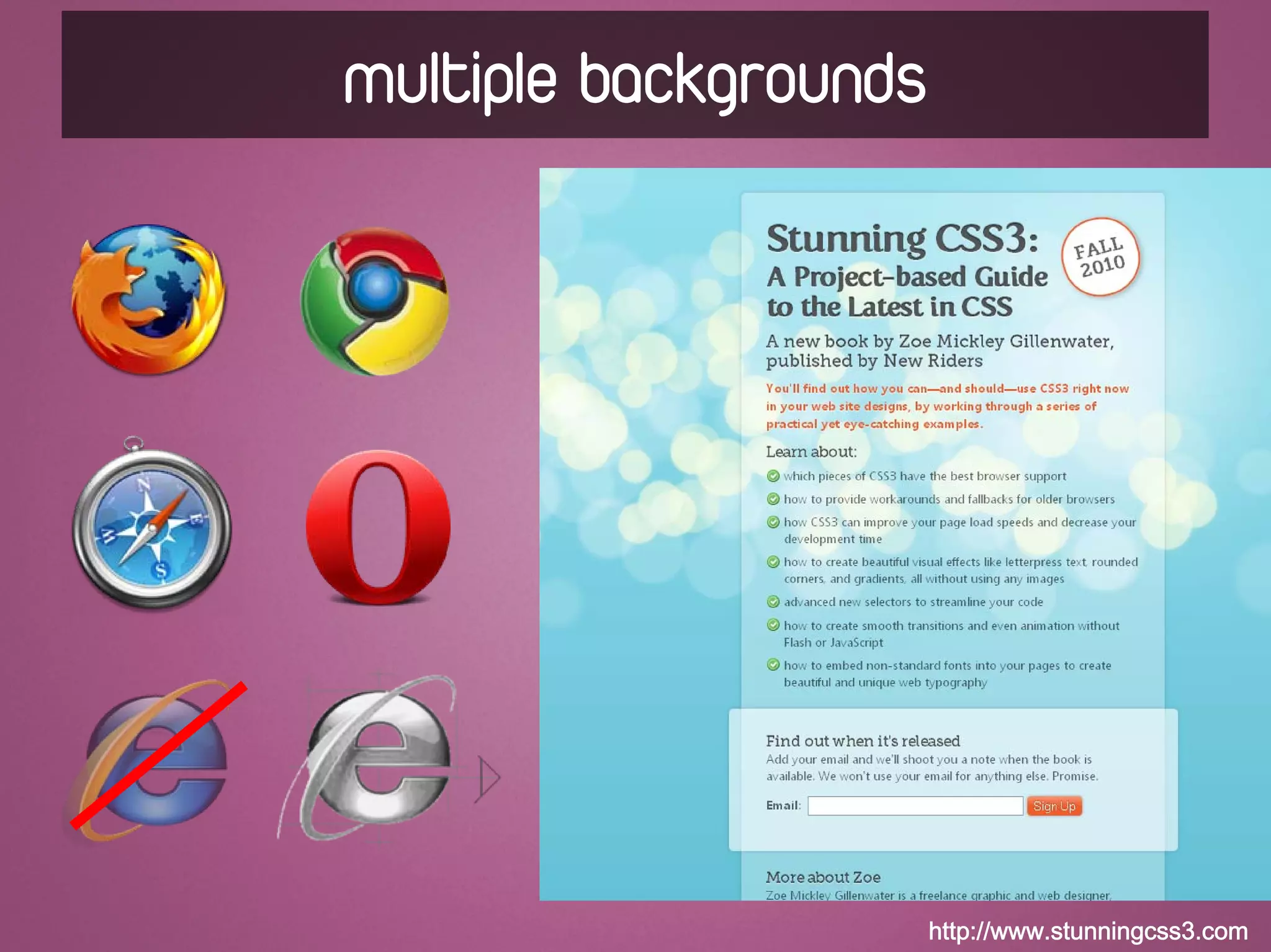

multiple backgrounds

http://www.stunningcss3.com

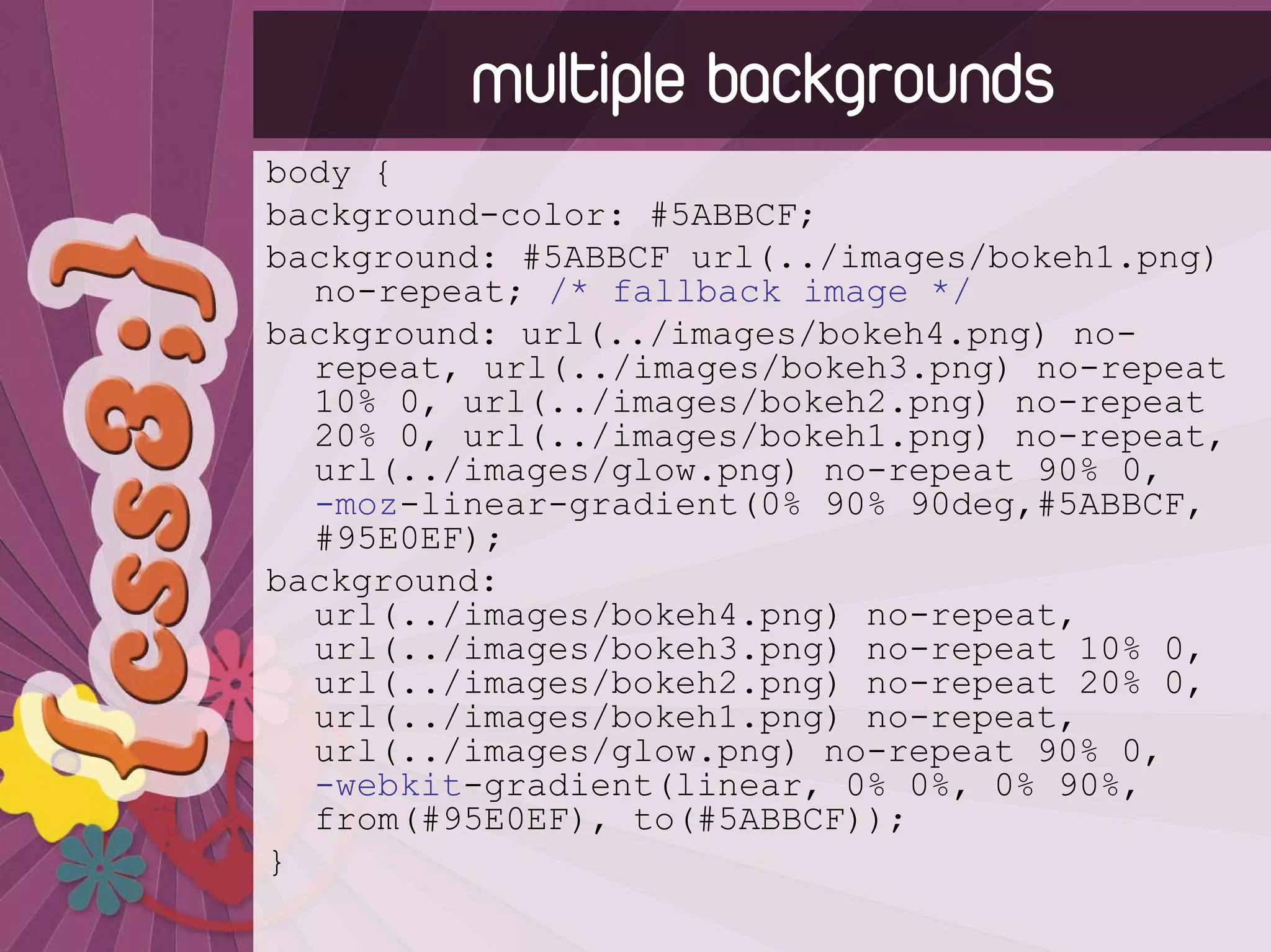

multiple backgrounds
body {
background-color: #5ABBCF;
background: #5ABBCF url(../images/bokeh1.png)
no-repeat; /* fallback image */
background: url(../images/bokeh4.png) no-
repeat, url(../images/bokeh3.png) no-repeat
10% 0, url(../images/bokeh2.png) no-repeat
20% 0, url(../images/bokeh1.png) no-repeat,
url(../images/glow.png) no-repeat 90% 0,
-moz-linear-gradient(0% 90% 90deg,#5ABBCF,
#95E0EF);
background:
url(../images/bokeh4.png) no-repeat,
url(../images/bokeh3.png) no-repeat 10% 0,
url(../images/bokeh2.png) no-repeat 20% 0,
url(../images/bokeh1.png) no-repeat,
url(../images/glow.png) no-repeat 90% 0,
-webkit-gradient(linear, 0% 0%, 0% 90%,
from(#95E0EF), to(#5ABBCF));
}

CSS3 for Presentation + UX: Extras
1. transform
2. transitions
3. animation (the webkits only)

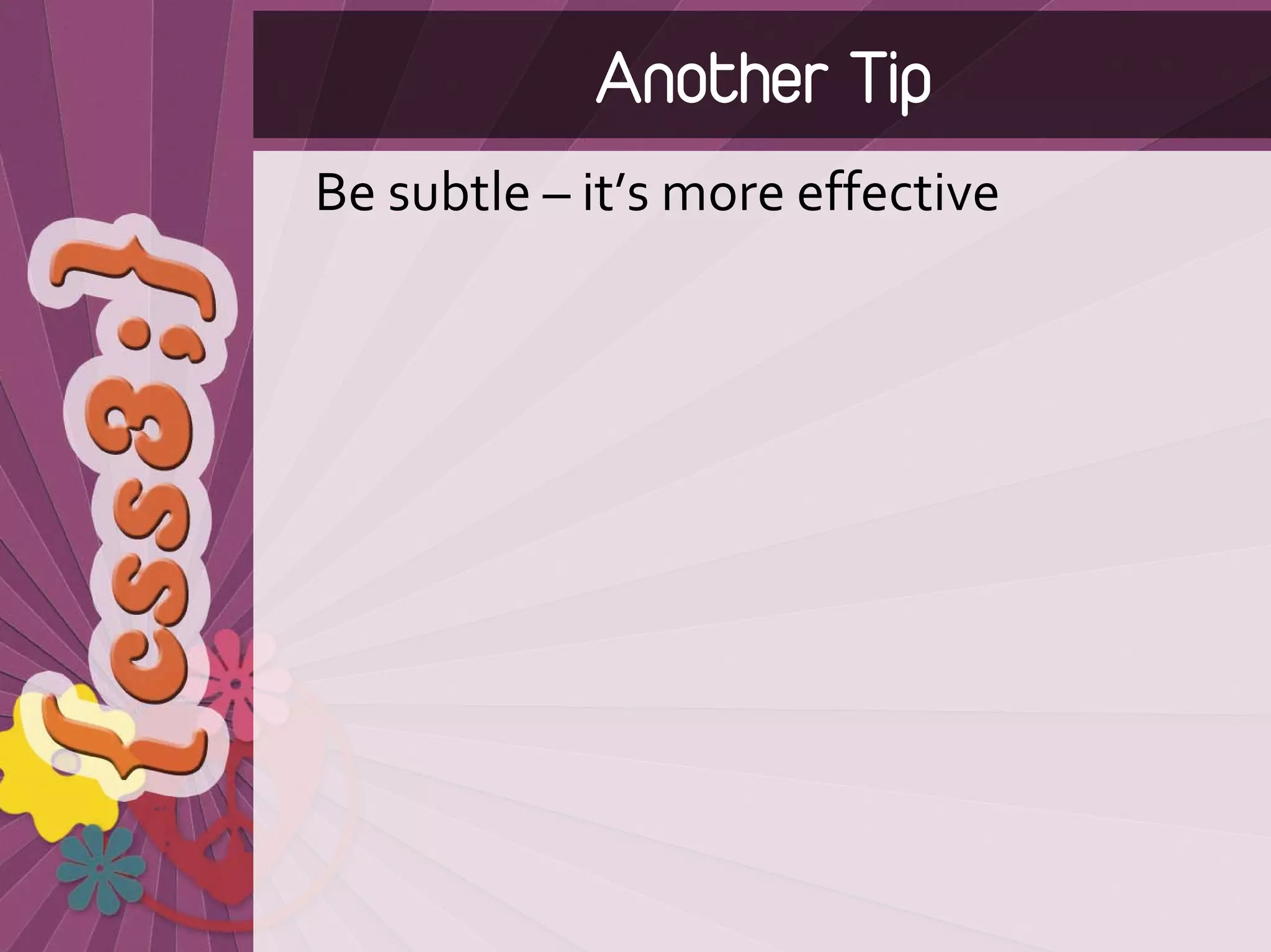

Another Tip
Be subtle – it’s more effective

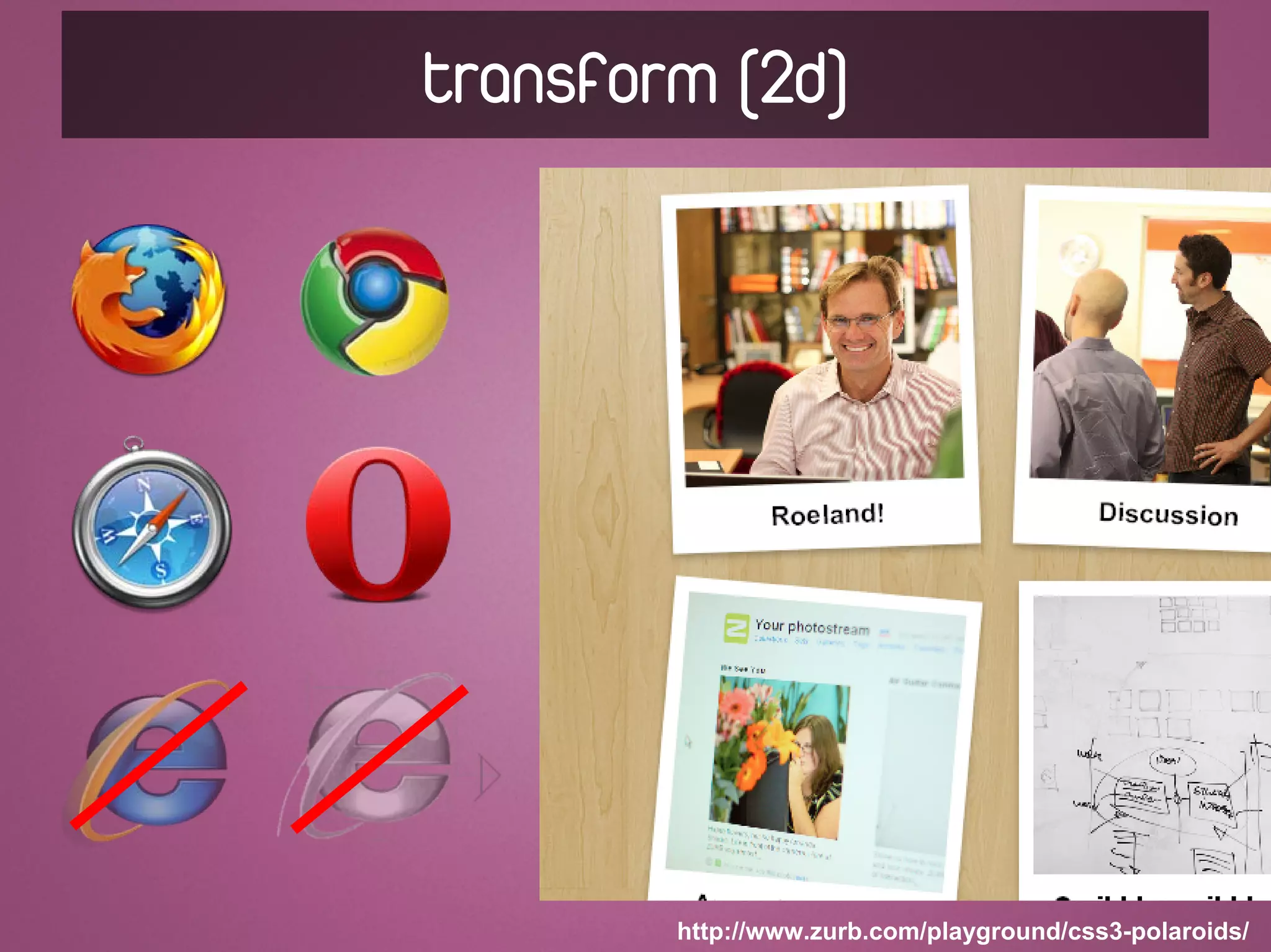

transform (2d)

http://www.zurb.com/playground/css3-polaroids/

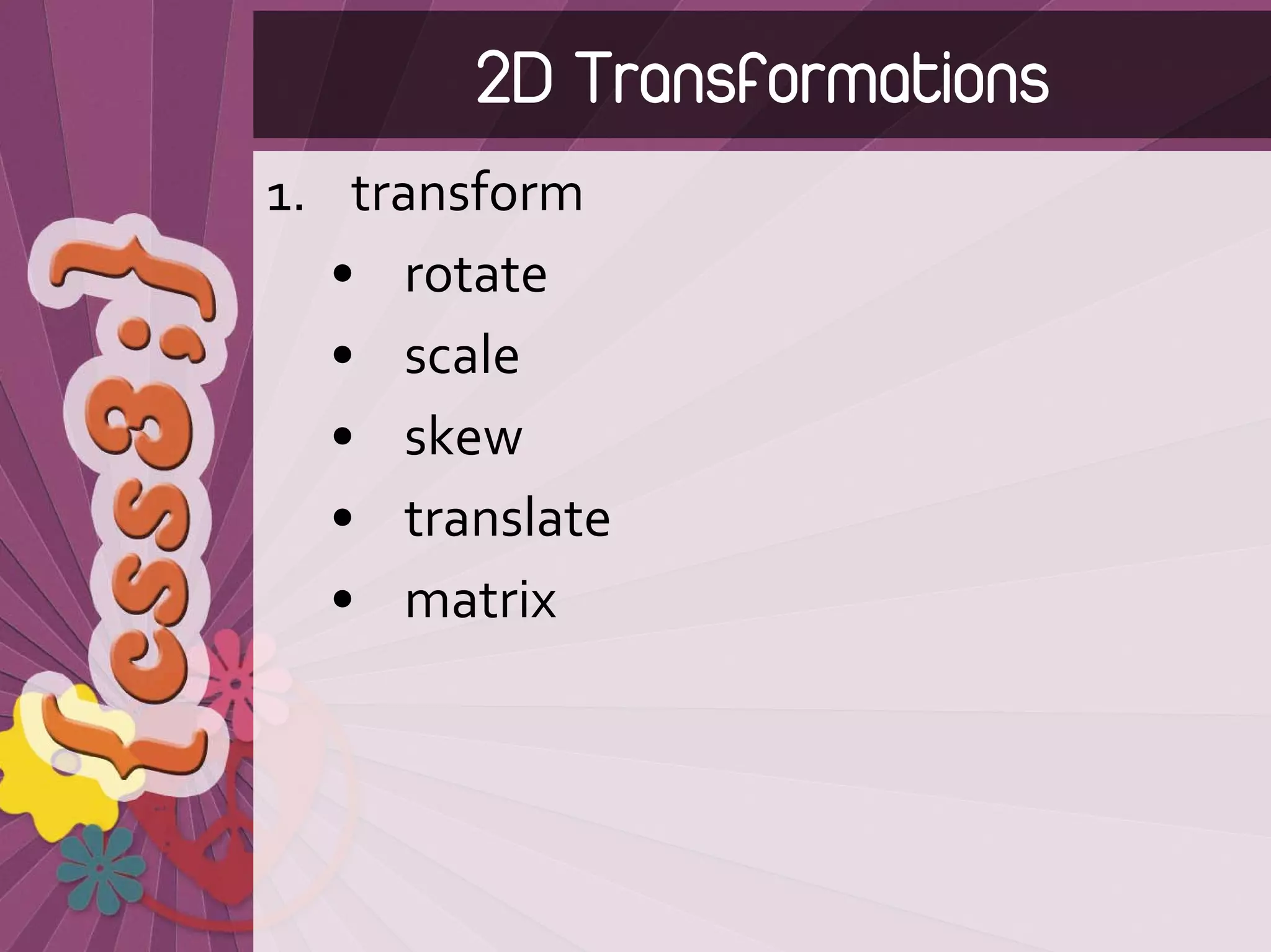

2D Transformations
1. transform
• rotate
• scale
• skew
• translate
• matrix

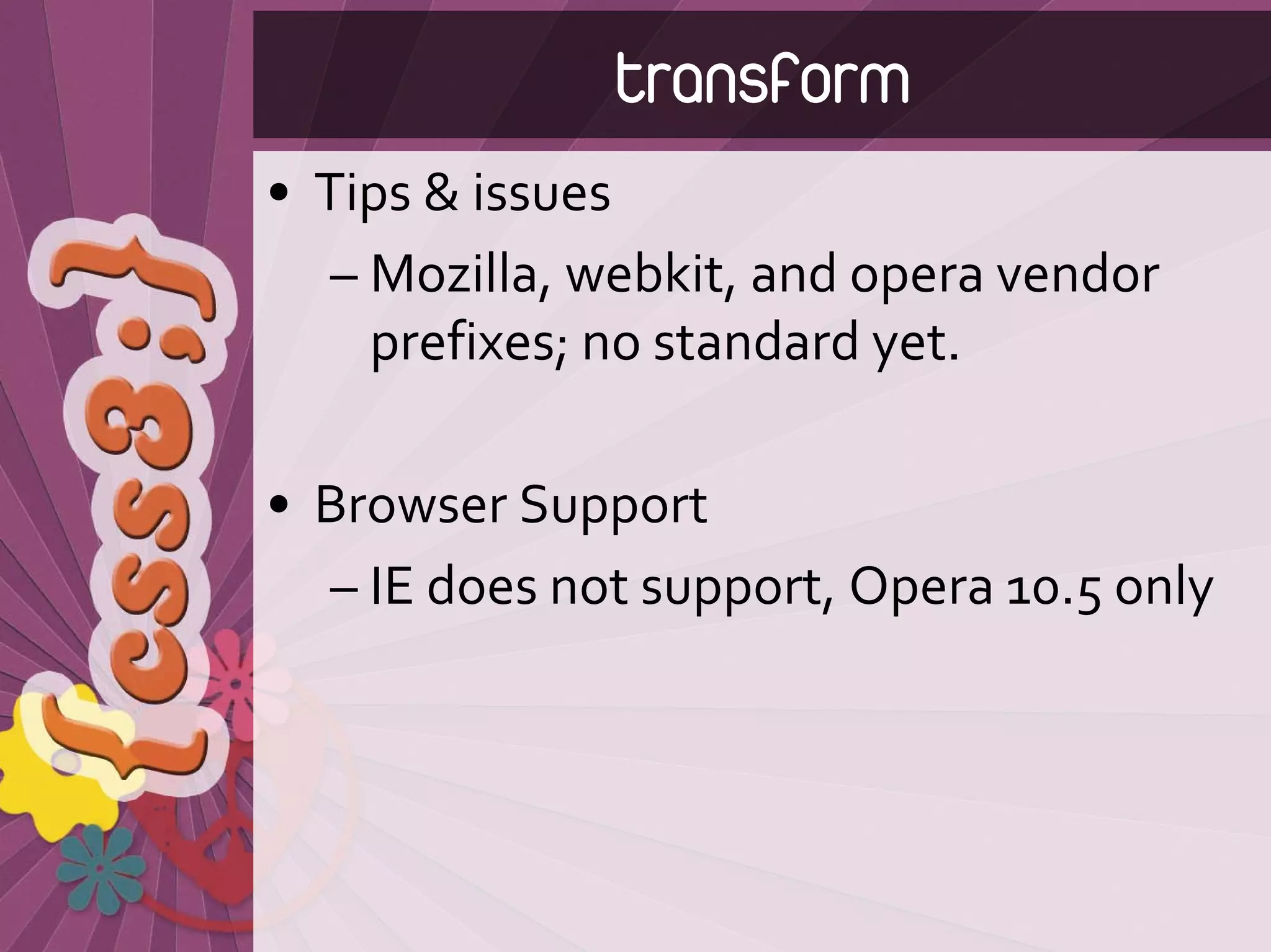

transform
• Tips & issues
– Mozilla, webkit, and opera vendor
prefixes; no standard yet.

• Browser Support
– IE does not support, Opera 10.5 only

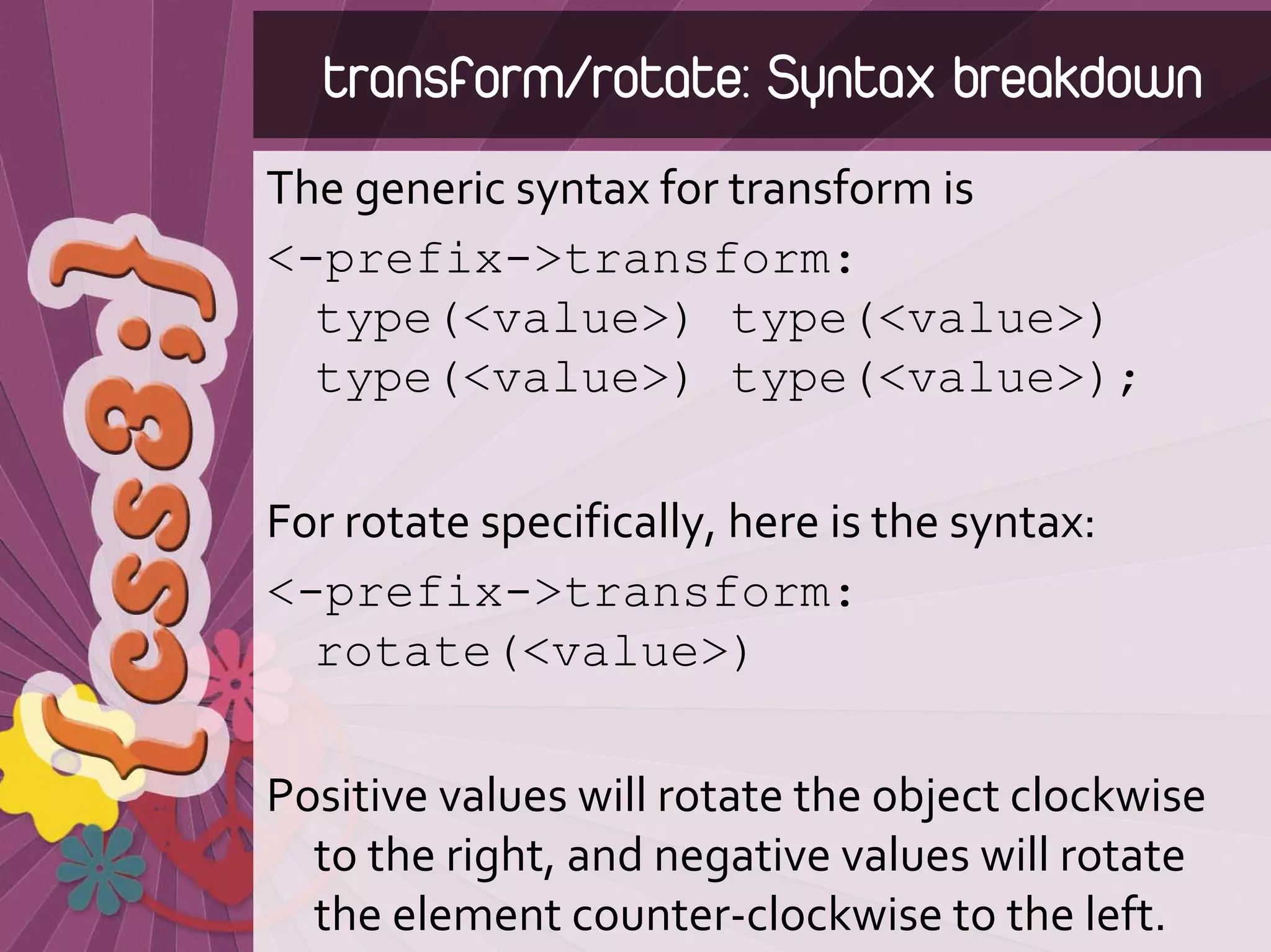

transform/rotate: Syntax breakdown
The generic syntax for transform is
<-prefix->transform:
type(<value>) type(<value>)
type(<value>) type(<value>);

For rotate specifically, here is the syntax:
rotate(<value>)

Positive values will rotate the object clockwise
to the right, and negative values will rotate
the element counter‐clockwise to the left.

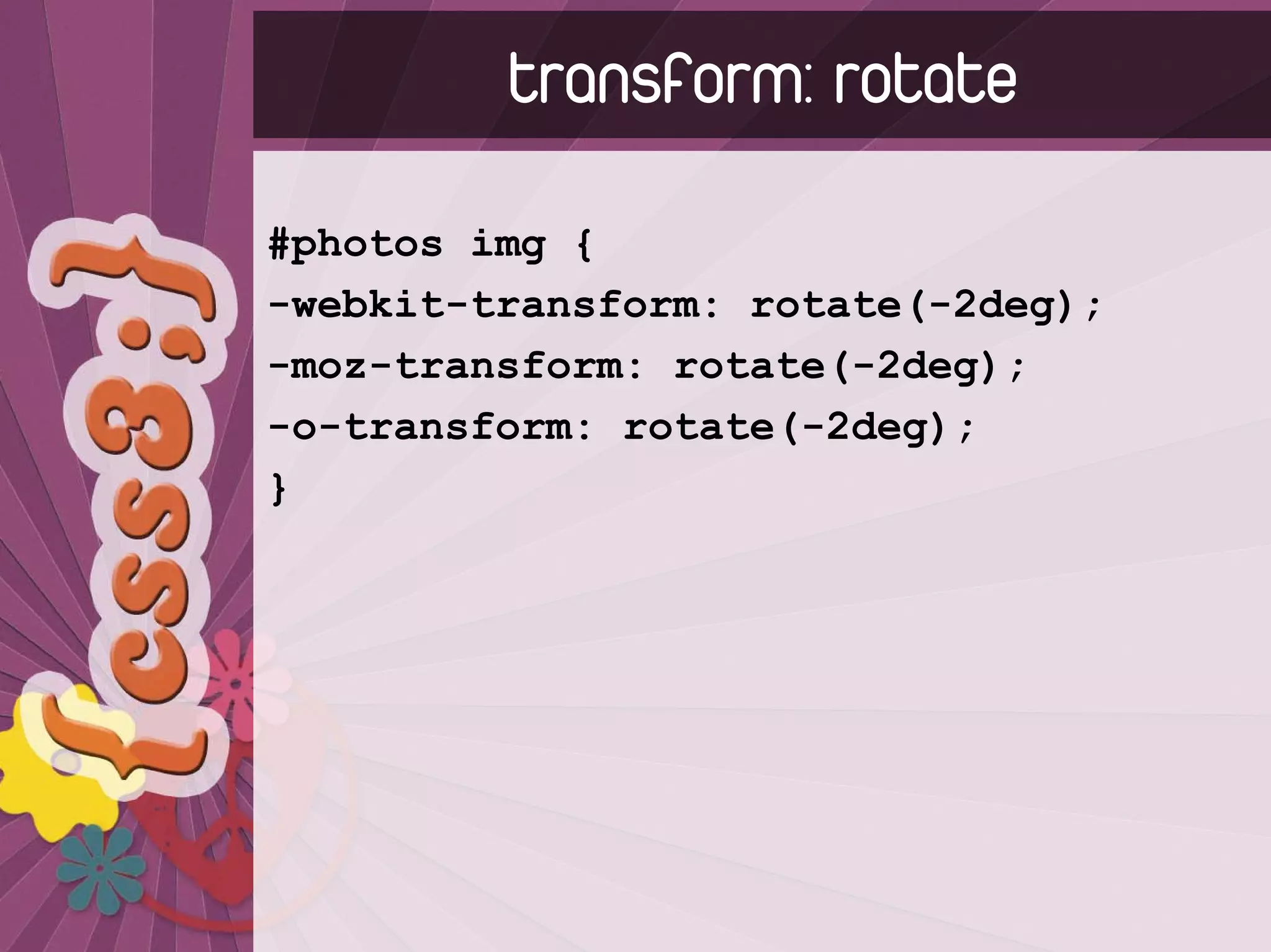

transform: rotate
#photos img {
-webkit-transform: rotate(-2deg);
-moz-transform: rotate(-2deg);
-o-transform: rotate(-2deg);
}

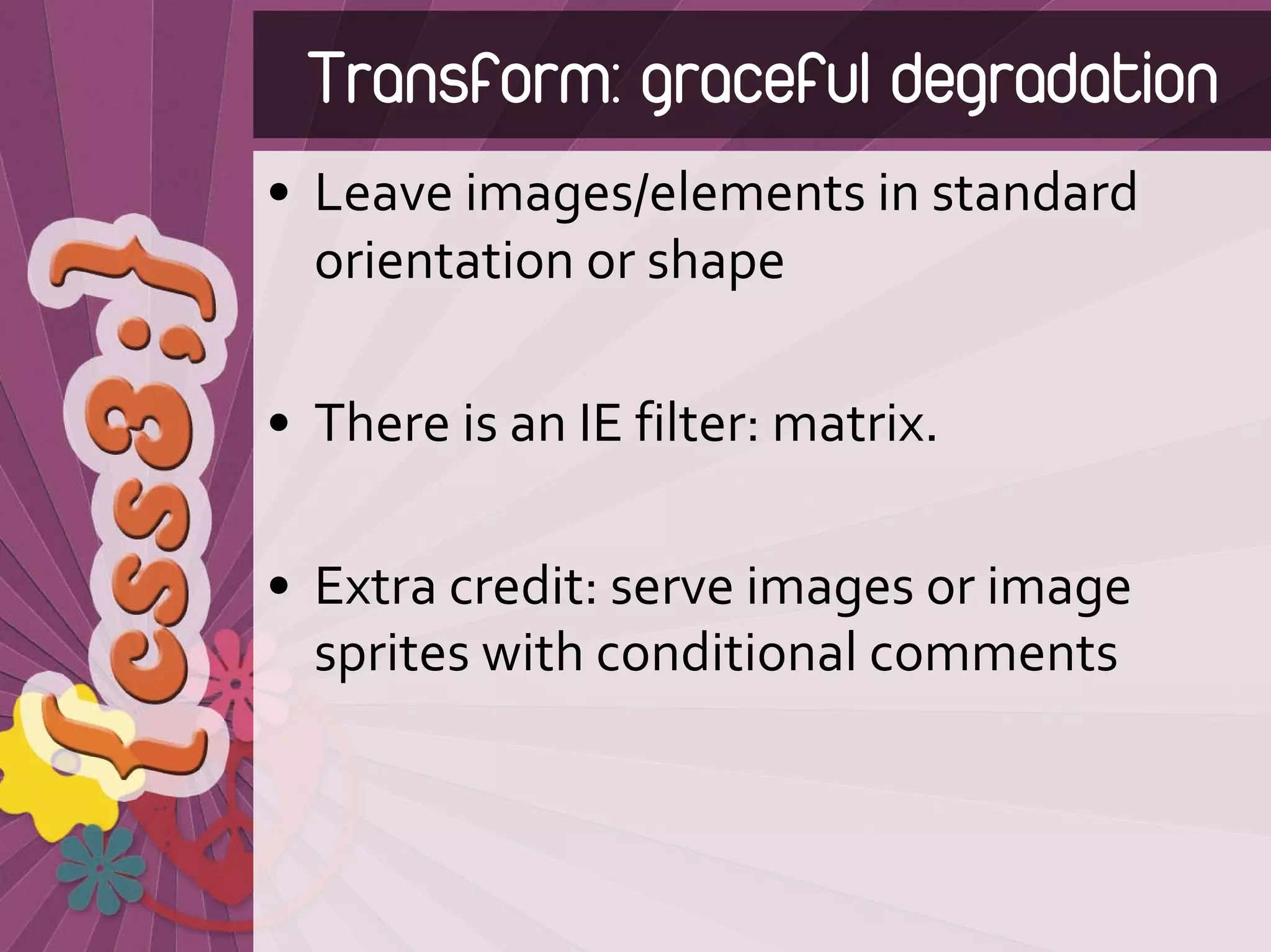

Transform: graceful degradation
• Leave images/elements in standard
orientation or shape

• There is an IE filter: matrix.

• Extra credit: serve images or image
sprites with conditional comments

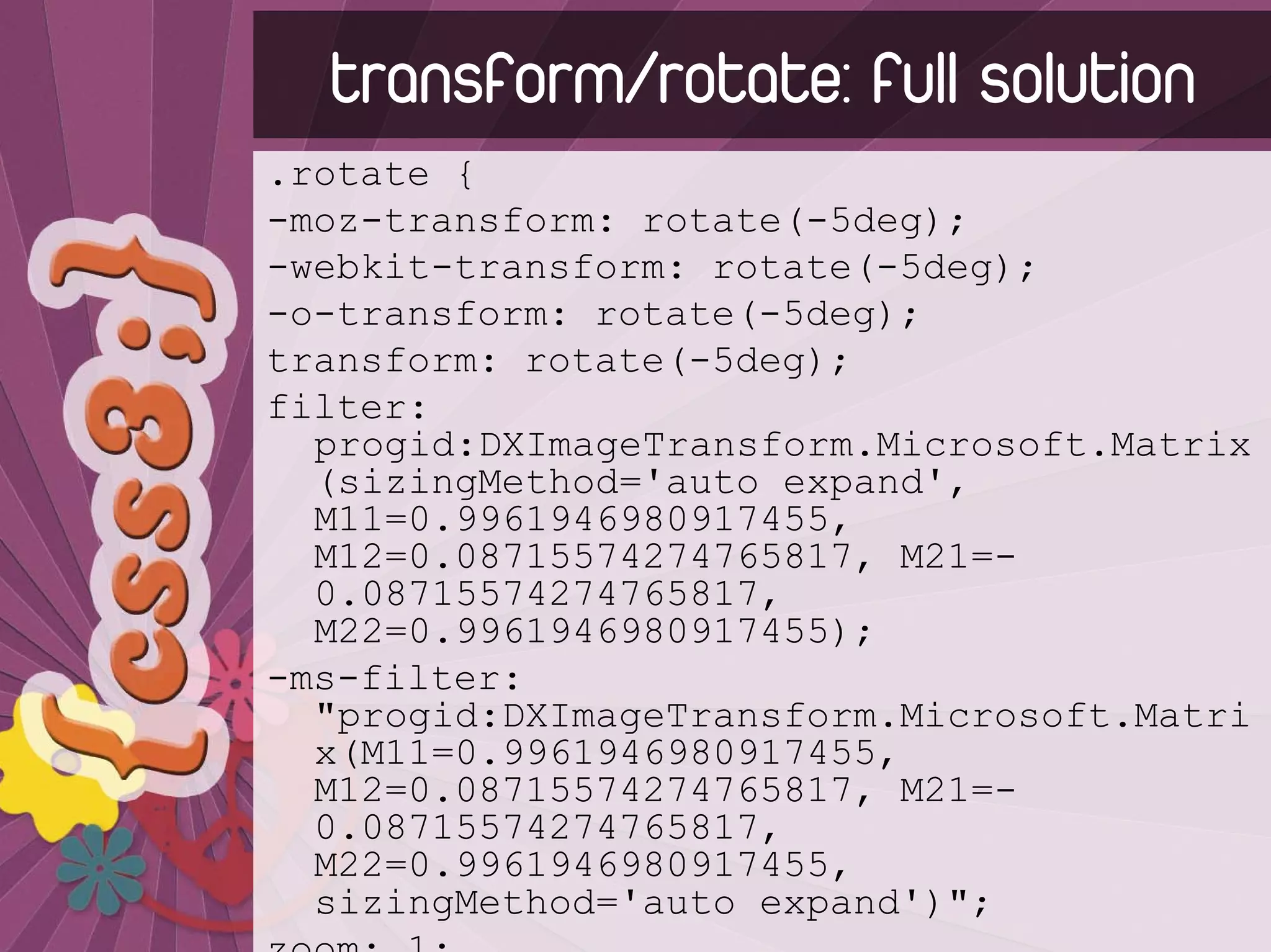

transform/rotate: full solution
.rotate {
-moz-transform: rotate(-5deg);
-webkit-transform: rotate(-5deg);
-o-transform: rotate(-5deg);
transform: rotate(-5deg);
filter:
progid:DXImageTransform.Microsoft.Matrix
(sizingMethod='auto expand',
M11=0.9961946980917455,
M12=0.08715574274765817, M21=-
0.08715574274765817,
M22=0.9961946980917455);
-ms-filter:
"progid:DXImageTransform.Microsoft.Matri
x(M11=0.9961946980917455,
M12=0.08715574274765817, M21=-
0.08715574274765817,
M22=0.9961946980917455,
sizingMethod='auto expand')";

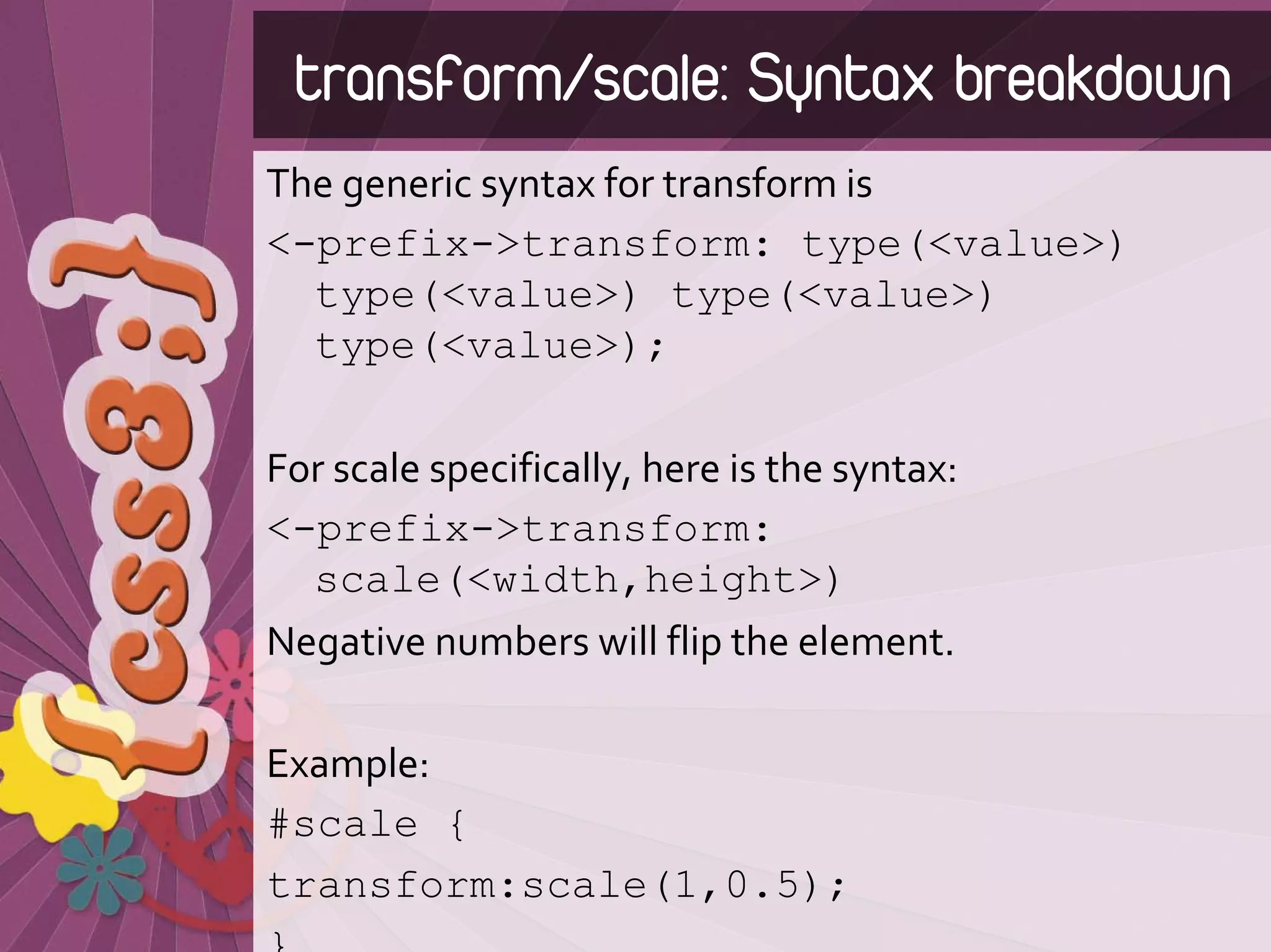

transform/scale: Syntax breakdown
<-prefix->transform: type(<value>)
type(<value>);

For scale specifically, here is the syntax:
scale(<width,height>)
Negative numbers will flip the element.

Example:
#scale {
transform:scale(1,0.5);

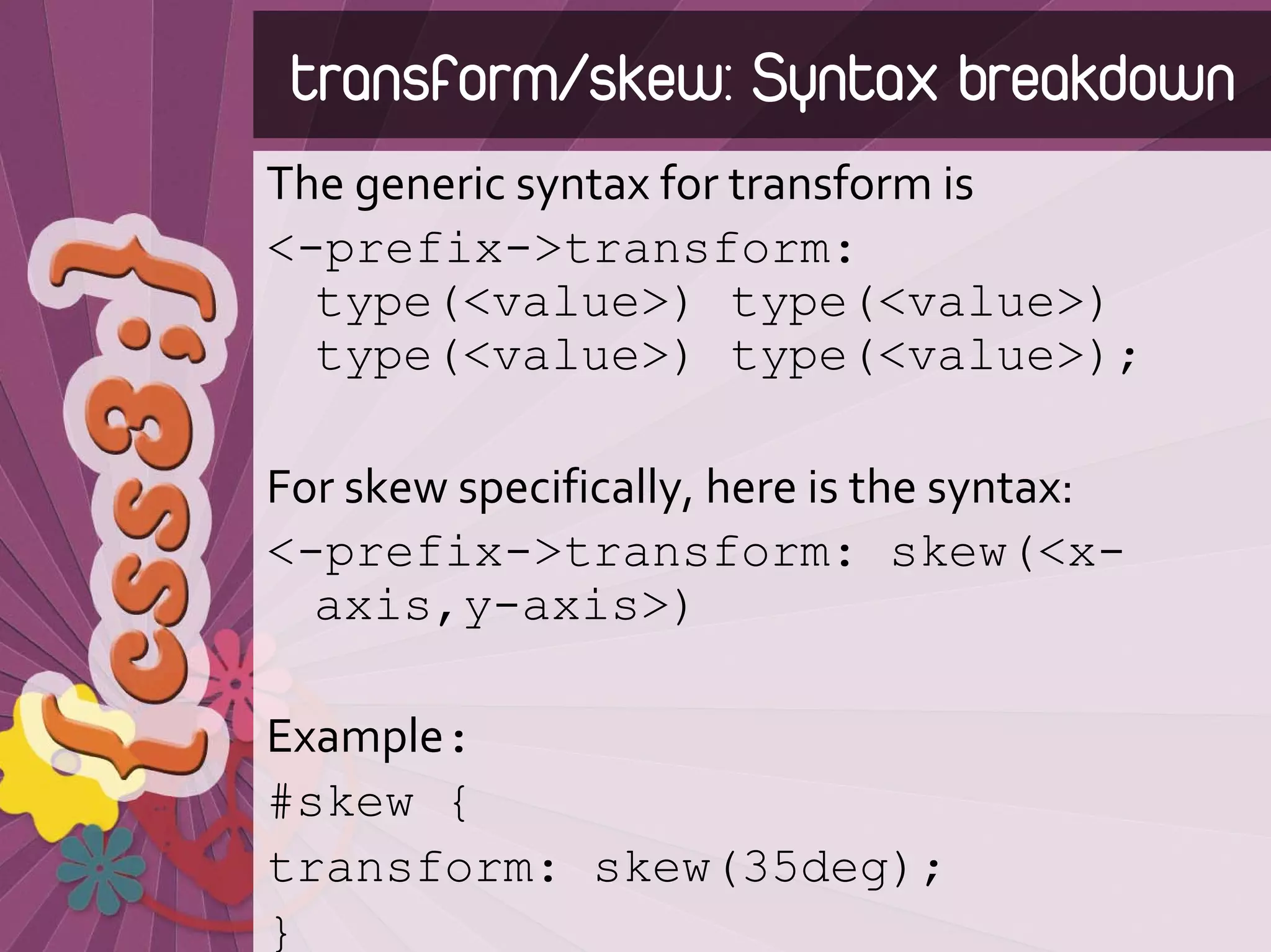

transform/skew: Syntax breakdown

For skew specifically, here is the syntax:
<-prefix->transform: skew(<x-
axis,y-axis>)

Example:
#skew {
transform: skew(35deg);
}

transform/translate: Syntax breakdown

For translate specifically, here is the syntax:
translate(<x-value, y-value>)

Example:
#translate {
transform:translate(10px, 20px);
}

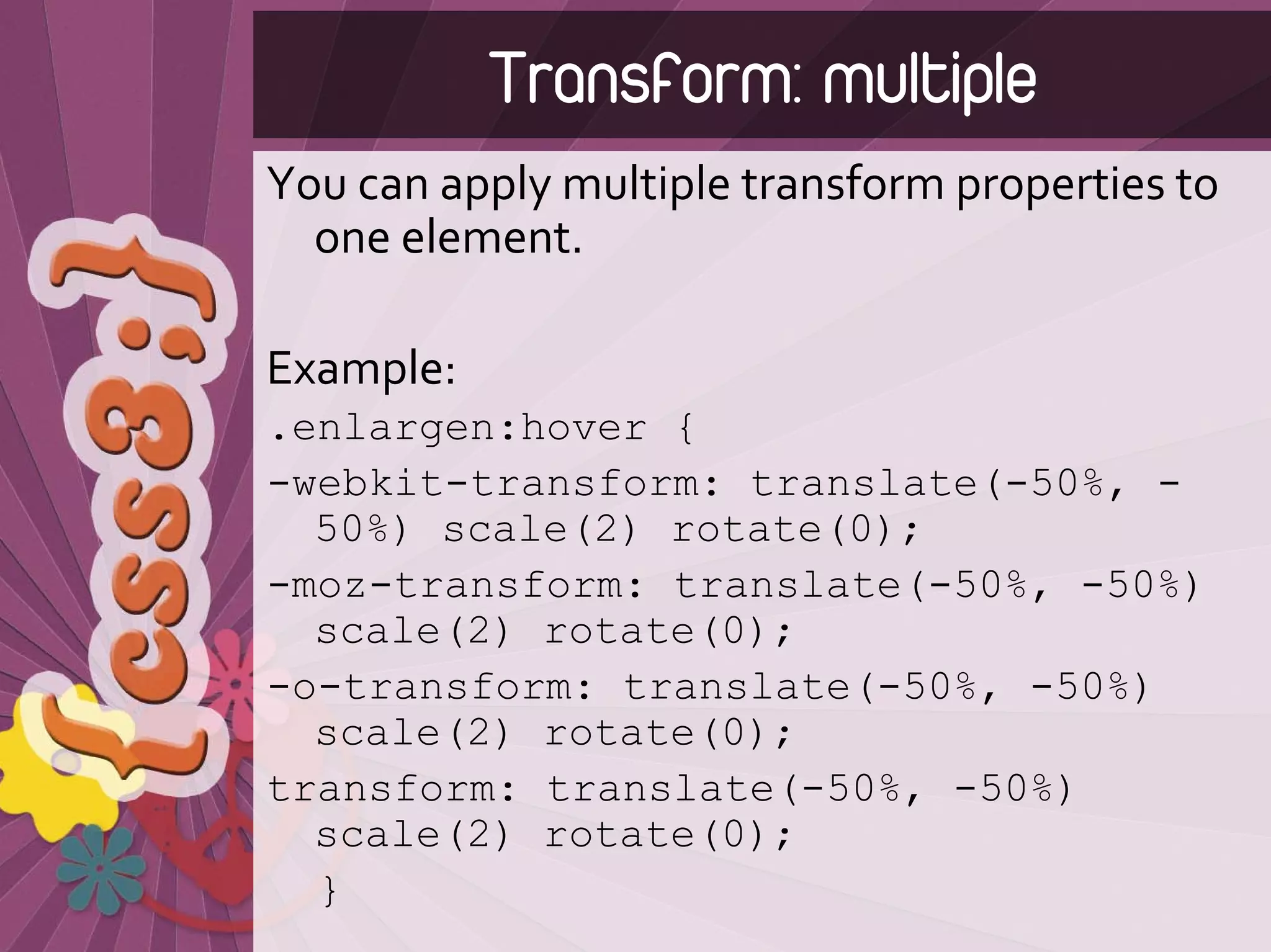

Transform: multiple
You can apply multiple transform properties to
one element.

Example:
.enlargen:hover {
-webkit-transform: translate(-50%, -
50%) scale(2) rotate(0);
-moz-transform: translate(-50%, -50%)
scale(2) rotate(0);
-o-transform: translate(-50%, -50%)
scale(2) rotate(0);
transform: translate(-50%, -50%)
scale(2) rotate(0);
}

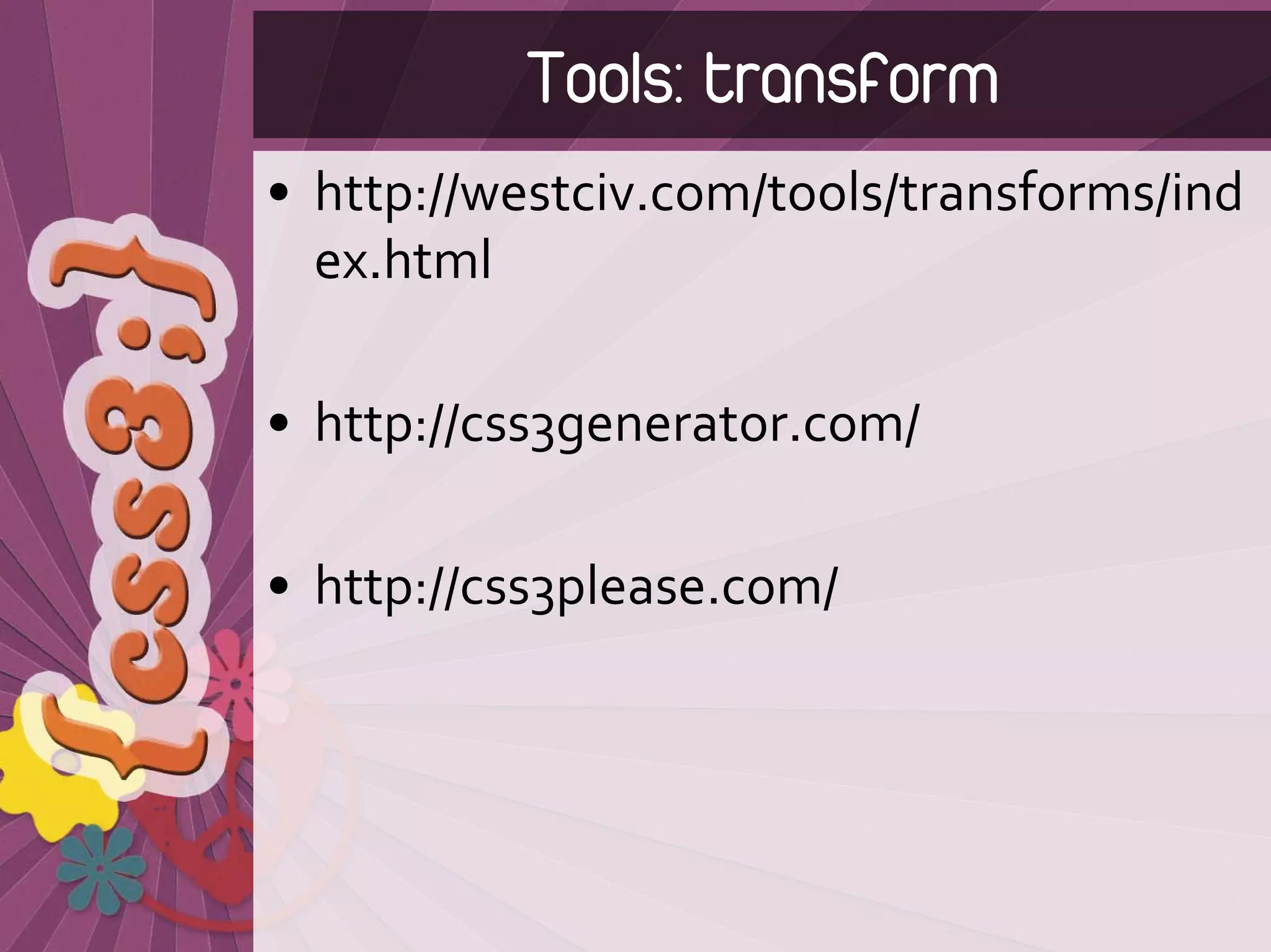

Tools: transform
• http://westciv.com/tools/transforms/ind
ex.html

• http://css3generator.com/

• http://css3please.com/

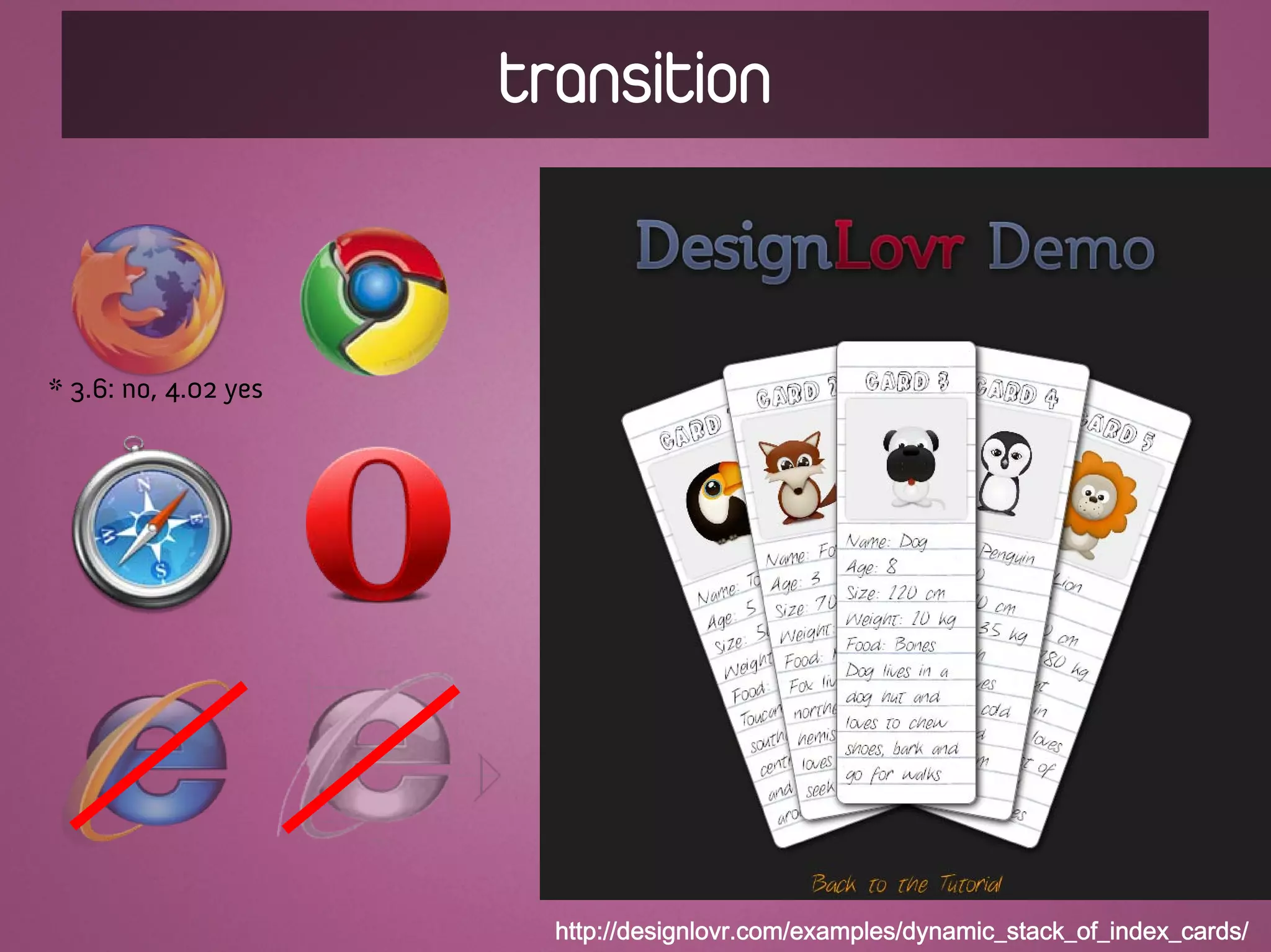

transition

* 3.6: no, 4.02 yes

http://designlovr.com/examples/dynamic_stack_of_index_cards/

transitions
You can create subtle transitions between
hover states on elements. The
transitions smooth out visual jumps.

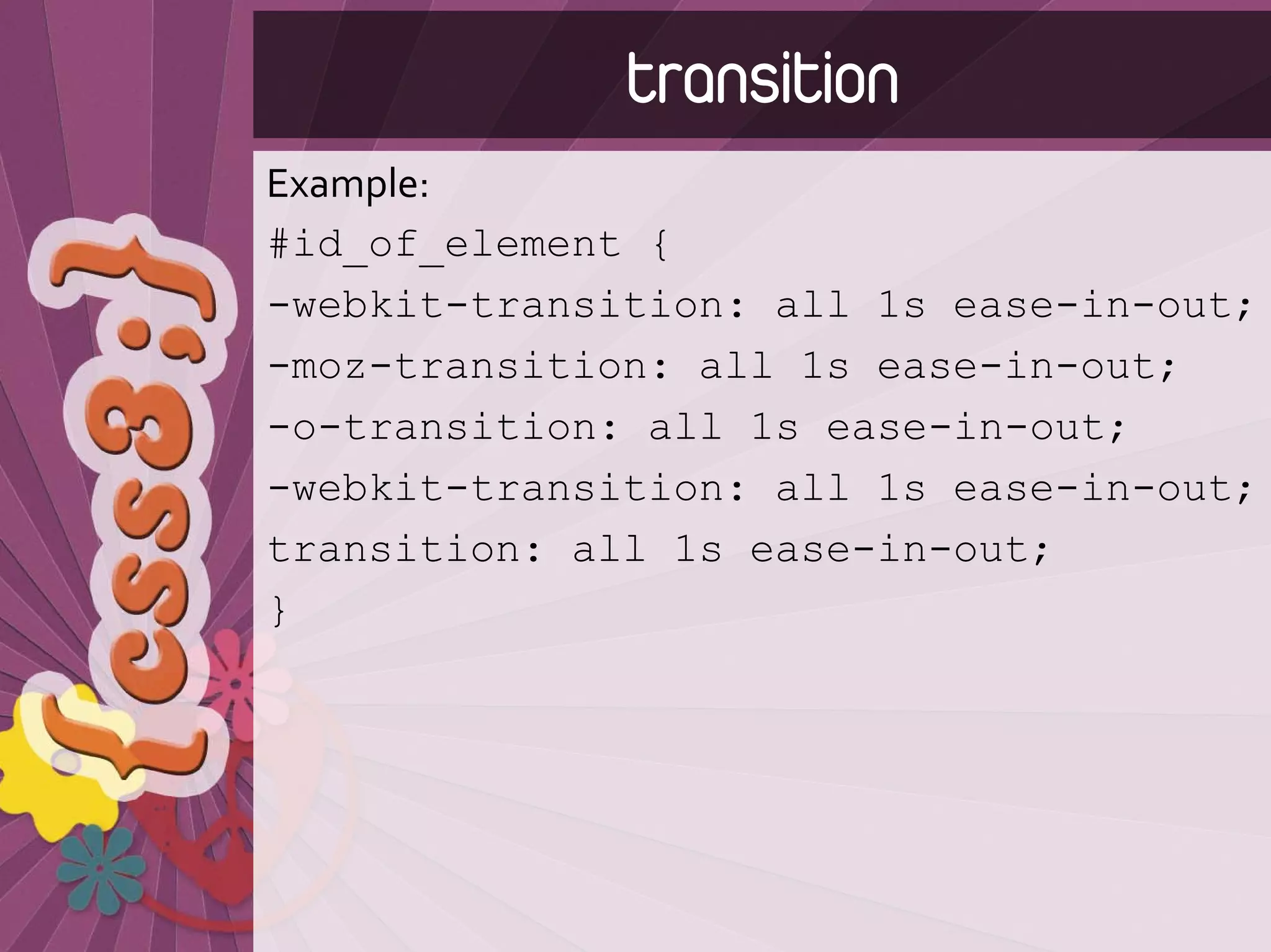

transition
Example:
#id_of_element {
-webkit-transition: all 1s ease-in-out;
-moz-transition: all 1s ease-in-out;
-o-transition: all 1s ease-in-out;
-webkit-transition: all 1s ease-in-out;
transition: all 1s ease-in-out;
}

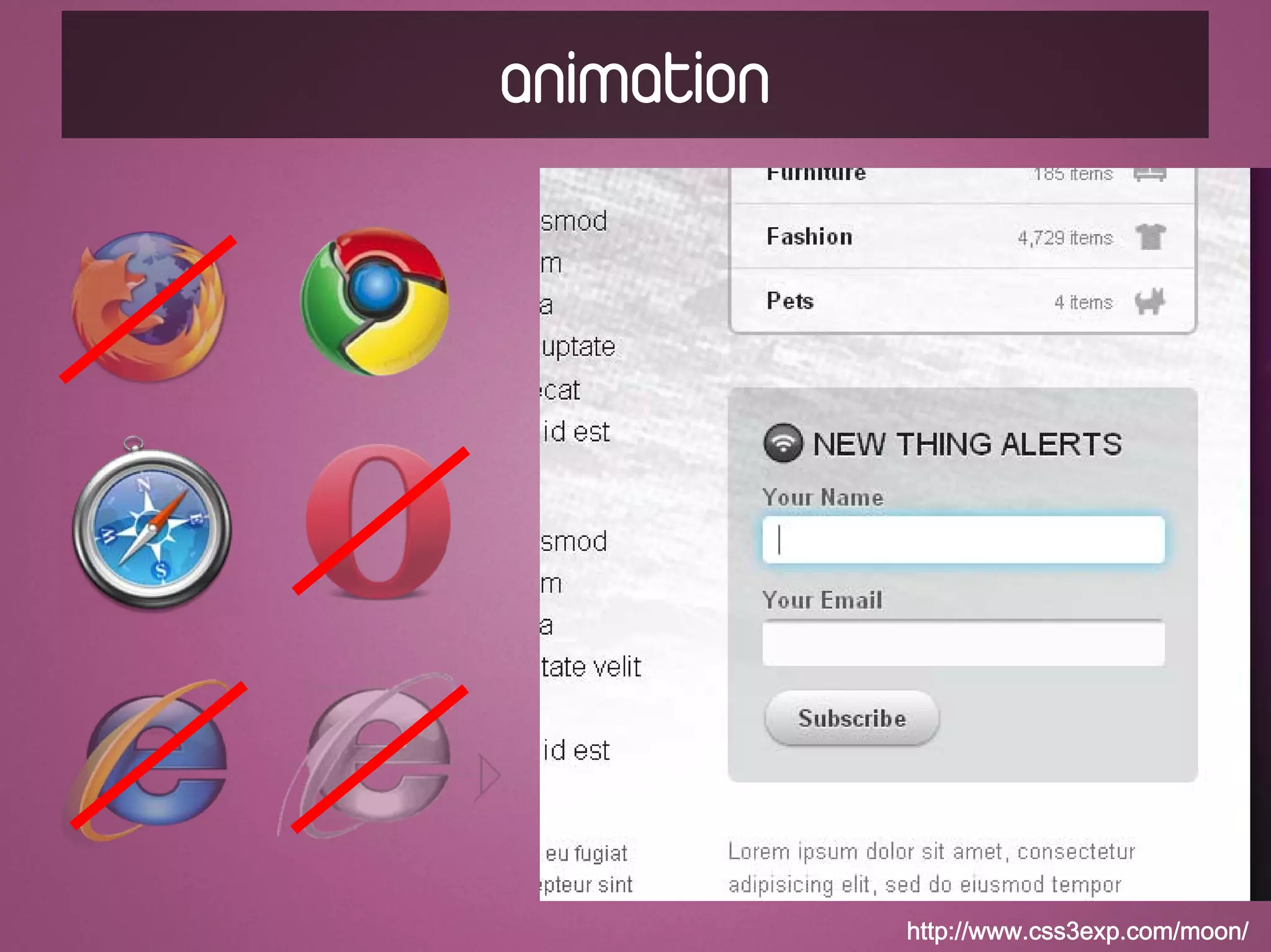

animation

http://www.css3exp.com/moon/

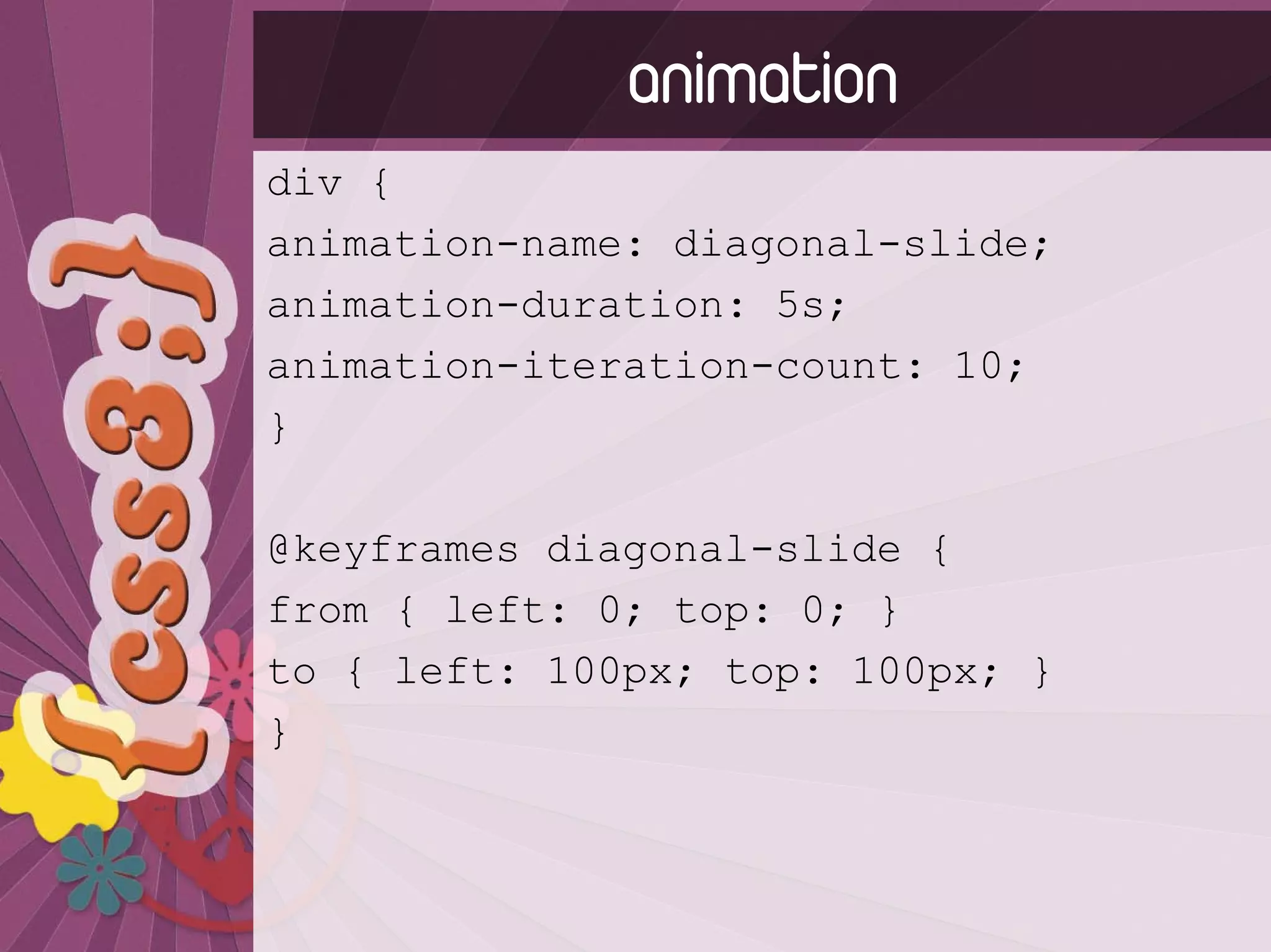

animation
div {
animation-name: diagonal-slide;
animation-duration: 5s;
animation-iteration-count: 10;
}

@keyframes diagonal-slide {
from { left: 0; top: 0; }
to { left: 100px; top: 100px; }
}

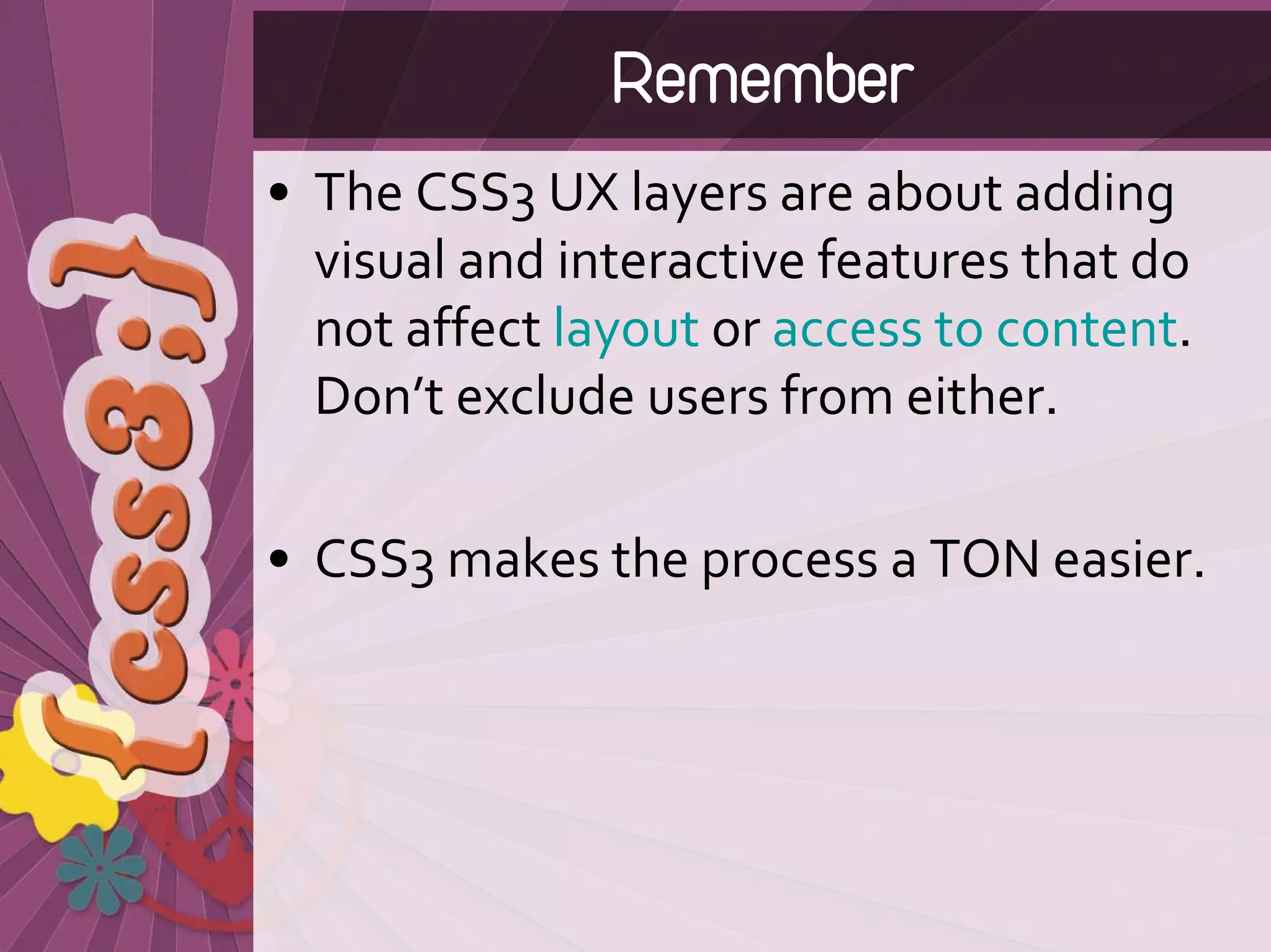

Remember
• The CSS3 UX layers are about adding
visual and interactive features that do
not affect layout or access to content.
Don’t exclude users from either.

• CSS3 makes the process a TON easier.

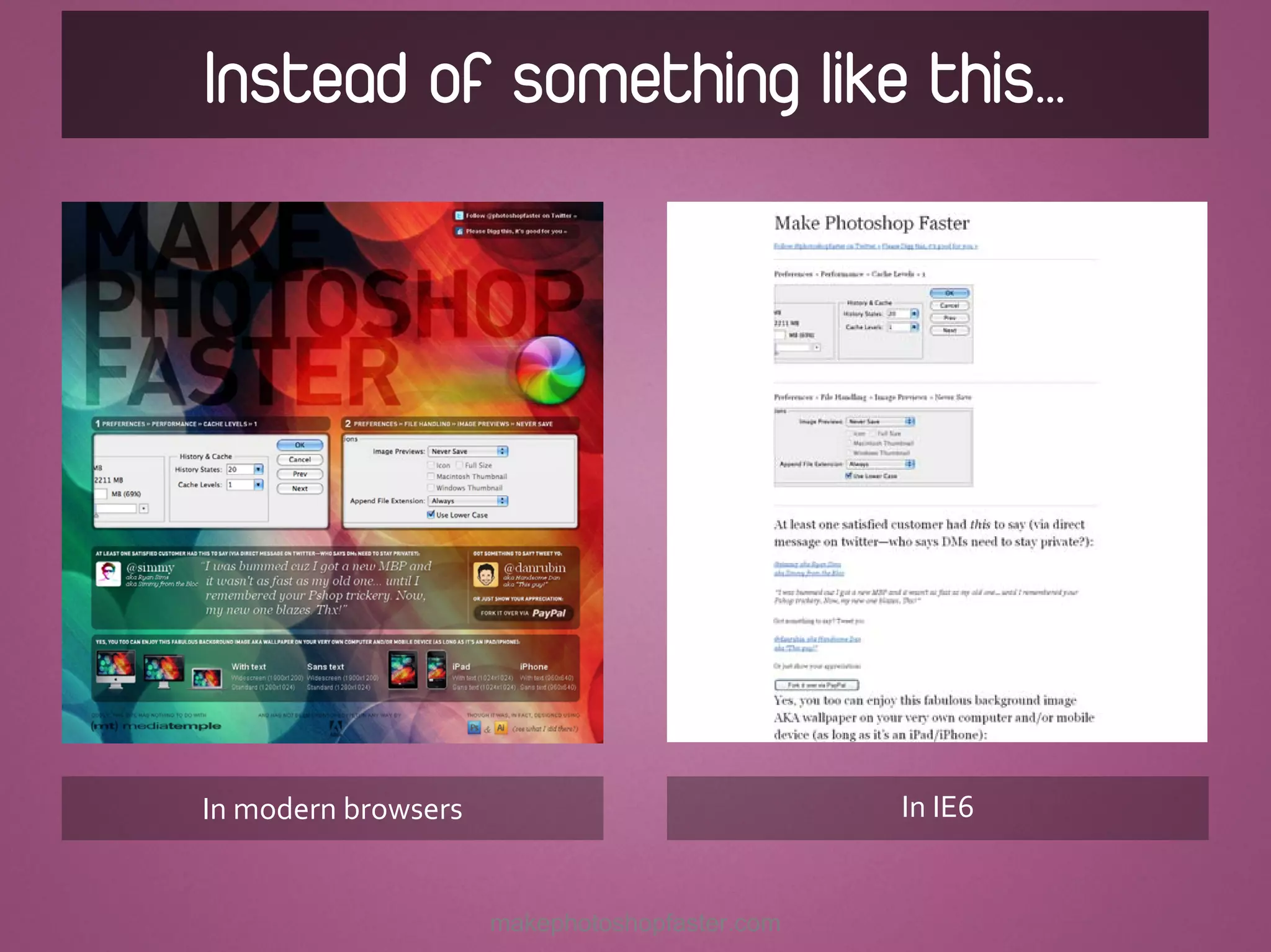

Instead of something like this…

In modern browsers In IE6

makephotoshopfaster.com

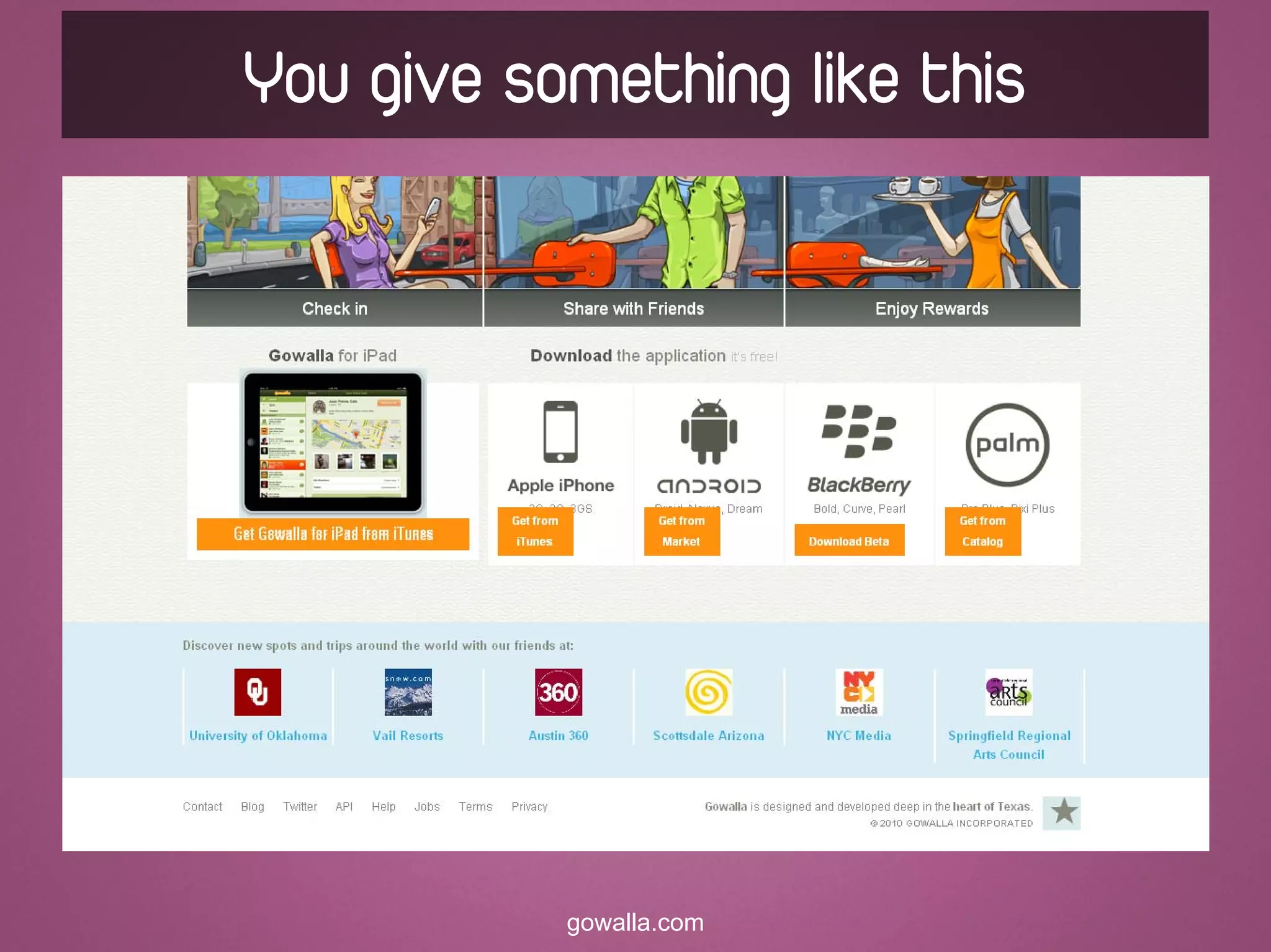

You give something like this

gowalla.com

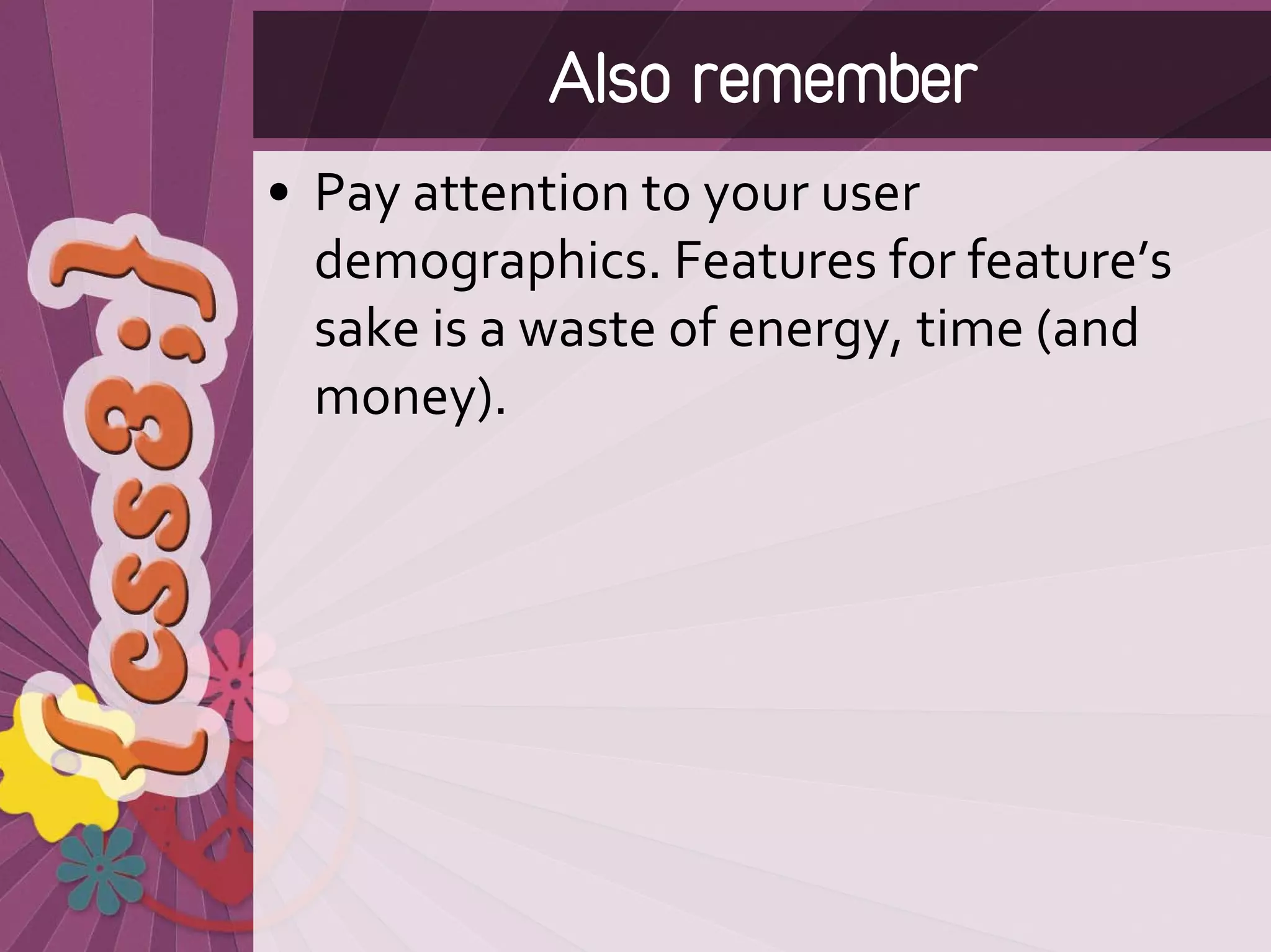

Also remember
• Pay attention to your user
demographics. Features for feature’s
sake is a waste of energy, time (and
money).

Today >> Tomorrow

>>

http://www.flickr.com/photos/trektrack/134157546/
http://www.flickr.com/photos/meggers/2378288736/

Not everyone will be able to access your
added experience layer from CSS3
http://www.flickr.com/photos/icanchangethisright/3687782204/

And those who do…

http://www.flickr.com/photos/jamiecampbell/446301597/

Will love you for it
http://www.flickr.com/photos/erikogan/3481255/

Resources
delicious.com/denisejacobs/
css3resources

http://www.flickr.com/photos/soerenheuer/17879000/

Book Love 1

CSSDetectiveGuide.com
twitter.com/cssdetective

Book Love 2

InterActWithWebStandards.com
twitter.com/waspinteract

denisejacobs.com
twitter.com/denisejacobs

slideshare.net/denisejacobs

http://www.flickr.com/photos/27620885@N02/2609974180/

CSS3: Are you experienced?

More Related Content

What's hot

Viewers also liked

Similar to CSS3: Are you experienced?

More from Denise Jacobs

Recently uploaded

CSS3: Are you experienced?

Editor's Notes
