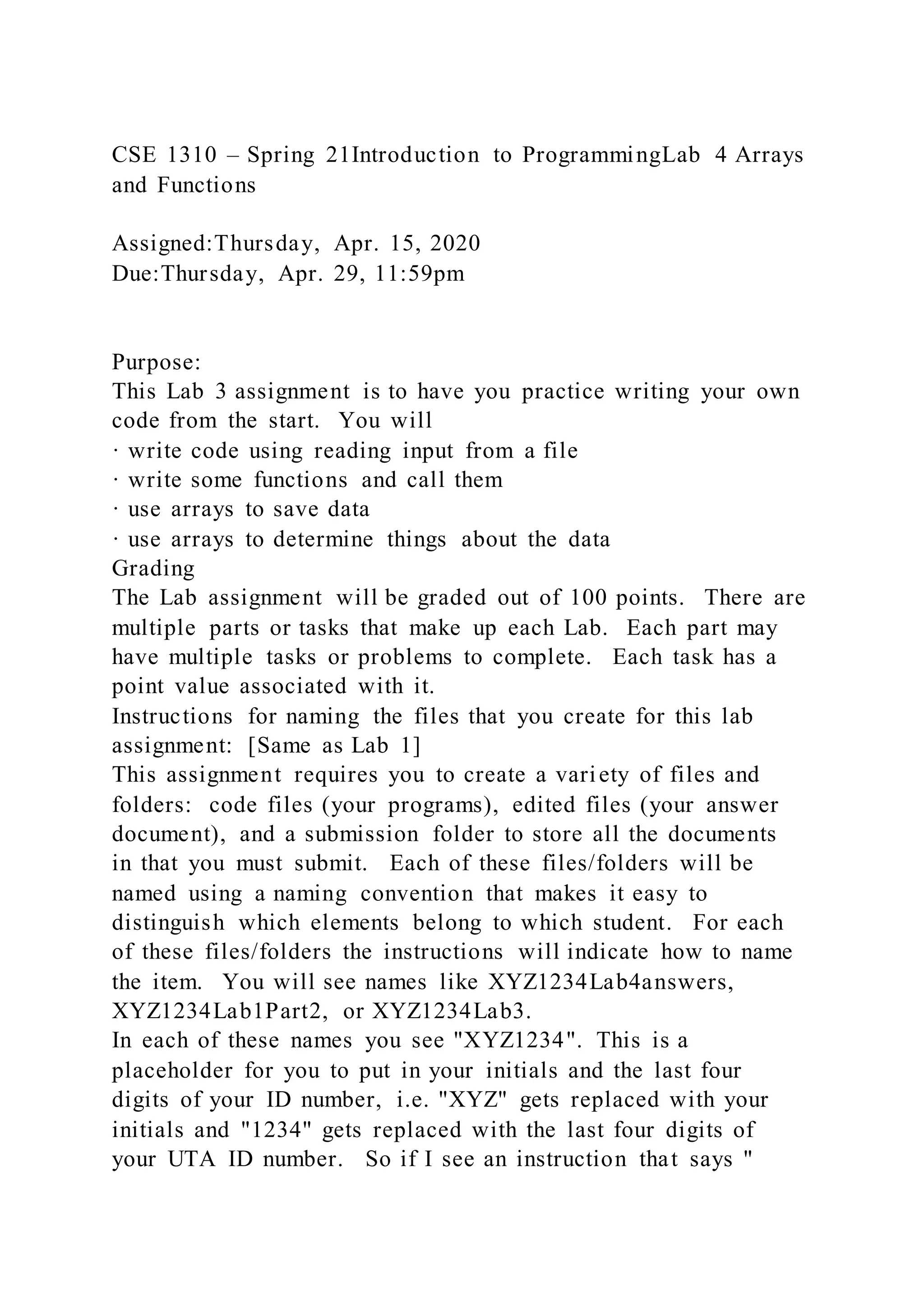

CSE 1310 – Spring 21Introduction to ProgrammingLab 4 Arrays and Func

CSE 1310 – Spring 21Introduction to ProgrammingLab 4 Arrays
and Functions
Assigned:Thursday, Apr. 15, 2020
Due:Thursday, Apr. 29, 11:59pm
Purpose:
This Lab 3 assignment is to have you practice writing your own
code from the start. You will
· write code using reading input from a file
· write some functions and call them
· use arrays to save data
· use arrays to determine things about the data
Grading
The Lab assignment will be graded out of 100 points. There are
multiple parts or tasks that make up each Lab. Each part may
have multiple tasks or problems to complete. Each task has a
point value associated with it.
Instructions for naming the files that you create for this lab
assignment: [Same as Lab 1]
This assignment requires you to create a variety of files and
folders: code files (your programs), edited files (your answer
document), and a submission folder to store all the documents
in that you must submit. Each of these files/folders will be
named using a naming convention that makes it easy to
distinguish which elements belong to which student. For each
of these files/folders the instructions will indicate how to name
the item. You will see names like XYZ1234Lab4answers,
XYZ1234Lab1Part2, or XYZ1234Lab3.
In each of these names you see "XYZ1234". This is a
placeholder for you to put in your initials and the last four
digits of your ID number, i.e. "XYZ" gets replaced with your
initials and "1234" gets replaced with the last four digits of
your UTA ID number. So if I see an instruction that says "

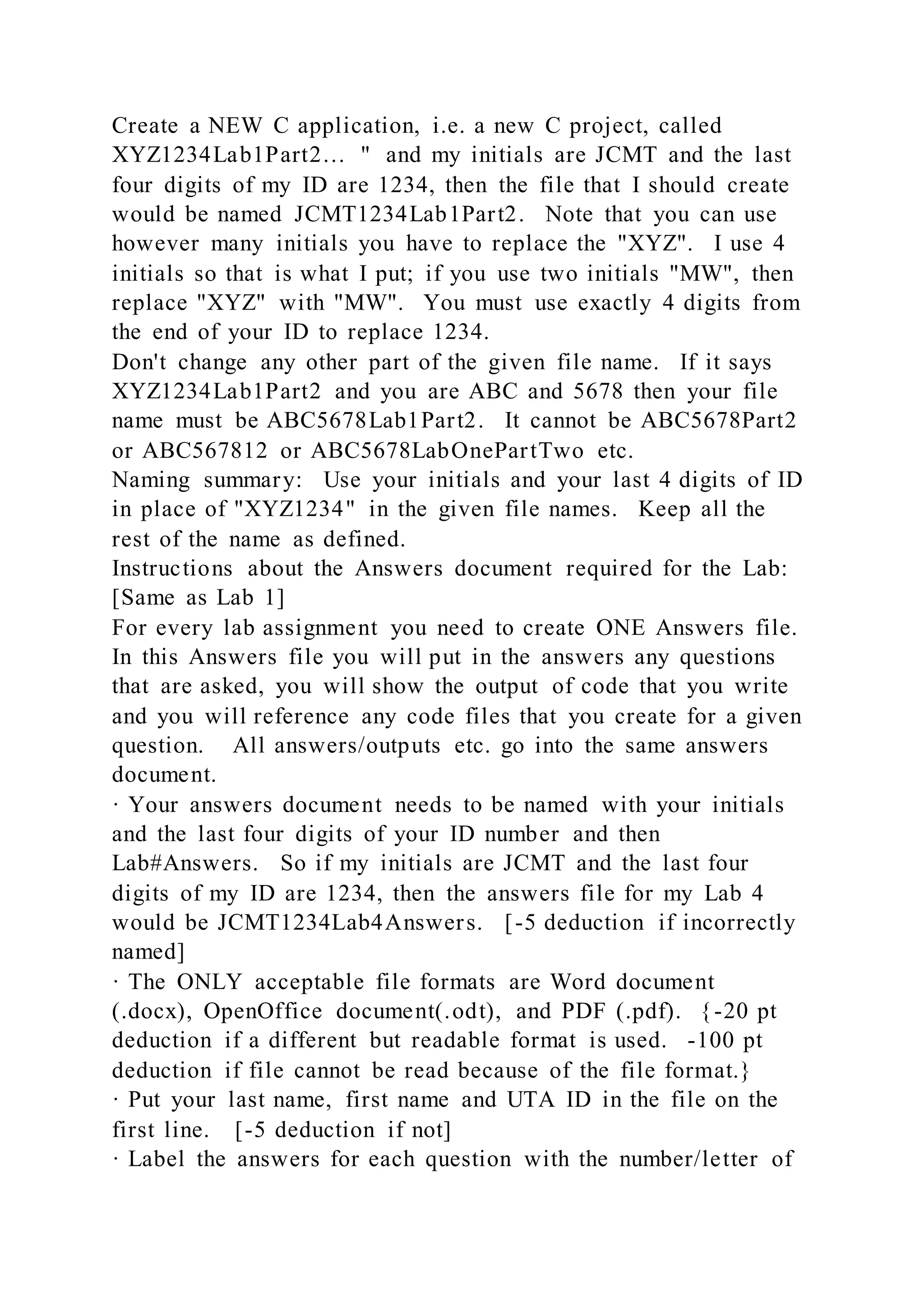

Create a NEW C application, i.e. a new C project, called
XYZ1234Lab1Part2… " and my initials are JCMT and the last
four digits of my ID are 1234, then the file that I should create
would be named JCMT1234Lab1Part2. Note that you can use
however many initials you have to replace the "XYZ". I use 4
initials so that is what I put; if you use two initials "MW", then
replace "XYZ" with "MW". You must use exactly 4 digits from
the end of your ID to replace 1234.
Don't change any other part of the given file name. If it says
XYZ1234Lab1Part2 and you are ABC and 5678 then your file
name must be ABC5678Lab1Part2. It cannot be ABC5678Part2
or ABC567812 or ABC5678LabOnePartTwo etc.
Naming summary: Use your initials and your last 4 digits of ID
in place of "XYZ1234" in the given file names. Keep all the
rest of the name as defined.
Instructions about the Answers document required for the Lab:
[Same as Lab 1]
For every lab assignment you need to create ONE Answers file.
In this Answers file you will put in the answers any questions
that are asked, you will show the output of code that you write
and you will reference any code files that you create for a given
question. All answers/outputs etc. go into the same answers
document.
· Your answers document needs to be named with your initials
and the last four digits of your ID number and then
Lab#Answers. So if my initials are JCMT and the last four
digits of my ID are 1234, then the answers file for my Lab 4
would be JCMT1234Lab4Answers. [-5 deduction if incorrectly
named]
· The ONLY acceptable file formats are Word document
(.docx), OpenOffice document(.odt), and PDF (.pdf). {-20 pt
deduction if a different but readable format is used. -100 pt
deduction if file cannot be read because of the file format.}
· Put your last name, first name and UTA ID in the file on the
first line. [-5 deduction if not]

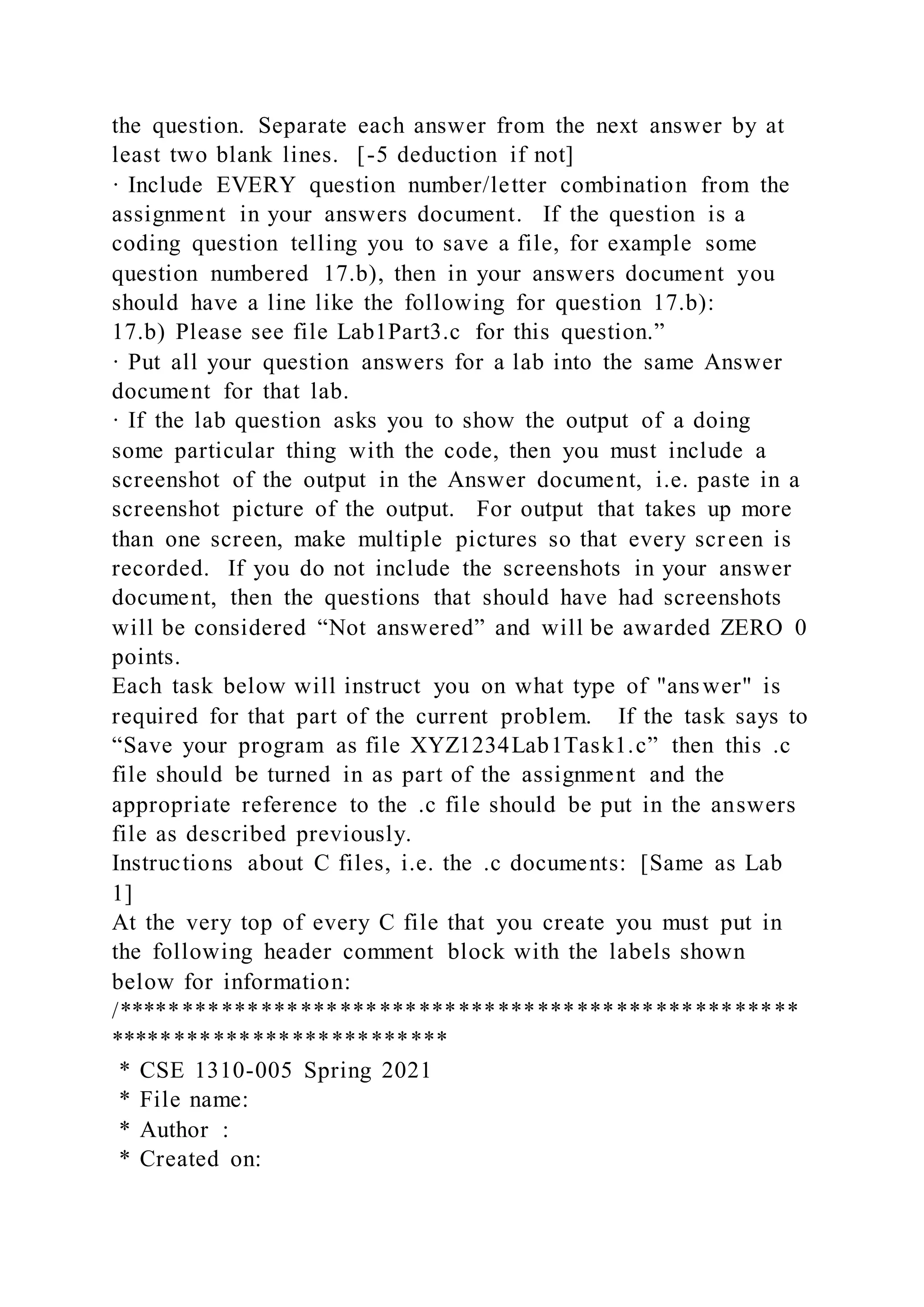

· Label the answers for each question with the number/letter of

the question. Separate each answer from the next answer by at
least two blank lines. [-5 deduction if not]
· Include EVERY question number/letter combination from the
assignment in your answers document. If the question is a
coding question telling you to save a file, for example some
question numbered 17.b), then in your answers document you
should have a line like the following for question 17.b):
17.b) Please see file Lab1Part3.c for this question.”
· Put all your question answers for a lab into the same Answer
document for that lab.
· If the lab question asks you to show the output of a doing
some particular thing with the code, then you must include a
screenshot of the output in the Answer document, i.e. paste in a
screenshot picture of the output. For output that takes up more
than one screen, make multiple pictures so that every screen is
recorded. If you do not include the screenshots in your answer
document, then the questions that should have had screenshots
will be considered “Not answered” and will be awarded ZERO 0
points.
Each task below will instruct you on what type of "answer" is
required for that part of the current problem. If the task says to
“Save your program as file XYZ1234Lab1Task1.c” then this .c
file should be turned in as part of the assignment and the
appropriate reference to the .c file should be put in the answers
file as described previously.
Instructions about C files, i.e. the .c documents: [Same as Lab
1]

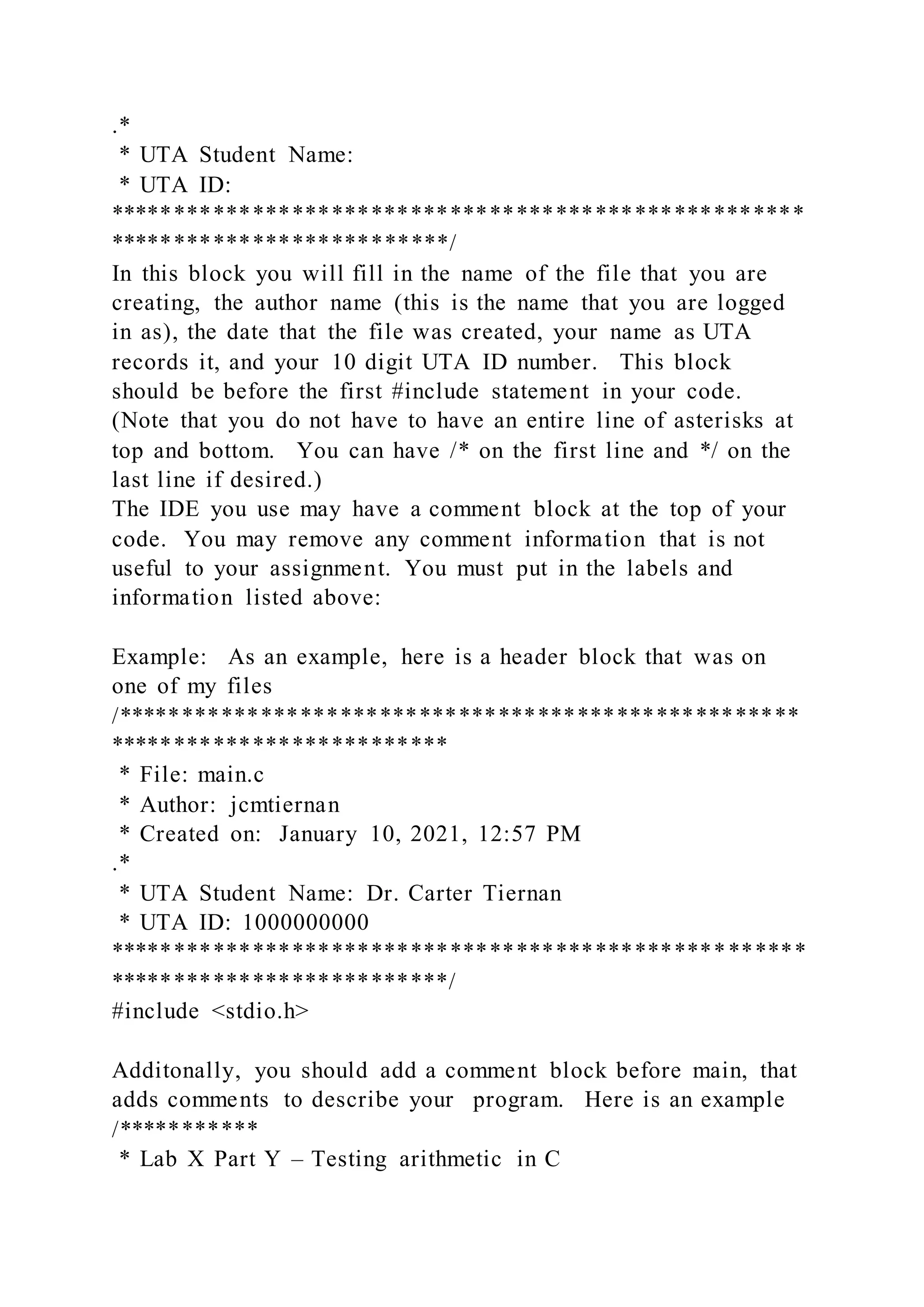

At the very top of every C file that you create you must put in
the following header comment block with the labels shown
below for information:
/****************************************************
**************************
* CSE 1310-005 Spring 2021
* File name:
* Author :
* Created on:

.*
* UTA Student Name:
* UTA ID:
*****************************************************
**************************/
In this block you will fill in the name of the file that you are
creating, the author name (this is the name that you are logged
in as), the date that the file was created, your name as UTA
records it, and your 10 digit UTA ID number. This block
should be before the first #include statement in your code.
(Note that you do not have to have an entire line of asterisks at
top and bottom. You can have /* on the first line and */ on the
last line if desired.)
The IDE you use may have a comment block at the top of your
code. You may remove any comment information that is not
useful to your assignment. You must put in the labels and
information listed above:
Example: As an example, here is a header block that was on
one of my files
/****************************************************
**************************
* File: main.c
* Author: jcmtiernan
* Created on: January 10, 2021, 12:57 PM
.*
* UTA Student Name: Dr. Carter Tiernan
* UTA ID: 1000000000
*****************************************************
**************************/
#include <stdio.h>
Additonally, you should add a comment block before main, that
adds comments to describe your program. Here is an example
/***********
* Lab X Part Y – Testing arithmetic in C

***********/

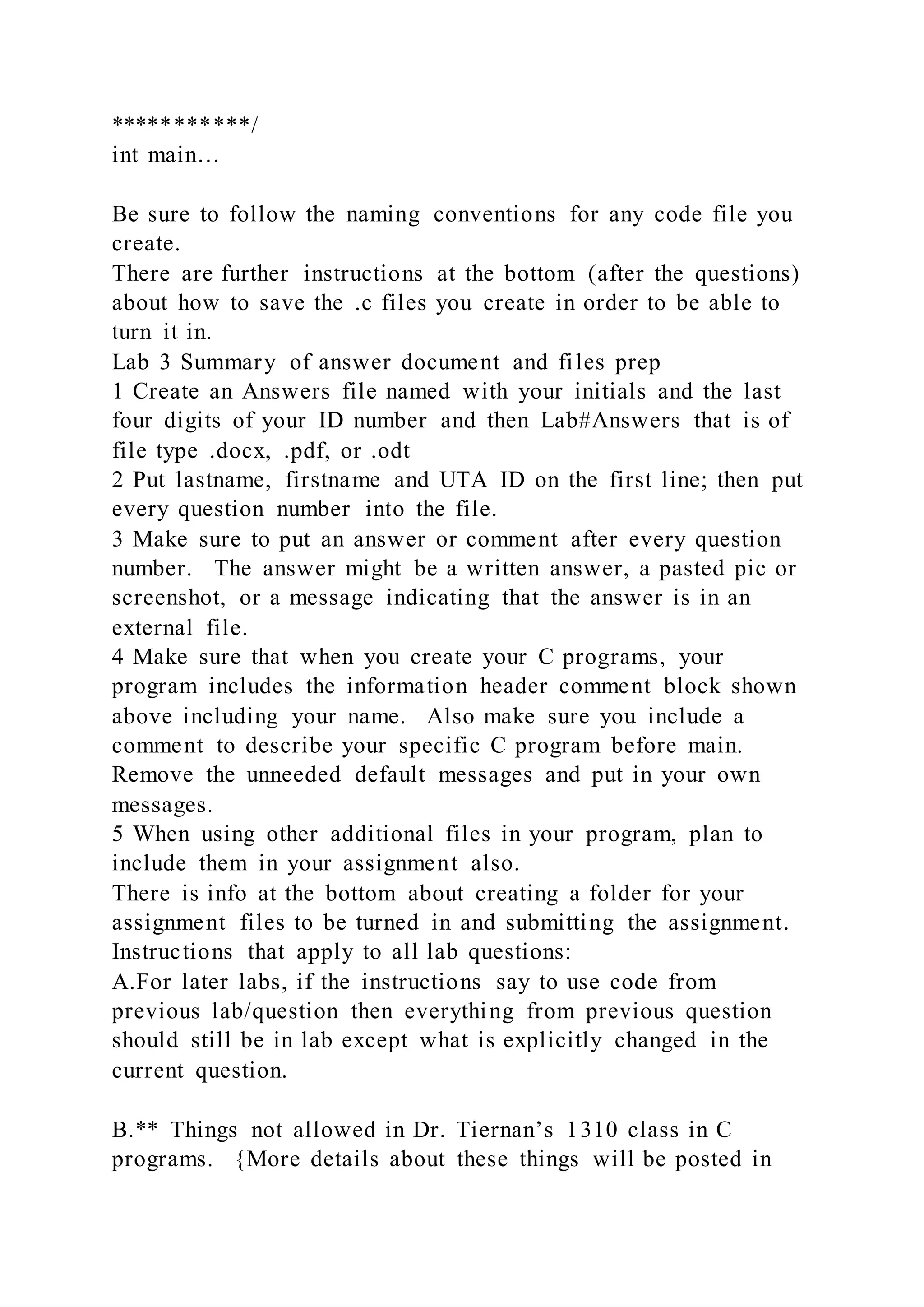

int main…
Be sure to follow the naming conventions for any code file you
create.
There are further instructions at the bottom (after the questions)
about how to save the .c files you create in order to be able to
turn it in.
Lab 3 Summary of answer document and files prep
1 Create an Answers file named with your initials and the last
four digits of your ID number and then Lab#Answers that is of
file type .docx, .pdf, or .odt
2 Put lastname, firstname and UTA ID on the first line; then put
every question number into the file.
3 Make sure to put an answer or comment after every question
number. The answer might be a written answer, a pasted pic or
screenshot, or a message indicating that the answer is in an
external file.
4 Make sure that when you create your C programs, your
program includes the information header comment block shown
above including your name. Also make sure you include a
comment to describe your specific C program before main.
Remove the unneeded default messages and put in your own
messages.
5 When using other additional files in your program, plan to
include them in your assignment also.
There is info at the bottom about creating a folder for your
assignment files to be turned in and submitting the assignment.
Instructions that apply to all lab questions:
A.For later labs, if the instructions say to use code from
previous lab/question then everything from previous question
should still be in lab except what is explicitly changed in the
current question.

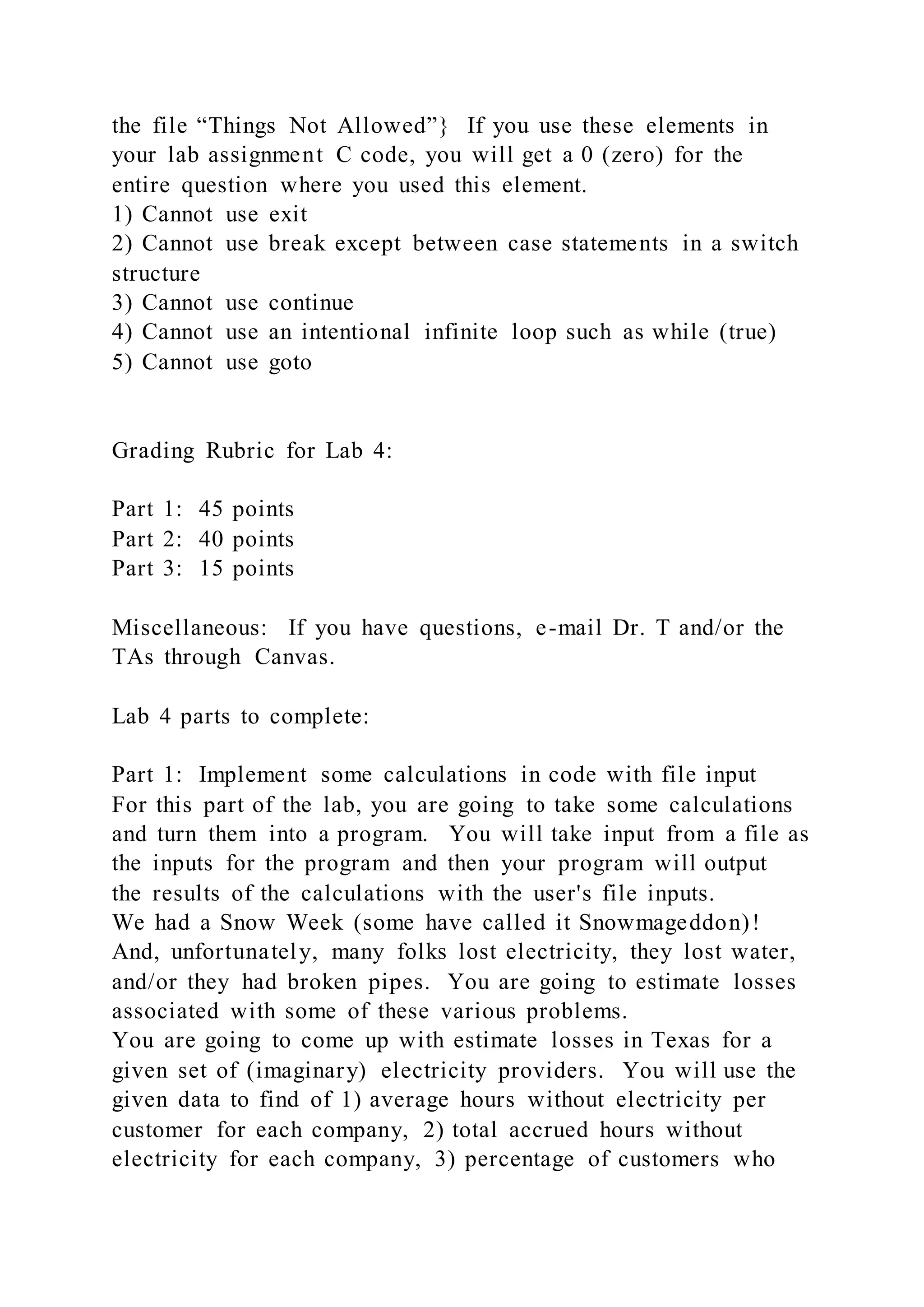

B.** Things not allowed in Dr. Tiernan’s 1310 class in C
programs. {More details about these things will be posted in

the file “Things Not Allowed”} If you use these elements in
your lab assignment C code, you will get a 0 (zero) for the
entire question where you used this element.
1) Cannot use exit
2) Cannot use break except between case statements in a switch
structure
3) Cannot use continue
4) Cannot use an intentional infinite loop such as while (true)
5) Cannot use goto
Grading Rubric for Lab 4:
Part 1: 45 points
Part 2: 40 points
Part 3: 15 points
Miscellaneous: If you have questions, e-mail Dr. T and/or the
TAs through Canvas.
Lab 4 parts to complete:
Part 1: Implement some calculations in code with file input
For this part of the lab, you are going to take some calculations
and turn them into a program. You will take input from a file as
the inputs for the program and then your program will output
the results of the calculations with the user's file inputs.
We had a Snow Week (some have called it Snowmageddon)!
And, unfortunately, many folks lost electricity, they lost water,
and/or they had broken pipes. You are going to estimate losses
associated with some of these various problems.
You are going to come up with estimate losses in Texas for a
given set of (imaginary) electricity providers. You will use the

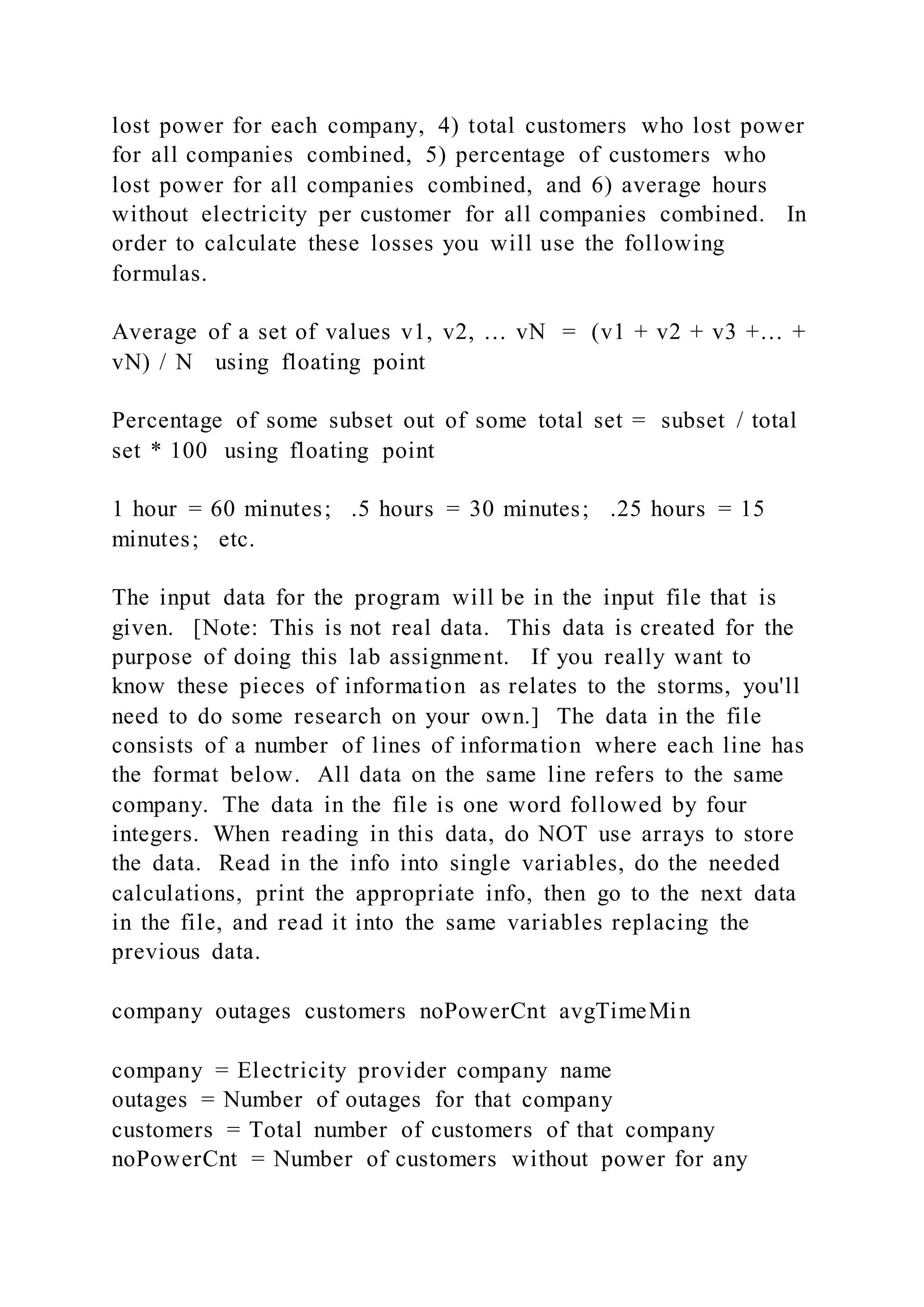

given data to find of 1) average hours without electricity per
customer for each company, 2) total accrued hours without
electricity for each company, 3) percentage of customers who

lost power for each company, 4) total customers who lost power
for all companies combined, 5) percentage of customers who
lost power for all companies combined, and 6) average hours
without electricity per customer for all companies combined. In
order to calculate these losses you will use the following
formulas.
Average of a set of values v1, v2, … vN = (v1 + v2 + v3 +… +
vN) / N using floating point
Percentage of some subset out of some total set = subset / total
set * 100 using floating point
1 hour = 60 minutes; .5 hours = 30 minutes; .25 hours = 15
minutes; etc.
The input data for the program will be in the input file that is
given. [Note: This is not real data. This data is created for the
purpose of doing this lab assignment. If you really want to
know these pieces of information as relates to the storms, you'll
need to do some research on your own.] The data in the file
consists of a number of lines of information where each line has
the format below. All data on the same line refers to the same
company. The data in the file is one word followed by four
integers. When reading in this data, do NOT use arrays to store
the data. Read in the info into single variables, do the needed
calculations, print the appropriate info, then go to the next data
in the file, and read it into the same variables replacing the
previous data.
company outages customers noPowerCnt avgTimeMin
company = Electricity provider company name
outages = Number of outages for that company
customers = Total number of customers of that company
noPowerCnt = Number of customers without power for any

unplanned length of time
avgNoPowerMin = Average length in minutes of an unplanned
power outage

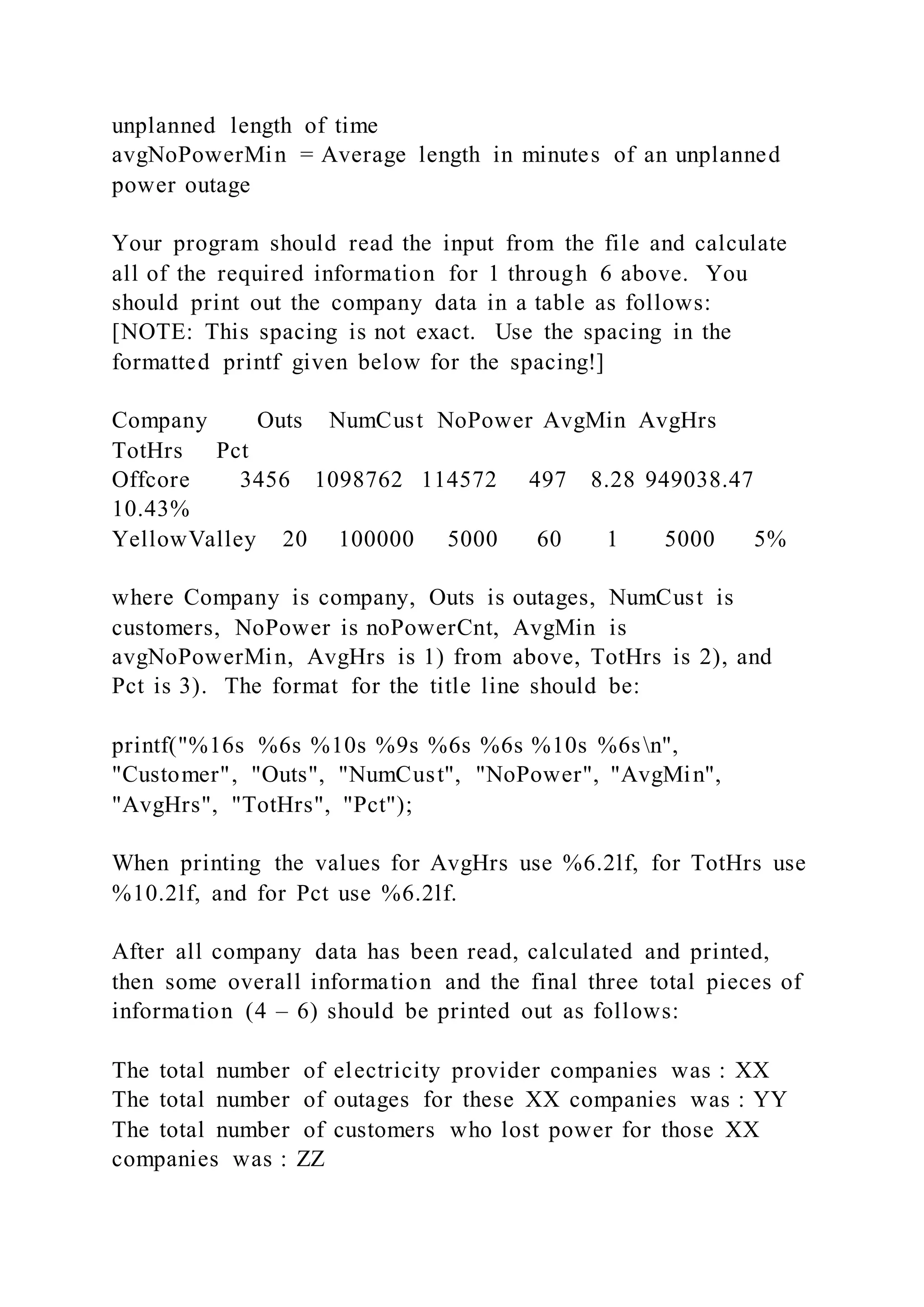

Your program should read the input from the file and calculate
all of the required information for 1 through 6 above. You
should print out the company data in a table as follows:
[NOTE: This spacing is not exact. Use the spacing in the
formatted printf given below for the spacing!]
Company Outs NumCust NoPower AvgMin AvgHrs
TotHrs Pct
Offcore 3456 1098762 114572 497 8.28 949038.47
10.43%
YellowValley 20 100000 5000 60 1 5000 5%
where Company is company, Outs is outages, NumCust is
customers, NoPower is noPowerCnt, AvgMin is
avgNoPowerMin, AvgHrs is 1) from above, TotHrs is 2), and
Pct is 3). The format for the title line should be:
printf("%16s %6s %10s %9s %6s %6s %10s %6sn",
"Customer", "Outs", "NumCust", "NoPower", "AvgMin",
"AvgHrs", "TotHrs", "Pct");
When printing the values for AvgHrs use %6.2lf, for TotHrs use
%10.2lf, and for Pct use %6.2lf.
After all company data has been read, calculated and printed,
then some overall information and the final three total pieces of
information (4 – 6) should be printed out as follows:
The total number of electricity provider companies was : XX
The total number of outages for these XX companies was : YY
The total number of customers who lost power for those XX
companies was : ZZ

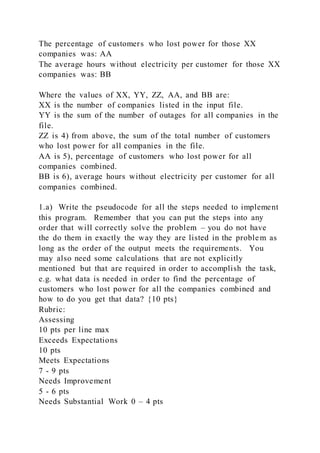

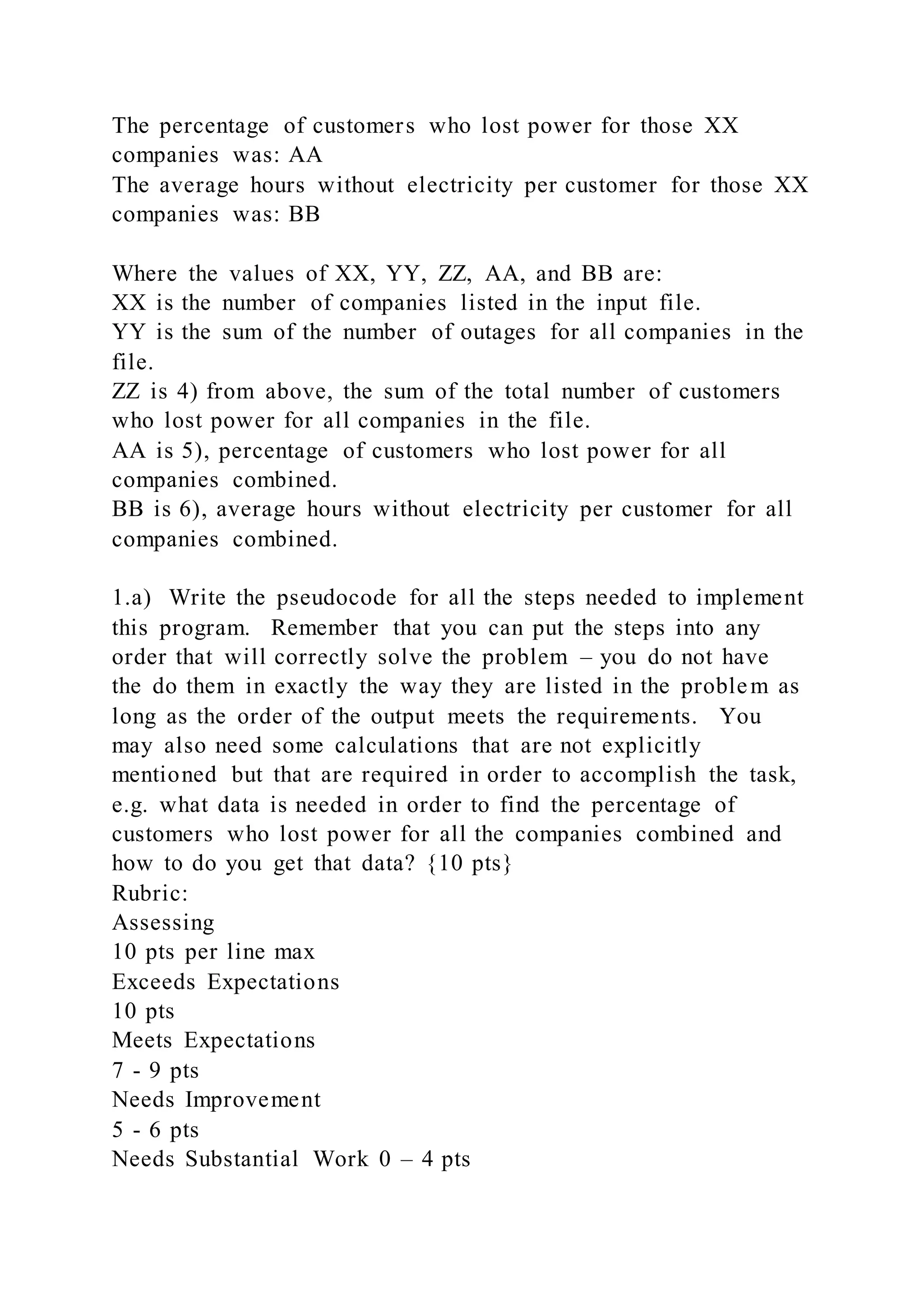

The percentage of customers who lost power for those XX
companies was: AA
The average hours without electricity per customer for those XX
companies was: BB
Where the values of XX, YY, ZZ, AA, and BB are:
XX is the number of companies listed in the input file.
YY is the sum of the number of outages for all companies in the
file.
ZZ is 4) from above, the sum of the total number of customers
who lost power for all companies in the file.
AA is 5), percentage of customers who lost power for all
companies combined.
BB is 6), average hours without electricity per customer for all
companies combined.
1.a) Write the pseudocode for all the steps needed to implement
this program. Remember that you can put the steps into any
order that will correctly solve the problem – you do not have
the do them in exactly the way they are listed in the problem as
long as the order of the output meets the requirements. You
may also need some calculations that are not explicitly
mentioned but that are required in order to accomplish the task,
e.g. what data is needed in order to find the percentage of
customers who lost power for all the companies combined and
how to do you get that data? {10 pts}
Rubric:
Assessing
10 pts per line max
Exceeds Expectations
10 pts
Meets Expectations
7 - 9 pts
Needs Improvement
5 - 6 pts
Needs Substantial Work 0 – 4 pts

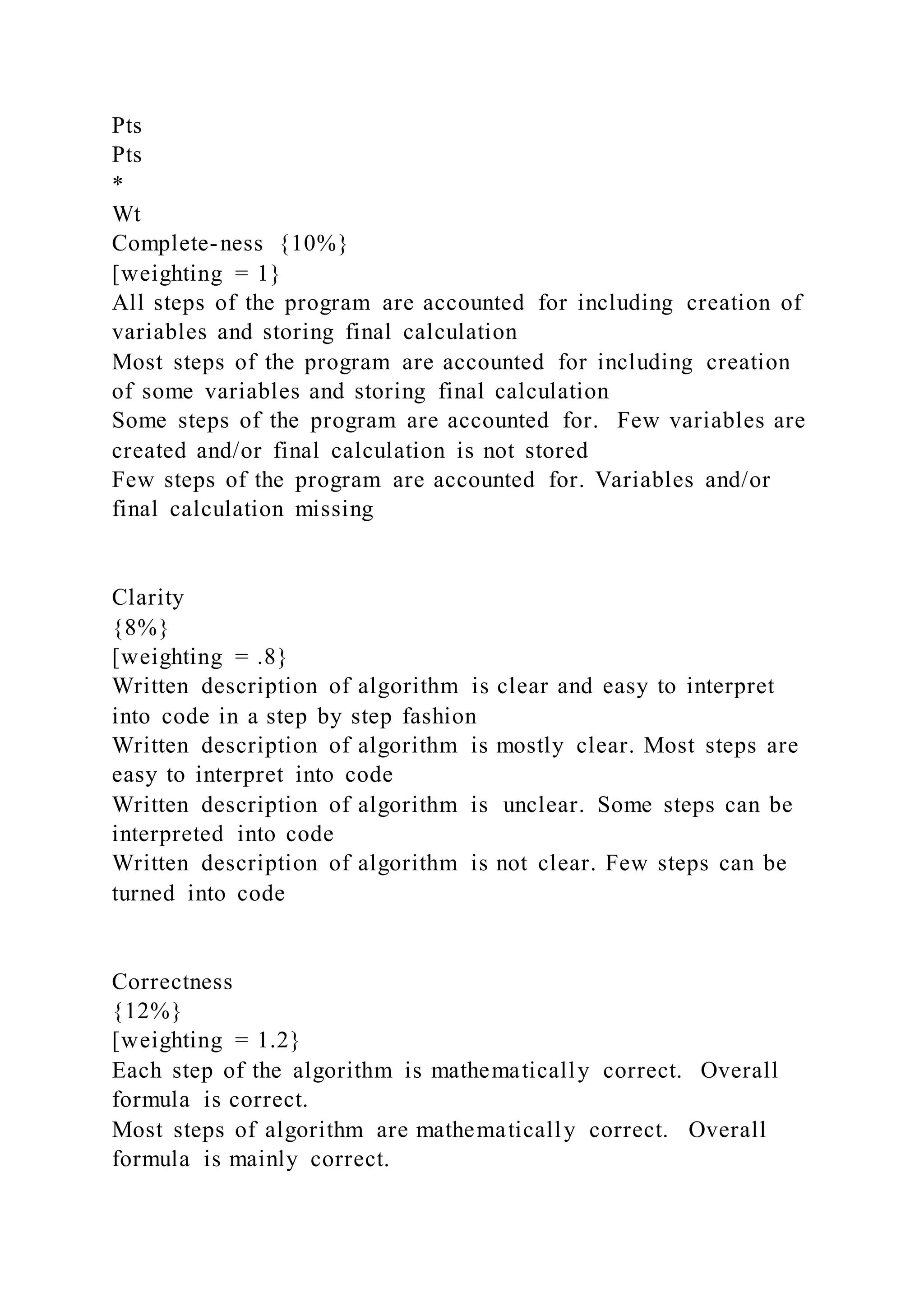

Pts
Pts
*
Wt
Complete-ness {10%}
[weighting = 1}
All steps of the program are accounted for including creation of
variables and storing final calculation
Most steps of the program are accounted for including creation
of some variables and storing final calculation
Some steps of the program are accounted for. Few variables are
created and/or final calculation is not stored
Few steps of the program are accounted for. Variables and/or
final calculation missing
Clarity
{8%}
[weighting = .8}
Written description of algorithm is clear and easy to interpret
into code in a step by step fashion
Written description of algorithm is mostly clear. Most steps are
easy to interpret into code
Written description of algorithm is unclear. Some steps can be
interpreted into code
Written description of algorithm is not clear. Few steps can be
turned into code
Correctness
{12%}
[weighting = 1.2}
Each step of the algorithm is mathematically correct. Overall
formula is correct.
Most steps of algorithm are mathematically correct. Overall
formula is mainly correct.

Some steps of algorithm are mathematically incorrect. Overall
formula is close but not correct.
Most steps of algorithm are mathematically incorrect. Overall
formula is not correct.

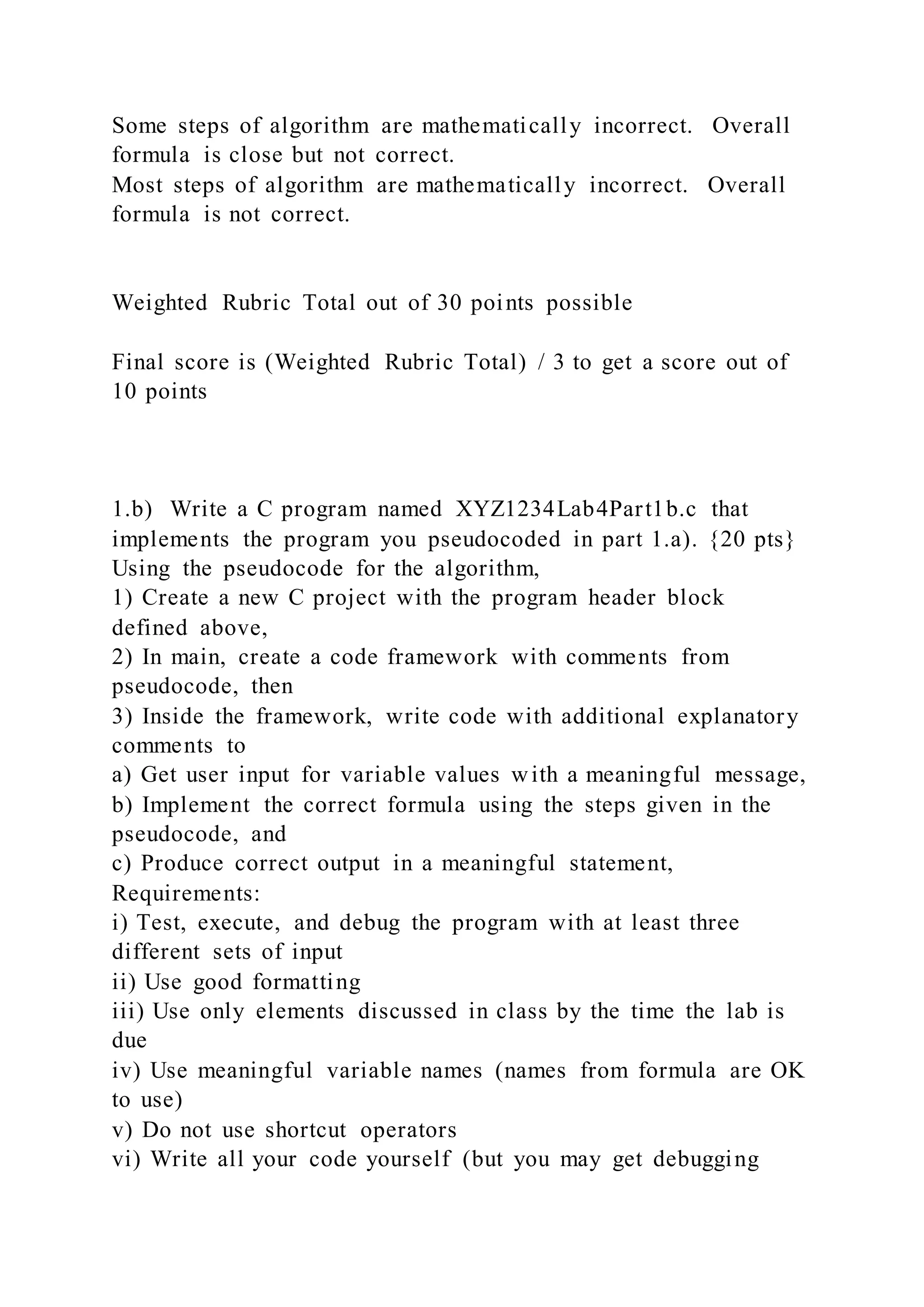

Weighted Rubric Total out of 30 points possible
Final score is (Weighted Rubric Total) / 3 to get a score out of
10 points
1.b) Write a C program named XYZ1234Lab4Part1b.c that
implements the program you pseudocoded in part 1.a). {20 pts}
Using the pseudocode for the algorithm,
1) Create a new C project with the program header block
defined above,
2) In main, create a code framework with comments from
pseudocode, then
3) Inside the framework, write code with additional explanatory
comments to
a) Get user input for variable values with a meaningful message,
b) Implement the correct formula using the steps given in the
pseudocode, and
c) Produce correct output in a meaningful statement,
Requirements:
i) Test, execute, and debug the program with at least three
different sets of input
ii) Use good formatting
iii) Use only elements discussed in class by the time the lab is
due
iv) Use meaningful variable names (names from formula are OK
to use)
v) Do not use shortcut operators
vi) Write all your code yourself (but you may get debugging

help from others)

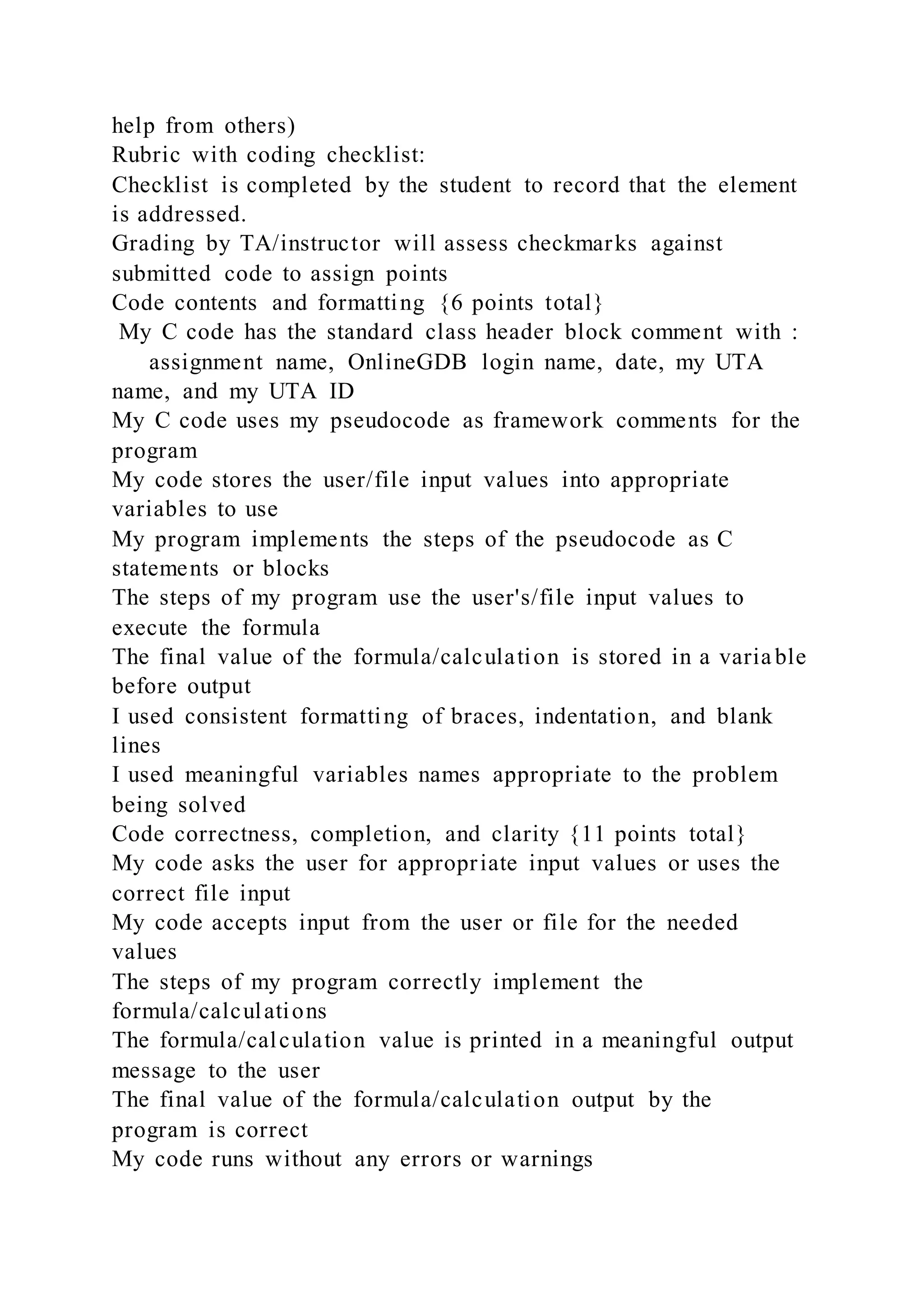

Rubric with coding checklist:
Checklist is completed by the student to record that the element
is addressed.
Grading by TA/instructor will assess checkmarks against
submitted code to assign points
Code contents and formatting {6 points total}
My C code has the standard class header block comment with :
assignment name, OnlineGDB login name, date, my UTA
name, and my UTA ID
My C code uses my pseudocode as framework comments for the
program
My code stores the user/file input values into appropriate
variables to use
My program implements the steps of the pseudocode as C
statements or blocks
The steps of my program use the user's/file input values to
execute the formula
The final value of the formula/calculation is stored in a varia ble
before output
I used consistent formatting of braces, indentation, and blank
lines
I used meaningful variables names appropriate to the problem
being solved
Code correctness, completion, and clarity {11 points total}
My code asks the user for appropriate input values or uses the
correct file input
My code accepts input from the user or file for the needed
values
The steps of my program correctly implement the
formula/calculations
The formula/calculation value is printed in a meaningful output
message to the user
The final value of the formula/calculation output by the
program is correct
My code runs without any errors or warnings

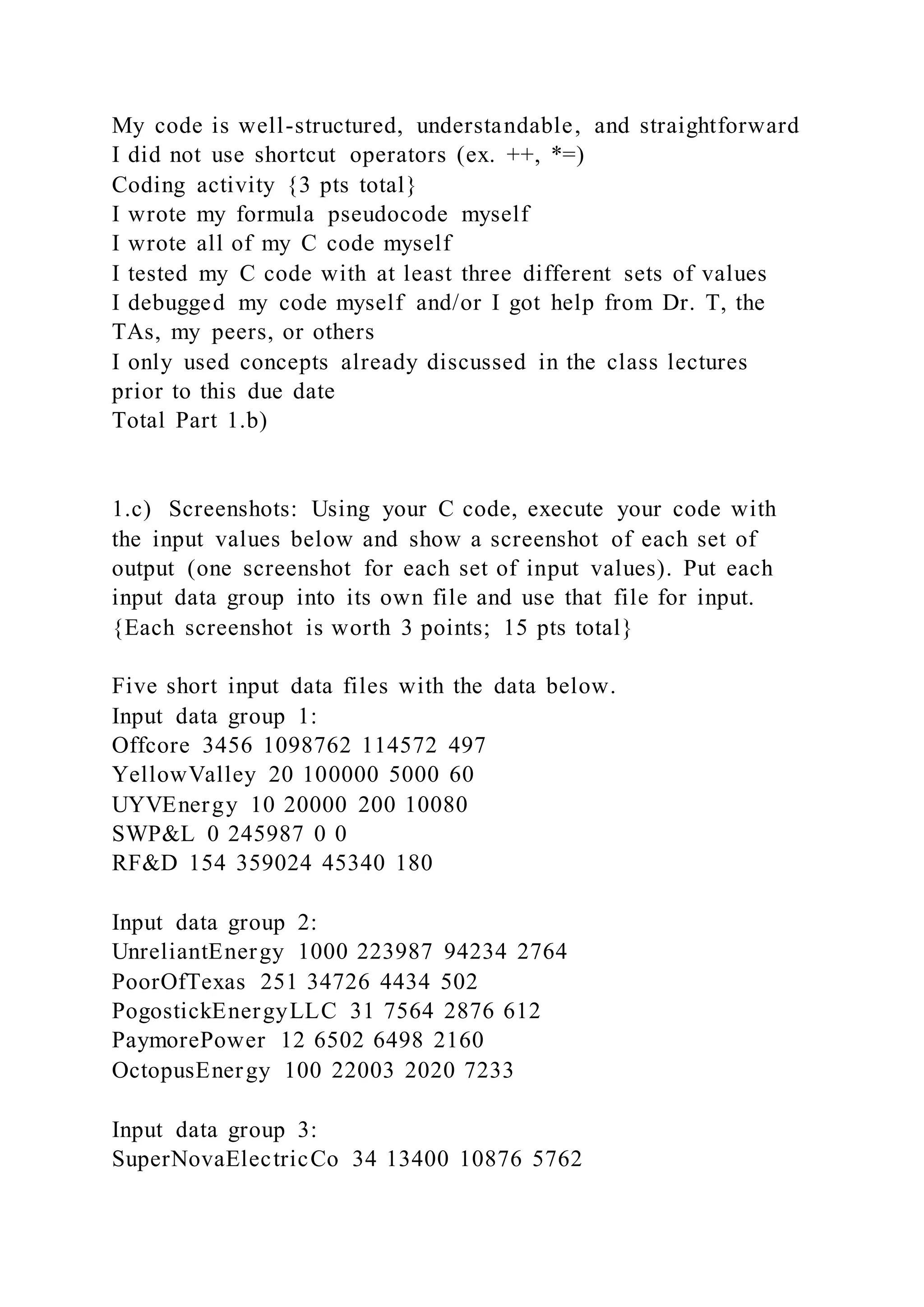

My code is well-structured, understandable, and straightforward
I did not use shortcut operators (ex. ++, *=)
Coding activity {3 pts total}
I wrote my formula pseudocode myself
I wrote all of my C code myself
I tested my C code with at least three different sets of values
I debugged my code myself and/or I got help from Dr. T, the
TAs, my peers, or others
I only used concepts already discussed in the class lectures
prior to this due date
Total Part 1.b)
1.c) Screenshots: Using your C code, execute your code with
the input values below and show a screenshot of each set of
output (one screenshot for each set of input values). Put each
input data group into its own file and use that file for input.
{Each screenshot is worth 3 points; 15 pts total}
Five short input data files with the data below.
Input data group 1:
Offcore 3456 1098762 114572 497
YellowValley 20 100000 5000 60
UYVEnergy 10 20000 200 10080
SWP&L 0 245987 0 0
RF&D 154 359024 45340 180
Input data group 2:
UnreliantEnergy 1000 223987 94234 2764
PoorOfTexas 251 34726 4434 502
PogostickEnergyLLC 31 7564 2876 612
PaymorePower 12 6502 6498 2160
OctopusEnergy 100 22003 2020 7233
Input data group 3:
SuperNovaElectricCo 34 13400 10876 5762

DeadLeafEnergy 11 7835 954 4441
MyQuestionEnergy 2984 992345 873234 248
LonelySparkleEnergy 23 10943 1354 5897
IberdrolaPotionsLLC 10 35087 7432 127
Input data group 4:
LumiereEnergyLLC 904 3267882 763532 1578
GexaLethargy 45 100435 98342 4320
ExpensivepointEnergy
Solution
sLLC 87 23667 6978 123
EnergyMonsterLLC 231 92456 52865 877
Dynosaurwatt 63 345612 296134 500
Input data group 5:
ConstellationNoenergyInc 63 98732 83452 634
DimBulbUSLLC 1928 349876 317635 2340
EnemigoEnergy 84 29765 24976 478
NoTexPower&Light 756 908734 745234 1675
EntropyEnergy 102 53423 4329 2564
Part 2: Modify some code and add functionality with arrays and
functions

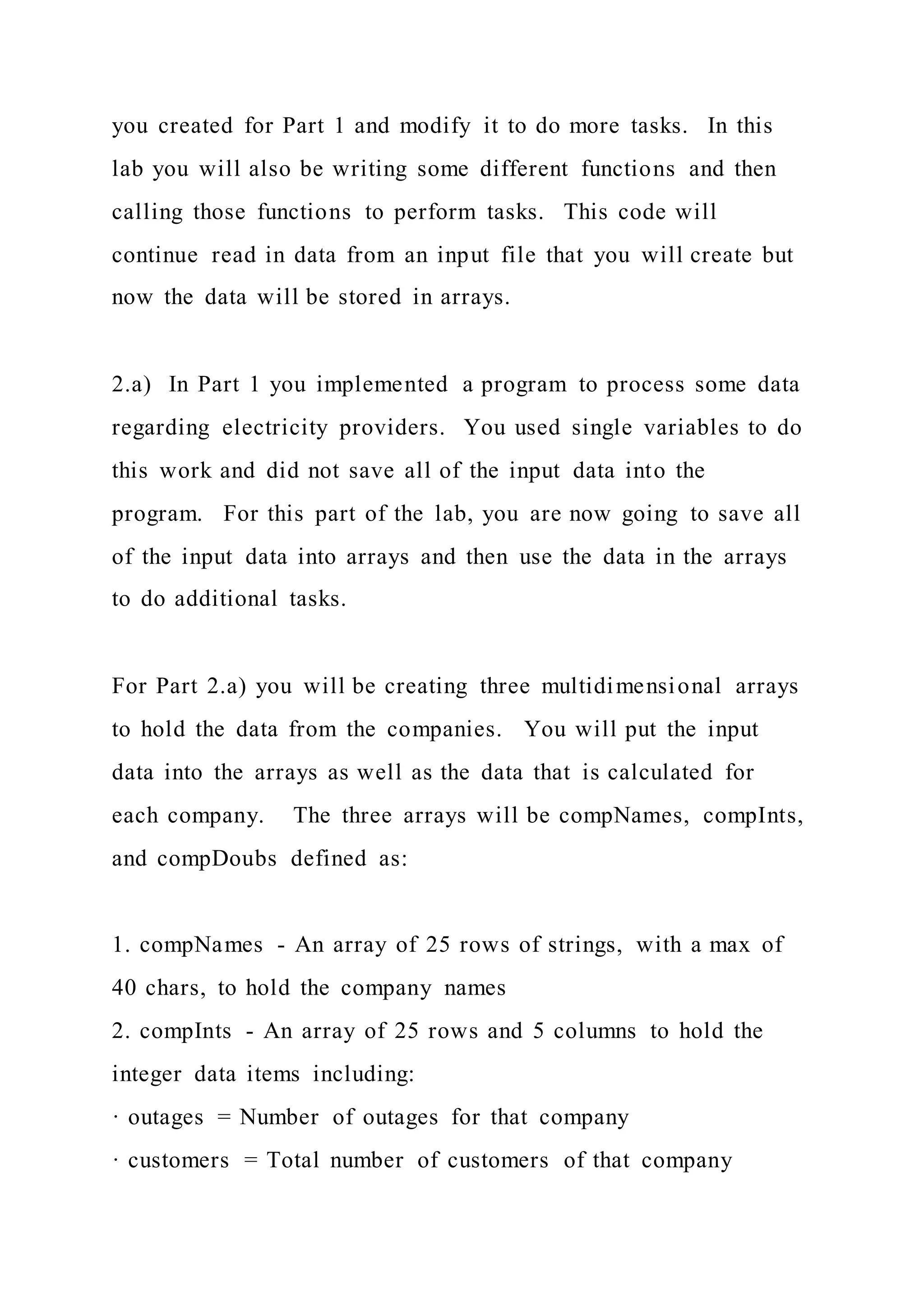

For this part of the lab assignment you are going to use the code

you created for Part 1 and modify it to do more tasks. In this
lab you will also be writing some different functions and then
calling those functions to perform tasks. This code will
continue read in data from an input file that you will create but
now the data will be stored in arrays.
2.a) In Part 1 you implemented a program to process some data
regarding electricity providers. You used single variables to do
this work and did not save all of the input data into the
program. For this part of the lab, you are now going to save all
of the input data into arrays and then use the data in the arrays
to do additional tasks.
For Part 2.a) you will be creating three multidimensional arrays
to hold the data from the companies. You will put the input
data into the arrays as well as the data that is calculated for
each company. The three arrays will be compNames, compInts,
and compDoubs defined as:
1. compNames - An array of 25 rows of strings, with a max of
40 chars, to hold the company names
2. compInts - An array of 25 rows and 5 columns to hold the
integer data items including:
· outages = Number of outages for that company
· customers = Total number of customers of that company

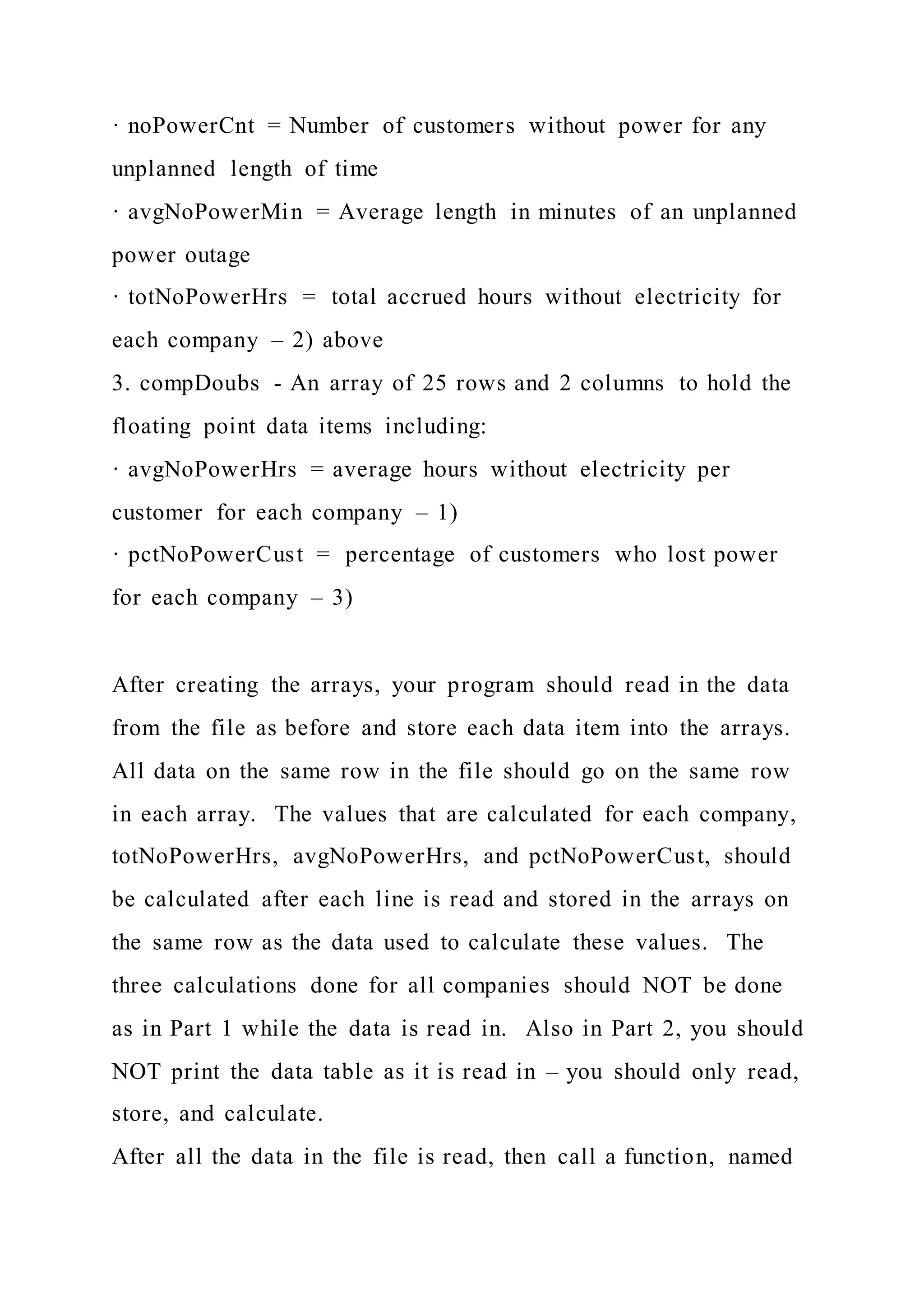

· noPowerCnt = Number of customers without power for any
unplanned length of time
· avgNoPowerMin = Average length in minutes of an unplanned
power outage
· totNoPowerHrs = total accrued hours without electricity for
each company – 2) above
3. compDoubs - An array of 25 rows and 2 columns to hold the
floating point data items including:
· avgNoPowerHrs = average hours without electricity per
customer for each company – 1)
· pctNoPowerCust = percentage of customers who lost power
for each company – 3)
After creating the arrays, your program should read in the data
from the file as before and store each data item into the arrays.
All data on the same row in the file should go on the same row
in each array. The values that are calculated for each company,
totNoPowerHrs, avgNoPowerHrs, and pctNoPowerCust, should
be calculated after each line is read and stored in the arrays on
the same row as the data used to calculate these values. The
three calculations done for all companies should NOT be done
as in Part 1 while the data is read in. Also in Part 2, you should
NOT print the data table as it is read in – you should only read,
store, and calculate.

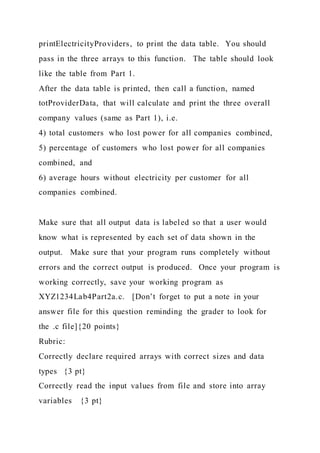

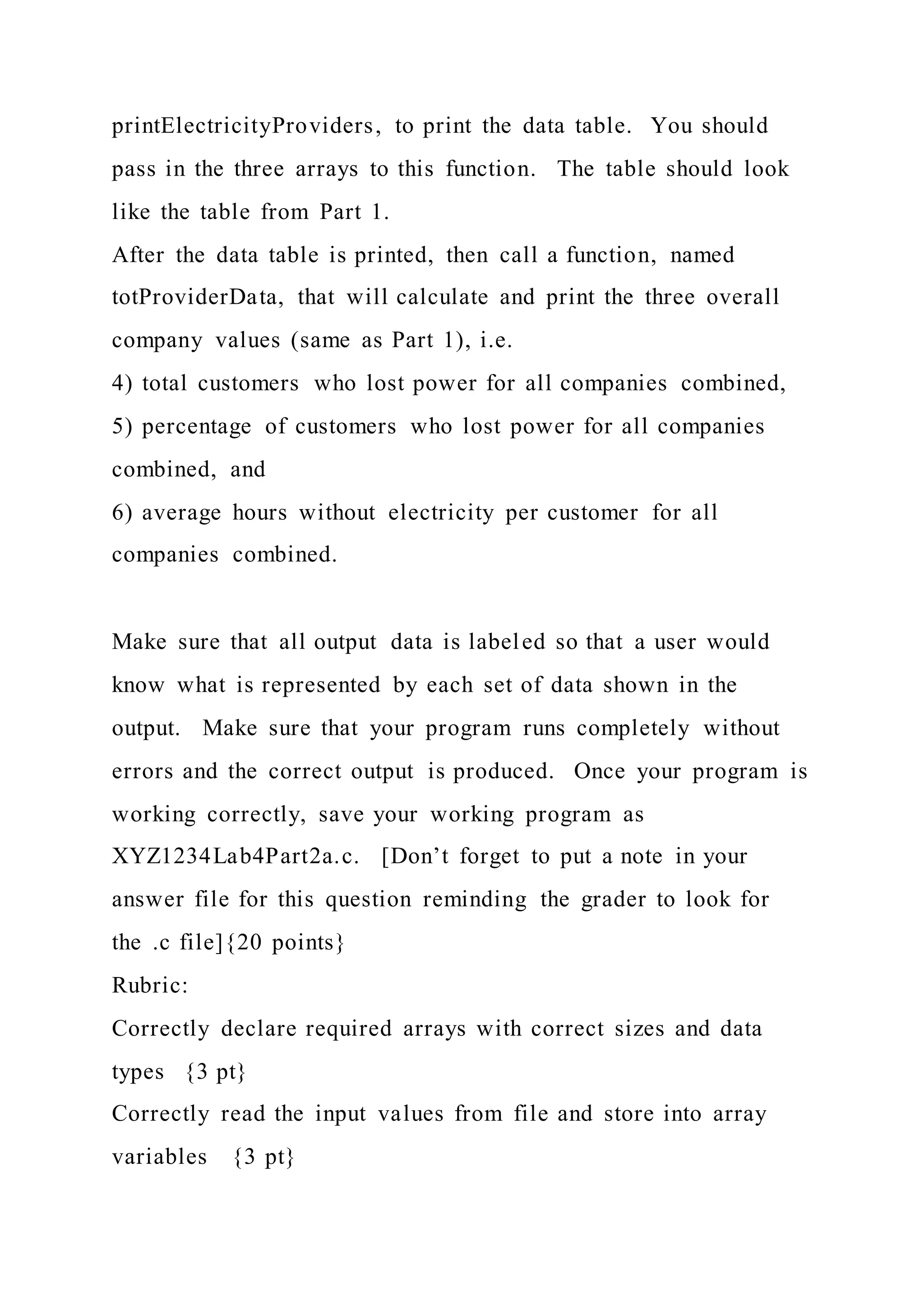

After all the data in the file is read, then call a function, named

printElectricityProviders, to print the data table. You should
pass in the three arrays to this function. The table should look
like the table from Part 1.
After the data table is printed, then call a function, named
totProviderData, that will calculate and print the three overall
company values (same as Part 1), i.e.
4) total customers who lost power for all companies combined,
5) percentage of customers who lost power for all companies
combined, and
6) average hours without electricity per customer for all
companies combined.
Make sure that all output data is labeled so that a user would
know what is represented by each set of data shown in the
output. Make sure that your program runs completely without
errors and the correct output is produced. Once your program is
working correctly, save your working program as
XYZ1234Lab4Part2a.c. [Don’t forget to put a note in your
answer file for this question reminding the grader to look for
the .c file]{20 points}
Rubric:
Correctly declare required arrays with correct sizes and data
types {3 pt}
Correctly read the input values from file and store into array
variables {3 pt}

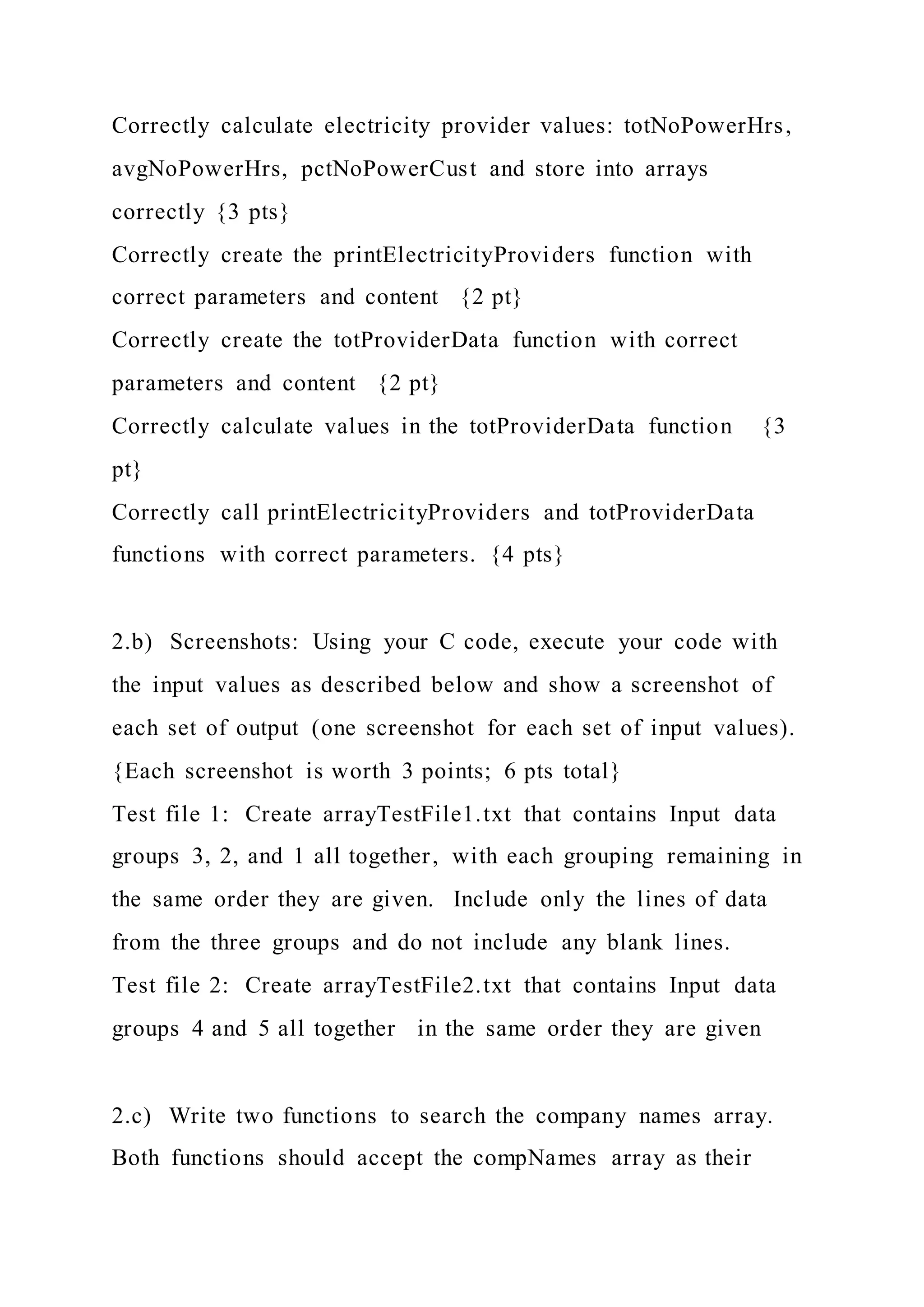

Correctly calculate electricity provider values: totNoPowerHrs,
avgNoPowerHrs, pctNoPowerCust and store into arrays
correctly {3 pts}
Correctly create the printElectricityProviders function with
correct parameters and content {2 pt}
Correctly create the totProviderData function with correct
parameters and content {2 pt}
Correctly calculate values in the totProviderData function {3
pt}
Correctly call printElectricityProviders and totProviderData
functions with correct parameters. {4 pts}
2.b) Screenshots: Using your C code, execute your code with
the input values as described below and show a screenshot of
each set of output (one screenshot for each set of input values).
{Each screenshot is worth 3 points; 6 pts total}
Test file 1: Create arrayTestFile1.txt that contains Input data
groups 3, 2, and 1 all together, with each grouping remaining in
the same order they are given. Include only the lines of data
from the three groups and do not include any blank lines.
Test file 2: Create arrayTestFile2.txt that contains Input data
groups 4 and 5 all together in the same order they are given

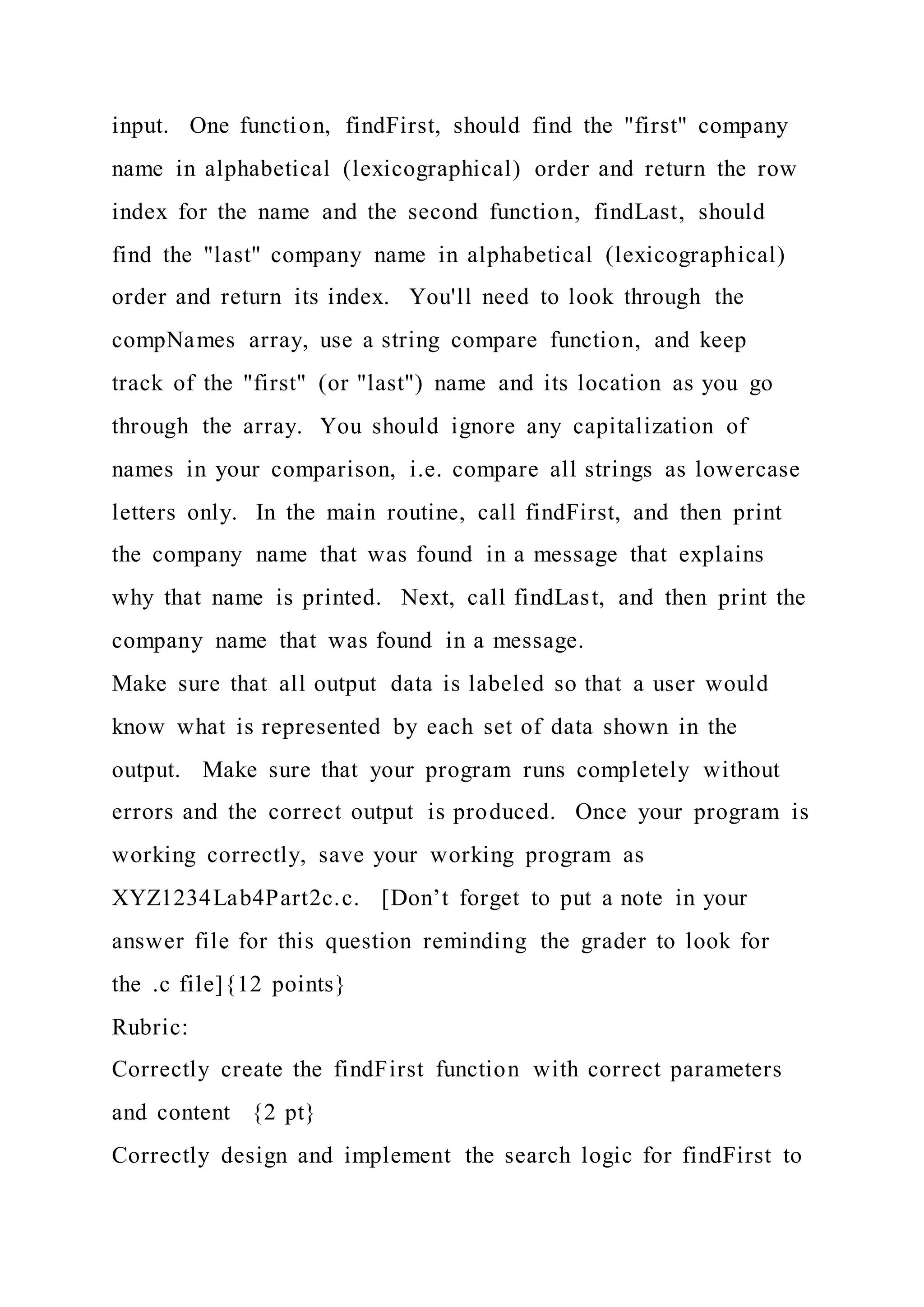

2.c) Write two functions to search the company names array.
Both functions should accept the compNames array as their

input. One function, findFirst, should find the "first" company
name in alphabetical (lexicographical) order and return the row
index for the name and the second function, findLast, should
find the "last" company name in alphabetical (lexicographical)
order and return its index. You'll need to look through the
compNames array, use a string compare function, and keep
track of the "first" (or "last") name and its location as you go
through the array. You should ignore any capitalization of
names in your comparison, i.e. compare all strings as lowercase
letters only. In the main routine, call findFirst, and then print
the company name that was found in a message that explains
why that name is printed. Next, call findLast, and then print the
company name that was found in a message.
XYZ1234Lab4Part2c.c. [Don’t forget to put a note in your
Rubric:
Correctly create the findFirst function with correct parameters
and content {2 pt}

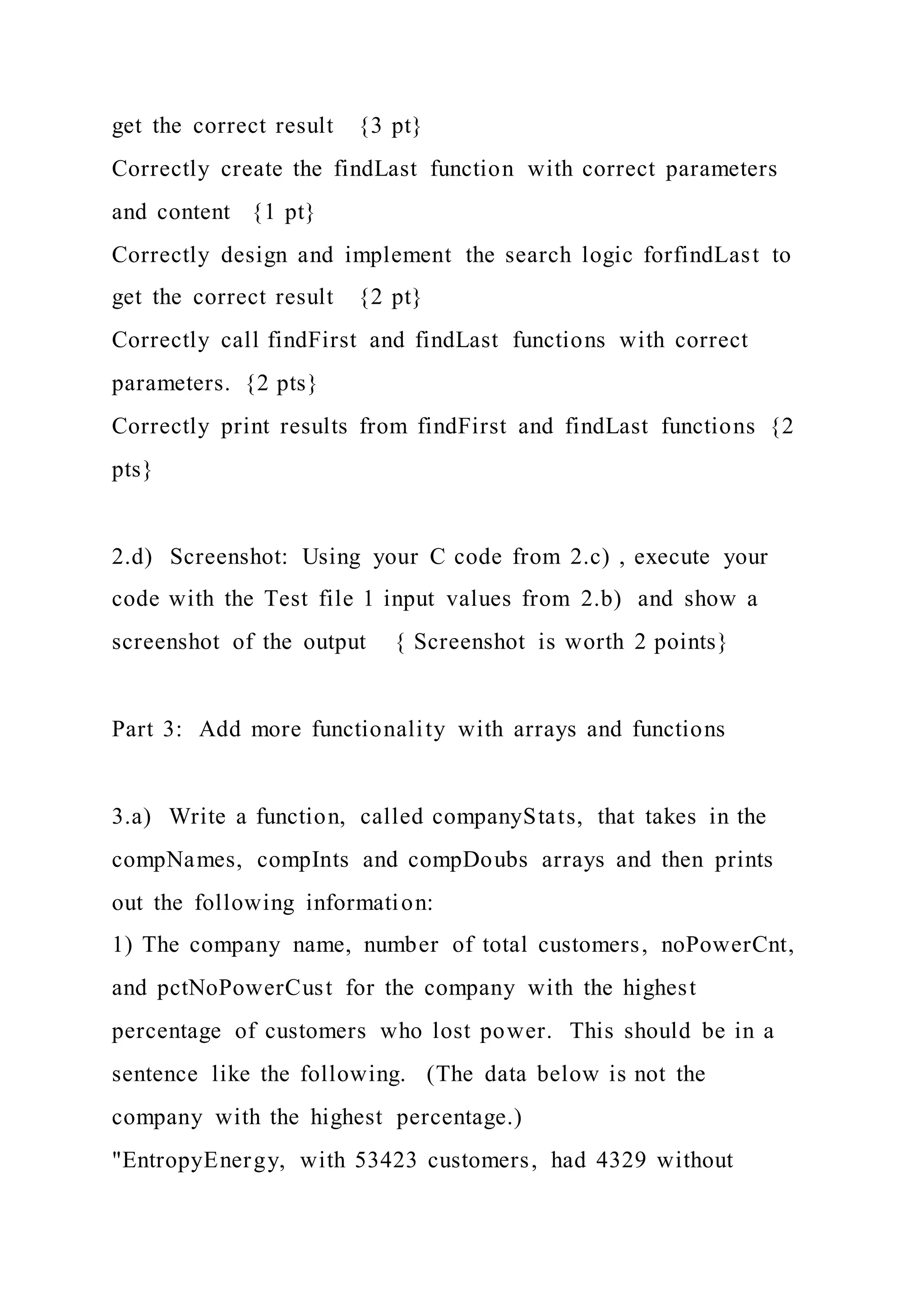

Correctly design and implement the search logic for findFirst to

get the correct result {3 pt}
Correctly create the findLast function with correct parameters
and content {1 pt}
Correctly design and implement the search logic forfindLast to
get the correct result {2 pt}
Correctly call findFirst and findLast functions with correct
parameters. {2 pts}
Correctly print results from findFirst and findLast functions {2
pts}
2.d) Screenshot: Using your C code from 2.c) , execute your
code with the Test file 1 input values from 2.b) and show a
screenshot of the output { Screenshot is worth 2 points}
Part 3: Add more functionality with arrays and functions
3.a) Write a function, called companyStats, that takes in the
compNames, compInts and compDoubs arrays and then prints
out the following information:
1) The company name, number of total customers, noPowerCnt,
and pctNoPowerCust for the company with the highest
percentage of customers who lost power. This should be in a
sentence like the following. (The data below is not the
company with the highest percentage.)
"EntropyEnergy, with 53423 customers, had 4329 without

power or 8% of its customers."

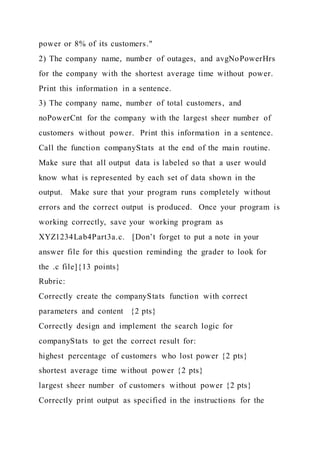

2) The company name, number of outages, and avgNoPowerHrs
for the company with the shortest average time without power.
Print this information in a sentence.
3) The company name, number of total customers, and
noPowerCnt for the company with the largest sheer number of
customers without power. Print this information in a sentence.
Call the function companyStats at the end of the main routine.
XYZ1234Lab4Part3a.c. [Don’t forget to put a note in your
Rubric:
Correctly create the companyStats function with correct
parameters and content {2 pts}
Correctly design and implement the search logic for
companyStats to get the correct result for:
highest percentage of customers who lost power {2 pts}
shortest average time without power {2 pts}
largest sheer number of customers without power {2 pts}
Correctly print output as specified in the instructions for the

three results above {3 pts}
Correctly call companyStats functions with correct parameters.
{2 pts}

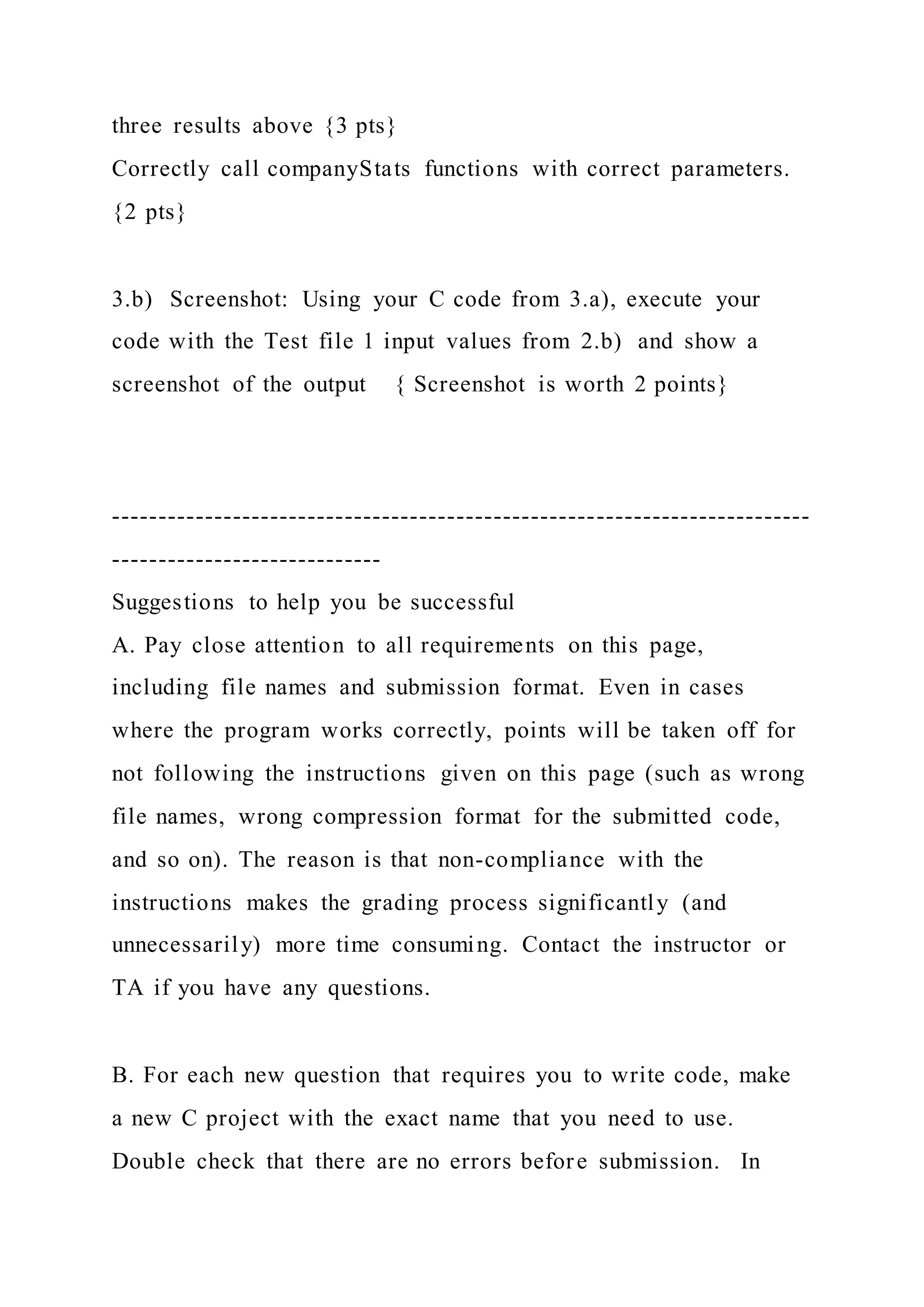

3.b) Screenshot: Using your C code from 3.a), execute your
code with the Test file 1 input values from 2.b) and show a
screenshot of the output { Screenshot is worth 2 points}
---------------------------------------------------------------------------
-----------------------------
Suggestions to help you be successful
A. Pay close attention to all requirements on this page,
including file names and submission format. Even in cases
where the program works correctly, points will be taken off for
not following the instructions given on this page (such as wrong
file names, wrong compression format for the submitted code,
and so on). The reason is that non-compliance with the
instructions makes the grading process significantly (and
unnecessarily) more time consuming. Contact the instructor or
TA if you have any questions.

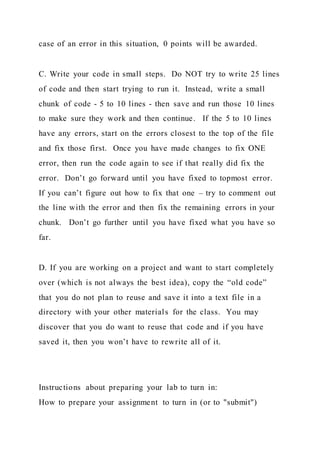

B. For each new question that requires you to write code, make
a new C project with the exact name that you need to use.
Double check that there are no errors before submission. In

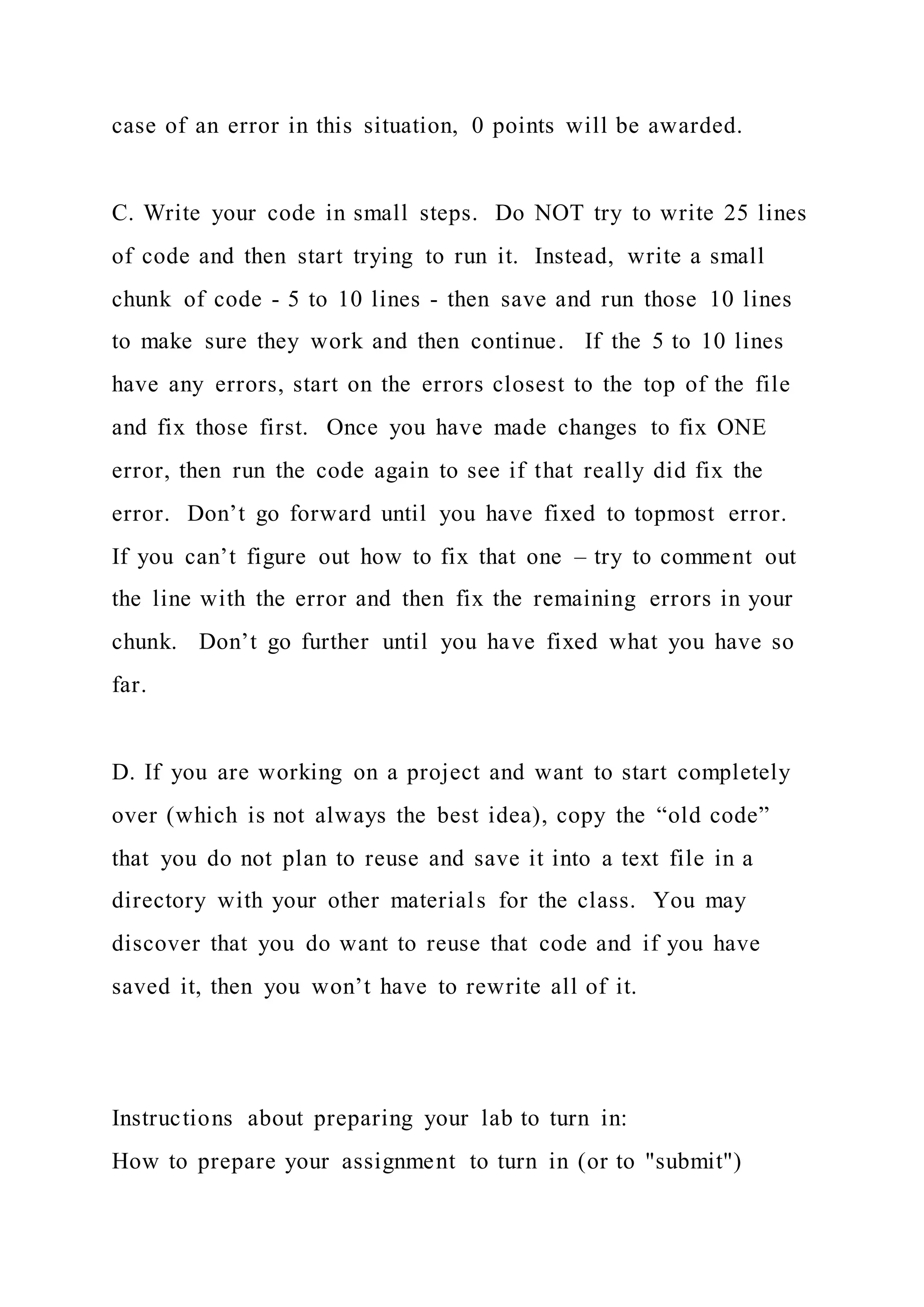

case of an error in this situation, 0 points will be awarded.
C. Write your code in small steps. Do NOT try to write 25 lines
of code and then start trying to run it. Instead, write a small
chunk of code - 5 to 10 lines - then save and run those 10 lines
to make sure they work and then continue. If the 5 to 10 lines
have any errors, start on the errors closest to the top of the file
and fix those first. Once you have made changes to fix ONE
error, then run the code again to see if that really did fix the
error. Don’t go forward until you have fixed to topmost error.
If you can’t figure out how to fix that one – try to comment out
the line with the error and then fix the remaining errors in your
chunk. Don’t go further until you have fixed what you have so
far.
D. If you are working on a project and want to start completely
over (which is not always the best idea), copy the “old code”
that you do not plan to reuse and save it into a text file in a
directory with your other materials for the class. You may
discover that you do want to reuse that code and if you have
saved it, then you won’t have to rewrite all of it.
Instructions about preparing your lab to turn in:
How to prepare your assignment to turn in (or to "submit")

Create a folder for your lab in your CSE 1310 class directory on
YOUR computer and name the lab folder with your initials,
your last 4 digits, and LabX. [If you don’t have your files
organized into folders, I STRONGLY suggest that you start
doing this. This is a way to sort the material you keep on your
computer and be able to find it later. Check the internet for
suggestions on how to do this type of organization.)
As an example, if your name is Happy Camper 1010101010,
then your Lab 1 folder name is HXC1010Lab1. Save your
HXC1010Lab1answers file in this folder. Next save all the .c
files from OnlineGDB for the assignment in the folder. Below
is how to do that. Once you have put all the needed .c files in
your folder, zip the folder to compress it before submitting it
(see info further down with submission details).
Saving .c files out of the IDE (OnlineGDB) [There are two
different ways to save the .c files]
First method – downloading the Project file and then unzipping
the files from the project folder
To download your C code from OnlineGDB you should go to
My Projects and then, for the project you need to download, use
the download button under the Actions label. When you click
the button, you'll get a typical download window. Save the .zip
file that is downloaded into the folder that you plan to submit

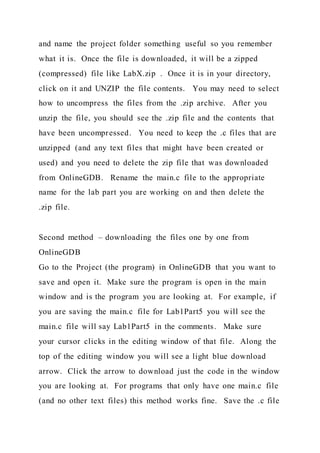

and name the project folder something useful so you remember
what it is. Once the file is downloaded, it will be a zipped
(compressed) file like LabX.zip . Once it is in your directory,
click on it and UNZIP the file contents. You may need to select
how to uncompress the files from the .zip archive. After you
unzip the file, you should see the .zip file and the contents that
have been uncompressed. You need to keep the .c files that are
unzipped (and any text files that might have been created or
used) and you need to delete the zip file that was downloaded
from OnlineGDB. Rename the main.c file to the appropriate
name for the lab part you are working on and then delete the
.zip file.
Second method – downloading the files one by one from
OnlineGDB
Go to the Project (the program) in OnlineGDB that you want to
save and open it. Make sure the program is open in the main
window and is the program you are looking at. For example, if
you are saving the main.c file for Lab1Part5 you will see the
main.c file will say Lab1Part5 in the comments. Make sure
your cursor clicks in the editing window of that file. Along the
top of the editing window you will see a light blue download
arrow. Click the arrow to download just the code in the window
you are looking at. For programs that only have one main.c file

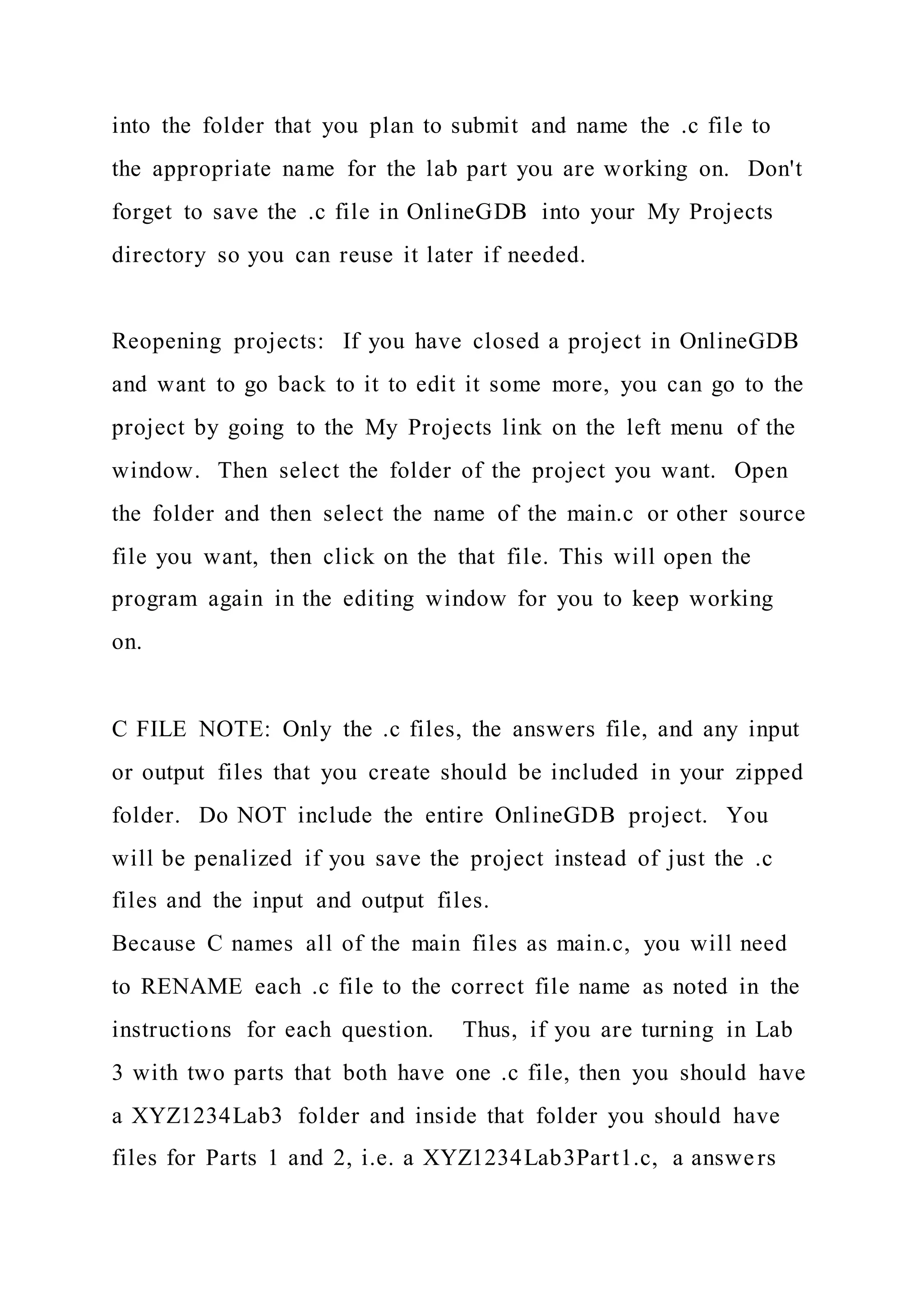

(and no other text files) this method works fine. Save the .c file

into the folder that you plan to submit and name the .c file to
the appropriate name for the lab part you are working on. Don't
forget to save the .c file in OnlineGDB into your My Projects
directory so you can reuse it later if needed.
Reopening projects: If you have closed a project in OnlineGDB
and want to go back to it to edit it some more, you can go to the
project by going to the My Projects link on the left menu of the
window. Then select the folder of the project you want. Open
the folder and then select the name of the main.c or other source
file you want, then click on the that file. This will open the
program again in the editing window for you to keep working
on.
C FILE NOTE: Only the .c files, the answers file, and any input
or output files that you create should be included in your zipped
folder. Do NOT include the entire OnlineGDB project. You
will be penalized if you save the project instead of just the .c
files and the input and output files.
Because C names all of the main files as main.c, you will need
to RENAME each .c file to the correct file name as noted in the
instructions for each question. Thus, if you are turning in Lab
3 with two parts that both have one .c file, then you should have
a XYZ1234Lab3 folder and inside that folder you should have
files for Parts 1 and 2, i.e. a XYZ1234Lab3Part1.c, a answers

document, and a XYZ1234Lab1Part2.c file.
How to submit [Same as Lab 2]
The assignment should be submitted via Canvas. Submit a
ZIPPED directory/folder called XYZ1234Lab1.zip. The file
must be ZIPped (not RAR). No other forms of compression
accepted. (Contact the instructor or TA if you do not know how
to produce .zip files). The zipped directory should contain your
answers document and all the C code files (task1.c etc).
To create a zipped directory called XYZ1234Lab1.zip, follow
these steps:
1.Create a folder called XYZ1234Lab1. {This should be the
same folder you created already that has your files in it.)
2.If not already done, copy to that folder all your solutions
(your answers file, all your C files, and any .txt files that were
required for input or output).
3.Zip that folder. On some Windows systems, you can zip a
folder by right-clicking on the folder, and then selecting Send
to->Compressed (zipped) folder. On Mac, go to the parent
directory of your Lab# directory in a Finder window, click on
your XYZ1234Lab# folder, then select Compress from the list
of file actions (under the gear icon).
4.Submit your zipped folder through your Canvas account at the
lab assignment. You click on the name of the assignment and
then it goes to the screen where you can upload your zipped

file. (Assignments are only accepted through Canvas.)

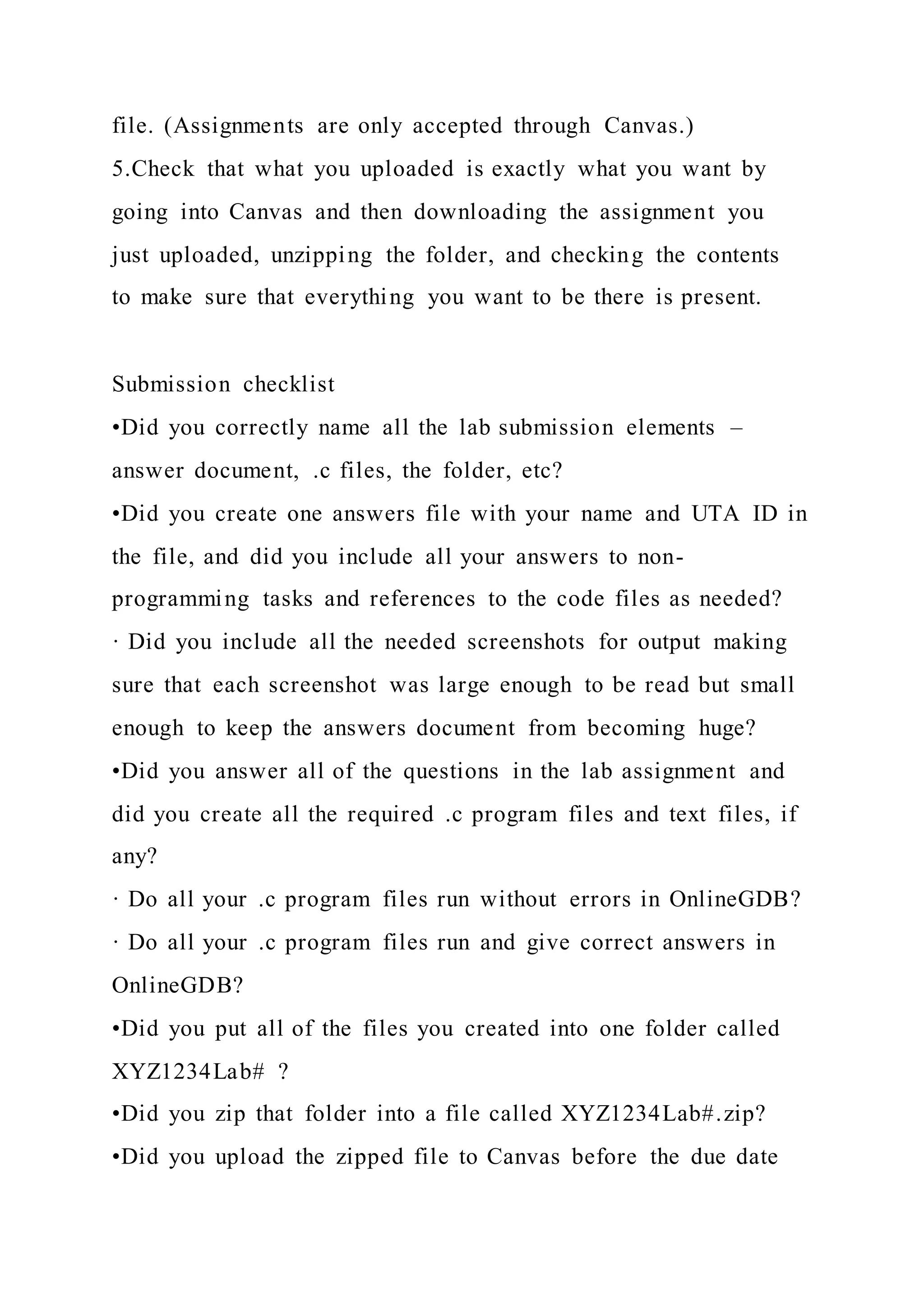

5.Check that what you uploaded is exactly what you want by
going into Canvas and then downloading the assignment you
just uploaded, unzipping the folder, and checking the contents
to make sure that everything you want to be there is present.
Submission checklist
•Did you correctly name all the lab submission elements –
answer document, .c files, the folder, etc?
•Did you create one answers file with your name and UTA ID in
the file, and did you include all your answers to non-
programming tasks and references to the code files as needed?
· Did you include all the needed screenshots for output making
sure that each screenshot was large enough to be read but small
enough to keep the answers document from becoming huge?
•Did you answer all of the questions in the lab assignment and
did you create all the required .c program files and text files, if
any?
· Do all your .c program files run without errors in OnlineGDB?
· Do all your .c program files run and give correct answers in
OnlineGDB?
•Did you put all of the files you created into one folder called
XYZ1234Lab# ?
•Did you zip that folder into a file called XYZ1234Lab#.zip?

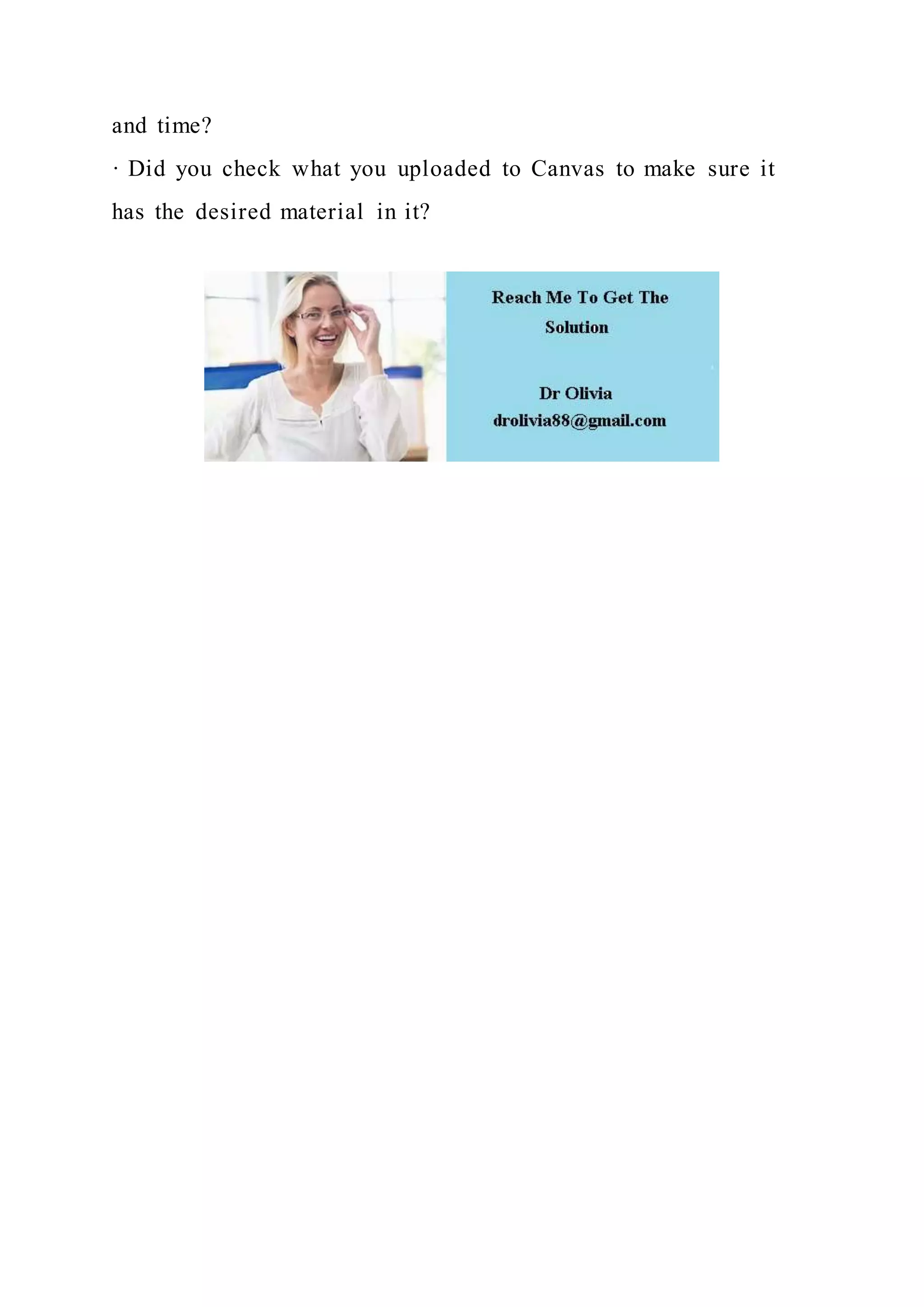

•Did you upload the zipped file to Canvas before the due date

and time?
· Did you check what you uploaded to Canvas to make sure it
has the desired material in it?

CSE 1310 – Spring 21Introduction to ProgrammingLab 4 Arrays and Func

Recommended

Recommended

More Related Content

Similar to CSE 1310 – Spring 21Introduction to ProgrammingLab 4 Arrays and Func

Similar to CSE 1310 – Spring 21Introduction to ProgrammingLab 4 Arrays and Func (20)

More from MargenePurnell14

More from MargenePurnell14 (20)

Recently uploaded

Recently uploaded (20)

CSE 1310 – Spring 21Introduction to ProgrammingLab 4 Arrays and Func
