1. Part 1: Non Relational Databases
Part 2: Collaborative Filtering
Simon Woodman
[s.j.woodman@ncl.ac.uk]

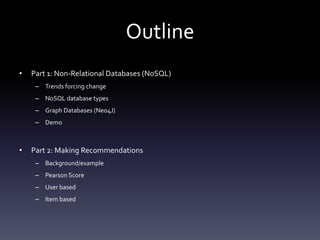

2. Outline
• Part 1: Non-Relational Databases (NoSQL)
– Trends forcing change
– NoSQL database types
– Graph Databases (Neo4J)
– Demo
• Part 2: Making Recommendations
– Background/example
– Pearson Score
– User based
– Item based

3. Credit: http://ecogreenliving.net/

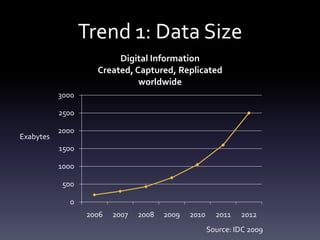

4. Trend 1: Data Size
Digital Information
Created, Captured, Replicated
worldwide
3000
2500
2000
Exabytes
1500
1000
500
0
2006 2007 2008 2009 2010 2011 2012
Source: IDC 2009

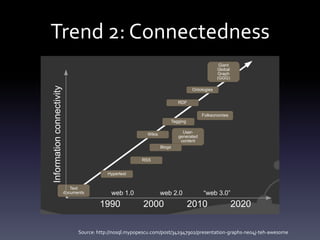

5. Trend 2: Connectedness
Trend 2: connectedness
Giant
Global
Graph
(GGG)
Information connectivity
Ontologies
RDF
Folksonomies
Tagging
Wikis User-
generated
content
Blogs
RSS
Hypertext
Text
documents web 1.0 web 2.0 “web 3.0”
1990 2000 2010 2020
Source: http://nosql.mypopescu.com/post/342947902/presentation-graphs-neo4j-teh-awesome

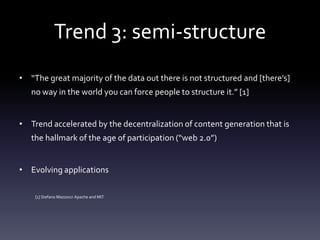

6. Trend 3: semi-structure
• “The great majority of the data out there is not structured and [there’s]
no way in the world you can force people to structure it.” [1]
• Trend accelerated by the decentralization of content generation that is
the hallmark of the age of participation (“web 2.0”)
• Evolving applications
[1] Stefano Mazzocci Apache and MIT

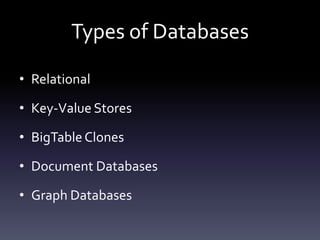

7. Types of Databases
• Relational
• Key-Value Stores
• BigTable Clones
• Document Databases
• Graph Databases

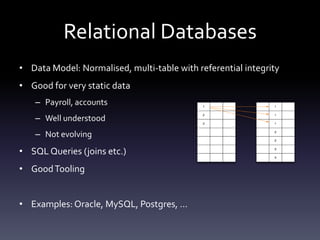

8. Relational Databases
• Data Model: Normalised, multi-table with referential integrity
• Good for very static data
– Payroll, accounts
– Well understood
– Not evolving
• SQL Queries (joins etc.)
• Good Tooling
• Examples: Oracle, MySQL, Postgres, …

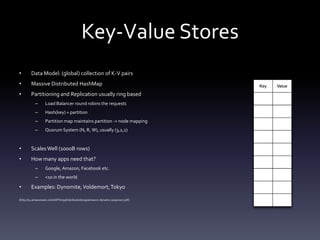

9. Key-Value Stores
• Data Model: (global) collection of K-V pairs
• Massive Distributed HashMap
• Partitioning and Replication usually ring based
– Load Balancer round robins the requests
– Hash(key) = partition
– Partition map maintains partition -> node mapping
– Quorum System (N, R, W), usually (3,2,2)
• Scales Well (1000B rows)
• How many apps need that?
– Google, Amazon, Facebook etc.
– <10 in the world
• Examples: Dynomite, Voldemort, Tokyo
[http://s3.amazonaws.com/AllThingsDistributed/sosp/amazon-dynamo-sosp2007.pdf]

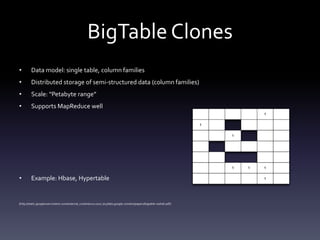

10. BigTable Clones
• Data model: single table, column families
• Distributed storage of semi-structured data (column families)
• Scale: “Petabyte range”
• Supports MapReduce well
• Example: Hbase, Hypertable
[http://static.googleusercontent.com/external_content/untrusted_dlcp/labs.google.com/en//papers/bigtable-osdi06.pdf]

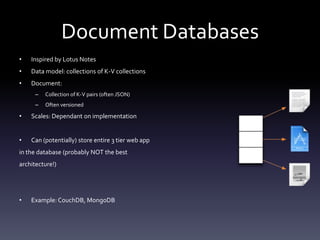

11. Document Databases
• Inspired by Lotus Notes
• Data model: collections of K-V collections
• Document:
– Collection of K-V pairs (often JSON)
– Often versioned
• Scales: Dependant on implementation
• Can (potentially) store entire 3 tier web app
in the database (probably NOT the best
architecture!)
• Example: CouchDB, MongoDB

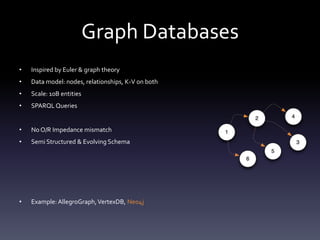

12. Graph Databases
• Inspired by Euler & graph theory
• Data model: nodes, relationships, K-V on both
• Scale: 10B entities
• SPARQL Queries
• No O/R Impedance mismatch
• Semi Structured & Evolving Schema
• Example: AllegroGraph, VertexDB, Neo4j

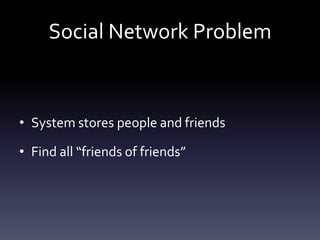

13. Social Network Problem
• System stores people and friends
• Find all “friends of friends”

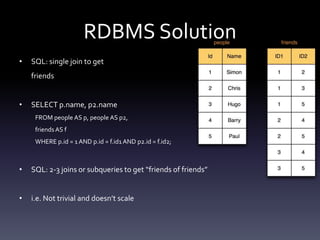

14. RDBMS Solution
• SQL: single join to get
friends
• SELECT p.name, p2.name
FROM people AS p, people AS p2,
friends AS f
WHERE p.id = 1 AND p.id = f.id1 AND p2.id = f.id2;
• SQL: 2-3 joins or subqueries to get “friends of friends”
• i.e. Not trivial and doesn’t scale

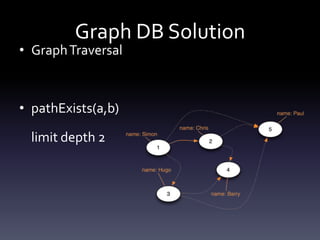

15. Graph DB Solution
• Graph Traversal
• pathExists(a,b)
limit depth 2

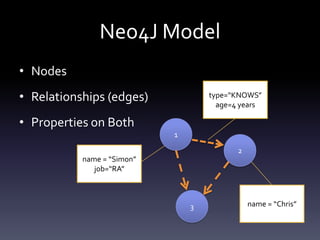

16. Neo4J Model
• Nodes
• Relationships (edges) type=“KNOWS”
age=4 years
• Properties on Both
1
2
name = “Simon”
job=“RA”
3 name = “Chris”

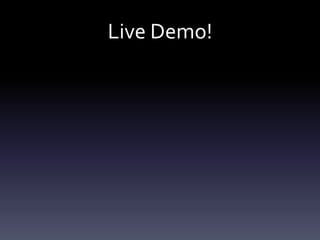

17. Live Demo!

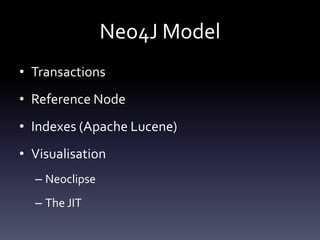

18. Neo4J Model
• Transactions
• Reference Node
• Indexes (Apache Lucene)
• Visualisation
– Neoclipse
– The JIT

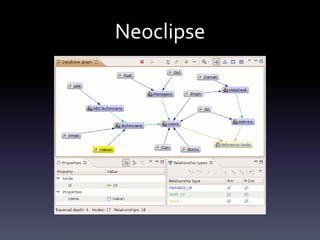

19. Neoclipse

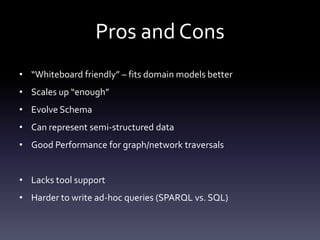

20. Pros and Cons
• “Whiteboard friendly” – fits domain models better
• Scales up “enough”
• Evolve Schema
• Can represent semi-structured data
• Good Performance for graph/network traversals
• Lacks tool support
• Harder to write ad-hoc queries (SPARQL vs. SQL)

21. Important Reminders
• Other options exist apart from the Relational
Database
• Fit the technology to the domain model, not the
domain model to the technology

22. Questions?
• http://neo4j.org/
• Some material from
[http://nosql.mypopescu.com/post/342947902/
presentation-graphs-neo4j-teh-awesome]

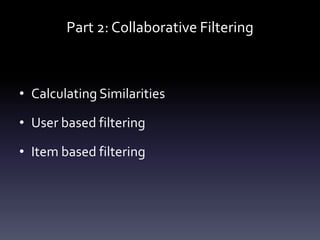

23. Part 2: Collaborative Filtering
• Calculating Similarities
• User based filtering
• Item based filtering

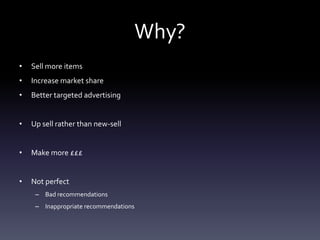

26. Why?
• Sell more items
• Increase market share
• Better targeted advertising
• Up sell rather than new-sell
• Make more £££
• Not perfect
– Bad recommendations
– Inappropriate recommendations

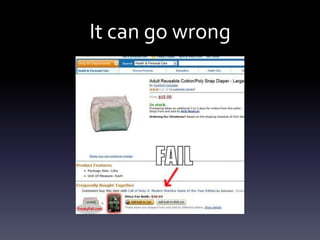

27. It can go wrong

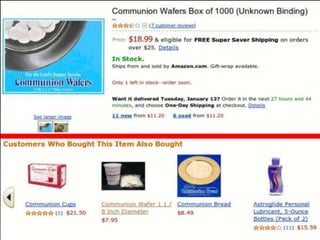

28. It will go wrong

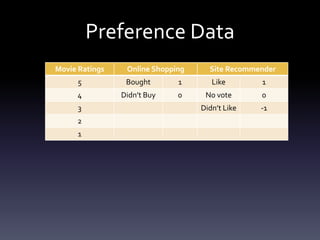

29. Preference Data
Movie Ratings Online Shopping Site Recommender
5 Bought 1 Like 1
4 Didn’t Buy 0 No vote 0
3 Didn’t Like -1
2
1

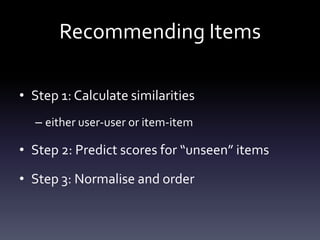

30. Recommending Items
• Step 1: Calculate similarities
– either user-user or item-item
• Step 2: Predict scores for “unseen” items
• Step 3: Normalise and order

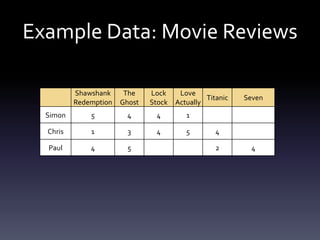

31. Example Data: Movie Reviews
Shawshank The Lock Love
Titanic Seven
Redemption Ghost Stock Actually
Simon 5 4 4 1
Chris 1 3 4 5 4
Paul 4 5 2 4

32. Calculating Similarity
• Method 1: Euclidian Distance Score
• Compare Common Rankings
• n-dimensional preference space
• Score 0 – 1
• 1 = Identical
• 0 = Highly dissimilar

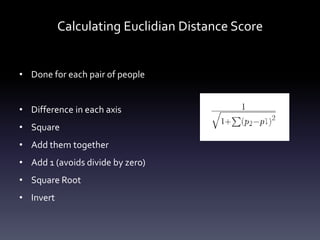

33. Calculating Euclidian Distance Score
• Done for each pair of people
• Difference in each axis
• Square
• Add them together
• Add 1 (avoids divide by zero)
• Square Root
• Invert

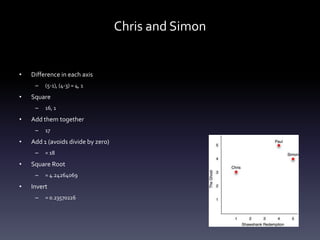

34. Chris and Simon
• Difference in each axis
– (5-1), (4-3) = 4, 1
• Square
– 16, 1
• Add them together
– 17
• Add 1 (avoids divide by zero)
– = 18
• Square Root
– = 4.24264069
• Invert
– = 0.23570226

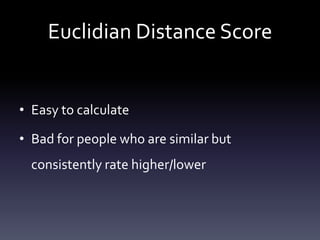

35. Euclidian Distance Score
• Easy to calculate
• Bad for people who are similar but
consistently rate higher/lower

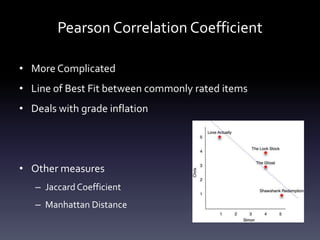

36. Pearson Correlation Coefficient
• More Complicated
• Line of Best Fit between commonly rated items
• Deals with grade inflation
• Other measures
– Jaccard Coefficient
– Manhattan Distance

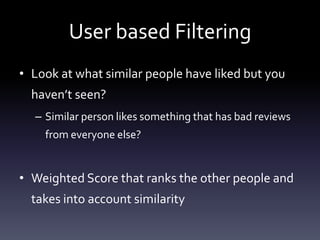

37. User based Filtering
• Look at what similar people have liked but you
haven’t seen?
– Similar person likes something that has bad reviews
from everyone else?
• Weighted Score that ranks the other people and
takes into account similarity

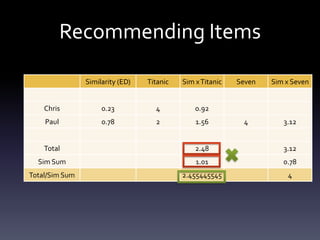

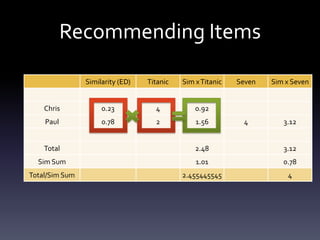

38. Recommending Items
Similarity (ED) Titanic Sim x Titanic Seven Sim x Seven
Chris 0.23 4 0.92
Paul 0.78 2 1.56 4 3.12
Total 2.48 3.12
Sim Sum 1.01 0.78
Total/Sim Sum 2.455445545 4

39. Recommending Items
Similarity (ED) Titanic Sim x Titanic Seven Sim x Seven
Chris 0.23 4 0.92
Paul 0.78 2 1.56 4 3.12
Total 2.48 3.12
Sim Sum 1.01 0.78
Total/Sim Sum 2.455445545 4

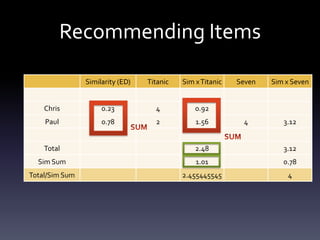

40. Recommending Items
Similarity (ED) Titanic Sim x Titanic Seven Sim x Seven
Chris 0.23 4 0.92
Paul 0.78 2 1.56 4 3.12
Total 2.48 3.12
Sim Sum 1.01 0.78
Total/Sim Sum 2.455445545 4

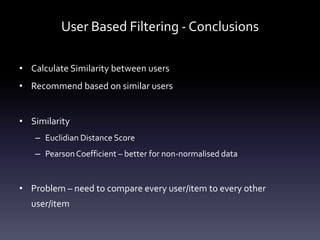

41. User Based Filtering - Conclusions
• Calculate Similarity between users
• Recommend based on similar users
• Similarity
– Euclidian Distance Score
– Pearson Coefficient – better for non-normalised data
• Problem – need to compare every user/item to every other
user/item

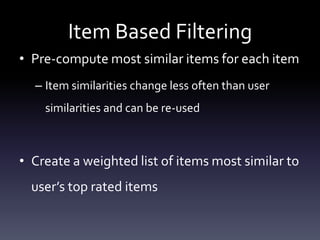

42. Item Based Filtering
• Pre-compute most similar items for each item
– Item similarities change less often than user
similarities and can be re-used
• Create a weighted list of items most similar to
user’s top rated items

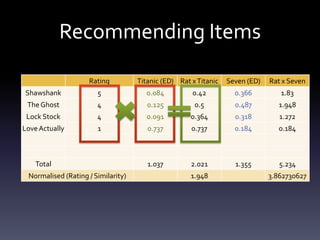

43. Recommending Items
Rating Titanic (ED) Rat x Titanic Seven (ED) Rat x Seven
Shawshank 5 0.084 0.42 0.366 1.83
The Ghost 4 0.125 0.5 0.487 1.948
Lock Stock 4 0.091 0.364 0.318 1.272
Love Actually 1 0.737 0.737 0.184 0.184
Total 1.037 2.021 1.355 5.234
Normalised (Rating / Similarity) 1.948 3.862730627

44. Recommending Items
Rating Titanic (ED) Rat x Titanic Seven (ED) Rat x Seven
Shawshank 5 0.084 0.42 0.366 1.83
The Ghost 4 0.125 0.5 0.487 1.948
Lock Stock 4 0.091 0.364 0.318 1.272
Love Actually 1 0.737 0.737 0.184 0.184
Total 1.037 2.021 1.355 5.234
Normalised (Rating / Similarity) 1.948 3.862730627

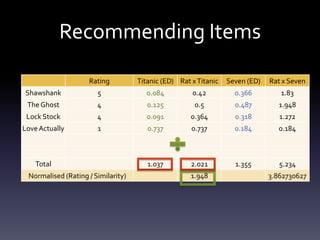

45. Recommending Items
Rating Titanic (ED) Rat x Titanic Seven (ED) Rat x Seven
Shawshank 5 0.084 0.42 0.366 1.83
The Ghost 4 0.125 0.5 0.487 1.948
Lock Stock 4 0.091 0.364 0.318 1.272
Love Actually 1 0.737 0.737 0.184 0.184
Total 1.037 2.021 1.355 5.234
Normalised (Rating / Similarity) 1.948 3.862730627

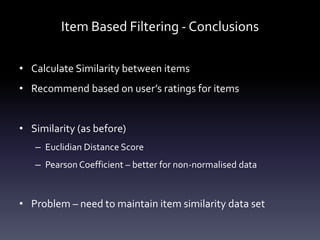

46. Item Based Filtering - Conclusions
• Calculate Similarity between items
• Recommend based on user’s ratings for items
• Similarity (as before)
– Euclidian Distance Score
– Pearson Coefficient – better for non-normalised data
• Problem – need to maintain item similarity data set

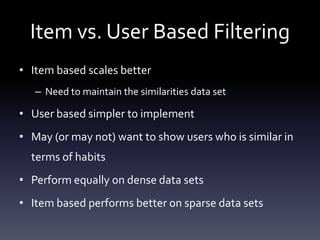

47. Item vs. User Based Filtering
• Item based scales better
– Need to maintain the similarities data set
• User based simpler to implement
• May (or may not) want to show users who is similar in
terms of habits
• Perform equally on dense data sets
• Item based performs better on sparse data sets

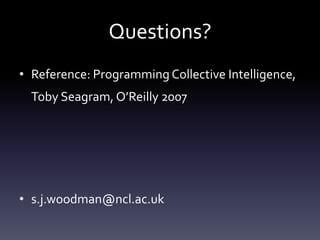

48. Questions?
• Reference: Programming Collective Intelligence,
Toby Seagram, O’Reilly 2007
• s.j.woodman@ncl.ac.uk
